D-Alu Suspension for KE-Interior System

DA-0003-GB-05

Sam ling D-alu skinner

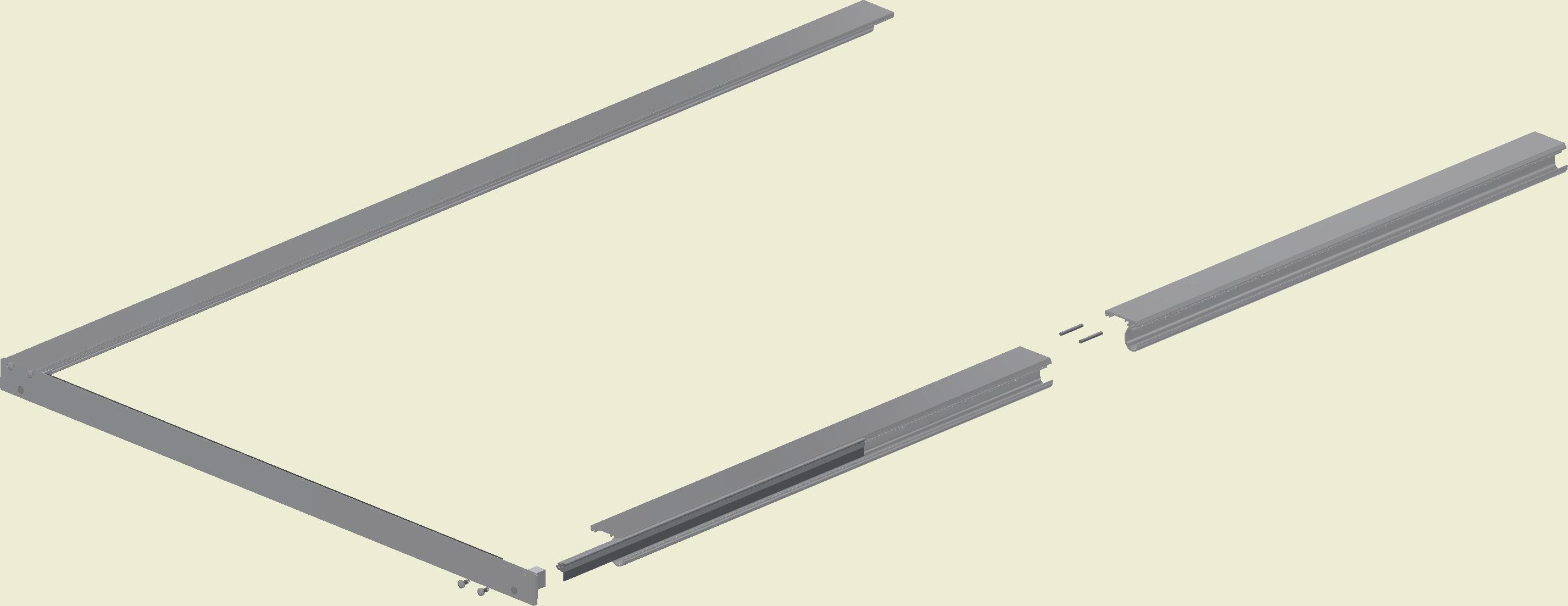

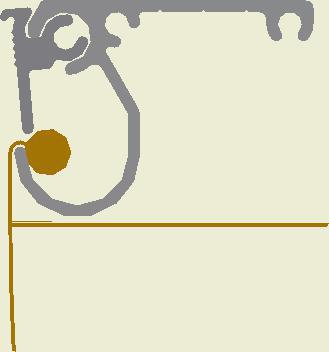

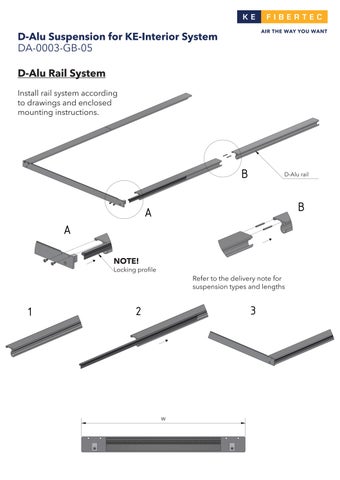

D-Alu Rail System

Sæt skinner op efter tegninger og montagevejledninger medleveret systemet

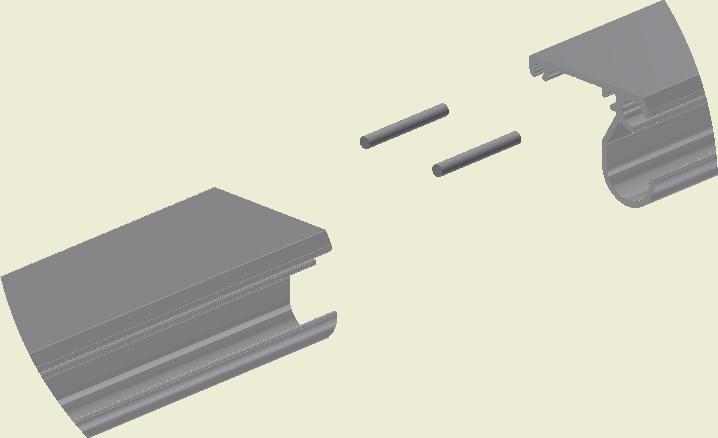

Install rail system according to drawings and enclosed mounting instructions.

! VI GTIGT !

NOTE!

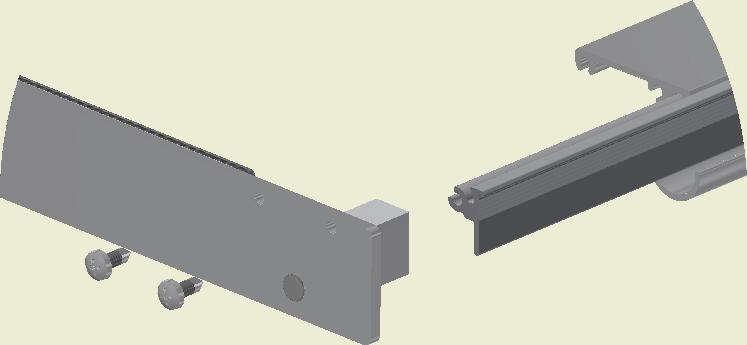

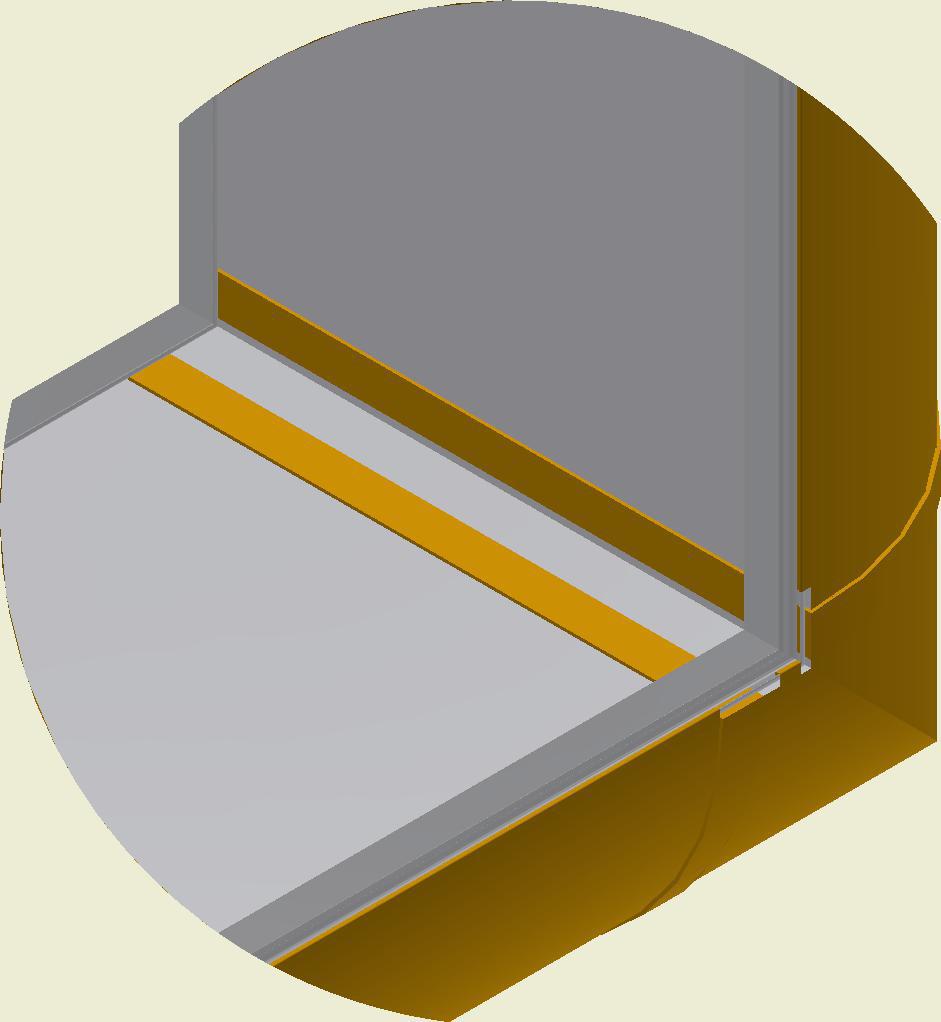

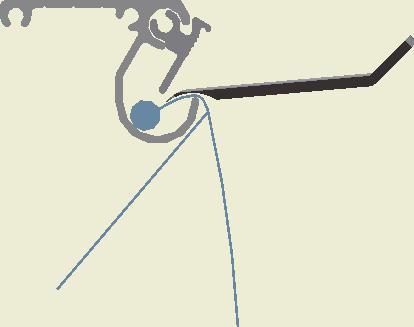

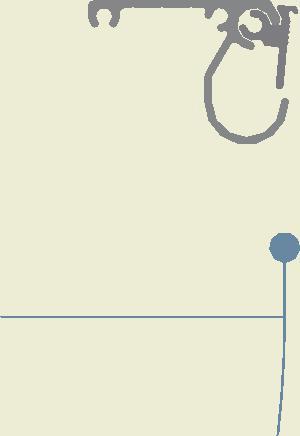

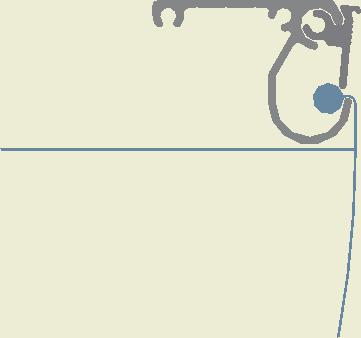

Locking profile

Låse-profil

1 2

Se i følgesedlen hvilke typer skinne og længder der skal være med til dette System

Refer to the delivery note for suspension types and lengths

3

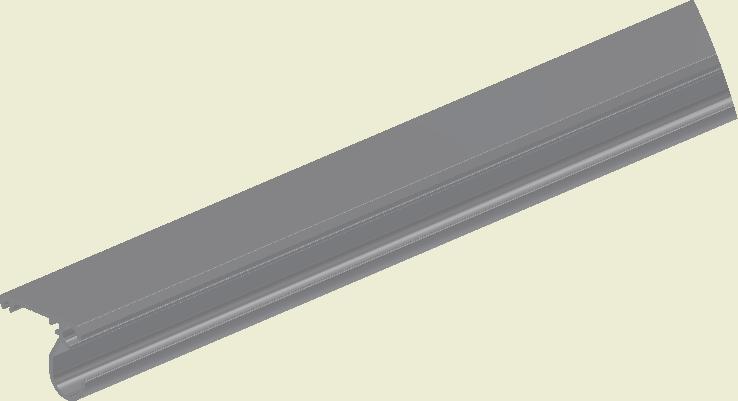

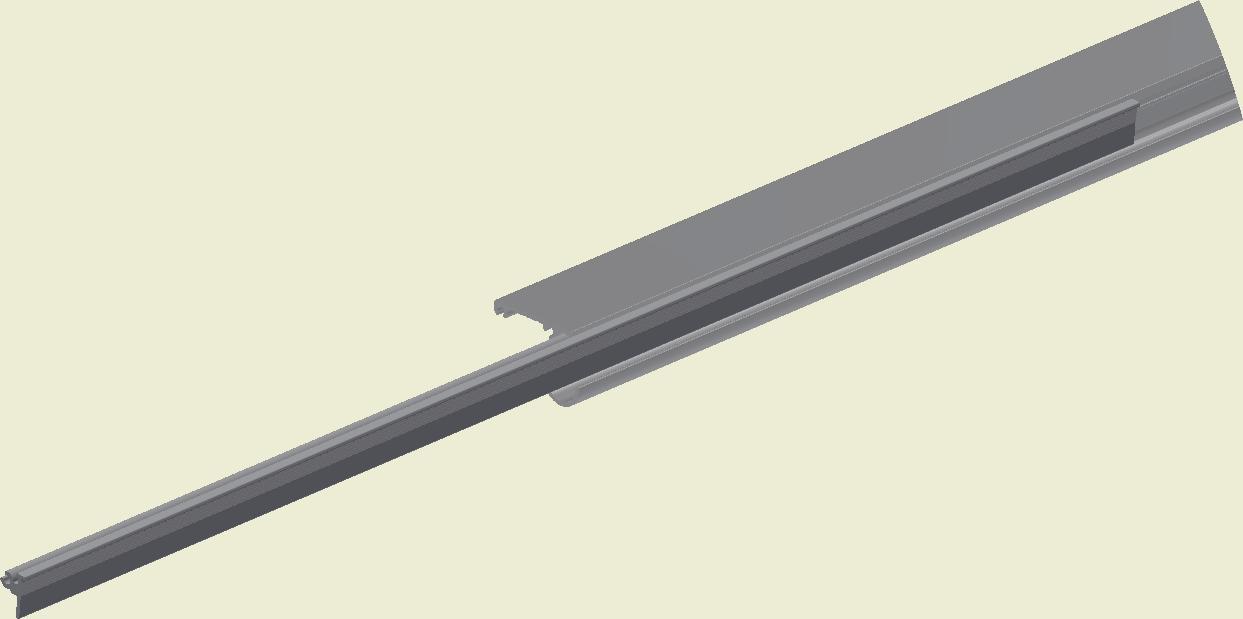

D-alu skinne

D-Alu rail

D-Alu

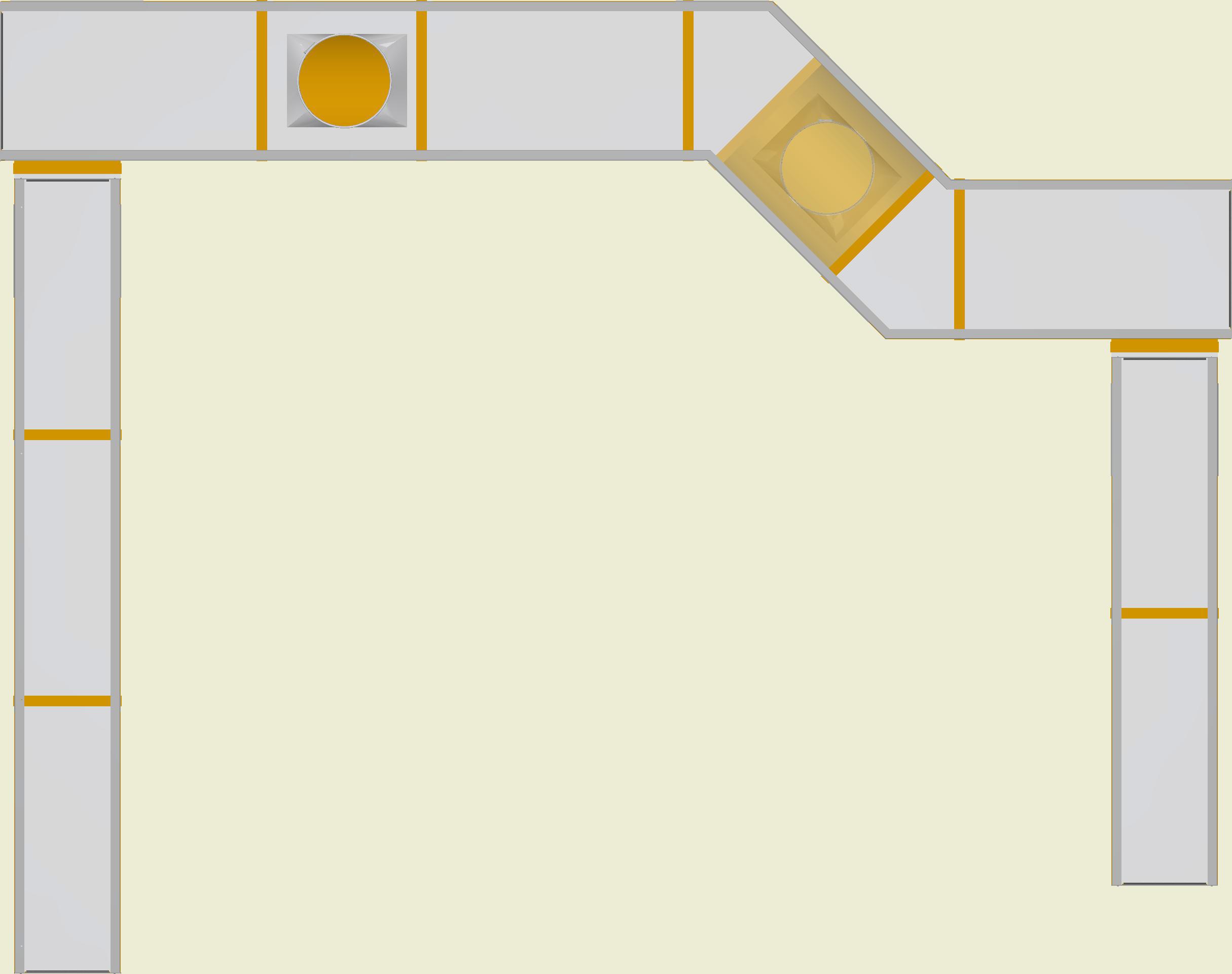

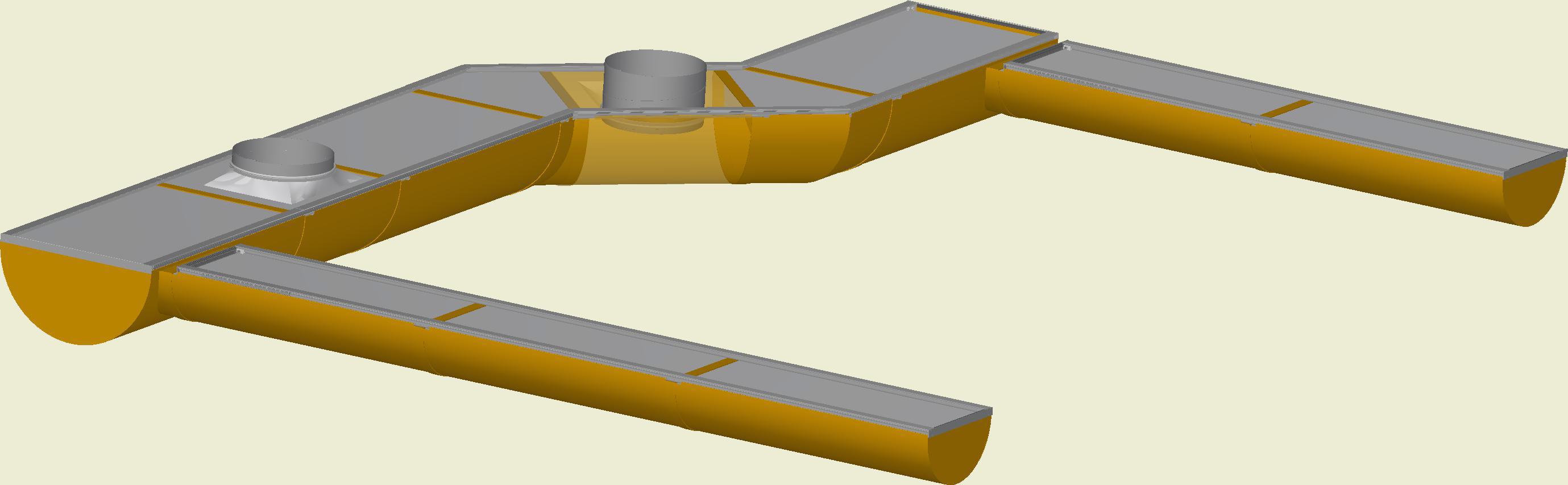

for KE-Interior System (Straight Duct)

L = Duct length

LS = Length socket

L = Pose længde

Ø = Socket diameter

LS = Længde studs

H = Height

W = Width

Ø = Studs Diameter

O = Offset

H = Højde

W = Bredde

A = Distance socket 1

O = Forsætning

A = Afstand studs 1

B = Afstand studs 2 DA-0004-DK-05

B = Distance socket 2 Min. 100 mm to wall Drill hole for installation of rail. Screws not included

B

Passende hul laves til montageskrue til lofttypen ikke incl.

1 2 3

A

B

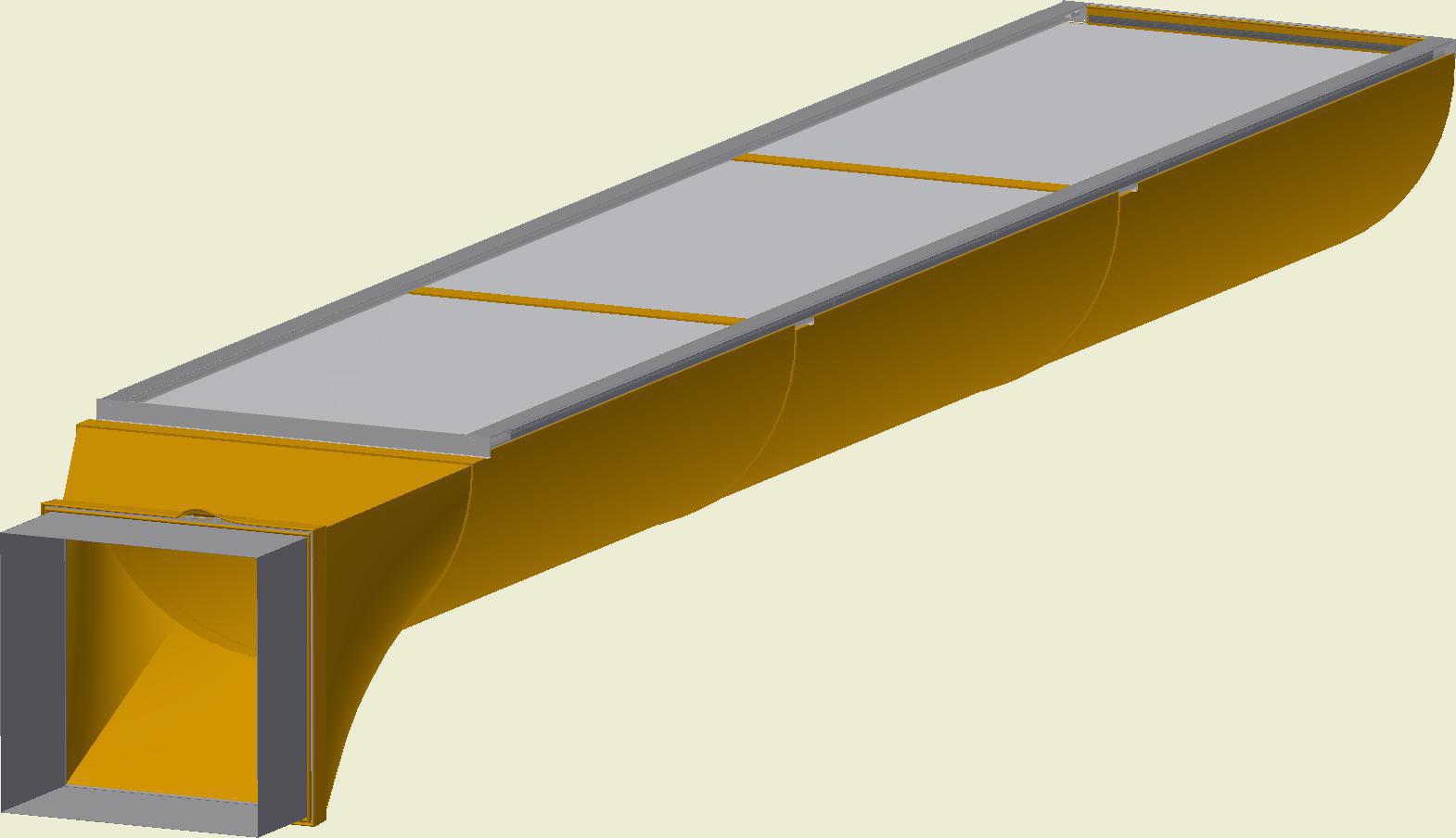

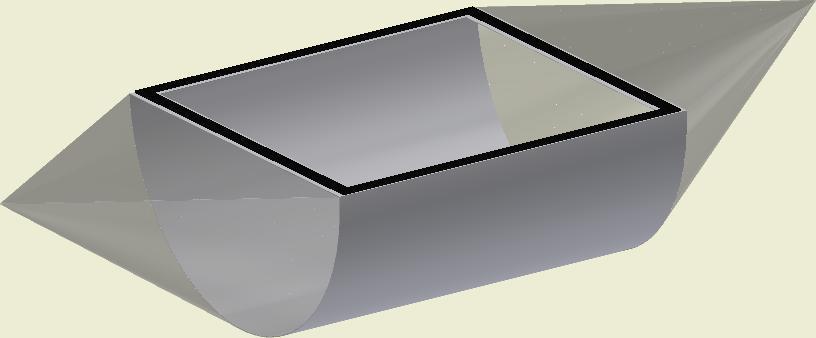

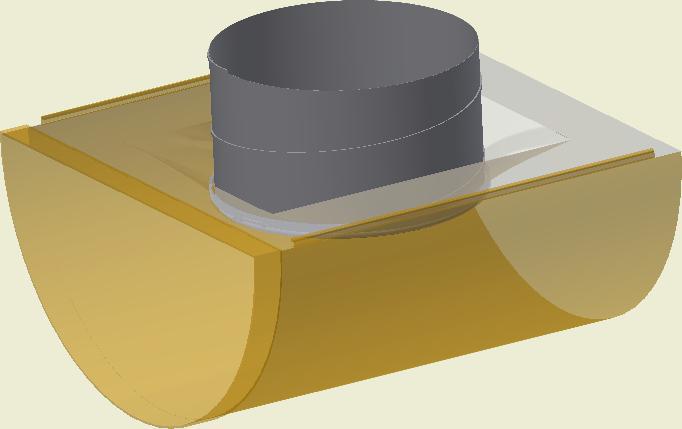

D-Alu for KE-Interior System (Inlet Options)

L = Duct length

L = Pose længde

LS = Length socket

LS = Længde Studs

Ø = Studs Diameter

Ø = Socket diameter

H = Højde

H = Height

W = Bredde

W = Width

O = Forsætning

O = Offset

A = Afstand studs 1

A = Distance socket 1

B = Afstand studs 2

B = Distance socket 2

DA-0006-DK-05

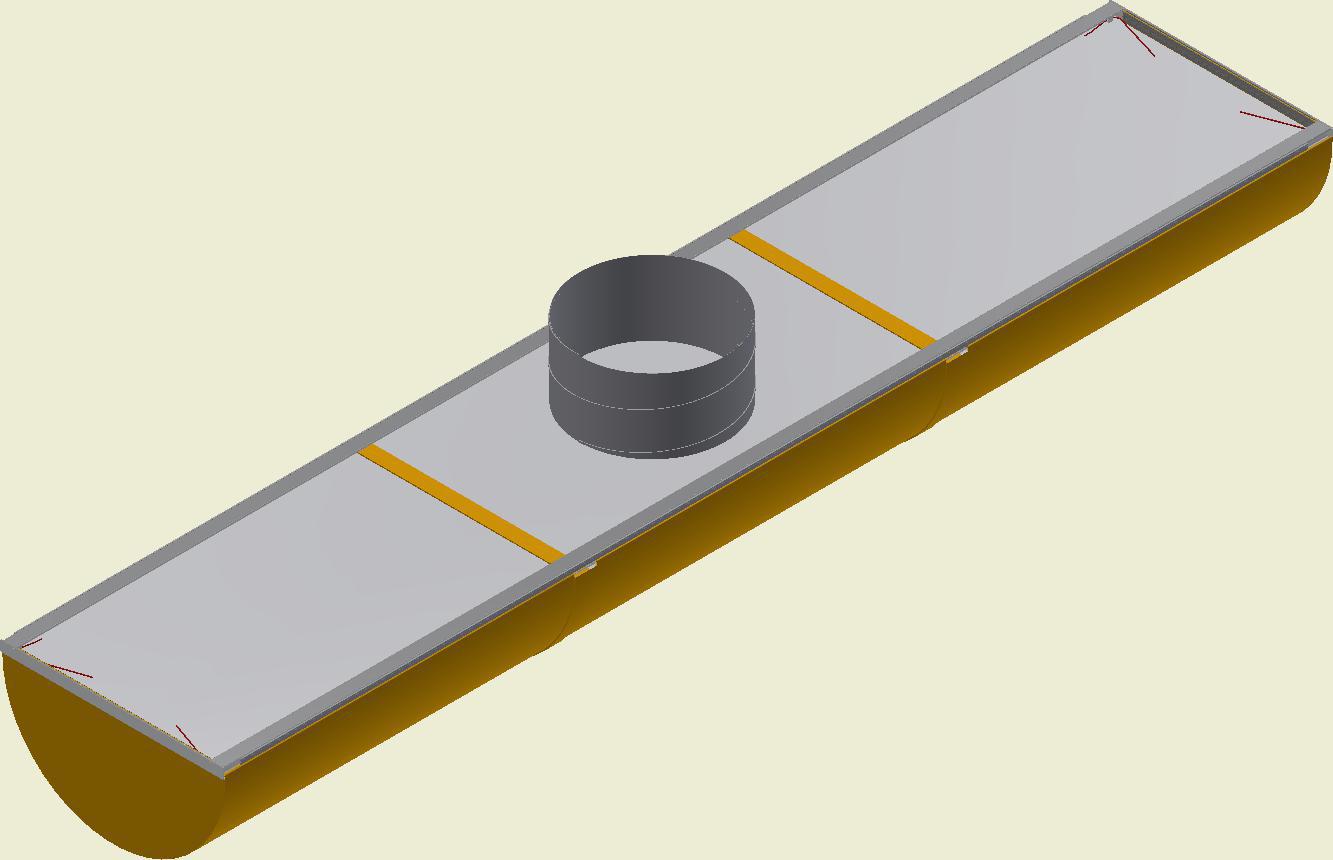

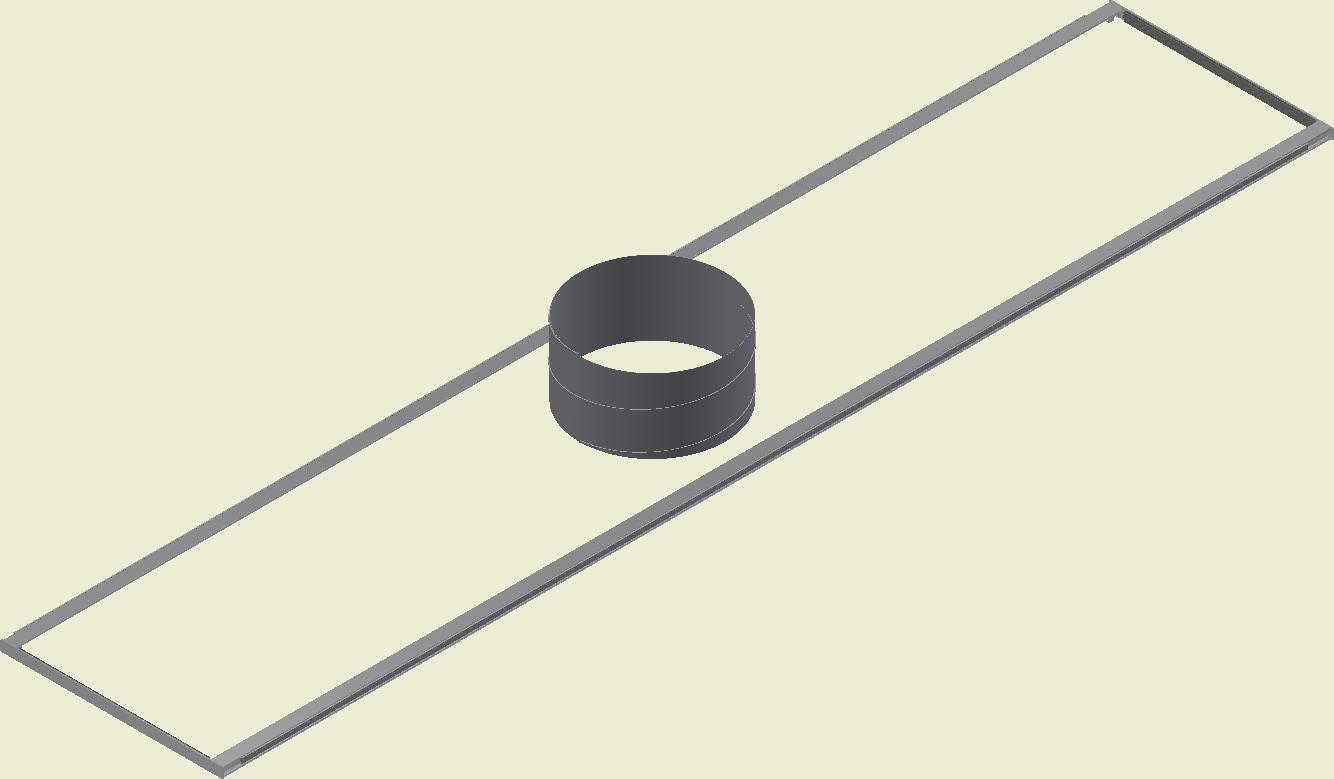

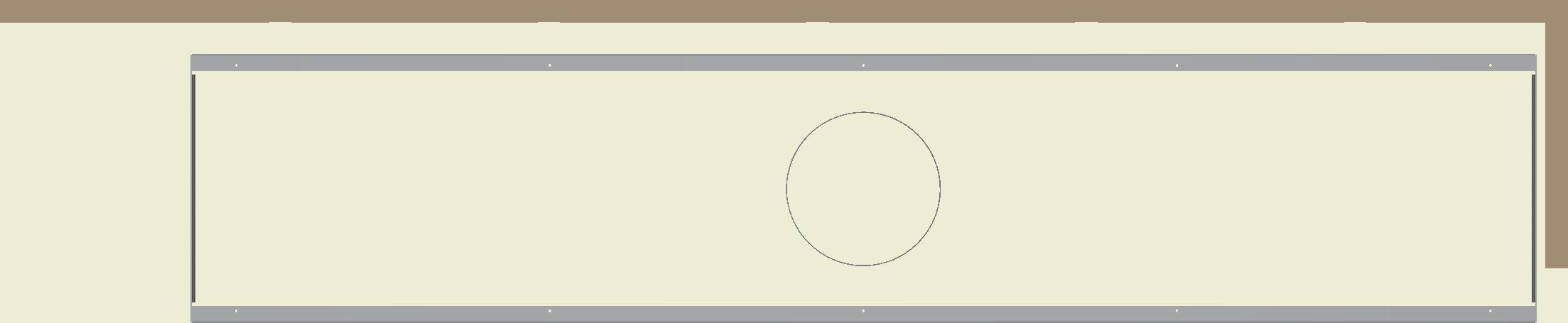

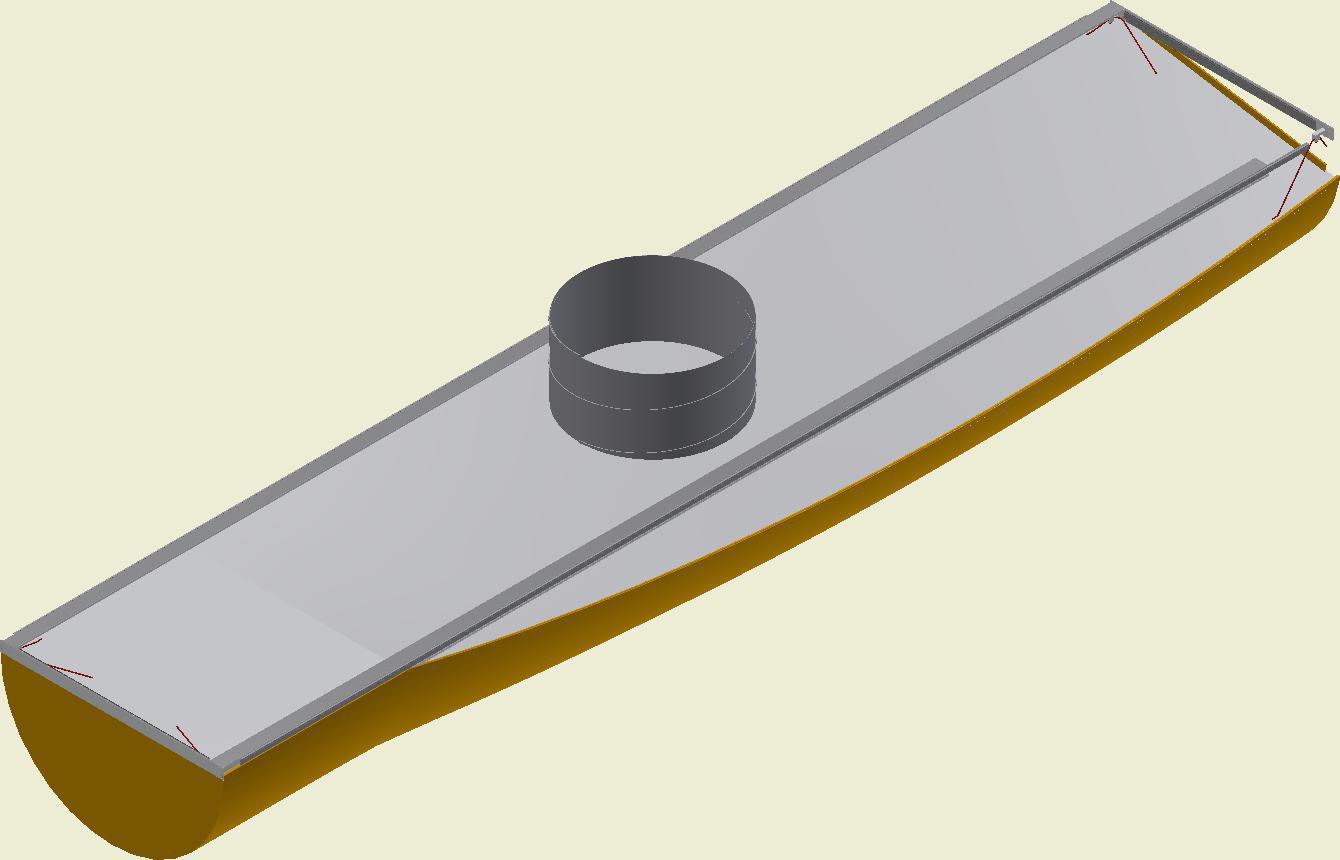

D-Alu Suspension for KE-Interior System (Plenum)

DA-0006-GB-05

D-Alu pose montage udvidet

L = Duct length

L = Pose længde

LS = Length socket

LS = L ængde Studs

Ø = Studs Diameter

Ø = Socket diameter

H = Højde

H = Height

W = Bredde

W = Width

O = Offset

O = Forsætning

A = Afstand studs 1

A = Distance socket 1

B = Afstand studs 2

B = Distance socket 2

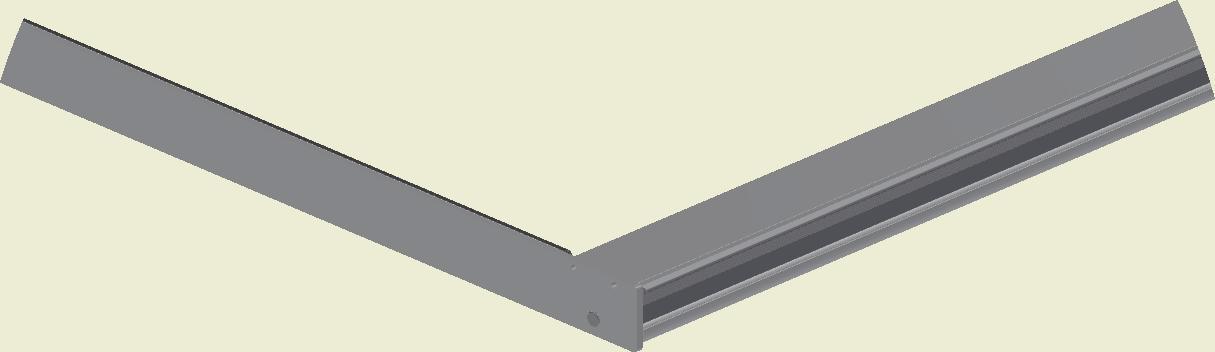

No joining pins for elbows. The rail section immediately before and after the elbow must be fastened to the ceiling with min. 2 screws.

Ingen montage stifter ved knæk. Sidste skinne før og efter knæk monteres med min. 2 skruer..

LS+20 mm

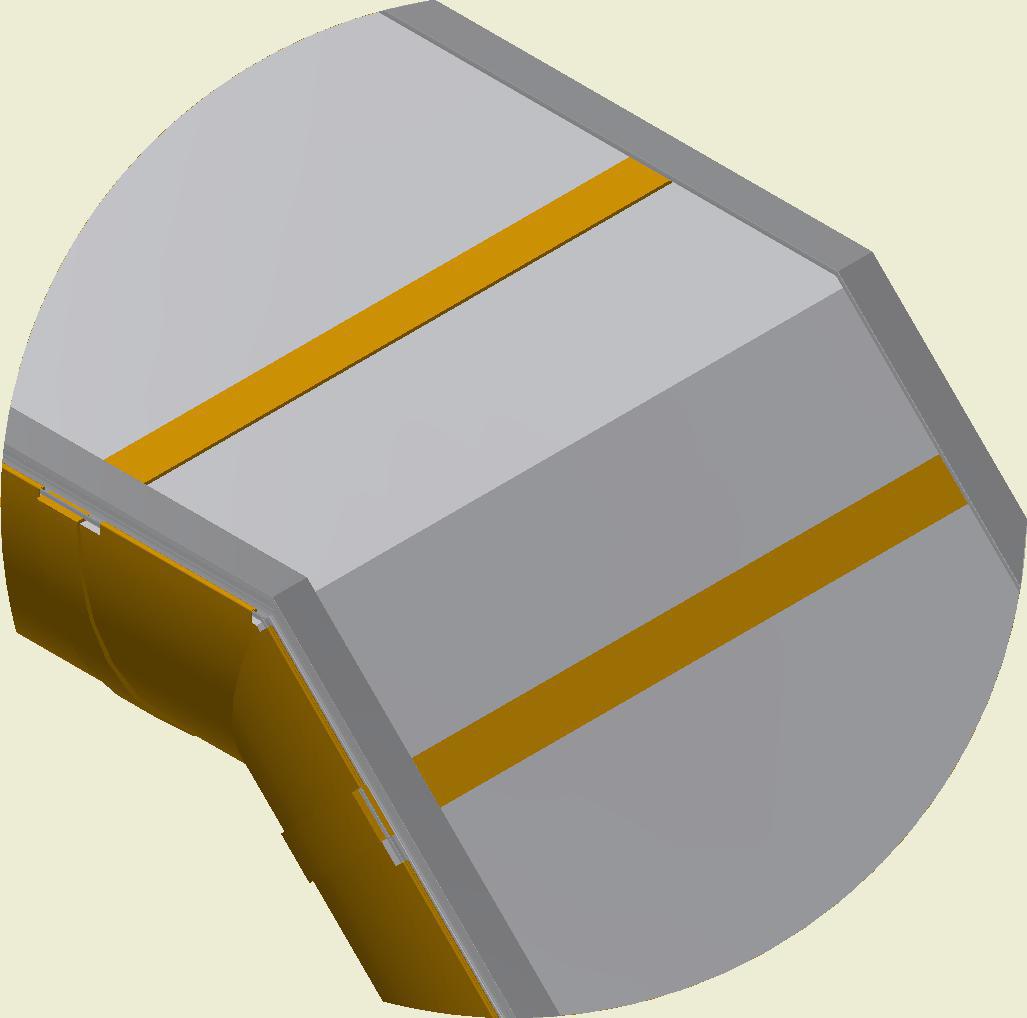

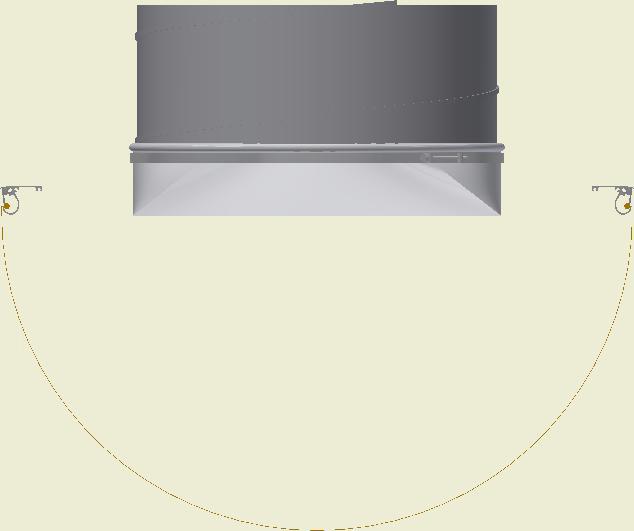

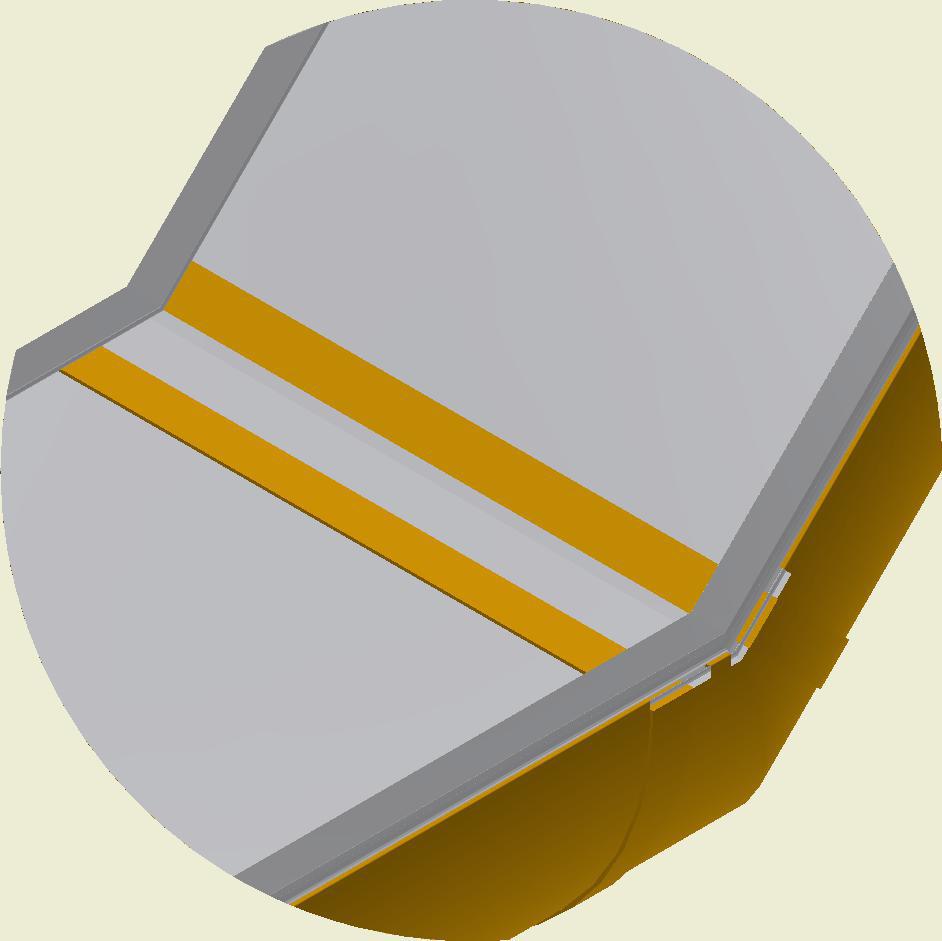

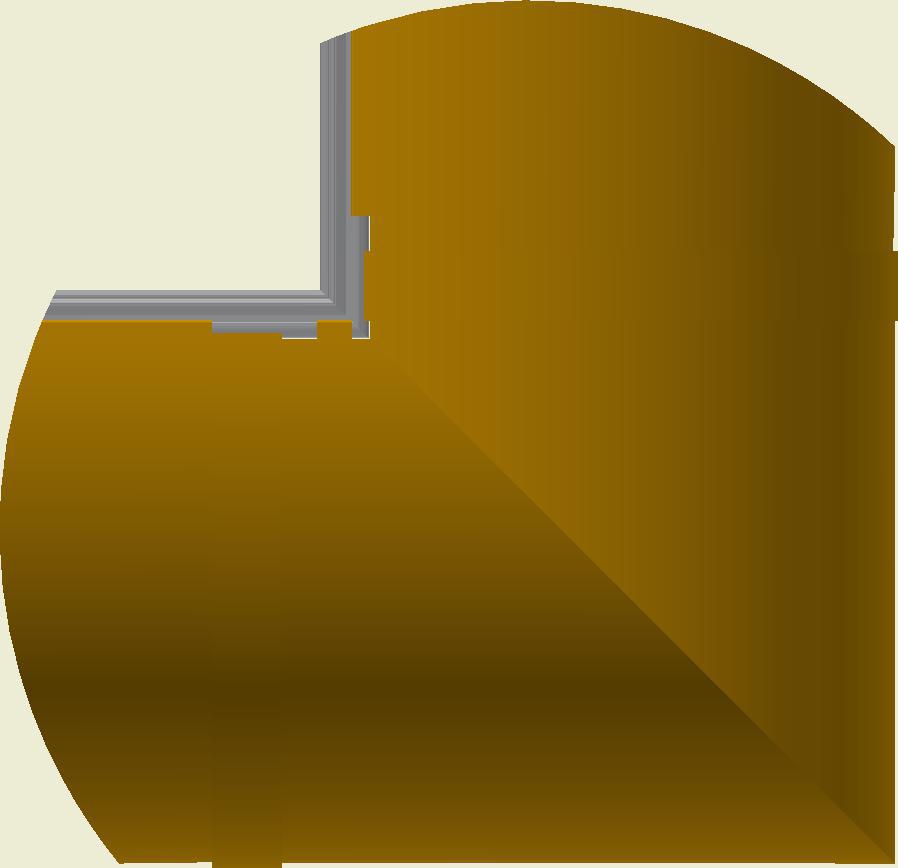

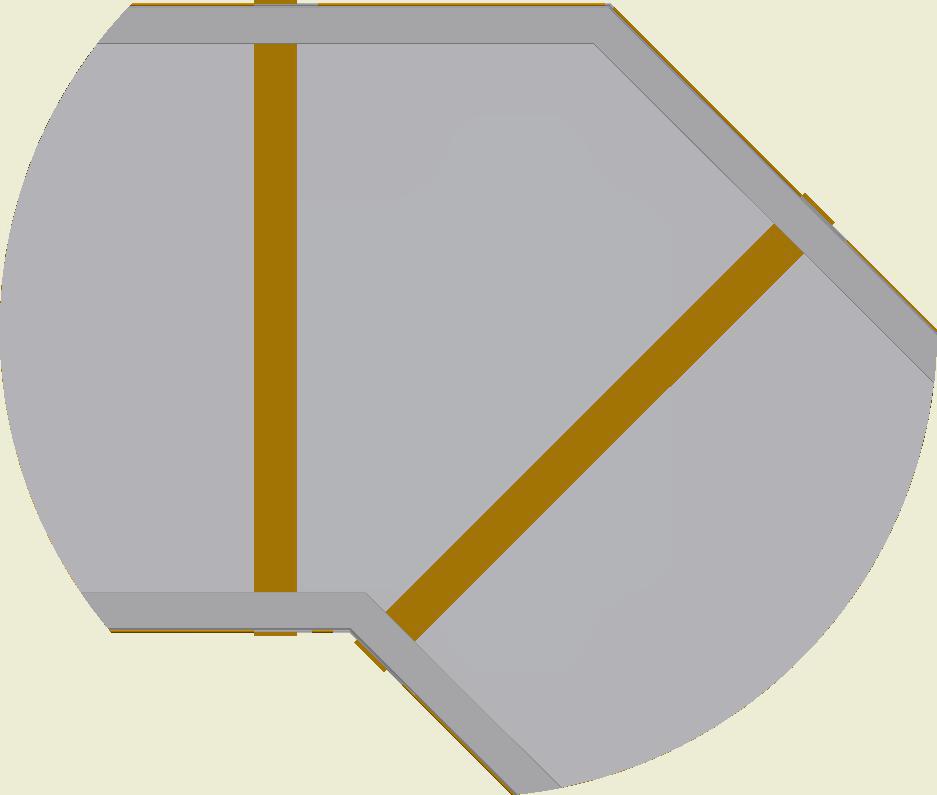

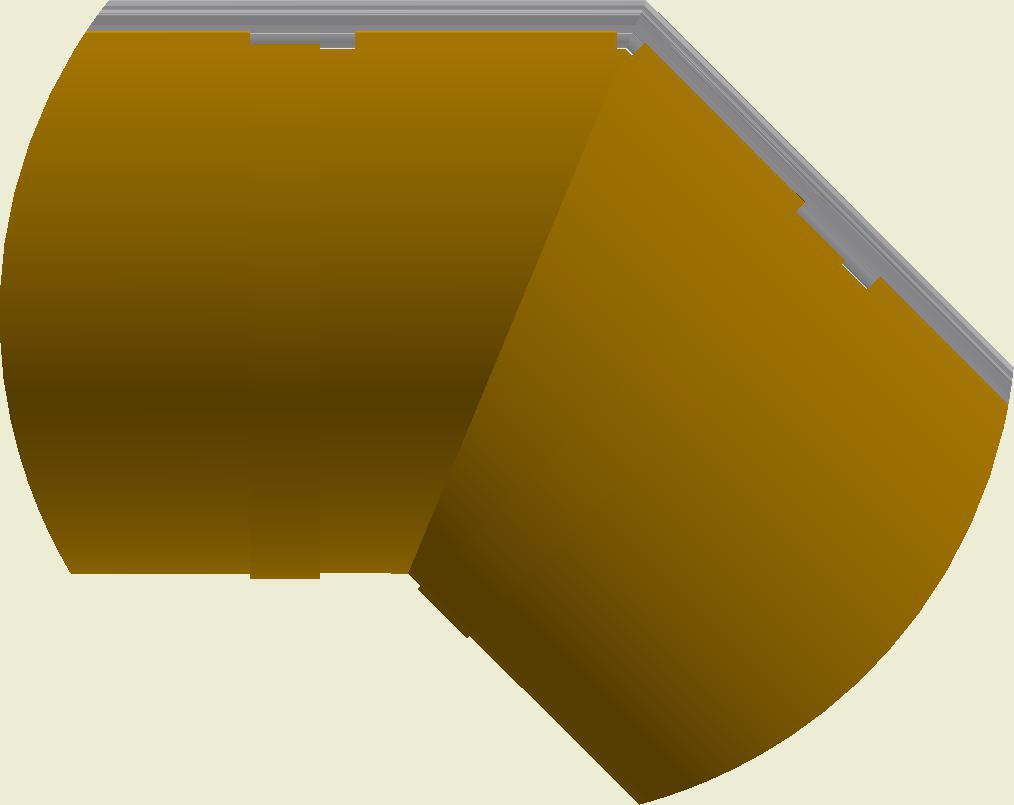

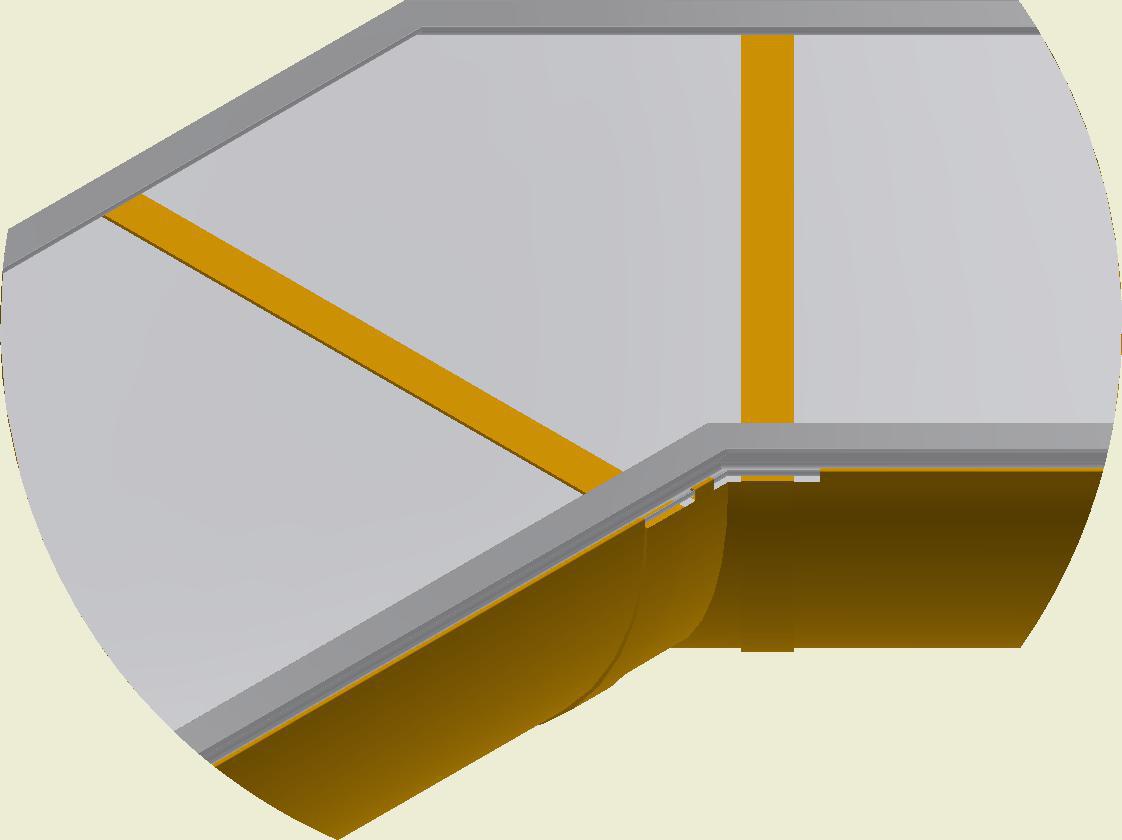

D-Alu Suspension for KE-Interior System (Elbow)

DA-0007-GB-05

DA-0007-DK-05

See delivery note for specific angle

DA-0008- DK-05

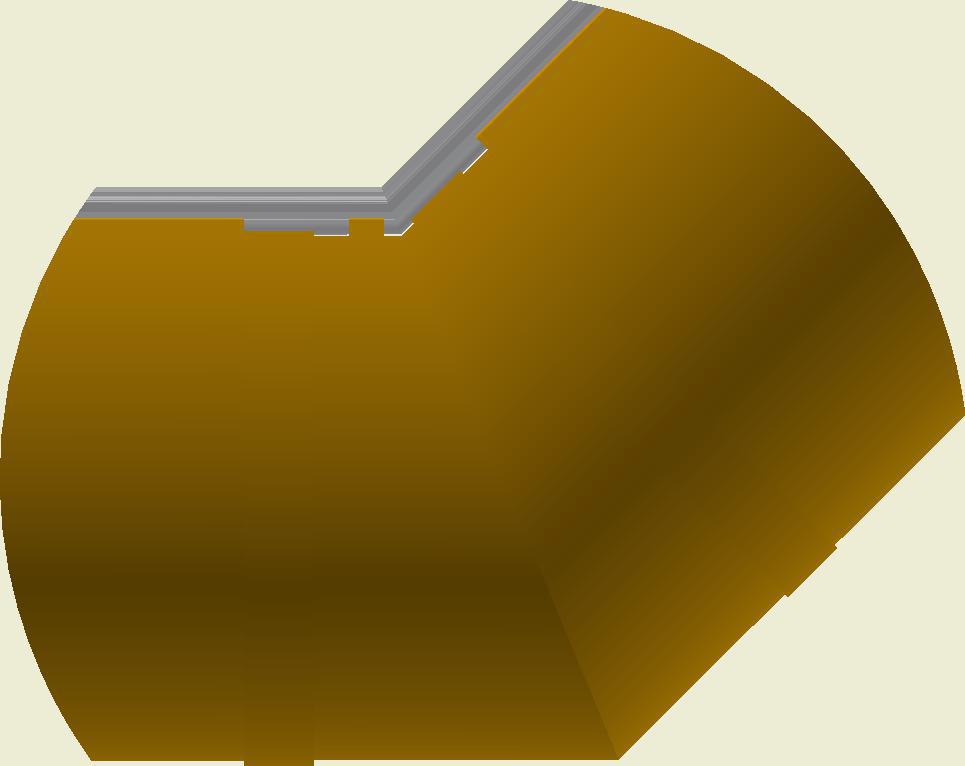

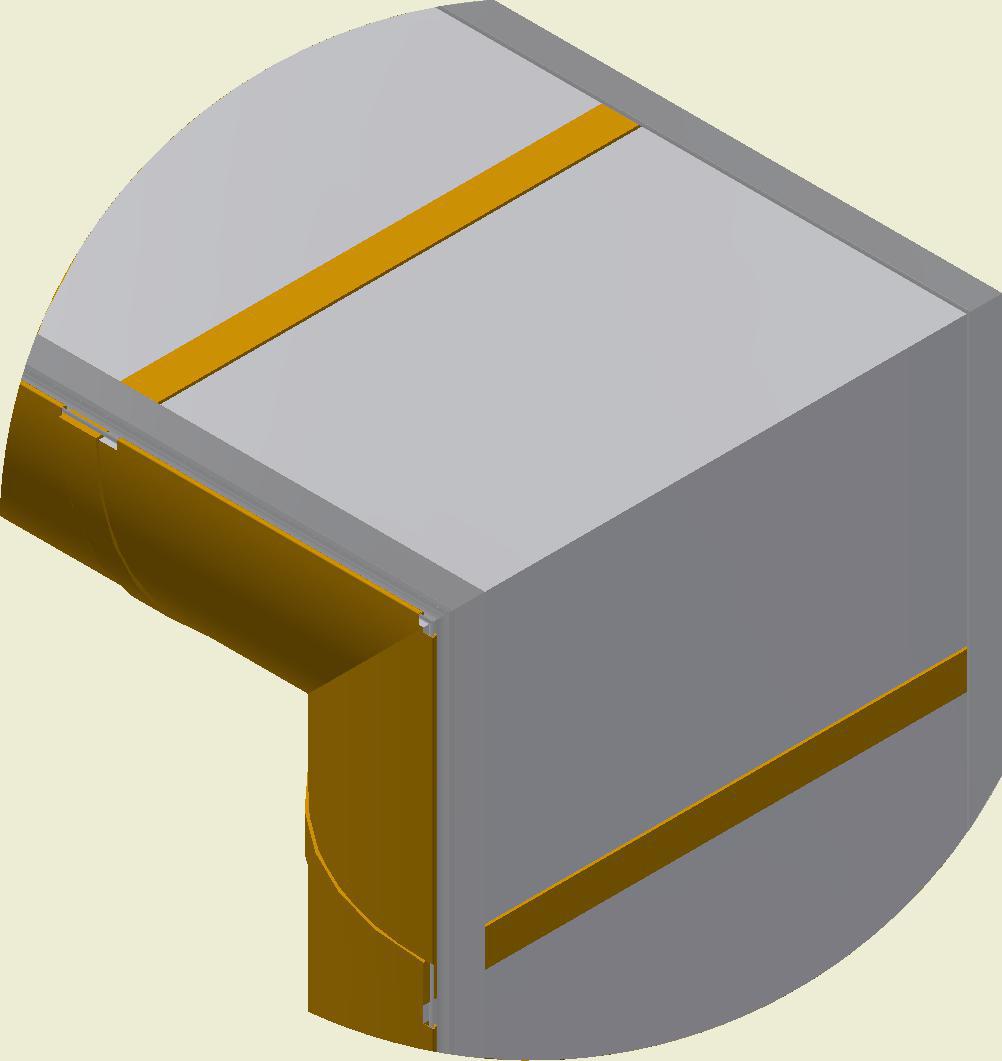

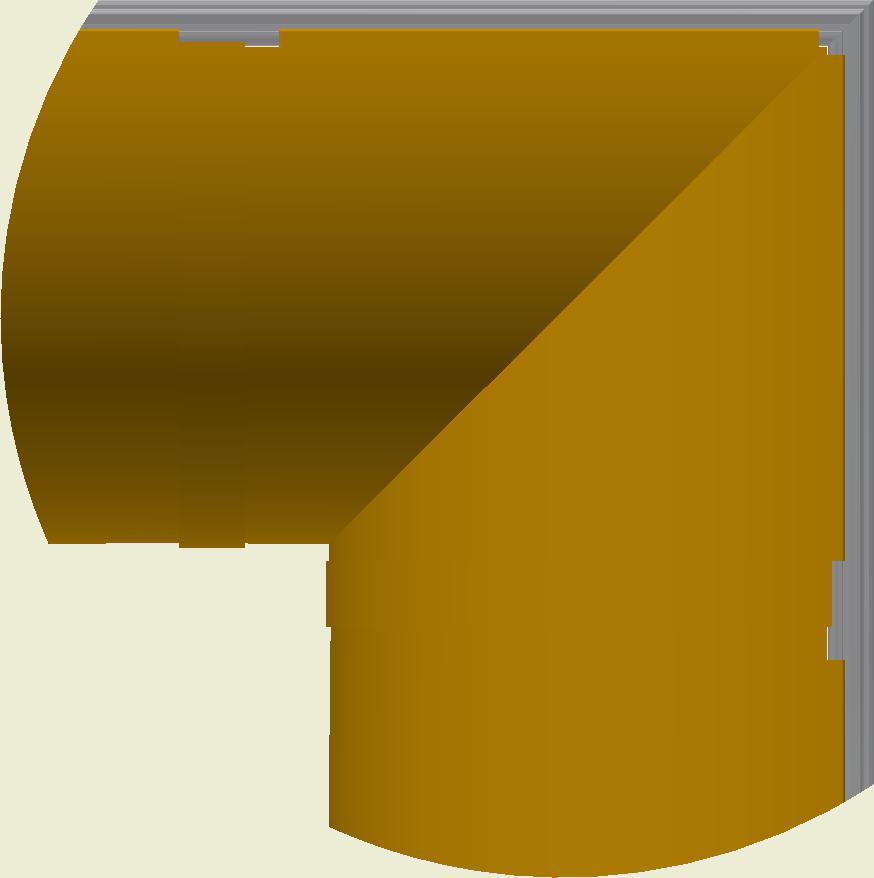

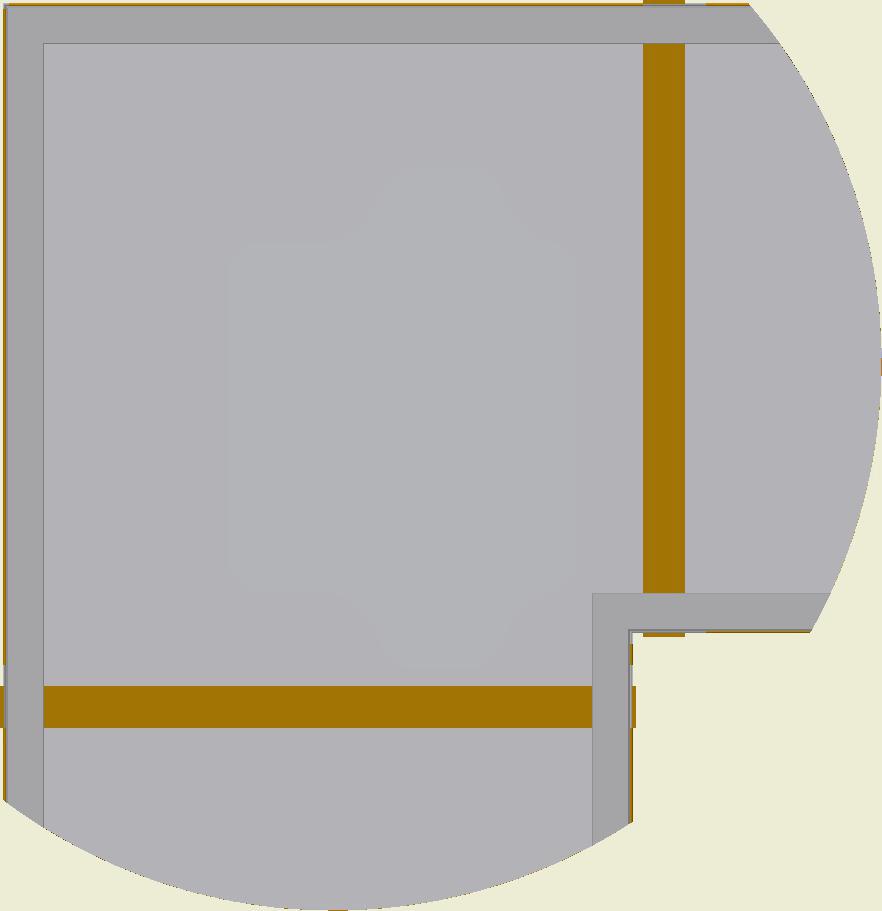

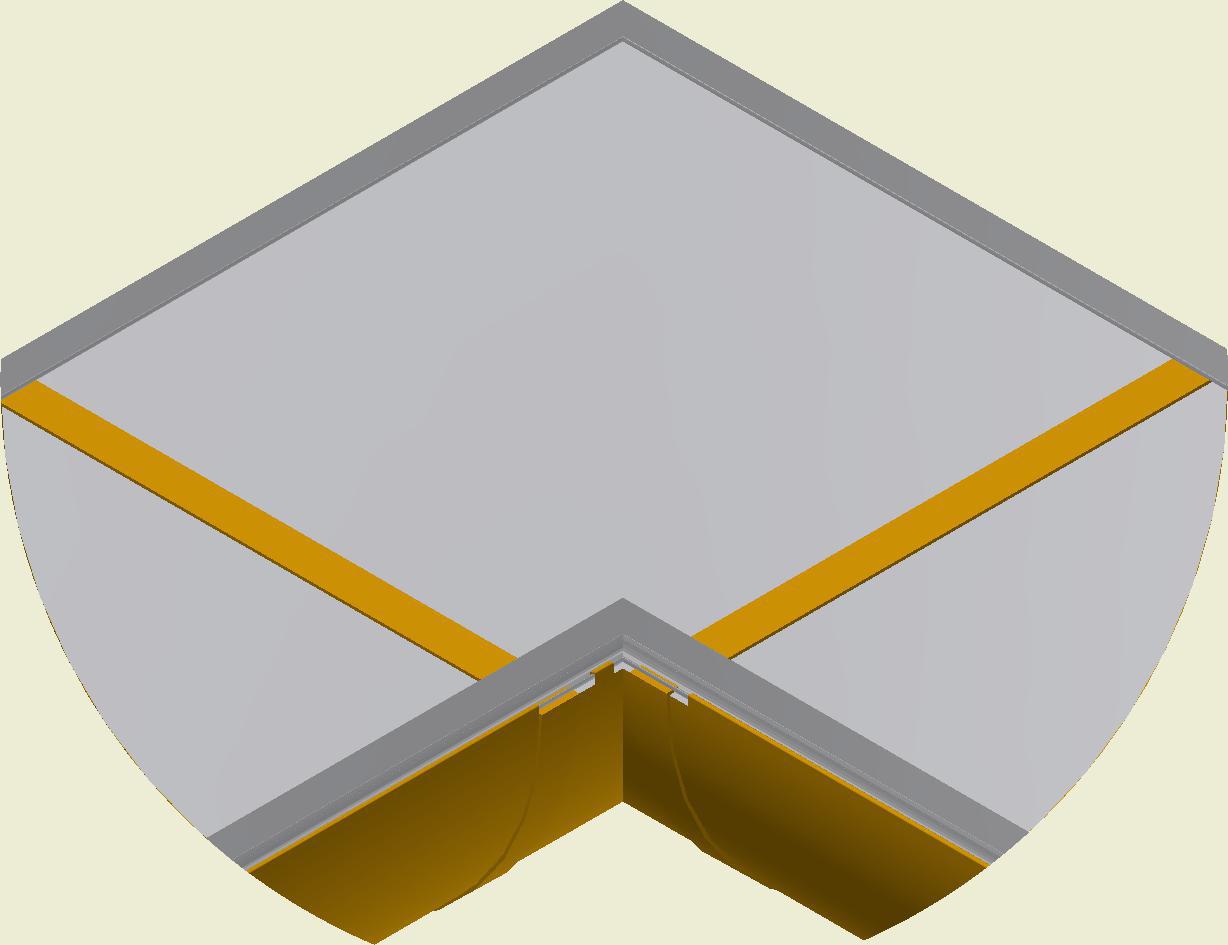

D-Alu Suspension for KE-Interior System (Elbow 90°)

DA-0008-GB-05

Elbow Right/Left

Elbow Downwards

Elbow Upwards

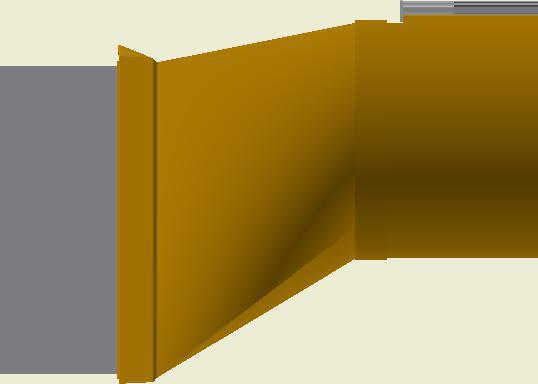

D-Alu Suspension for KE-Interior System (KE-SRD)

DA-0009-GB-05

DA-0009-DK-05

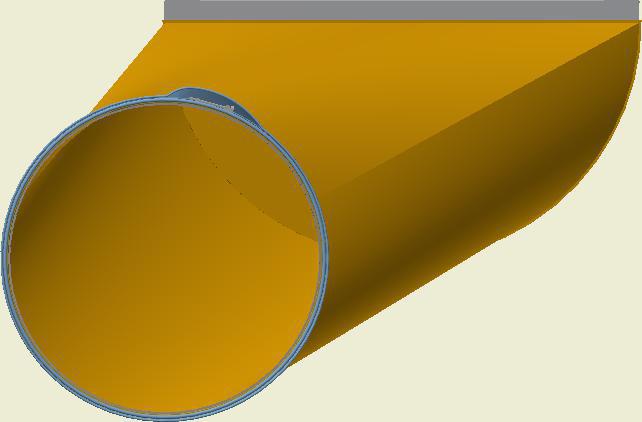

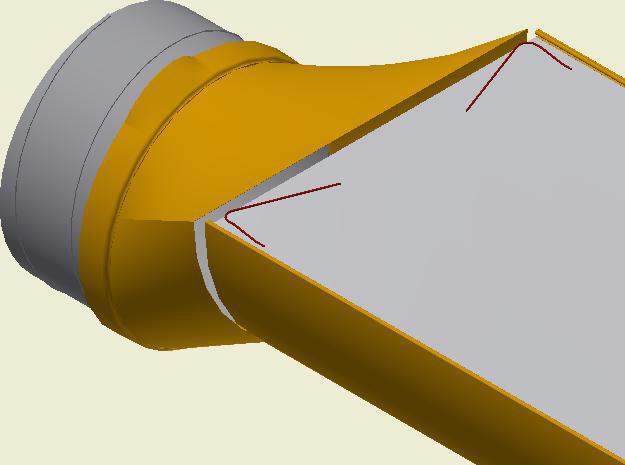

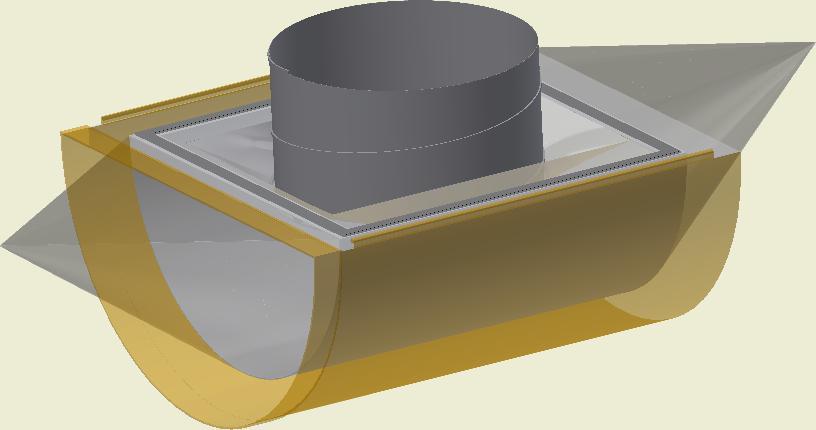

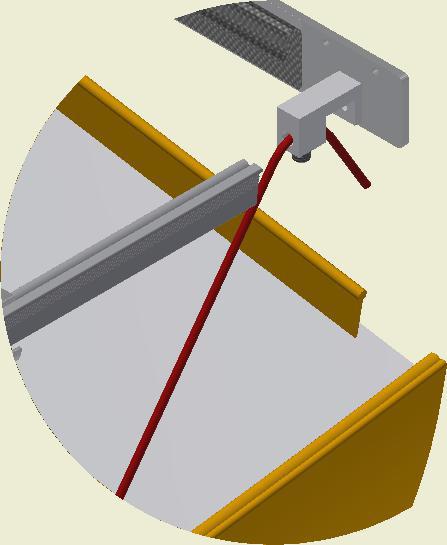

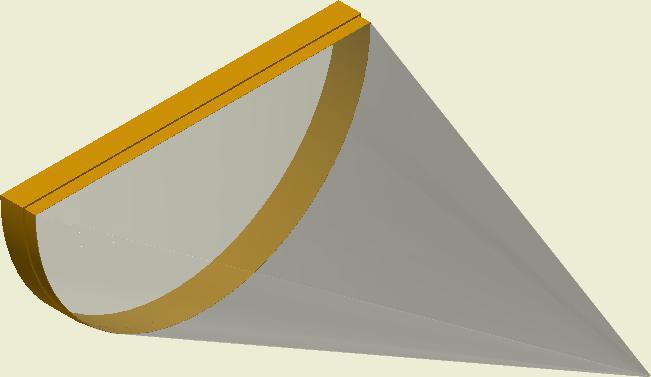

Installation of T-SRD (top inlet)

T-SRD montage .

T-SRD kan tilvælges

The T-SRD is optional

The T-SRD is fastened to the inside of the textile duct by means of velcro

T-SRD monteres indvendigt i posen med v elcro.

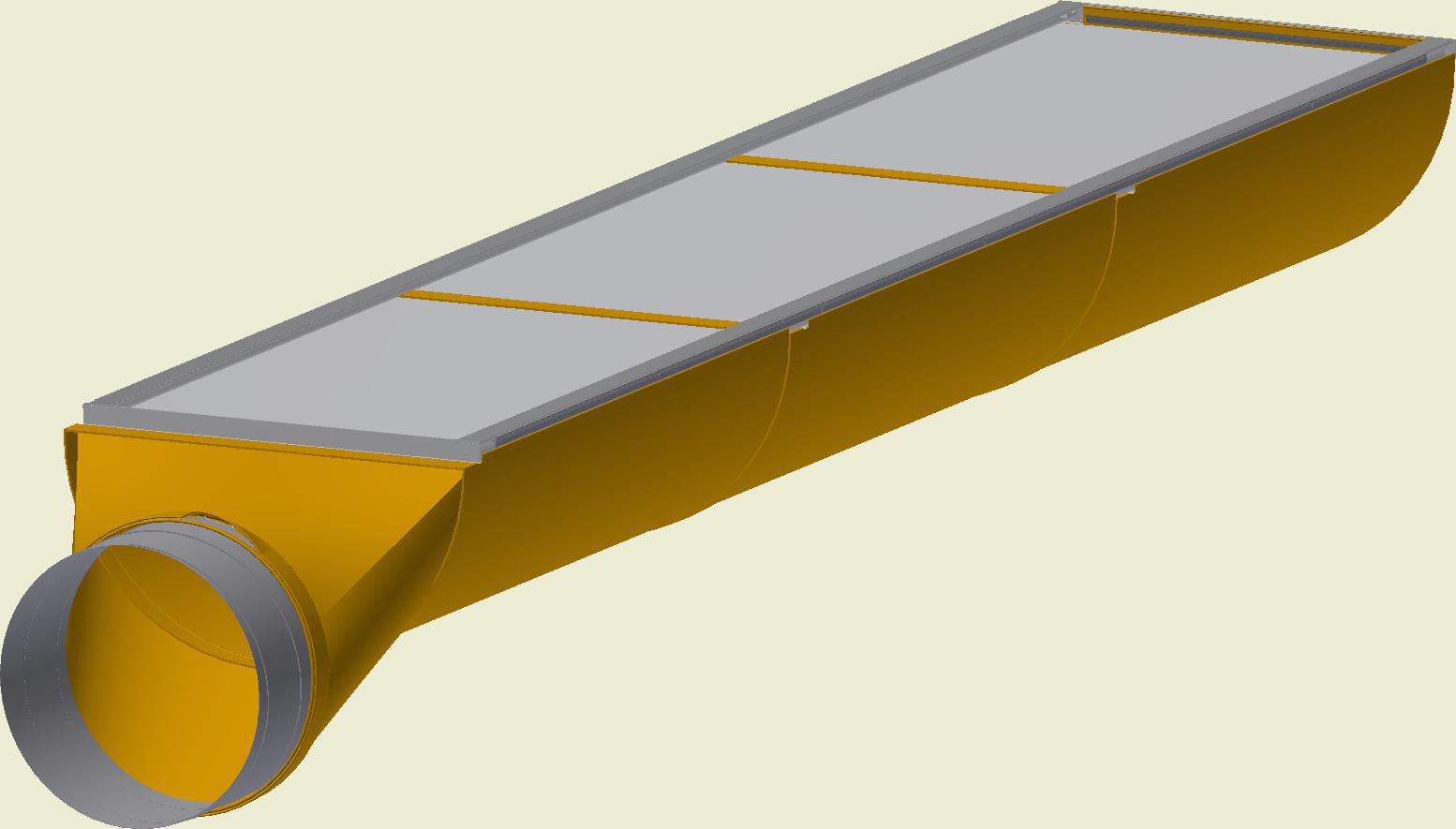

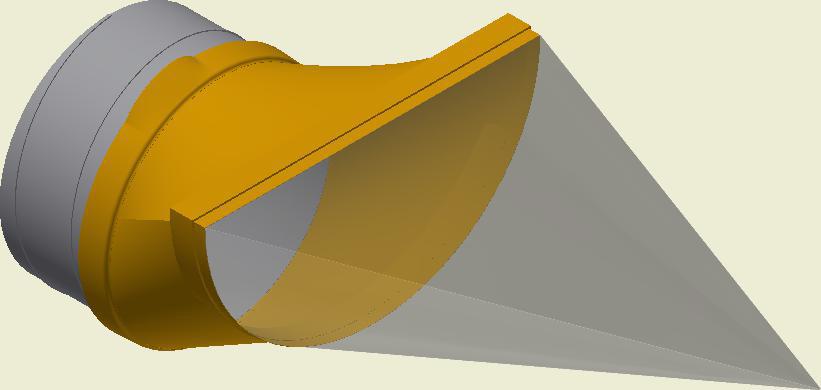

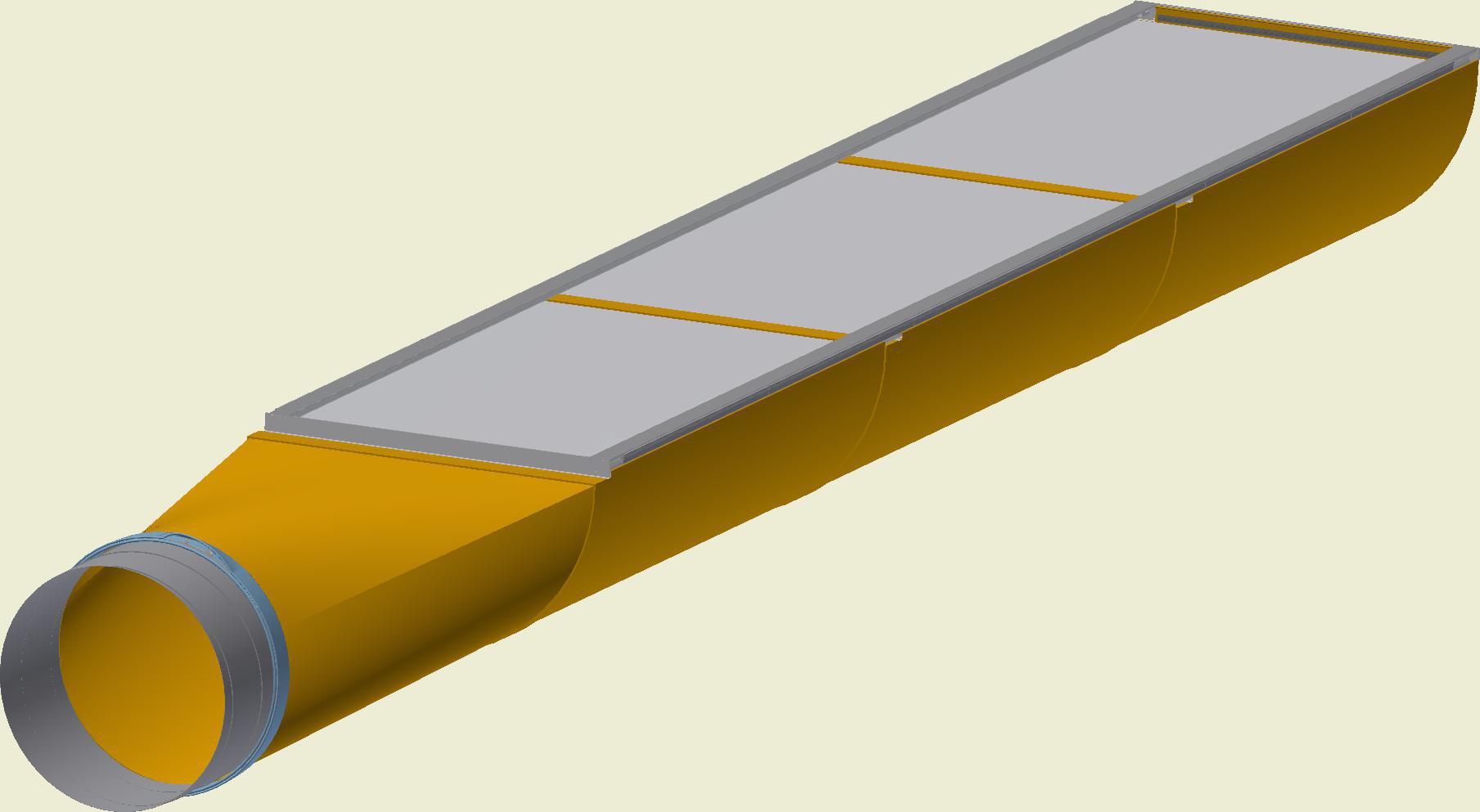

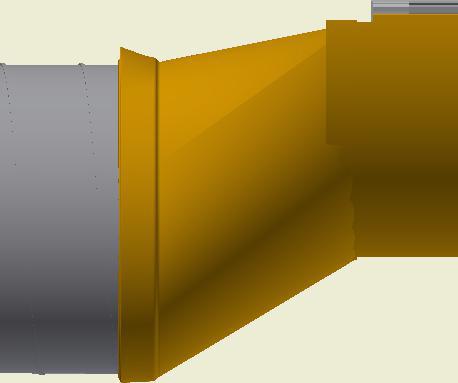

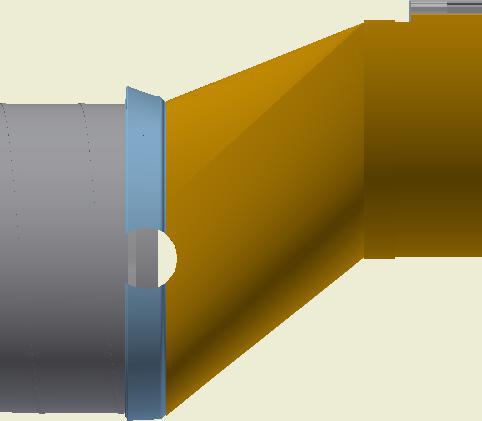

Installation of D-SRD (end inlet)

Montage, D-SRD

The D-SRD is optional

Indløbs SRD kan tilvælges

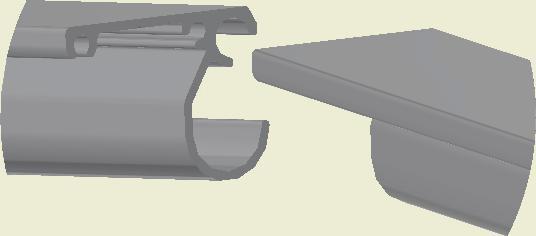

The D-SRD and D duct are joined by means of zipper

T-SRD lynes i ved en lynlås
