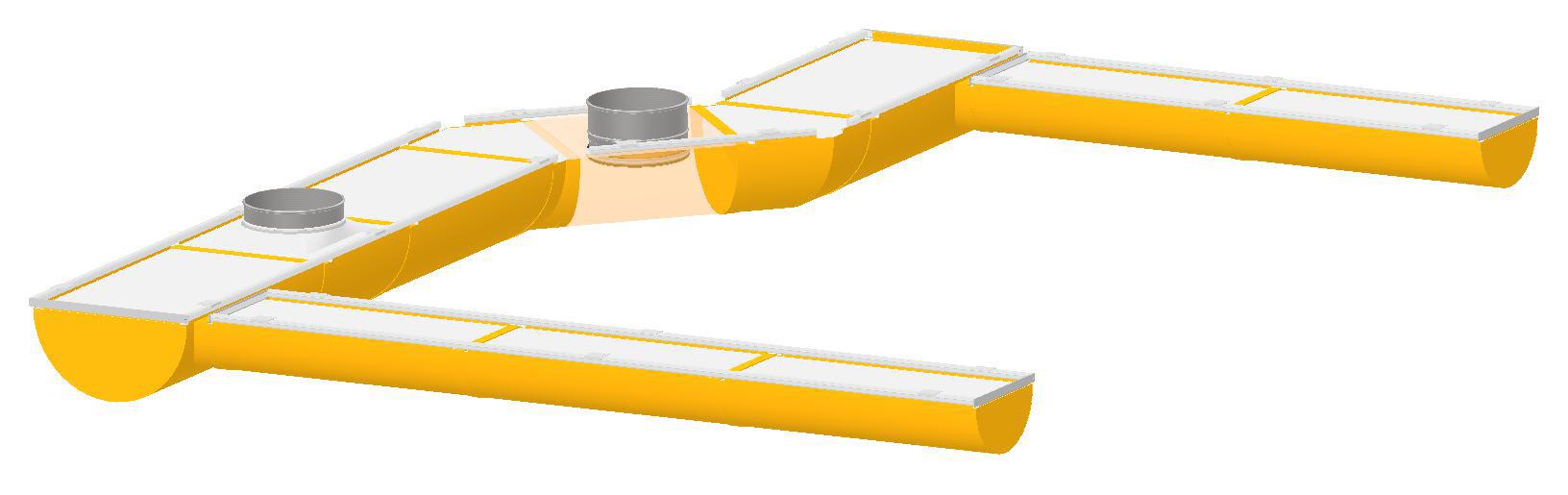

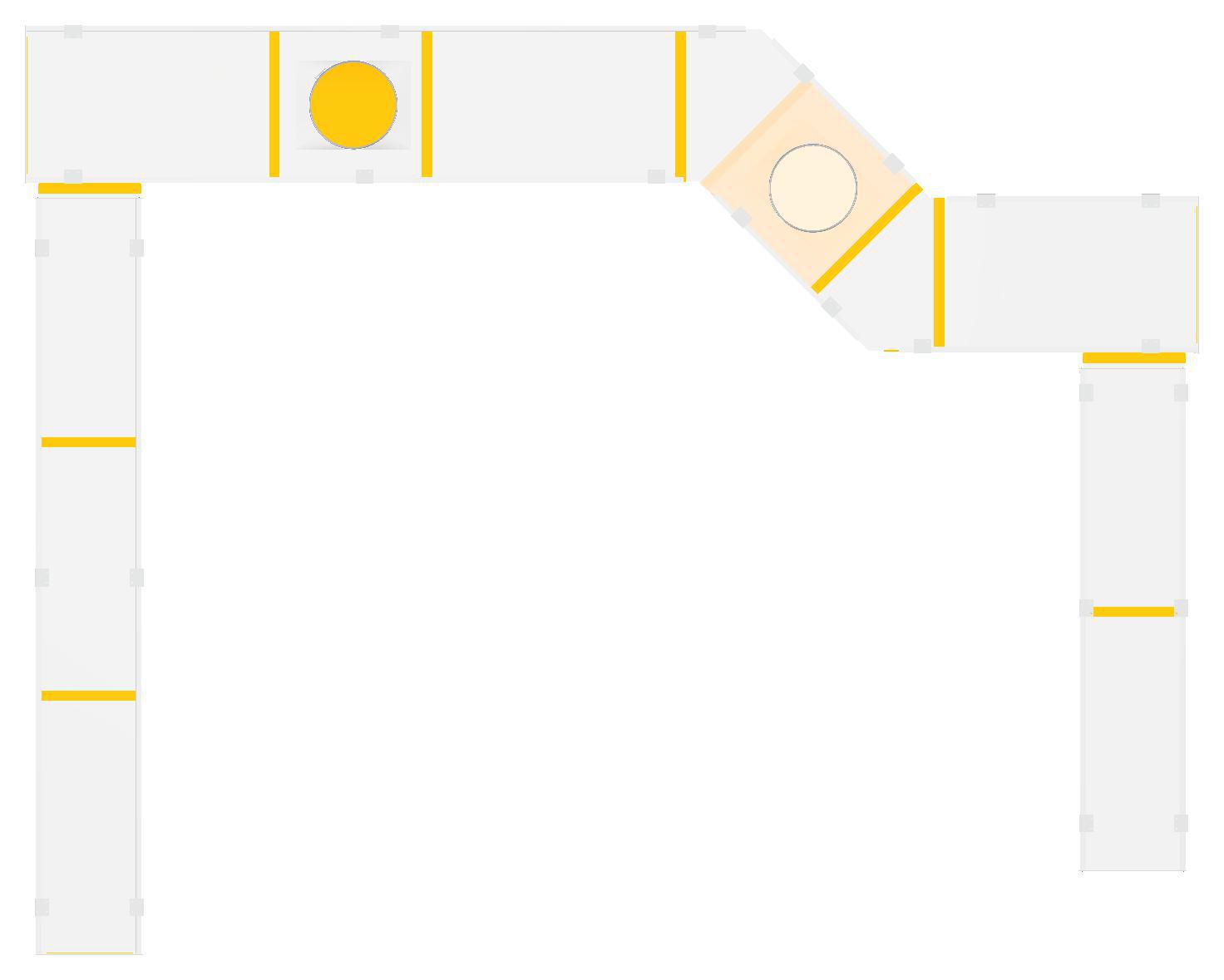

SafePro KE Interior

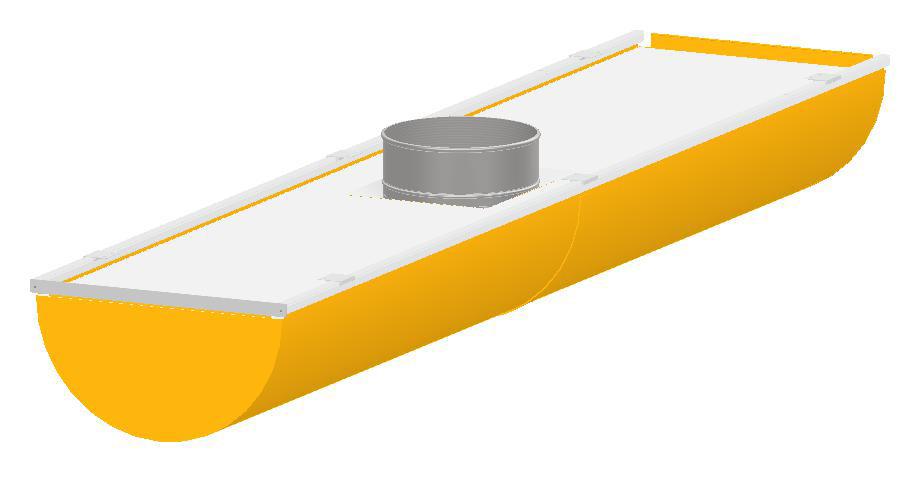

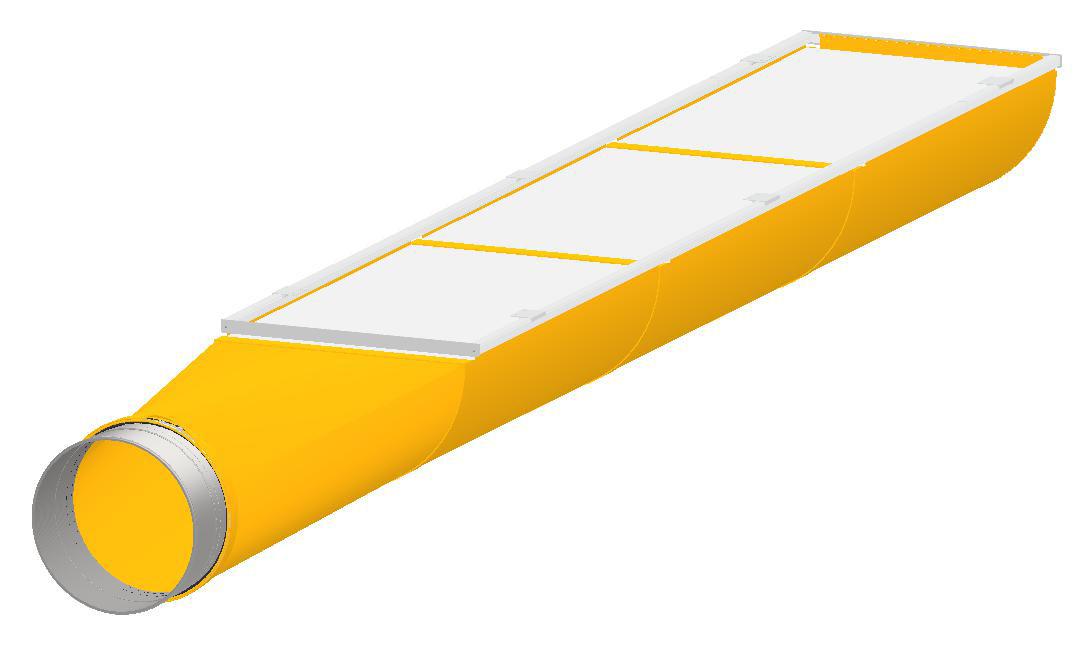

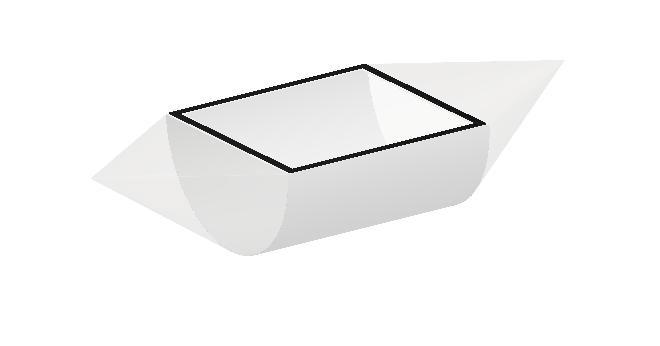

SafePro KE Interior Straight Duct

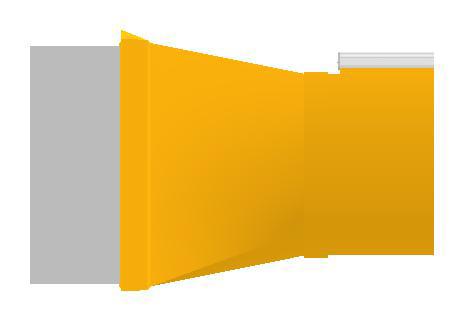

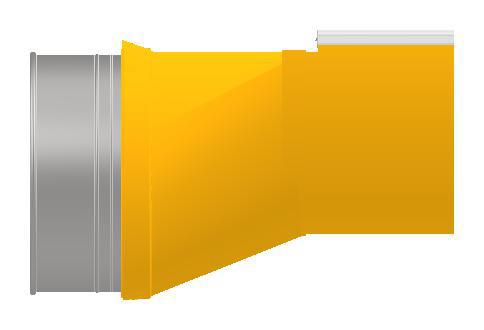

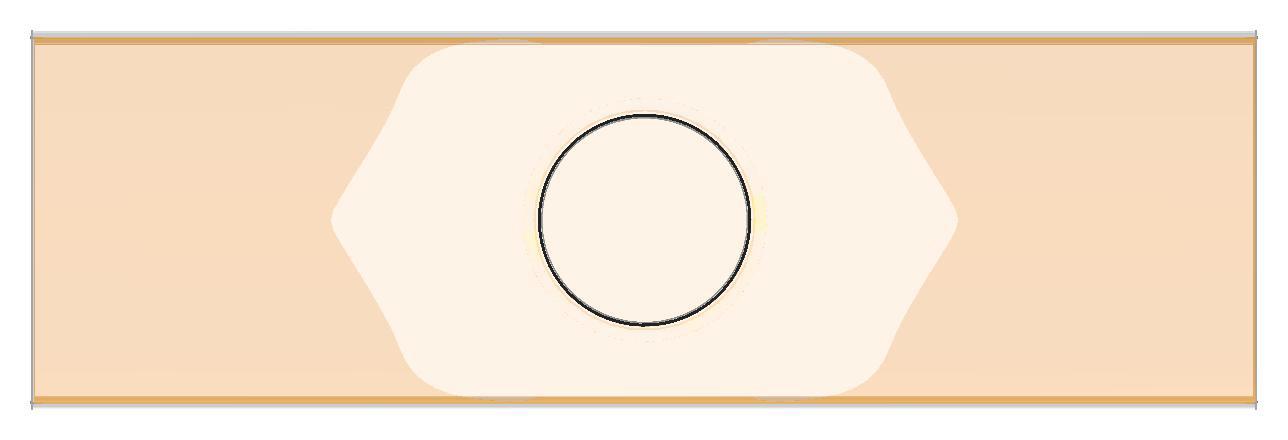

SafePro KE Interior Inlet Options

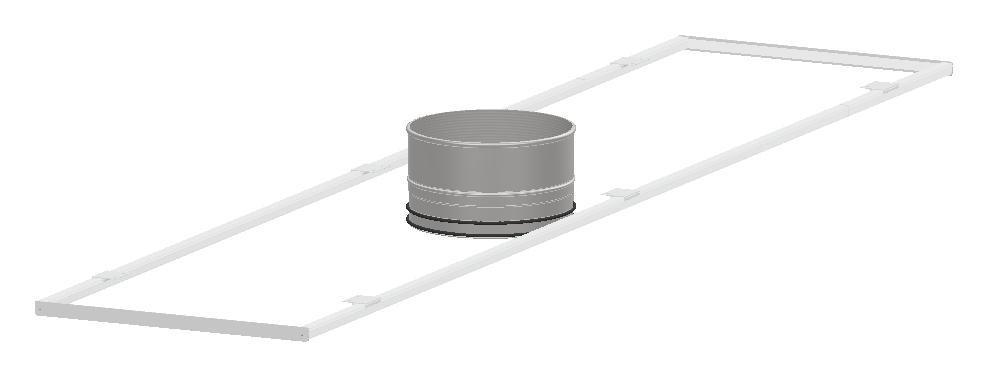

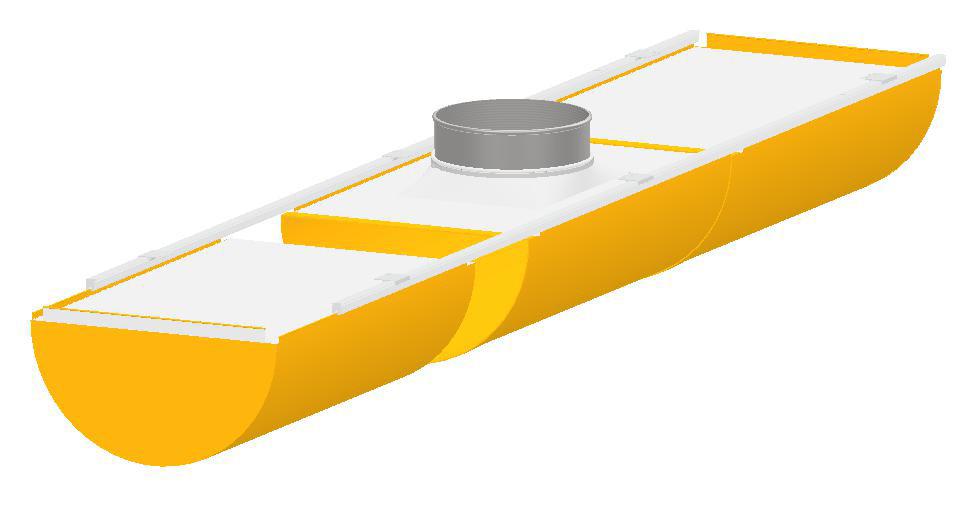

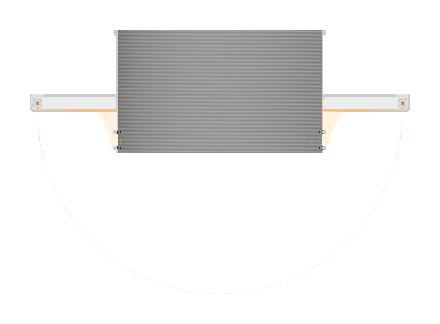

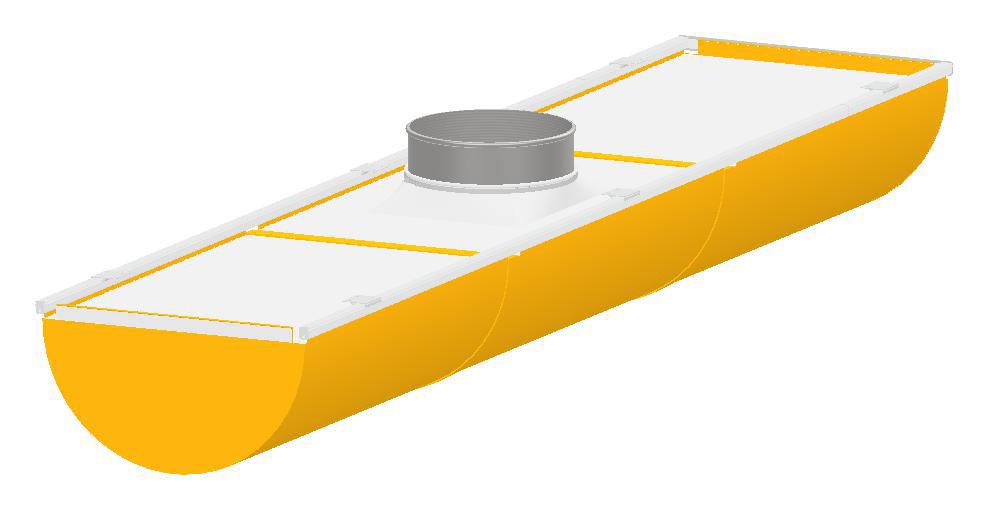

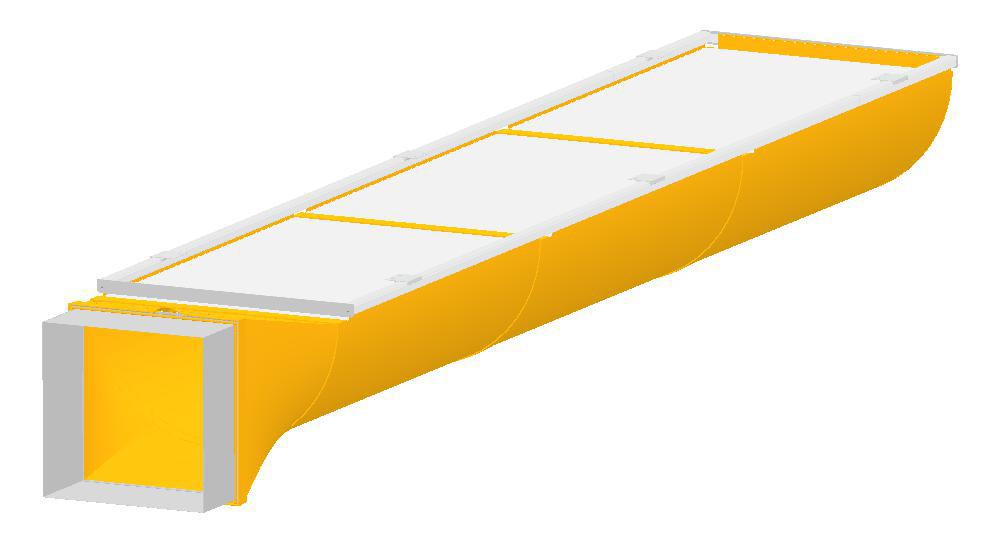

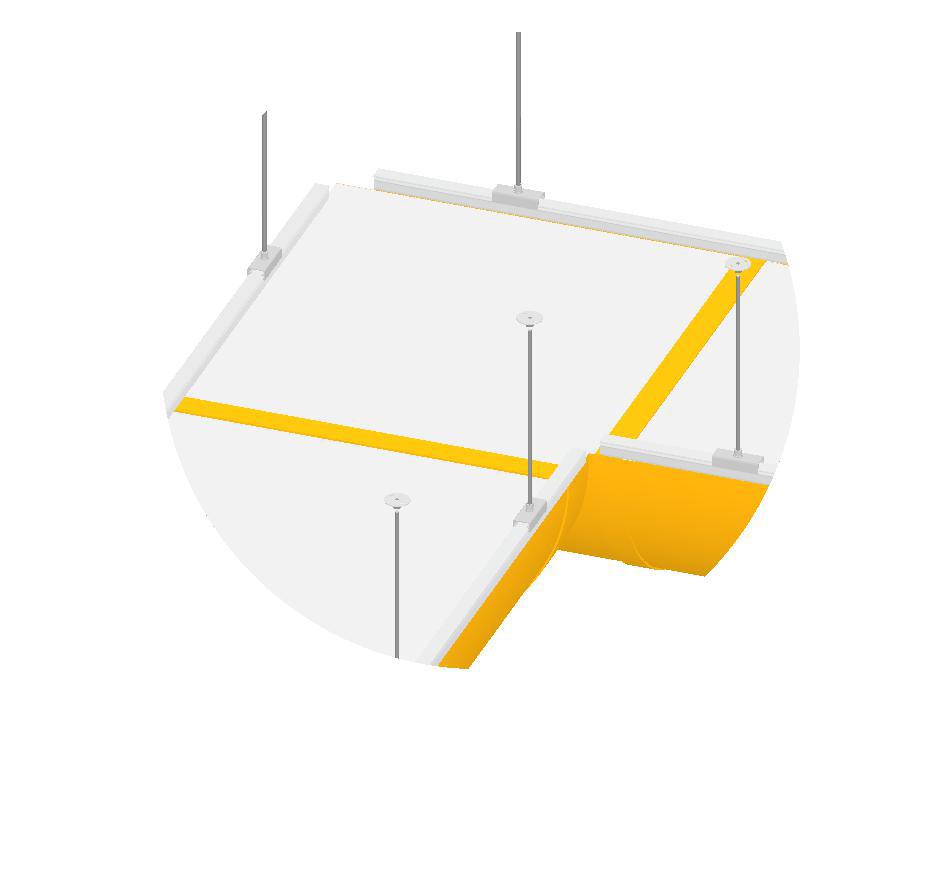

SafePro KE Interior Plenum

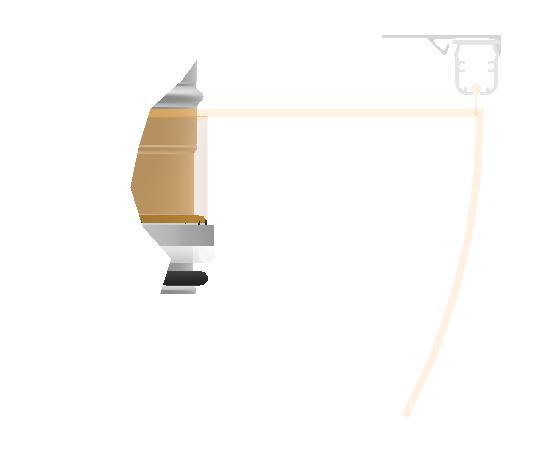

SafePro KE Interior Suspended Duct

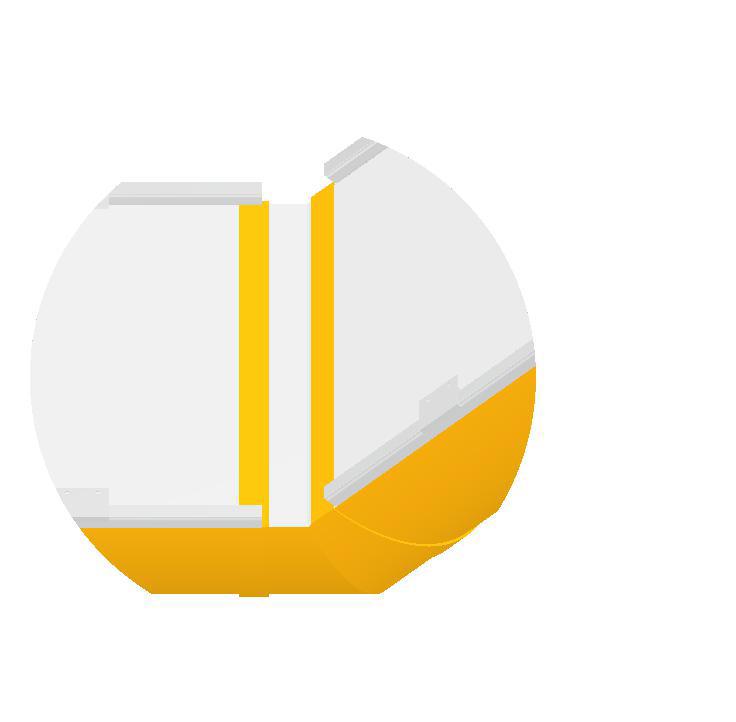

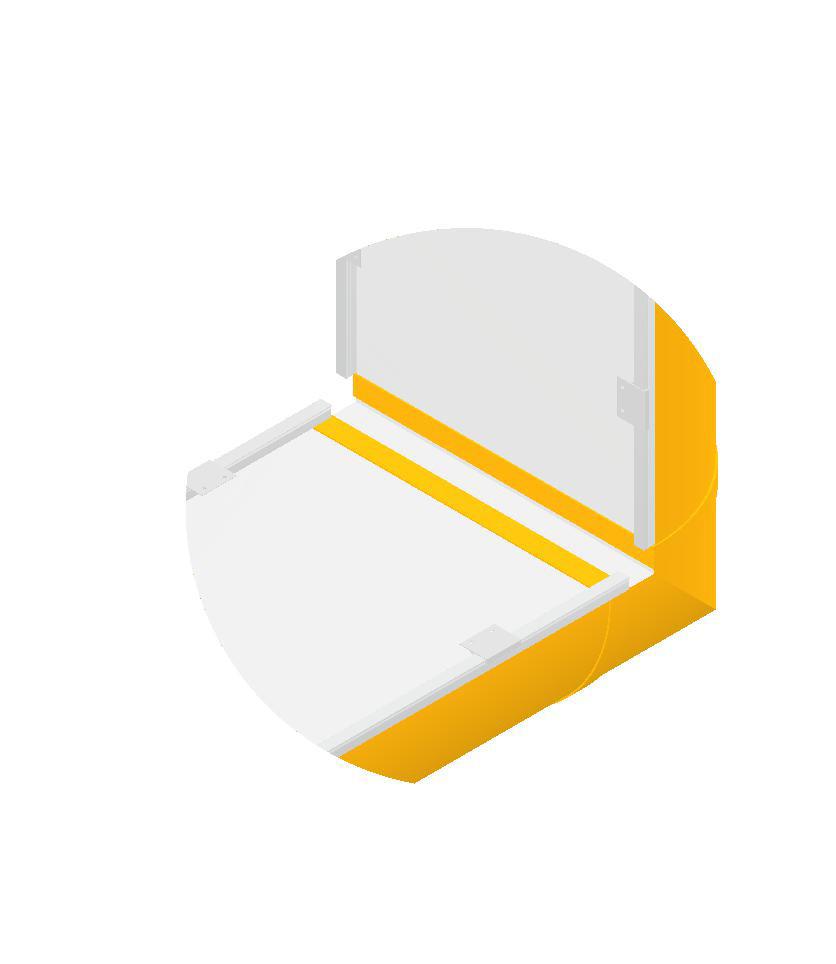

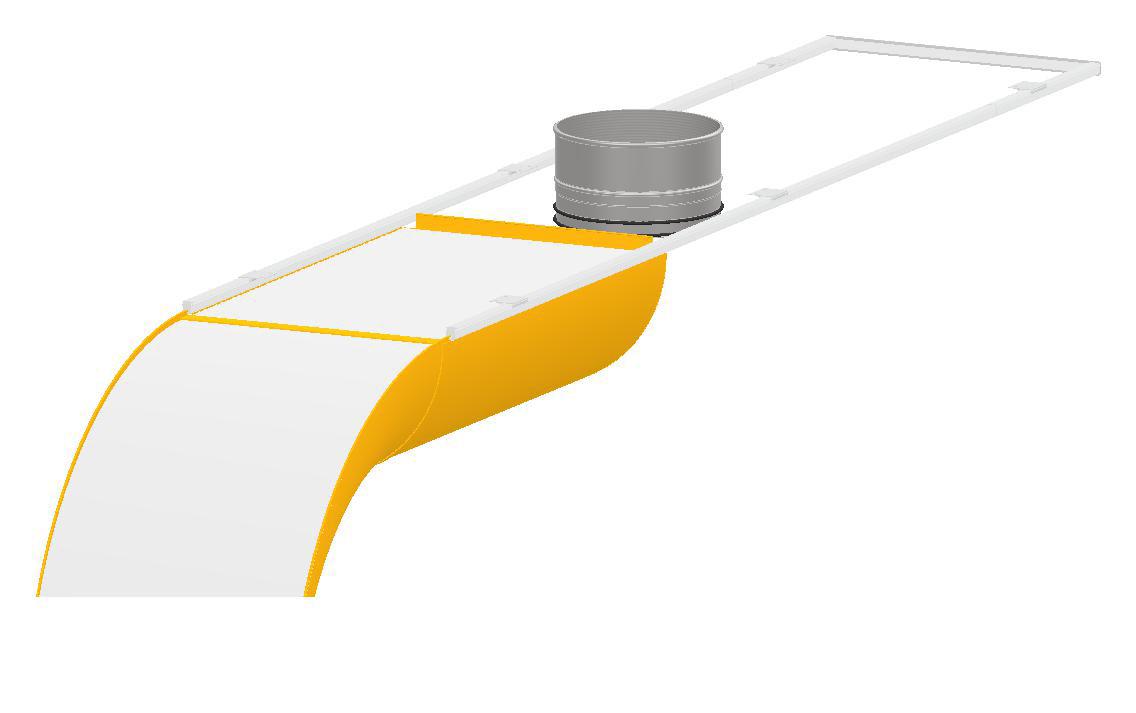

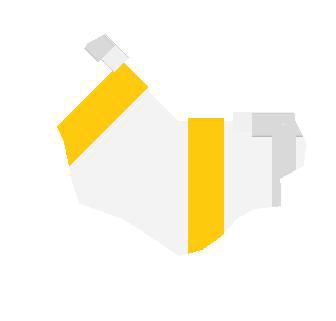

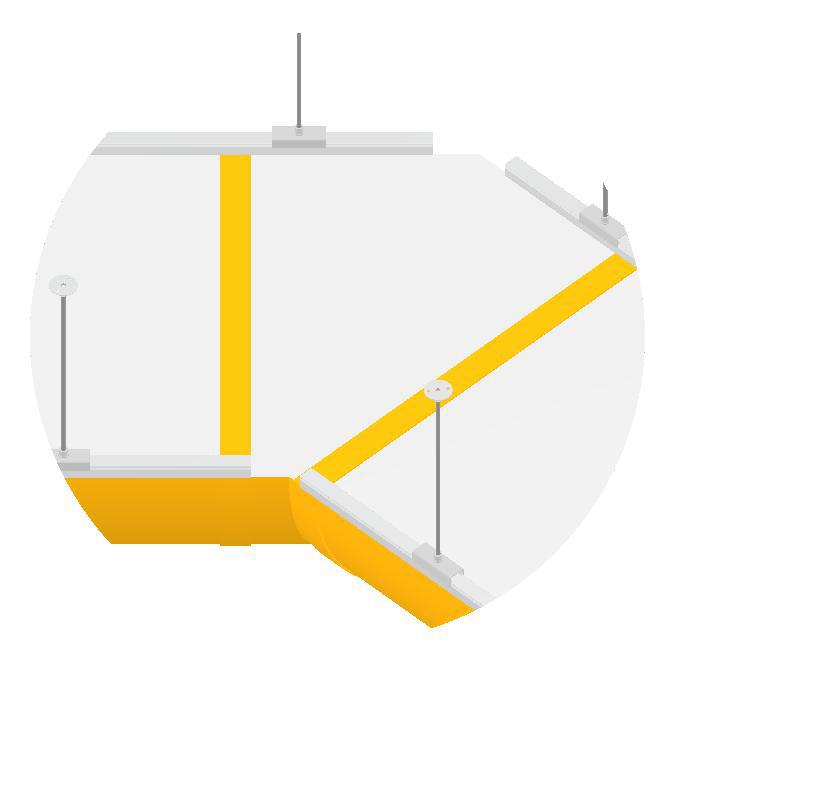

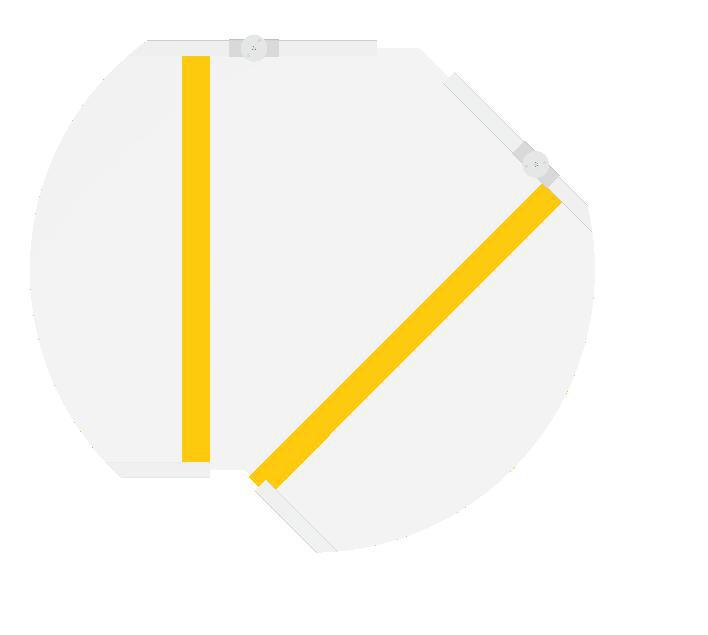

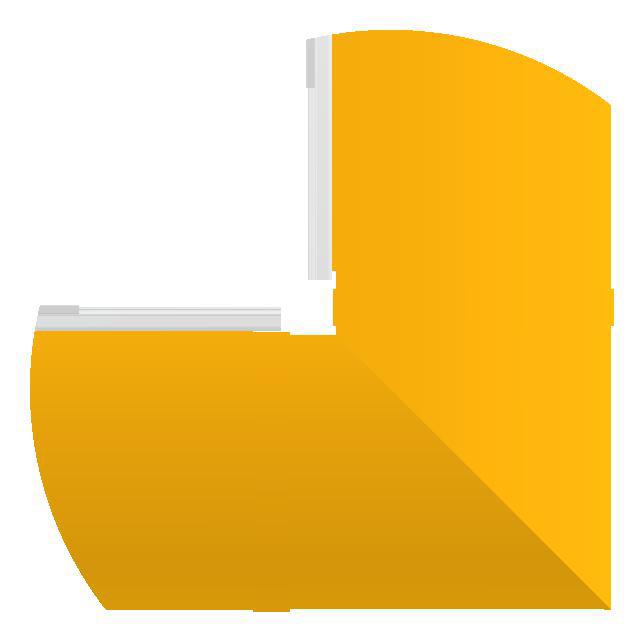

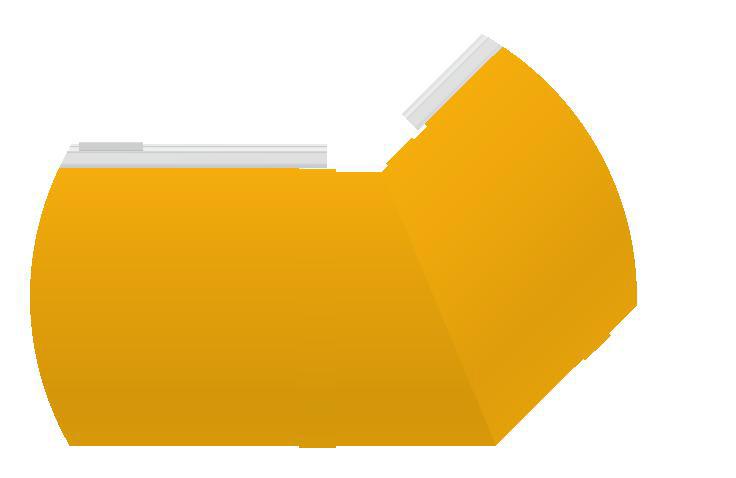

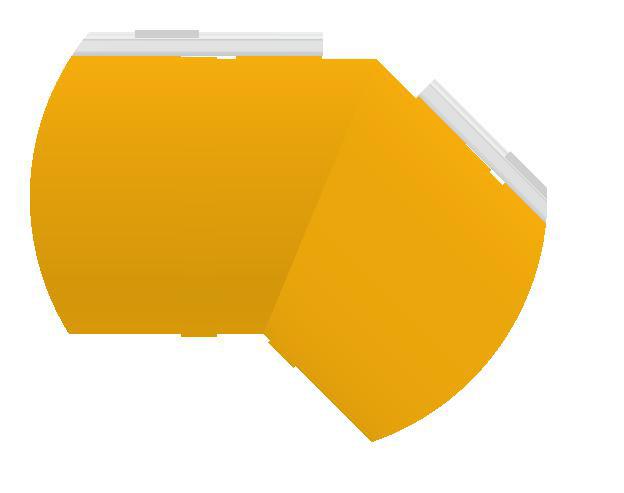

SafePro KE Interior Elbow

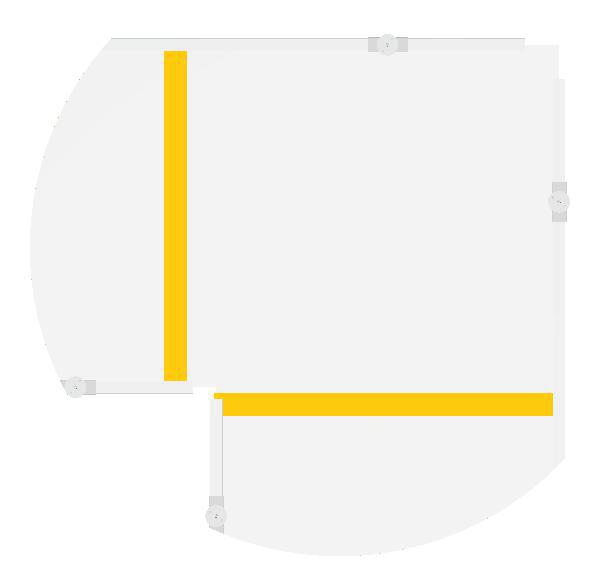

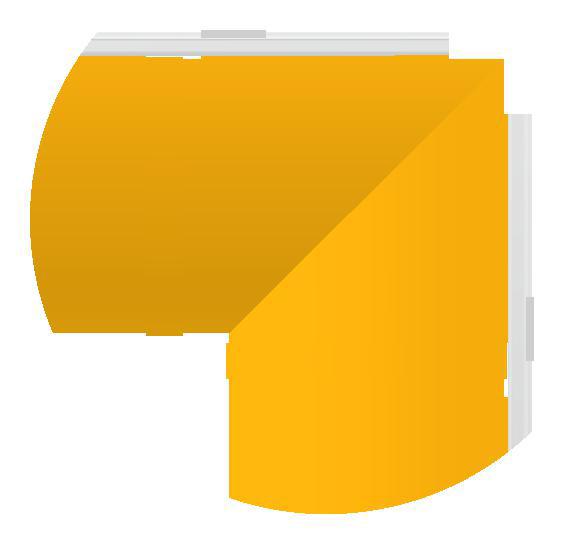

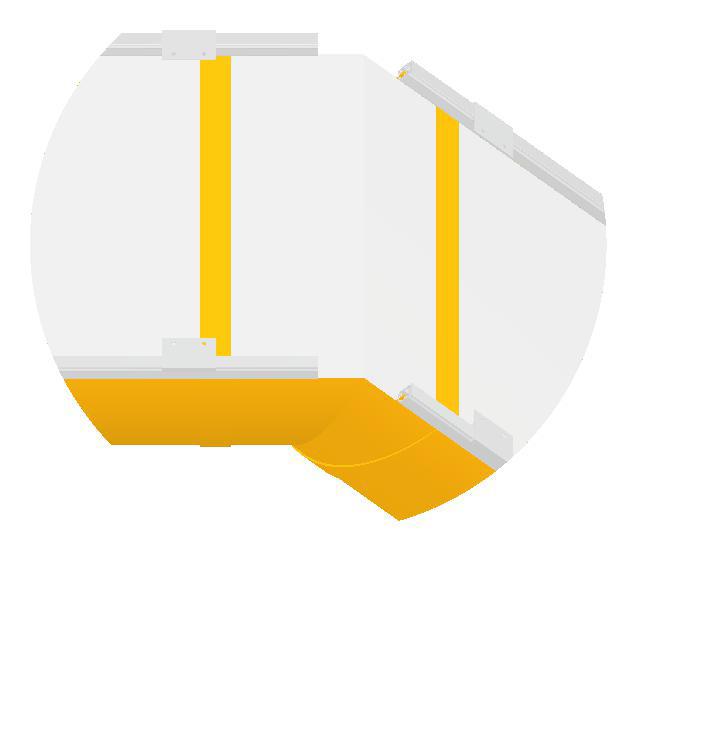

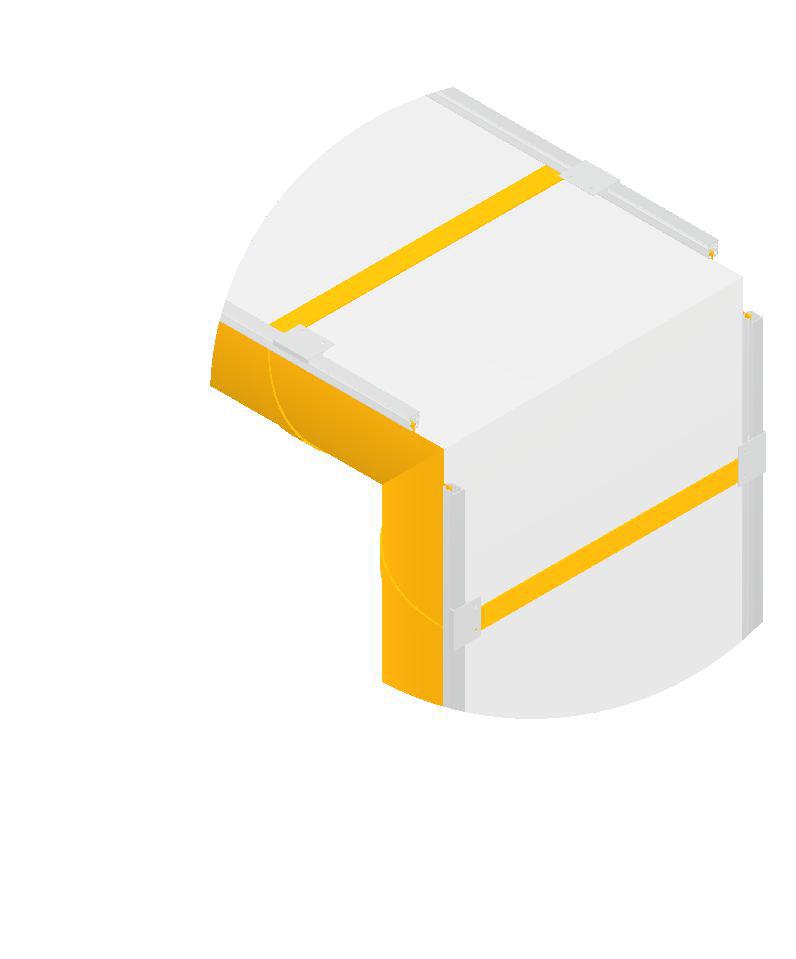

SafePro KE Interior Elbow 90˚

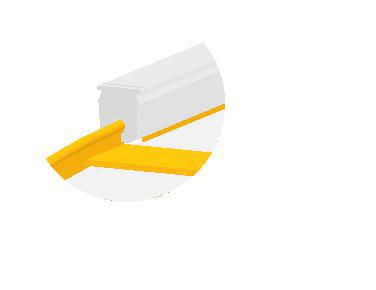

SafePro KE Interior Service Zipper

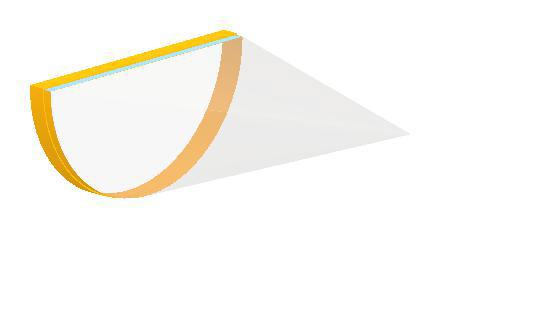

SafePro KE Interior KE-SRD

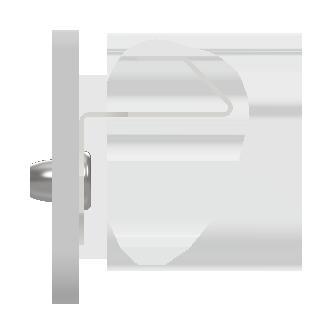

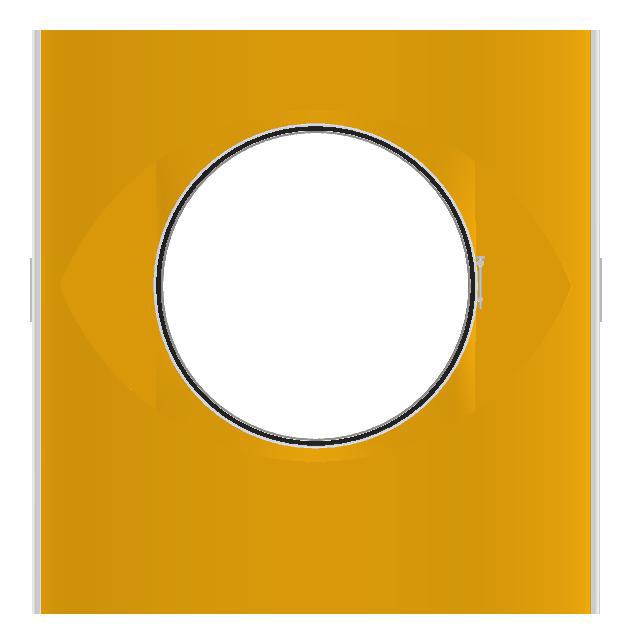

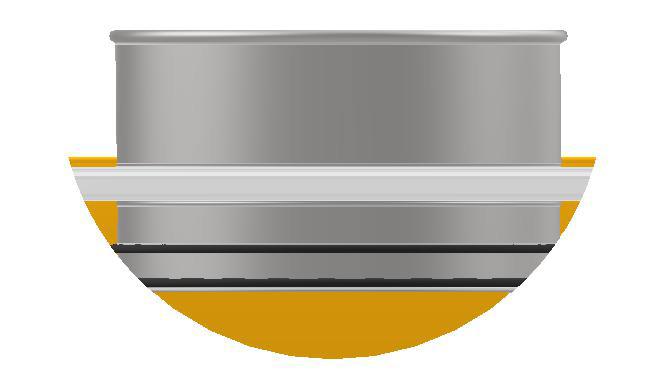

SafePro KE Interior Inlet Socket with Spring Lock
DS-0003-DK-00
DS-2603-GB-00
Monter skinnesystem efter tegninger og vedlagte montagevejledninger

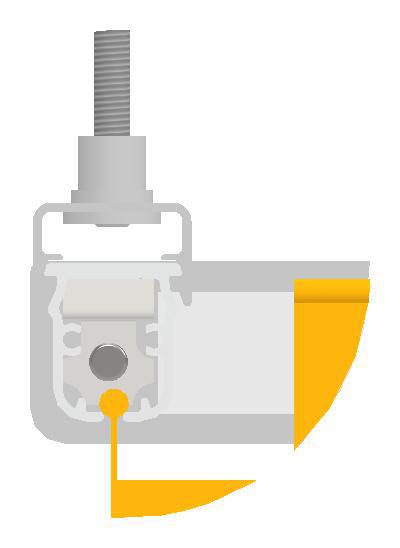

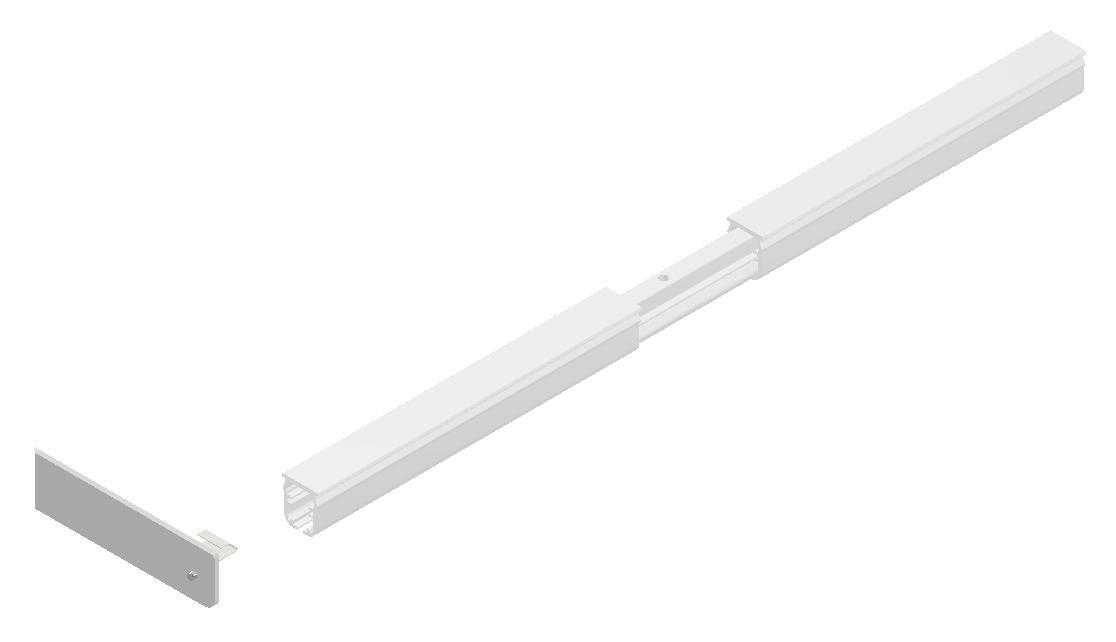

Install rail system according to drawings and enclosed mounting instructions.

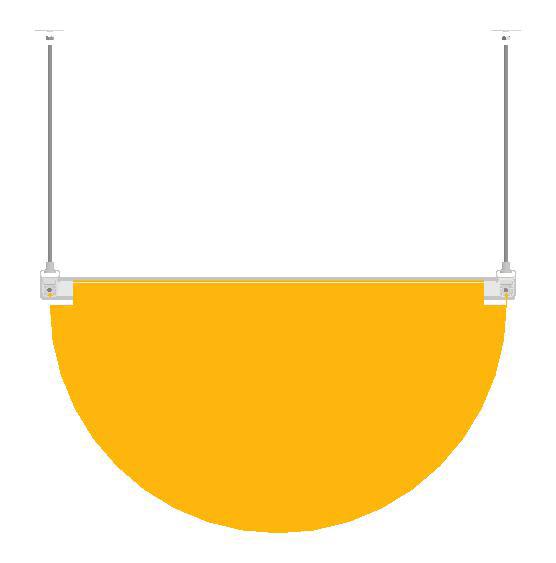

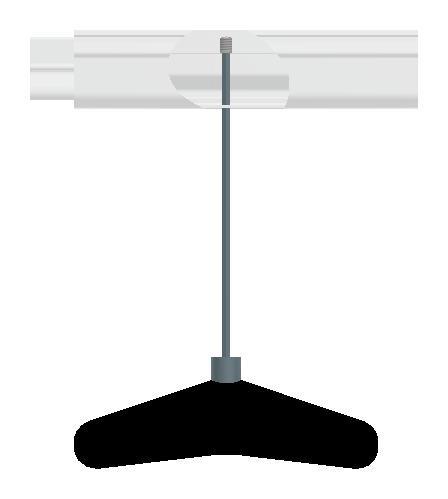

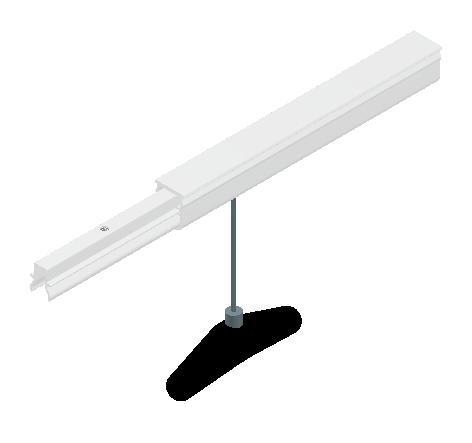

Suspension type
Se på følgesedlen, hvilken ophængstype der er valgt
Refer to the delivery note for chosen suspension type.
A
A. SafeCeil
A. SafeCeil
B. Wood screw
B. Træskrue
C. Expansion bolt
C. Ekspansionsbolt

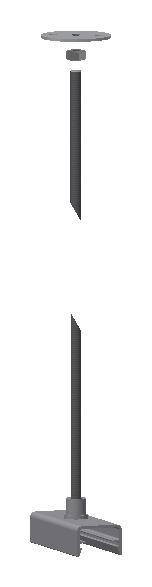

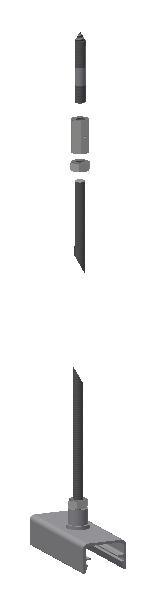

D. M6 thread flange
D. Gevindflange M6

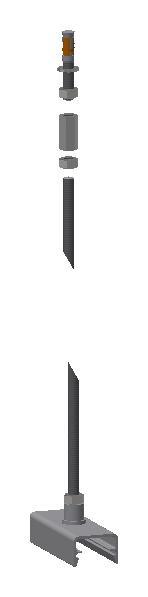

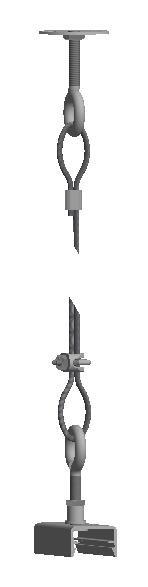

E. Wire with M6 eyebolt
E. Wire med M6 øjebolt
F. SafeStrapUp
F. SafeStrapUp
F E D C B
DS-2604-GB-00

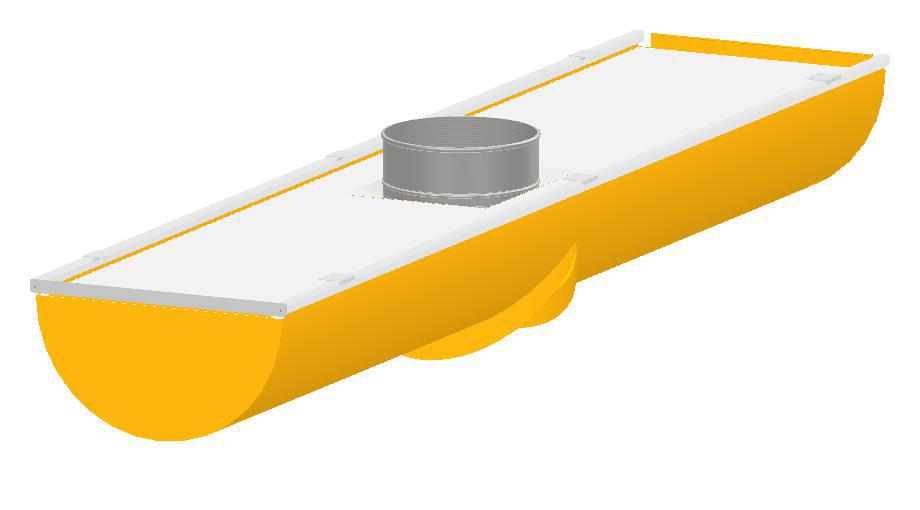

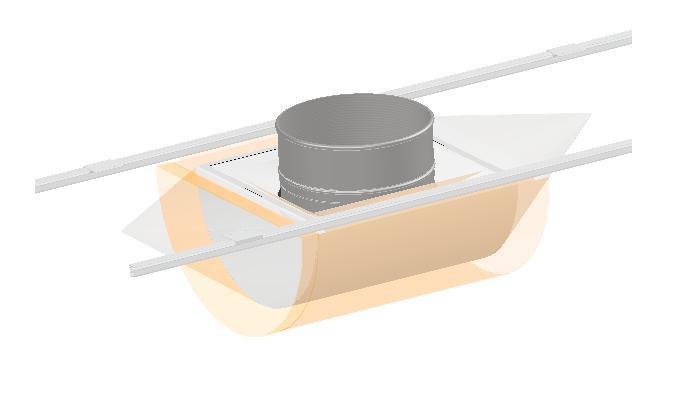

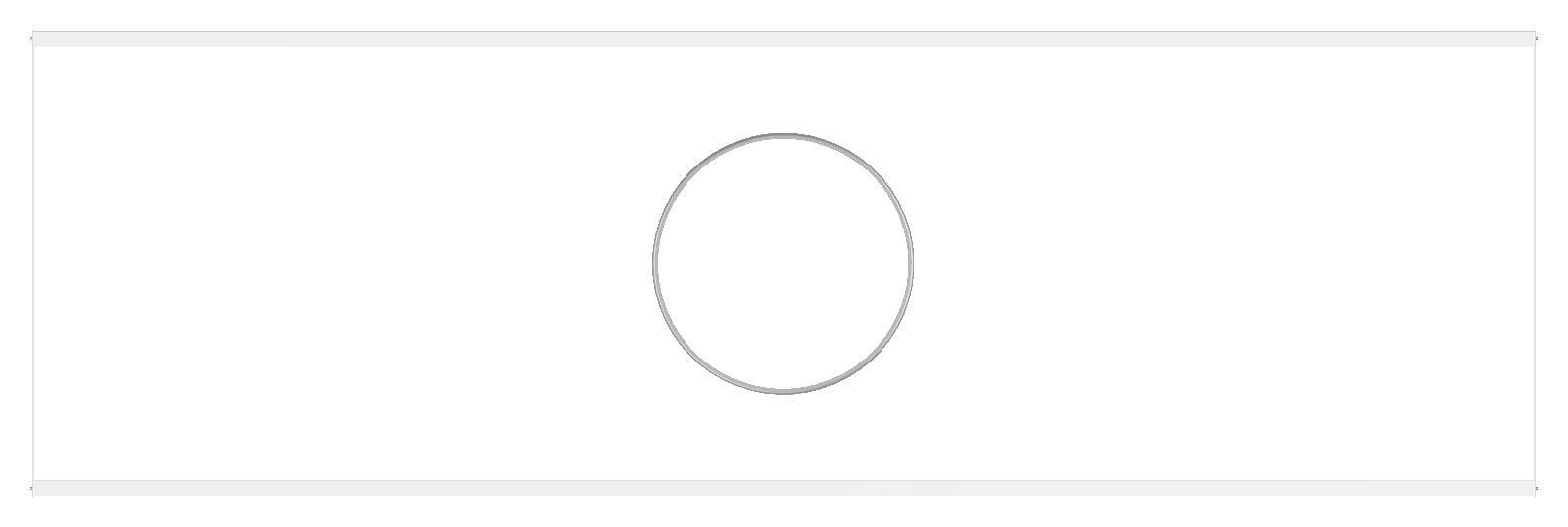

Hvis montage af studs skal ske indvendigt, skal man være opmærksom på at placere mindst 1 lynlås tæt på studsen. Alternativt skal der laves en servicelynlås i buen. DS-0004-DK-00
Min. højde (LS) ombuk/snor = 50 mm
Min. height (LS) edge/cord = 50 mm
Max. diameter (Ø) = W - 50 mm
Max. diameter (Ø) = W -50 mm

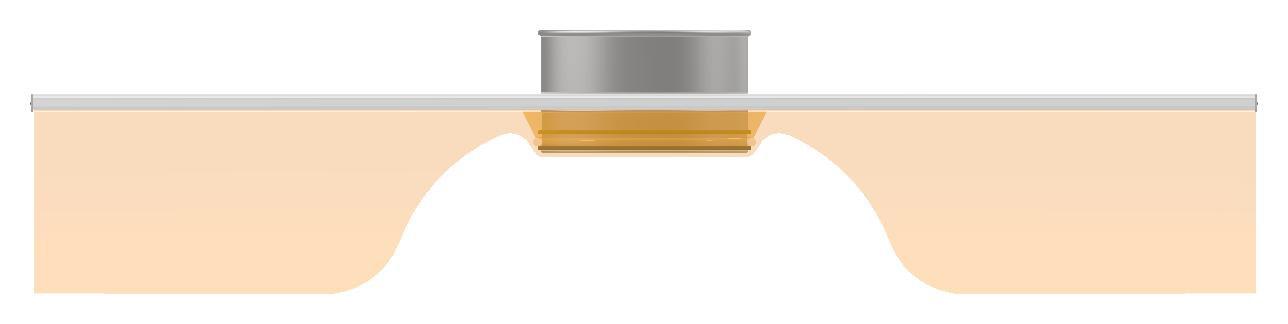

Hvis montering af studs er mulig over loft behøves der ingen lynlås i nærheden af studs.
If it is possible to mount the socket above a false ceiling, a zipper near the socket on the duct is not necessary.

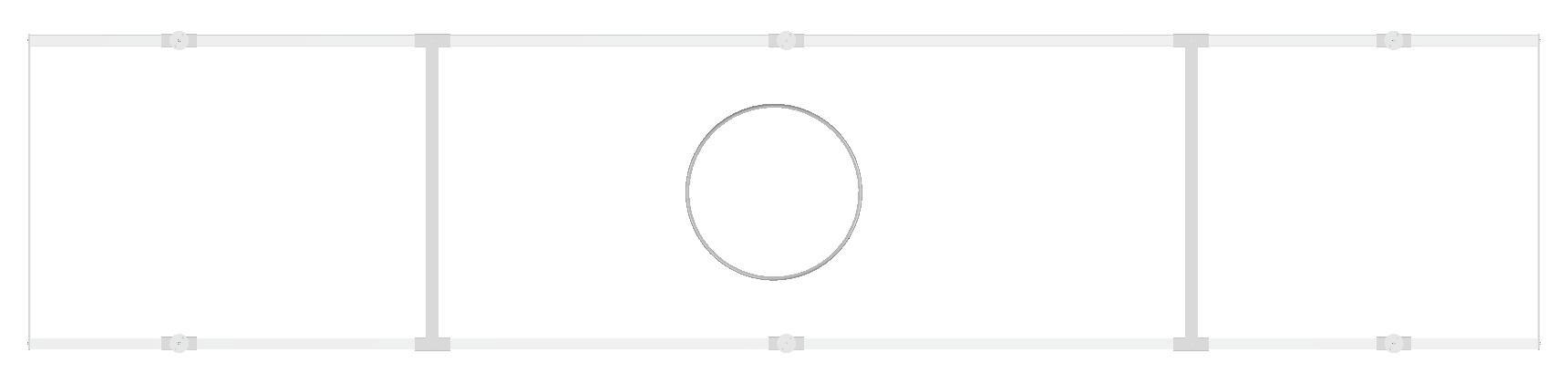

L = Duct length
L = Kanallængde
LS = Længde studs
LS = Length socket
Ø = Studsdiameter
Ø = Socket diameter
H = Højde
H = Height
W = Bredde
W = Width
O = Forsætning
O = Offset

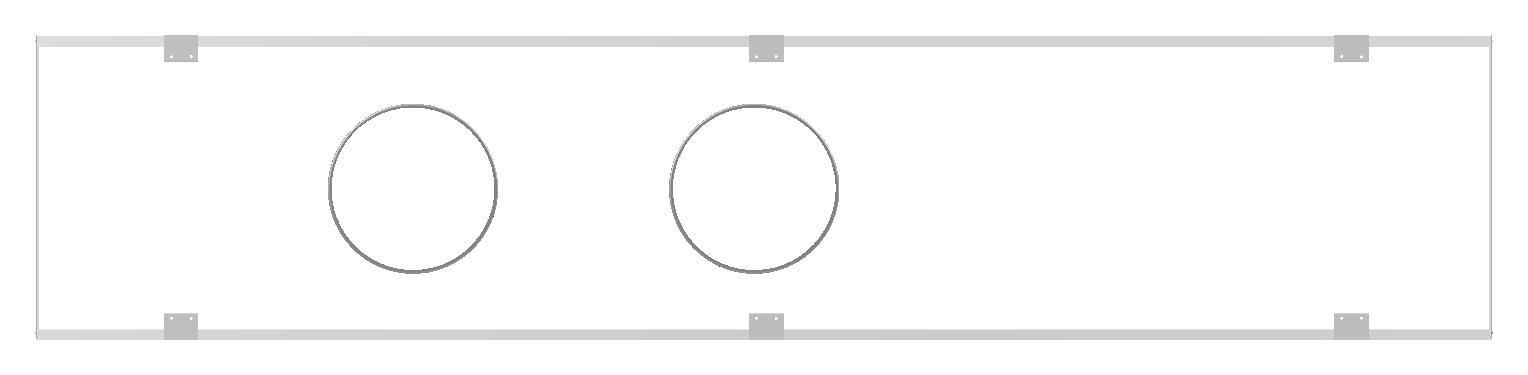

A = Afstand studs 1
A = Distance socket 1
B = Afstand studs 2
B = Distance socket 2
If mounting of the socket must be done from inside the space you must place at least 1 zipper close to the socket. Otherwise a service zipper must be placed in the arc of the duct.
L = Duct length
L = Kanallængde
LS = Length socket
LS = Længde studs
Ø = Socket diameter
H = Height
Ø = Studsdiameter
H = Højde
W = Width
W = Bredde
O = Offset
O = Forsætning
A = Distance socket 1
A = Afstand studs 1
B = Distance socket 2
B = Afstand studs 2
DS-0006-DK-00
L = Duct length
L = Kanallængde
LS = Length socket
LS = Længde studs
Ø = Socket diameter
Ø = Studsdiameter
H = Højde
H = Height
W = Width
W = Bredde
O = Offset
O = Forsætning
A = Afstand studs 1
A = Distance socket 1
B = Distance socket 2
B = Afstand studs 2

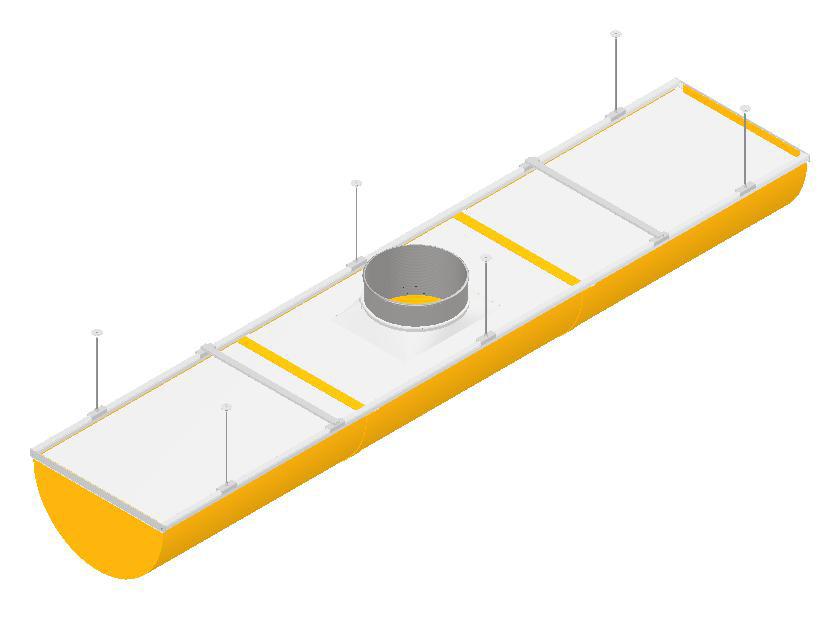

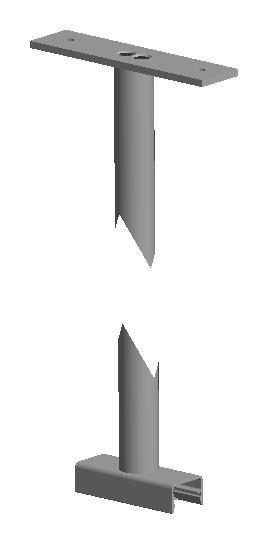

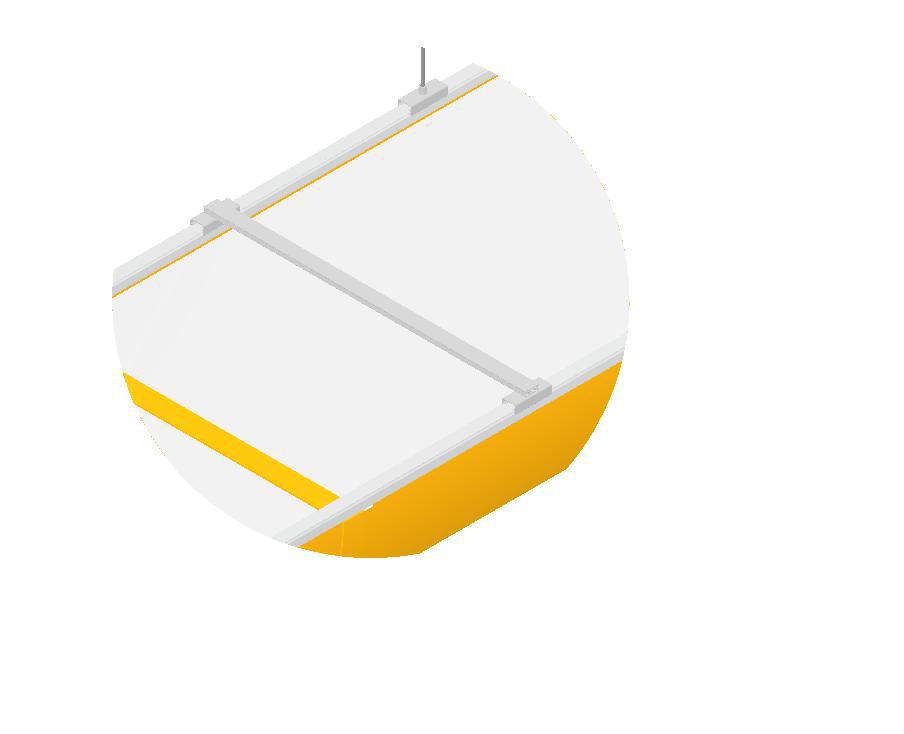

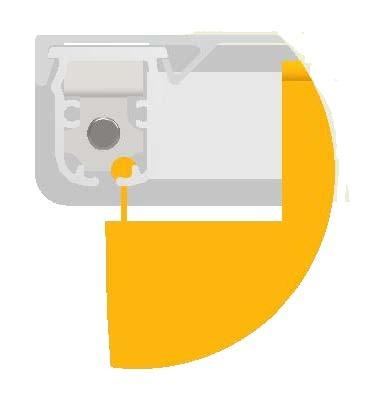

D-SafePro for KE-Interior System (Suspended Duct)
DS-0007-DK-00
DS-2607-GB-00

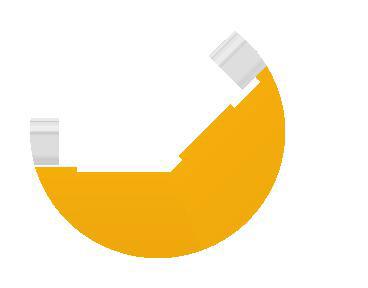

D-SafePro for KE-Interior System (Service Zipper)
DS -0010 -DK- 03
DS-2610-GB-00
S afeTrack D-Pose Service L ynlås .
SafePro D-Duct with Service Zipper
SafeT rack D- Pos e Lynlås.
SafePro D-Duct with Zipper
DS-2611-GB-00
DS -0011-DK -03
T-S RD montage .
The T-SRD is optional
T-SRD kan tilvælges
The T-SRD is fastened to the inside of the textile duct by means of velcro
T-SRD monteres indvendigt i posen med velcro.

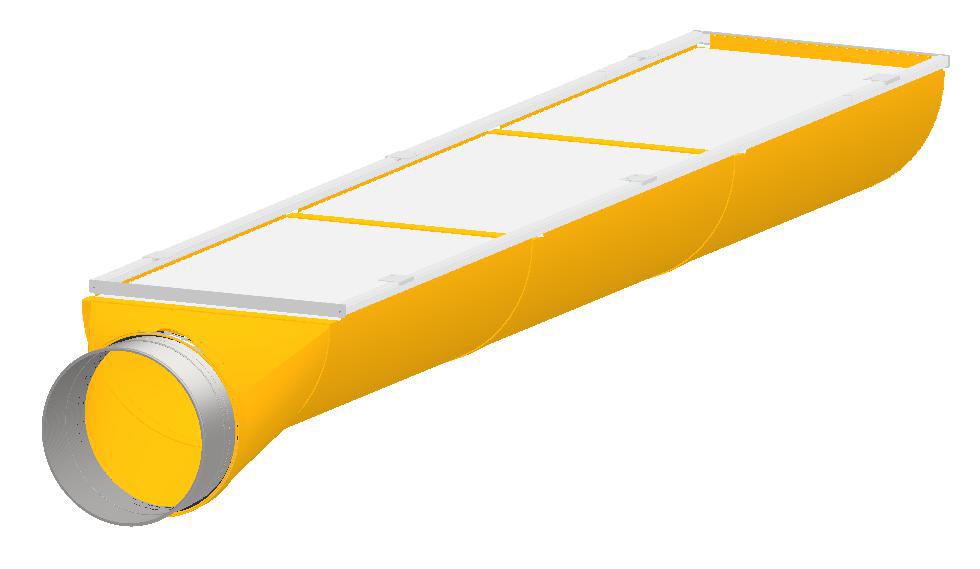

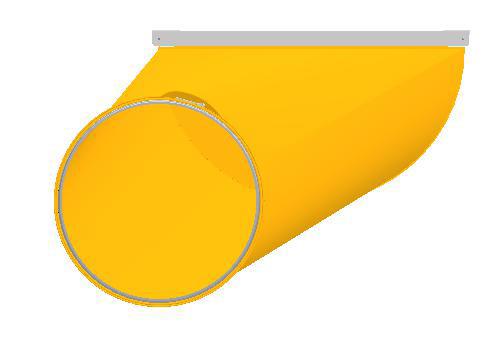

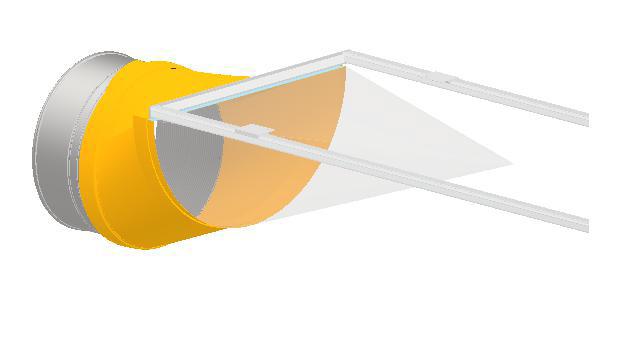

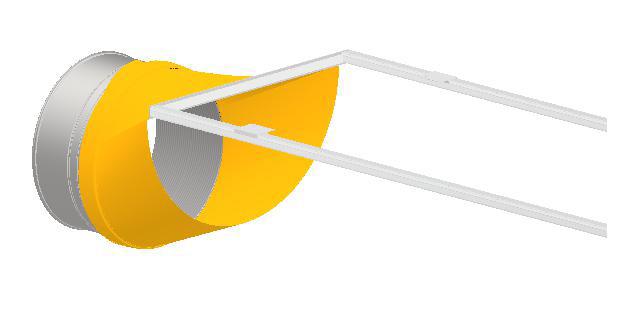

Installation of D-SRD (end inlet)
Indløbs -SRD montage .
Indløbs SRD kan tilvælges
The D-SRD is optional
Indløbs SRD lynes i ved en lynlås
The D-SRD and D duct are joined by means of zipper
DS-2612-GB-00
DS-0012-DK-03
L = Kanallængde
L = Duct length
LS = Length socket
LS = Længde studs
Ø = Socket diameter
Ø= Studsdiameter
H = Height
H = Højde
W = Width
W = Bredde
O = Offset
O = Forsætning
A = Distance socket 1
A = Afstand studs 1
B = Distance socket 2
B = Afstand studs 2
OBS!
Mark the A measurement on the rail so that it is clear where the nozzle is located after the duct has been mounted in the rails.

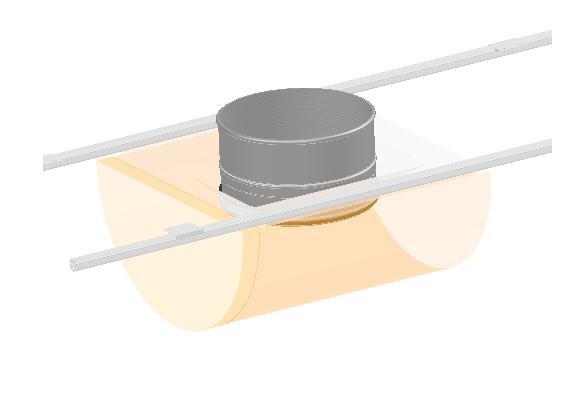

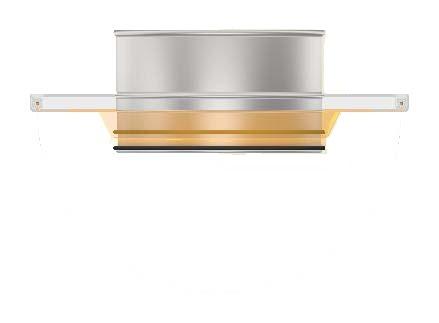

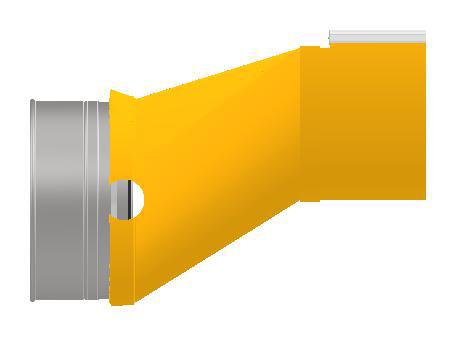

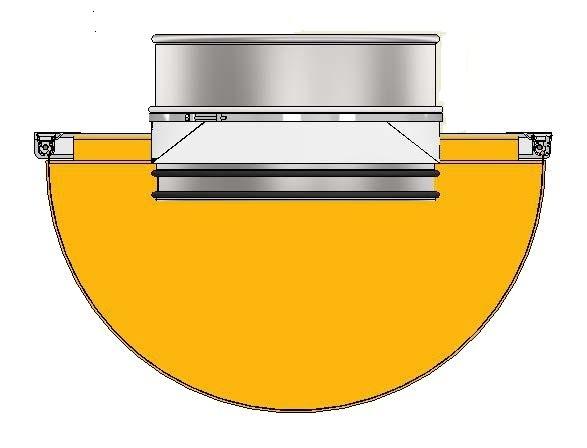

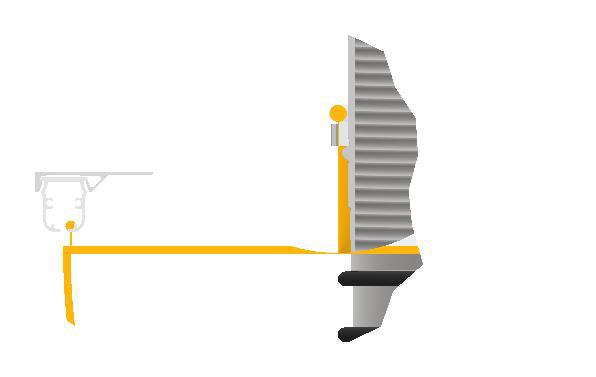

Mount the spring lock of the inlet socket onto supply spigot.
Markér A-målet på skinnen, så det kan ses, hvor studsen er placeret, efter at kanalen er monteret på skinnerne. A
OBS!
NOTE!
Remember to wear gloves or wash your hands prior to installation.
Brug handsker eller vask hænder før montering. Fjeder trykkes over studsen 36 mm
