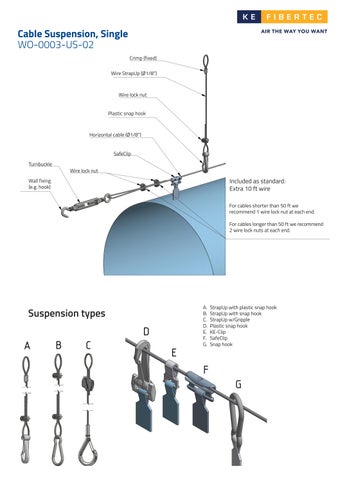

WO1-0003-US-02
Crimp (fixed)
Crimp (fixed)
Wire StrapUp (Ø1/8”)
WireStrap-Up (1/8'')
Wire lock nut
Wire lock nut
Plastic snap hook
Plastic snap hook

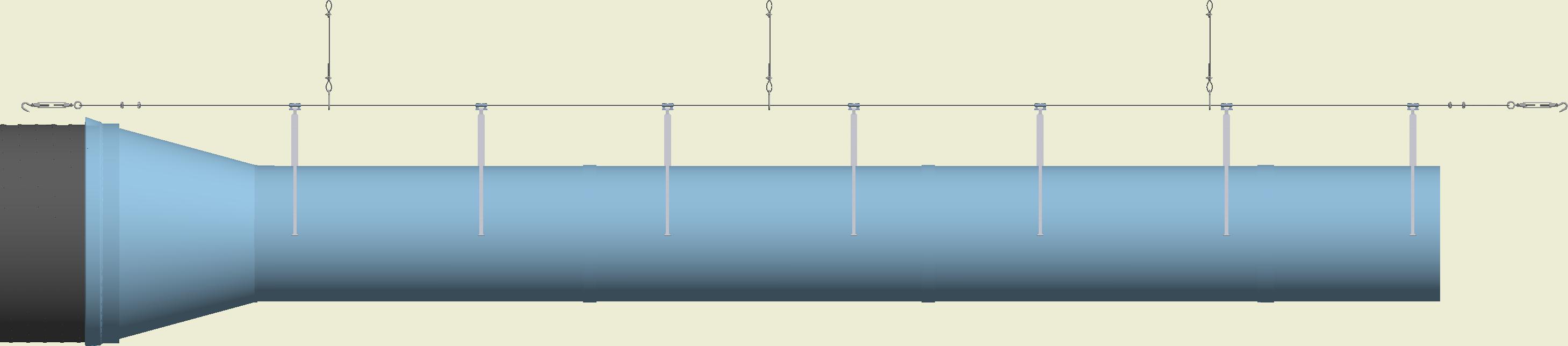

Horizontal cable (Ø1/8'')
Horizontal cable (Ø1/8”)

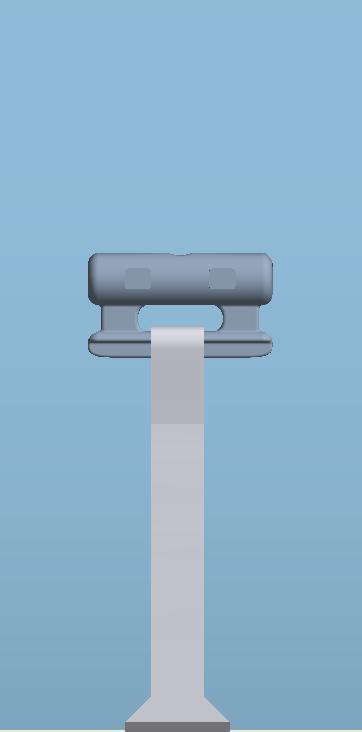

SafeClip
SafeClip
Turnbuckle
Turnbuckle
Wall fixing (e.g. hook)
Wall fixing (e.g. hook)
Wire lock nut
Wire lock nut

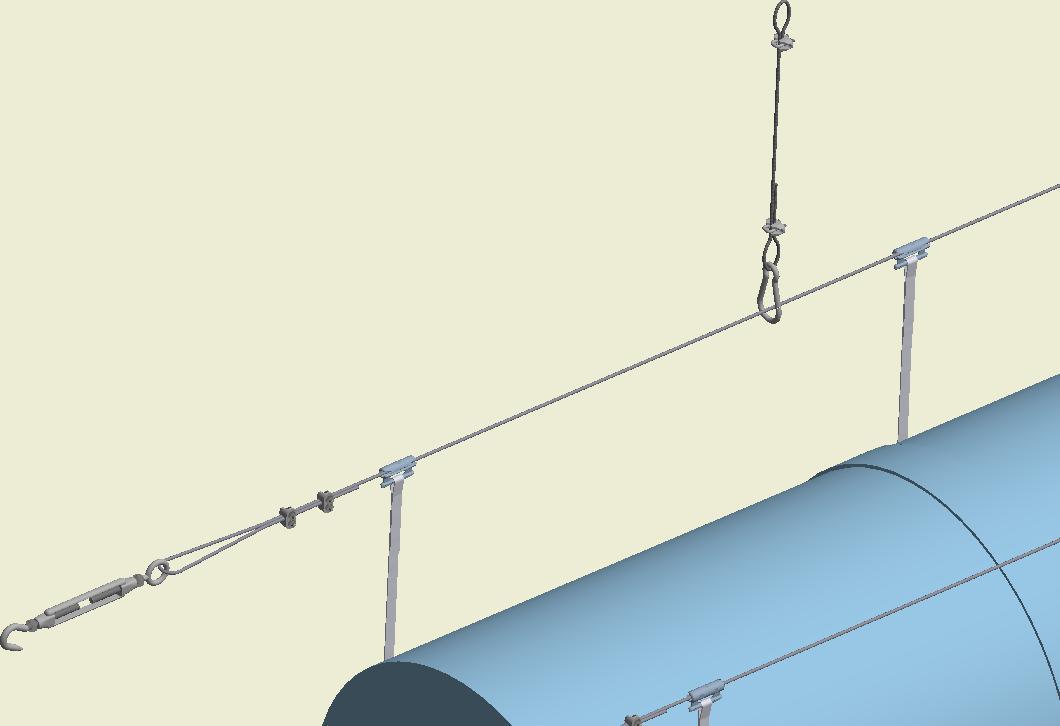

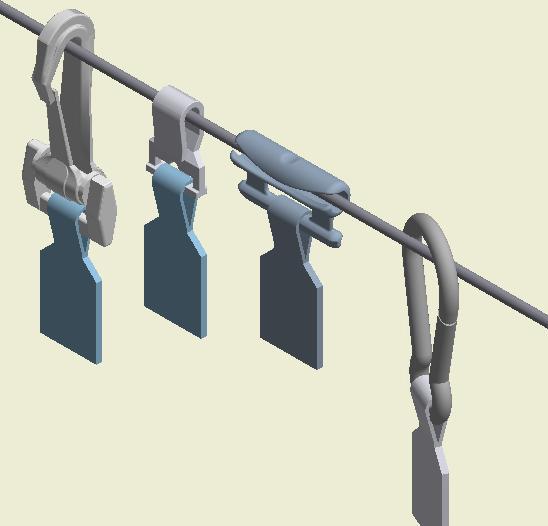

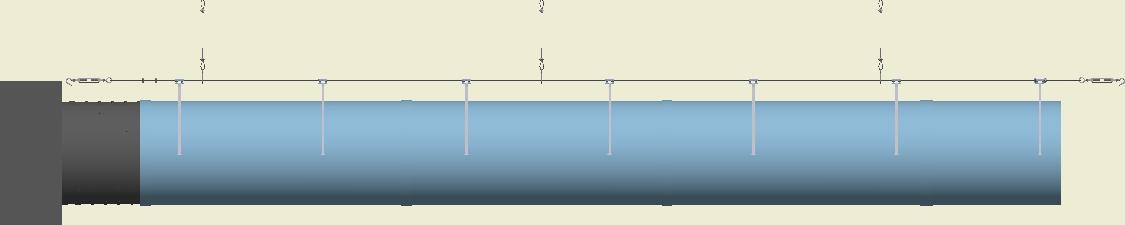

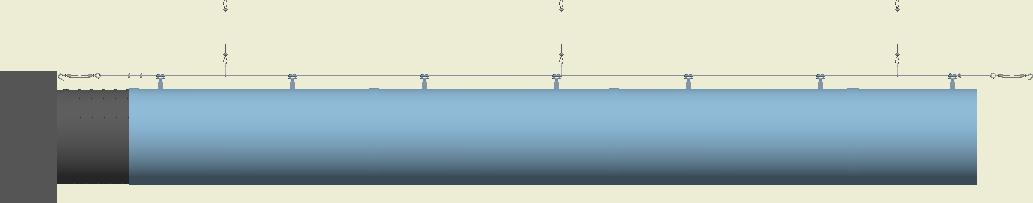

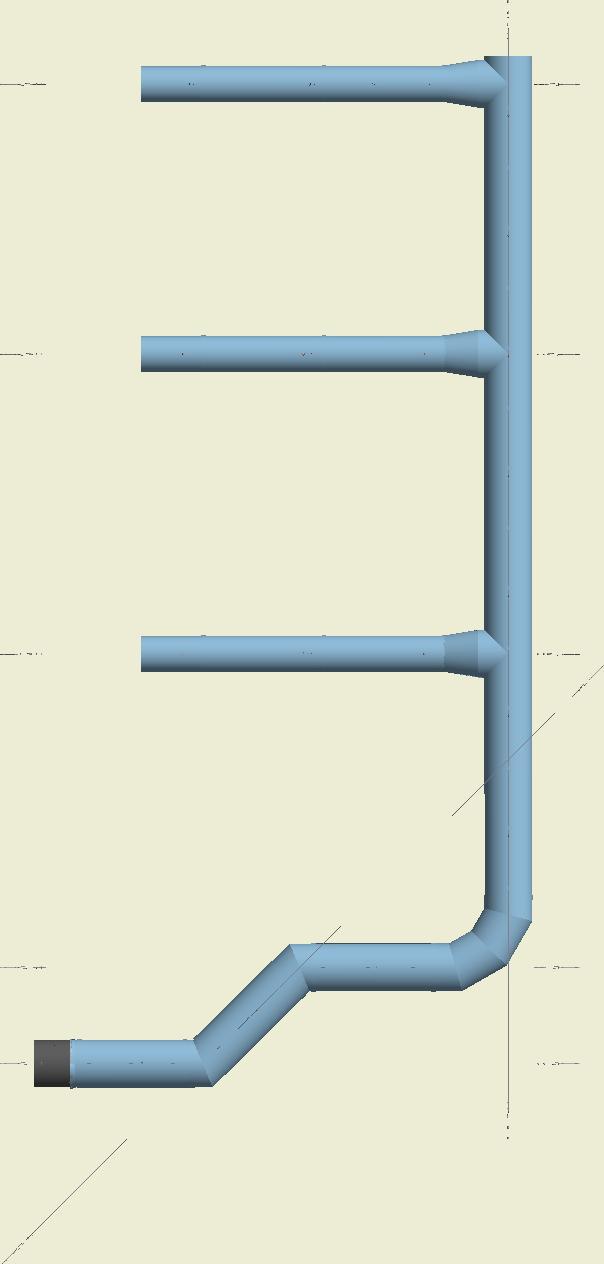

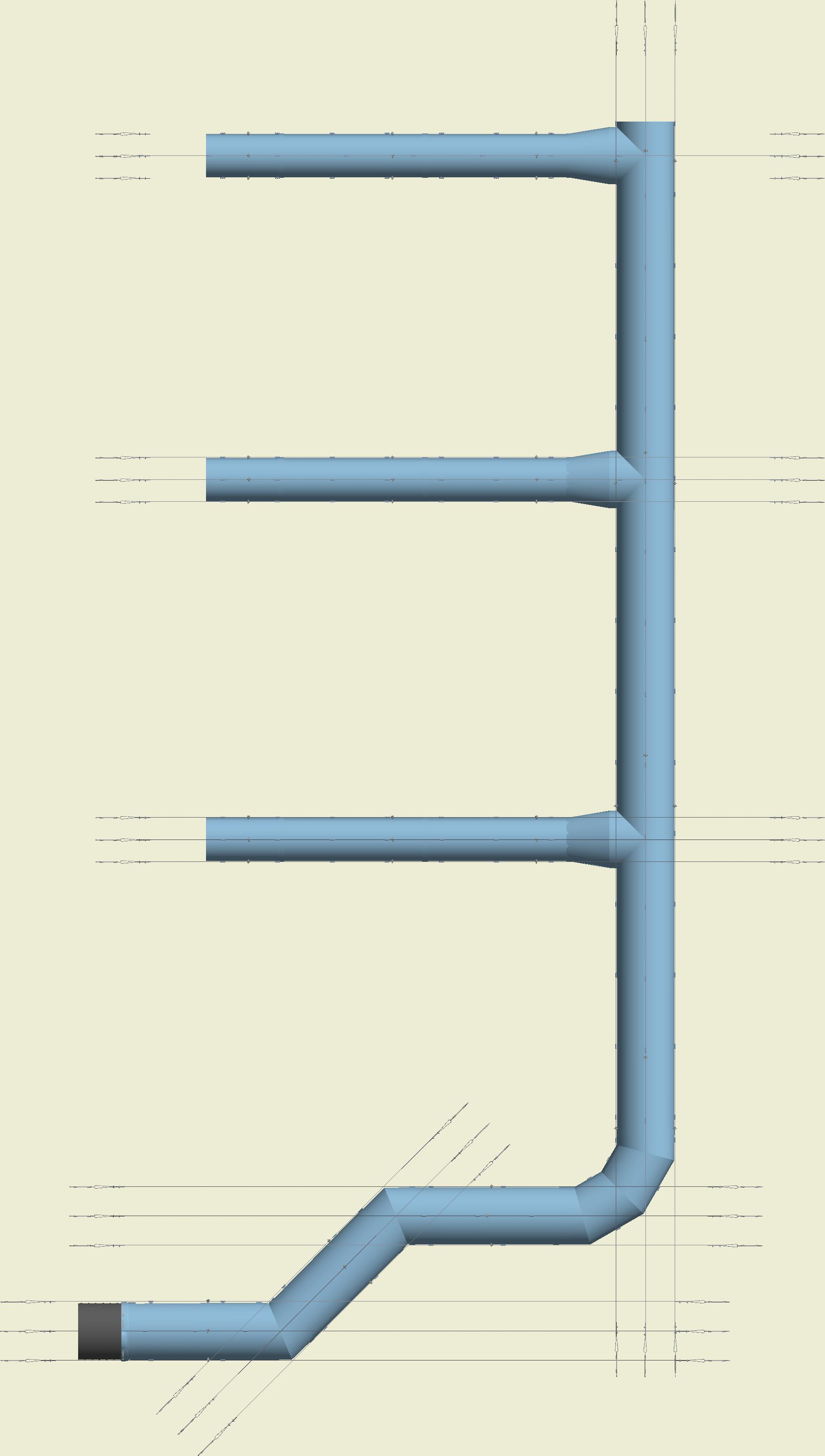

Suspension types
Suspension types
A B C
D E
Included as standard: Extra 10 ft wire
Included as standard: Extra 10 ft wire
For cables shorter than 50 ft we recommend 1 wire lock nut at each end.
For cables shorter than 50 ft we recommend 1 wire lock nut at each end.
For cables longer than 50 ft we recommend 2 wire lock nuts at each end.
For cables longer than 50 ft we recommend 2 wire lock nuts at each end.

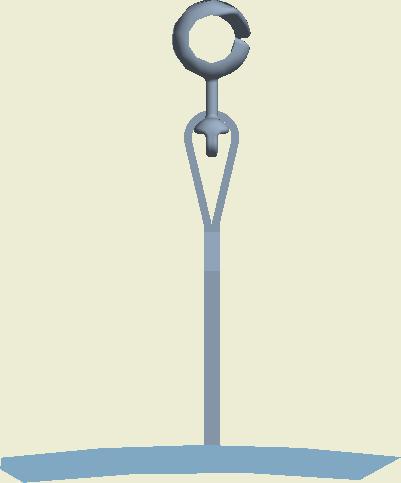

A.Strap-Up with plastic snap hook
A. StrapUp with plastic snap hook
B. StrapUp with snap hook
B.Strap-Up with snap hook
C. StrapUp w/Gripple
C.Strap-Up with Gripple
D. Plastic snap hook
D.Plastic snap hook
E. KE-Clip
E.KE-Clip
F. SafeClip
F.SafeClip
G. Snap hook
G.Snap hook
F
G
WO-0004-DK-01

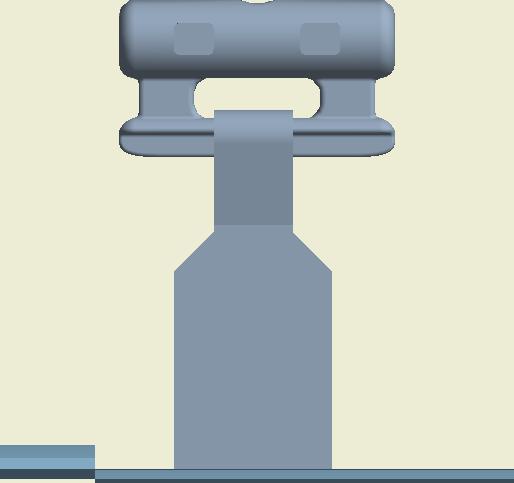

(front) SafeClip (side)
Vandrette wire monteres og strammes med max. 20 kg træk, inden wirelås skrues fast. en wirestrammer, der evt. skal drejes ud i fuld længde inden montage, kan derefter forkorte wiren yderligere 80mm Ved wirelængder over 15 m anvendes wirestrammer i begge ender.

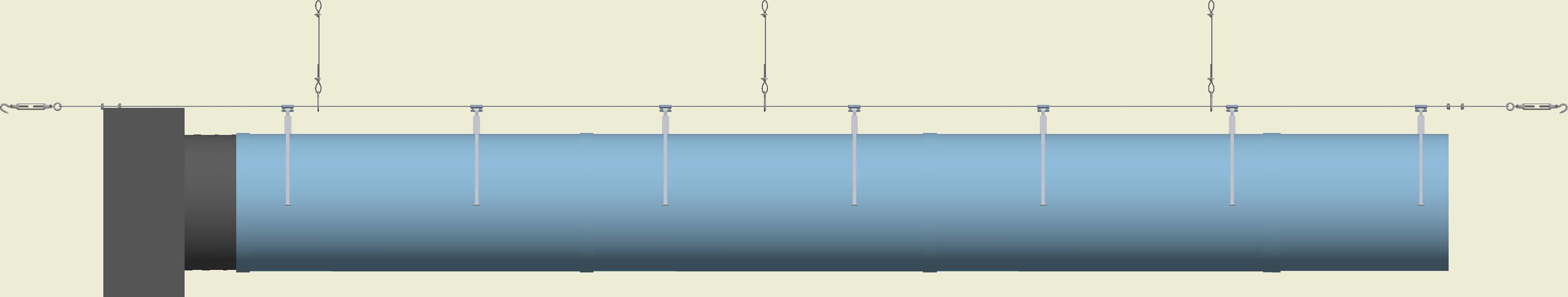

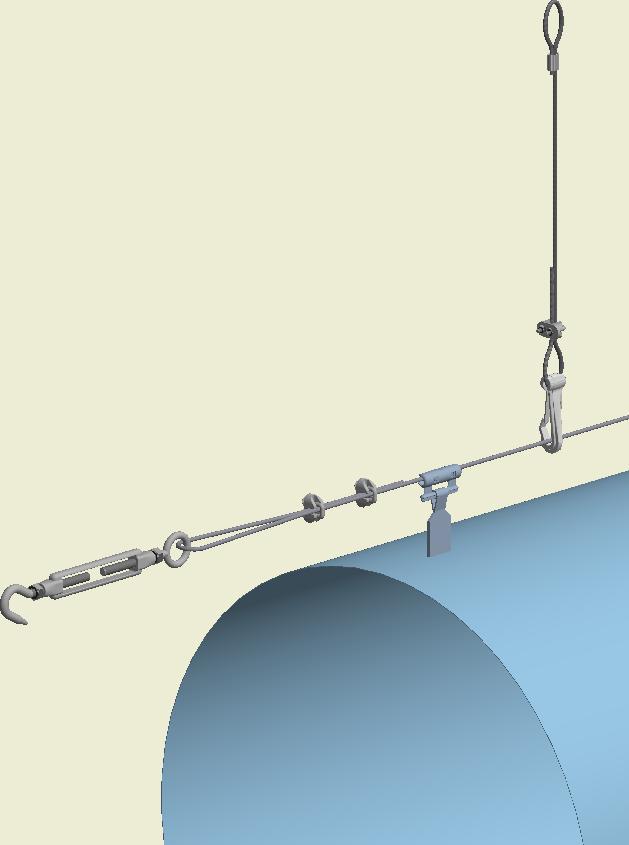

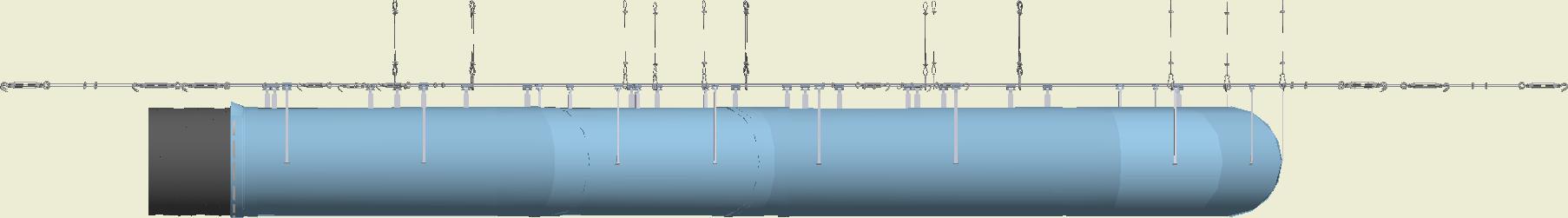

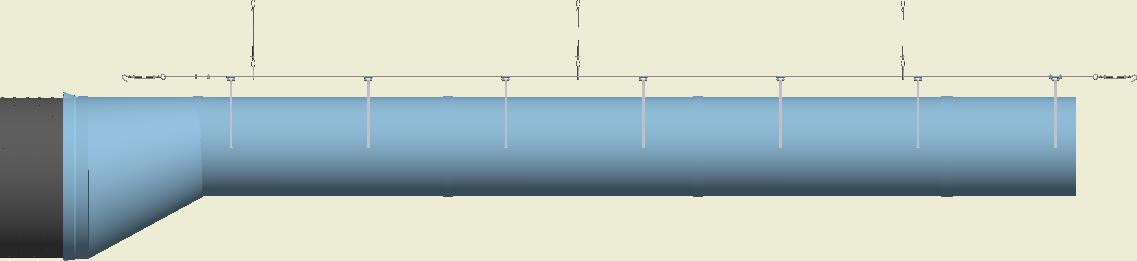

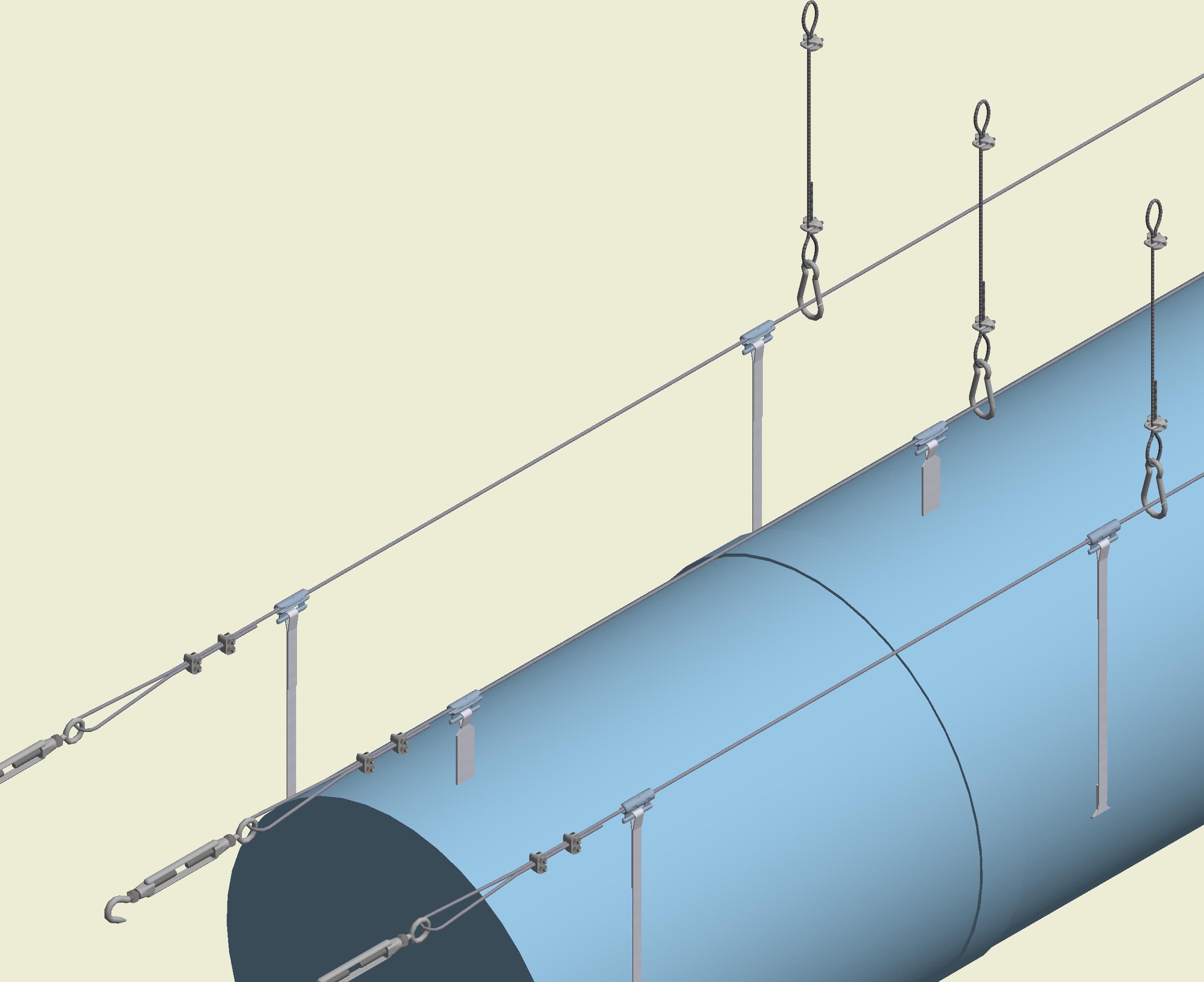

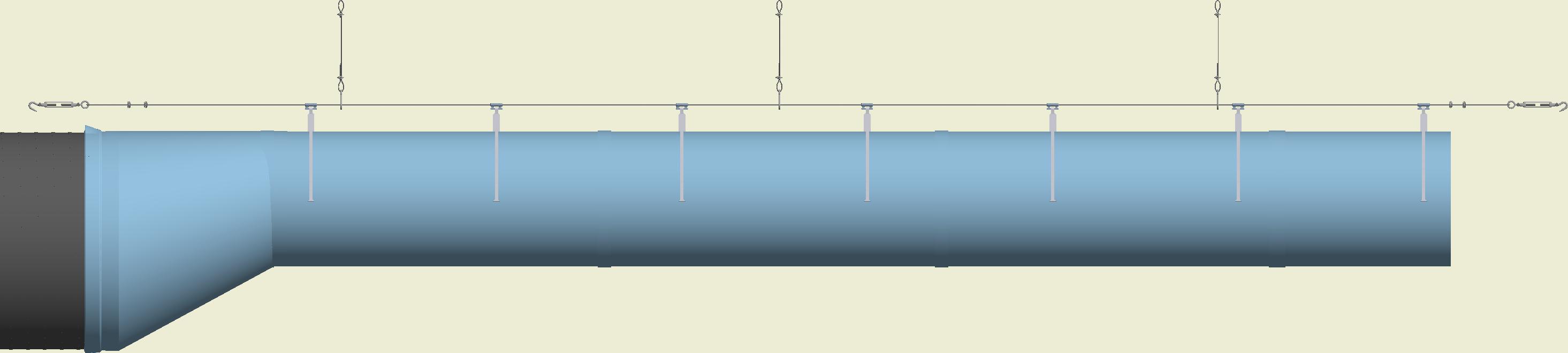

Mount horizontal cable. Apply tension of max. 45 lbs and then tighten wire lock nut. A turnbuckle turned from fully open to fully tensioned will shorten the cable by approx. 3 2/8”. For cables longer than 50 ft we recommend a turnbuckle at each end.
For duct lengths up to 40 ft install 1 wire lock nut at each end. For duct lengths greater than 40 ft install 2 wire lock nuts at each end.
Kanaler op til 12 meter 1 stk. wirelås pr. ende Over 12 meter 2 stk wirelåse pr. ende
WO-0005-US-02 Max 3/4” Max 3/4”
WO-0006-US-03

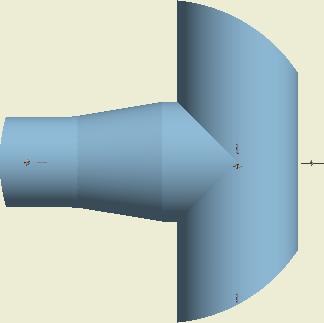

Placering af SafeClips WO-0006-DK-03
Placement of SafeClips
Placering af SafeClips

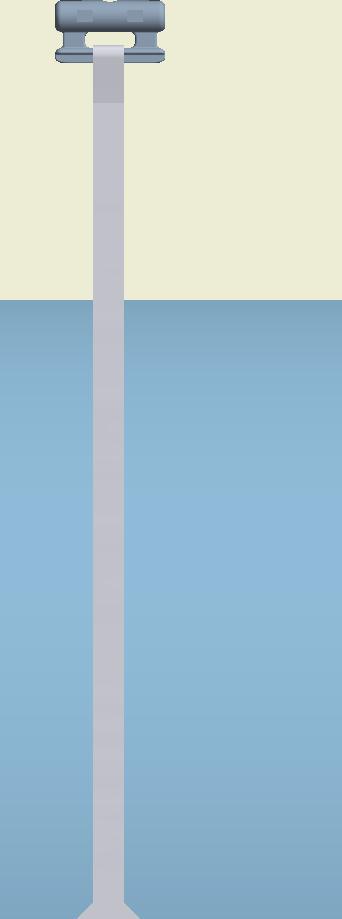

Clip height min. 1 3/8”
*SafeClips* Højde min. 35 mm
Formel:
Calculation:
Ø/2 + Clip height = X”
Ex.: Ø16/2 + 1 3/8 = 9 3/8”
Ø/2 + SafeClips højde = X Eks. Ø400/2 + 35 = 235 mm
*SafeClips* Højde min. 35 mm
Clip height min. 1 3/8”
Placement of SafeClips
Placement of SafeClips
Placering af SafeClips
Calculation: Ø/2 + Clip height = X” Ex.: Ø16/2 + 1 3/8 = 9 3/8”
Formel: Ø/2 + SafeClips Højde = X Eks. Ø400/2 + 35 = 235 mm
Placement of SafeClips
Placering af SafeClips
SafeClips are placed 1 5/8” from external zipper.
SafeClips placeres 40 mm fra udvendig lynlås.
*SafeClips* Højde min. 35 mm
Clip height min. 1 3/8”
Placering af SafeClips
Placement of SafeClips
Placering af SafeClips
Placement of SafeClips
Placement of SafeClips
Placering af SafeClips
Placering af SafeClips
Placement of SafeClips
Placement of SafeClips
Placering af SafeClips
Placement of SafeClips
Placering af SafeClips
WO-0011-US-02

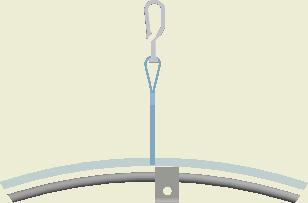

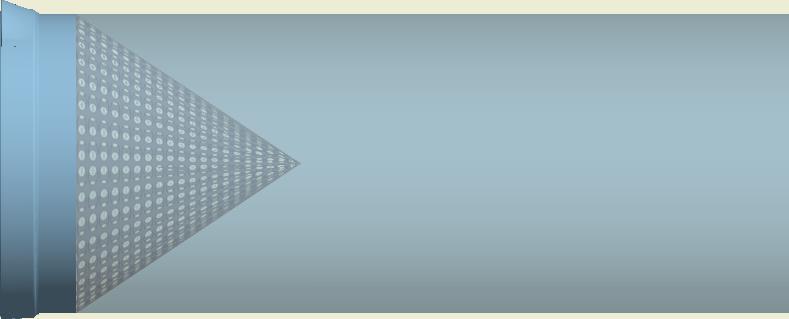

WO-0011-US-00 Cable Suspension, Single, with Rings
Duct diameter Ring size
8'' to 25'': 1/8'' 26'' to 4': 5/32''
Lock at 12 o 'clock if duct diameter exceeds 15-3/4'' 20''
If d uct diameter exceeds 20'' rings are included separately (to b e installed on site)

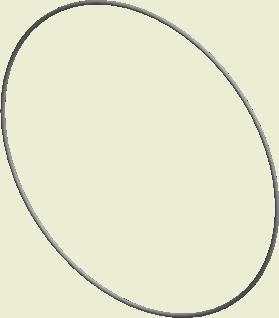

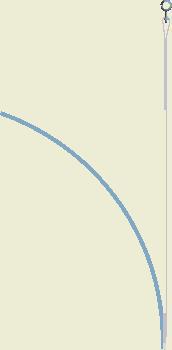

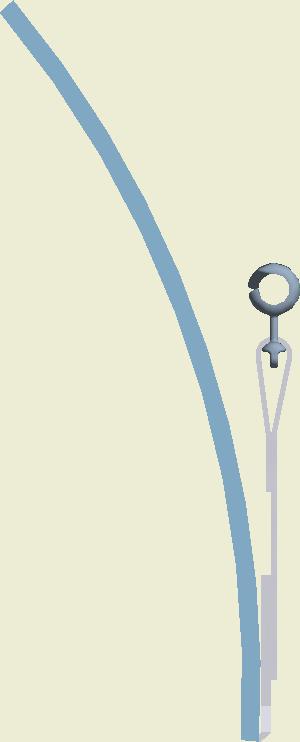

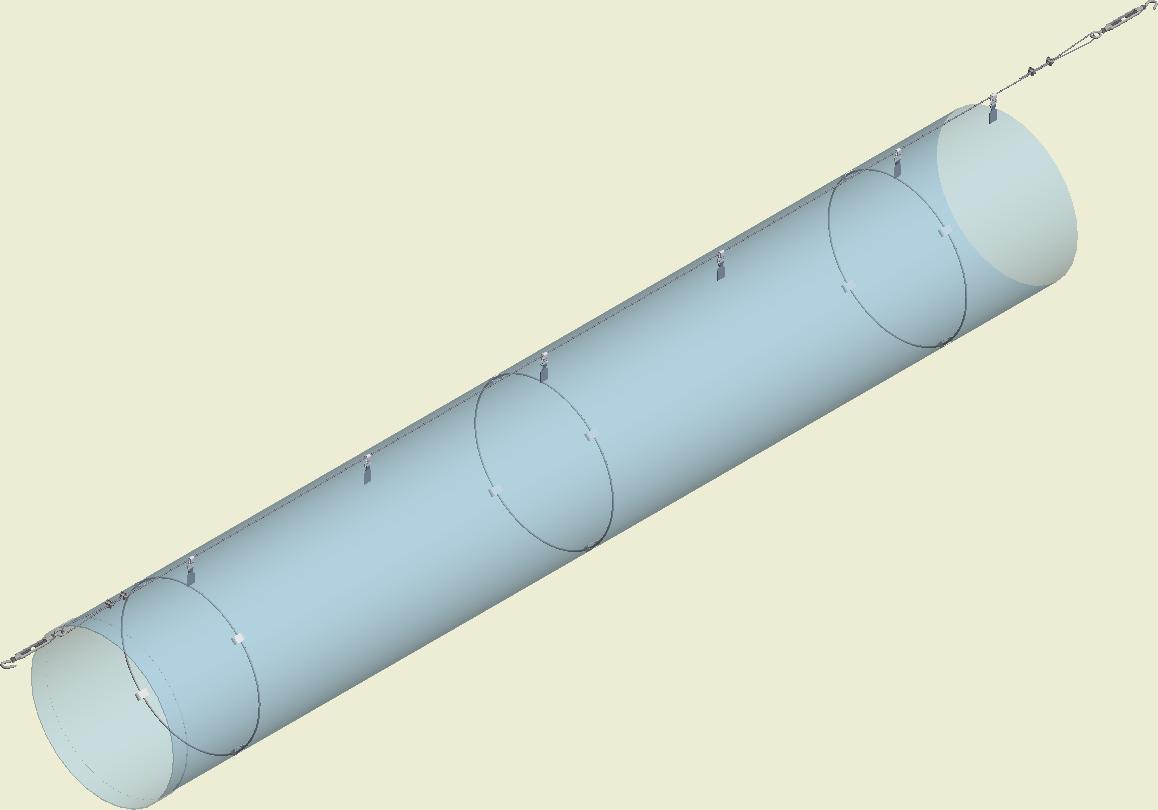

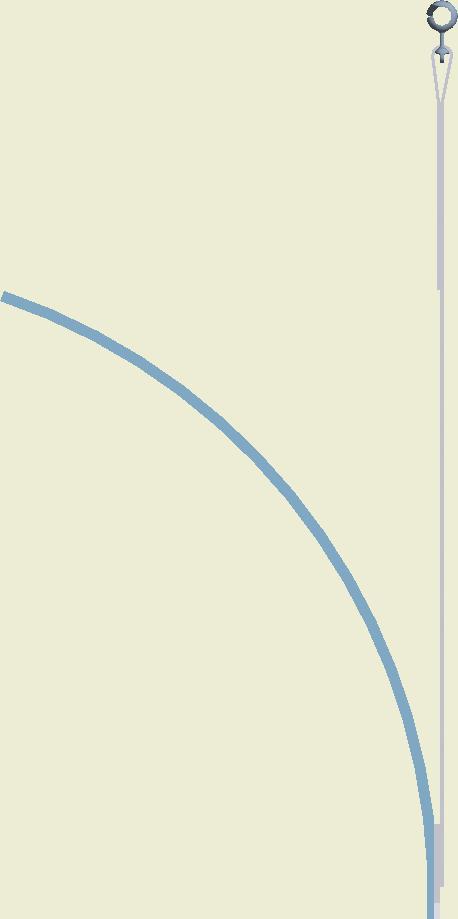

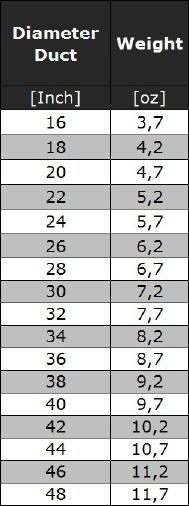

Cable Arch Suspension
Please note that the arch is placed inside the fabric duct. Arches will be delivered with the duct.
The arch keeps the fabric duct looking inflated even when the air is off and makes for an aesthetically appealing installation.
The unique Cable Arch is constructed in a way, so that the arch can easily slide into the premade pocket inside the duct, without using any tools.
Inflation ”popping” in the fabric duct caused by the initial Air Handler start up can be reduced by using the Cable Arch.
WO-0010-US-02
For cables shorter than 50 ft we recommend 1 wire lock nut at each end.
For cables longer than 50 ft we recommend 2 wire lock nuts at each end.

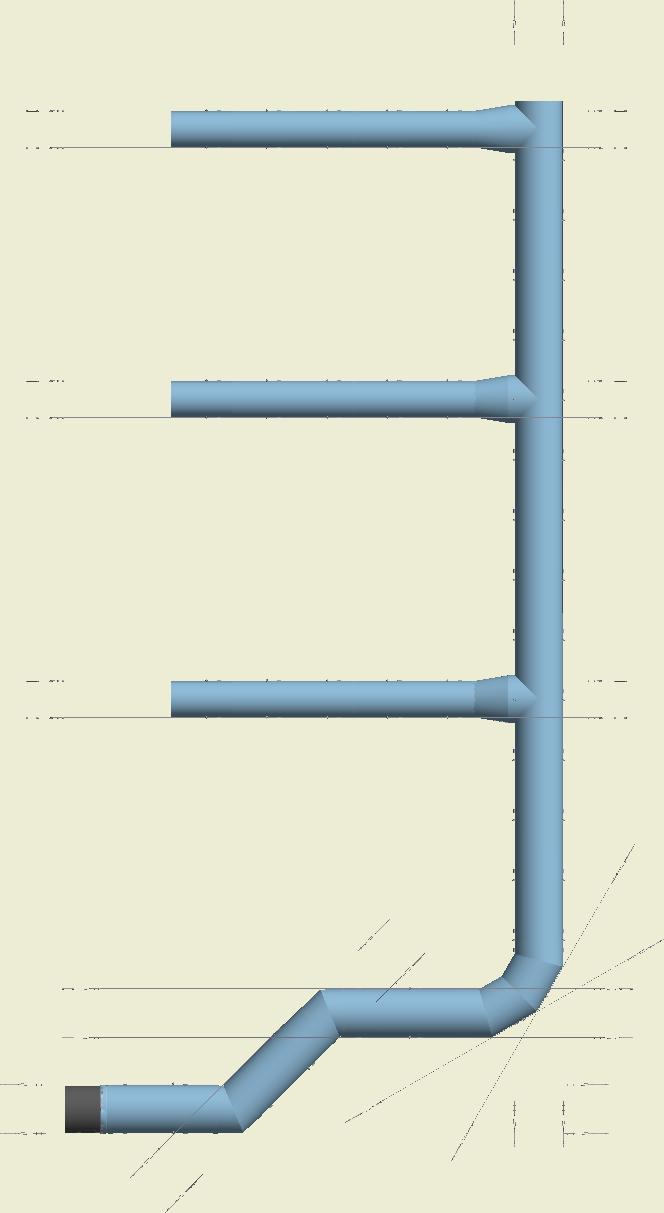

Suspension types A B C
Suspension types
A.Strap-Up with plastic snap hook
A. StrapUp with plastic snap hook
B. StrapUp with snap hook
B.Strap-Up with snap hook
C. StrapUp w/Gripple
C.Strap-Up with Gripple
D. Plastic snap hook
D.Plastic snap hook
E. KE-Clip
E.KE-Clip
F. SafeClip
F.SafeClip
G. Snap hook
G.Snap hook
Wire StrapUp (Ø1/8”)
Wire lock nut
Horizontal cable (Ø1/8”)
Turnbuckle Wall fixing (e.g. hook)
WO-0004-DK-03 Ø/2 + 35 mm = X

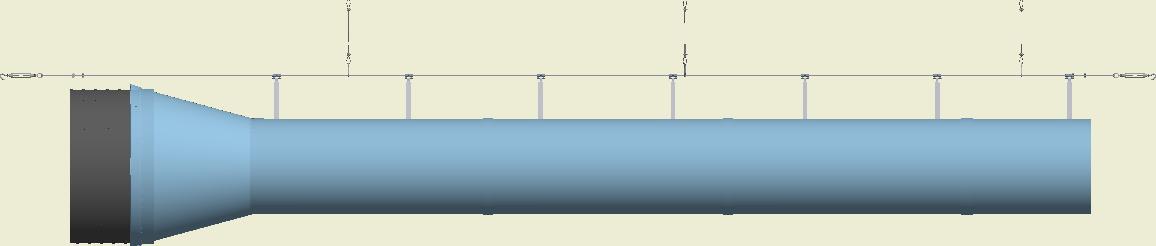

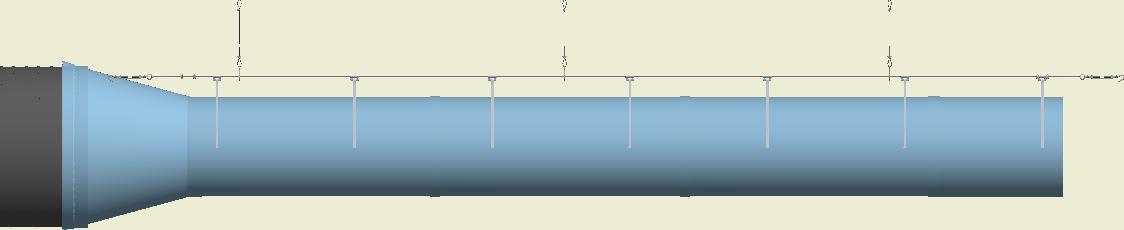

Mount horizontal cables. Apply tension of max. 45 lbs and then tighten lock nut. A turnbuckle turned from fully open to fully tensioned will shorten the cable by approx. 3 2/8”. For cables longer than 50 ft we recommend a turnbuckle at each end.
Wire strammes med max. 20 kg træk, inden wirelås skrues fast. Wirestrammer, der evt. skal drejes ud i fuld længde inden montage, kan derefter forkorte wiren yderligere 80 mm. Ved wirelængder over 15 m anvendes wirestrammer i begge ender.
For duct lengths up to 40 ft install 1 wire lock nut at each end. For ducts longer than 40 ft install 2 wire lock nuts at each end.
Poser op til 12 meter 1.stk wirelås pr. ende Over 12 meter 2.stk wirelåse pr. ende
WO-0006-US-03
Placering af SafeClips WO-0006-DK-03
Placement of SafeClips
Placering af SafeClips
Clip height min. 1 3/8”
*SafeClips* Højde min. 35 mm
Formel:
Calculation:
Ø/2 + Clip height = X”
Ex.: Ø16/2 + 1 3/8 = 9 3/8”
Ø/2 + SafeClips højde = X Eks. Ø400/2 + 35 = 235 mm
*SafeClips* Højde min. 35 mm
Clip height min. 1 3/8”
Placement of SafeClips
Placement of SafeClips
Placering af SafeClips
Calculation: Ø/2 + Clip height = X” Ex.: Ø16/2 + 1 3/8 = 9 3/8”
Formel: Ø/2 + SafeClips Højde = X Eks. Ø400/2 + 35 = 235 mm
Placement of SafeClips
Placering af SafeClips
SafeClips are placed 1 5/8” from external zipper.
SafeClips placeres 40 mm fra udvendig lynlås.
*SafeClips* Højde min. 35 mm
Clip height min. 1 3/8”
Placering af SafeClips
Placement of SafeClips
Placering af SafeClips
Placement of SafeClips
Placement of SafeClips
Placering af SafeClips
Placering af SafeClips
Placement of SafeClips
Placement of SafeClips
Placering af SafeClips
Placement of SafeClips
Placering af SafeClips
WO-0010-US-02
WO-0003-US-00
WO-0003-US-00 Wire StrapUp (Ø1/8”) Wire lock nut
Wire Strap-up (Ø3 mm)
Wirelås
Included as standard:
Plastic snap hook
Included as standard:
Extra 10 ft wire
Extra 10 ft cable
For cables shorter than 50 ft we recommend 1 wire lock nut at each end.
For cables shorter than 50 ft we recommend 1 wire lock nut at each end.
For cables longer than 50 ft we recommend 2 wire lock nuts at each end.
For cables longer than 50 ft we recommend 2 wire lock nuts at each end.
Turnbuckle
Wirestrammer
Wall fixing (e.g. hook)
Vægbefæstelse (Krog e. lign.)
Suspension types
Suspension types
A B C
Horizontal cable (Ø1/8”) SafeClip
D
Wire (Ø3 mm)
E
F
A. StrapUp with plastic snap hook
A.Strap-Up with plastic snap hook
B. StrapUp with snap hook
B.Strap-Up with snap hook
C. StrapUp w/Gripple
C.Strap-Up with Gripple
D. Plastic snap hook
D.Plastic snap hook
E. KE-Clip
E.KE-Clip
F. SafeClip
G. Snap hook
F.SafeClip
G.Snap hook
G
Vandret
12 o’clock
3 and 9 o’clock
3 and 9 o’clock
Vandrette wirer monteres og strammes med max. 20 kg træk, inden wirelås skrues fast. en wirestrammer, der evt. skal drejes ud i fuld længde inden montage, kan derefter forkorte wiren yderligere 80mm. Ved wirelængder over 15 m anvendes wirestrammer i begge ender.

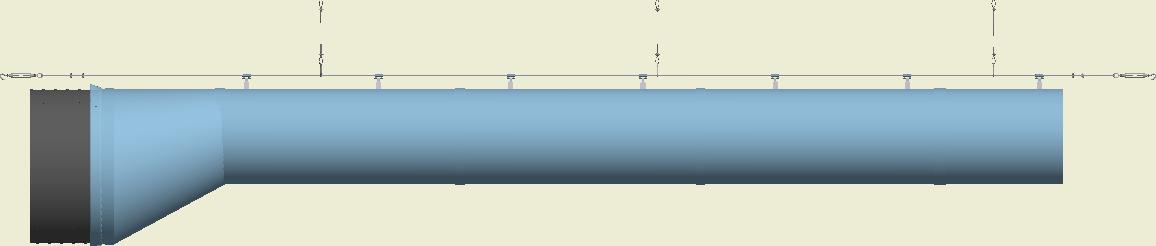

Mount horizontal cables. Apply tension of max. 45 lbs and then tighten lock nut. A turnbuckle turned from fully open to fully tensioned will shorten the cable by approx. 3 2/8”. For cables longer than 50 ft we recommend a turnbuckle at each end.
Kanaler op til 12 meter: 1stk wirelås i hver ende
For duct lengths up to 40 ft install 1 wire lock nut at each end For duct lengths exceeding 40 ft install 2 wire lock nuts at each end
Kanaler over 12 meter: 2 stk. wirelåse i hver ende
Hvis Ø> 500 pl aceres en ekstra k lips i syn in gen ved ret ov erk an t eller samme diameter som fordeler Max 20mm
Max 3/4” Max 3/4”
For ducts flat on top exceeding 20” diameter or with same diameter as the plenum, an additional clip is placed at the seam

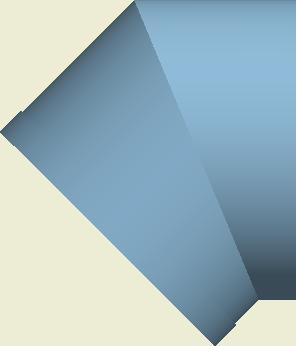

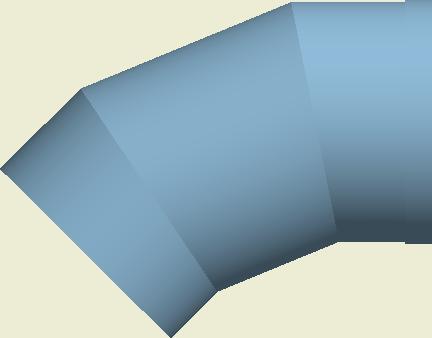

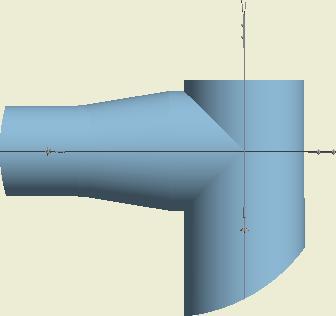

Mitered elbow - see delivery note for specific angle
Knæk Vilkårlig Vinkel

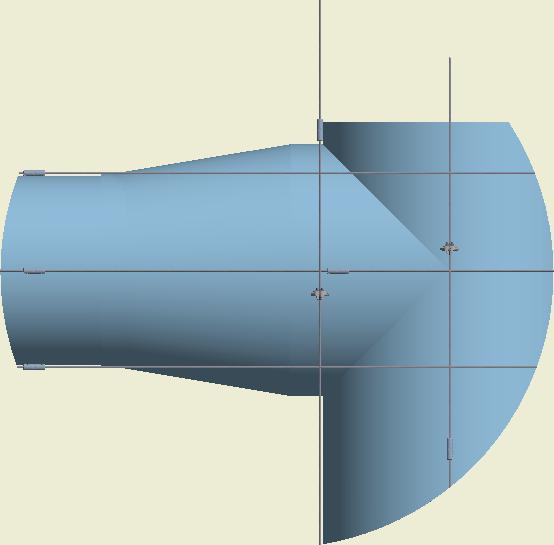

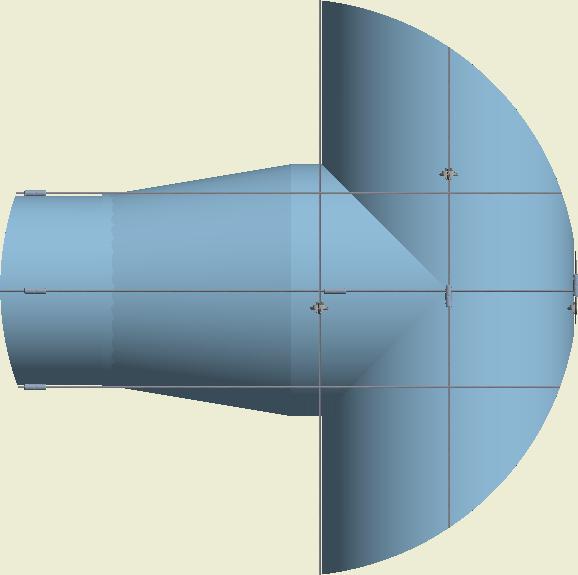

Placering af Clips
Placement of SafeClips
Mitered elbow 90°
Knæk 90°
Placering af Clips X>291 -
Placering af Clips
Placement of SafeClips
Placering af Clips
Placement of SafeClips
Placement of SafeClips
Placement of SafeClips
Placering af Clips
Rolled Bend 45°
45° gored elbow
SafeClip Clip height min. 1 3/8”
Placering af Clips
Placement of SafeClips
Calculation:
Formel:
Ø/2 + Clip height = X” Ex.: Ø16/2 + 1 3/8 = 9 3/8”
Ø/2 + Clips Højde = X Eks. Ø400/2 + 35 = 235mm
Clips to be placed 1 5/8” from external zip.
Clips placeres 40mm fra udvendig lynlås.
Clips højde min. 35mm

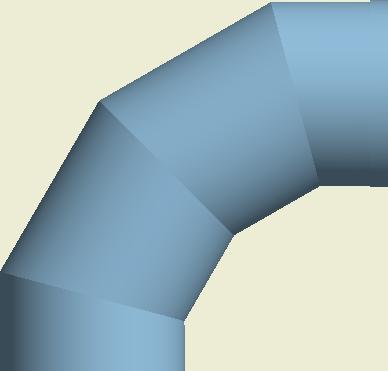

Rolled Bend 90°
90° gored elbow
Placering af Clips
Placement of SafeClips
SafeClip Clip height min. 1 3/8”
WO-0010-US-02
