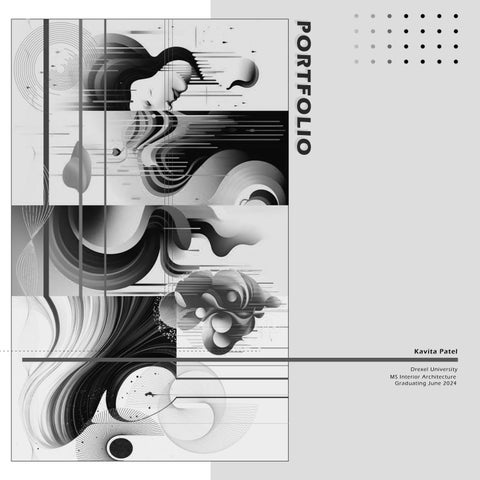

PORTFOLIO Kavita Patel Drexel University MS Interior Architecture Graduating June 2024
COMPETITION WORK
DESIGN STUDIO WORK
DESIGN RESEARCH ELECTIVES
Reimagined Collective HOK Futures 2024
Reflections Residential Studio
Vision Conceptual Studio
(De) Constructive Escapade Design Making & Disruption
De-Constructive Fusion Technologies of Making
Happy Hearts Community & Wellness Studio
CONTENT
Promise HOK Futures 2023
This project was a collaborative effort between two team members. Our task was to conceptualize and design an immigrant and refugee center in the Old City of Philadelphia. While we had the option to focus on a specific immigrant or refugee community, we chose to design for the broader population. The project was driven by a strong conceptual framework and also took into account practical planning and layout considerations. My specific role in the project was to develop the overarching concept and apply it to space planning. Additionally, I ensured that all our concepts and ideas were effectively communicated through diagrams and visuals.
PROMISE Center for Immigrants and Refugees HOK Futures 2023 Competition First Place - Winning Entry
PROMISE CENTER FOR IMMIGRANTS & REFUGEES CONCEPT STATEMENT
CONCEPTUAL DIAGRAM
“Promise” is an initiative grounded in ideas of safety, stability, comfort, and acceptance. The center aims to address the challenges faced by immigrants and refugees in adjusting to their new surroundings and building a life in Philadelphia. The facility is designed such that it promotes integration and interaction by involving other existing residents and communities of Philadelphia to guide, engage and accept the immigrants and refugees. It promotes a culture that is welcoming to all and fosters a sense of belonging and purpose by addressing the culture, art and architecture of the immigrants' and refugees' home countries. “Promise” acts as a portal to a safer, secure and better future.
The design of the immigrant and refugee center has been meticulously crafted to provide a harmonious and functional environment. The central positioning of the reception, waiting, and seating area creates a lively and dynamic vibe, serving as the heart of the center. The health clinic, cafe, child care, and workshop are all conveniently located within close proximity to the central engagement zone, making it easily accessible to the visitors. The seating area and cafe have been placed along the open sides of the building to maximize natural light and create a sense of connection to the outdoors. Meanwhile, spaces such as the health clinic and child care have been situated in more private and secure locations.
Vertical Circulation
ZONING DIAGRAM
Health Clinic
Fire Exit
Toilets Child Care
SITE 44-46 N Parking Lot in Old City, Philadelphia Letitia Street
Chestnut Street
Workshop Creative Space
Cafe
Reception & Waiting Area
SITE
S Front Street
N
Direct Adjacency Indirect Adjacency
Tone Patterns Material The graphics and material palette is inspired and derived from various art styles, patterns, forms and materials from Southeast Asia, Africa and Europe. The intent is to celebrate cultural identity and recognize the diversity of the immigrant and refugee community. This also makes a supportive and inclusive environment. PARTI BUBBLE DIAGRAM
First Floor Plan
Second Floor Plan
The Promise Center greets guests with an open central area that acts as a lounge, waiting area, and reception desk. Behind the desk is a striking artwork bearing the center's name, “Promise” that sets the tone for an memorable visit. This hub directly connects to various other spaces, including a workshop, cafe, elevator, staircase, and gathering area, where more activity is anticipated. Though the child care and health clinic are placed in quieter secluded locations, they remain easily accessible through the central space.
Mood Board & Inspiration
The cafe, situated on the corner with street-facing windows, floods the space with natural light and creates a seamless indoor-outdoor connection. The cafe leads to the elevator and staircase, which transport visitors to the second floor. Integration The Creative Space, designed for immigrants and refugees, serves as a gathering spot for community events and information sessions, as well as a study area for youth. This space also leads to the ceramic workshop and acts as a transitional area. Interaction
As visitors arrive on the first floor, they catch a glimpse of the workshop area through a partition wall. They then continue towards the administrative area and offices, which feature open work stations and four flexible offices with varying capacities and designs. At the end of this section lies an open collaboration space that leads to outdoor seating and meeting areas on the terrace. The terrace area features a community kitchen where immigrants and refugees can cook or bring in and share dishes from their native cuisines, offering an opportunity for other Philadelphians to learn about diverse. There is an extension of the workshop, allowing artists to work and create in an open air environment. Additionally, there is a study area and gathering spaces for people to work, relax, socialize, or study. A portion of the space is reserved for events, such as financial workshops, language classes, or celebrations. Such open spaces intend to welcome and engage the wider community, providing opportunities for residents of Old City to connect with, support, and learn from the immigrant and refugee community. Through its inclusive design and programs, the center can build a stronger, more connected, and more resilient community in Old City Philadelphia.
Inter - Connection
Key Plan
S Front Street
Elevation - Retail Display within Main Lobby
Creative Space - Gathering Area Shared support spaces will encourage interaction and collaboration between different groups.
Elevation - Location that displays overall Design Intent
Reception Desk Retail display behind the desk, ensuring it is the first visual for visitors when entering the building
Office Area
Isometric - Reception Desk
Workshop
Isometric -
Cafe Counter
1 Perspective - Cafe Suspended Ceiling Design
2 Perspective - Main Entry & Reception Ceiling light flowing into different spaces
Multicultural Display Pillars These four pillars aim to honor the history, culture, and information of the home countries of immigrants and refugees. They feature artifacts and books related to these groups, allowing others to learn and gain insight.
2 Perspective Gathering Space and Threshold to Ceramics Workshop
3 Perspective Gathering Space
1 - The culture, art and architecture of the immigrants' and refugees' home countries influences certain design elements for the project. This design approach creates a connection to their cultural heritage and roots, promoting a sense of comfort and familiarity in their new surroundings. 2 - The partition wall has been designed to serve as a threshold to the workshop. It showcases patterns from a variety of art cultures, allowing those passing through to learn about the art of different countries. Towards the gathering space, it provides a visual connection to the threshold, promoting a sense of openness, and doubles as a bookshelf.
1 Perspective View showing Cafe, Greeter Desk and Information Office
This project was done in a team of two. The brief was to design a environmental education center in the Cobbs Creek area. The goal was to engage the community and teach them about the environmental benefits of Cobbs Creek. My role in this project was to come up with a conceptual idea with my teammate and try to imply it as the user would experrince the space. I also tried to implement the various sustainable materials that me and my teammate chose for this project.
REIMAGINED COLLECTIVE Eco Community Hub HOK Futures 2024 Competition
Reimagined Collective ECO COMMUNITY HUB CONCEPT STATEMENT
SITE 700 Cobbs Creek Pkwy, Philadelphia, PA
Weaving Regeneration, Reflection, and Pause The center is an immersive retreat to learn, to see, to observe, to replenish oneself and co-exist. Cobbs Creek Center, is a refuge where “regeneration” is promoted, “reflection” deepens amidst nature's whispers, and “pause” nurtures connection to self, community, and the environment. The center serves as a catalyst for collective action; teaching and inspiring visitors to actively contribute to a greener future- where nature thrives and communities flourish.
N
REFLECTION Community
REGENERATION Educate
PAUSE Relax
Someway to Engage
Something to Learn
Somewhere to Wait and
PROCESS SKETCHING, Understanding journey of the user
Pause Regeneration
Reflection
PARTI
BUBBLE DIAGRAM
BLOCKING DIAGRAM
INNOVATIVE SUSTAINABLE CHOICE OF MATERIALS Malai Eco - Cumin Yellow A product made from Coconut cream. Malai will last 4-8 years if properly cared for, however, should you wish to have a clear-out, it can simply be placed in with your compostable rubbish and it will naturally break down.
Rizome Bamboo It is naturally sustainable .As bamboo grows, it absorbs 10 times more CO2 from the atmosphere than an equivalent acreage of trees. Bamboo also releases 35% more oxygen than a tree.
Gencork Made from a truly ecological production and without waste, with a 95% energy self-sufficiency. It’s also a CO2 sink, playing a key role in the environment.
Loqa circular tiles - Lava grey loqa products are made from at least 85% waste materials mainly from locally sourced ceramics, glasses, and fly ash from some of the biggest industrial polluters.
Rice House clay plaster – RH200 Rice house's mission is to build a house made of rice and everything that accommodates humans: from the micro to the macro, using rice by-products.
Foresso This product is made out of waste materials and the company’s goal is to produce 100% recycled products and become waste negative. It aligns with our goals for a cleaner & more greener cobbs creek
Baux AcousticPanels - Pale Green Panels are made out of Acoustic Wood Wool, a well-established and sustainable solution for acoustically outstanding space.
Marmoleum - Walton Overall 23% of our flooring is made up of recycled materials by weight, with some individual products with as much as 89% recycled materials.
13
16
Museum Journey
17
12
14
18 15
11
6 1
The above image shows the first few exhibits at the Eco Community Hub as one steps into the exhibition area. 3 interactive LED screens allow the visitor to discover the importance of Cobbs Creek. Next, embark on a fascinating journey with the Tech-Model of the Creek. This interactive display showcases the evolution of the wetlands and biodiversity, highlighting both challenges and achievements.
7
2
3
4
5
8
9
10
1 Engaging with Cobbs Creek - Three interactive displays showcasing the importance of Cobbs Creek and it’s
significance, Connection to Neighborhoods and Availability of Resources. Visitors can interact with the displays using the discs, that let them choose what they would like to explore.
2 Augmented Reality Bird Watching - AR Binoculars to sit and observe virtual birds flitting through the real environment, learn their calls and characteristics, and create an immersive sensory experience.
3 Darby Creek Timeline - This shows the evolution of the Darby Creek Watershed through a captivating combination of a physical 3D model and a digital screen. A timeline bar lets visitors explore the creek's past, present, and future restoration efforts, highlighting the impact of human actions and inspiring positive change. It stands by the window, framing the present environment with passing time.
4 Bird Chart - A rotating disc showcases colorful illustrations, names, and interesting facts about the diverse bird species inhabiting Cobbs Creek.
5 Ecosystems - Infographic visually explaining the different ecological systems , emphasizing their interconnectedness and importance.
6 Journey of a Water Drop - Children can manipulate sliders and buttons to control the flow of water on a large, interactive water cycle model mounted on the wall. This playful exhibit helps kids grasp complex concepts like evaporation, precipitation, and groundwater recharge through engaging visual feedback and sound effects.
7 Food Web Puzzle - Children can piece together a giant puzzle depicting the food chain. This activity fosters critical
thinking and awareness of the delicate balance within the food web, promoting responsible environmental practices.
This visualisation depicts the interactive exhibit for children, with a large size screens that bring the wonders of the creek to life with vibrant displays of birds, butterflies, insects, and fish. Children cann grab a "Bat Net" and become a nature detective, capturing virtual creatures to learn fascinating facts about each one at the information kiosks.
8 Step away from the bustle of the exhibits and towards a window showcasing the natural beauty of Cobbs Creek. 9 Nature Portal - Threshold as one moves from the educational exhibit area towards a more open engaging community area. A skylight overhead bathes the space in natural light, while a soothing waterwall adds a tranquil ambiance as one sits and looks outside at the nature.
10 Flexible tables and chairs create a dynamic space for workshops and classes. A space for engaging in discussions about recycling, tree identification, gardening techniques, or learning to use the eBird app for birdwatching.
11 Integrated step seating offers comfortable spots for learning and socializing. Sliding panels transform the space for larger events, accommodating educational info sessions on sustainable and regenerative practices.
12 Journey Under the Stars - Transitioning back to the exhibition area through a captivating biowall and waterwall
display. Look up to a mesmerizing digital ceiling showcasing the night sky, complete with twinkling lights, soothing sounds, and nature-inspired scents.
13 Interactive exhibit featuring large screens with virtual birds, butterflies, insects, and fish. Children can gGrab a "Bat Net," and capture these fascinating creatures, and use nearby information kiosks to know more about them.
14 Tactile Rock Collection and Soil Canvas 15 Slide Through Time
Manipulate a holographic wetland, observing the dramatic eco-shifts caused by temperature, precipitation, human actions, and natural events.
16 Community Spotlight - LED screens showcase inspiring videos highlighting local initiatives and individuals dedicated to reviving Cobbs Creek.
This is the perspective of the cafe showing the grab and go counter, placed in a convienient location for the hikers and people who might visit the cafe regularly. It also shows the fruit baskets to sell and promote produce grown by the community in the community garden.
17 Into the Wild - Flora and Fauna Collection 18 Temporary exhibit wall for artwork or photographs clicked by the people of the community.
Office Area
Floor Plan
E2
E3
Workshop
Isometric - Reception Desk
E1
Elevation - A
Journey of a Rain Drop
Elevation - B
Bird Chart
Community Workshops in the Cafe
Plant Display
Book Shelves
Elevation - C
Immersive Digital Display
Information Kiosks for the “Bat- Net”
Tactile Rock Colleection
Soil Canvas
Educational Zone and Cummunity Recycling Workshop in Multipurpose Space
Into the Wild Flora and Fauna
The design objective for this residential project was to create a home that serves as a lifelong abode for an elderly couple. The central concept revolves around using the residence as a canvas to portray and evoke their cherished memories. Each room is meticulously crafted to capture one of their fundamental life experiences. Additionally, special attention has been given to the accessibility of the space, considering the unique needs of one of the clients who has rheumatoid arthritis and relies on a wheelchair for mobility.
REFLECTIONS Timeless Frames Residential Studio Echoes of nature whisper to you, Soft hues of green and blue, Textures and Patterns that invite and soothe, A home that's Art in its every groove
Soft light spills in, warm to your sight, Living within a peaceful respite, Memories and Beauty whispers all around, In this tranquil space, true calm is found.
Conceptual Collage
"Reflections - Timeless Frames" is a unique approach to space design that goes beyond mere aesthetics, aiming to infuse each space with a profound sense of personal memory and cherished moments. This concept revolves around the idea of incorporating memories as timeless frames, turning every space into a gallery of individual experiences.
Seaside Serenity
Coastal Canvas
Artistic Magnificence
Artful Aging
East meets West
Plant Paradise
Living Room `
Kitchen
Dining
Anthony At 66, American Anthony, with a musical past playing drums in a band, now teaches music. His diverse interests encompass reading, watching documentaries, collecting vinyl records, playing drums and guitar, and satisfying his wanderlust through travel. Anthony's life is a harmonious blend of musical passion and exploration.
Bedroom
Den
Study
Neha Aged 61, Neha, an Indian American, transitions from her architectural past to wear multiple hats: CEO of an interior design materials company and a university professor. She has a wide range of interests that reflect her life of creativity and skill, such as cooking, reading, painting, gardening, and coin collecting.
Living Room
South Elevation
Furniture Selection
North Elevation
1 Skylark - Gracie Wallpaper 2 Side Table Round Marbre By Narciso - Luxuryofhomes 3 Sku Furbartlestwh By Bartley - Baker 4 Absinthe Side Table By Holly Hunt Studio 5 Hamilton Sofa By Rodolfo Dordoni - Minotti 6 Bartley Side Table By Sku Furbartlestwh - Made Goods 7 Side Table Tropicale By Eichholtz Luxuryofhomes 8 Cirque Cocktail Table By Thomas Pheasant - Baker 9 Bistro Medium Chandelier By Ian K. Fowler 10 Sea Gull Collection Elmwood Park Three Light Sconce 11 Waves On Vinyl - Gracie Wallpaper 12 Drapè Soleil Chair By Bartoli Design - Laurameron 13 Euvira Rocking Chair Soft - Classicon 14 Sawyer Floor Lamp By Kate Spade New York 15 Absinthe Side Table Holly Hunt Studio
Materials
Soothing and Peaceful Environment like Sitting by a Calm Beach together. “Seaside Serenity” is a design concept that draws inspiration from the sea and the natural beauty of the surroundings to bring tranquility and peace into the home. It inspired by the calming and rejuvenating atmosphere of the beach. The idea is to create a space that evokes a sense of happiness, much like the feeling of being by the sea in Maldives.
1 White Texture Wall Paint 2 Wood - Cabinets, Coffee table and Doors 3 Fabric - Pillows 4 Fabric - Sofa and Rocking Chair 5 Stone 6 Wood - Fireplce frame 7 Terrazzo for cabinet tops 8 Golden finish metals - side tables and lamps 9 Black leather - armchair 10 Marble - Side table 11 Fabric - Pillows
Dining Creativity and grandeur promoting a sense of awe and inspiration “Artistic Magnificence" is a design concept that emphasizes the integration of artistic expression and creativity into a space in a way that produces a visually stunning and awe-inspiring effect. It involves creating a space that is not only functional and comfortable but also captivating. The dining space is intended to host a lot of guests so it should evoke a sense of wonder and appreciation for the beauty of art and nature. This design concept recognizes that art can elevate a space and creates a vibrant and inviting atmosphere that is perfect for entertaining guests
East Elevation
West Elevation
Materials Furniture Selection
South Elevation
1 Crosby Medium Wall Sconce by Avroko - Visual Comfort & Co. 2 Modern Metal Wall Art 3 Pair of Illuminating Classical Alabaster Column Vases - 1stDibs 4 Canali Travertine Square Planter by Athena Calderone - Crate&Barrel 5 Conform Table - Baker Luxe 6 Crosby Large Chandelier by Avroko - Visual Comfort & Co. 7 Pair of Colossal Floor Vases by Gustave Asch - 1stDibs 8 Hug Chair by Humbert & Poyet - Holly Hunt 9 Walnut Easel Dressing Table Mirror - 1stDibs 10 Lisette Bracketed Sconce by Aerin - Visual Comfort & Co. 11 Dani Medium Table Lamp by Thomas O’Brien - Visual Comfort & Co. 1 Wood - Cabinets 2 Marble - Counter Top 3 Fabric - Built-in Seating 4 Fabric - Pillow Case 5 Fabric - Pillow Case 6 Beige Texture Wall Paint 7 Marble - Wall 8 Fabric - Chairs 9 Wood - Wall Paneling 10 White Texture Wall Paint 11 Golden Metal Finish - Table & Accessories 12 Black Metal - Chairs, Chandelier and Wall Lights
Bedroom Incorporation of art and design into the aging process. “Artful Aging” is based on the idea that aging is not a decline, but rather a time of growth and creativity. The concept focuses on designing a space that celebrates beauty in all aspects of life for a senior couple. By incorporating the client's passion for painting and her collection of art from foreign trips, the design seeks to challenge stereotypes linked to the notion that a bedroom is a confined space for seniors, reinforcing the idea that aging restricts movement.
North Elevation
South Elevation
Den She loves her roots and he loves her! The feeling of home is a deeply personal and subjective experience, but it often evokes a sense of comfort, security, and belonging. The idea is to create a home within a home, where she feels like she is back home in India. The "East meets West" concept can be tied together with the use of accents that incorporate Indian culture into this modern home. Color palette of muted tones such as beige, ivory, and plant greens to create a soothing environment.
East Elevation
West Elevation
1 Tatlin bed by Rodolfo Dordoni 2 Milton nightstand by Rodolfo Dordoni 3 Bayridge Pendant by Chapman & Myers 4 Bicoca LED Table Lamp by Marset 5 Mattia sofa by Rodolfo Dordoni 6 Superquadra coffee table by Marcio Kogan 6 Natural Storage Media Credenza by Leanne Ford 7 Daru Tall Vase - Arhaus 8 Fonseca Metal Floor Vase By Wade Logan 1 White Texture Wall Paint 2 Fabric - Sofa 3 Fabric - Pillow Case 4 Wood - Side Table 5 Laminate for shelf 6 Fabric - Bed and Sofa 7 Marble - Table top 8 Brass Panel 9 Marble Fluted Paneling 10 Wood - Cabinet Doors 11 Leather for bed’s back rest 12 Metallic finish Lamp 13 Pink Texture Wall Paint 14 Leather for bed’s back rest
Materials
East Elevation
West Elevation
North Elevation Materials Furniture Selection
1 Brasilia arm chair by Marcio Kogan 2 Superquadra coffee table by Marcio Kogan 3 Bitta lounge swing sofa - Kettal 4 Gesture Sconce by Kelly Wearstler 5 Knot Pillow 6 Global coin portrait art work by Stacey Lee Webber 7 Mari Grand Pendant by Kate Spade New York 8 Brass Bird Hanging Diya With Ghungroo Bells - Dharayati 9 Daiki Studio by Marcio Kogan 10 Dot Articulating Wall Light by Peter Bristol
South Elevation
1 White Texture Wall Paint 2 Wood - Cabinets/ Shelves 3 Wallpaper 4 Indian Patola Textile 5 Plaster Frieze Fluted - Wall Cladding 6 Rattan type-1 7 Rattan type 2 8 Fabric - Sofa 9 Leather - Sofa 10 Marble - Top of the TV Console/ Study Desk 11 Paint
Study A lush oasis within the an interior space The aim is to transport individuals into a captivating and immersive natural oasis within their own home by creating a “Plant Paradise”. A room filled with plants is perfect where one to work, read, or relax! The sight of the greens will create a soothing and tranquil ambiance, almost like you’re sitting outside. The beauty and variety of plants can evoke a sense of wonder and delight and can stimulate creativity and inspire new ideas.
East Elevation
North Elevation
South Elevation
West Elevation
Foyer A serene transition The foyer of this residence, meticulously designed for an elderly couple, exudes a timeless charm with its understated elegance and thoughtfully chosen neutral color palette. Stepping into this inviting space, one is greeted by a serene atmosphere that sets the tone for the entire home. The foyer transitions into the living area, where a carefully orchestrated layout ensures easy navigation for the elderly occupants. Soft, neutral hues dominate the decor, with muted tones of beige, taupe, and warm greys creating a soothing backdrop. These colors not only evoke a sense of tranquility but also serve to enhance the overall spaciousness of the foyer.
North Elevation
East Elevation
South Elevation
West Elevation
Furniture Selection
Materials
1 Agatha swivel Armchair by Libero Rutilo - Morelato 2 Isabel Writing Desk by Libero Rutilo - Morelato 3 Mahalo Tiered Pendant by Windosr Smith - Visual Comfort and Co. 4 Hand-Colored Hummingbird Lithographs by John Gould - 1stDibs 5 Dessau Picture Light by Sean Lavin - Visual Comfort and Co. 6 Acoustic guitar signed by the Aerosmith band Sotheby's 7 Lyon & Healy Mandolin, c.1905 - Vintage Instruments 8 Traditional Spanish Brass Trumpet, circa 1960 - 1stDibs 9 Selmer Model 22 Alto Saxophone - Tenor Madness 10 Alexander French Horn, 1912 - Hampson Horns 11 Dot Articulating Wall Light by Peter Bristol
1 Fabric - Pillow 2 Fabric- Pillow 3 Fabric - Built-in Seating & Chair 4 Leather - Shelves of the desk 5 Leather - Paneling behind the seating 6 Wood - Table & Shelves 7 Wood - Chair & Cabinets 8 White Texture Wall Paint 9 Marble - Cabinet Top 10 Wall Paneling 11 Brass Finish - Accessories 12 Golden Metal Finish - Accessories 13 Black Metal - Handles & Hanging Plant Rack
Furniture Selection
Materials
1 Plural Dome Picture Light by Sean Lavin - Visual Comfort & Co. 2 Kaemon Beaded Wall Art - Made Goods 3 Alma Floor Lamp by Kelly Wearstler - Visual Comfort & Co. 4 Canyon Teak Ottoman - Arhaus 5 Cara Large Sculpted Pendant by Ralph Lauren Visual Comfort & Co. 6 Four Hands Allegra Cabinet - Paynes Gray 7 Kira Crendenza - Baker 8 Idalia Handmade Metal Wall Decor - Arteriors 9 Tutto Sesto Mirror - Dale Italia
1 White Texture Wall Paint 2 Wood - Mirror Frame 3 Wood - Cabinet & Ottoman 4 Fabric - Ottoman 5 Gold Finish Metal - Handles & Lamp 6 Picture frame 7 White Quartz - Credenza 8 Beige Texture Wall Paint 9 Black Metal - Hanging Light
Kitchen Canvas of Memories with grandchildren by the Coast The concept of a "Coastal Canvas" is to create a space that is inspired by the calming and soothing colors and textures of the ocean and beach. The idea here is to create a space that evokes the feeling of being at the coast, with a focus on relaxed, breezy atmosphere of their vacation trip with their grandchildren. The designed space is a serene and happy space that feels like living in the old memory.
DESIGN AND ACCESSIBILITY CONSIDERATIONS 1 clear opening of a doorway 3’ wide 2 width of the walkway greater than 36” 3 Work triangle does not intersect with the island 4 No major traffic patterns crosses through the basic work triangle 5 width of a work aisle 42” for one cook
6 60” dia wheelchair turning space 7 44” to walk past for the traffic that passes behind the seat. 8 Sink & Stove placed near each other to increase safety and ease of use 9 Clear workspace and storage space
North Elevation
South Elevation
Island Front Elevation
1 Wood - Cabinets 2 White Texture Wall Paint 3 Stone Wall Paneling 4 Laminate - Cabinets 5 Laminate - Cabinets 6 Marble - Bar table top 7 Wood - Suspended Ceiling 8 Wall Paneling 9 Fabric - Chair and Bar Stool 10 Terrazzo for Kitchen Counter tops 11 Nickel Handles for Cabinets
Materials
East Elevation
1 30" Designer Over-and-Under Refrigerator - Sub Zero 2 24" Designer Column Freezer with Ice Maker - Sub Zero 3 30" Classic Wine Storage - Sub Zero 4 30" M Series Transitional Convection Steam Oven - Wolf 5 30" Transitional Drawer Microwave - Wolf 6 24” Residential Urban Cultivator 7 24” Double Dishwasher Drawer - Fisher & Paykel 8 30" M Series Transitional Coffee System - Wolf 9 30" Warming Drawer - Wolf 10 24" Designer Undercounter ADA Height Beverage Center - Sub Zero 11 15" Ice Maker with Pump - Sub Zero 12 36" Sealed Burner Rangetop ,6 Burners - Wolf 13 Large Farmhouse Rope Light - Innovation Lighting 14 CTR Bar Chair by Piergiorgio Cazzaniga - Tribu 15 CTR Arm Chair by Piergiorgio Cazzaniga - Tribu
Furniture Selection
Island Back Elevation
West Elevation
The primary goal of the conceptual studio was to explore the dynamics of spatial movement for individuals with visual impairments. The "Portal" project was structured around three narratives derived from real-life experiences, providing insights into how the body navigates through space in such conditions. In the "Procession" phase, the aim was to culminate the exploration with a narrative that envisions a space, employing diverse scales and multiples of a singular unit in the model. Finally, the "Repository" segment focused on utilizing a specific theme or object typology as the foundation for designing.
VISION Portal | Procession | Repository Conceptual Studio
PORTAL
Narrative 1 It’s the change that is the hard part, not the vision loss itself.
Narrative 2 Boundary created by yourself, Boundary created by society?
Narrative 3 You learn to map out the world differently
Narrative 2
Narrative 3
Narrative 1
Narrative 1 - Transition (Un) Ending Darkness
Narrative 2 - Separation Blindfolded Sight
Narrative 3 - Connection Blessing, Not a Curse
Concluding Narrative Dialogue in the Dark
Even though there are moments when I feel like I am in the middle of nowhere, I know that there will always be some kind of light to guide me out of this unending darkness of my life. I’m in awe at the adjustments my body has made over the years to deal with any challenges it encounters.
White cane is how people see me, Stop staring at me, let me free. Blindness – Private experience, Public Attention, Should I take it out or walk around without navigation.
I close my eyes to find a place , In a different time and different space. With all my other senses I “See”, Such peace that could never be?
I feel the path that can’t be seen, I sense the problems that can be identified visually, I experience the moments that can be captured in photographs, I am blind to this world, For the better not the worse.
Don’t brand me as “other” I hate to admit but life is getting tougher. I wish I could pass by and remain hidden, Feeling happy almost feels forbidden.
Unit Retreat
Edge 3
Unit Assembly
Edge 2 Circulation Diagram “Circulation: Movement Through Space”
Edge 1
Node 2
Node 1
Node 3
PROCESSION
Section A Plan @ Level 1
Section B
Plan @ Level 2
Section C
Plan @ Level 3 C
D
A
B Section D
Key Plan
Conceptual Collage ased on Deconstructivism Deconstructivism is a theory or approach derives from Jacques Derrida's Deconstruction school of thought. This theory was initially developed for text analysis. Deconstruction is typically explained by analyzing certain texts and determining the author's intended meaning. Architects were drawn to the concept of re-evaluating and re-thinking predetermined concepts. Deconstructivism is a style of architecture that emerged in the 1980s in both Europe and the United States. Absence of harmony and symmetry are two of its key traits, which go against the contemporary movement's foundation. One could argue that this style has little
Interactive Art based on Deconstructivism
fields like art and fashion.
Textile Display from “Meaningful
Process Diagrams and Sketches
Surgical Revival of furniture
Interviews of Deconstructive Architects
REPOSITORY
The brief was to design a community center and healthcare unit for children. Extensive research was done to understand the unique requirements of children as end-users, informing the design of spaces within the center. The site location and the surrounding movement patterns was examined, guiding the thoughtful layout of the plan. The healthcare unit was designed for pediatric care, providing valuable insights into the unique requirements of healthcare for children. The overall outcome aimed to create an environment that not only addresses the medical needs of young patients but also provides a nurturing and supportive space within the community center.
HAPPY HEARTS Childrens Community Center Health and Wellness Studio
Concept The aim is to design a space that provokes a Sense of warmth to the youth of West Philadelphia. Teenagers and children need to have sense of freedom as they enter the space. Spaces act as a welcoming entity and create a sense of place. The visitors should be able to navigate the space seamlessly according to their own preference. The center also aims to evoke safe and secure feeling to the youth. Textures and materials will create a lively atmosphere. It will be a vibrant escape from the outside yet harmonious and well planned. In order to create a feeling of a connection between the inside and the outdoors, design considerations include green spaces and water features. Pergolas and arches, as well as geometrical shapes and colors, will be used to achieve this.
FIRST FLOOR PLAN 1 Providers Office 2 Staff Toilet 3 Telehealth 4 Print/Copy/Storage Area 5 Equipment Room 6 Managers Office 7 Consultation Room 8 Soiled Utility 9 Patient Toilet 10 Cafe Visitor Toilet 11 Cafe Service Counter 12 Cafe Kitchen 13 Cafe Storage 14 Storage 15 Associate Manager's Office 16 Amenity Manager's Office 17 Community Center Manager's Office 18 Reception 19 Study Zone 20 Activity Zone 21 Sand Pit 22 Infant Room 23 Pantry 24 Children Toilet 25 Group Study Area 26 Silent Study Room 27 Discussion Area 28 Hangout Zone
SECOND FLOOR PLAN 1 Reception 2 Family Therapy Room 3 Cognitive Behavioral Therapy 4 Group Therapy 5 Mental Health Counseling Room 6 Nutrition Counseling Room 7 Career Counseling Room 8 Study Nook 9 Sand Pit 10 Play Wall 11 Ball Pit 12 Puzzles 13 Gathering Area 14 Storage
SECTION A
SECTION B KEY PLAN
INTERCONNECTION OF SPACES & INDOOR OUTDOOR CONNECTION
BUBBLE STEPS
The planning process incorporates a comprehensive site analysis, with particular emphasis on pedestrian accessibility and optimal external views. The clinic is designed to have a different entrance for ease of access, while other community spaces are accessible through a separate entrance. The childcare center is oriented to open up to an outdoor play area.
PLAN @4’
CIRCULATION
PLAN @10 ‘
During the spatial layout design, careful consideration is given to the interconnection and adjacency of spaces, particularly in relation to pedestrian access outside the building. Separate circulation paths are designated for staff and visitors within the clinic, ensuring both safety and security, as well as facilitating smooth movement. Additionally, strategic placement of the cafe towards the rear of the building is intended to goods supply logistics. Furthermore, the community center staff has a different entrance located at the rear of the building, further contributing to the overall functionality and efficiency of the layout.
SECTION
EXPLODED AXONOMETRIC
As part of the "Design-Making and Disruption" class for Design Research, the focus was on exploring disruptive and transformative design techniques to drive innovation and inventions. In alignment with this, my project centered around the disruption of a photograph, employing a distinct approach to reassemble it. The objective was to challenge traditional perspectives of looking at the photograph and reimagining the components of the photograph with a new meaning through paintings.
(DE) CONSTRUCTIVE ESCAPADE Design - Making & Disruption Design Research
Different interpretations of the same photograph in the form of paintings. My final outcome for this “Design-Making & Disruption Class” observes two concepts. First concept is thinking beyond what you actually see, that is looking for a alternative or significant meaning. Second concept is how when a certain idea object or text is deconstructed and re-assembled or re-constructed may turn out to be different for different people. There may be different interpretations of the same thing. This is a photograph of the times square in new york. If I told someone that I was going to paint this picture, it would probably look similar to this. Direct representation of one sees. However, if you take the time to observe and analyse the photograph while following the deconstruction theory, you might be able to create various paintings that were inspired by the same image.
First painting in which I consider the sky, buildings, and people as three distinct parts. Although visually different from one another, they are somewhat connected. So, even if the painting doesn't have windows, doors, or billboards, I imagine that the central layer has buildings. I created the lower layer using this really bright red to represent people in order to convey the vibrant, dynamic nature of the moving crowd in times square.
In the second painting, I try to capture the spirit of Times Square by concentrating on the shapes from the photograph rather than seeing the various objects as separate layers. There is a lot of layering of shapes and lines, to depict the sensory overload experienced here. There is a certain chaos as well as balance in the painting as everything in the painting is interconnected or dependent upon one another yet has its own identity. Just like Times Square in real life, where nothing can be removed without disturbing the area or essence of the space.
I analyze what the various elements are creating in the last painting. Like the roads from centre creating an effect of explosion shown on the top. The tall dead buildings on the right. And the horizontal lines being the life of the space as well as the painting which are the only dynamic or moving elements that is the people.
The seminar and lab course, part of the Design Research class named "Technologies of Making," focused on cultivating fundamental skills in design and creation. The aim was to develop skills in various computational modeling and fabrication techniques and at varying scales by choosing any topic and creating something after intensive research on it. For my project, I delved into the Deconstructivism theory in architecture, examining the works and design styles of three deconstructive architects. Subsequently, I explored the "brutalism theory in architecture," notable for its distinct characteristics. Specifically, I focused on the architectural style of Louis Kahn. The challenge I undertook was to merge these seemingly disparate styles, creating a series of brutalist interpretations inspired by the original deconstructive styles.
DE-CONSTRUCTIVE FUSION
Technologies of Making
Design Research
This "Technologies of Making" project is a design research exploration that unravels the intricate tapestry of Deconstructivism in architecture. It begins with an in-depth understanding of Deconstructivism. The study includes dissecting unique styles of three influential deconstructive architects. Shifting focus to Brutalism, the investigation continues with a spotlight on Louis Kahn's seminal works, examining the raw and robust aesthetics that define this architectural style. The final outcome is the fusion of distinctive styles of the three deconstructive architects with Brutalism, resulting in a series of 3D visualizations.
"Architecture is not about space, nor about containment, nor about enclosure. It is about events, about experience." Bernard Tschumi
"Architecture is not about space, nor about containment, but about relationships. It is not about the building, but about the spaces between buildings. It is not about form, but about the effect of form. It is not about the solid, but about the void." Peter Eisenman
“The idea is not to have any 90-degree angles. The idea is to break the box.” Zaha Hadid
BRUTALISM to DECONSTRUCTIVISM How to transform Brutalism to Deconstructivism? Removing or altering the building's raw and unrefined finishes, such as exposed concrete or rough brickwork, and replacing them with more layering and fragmenting. Create voids in huge volumes. Introduce elements of asymmetry or irregularity into the building's form. Create interconnected masses or voids. Overlap repeating forms. Emphasize the building's structural systems by exposing beams, columns or cables, or introduce diagonal or cantilevered supports. Introduce free standing forms/ cantilevers.
BRUTALISM to DECONSTRUCTIVISM PROCESS
BOLD BERNARD
EISENMAN MOLD
BLOCKY HADID
Kavitapatel4612@gmail.com +445-208-9698
Undergraduate Architecture Thesis Project
