MOE Architects was established in 2012 by Ar. Dhanaprakash B.Arch. (RV School of architecture) M.Arch. (advanced design MSAP, Manipal) As authentication to efforts, working and experimenting various typologies of projects ranging from housing, residential, hospitality, and planning projects from past 15 years. Sir, also serves as a visiting faculty at Manipal School of Architecture and Planning, (MSAP),Manipal and conducts workshops and lectures at various schools in India. The firm has completed projects in Mangalore, Bangalore, Mumbai, Chennai, Kerala, Goa, and other places across the country. MOE is a multidisciplinary team of architects and designers with combined expertise in providing a range of services from large-small scale projects. The firm is committed to meaningful design, that evolves from understanding the physical and cultural context of the projects. Every project allows to extend the boundaries and develop the skills picked up along the previous architectural practice. Even though major practice involves Architecture, there is also an active participation in Interior as well as Landscape with concern to environmental issues.
❑ Project Profile:
• Name of the Project: Shri Maariyamma Samudaya Bhavana: Convention Hall
• Client: Shri Maariyamma Temple trust
• Location: The proposed site is located in Ashok Nagar Road, Near Ladyhill Victoria Girls PU College, Ladyhill, Mangaluru, Karnataka 575003.
• Architect: Ar. Dhanaprakash
• Total Site Area: 1,341.45sqm
• Ground cover area: 773.26sqm(60%)
• Total super built up: 3215.25sqm
• To be completed in: Dec 2023
PROPOSED GROUND FLOOR PLAN, WITH CHANGES IN EXTERNAL LANDSCAPE AREA:
1306.61sqm
773.26sqm
Site Context:
• Topography: Flat land
• Type of soil: Laterite soil is obtained here, which is rich in iron and aluminium content, and the same soil which was excavated for basement, has been utilised for making Laterite bricks for further use in site
Mariyamma temple is about 5 km from Mangaladevi Temple in Mangalore city. The main deity of this temple is Goddess Mariyamma. This temple was built by the Mogaveera community around 800 years ago for the dedicated Goddess Mariyamma. Every year during early March Mari Pooja is held with display. People gather from all nearby towns in Mangalore. Special Pooja takes place for three days. Hence the management planned to build a Convention hall next to the temple for gatherings, celebrations, weddings, etc.
Building Progress:
1. Structure: Progress
2. Façade: Progress
3. Interior: Progress
SOUTH ELEVATION: (FRONT FAÇADE)
3D MODEL: (REVIT)
Work Involvement Brief:
• Landscape and Exterior Details in Site Plan.
• Elevations with Change in External Façade details. (2)
• Electrical Layout Plan(2).
• Plumbing Layout.
• 3D model (Revit).
• 3D Renders in Twinmotion Software.
• 3D walkthrough videos.
• Staircase details throughout the building.
• Maariyamma Temple office roof plan layout for roof sheet estimation.
• Mezzanine Floor section details.
• Site Visit to check progress of convention hall and Measurements of Temple Office for roof plan.
MAARIYAMMA CONVENTION HALL, URVA -MANGLORE
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED CONVENTION HALL LAYOUT IN URVA, MANGLORE
CONTRIBUTION:
1. CHANGES IN EXTERNAL FRONT FAÇADE, EXTERNAL FEATURES, AND LANDSCAPE DETAILS
2. ELEVATIONS SHOWING THE ABOVE CHANGES
3. 3D MODEL OF SITE AND BUILDING
INTERN’S LEARNING:
LEARNINGS:
1. FAÇADE DETAILS DEFINES THE OVERALL STRUCTURE OF THE BUILDING; HENCE IT MUST CREATE INTERCATION BETWEEN BUILDING AND THE SURROUNDING ENVIRONMENT.
2. CHANGES IN EXTERNAL FAÇADE WAS MANDATORY, AS THE FAÇADE DESIGN PREVIOUSLY PLANNED WAS OF MUGHAL ARCHITECTURE STYLE, WHICH WAS CHANGED TO INDIAN ARCHITECTURE.
3. LEARNINGS: USE OF PROPER SOUTH INDIAN STYLE JALI WALLS, PILLARS AND PILLASTERS TO CONNECT THE FAÇADE WITH ITS SITE CONTEXT.
4. 3D MODEL TO GIVE A CLEAR UNDERSTANING OF THE PROJECTIONS/ DETAILS IN THE FAÇADE.
5. ELECTRICAL LAYOUT, FOR BETTER UNDERSTANDING OF THE PLACEMENT OF ELLECTRICAL DEVICES (FANS, CEILING LIGHTS,SWITCH POINTS, etc.) SITE VISIT TO GET TO KNOW THE ONGOING PROGRESS OF THE PROJECT ON-SITE.
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
FIRM’S DETAILS: AUTHRIZED SIGNATORY: SEAL: INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET
Maariyamma Temple office roof plan layout for roof sheet estimation.
• Estimated cost:
• Total Roof Area: 1,341.45sqm

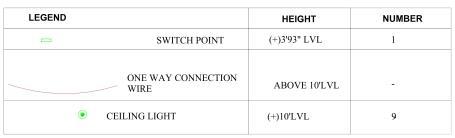

ELECTRICAL LAYOUT (WITH SCHEDULE):
• Project: Shri Maariyamma Temple Management Office
Roof Plan for Sheet roof estimation:
• Type of work done: Taking measurements of Column to Column distance, as calculating area of whole roof plan to get to know how much span, and how much quantity of Aluminium sheet roof required to be placed on top of the columns Exact measurements of each and every column was considered and the drawing was later sent to Lead Architect to further prepare the estimation.
MAARIYAMMA CONVENTION HALL, URVA -MANGLORE
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED CONVENTION HALL LAYOUT IN URVA, MANGLORE
CONTRIBUTION:
1. ELECTRICAL LAYOUT
2. SITE VISIT
3. ROOF PLAN FOR ESTIMATION OF QUANTITY AND COST OF SHEET ROOF REQUIRED.
INTERN’S LEARNING:
LEARNINGS:
1. FAÇADE DETAILS DEFINES THE OVERALL STRUCTURE OF THE BUILDING; HENCE IT MUST CREATE INTERCATION BETWEEN BUILDING AND THE SURROUNDING ENVIRONMENT.
2. CHANGES IN EXTERNAL FAÇADE WAS MANDATORY, AS THE FAÇADE DESIGN PREVIOUSLY PLANNED WAS OF MUGHAL ARCHITECTURE STYLE, WHICH WAS CHANGED TO INDIAN ARCHITECTURE.
3. LEARNINGS: USE OF PROPER SOUTH INDIAN STYLE JALI WALLS, PILLARS AND PILLASTERS TO CONNECT THE FAÇADE WITH ITS SITE CONTEXT.
4. 3D MODEL TO GIVE A CLEAR UNDERSTANING OF THE PROJECTIONS/ DETAILS IN THE FAÇADE.
5. ELECTRICAL LAYOUT, FOR BETTER UNDERSTANDING OF THE PLACEMENT OF ELLECTRICAL DEVICES (FANS, CEILING LIGHTS,SWITCH POINTS, etc.) SITE VISIT TO GET TO KNOW THE ONGOING PROGRESS OF THE PROJECT ON-SITE.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET
MAARIYAMMA CONVENTION
HALL, URVA -MANGLORE
BASEMENT PLUMBING LAYOUT DETAILS:
BELOW MEZANINE FLOOR ELECTRICAL LAYOUT (WITH SCHEDULE):
Embedded ceiling lights
LIGHTING: Meeting rooms and conference halls requires 500 lux light level Unified glare rating 19, uniformity should be minimum 0,60 It is recommended that the color rendering index should be 80 or higher. A special demand in such areas is that the lighting can be controlled. Lightings which equipped with control systems, offers flexible lighting solution while using the meeting rooms Ceiling lights is very important for general lighting For this purpose, efficient 4×14 or 4×18 fluorescent lights can be used as well as higher efficiency LED panels Central lighting is extremely important in meeting rooms and conference halls. Insufficient light makes eyes tired and loss of concentration. On the other hand, good lighting increased concentration. Wall washer luminaires can be used in order to lighting the walls Spotlights can also highlight the important areas; various lighting schemes can be created
Wastewater
Municipal water supply
Sewage
PLUMBING DETAILS:
A sump pump system consists of four major parts: a ground water collection system, a sump tank, a pump, and an outlet drain.
Ground water is collected by drain rock and drain tile buried along the foundation (and, in some cases, under the floor). Drain tile carries the water to the sump tank (or two sump tanks, in a large house) that is buried in the basement floor. Normally, a sump tank is located at the lowest point in the basement. Most tanks have a hole in each side for incoming drain tile and all have a sturdy cover. When ground water fills the tank to a given level, a float or some other type of switching device activates a pump.
A plumbing drawing, is a type of technical drawing, that shows the system of piping for fresh water going into the building and waste going out, both solid and liquid.
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED CONVENTION HALL LAYOUT IN URVA, MANGLORE
CONTRIBUTION:
1. CENTRELINE COLUMN LAYOUT OF EXTERNAL COLUMNS
2. MEZANINE FLOOR PLAN: ELECTRICAL LAYOUT
3. BASEMENT FLOOR PLAN: PLUMBING LAYOUT
INTERN’S LEARNING:
1. ELECTRICAL LAYOUT, FOR BETTER UNDERSTANDING OF THE PLACEMENT OF ELLECTRICAL DEVICES (FANS, CEILING LIGHTS,SWITCH POINTS, etc.) SITE VISIT TO GET TO KNOW THE ONGOING PROGRESS OF THE PROJECT ON-SITE.
2. PLUMBING LAYOUT: FOR BETTER UNDERSTANDING OF PLACEMENT OF PIPES, WC, SINKS, FOR TOILETS AS WELL AS KITCHEN LAYOUT IN BASEMENT FLOOR, ALSO THE TYPE OF PIPES WRT THEIR MATERIALS, ETC
3. PLUMBING AND ELECTRICAL APPLIANCE DETAILS WHICH IS GOING TO BE USED ON SITE.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET NO. 3
BASEMENTTOGROUND FLOOR STAIRCASEDETAIL: PLAN(dog-legtypestaircase) scale1:2
GROUNDTOMEZANINE FLOOR STAIRCASEDETAIL: PLAN(dog-legtypestaircase) scale1:2
URVA -MANGLORE
• PROPOSED CONVENTION HALL LAYOUT IN URVA, MANGLORE
CONTRIBUTION:
1. STAIRCASE LAYOUT PLAN AND SECTION AND THEIR RESPECTIVE SCHEDULES: FOR STAIRCASE LOCATED NEAR LIFT
2. STAIRCASE LAYOUT PLAN AND SECTION AND THEIR RESPECTIVE SCHEDULES: FOR STAGE STAIRCASE
MEZANINETOFIRSTFLOOR STAIRCASEDETAIL: PLAN(dog-legtypestaircase) scale1:2
• Project: Shri Maariyamma Temple Convention Hall Staircase details ST-01,02,03,04,06.
• Type of work done: Coming up with Staircase details with proper measurements on each floor and sending it to the structural engineer for further process.
• Staircase schedule includes total number of treads, risers, riser height, tread width, nosing width ,staircase width ,etc.
LEARNINGS:
1. STAIRCASE IS ONE OF THE MOST IMPORTANT STRUCTURAL ELEMENTS OF A BUILDING. ITS PRIMARY FUCTION IS TO FACILITATE MOVEMENT FROM ONE FLOOR TO ANOTHER.
2. THERE ARE DIFFERENT TYPES OF STAIRCASE: THE STAIRCASE ST-01 TO ST04 IS DOG-LEG STAIRCASE WITH MID LANDING ON 5’5” ON EACH STAIRCASE THIS STAIRCASE IS LOCATED IN ENTRANCE FOYER OF THE CONVENTION HALL, NBEAR THE LIFT AREA, FOR EASY ACCESS.
3. STAIRCASE ST-06 INDICATED L SHAPED STAIRCASE LOCATED NEAR THE STAGE AREA TO EASILY ACESS THE STAGE. LOCATED ON EITHER SIDES OF THE STAGE.
4. LEARNINGS: WIDTH OF ALL THE STAIRCASE IS 6’ SO THE PEOPLE CAN EASILY USE THE STAICASE WITHOUT OVERCROWDING DURING FUNCTIONS.
5. SCHEDULE WITH STAIRCASE ON EACH LEVEL IS PROVIDED TO EASE THE WORK OF STRUCTURAL ENGINEER.
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S LEARNING: FIRM’S DETAILS: AUTHRIZED SIGNATORY: SEAL: INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET
• Project: Shri Maariyamma Temple Convention Hall Staircase details ST-07.
• Type of work done: Coming up with Staircase details with proper measurements on each floor and sending it to the structural engineer for further process.
• Staircase schedule includes total number of treads, risers, riser height, tread width, nosing width ,staircase width ,etc.
STAIRCASE DETAILS: ST-05, 07
• Project: Shri Maariyamma Temple Convention Hall Mezzanine Floor details:
• Type of work done: Coming up with Mezzanine floor plan, along with Column beam grids, so to get proper support for the stepped mezzanine floor. Stepped layout so as to provide easy visual access for people to the stage area.
MAARIYAMMA CONVENTION HALL, URVA -MANGLORE
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED CONVENTION HALL LAYOUT IN URVA, MANGLORE
CONTRIBUTION:
1. STAIRCASE LAYOUT PLAN AND SECTION AND THEIR RESPECTIVE SCHEDULES: FOR ENTRANCE FOYER STAIRCASE AND PASSAGE
2. MEZANINE FLOOR PLAN AND SECTION DETAILS
• Project: Shri Maariyamma Temple Convention Hall Staircase details ST-05
• Type of work done: Coming up with Staircase details with proper measurements on each floor and sending it to the structural engineer for further process.
• Changes from previously done layout with more ornamental traditional details. And inbuilt seater, planter box to enhance visual appeal.
INTERN’S LEARNING:
LEARNINGS:
1. STAIRCASE IS ONE OF THE MOST IMPORTANT STRUCTURAL ELEMENTS OF A BUILDING. ITS PRIMARY FUCTION IS TO FACILITATE MOVEMENT FROM ONE FLOOR TO ANOTHER.
2. THERE ARE DIFFERENT TYPES OF STAIRCASE: THE STAIRCASE ST-05 IS 3SIDED ANGULAR STAIRCASE, FOR EASY ACCESS, ALONG WITH INBUILT SEATER AND PLANTER BOX FOR AESTHETICS.
3. STAIRCASE ST-07, SINGLE SIDED STAIRCASE FROM BASEMENT TO ACCESS THE CORRIDOR.
4. LEARNINGS: WIDTH OF ALL THE STAIRCASE IS 6’ SO THE PEOPLE CAN EASILY USE THE STAICASE WITHOUT OVERCROWDING DURING FUNCTIONS.
5. SCHEDULE WITH STAIRCASE ON EACH LEVEL IS PROVIDED TO EASE THE WORK OF STRUCTURAL ENGINEER.
6. MEZANINE FLOOR: STEPPED FLOOR TO PROVIDE EASY VISUAL ACCESS TO THE STAGE.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET
NO. 5
Curved Mezzanine layout measurements
MAARIYAMMA CONVENTION
HALL, URVA -MANGLORE
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED CONVENTION HALL LAYOUT IN URVA, MANGLORE
CONTRIBUTION:
1. TWINMOTION SOFTWARE RENDERED IMAGES OF THE BUILDING
2. RENDERED IMAGES OF INTERIOR SHOWING THE STAGE AREA.
3. TWINMOTION WALKTHROUGH VIDEO FOR EASY UNDERSTANDING OF THE BUILDING AND INTERIOR DESIGN
INTERN’S LEARNING:
LEARNINGS:
1. FAÇADE DETAILS DEFINES THE OVERALL STRUCTURE OF THE BUILDING; HENCE IT MUST CREATE INTERCATION BETWEEN BUILDING AND THE SURROUNDING ENVIRONMENT.
2. CHANGES IN EXTERNAL FAÇADE WAS MANDATORY, HENCE AFTER THE 3D MODEL, SOME RENDERED IMAGES AND VIDEOS WERE NECESSARY TO SHOW THE CHANGES DONE.
3. AERIAL IMAGES OF THE SITE, ALONG WITH THE BUILDING SHOWING TRADITIONAL JALI WALLS, AND ORNOMENTAL WALLS, WITH SUPPORTING COLUMNS FRAMES ETC.
4. INTERIOR: STAGE DETAILS WITH CEILING LIGHTS, FANS, CHAIRS, ETC
5. MORE FOCUS TO FLOORING, WITH DIFFERENT COLORS OF MARBLE STONES ARE USED IN A MANDALA PATTERN.
6. ENHANCING THE EXTERNAL FAÇADE BY INTEGRATING LANDSCAPE ALONG.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET NO. 6
BIRD EYE VIEW OF CONVENTION HALL: VIEW OF FRONT FAÇADE FROM ACCESS ROAD: ENTRANCE VIEW: ENTRANCE VIEW: PASSAGE VIEW: E SIDE FAÇADE VIEW: STAGE VIEW (INTERIOR): MEZZANINE FLOOR VIEW TO STAGE STAGE VIEW: ENTRANCE VIEW: FRONT FACADE VIEW:• Name of the Project: Shri Kodikal Rama Bhajana Mandira, Temple complex
• Client: Shri Kodikal Rama Temple management
• Location: The proposed site is located in Ashok Nagar Road, Near Ladyhill Victoria Girls PU College, Ladyhill, Mangaluru, Karnataka 575003.
• Architect: Ar. Dhanaprakash
• Total Site Area: 752.4sqm (0.18 acre)
• To be completed in: end of 2024
DESIGN ELEMENTS USED IN TEMPLE COMPLEX:
SITE PLAN: OF TEMPLE COMPLEX, KODIKAL, MANGALORE
PLAN AND ELEVATION OF HANUMAN GUDI, LOCATED IN THE TEMPLE COMPLEX, SHOWING ORNOMENTAL DETAILS:
• Topography: Flat land
• Type of soil: Laterite soil is obtained here, which is rich in iron and aluminium content, and the same soil which was excavated for basement, has been utilised for making Laterite bricks for further use in site
SHRI RAMA BHAJANA
MANDIR: TEMPLE COMPLEX, KODIKAL - MANGLORE
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED TEMPLE COMPLEX LAYOUT IN KODIKAL;, MANGLORE
CONTRIBUTION:
1. SITE PLAN OF TEMPLE COMPLEX
2. PLAN AND SECTION OF SHRI RAM MANDIR
3. PLAN AND SECTION OF SHRI HANUMAN GUDI.
4. 3D MODEL OF TEMPLE COMPLEX
INTERN’S LEARNING:
1. TEMPLE COMPLEX PLANNING
2. EXACT PLACEMENT AND ORIENTATION OF RAM MANDIR, AND HANUMAN GUDI ON TEMPLE COMPLEX W.R.T VASTU SHASTRA
3. PROPER PLANNING OF SPACE AND ORNOMENTAL DETAILS OF THE TEMPLES AS PER VASTU SHASTRA
4. TEMPLE COMPLEX EXTERNAL PLANNING WRT VASTU, THAT LOOKS INTO WHAT LANDSCAPE ELEMENTS NEED TO BE ADDED, AND ALSO THEIR PLACEMENT
5. THE SITE CONSISTS ON NEEM TREE LOCATED ON SE SIDE OF SITE; FOUNTAIN ON NE SIDE OF SITE, SEATING AREA, ON NW SIDE OF SITE, AND ALSO MAIN ENTRANCE ON N SIDE OF SITE, WHICH ARE AS PER THE RULES OF TEMPLE VASTU, TO MAKE THE TEMPLE COMPLEX VASTU COMPLIANT.
6. MATERIALS USED: SANDSTONE AND BLACK GRANITE, WHICH ARE BROUGH TO THE SITE FROM FAR AWAY PLACES.
FIRM’S DETAILS:
PLAN AND ELEVATION OF RAM MANDIR, LOCATED IN THE TEMPLE COMPLEX, SHOWING ORNOMENTAL DETAILS:
Site Context:
The planned temple complex is about 2km from the main kodikal road. The main deity of this temple is Shri Ram and Shri Hanuman. The surrounding place is filled with residential buildings along with commercial shops. Since the site is located far away from the main road, and there are no attractions / temples nearby, hence a community was formed to plan for a temple complex in the core of the city. The basic design was prepared by the management people as per temple Vastu advisers and was further turned into proper plans and elevations as per Vastu shastra, later on 3d model and renders has been already handed over to the clients, and the materials will be brought to the site from Kerala. The temple complex is lifted by 5’ so as to give a monumentary scale.
Work Involvement Brief:
• Material changes of previously completed Ram Mandir.
• 3D SketchUp Model of Hanuman Gudi, with Ornamental details.
• External Planning and Landscape of Complex.
• 3D SketchUp model of final Temple complex ( with Ram Mandir and Hanuman Gudi).
• Final enscape renders of the complex.
• Site plan and temple details submitted to client and structural engineer for further process.
AUTHRIZED SIGNATORY: SEAL:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET NO.
SHRI RAMA BHAJANA
MANDIR: TEMPLE COMPLEX, KODIKAL - MANGLORE
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED TEMPLE COMPLEX LAYOUT IN KODIKAL;, MANGLORE
CONTRIBUTION:
1. 3D MODEL OF TEMPLE COMPLEX
2. ENSCAPE SOFTWARE RENDERED IMAGES OF COMPLEX, WALKTHROUGH VIDEOS
INTERN’S LEARNING:
LEARNINGS:
1. TEMPLE COMPLEX PLANNING
2. EXACT PLACEMENT AND ORIENTATION OF RAM MANDIR, AND HANUMAN GUDI ON TEMPLE COMPLEX W.R.T VASTU SHASTRA
3. PROPER PLANNING OF SPACE AND ORNOMENTAL DETAILS OF THE TEMPLES AS PER VASTU SHASTRA
4. TEMPLE COMPLEX EXTERNAL PLANNING WRT VASTU, THAT LOOKS INTO WHAT LANDSCAPE ELEMENTS NEED TO BE ADDED, AND ALSO THEIR PLACEMENT
5. THE SITE CONSISTS ON NEEM TREE LOCATED ON SE SIDE OF SITE; FOUNTAIN ON NE SIDE OF SITE, SEATING AREA, ON NW SIDE OF SITE, AND ALSO MAIN ENTRANCE ON N SIDE OF SITE, WHICH ARE AS PER THE RULES OF TEMPLE VASTU, TO MAKE THE TEMPLE COMPLEX VASTU COMPLIANT.
6. MATERIALS USED: SANDSTONE AND BLACK GRANITE, WHICH ARE BROUGH TO THE SITE FROM FAR AWAY PLACES.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET NO. 8
ENTRANCE VIEW: ENTRANCE VIEW: ENTRANCE VIEW: AERIAL VIEW: VIEW OF RAM MANDIR AND HANUMAN FUDI: AERIAL FRONTAL VIEW OF SITE: ENTRANCE VIEW: AERIAL VIEW:SITE PLAN: PROPOSED BY SENIOR ARCHITECT
Ground Floor total built up area: 313.37sqm
Terrace floor total built up area: 162.74sqm
• Name of the Project: Petits world Preschool design
• Client: Chethan and Preethesh
• Location: The proposed site is located in Ashok Nagar Road, Near Ladyhill Victoria Girls PU College, Ladyhill, Mangaluru, Karnataka 575003.
• Architect: Ar. Dhanaprakash, Ar Suhaankumar Devadiga.
• Total Site Area: 815sqm ( 0.2acres )
• Total super built up: 476.11sqm
• Ground coverage area: 313.37sqm (40%)
Topography: Flat land
Type of soil: Laterite soil is obtained here, which is rich in iron and aluminium content, and the same soil which was excavated for basement, has been utilised for making Laterite bricks for further use in site
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED PRE-SCHOOL CAMPUS DESIGN, DEREBAIL MANGALORE
CONTRIBUTION:
• 3D SKETCHUP MODEL OF WHOLE CAMPUS.
• CLIENT MEETINGS AND CHANGES IN EXTERNAL FAÇADE.
• FINAL LUMION RENDERS OF THE CAMPUS
• SUBMITTING RENDERS AND WALKTHROUGHS TO CLIENT
INTERN’S LEARNING:
LEARNINGS:
1. BEFORE CLIENT MEETINGS, THE DESIGN OF THE EXTERNAL FAÇADE AND DETAILS WAS NOT AS PER THE NEEDS OF THE CLIENT.
2. DURING THE CLIENT MEETINGS THE REQUIRED CHANGES AND SKETCHES WERE DONE AND EASILY COMMUNICATED TO THE CLIENT.
3. THE MOST CRUCIAL PART OF CLIENT MEETINGS WAS TO GET TO KNOW IF THE EXTERNAL DESIGN OF THE BUILDING WAS FEASIBLE AS PER THE CLIENTS WISH; MATERIAL SPECIFICATIONS AS PER THE DESIGN; THE TOTAL COST OF THE MATERIALS REQUIRED AS PER THE MATERIALS, AND BUDGET CONSTRAINT. KEEPING ALL THIS IN MIND, WE NEEDED TO COME UP WITH A FEASIBLE DESIGN ON THE EXTERNAL FAÇADE OF THE KINDERGARTEN.
FRONT ELEVATION
Concept: Bridge inside box
SIDE ELEVATION
4. AFTER CLIENT MEETINGS, WITH THE GUIDANCE OF THE LEAD ARCHITECT WAS ABLE TO COME UP WITH THE FINAL RENDERED IMAGES THROUGH LUMION SOFTWARE, AND ALSO WALKTHROUGH SHOWING EACH ROOMS OF THE KINDERGARTEN
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
Work Involvement Brief:
• 3D SketchUp model of whole campus.
The basic idea of this concept was to create a wooden bridge overlooking the multipurpose area, and which is also covered by a box, i.e. a closed courtyard, with coloured MS box louvers to give a unique look to the external front façade. Also these louvers enhance venturi effect as air passes through small gaps of the louvers it cools down. Also the water body located inside the multipurpose area causes evaporative cooling. Hence the children feel comfortable even during the daytime. The building façade design shows a mixture of both contemporary as well as Coastal Karnataka traditional design. The client basically wanted to use both traditional elements like Mangalore tiles, brick jail wall, as well as contemporary elements like Coloured MS box louvers, for the external façade, and s planning the interior with modern styles, led lightings, etc
• Client meetings and changes in external façades.
• Floor plans
• Elevations(2)
• Sections
• Final Lumion renders of the campus.
• Submitting renders and walkthroughs to client.
• Electrical Layout
• Plumbing Layout
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET NO. 9
Planning:
Courtyard design has been used, with multipurpose area and water body being the central access zone, Collapsible gate used outside multipurpose hall for safety.
Veranda has a floating staircase, to give a unique and extraordinary effect to the design of the façade. C shaped jali wall with masonry frame to provide shade to the right veranda.
Separate boys and girls toilet. Staircase on top leading to the corridor and bridge, to overlook the courtyard.
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED PRE-SCHOOL CAMPUS DESIGN, DEREBAIL MANGALORE
CONTRIBUTION:
• GROUND FLOOR PLAN
• UPPER FLOOR PLAN
• ELECTRICAL LAYOUT OF BOTH THE FLOOR PLANS WITH THEIR RESPECTIVE SCHEDULES
• CONCEPTUAL DETAILS OF EACH FLOOR PLANS
INTERN’S LEARNING:
LEARNINGS:
1. PRE-SCHOOL CAMPUS PLANNING
2. EXACT PLACEMENT OF ELECTRICAL APPLIANCES EITHER ON WALL, OR ON CEILINGS AND THEIR PROPER SCHEDULE TO BE SENT TO STRUCTURAL ENGINEER FOR FURTHER PROCESS ON SITE.
3. PROPER PLANNING OF SPACE AND EASY ACCESS THROUGHOUT THE BUILDING
4. VENTURY EFFECT AND COURTYARD PLANNING ALLOWS FOR COOL AIR TO PASS THRIUGH ALL THE ROOMS EASILY (CROSS VENTILATION).
5. THE CLIENTS HAVE NOT THOUGHT MUCH WITH REGARDS TO LANDSCAPE PLANNING. BUT ARE SATISFIED WITH USING PLANTER BOXES IN THE FRONT FAÇADE TO MAKE THE SPACE MORE WELCOMING.
6. MATERIALS USED: MIXTURE OF MANMADE AND NATURAL ELEMENTS LIKE, COLORED MS BOX LOUVERS, AND LATERITE CLADDING, RESPECTIVELY.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET
NO. 10
Ground Floor Plumbing Details:
A plumbing drawing, is a type of technical drawing, that shows the system of piping for fresh water going into the building and waste going out, both solid and liquid Plumbing only required for kitchen ,toilets and shallow water body located on NE side of the building. Municipal water supply, brought from NE side if site; wastewater is moved towards the water treatment plant on NE of site, water treated is used for external landscape, as well as the water body
LEGENDS:
Wastewater
Municipal water supply Sewage
PRE-SCHOOL CAMPUS DESIGN, DEREBAIL, MANGALORE
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED PRE-SCHOOL CAMPUS DESIGN, DEREBAIL MANGALORE
CONTRIBUTION:
• PLUMBING LAYOUT
• 3D LUMION SOFTWARE RENDERS APPROVED BY CLIENTS
INTERN’S LEARNING:
LEARNINGS:
1. BEFORE CLIENT MEETINGS, THE DESIGN OF THE EXTERNAL FAÇADE AND DETAILS WAS NOT AS PER THE NEEDS OF THE CLIENT.
2. DURING THE CLIENT MEETINGS THE REQUIRED CHANGES AND SKETCHES WERE DONE AND EASILY COMMUNICATED TO THE CLIENT.
3. THE MOST CRUCIAL PART OF CLIENT MEETINGS WAS TO GET TO KNOW IF THE EXTERNAL DESIGN OF THE BUILDING WAS FEASIBLE AS PER THE CLIENTS WISH; MATERIAL SPECIFICATIONS AS PER THE DESIGN; THE TOTAL COST OF THE MATERIALS REQUIRED AS PER THE MATERIALS, AND BUDGET CONSTRAINT. KEEPING ALL THIS IN MIND, WE NEEDED TO COME UP WITH A FEASIBLE DESIGN ON THE EXTERNAL FAÇADE OF THE KINDERGARTEN.
4. AFTER CLIENT MEETINGS, WITH THE GUIDANCE OF THE LEAD ARCHITECT WAS ABLE TO COME UP WITH THE FINAL RENDERED IMAGES THROUGH LUMION SOFTWARE, AND ALSO WALKTHROUGH SHOWING EACH ROOMS OF THE KINDERGARTEN
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET NO. 11
VIEW THROUGH MULTIPURPOSE AREA: FRONT FAÇADE VIEW: ENTRANCE VIEW FROM MAIN ROAD: FRONT FAÇADE VIEW:❑ Project Profile:
• Name of the Project: (G+2) 3BHK Residential villa, Bangalore
• Client: Mr. Ravi
• Location: The proposed site is located in N.R. Colony, Bull Temple Road, Near Dodda Ganapathi Devasthanam, Basavanguddi, Mangaluru, Karnataka 575003.
• Architect: Ar. Dhanaprakash, Ar. Suhaankumar Devadiga.
• Total Site Area: 135.6sqm ( 0.03 acres )
• Total super built up area: 432.38sqm
• Ground coverage area: 107.85sqm (80%)
• To be completed in: around September 2023
• Topography: Flat land
• Type of soil:
➢ The soils in Bangalore vary from red laterite to clayey soils.
➢ Red Laterite soil is a type of soil that typically develops in warm, temperate, and humid climates. Most of the brick cladding that is used in the building was used from nearby red clayey soil.
• Climate:
Work Involvement Brief:
• AutoCAD: Centerline layout plan.
• Plinth beam Layout plan.
• Floor plans(4).
• Elevations (2).
• Section(1).
• Floor plans with external façade details.
• Staircase plan and details with schedules.
➢ Due to its elevation, Bangalore enjoys a pleasant and equable climate throughout the year. The hottest summer day on average has a maximum temperature of about 37 degrees Celsius, and the coldest winter day has a temperature of about 13 degrees Celsius. Avg temp: 28 degrees Ground floor Plan: Total Built up area: 107.85sqm
• Sketchup 3D model
• Enscape Renders and walkthroughs of already completed 3D model.
(G+2) 3BHK RESIDENTIAL VILLA, BANGALORE, (Mr. Ravi)
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED G+2 (3BHK) RESIDENTIAL VILLA, BANGALORE
CONTRIBUTION:
• CENTRELINE LAYOUT PLAN
• PLINTH BEAM LAYOUT PLAN
• GROUND FLOOR PLAN
• FIRST FLOOR PLAN
• SECOND FLOOR PLAN
• TERRACE FLOOR PLAN
INTERN’S LEARNING:
LEARNINGS:
1. COMING UP WITH A TOTALLY FUTURISTIC VIEW TO THE EXTERNAL FAÇADE IF THE BUILDING, AS PER THE CLIENT'S REQUIREMENT.
2. THE FAÇADE HAS ZINC CLADDING PROVIDED WITH HORIZONTAL STRIPS OF 2” VOID, FOR PLACEMENT OF LED NEON LIGHTS FOR A FUTURISTIC VISUAL APPEAL
3. PROPER PLANNING OF SPACES WAS PREVIOSLY DONE BY THE FIRM STAFF, ONLY THE EXTRUSIONS IN THE EXTERNAL FAÇADE WAS WORKED OUT SO THE FAÇADE TREATMENTS OR CLADDINGS REMAIN WITHIN THE COMPOUND AREA (SITE).
4. MOST OF THE RESIDENTIAL BUILDINGS IN BANGALORE DEAL WITH LACK OF AMPLE AREA, AND HENCE REQUIRE MORE NUMBER OF FLOORS AS COMPARED TO THE RESIDENTIAL VILLAS IN OTHER PLACES IN MANGALORE, ETC.
5. BRICK CLADDING, ZINC CLADING ETC ARE SOME OF THE PROMINENT CLADINGS USED.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET NO.
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED G+2 (3BHK) RESIDENTIAL VILLA, BANGALORE
CONTRIBUTION:
• FRONT ELEVATION
• SIDE ELEVATION
• BUILDING SECTION
• SKETCHUP 3D MODEL
• ENSCAPE RENDERS
INTERN’S LEARNING:
LEARNINGS:
1. COMING UP WITH A TOTALLY FUTURISTIC VIEW TO THE EXTERNAL FAÇADE IF THE BUILDING, AS PER THE CLIENT'S REQUIREMENT.
2. THE FAÇADE HAS ZINC CLADDING PROVIDED WITH HORIZONTAL STRIPS OF 2” VOID, FOR PLACEMENT OF LED NEON LIGHTS FOR A FUTURISTIC VISUAL APPEAL
3. 3D MODELS AND THEIR RENDERED VIEWS WERE WORKED OUT USING SKETCHUP AND ENSCAPE SOFTWARES RESPECTIVELY, AND SENT TO THE CLIENT FOR APPROVAL
4. BRICK CLADDING, ZINC CLADING ETC ARE SOME OF THE PROMINENT CLADINGS USED.
5. THE CLIENT WAS SATISFIED WITH THE SAME AND THE CONTRACTOR AND PROJECT MANAGER ARE NOW WORKING ON THE PROGRESS OF THE SAME
6. STRUCUTRAL DRAWINGS (PLACEMENT OF BEAM AND COLUMNS, SUNKEN SLAB, ETC) WERE ALSO WORKED OUT AND SENT TO THE STRUCUTRAL ENGINEER DURING THE PROCESS
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET NO.
• Project: G+2 (3BHK) Mr Ravi Residential villa, Bangalore:
• Type of work done: Coming up with Staircase details with proper measurements on each floor and sending it to the structural engineer for further process.
• Staircase schedule includes total number of treads, risers, riser height, tread width, nosing width ,staircase width ,etc.
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED G+2 (3BHK) RESIDENTIAL VILLA, BANGALORE
CONTRIBUTION:
• SECTION THROUGH STAIRCASE ST-01, ST-02 AND ST-03
• ST-01 PLAN
• ST-02 PLAN
• ST-03 PLAN
• RESPECTIVE SCHEDULES.
INTERN’S LEARNING:
LEARNINGS:
1. COMING UP WITH A TOTALLY FUTURISTIC VIEW TO THE EXTERNAL FAÇADE IF THE BUILDING, AS PER THE CLIENT'S REQUIREMENT.
2. THE FAÇADE HAS ZINC CLADDING PROVIDED WITH HORIZONTAL STRIPS OF 2” VOID, FOR PLACEMENT OF LED NEON LIGHTS FOR A FUTURISTIC VISUAL APPEAL
3. A SECTION THROUGH THE STAIRCASE WAS WORKED OUT TO CHECK IF THE STAIRCASE MATCHES WITH THE SUNKEN SLAB LEVELS WITHOUT ANY PROBLEM. EACH STAIR LEVEL WAS WRITTEN IN A SCHEDULE FOR EASY UNDERSTANDING FOR THE STRUCTURAL ENGINEER.
4. STAIRCASE PLAN OF EACH FLOOR WAS ALSO WROKED OUT WITH THEIR RESPECTIVE SCHEDULES,
5. STAIRCASE WIDTH: 3’4” (VARIES) AND HENCE CLIENT CAN EASILY USE THE STAICASE
6. BY PROVIDING SUMNKEN SLABSN THE STAIRCASE LEVELS VERY AT EVERY LEVEL MAKING IT UNIQUE.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET NO.
Site plan:
Total area: 96.33sqm
Total Buildable Area: 85.18sqm ( As per Bangalore Bye-laws)
First floor Plan:
Total Built up area: 89.38sqm
Second floor Plan:
Total Built up area: 66.58sqm
• Topography: Flat land
• Type of soil:
➢ The soils in Bangalore vary from red laterite to clayey soils.
➢ Red Laterite soil is a type of soil that typically develops in warm, temperate, and humid climates. Most of the brick cladding that is used in the building was used from nearby red clayey soil.
• Climate:
➢ Due to its elevation, Bangalore enjoys a pleasant and equable climate throughout the year. The hottest summer day on average has a maximum temperature of about 37 degrees Celsius, and the coldest winter day has a temperature of about 13 degrees Celsius. Avg temp: 28 degrees
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED G+2 (3BHK) RESIDENTIAL VILLA, BANGALORE
CONTRIBUTION:
• CHANGES IN SITE PLAN W.R.T PREVIOUS INTERNS WORK
• UPDATED GROUND FLOOR PLAN
• UPDATED FIRST FLOOR PLAN
• UPDATED SECOND FLOOR PLAN
• UPDATED TERRACE FLOOR PLAN
INTERN’S LEARNING:
LEARNINGS:
1. COMING UP WITH A TOTALLY ASSYMETRIC VIEW TO THE EXTERNAL FAÇADE IF THE BUILDING, AS PER THE CLIENT'S REQUIREMENT.
2. THE FRONT FAÇADE IS UNIQUE WITH CURVED WALL THROUGHOUT, WHICH IS BRICK WALL CURVED BOTH HORIZONTALLY AS WELL AS VERTICALLY, GIVING IT A CONCAVE LOOK THROUGHOUT
3. 3D MODELS AND THEIR RENDERED VIEWS WERE WORKED OUT USING SKETCHUP AND VRAY AND TWINMOTION SOFTWARES RESPECTIVELY, AND SENT TO THE CLIENT FOR APPROVAL
4. BRICK CLADDING, ZINC CLADING ETC ARE SOME OF THE PROMINENT CLADINGS MATERIALS USED.
5. THE BUILDING FORM IS BASICALLY A MIXTURE OF BOTH LINEAR BLOCK LAYOUT AND CURVILENIAR DESIGN; THUS, THE FRONT FAÇADE LOOKS LIKE A CUBE WHICH IS CONCAVED TOWARDS THE INTERIOR WITH SHARP EDGES. ALSO, ASSYMETRICAL WINDOWS ARE PROMINENT IN MODERN DESIGNS
FIRM’S DETAILS:
Ground floor Plan:
Total Built up area: 45.32sqm
Terrace floor Plan:
Total Built up area: 67.76sqm
❑ Project Profile:
• Name of the Project: (G+2) 3BHK Residential villa, Bangalore
• Client: Mr. Anil Pinto
• Location: The proposed site is located in Hessaragatta Road, Near to Dwarika Nagar Layout, Chikkakalasandra, Mangaluru, Karnataka 575003.
• Architect: Ar. Dhanaprakash,
• Total Site Area: 96.33sqm ( 0.024 acres )
• Total super built up area: 269.04sqm
• Ground coverage area: 45.32 (50%)
• To be completed in: around November 2023
Work Involvement Brief:
• AutoCAD: Revised site plan as per Bangalore byelaws.
• Revised Floor plans as per site.
• 3D basic Sketchup Model of Residence.
• Vray and Twinmotion renders.
AUTHRIZED SIGNATORY: SEAL:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET
NO. 15
(G+2) 3BHK RESIDENTIAL VILLA, BANGALORE, (Mr. Pinto)
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED G+2 (3BHK) RESIDENTIAL VILLA, BANGALORE
CONTRIBUTION:
• SKETCHUP 3D MODEL OF RESIDENCE
• VRAY AND TWINMOTION RENDERS
INTERN’S LEARNING:
LEARNINGS:
1. COMING UP WITH A TOTALLY ASSYMETRIC VIEW TO THE EXTERNAL FAÇADE IF THE BUILDING, AS PER THE CLIENT'S REQUIREMENT.
2. THE FRONT FAÇADE IS UNIQUE WITH CURVED WALL THROUGHOUT, WHICH IS BRICK WALL CURVED BOTH HORIZONTALLY AS WELL AS VERTICALLY, GIVING IT A CONCAVE LOOK THROUGHOUT
3. 3D MODELS AND THEIR RENDERED VIEWS WERE WORKED OUT USING SKETCHUP AND VRAY AND TWINMOTION SOFTWARES RESPECTIVELY, AND SENT TO THE CLIENT FOR APPROVAL
4. BRICK CLADDING, ZINC CLADING ETC ARE SOME OF THE PROMINENT CLADINGS MATERIALS USED.
5. THE BUILDING FORM IS BASICALLY A MIXTURE OF BOTH LINEAR BLOCK LAYOUT AND CURVILENIAR DESIGN; THUS, THE FRONT FAÇADE LOOKS LIKE A CUBE WHICH IS CONCAVED TOWARDS THE INTERIOR WITH SHARP EDGES. ALSO, ASSYMETRICAL WINDOWS ARE PROMINENT IN MODERN DESIGNS
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET NO. 16
FRONT FAÇADE VIEW: BACK FAÇADE VIEW: EAST FAÇADE VIEW: WEST FAÇADE VIEW: ROOF PLAN VIEW: 3D MODEL OF RESIDENTIAL VILLA: SKETCHUP WEST FAÇADE VIEW: WITH STAIRCASE SHAPE CURTAIN WALL:Project Brief: Estimation of G+2 residence Mangalore:
The client required a quotation of only foundation details out of the whole project, and the respective cost was obtained and sent later.
Project Brief: Interior Estimation of G+2 residence, Bajpe Mangalore:
The client first required a change in the Main entrance door design, and wanted a grand contemporary style, with gold plated strips, Also there were some changes in the Total cost of the Interior design since, the previously done quotation was an approximate one, Detailed estimate was done, and submitted to the client.
Site visit:
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• ESTIMATION OF 2 DIFFERENT TYPES OF PROJECTS.
CONTRIBUTION:
1. ESTIMATION OF ONLY FOUNDATION DETAILES OUT OF COMPLETE PROJECT.
2. CHANGES IN ESTIMATION OF INTERIOR PROJECT AS PER CLIENT REQUIREMENTS.
INTERN’S LEARNING:
LEARNINGS:
1. ESTIMATION IS THE PROCESS OF FINDING AN ESTIMATE, OR APPROXIMATION, WHICH IS A VALUE THAT CAN BE USED FOR SOME PURPOSE, EVEN IF INPUT DATA MAY BE INCOMPLETE, UNCERTAIN, OR UNSTABLE.
2. ESTIMATION DETERMINES HOW MUCH MONEY, EFFORT, RESOURCES, AND TIME WILL TAKE TO BUILD A SPECIFIC SYSTEM OR PRODUCT.
3. ESTIMATION IS OFTEN DONE BY SAMPLING, WHICH IS COUNTING A SMALL NUMBER OF EXAMPLES SOMETHING, AND PROJECTING THAT NUMBER ONTO A LARGER POPULATION.
4. A QUOTATION IS A BRIDGE THAT ENSURES THAT AN INQUIRY TURNS INTO A BUSINESS TRANSACTION. IN SIMPLE WORDS, A PRICE QUOTATION IA A COMMERCIAL DOCCUMENT THAT LAYS OUT FOR THE CUSTOMER WHAT THE FIXED COST WOULD BE IN EXCHANGE FOR THE GOODS OR SERVICES PROVIDED. A QUOTATION WILL ONLY BE VALID FOR A LIMITED PERIOD.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET NO. 17
Client Mr. Umesh:
The site is Located in Bajpe, 10.4 km from Mangalore. The client first required a change in the Main entrance door design, and wanted a grand contemporary style, with gold plated strips, Also there were some changes in the Total cost of the Interior design since, the previously done quotation was an approximate one, Detailed estimate was done, and submitted to the client.
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED ENTRANCE DOOR DESIGN FOR G+1 RESIDENCE IN BAJPE, MANGLORE (INTERIOR)
CONTRIBUTION:
1. ELEVATION OF DESIGNED DOOR
2. SECTIONS SHOWING THE DOOR FRAME DETAILS
3. DETAIL OF FIXING OF WOODEN FRAME TO WALL
4. SCHEDULE OF DOOR AND WINDOW
5. SITE VISIT
INTERN’S LEARNING:
LEARNINGS:
1. TO ENHANCE THE VISUAL APPEAL OF THE MAIN DOOR CERTAIN CONTEMPORARY ELEMENTS HAVE BEEN USED.
2. DOORS ARE GENERALLY USED TO SEPARATE INTERIOR SPACES (CLOSETS, ROOMS, ETC). FOR CONVENIENCE, PRIVACY, SAFETY, AND SECURITY REASONS. DOORS ARE GENERALLY USED TO SECURE PASSAGES INTO A BUILDING FROM THE EXTERIOR, FOR REASONS OF CLIMATE CONTROL AND SAFETY.
3. TO UNDERSTAND DETAIL ARCHITECTURE:
• DETAIL IN ARCHITECTURAL DRAWINGS ARE BASICALLY LARGE-SCALE DRAWINGS THAT TYPICALLY SHOW HOW SOMETHING IS BUILT.
• DETAILS IDENTIFY ALL THE METERIALS AND CONNECTIONS FOR CONSTRUCTION.
• WINDOW AND DOOR SCHEDULES PROVIDE THE ADDITIONAL INFORMATION THAT A CONTRACTOR WILL NEED IN ORDER TO INSTALL THE ITEMS.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET
Client Mr. Prajwal:
The site is Located in Kavoor, 9.8 km from Mangalore. The client first required a change in the Main entrance door design, and wanted a grand contemporary style, with louvers and patti (partitions), Also a very traditional look to the pooja room entrance door, with bells attached to it, and finally the residence window design, with grills. The above cad drawings were done and their 3d models were sent to the client for their approval.
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED POOJA DOOR,WINDOW, AND ENTRANCE DOOR DESIGN FOR G+1 RESIDENCE IN KAVOOR, MANGLORE (INTERIOR)
CONTRIBUTION:
1. ELEVATION OF DESIGNED WINDOW AND DOOR
2. SECTIONS SHOWING THE WINDOW FRAME DETAILS
3. BASIC 3D MODEL OF DOOR (SKETCHUP)
INTERN’S LEARNING:
LEARNINGS:
1. TO ENHANCE THE VISUAL APPEAL OF THE MAIN DOOR CERTAIN CONTEMPORARY ELEMENTS HAVE BEEN USED.
2. DOORS ARE GENERALLY USED TO SEPARATE INTERIOR SPACES (CLOSETS, ROOMS, ETC). FOR CONVENIENCE, PRIVACY, SAFETY, AND SECURITY REASONS. DOORS ARE GENERALLY USED TO SECURE PASSAGES INTO A BUILDING FROM THE EXTERIOR, FOR REASONS OF CLIMATE CONTROL AND SAFETY.
3. TO UNDERSTAND DETAIL ARCHITECTURE:
• DETAIL IN ARCHITECTURAL DRAWINGS ARE BASICALLY LARGE-SCALE DRAWINGS THAT TYPICALLY SHOW HOW SOMETHING IS BUILT.
• DETAILS IDENTIFY ALL THE METERIALS AND CONNECTIONS FOR CONSTRUCTION.
• WINDOW AND DOOR SCHEDULES PROVIDE THE ADDITIONAL INFORMATION THAT A CONTRACTOR WILL NEED IN ORDER TO INSTALL THE ITEMS.
Placement: The main door is going to be placed on the front façade, with the left having a 6’ height window, along with parking area on the right side of the residence.
Shuttering material: Walnut textured Veneer Louvers with Patti after every 3 louvers
Frame Material: Walnut textured Plywood with traditional external framing
Frame dimension: 4’6” x 5” x 8’ ; Shuttering dimension: 3’6” x 2.5” x 7’ democratic price and excellent quality; reliability and environmental friendliness; resistance to variations of temperature and humidity; use of veneer allows to produce doors of various colors and tints; in case of mechanical damage these doors are easily repairable.
Work Involvement Brief:
• Detailed drawings of each window
• Detailed drawings of pooja room door
• 3d SketchUp model of main door
• 3D SketchUp model of pooja room door
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET
NO. 19
• Name of the Project: Renovation and changes in space for an already existing MNC office layout located in kulur, Mangalore
• Client: Mr. Amit Ghosh
• Location: The Office is located in Commerce Centre, Kulur-Kavoor Road, Kulur, Mangalore, Dist.-South Kanara, Karnataka-575013, Mangalore, Karnataka
• Architect: Ar. Dhanaprakash
• Contractor: Mr. Sai Umesh
• Total Office Area: 235.5sqm ( 0.05 acres )
• To be completed in: around July 2023
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED CHANGES IN OFFICE LAYOUT FOR AN MNC OFFICE LOCATED IN KULUR, MANGALORE
CONTRIBUTION:
SITE VISIT IMAGES:
1. SITE VISIT
2. DETAILED DRAWINGS OF CURRENT OFFICE LAYOUT
3. CHANGES IN OFFICE LAYOUT AS PER THE REQUIREMENT OF THE MANAGER
4. SECTIONS, ELEVATIONS ETC
INTERN’S LEARNING:
LEARNINGS:
1. TO ENHANCE THE VISUAL APPEAL OF THE ENTRANCE LAYOUT OF THE OFFICE, CURTAIN WALL WILL BE USED INSTEAD OF THE ALREADY EXISTING BLACK TINTED GLASS WITH MULLIONS.
2. TO CHANGE THE EXISTING AND OLDFASHIONED OFFICE LAYOUT TO A BETTER AND SPACIOUS LAYOUT FOR EASY ACCESS AND VISUAL APPEAL.
3. THE MNC OFFICE CURRENT PARTITION LAYOUT IS NOT AS PER STANDARD DIMENSIONS AND NEEDS TO BE CHANGED
4. ALSO, PLACEMENT OF CONFERENCE ROOM WITH MORE SPACE TO PROVIDE THE VISUAL APPEAL AND MODERNISTIC VIEW BY USING CERTAIN ELEMENTS.
5. THERE IS NO EASY ACCESS OF OFFICE TO LABORATORY AND VICE VERSA, BY BREAKING THE WALL, AND PROVIDING PROPER DOORS CAN HELP THE EMPLOYEES TO ACCESS AND WORK EASILY. STORAGE IN CURRENT LAYOUT IS VAGUE AND NEEDS TO BE WORKED OUT TO PROVIDE MORE SPACE IN THE OFFICE.
FIRM’S DETAILS:
CURRENT DOCUMENTED OFFICE PLAN :
(VRAY SOFTWARE) RENDERED PLAN SHOWING THE CHANGES WORKED OUT AS PER CLIENT REQUIREMENTS:
❑ Changes in Spatial Planning:
CHANGED OFFICE PLAN :
• Removing 8’ concrete walls, in certain areas to provide easy access, as well as provide glass partition walls in places of walls.
• Changing spaces like conference room and storage areas to provide uniformity throughout so the spaces don’t look vague.
• Overall Planning of office layout to provide easy access and 2’ wide comfortable approach as per ergonomics. Interior materials and elements will also be worked out later.
Work Involvement Brief:
• Client meeting and site visit.
• Documentation of Current office layout with measurements of each space, glazing height, floorceiling height, beam heights, etc.
• Coming up with existing CAD floor plan of MNC Office layout.
• Changes in placement of spaces as per client requirements told during client meeting.
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET
NO. 20
Mr. Amit Ghosh RENOVATION OF OFFICE LAYOUT, KULUR, MANGALORE (INTERIOR)
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED COMMERCIAL APARTMENT LAYOUT IN PUMPWEL, MANGALORE.
CONTRIBUTION:
1. RENDER FLOOR PLANS FOR PROPOSED LAYOUTS OF EACH FLOOR
2. ISOMETRIC VIEW OF EACH FLOORS
INTERN’S LEARNING:
LEARNINGS:
1. CLIENTS REQUIRED A PRESNTATION SHOWING THEM RENDERED PLANS AS WELL AS ISOMETRIC VIEWS OF EACH FLOOR OF THE PROPOSED COMMERCIAL BUILDING
2. AN ALTERNATE BASICRENDERING TECHNIQUE IS USING SUPERHATCH COMMAND IN AUTOCAD ITSLEF INSTEAD OF PHOTOSHOP
3. THE RENDERED PLANS AND THEIR RESPECTIVE 3D RENDERED PLANS OF EACH FLOOR WAS SENT TO THE CIVIL ENGINNER OF OUR FIRM (WHO IS THE MAIN ARCHITECT OF THIS PROJECT) AND HE WILL PRESENT THE SAME TO THE CLIENTS FOR FURTHER PROCESS.
4. HERE WE UNDERSTAND HOW CRUCIAL THE CONCEPTUAL (PLANNING) STAGE OF THE PROJECT IS.
5. IT TAKES MORE TIME AND EFFORT TO COME UP WITH A BASIC IDEA AND DESIGN. ANY DELAY IN THE ABOVE PROCESS MIGHT UPSET THE CLIENT AS HE ALSO IS INTERESTED TO KNOW THE DESIGN ASPECTS AND COSTS.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET NO.
Mr. Srinivas RESIDENTIAL VILLA, (G+3), 3BHK, ULLAL NAGAR, BANGALORE.
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED RESIDENTIAL VILLA LAYOUT IN ULLAL NAGAR, BANGALORE.
CONTRIBUTION:
1. FLOOR PLAN LAYOUTS
2. ISOMETRIC VIEW OF EACH FLOORS LEARNINGS:
INTERN’S LEARNING:
1. CLIENTS REQUIRED A PRESNTATION SHOWING THEM RENDERED PLANS AS WELL AS ISOMETRIC VIEWS OF EACH FLOOR OF THE PROPOSED COMMERCIAL BUILDING
2. AN ALTERNATE BASICRENDERING TECHNIQUE IS USING SUPERHATCH COMMAND IN AUTOCAD ITSLEF INSTEAD OF PHOTOSHOP
3. THE PROPOSED FLOOR PLANS AND THEIR RESPECTIVE 3D RENDERED PLANS OF EACH FLOOR WAS SENT TO THE HEAD ARCHITECT OF OUR FIRM (WHO IS THE MAIN ARCHITECT OF THIS PROJECT) AND HE WILL PRESENT THE SAME TO THE CLIENTS FOR FURTHER PROCESS.
4. HERE WE UNDERSTAND HOW CRUCIAL THE CONCEPTUAL (PLANNING) STAGE OF THE PROJECT IS.
5. IT TAKES MORE TIME AND EFFORT TO COME UP WITH A BASIC IDEA AND DESIGN. ANY DELAY IN THE ABOVE PROCESS MIGHT UPSET THE CLIENT AS HE ALSO IS INTERESTED TO KNOW THE DESIGN ASPECTS AND COSTS.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
INTERN’S INFORMATION:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INSTITUTIONAL SEAL: SHEET NO. 22
Mr. Srinivas RESIDENTIAL VILLA, (G+3), 3BHK, ULLAL NAGAR, BANGALORE.
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED RESIDENTIAL VILLA LAYOUT IN ULLAL NAGAR, BANGALORE.
CONTRIBUTION:
1. FLOOR PLAN LAYOUTS
2. ISOMETRIC VIEW OF EACH FLOORS
INTERN’S LEARNING:
LEARNINGS:
1. CLIENTS REQUIRED A PRESNTATION SHOWING THEM RENDERED PLANS AS WELL AS ISOMETRIC VIEWS OF EACH FLOOR OF THE PROPOSED COMMERCIAL BUILDING
2. AN ALTERNATE BASICRENDERING TECHNIQUE IS USING SUPERHATCH COMMAND IN AUTOCAD ITSLEF INSTEAD OF PHOTOSHOP
3. THE PROPOSED FLOOR PLANS AND THEIR RESPECTIVE 3D RENDERED PLANS OF EACH FLOOR WAS SENT TO THE HEAD ARCHITECT OF OUR FIRM (WHO IS THE MAIN ARCHITECT OF THIS PROJECT) AND HE WILL PRESENT THE SAME TO THE CLIENTS FOR FURTHER PROCESS.
4. HERE WE UNDERSTAND HOW CRUCIAL THE CONCEPTUAL (PLANNING) STAGE OF THE PROJECT IS.
5. IT TAKES MORE TIME AND EFFORT TO COME UP WITH A BASIC IDEA AND DESIGN. ANY DELAY IN THE ABOVE PROCESS MIGHT UPSET THE CLIENT AS HE ALSO IS INTERESTED TO KNOW THE DESIGN ASPECTS AND COSTS.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET NO.
Work Involvement Brief:
• Plan
• Section
• Elevation of gudi
• Complete estimation of site, compound wall, and gudi
❑ Project Profile:
• Name of the Project: Shri Kodabbu Dhyvasthana, Temple complex
• Client: Shri Kodabbu Dhyvasthana Temple management
• Location: The proposed site is located in Abakka Nagara Layout, Derebail, Mangalore city corporation.
• Architect: Mr. Surendranath Suvarna.
• Total Site Area: 82.21sqm (0.02 acre)
• Total Built up area in site: 11.96sqm
INTERN’S SCOPE OF WORK & CONTRIBUTION:
• PROPOSED RENOVATION OF KODABBU DHYVASTHANA, ABAKKA NAGARA LAYOUT, DEREBAIL, MANGALORE
CONTRIBUTION:
1. PLAN SECTION AND ELEVATION OF DHYVA GUDI
2. COMPLETE SITE AND GUDI ESTIMATION AND HANDED OVER TO CLIENT
INTERN’S LEARNING:
LEARNINGS:
1. Among the Tulu speaking community in Karnataka, there are many stories about spirits which are powerful, but not always malevolent. The spirits are known as bhuta in the local language, and they are treated as daiva (divinities). These spirits play an integral role in the lives of the people of the community. Panjurli is worshipped both as a family deity and in public shrines.
2. ESTIMATION IS THE PROCESS OF FINDING AN ESTIMATE, OR APPROXIMATION, WHICH IS A VALUE THAT CAN BE USED FOR SOME PURPOSE, EVEN IF INPUT DATA MAY BE INCOMPLETE, UNCERTAIN, OR UNSTABLE.
• • is rich in iron and aluminium content, and the same soil which was excavated for basement, has been utilised for making Laterite bricks for further use in site
3. ESTIMATION DETERMINES HOW MUCH MONEY, EFFORT, RESOURCES, AND TIME WILL TAKE TO BUILD A SPECIFIC SYSTEM OR PRODUCT.
4. QUOTATION IA A COMMERCIAL DOCCUMENT THAT LAYS OUT FOR THE CUSTOMER WHAT THE FIXED COST WOULD BE IN EXCHANGE FOR THE GOODS OR SERVICES PROVIDED. A QUOTATION WILL ONLY BE VALID FOR A LIMITED PERIOD.
FIRM’S DETAILS:
AUTHRIZED SIGNATORY: SEAL:
VIII SEM C - 193701008
KARTHIK H RAO
DATE: 06-05-2023
INTERN’S INFORMATION: INSTITUTIONAL SEAL: SHEET NO. 24
