Karola Konya

001 2022

SELECTED WORKS

PORTFOLIO

CURRICULUM VITAE

CONTACT

PHONE: +40751248324 E-MAIL: konyakarola@yahoo.com

TECHNICAL SKILLS

CAD SOFTWARE: Revit, Revit Structure, SketchUp

RENDERING SOFTWARE: V-Ray, Twinmotion

SIMULATION SOFTWARE:

Blender, Climate Consultant, SunREL, CATT Acoustic, Ashrae Comfort, Resist Software, Sound Concept Research Program, CBE Thermal Comfort Tool

ADOBE CREATIVE SUITE: Photoshop, Illustrator, InDesign, Lightroom, Premier Pro

MICROSOFT OFFICE: Word, Excel, Power Point

SOFT SKILLS

Passionate and motivated self-starter Problem solver and analytical thinker Thorough and detail oriented Collaborative team player as well as excellent independent worker Organized, process oriented and proactive

Good verbal/written communication Positive, dedicated, and reliable Flexible and adaptable Effective online worker

LANGUAGES

English, Hungarian, Romanian

INTERESTS

I am involved in sustainable architecture, as well as in interior architecture and furniture design I am also interested in gardening, healthy living, doing sports and I enjoy different arts and handicrafts

PROFILE

Graduate Architect with a maintained A- GPA throughout the Bachelor of Architectural Studies Designed and project managed the entire build of a 33 m2 family home in collaboration with a small private owned construction company and several contractors Passionate, dedicated, and diligent, keen to learn and develop while working towards architectural licensure

Core competencies: conceptual design, 2D and 3D CAD drawings, construction drawings, detail drawings, 3D detail models, rendering, project presentation, layout design, exterior design, interior design, furniture design, project management.

EDUCATION

BACHELOR OF ARCHITECTURE

Victoria University of Wellington | New Zealand | 2019/04-2022/03

• Studies also included core courses from the Bachelor of Building Science and Interior Architecture Degrees

• Demonstrated excellence in online studying and teamwork for 1 year during Covid (full academic transcript is available on request)

• Proved ability to manage multiple projects and tasks at the same time

• Gained experience in teamwork and in interdisciplinary work while preparing construction plans and detail drawings for a large-scale commercial building

• Gained knowledge about timber framing and residential industry

• Obtained knowledgeable about steel framing and commercial industry

• Acquired knowledge about construction materials and finishes

WORK EXPERIENCE

ARCHITECT, INTERIOR ARCHITECT, PROJECT MANAGER in collaboration with Tiny Vagon | Romania | 2021/09-2022/09

Tiny Vagon is a small company which manufactures high standard on-grid and off-grid tiny houses for its customers all around the country.

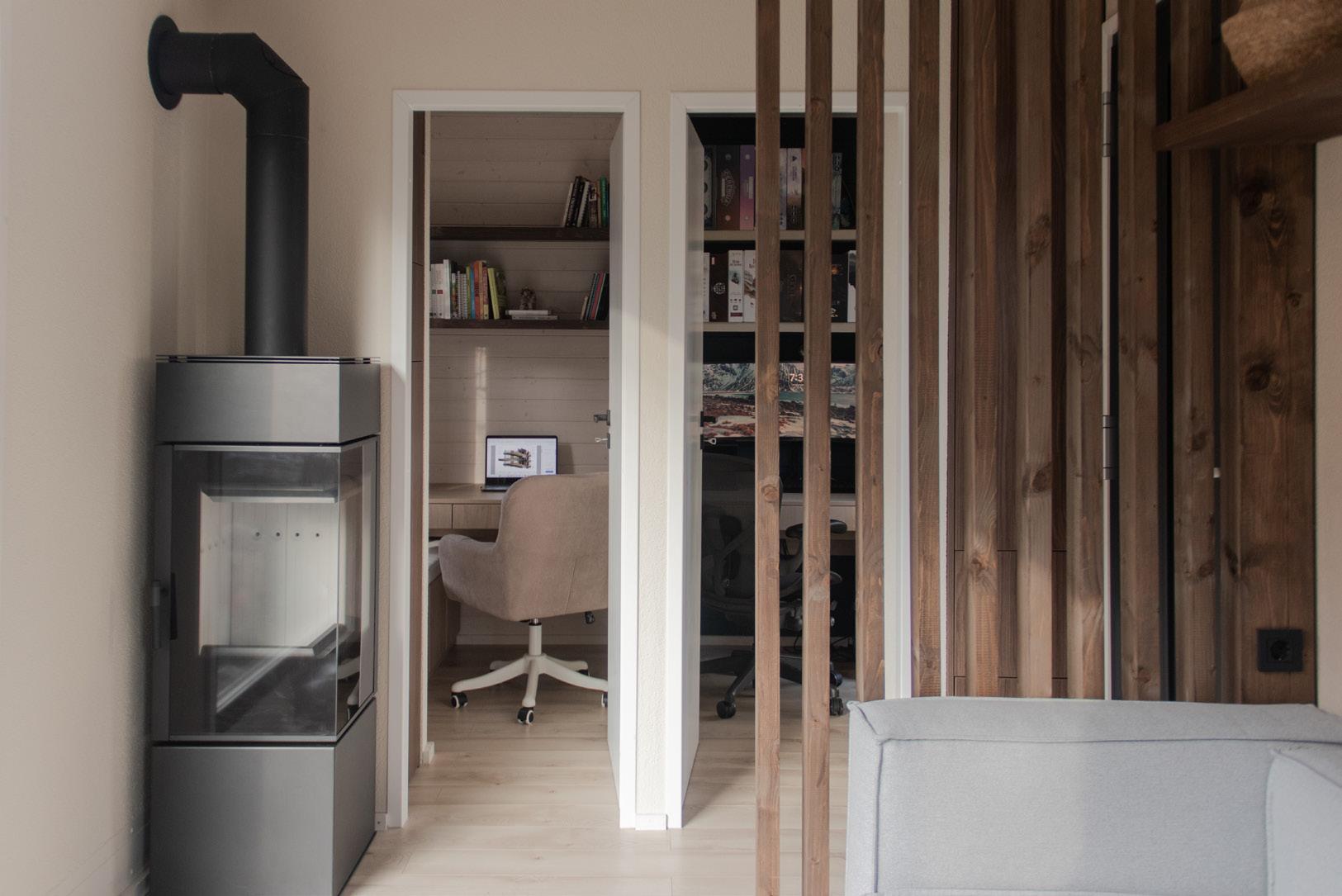

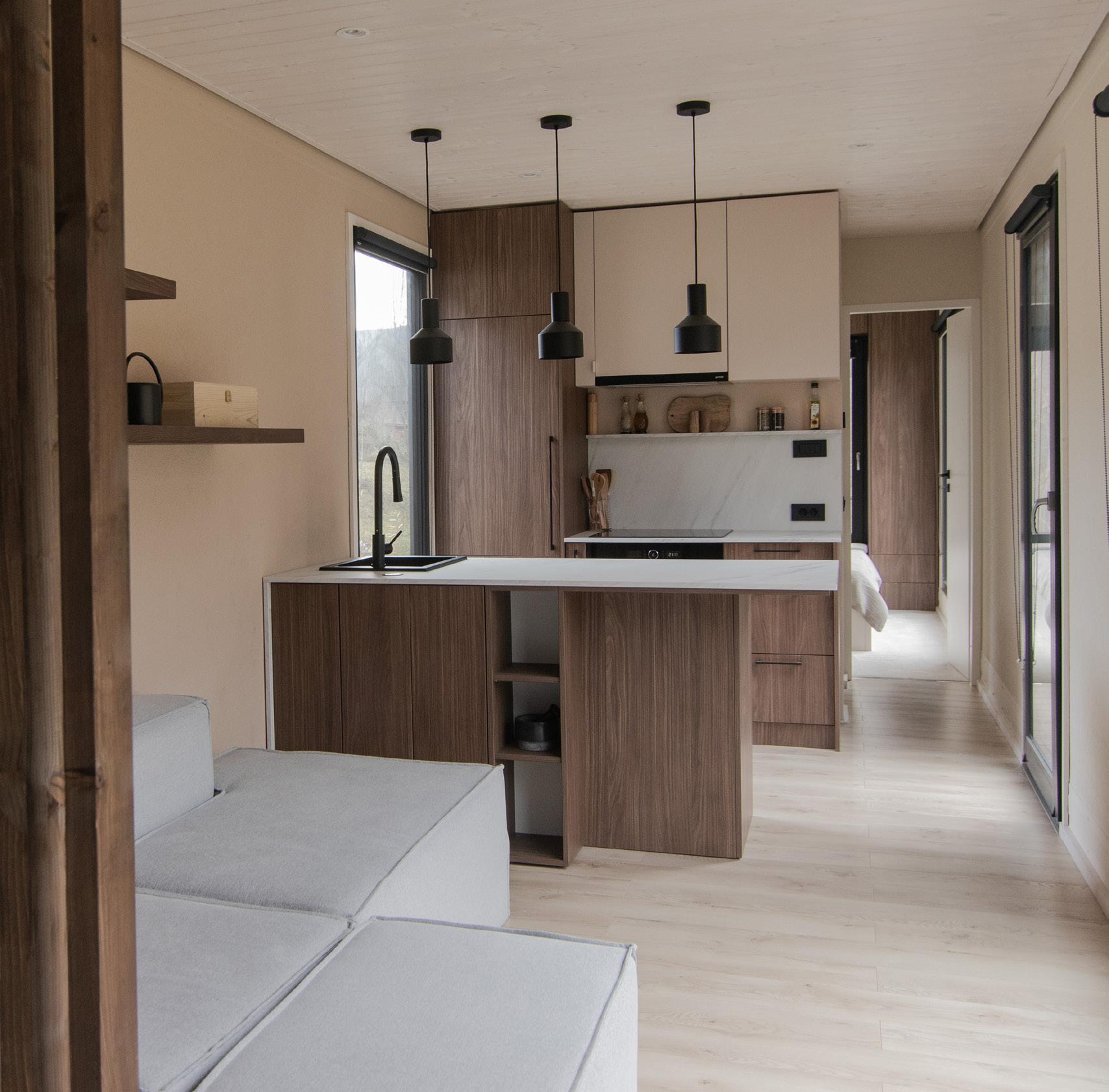

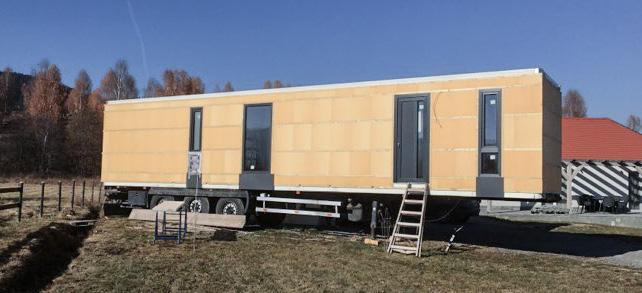

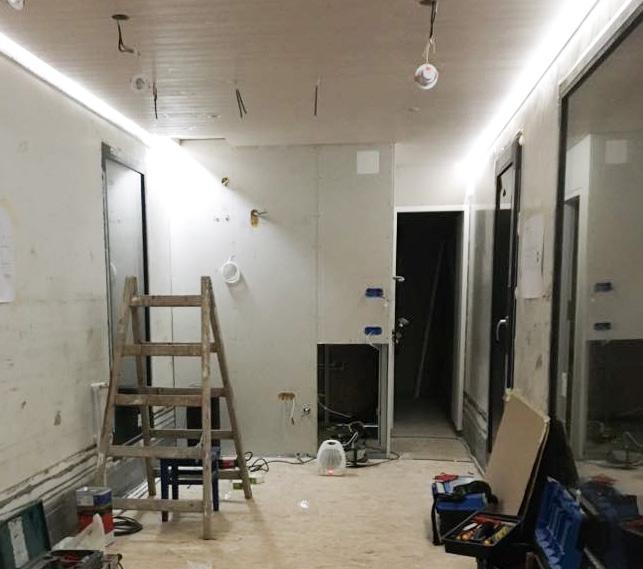

• Designing the entire exterior and interior of a 33 m2 multifunctional home

• Procuring the building materials and project managing the entire build

• Designing all the furniture and project managing the production of it

• Designing, project managing, and supervising land works/preparations

• Coordinating and collaborating effectively with contractors

• Applied knowledge in residential architecture, conceptual design, building program, exterior and interior building envelope

FRONT OFFICE RECEPTIONIST

Mamaison Residence Izabella Budapest | Hungary | 2017/ 08-2018/02

Mamaison Residence Izabella Budapest is one of the illustrious CPI Hotels’ (Mamaison Hotels and Residences) collection of 9, a 4-star hotel for short and extended stays. The hotel’s guests are mainly foreign people from all over the world.

• Working with the hotel’s operational systems, Fidelio and with Microsoft Office (Outlook, Word, Excel, Power Point)

• Organizing payments (cash payments, eftpos payments and transfers alike) and supervising the daily invoices

• Administration work and providing daily accounting reports

• Preparing work schedule for housekeepers, coordinating, and supervising room cleaning

CREATIVE PROJECTS

| Office

| 33

| Fale

CONTENTS 2021

and Appartment Building 2020

Mountain Lodge 2022

m2 Multifunctional Family Home 2021

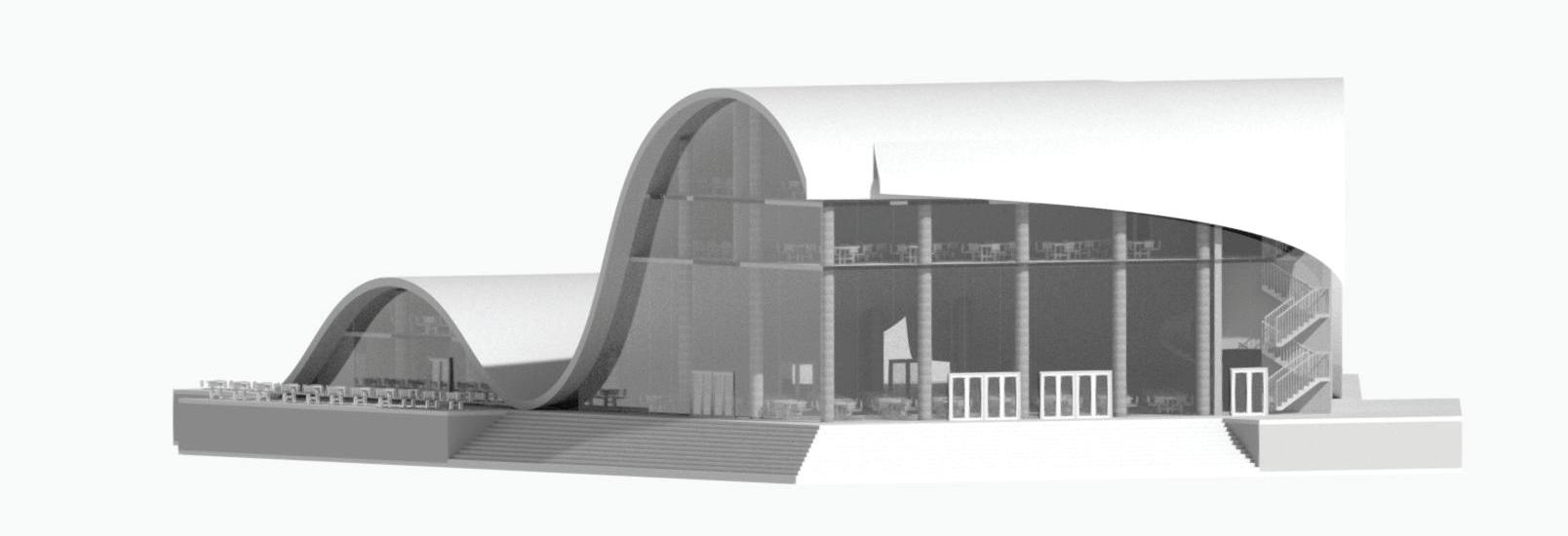

Malae Cultural Centre 2020

Suburban Library in Khandallah

| Maori

| Artistic

2020

Study Centre 2020

Cliffside Lookout Point 2020

Site Observation Commercial Construction Drawings 05 Residentioal Construction Drawings 19 Renders and Photograps of the Finished Design 29 Conceptual Design 37 Conceptual Design and Physical Interior Model 43 Conceptual Design 51 Physical Model 53 Hand Drawings 55

OFFICE AND APARTMENT BUILDING

YEAR: 2021

TYPE: University Project | 6th Semester

TEAM: Fiona Yu (Architecture), Matthew Tamarua (Building Science)

ROLES/RESPONSABILITIES: Commercial Construction Drawings

SOFTWARE: Revit

TASK: The task was to design and document the structural framework, the core construction and the facade of a multistory mixed-use building on an existing site in Wellington, New Zealand. The building needed to include shops, offices, apartments and underground parking as well.

APPROACH: The design phase of the project was a collaborative work within the team, where we researched and made design decisions together, taking into cosideration each other's professional area. In the documentation phase we divided the work into three areas where we all worked individually. Matthew Tamarua made the project management documentation as his professional area, Fiona Yu documented the office floors of the building, and I prepared all the construction drawings for the apartment levels as well as the 3D model of the entire building. Thus, every drawing represented in this portfolio is my individual work.

Office and Appartment Building | Bachelor 6. Semester | 2021 5

2021 | Bachelor 6. Semester | Office and Appartment Building 6 Scale Date: Author: Tutor's Name: Group Name: Team Name: Team Members: Site: Callum & Guy Seoul J Fiona Yu (Arch) Karola Konya (Arch) Site Area: 1992 m2 Building Footprint: 989 m2 N 3D Part Facade Karola Konya FACADE OF OFFICE / APARTMENT BUILDING SARC 321 -Project 3 30 September 2021 A102 Whitireia Polytechnic Institute, We Neera Dr, Porirua, Wellington 5022, New Zealand 310 UC universal steel column with 10 mm Gib Freyline cover around for fire protection 1000 mm high metal balcony railing with 50 mm x 50 mm metal top rail and 20 mm x 20 mm metal balusters @ 150 mm CRS 150 mm thick precast panel ledge hanging from top of the floor with a 150 mm edge and bolted to the floor from the side to privent water leakage curvy curtain walls with metal framing 100 mm wide 20 mm thick vertical timber weatherborad cladding 200 mm wide 20 mm thick timber decking 90 mm x 45 mm timber framing with 2 layers of 10 mm Gib Freyline on both sides and accoustic insulation 200 mm thick reinforced concrete shear wall with tundra timber form-work finish on both sides 90 mm x 45 mm timber framing with 2 layers of 10 mm Gib Freyline on both sides and accoustic insulation fireproof timber entry door to the apartments timber interior doors in apartment to access toilets and bedrooms 90 mm x 45 mm timber framing with insulation between, 10 mm gib on battens on the interior, and rigid insulation, rigid air barrier as well as vertical timber weatheboard cladding on battens on the exterior rigid thermal insulation and carpet on top 150 mm reinforced concrete composite slab Refer to SE specifications raised timber decking on balcony downpipes to collect rainwater from balconies and take it down within the columns 530 UB primary universal steel beams with 10 mm Gib Freyline cover around for fire protection Refer to SE specifications rigid insulation on floor slab to decrease the effect of thermal bridging 10 mm thick suspended gib ceiling on stainless steel framework attached to floorslab

A B C D E Scale Date: Author: Site: Site Area: 1992 m 2 Building Footprint: 989 m 2 N As indicated Cover Sheet

30 September 2021 A101

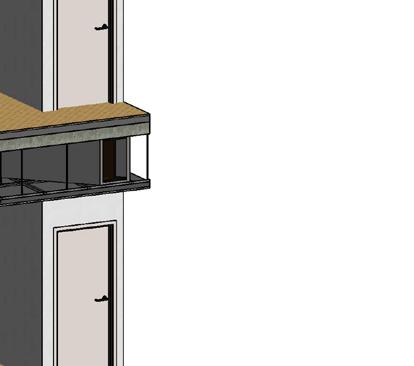

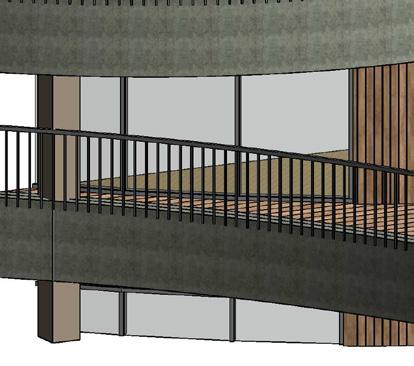

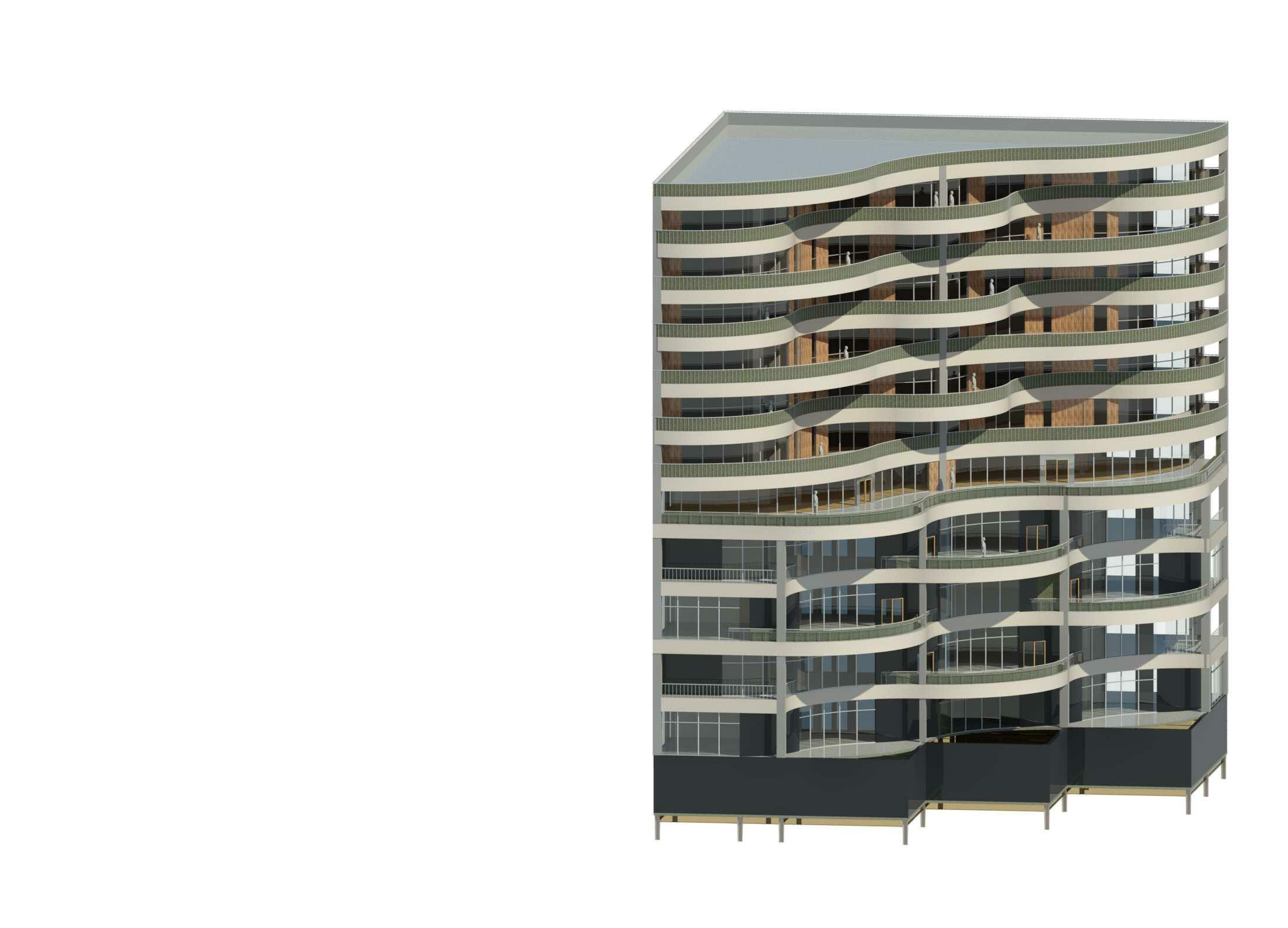

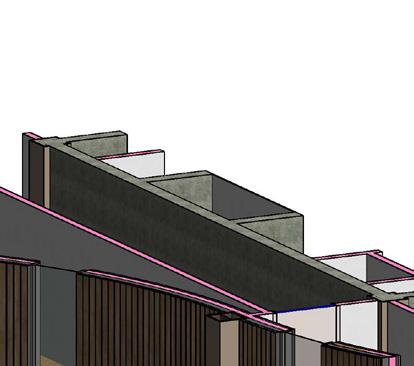

3D MODEL

Karola Konya

Whitireia Polytechnic Institute, We Neera Dr, Porirua, Wellington 5022, New Zealand

2021 | Bachelor 6. Semester | Office and Appartment Building FLOOR PLAN 8 1 3 A B C D E 2 4 5 Electrical Cupboard (DB) Comms Room Fire Staircase Pressurisation Carpark Exhaust GF Exhaust Plumbing Riser Extract (1800 1500mm) Disabled Refuge Cleaners Cupboard Lift Exhaust Toilet Exhaust (1800 1500mm) DisabledRefuge (1800 1500mm) Lift Well Lift Well Lift Lobby Apartment 1 - Luxury (1 bedroom) Apartment 2 (2 bedroom) Apartment 3 (2 bedroom) Apartment 4 (2 bedroom) Apartment 5 - Luxury (1 bedroom) Apartment 6 - Luxury (2 bedroom) Tutor's Name: Group Name: Team Name: Team Members: Site: Callum & Guy Seoul J Fiona

Site Area: 1992 FACADE OF OFFICE / APARTMENT BUILDING SARC 321 -Project 3 Whitireia Neera UNDULATING EQUILIBRIUM SCALE: 1:200 DN 0 5 10m 1 A109 2 A109 Karola Konya300484219ARCI 312P1 4th Floor Plan 1 1 2 3 3 4 5 1. Breakout Rooms2.Hallway/Waiting Area/Lounge 3. Fire Stairs 4. Lift 5. Toilets

Yu (Arch) Karola Konya (Arch)

Office and Appartment Building | Bachelor 6. Semester | 2021 9 UP 9 8 7 6 5 4 3 2 1 20191817161514131211 1 Data Riser Comms Room HVAC Riser Access to the Cisterns, Lift Well Lift 1 (1800 x 1500 mm) Monolithic Concrete Escape Stair with Exit to the Street Disabled Refuge Lift Lobby -/60/60 Fire Rated Door/60/60 Fire Rated Wall/60/60 Fire Rated Wall -/60/60 Fire Rated Wall/60/60 Fire Rated Wall -/60/60 Fire Rated Wall -/60/60 Fire Rated Wall -/60/60 Fire Rated DoorKitchenett Location at Office Levels WC 200 mm Reinforced Concrete Shear Wall with Tundra Timber Form-work Finish on the Interior, and With Insulation and Timber Clading on the Exterior 200 mm Reinforced Concrete Shear Wall with Tundra Timber Form -work Finish on Both Sides 200 mm Reinforced

work Finish on Both Sides 200 mm Reinforced Concrete Shear Wall with Tundra Timber Form -work Finish on Both Sides 200 mm Reinforced

work

90x45 mm Timber

90x45

150 mm Composit Concrete Flooring Slab with Plywood and with Timber Finish on Top 150 mm Composit Concrete Flooring Slab - Exposed Concrete Slab 2290 2400 2155 2155 9000 200 2090 200 2200 200 2000 110 2000 200 -/60/60 Fire Rated Wall 6887 5282 382 5191 6887 4627 382 4381 1000 1000 60 848 5688 821 1340 1340 5591 (1800 Note: HVAC Only at Office Levels 1 A106 -/60/60 Fire Rated Cupboard Door to Access Fire Systems for Maintenance Staircase Pressurisation Damper and -/60/60 Fire Rated Cupboard Door to Access Stair Pressurisation Riser for Maintenance Exposed Concrete Stair Landing 2 A107 Tutor's Name: Group Name: Team Name: Team Members: Callum & Guy Seoul J Fiona Yu (Arch) SARC 321 -Project 2 SCALE: 1:50 DN 0 5 10m 1 A109 2 A109 Karola Konya300484219ARCI 312P1 4th Floor Plan 1 1 2 3 3 4 5 1. Breakout Rooms2.Hallway/Waiting Area/Lounge 3. Fire Stairs 4. Lift 5. Toilets

Concrete Shear Wall with Tundra Timber Form-

Finish on Both Sides

Framing with 2 Layers of 10 mm Gib Fyreline on Both Sides and Acoutic Insulation

mm Timber Framing with 2 Layers of 10 mm Gib Fyreline on Both Sides and Acoutic Insulation

Note: Kitchenett Only at Office Levels -/60/60 Fire Rated Cupboard Door to Access Kitchen Extract for Maintenance

Note: Carpark Exhaust and GF Exhaust to Exit Above Ground Floor Retail

90x45 mm Timber Framing with 2 Layers of 10 mm Gib Fyreline on Both Sides and Acoutic Insulation

2021 | Bachelor 6. Semester | Office and Appartment Building 10 10 B C 2 Electrical Cupboard (DB) Riser Fire Staircase Pressurisation Riser Carpark Exhaust GF Exhaust Plumbing Riser Kitchen Extract Toilet Exhaust Wet Services Riser Cisterns, and WC Soil-Stack Connections/60/60 Fire Rated Door/60/60 Fire Rated Door/60/60 Fire Rated Door/60/60 Fire Rated Door -/60/60 Fire Rated Door/60/60 Fire Rated Door/60/60 Fire Rated Wall -/60/60 Fire Rated Wall/60/60 Fire Rated Wall -/60/60 Fire Rated Wall Levels WC Location at Office Levels/60/60 Fire Rated Wall Cleaners Cupboard

steel

along structural grid Layers Fyreline

200 mm Reinforced Concrete Shear Wall with Tundra Timber Form -work Finish on Both Sides 310 UC universal

columns @ 9000 mm crs accross and

90x45 mm Timber Framing with 2 Layers of 10 mm Gib Fyreline on Both Sides and Acoutic Insulation

2400 2290

755 850 600 110 695 200 2260 110 2105 200 1340 1754 110 895 576 951 578 89 848 168 152 848 106 Lift 2 (1800 x 1500 mm)

2155 2155

9000

Note: Toilet Exhaust to Exit at Roof Level Note: Access to the Cisterns, and WC Soil-Stack Connections Only at Office Levels Note: WCs Only at Office Levels

110 875 200 200 1137 848

466 350 705 350 118

2 A109 Author:

N Primary Apartment Core Plan

PRIMARY CORE PLAN

Note: Kitchen Extract to Exit at Roof Level 200 597 110 1292 121 1989 200 2200 200 1105

942 951 883 1919 437 651 516 350 167 200

200

Reinforced Concrete Shear Wall with Tundra Timber Form-work Finish on Both Sides

A108

Site:

Karola Konya Whitireia Polytechnic Institute, We Neera Dr, Porirua, Wellington 5022, New Zealand

310 UC universal steel columns @ 9000 mm crs accross and along structural grid

200 mm Reinforced Concrete Shear Wall with Tundra Timber Form -work Finish on Both Sides

200 mm Reinforced Concrete Shear Wall with Tundra Timber Form-work Finish on the Interior, and With Insulation and Timber Clading on the Exterior

Metal Pipe Railing

Monolithic Concrete Escape Stair with Exit to the Street

Exposed Concrete Stair Landing

Tutor's Name: Group Name: Team Name: Team Members:

Office and Appartment Building | Bachelor 6. Semester | 2021 11 Level 6 20200 Level 7 23600 1

382 4991

300 1 A107

300 3100

Callum & Guy Seoul J Fiona Yu (Arch) Core Construction

SARC 321 -Project 2 SCALE: 1:20

Drawings of Apartment Levels

Lightweight Timber Framed Floor to Cleaners Cupboard

150 mm Composit Concrete Flooring Slab with Plywood and with Timber Finish on Top

200

Whitireia Polytechnic Institute, We Neera Dr, Porirua, Wellington 5022, New Zealand

Supply Air Duct (Stair Pressurisation Riser)

530 UB Primary Universal Steel Beams @ 9000 mm crs accross and along structural grid @ 9000 mm span Refer to SE specifications.

200 mm Reinforced Concrete Shear Wall with Tundra Timber Form-work Finish on Both Sides

310 UC universal steel columns @ 9000 mm crs accross and along structural grid

Cleaners Cupboard

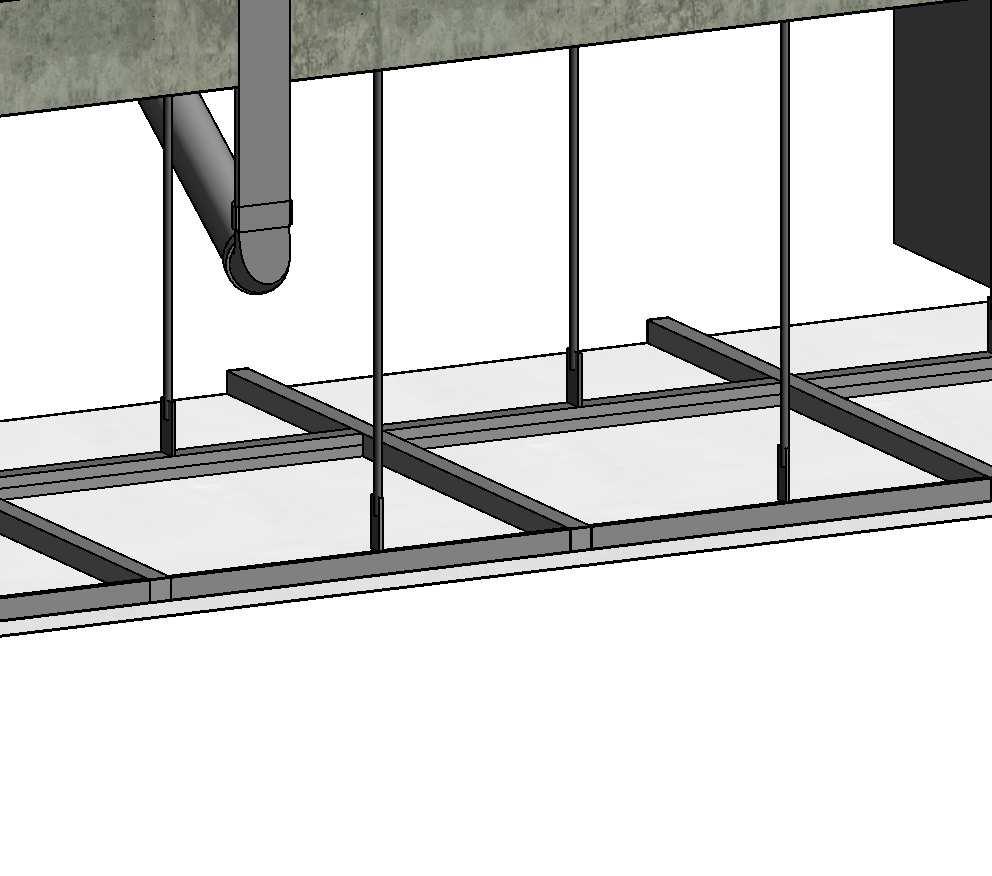

Slatted Timber Suspended Ceiling On Unistrus Suspension System (Accoustic Insulation)

Lightweight Timber Framed Floor to Cleaners Cupboard

90x45 mm Timber Framing with 2 Layers of 10 mm Gib Fyreline on Both Sides and Acoutic Insulation Studs @ 600 CRS Nogs @ 1000 CRS

-/60/60 Fire Rated Pocket Door

Stair Pressurisation Damper and -/60/60 Fire Rated Cupboard Door to Access Stair Pressurisation Riser for Maintenance

150 mm Composit Concrete Flooring Slab with Plywood and with Timber Finish on Top

2021 | Bachelor 6. Semester | Office and Appartment Building 12

mm Reinforced Concrete Shear Wall with Tundra Timber Form-work Finish on Both Sides

200

1 A108 1

Author:

N Section Karola Konya A106

600 110 695 200 185 528 208 353 2125 185

A109

Site:

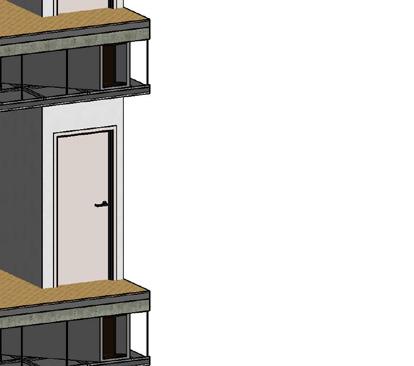

PRIMARY CORE SECTION

1000 mm high metal balcony railing with 50 mm x 50 mm metal top rail and 20 mm x 20 mm metal balusters @ 150 mm CRS

raised timber decking on balcony

150 mm thick precast panel ledge hanging from top of the floor with a 150 mm edge and bolted to the floor from the side to privent water leakage

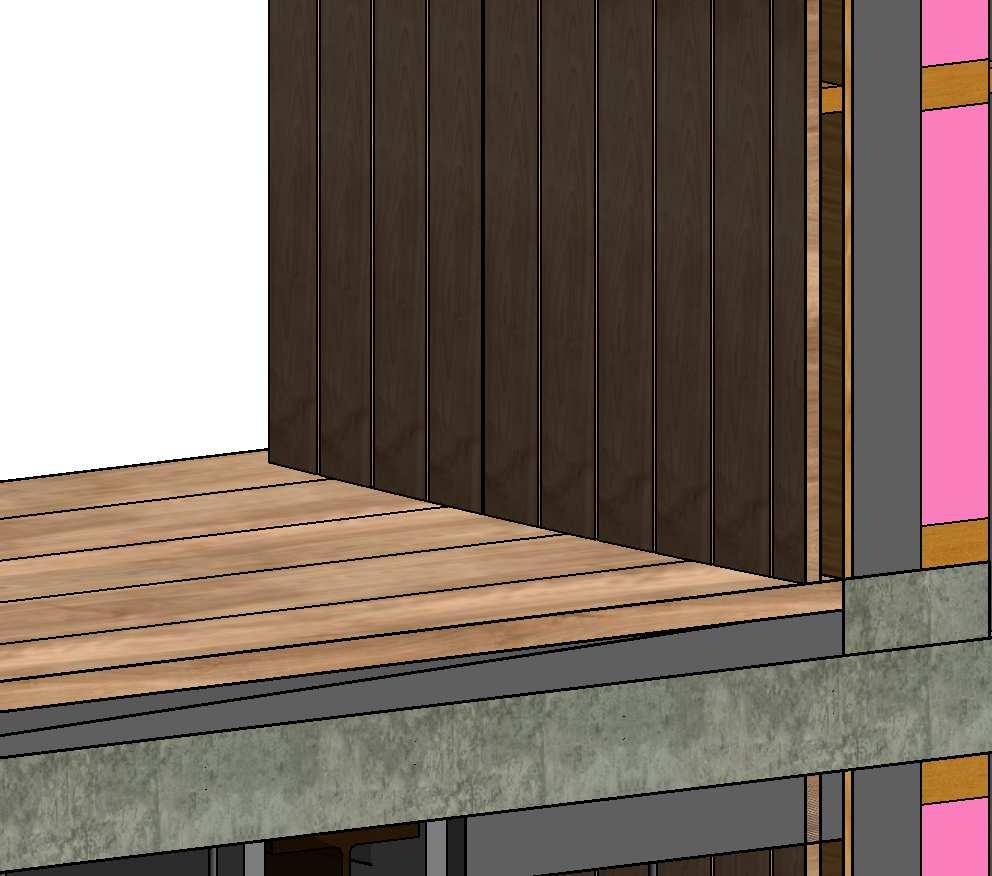

530 UB primary universal steel beams with 10 mm Gib Freyline cover around for fire protection Refer to SE specifications

10 mm thick suspended gib ceiling on stainless steel framework attached to floorslab

downpipes to collect rainwater from balconies and take it down within the columns

rigid insulation on floor slab to decrease the effect of thermal bridging

90 mm x 45 mm timber framing with insulation between, 10 mm gib on battens on the interior, and rigid insulation, rigid air barrier as well as vertical timber weatheboard cladding on battens on the exterior

1000 mm high metal balcony railing with 50 mm x 50 mm metal top rail and 20 mm x 20 mm metal balusters @ 150 mm CRS

sloping concrete topping on composite flooring to changel rainwater towards the pipes

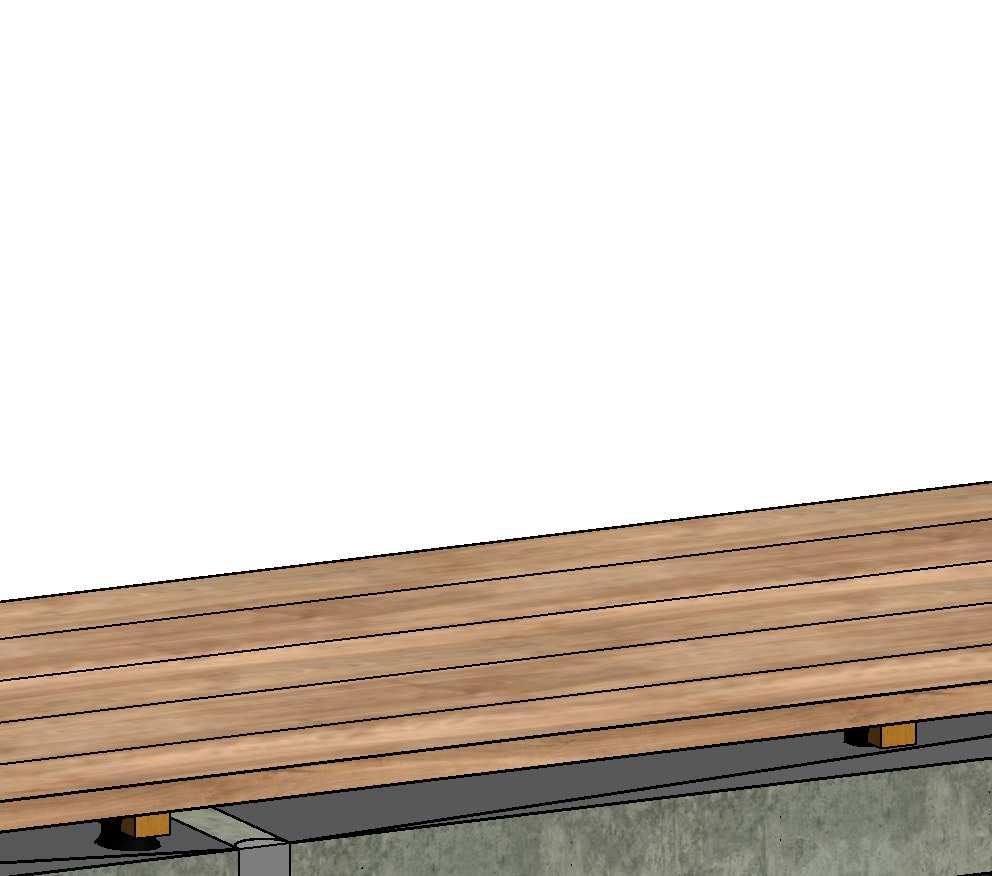

skrewjack to hold up raised timber decking

timber battens on the skrew jack to support timber decking on top

530 UB primary universal steel beams with 10 mm Gib Freyline cover around for fire protection Refer to SE specifications

10 mm thick suspended gib ceiling on stainless steel framework attached to floorslab

downpipes to collect rainwater from balconies and take it down within the columns

rigid insulation slab to effect

Office and Appartment Building | Bachelor 6. Semester | 2021 13

Level

Level 8 27000

9 30400 1000 70 568 150 100 1000 3400 2470

2381

2590 Tutor's Name: Group Name: Team Name: Callum & Guy Seoul J FACADE OF OFFICE / APARTMENT BUILDING SARC 321 -Project 3 1:20 SCALE:

4270

4477

insulation on floor to decrease the of thermal bridging

310

2031 310 2029 2131 2131 Author: Site:

rigid thermal insulation and carpet on top

150 mm reinforced concrete composite slab Refer to SE specifications 10 mm thick suspended gib ceiling with 60 insulation above on stainless steel framework attached to floorslab

curvy curtain walls with metal framing

rigid thermal insulation and carpet on top

150 mm reinforced concrete composite slab Refer to SE specifications

530 UB primary universal steel beams with 10 mm Gib Freyline cover around Refer to SE specifications

10 mm thick suspended gib ceiling with 60 insulation above on stainless steel framework attached to floorslab

2021 | Bachelor 6. Semester | Office and Appartment Building 14 C

A108 930 2470 112 568 150 100

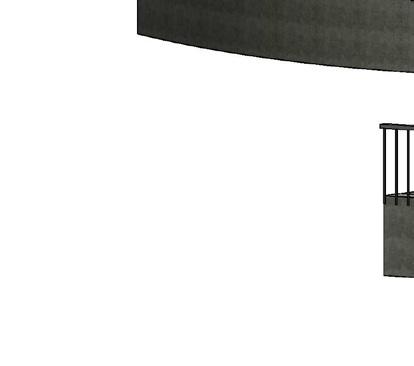

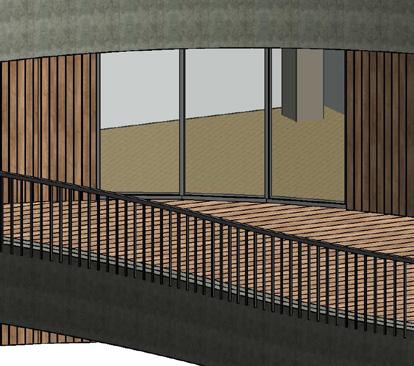

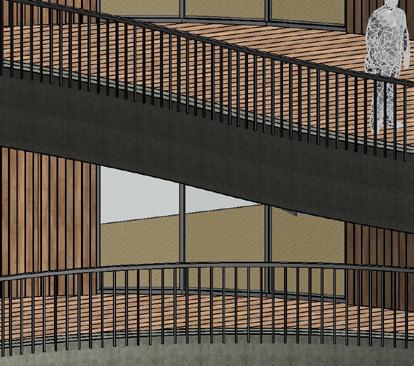

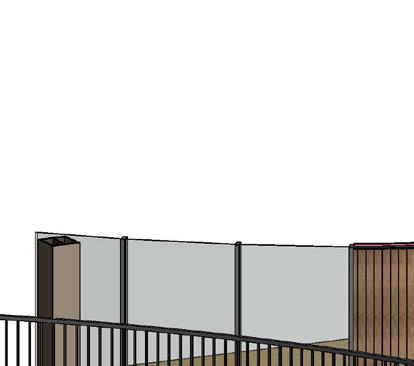

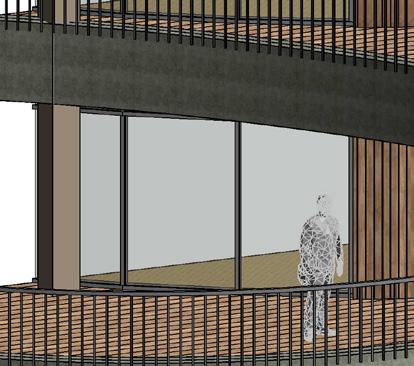

N Part Facade

530 UB primary universal steel beams with 10 mm Gib Freyline cover around Refer to SE specifications floor skirting A105

Section Karola Konya

FACADE SECTION

Whitireia Polytechnic Institute, We Neera Dr, Porirua, Wellington 5022, New Zealand

Office and Appartment Building | Bachelor 6. Semester | 2021 15 Level 7 23600 200 mm Reinforced Concrete Shear Wall with Tundra Timber Form -work Finish on Both Sides 310 UC universal steel columns @ 9000 mm crs accross and along structural grid 530 UB Primary Universal Steel Beams @ 9000 mm crs accross and along structural grid @ 9000 mm span Refer to SE specifications. Cleaners Cupboard 90x45 mm Timber Beams @ 600 CRS With Soft Insulation Between Refer to SE Specifications 185 528 200 Composite Steel Tray Refer to SE specifications Edge Trim Starter Rods Bent Over Into Slab Refer to SE Specifications Ductile reinforcing mesh or bar Refer to SE specifications 150 mm Concrete composite slab Refer to SE specifications 50 mm minimum seating, fastened @ 600 mm CRS End Cap Trimmer Bars Refer to SE Specifications Polyethylene Moisture Vapour Barrier Plywood Sheeting Adhesive Timber Flooring Polyethylene Moisture Vapour Barrier Plywood Sheeting Adhesive Timber Flooring 139 Edge Trim 10 mm Gib Fyreline Tutor's Name: Group Name: Team Name: Site: Callum & Guy Seoul J SARC 321 -Project 2 1. Section Drwaing FLOOR TO SHEAR WALL DETAIL - SECTION SCALE: 1:10

Shear connector Refer to SE specifications 150 mm Concrete composite slab Refer to SE specifications

Level 1 0

Galvanized Steel Edge Form

Trimmer bars

Edge starter bar hooked vertically or horizontally

End Cap

Ductile reinforcing mesh or bar Refer to SE specifications

Edge starter bar Refer to SE specifications

Composite Steel Tray Refer to SE specifications

Steel connector Refer to SE specifications

Steel connector bolts Refer to SE specifications

530 UB Primary Universal Steel Beams @ 9000 mm crs accross and along structural grid @ 9000 mm span Refer to SE specifications.

310 UC Universal Steel Columns @ 9000 mm crs accross and along structural grid Refer to SE specifications.

Site: Guy N

BEAM TO COLUMN CORNER JUNCTION - SECTION SCALE: 1:10

150 2 Building Footprint:

95 209 Date: Author: 2

Beam to Column Corner Junction

989 m

A108

2021 | Bachelor 6. Semester | Office and Appartment Building 16

Steel connector Refer to SE specifications

Steel connector bolt Refer to SE specifications

311 528 Seoul J (Arch) (Arch) Site Area: 1992

Karola Konya 29 July 2021

Whitireia Polytechnic Institute, We Neera Dr, Porirua, Wellington 5022, New Zealand

Tutor's

Office and Appartment Building | Bachelor 6. Semester | 2021

panel

hanging

UB primary universal steel beams with 10

Gib

cover

for fire protection Refer to SE specifications

gib

steel

attached

100

rigid

1000 mm high metal balcony railing with

mm x 50 mm metal top rail and 20 mm x 20 mm metal balusters @ 150 mm CRS 150 mm thick precast

ledge

from top of the floor with a 150 mm edge and bolted to the floor from the side to privent water leakage raised timber decking on balcony downpipes to collect rainwater from balconies and take it down within the columns 530

Freyline

around

10 mm thick suspended

ceiling on stainless

framework

to floorslab skrewjack to hold up raised timber decking timber battens on the skrew jack to support timber decking on top sloping concrete topping on composite flooring to changel rainwater towards the pipes

mm timber weatherborad horizontally CRS with RAB - rigid

insulation

Site: Callum & Guy Seoul J

FACADE OF OFFICE / APARTMENT BUILDING SARC 321 -Project 3

Name: Group Name: Team Name: Team Members:

Fiona Yu (Arch)

Whitireia Polytechnic Institute, We Neera Dr, Porirua, Wellington 5022, New Zealand

Karola Konya

2021 | Bachelor 6. Semester | Office and Appartment Building

with

steel

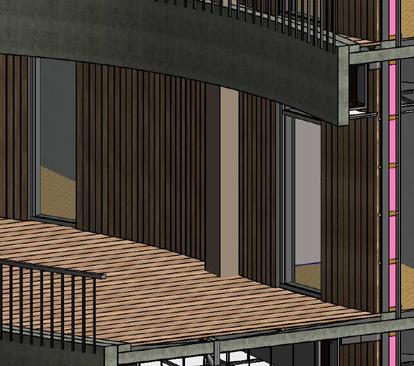

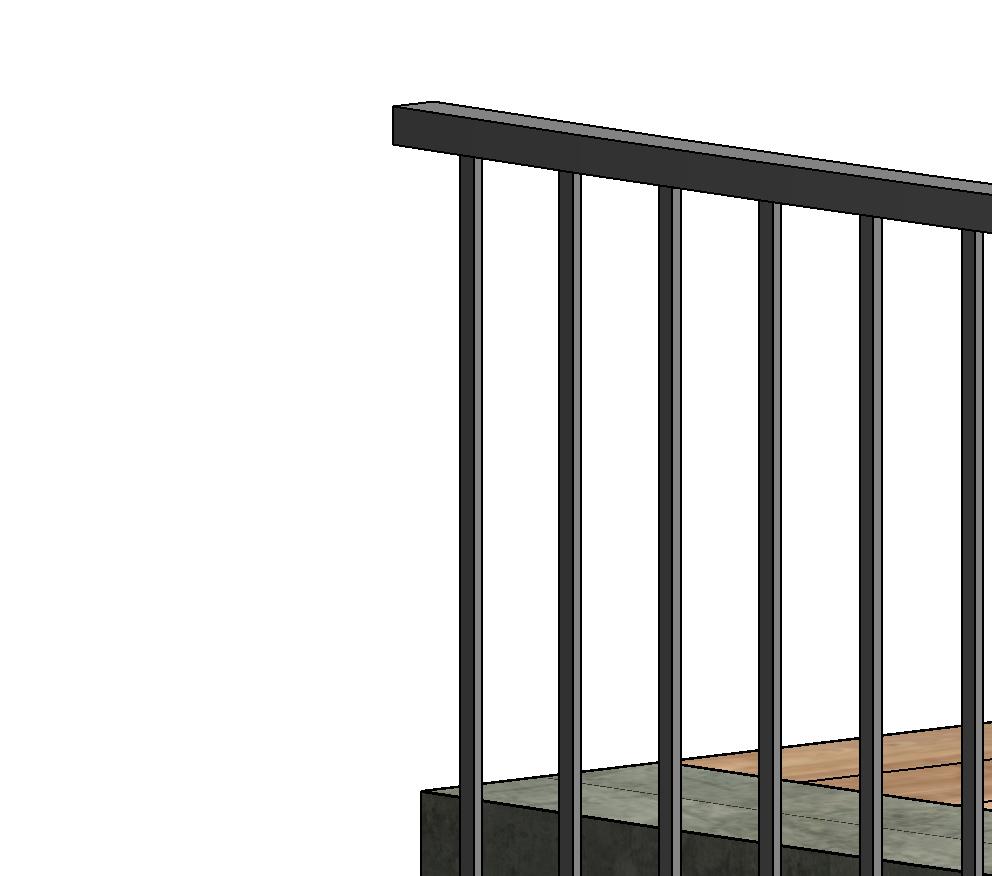

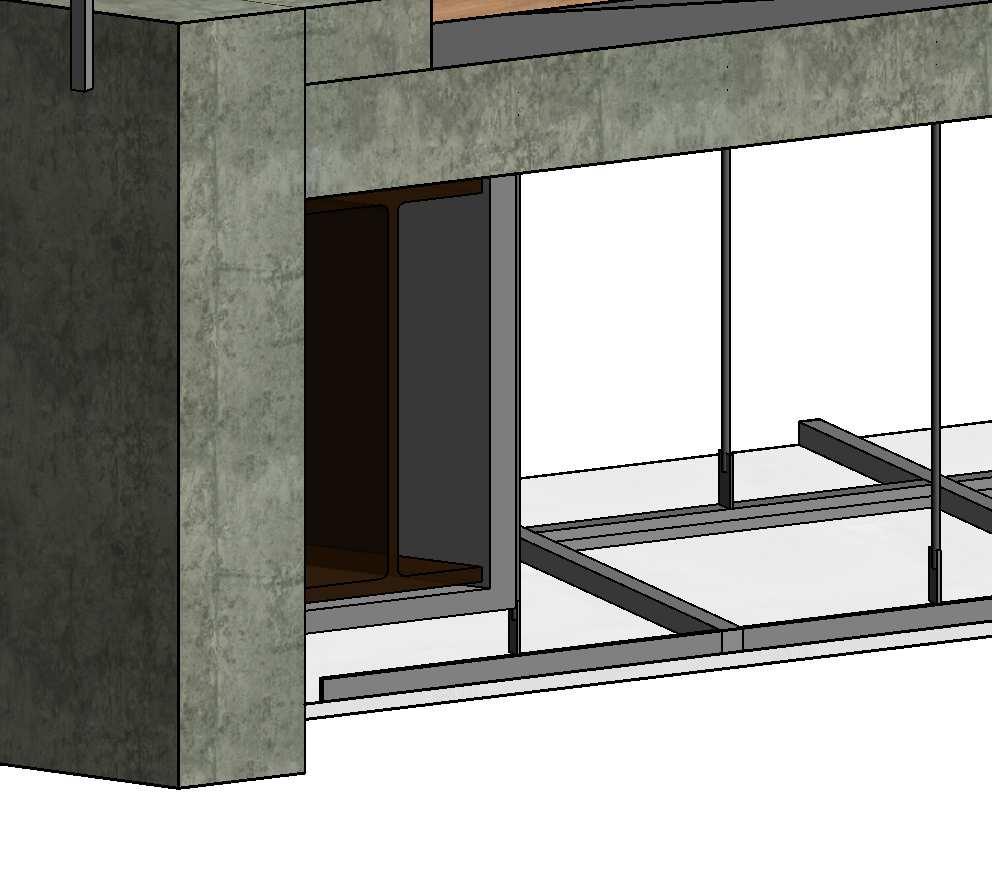

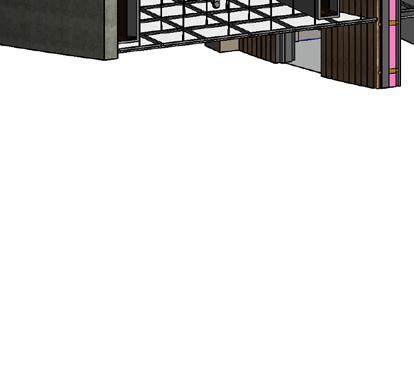

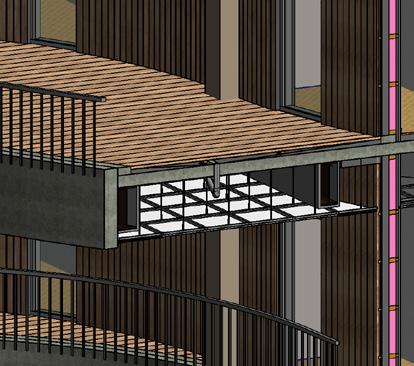

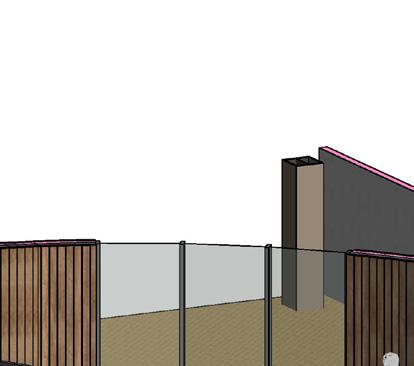

Site: N 3D Detail

A106

carpet 150 mm reinforced concrete composite slab Refer to SE specifications rigid insulation on floor slab to decrease the effect of thermal bridging

mm thick suspended gib ceiling

60 insulation above on stainless

framework attached to floorslab floor skirting 530

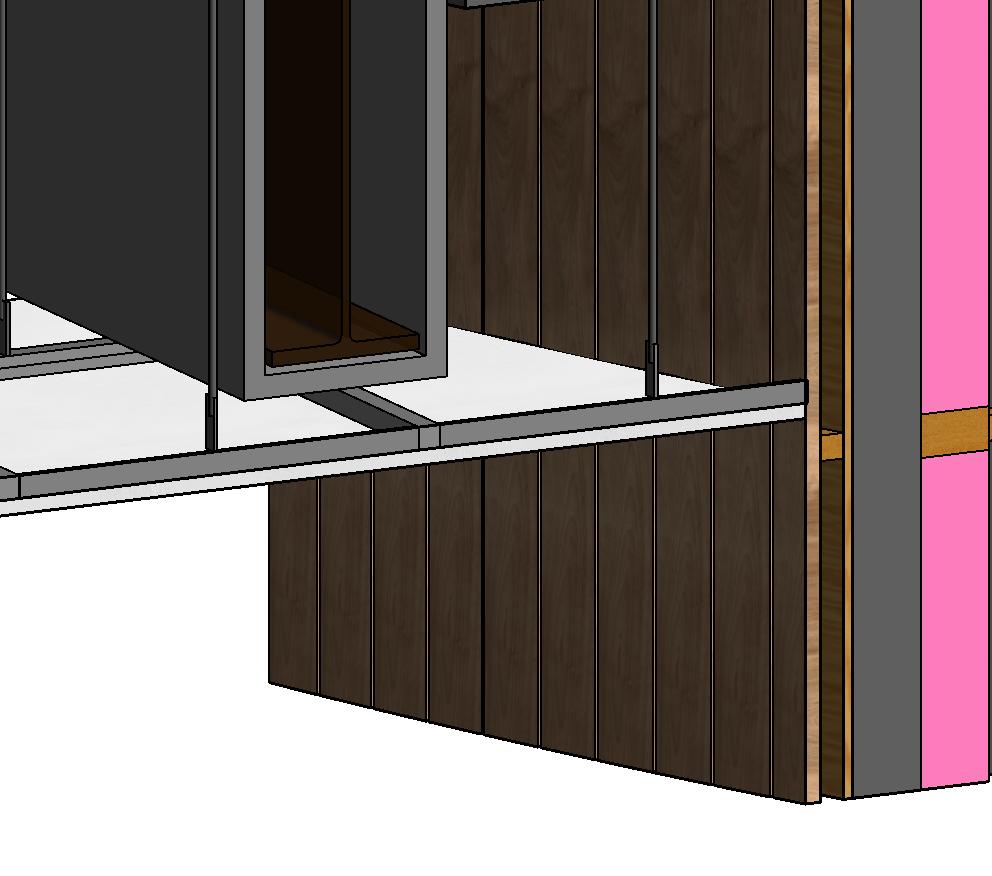

primary universal steel beams with 10 mm Gib Freyline cover around for fire protection Refer to SE specifications wide 20 mm thick vertical weatherborad cladding horizontally placed battens @ 600 ventilation cavity between rigid air barrier 90 mm thick soft insulation between timber framing horizontally placed battens @ 600 CRS with ventilation cavity between and space for services 10 mm gib 90 mm x 45 mm timber framing insulation rigid insulation below carpet Date: Author:

September 2021

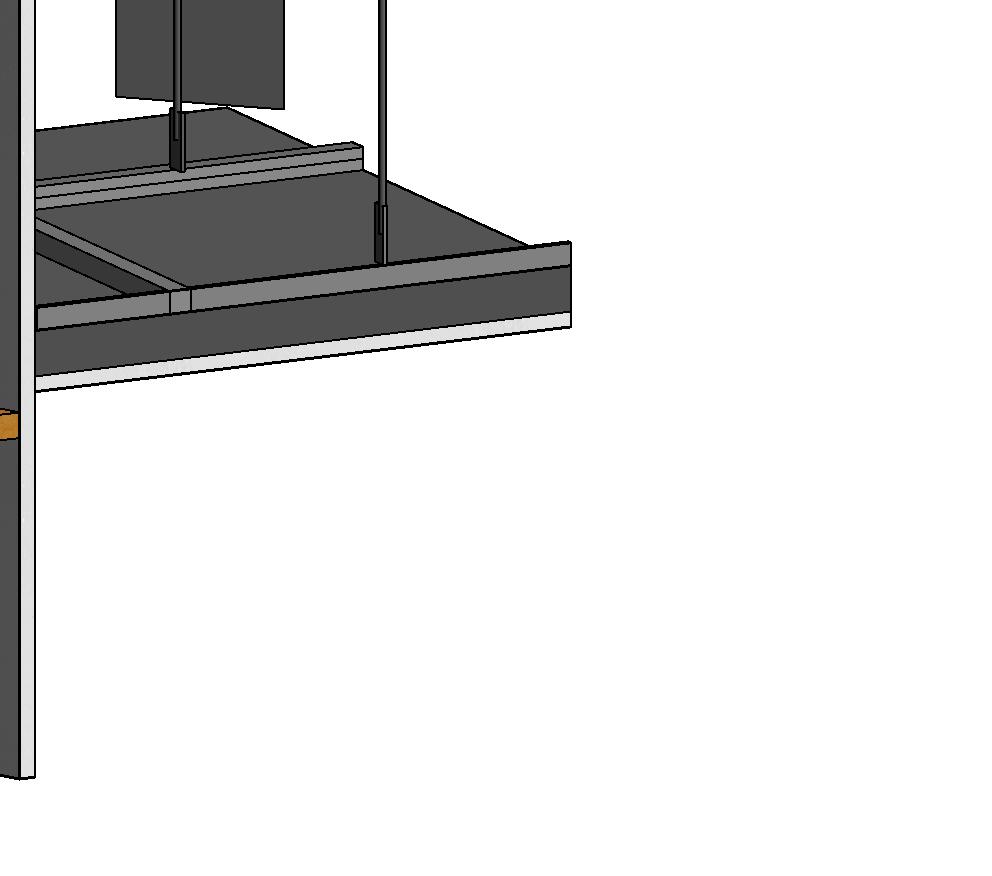

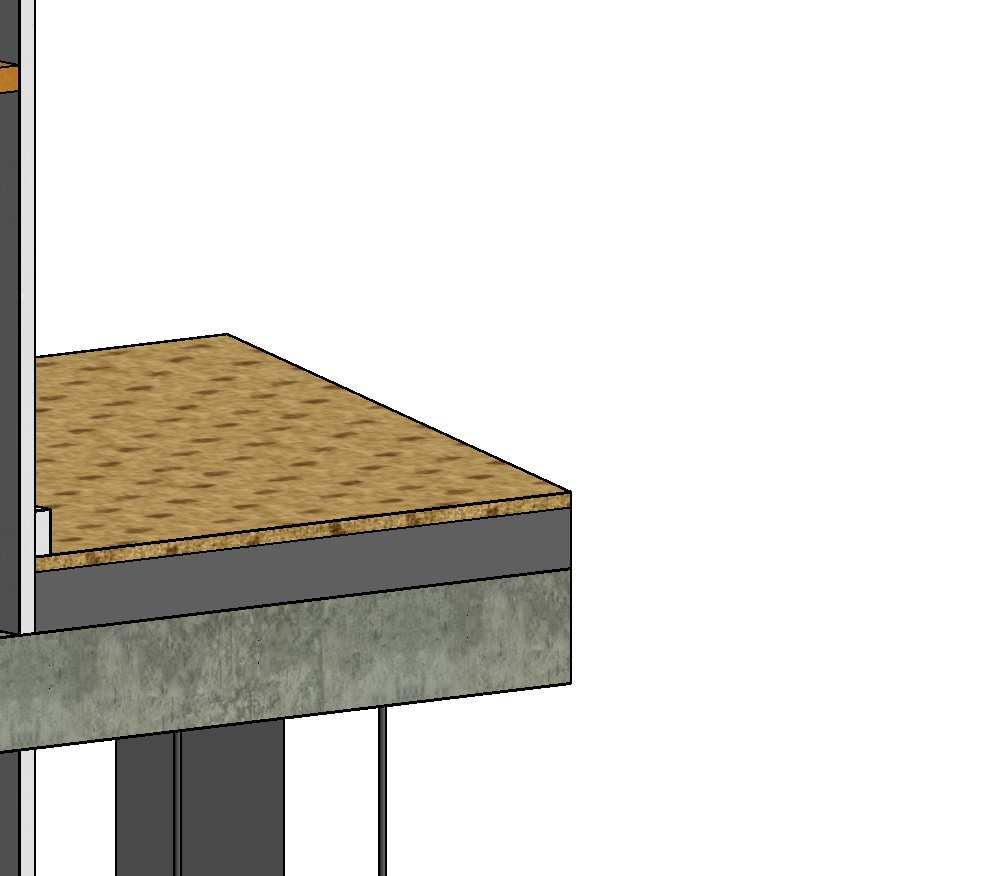

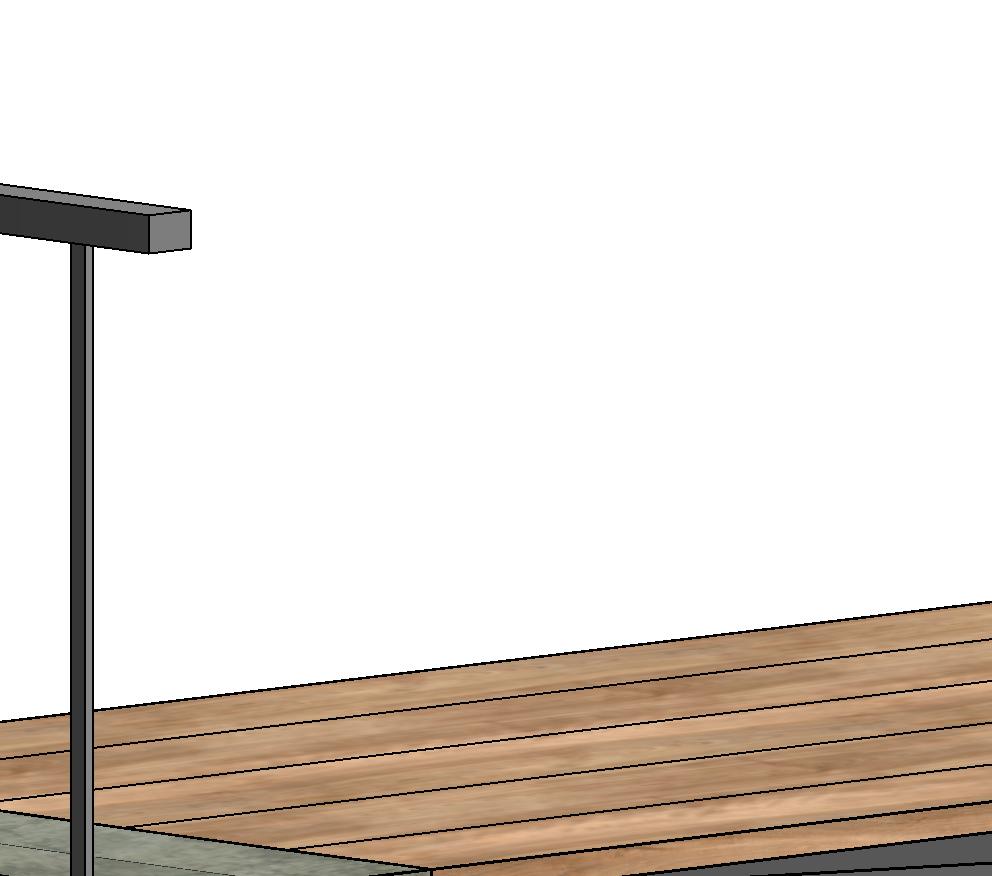

3D DETAIL

MOUNTAIN LODGE

YEAR: 2020

TYPE: University Project | 3rd Semester

TEAM: Individual Project

ROLES/RESPONSABILITIES: Residentioal Construction Drawings

SOFTWARE: Revit

TASK: The task was to use a basic hand drawn floor layout of a mountain lodge to develop and graphically document its construction design to professional standards in New Zealand.

APPROACH: Timber post and beam construction system was choosen as the building's main load-bearing structure. The building materials were carefully selected in order to comply with A+ energy qualification according to New Zealand standars.

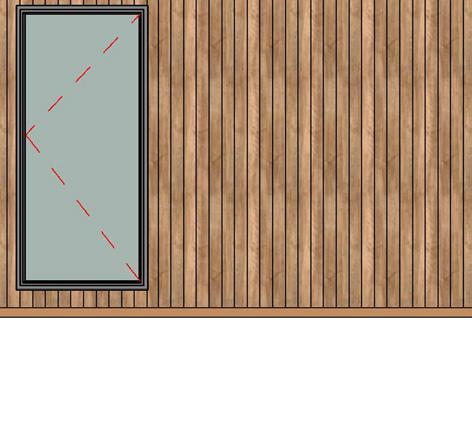

Mountain Lodge | Bachelor 3. Semester | 2020 19 1 : 20 West Elevation 1

2020 | Bachelor 3. Semester | Mountain Lodge 20 1 2 3 4 5 6 Ground Level 0 First Floor 3232 Ground -980 A B D C 1 1 A104 Roof 6967 38 59 67 68 82 83 17.2 17.2 3890 1730 3890 220 343 5071 5047 367 220 590 410 299 271 3232 1484 2250 86 1245 682 1187 1263 782 590 7947 Ridge Cap Skylight Corrugated Metal Roofing Gutter Fascia Vertical Shiplab Weatherboard Main Entrance Exit to the Porch Ground/Earth Concrete Pile Fundation 350x90 mm Primary Beams 190x90 mm Secondary Beams with 600 mm centers Porch 180x180 mm Timber ColumsGround Level 0 First Floor 3232 Ground -980 6 5 3 2 4 A103 1 Roof 6967 58 71 72 73 74 79 85 51 52 1 2200 2200 2200 2200 2200 848 300 11624 300 848 270 1930 270 1930 270 1930 270 1930 270 1930 270 590 110 300 350 210 3242 1521 445 1735 590 7912 1582 445 18 1187 650 871 Ridge Cap Corrugated Metal Roofing Gutter Fascia Vertical Shiplab Weatherboard Exit to the Porch 190x90mm Secondary Beams with 600 mm centers 350x90 mm Primary Beams 180x180 mm Timber Colums Concrete Pile Fundation Ground/Earth Porch Stairs Stairs Main Entrance Skylight Storage Room Window 17.2 17.2Elevation ° ° NORTH ELEVATION WEST ELEVATION SCALE: 1:100 SCALE: 1:100

DW REF. DW REF. DN 6 5 4 3 2 1 A107 1 3 2 A B D C 1 A104 6 m² Storage 11 m² Kitchen Circulation 22 m² Dormitory 1 810 1980 32 810 1980 33 810 x 1980 34 810 1980 37 910 x 2030 39 400 x 400 79 1800 1000 2000 58 800 x 1200 61 800 x 1200 62 800 x 1200 63 862 286 804 410 1536 1010 1111 1800 1 2200 2200 286 3006 1500 5628 286 687 312 4274 962 4586 3890 1730 3890 4956 4956 1660 2878 4046 1730 3890 156 2200 2200 90 180 90 1841 90 180 90 1840 90 180 90 3 A110 1 : 20 Ground Floor Plan 1 Mountain Lodge | Bachelor 3. Semester | 2020 21 SCALE: 1:50 0 5 10m 1 A109 3 A109 Karola Konya - 300484219 - ARCI 312 - P1 A108 2. Hallway/Waiting 3. Fire Stairs 4. Lift 5. Toilets

DN UP 8 7 6 5 4 3 2 1 20 19 18 17 16 15 14 13 12 11 10 9 6 5 4 3 2 1 A106 1 A105 1 A108 1 6 5 4 1 A103 1 A103 1 A104 17 m² Dining 18 m² Circulation 4 m² Washroom 1 4 m² Washroom 2 8 m² Entry 810 x 1980 35 810 x 1980 36 910 2030 38 810 x 1980 42 400 400 75 400 x 400 76 400 400 77 400 x 400 78 650 x 1981 46 650 x 1981 47 650 x 1981 48 650 x 1981 49 1800 x 2100mm 51 2100mm 52 1000 2000 59 500 2000 82 500 x 2000 83 800 1200 84 2 A112 11624 286 862 1800 480 1800 2673 2200 2200 2203 4614 2160 2200 2200 2200 3890 1730 3890 1839 90 180 90 1840 90 180 90 1840 90 180 90 Internal Wall Porch/Timber Decking 350x90 mm Primary Beams Overhead Timber Staircase Stair Landing Exterior Wall Main Entrance Stairs (to the porch and the entrance) 180x180 mm Timber Column 90x45 mm Studs with 600 mm centers 17.2 17.2 CoastRoad Access Access SARC 221 - Assignment 3b Karola Konya - 300484219 A101 1 : 500 Site Plan 2 2020 | Bachelor 3. Semester | Mountain Lodge 22 FIRST FLOOR PLAN

10 11 12 13 14 15

20 1

A B 1 A104 1 A104 1000 x 2000 59 1000 2000 60 800 x 1200 68 500 x 2000 82 800 x 1200 84 17.2 1 A110 1 A111 3890 1730 671 347 5067 8537 700 300 350 210 3242 1550 440 1745 440 1550 370 1569 350 943 Skylight 350x90 mm Primary Beam Stair Lending Timber Staircase 1 A113 1 : 20 Section Across 1 Mountain Lodge | Bachelor 3. Semester | 2020 23 SCALE: 1:50

16 17 18 19

2 3

5 6 7 8

Ground Level 0 First Floor 3232 Ground -980 D C Roof 6967 910 x 2030 38 2000 2000 800 x 1200 67 500 x 2000 83 17.2 2 A110 2 A111 1730 3890 5067 Ground/Earth Concrete Foundation Pile Timber Column 350x90 mm Primary Beams 190x90 mm Sencondary Beams with 600 mm centers 180x180 mm Timber Column Main Entrance 350x90 mm Primary Beam 190x90 mm Secondary Beams with 600 mm centers Family Room Window Fascia Gutter Corrugated Metal Roofing Ridge Cap SARC 221 - Assignment 3b Karola Konya - 300484219 A103 2020 | Bachelor 3. Semester | Mountain Lodge 24 SECTION ACROSS

A107 1 3 2 A B D C 1 A104 1 17.2 17.2 2200 2200 90 180 90 1840 90 180 90 1840 90 180 90 1840 360 1840 360 10894 5413 162 5318 1 : 20 Roof Plan 1 ° ° Mountain Lodge | Bachelor 3. Semester | 2020 25 SCALE: 1:50 0 5 10m 1 A109 3 A109 Karola Konya - 300484219 - ARCI 312 - P1 A108 2. Hallway/Waiting 3. Fire Stairs 4. Lift 5. Toilets

A106 1 A105 1 A108 1 6 5 4 1 A103 1 A103 1 A104 17.2 17.2 3890 1730 3890 2200 4400 1840 90 180 90 1840 90 180 90 1840 90 180 90 1840 360 1840 360 1840 Gutter Corrugated Metal Roofing Ridge Cap 180x180 mm Timber Column 350x90 mm Primary Beam 190x90 mm Secondary Beam @ 600 mm c/c 12224 Roof Outline SARC 221 - Assignment 3b Karola Konya - 300484219 A109 ° ° 2020 | Bachelor 3. Semester | Mountain Lodge 26 ROOF PLAN

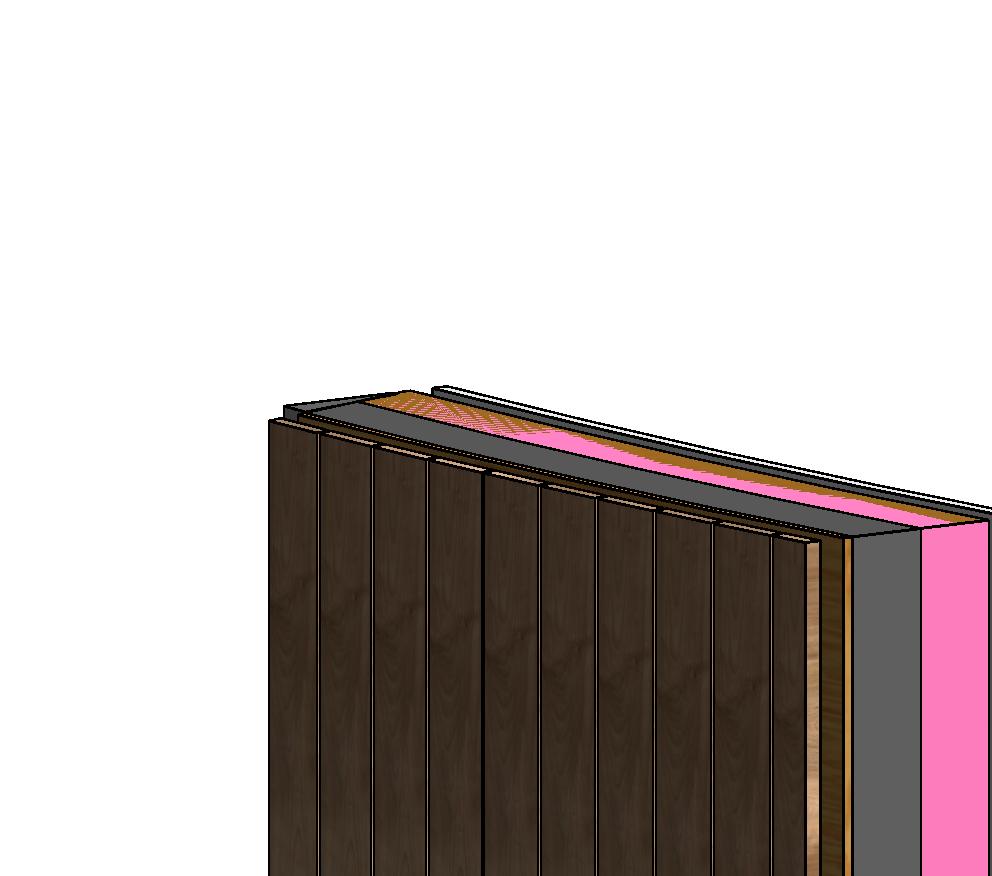

Mountain Lodge | Bachelor 3. Semester | 2020 27 Ground Level 0 A External Timber Cladding: Vertical Shiplab Weatherboard Ventillation Cavity with Battens Ventillation Cavity with Counter Battens Weather Membrane: Building Wrap Airtight Membrain and Structural Lining: Plywood Panels Vapor Barrier Framework of Battens with Space for Services Internal Lining: Gypsum Board Paint Finish Loadbearing member: 180x180 mm Timber Column Bottom Plate 190x90 mm Secondary Beam with 600 mm centers Timber Floor Finish Vapour Barrier Plywood Lining Timber Decking 190x90 mm Secondary Beams with 600 mm enters 350x90 mm Primary Beam Soft Insulation: Wool and Polyester Fiber Blend Rigid Insulation: Expanded Polystyrene Rigid Insulation: Expanded Polystyrene Soft Insulation Between Studs: Wool and Polyester Fibre Blend Demp Proofing Mmebrein 180x180 mm Timber Column INTERIOR EXTERIOR Internal D External Vertical Shiplab Ventillation Ventillation Cavity Expanded Soft Insulation Wool and Polyester 1 : 5 Wall-Floor Junction Detail -Section 1 3 Ground Level 0 Soft Insulation: and Polyester Fiber Blend First Floor 3232 D External Timber Cladding: Vertical Shiplab Weatherboard Ventillation Cavity with Battens Ventillation Cavity with Counter Battens Weather Membrane: Building Wrap Airtight Membrain and Structural Lining: Plywood Panels Vapor Barrier Framework of Battens with Space for Services Internal Lining: Gypsum Board Paint Finish Loadbearing member: 180x180 mm Timber Column Bottom Plate 190x90 mm Secondary Beam with 600 mm centers Timber Floor Finish Plywood Lining Rigid Insulation: Expanded Polystyrene Soft Insulation Between Studs: Wool and Polyester Fibre Blend Impact Sound Insulation Sift Insulation between Studs: Wool and Polyester Fibre Blend Framework of Battens with Space for Services 180x180 mm Timber Column 350x90 mm Primary Beam Top Plate INTERIOR Exterior 1 SARC 221 - Assignment 3b Karola Konya - 300484219 1 : 5 Wall-Floor Junction Detail Betwen Stories -Section 2 1 : 5 Wall Detail -Plan 3 WALL TO FLOOR JUNCTION DETAIL BETWEEN STORIES - SECTION WALL TO FLOOR JUNCTION DETAIL - SECTION SCALE: 1:15 SCALE: 1:15

2020 | Bachelor 3. Semester | Mountain Lodge 28 A External Timber Cladding: Vertical Shiplab Weatherboard Ventillation Cavity with Battens Ventillation Cavity with Counter Battens Weatherr Membrane: Building Wrap Airtight Membrain and Structural Lining: Plywood Panels Vapor Barrier Framework of Battens with Space for Services Internal Lining: Gypsum Board Paint Finish Loadbearing member: 180x180 mm Timber Column Rigid Insulation: Expanded Polystyrene Soft Insulation Between Studs: Wool and Polyester Fibre Blend 350x90 mm Primary Beam Internal Lining: Gypsum Board Framework of Battens with Space for Services Vapour Barrier Airtight Membrein and Structural Lining: Plywood Panel Soft Insulation Between Joists: Wool and Polyester Fibre Blend 190x90 mm Roof Rafters @ 600 mm c/c Rigid Insulation: Expanded Polystyrene Roofing Underlay/Waterproofing Layer Cavity with Counter Battens Cavity with Battens Corrugated metal Roofing Timber Bead Blocking Fly Rafter Timber Soffit Timber Fascia Gutter Gutter Flashing

INTERIOR Plywood Sarking 350x90 Playwood Sraking Roofing Underlay/ Waterproofing Membrane Ventillation Cavity with Counter Timber Bead Blocking Fly Rafter Timber Soffit Timber Fascia 1 : 5 Wall-Roof Junction Detail -Section 1 1 : 5 Barge 2 1 : 5 Wall-Barge 3 Structural Lining: Joists: Blend INTERIOR Roof 6967 350x90 mm Primary Beam Internal Lining: Gypsum Board Framework of Battens with Space for Services Vapour Barrier

Membrein and Structural Lining: Plywood Panel

Insulation Between Joists: Wool and Polyester Fibre Blend 190x90 mm Roof Rafters @ 600 mm c/c Rigid Insulation: Expanded Polystyrene Playwood Sraking Roofing Underlay/ Waterproofing Membrane Ventillation Cavity with Counter Battens Ventillation Cavity with Battens Ridge Cap Flashing Corrugated Metal Roofing EXTERIOR INTERIOR 1 17.2 Loadbearing member: 180x180 mm Timber Column 350x90 mm Primary Beam Internal Lining: Gypsum Board Framework of Battens with Space for Services Vapour Barrier Airtight Membrein and Structural Lining: Plywood Panel Soft Insulation Between Joists: Wool and Polyester Fibre Blend Rigid Insulation: Expanded Polystyrene Roofing Underlay/Waterproofing Layer Cavity with Counter Battens Cavity with Battens Corrugated metal Roofing Timber Bead Blocking Fly Rafter Timber Soffit Timber Fascia EXTERIOR INTERIOR Plywood Sarking Karola Konya - 300484219 A111 1 : 5 Barge Junction Detail -Section 2 1 : 5 Wall-Barge Junction Detail -Section 3 WALL TO ROOF JUNCTION DETAIL - SECTION BARGE JUNCTION DETAIL - SECTION SCALE: 1:15 SCALE: 1:15

EXTERIOR

Airtight

Soft

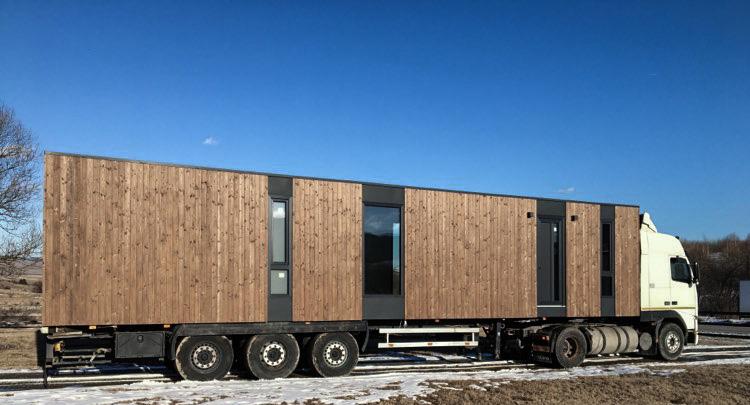

33 m2 MULTIFUNTIONAL FAMILY HOME

YEAR: 2022

TYPE: Freelance Work

TEAM: Individual Project

ROLES/RESPONSABILITIES: Architect, Interior Architect, Project Manager

SOFTWARE: Sketchup, V-Ray

TASK: The task was to design and project manage the build of a 33 m2 multifunctional family home, fulfilling every functional and atmospheric requirement.

APPROACH: The design took a warm, natural and minimalist approach with high attention to detail and practicality. The layout was carefully planned in order to accomodate a kitchen/dining, a livingroom, a bathroom, a bedroom, two small offices and a designated entry area, all in a spacious and comfortable arrangement. I worked very closely with contractors in order to find unique and creative solutions to fit everything into the house and ensure beauty as well as ease of use. I also custom designed each piece of furniture (apart from the two office chairs) to make sure that the function and storage is maximised throughout. The house is mostly finished, only some decor pieces and bar chairs are still under manufacturing.

33 m2 Multifunctional Family Home | 2022 29

2022 | 33 m2 Multifunctional Family Home 30

KITCHEN RENDER KITCHEN PHOTOGRAPH

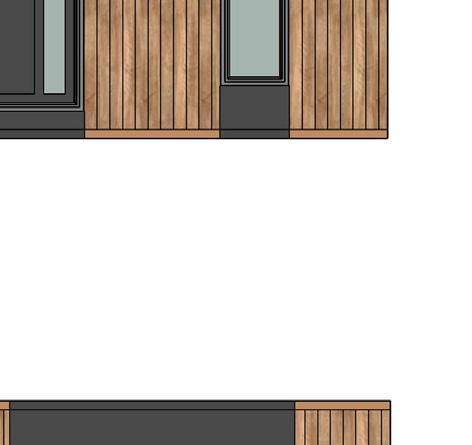

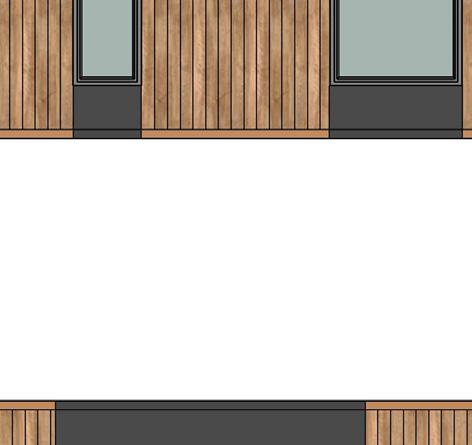

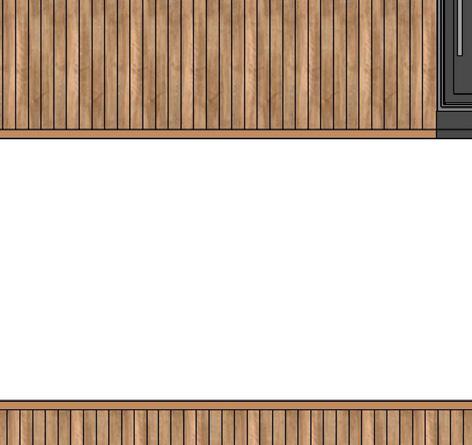

33 m2 Multifunctional Family Home | 2022 31 500.0 500.0 1500.0 722.5 2200.0 2665.0 1000.0 1006.0 2400.0 2162.5 500.0 744.0 3567.5 500.0 1520.0 1000.0 3556.0 900.0 1112.5 500.0 744.0 500.0 500.0 22.5 700.0 2200.0 967.5 75.0 1622.5 1000.0 2400.0 1100.0 562.5 500.0 500.0 700.0 44.0 1006.0 1 : 50 Ablak Méretek-vagon falak 1 1 : 50 Ablak Méretek-belso falak 2 1 : 50 Észak-Külső burkolat -final 1 1 : 50 Dél-Külső burkolat 2 FLOOR PLAN FRONT ELEVATION

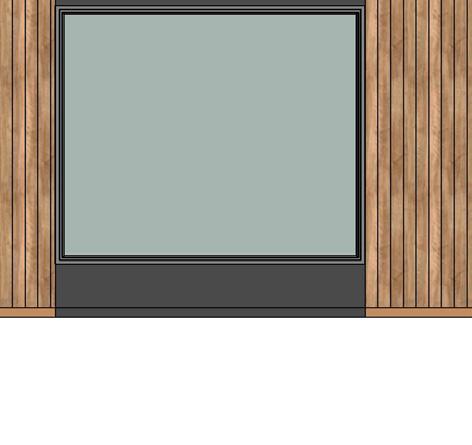

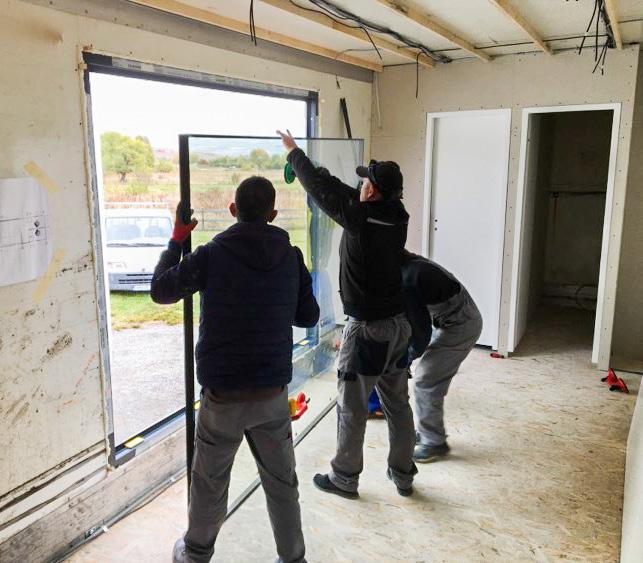

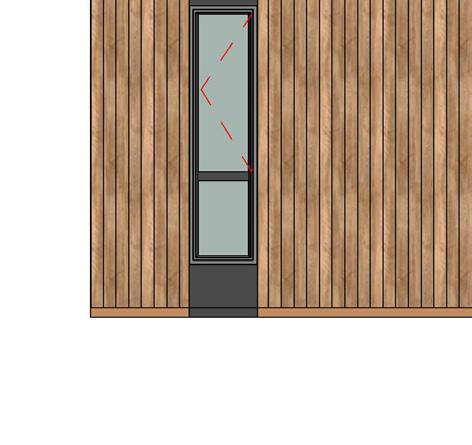

2022 | 33 m2 Multifunctional Family Home 32 INTERIOR WALLS AND LIGHTING EXTERIOR INSULATION WINDOW PLACEMENT

33 m2 Multifunctional Family Home | 2022 33

LIVING AND KITCHEN PHOTOGRAPH

2022 | 33 m2 Multifunctional Family Home 34

LIVING AND KITCHEN RENDER

33 m2 Multifunctional Family Home | 2022 35

PHOTOGRAPH

OFFICES PHOTOGRAPH EXTERIOR

2022 | 33 m2 Multifunctional Family Home 36

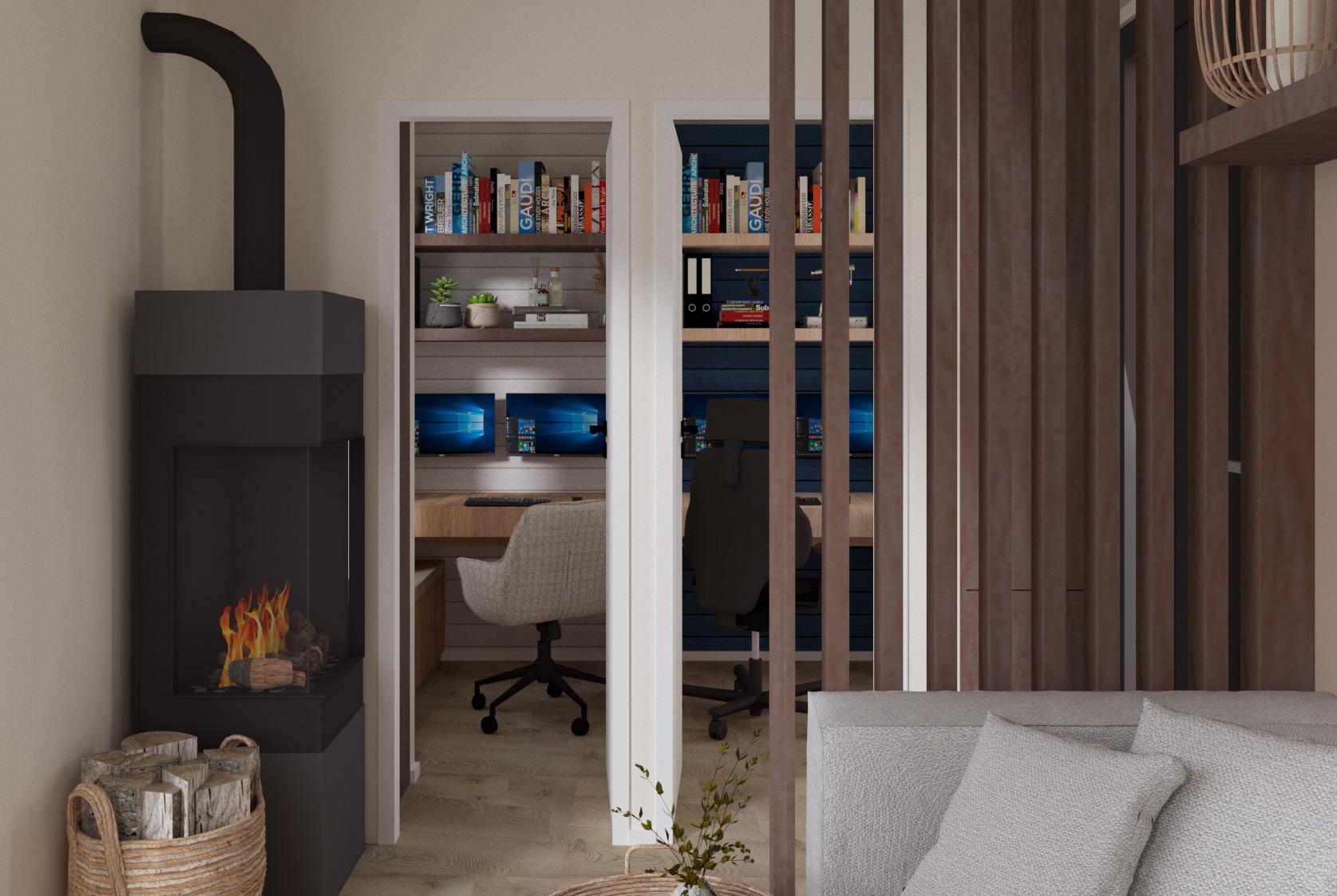

OFFICES RENDER EXTERIOR RENDER

FALE MALAE CULTURAL CENTRE

YEAR: 2021

TYPE: University Project | 6th Semester

TEAM: Individual Project

ROLES/RESPONSABILITIES: Conceptual Design

SOFTWARE: Revit

TASK: The task was to design a Fale Malae, a meeting space for Pasifika people, for an allocated site on Wellington's waterfront. We were challenged to design the Fale Malae from concrete, as the main structural system and as an expressive material.

APPROACH: The proposed design draws its inspiration from the ocean, as the surrounding and connecting element of the Pacific Islands, and as the main respresentative for Pasifika people. Thus, the sculptural roof form is made from concrete based on Felix Candela's thin shell structures and aims to mimic the waves of the ocean. The interior surface of the roof showcases arts, legends and symbols of Pasifika people, which are carved into the timber molds used for casting the concrete shell. The building's layout aims to follow the spatial arrangement of the traditional Samoan fale, which is elevated from the ground, and welcomes visitors from the sea side while the hosts enter on the land side.

Fale Malae Cultural Centre | Bachelor 6. Semester | 2021 37

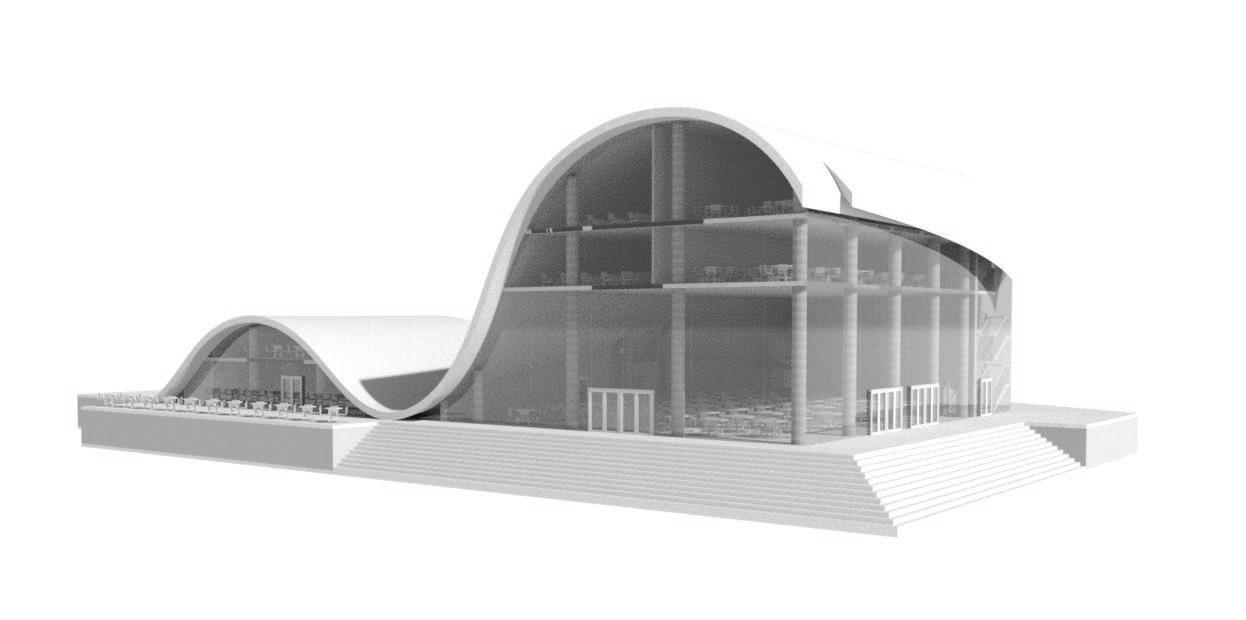

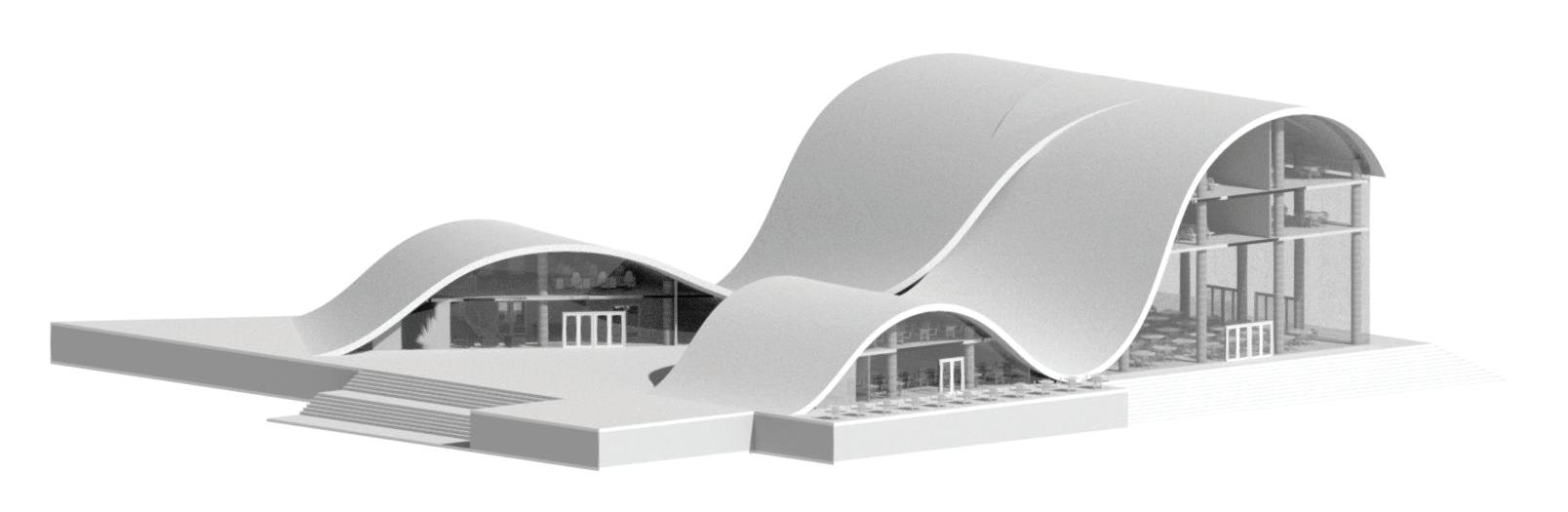

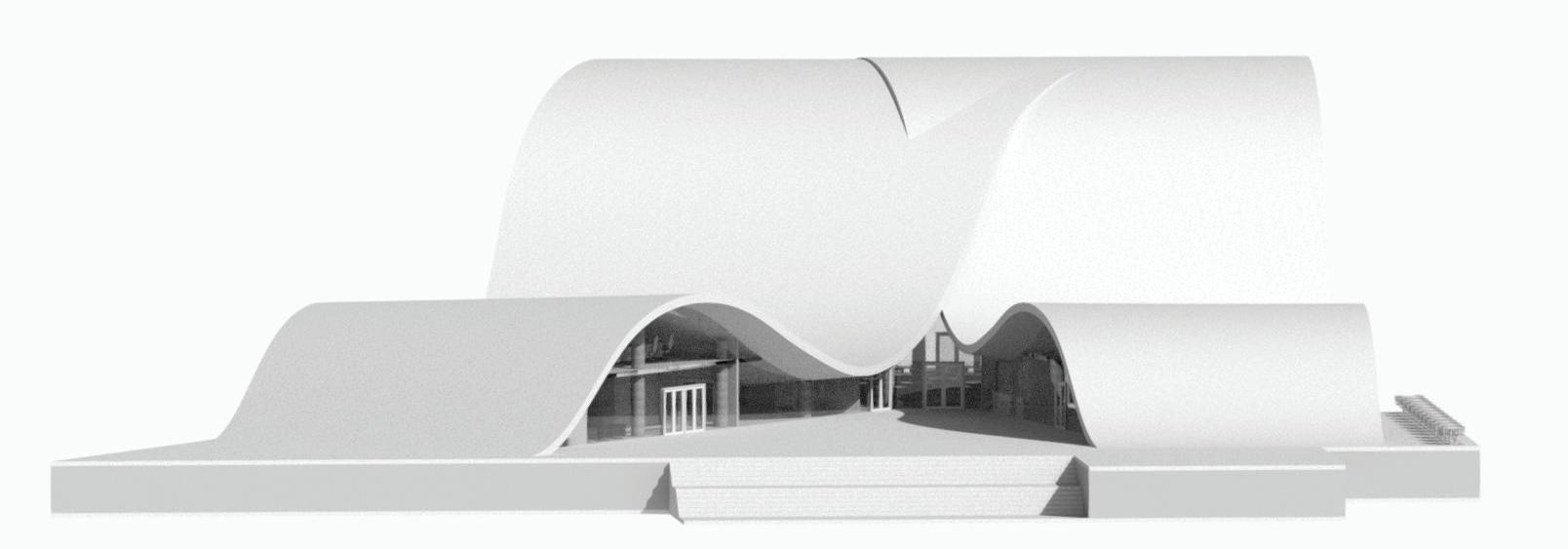

The Wave Fale Malae

ARCI 312 - Project 1 - Developed Design September 2021

2021 | Bachelor 6. Semester | Fale Malae Cultural Centre 38

Karola Konya - 300484219 - ARCI 312

A100

Ground Floor Plan

Fale Hall

Main Fale Hall

Cafe

Kitchen Storage Stairs Room Storage Waiting Area/Entryway Meeting Room Kitchen and Lounge Outdoor Cafe

Cafe Kitchen Kitchen Storage Toilets Lift Fire Stairs Plant Room Fale Storage Waiting Area/Entryway Meeting Room Staff Kitchen and Lounge Outdoor Cafe

Fale Malae Cultural Centre | Bachelor 6. Semester | 2021 39 0 5

1 A109

A109 2 A109 Karola

1 2 3 4 5 5

7 8 9 10 11 12 13

1 A109

A109 2 A109

0 5

10.

11.

1 2 3 4 5

5 6 7 7 8

11 12 GROUND FLOOR PLAN

1 2 3 4 5 5

6 7

8 9 10 11 12 13

10m Karola Konya - 300484219 - ARCI 312 - P1

1 A109 3 A109

A109 A105 1. Main Fale Hall

Cafe

Cafe Kitchen

Kitchen Storage

Toilets

Lift

Fire Stairs

Plant Room

Fale Storage

Waiting Area/Entryway

Meeting Room 12. Staff Kitchen and Lounge 13. Outdoor Cafe

9 10

2021 | Bachelor 6. Semester | Fale Malae Cultural Centre 40 0 5 10m 1 A109 3 A109 2 A109 Karola Konya - 300484219 - ARCI 312 - P1 2nd Floor Plan A106 1. Main Fale Hall 2. Fire Stairs 3. Cafe - 2nd Floor 4. Open Office 5. Private Offices 1 2 2 3 4 5 5 0 5 10m 1 A109 3 A109 2 A109 Karola Konya - 300484219 - ARCI 312 - P1 3rd Floor Plan A107 1 1 2 3 3 4 5 1. Breakout Rooms 2. Hallway/Waiting Area/Lounge 3. Fire Stairs 4. Lift 5. Toilets DN 0 5 10m 1 A109 3 A109 2 A109 Karola Konya - 300484219 - ARCI 312 - P1 4th Floor Plan A108 1 1 2 3 3 4 5 1. Breakout Rooms 2. Hallway/Waiting Area/Lounge 3. Fire Stairs 4. Lift 5. Toilets DN 0 5 10m 1 A109 Karola Konya - 300484219 - ARCI 312 - P1 1 1 DN 0 5 10m 1 A109 Karola Konya - 300484219 - ARCI 312 - P1 1 1 DN 0 5 10m 1 A109 Karola Konya - 300484219 - ARCI 312 - P1 1 1 3RD FLOOR PLAN 2ND FLOOR PLAN 1ST FLOOR PLAN

Elevations

West Elevation

North Elevation West Elevation
