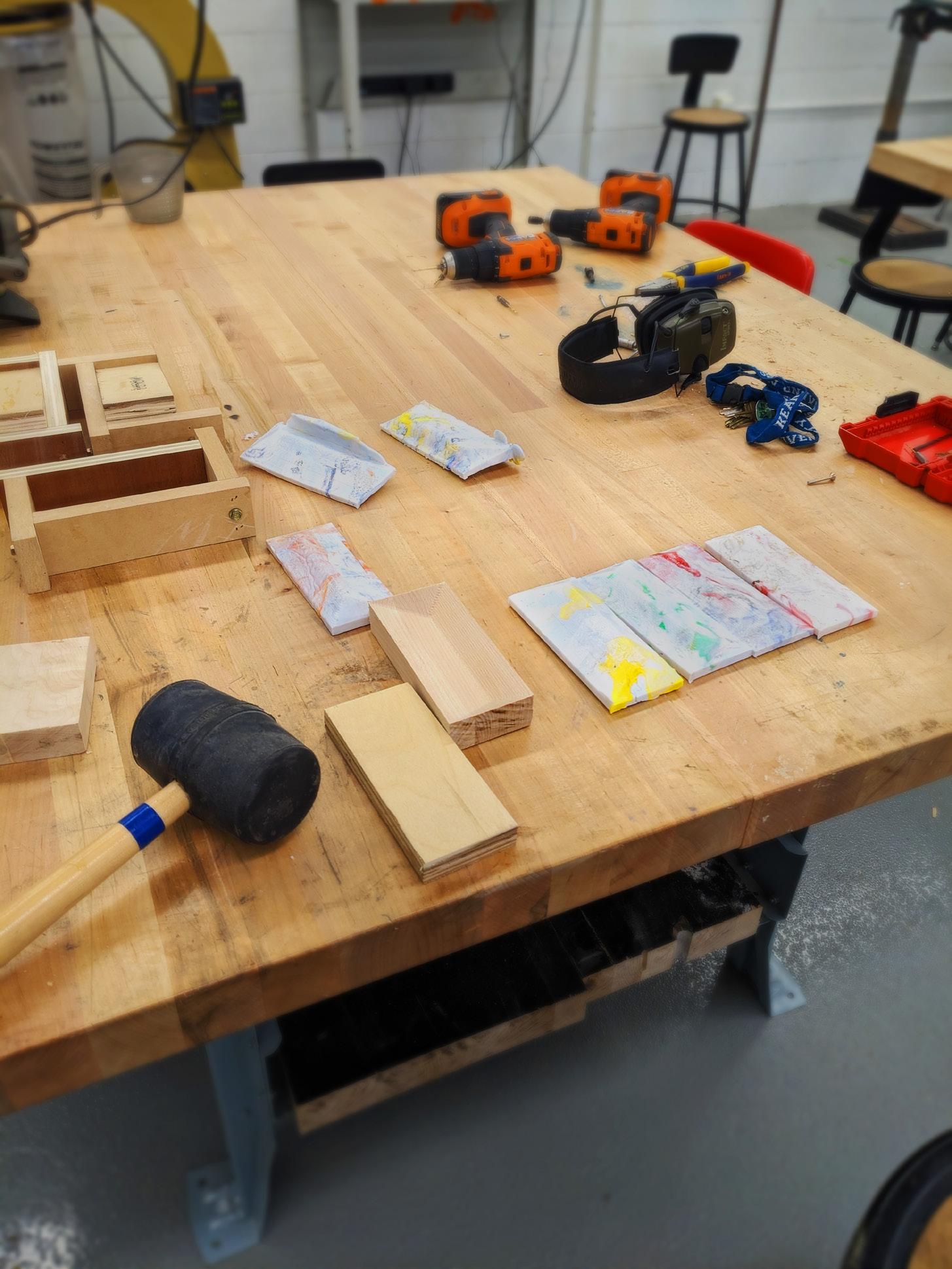

Description: I worked with a team to conceptually design a pavilion for a fall festival we later built on-site for three days. My responsibilities were to create design propositions, prefabricate plastic tiles, and help assemble the physical pavilion on site.

Produce Clerk, Shoprite / Clark, NJ

October 2020 - June 2022

Description: I was responsible for helping customers, stocking shelves, stockroom management, waste management, and pre-loading for night truck deliveries. I learned to communicate well between customers' needs and became very punctual in preparing for night truck deliveries, making me reliant as a team member.

Achievements

Dean’s List, Kean University, Fall 2020 - Spring 2024

Recipient, Kean University Centennial Fund Scholarship, 2020 - 2024

Extracurricular

Member, Makerspace Club, 2022 - present

Description: A meetup once or twice a month amongst design students to learn different methods of physical model making. Attendee, Environmental Life Cycle Assessment in Design Symposium, March 2021

Description: A three-day lecture going in depth of different methods of how designers can design more sustainably. Workshop Attendee, Kean University Thinking Creatively Writing a Script: Designing Algorithms using Grasshopper for Rhino, March 2023

Description: A workshop teaching how to efficiently use Grasshopper, a visual programming language in 3D modeling.

Publications

Dezeen, September 26, 2024

The Architect’s Newspaper, September 20, 2024

Language

English (Fluent)

Polish (Native)

Interests

History: Art and Architectural History

Travel: North America: United States of America (East Coast, Midwest, South-West Coast), Canada (East Coast) Europe: Poland, England, Hungary, Slovakia, Germany, Ukraine

pg: 1-6

pg: 7-12

pg: 13-18

Blocks

Published: The Architect’s Newspaper September 20, 2024 Dezeen September 26, 2024

Trotter's Creek Bridge

Trenton Synagogue

pg: 19-26

Pheasant Haven

Blocks

Event:

2024 Bethel Woods Art and Architecture Festival

Designed with:

Faculty:

Stephanie Sang Delgado (faculty at Kean University, codirector office ca)

Galo Canizares (faculty at University of Kentucky, codirector office ca)

Fabio Castellanos (faculty at Kean University)

Teammates:

Emily Benavides, Stephan Argant, Jason Morgan, Cameron Zotti, Rahul Pasumarti, Emma Sanabria, Kamila Diaz Calderon, Vanessa Vallejo (Breyden Anderson/Courtesy Bethel Woods Art and Architecture Festival)

Description:

Blocks is a modular furniture series designed to create an interactive and playful seating area for the Harvest Festival. Comprised of three components: an L-shaped bench, an L-shaped 6 step, and movable cubes, the project creates an engaging landscape that charges the user with defining its boundaries. The benches and steps are spread across the area to create different interaction zones, while the movable cubes can be stacked, moved, rotated, and shifted for individual needs. The movable cubes are clad on two sides with an alternating system of wood tiles and custom HDPE tiles. The HDPE tie-dye tiles are made from recycled HDPE plastic and cast in custom CNC-milled molds. This modular seating creates an engaging and versatile environment for all Harvest Festival visitors.

Publication:

The Architect's Newspaper, September 20, 2024 Dezeen, September 26, 2024

Cube Assembly Drawing

Drawing produced by: Stephanie Sang Delgado

Bench and Step Assembly Drawing

Bench & Step

Step

Bench

Top View Plan

Bench & Step Framing Bench Plywood Cuts

Comprised of L-shaped benches, L-shaped steps, and movable cubes, the project creates an engaging landscape that charges the user with defining its boundaries.

Drawing produced by: Stephanie Sang Delgado

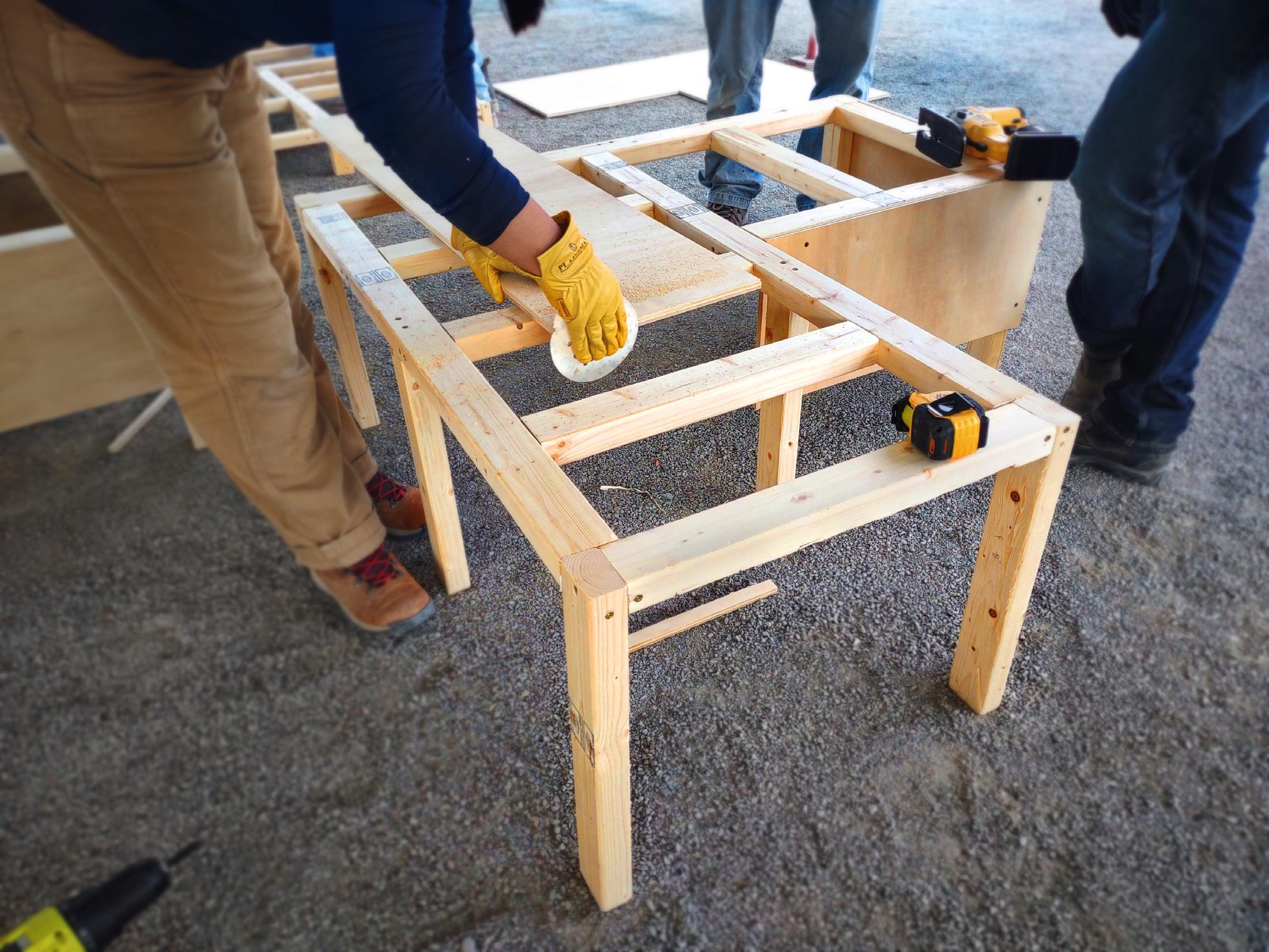

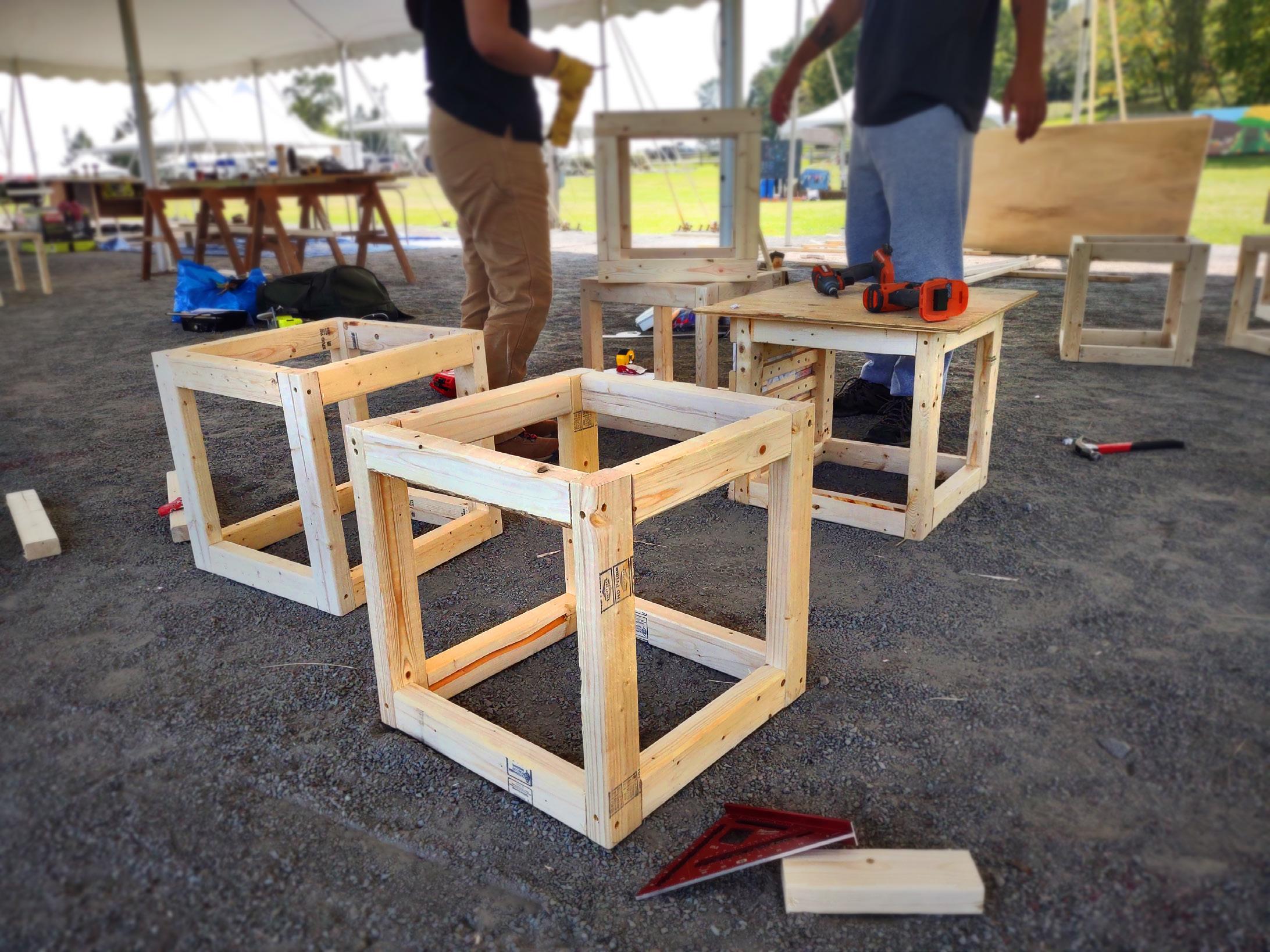

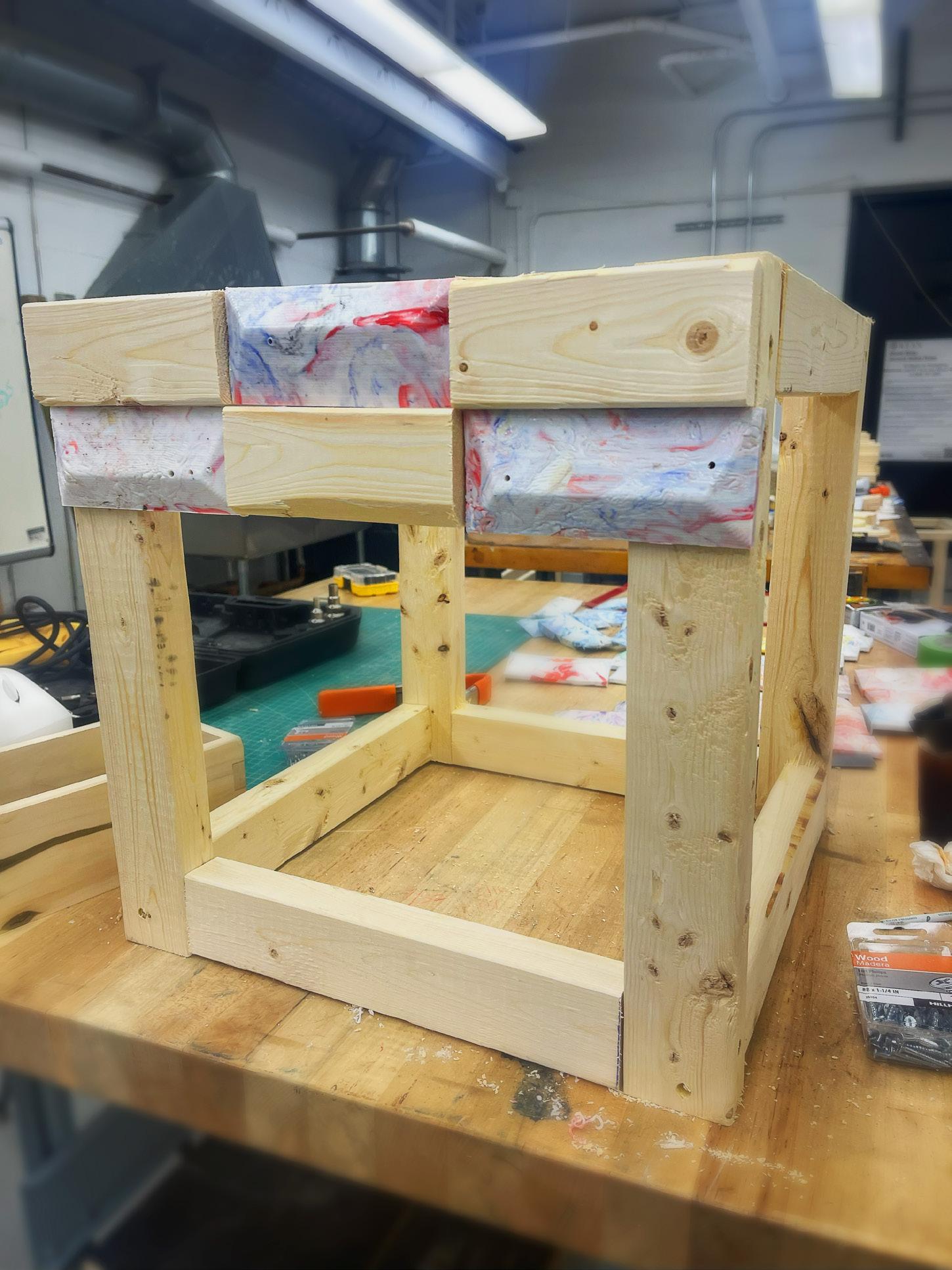

The project is built by using

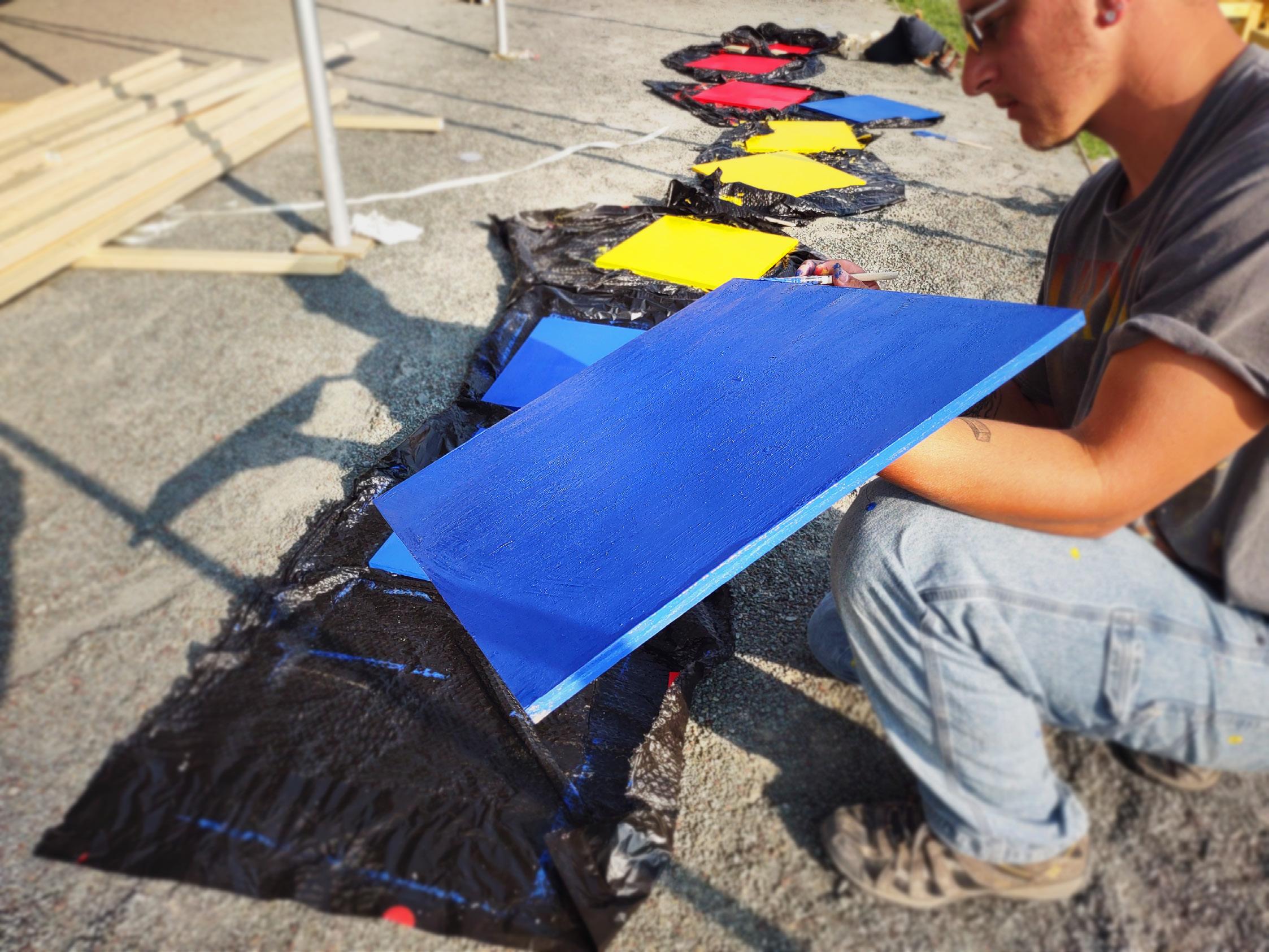

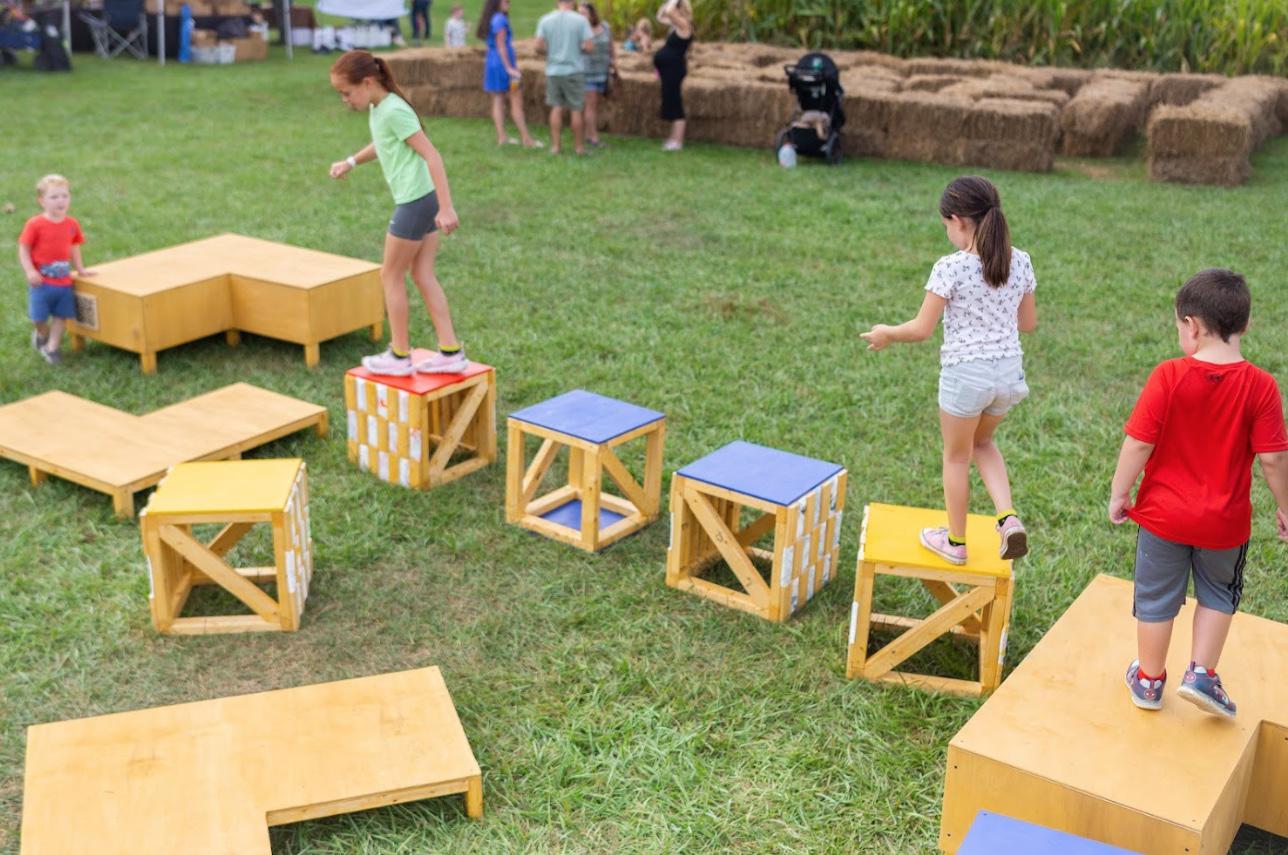

Using primary colors creates a bright surface color for the blocks to influence a playful interaction.

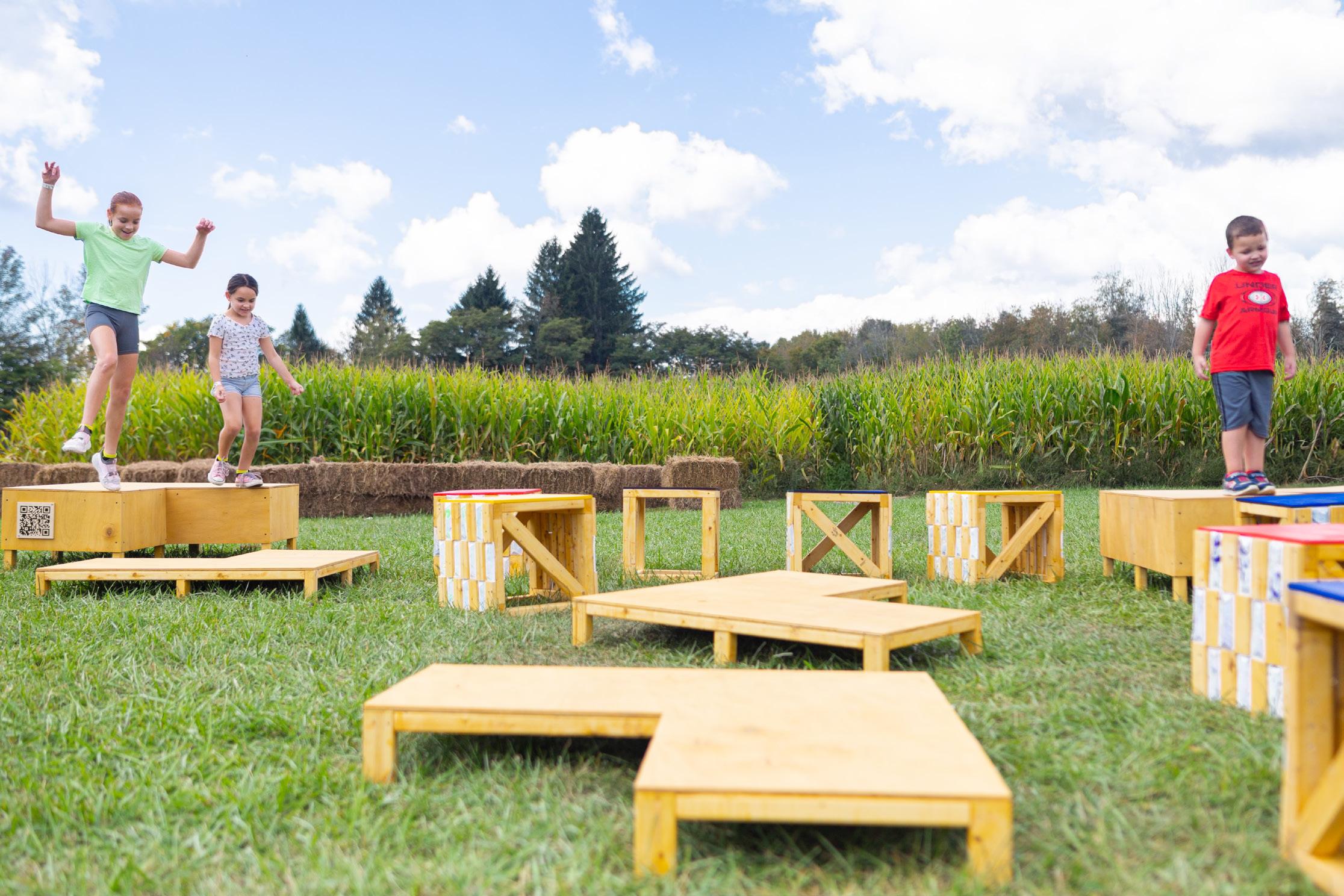

A modular furniture series creates an engaging and versatile environment of play and rest for all Harvest Festival visitors.

Image by: The Architect's Newspaper

Trotter's Creek Bridge

South of Kean University's Main Campus, there is no easy access to the campus due to a woodland barrier with Trotter's Creek. Additionally, the closest entrance requires walking alongside North Ave., a four-lane undivided road that can be unsafe. Hence, a pedestrian bridge is needed to connect the south side of Kean University to its neighboring residents to allow safe passage. This bridge will overpass Trotter's Creek within the woodland barrier between Kean University's south parking lot and the heart of the neighboring residential area south of the campus.

The bridge will strictly be used for pedestrian walkways with enough space to allow a two-lane bike route to promote traveling to the campus by bike rather than car. The bridge's design differs from other pedestrian bridges on campus as an arch bridge rather than the usual beam or truss bridge. This is to allow an exotic change of scenery for the locals to visit the bridge out of curiosity and begin using it frequently. Additionally, the design of the arch is tilted at a 45-degree angle to promote its distinctive quality and resemble an opening embrace for anyone crossing into Kean University's Campus.

Bridge Location

Trotter's Creek

Kean University Campus

WoodlandBarrier

Neighboring Residential Area

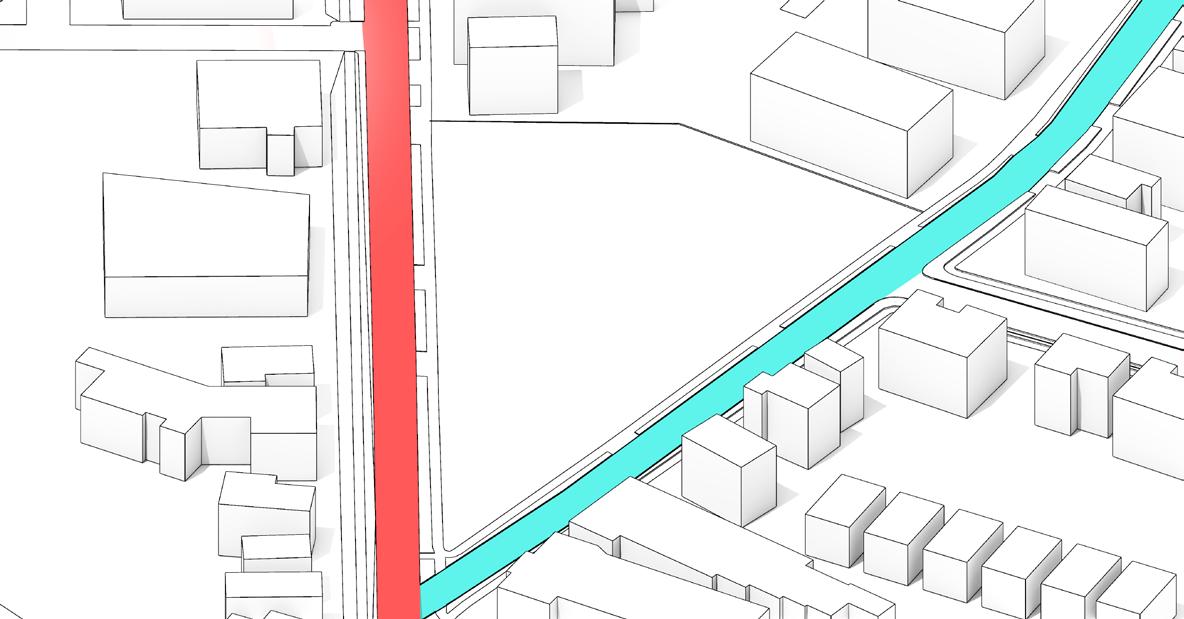

There is no easy access to the campus due to a woodland barrier with a creek. The closest entrance requires walking alongside a four-lane undivided road that can be unsafe.

Bridge Location

- 1/96

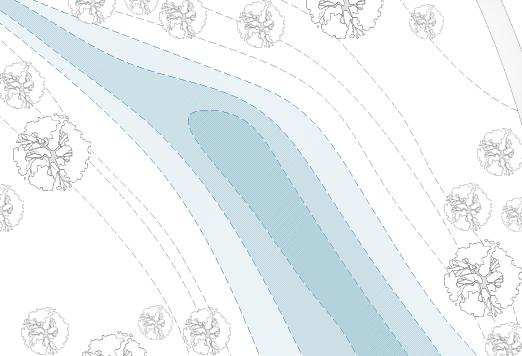

Bridge Topography Location

NorthAve.

Hence, a pedestrian bridge to allow safe passage.

BridgeSite

Trotter’sCreek

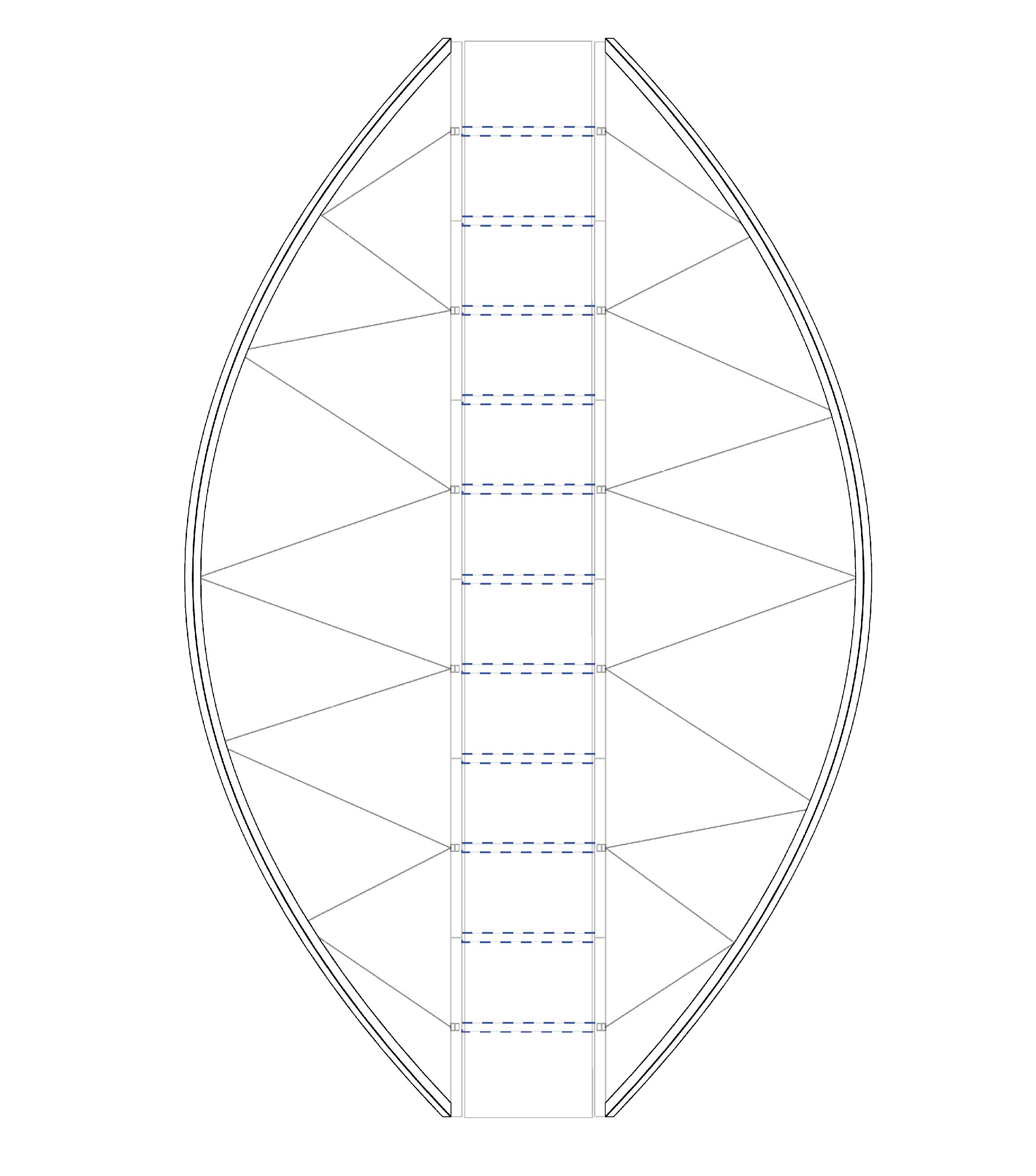

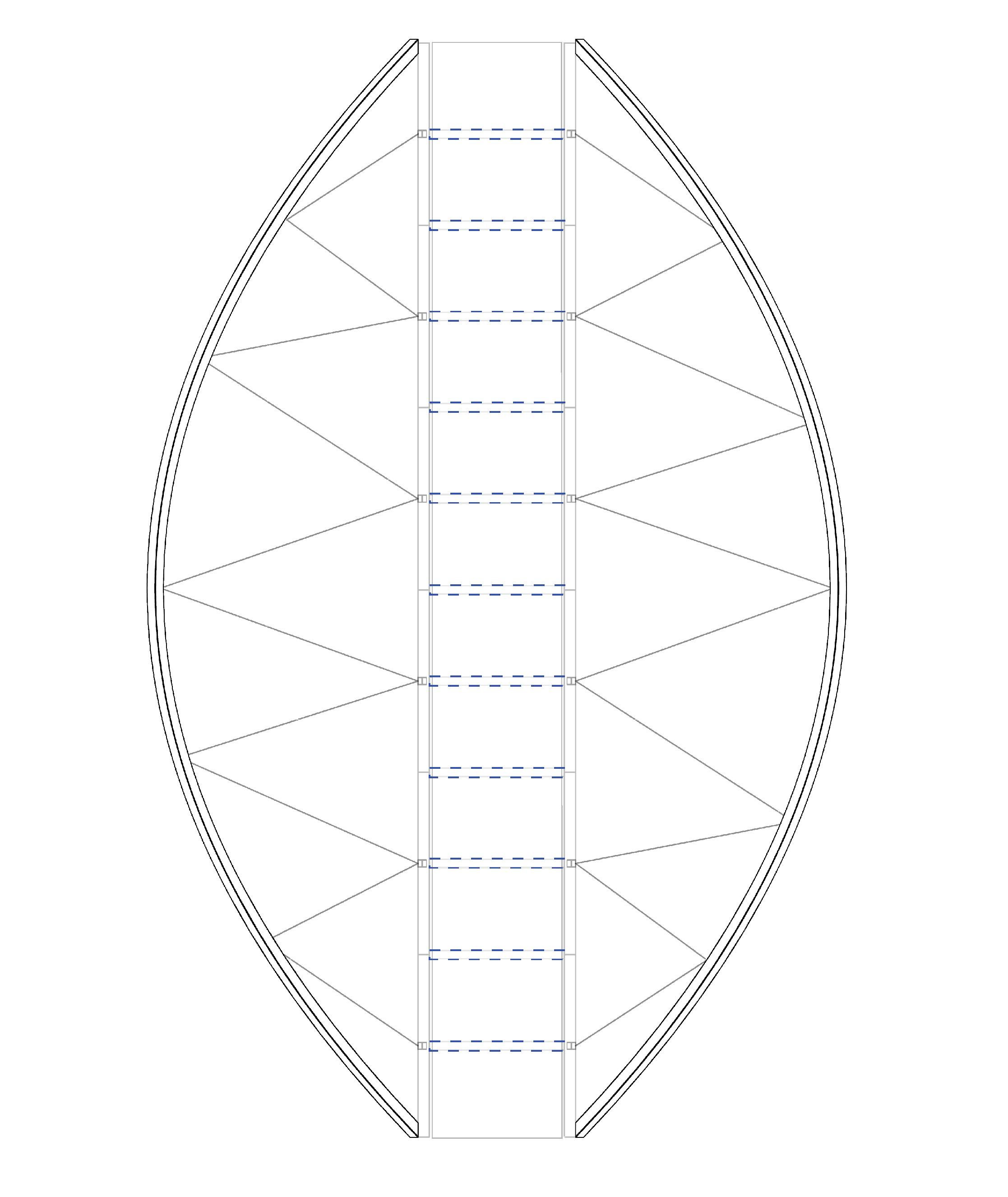

Top Plan

Thickness Arch (Steel): 8"

Rule-of-thumb Span/Depth Ration:

L/3= (780"/3)= 260"/12ft=21.67'= 22'

Rule-of-Thumb Span/Thick Ration:

L/100= (65'/100)= 0.65'*12"= 7.8"= 8"

The lengths of these steel cables are determined off the 45° angle. The thickness of the cables will be determined after finding out the loads. Other side is parrallel to this side.

The railings in the Top Plan view are absent to prevent confusion on reading the plan. The axonmetric and other plans will show it. Same applies for Pre-Stress Cables

8ft 16ft 24ft

Scale

10.80' length of the beam, odd number in order to have a good quantity of cables for 65'.

8.5" x 5" (Cable Supports)

Arch is slanted at 45° angle it expands about 16 feet outward.

Section Plan

Thickness Arch (Steel): 8"

Rule-of-thumb Span/Depth Ration: L/3= (780"/3)= 260"/12ft=21.67'= 22'

Rule-of-Thumb Span/Thick Ration: L/100= (65'/100)= 0.65'*12"= 7.8"= 8"

Rule-of-Thumb Span/Thick Ration: L/16= (10.8'/16)=0.675'*12"= 8.1"

Width: 8"

Thicknesses of steel vertical: 1/4" Thicknesses of steel horizontal: 1/2"

Rule-of-Thumb Span/Thick Ration: L/16= (8.75'/16)=0.5468'*12"= 6.56"= 7.86" depth

Width: 6" Thicknesses of steel: 1/4"

Elevation Plan

Thickness Arch (Steel): 8"

Rule-of-thumb Span/Depth Ration: L/3= (780"/3)= 260"/12ft=21.67'= 22'

Rule-of-Thumb Span/Thick Ration: L/100= (65'/100)= 0.65'*12"= 7.8"= 8"

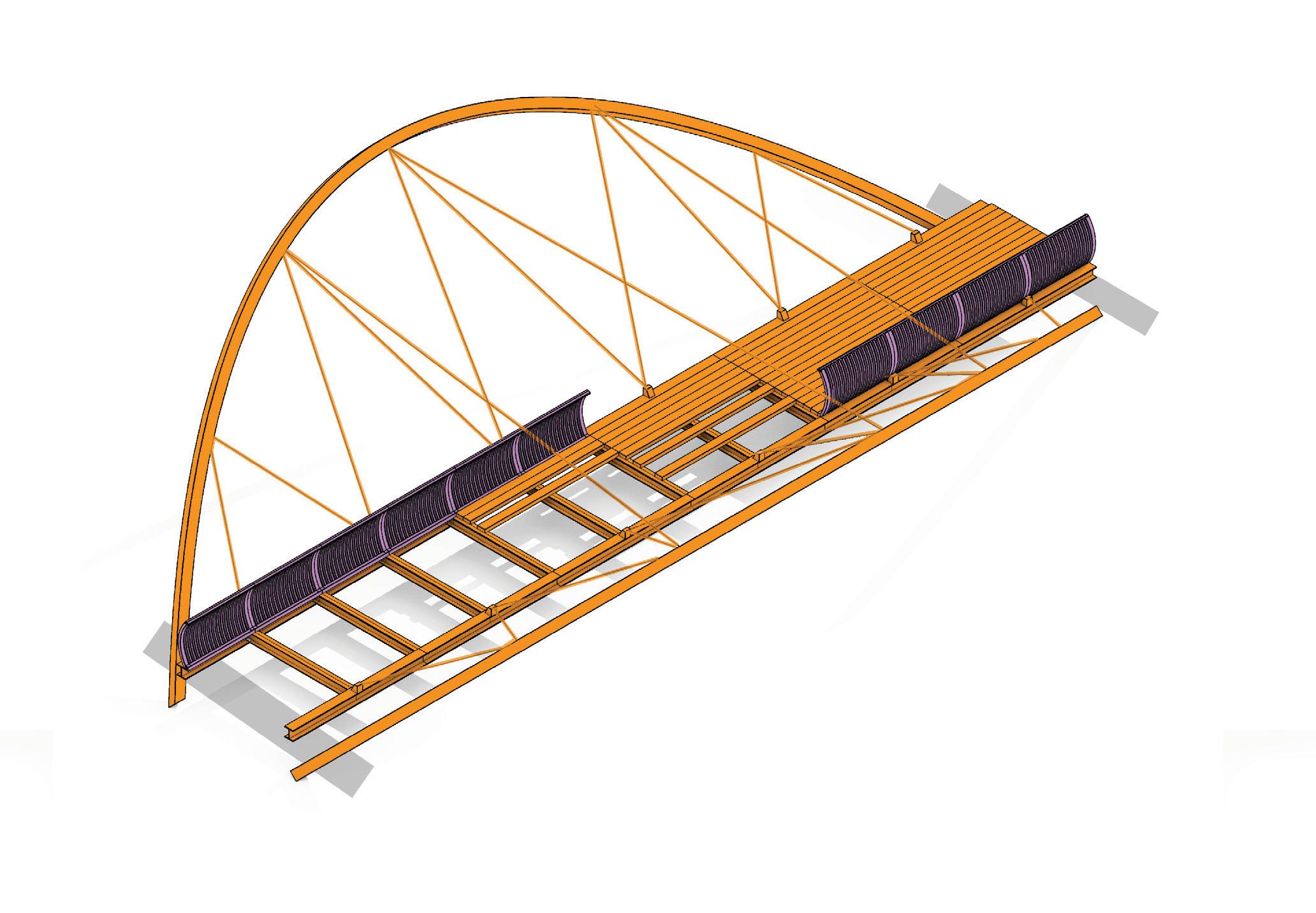

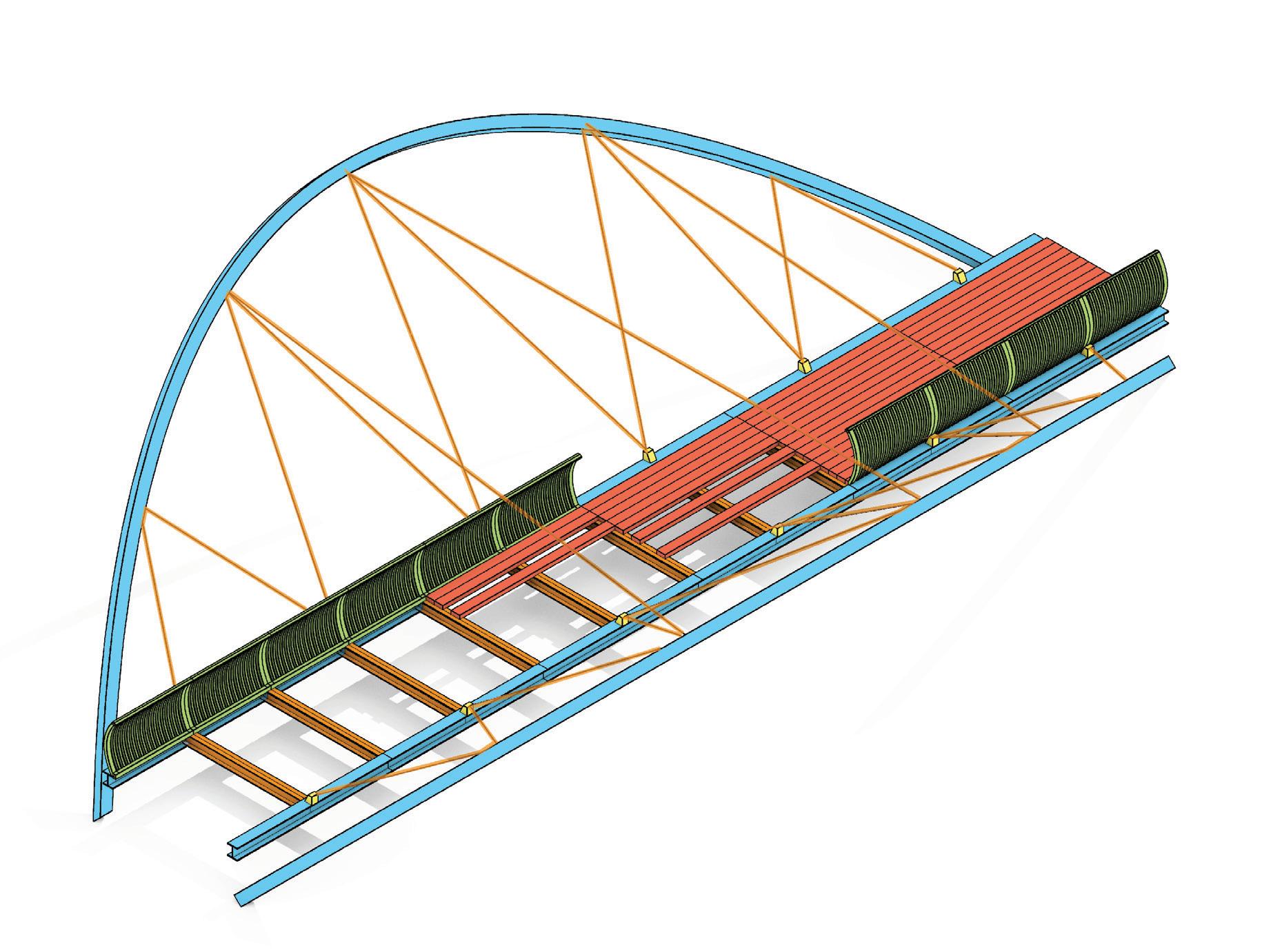

The bridge is an arch design that is tilted at a 45°angle to resemble an embrace of welcoming gesture.

The bridge is an arch design that is tilted at a 45° angle to resemble an embrace of welcoming gesture.

12ft 24ft 36ft

Structural Hierarchy

Rail Supported at side of Deck

Dead

Deck Surface

Cable Support are supported on primary beam

Load

Longitudinal Arch

Beam Itself: 2π22’(80°/360°)= 30.82 ft length of arch beam 80° angle is the standard arch angle average PLF of 30’ beam is roughly 155PLF

Rail Supported at side of Deck

Assuming 20 PLF

Cable Support are supported on primary beam

Spans between Transverse beams

Longitudinal Structure

Spans between foundation at each end

Transverse Structure

Spans between Longitudinal beams and is also all the cables attached between each longitudinal structure

Deck Surface

Primary Structure

Secondary Structure t = 3” = 0.25’ ; γwood =35 pcf so t∙ γwood ≈ 8.75psf= 9psf (Rounded)

Longitudinal Beam Assuming 35 PLF

PEDESTRIAN LIVE LOAD

GIVEN AS 90 PSF

Transverse Beam Assuming 10 PLF

Pedestrian Load Area

ONE LONGITUDINAL BEAM SUPPORT

Tributary Area (This applies to a single cable connection too).

10.80'* 4'= 43.2sf

These are the Tributary Areas for the walking deck for pedestrians

8ft 16ft 24ft

1/8 Scale

ONE TRANSVERSE BEAM SUPPORT

Tributary Area

5.46'* 8'= 43.68sf

ONE LONGITUDINAL BEAM SUPPORT

Tributary Area (What the Arch Supports with cables) 4.67'* 65'= 303.55sf

TOTAL LOADED AREA 8'* 65' = 520sf

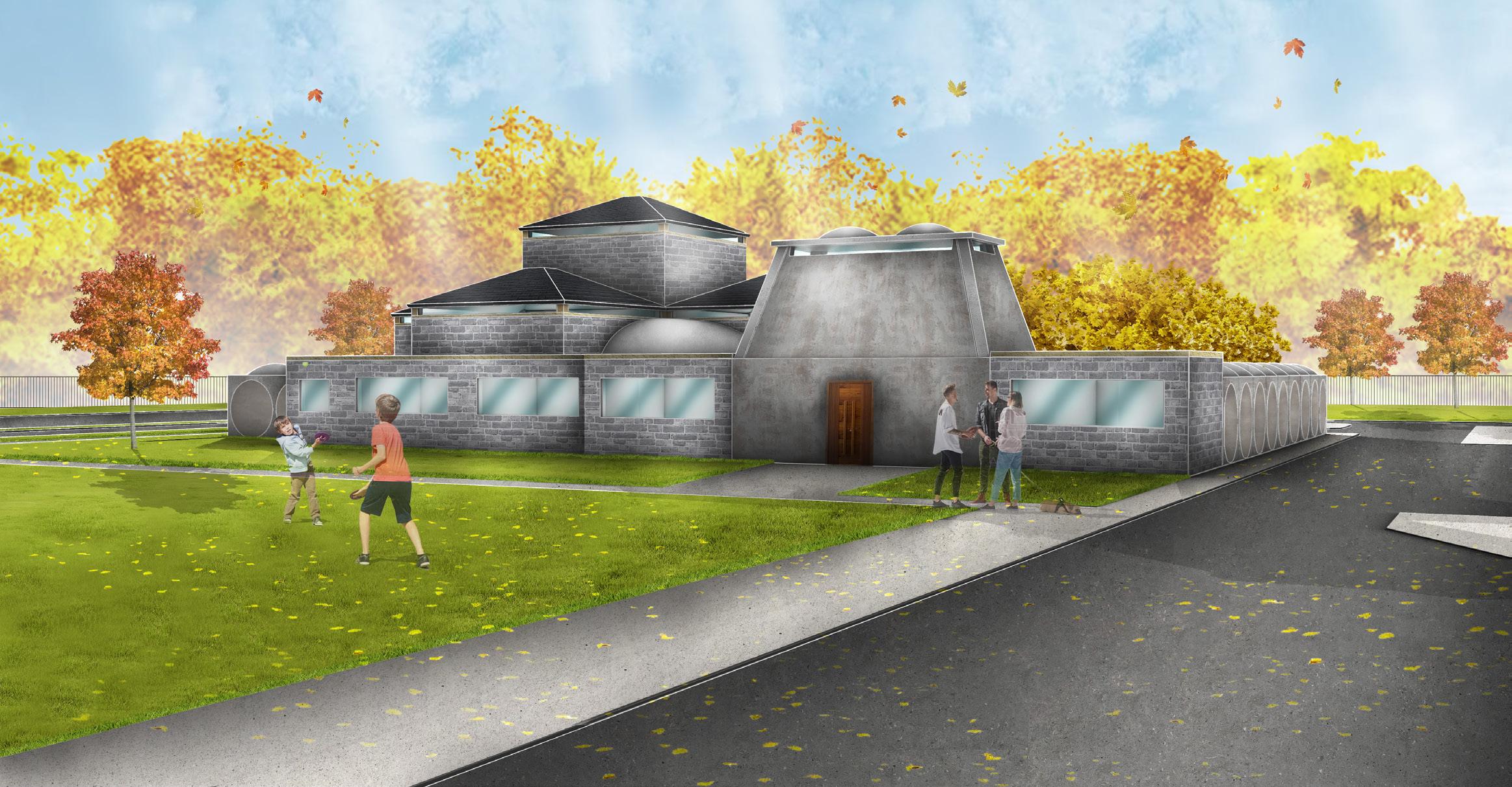

Trenton Synagogue

Located at Ewing Township in Trenton New Jersey are the remnants of Louis Khan's uncompleted JCC Campus Plan designated for a Jewish community summer camp in 1957. Even though Khan's plan was never fully completed, the Trenton Bath House and Day Camp Pavilions he designed were built and remain there still, becoming icons of modern architecture that marked an important turning point in Kahn's career.

Upon having to design a synagogue on the site of a once Jewish community Louis Khan had designed for before had set a unique cultural identity for the local community that would benefit from this synagogue. Hence, to preserve this identity, the synagogue aims to honor one of America's greatest architects, by "reflecting" Louis Khan's specific architectural style onto the synagogue.

By "reflecting" Khan's style, the synagogue is designed to represent a vernacular synagogue layout with a wall barrier surrounding the entire synagogue site and a traditional courtyard between the shul (prayer room) and vestibule entry. All the separate spaces within the synagogue will complement one another through simple geometric forms and a variety of traditional building materials. To highlight their differences working in unity and creating a sense of monumentality for such a sacred site, just as Louis Khan designed.

Louis Kahn's Distinct Architectural Style

The design of the concept is "reflecting" the historical Trenton Bathhouse adjacent to the site, and adopting its unique architectural style by Louis Khan.

"Reflecting"

By understanding the basics of Louis Khan’s architectural style, helps in the design process of conceptually reflecting his original work onto the project site.

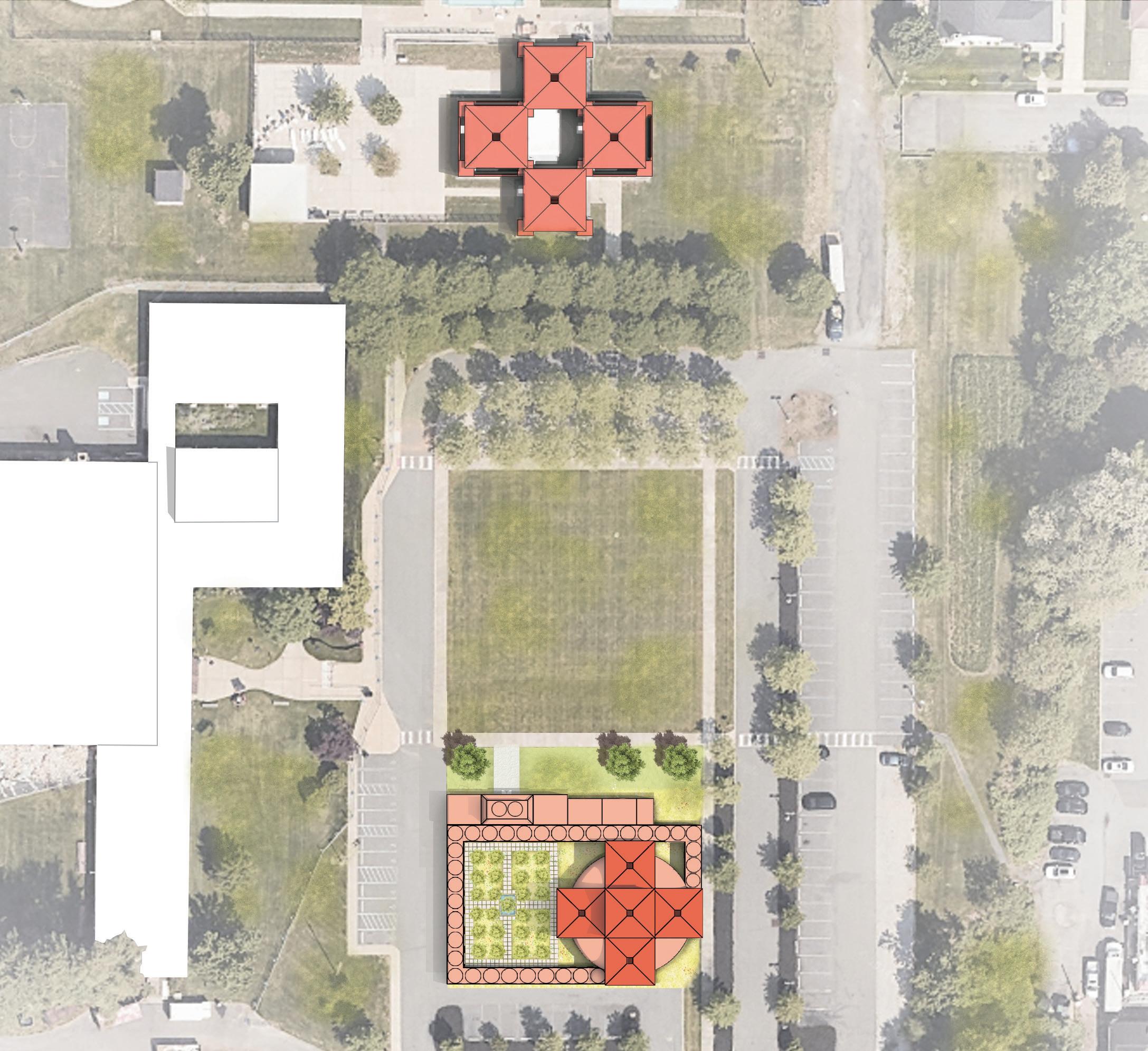

Project Site: “Trenton Synagogue”

Louis Khan’s Trenton Bathhouse

Expanding “Reflected” Shape

Expanding the "reflected" shape from the Bathhouse allows more space for the shul.

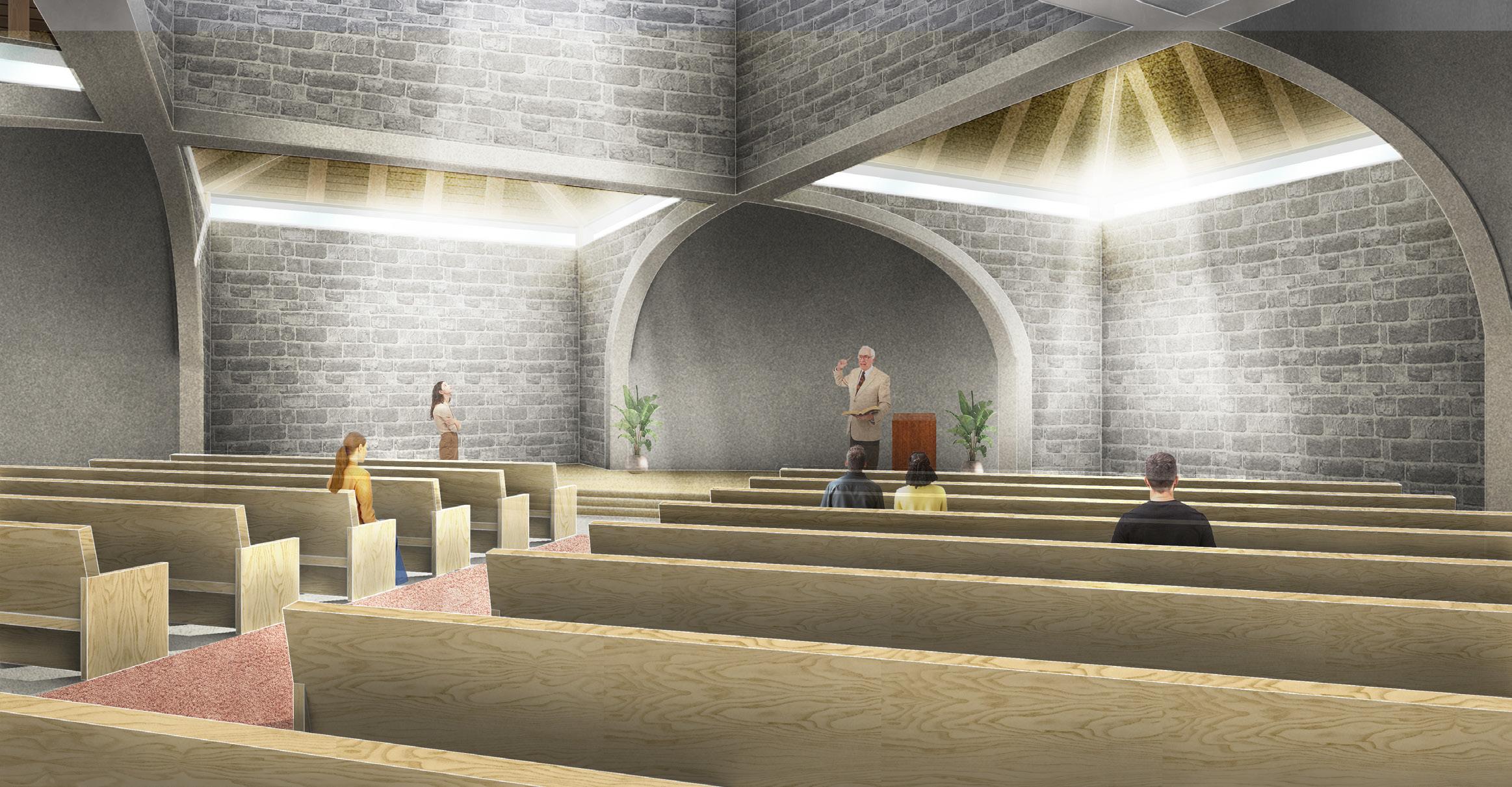

Light-Permitting Roofing

Adding a similar roofing method as in the Bathhouse to allow natural light into the shul.

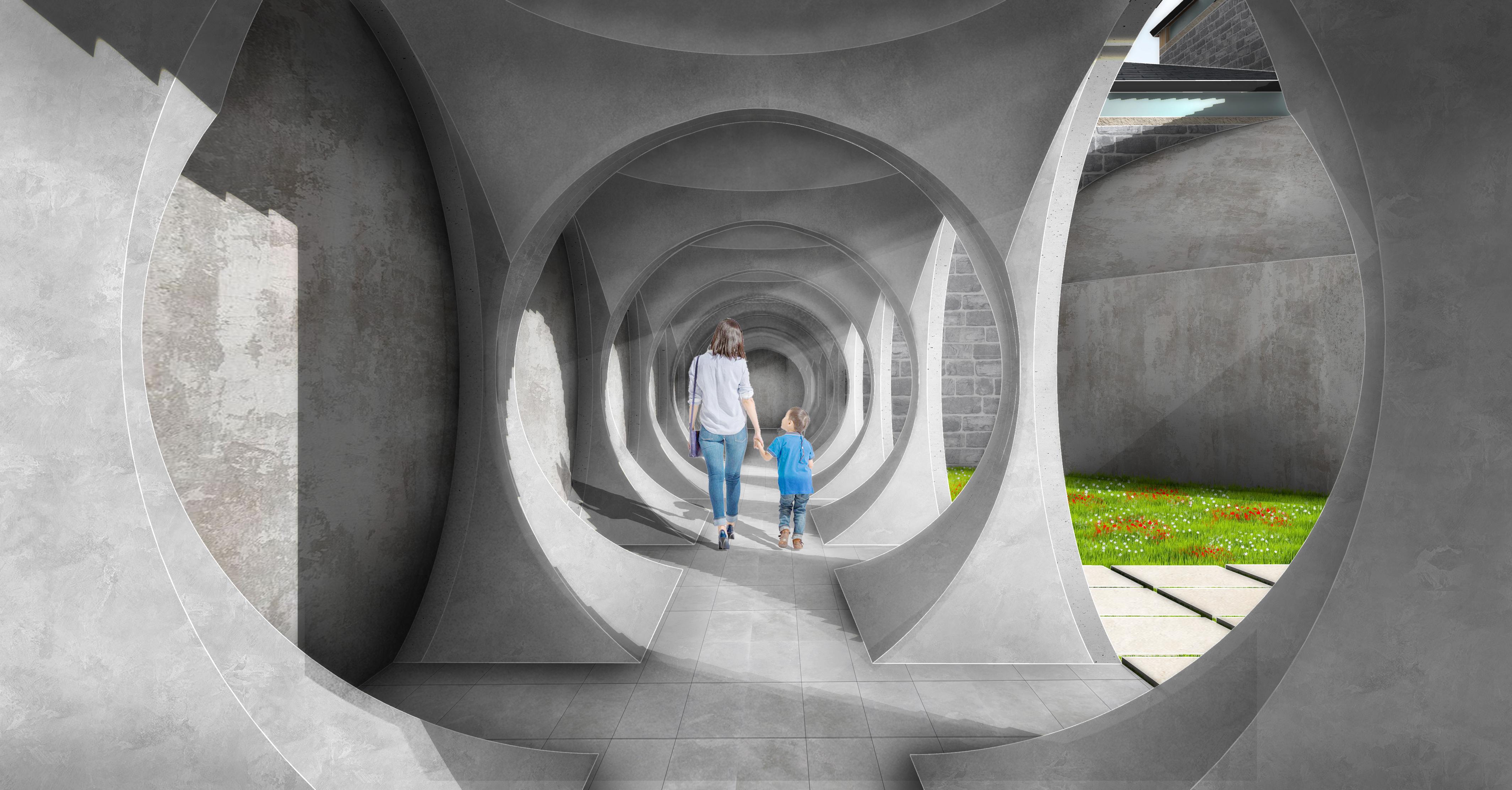

Traditional Arcade Barrier

Using an arcade to create a protective wall barrier and a circulatory path.

Entrance Tower

Raising the entrance vestibule acts as a traditional beacon entry of a synagogue.

Additional Programs

Adding the remaining programs outside the wall to preserve the sacred interior space.

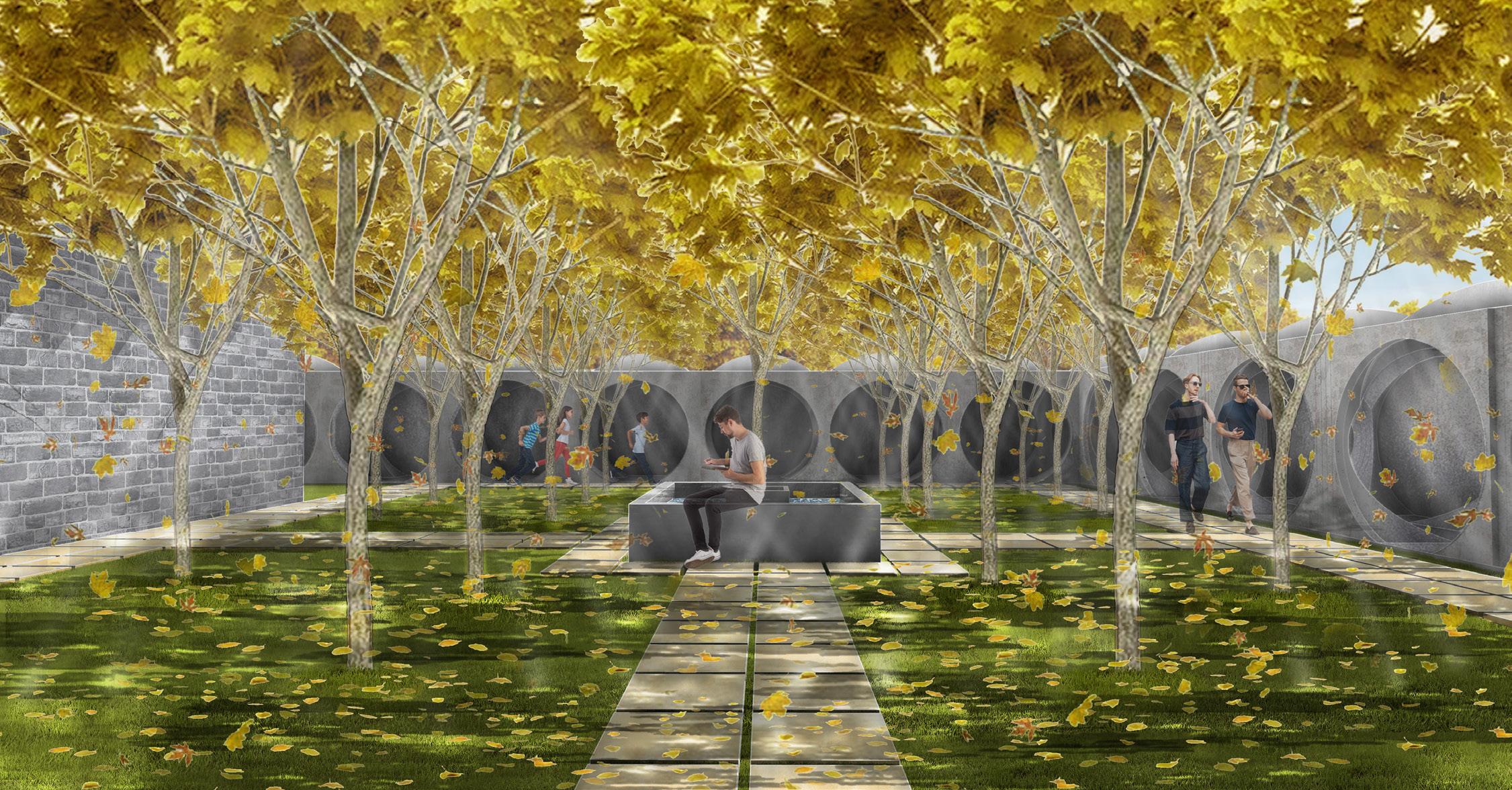

Courtyard

Adding the traditional courtyard between the entrance and shul.

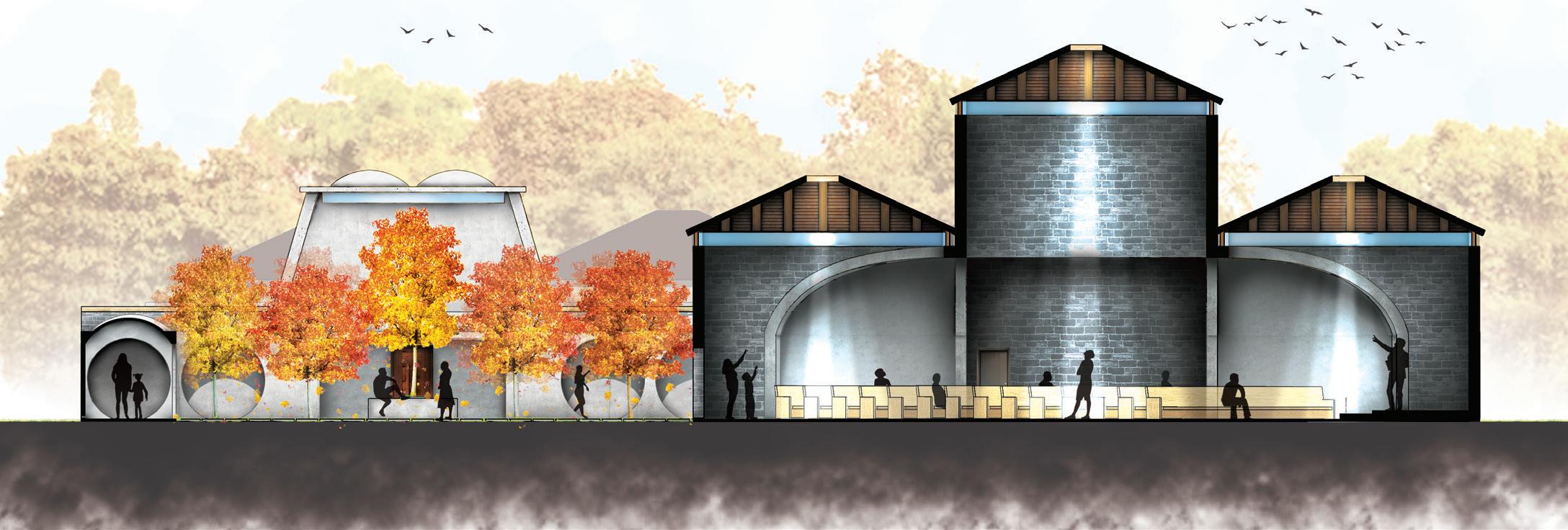

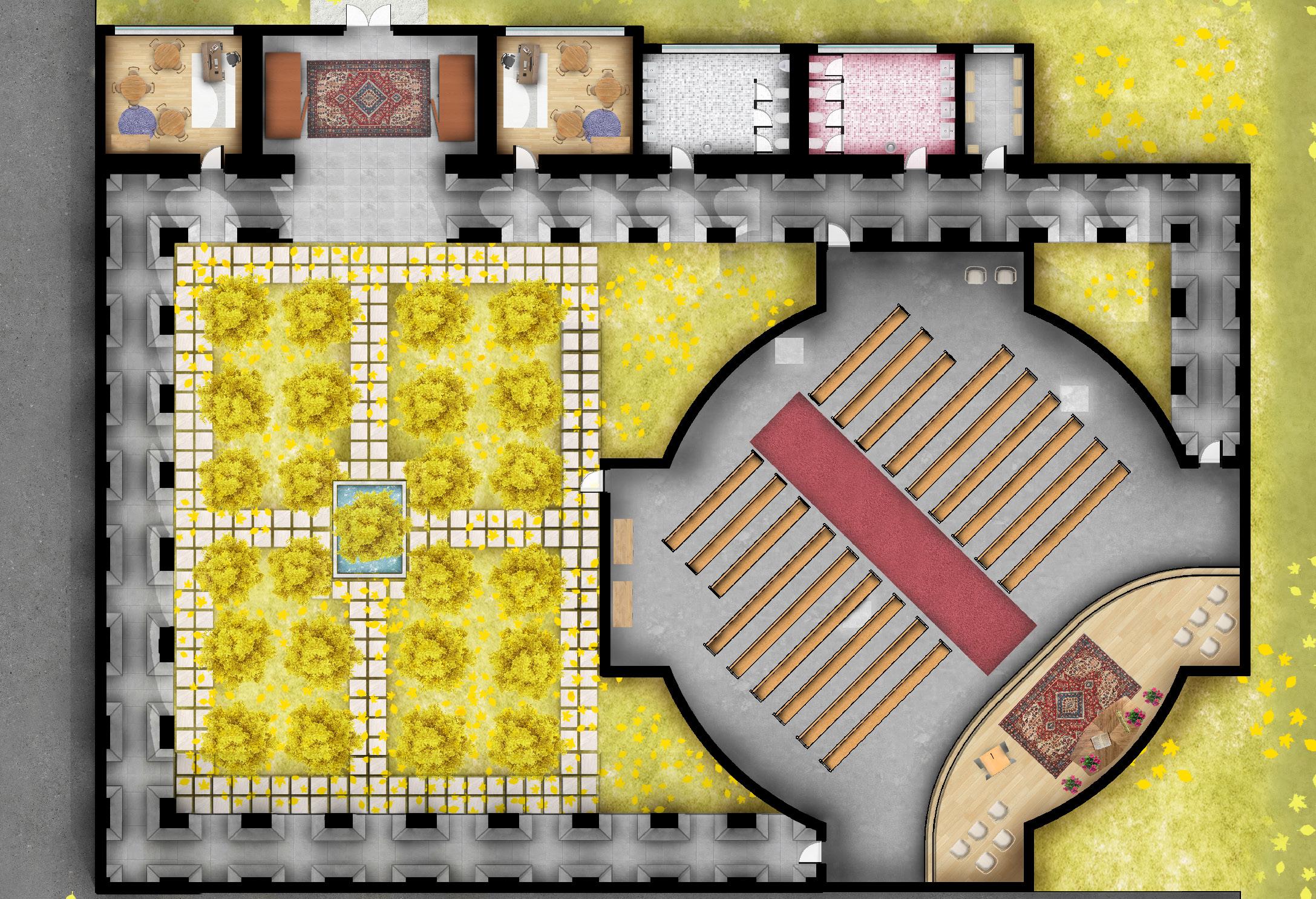

1- Shul (prayer room)

2- The Bimah (alter/stage)

3- Courtyard

4- Arcade (circulation)

5- Vestibule

6- Classroom/Lecture Rooms

7- Restroom

8- Storage

Pheasant Haven

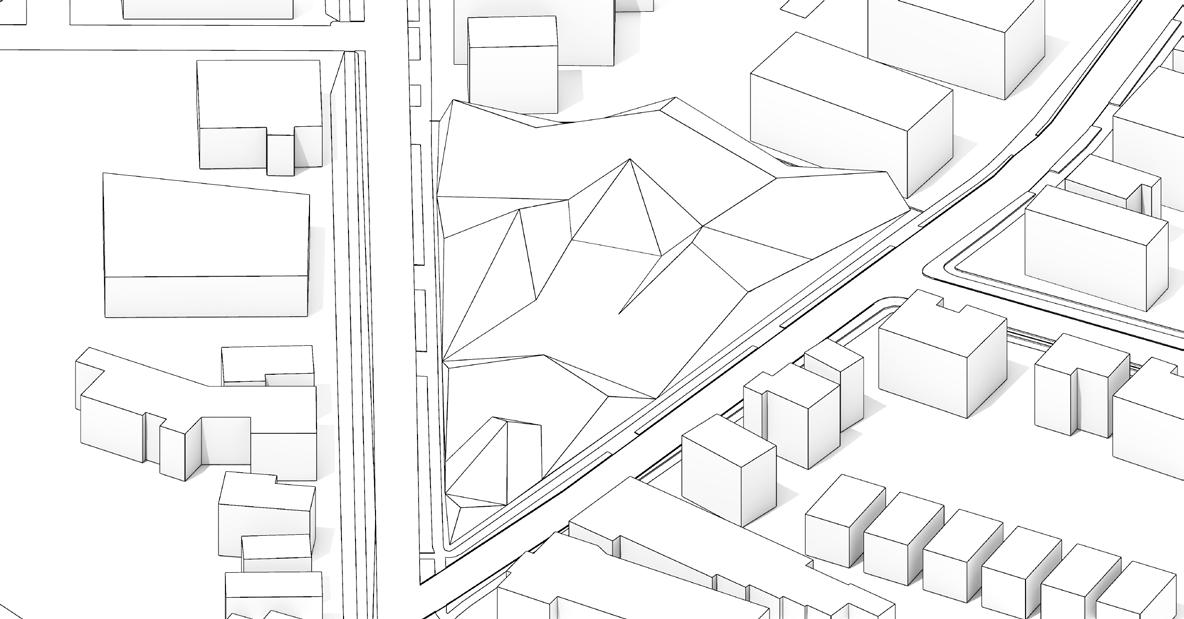

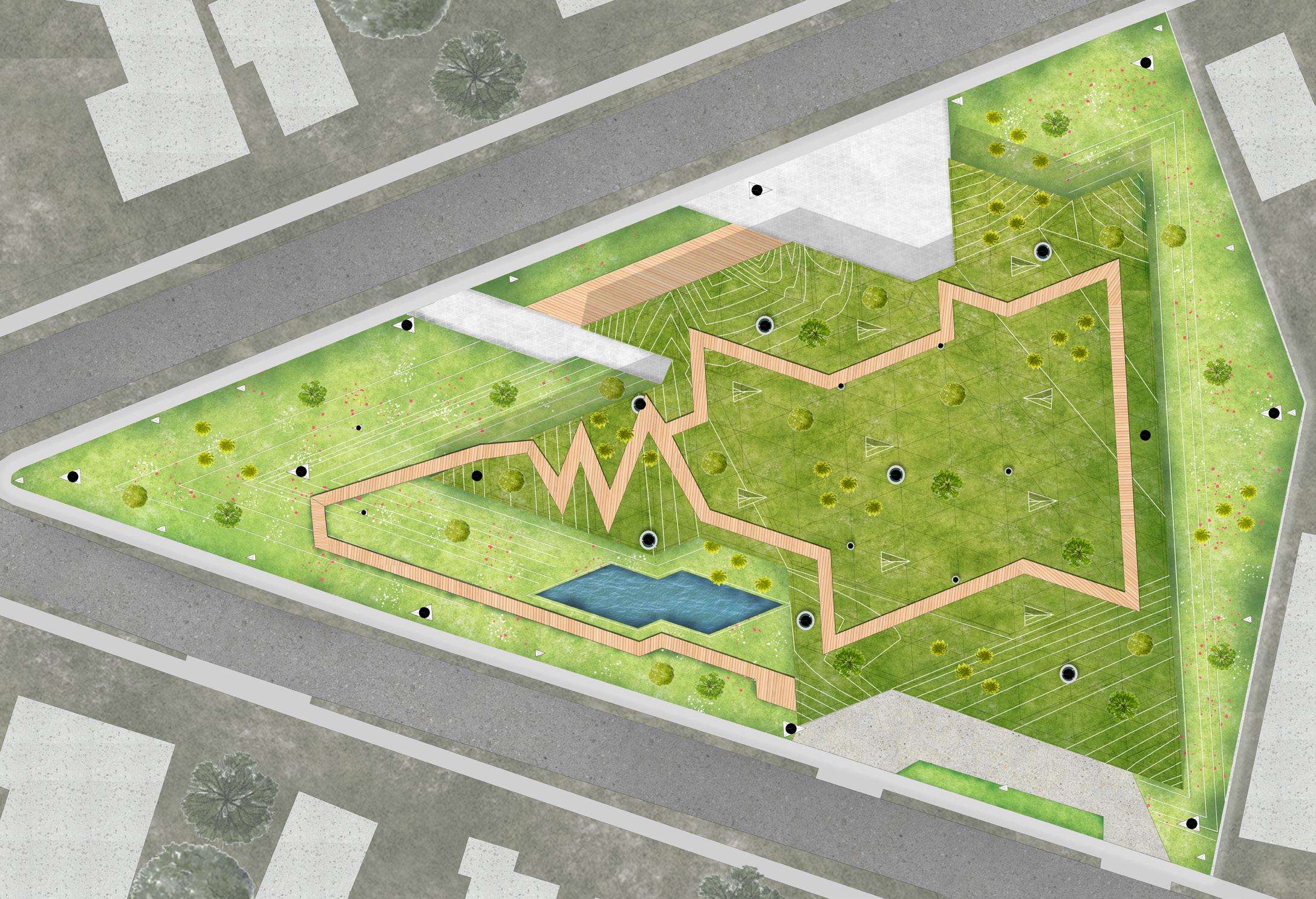

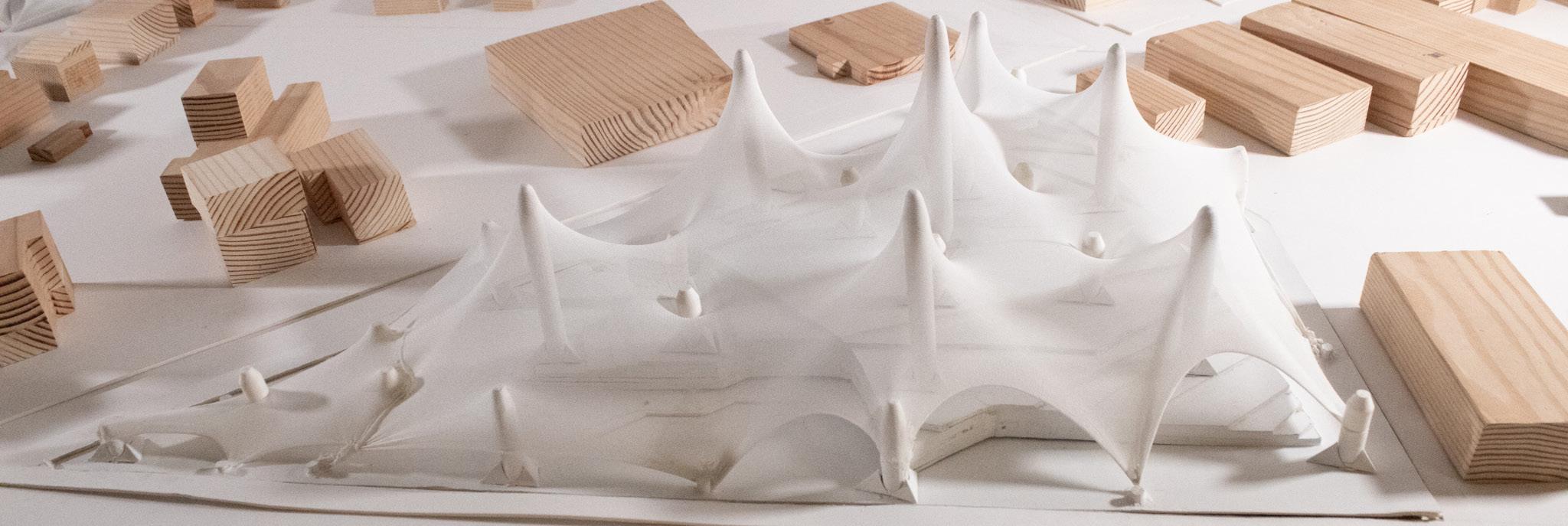

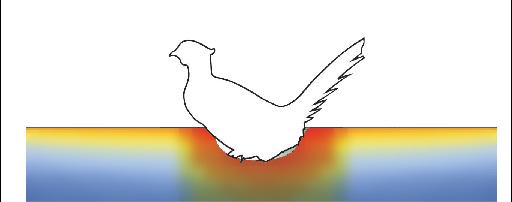

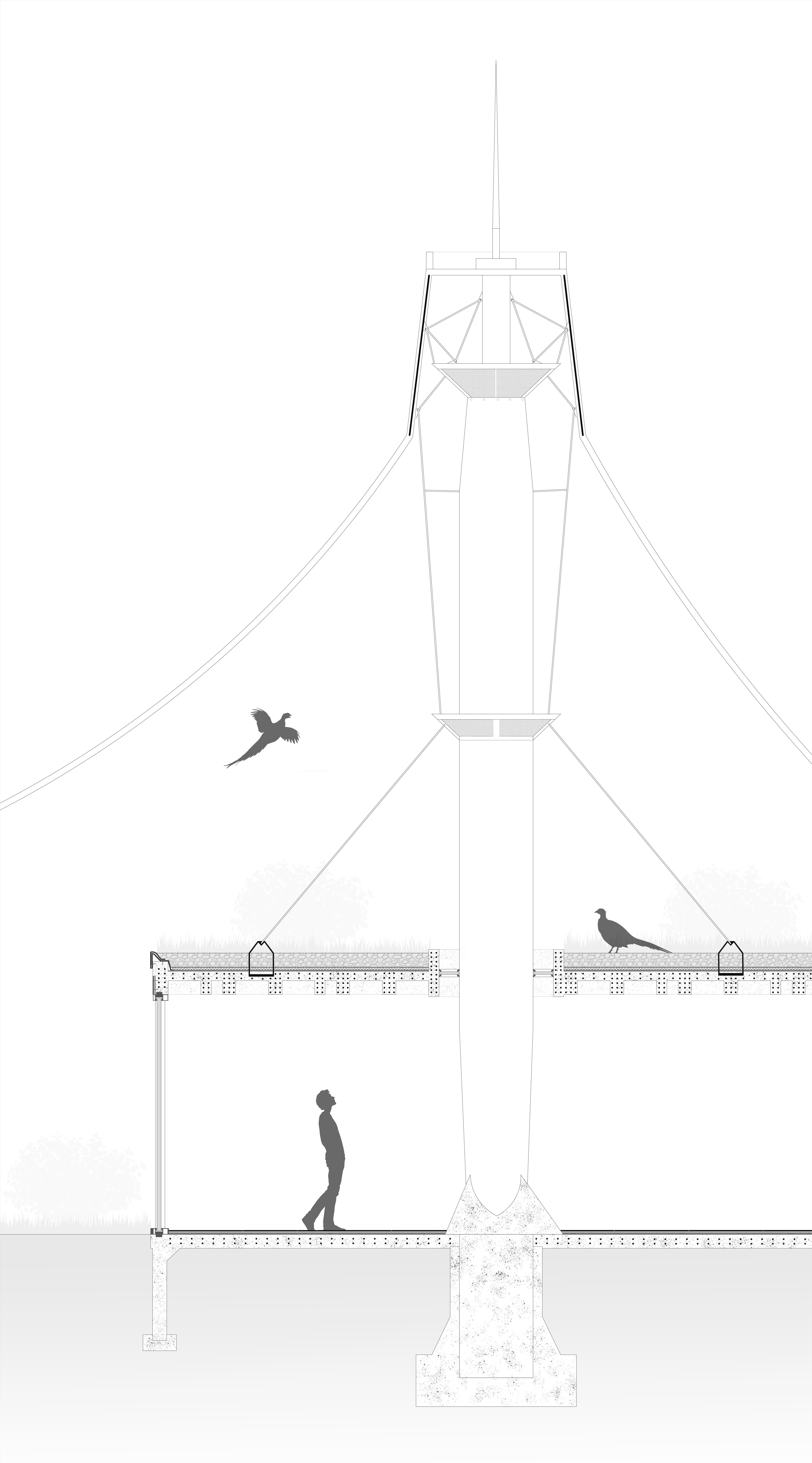

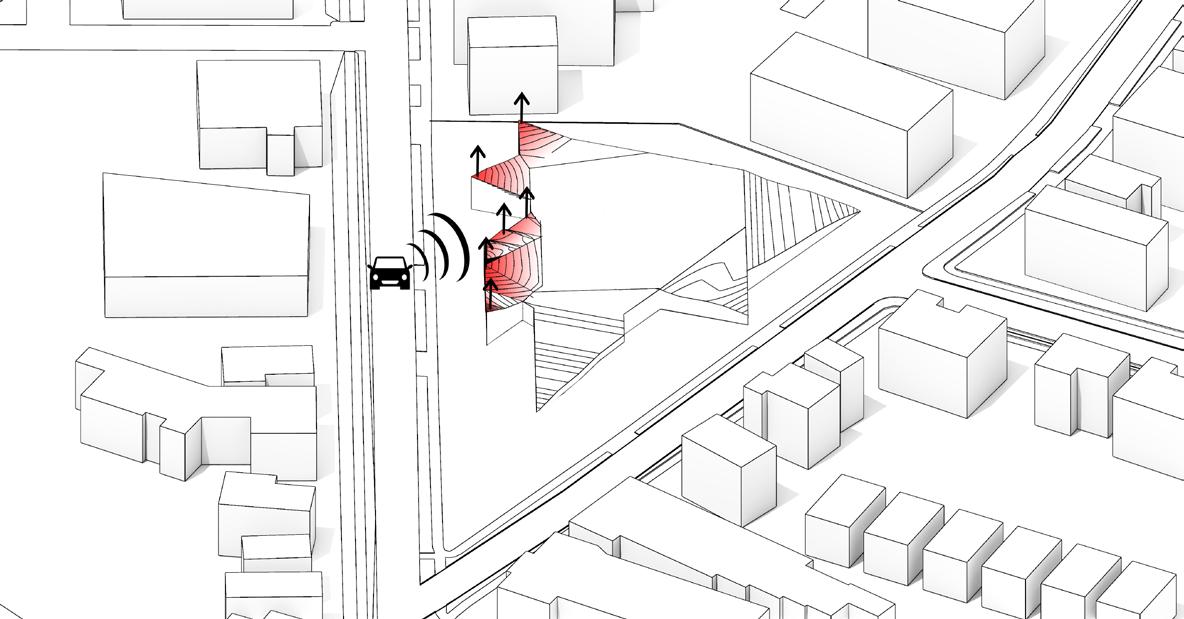

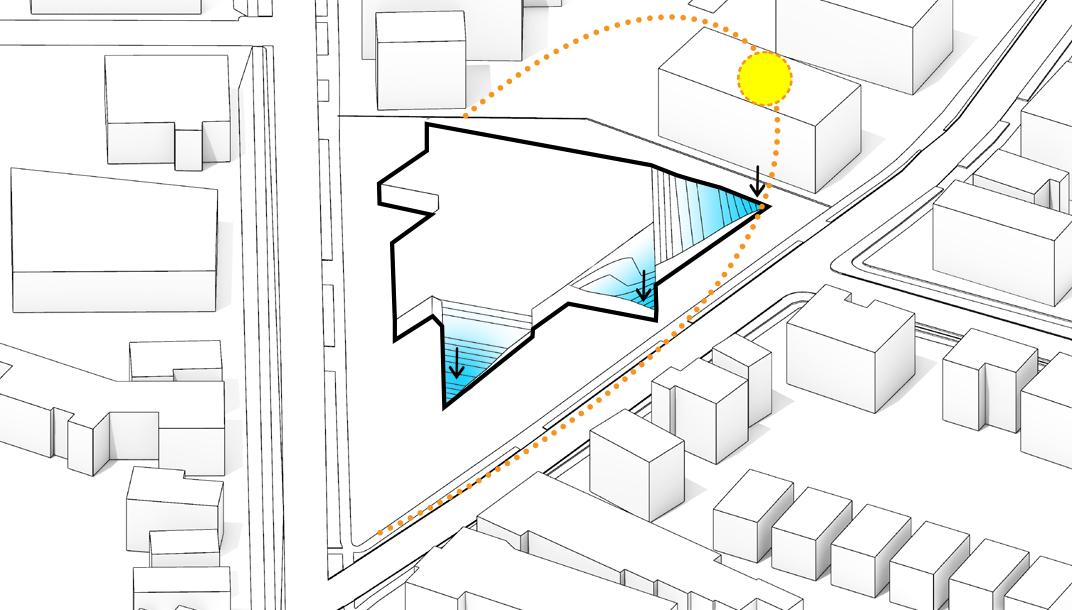

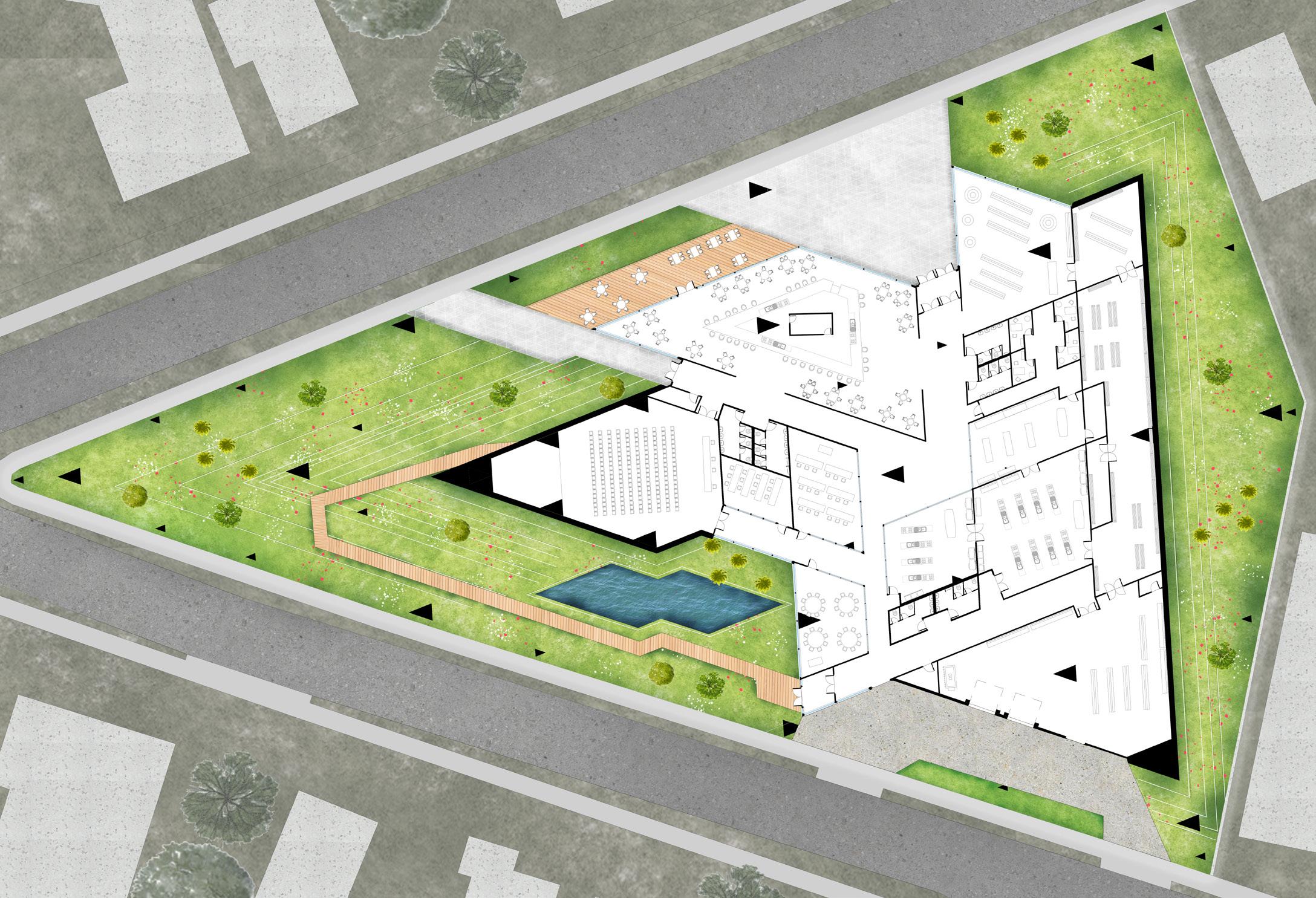

Pheasant Haven is a designed space in Elizabeth, New Jersey, exploring the possibilities of placing pheasants as the center of perspective towards architecture alongside humans to create a symbiotic relationship. Elizabeth was chosen for this space because the city is labeled as a food scarcity city. Meanwhile, the pheasant was an important aviary for Elizabeth as a common food source before the 19th century. Reintroducing the pheasants back to Elizabeth in a safe architectural space will allow a new locally grown food source and educational space for the city to rediscover pheasants.

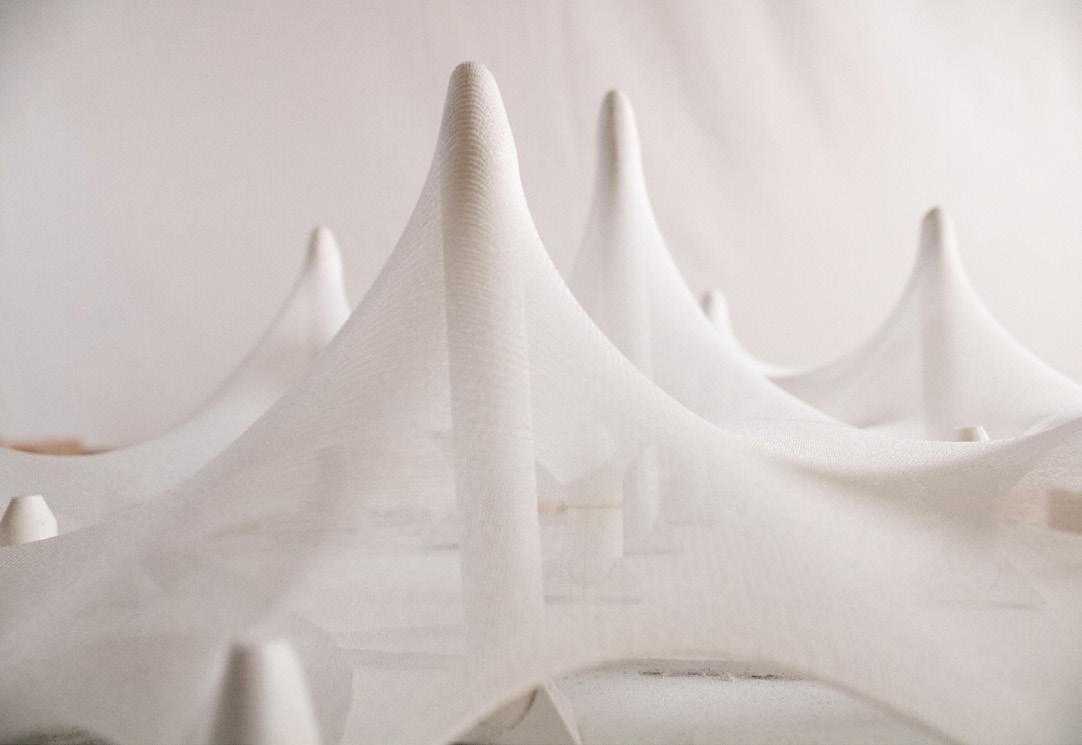

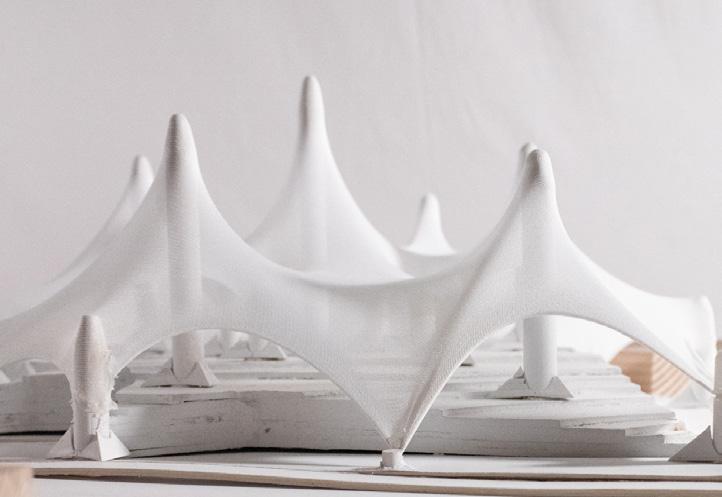

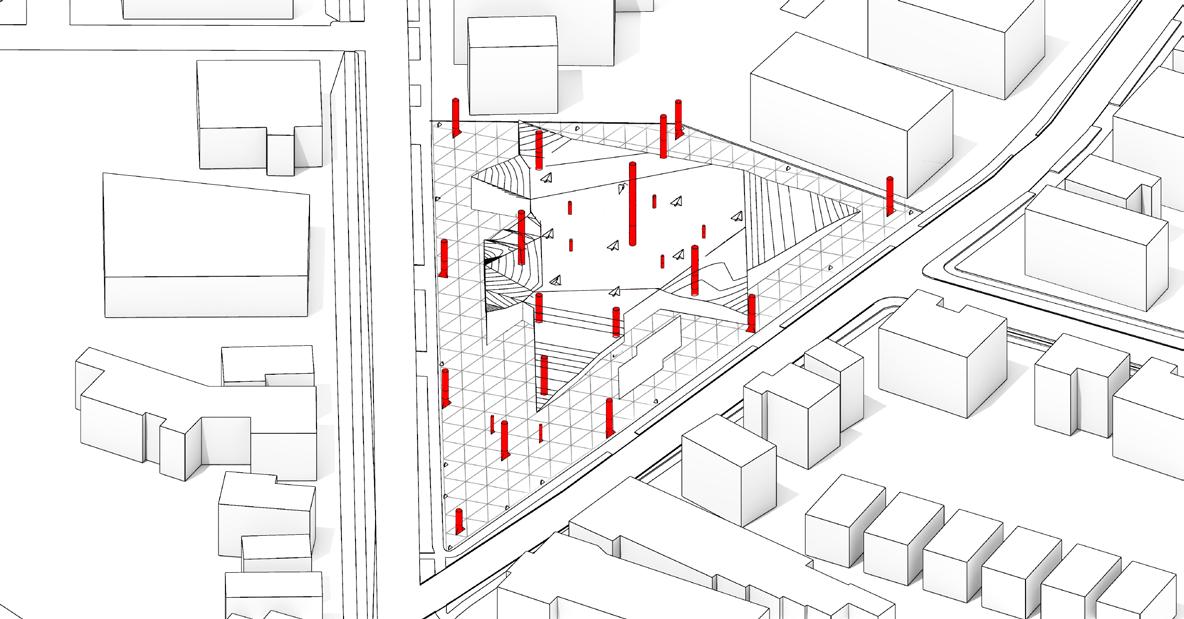

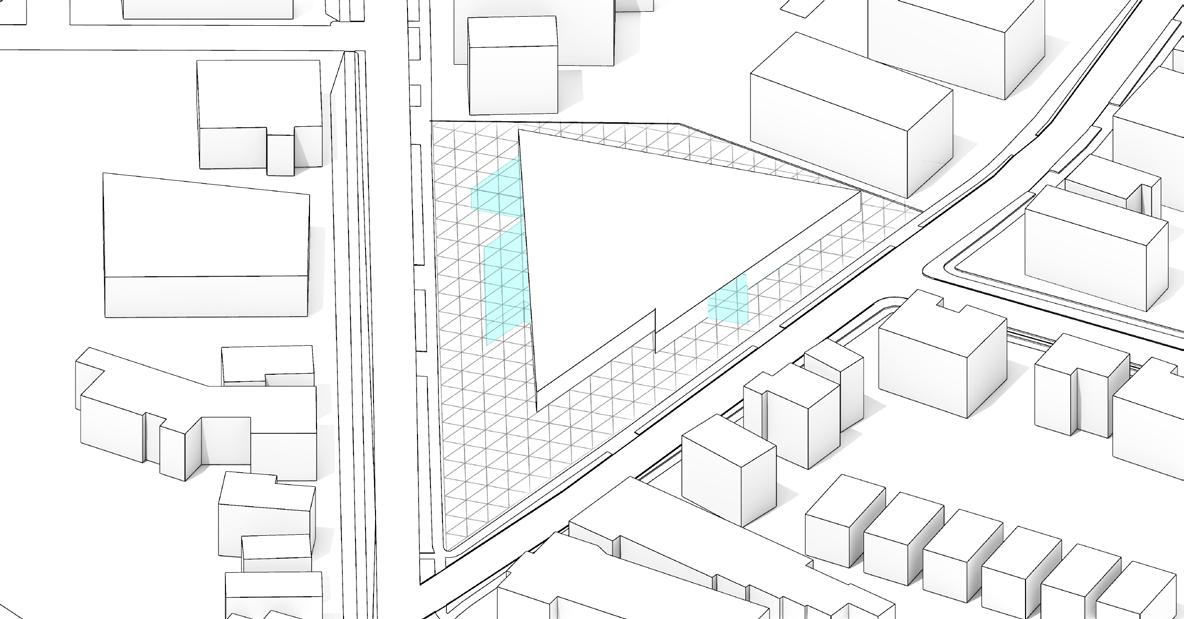

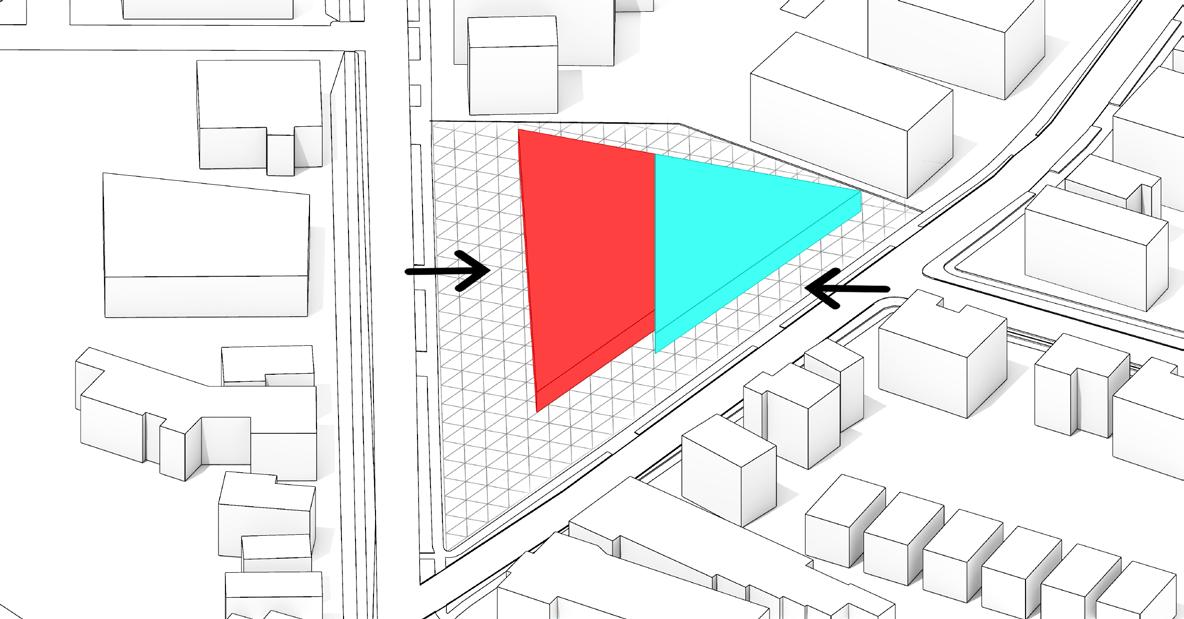

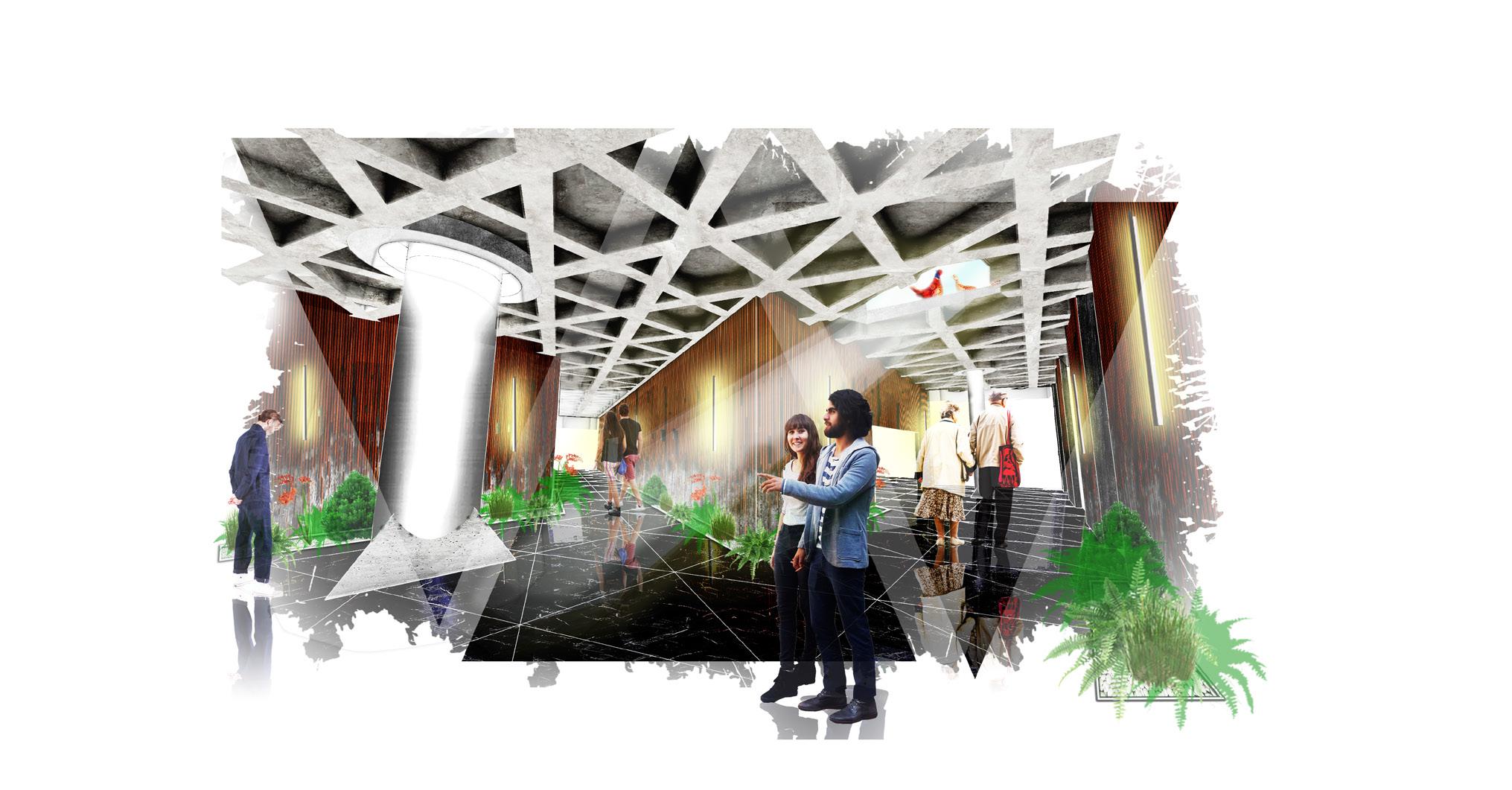

Understanding the ideal space for a pheasant influenced many design decisions, such as placing humans underneath the pheasants to limit the amount of unnecessary human contact and providing a tensile roof for the pheasants to give a sense of security. Despite the separation, many architectural features help create a symbiotic relationship between humans and pheasants. Such as how the entire floor plan of the structure follows a triangular grid which is most effective for handling the massive tensile structure, which also follows a triangular grid of the actual site angles, creating a unique triangle grid distinctive for the site alone that both species experience.
