HOSPITALITY & LEISURE APPLICATIONS

HOSPITALITY & LEISURE APPLICATIONS

Release October 2025

HOTELS & RESORTS

P. 20

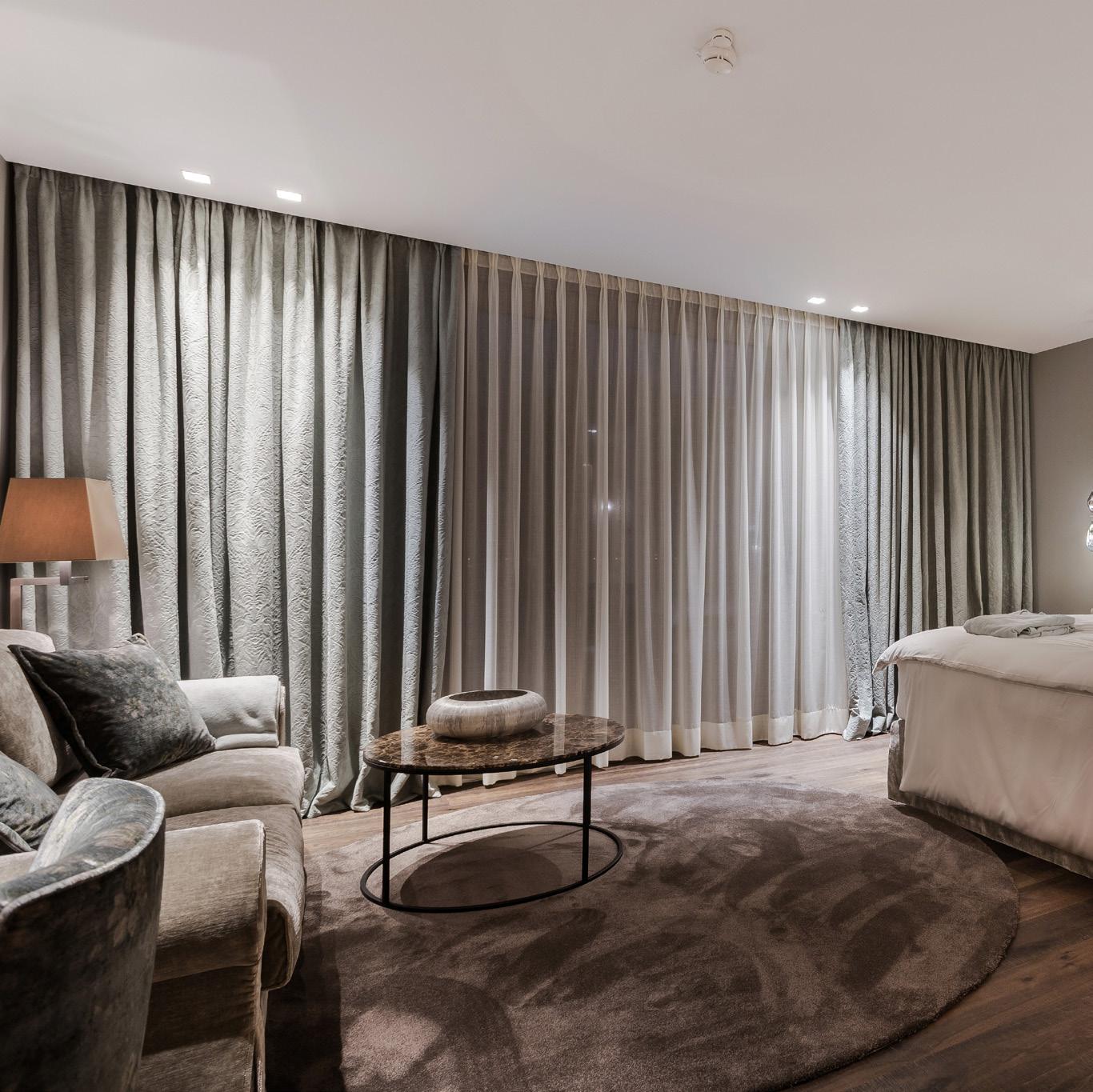

Receptions Lobbies & Lounges Suites Rooms

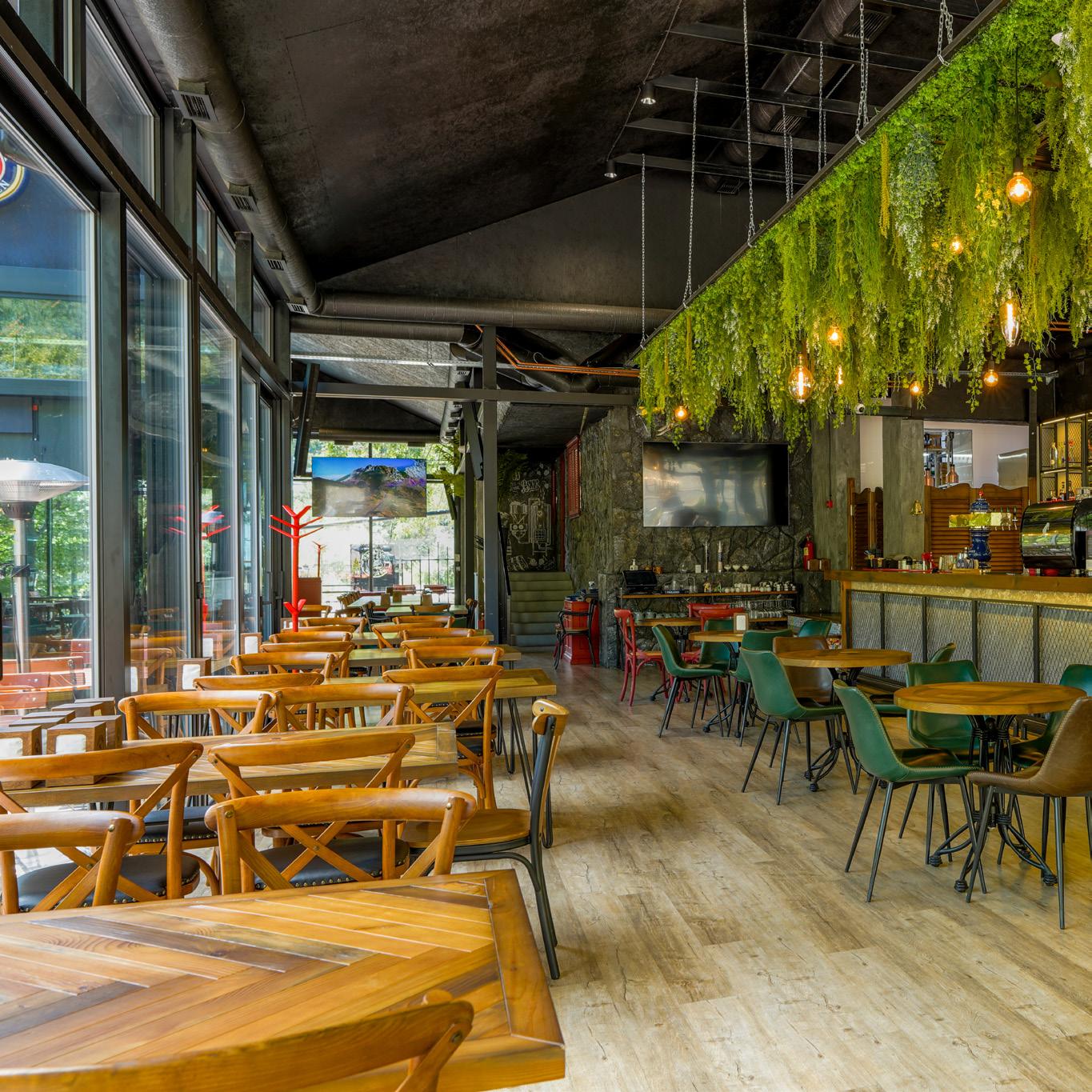

RESTAURANTS & CAFES

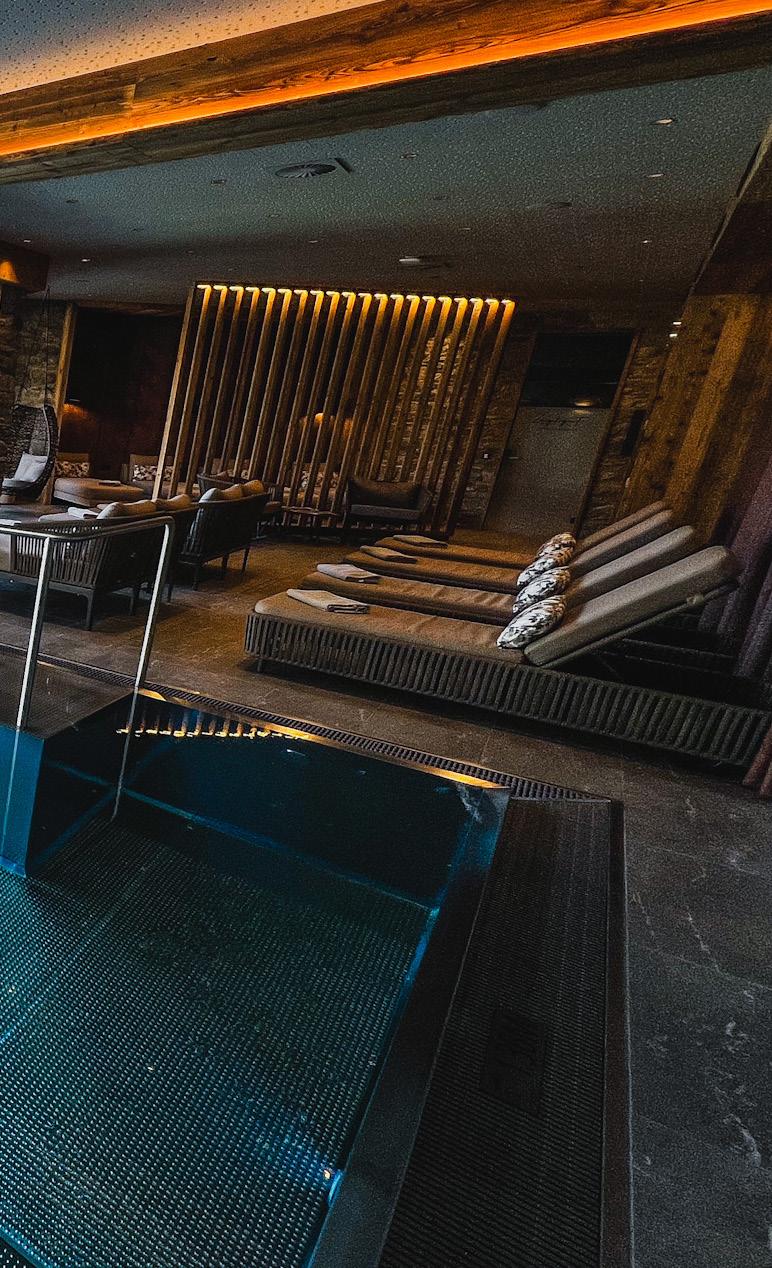

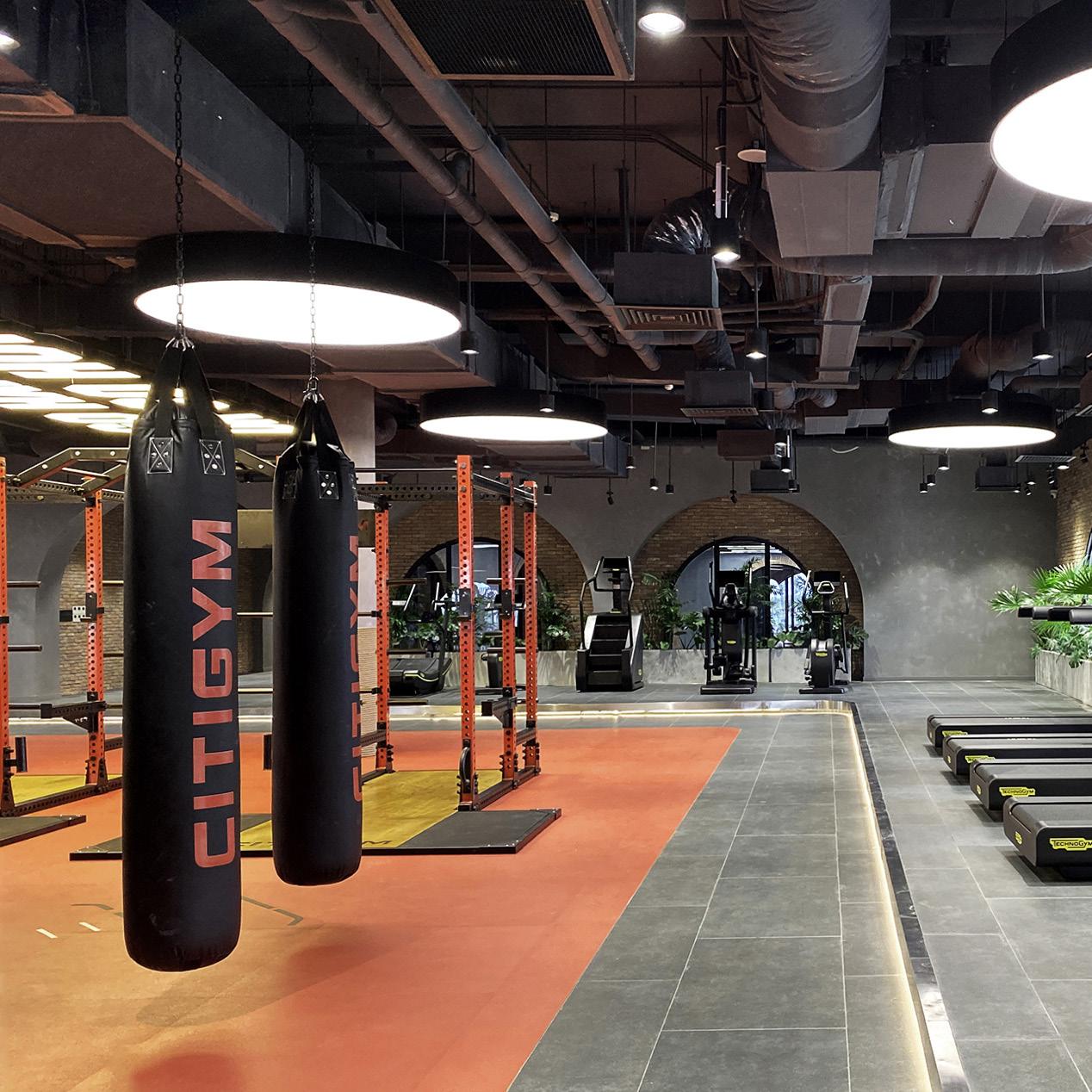

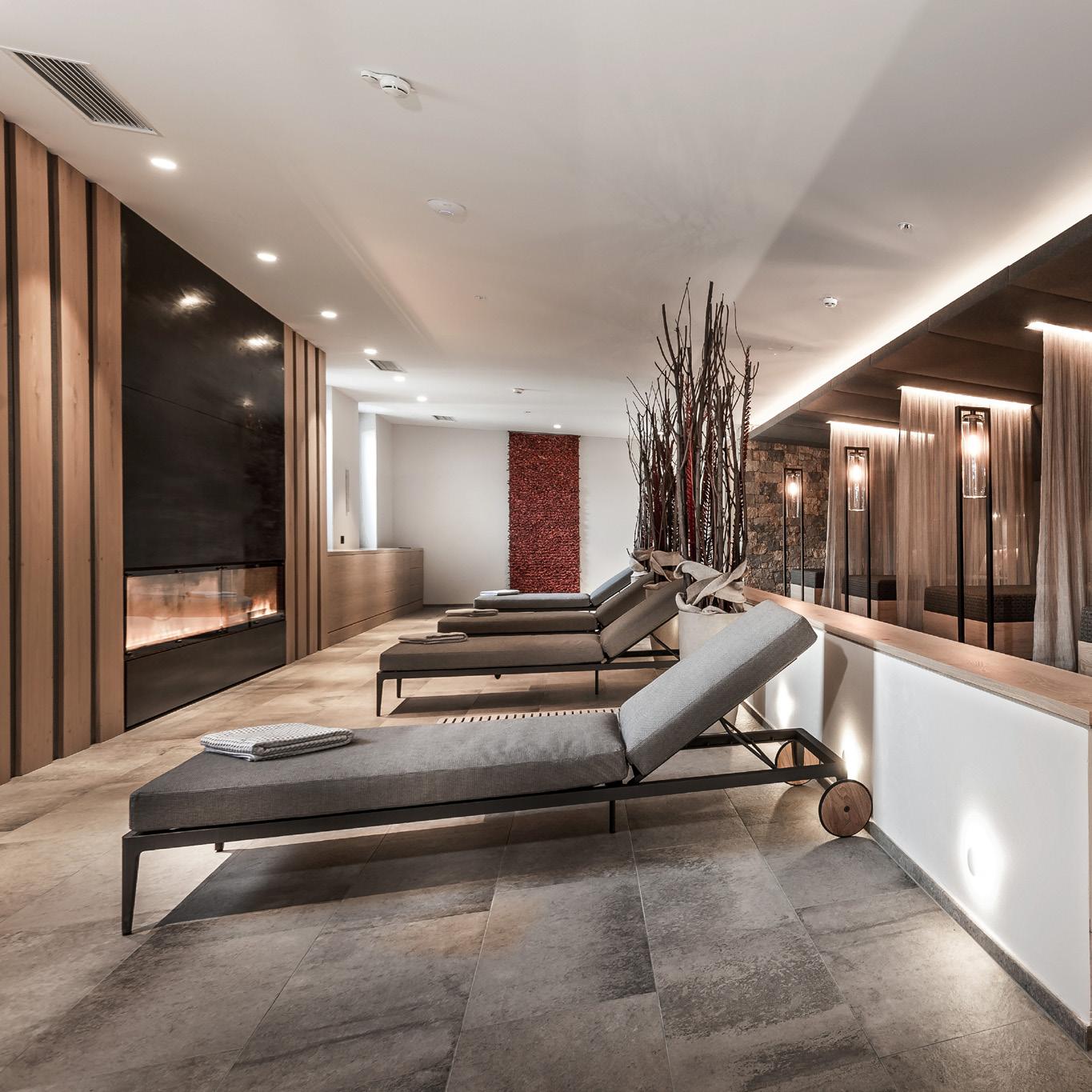

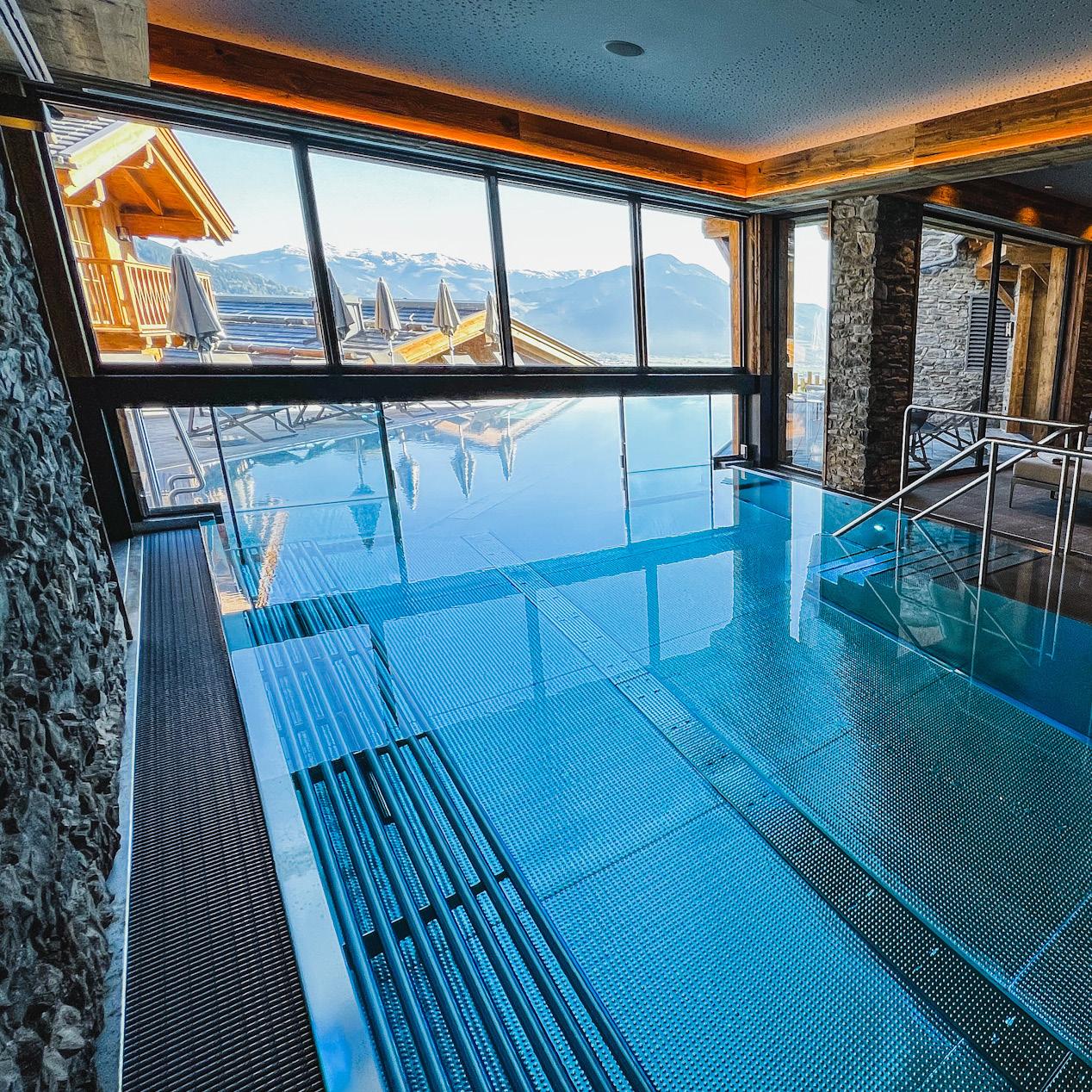

Waiting Areas Wellness Areas Gyms Fitness Studios

P. 120

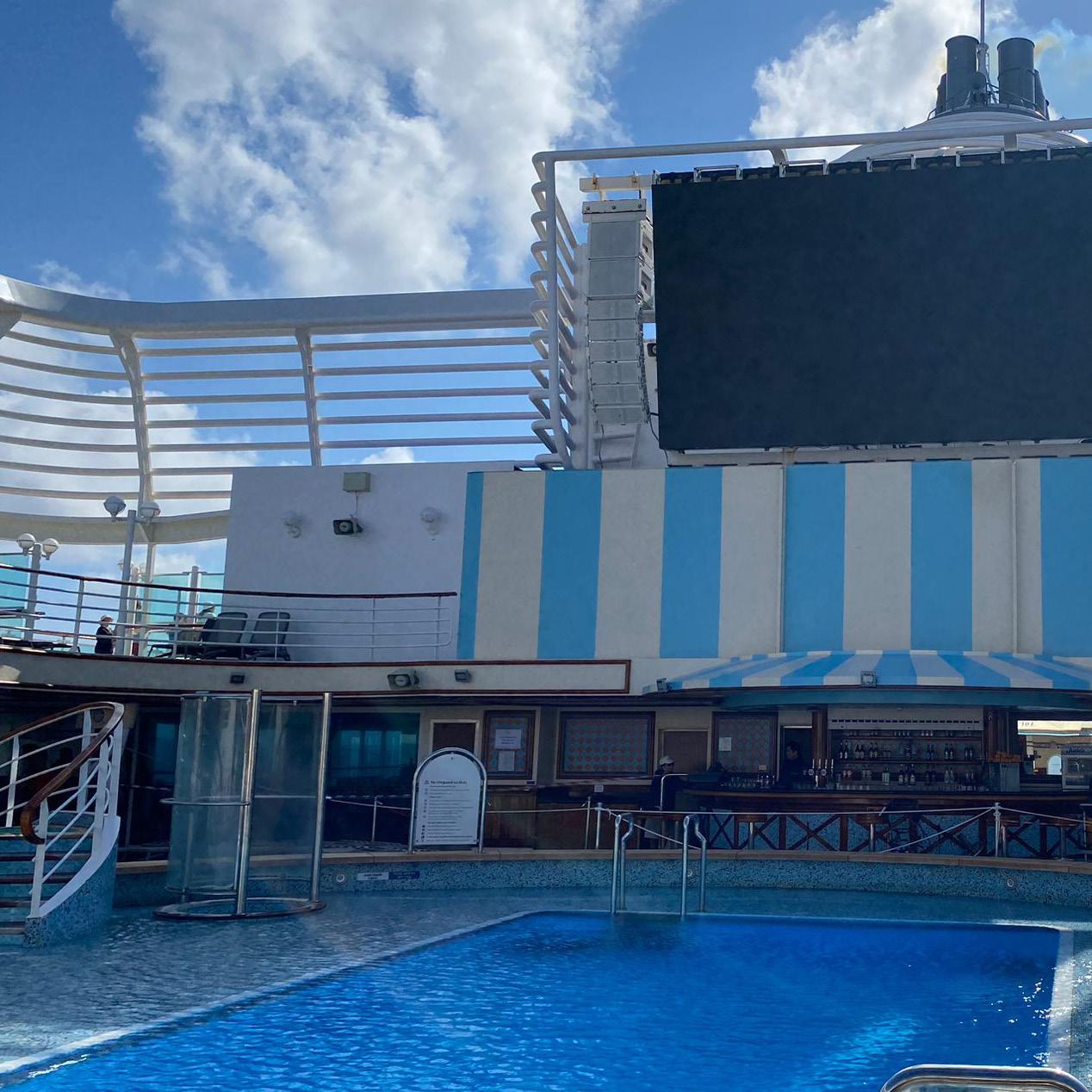

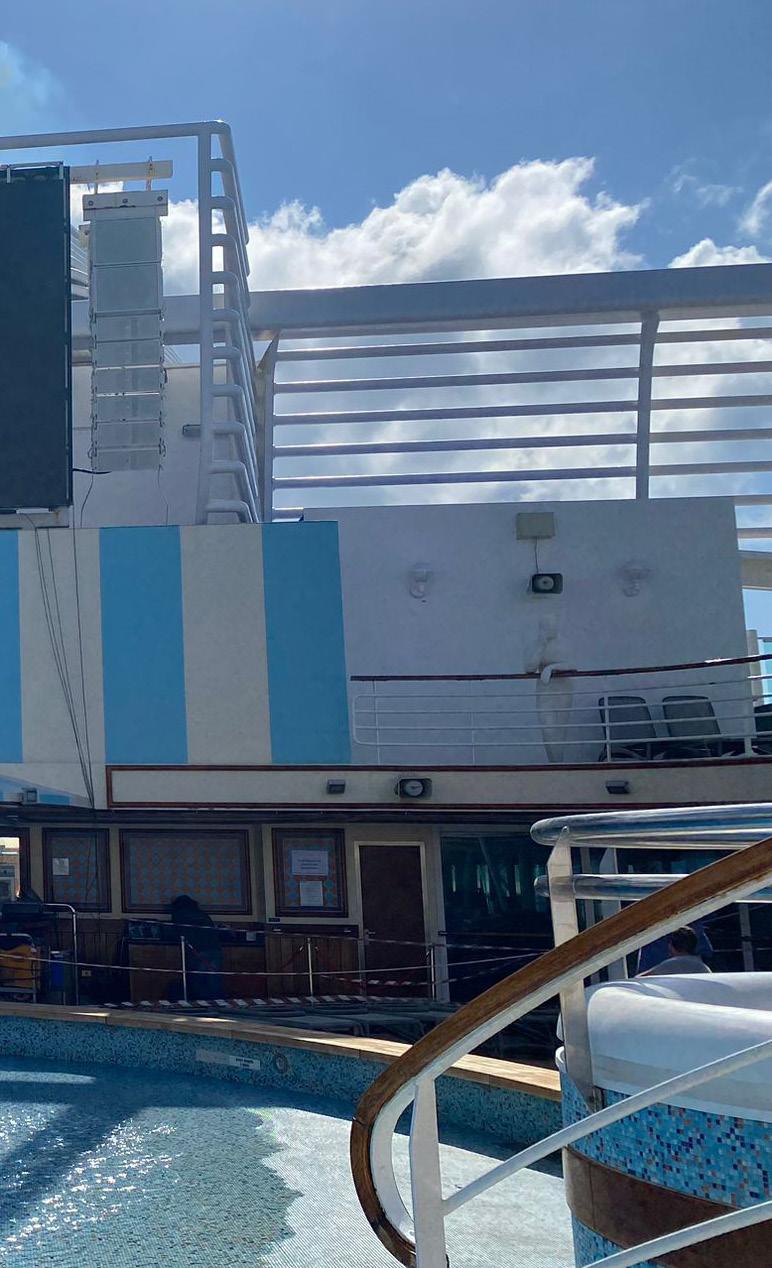

Ship Decks

P. 50

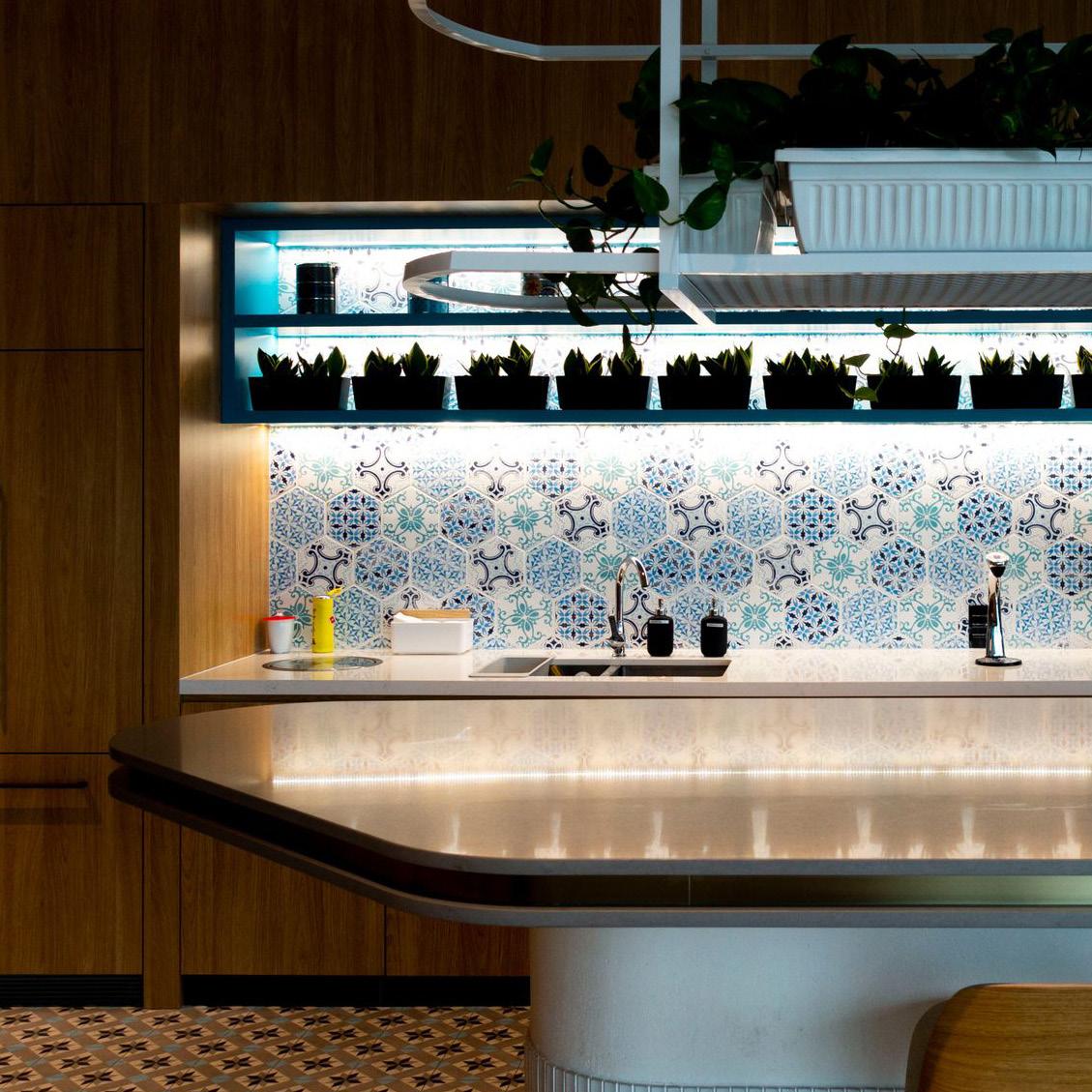

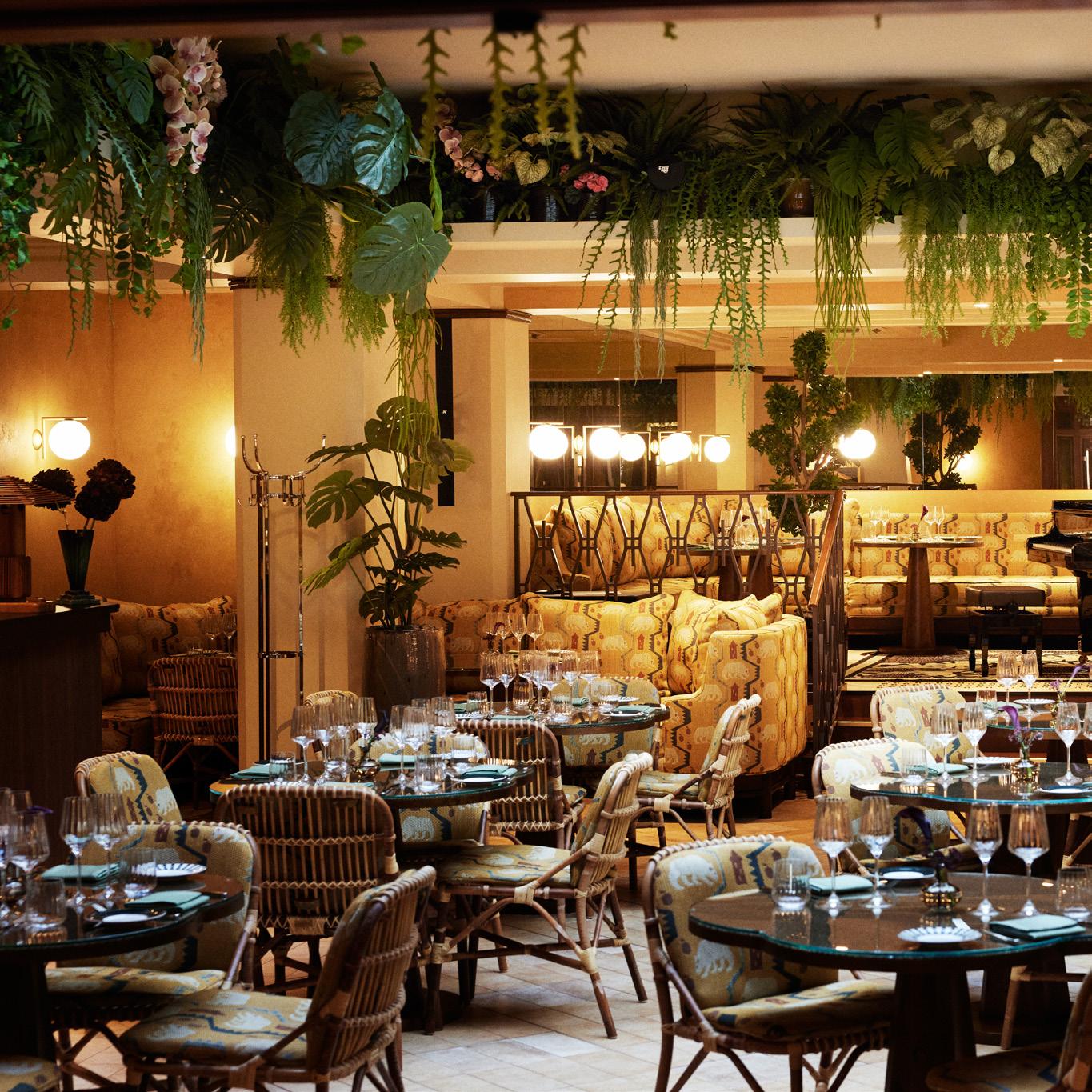

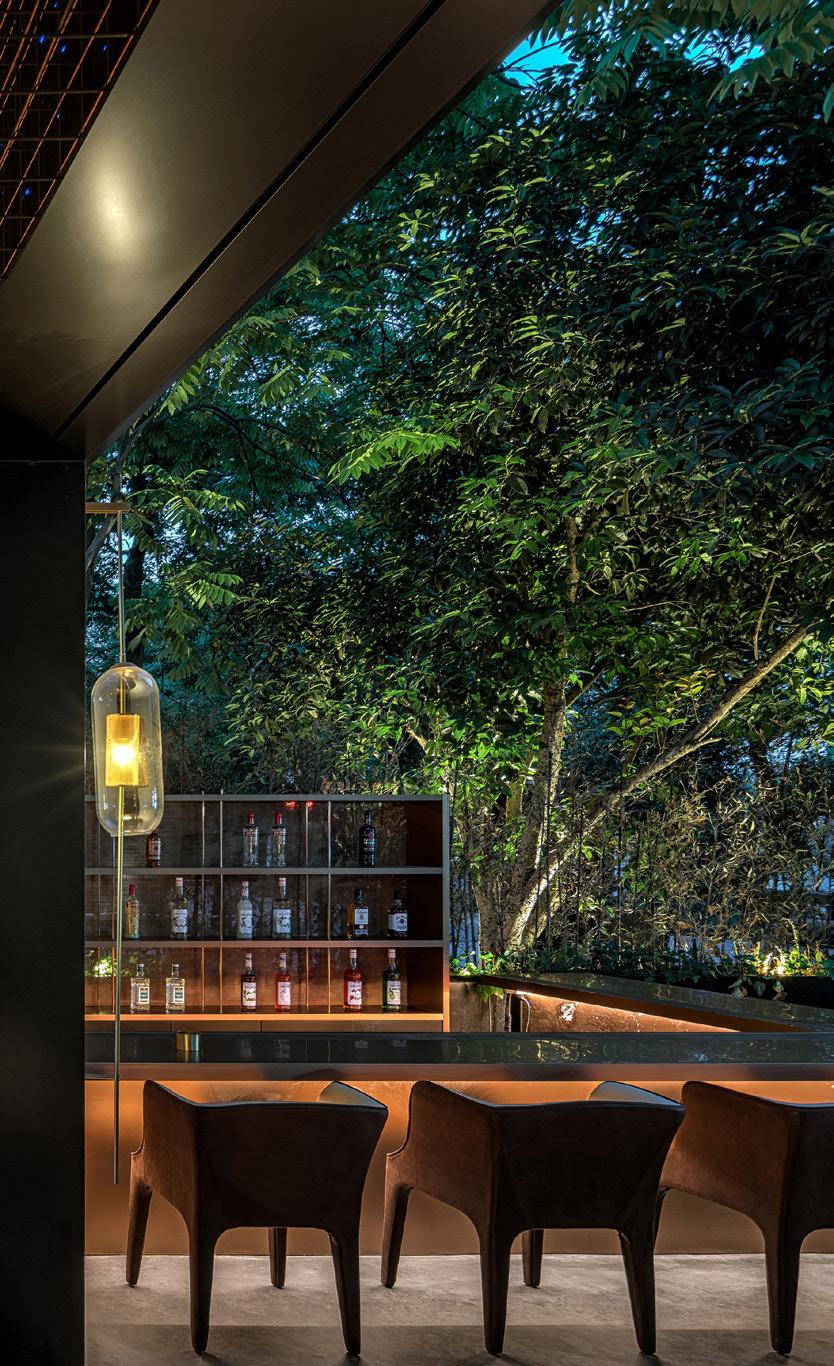

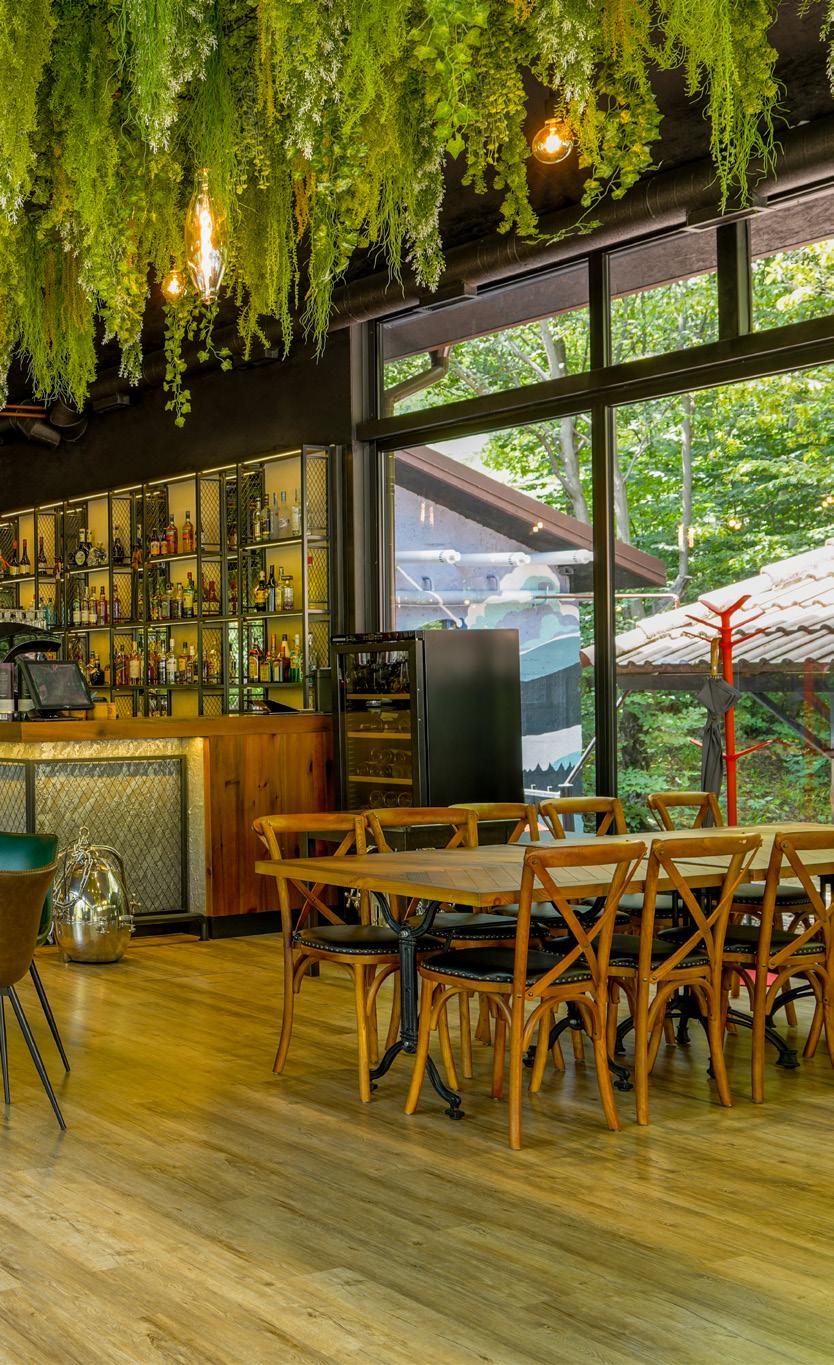

Restaurants Dining Rooms Cafes Bars

FITNESS & WELLNESS

CRUISE SHIPS

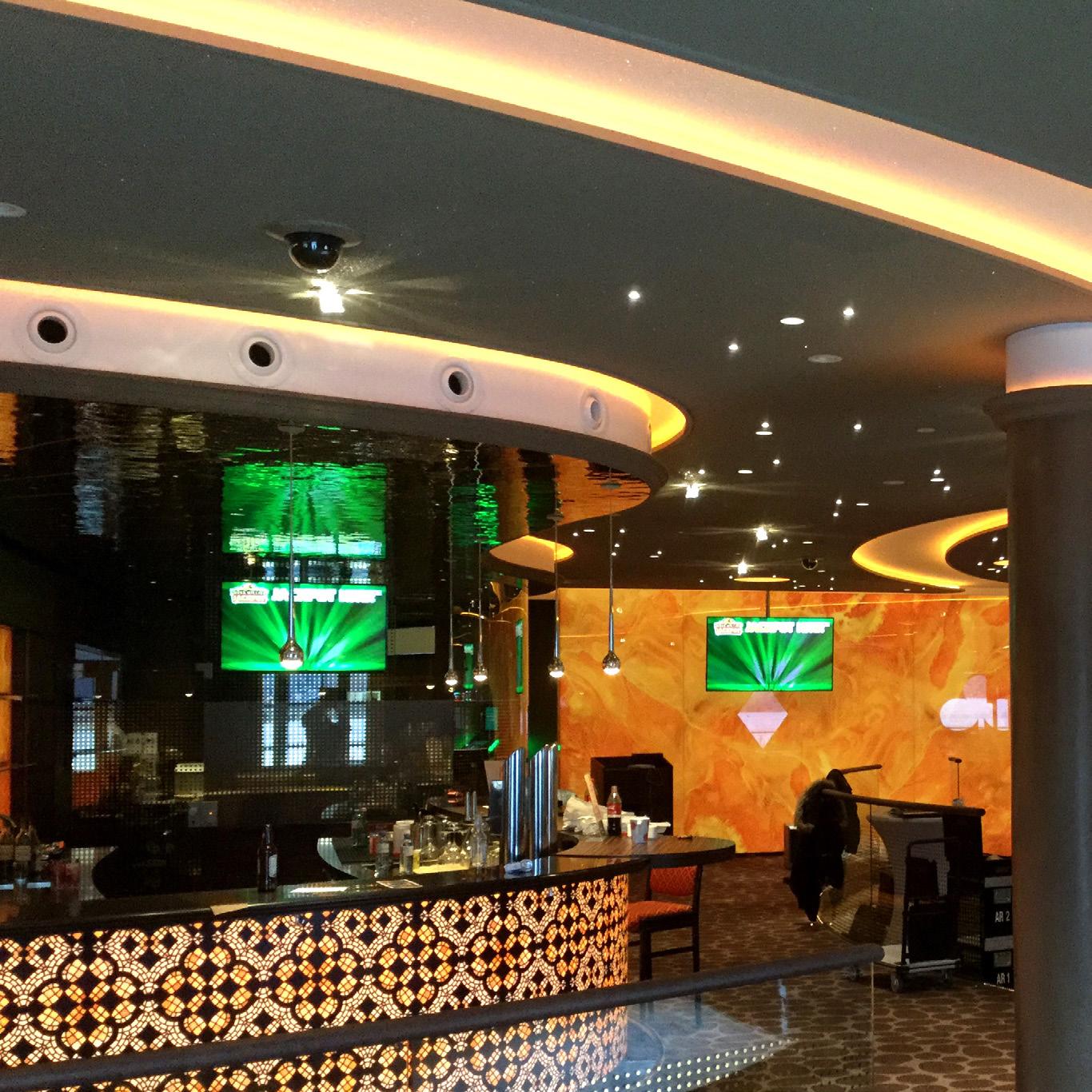

CASINOS

P. 124

Gaming Halls

P. 82

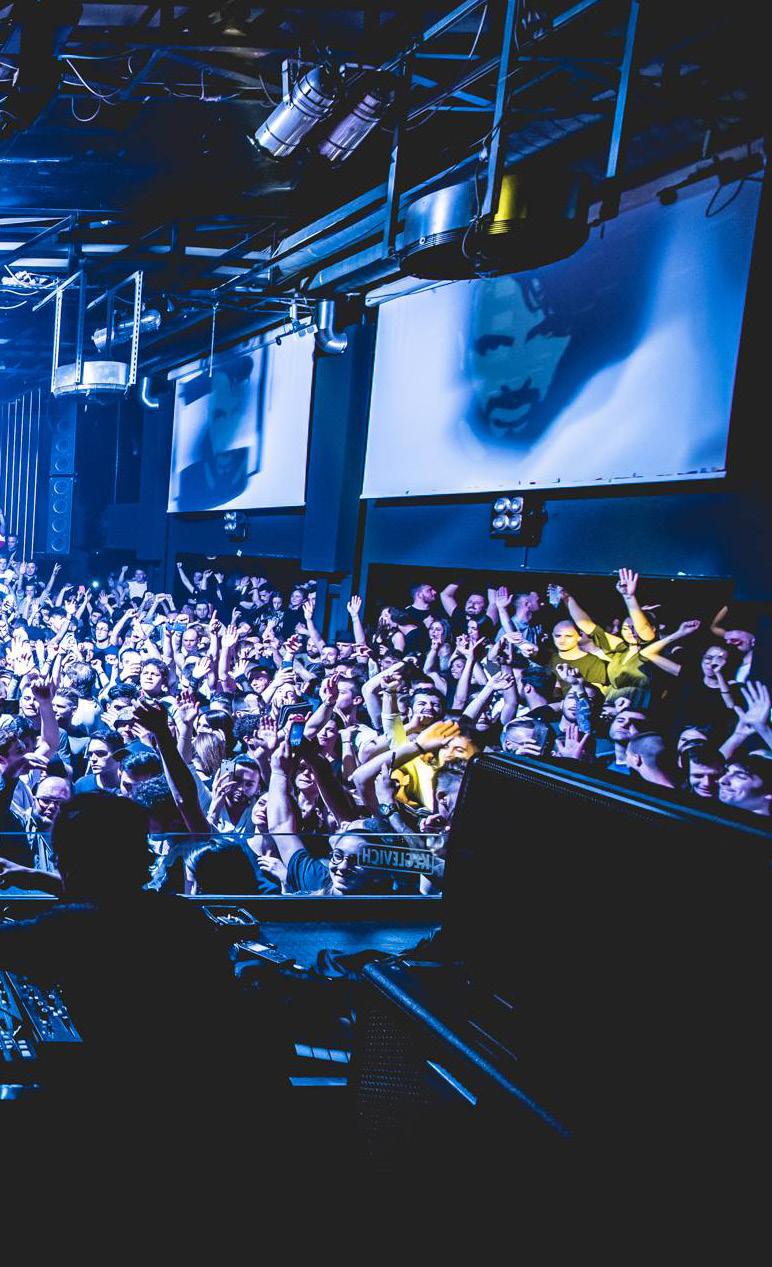

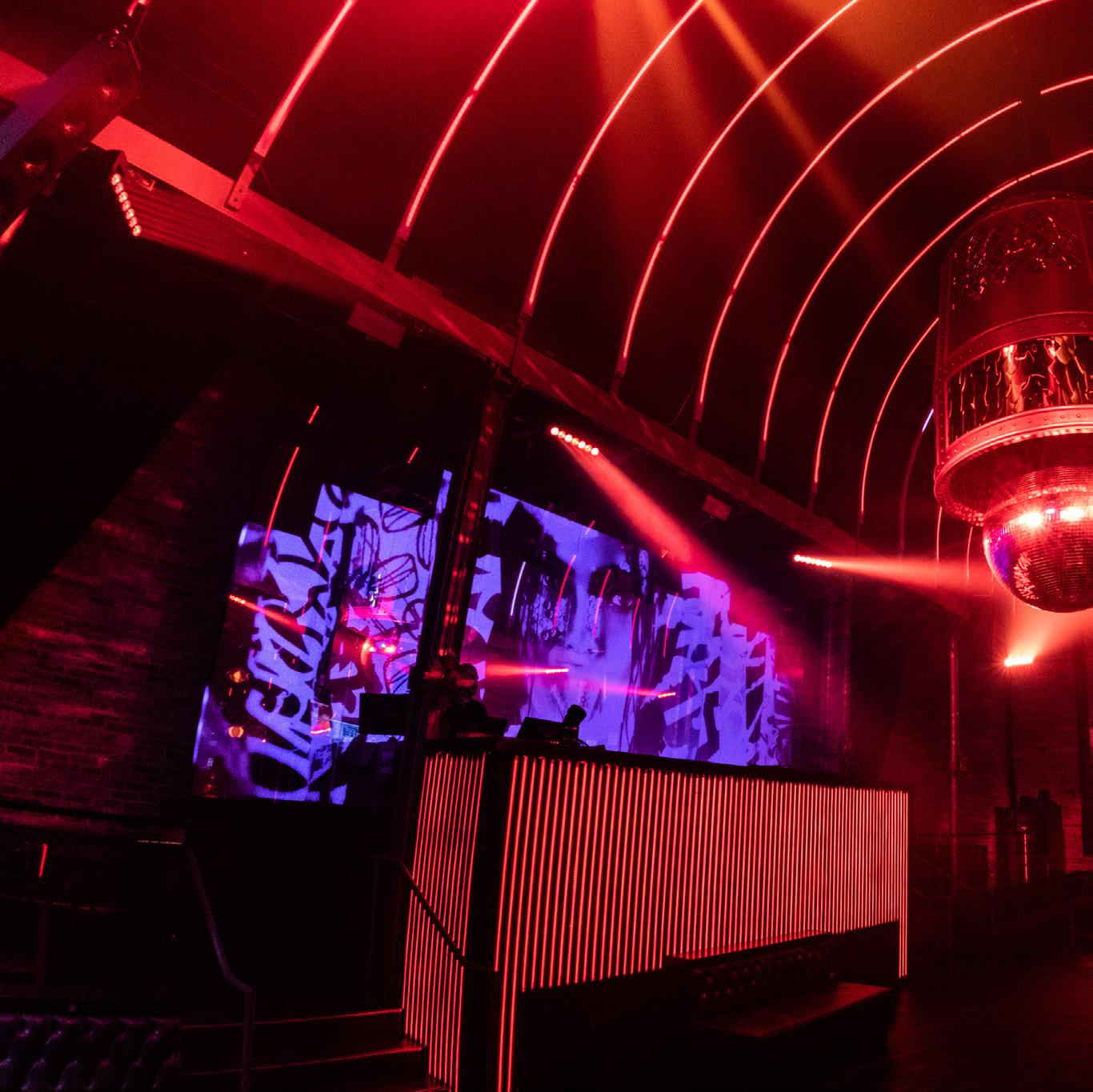

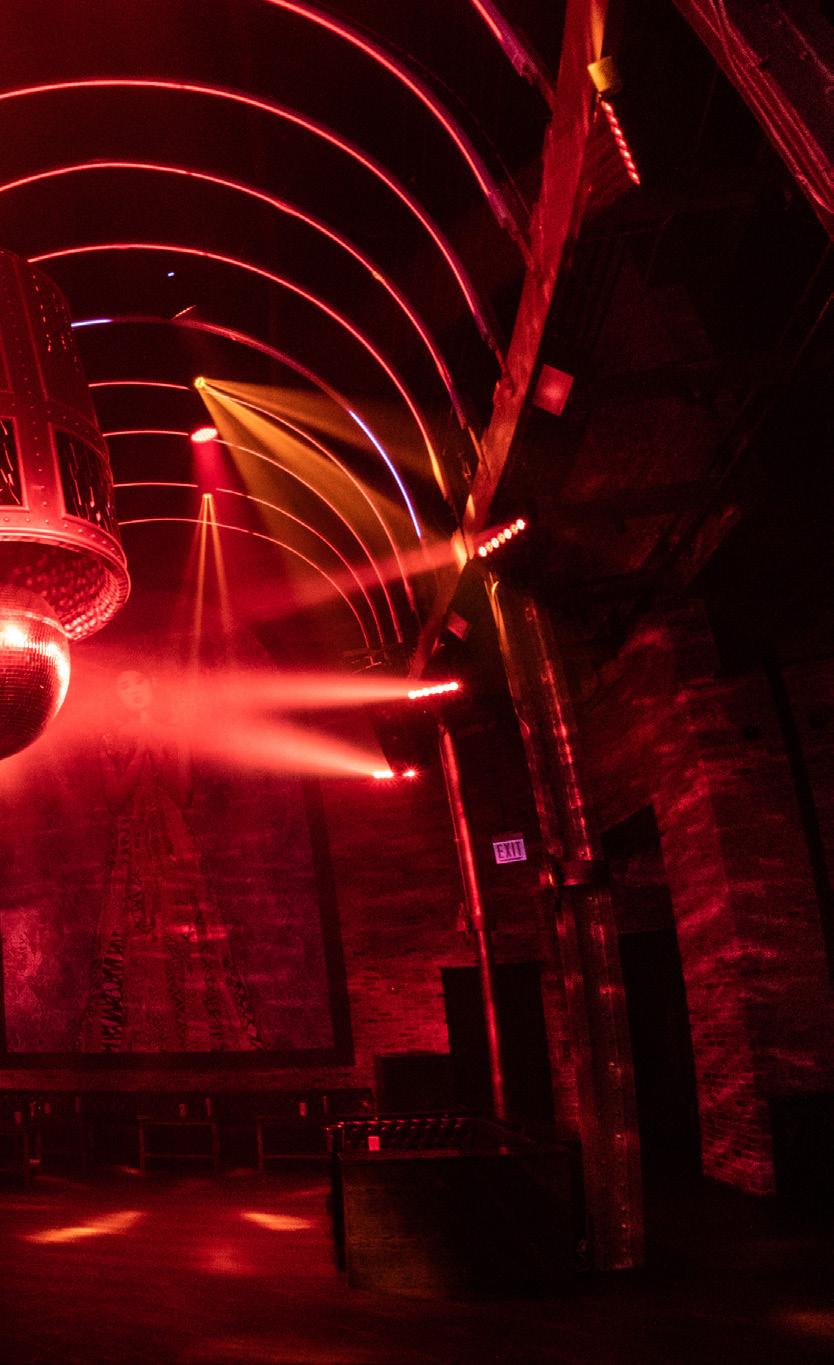

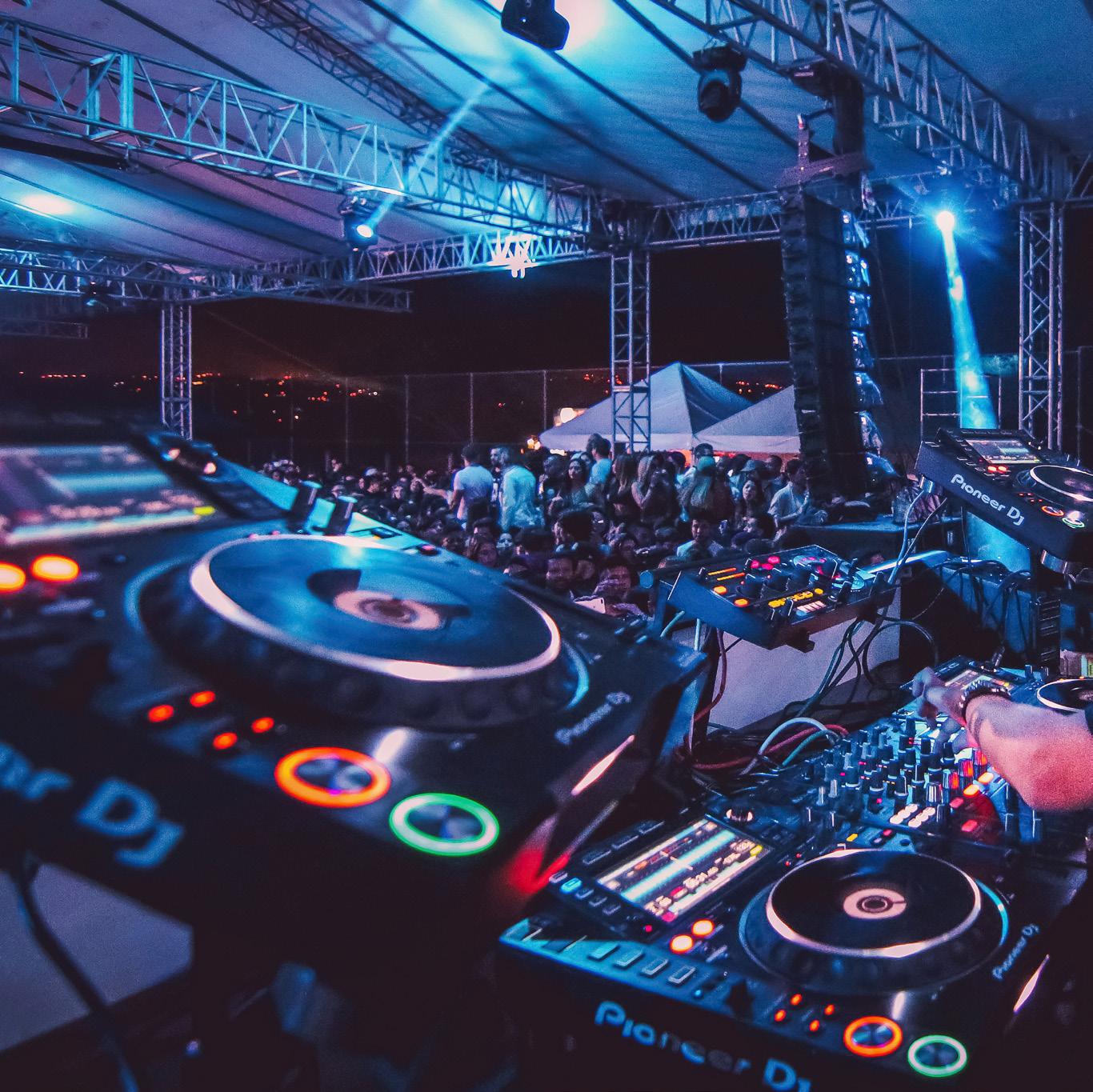

NIGHTCLUBS & LOUNGES Dance Floors Privè Areas DJ Booths Beach Clubs

P. 130

Audio-visual integration in the realms of

hospitality and leisure comprehends diverse applications that have common requirments while also calling for dedicated, custom tailored solutions.

These applications often include sound reinforcement for facilities such as restaurants, hotels, wellness or fitness centers, and day or nighttime entertainment attractions. We recognize the importance of specialized, enduring systems that seamlessly integrate, are effortlessly manageable, and boast a sleek, unobtrusive design.

This guide explores common challenges and unveils the

of unique and cutting-edge solutions with smarter, more

innovative solutions K-ARRAY provides. K-array adopts a

traditional options. While maintaining K-array’s high audio

unique approach, strengthened by seamless collaboration

quality standards, KGEAR offers system solutions that

with distinct brands including: KSCAPE, which integrates

are particularly valuable when budget considerations

light and sound into a single product for architectural

are paramount. These synergies equip integrators with

lighting installations. KGEAR extends K-array’s catalogue

comprehensive tools to address challenges effectively.

“ Our goal is to elevate the audio-visual experience across diverse sectors, turning obstacles into opportunities for a memorable guest experience through sound and light design

In the realm of hospitality and leisure, where

functionality

merges

with

finesse to craft visually appealing and acoustically excellent environments, the

integration

of

sophisticated

audio

systems

poses

a

unique

challenge. With K-array's innovative audio solutions, professionals in the Hospitality & Leisure industry can overcome these common challenges and create immersive, memorable experiences for their guests.

By carefully considering the unique needs of each space and harnessing K-array’s advanced technology, you can achieve a harmonious balance of aesthetics with functionality and exceptional sound quality.

Enhancing guest experiences through advanced audio solutions Perfect for Hospitality & Leisure applications, K-ARRAY’s solutions deliver sound reinforcement, noise control, and speech clarity.

Easy to set up with products that are appreciated by sound designers, architects, and tech installers.

Suitable for hotels, bars, fitness centres, cruise ships, and casinos, K-ARRAY’s technology offers exceptional sound and stunning design while setting the perfect atmosphere.

watch the animation

6

Optimising ambience with K-ARRAY’s Smart Audio Solutions For an unforgettable guest

and

experience, K-ARRAY’s audio

customizable, inconspicuous

solutions seamlessly blend

systems cater to a variety of

design

leisure spaces.

with

functionality,

sound

quality.

Their

Using Pure Array Technology, they provide even, consistent sound, perfect for creating the ideal ambience.

PURE ARRAY TECHNOLOGY

7

Combining audio coverage, engaging content and cost saving Multiroom audio control is essential for setting up

individual control of volume and content in each area,

separate audio zones in a property, offering customized

adapting the sound to specific preferences. You can

sound experiences for guests. With K-array intelligent

switch between various sources like streaming services

amplifiers and user-friendly interfaces, you can create

and music libraries, saving on equipment costs.

a smart and easy-to-use sound system. This allows for

37 mm 1,45 in

WI-FI

mm 22 6 in , 08

8

USB MULTIMEDIA PLAYER

ETHERNET

OPTICAL INPUT

OSC v. 1.7.8

RESISTING AGAINST SALT CORROSION

BEING WATER PROOF

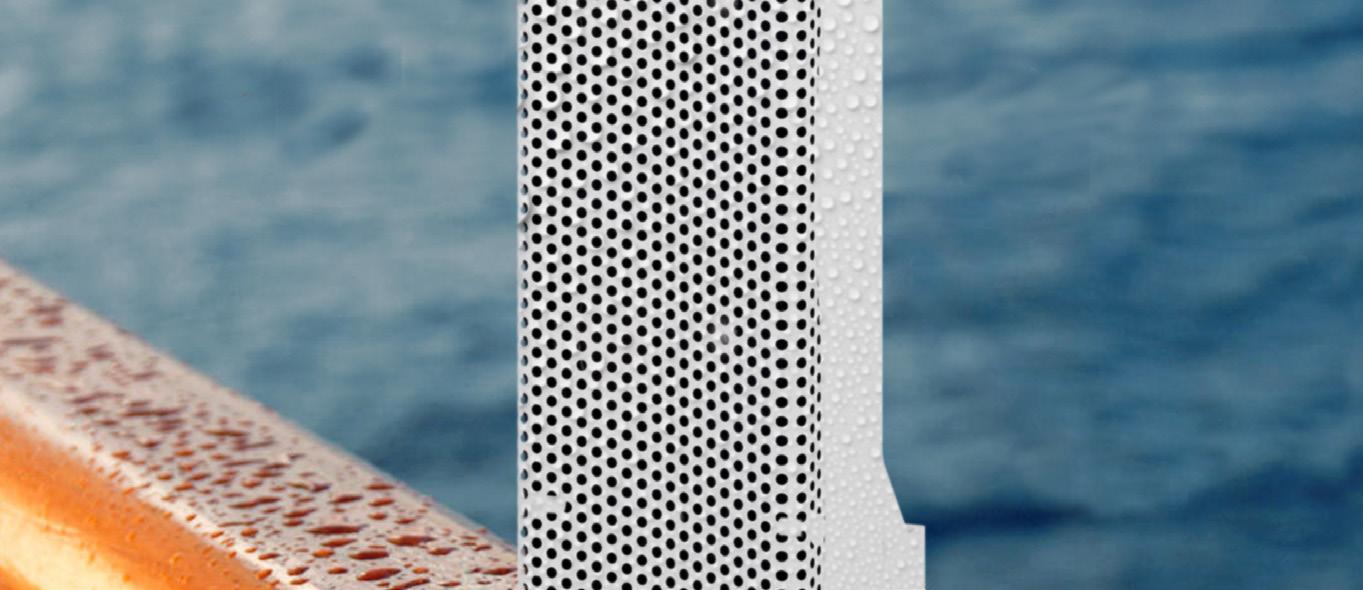

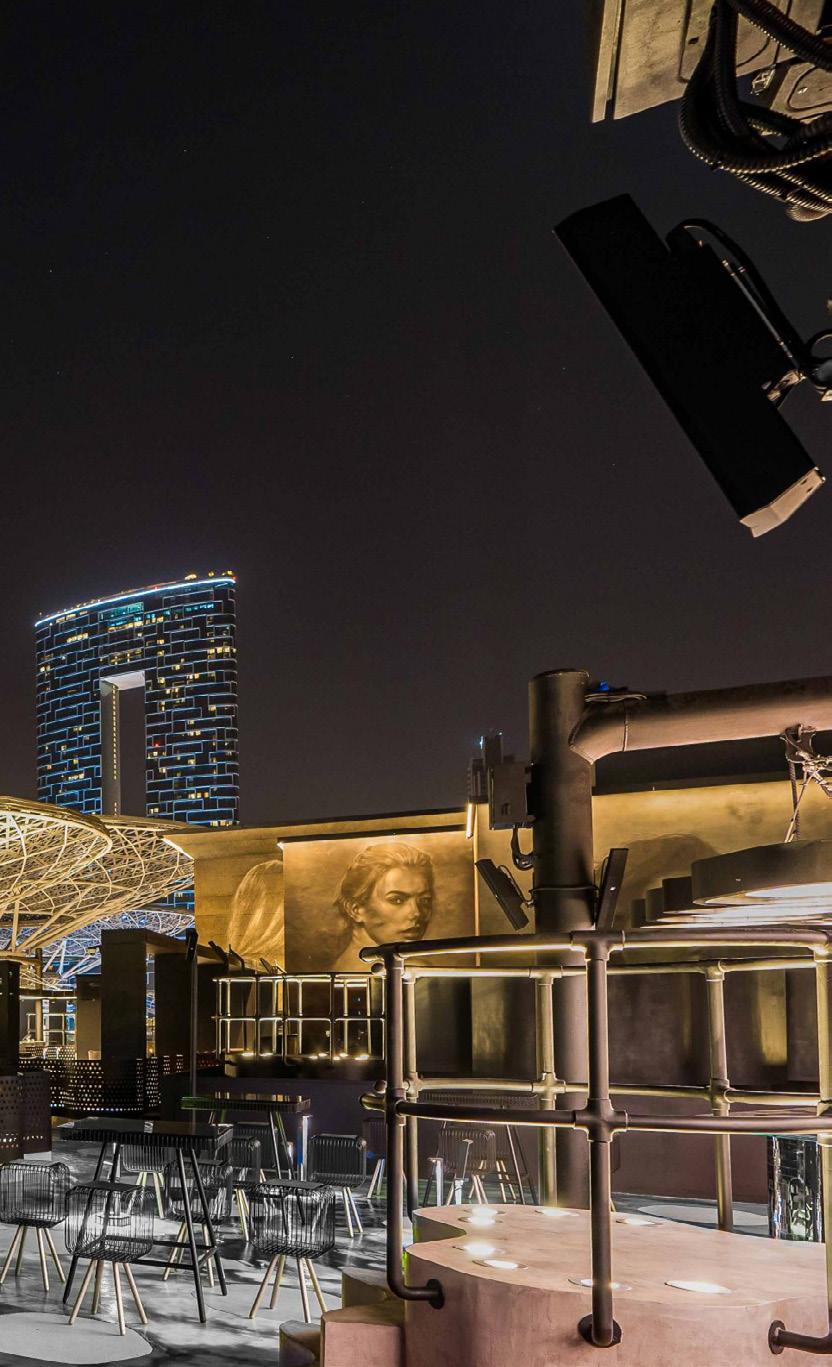

Durable audio options for outdoor & Marine space K-ARRAY’s durable audio solutions address the challenges

perfect for marine settings, minimizing waste from

of outdoor leisure spaces. Their compact, high-quality

replacements. K-ARRAY’s Pure Array Technology offers

loudspeakers ensure optimal coverage and longevity.

quality, directional sound, reducing audio spill and

Built with water and salt-resistant materials, their

outdoor noise pollution.

specifically treated loudspeakers and subwoofers are

9

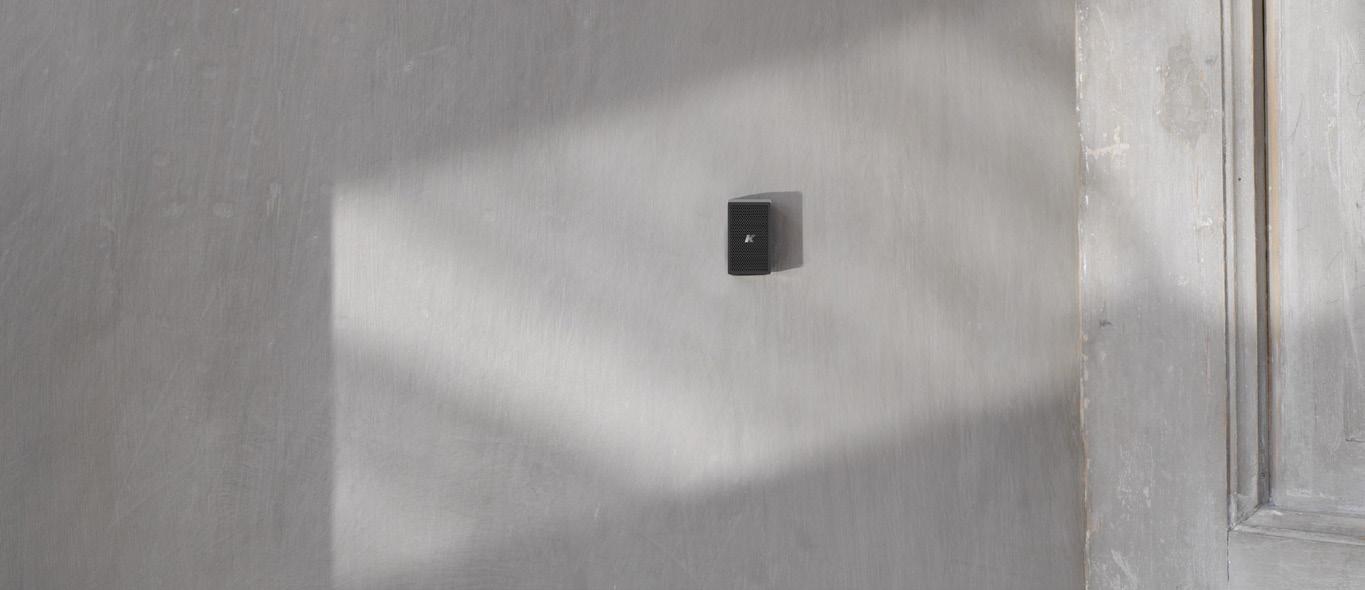

Elevate the Ambiance with Discreet and Customizable Audio Solutions

Integrating high-quality audio solutions while preserving the aesthetics of any space is crucial for creating exceptional experiences in the hospitality and leisure industry.

Discreet and customizable

mounting options, catering

audio

seamlessly

to hotels, restaurants and

blend elegantly into various

leisure facilities. Trust in the

environments,

enhancing

perfect balance of design and

without

sound to deliver immersive

most

systems

ambiance

compromising design.

and memorable experiences

Innovative technologies offer a

tailored

range of colors, finishes and

unique requirements.

10

to

your

guests’

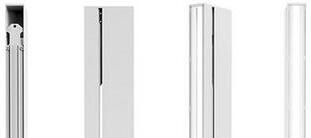

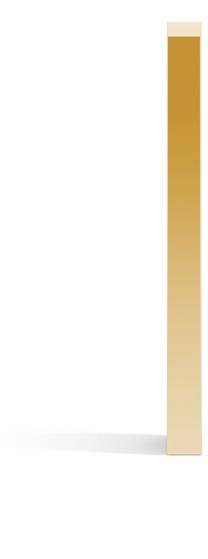

24K Gold

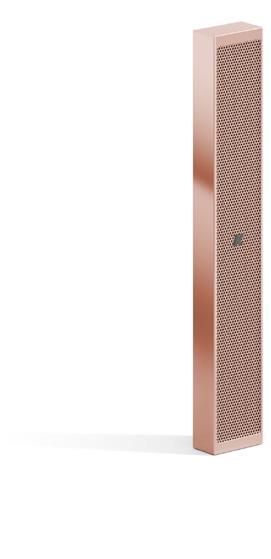

Rose Gold

Polished

Brushed

Installed Sound

Speakers

Portbale Systems

Subwoofers

Concert Series

Systems

Monitor

Amplifiers

Microphones

Earbuds

Software

Complete audio ecosystem

by K-ARRAY Group

K-ARRAY Group is revolutionizing the audio solution

needs. Emphasizing ease of control, we introduce the

landscape by offering an integrated ecosystem that

newly designed K-Control app. This innovative software

combines the strengths of K-ARRAY, KGEAR, and

features a customizable dashboard, allowing for tailored

KSCAPE. This holistic approach ensures a seamless user

user experiences per project. It is a testament to our

experience, from hardware to software, underlining our

dedication to user-friendly, accessible, and efficient

commitment to being a one-stop shop for diverse audio

control over audio setups.

11

Solution for challenging or existing installations Refitting audio equipment in hospitality and leisure settings can be challenging, especially when dealing with historic or listed buildings. K-ARRAY’s point-source loudspeakers simplify wiring and offer outstanding sound.

Communication and Sound Intelligibility

12

Clear communication is vital in

Buildings

hospitality for a positive guest

systems must comply with EN 54.

experience.

products

Choosing EN 54-24 compliant audio

optimize speech intelligibility from

equipment ensures adherence to

hotel announcements to fitness

industry regulations, providing a

classes.

secure environment.

K-ARRAY’s

needing

voice

alarm

13

Feel the Light Light significantly impacts our daily activities and how we perceive the spaces in which we live and work.

A proper lighting design allows for the creation of comfortable and aesthetically pleasing environments. Harmony between architectural spaces and lighting is crucial, and to achieve this, cutting-edge lighting products are required.

KSCAPE systems provide the perfect solution to this challenge, thanks to their wide range of mounting options, optics, and control systems. They enable the creation of integrated, engaging, and well-designed spaces.

14

Match the combination between the audio and the light technology KSCAPE

is

committed

to

and lighting is an engaging

creating integrated systems

and exciting challenge.

of

technologies,

The RAIL system allows for

customers,

the creation of an emotional

specifiers

and immersive environment

cutting-edge

with a single product in which

various

which

offer

integrators, unique

and

and

products.

sound and light coexist and

Creating a unified ecosystem

seamlessly integrate into the

between environmental audio

architectural space.

15

EcoSystem Application

ECOSYSTEM Application Wellness center installation This configuration shows an example of a wellness and fitness installation

18

EcoSystem | Application

19

20

Hotels & Resorts Receptions

21

RECEPTIONS Configuration 2 90 sq m (968 sq ft) speaker

22

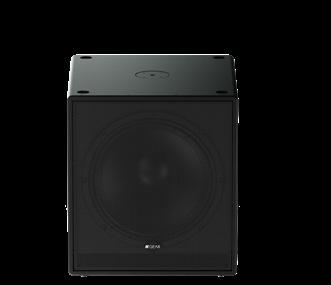

subwoofer

Vyper-KV52 II

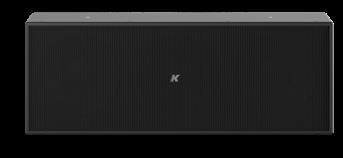

Rumble-KU26

Kommander-KA04 I

Speaker 40 x 500 x 22 mm 0,8 kg

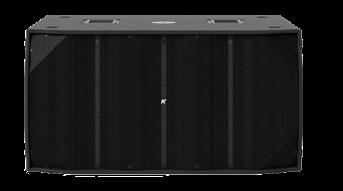

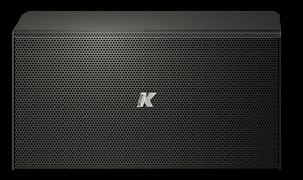

Subwoofer 350 x 180 x 118 mm 5,9 kg

Amplifier 1,2 kg 219 x 46 x 320 mm 4x 150W @ 4Ω

Hotels & Resorts | Receptions

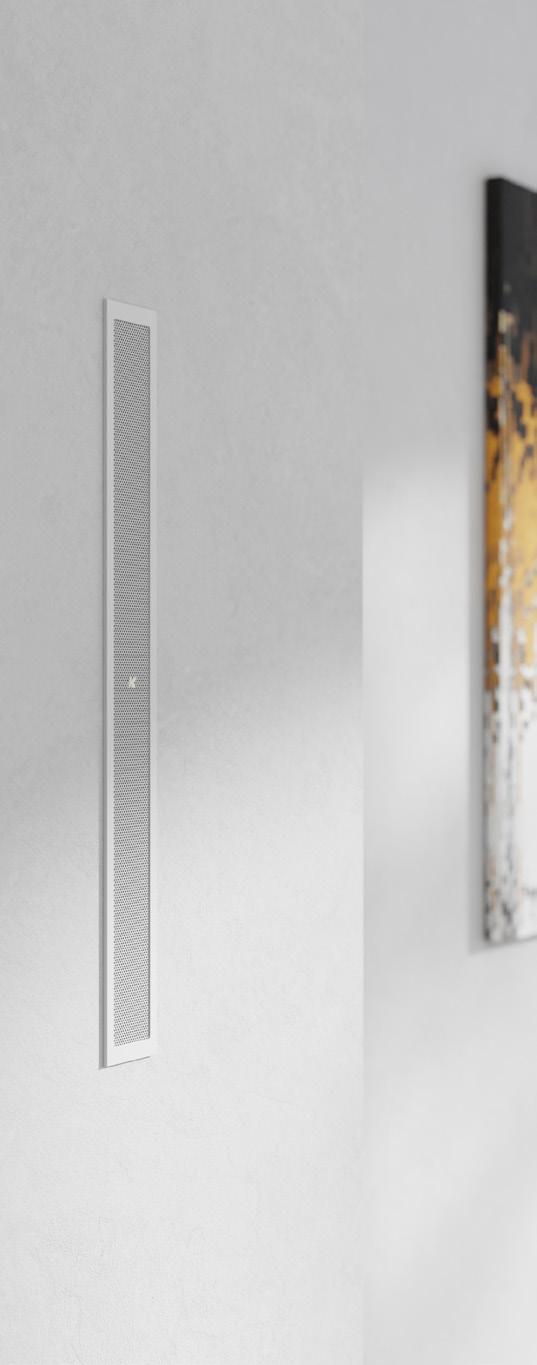

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

40 sq m (430 sq ft)

4x Vyper-KV25 II

2x Truffle-KTR25

1x Kommander-KA04 I

/

2

90 sq m (968 sq ft)

4x Vyper-KV52 II

2x Rumble-KU26

1x Kommander-KA04 I

/

3

180 sq m (1.937 sq ft)

4x Vyper-KV102 II

2x Rumble-KU210

1x Kommander-KA14 I

/

Music Use

23

RECEPTIONS Configuration 2 90 sq m (968 sq ft) speaker

24

subwoofer

GF82 I

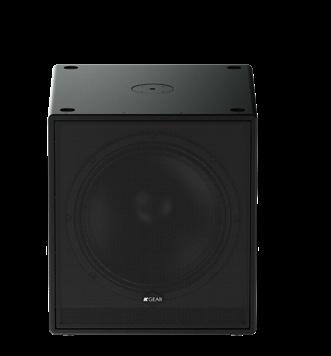

GU210

GA43

Speaker 60 x 600 x 65 mm 1,6 kg

Subwoofer 560 x 282 x 150 mm 12 kg

Amplifier 3,6 kg 145 x 90 x 418 mm 4x750 W @4Ω

Hotels & Resorts | Receptions

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

40 sq m (430 sq ft)

4x GF22

/

1x GA201

/

2

90 sq m (968 sq ft)

4x GF82 I

2x GU210

1x GA41

/

3

180 sq m (1.937 sq ft)

4x GF162 I

2x GU210

1x GA43

/

Music Use

25

RECEPTIONS Configuration 2 90 sq m (968sq ft) speaker

subwoofer

R120-SY-V-DI-B-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

26

light

RAIL configurator

Kommander-KA04 I Amplifier 1,2 kg 219 x 46 x 320 mm 4x 150W @ 4Ω

Hotels & Resorts | Receptions

SUSPENDED

Conf.

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

1

40 sq m (430 sq ft)

2x R120-SY-V-DI-B-AU

/

1x Kommander-KA04 I

2x RTB 2x PEN2-120 1x S-AL150-24

2

90 sq m (968 sq ft)

4x R120-SY-V-DI-B-AU

/

1x Kommander-KA04 I

2x RTB 4x PEN2-120 1x S-AL300-24

3

180 sq m (1.937 sq ft)

8x R120-SY-V-DI-B-AU

/

1x Kommander-KA04 I

4x RTB 8x PEN2-120 2x S-AL300-24

Music Use

27

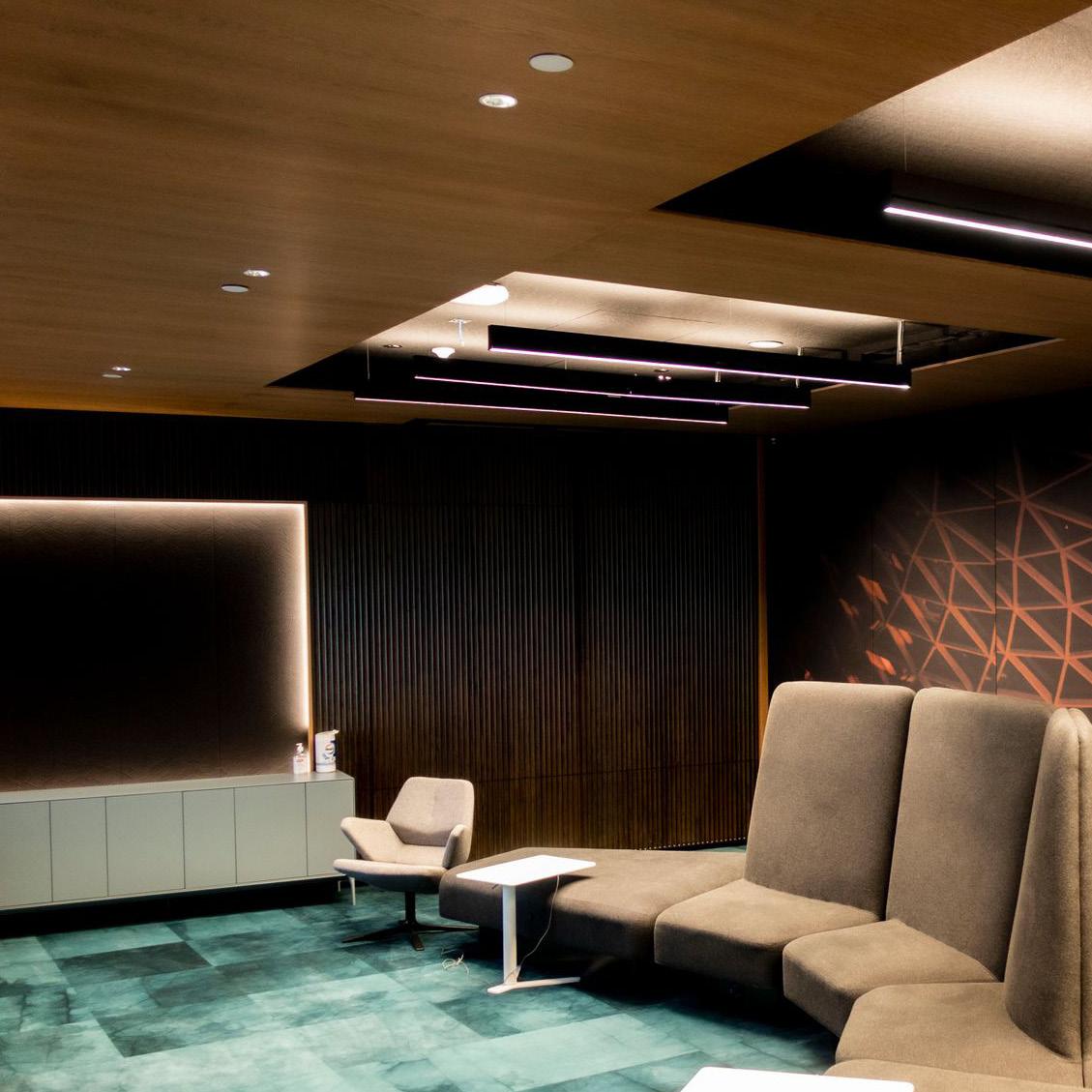

Hotels & Resorts Lobbies & Lounges

LOBBIES & LOUNGES Configuration 3 180 sq m (1.937 sq ft) speaker

30

subwoofer

Vyper-KV102 II

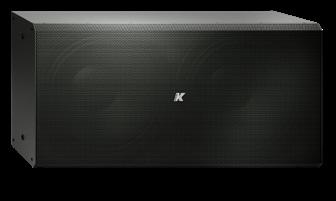

Rumble-KU210

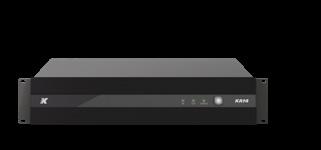

Kommander-KA14 I

Speaker 40 x 1000 x 22 mm 1,8 kg

Subwoofer 500 x 282 x 151 mm 11 kg

Amplifier 6 kg 430 x 87 x 430 mm 4x 600W @ 2Ω

Hotels & Resorts | Lobbies & Lounges

WALL MOUNTED

Conf.

Area

System

Accessories

40 sq m (430 sq ft)

1x Azimut-KAMUT2L I (2x Lizard-KZ14 I + 1x Rumble-KU44 I + 1x Kommander-KA02 I)

/

Area

Speakers

Subwoofers

Amplifiers

Accessories

2

90 sq m (968 sq ft)

4x Vyper-KV52 II

2x Rumble-KU26

1x Kommander-KA04 I

/

3

180 sq m (1.937 sq ft)

4x Vyper-KV102 II

2x Rumble-KU210

1x Kommander-KA14 I

/

1 Conf.

Music Use

Music Use

31

LOBBIES & LOUNGES Configuration 3 180 sq m (1.937 sq ft) speaker

32

subwoofer

GF162 I

GU210

GA43

Speaker 60 x 1204 x 66 mm 3,2 kg

Subwoofer 560 x 282 x 150 mm 11 kg

Amplifier 3,6 kg 145 x 90 x 418 mm 4x750 W @4 Ω

Hotels & Resorts | Lobbies & Lounges

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

40 sq m (430 sq ft)

4x GC5-RNW

/

1x GA201

/

2

90 sq m (968 sq ft)

4x GF42 I

2x GS6

1x GA41

/

3

180 sq m (1.937 sq ft)

4x GF162 I

2x GU210

1x GA43

/

Music Use

33

LOBBIES & LOUNGES Configuration 3 180 sq m (1.937 sq ft) speaker

subwoofer

R120-DF-D-DL-W-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

34

light

Configurator Rail

Kommander-KA14 I Amplifier 6 kg 430 x 87 x 430 mm 4x 600W @ 2Ω

Hotels & Resorts | Lobbies & Lounges

SUSPENDED

Conf.

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

1

40 sq m (430 sq ft)

6x R120-DF-D-DL-W-AU

/

1x Kommander-KA14 I

6x RTW 6x PEN2-120 1x S-AL300-24

2

90 sq m (968 sq ft)

14x R120-DF-D-DL-W-AU

/

1x Kommander-KA14 I

4x RTW 14x PEN2-120 2x S-AL300-24

3

180 sq m (1.937 sq ft)

24x R120-DF-D-DL-W-AU

/

1x Kommander-KA14 I

4x RTW 24x PEN2-120 4x S-AL300-24

Music Use

35

36

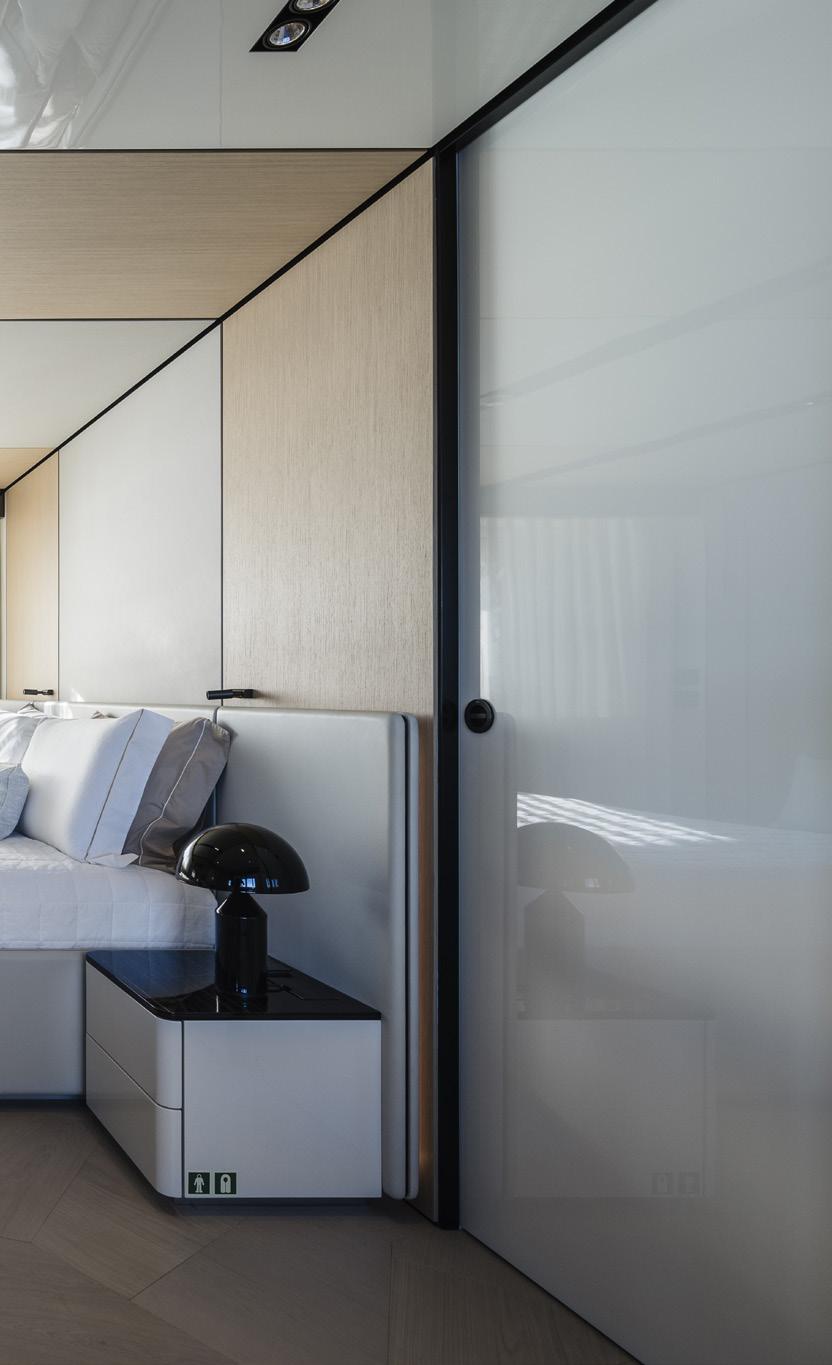

Hotels & Resorts Suites

37

SUITES Configuration 2.1 15 sq m (161 sq ft) speaker

subwoofer

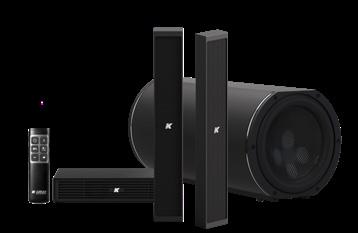

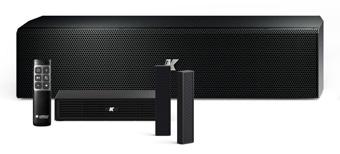

Azimut-KAMUT2L II System

38

Hotels & Resorts | Suites

WALL MOUNTED

Listening area: 15 sq m

Conf.

2.1

Area

System

Accessories

15 sq m (161 sq ft)

1x Azimut-KAMUT2L II (2x Lizard-KZ14 I + 1x Rumble-KU44 I + 1x Kommander-KA02 I)

/

Music Use

39

SUITES Configuration 2.1 15 sq m (161 sq ft) speaker

subwoofer

R120-EO-D-DL-B-NA Light 1190 x 35 x 92 mm 3 kg

40

RAIL configurator

SPOT-55-AL-B-C

Azimut-KAMUT2L II

Spot 55 x 416 mm 0,45 kg

System

Hotels & Resorts | Suites

CEILING

WALL MOUNTED

Listening area: 15 sq m

Conf.

2.1

Area 15 sq m (161 sq ft)

System

Accessories

1x Azimut-KAMUT2L II + 6x R120-EO-D-DL-B-NA + 12x SPOT-55-AL-B-C (2x Lizard-KZ14 I + 1x Rumble-KU44 I + 1x Kommander-KA02 I)

2x RTB 1x PLA1-120 5x PLA2-120 1x S-AL300-24

Music Use

41

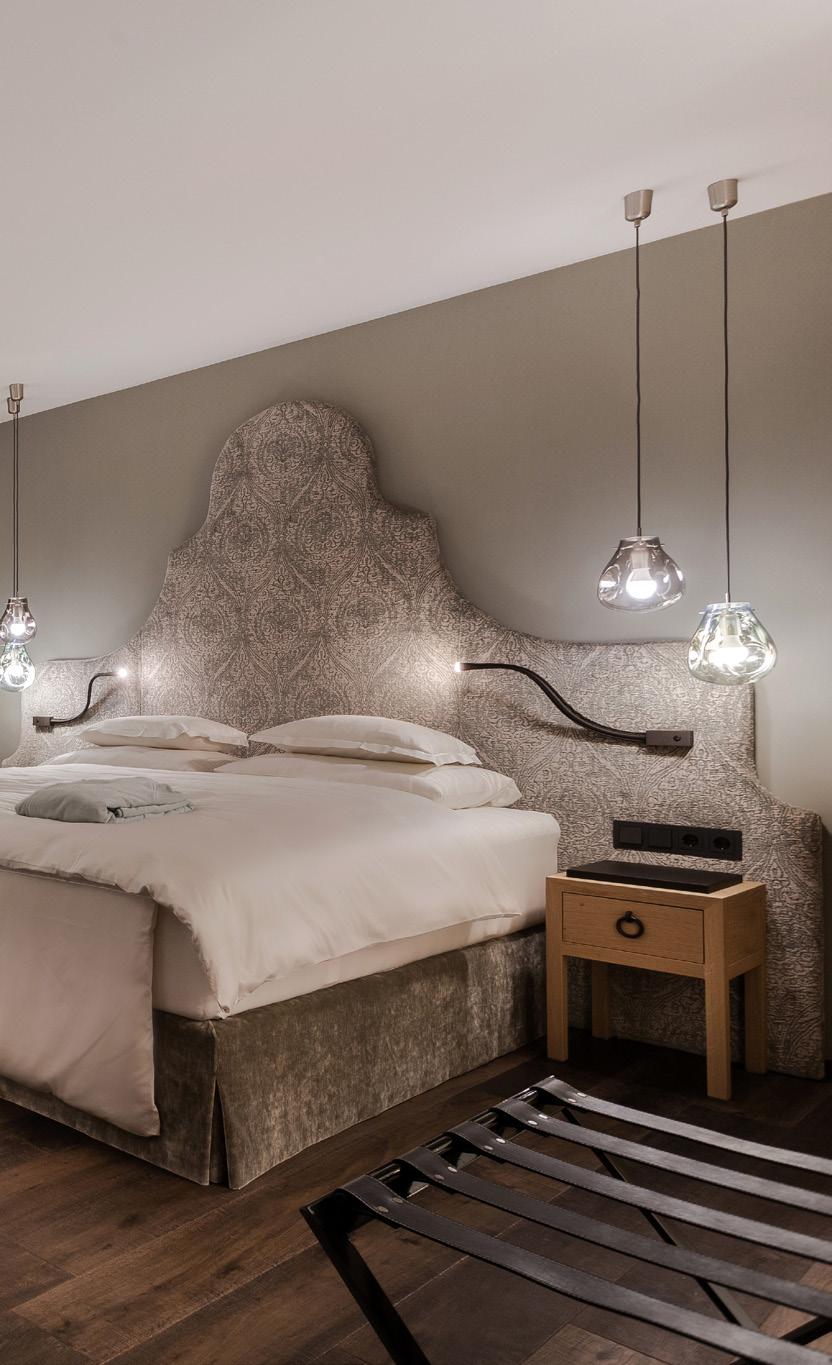

Hotels & Resorts Rooms

ROOMS Configuration 2.1 30 sq m (323 sq ft) speaker

subwoofer

Azimut-KAMUT2V25 II System

44

Hotels & Resorts | Rooms

WALL MOUNTED

The product configuration shown below represents only one of the two rooms featured in the image.

Conf.

Area

System

Accessories

2.1

15 sq m (161 sq ft)

1x Azimut-KAMUT2L II (2x Lizard-KZ14 I + 1x Rumble-KU44 I + 1x Kommander-KA02 I)

/

2.1

30 sq m (323 sq ft)

1x Azimut-KAMUT2V25 II (2x Vyper-KV25 II + 1x Truffle-KTR26 + 1x Kommander-KA02 I)

/

Music Use

45

ROOMS Configuration 2.1 30 sq m (323 sq ft) speaker

46

subwoofer

GF82 I

GU210

GA41

Speaker 60 x 600 x 65 mm 1,6 kg

Subwoofer 560 x 282 x 150 mm 11 kg

Amplifier 2,6 kg 145 x 90 x 418 mm 4x150 W @4 Ω

Hotels & Resorts | Rooms

WALL MOUNTED

The product configuration shown below represents only one of the two rooms featured in the image.

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

15 sq m (161 sq ft)

2x GF22

/

1x GA201

/

2

30 sq m (323 sq ft)

2x GF82 I

1x GU210

1x GA41

/

Music Use

47

ROOMS Configuration 1 15 sq m (161 sq ft) speaker

subwoofer

R120-AS-C-CX-W-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

48

light

RAIL configurator

Kommander-KA04 I Amplifier 1,2 kg 219 x 46 x 320 mm 4x 150W @ 4Ω

Hotels & Resorts | Rooms

WALL MOUNTED

The product configuration shown below represents only one of the two rooms featured in the image.

Conf.

1

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

15 sq m (161 sq ft)

2x R120-AS-C-CX-W-AU

/

1x Kommander-KA04 I

2x RTW 2x APP-120 1x S-AL300-24

Music Use

49

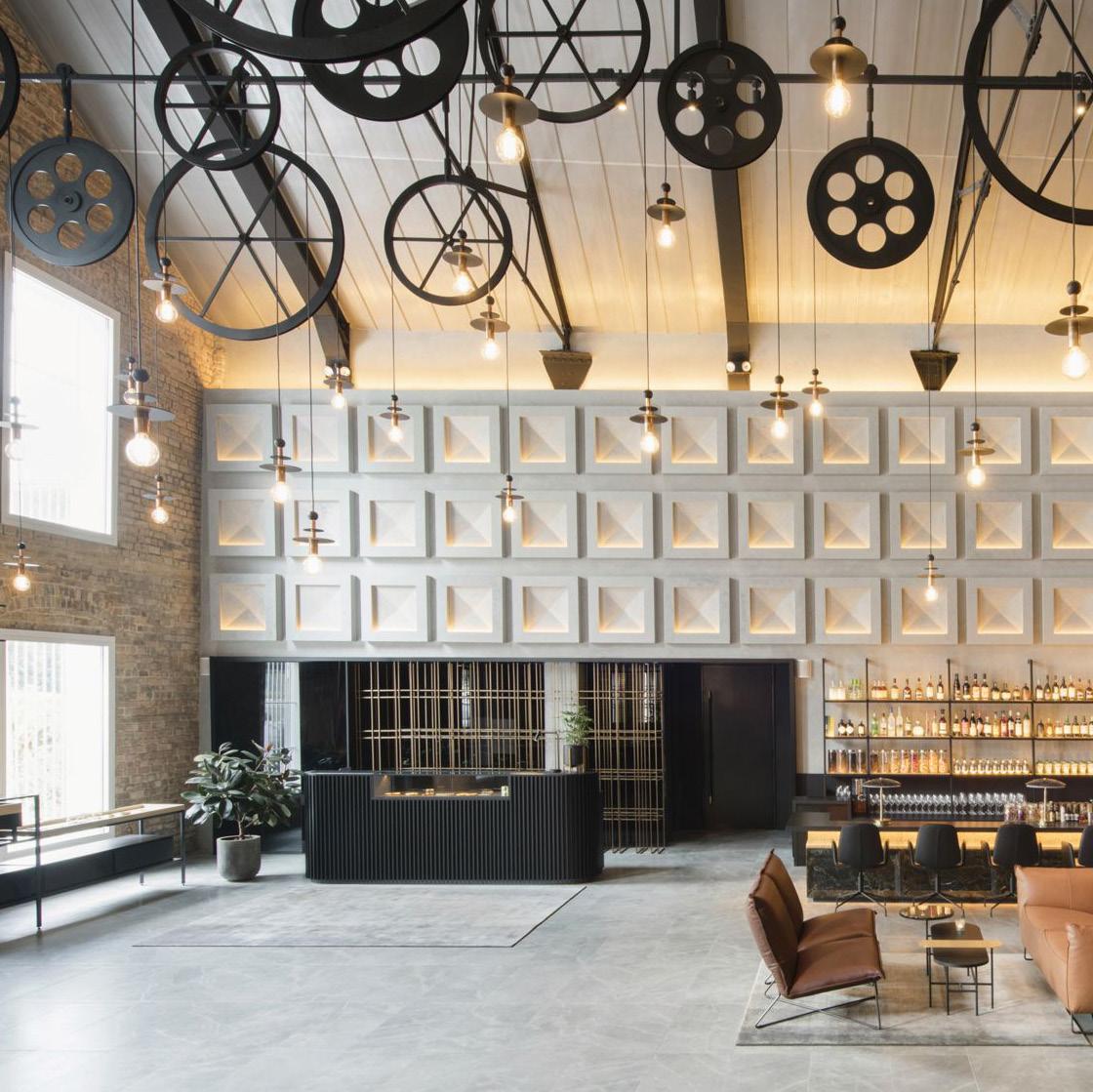

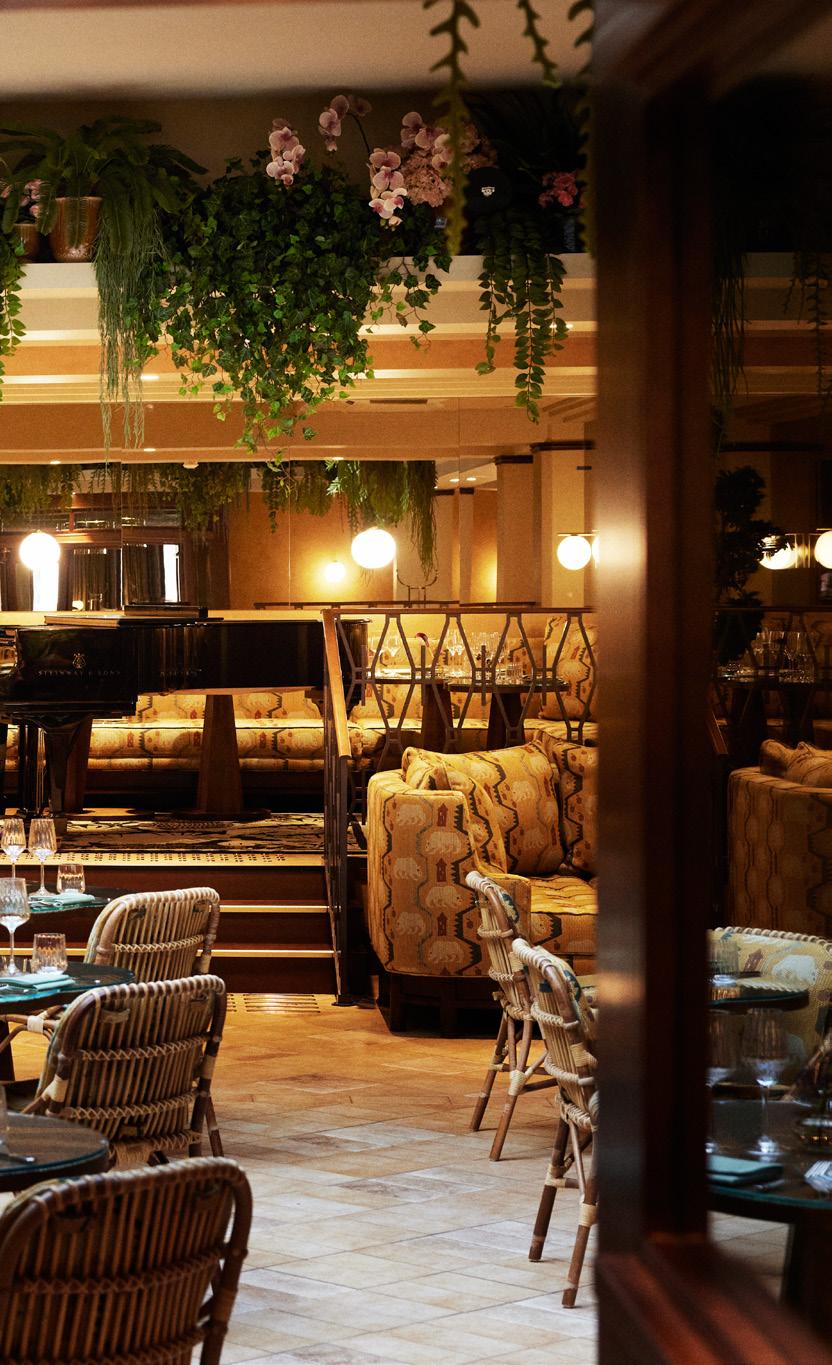

Restaurants & Cafes Restaurants

RESTAURANTS Configuration 3 250 sq m (2.691 sq ft) speaker

52

subwoofer

Vyper-KV102 II

Rumble-KU210

Kommander-KA14 I

Speaker 40 x 1000 x 22 mm 1,8 kg

Subwoofer 500 x 282 x 151 mm 11 kg

Amplifier 6 kg 430 x 87 x 430 mm 4x 600W @ 2Ω

Restaurants & Cafes | Restaurants

WALL MOUNTED

Conf.

Area

System

Accessories

60 sq m (645 sq ft)

1x Azimut-KAMUT2L 14 II (4x Lizard-KZ14 I + 1x Rumble-KU44 I + 1x Kommander-KA02 I)

/

Area

Speakers

Subwoofers

Amplifiers

Accessories

2

130 sq m (1.400 sq ft)

4x Vyper-KV52 II

4x Rumble-KU26

1x Kommander-KA14 I

/

3

250 sq m (2.691 sq ft)

4x Vyper-KV102 II

2x Rumble-KU210

1x Kommander-KA14 I

/

1 Conf.

Music Use

Music Use

53

RESTAURANTS Configuration 3 250 sq m (2.691 sq ft) speaker

54

subwoofer

GF162 I

GU210

GA43

Speaker 60 x 1204 x 66 mm 3,2 kg

Subwoofer 560 x 282 x 150 mm 11 kg

Amplifier 3,6 kg 145 x 90 x 418 mm 4x750 W @4 Ω

Restaurants & Cafes | Restaurants

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq. ft.)

4x GF22

1x GS6

1x GA201

/

2

130 sq m (1.400 sq ft)

3x GF82 I

2x GS6

1x GA41

/

3

250 sq m (2.691 sq ft)

4x GF162 I

2x GU210

1x GA43

/

Music Use

55

RESTAURANTS Configuration 3 250 sq m (2.691 sq ft) speaker

subwoofer

R120-EO-V-DL-B-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

56

light

RAIL configurator

SPOT-55-AL-B-C

Rumble-KU210

Kommander-KA28

Spot 55 x 416 mm 0,45 kg

Subwoofer 500 x 282 x 151 mm 11 kg

Amplifier 7,4 kg 430 x 87 x 430 mm 8 x 600W @ 2Ω

Restaurants & Cafes | Restaurants

SUSPENDED

Conf.

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

8x R120-EO-V-DL-B-AU 16x SPOT-55-AL-B-C

2x Rumble-KU44 I

1x Kommander-KA14 I

4x RTB 8x PEN2-120 2x S-AL200-24

2

130 sq m (1.400 sq ft)

15x R120-EO-V-DL-B-AU 30x SPOT-55-AL-B-C

4x Rumble-KU44 I

1x Kommander-KA28

12x RTB 15x PEN2-120 3x S-AL240-24

3

250 sq m (2.691 sq ft)

24x R120-EO-V-DL-B-AU 48x SPOT-55-AL-B-C

4x Rumble-KU210

1x Kommander-KA28

24x RTB 24x PEN2-120 6x S-AL200-24

Music Use

57

58

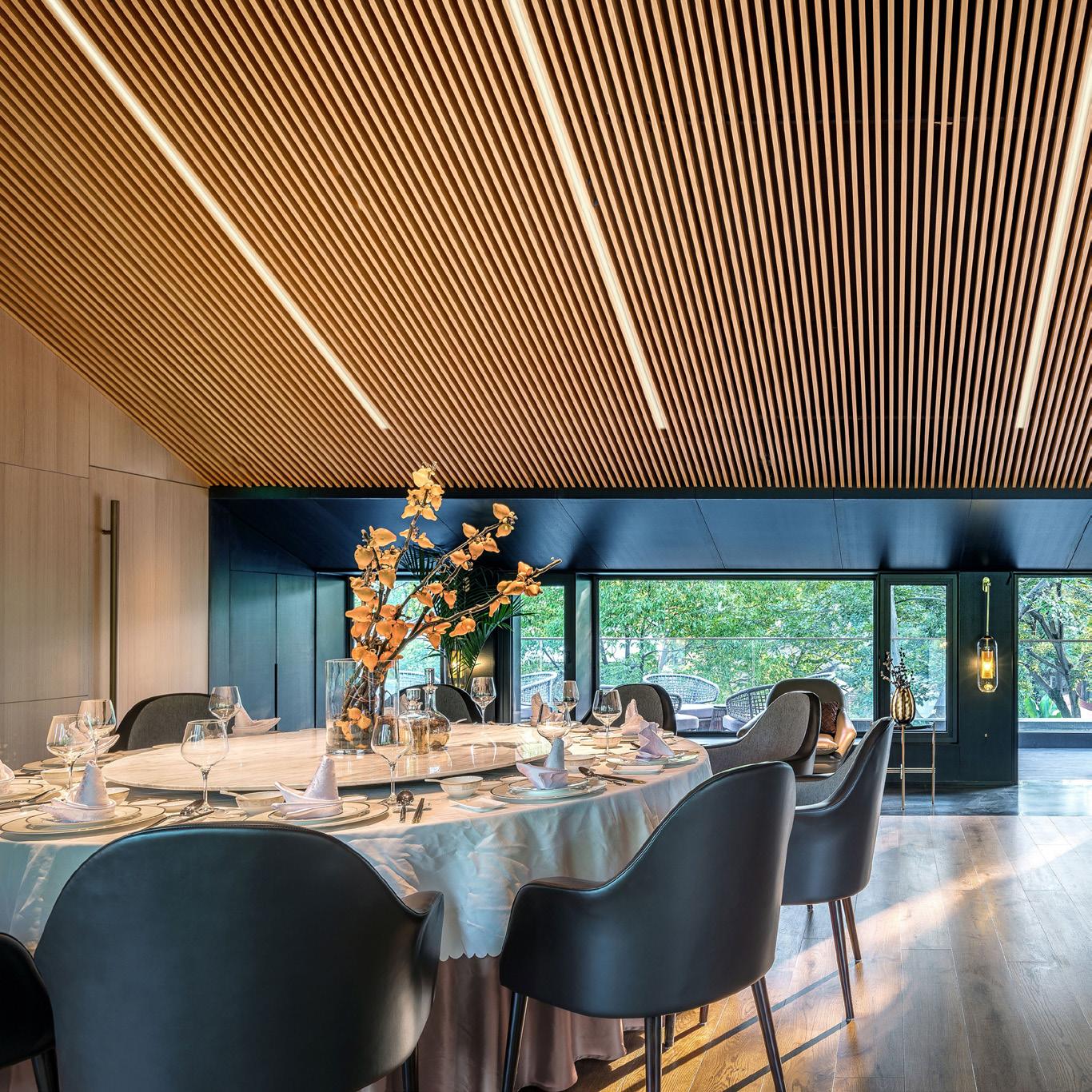

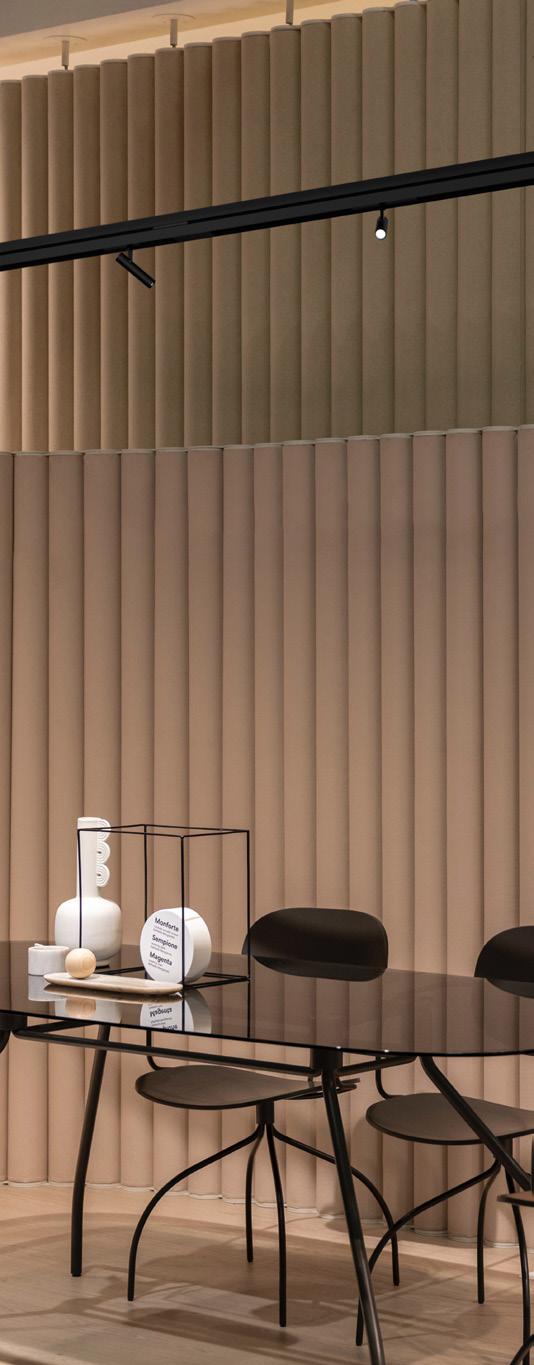

Restaurants & Cafes Dining Rooms

59

DINING ROOMS Configuration 2 300 sq m (3.229 sq ft) speaker

60

subwoofer

Kobra-KK102 I

Rumble-KU210

Kommander-KA68

Speaker 59 x 1000 x 81 mm 4,8 kg

Subwoofer 500 x 282 x 151 mm 11 kg

Amplifier 8,3 kg 430 x 87 x 430 mm 8x 750W @ 4Ω

Restaurants & Cafes | Dining Rooms

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

150 sq m (1.615 sq ft)

4x Vyper-KV102 II

4x Rumble-KU210

1x Kommander-KA68

4x K-WALL2L

2

300 sq m (3.229 sq ft)

8x Kobra-KK102 I

6x Rumble-KU210

1x Kommander-KA68

8x K-WALL2L

Music Use

61

DINING ROOMS Configuration 2 300 sq m (3.220 sq ft) speaker

subwoofer

Kommander-KA14 I Amplifier 6 kg 430 x 87 x 430 mm 4x 600W @ 2Ω

62

GF162 I

GF22

GU210

Kommander-KA68

Speaker 60 x 1204 x 66 mm 3,2 kg

Speaker 60 x 590 x 72 mm 1,3 kg

Subwoofer 560 x 282 x 150 mm 11 kg

Amplifier 8,3 kg 430 x 87 x 430 mm 8x 750W @ 4Ω

Restaurants & Cafes | Dining Rooms

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

150 sq m (1.615 sq ft)

4x GF162 I 4x GF22

4x GU210

1x Kommander-KA68

/

2

300 sq m (3.229 sq ft)

8x GF162 I 6x GF22

6x GU210

1x Kommander-KA68 1x Kommander-KA14 I

/

Music Use

63

DINING ROOMS Configuration 2 300 sq m (3.229 sq ft) speaker

subwoofer

R120-DF-D-DL-W-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

64

Configurator Rail

Rumble-KU210

Kommander-KA28

Subwoofer 500 x 282 x 151 mm 11 kg

Amplifier 7,4 kg 430 x 87 x 430 mm 8 x 600W @ 2Ω

Restaurants & Cafes | Dining Rooms

SUSPENDED

Conf.

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

1

150 sq m (1.615 sq ft)

21x R120-DF-D-DI-W-AU

4x Rumble-KU210

1x Kommander-KA14 I

6x RTW 21x PEN1-120 6x S-AL300-24

2

300 sq m (3.229 sq ft)

36x R120-DF-D-DI-W-AU

6x Rumble-KU210

1x Kommander-KA28

6x RTW 36x PEN2-120 9x S-AL300-24

Music Use

65

Restaurants & Cafes Cafes

CAFES Configuration 2 60 sq m (645 sq ft) speaker

68

subwoofer

Tornado-KT2

Rumble-KU26

Kommander-KA04 I

Speaker 74 x 74 x 118 mm 0,6 kg

Subwoofer 350 x 180 x 118 mm 5,9 kg

Amplifier 1,2 kg 219 x 46 x 320 mm 4x 150W @ 4Ω

Restaurants & Cafes | Cafes

WALL MOUNTED

Conf.

Area

System

Accessories

30 sq m (322 sq ft)

1x Azimut-KAMUT2L 14 II (4x Lizard-KZ14 I + 1x Rumble-KU44 I + 1x Kommander-KA02 I)

/

Area

Speakers

Subwoofers

Amplifiers

Accessories

2

60 sq m (645 sq ft)

4x Tornado-KT2

1x Rumble-KU26

1x Kommander-KA04 I

/

3

90 sq m (968 sq ft)

6x Tornado-KT2

2x Rumble-KU26

1x Kommander-KA04 I

/

1 Conf.

Music Use

Music Use

69

CAFES Configuration 2 60 sq m (645 sq ft) speaker

70

subwoofer

GF22

GS6

GA201

Speaker 60 x 590 x 72 mm 1,3 kg

Subwoofer 170 x 310 x 151 mm 3,2 kg

Amplifier 1 kg 72 x 43 x 134 mm 2x125W @2Ω

Restaurants & Cafes | Cafes

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

30 sq m (322 sq. ft.)

2x GC6-RNW

/

1x GA201

/

2

60 sq m (645 sq ft)

4x GF22

2x GS6

1x GA201

/

3

90 sq m (968 sq ft)

6x GF22

2x GS6

1x GA201

/

Music Use

71

CAFES Configuration 2 60 sq m (645 sq ft) speaker

subwoofer

R120-DF-C-DL-W-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

72

light

RAIL configurator

Rumble-KU26

Kommander-KA14 I

Subwoofer 350 x 180 x 118 mm 5,9 kg

Amplifier 6 kg 430 x 87 x 430 mm 4x 600W @ 2Ω

Restaurants & Cafes | Cafes

SEMI-RECESSED

Conf.

Area

Audio & Lights

Subwoofers

Amplifiers

1

30 sq m (322 sq ft)

6x R120-DF-C-DL-W-AU

1x Rumble-KU44 I

1x Kommander-KA14 I

2

60 sq m (645 sq ft)

8x R120-DF-C-DL-W-AU

1x Rumble-KU26

1x Kommander-KA14 I

3

90 sq m (968 sq ft)

12x R120-DF-C-DL-W-AU

2x Rumble-KU26

1x Kommander-KA14 I

Accessories

Music Use

4x RTW 4x HS-SF-ED-120-W 2x HS-SF-MI-120-W 2x S-AL150-24 4x RTW 4x HS-SF-ED-120-W 4x HS-SF-MI-120-W 2x S-AL200-24 4x RTW 4x HS-SF-ED-120-W 8x HS-SF-MI-120-W 4x S-AL300-24

73

74

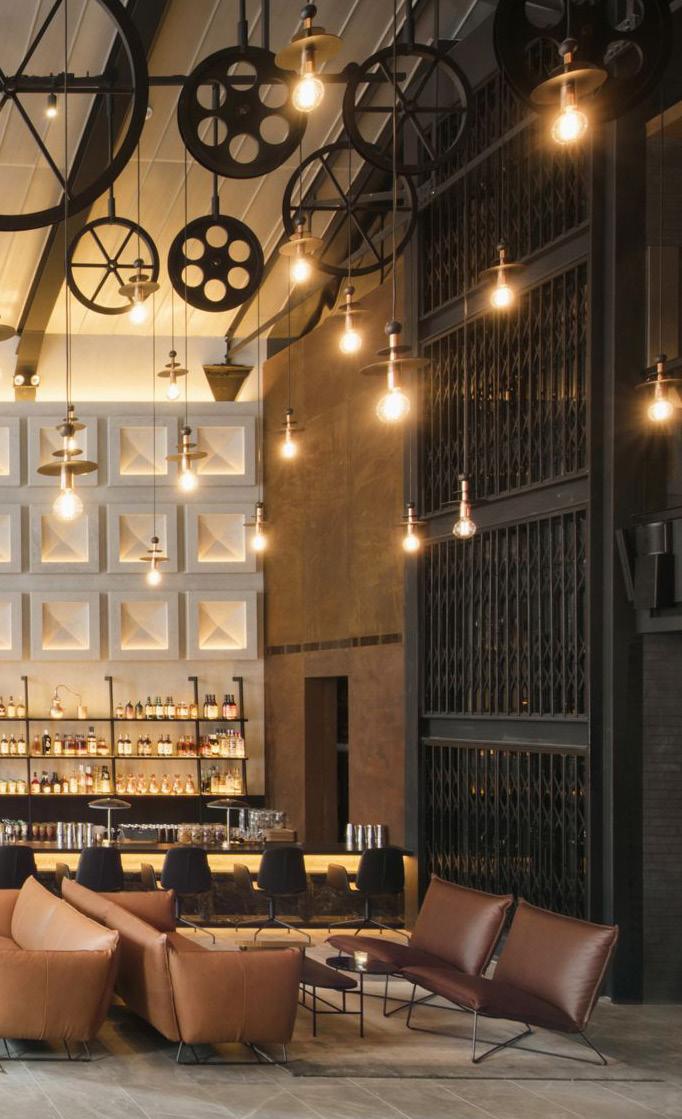

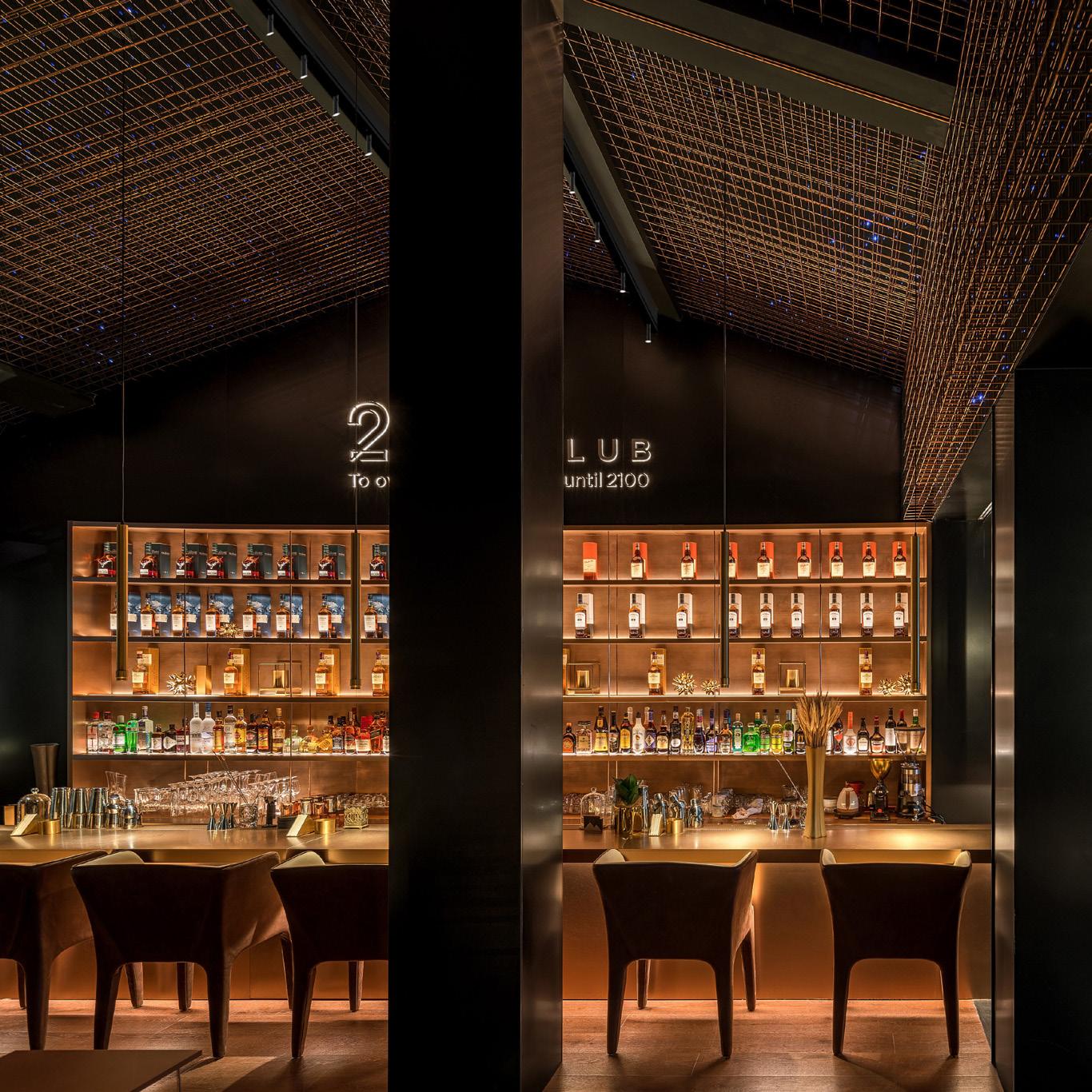

Restaurants & Cafes Bars

75

BARS Configuration 2 120 sq m (1.291 sq ft) speaker

76

subwoofer

Kobra-KK52 I

Rumble-KU212

Kommander-KA34

Speaker 59 x 497 x 81 mm 2,3 kg

Subwoofer 655 x 282 x 151 mm 18,5 kg

Amplifier 7 kg 430 x 87 x 430 mm 4 x 750W @ 4Ω

Restaurants & Cafes | Bars

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

4x Vyper-KV52 II

2x Rumble-KU210

1x Kommander-KA14 I

/

2

120 sq m (1.291 sq ft)

4x Kobra-KK52 I

2x Rumble-KU212

1x Kommander-KA34

4x K-WALL2L

3

180 sq m (1.937 sq ft)

6x Kobra-KK52 I

4x Rumble-KU212

1x Kommander-KA168

6x K-WALL2L

Music Use

77

BARS Configuration 2 120 sq m (1.291 sq ft) speaker

78

subwoofer

GH4

GS2

GA46

Speaker 112 x 112 x 94 mm 1,2 kg

Subwoofer 546 x 610 x 590 mm 32,7 kg

Amplifier 3,8 kg 145 x 90 x 418 mm 4x1500 W @4 Ω

Restaurants & Cafes | Bars

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

4x GF82 I

2x GU210

1x GA43

/

2

120 sq m (1.291 sq ft)

8x GH4

2x GS2

1x GA46

/

3

180 sq m (1.937 sq ft)

12x GH4

4x GS2

2x GA46

/

Music Use

79

BARS Configuration 2 120 sq m (1.291 sq ft) speaker

subwoofer

R120-DF-C-DL-W-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

80

light

RAIL configurator

Rumble-KU26

Kommander-KA14 I

Subwoofer 350 x 180 x 118 mm 5,9 kg

Amplifier 6 kg 430 x 87 x 430 mm 4x 600W @ 2Ω

Restaurants & Cafes | Bars

SUSPENDED

Conf.

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

7x R120-DF-C-DL-W-AU

2x Rumble-KU26

1x Kommander-KA14 I

10x RTW 7x PEN2-120 3x S-AL150-24

2

120 sq m (1.291 sq ft)

12x R120-DF-C-DL-W-AU

2x Rumble-KU26

1x Kommander-KA14 I

16x RTW 12x PEN2-120 4x S-AL150-24

3

180 sq m (1.937 sq ft)

22x R120-DF-C-DL-W-AU

4x Rumble-KU26

1x Kommander-KA14 I

28x RTW 22x PEN2-120 4x S-AL300-24

Music Use

81

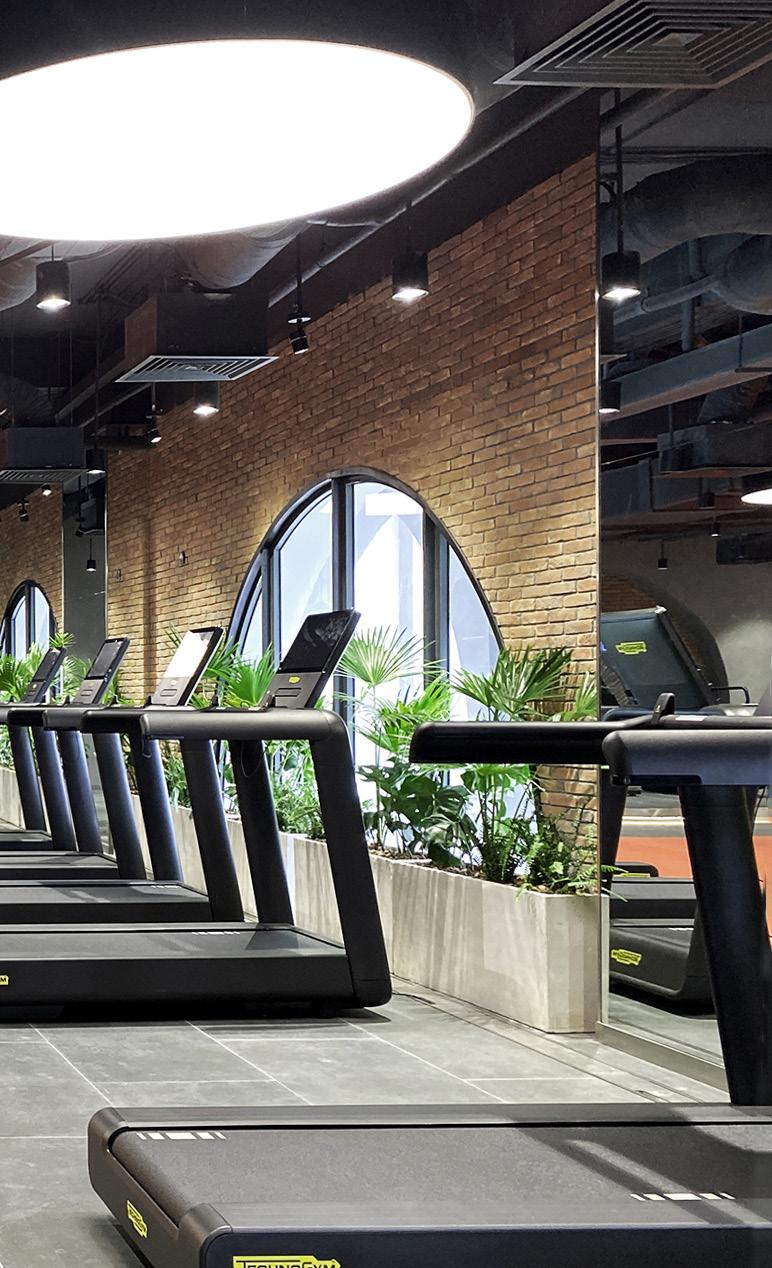

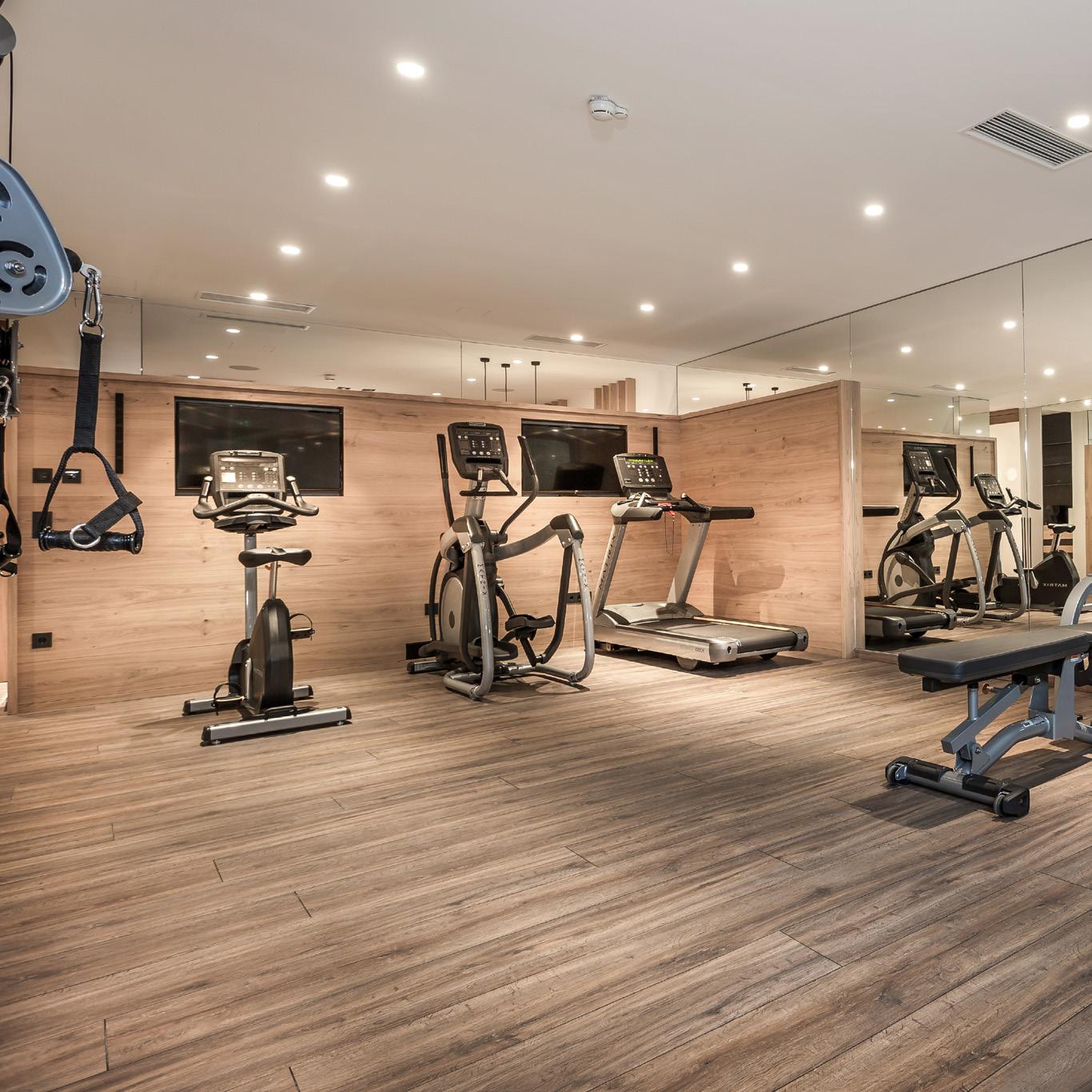

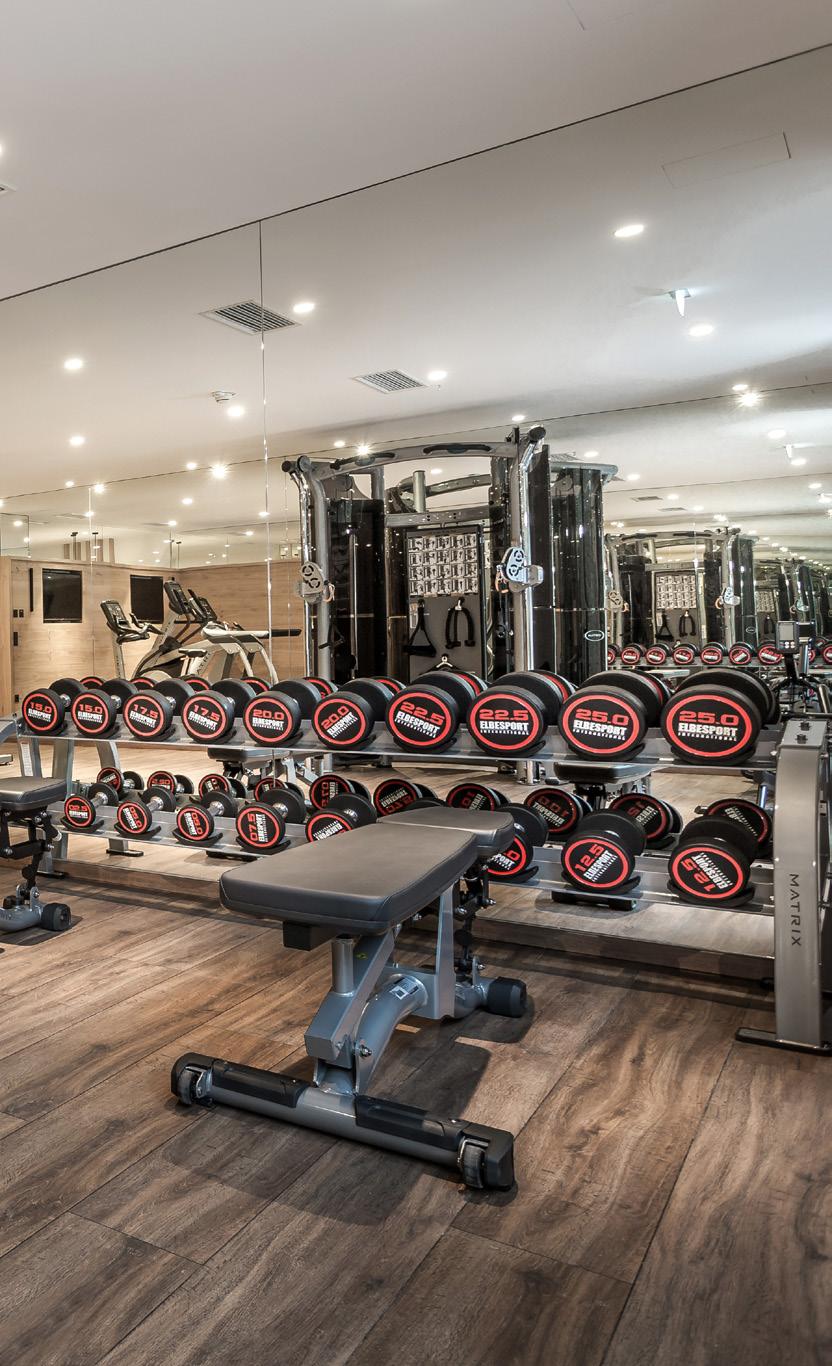

Fitness & Wellness Waiting Areas

WAITING AREAS Configuration 2 80 sq m (861 sq ft) speaker

84

subwoofer

Vyper-KV52 II

Rumble-KU26

Kommander-KA04 I

Speaker 40 x 500 x 22 mm 0,8 kg

Subwoofer 350 x 180 x 118 mm 5,9 kg

Amplifier 1,2 kg 219 x 46 x 320 mm 4x 150W @ 4Ω

Fitness & Wellness | Waiting Areas

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

40 sq m (430 sq ft)

4x Vyper-KV25 II

2x Truffle-KTR25

1x Kommander-KA04 I

/

2

80 sq m (861 sq ft)

4x Vyper-KV52 II

2x Rumble-KU26

1x Kommander-KA04 I

/

Music Use

85

WAITING AREAS Configuration 2 80 sq m (861 sq ft) speaker

86

subwoofer

GF82 I

GU210

GA43

Speaker 60 x 600 x 65 mm 1,6 kg

Subwoofer 560 x 282 x 150 mm 12 kg

Amplifier 3,6 kg 145 x 90 x 418 mm 4x750 W @4Ω

Fitness & Wellness | Waiting Areas

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

40 sq m (430 sq ft)

4x GF22

/

1x GA201

/

2

80 sq m (861 sq ft)

4x GF82 I

2x GU210

1x GA41

/

Music Use

87

WAITING AREAS Configuration 2 80 sq m (861 sq ft) speaker

subwoofer

R120-DF-C-CL-W-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

88

light

RAIL configurator

Kommander-KA04 I Amplifier 1,2 kg 219 x 46 x 320 mm 4x 150W @ 4Ω

Fitness & Wellness | Waiting Areas

RECESSED

Conf.

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

1

40 sq m (430 sq ft)

8x R120-DF-C-CL-W-AU

/

1x Kommander-KA04 I

8x RTW 8x HS-FL-ED-120-W 2x S-AL200-24

2

80 sq m (861 sq ft)

1x Kommander-KA04 I

6x RTW 6x HS-FL-ED-120-W 9x HS-FL-MI-120-W 3x S-AL240-24

15x R120-DF-C-CL-W-AU

/

Music Use

89

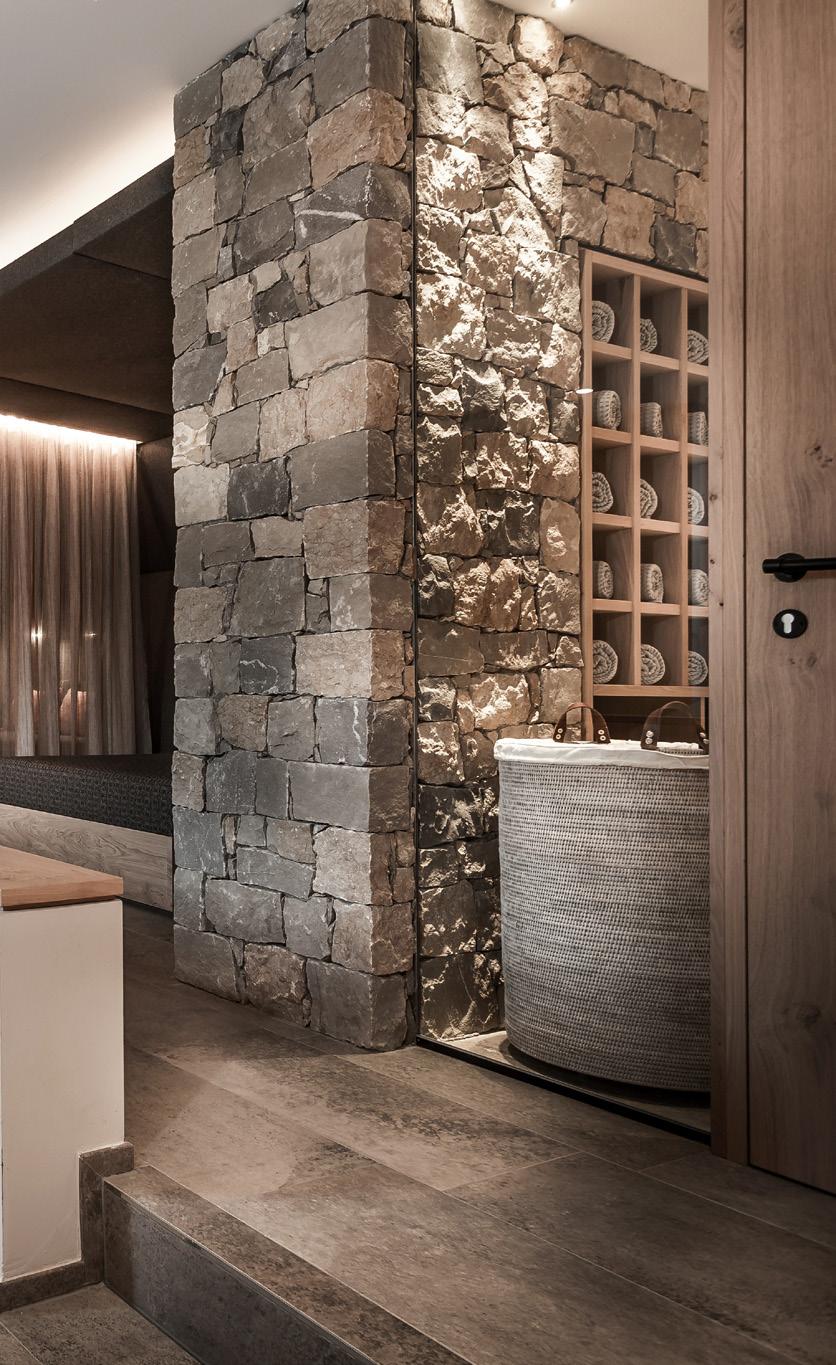

Fitness & Wellness Wellness Areas

WELLNESS AREAS Configuration 2 60 sq m (646 sq ft) speaker

subwoofer

Azimut-KAMUT2L14 II System

92

Fitness & Wellness | Wellness Areas

WALL MOUNTED

Conf.

Area

System

Accessories

1

15 sq m (161 sq ft)

1x Azimut-KAMUT2L1 II (2x Lizard-KZ14 + 1x Truffle-KTR24 + 1x Kommander-KA02 I)

/

2

60 sq m (646 sq ft)

1x Azimut-KAMUT2L14 II (4x Lizard-KZ14 I + 1x Truffle-KTR25 + 1x Kommander-KA02 I)

/

Music Use

93

WELLNESS AREAS Configuration 2 60 sq m (646 sq ft) speaker

94

subwoofer

light

GC5-RNW

GA201

Speaker 196 x 179 x 75 mm 1,08 kg

Amplifier 1 kg 72 x 43 x 134 mm 2x125W @2Ω

Fitness & Wellness | Wellness Areas

RECESSED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

15 sq m (161 sq ft)

2x GC5-RNW

/

1x GA201

/

2

60 sq m (646 sq ft)

4x GC5-RNW

/

1x GA201

/

Music Use

95

WELLNESS AREAS Configuration 2 60 sq m (646 sq ft) speaker

subwoofer

R120-DF-C-CX-W-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

96

light

RAIL configurator

Kommander-KA04 I Amplifier 1,2 kg 219 x 46 x 320 mm 4x 150W @ 4Ω

Fitness & Wellness | Wellness Areas

SUSPENDED

Conf.

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

1

15 sq m (161 sq ft)

2x R120-DF-C-CX-W-AU

/

1x Kommander-KA04 I

4x RTW 2x PEN2-120 1x S-AL200-24

2

60 sq m (646 sq ft)

6x R120-DF-C-CX-W-AU

/

1x Kommander-KA04 I

12x RTW 6x PEN2-120 3x S-AL200-24

Music Use

97

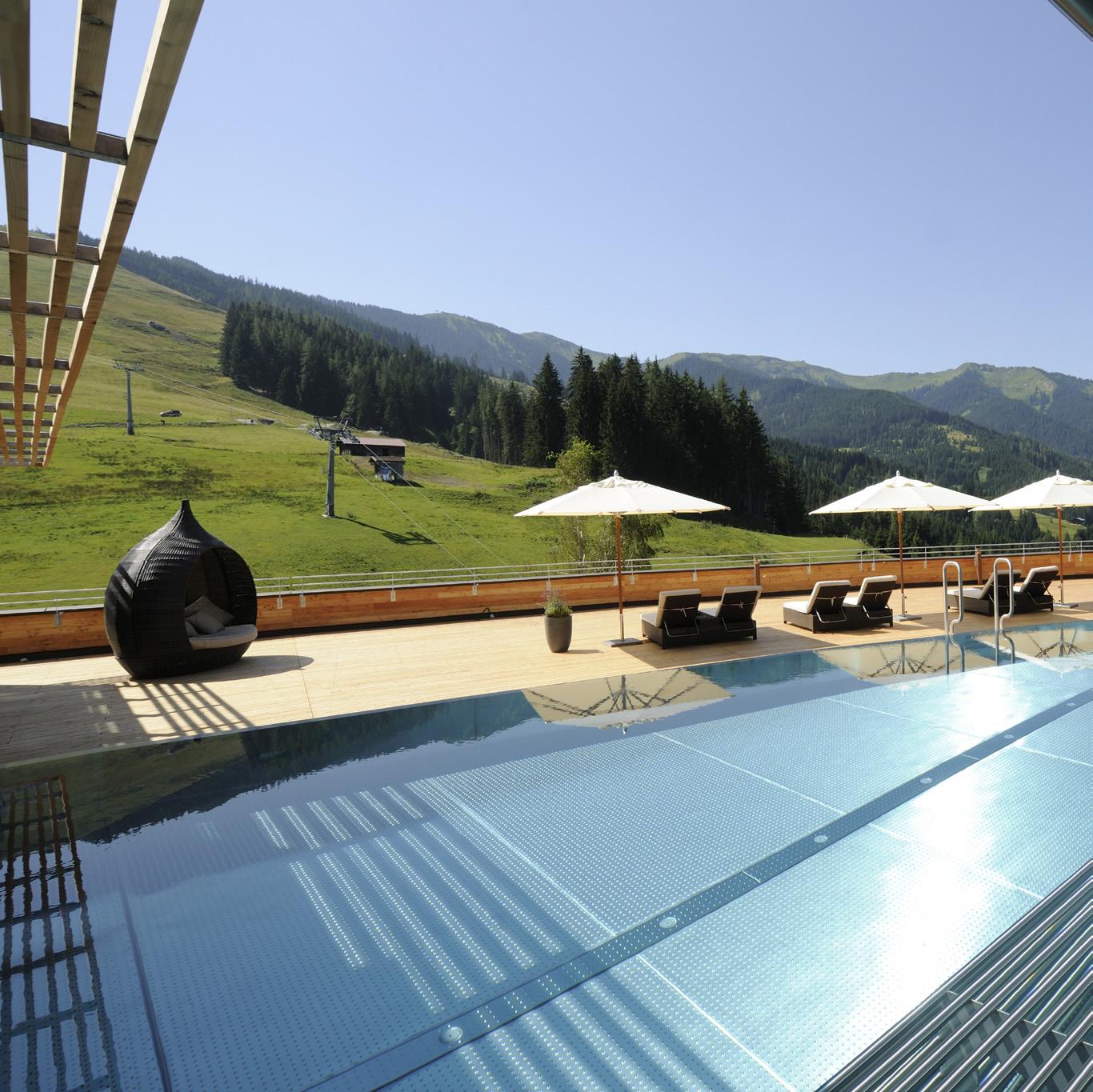

Fitness & Wellness Relax Areas

RELAX AREAS Configuration 1 100 sq m (1.076 sq ft) speaker

100

subwoofer

light

Lyzard-KZ14 I

Truffle-KTR25

Kommander-KA04 I

Speaker 22 x 100 x 11 mm 0,059 kg

Subwoofer 152 x 147 x 258 mm 2,5 kg

Amplifier 1,2 kg 219 x 46 x 320 mm 4x 150W @ 4Ω

Fitness & Wellness | Relax Areas

WALL MOUNTED

Conf.

1

Area

Speakers

Subwoofers

Amplifiers

Accessories

100 sq m (1.076 sq ft)

8x Lyzard-KZ14 I

2x Truffle-KTR25

1x Kommander-KA04 I

/

Music Use

101

RELAX AREAS Configuration 1 100 sq m (1.076 sq ft) speaker

102

subwoofer

light

GF22

GU210

GA43

Speaker 60 x 590 x 72 mm 1,3 kg

Subwoofer 560 x 282 x 150 mm 12 kg

Amplifier 3,6 kg 145 x 90 x 418 mm 4x750 W @4Ω

Fitness & Wellness | Relax Areas

WALL MOUNTED

Conf.

1

Area

Speakers

Subwoofers

Amplifiers

Accessories

100 sq m (1.076 sq ft)

8x GF22

2x GU210

1x GA43

/

Music Use

103

RELAX AREAS Configuration 1 100 sq m (1.076 sq ft) speaker

subwoofer

R120-DF-C-CL-W-AU Speaker + Light 1190 x 35 x 92 mm 3 kg

104

light

RAIL configurator

Kommander-KA04 I Amplifier 1,2 kg 219 x 46 x 320 mm 4x 150W @ 4Ω

Fitness & Wellness | Relax Areas

RECESSED

Conf.

1

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

100 sq m (1.076 sq ft)

8x R120-DF-C-CL-W-AU

/

1x Kommander-KA04 I

8x RTW 8x HS-FL-ED-120-W 2x S-AL200-24

Music Use

105

Fitness & Wellness Gyms

GYMS Configuration 3 200 sq m (2.153 sq ft) speaker

108

subwoofer

Tornado-KT2

Rumble-KU210

Kommander-KA14 I

Speaker 74 x 74 x 118 mm 0,6 kg

Subwoofer 500 x 282 x 151 mm 11 kg

Amplifier 6 kg 430 x 87 x 430 mm 4x 600W @ 2Ω

Fitness & Wellness | Gyms

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

50 sq m (538 sq ft)

4x Tornado-KT2

1x Rumble-KU26

1x Kommander-KA04 I

/

2

100 sq m (1.077 sq ft)

6x Tornado-KT2

2x Rumble-KU26

1x Kommander-KA04 I

/

3

200 sq m (2.153 sq ft)

8x Tornado-KT2

4x Rumble-KU210

1x Kommander-KA14 I

/

Music Use

109

GYMS Configuration 3 200 sq m (2.153 sq ft) speaker

110

subwoofer

GF162 I

GU210

GA46

Speaker 60 x 1204 x 66 mm 3,2 kg

Subwoofer 560 x 282 x 150 mm 11 kg

Amplifier 3,8 kg 145 x 90 x 418 mm 4x1500 W @4 Ω

Fitness & Wellness | Gyms

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

4x GF42 I

1x GU210

1x GA43

/

2

100 sq m (1.077 sq ft)

4x GF82 I

2x GU210

1x GA43

/

3

200 sq m (2.153 sq ft)

6x GF162 I

4x GU210

2x GA43

1x G-RACK

Music Use

111

GYMS Configuration 3 200 sq m (2.153 sq ft) speaker

subwoofer

light

RS12-MP-D-DL-B-NA Light 1190 x 35 x 59 mm 2,5 kg

112

Tornado-KT2

Rumble-KU210

Kommander-KA14 I

Speaker 74 x 74 x 118 mm 0,6 kg

Subwoofer 500 x 282 x 151 mm 11 kg

Amplifier 6 kg 430 x 87 x 430 mm 4x 600W @ 2Ω

Fitness & Wellness | Gyms

CEILING

Conf.

Area

Audio & Lights

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

4x Tornado-KT2 10x RS12-MP-D-DL-B-NA

1x Rumble-KU26

1x Kommander-KA04 I

2x RS12TB 10x RS12-PLA2 2x S-AL240-24

2

100 sq m (1.077 sq ft)

6x Tornado-KT2 21x RS12-MP-D-DL-B-NA

2x Rumble-KU26

1x Kommander-KA04 I

3x RS12TB 21x RS12-PLA2 3x S-AL300-24

3

200 sq m (2.153 sq ft)

8x Tornado-KT2 44x RS12-MP-D-DL-B-NA

4x Rumble-KU210

1x Kommander-KA14 I

4x RS12TB 44x RS12-PLA2 8x S-AL300-24

Music Use

113

Fitness & Wellness Fitness Studios

FITNESS STUDIOS Configuration 2 120 sq m (1.291 sq ft) speaker

subwoofer

Rumble-KU315 Subwoofer 1230 x 450 x 250 mm 40 kg

116

Kobra-KK102 I

Kommander-KA104

Speaker 59 x 1000 x 81 mm 4,8 kg

Amplifier 8,15 kg 430 x 87 x 430 mm 4 x 2500W @ 4Ω

Fitness & Wellness | Fitness Studio

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

4x Kobra-KK52 I

2x Rumble-KU210

1x Kommander-KA14 I

4x K-WALL2L

2

120 sq m (1.291 sq ft)

4x Kobra-KK102 I

2x Rumble-KU315

1x Kommander-KA104

4x K-WALL2L

3

200 sq m (2.153 sq ft)

4x Python-KP102 I

4x Rumble-KU315

1x Kommander-KA208

4x K-WALL2L

Music Use

117

FITNESS STUDIOS Configuration 2 200 sq m (2.153 sq ft) speaker

118

subwoofer

GH4

GS1

GA46

Speaker 112 x 112 x 94 mm 1,2 kg

Subwoofer 410 x 440 x 430 mm 19 kg

Amplifier 3,8 kg 145 x 90 x 418 mm 4x1500 W @4 Ω

Fitness & Wellness | Fitness Studios

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

4x GH4

1x GS1

1x GA43

/

2

120 sq m (1.291 sq ft)

8x GH4

4x GS1

1x GA46

4x GH4-WALL 8x GH4-JOINT

3

200 sq m (2.153 sq ft)

12x GH4

4x GS2

2x GA46

4x GH4-WALL 12x GH4-JOINT

Music Use

119

Cruise Ships Ship Decks

SHIP DECKS Configuration 1 1.000 sq m (10.764 sq ft) speaker

subwoofer

Mugello-KH2PM I System

122

Cruise Ships | Ship Decks

SUSPENDED

We suggest the marine treatment for the system.

Conf.

1

Area

System

Accessories

1.000 sq m (10.764 sq ft)

1x Mugello-KH2P SYST12 (12x Mugello-KH2P 1+ 12x Thunder-KS3P I+ 1x K-Rack-M-208)

/

Music Use

123

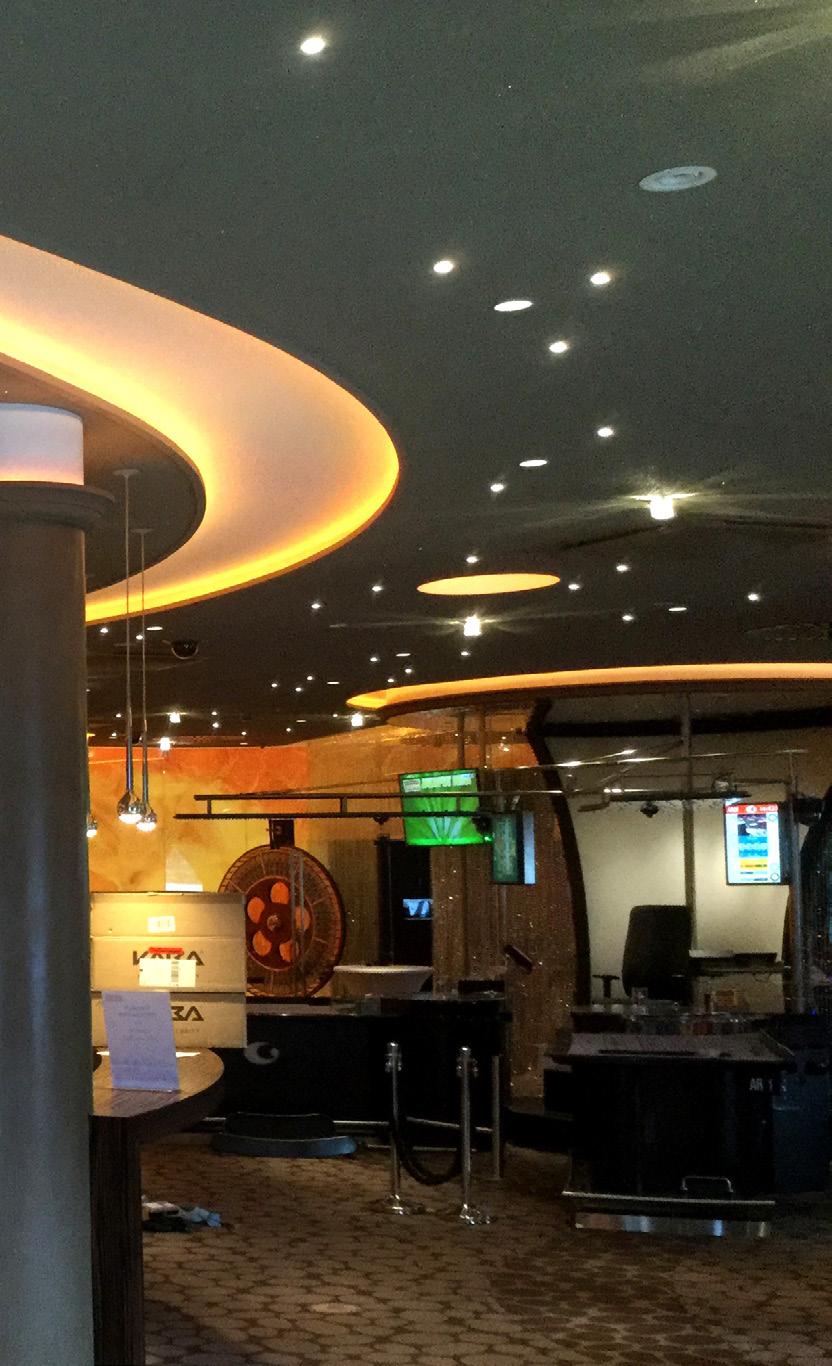

Casinos Gaming Halls

GAMING HALLS Configuration 2 400 sq m (4.306 sq ft) speaker

126

subwoofer

Kobra-KK102 I

Rumble-KU212

Speaker 59 x 1000 x 81 mm 4,8 kg

Subwoofer 655 x 282 x 151 mm 18,5 kg

Kommander-KA104 Amplifier 6 kg 430 x 87 x 430 mm 4 x 2500W @ 4Ω

Casinos | Gaming Halls

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

200 sq m (2.153 sq ft)

6x Kobra-KK102 I

4x Rumble-KU212

1x Kommander-KA104

6x K-WALL2

2

400 sq m (4.306 sq ft)

10x Kobra-KK102 I

6x Rumble-KU212

1x Kommander-KA104

10x K-WALL2

Music Use

127

GAMING HALLS Configuration 2 400 sq m (4.306 sq ft) speaker

128

subwoofer

GH4

GU210

GA43

Speaker 112 x 112 x 94 mm 1,2 kg

Subwoofer 560 x 282 x 150 mm 11 kg

Amplifier 3,6 kg 145 x 90 x 418 mm 4x750 W @4 Ω

Casinos | Gaming Halls

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

200 sq m (2.153 sq ft)

8x GH4

4x GU210

2x GA43

1x G-RACK

2

400 sq m (4.306 sq ft)

16x GH4

6x GU210

3x GA43

1x G-RACK 8x GH4-JOINT 4x GH4-WALL

Music Use

129

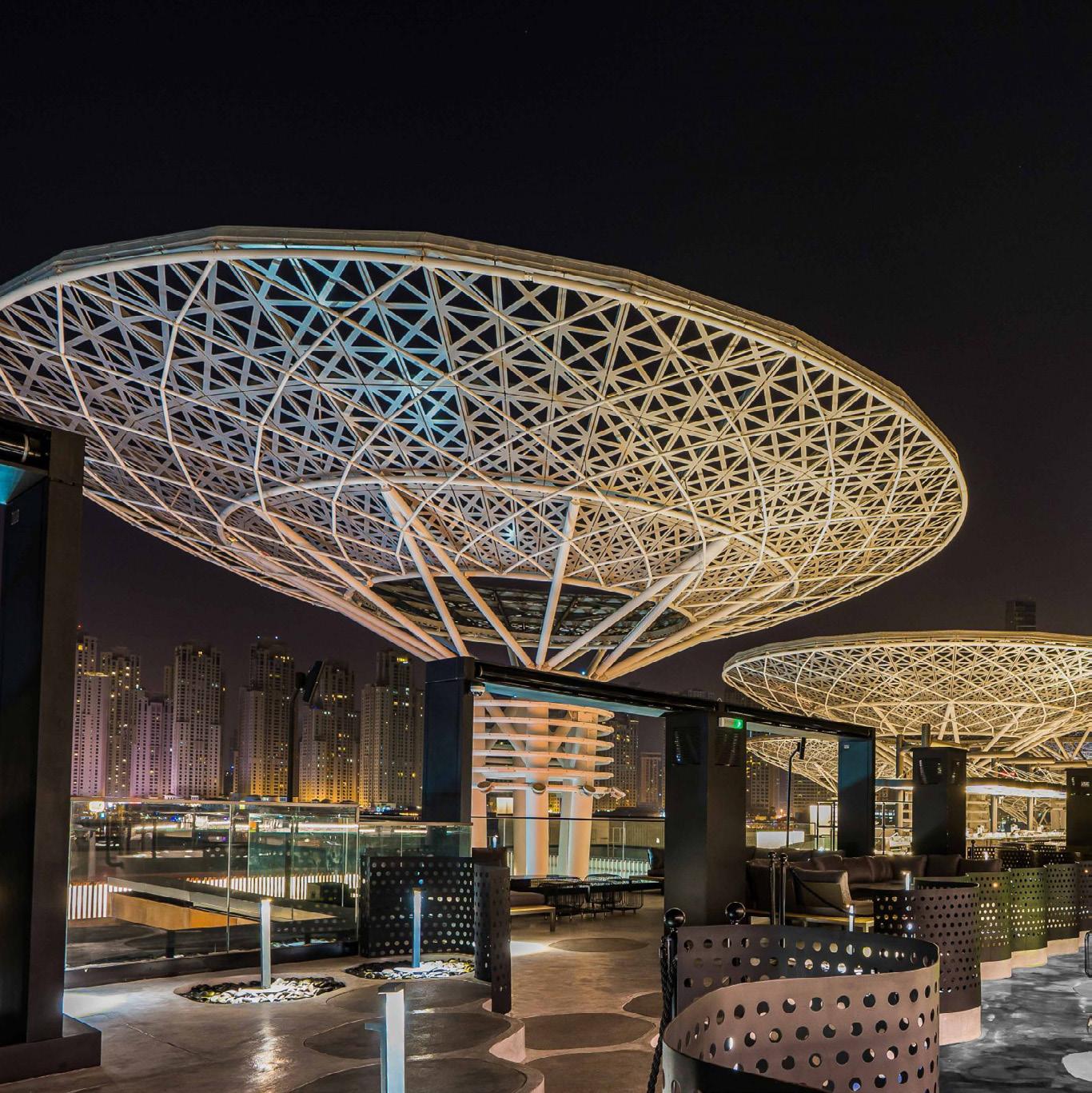

Nightclubs & Lounges Dance Floors

DANCE FLOORS Configuration 3 600 sq m (6.458 sq ft) speaker

subwoofer

Kommander-KA208 Amplifier 10 kg 430 x 87 x 430 mm 8 x 2500W @ 4Ω

132

Dragon-KXT18P

Thunder-KS5P I

Kommander-KA104

Speaker 650 x 735 x 580 mm 40,8 kg

Subwoofer 1140 x 590 x 850 mm 97,4 kg

Amplifier 8,15 kg 430 x 87 x 430 mm 4 x 2500W @ 4Ω

Nightclubs & Lounges | Dance Floors

SUSPENDED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

150 sq m (1.615 sq ft)

4x Dragon-KXT12P

4x Thunder-KS3P I

1x Kommander-KA208

4x K-FLYKXT12V 4x K-JOINTKXT12V

2

300 sq m (3.229 sq ft)

8x Dragon-KXT12P

6x Thunder-KS5P I

2x Kommander-KA208 1x Kommander-KA104

4x K-FLYKXT1218H

3

600 sq m (6.458 sq ft)

12x Dragon-KXT18P

10x Thunder-KS5P I

5x Kommander-KA208 1x Kommander-KA104

8x K-FLYKXT1218H

Music Use

133

DANCE FLOOR AREAS Configuration 3 600 sq m (6.458 sq ft) speaker

134

subwoofer

GH412

GS4

GA46

Speaker 327 x 1290 x 198 mm 55,2kg

Subwoofer 1025 x 610 x 590 mm 55,7 kg

Amplifier 3,8 kg 145 x 90 x 418 mm 4x1500 W @4 Ω

Nightclubs & Lounges | Dance Floor Areas

SUSPENDED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

150 sq m (1.615 sq ft)

8x GH12

4x GS4

2x GA46

4x GH-FLY 8x GH-JOINT 1x G-RACK

2

300 sq m (3.229 sq ft)

4x GH412

8x GS4

3x GA46

4x GH-FLY 4x GH-JOINT 1x G-RACK

3

600 sq m (6.458 sq ft)

8x GH412

16x GS4

5x GA46

4x GH-FLY 8x GH-JOINT 2x G-RACK

Music Use

135

Nightclubs & Lounges Privè Areas

PRIVÉ AREAS Configuration 3 180 sq m (1.938 sq ft) speaker

138

subwoofer

Dragon-KX12 I

Thunder-KS3P I

Kommander-KA104

Kommander-KA208

Speaker 350 x 350 x 203 mm 15 kg

Subwoofer 735 x 580 x 700 mm 49,2 kg

Amplifier 8,15 kg 430 x 87 x 430 mm 4 x 2500W @ 4Ω

Amplifier 10 kg 430 x 87 x 430 mm 8 x 2500W @ 4Ω

Nightclubs & Lounges | Privé Areas

WALL MOUNTED

The product configuration shown below represents only one of the two private VIP areas featured in the image.

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

4x Kayman-KY52

4x Rumble-KU315

1x Kommander-KA208

4x K-WALL2

2

100 sq m (1.076 sq ft)

4x Kayman-KY102

4x Thunder-KS3P I

1x Kommander-KA208

4x K-WALL2

3

180 sq m (1.938 sq ft)

6x Dragon-KX12 I

6x Thunder-KS3P I

1x Kommander-KA208 1x Kommander-KA104

6x K-WALL2

Music Use

139

PRIVÉ AREAS Configuration 3 180 sq m (1.938 sq ft) speaker

140

subwoofer

GH12

GS2

GA46

Speaker 327 x 334 x 198 mm 13,8 kg

Subwoofer 546 x 610 x 590 mm 32,7 kg

Amplifier 3,8 kg 145 x 90 x 418 mm 4x1500 W @4 Ω

Nightclubs & Lounges | Privé Areas

WALL MOUNTED

The product configuration shown below represents only one of the two private VIP areas featured in the image.

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

60 sq m (645 sq ft)

4x GH4

4x GS1

1x GA46

4x K-WALL2LMINI

2

100 sq m (1.076 sq ft)

4x GH8

4x GS2

1x GA46

4x K-WALL2LMINI

3

180 sq m (1.938 sq ft)

6x GH12

6x GS2

2x GA46

6x GH-CEILING 1x G-RACK

Music Use

141

142

Nightclubs & Lounges DJ Booths

143

DJ BOOTHS Configuration 2 20 sq m (215 sq ft) speaker

144

subwoofer

Dragon-KXT12P

Thunder-KS3P I

Kommander-KA104

Speaker 500 x 735 x 400 mm 32 kg

Subwoofer 735 x 580 x 700 mm 49,2 kg

Amplifier 8,15 kg 430 x 87 x 430 mm 4 x 2500W @ 4Ω

Nightclubs & Lounges | DJ Booths

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

15 sq m (161 sq ft)

2x Dragon-KXT12P

2x Thunder-KS3P I

1x Kommander-KA104

2x K-SUBSTACKKXT1218

2

20 sq m (215 sq ft)

4x Dragon-KXT12P

2x Thunder-KS3P I

1x Kommander-KA104

2x K-SUBSTACKKXT1218 4x K-JOINTKXT12V

3

25 sq m (269 sq ft)

2x Dragon-KXT18P

4x Thunder-KS3P I

1x Kommander-KA208

2x K-SUBSTACKKXT1218

Music Use

145

DJ BOOTHS Configuration 2 20 sq m (215 sq ft) speaker

146

subwoofer

GT12

GS4

GA46

Speaker 340 x 800 x 215 mm 17 kg

Subwoofer 1025 x 610 x 590 mm 55,7 kg

Amplifier 3,8 kg 145 x 90 x 418 mm 4x1500 W @4 Ω

Nightclubs & Lounges | DJ Booths

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

15 sq m (161 sq ft)

2x GT12

2x GS2

1x GA46

/

2

20 sq m (215 sq ft)

2x GT12

2x GS4

1x GA46

/

3

25 sq m (269 sq ft)

4x GT12

2x GS4

1x GA46

2x GT12-JOINT

Music Use

147

Nightclubs & Lounges Beach Clubs

BEACH CLUBS Configuration 2 600 sq m (6.458 sq ft) speaker

150

subwoofer

Kayman-KY102M

Rumble-KU315

Kommander-KA208

Speaker 116 x 1000 x 134 mm 14,9 kg

Subwoofer 1230 x 450 x 250 mm 40 kg

Amplifier 10 kg 430 x 87 x 430 mm 8 x 2500W @ 4Ω

Nightclubs & Lounges | Beach Clubs

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

300 sq m (3.229 sq ft)

4x Kayman-KY102M

4x Rumble-KU315

1x Kommander-KA208

4x K-WALL2

2

600 sq m (6.458 sq ft)

8x Kayman-KY102M

8x Rumble-KU315

2x Kommander-KA208

8x K-WALL2 4x K-JOINT3

3

800 sq m (8.611 sq ft)

12x Dragon-KXT18P

16x Thunder-KS3PMW I

5x Kommander-KA208

4x K-FLYKXT18H 8x K-JOINTKXT18H

Music Use

151

BEACH CLUBS Configuration 2 600 sq m (6.458 sq ft) speaker

152

subwoofer

GH8

GS4

Kommander-KA208

Speaker 220 x 220 x 161 mm 5,8 kg

Subwoofer 1025 x 610 x 590 mm 55,7 kg

Amplifier 10 kg 430 x 87 x 430 mm 8 x 2500W @ 4Ω

Nightclubs & Lounges | Beach Clubs

WALL MOUNTED

Conf.

Area

Speakers

Subwoofers

Amplifiers

Accessories

1

300 sq m (3.229 sq ft)

4x GF162 I

4x GS1

2x GA43

1x G-RACK

2

600 sq m (6.458 sq ft)

12x GH8

4x GS4

1x Kommander-KA208

12x GH8-JOINT 4x GH8-FLY 8x GH8-IPKIT

3

800 sq m (8.611 sq ft)

16x GH12

12x GS4

2x Kommander-KA208

4x GH-FLY 16x GH-JOINT

Music Use

153

ARE YOU IN THESE PROFESSIONAL CATEGORIES? System Integrator

Rental Company

Installer

Designer

BE PART OF THE SOLUTION Join our network of certified pros to be listed within our partner www.k-array.com/en/distributors

154

4 3 ° 5 7 ‘ 0 0 ‘‘ N - 1 1 ° 2 2 ‘ 5 9 . 8 8 ‘‘ E

AN AUTHENTIC PLACE

K-ARRAY WARRANTY

discover more

K-array surl warrants its products against defects in material or workmanship. The term of the K-array surl Warranty is five years from the original date of purchase of the product and their accessories. This warranty may be transferred to a subsequent owner during the warranty period. However, such a transfer shall not extend the warranty period beyond the original warranty period of five years from the original date of purchase stated on the invoice from the distributor to the end client.

IMPORTANT: The configurations showcased in this Catalog are just examples, they don’t represent existing projects. While not representing real projects, they can serve as inspiration for what’s possible. Dive into our K-array Lookbook to explore specific, well-designed audio projects. Have a project to share? Send your materials to marketing@k-array.com, it might be selected for our next Lookbook.

LEGEND:

Speakers

Subwoofers

Lights

In accordance with its policy of continuous product development, K-array reserves the right to introduce any changes to its products without prior notice. Materials, colors and data presented in the catalog are only for reference. K-array is available to customize systems, finishes and new applications upon request.

All rights reserved © 2025 APPBRHL24

www.k-array.com

www.kgear.it

www.kscape.it

Designed and Made in Italy K-ARRAY surl Via P. Romagnoli 17 | 50038 Scarperia e San Piero - Firenze - Italy T +39 055 84 87 222 | info@k-array.com www.kgear.it | www.k-array.com | www.kscape.it
