Insulwood™ Brochure

3-DIMENSIONAL WOODGRAIN CLADDING

THE LOOK AND FEEL OF REAL WOOD TEXTURE WITH A DURABLE FINISH THE INSULWOOD™ ADVANTAGE

• Realistic, three dimensional woodgrain finish

• Integrated moisture barrier and rainscreen

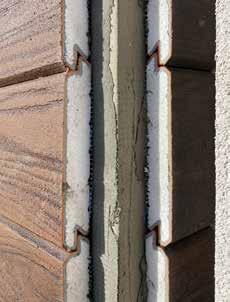

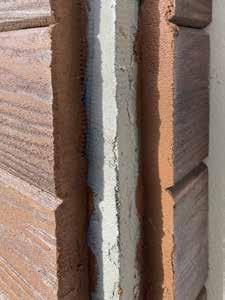

• Four-sided tongue and groove technology

• No furring or strapping required

• Increased thermal insulation

• Prefinished texture and colors

• Will not shrink or warp

• Easy to install

• Cost effective

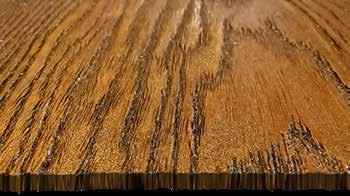

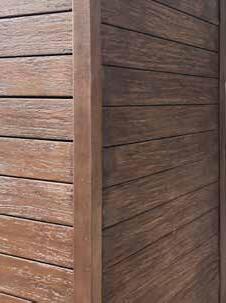

TEXTURE MOULDED FROM REAL WOOD

WIDE VARIETY OF COLOURS

Additional Features & Benefits Quality Without Compromise

• R6 Thermal Insulation Value.

• Utilizes vertical adhesive application to drain moisture away from the structure and keep it dry.

• Enhances energy efficiency.

• Serves as a moisture and air barrier.

• Tough, abrasive resistant coating stands up to all weather conditions.

• Suitable for various substrates.

• No expansion & contraction.

• In lieu of house wraps, which have many seams resulting in air leaks and thermal loss, a continuous, seamless and rubberized air moisture membrane known as the WRB (Weather Resistant Barrier) is utilized in the wall assembly design.

Panel Section

INSULWOOD™ Pre-Finished Woodgrain Panels are made with 4 key components that make up each light weight yet durable panel.

EPS - Expanded Polystyrene

EPS insulation conforming to a minimum Type 1 classification, as per CAN/ULC-S701 standard.

Full Wrap Reinforcing Mesh

An alkali resistant glass fiber fabric offers both flexibility and impact resistance.

Woodgrain Finish

Acrylic pre-finished 3D woodgrain texture coating with integrated acrylic sealer. Adds a lasting color and texture with DPR (dirt pick-up resistance technology) that is also vapor permeable.

Cementitious Exterior Coating

Lightweight polymer-modified flexible cementitious coating.

Corner Detail - Woodframe Construction

Horizontal Panel Application

1-1/2” INSULWOOD™ WOODGRAIN PANELS directly applied over sheathing substrates ie. Plywood, OSB, & Densglass

Header Detail - Woodframe Construction

Horizontal Panel Application

Option #1 - Flashing at Window

1-1/2” INSULWOOD™ WOODGRAIN PANELS directly applied over sheathing substrates ie. Plywood, OSB, & Densglass

Header Detail - Woodframe Construction

Horizontal Panel Application

Option #2 - Flashing at Top of Accent Molding

1-1/2” INSULWOOD™ WOODGRAIN PANELS directly applied over sheathing substrates ie. Plywood, OSB, & Densglass

Sill Detail - Woodframe Construction

Horizontal Panel Application

1-1/2” INSULWOOD™ WOODGRAIN PANELS directly applied over sheathing substrates ie. Plywood, OSB, & Densglass

Jamb Detail - Woodframe Construction

Horizontal Panel Application

1-1/2” INSULWOOD™ WOODGRAIN PANELS directly applied over sheathing substrates ie. Plywood, OSB, & Densglass

Corner Detail - Woodframe Construction

Vertical Panel Application

1-1/2” INSULWOOD™ WOODGRAIN PANELS directly applied over sheathing substrates ie. Plywood, OSB, & Densglass
