Portfolio for UCL MArch Design for Manufacture by Junyi He

[ Living in Beijing hutong ]

Hutongs are the epitome of Beijing's history and lifestyle, carrying the living culture passed down from generation to generation.

As a native of Beijing, I have always fantasized about moving out of high-rise buildings and living in familiar hutongs like the older generation.

Therefore, for the first project, I took hutong as the design background, trying to create a unique old Beijing residence that changes as the user ages. floorage : 420m2 building storey : 2 building height : 8m greening rate : 20% plot ratio : 0.4

4

01

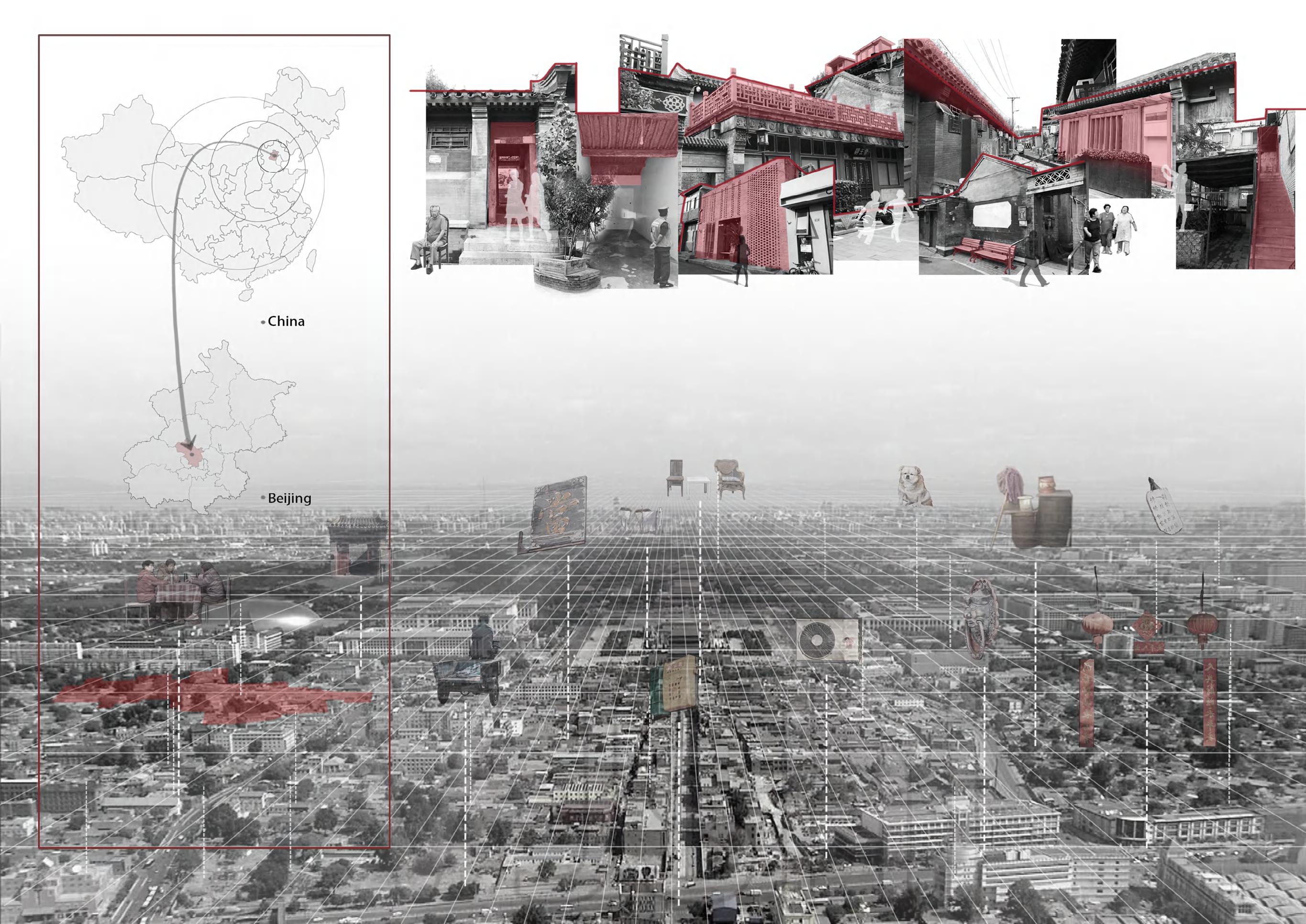

Site Analysis

The venue is located on the south side of Liulichang Ancient Street in Beijing. It originated in the Qing Dynasty and has a total length of about 800 meters.

It is by far the most populated and best-preserved hutong in Beijing, and it was once the mansions of dignitaries, where the older generation took pride in living

5

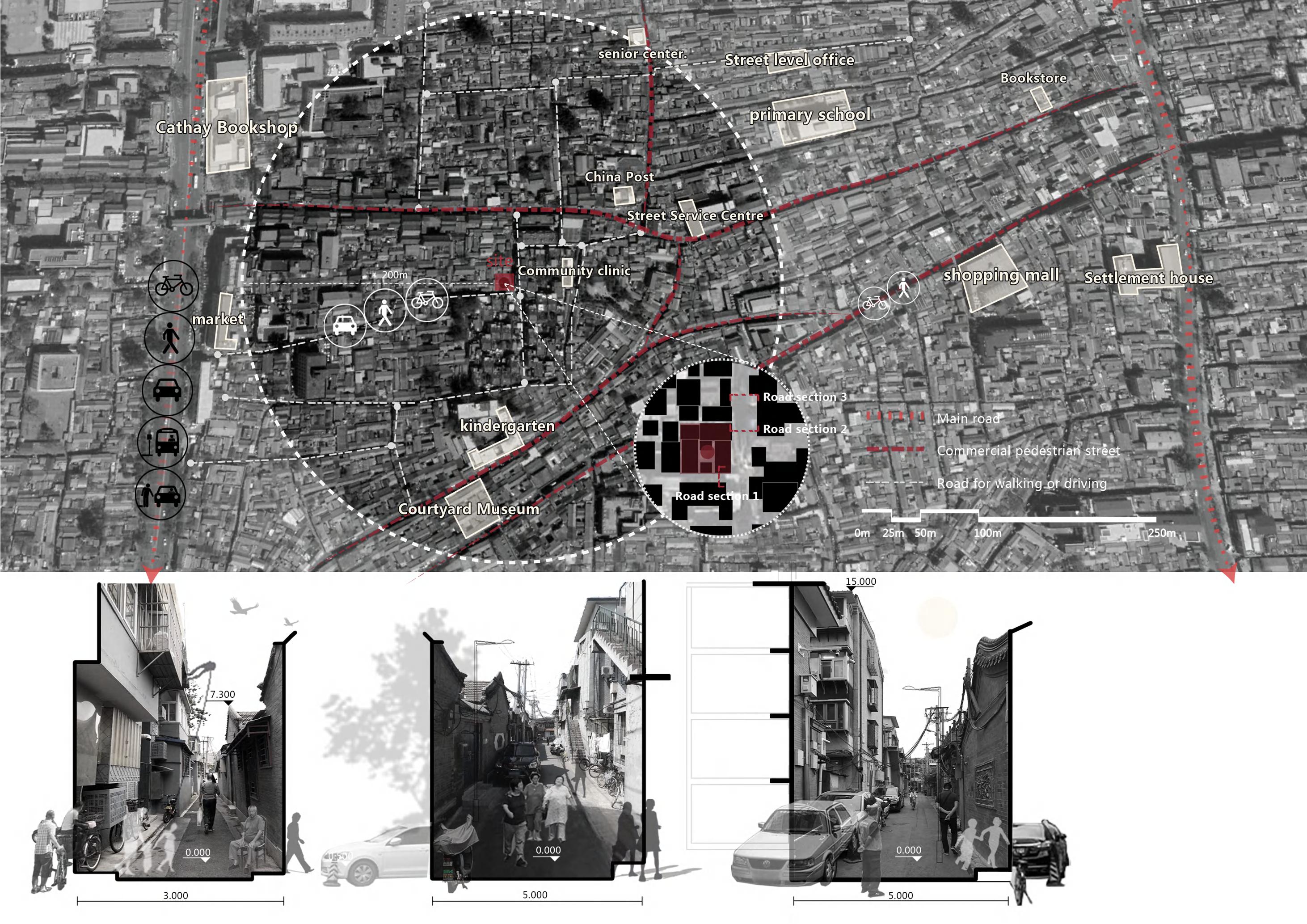

Regional Analysis

old style residence sidewalk

Two-way single lane curb parking

6

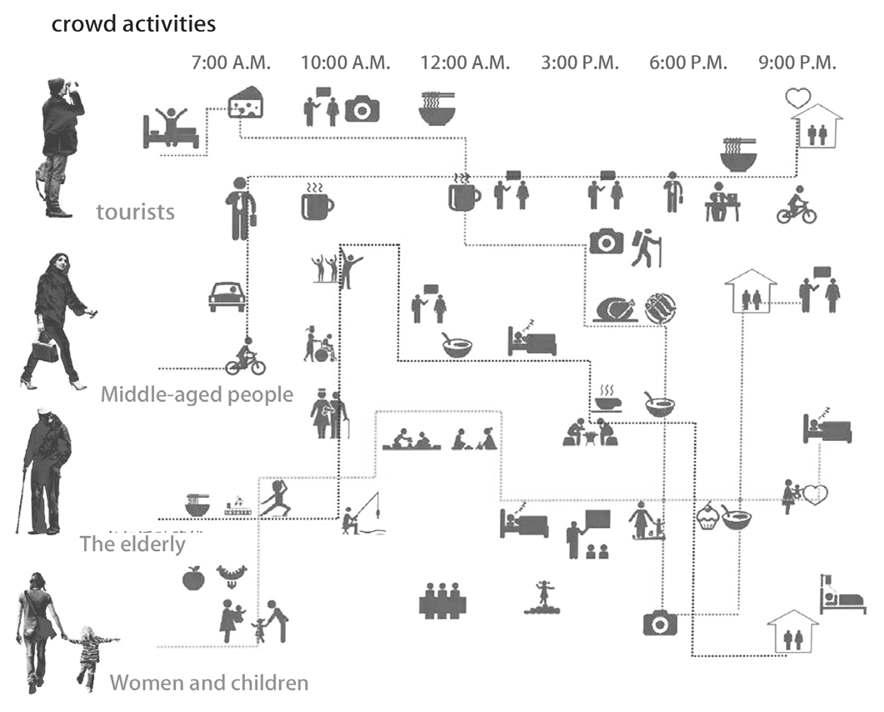

The site is located at the T-junction. The road on the north side is about 5 meters wide and the road on the south side is about 3 meters wide. Only pedestrians are allowed to pass through.

Most of the time, the residents will walk or ride through the street, so it is not crowded at ordinary times.

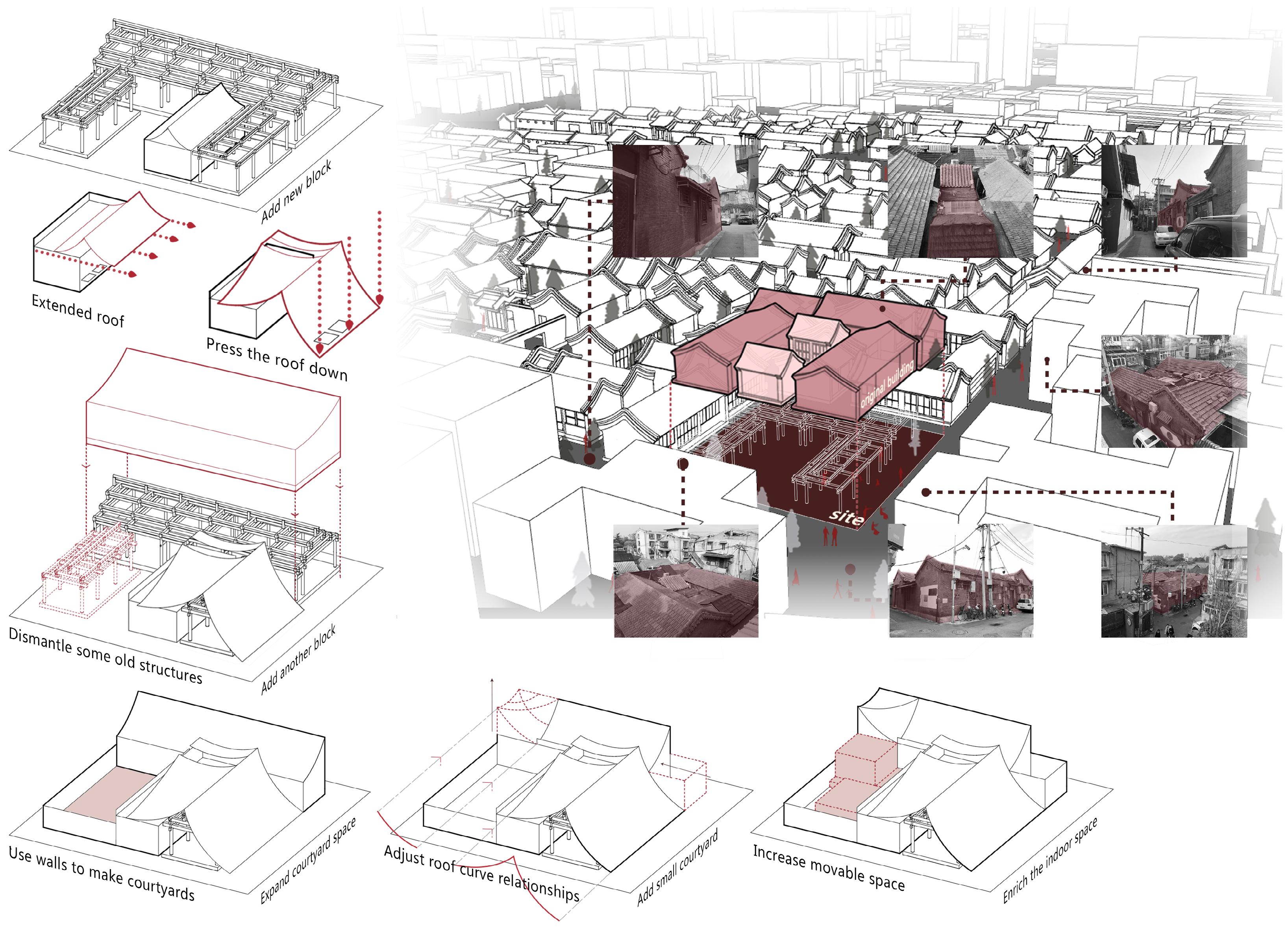

Surrounding environment analysis volume generation

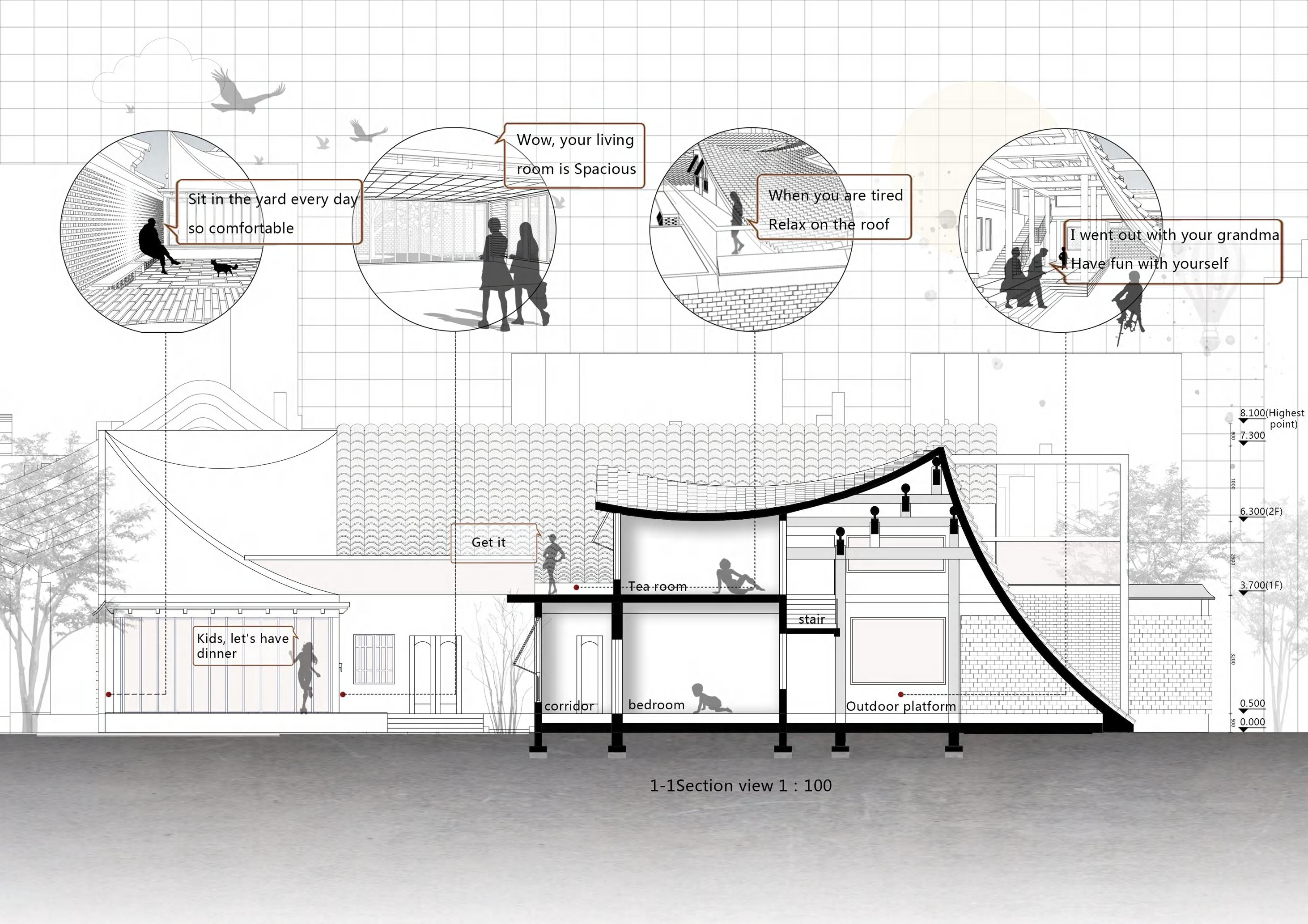

Add a new mass on the left side of the original building structure, and use the original space as a new active space after covering the roof.

Change the double slope roof into single slope roof, and use the roof as accessible space for users

7

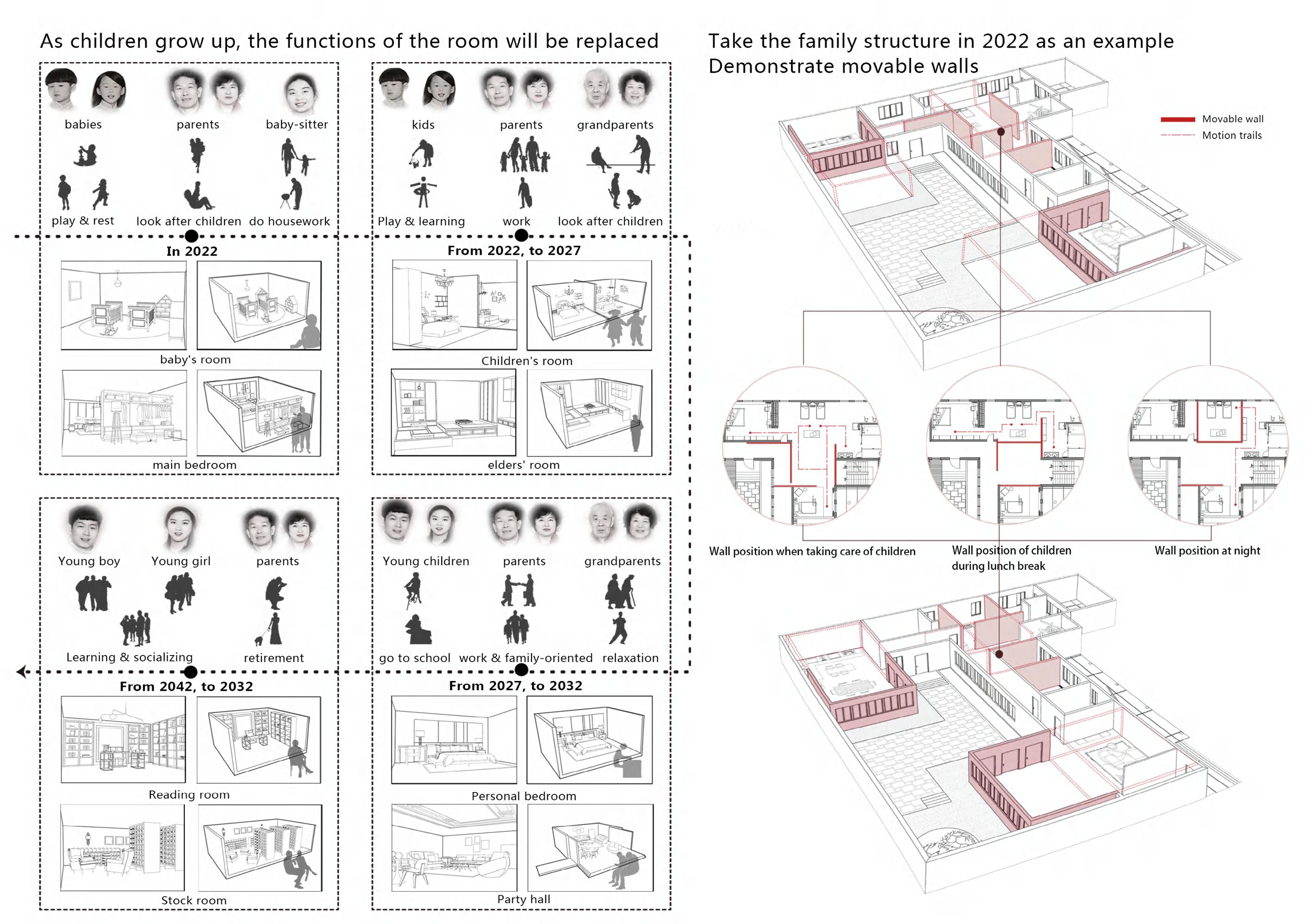

Part of the non-loadbearing wall in the house is designed as a movable wall.

8

Residents can change the indoor space at any time.

Residents can adjust the movable partition wall to make family life more convenient.

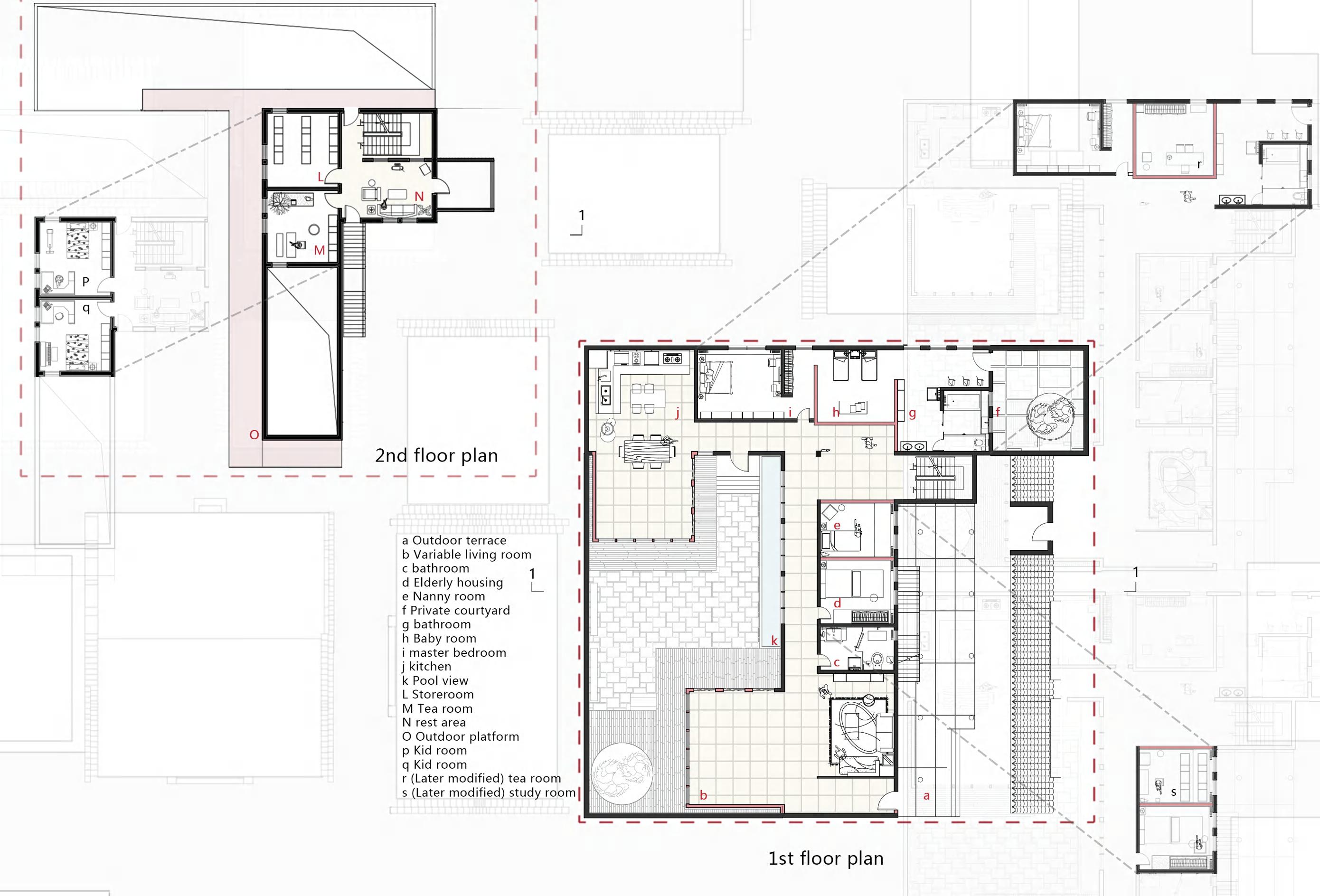

The plane layout mainly follows the living habits of the old Beijing courtyard. The east side is the second bedroom, and the north side is the master bathroom of the master bedroom.

The variable space set in the dining room and living room can be appropriately expanded according to the number of people on holidays.

9

10

Beijing people who live in hutongs are used to taking their doorsteps as an extension of the living room, making the whole street full of vitality.

Planting flowers in the yard is a local tradition and a topic of conversation.

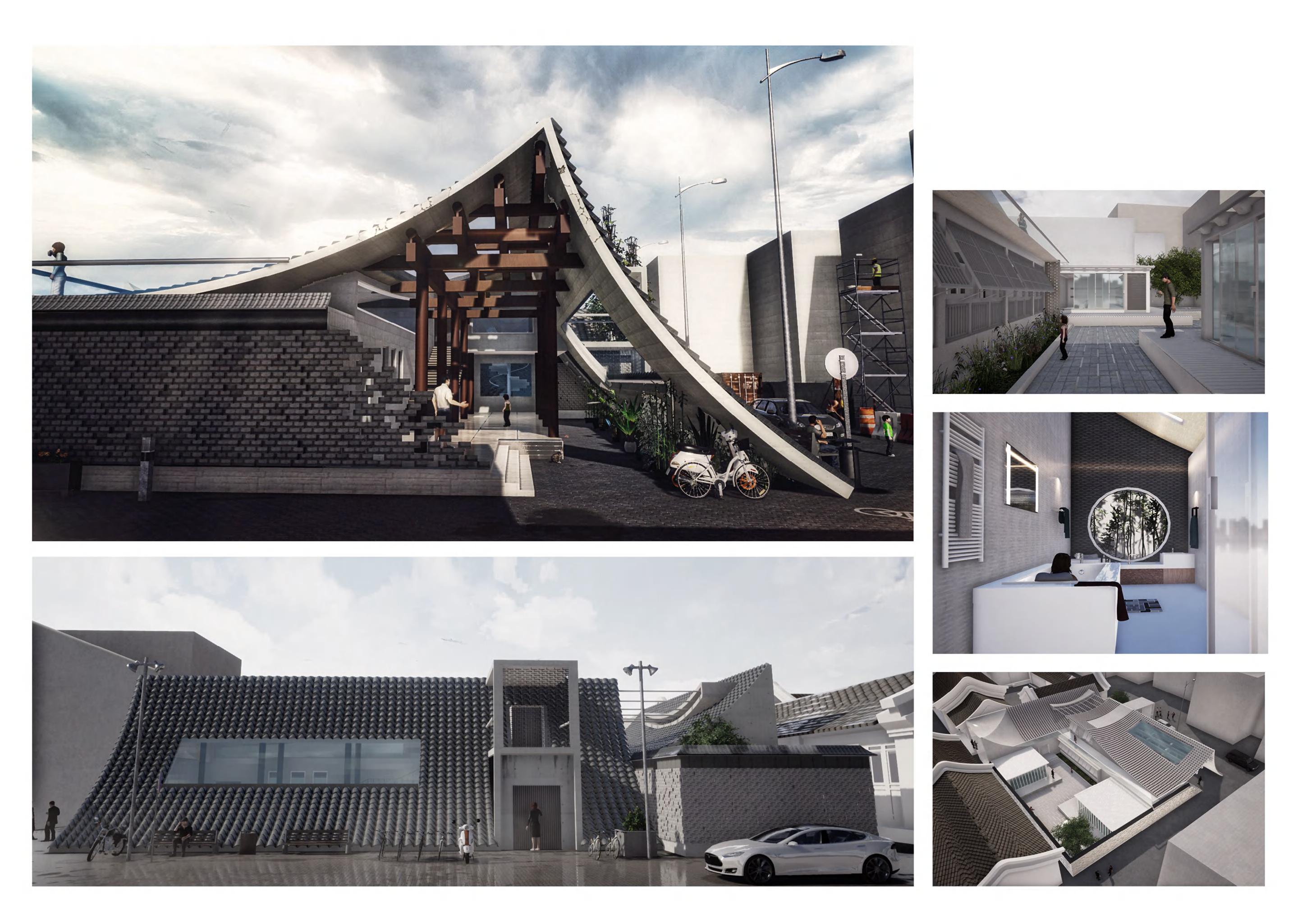

view of courtyard

Eye level perspective

Interior perspective view

Elevation along the street

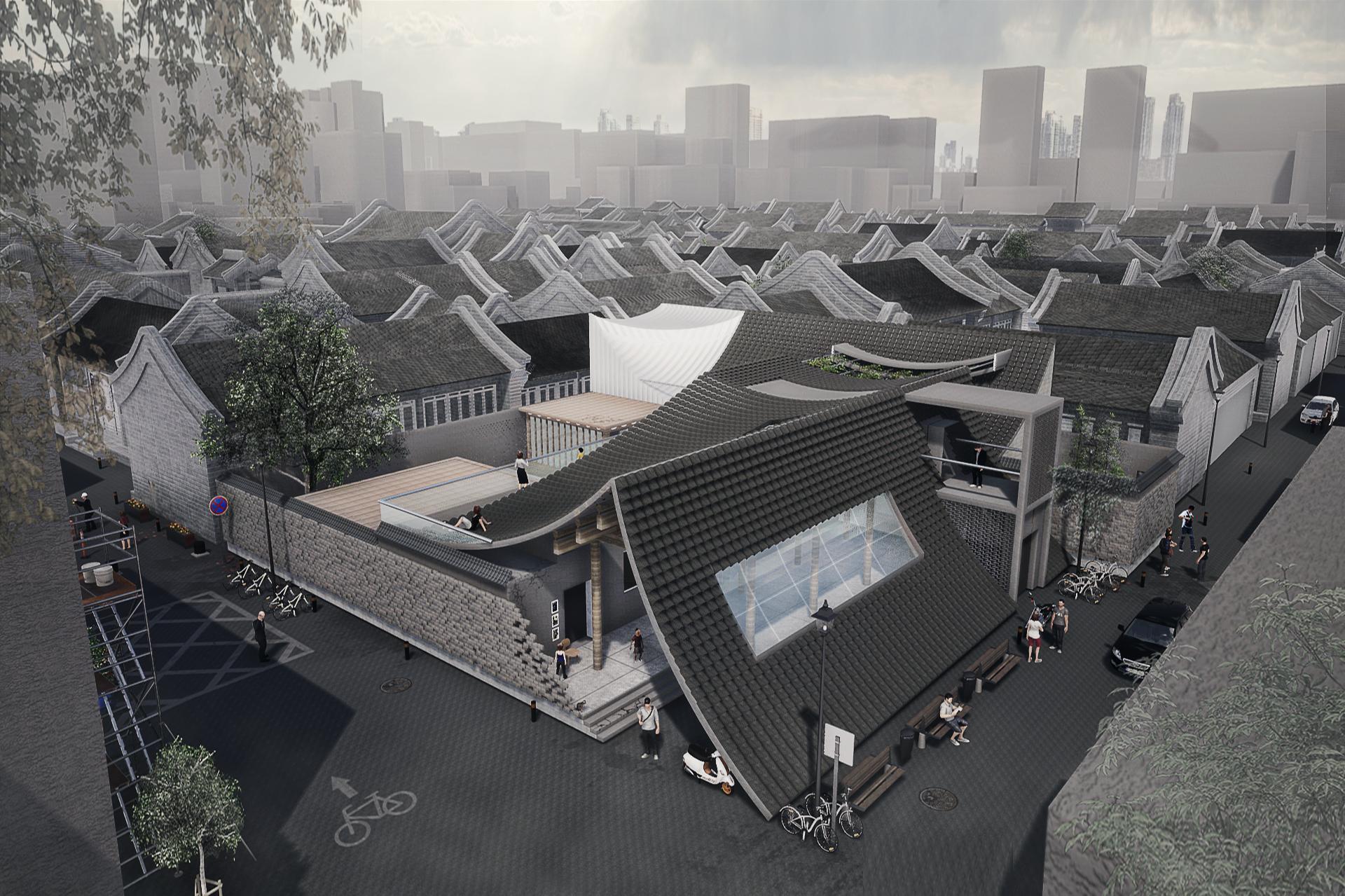

aerial view

11

[ Historic River and the space under the eaves ]

In the former Tianjin, individual businesses were very developed, but with the passage of time, these almost no longer exist.

Through the design of this building, I hope to arouse the memory of the local people who once lived by the canal.

Taking the image of water as the eaves, we hope that people can regain the feeling of talking and laughing under the eaves..

floorage : 18300m2 building storey : 3 building height : 16m greening rate : 15% plot ratio : 1.22

12

02

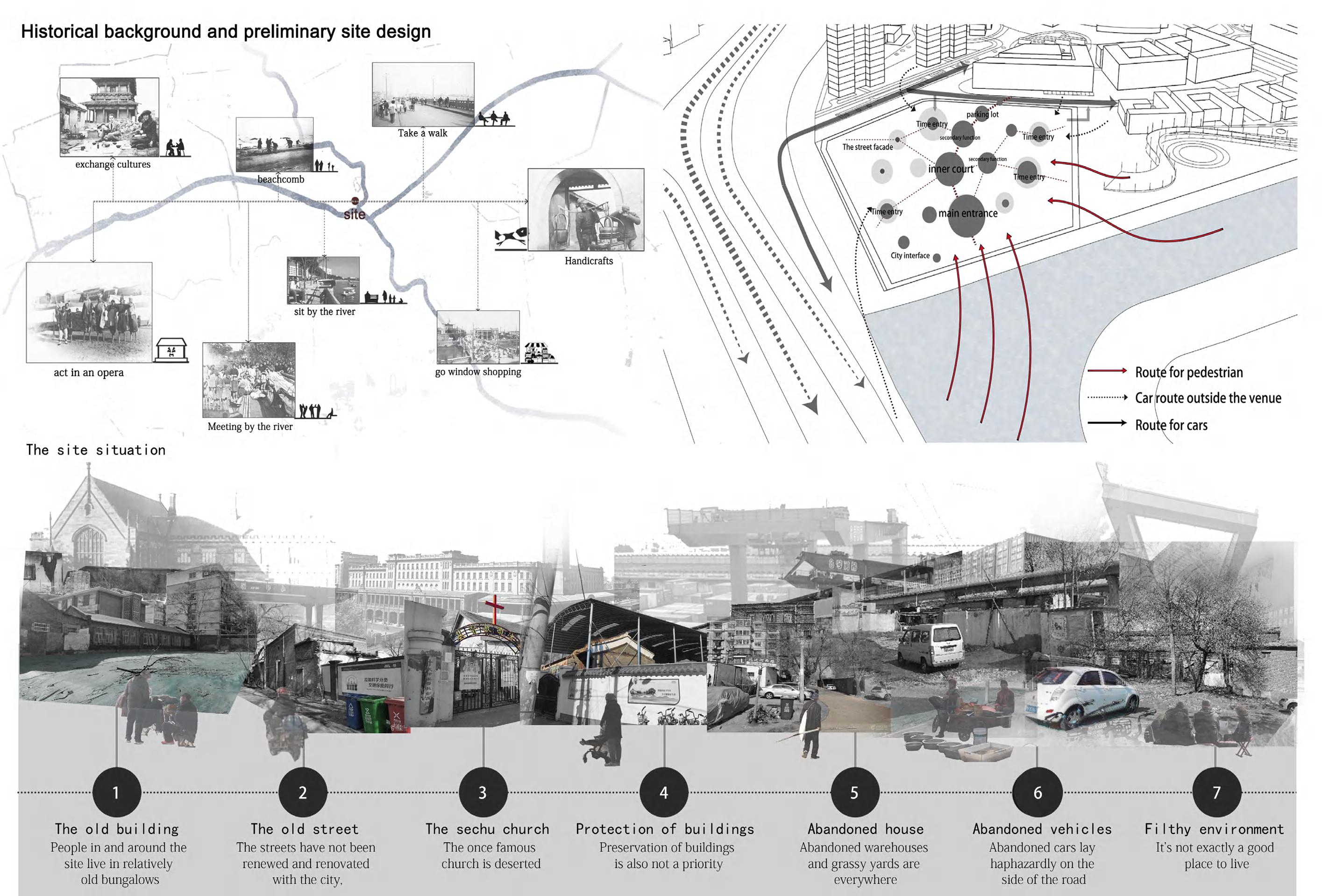

Regional culture analysis

Location analysis

Located in Hongqiao District, Tianjin, China, the site is an old area with a long history.

There are many art areas and commercial buildings around the site, and many tourist attractions are not far away from the site.

However, due to historical reasons, the current environment of the site is poor, so we decided to redesign it.

First of all, my team made an urban design for the site, and I personally made a secondary creation of the designed single building.

13

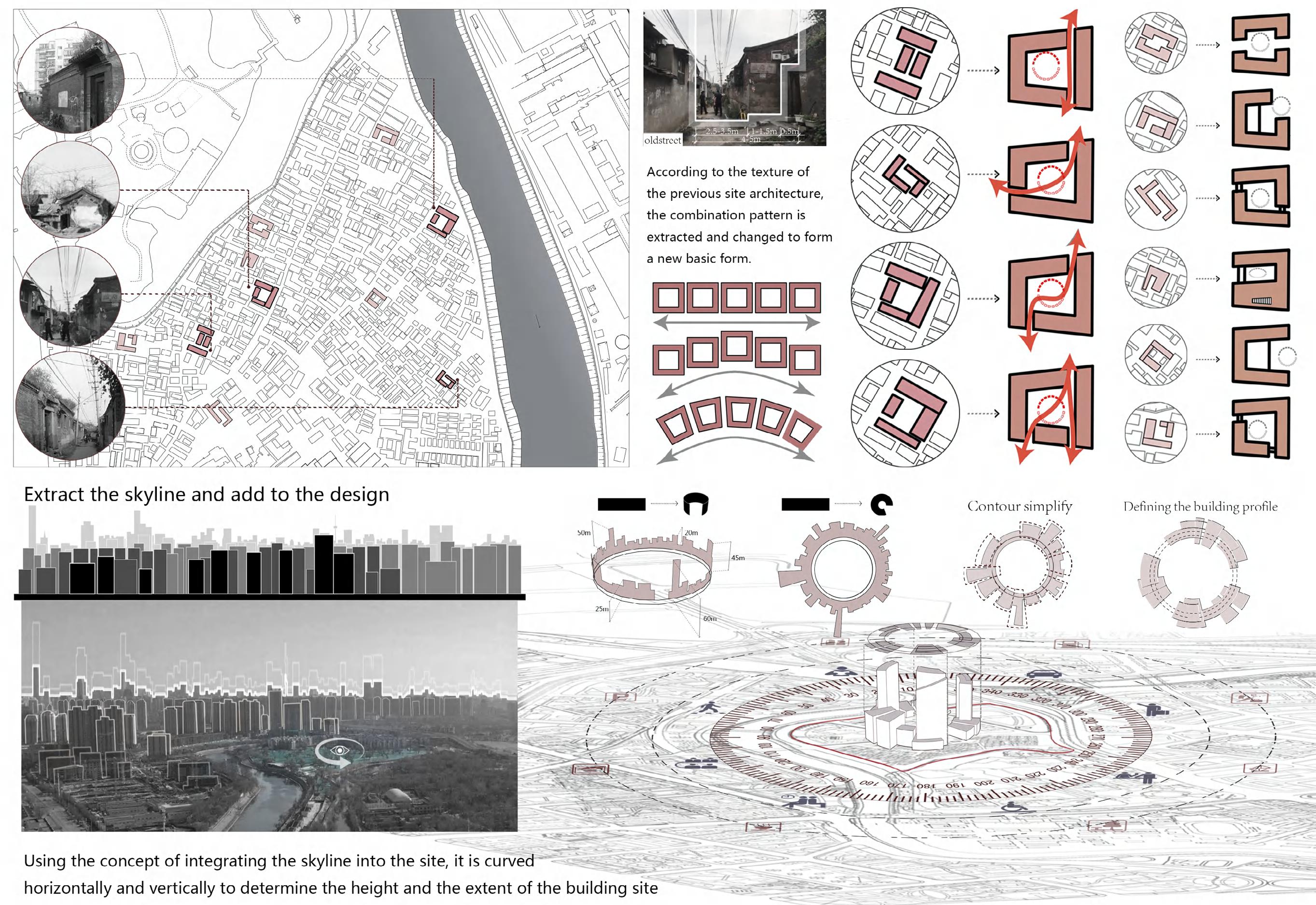

Extract basic form

14

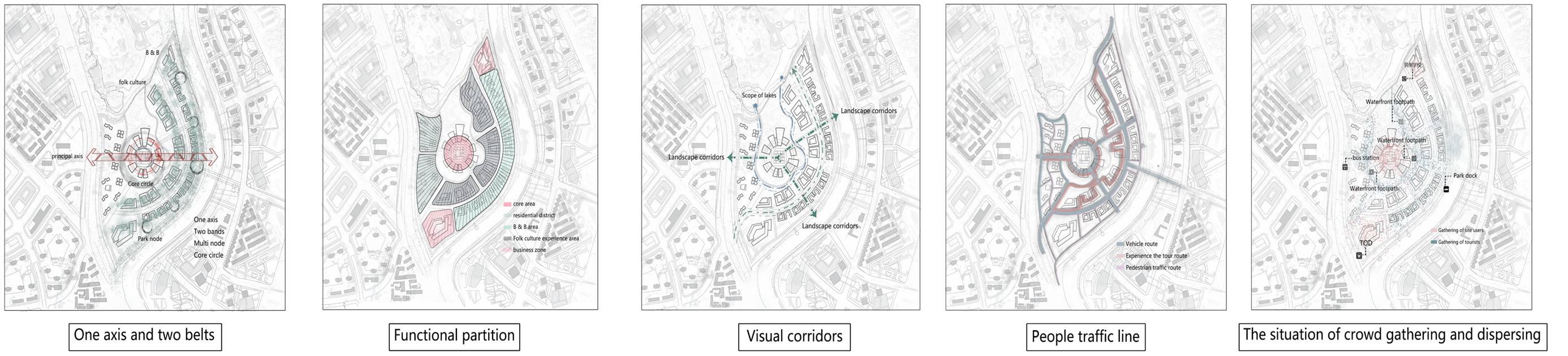

Scheme analysis

Urban design generation

Aerial view 15

16

17

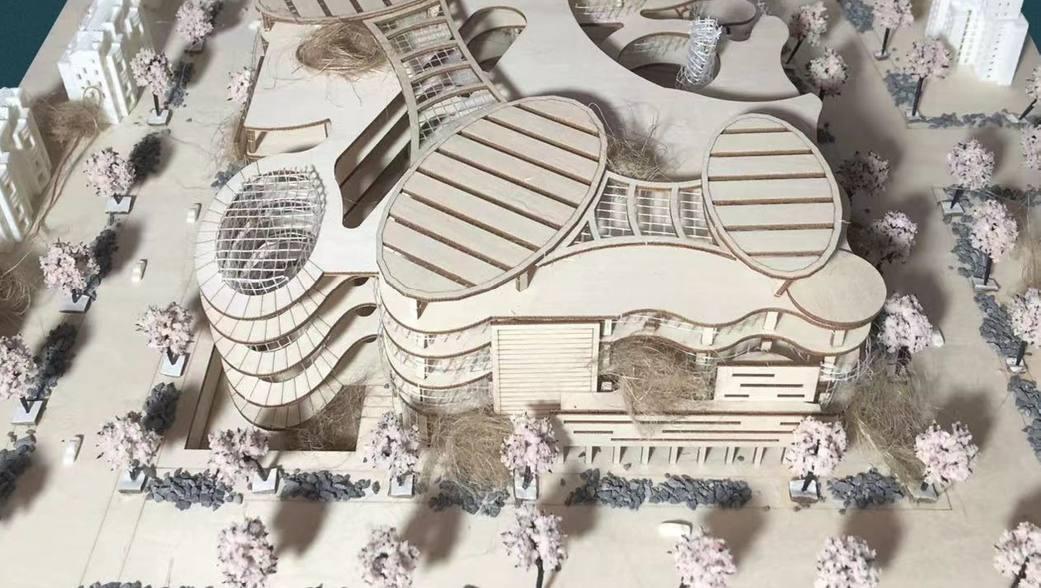

Model photos

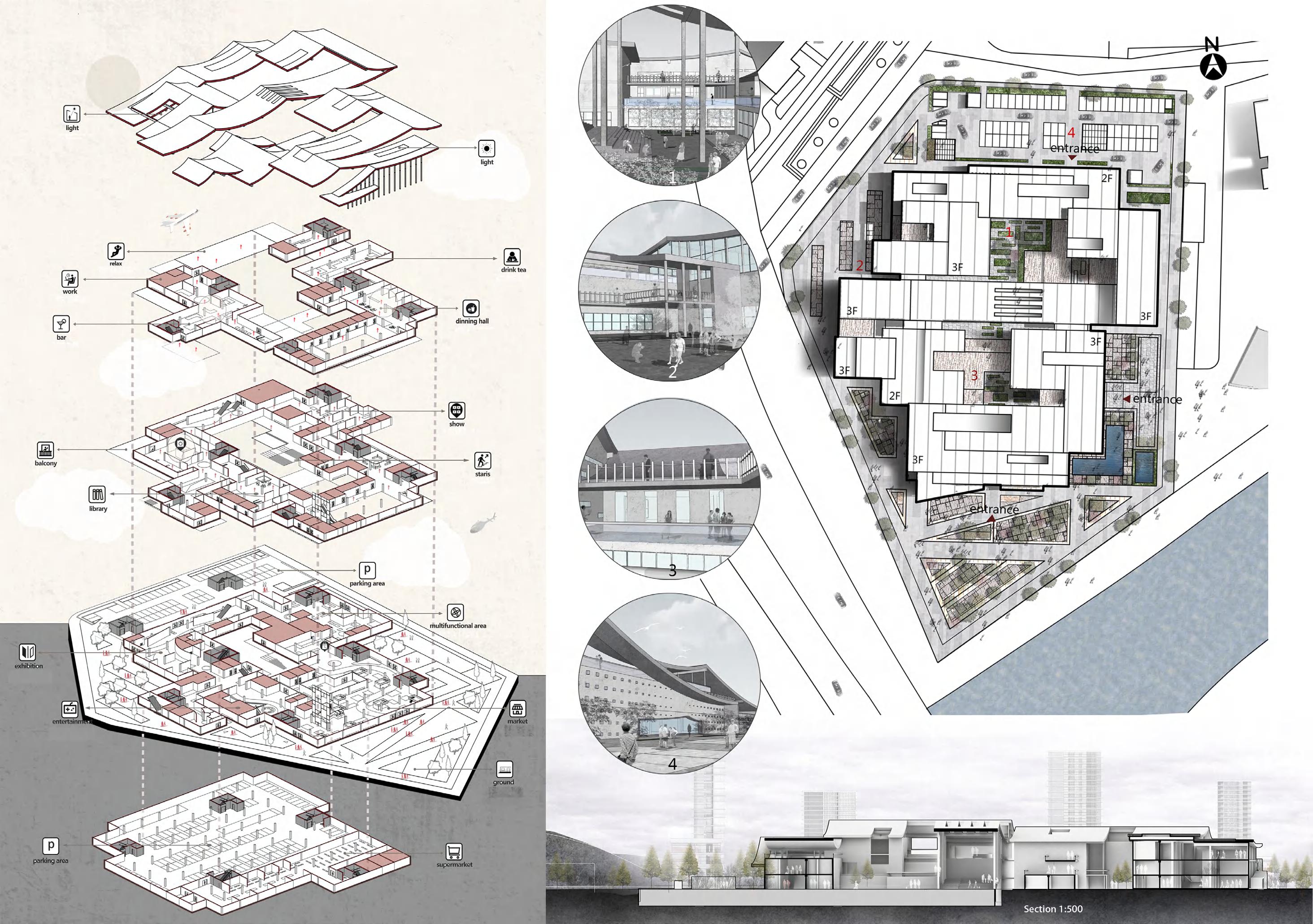

1st floor plan 1:500

18

2nd floor plan 1:500

3rd floor plan 1:500

Block generated

19

Site plan 1; 500

20

Indoor and outdoor perspective

The perspective of the south square often shows the first impression of the passing people and vehicles on the building, and at the same time, it also assumes the scene of local people's activities in the front square.

The drawings from other perspectives respectively show the indoor space and the courtyard space inside the building, which is intended to show the activity state of people in the space.

Entrance of Logistics Exhibition Area

Interior effect of business catering area

View of outdoor courtyard

View of outdoor Terrace

21

[ Plant a tree in the Sahara Desert ]

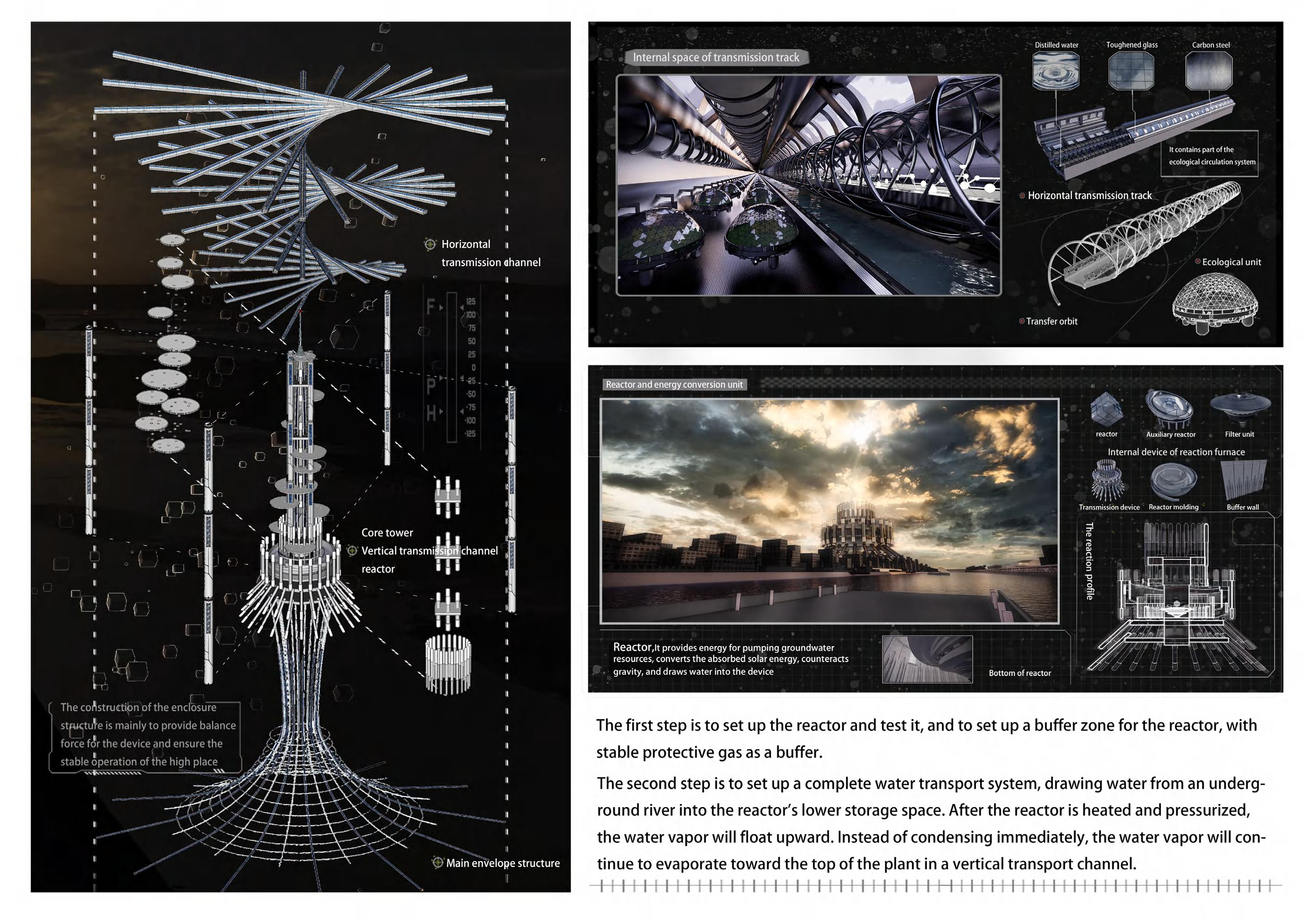

The Sahara desert region must use aircraft to transport personnel and materials, which is very expensive. It is difficult to provide these services in remote areas.

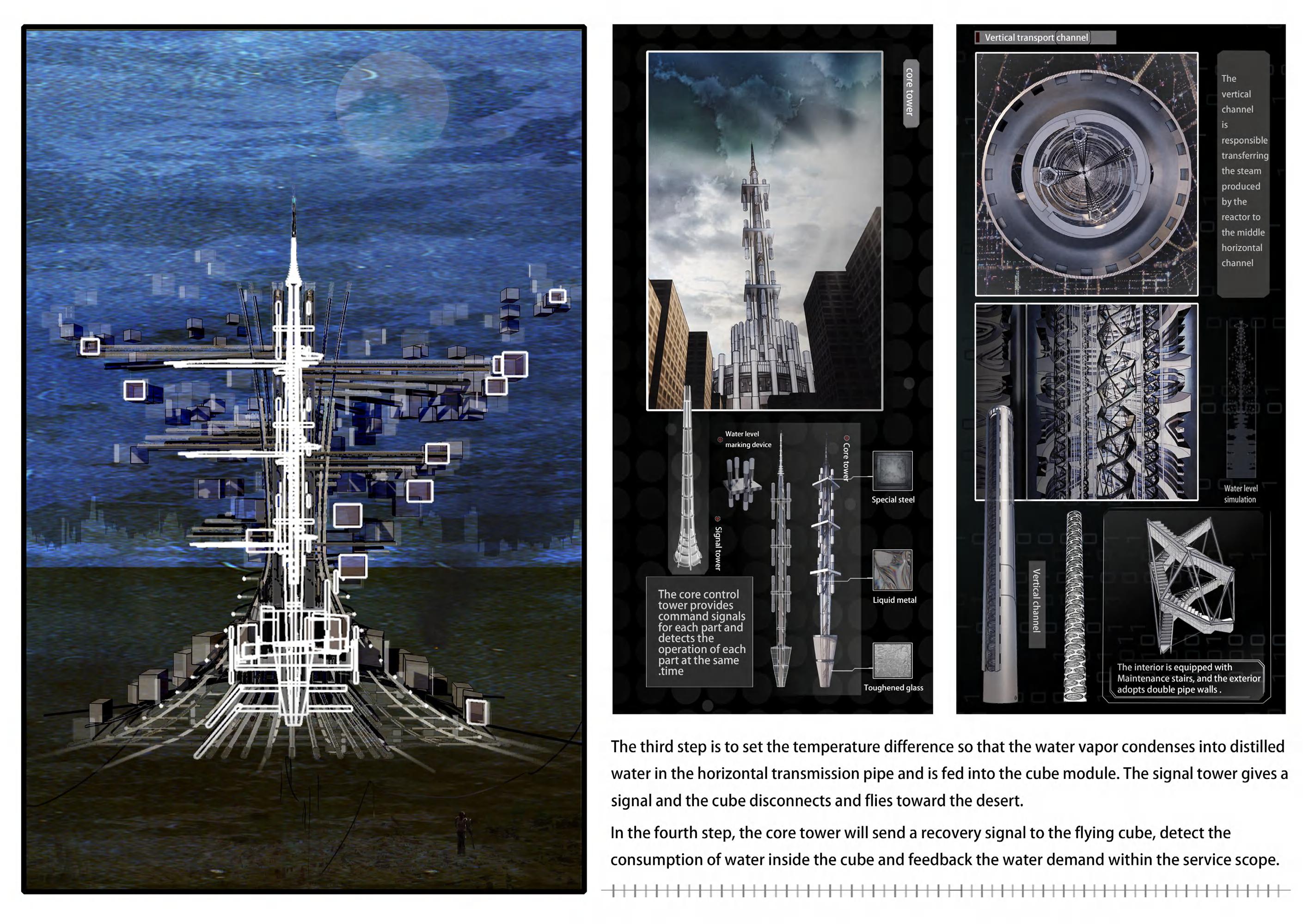

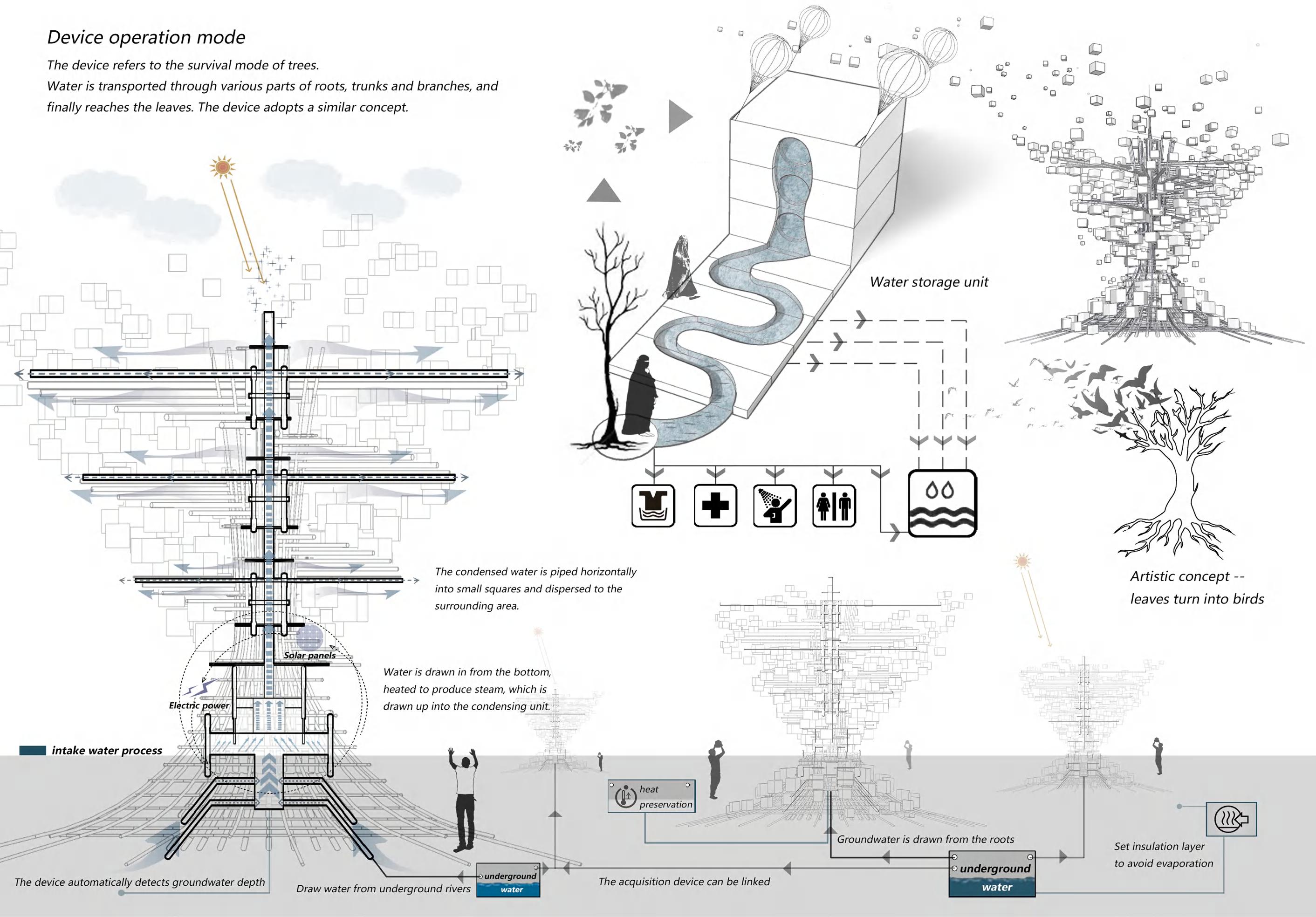

I try to design an independent and automated infrastructure, which appears in the image of a tree.

By absorbing groundwater and urban water resources, the living conditions of local people will be changed.

22

03

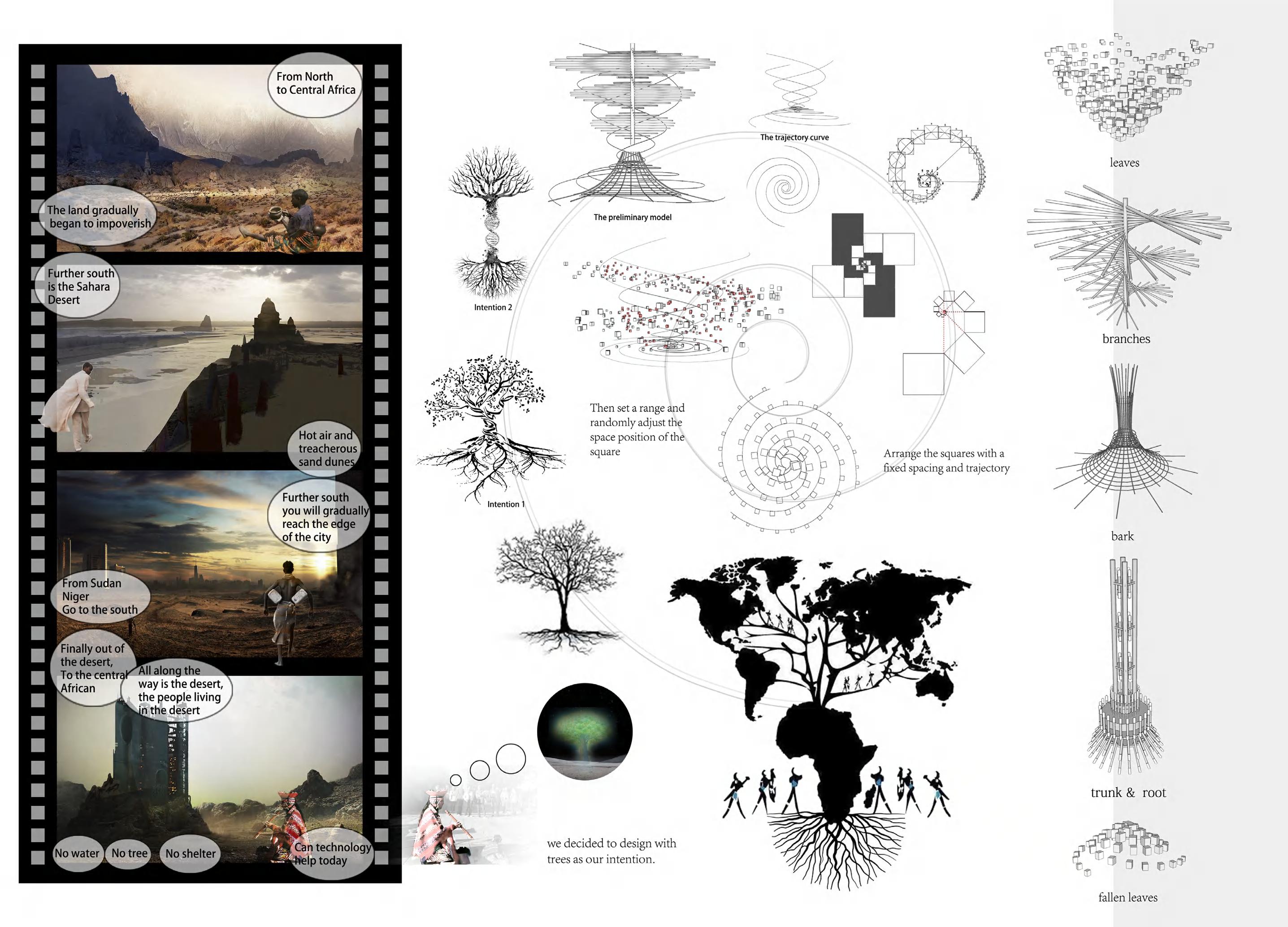

Concept generation

23

24

25

26

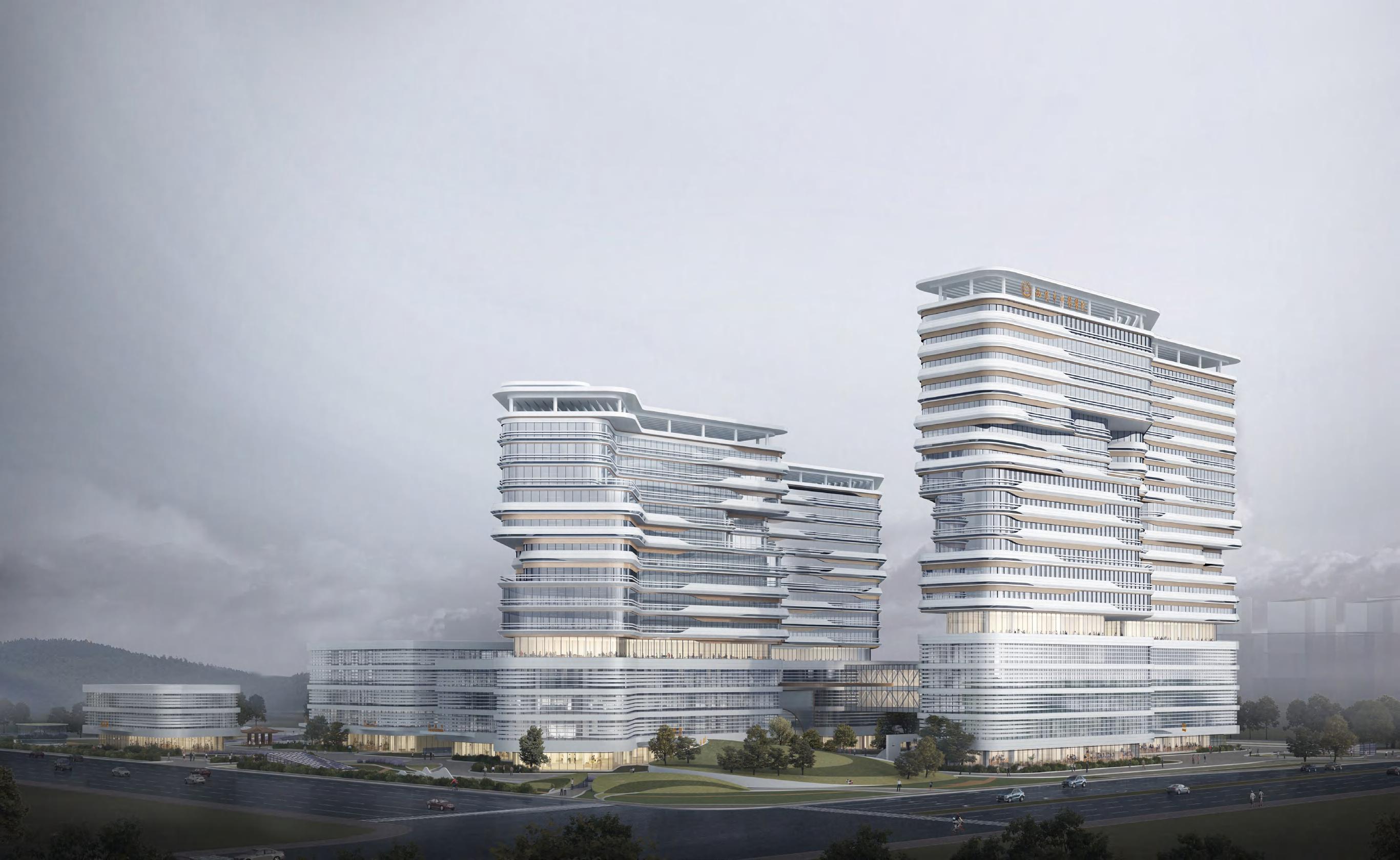

[ Xi 'an Hospital of Traditional Chinese Medicine ]

04

This project was completed in cooperation with my colleagues after I joined the third Construction Department of ZhongYuan International Company.

There were four members in the team, and I was responsible for the establishment of the model and the drawing of some facade plans and analysis diagrams.

floorage : 132453m2 building storey : 14 building height : 61.7m greening rate : 35% plot ratio : 1.38

27

Concept Generation

abstraction

extract

Landscape culture

courtyard

Qihuang culture

garden

extract

Based on the image of the river

Bulk morphology generate

The concept is extracted from Xi 'an's unique landscape, Qhuang (traditional Chinese medicine) and Silk Road culture to generate the building volume.

Bulk generation

CITY

Based on the image of the mountain

HOSPITAL

PARK

28

Silk Road culture

Facade generation abstraction

generate

extract

generate

Ancient tower extract

1

1 2

extract

generate

abstraction

2

3

3 Silk Road

N

Local ancient architecture

Secondary entrance

Apricot Garden Long-term planning

Terrace garden view

Secondary entrance 2F

Decocting center

H=12.2m

Qihuang garden

Tai chi Garden

14F

4F

medical technology building

H=19.4m

Inpatient building

H=61.7m 4F

Facade greening

medical technology building

14F

Roof garden view

H=19.4m

Inpatient building

H=61.7m

Ground landscape

Secondary entrance

5F

Top light grid

Outpatient building

H=23.3m

5F

Chinese landscape

Outpatient building

H=23.3m

3

3F

Infected building

Shennong Garden

H=13.7m

1F

Ground landscape

Health garden

Outpatient hall

5

1

H=14.3m

Main entrance landscape

Ground landscape 4

2 2

Herbs Garden

General plan

Central core landscape axis

Main entrance Landscape garden

Landscape courtyard

Landscape analysis

29

Natural landscape

Xi 'an ancient city wall

prototype

prototype abstraction

Draft design for main entrance

extract

extract

generate

generate

application Wood Curtain Aluminium Rack

Stopping the Hall

Light Wood Transparent Keel

Wood Structure Sinking Courtyard

generate Daylighting

generate

extract

Glass Curtain Wall System

Cultural landscape

30

Section of the entrance clinic hall

Tang style ancient architecture

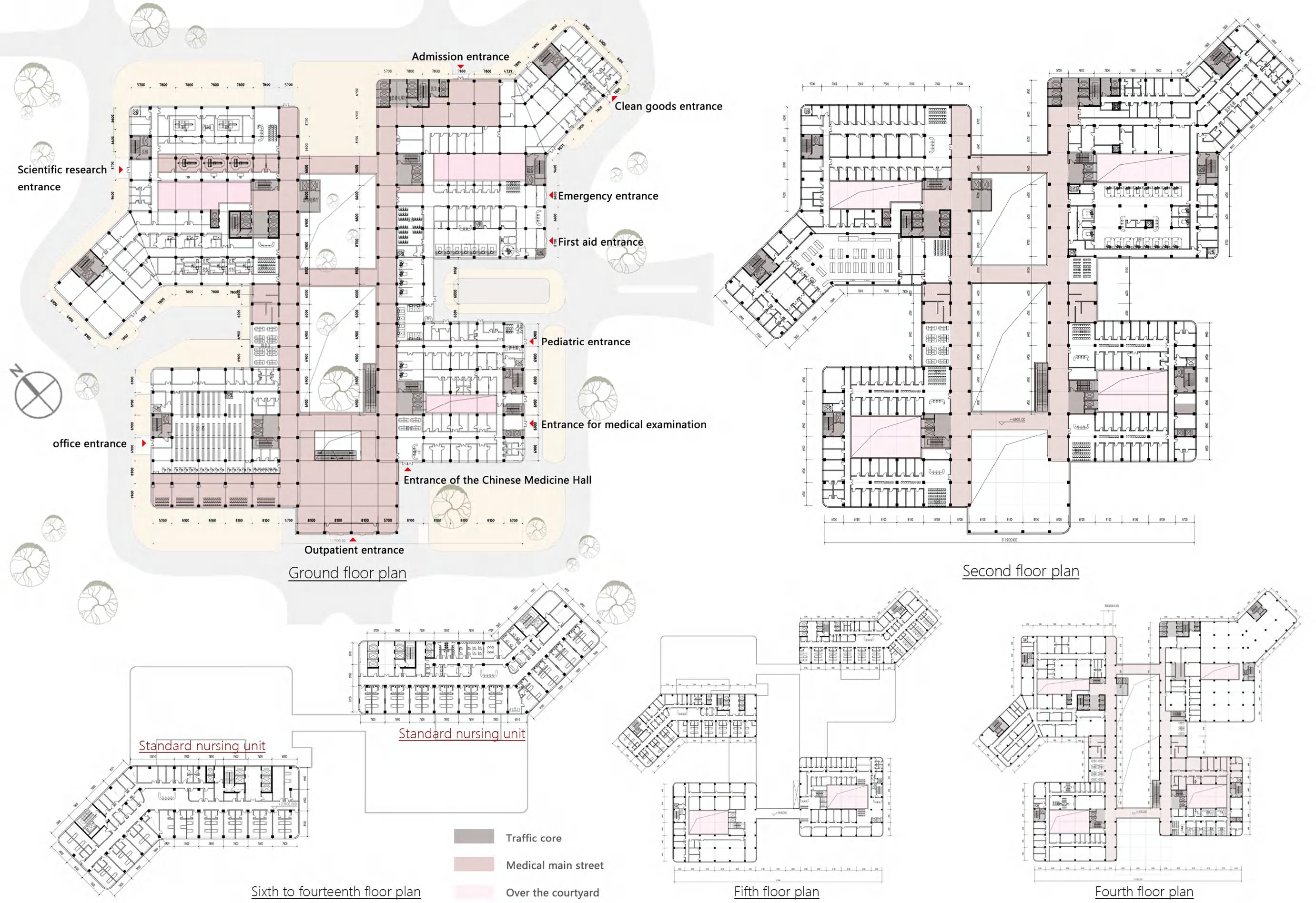

Preliminary drawing of plan (under the guidance of colleagues)

31

05 other

During my undergraduate study, I was keen on using different

Hand-made model photograph painting

plates to make models. Different thicknesses bring different degrees of

Illustrated works

effects under the lens.

flexibility. At the same time, different light perception presents different In my life, I often buy some models that need to be assembled, and every successful assembly brings me happiness.

32

05 other Hand-made model photograph painting Illustrated works

Apart from photography, reading comics is one of my favorite entertainment in my student days. After learning architecture, I have always been very enthusiastic about illustration.

In addition to the drawing of conventional architectural drawings, I have also spent some time in drawing illustrations. As it is my first attempt, I will only select some illustrations to display here.
