PORTFOLIO Interior, Architectural and Spatial Design MA by Junyi He

[ Living in Beijing hutong ]

Hutongs are the epitome of Beijing's history and lifestyle, carrying the living culture passed down from generation to generation.

As a native of Beijing, I have always fantasized about moving out of high-rise buildings and living in familiar hutongs like the older generation.

Therefore, for the first project, I took hutong as the design background, trying to create a unique old Beijing residence that changes as the user ages. floorage : 420m2 building storey : 2 building height : 8m greening rate : 20% plot ratio : 0.4

4

01

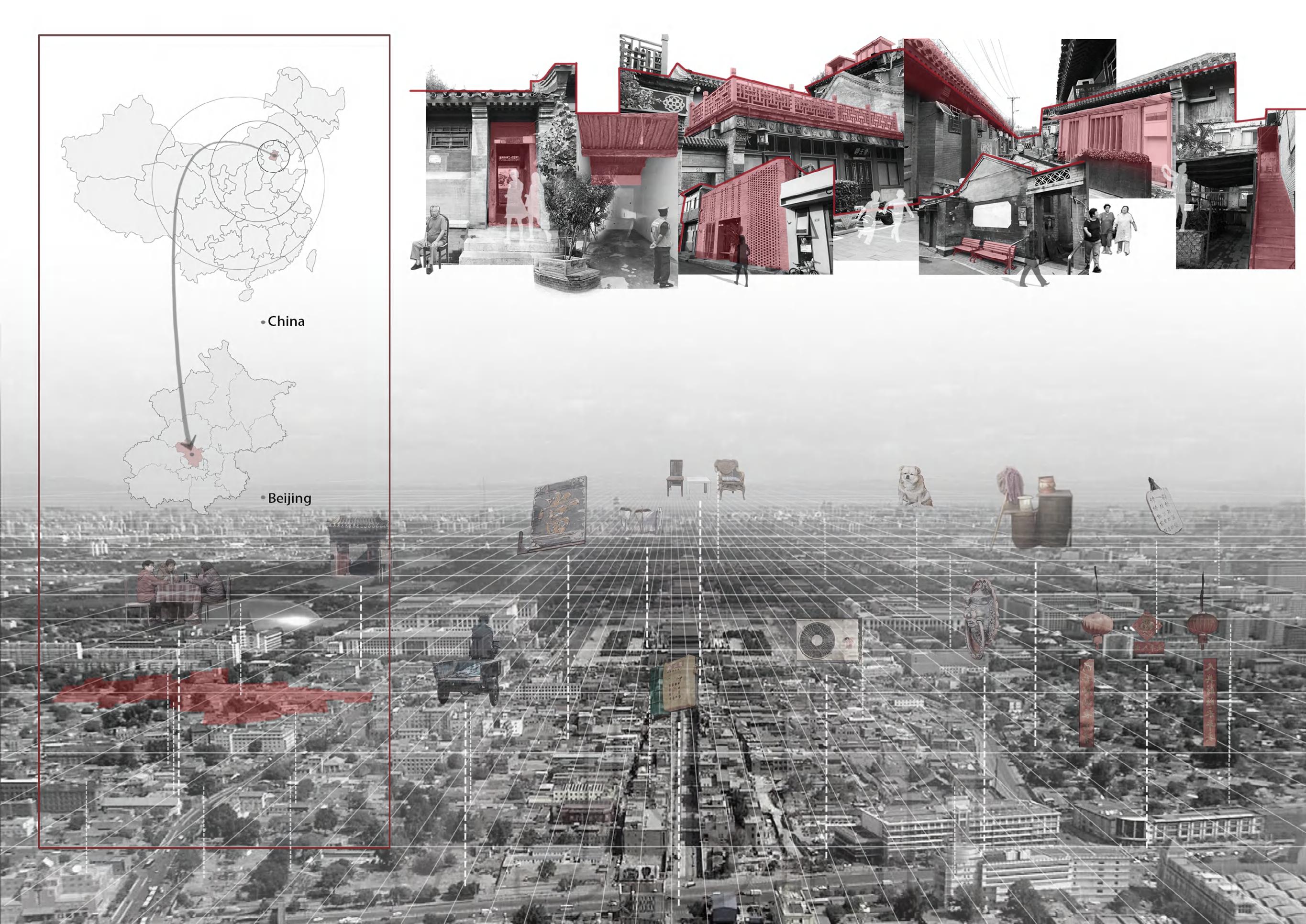

Site Analysis

The venue is located on the south side of Liulichang Ancient Street in Beijing. It originated in the Qing Dynasty and has a total length of about 800 meters.

It is by far the most populated and best-preserved hutong in Beijing, and it was once the mansions of dignitaries, where the older generation took pride in living

5

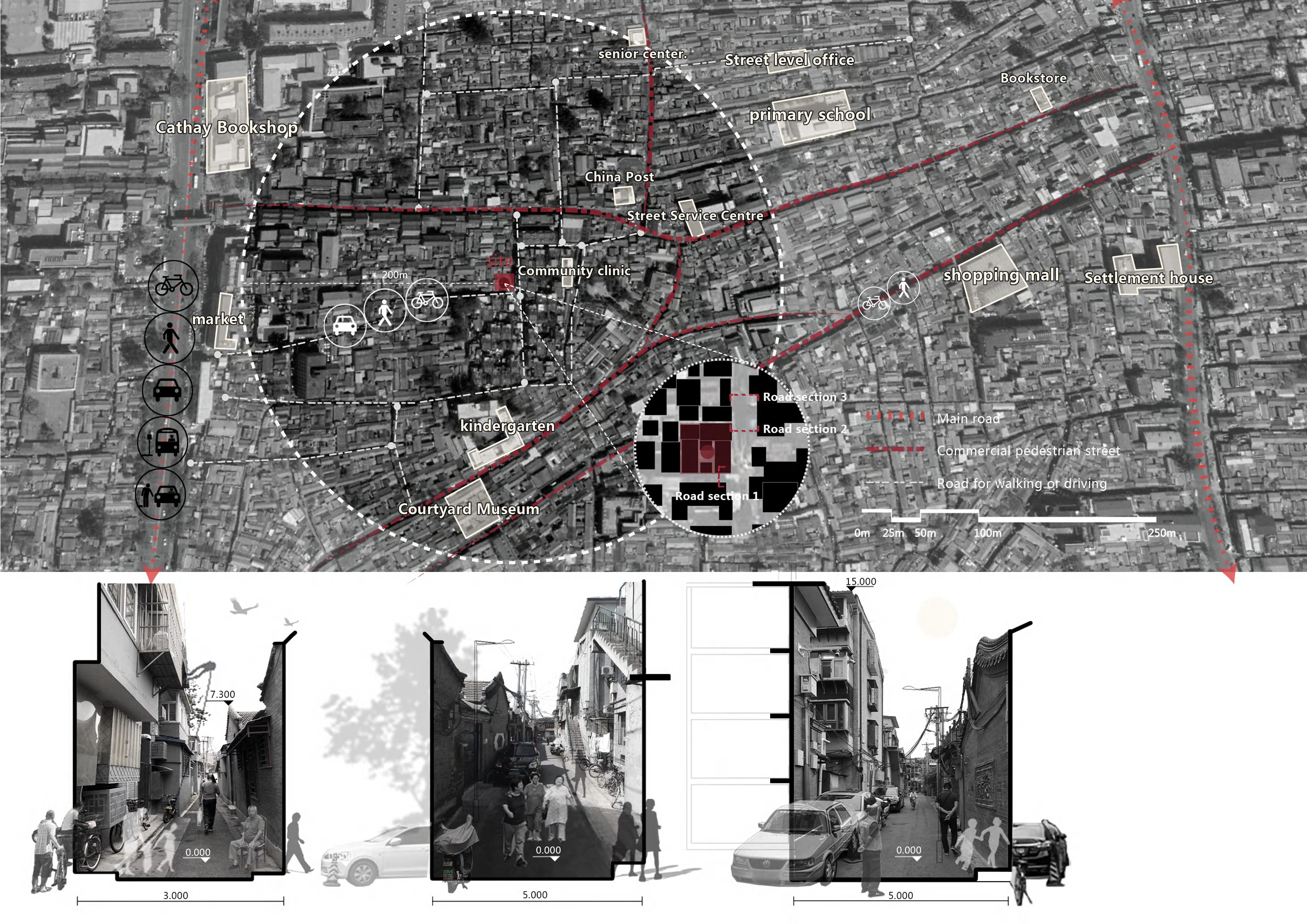

Regional Analysis

old style residence sidewalk

Two-way single lane curb parking

6

The site is located at the T-junction. The road on the north side is about 5 meters wide and the road on the south side is about 3 meters wide. Only pedestrians are allowed to pass through.

Most of the time, the residents will walk or ride through the street, so it is not crowded at ordinary times.

Surrounding environment analysis volume generation

Add a new mass on the left side of the original building structure, and use the original space as a new active space after covering the roof.

Change the double slope roof into single slope roof, and use the roof as accessible space for users

7

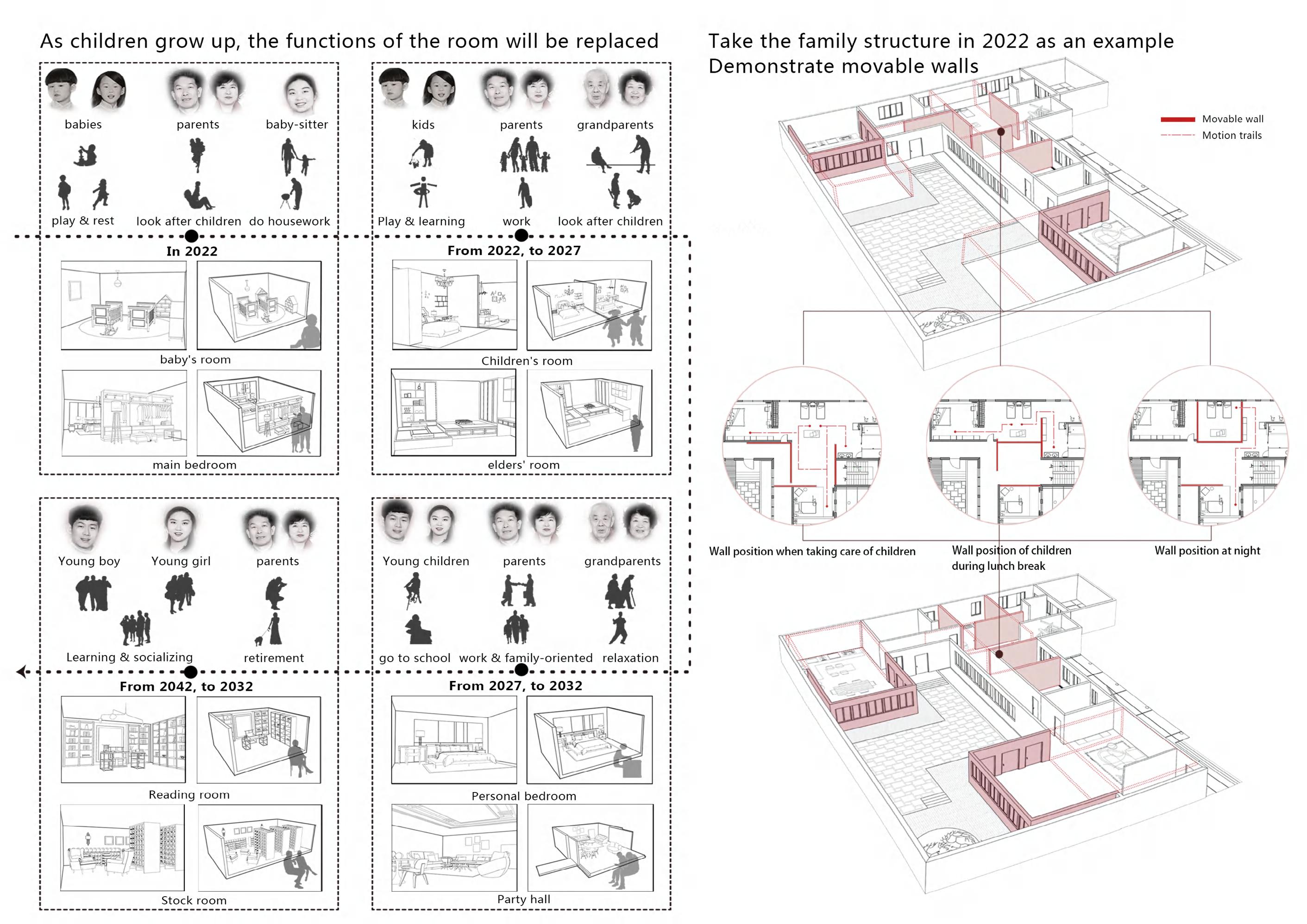

Part of the non-loadbearing wall in the house is designed as a movable wall.

8

Residents can change the indoor space at any time.

Residents can adjust the movable partition wall to make family life more convenient.

9

Beijing people who live in hutongs are used to taking their doorsteps as an extension of the living room, making the whole street full of vitality.

Planting flowers in the yard is a local tradition and a topic of conversation.

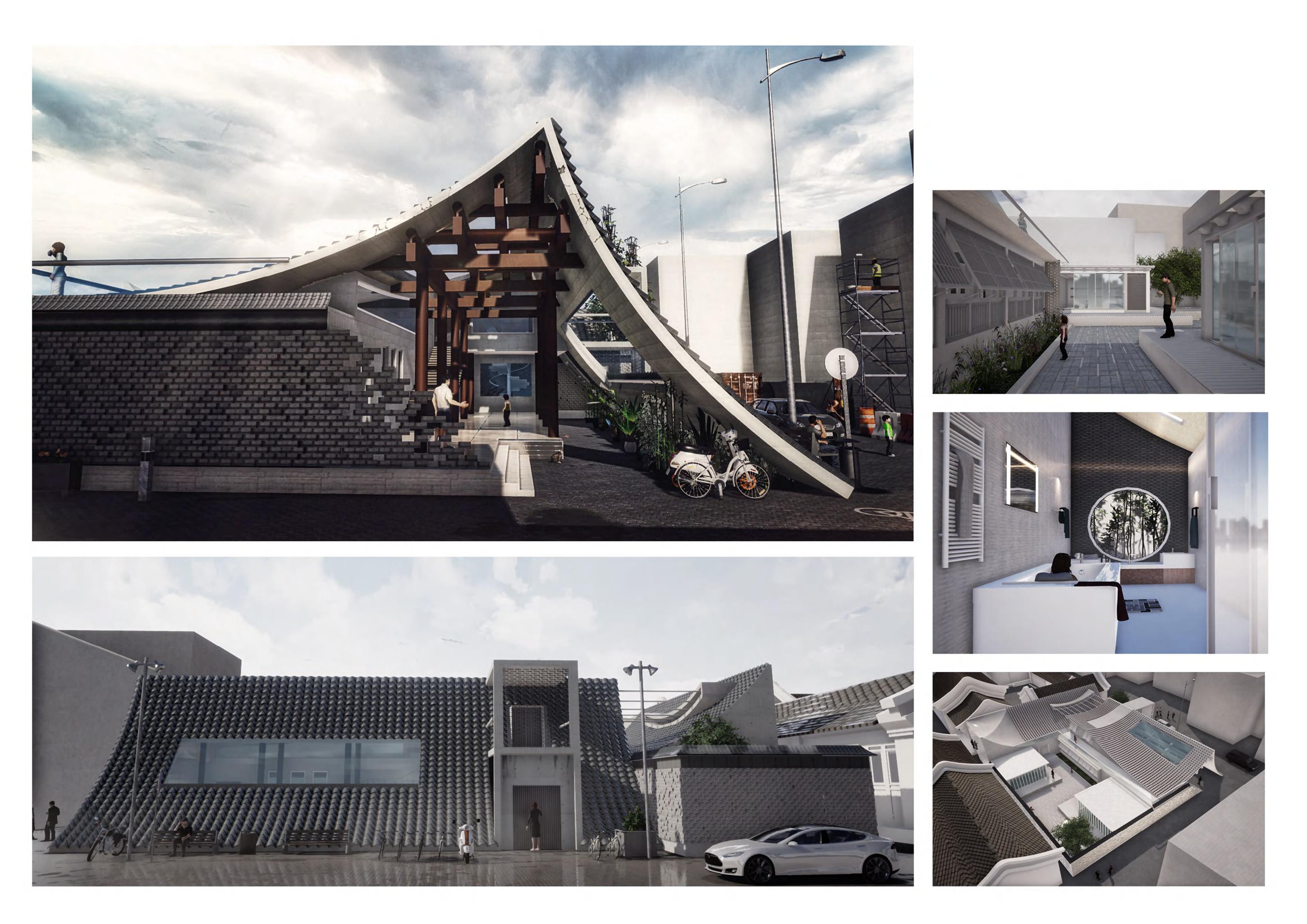

view of courtyard

Eye level perspective

Interior perspective view

Elevation along the street

10

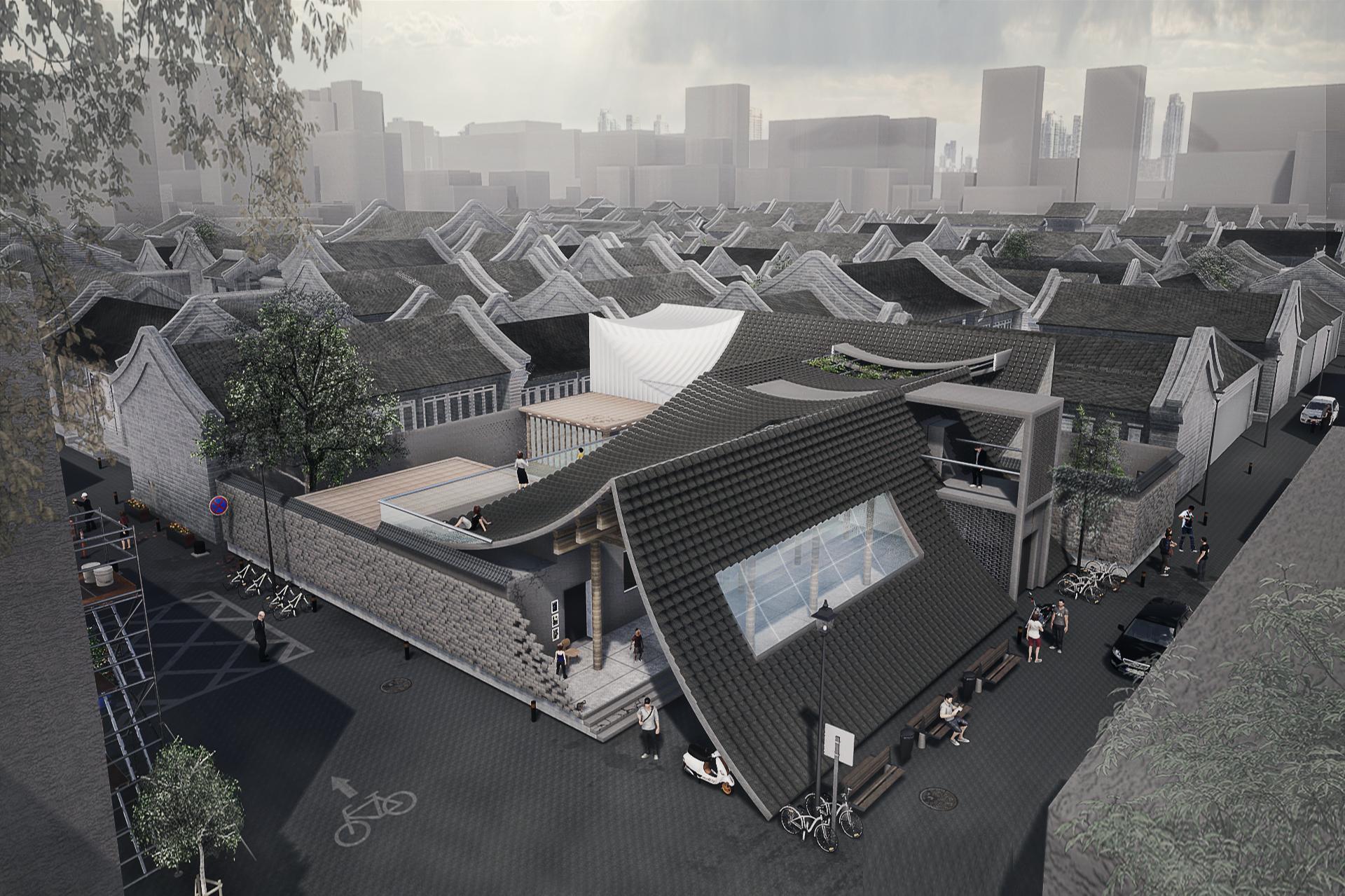

aerial view

[ Historic River and the space under the eaves ]

02

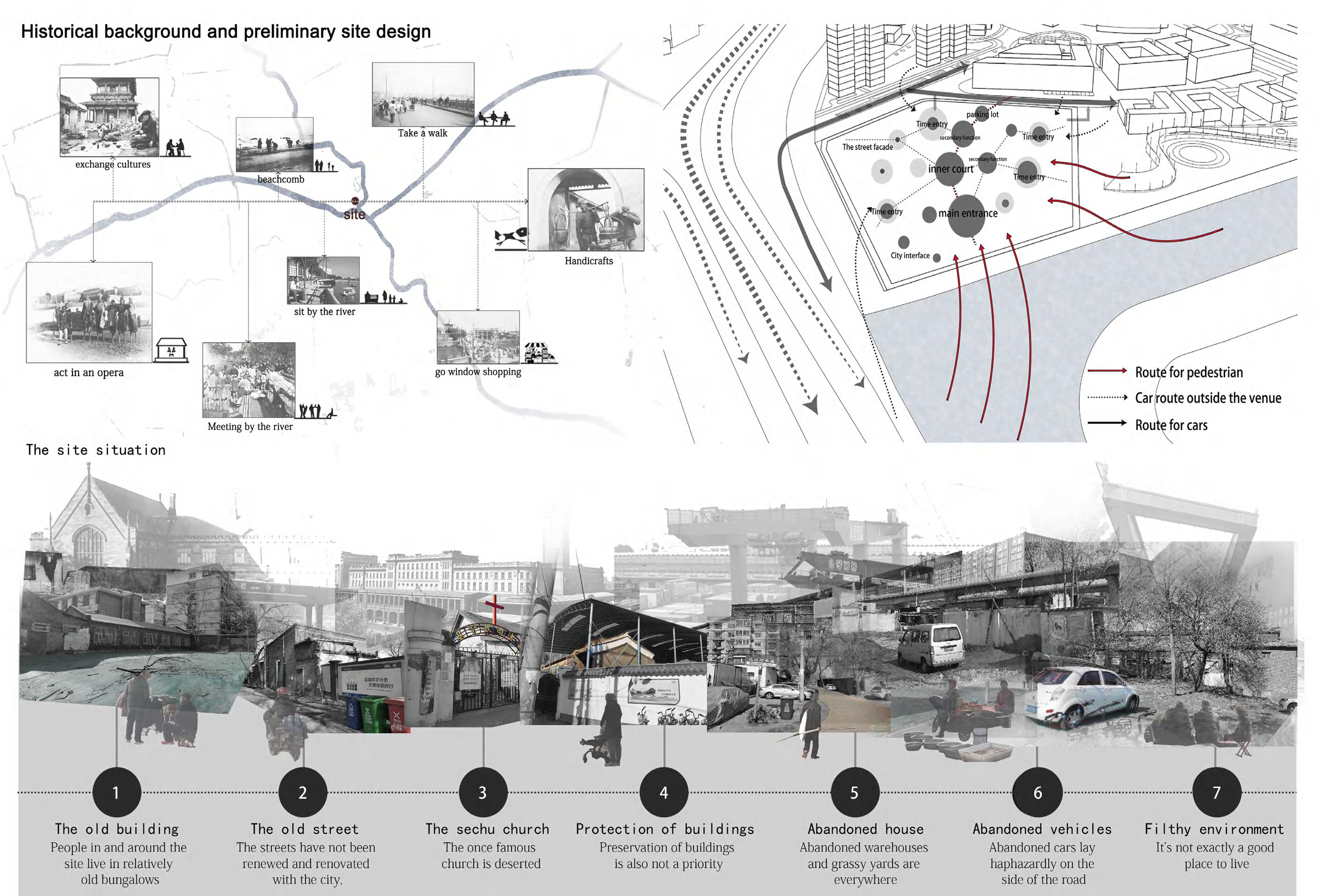

In the former Tianjin, individual businesses were very developed, but with the passage of time, these almost no longer exist.

Through the design of this building, I hope to arouse the memory of the local people who once lived by the canal.

Taking the image of water as the eaves, we hope that people can regain the feeling of talking and laughing under the eaves..

floorage : 18300m2 building storey : 3 building height : 16m greening rate : 15% plot ratio : 1.22

11

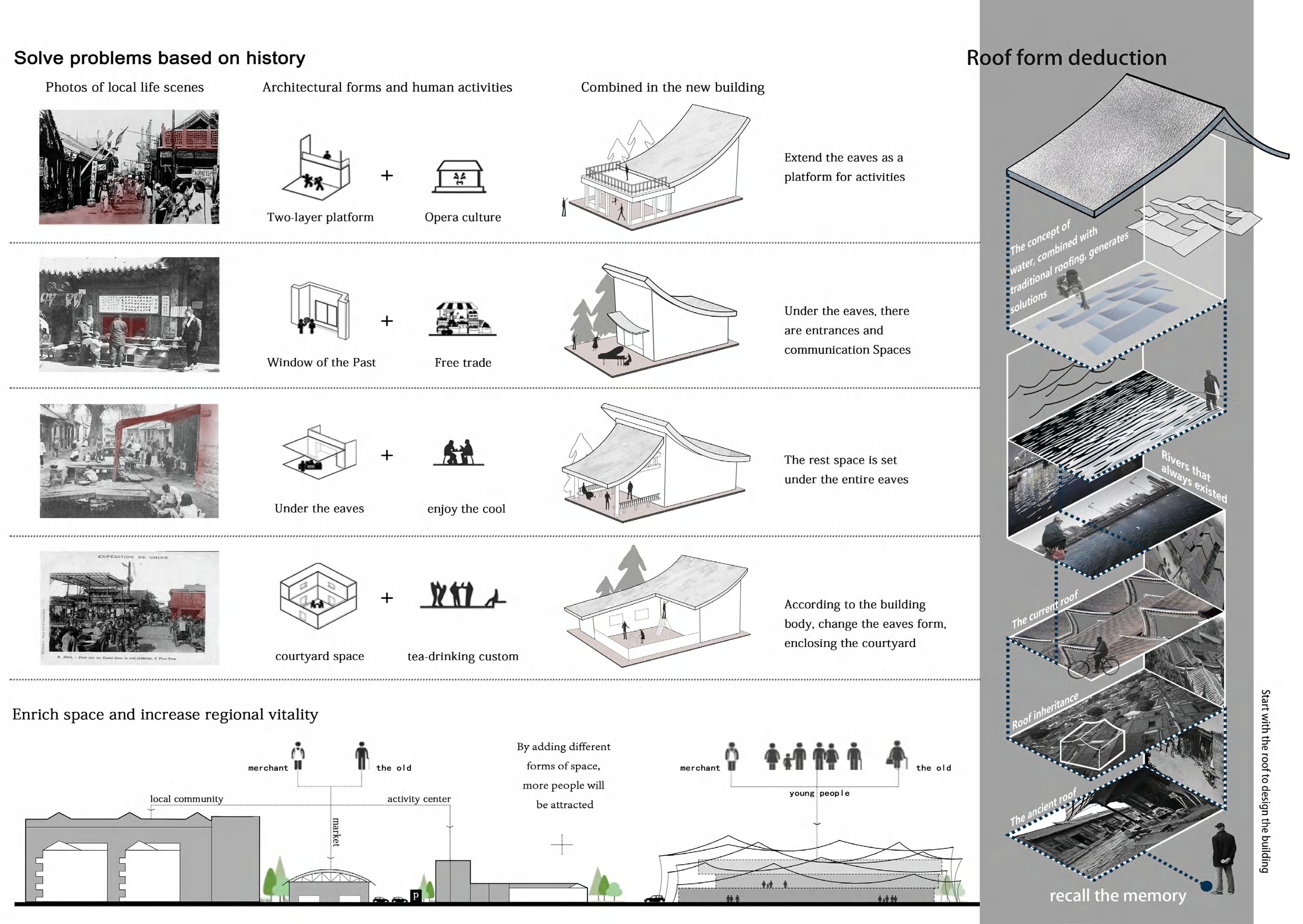

Extract basic form

12

Scheme analysis

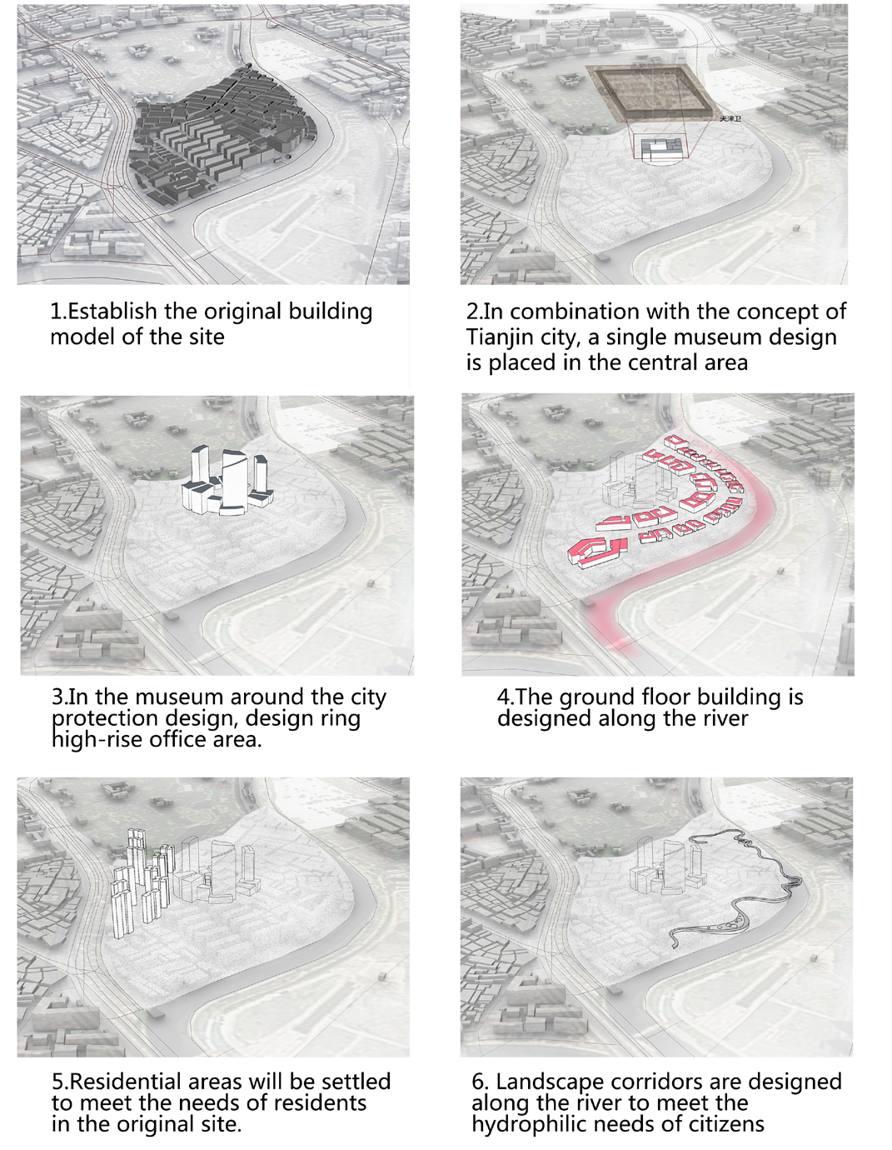

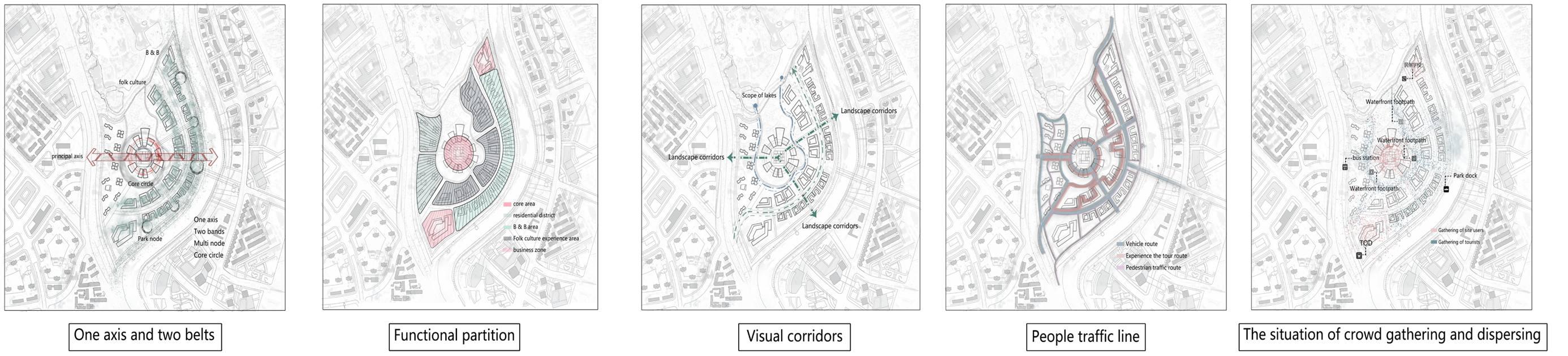

Urban design generation

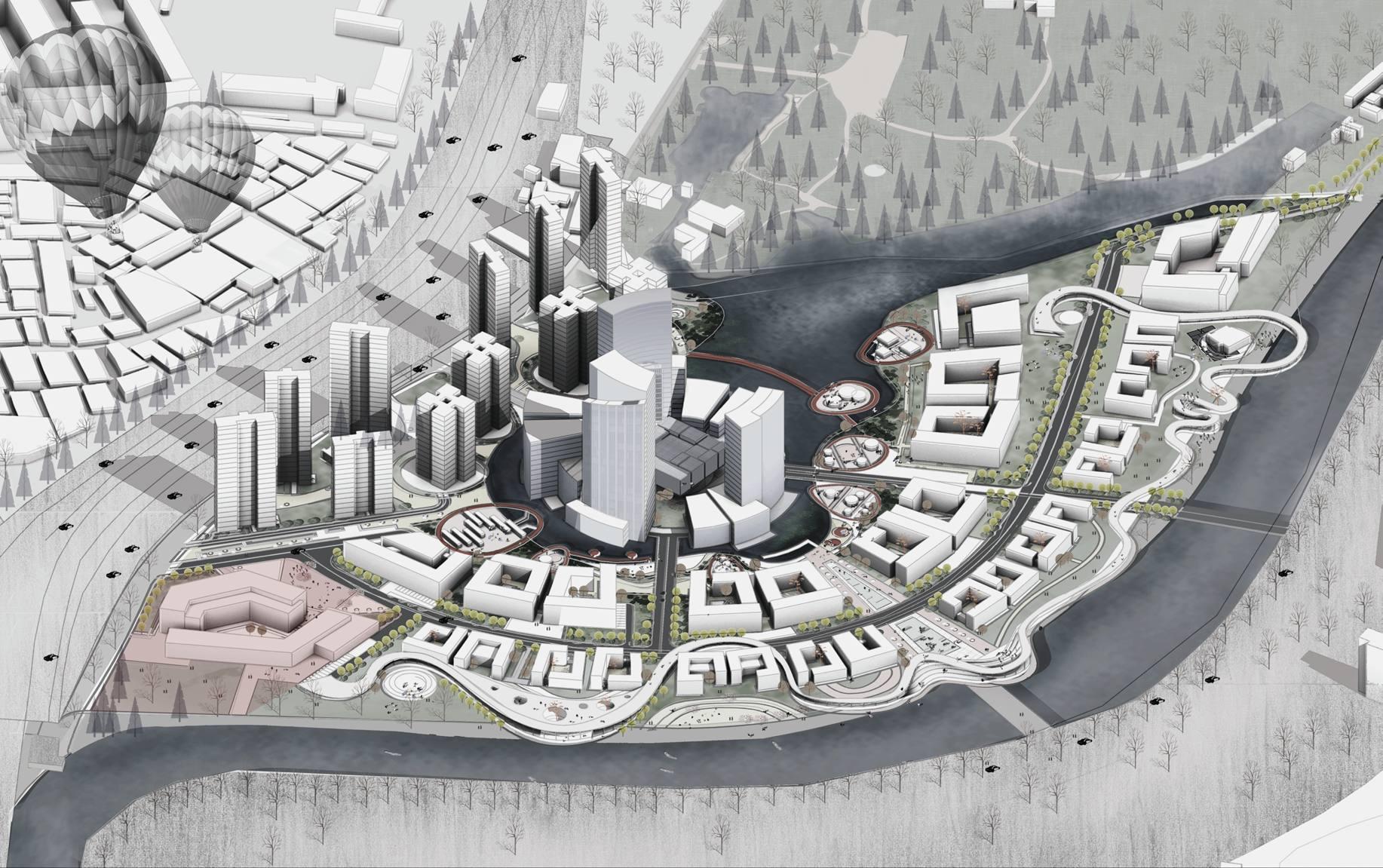

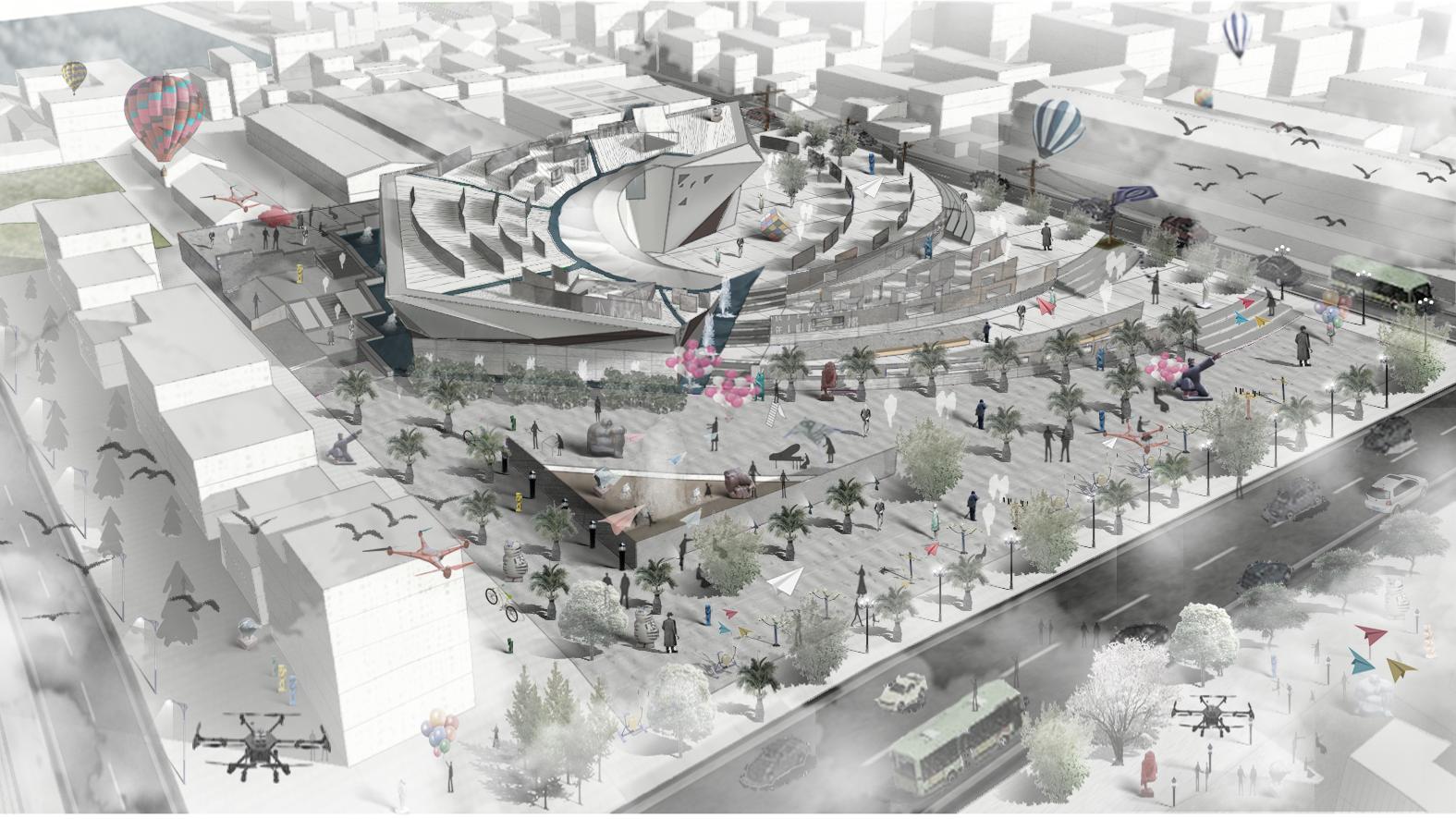

Aerial view 13

14

15

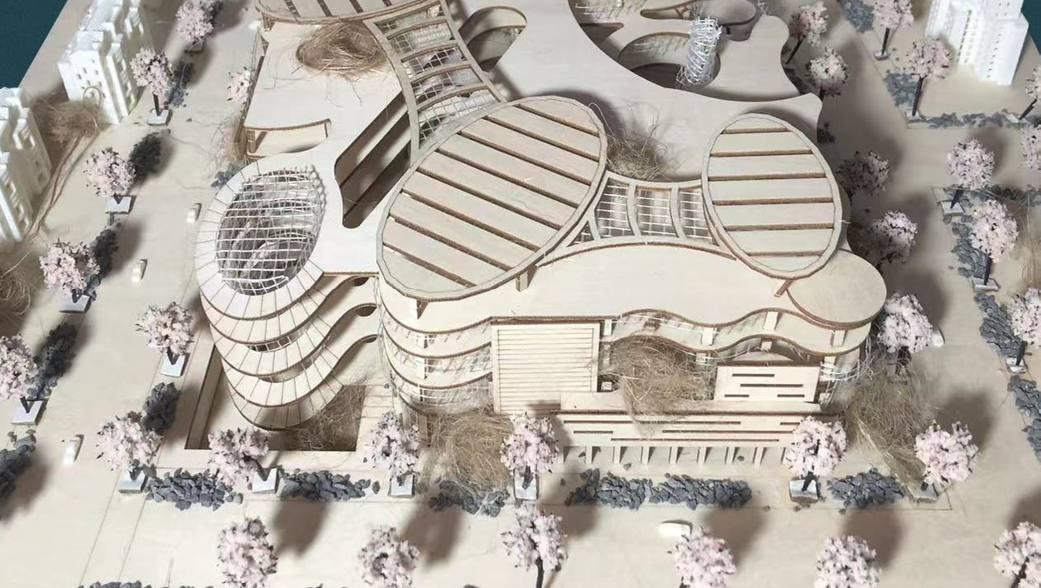

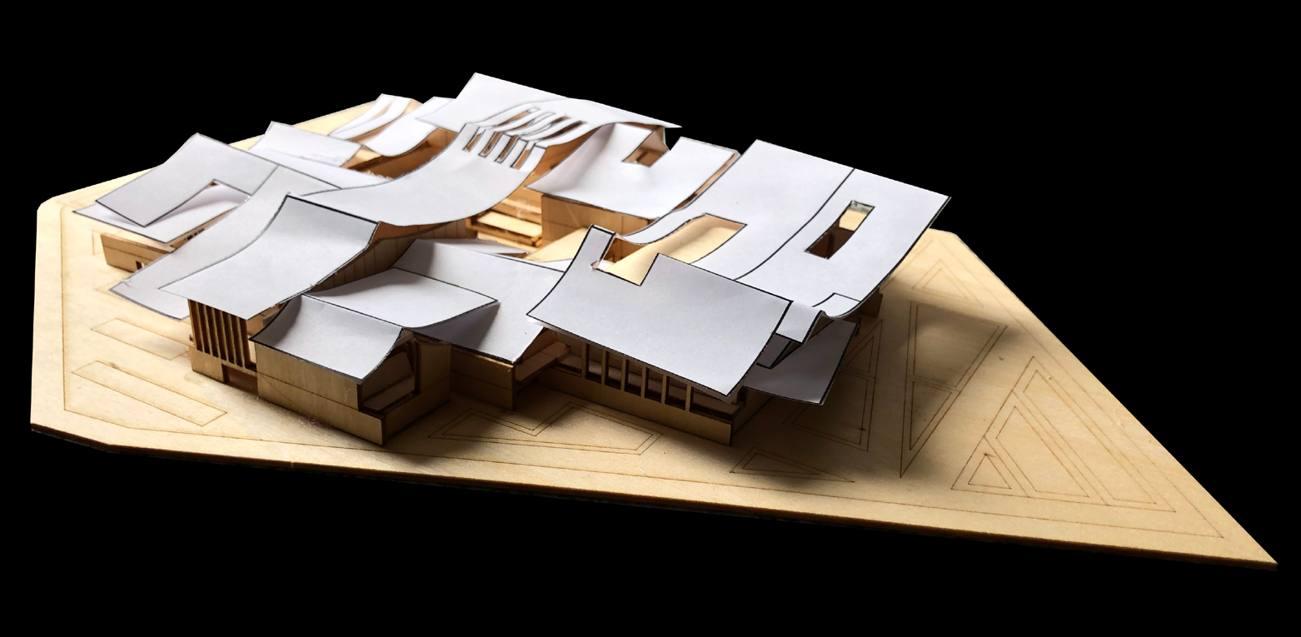

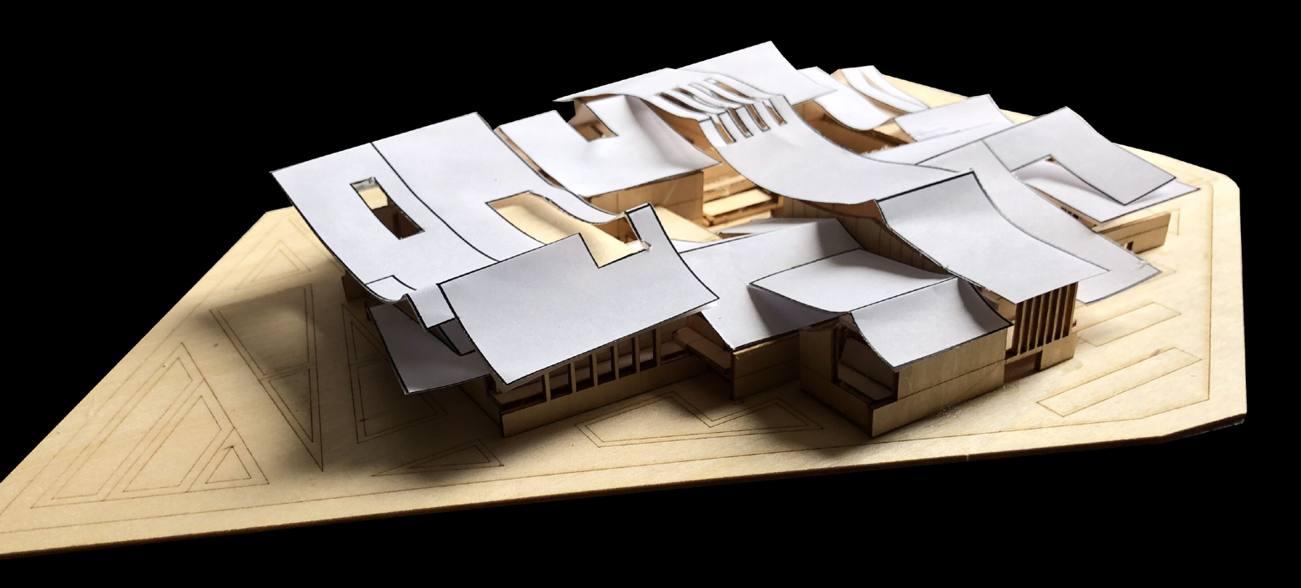

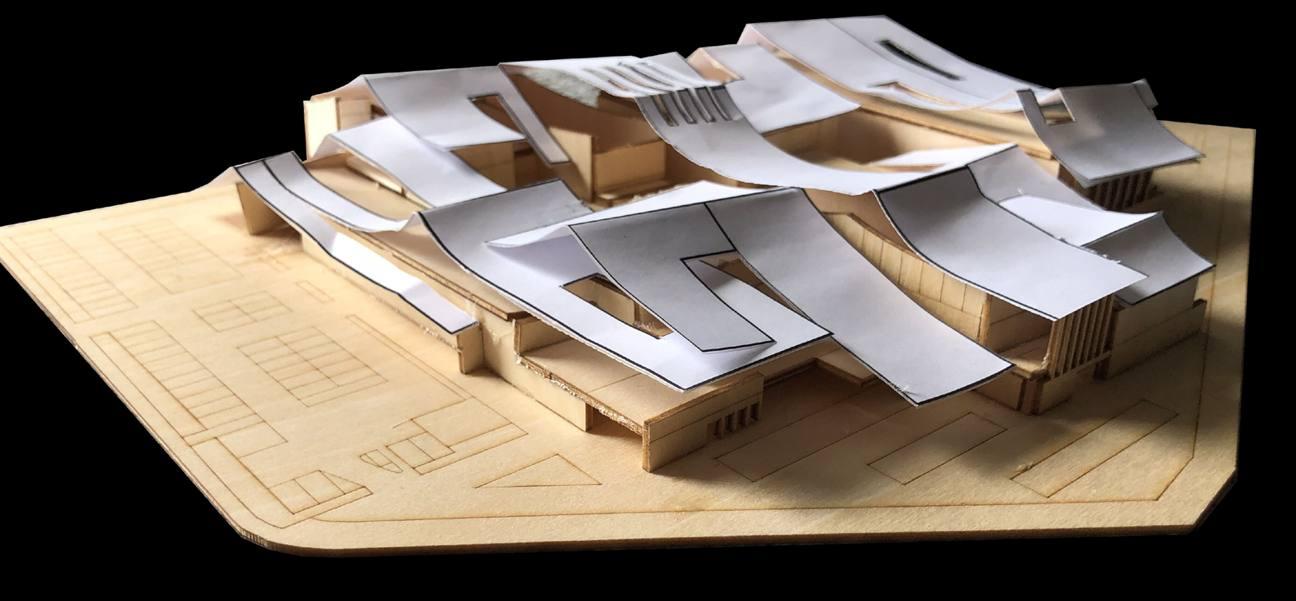

Model photos

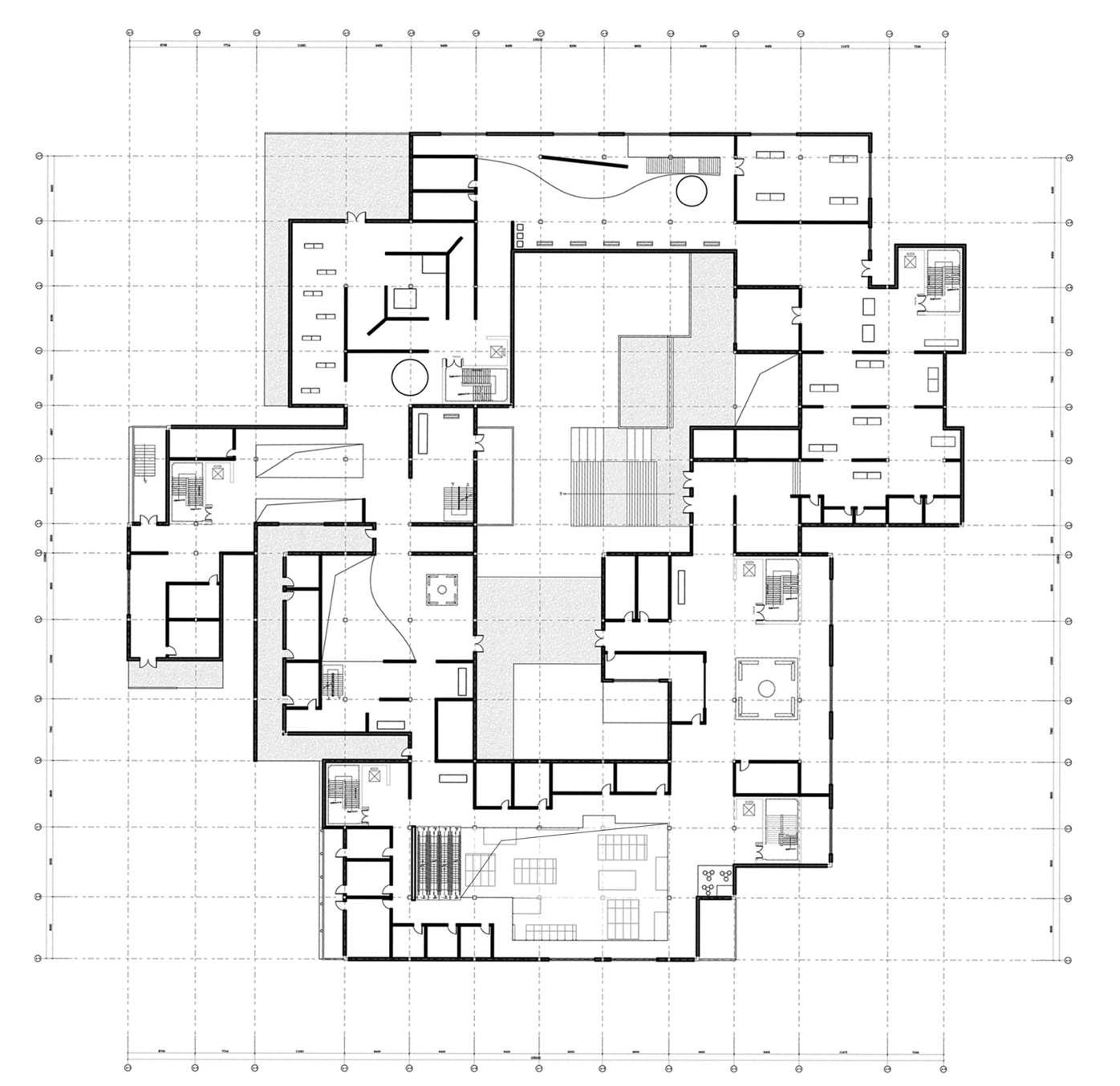

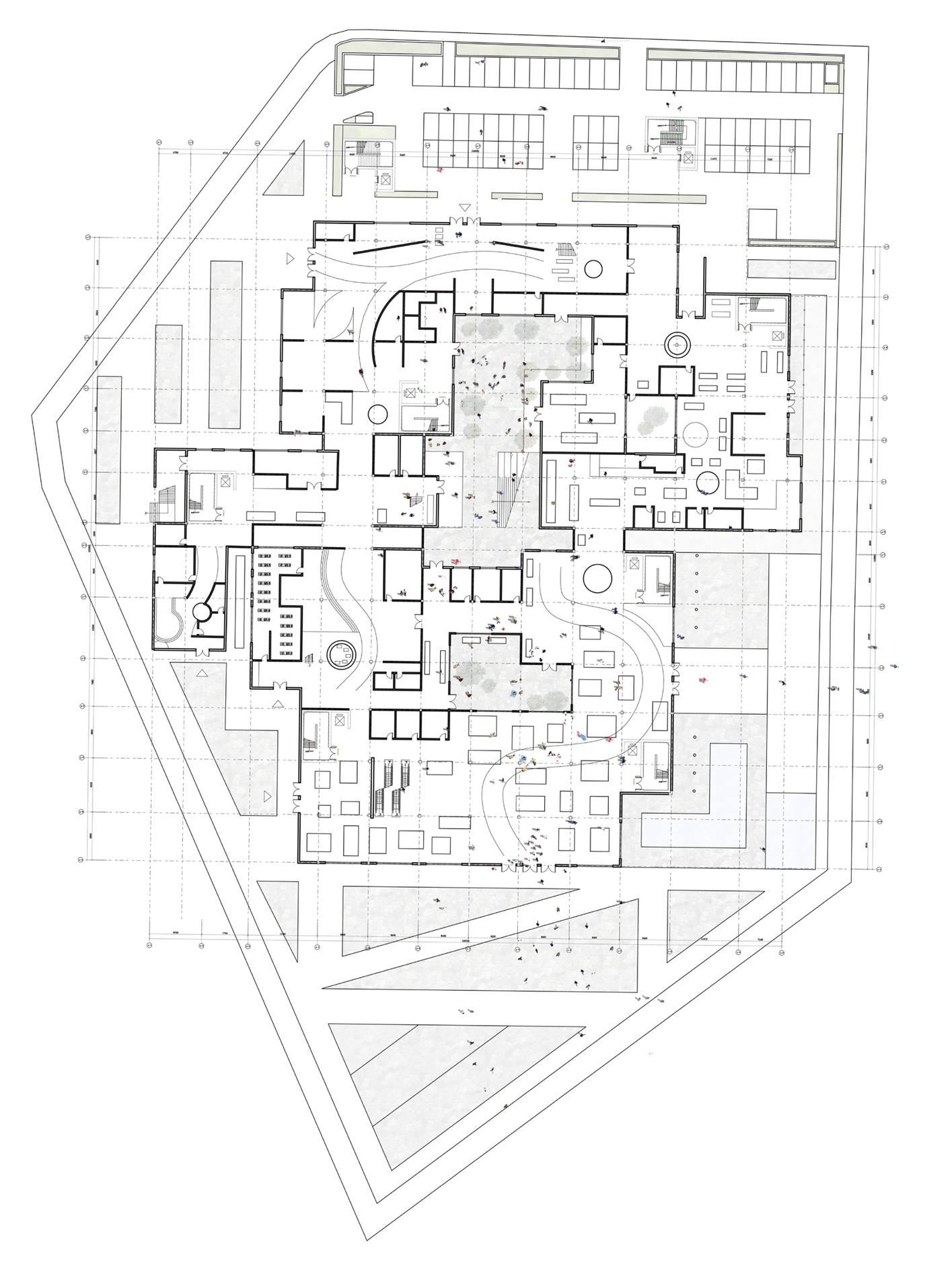

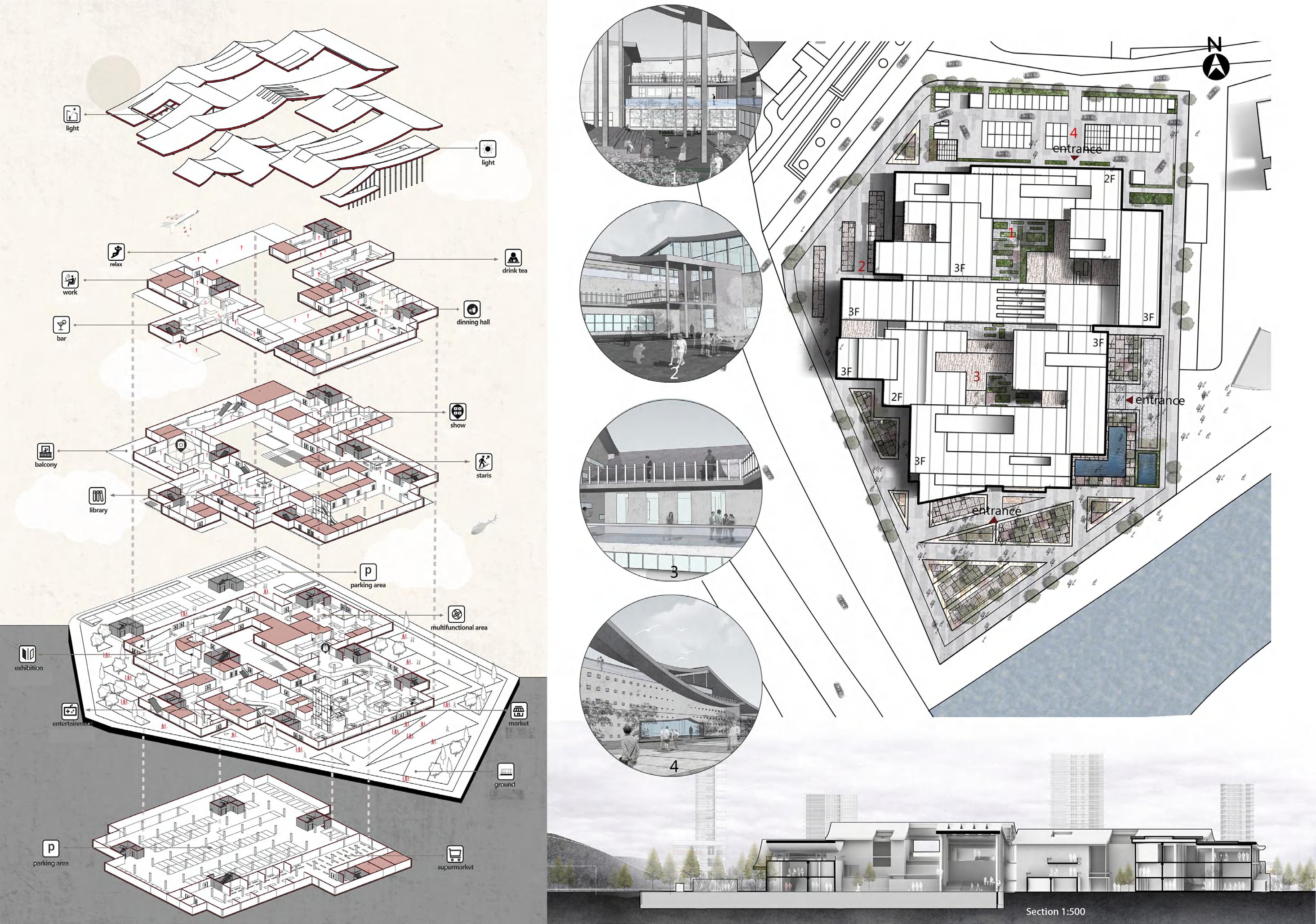

1st floor plan 1:500

16

2nd floor plan 1:500

3rd floor plan 1:500

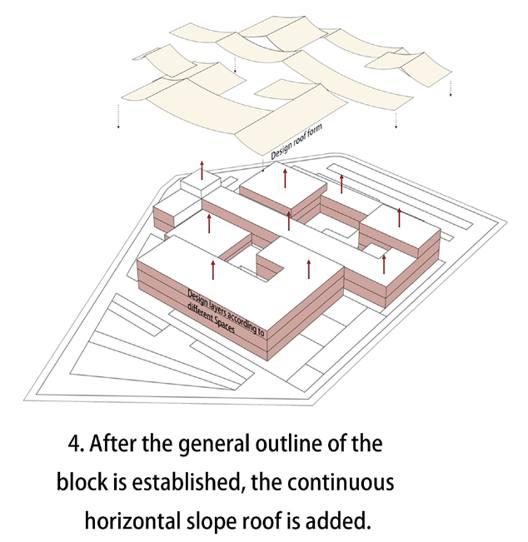

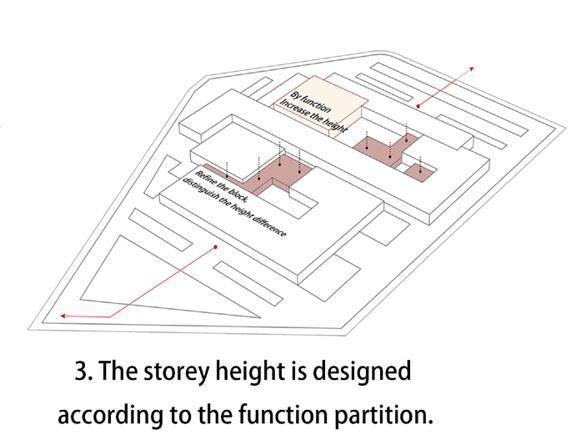

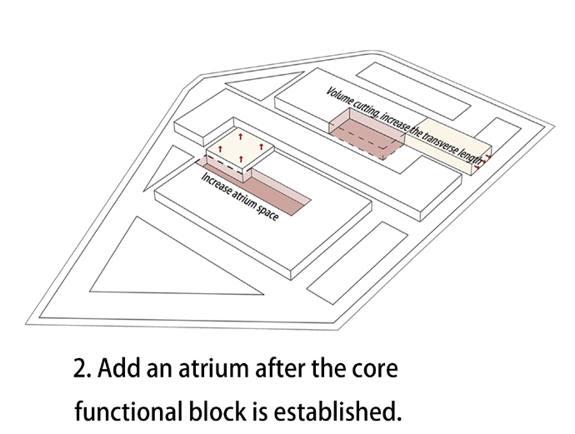

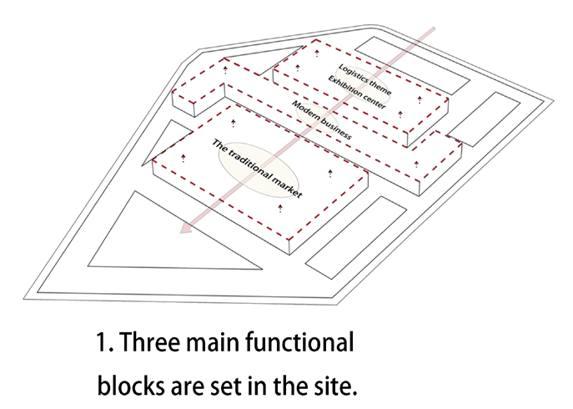

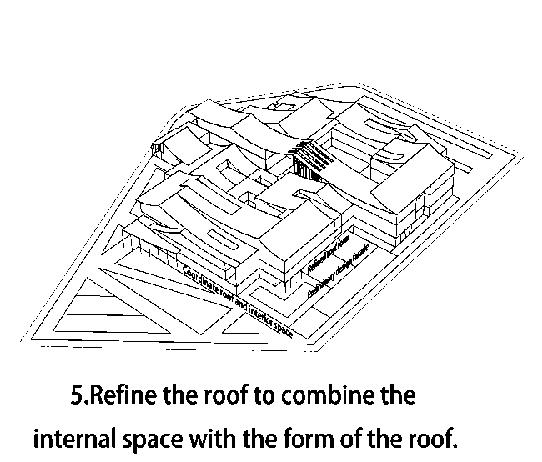

Block generated

17

Site plan 1; 500

18

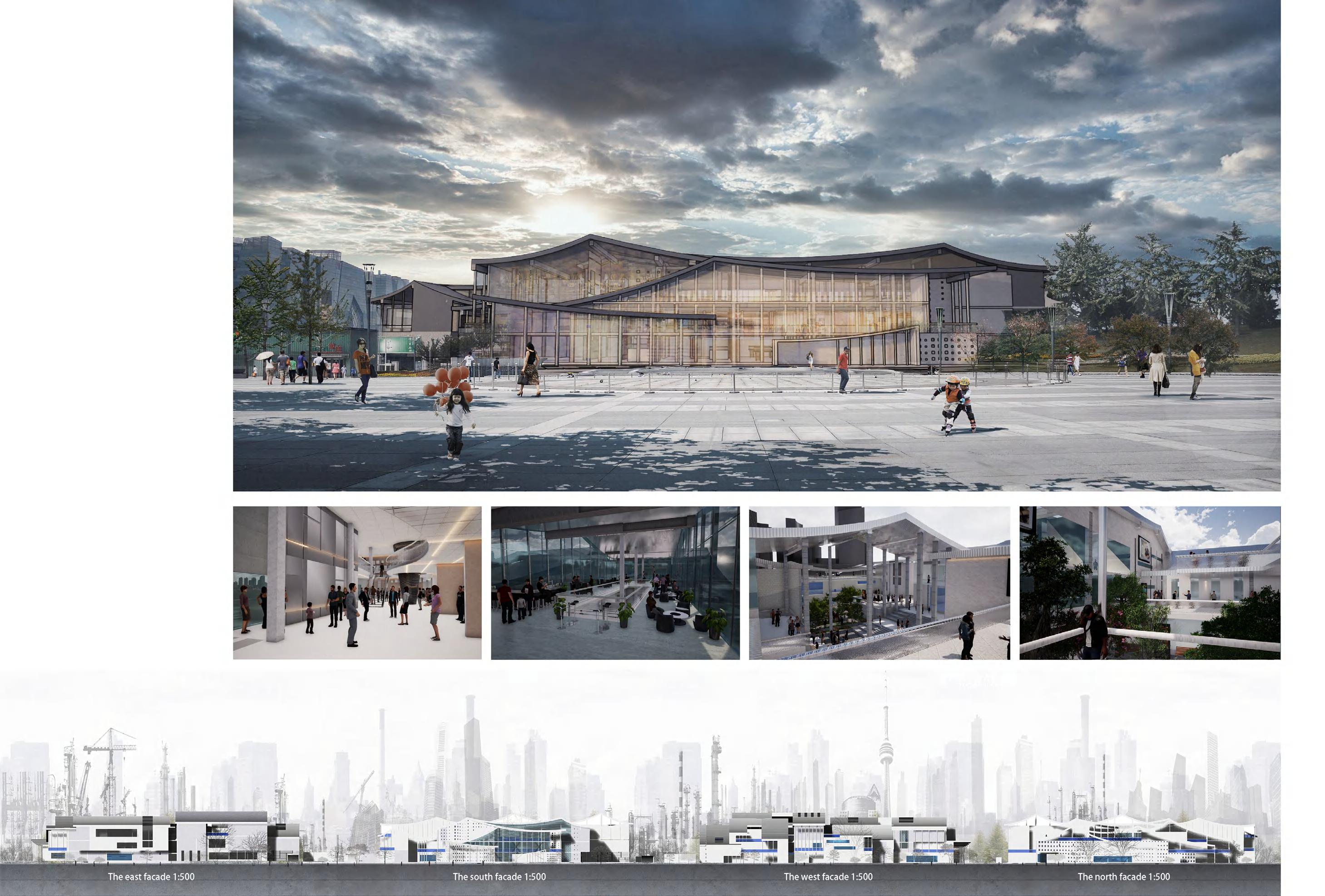

Indoor and outdoor perspective

The perspective of the south square often shows the first impression of the passing people and vehicles on the building, and at the same time, it also assumes the scene of local people's activities in the front square.

The drawings from other perspectives respectively show the indoor space and the courtyard space inside the building, which is intended to show the activity state of people in the space.

Entrance of Logistics Exhibition Area

Interior effect of business catering area

View of outdoor courtyard

View of outdoor Terrace

19

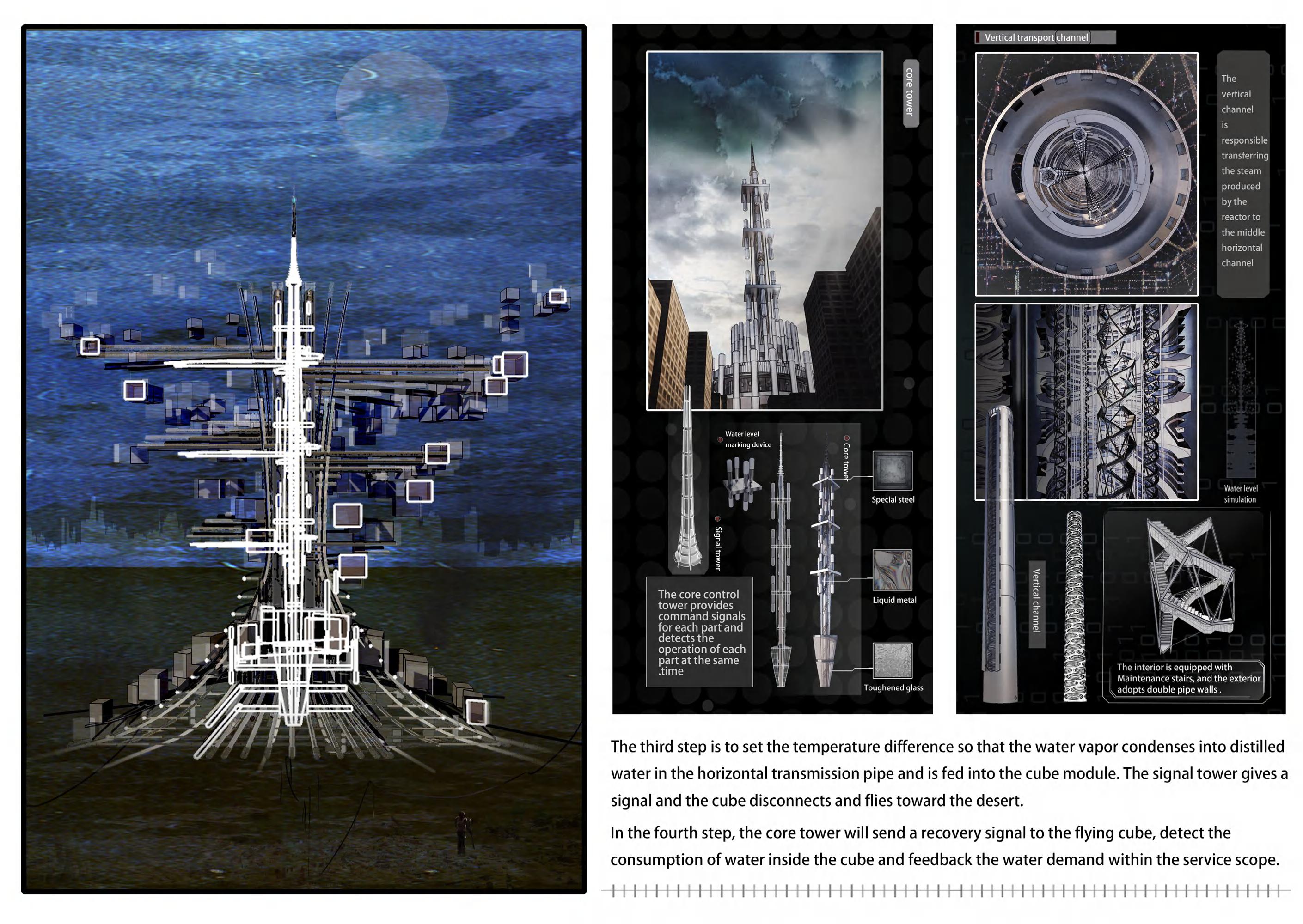

[ Plant a tree in the Sahara Desert ]

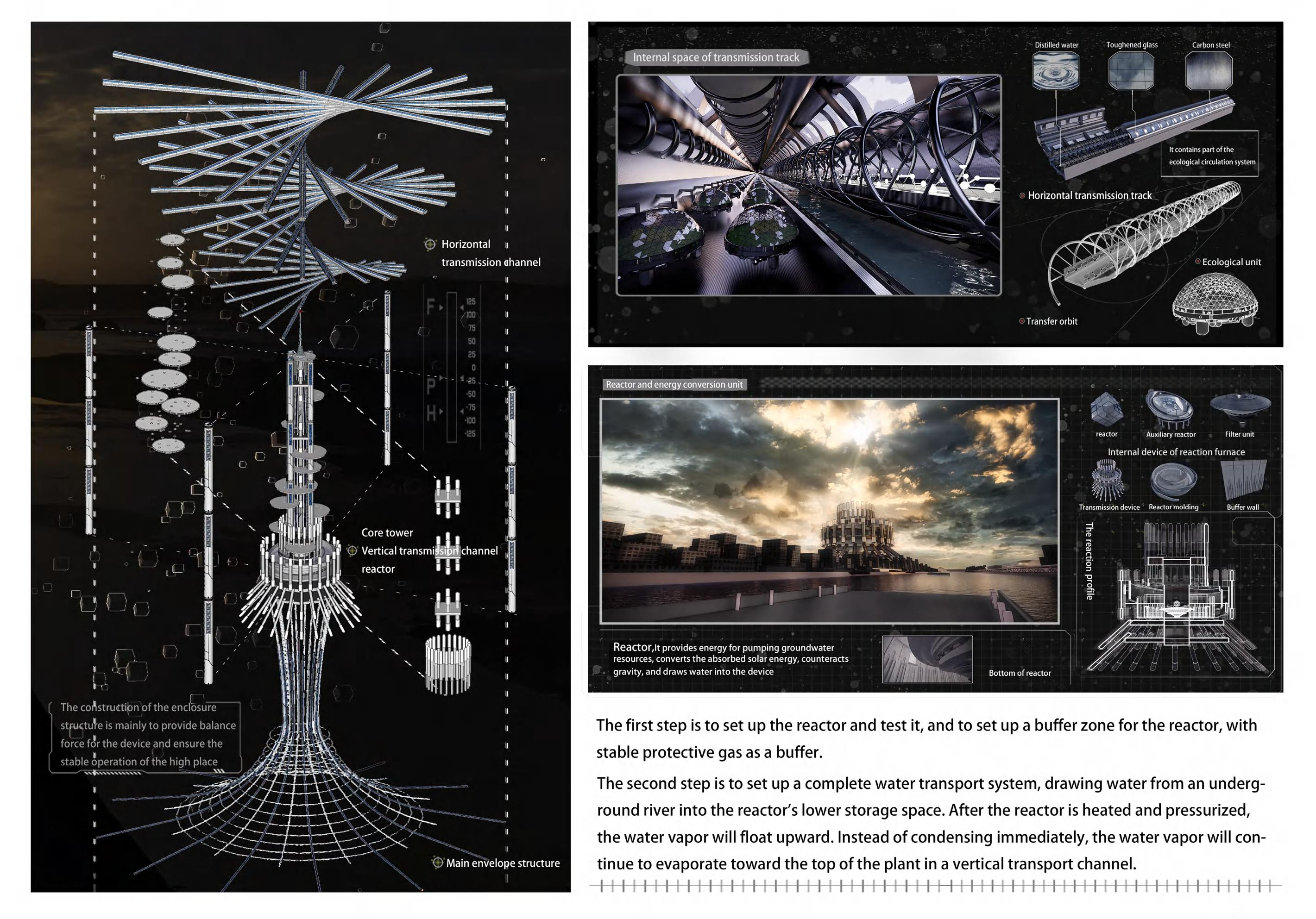

The Sahara desert region must use aircraft to transport personnel and materials, which is very expensive. It is difficult to provide these services in remote areas.

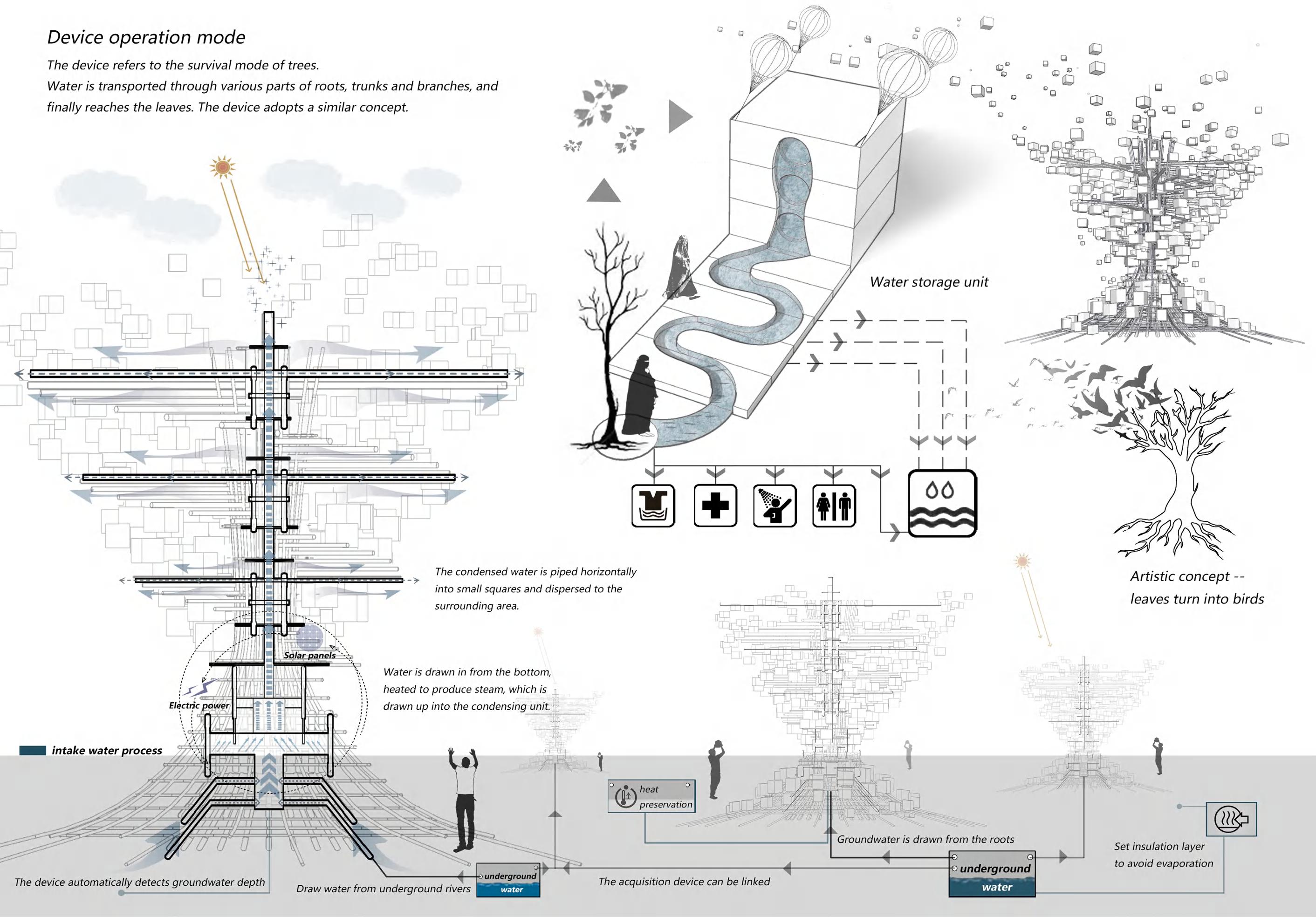

I try to design an independent and automated infrastructure, which appears in the image of a tree.

By absorbing groundwater and urban water resources, the living conditions of local people will be changed.

20

03

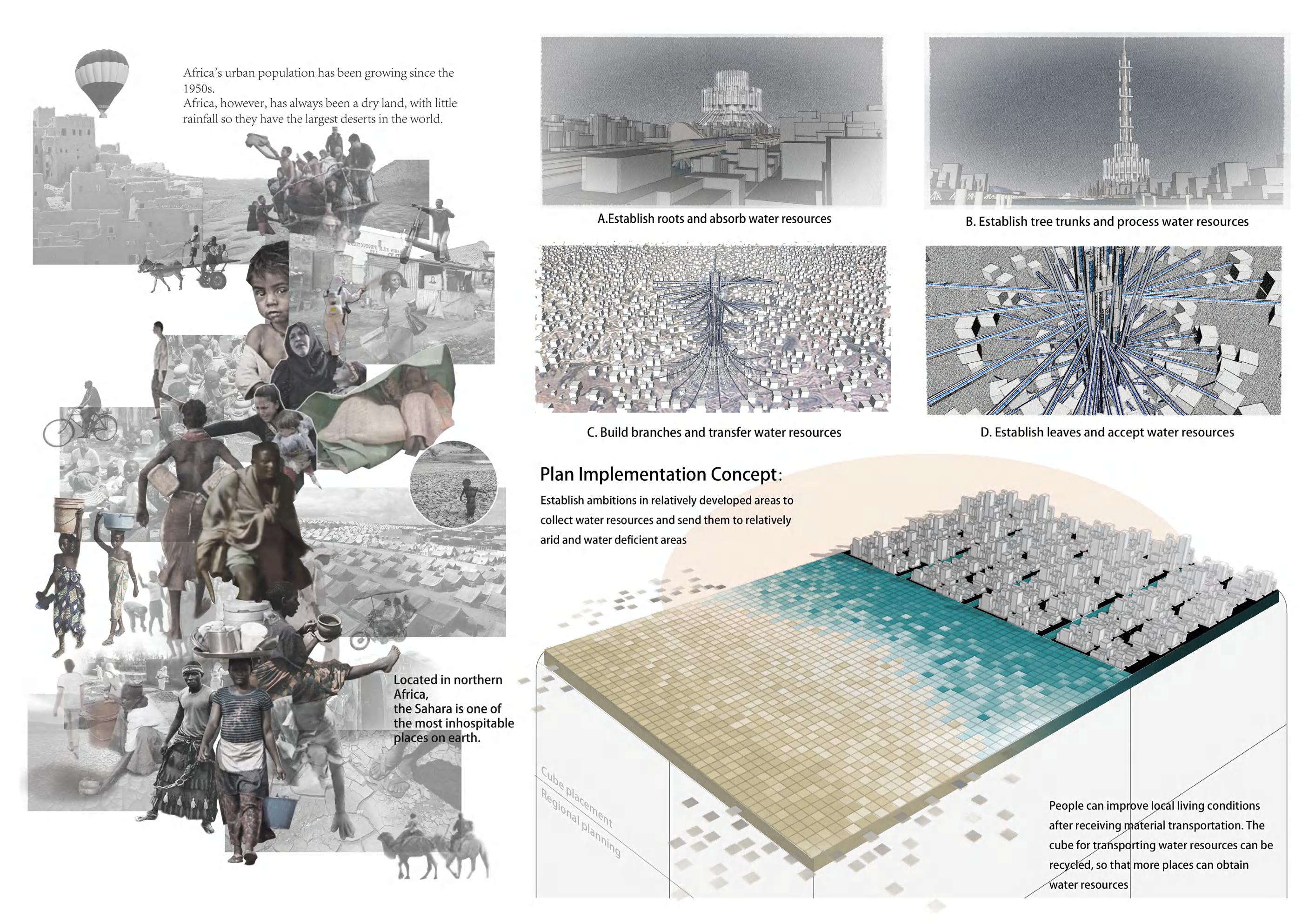

Design background

21

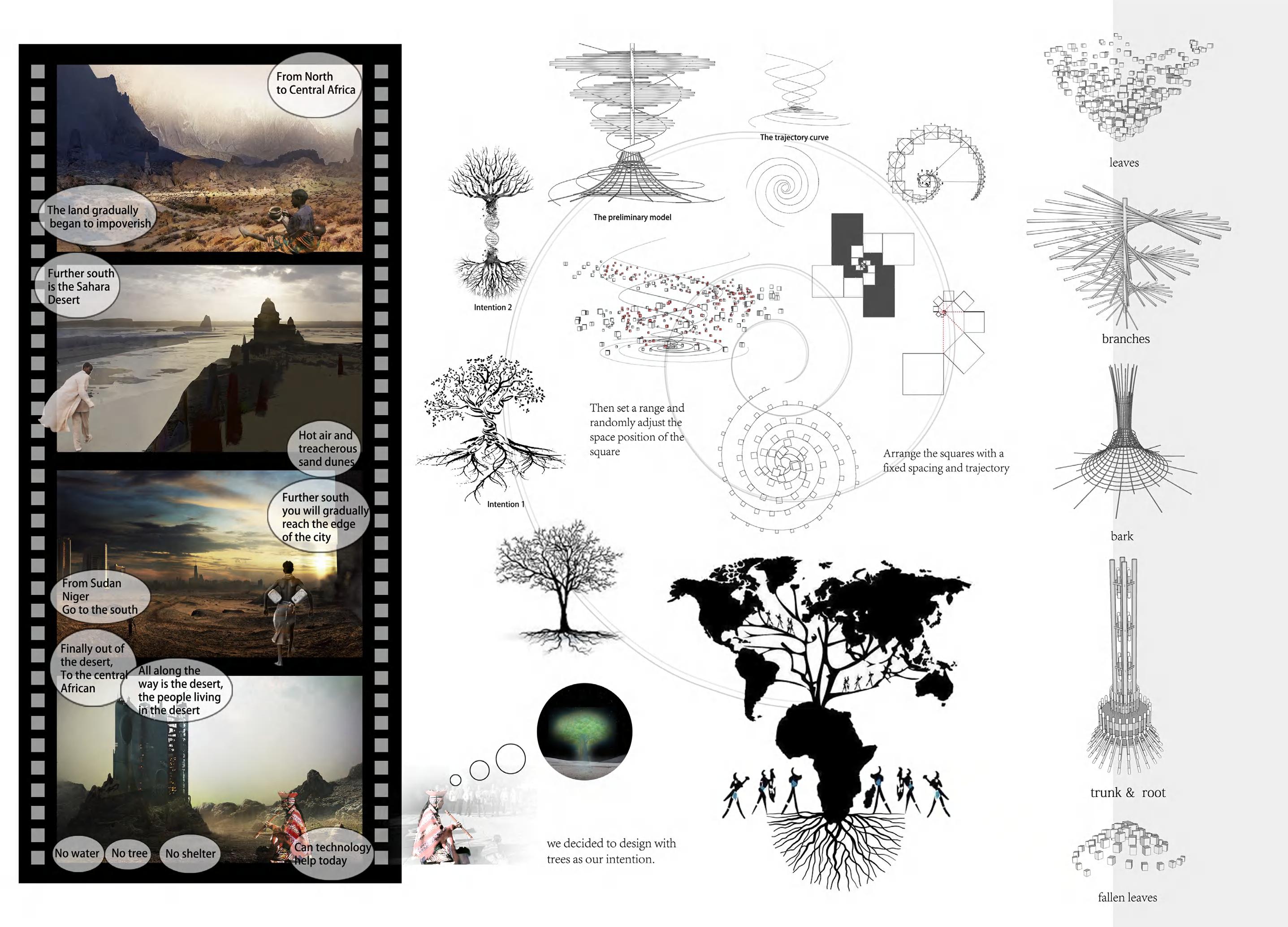

Concept generation

22

23

24

25

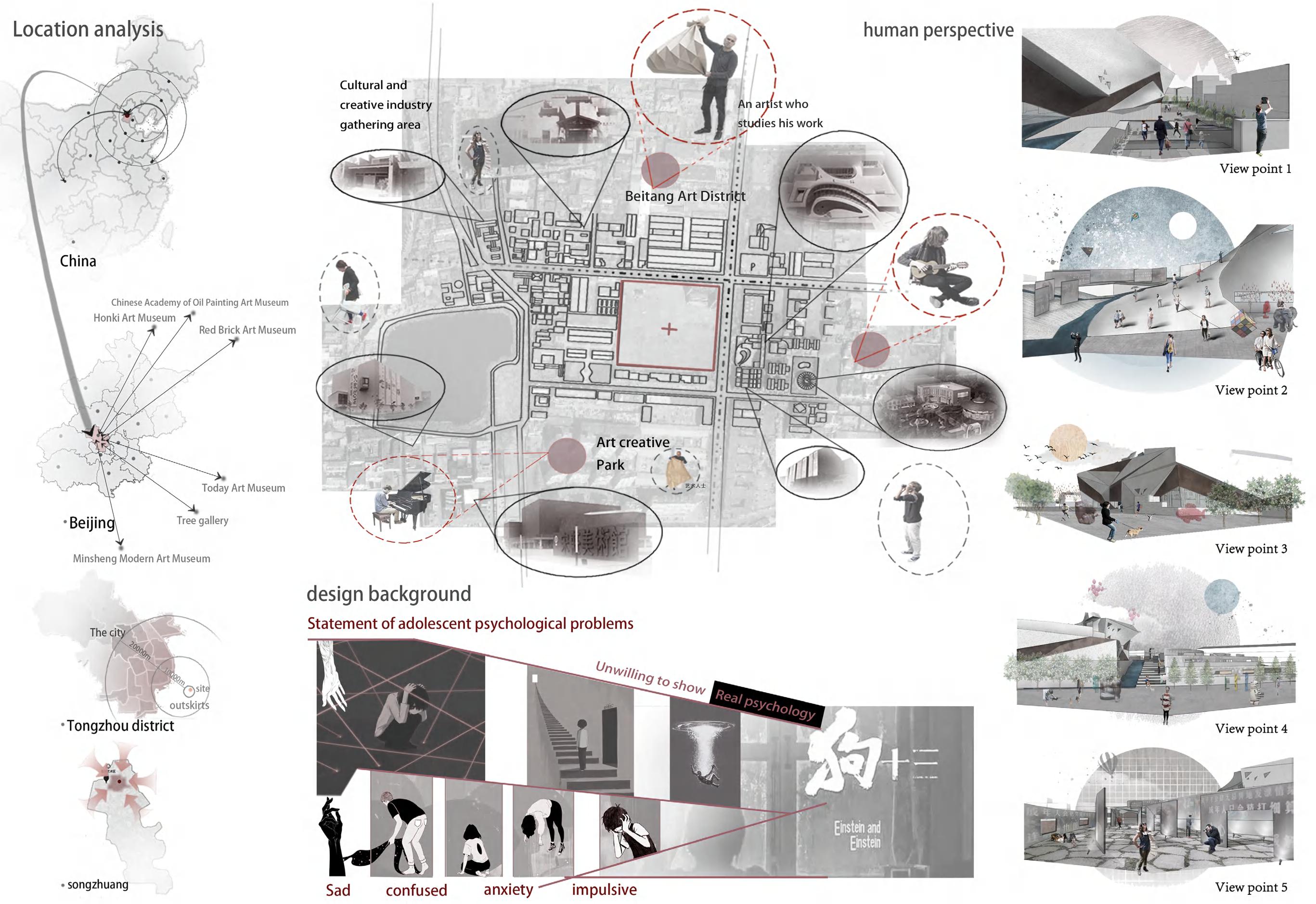

[ Youth Growth Exhibition Hall ]

As the only child in the family, we often enjoy superior conditions and are also highly expected by family members.

The heavy competitive pressure is accompanied by our growth, resulting in little opportunity to talk about our troubles.

So I decided to design this exhibition hall to provide an opportunity for people with similar experience to express themselves..

floorage : 4000m2 building storey : 4 building height : 18m greening rate : 20% plot ratio : 0.12

26

04

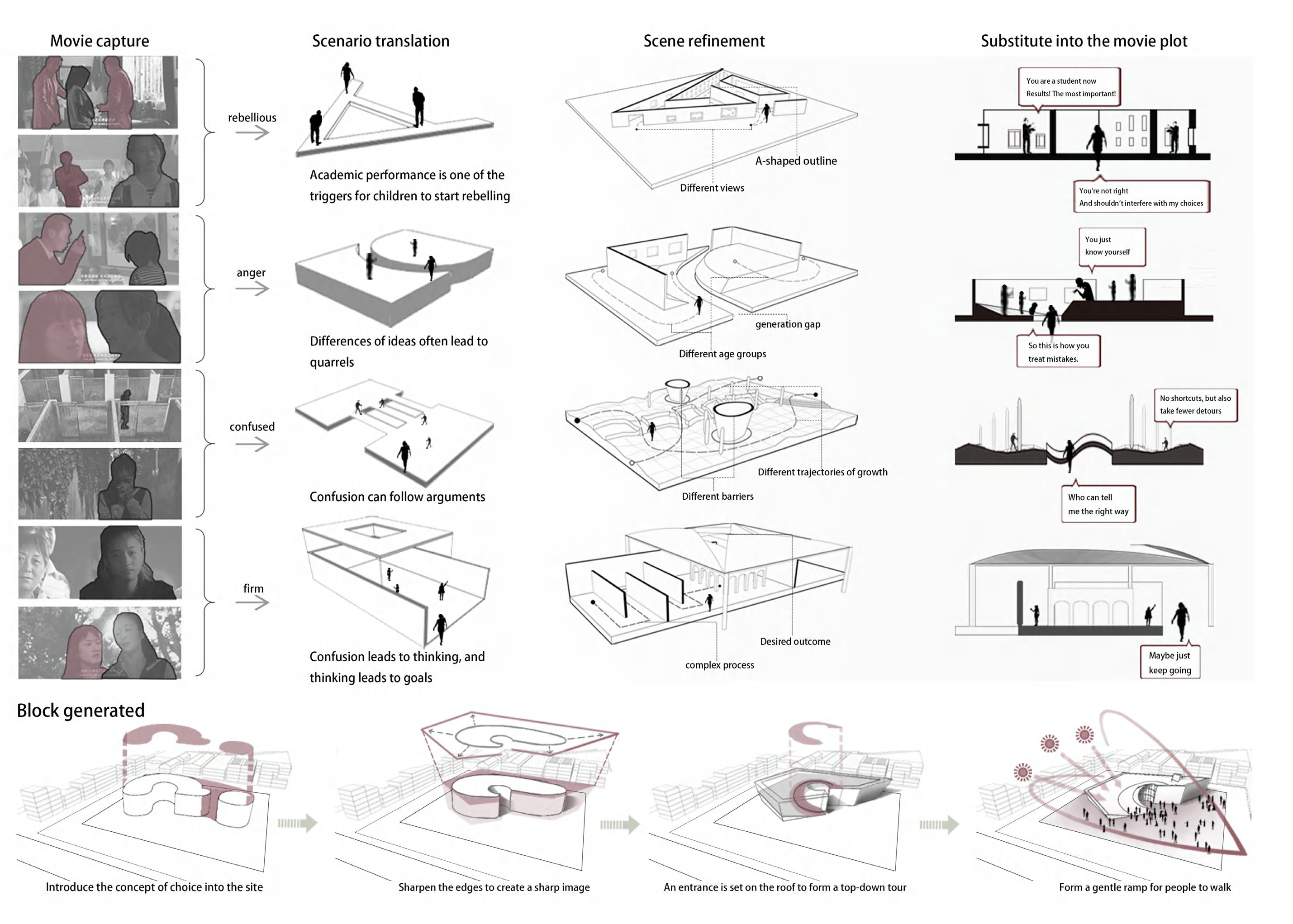

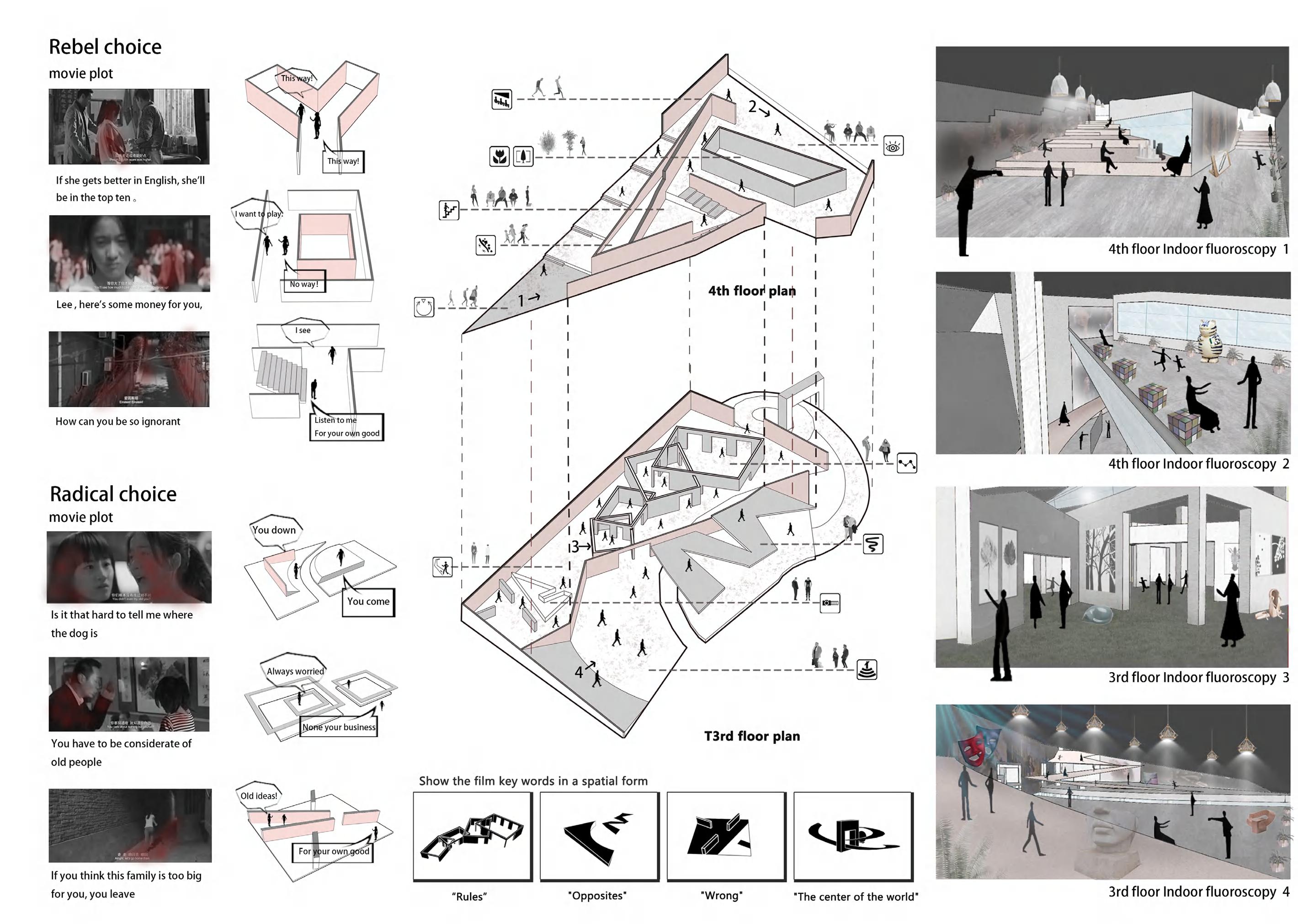

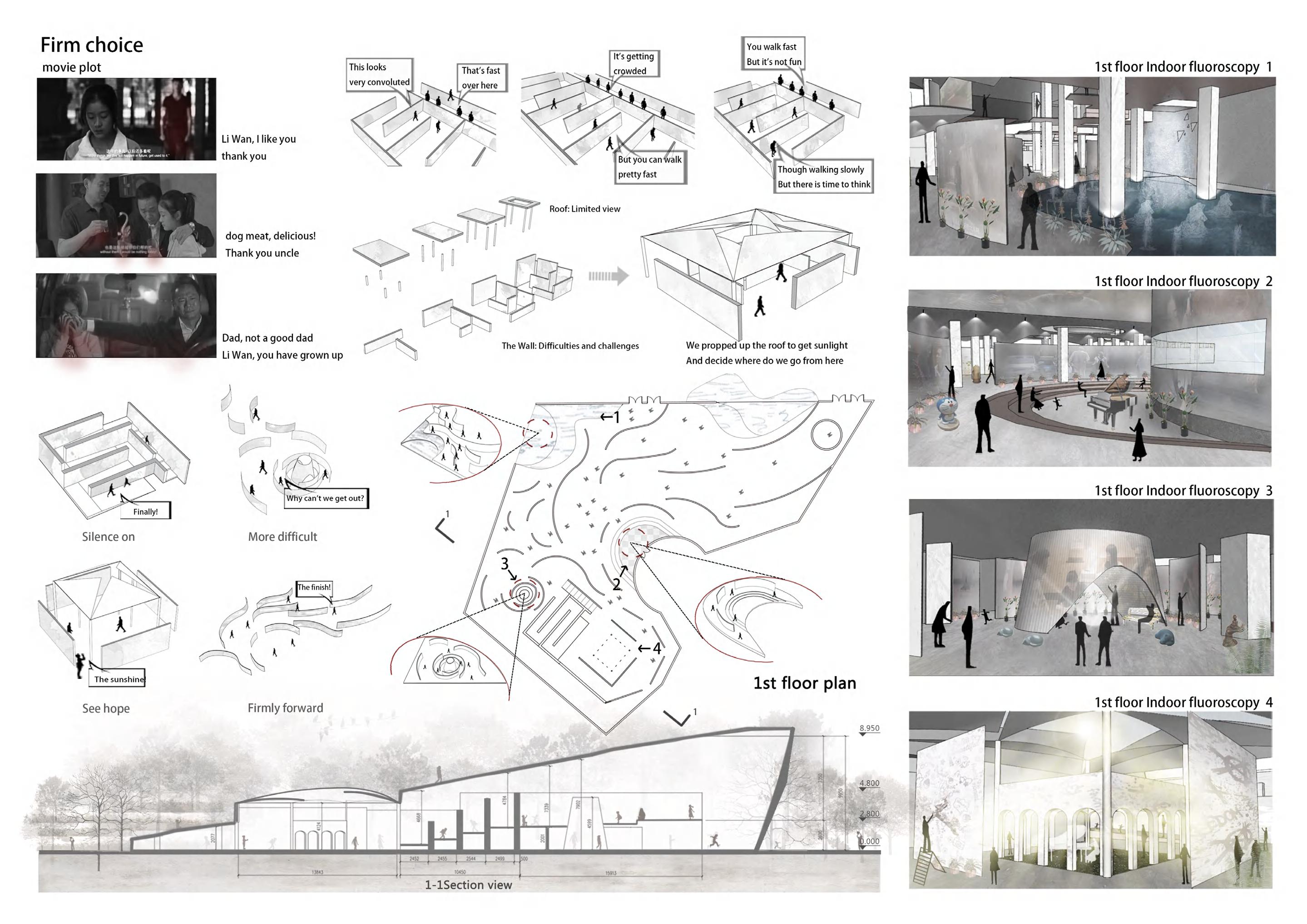

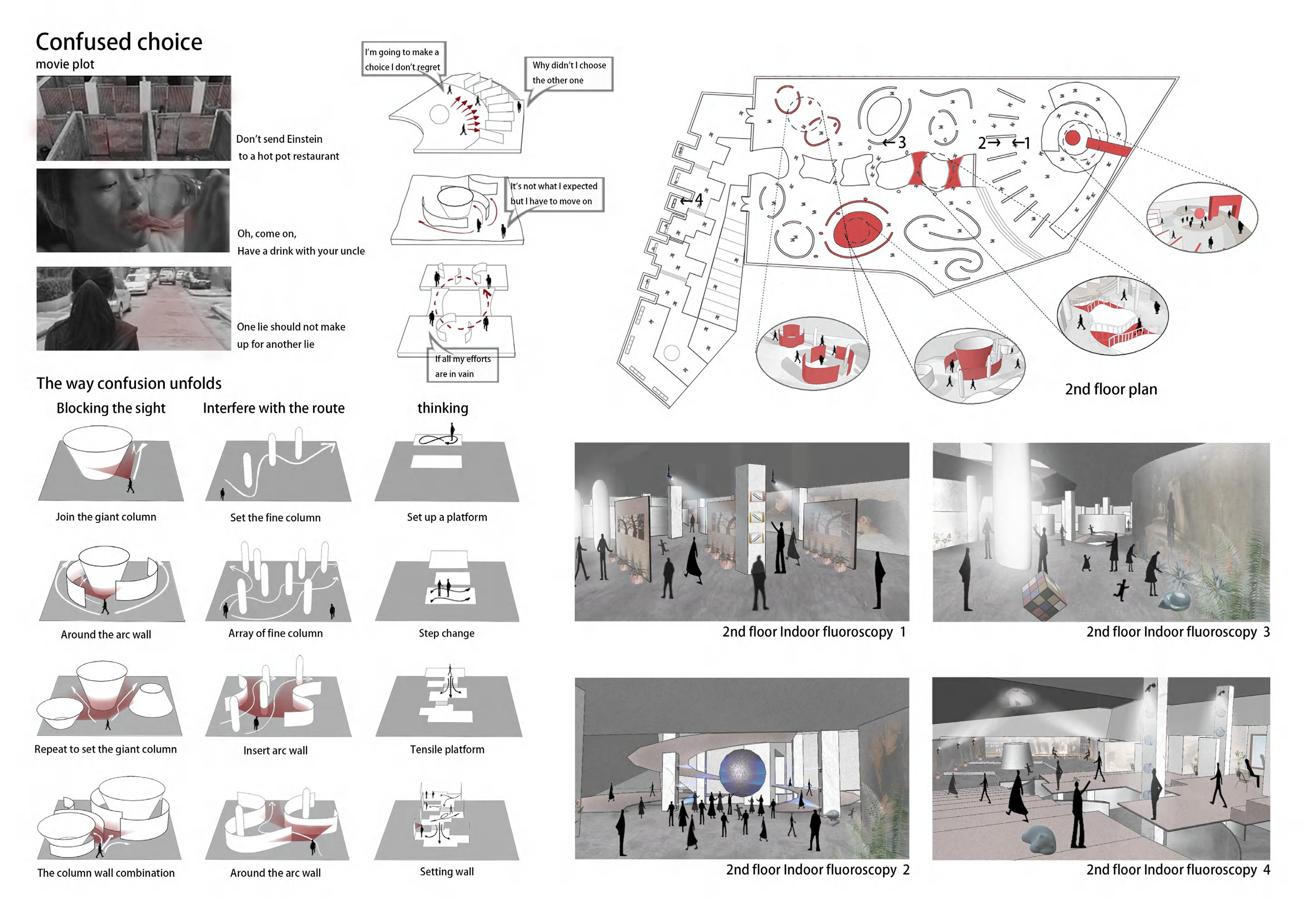

Through a film "dog thirteen", the growth experience of the protagonist is taken as a summary of the problems of young people in reality.

27

28

29

30

31

32

05 other

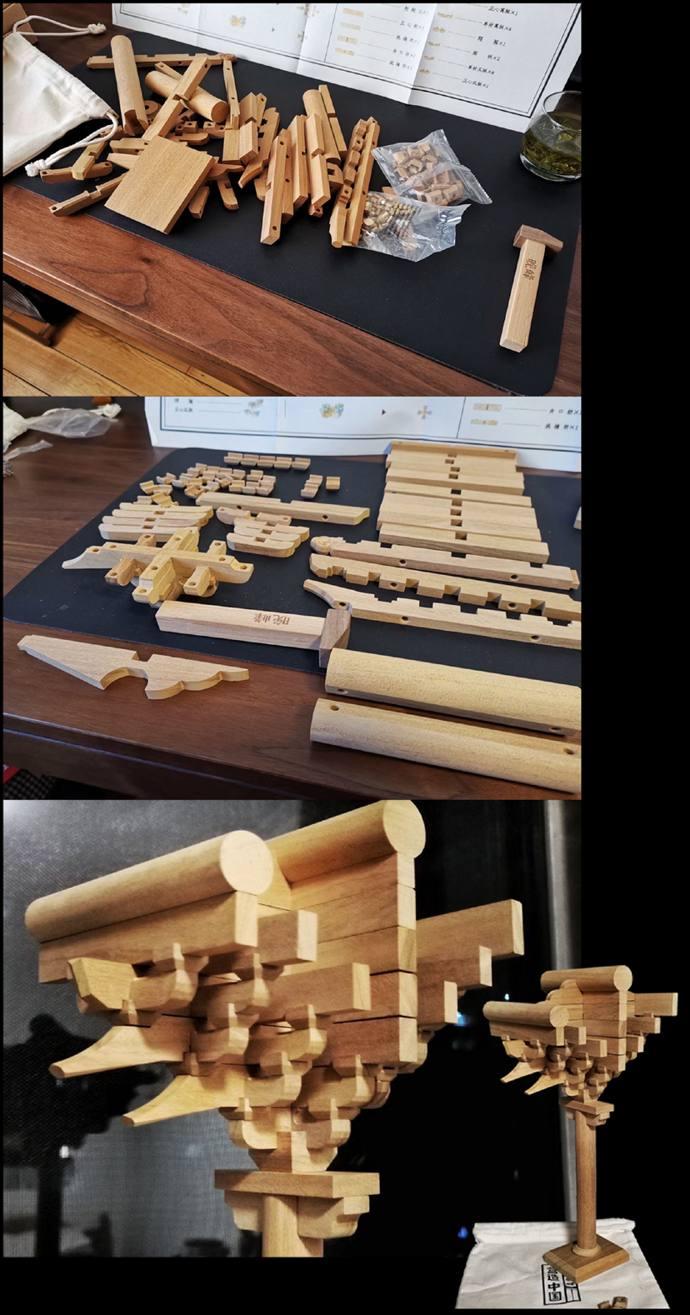

During my undergraduate study, I was keen on using different

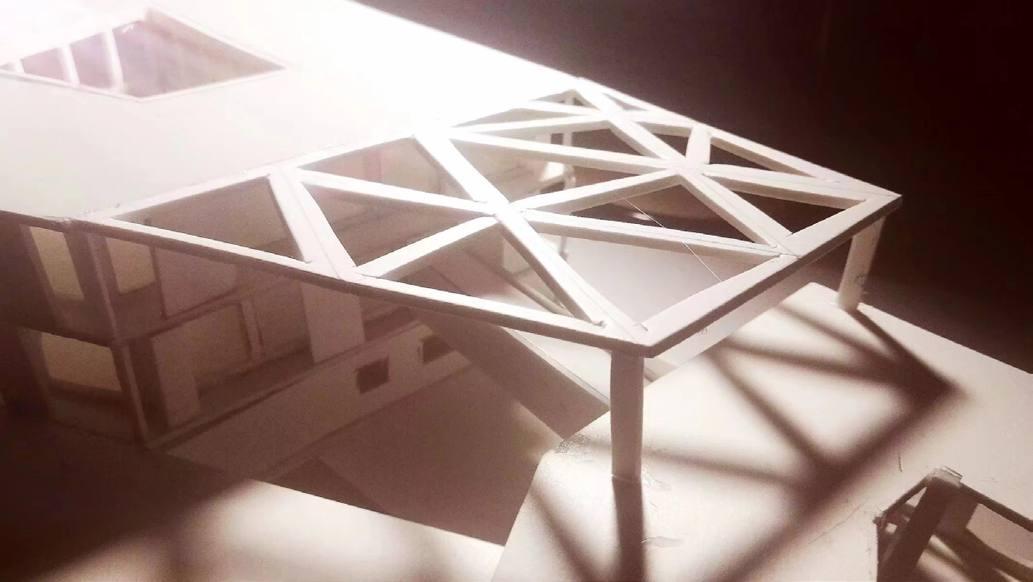

Hand-made model photograph painting

plates to make models. Different thicknesses bring different degrees of

Illustrated works

effects under the lens.

flexibility. At the same time, different light perception presents different In my life, I often buy some models that need to be assembled, and every successful assembly brings me happiness.

33

05 other Hand-made model photograph painting Illustrated works

Apart from photography, reading comics is one of my favorite entertainment in my student days. After learning architecture, I have always been very enthusiastic about illustration.

In addition to the drawing of conventional architectural drawings, I have also spent some time in drawing illustrations. As it is my first attempt, I will only select some illustrations to display here.

34
