3rd Ave Brooklyn Street Re-Design: Existing Conditions Part 3

Street Design Project: Existing Conditions Part. 3 Sustainable Transportation & Cities Course Spring 2023

June Bee Skyler Lyu Daniel Lee

TABLE OF CONTEXTS Basic Site Information

Location Plan & Public Transit

June / Daniel / Skyler

Subway System

01

2

Map & Time Schedule

5

Ridership

6

Bus System Map & Time Schedule

7

Ridership

8

Cross Section

June / Skyler / Daniel

38, 40, 42, 44, 46, 48, Parking Regulations 50, 52, 54, 56, 58 Daniel

03

Signals Accident Data Traffic Count

Street Intersections Design Data Aerial Views - June Intersection Description - Skyler / June Street Design Features - Skyler Sidewalk Elements - June Tree Data - June

02

Atlantic Ave Pacific St.

12 14 16

Environmental Data

Vegetation

June/ Daniel

Bergen St.

18

St.Marks PI St.

20

Willie McDonald Wy St.

22

04

Stormwater

Baltic St. Butler St.

24 26

Drawings

Plan & Section View

Douglass St.

28

Degraw St.

30

Sackett St.

32

Union St.

34

Dean St.

37

Transportation System

Daniel

05

June, Skyler, Daniel

39, 41, 43, 45, 47, 49, 51, 53, 55, 57, 59,61 Daniel 62 - 73 June

74 -75 June/ Skyler/ Daniel

78, 79 June

80, 91 Daniel

106 Daniel

2

In this last section, we gather environmental data of weather and earth (vegetation) and listed every intersection separately to have a

04/Environment Data

more detailed idea of what the environmental health of the area as a whole. Information in this section enables us to evaluate how to design the street with sustainable solutions that has resistance to future natural events.

90

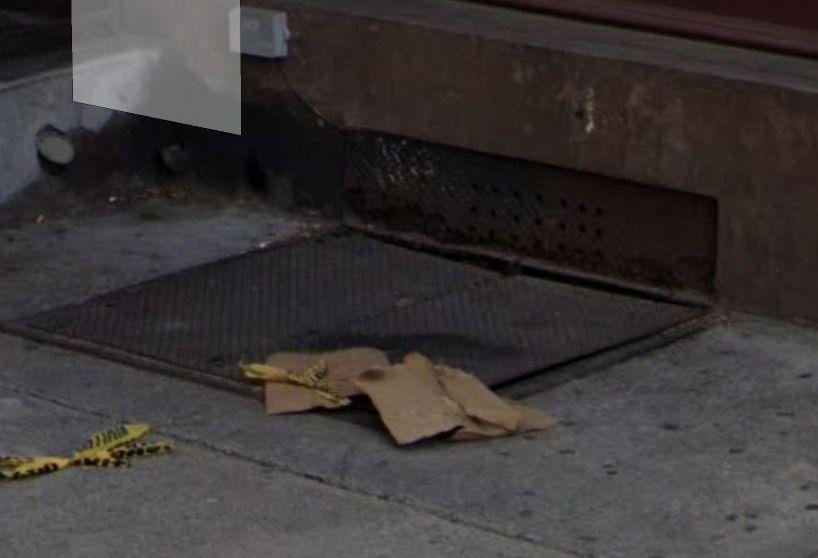

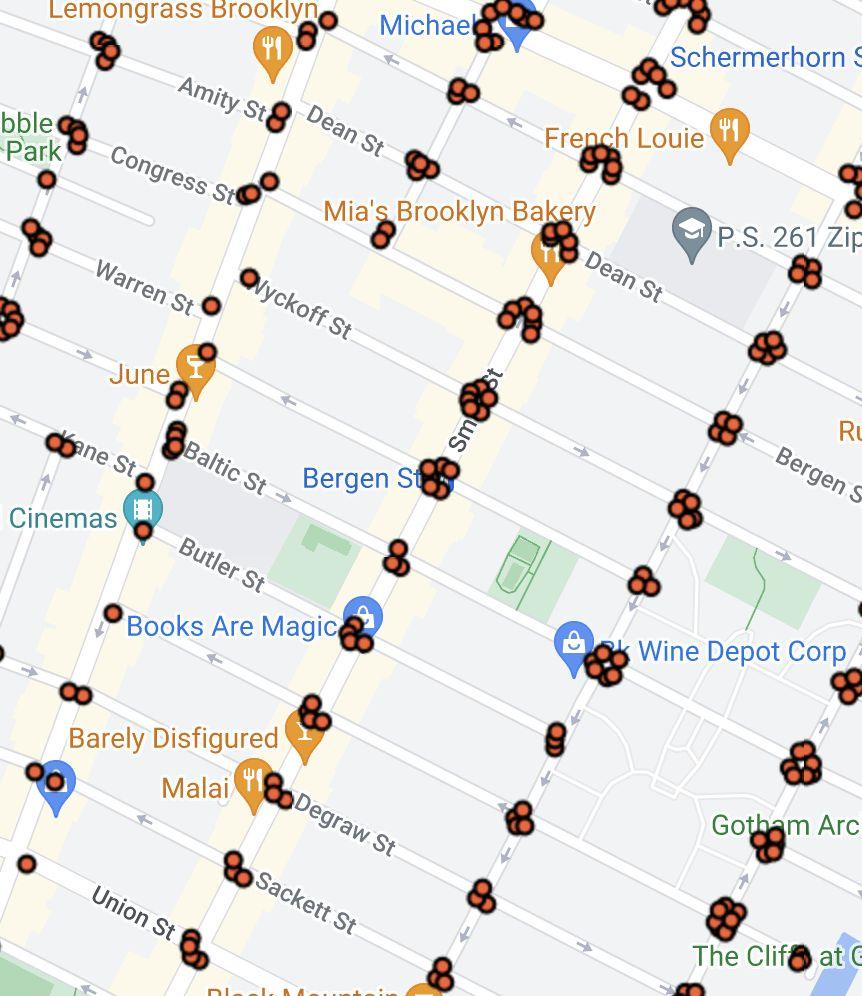

Stormwater catch basin The stormwater catch basin data for the 3rd Ave street intersections shows that the number of catch basins varies, indicating different levels of flood risk. Intersections with a higher number of catch basins, such as Atlantic, Butler, and Union, are at a higher risk of flooding and have more mitigation measures in place. In contrast, intersections with a lower number of catch basins, such as Bergen and Sackett, are at a relatively lower risk of flooding. The number of catch basins at most intersections is moderate, suggesting a moderate level of flood risk.

Atlantic 6 Pacific 4 Dean 5 Bergen 4 St.Marks PI 5 Willie McDonald Wy 5 Baltic 4 Butler 6 Douglass 5 Degraw 5 Sackett 4 Union 6

91

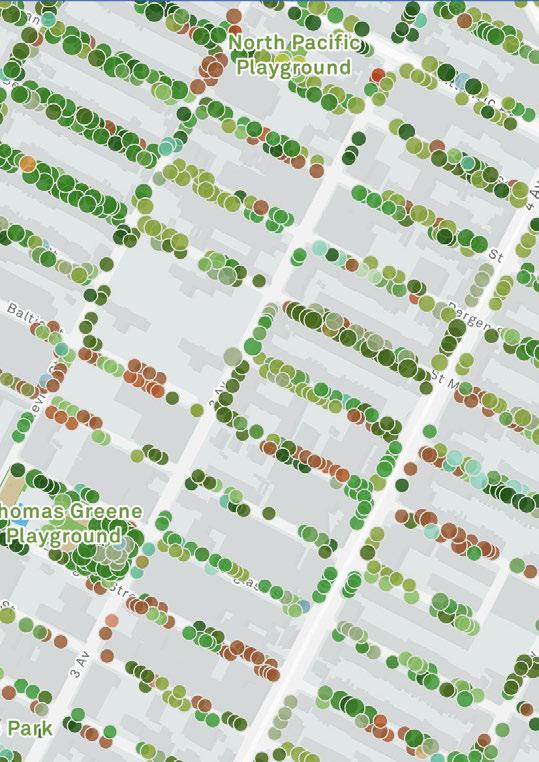

Trees

This is the total species of trees our site has

92

93

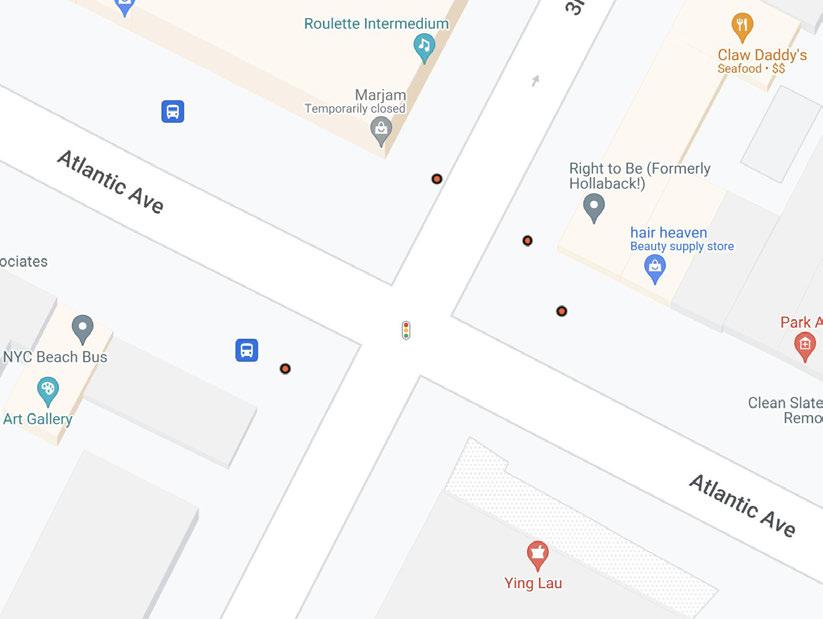

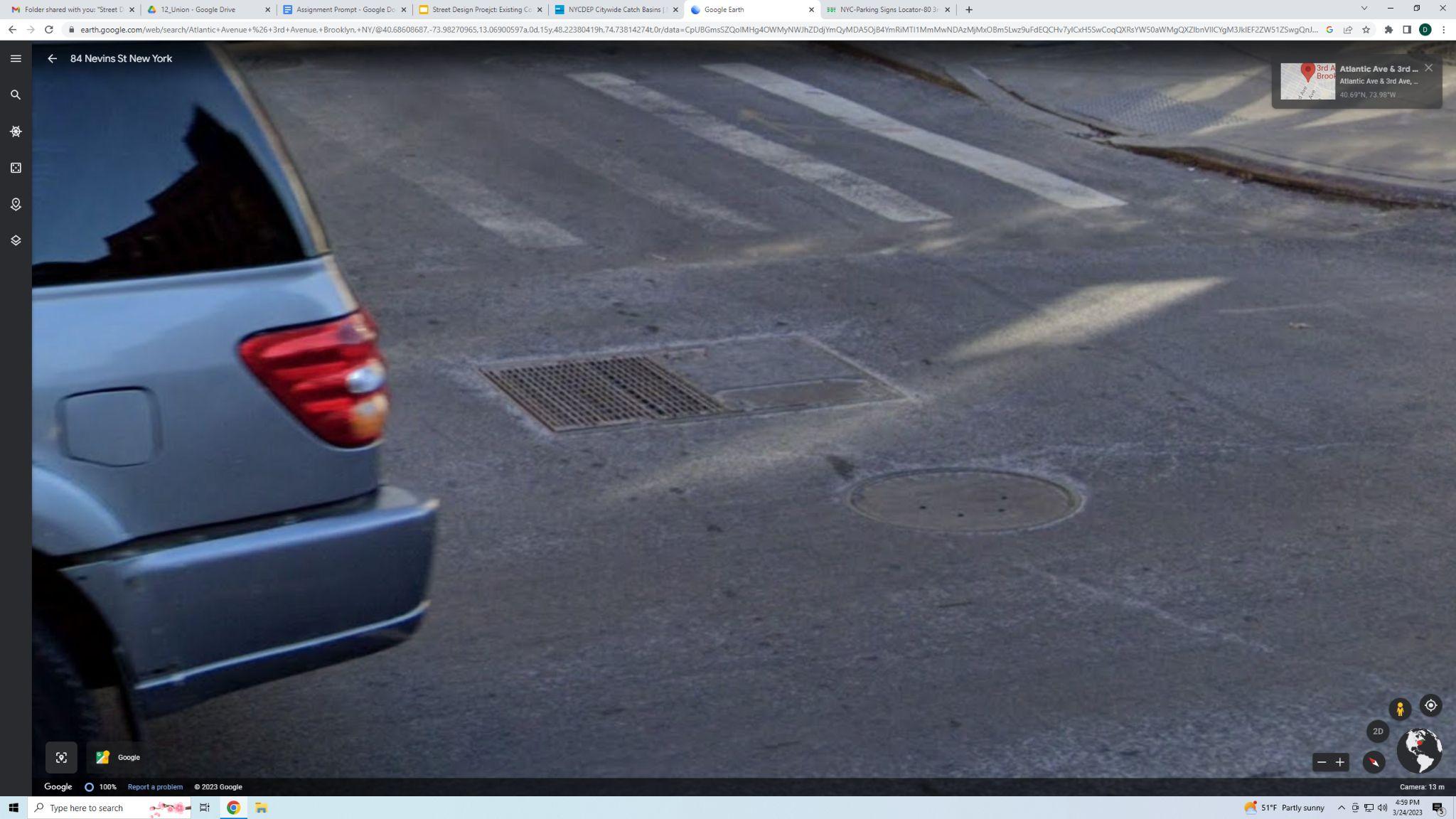

Atlantic Ave - Stormwater Catch Number of Stormwater catch basins across 4 blocks - 4

94

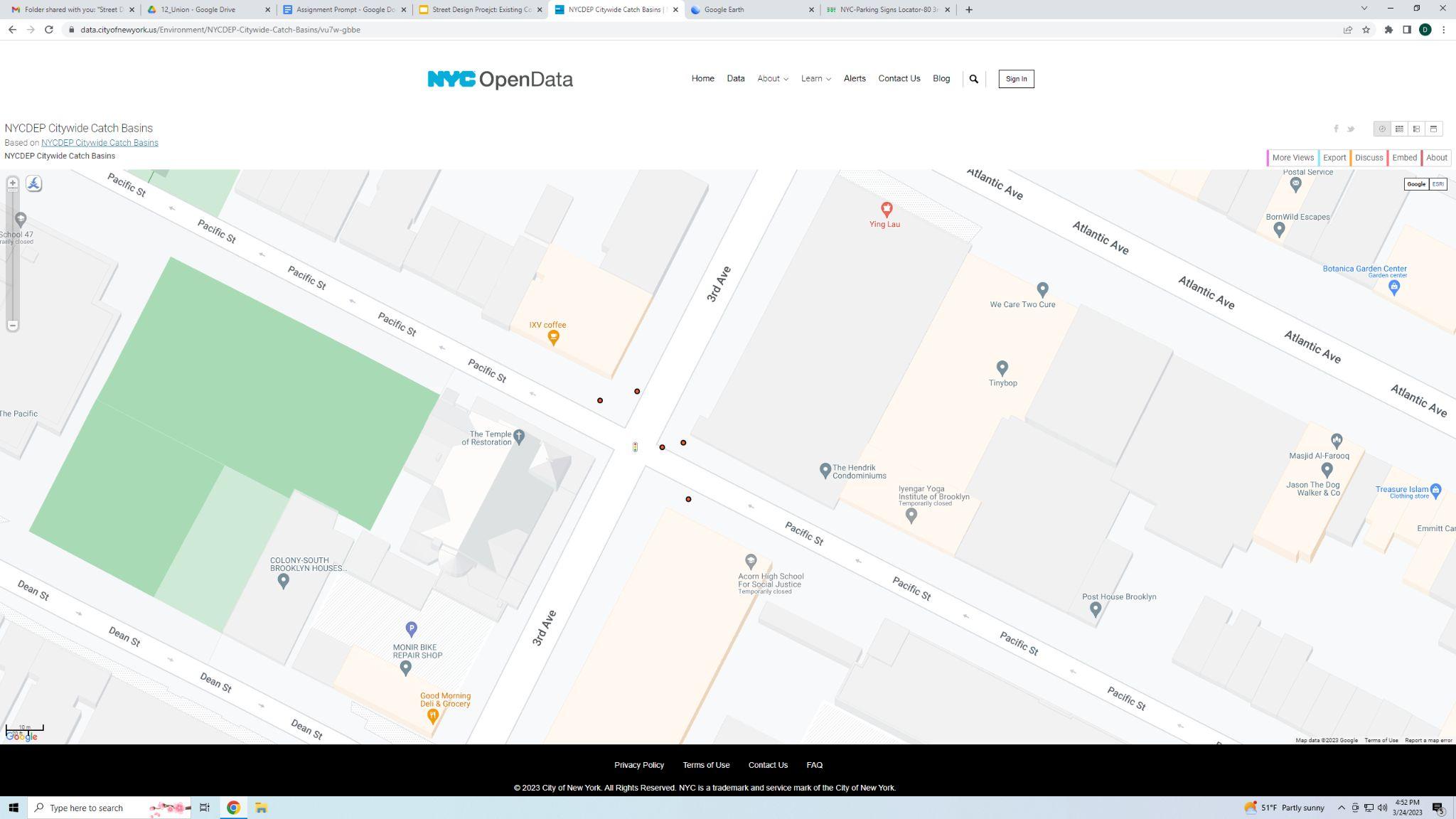

Pacific - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 5

95

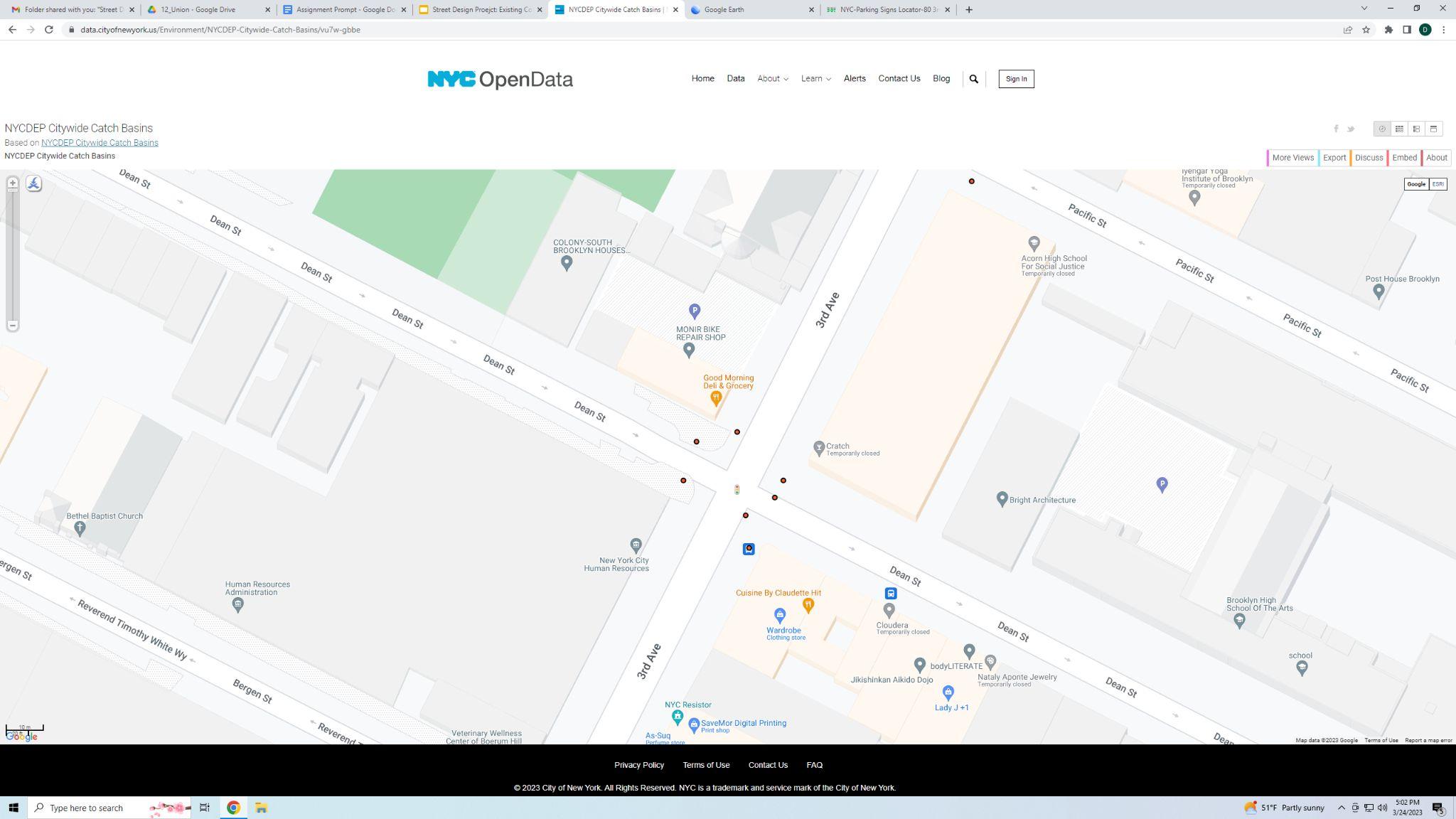

Dean St - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 7

const

96

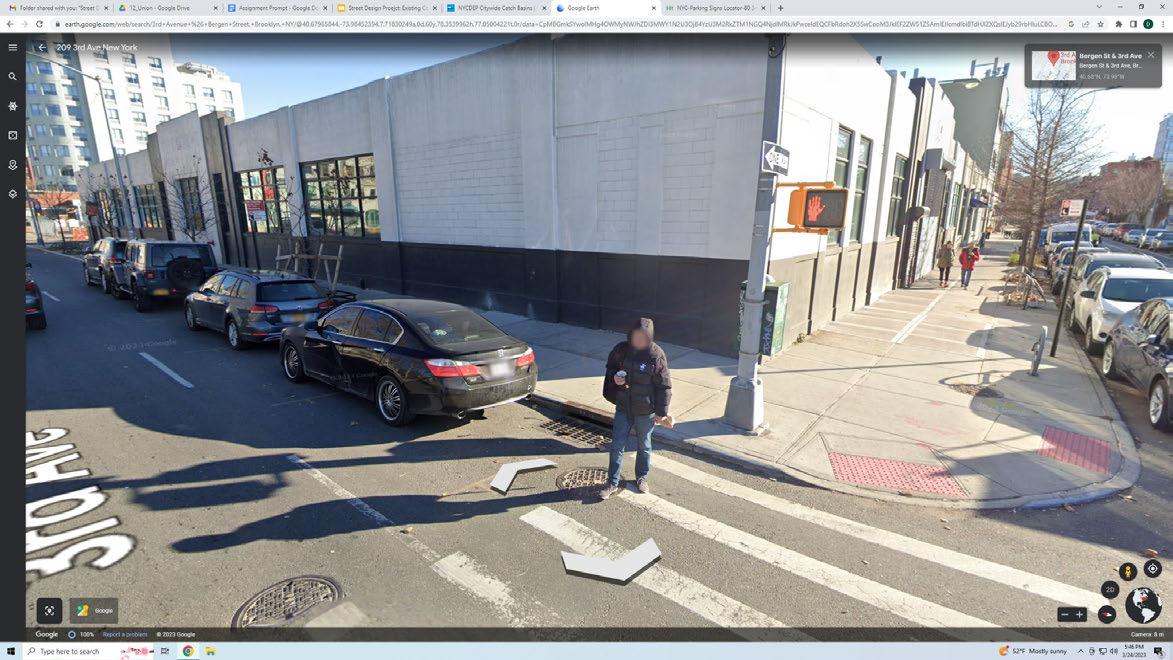

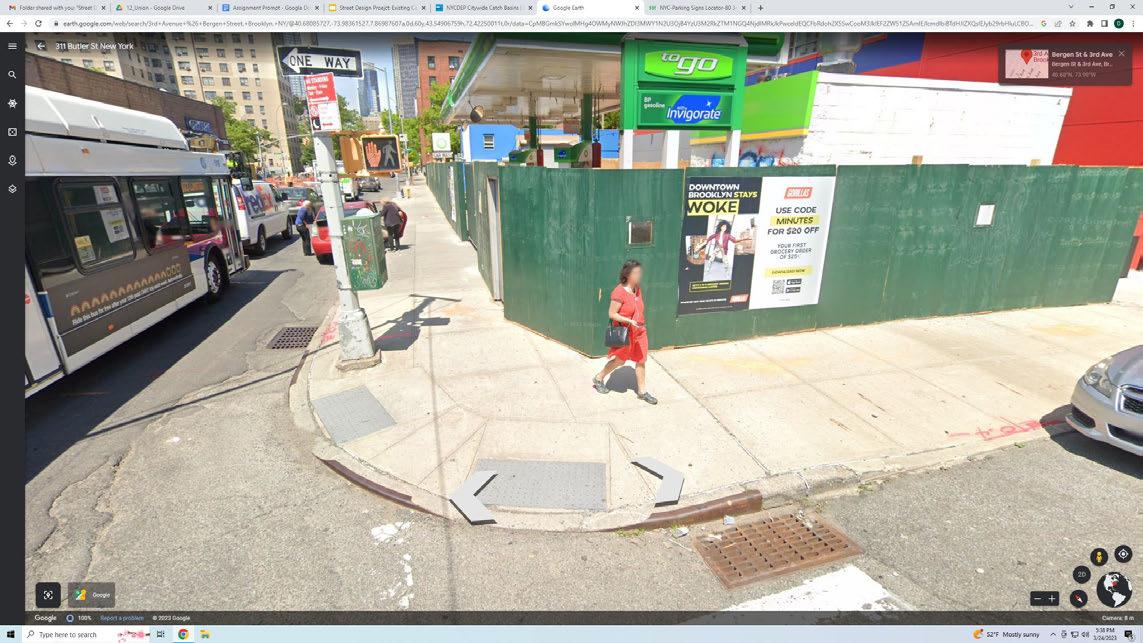

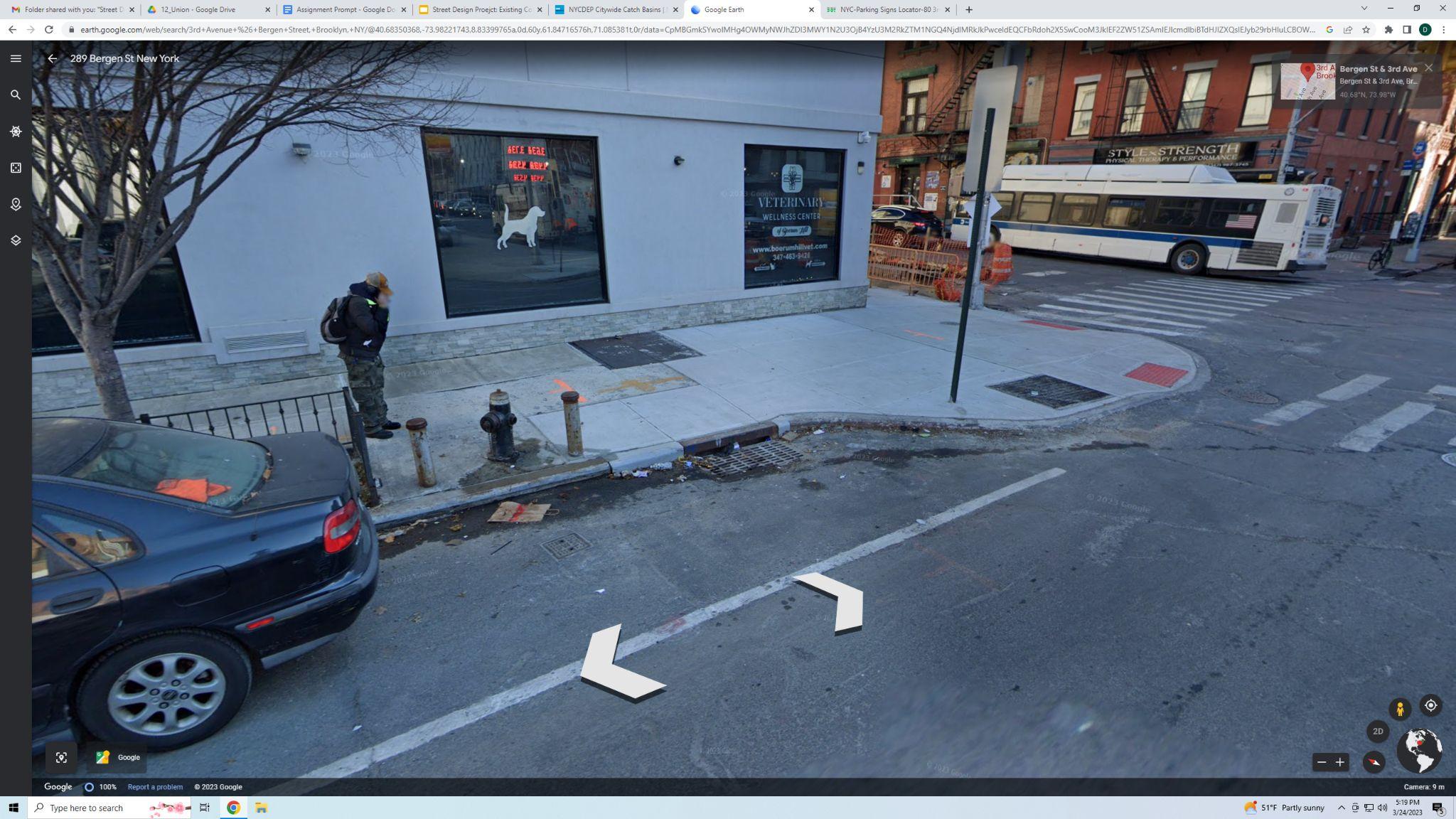

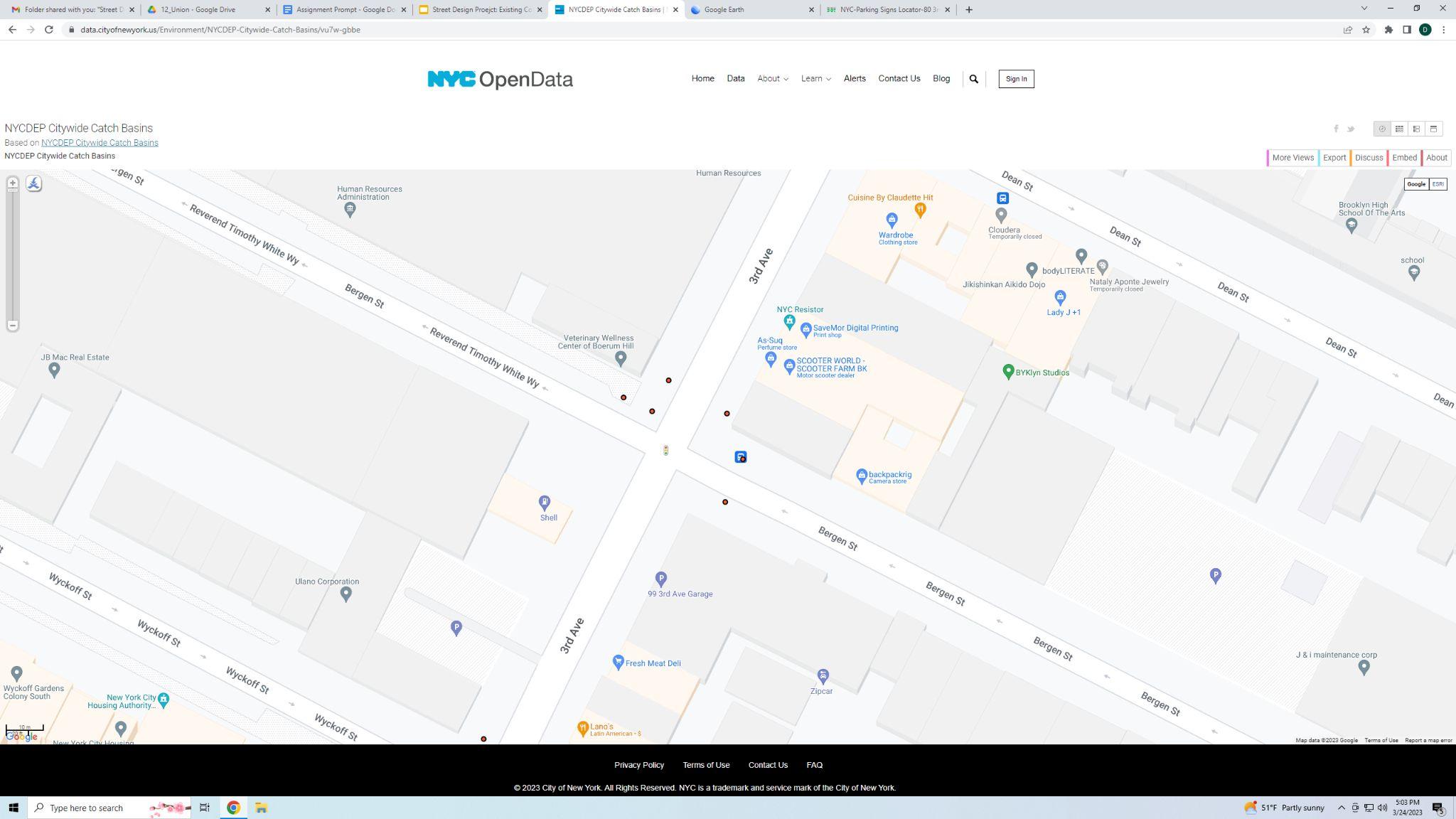

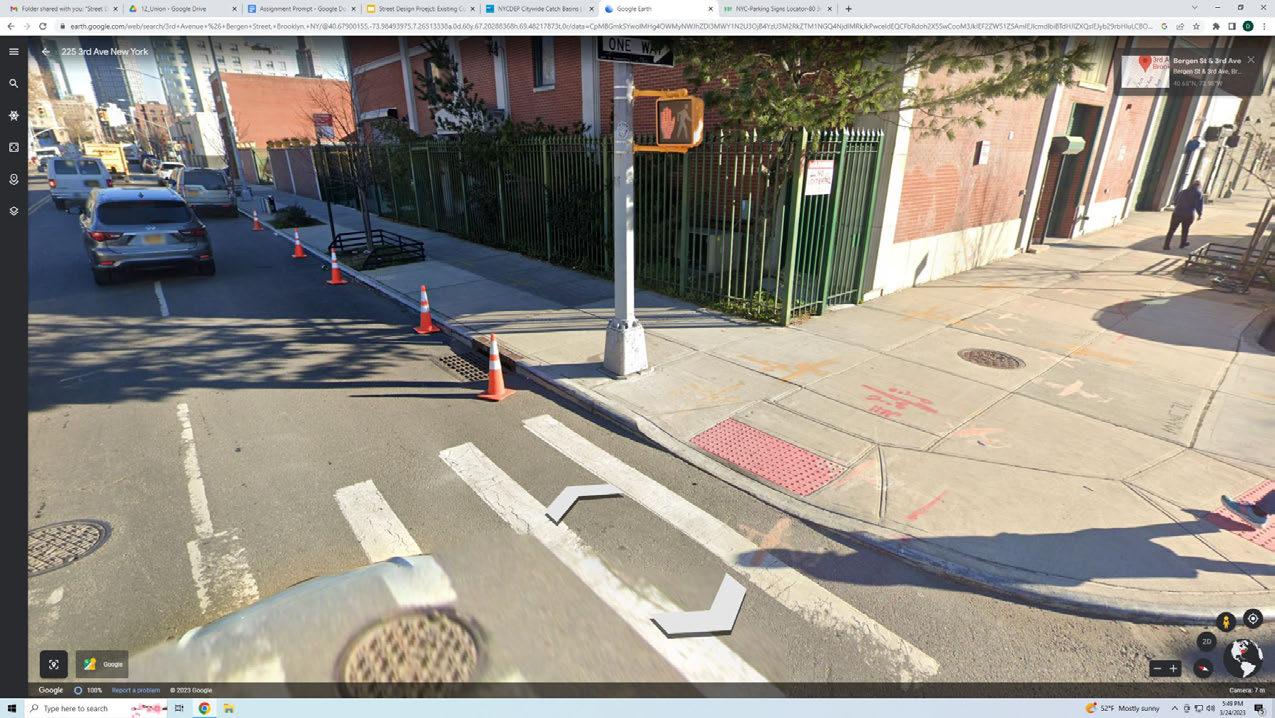

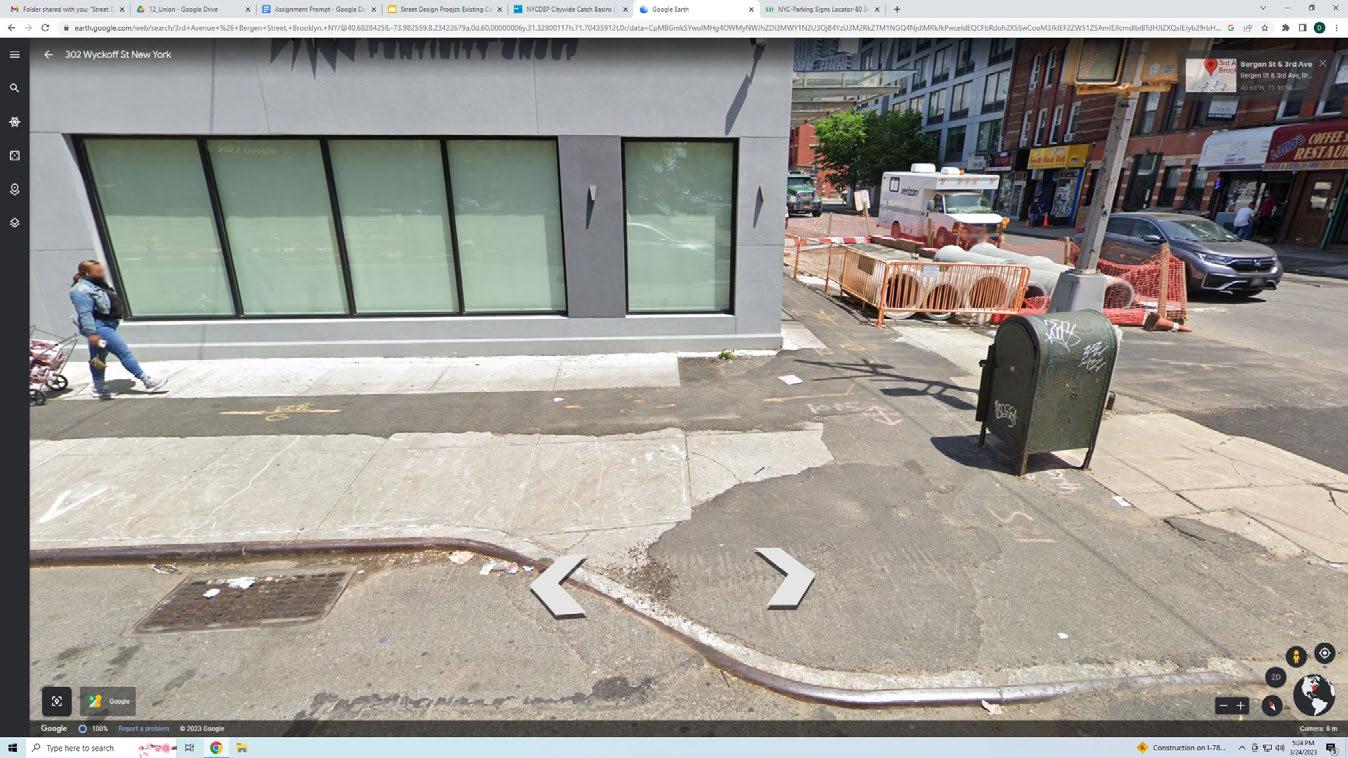

Bergen St - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 6

97

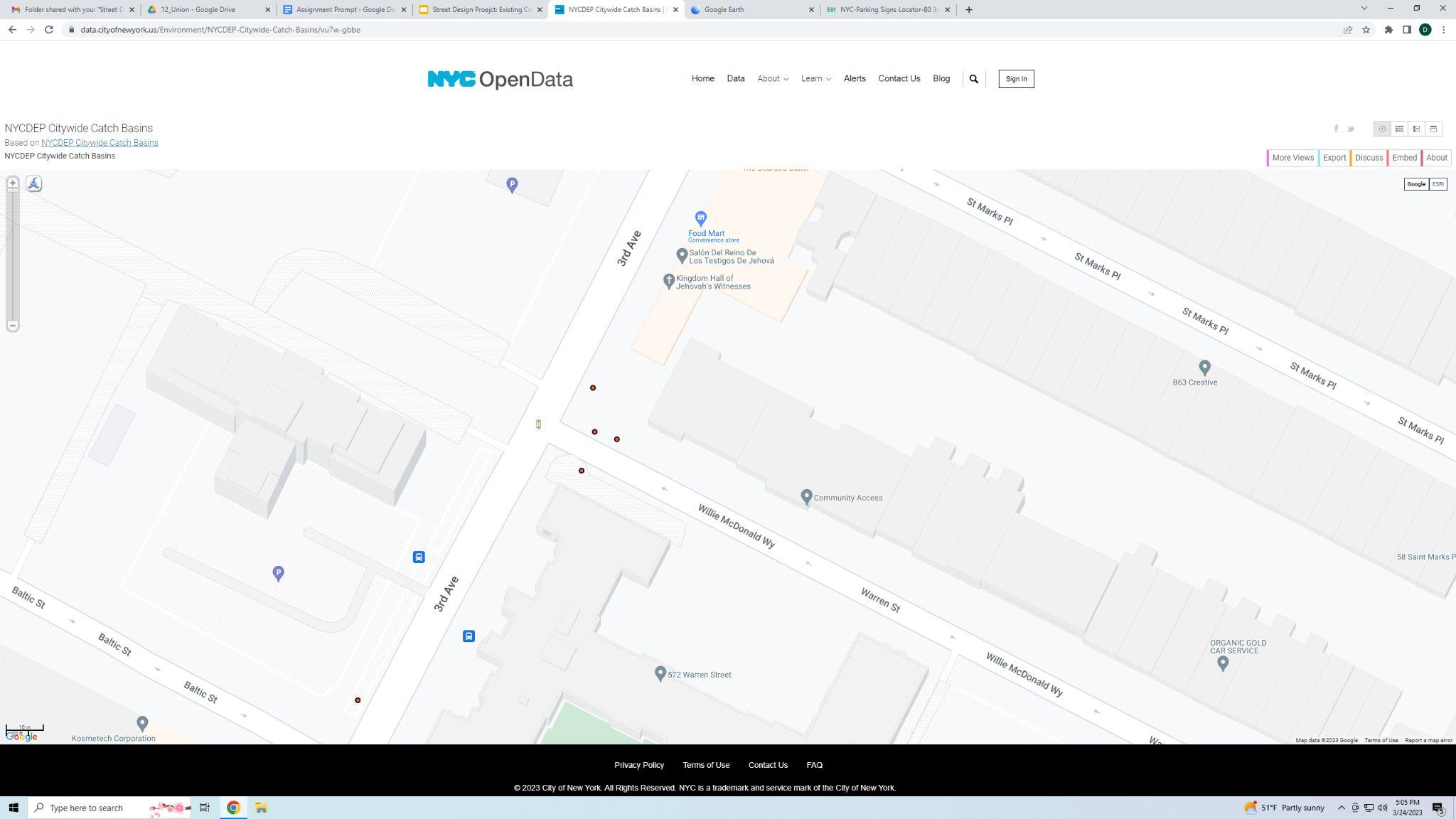

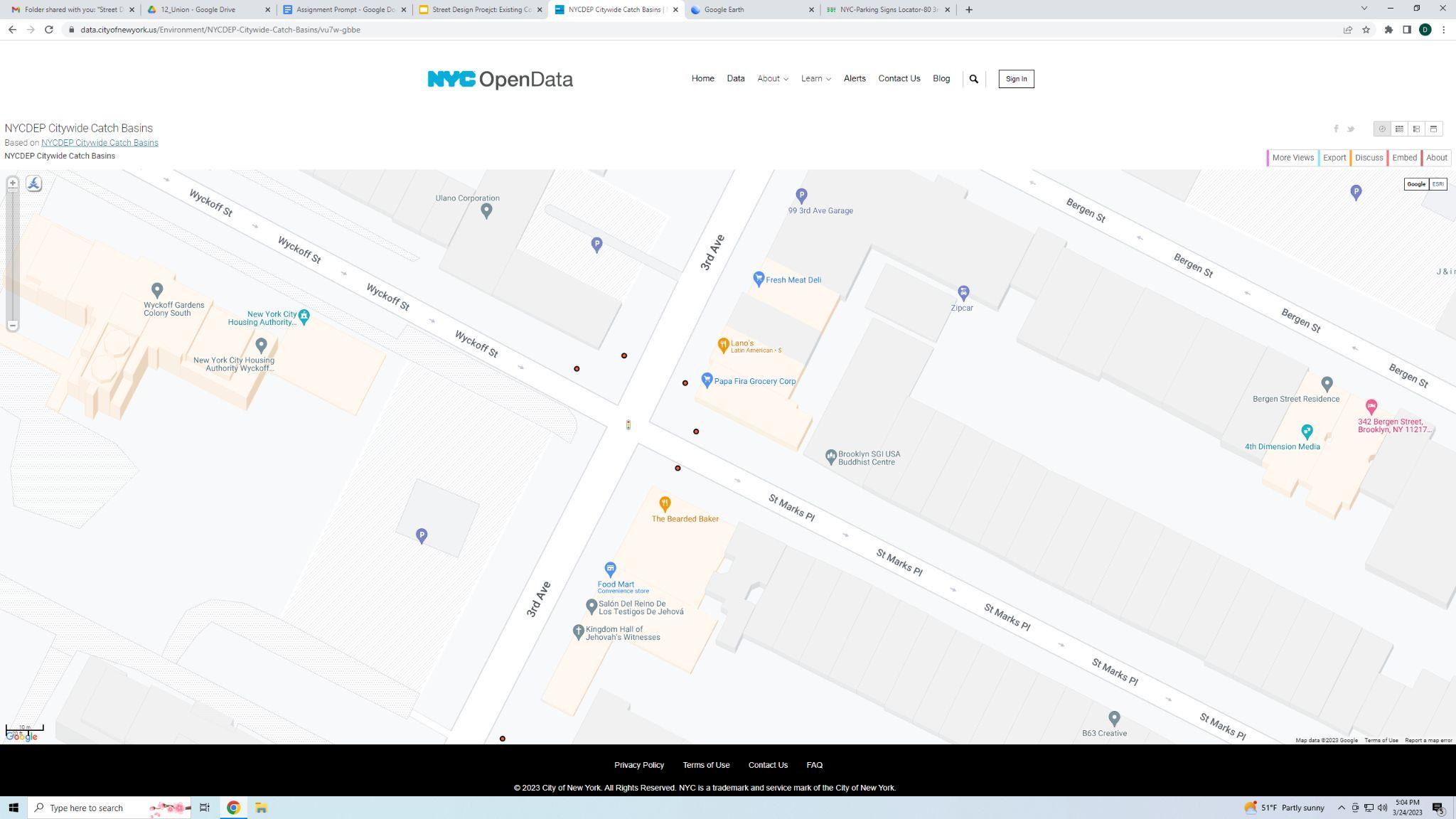

St. Marks Pl - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 5

98

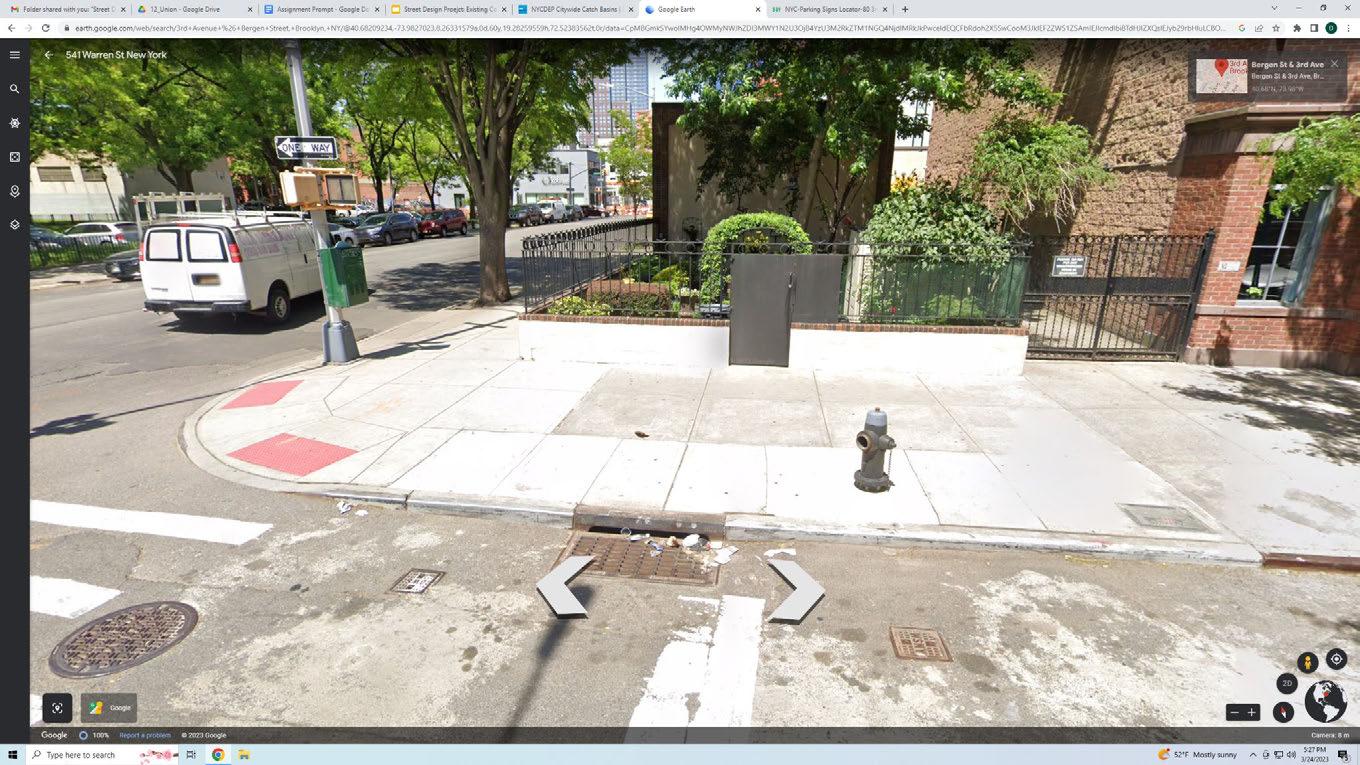

Warren St - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 4

99

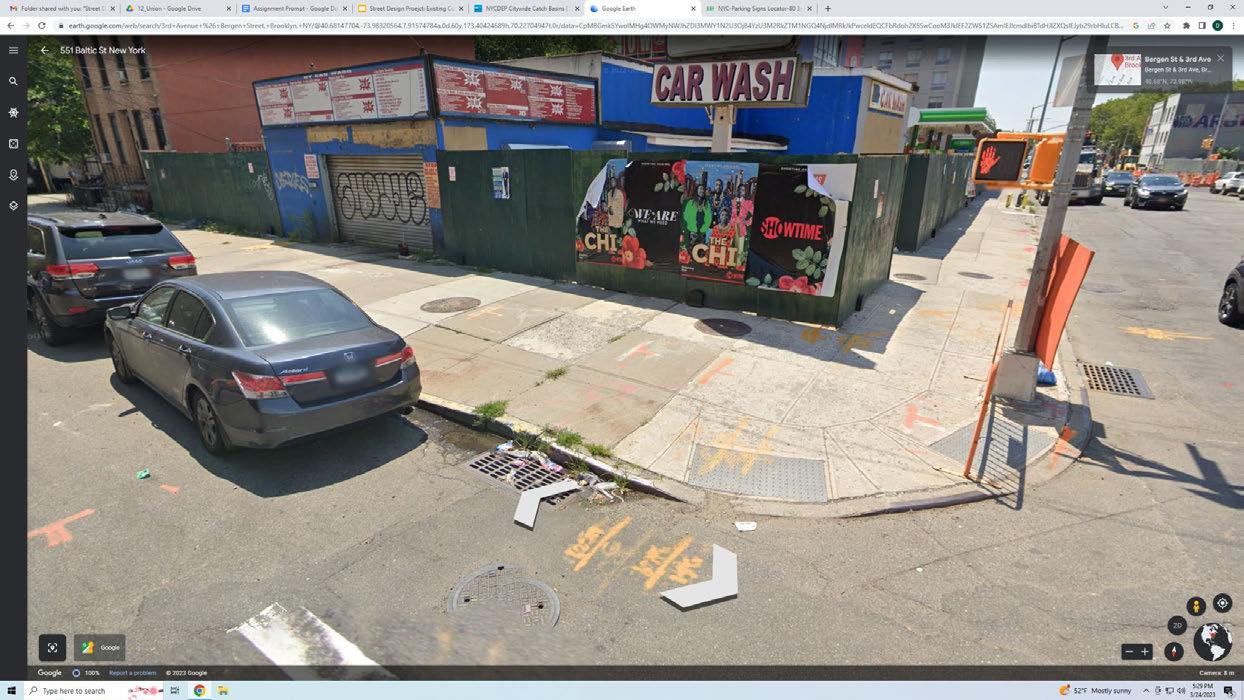

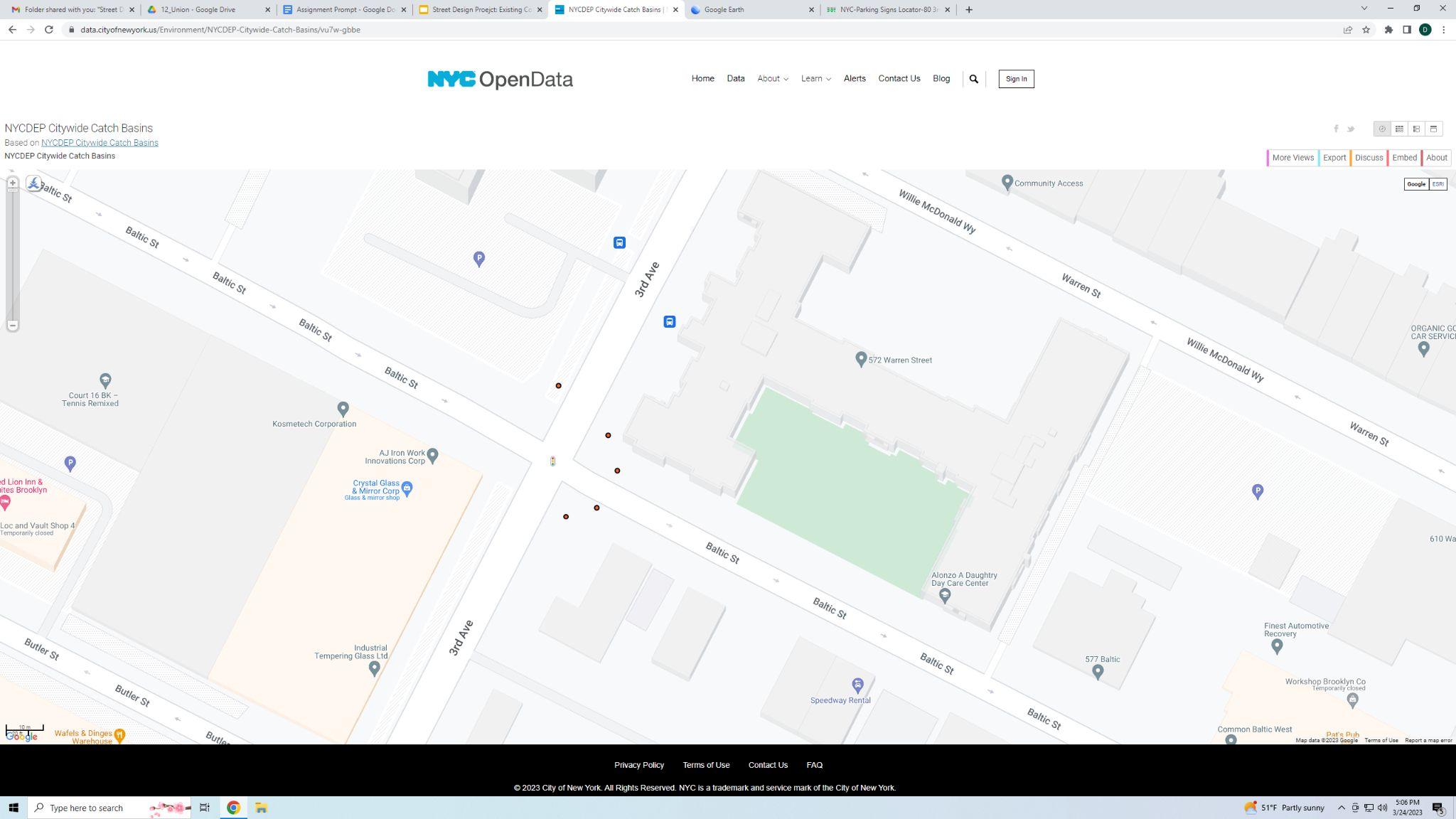

Baltic St - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 5

100

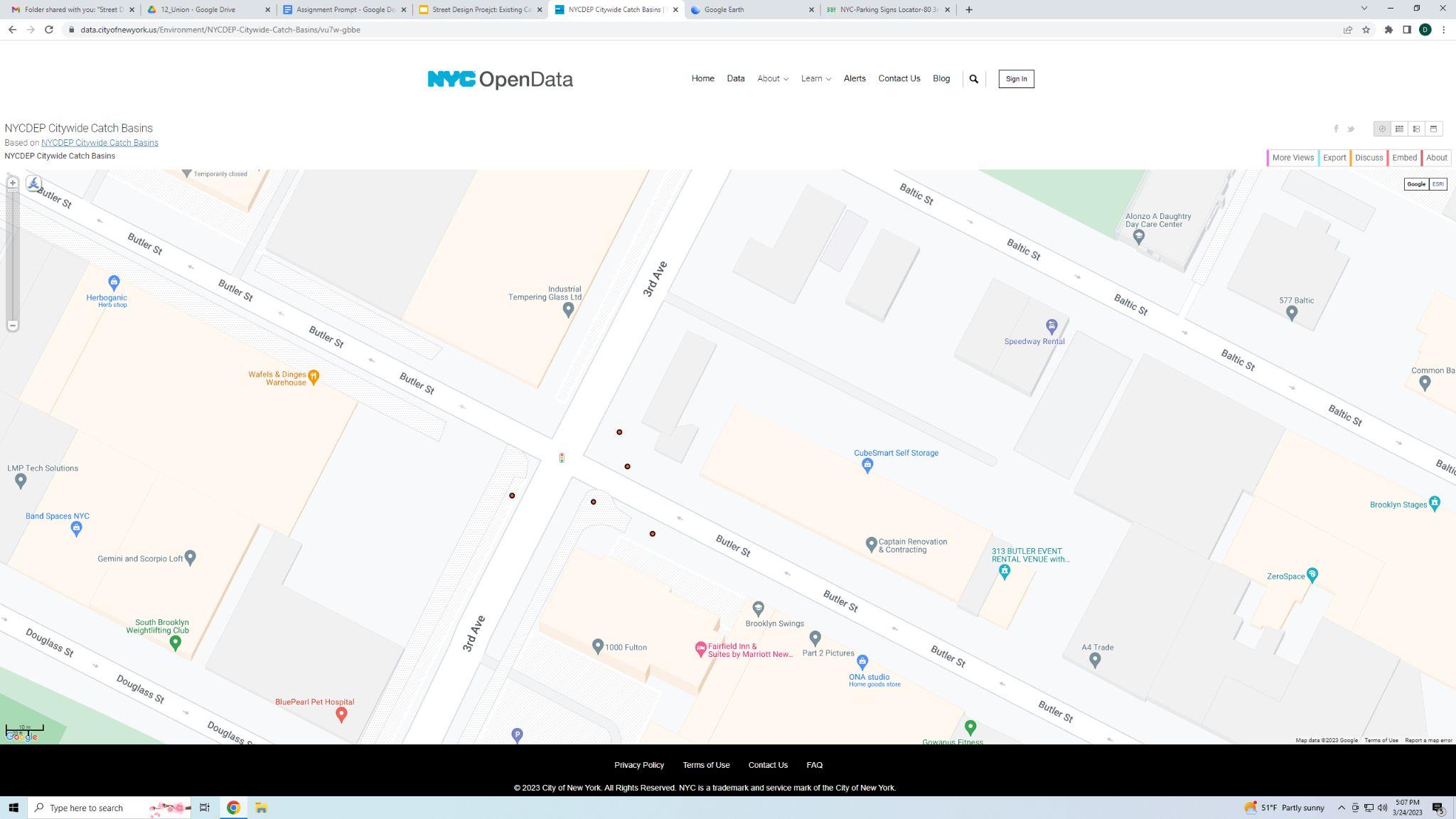

Butler st - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 5

101

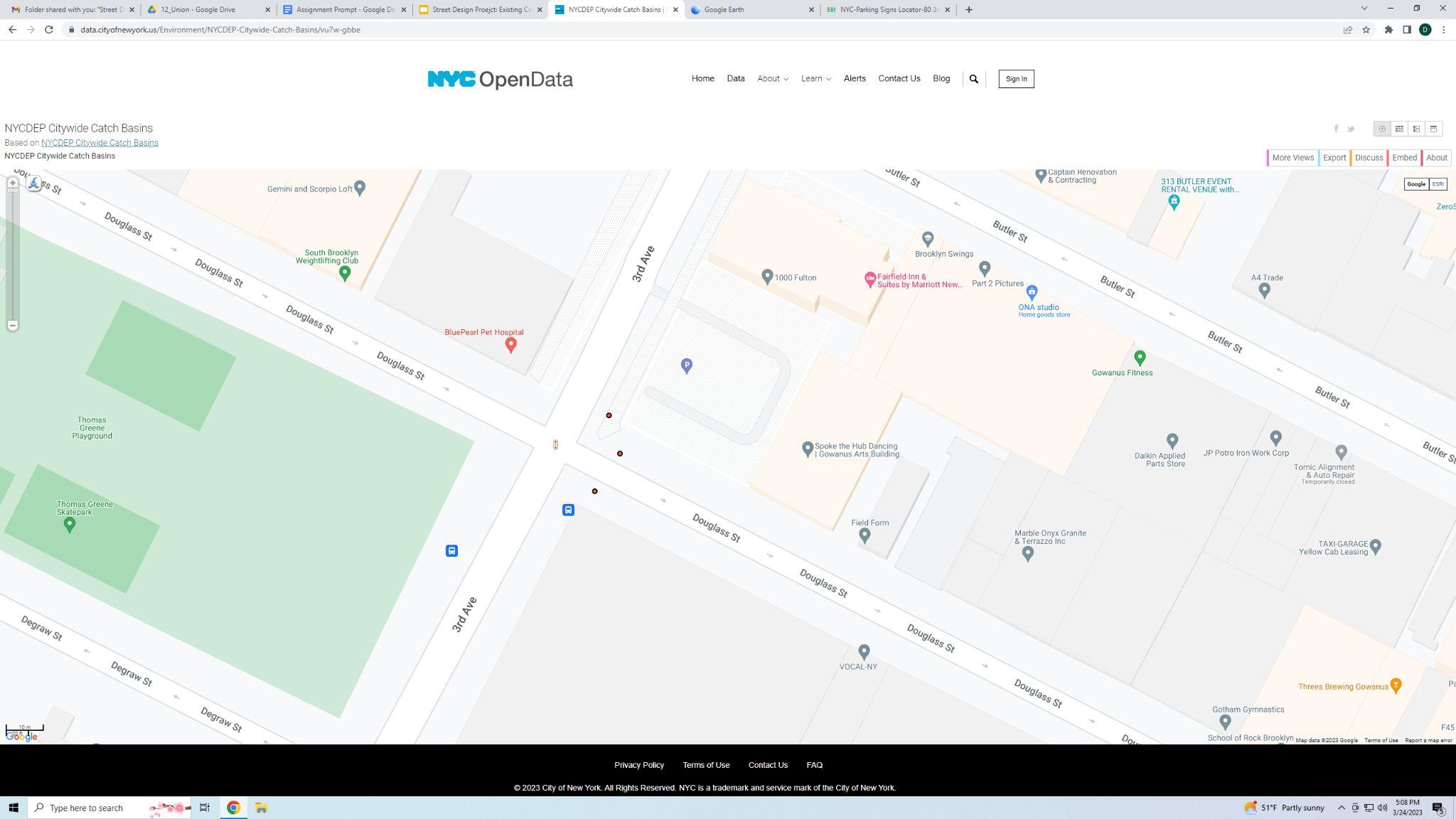

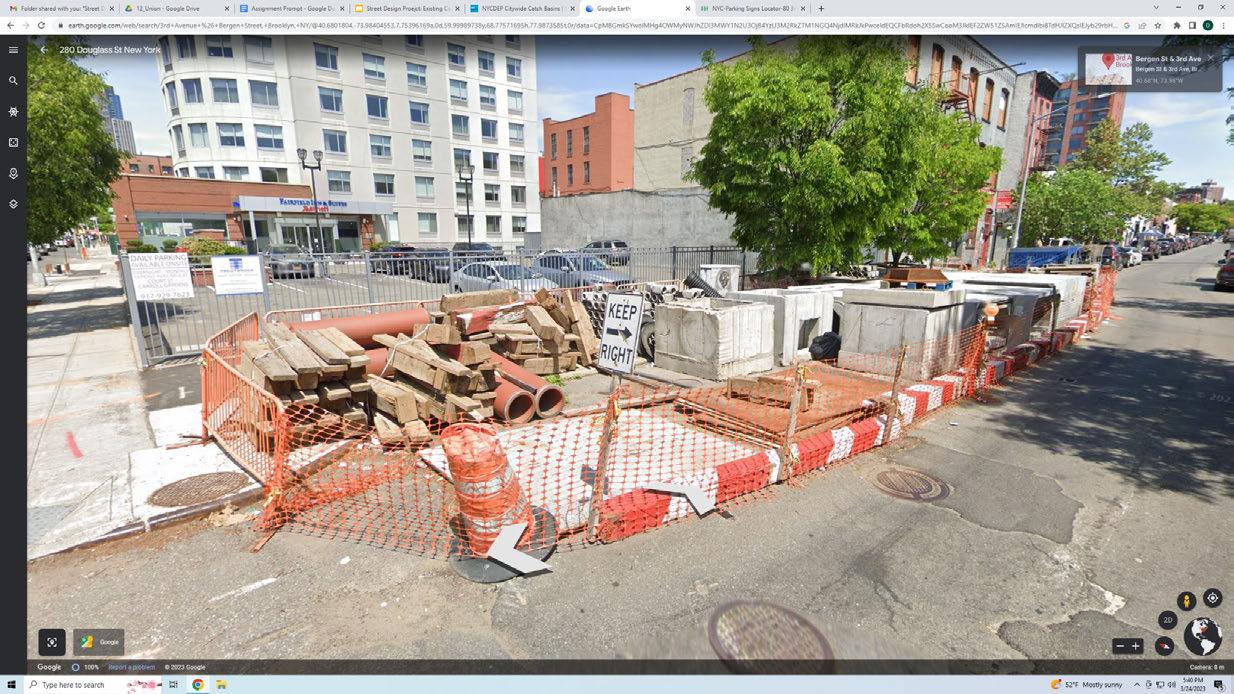

Douglass - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 3

const

102

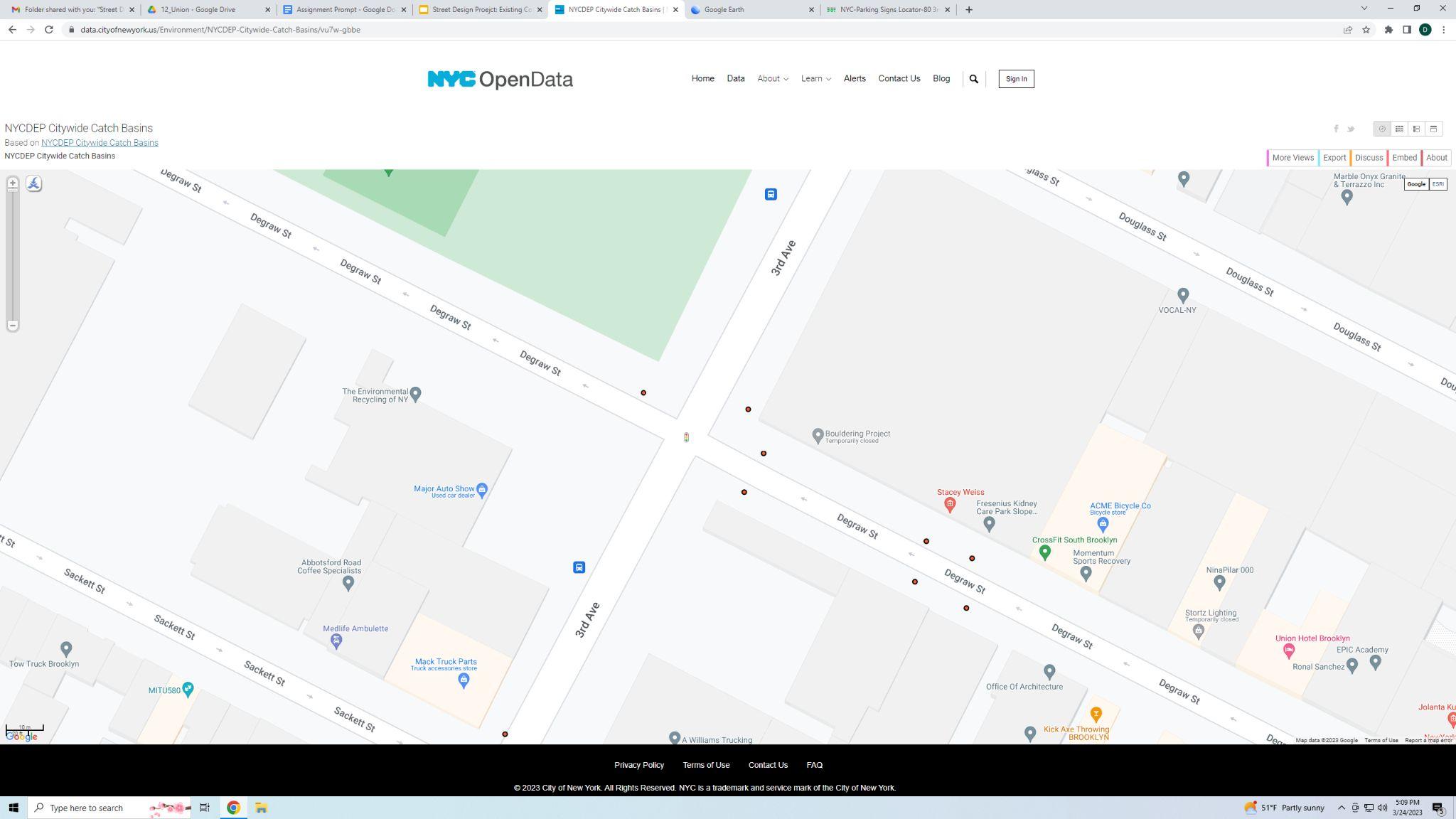

Degraw - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 4

103

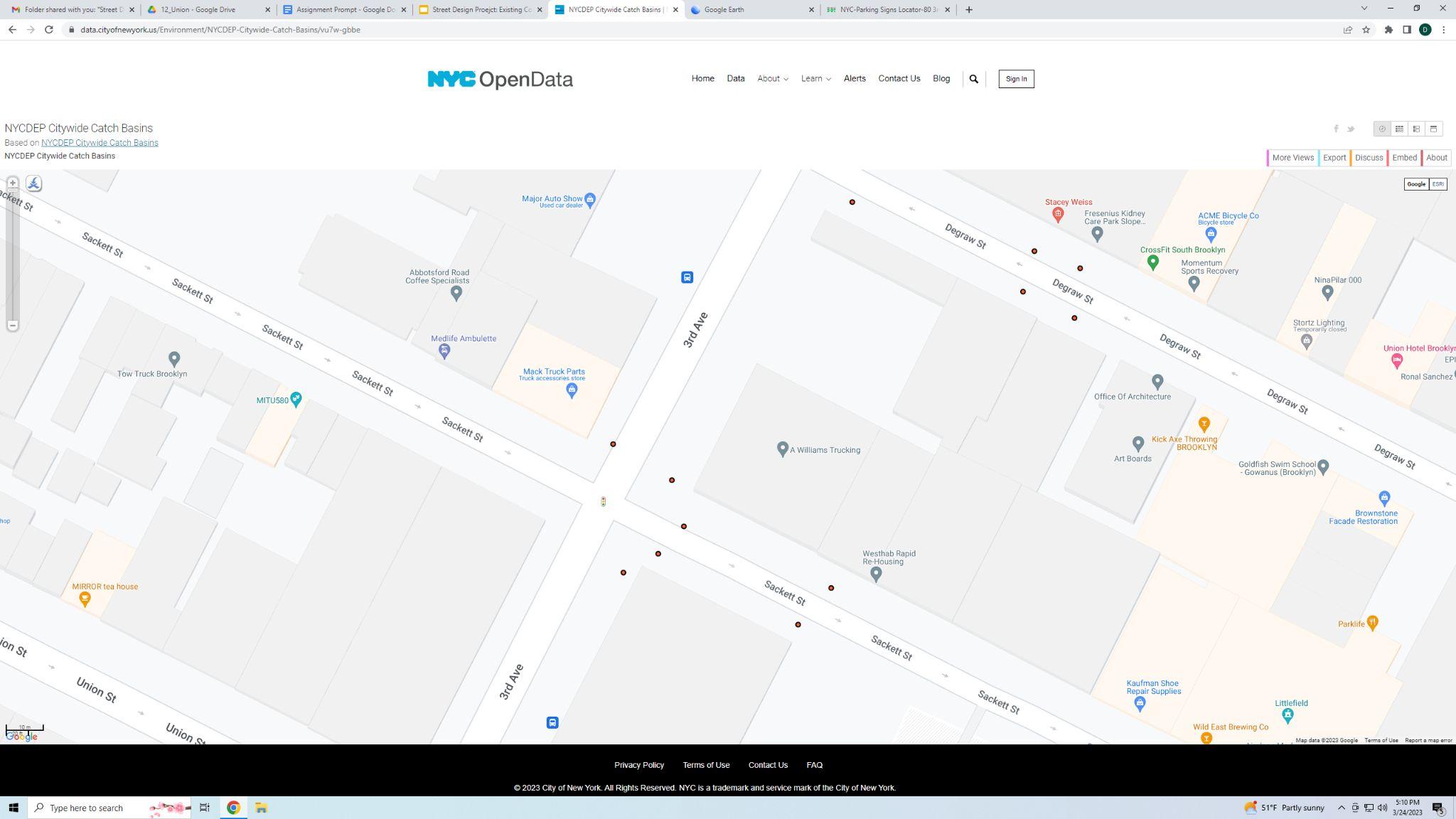

Sackett st - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 5

104

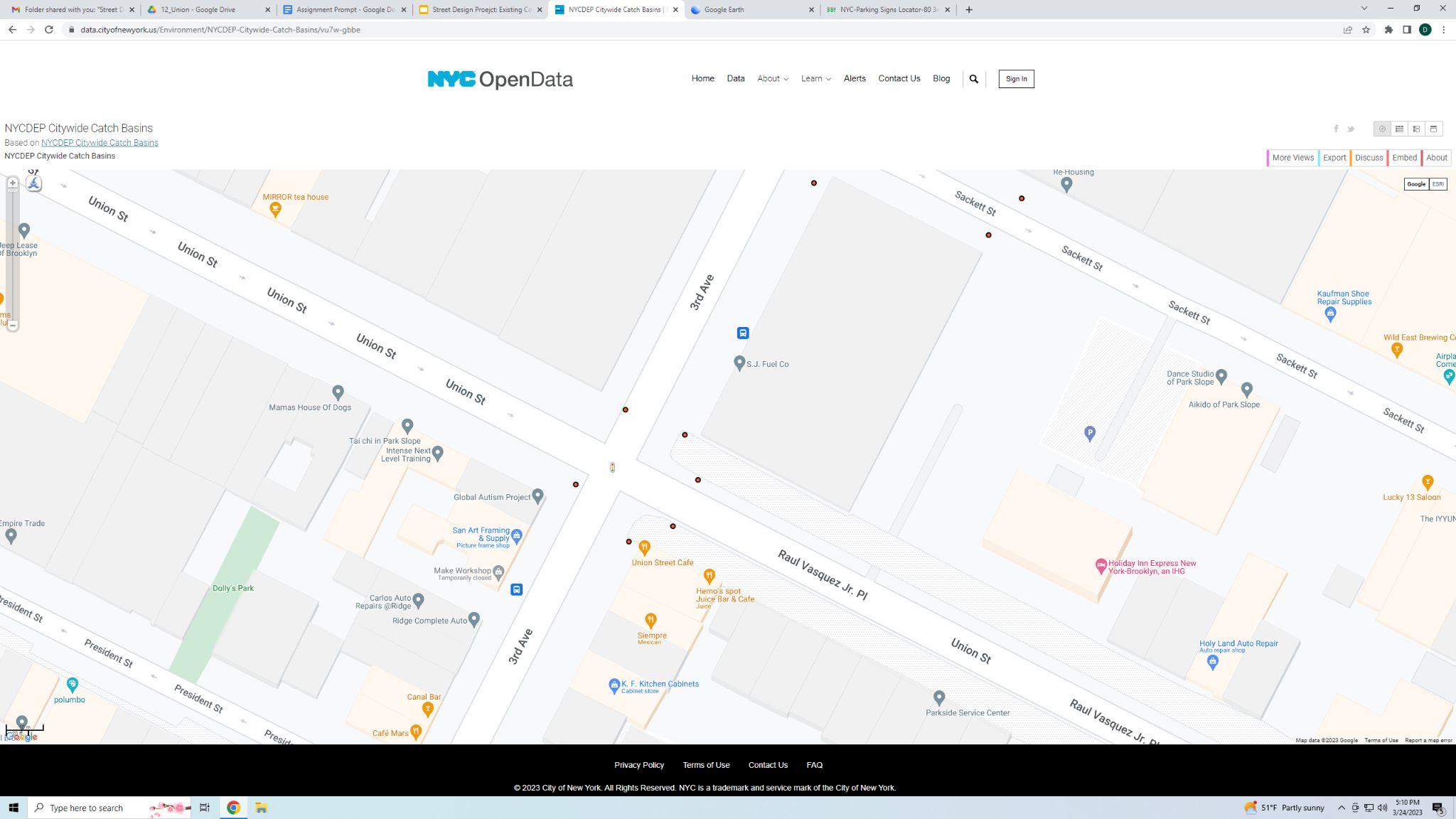

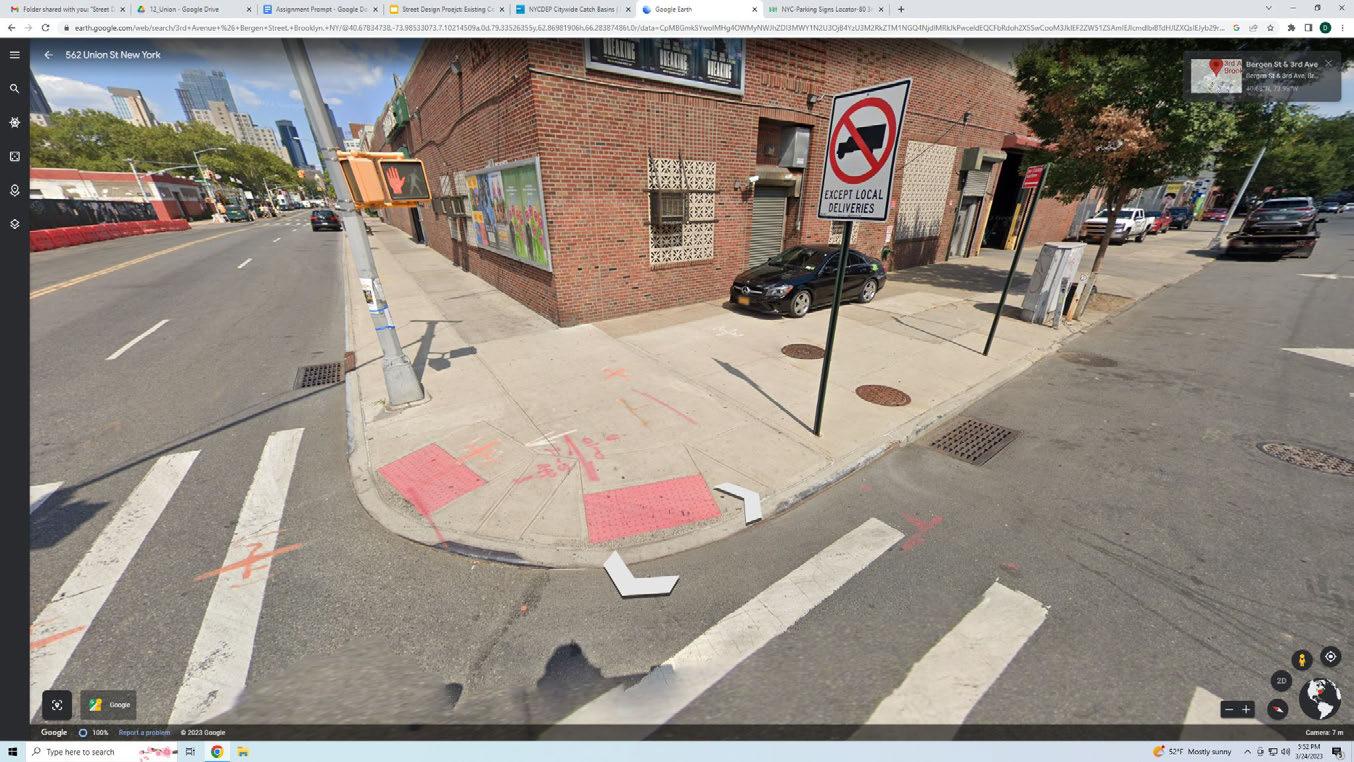

Union St - Stormwater catch basin Number of Stormwater catch basins across 4 blocks - 6

105

In this section, we have included a detailed plan and section view of our street corridor. This includes information on the curb line, sidewalks, pavement markings, medians, bus stops, subway and commuter rail entrance locations, building lines, vegetation/tree locations, street furniture, stormwater grates, streetlights, signals, elevated tracks or roadways, and column locations for elevated structures. We have also provided measurements for the roadway (curb to curb), lane

05/Drawings

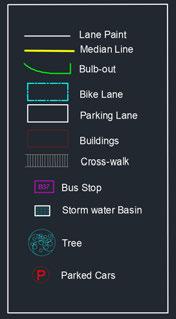

widths, sidewalk widths, curb radii, and sidewalk choke point width, as well as the street names and labels/callouts of features. Additionally, we have included a north arrow and scale, and a key/legend to interpret the features.

1

4.1/ Atlantic Ave

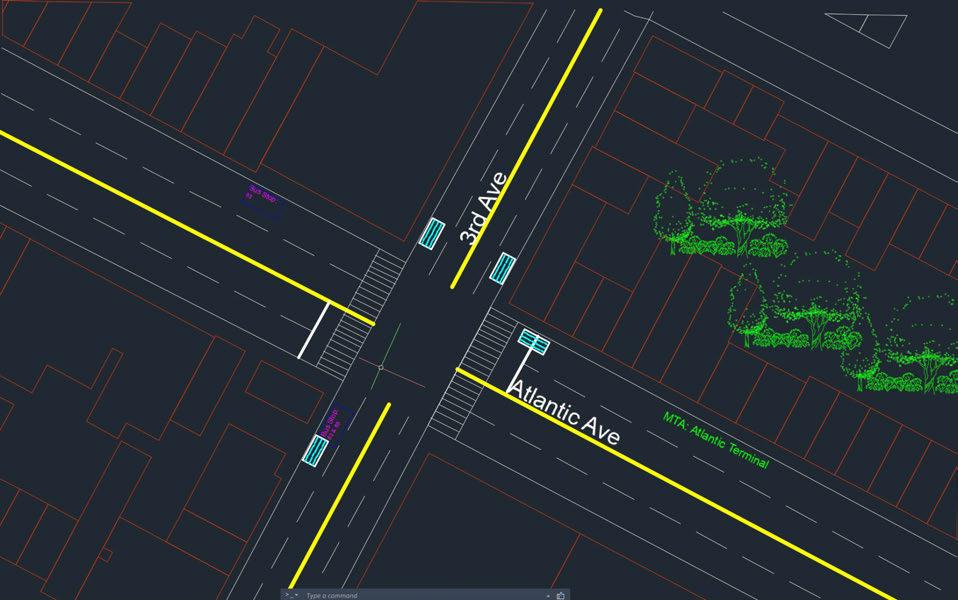

Figure A1 3rd Ave & Atlantic Ave. condition plan

Pacific St.

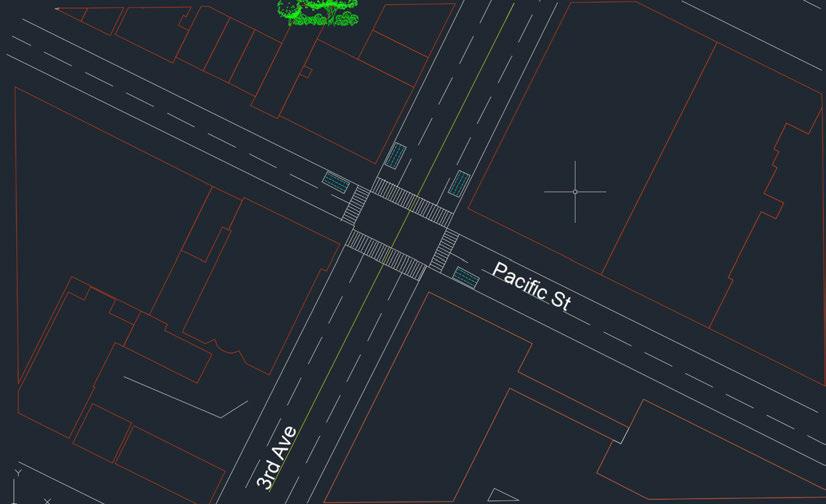

Figure A2 3rd Ave & Pacific St. condition plan

107

4.1/ Dean St.

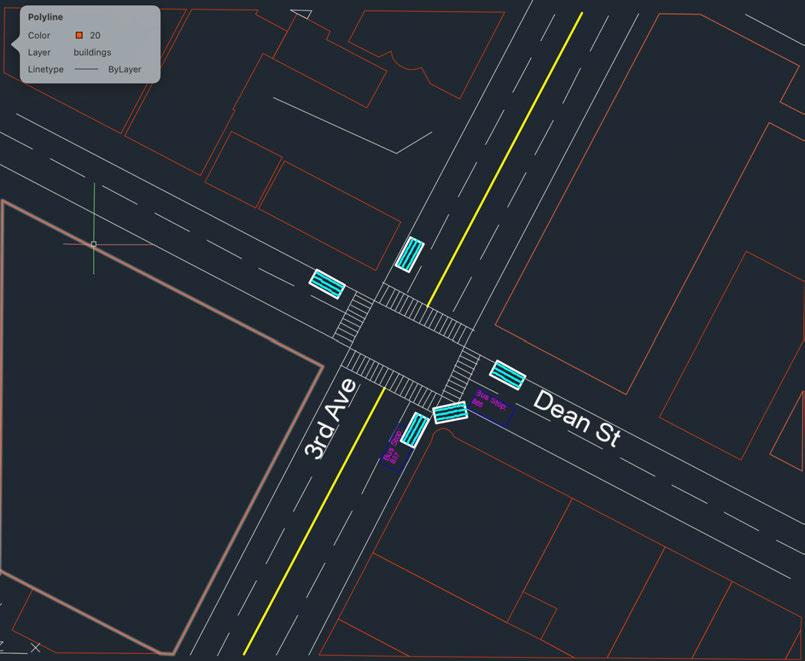

Figure A3 3rd Ave & Dean St. condition plan

Bergen St.

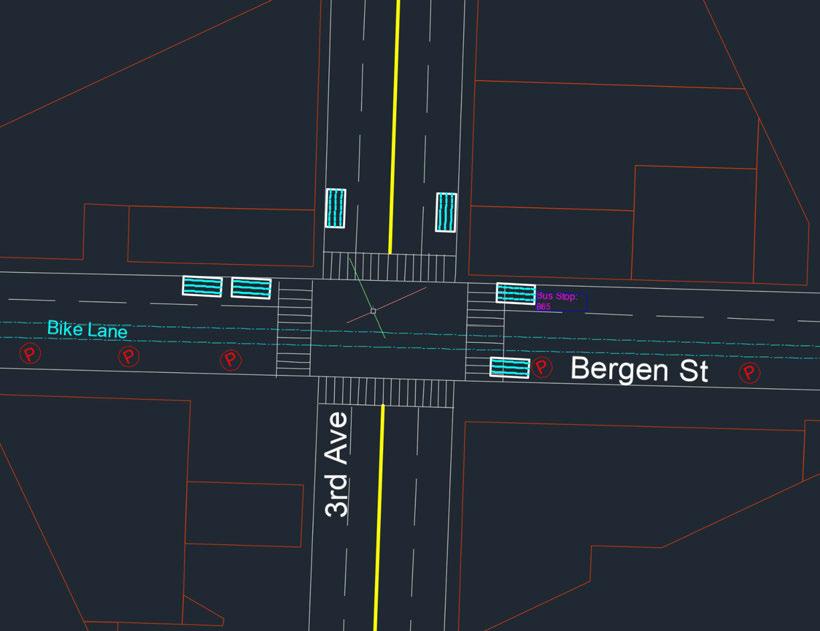

Figure A4 3rd Ave & Bergen St. condition plan

108

4.1/ Saint Marks Pl St.

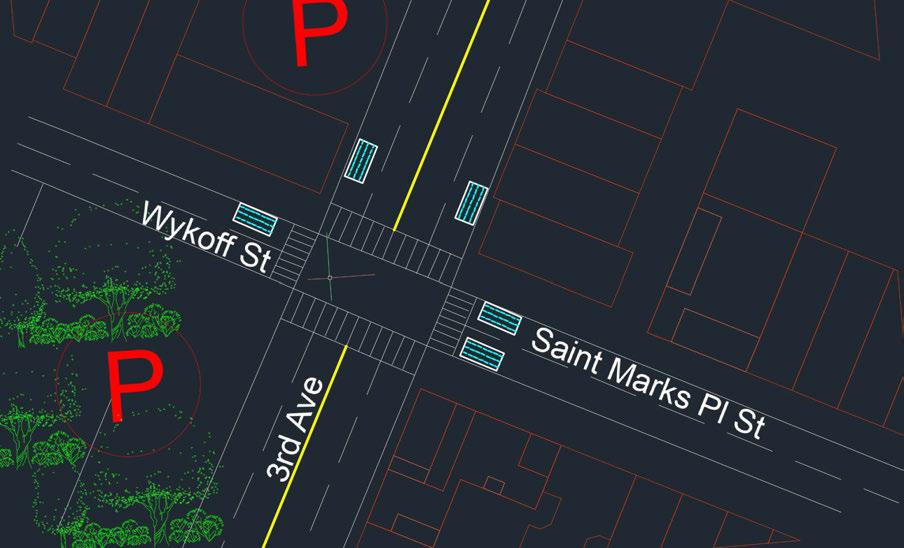

Figure A5 3rd Ave & Saint Marks Pl St. condition plan

Warren St.

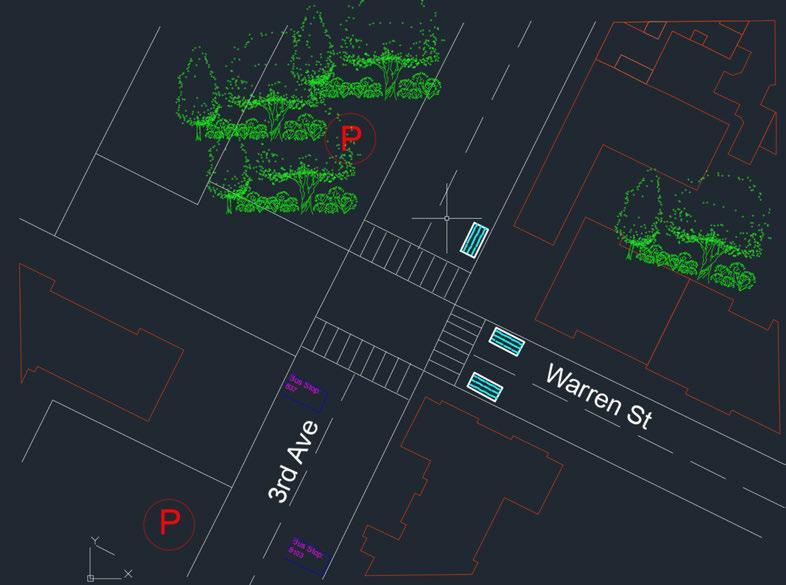

Figure A6 3rd Ave & Warren St. condition plan

109

4.1/ Baltic St.

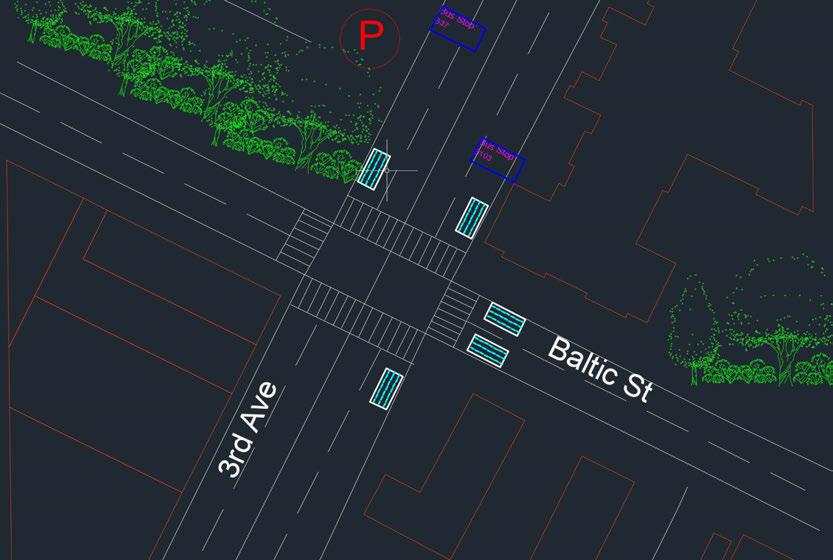

Figure A7 3rd Ave & Baltic St. condition plan

Butler St.

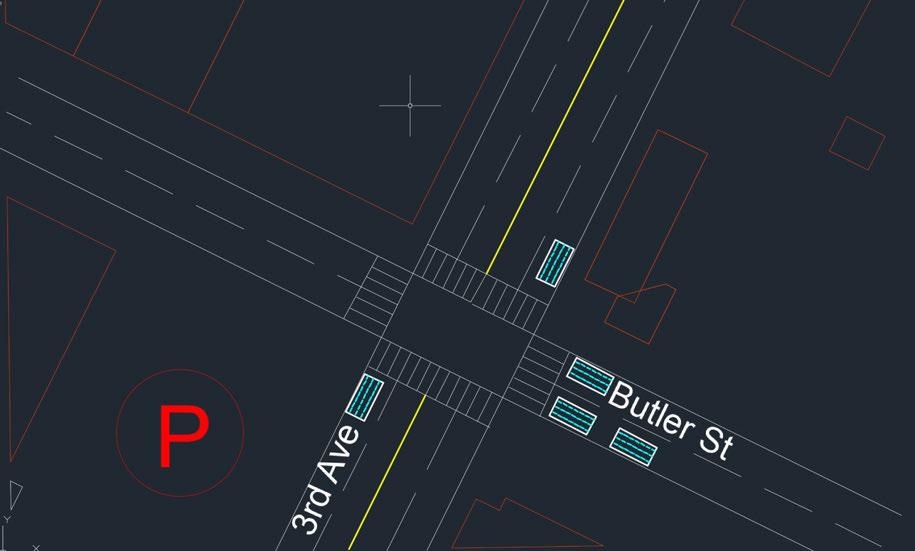

Figure A8 3rd Ave & Butler St. condition plan

110

4.1/ Douglass St.

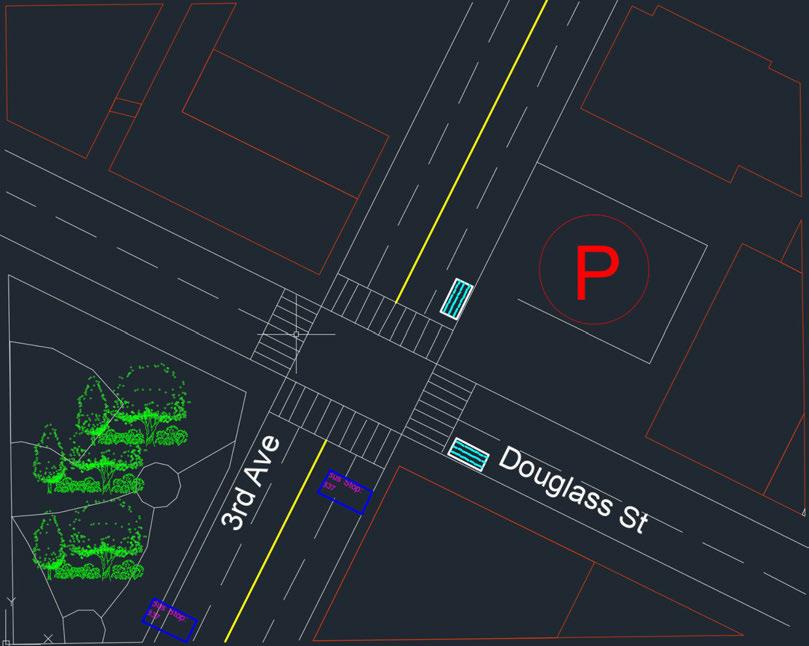

Figure A9 3rd Ave & Douglass St. condition plan

Degraw St.

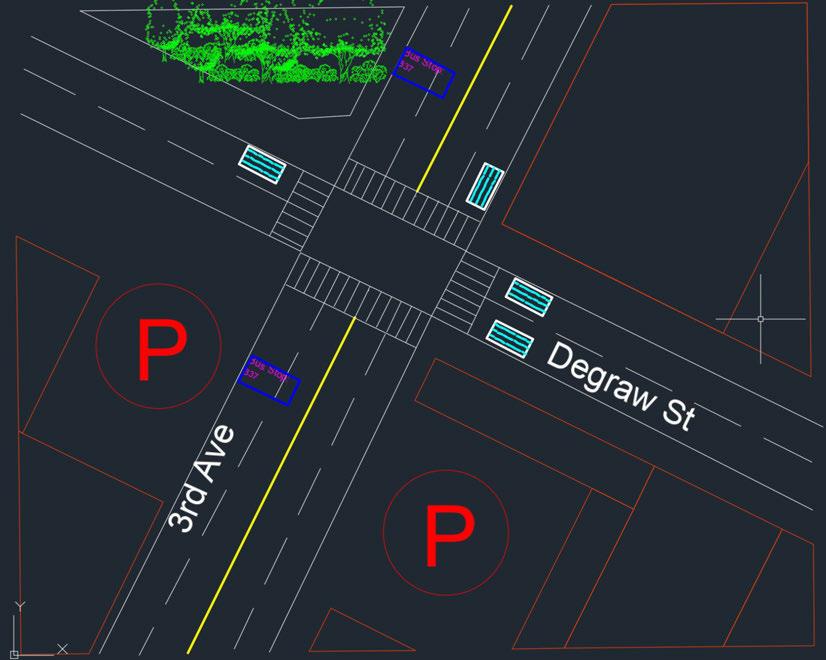

Figure A10 3rd Ave & Degraw St. condition plan

111

4.1/ Sackett St.

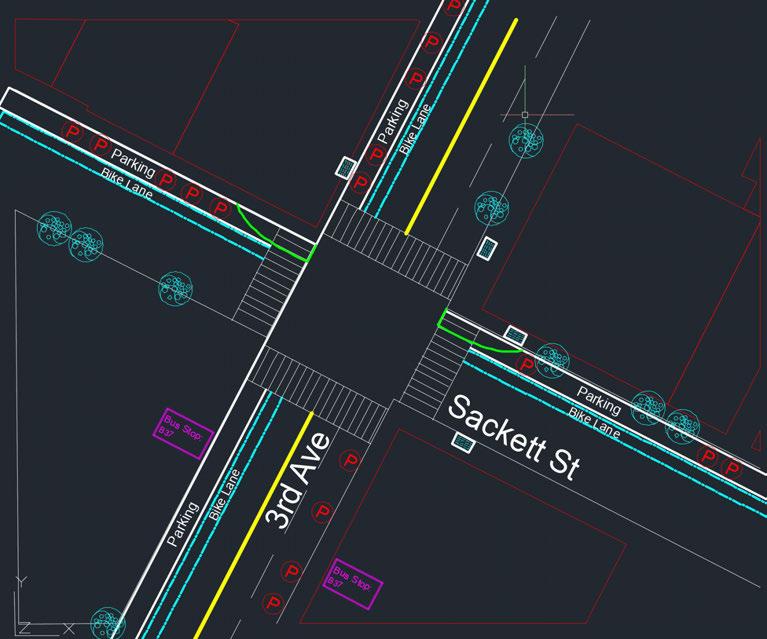

Figure A11 3rd Ave & Sackett St. condition plan

Union St.

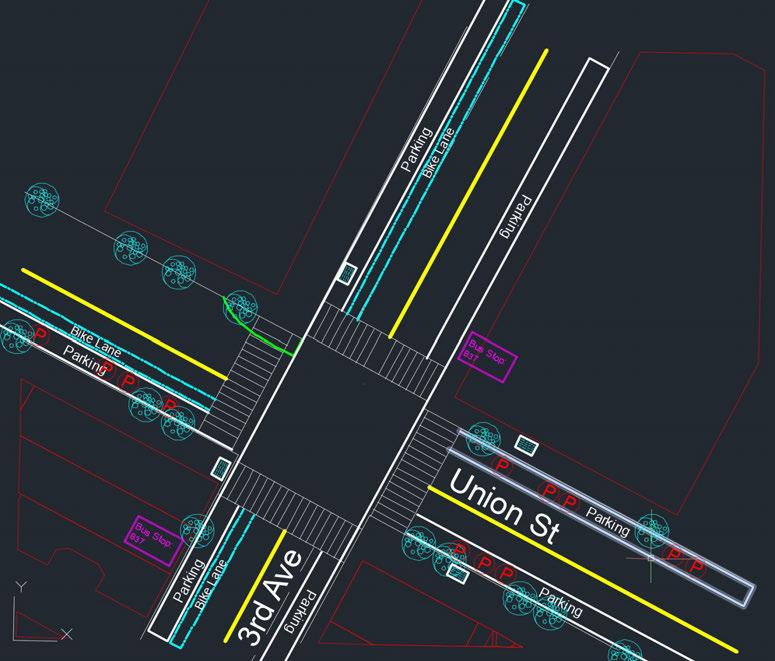

Figure A12 3rd Ave & Union St. condition plan

112

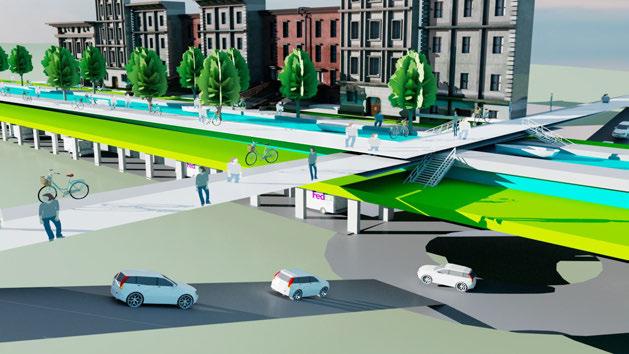

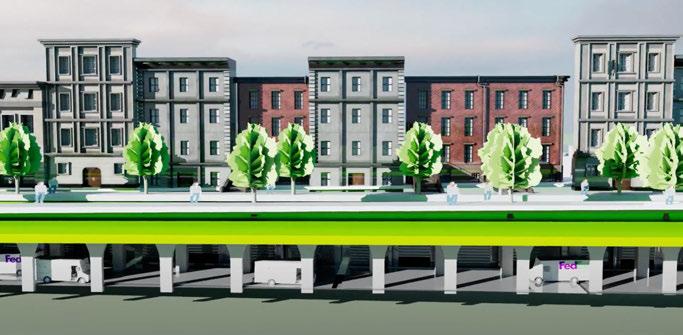

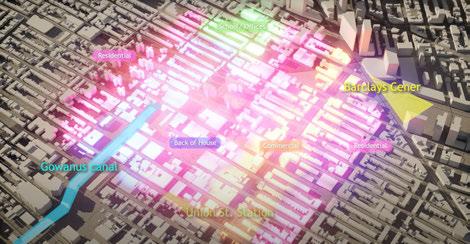

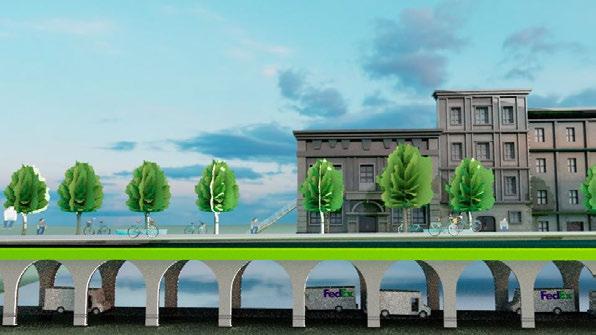

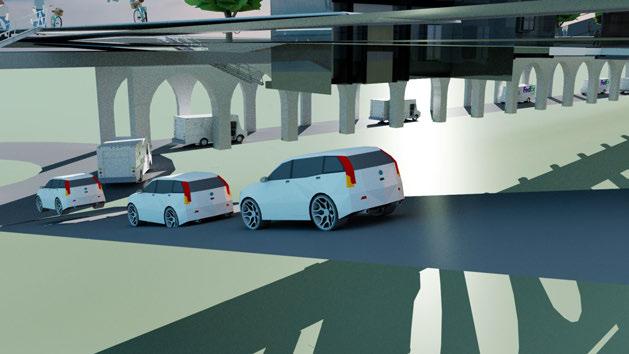

The design proposal involves relocating the active industrial zone underground and constructing residential buildings above. By moving industrial operations to the basements, trucks can load and unload without disrupting traffic. Above ground, parks would replace streets, creating a green corridor from the Gowanus Canal to Barclays Center.

06/Re-design

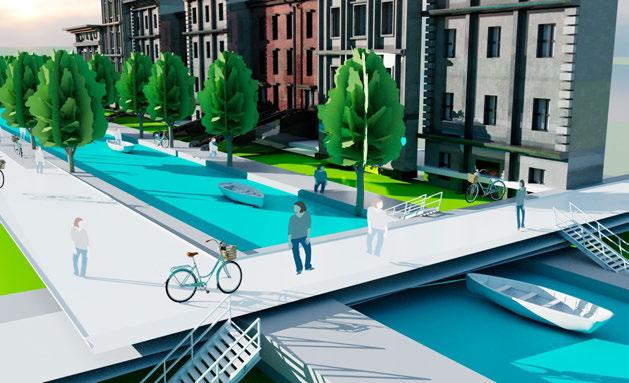

The heavy north-south traffic would be redirected to Fourth Avenue, while Third Avenue would only handle east-west traffic. The design also proposes extending the canal to flow into the Atlantic Avenue train station, providing a slower, more peaceful transportation option. This would bring additional recreational and commercial activities to the neighborhood, enhancing connections between Barclays Center and the Boerum Hill residential area.

2

The heavy north-south traffic would be redirected to Fourth Avenue, while Third Avenue would only handle east-west traffic. The design also proposes extending the canal to flow into the Atlantic Avenue train station, providing a slower, more peaceful transportation option. This would bring additional recreational and commercial activities to the neighborhood, enhancing connections between Barclays Center and the Boerum Hill residential area.

The design proposal involves relocating the active industrial zone underground and constructing residential buildings above. By moving industrial operations to the basements, trucks can load and unload without disrupting traffic. Above ground, parks would replace streets, creating a green corridor from the Gowanus Canal to Barclays Center.

Coming Soon…

Read “3rd Ave Street Design Project: ReDesignˮ for more
