BC HOUSE
Renderings of a residential project in Florianopolis, Brazil. They were done while I was working at EA+ Studio. I used SketchUp to make the 3D model and the rendering was done by using 3DS Max and Photoshop.
Front View
Front View
Section in Perspective
Rear Perspective
VACATION HOME
Site Analysis
This project is a family’s home vacation in Brazil and it was done by using Revit. It was challenging to find the perfect spot for the house in a very sloped site and avoiding to modify the land as least as possible.
The land is in the city of Domingos Martins in Espirito Santo state. It is a very touristic area in the countryside, 2h drive from the capital, Vitoria. The mountain clima is very nice, being “chilly” in the winter season and, for this reason, there are many cottages and people retiring in the area.
Rodrigo Motta Bungenstab
David Bungenstab
Thaís Motta Bungenstab da Silva
This particular site is inside the Pedra Azul State Park, which conserves the Atlantic forest. The land has 30.000 square meters but it is not allowed to use the forest area, remaing about 4.000 sqm. The “Blue Rock” (Pedra Azul), the local touristic point is located on the East and the main idea was that the bedrooms and gourmet balcony had incredible views to the rock.
The shape of house following the curves of topography.
N=7.742.150
N=7.742.200
Floor Plans
Floor Plans
Scale 1:100
Section AA’
Section BB’
Facades
Front Facade
Scale 1:100
Movimentar terra para nivelar com a parte posterior da varanda gourmet
Left Facade
Scale 1:100
Textura Concreto Ripado sobre reboco, com impermeabilizante fosco e transparente
Madeira
Telha cerâmica cinza i = 37%
Telha cerâmica cinza i = 37%
Telha cerâmica cinza i = 37%
Trama em madeira para trepadeira
Vidro incolor
FR HOUSE - Main Entrance
Installation map for a main entrance of a house in Ontario.
FR HOUSE - Panels
N=7.742.050
LEGEND:
FLAT PART - 5" thick
RECESSED - 4 1/2" thick
CURVED PROFILE (w=7/8", h=3/8")
CURVED PROFILE (w=1/2", h=3/8" )
FLAT PART - 3 3/4" thick (3/8" below curve)
CURVED PROFILE (w=3/4", h= 5/8")
RECESSED - 3 1/2" thick (3/8" below curve)
Shop Drawing - Map of depths Scale 3/4” = 1’ 0
N=7.742.000
Luis José Maria Girardi

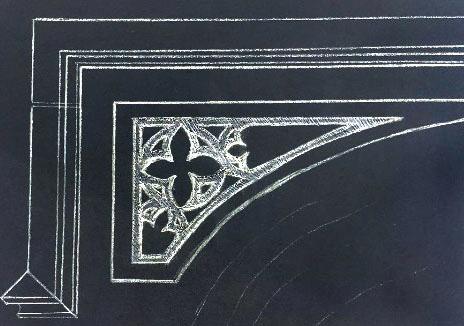

Sketch provided by client

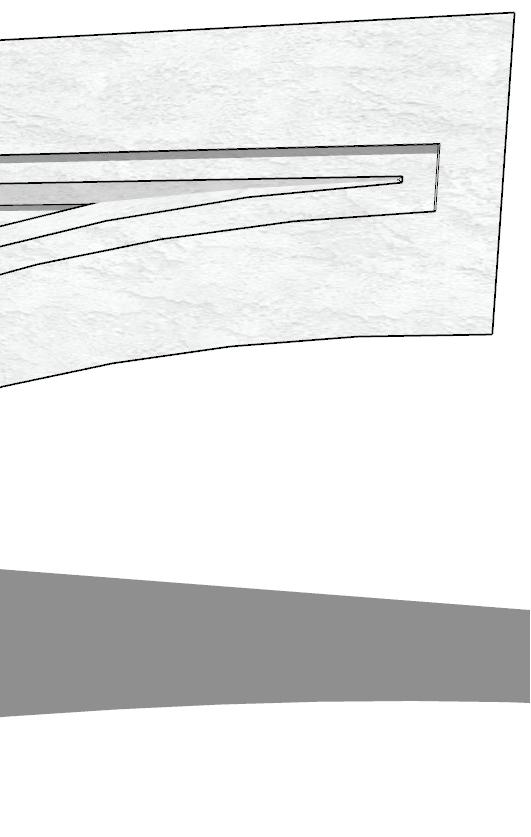

Perspective of stone panel (SketchUp)

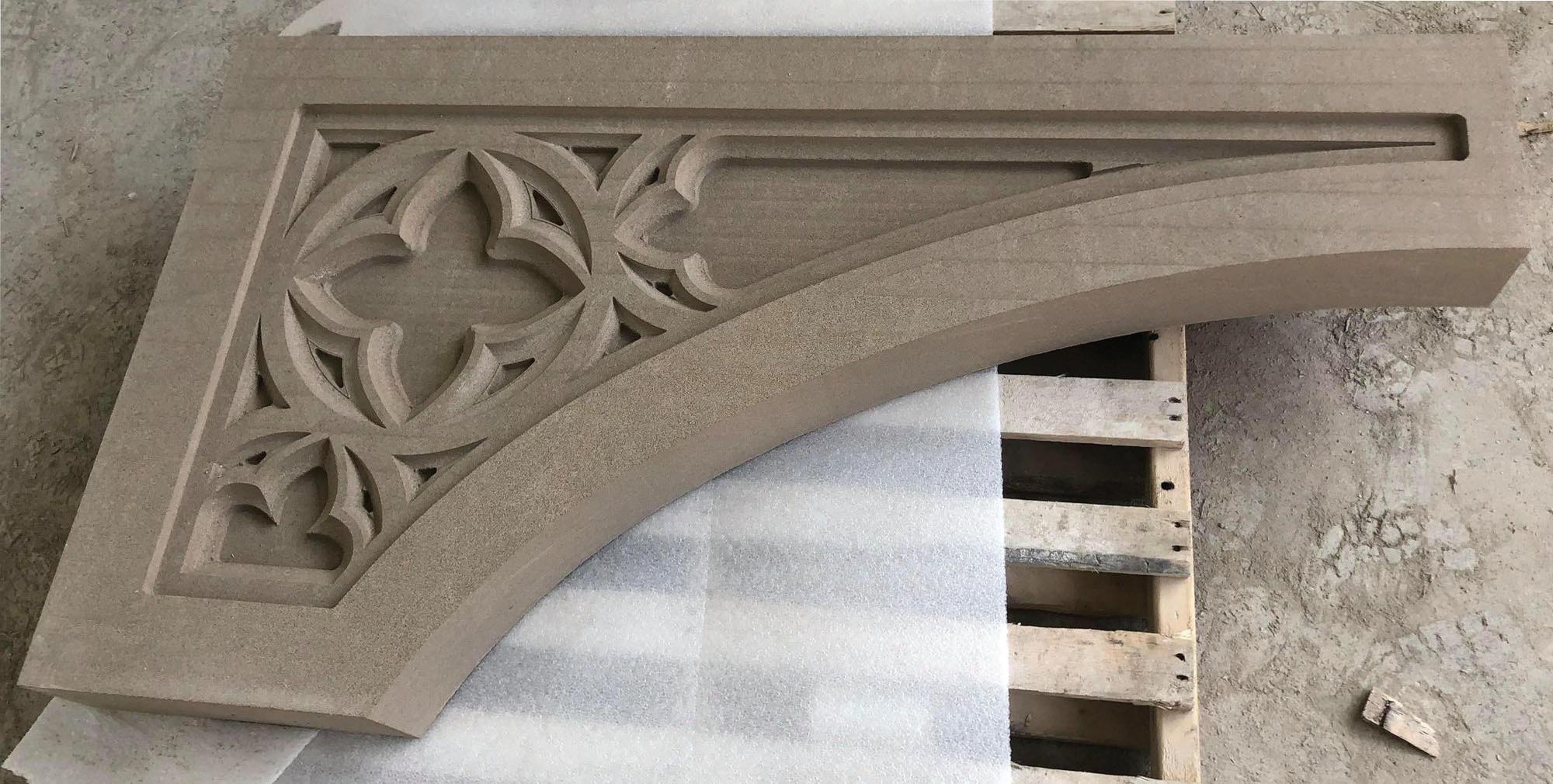

Picture of stone panel after being cut on CNC machine (and before being polished)
Set of drawings sent to designer for approval of limestone elements. All the drawings were developed using AutoCAD.
HOUSE 2 - SCHEMATIC DESIGN

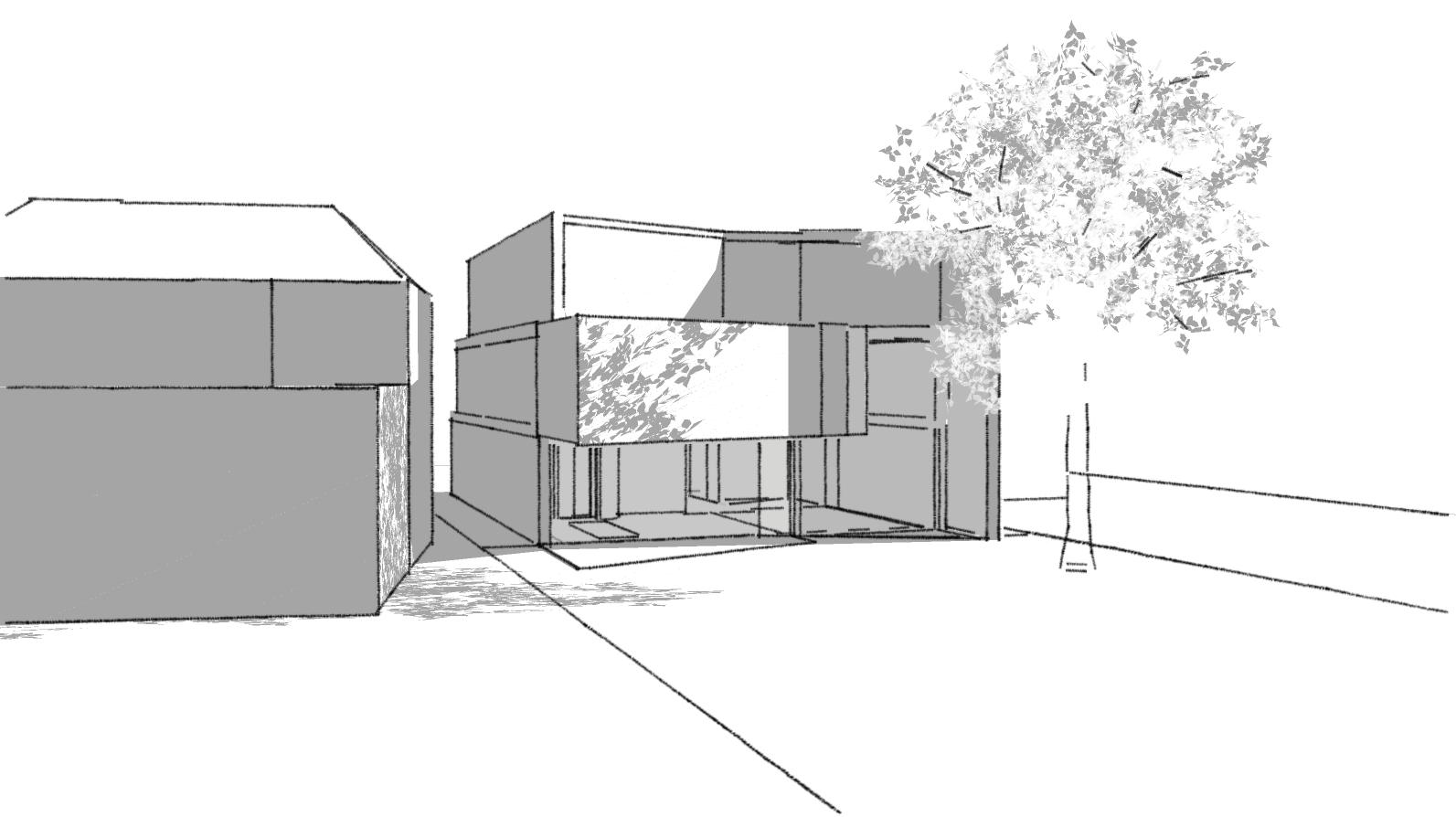

3D View - Front
HOUSE 2
Schematic design of a detached single-family house in East York, with three levels above ground and two below ground. This set of initial drawings was developed by me on November 2021.
Ground Floor Plan
Scale 1/16” = 1’ 0
HOUSE 2
Second Floor Plan
HOUSE 2
Third Floor Plan
Scale 1/16” = 1’ 0
HOUSE 2
Basement Floor Plan
Scale 1/16” = 1’ 0
HOUSE 2
Sub-Basement Floor Plan
Scale 1/16” = 1’ 0
HOUSE 2
3D View - Rear
HOUSE 1 - BP SET
Set of drawings for Building Permit Application. Underpinning and reconfiguration of basement. Reconfiguration of basement stairs, in order to comply with OBC.
DEMOLITION
SYMBOL DESCRIPTION
EXISTING COUNTERTOP, CABINETS, APPLIANCES , SINK , ELECTRICAL AND PLUMBING FIXTURES TO BE REMOVED AND STOCKPILED FOR REUSE. CAP PLUMBING AT BASE AND TERMINATE ELECTRICAL.
REMOVE FLOOR, SUBFLOOR, AND EXISTING FLOOR JOISTS. SEE STRUCTURAL.
CLIENT TO DETERMINE WHETHER ANY FIXTURES, STONE & OTHER MATERIALS SHOULD BE STOCKPILED AND KEPT FOR RE-USE IN THIS PROJECT OR ELSEWHERE. D2
EXISTING DOORS AND FRAMES TO BE REMOVED AND STOCKPILE FOR REUSE. OPENING TO BE SIZED ACCORDING TO DRAWINGS. PATCHED AND REPAIRED AS REQUIRED FOR NEW FINISHES.
DASH LINE FOR EXISTING WALLS/STAIRS TO BE REMOVED
Basement Floor Plan - Existing/ Demolition
Scale 1/4” = 1’ 0
HOUSE 1
DEMOLITION
SYMBOL DESCRIPTION
EXISTING COUNTERTOP, CABINETS, APPLIANCES , SINK , ELECTRICAL AND PLUMBING FIXTURES TO BE REMOVED AND STOCKPILED FOR REUSE. CAP PLUMBING AT BASE AND TERMINATE ELECTRICAL.
REMOVED FLOOR, SUBLOOR, AND EXISTING FLOOR JOISTS. SEE STRUCTURAL. D2
EXISTING DOORS AND FRAMES TO BE REMOVED AND STOCKPILE FOR REUSE. OPENING TO BE SIZED ACCORDING TO DRAWINGS. PATCHED AND REPAIRED AS REQUIRED FOR NEW FINISHES.
DASH LINE FOR EXISTING WALLS/STAIRS TO BE REMOVED
CLIENT TO DETERMINE WHETHER ANY FIXTURES, STONE & OTHER MATERIALS SHOULD BE STOCKPILED AND KEPT FOR RE-USE IN THIS PROJECT OR ELSEWHERE.
Ground Floor Plan - Existing/ Demolition Scale 1/4” = 1’
HOUSE 1
* CONTRACTOR TO CROSS REFERENCE ALL STRUCTURAL NOTES WITH STRUCTURAL DRAWING SET. IN EVENT OF STRUCTURAL DISCREPANCIES, STRUCTURAL DRAWINGS
ARCHITECTURAL SET. SMOKE/CO2 DETECTOR (REFERENCE RCP FOR FINAL LOCATION)
* CONTRACTOR TO CROSS REFERENCE ALL STRUCTURAL NOTES WITH STRUCTURAL DRAWING SET. IN EVENT OF STRUCTURAL DISCREPANCIES, STRUCTURAL DRAWINGS SUPERCEDE ARCHITECTURAL SET.
HOUSE 1
HOUSE 2
EXTERIOR
EXISTING WALL
1/2" (0.47 m)
EXISTING FOUNDATION WALL
2" ROUND WOOD HANDRAIL. HANDRAILS SHALL BE PROVIDED AS PER SECTION 9.8.7 OF THE O.B.C AND ALL SUBSEQUENT AMENDMENTS.
PROPOSED STAIRS. DIMENSIONS AS PER SECTION 9.8.2 OF THE O.B.C. AND ALL SUBSEQUENT AMENDMENTS.
DEPTH OF PROPOSED UNDERPINNING
DELTA MS DIMPLE BOARD
HYDRO GUARD SECOND LAYER
909-06 YELLOW JACKET BRUSHED INTO PLACE
HYDRO GUARD LAYER FIRST LAYER
1/8" PARGING
7-5/8" CONCRETE BLOCK, MORTAR & MORTAR JOINT
2" EXTRUDED RIGID INSULATION W/ TAPED OR SEALED JOINTS AGAINST CONCRETE
INTERIOR BASEMENT WALL DAMPPROOFING (POLYMER SHEATHING MEMBRANE)
2"X4" MOISTURE AND MOLD RESISTANT
BlueWood STUDS OR SIMILAR @ 16 O.C. FILLED W/ 'ROCKWOOL' BATT INSULATION
1/2" GYPSUM BOARD, PAINTED W/ VAPOUR BARRIER
EXISTING CEILING/FLOOR TO REMAIN
EXISTING CEILING/FLOOR TO REMAIN
4" MIN REINFORCED POURED CONCRETE SLAB WITH RADIANT TUBING
DELTA MS DIMPLE BOARD
HYDRO GUARD SECOND LAYER
4" XPS RIGID INSULATION
INTERIOR WALL TYPES
WOOD STUDS
6 MIL. POLY MOISTURE BARRIER
909-06 YELLOW JACKET BRUSHED INTO PLACE
HYDRO GUARD LAYER FIRST LAYER
4" COARSE GRANULAR FILL
1/8" PARGING
7-5/8" CONCRETE BLOCK, MORTAR & MORTAR JOINT
*SEE STRUCTURAL FOR CONCRETE AND REINFORCING
2" EXTRUDED RIGID INSULATION W/ TAPED OR SEALED JOINTS AGAINST CONCRETE
INTERIOR BASEMENT WALL DAMPPROOFING (POLYMER
SHEATHING MEMBRANE)
2"X4" MOISTURE AND MOLD RESISTANT
BlueWood STUDS OR SIMILAR @ 16 O.C.
FILLED W/ 'ROCKWOOL' BATT INSULATION
TILE ON THINSET "KERDI" SCHLUTER MEMBRANE OR SIMILAR 1 2 CEMENT BOARD ON 2"X4" WOOD STUDS
1/4" VINYL
1/2" GYPSUM BOARD, PAINTED W/ VAPOUR BARRIER
4" MIN REINFORCED POURED CONCRETE SLAB WITH RADIANT TUBING
4" XPS RIGID INSULATION
6 MIL. POLY MOISTURE BARRIER
4" COARSE GRANULAR FILL
*SEE STRUCTURAL FOR CONCRETE AND REINFORCING
3/8" ROLLED RUBBER FLOORING
DOUBLE-SIDED ADHESIVE TAPE
4" MIN REINFORCED POURED CONCRETE SLAB WITH RADIANT TUBING
4" XPS RIGID INSULATION
6 MIL. POLY MOISTURE BARRIER
4" COARSE GRANULAR FILL
*SEE STRUCTURAL FOR CONCRETE AND REINFORCING
1 2 GYPSUM BOARD PAINTED 1 2 GYPSUM BOARD ON 2"X4" WOOD STUDS 1 2 GYPSUM BOARD PAINTED
3 8 TILE ON THINSET "KERDI" SCHLUTER MEMBRANE OR SIMILAR
* TOP TRACK AND BOTTOM TRACK TO MATCH STUD WIDTH, 1/2" INTERIOR DRYWALL ON BOTH SIDES TAPED AND SANDED UNLESS OTHERWISE NOTED
*'ROCKWOOL SAFE'N'SOUND' FIRE & SOUNDPROOF INSULATION AROUND ALL BEDROOMS AND BATHROOMS
EXTERIOR WALL TYPES (WOOD FRAME)
1/2" PORCELAIN TILE
THINSET MORTAR
4" MIN REINFORCED POURED CONCRETE SLAB WITH RADIANT TUBING
4" XPS RIGID INSULATION
6 MIL. POLY MOISTURE BARRIER
4" COARSE GRANULAR FILL
*SEE STRUCTURAL FOR CONCRETE AND REINFORCING
WALL DAMPPROOFING (POLYMER SHEATHING MEMBRANE)
2"X4" MOISTURE AND MOLD RESISTANT
BlueWood STUDS OR SIMILAR @ 16 O.C. FILLED W/ 'ROCKWOOL' BATT INSULATION
1/2" GYPSUM BOARD, PAINTED W/ VAPOUR
