VELOX ECOSYSTEM
VELOX / v. 3.0 / 2026
Overview
The Current Problem
The EUD (End User Device) is now an integral part of the SOF kit. We asked end users what challenges they have and what could be improved.
We heard three key issues.
Rapid Connection - the QD cable works well but there are operational situations where faster connect/disconnect would be better.
USB Protection - the USB-C port on the device is a common failure point and needs better protection.
Mass Provisioning - it is a challenge to manage multiple team devices between missions making sure that power and data is ready to go on a fast turn.
These challenges defined the mission for the development of the VELOX EUD ecosystem.
Mission Profile
ECOSYSTEM
Tactical EUD Management

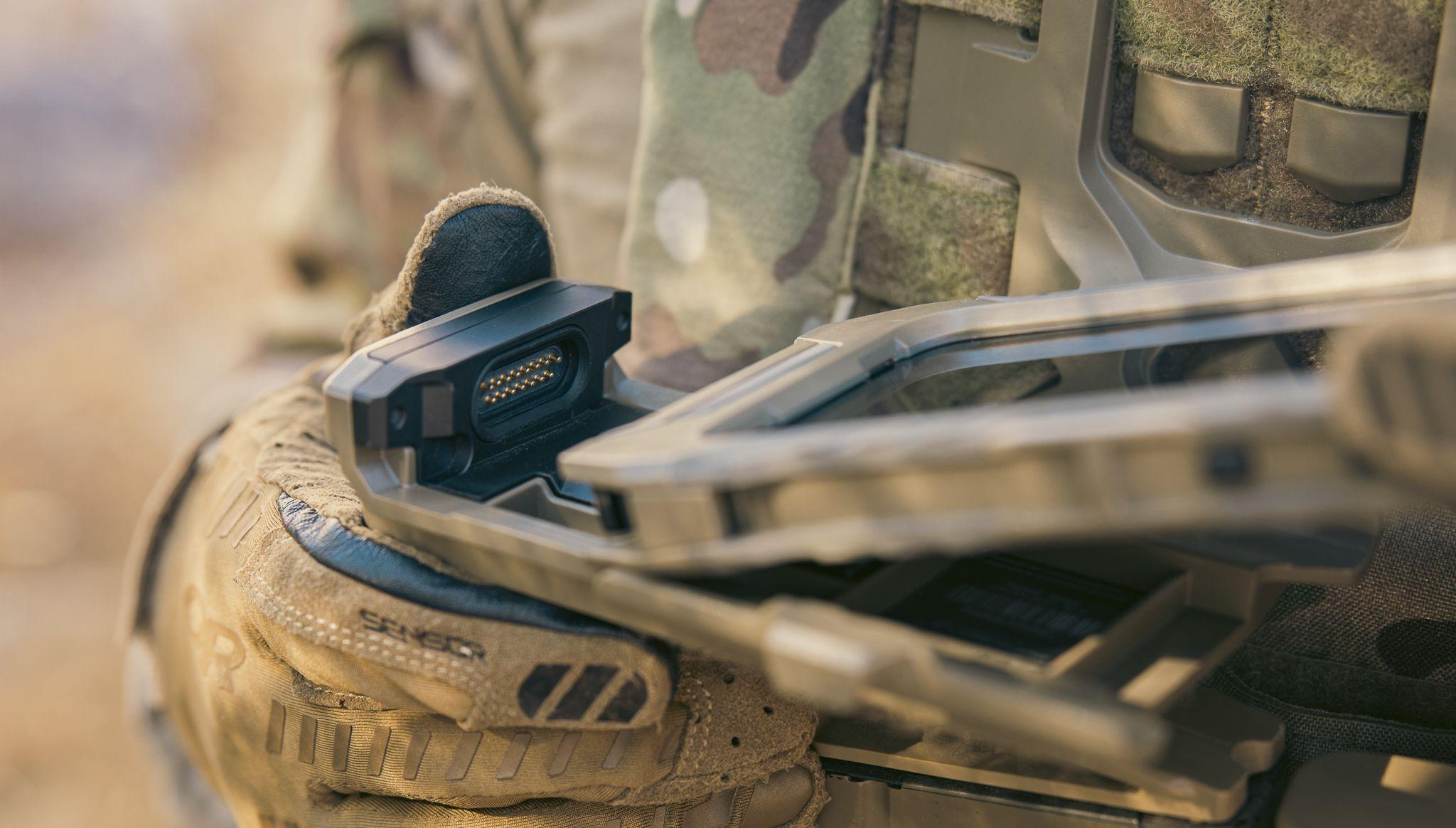

RAPID CONNECTION

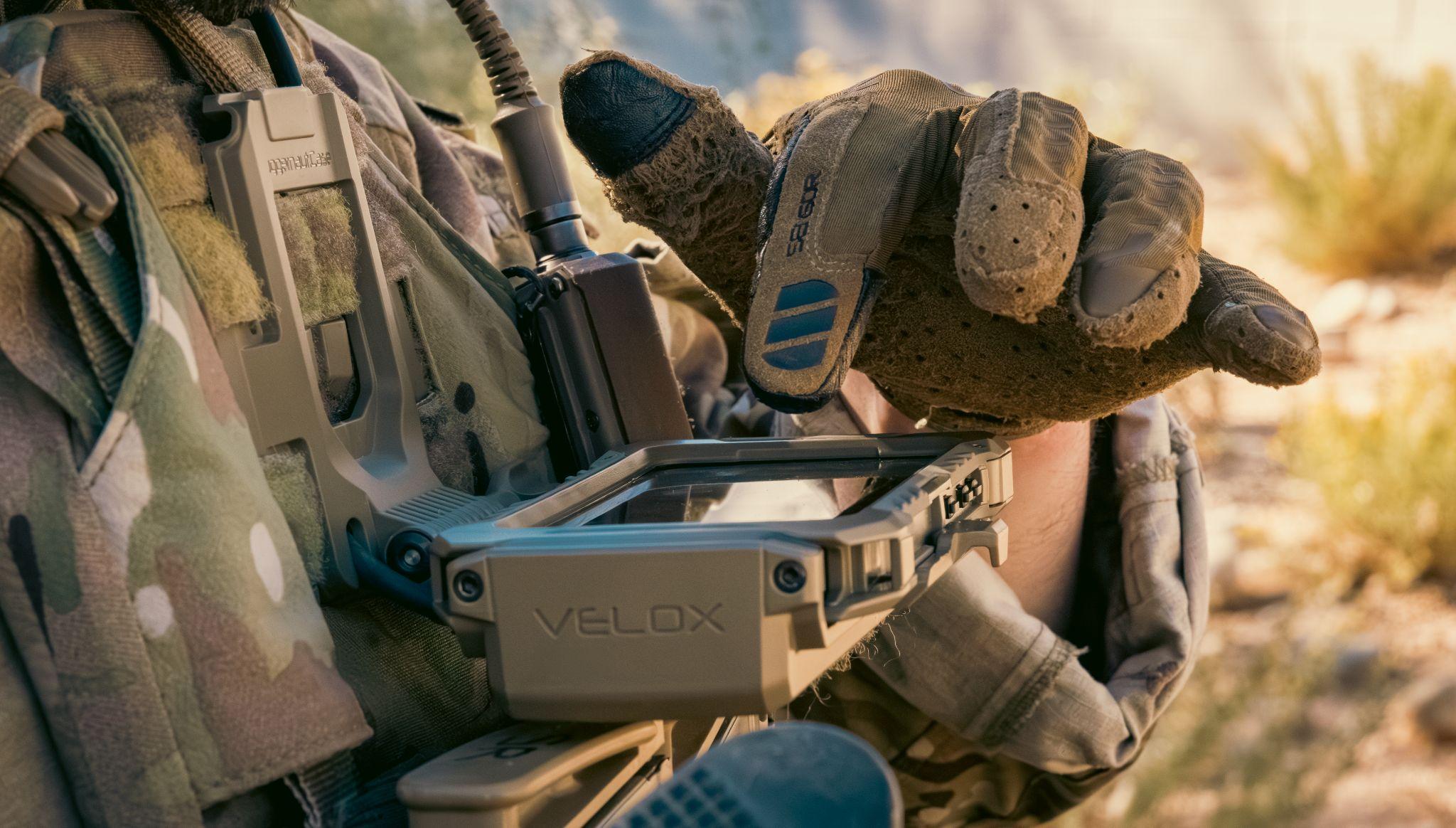

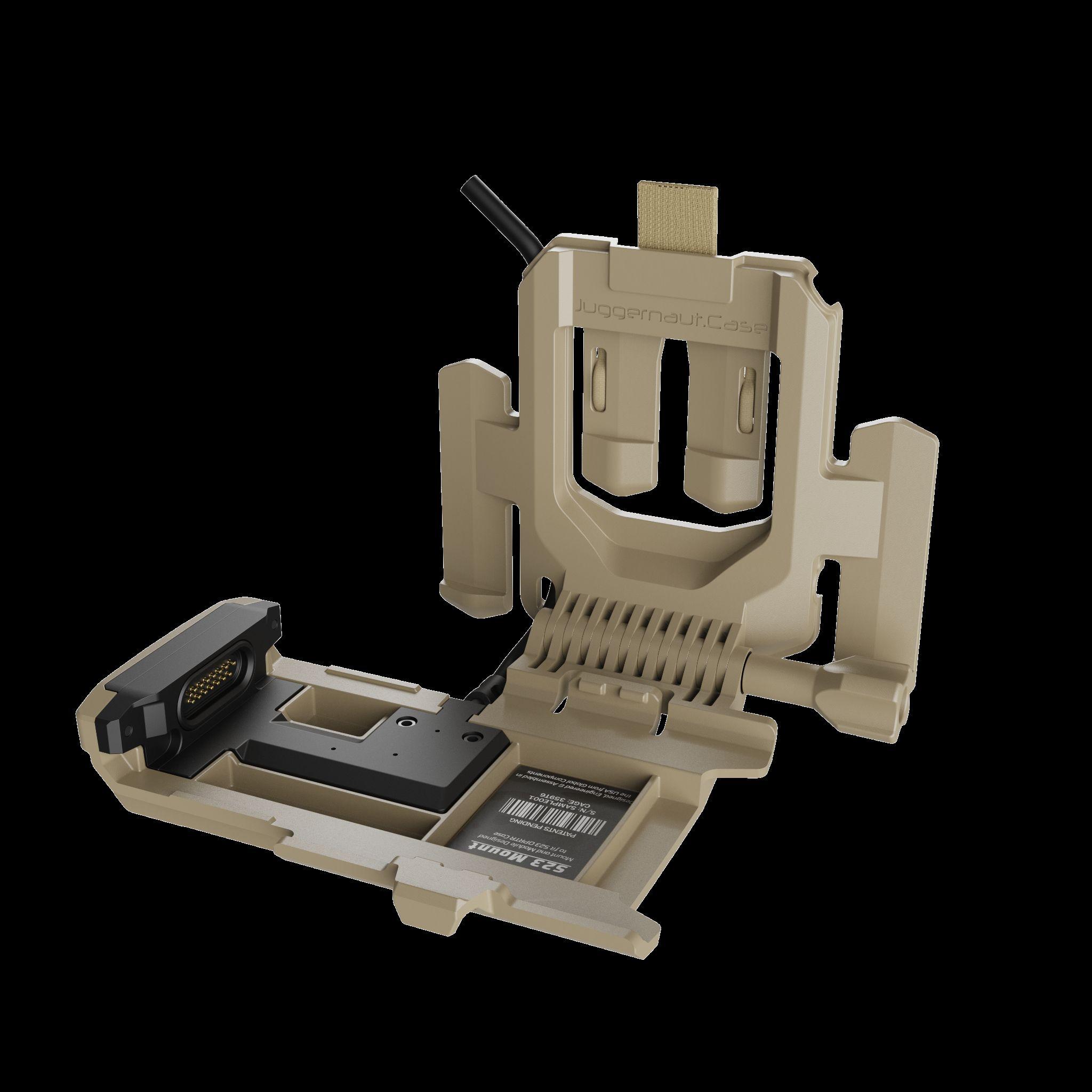

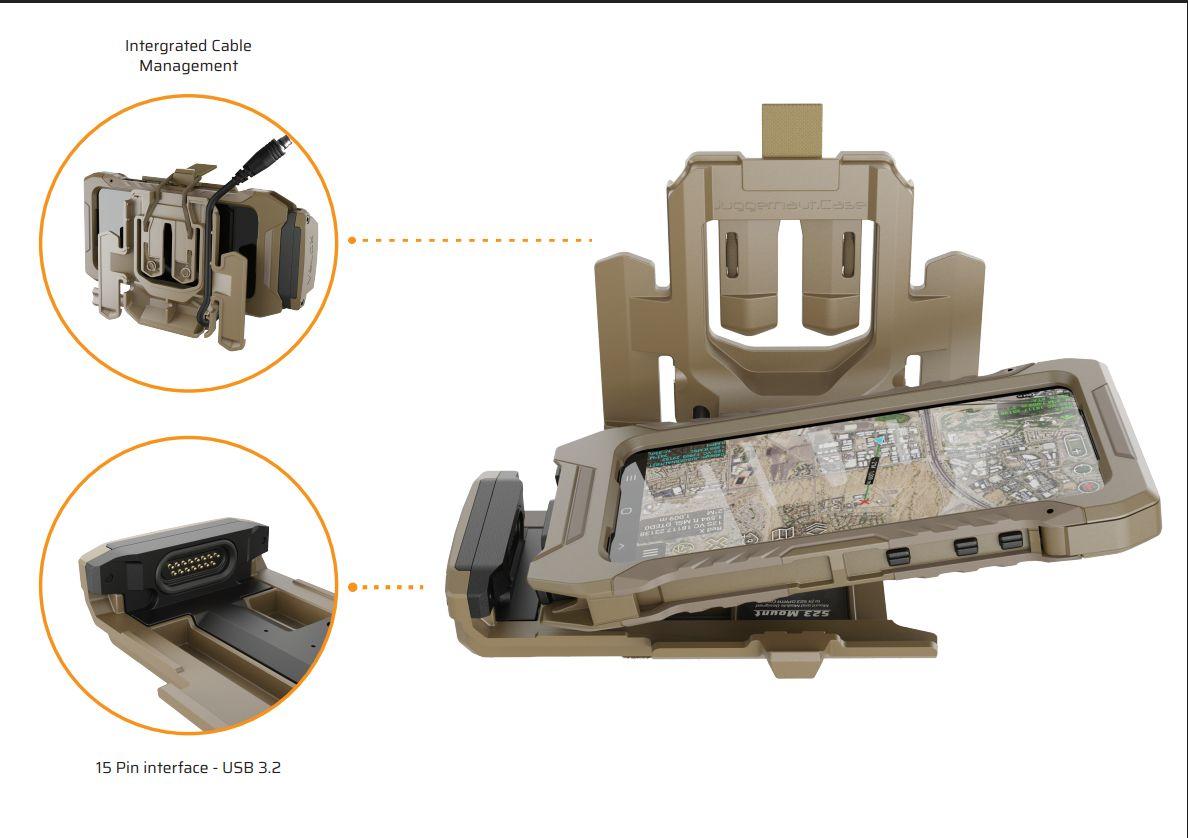

VELOX Armor.Mount
• 15 Pin interface - USB 3.2
• Integrated closure security strap
• Highly improved MOLLE/PALS installation
• Tension adjustable thumb screw tightener

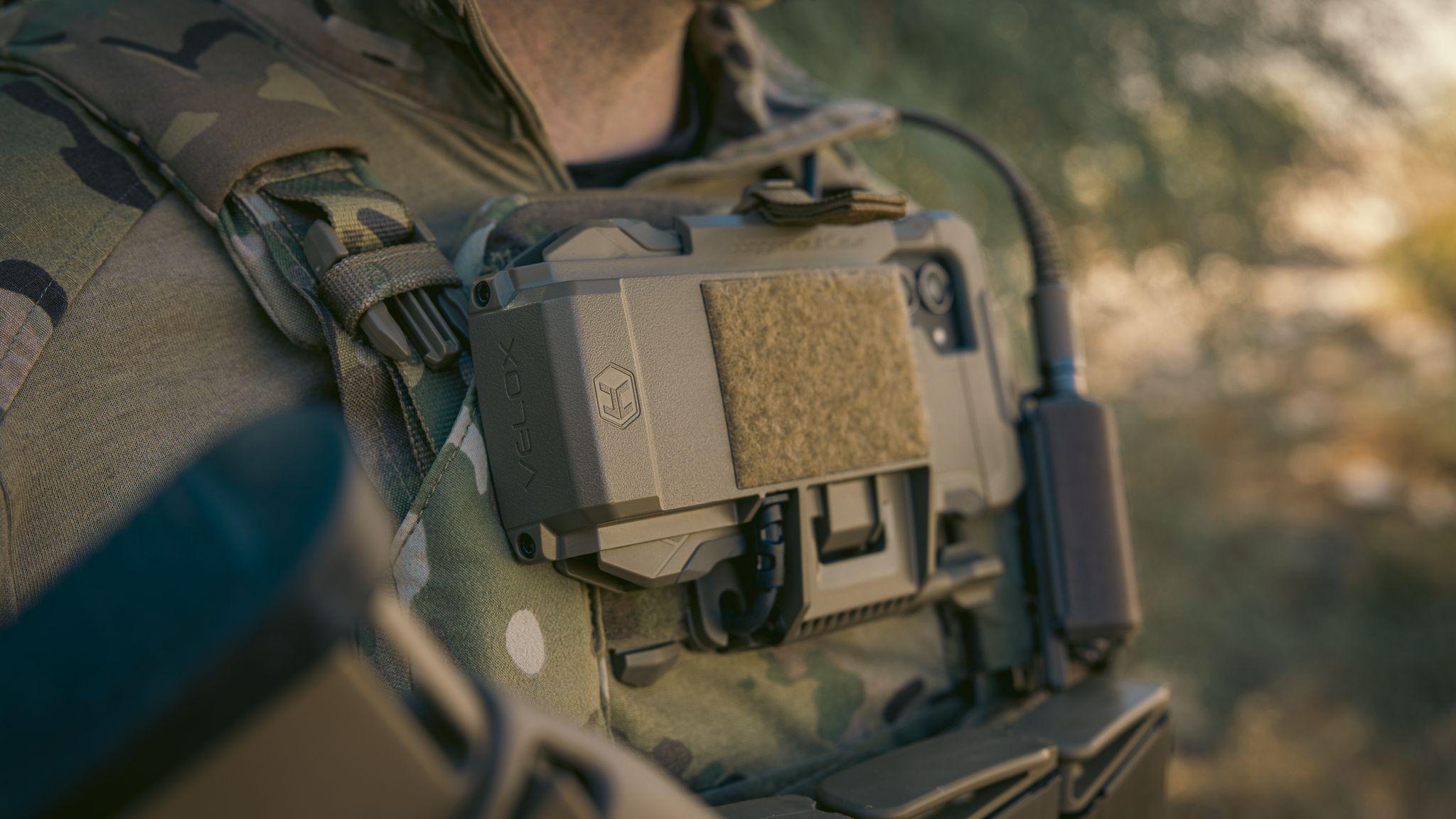

• Secure low profile mounting to plate carrier
• Adaptable, integrated cable management

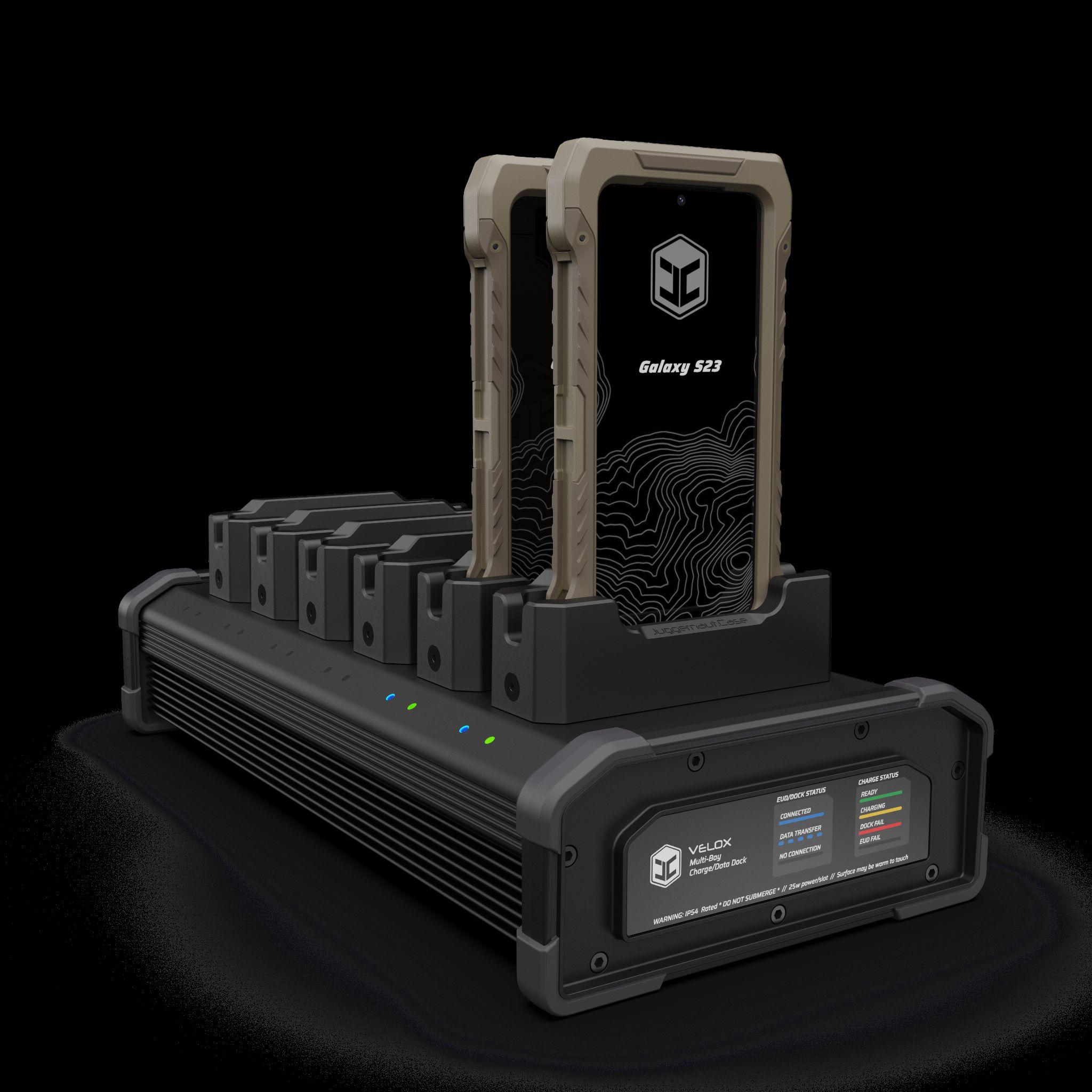

FAST CHARGING & MASS PROVISIONING

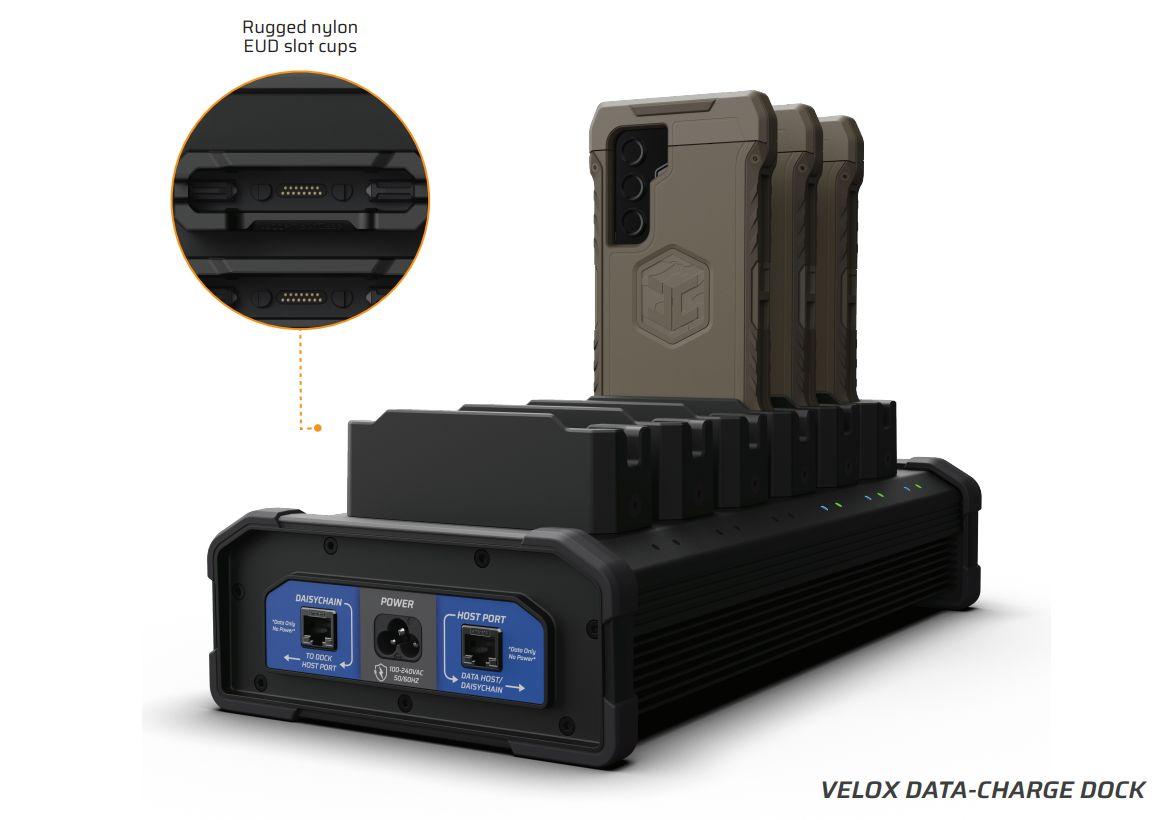

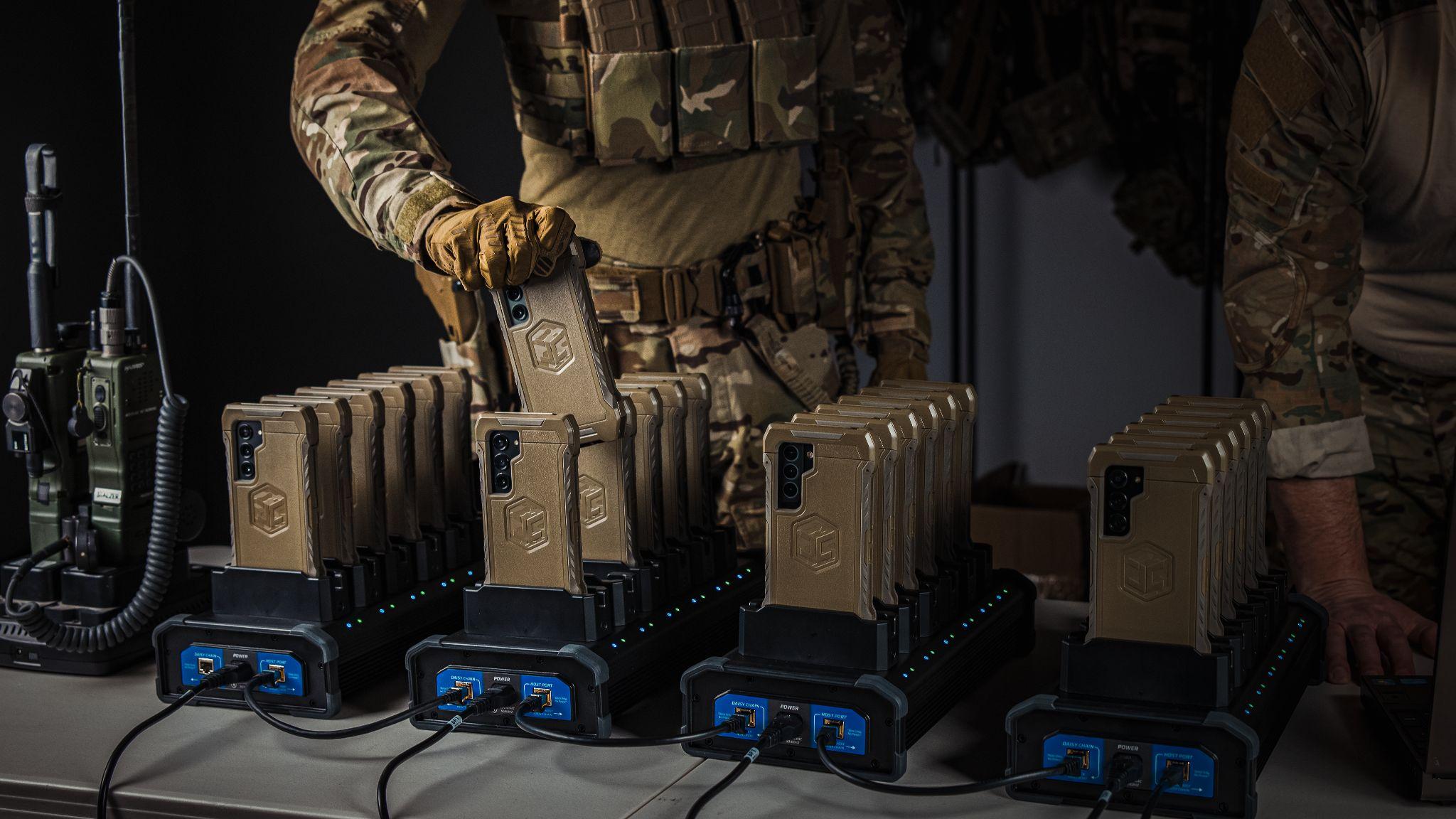

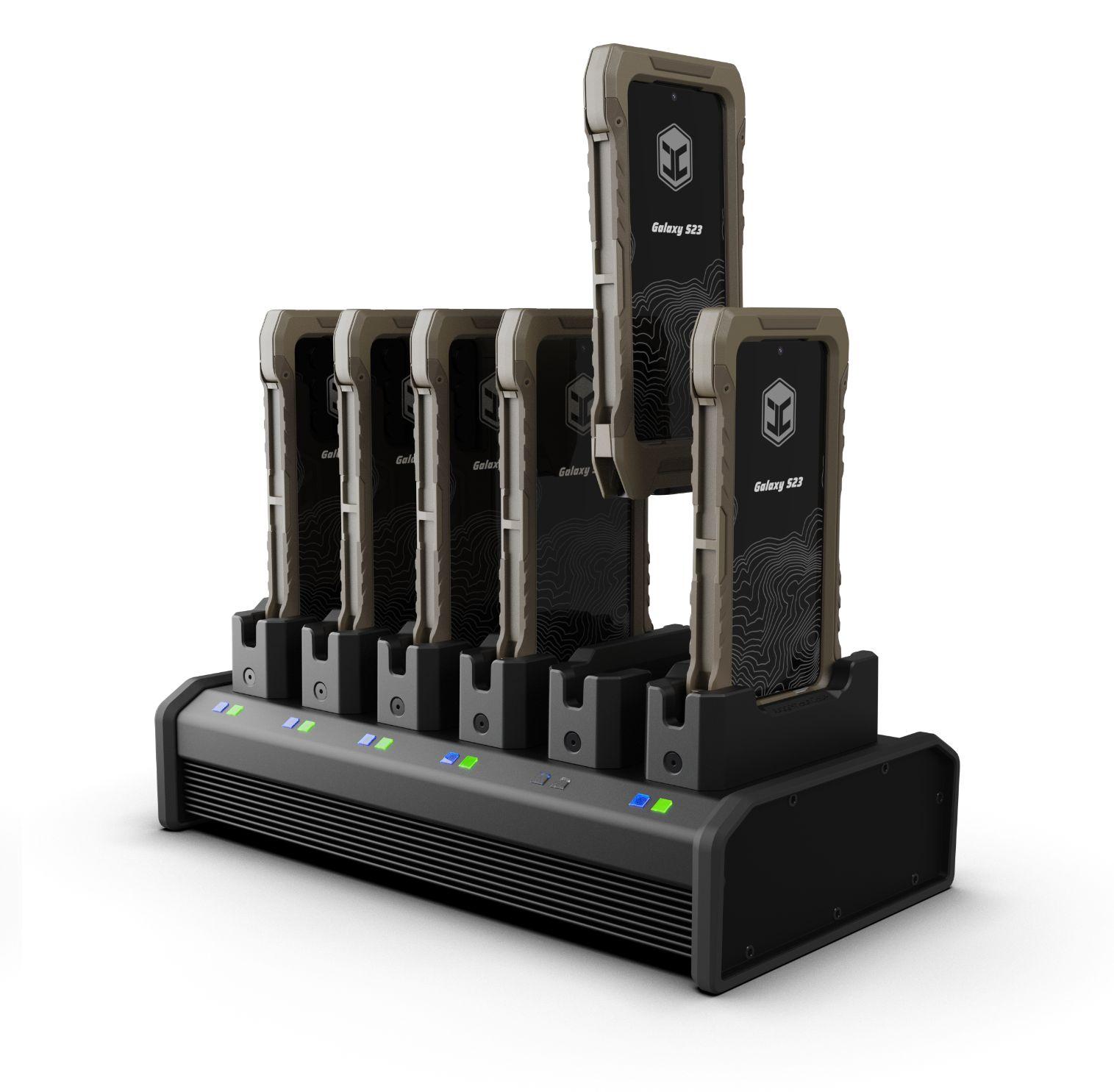

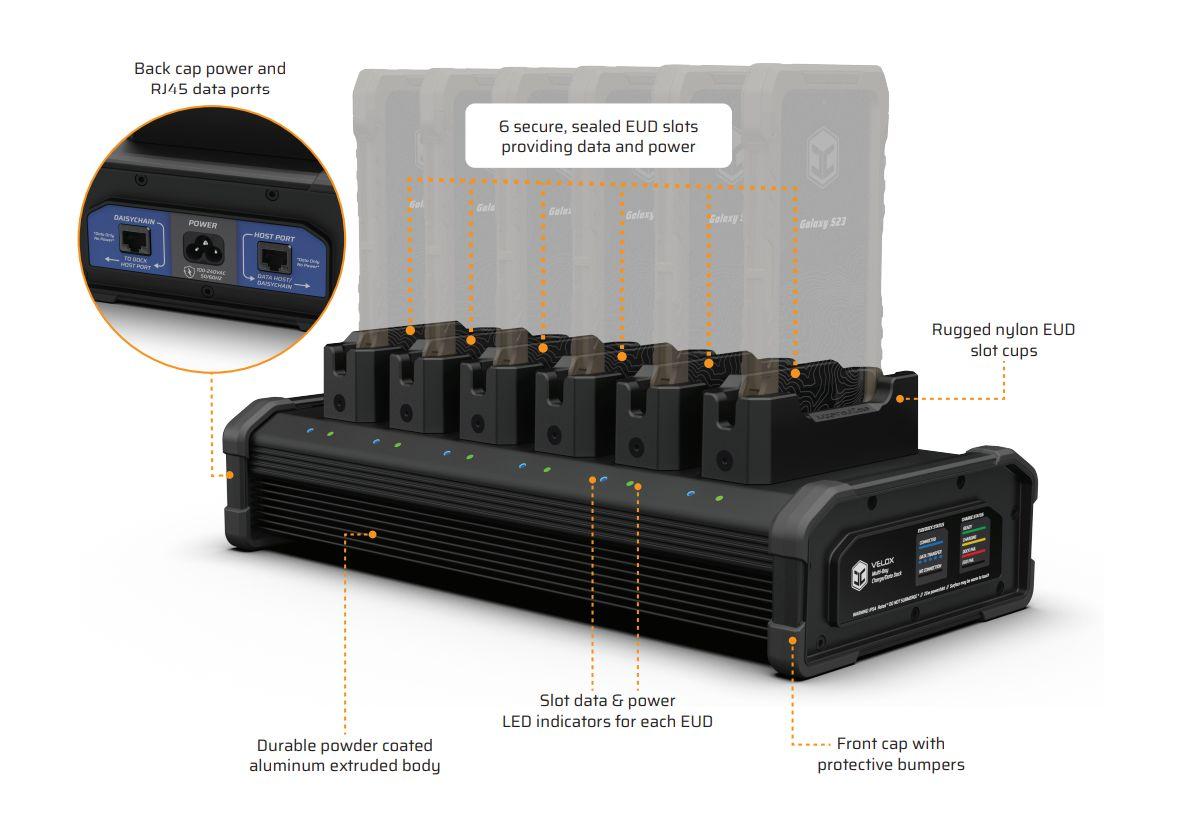

VELOX DATA-CHARGE DOCK
• 6 device charge and data bays

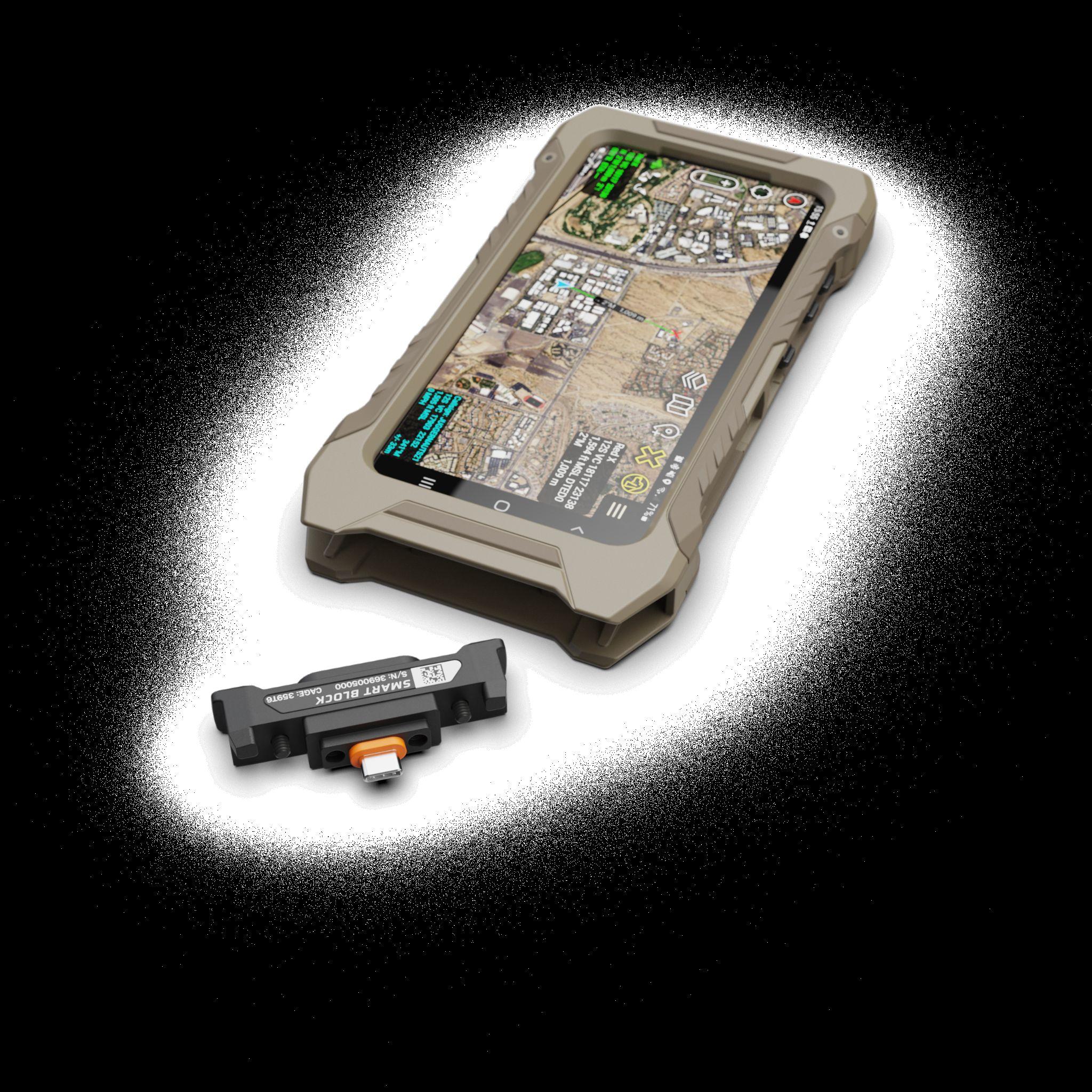

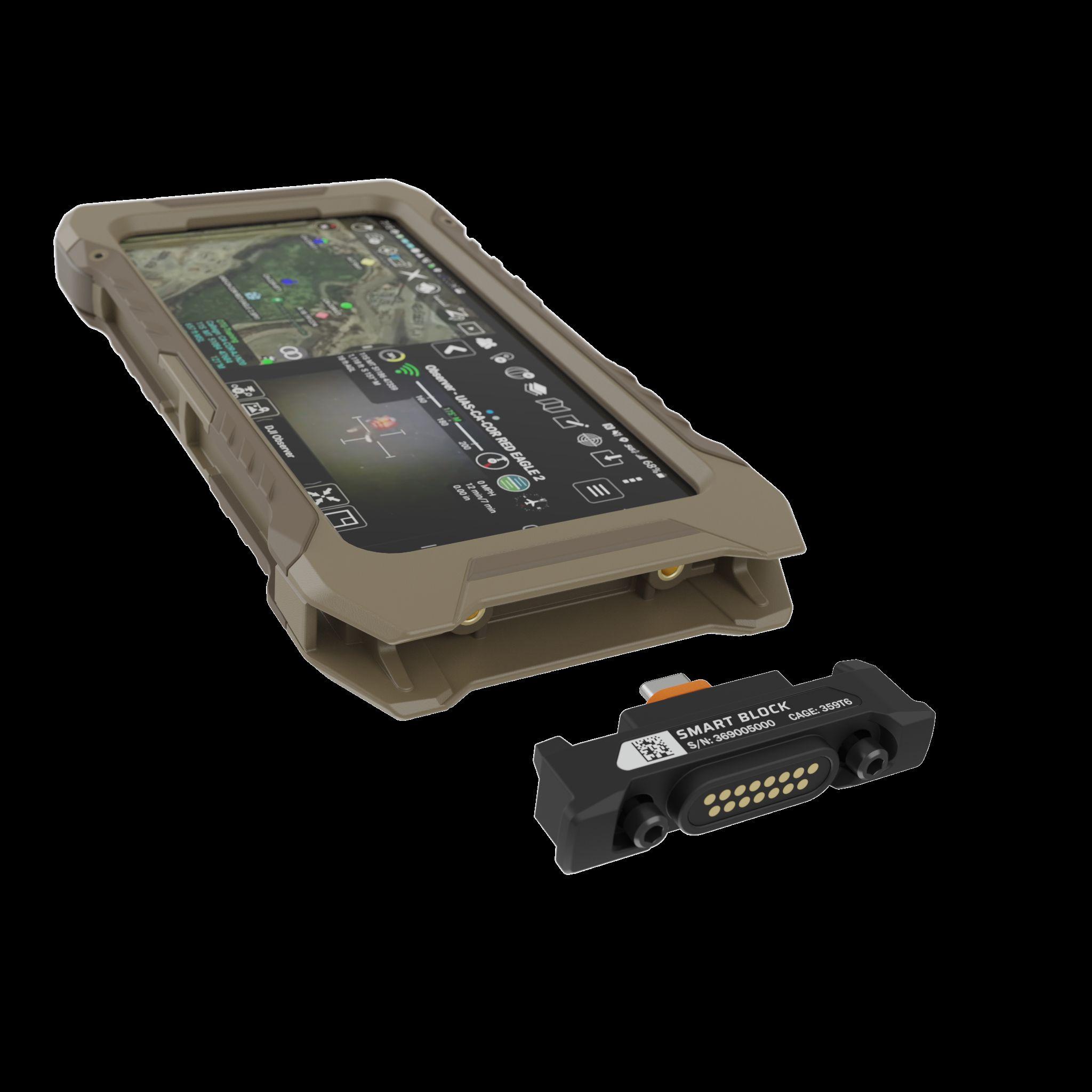

• Smart-Block interface
• Data transfer managed via third party MDM app
• Rugged platform for field application
• Quick connect bay interface
• Modular device specific cups

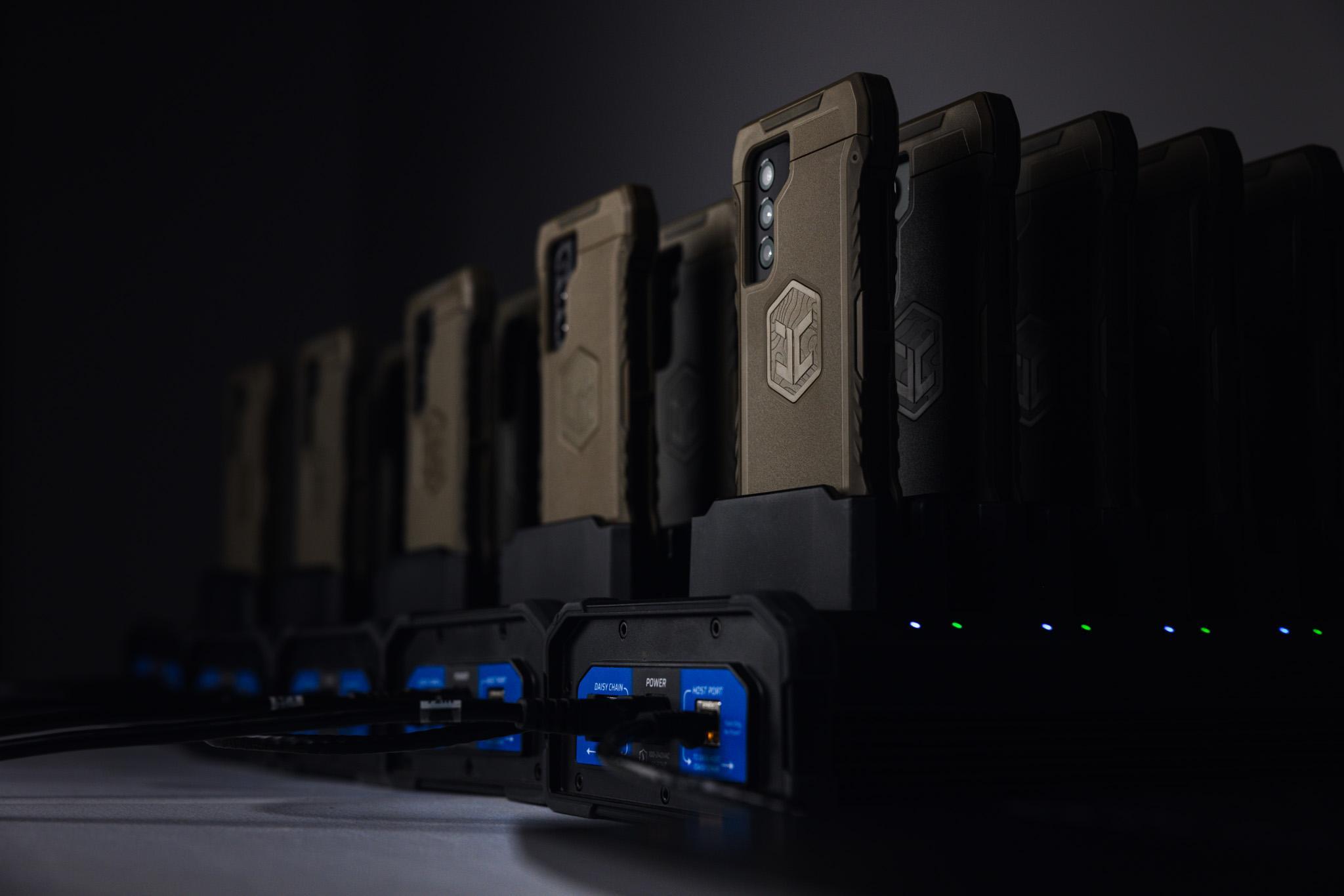

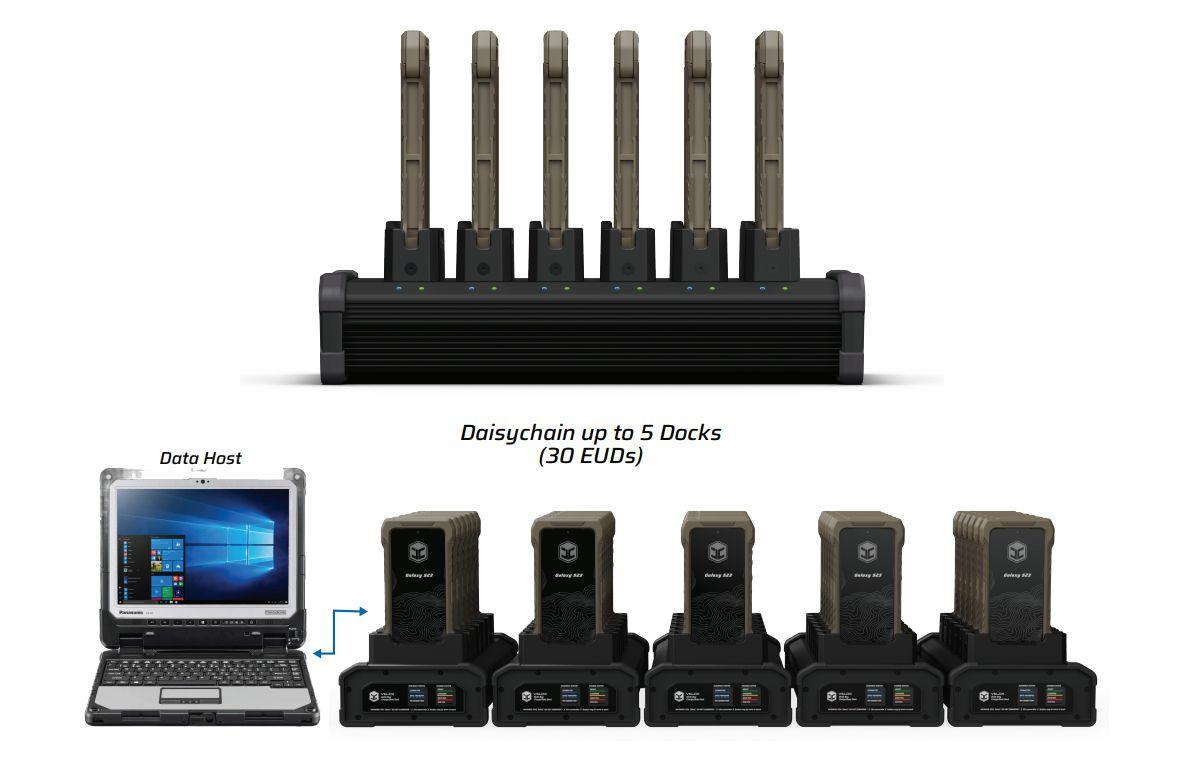

• Daisy Chain expansion for data
• Up to 5 Docks (30 devices)
• Individual power per dock
• Integrated power supply for up to 25W charging per EUD

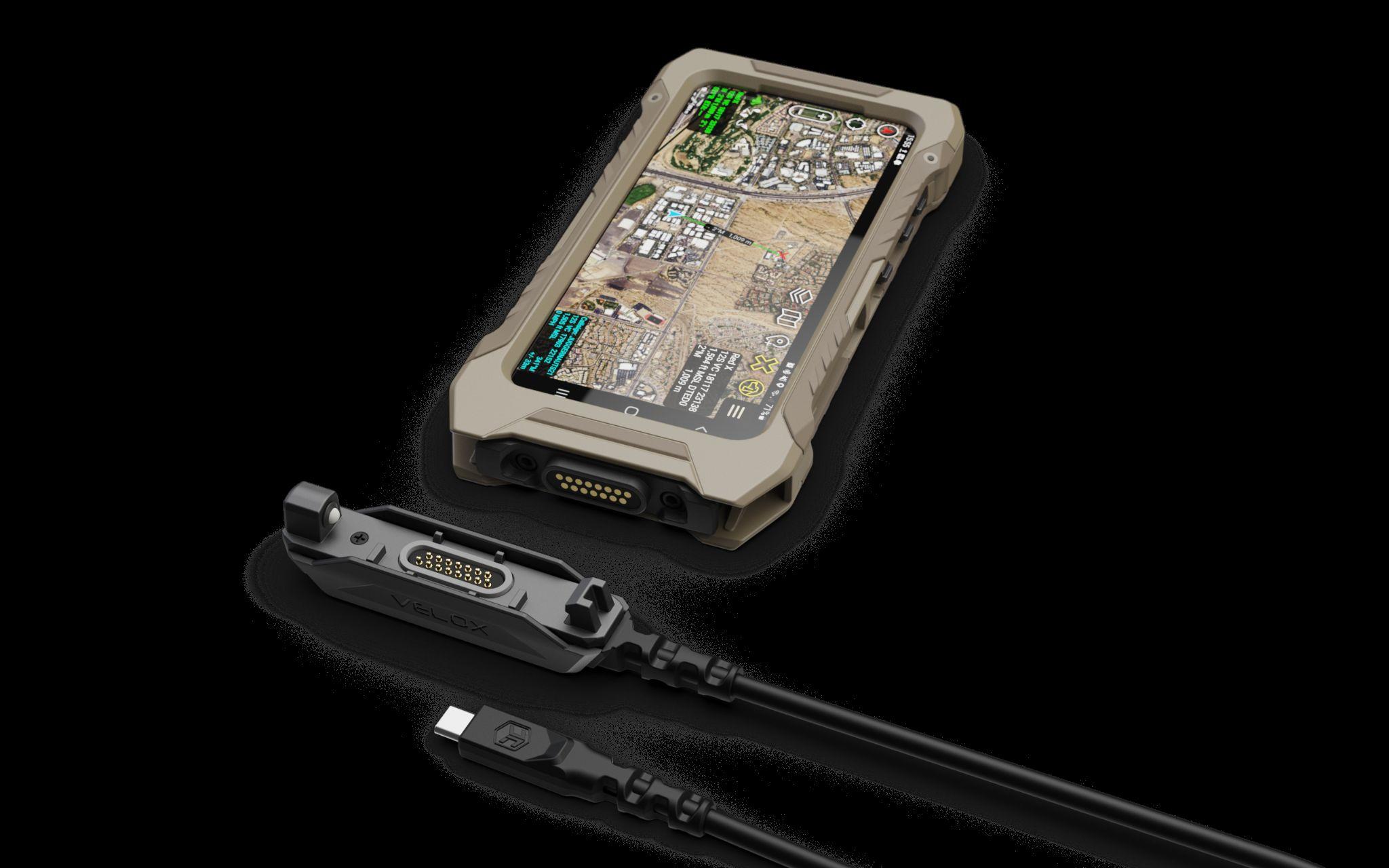

SINGLE CHARGE / DATA CABLE

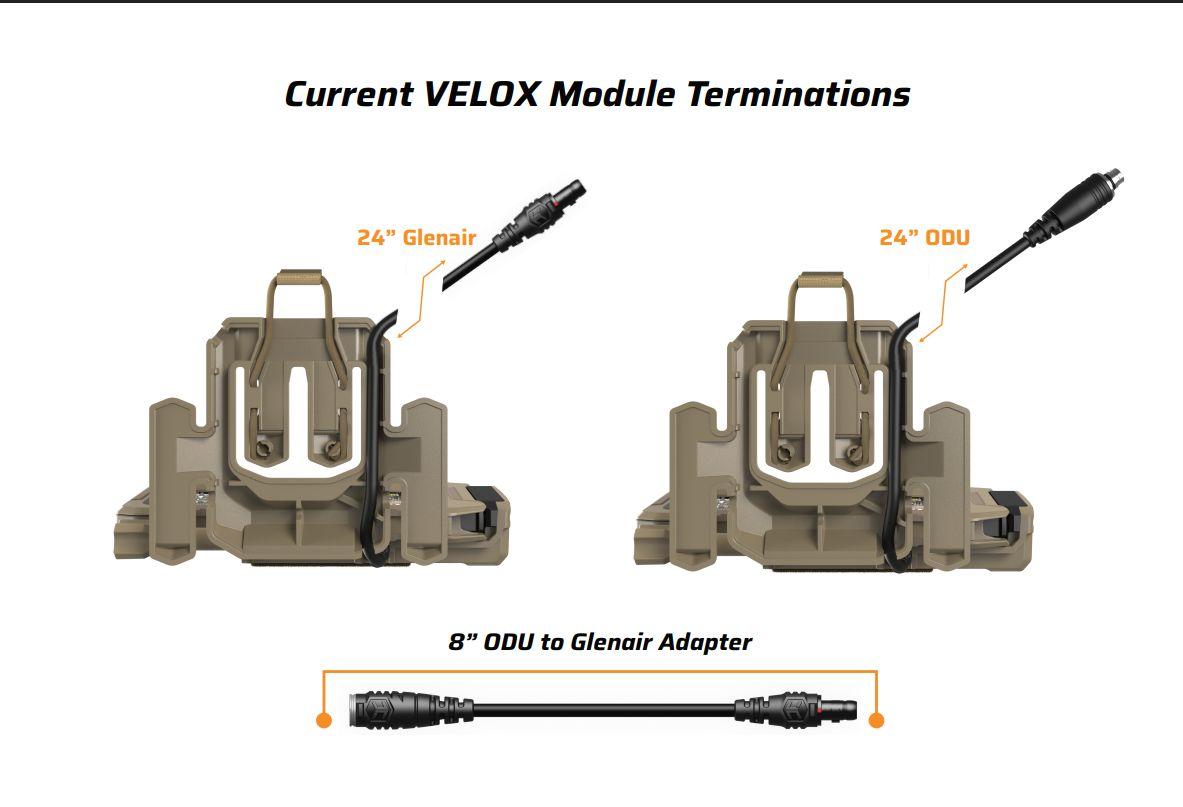

VELOX SINGLE CHARGE / DATA CABLE

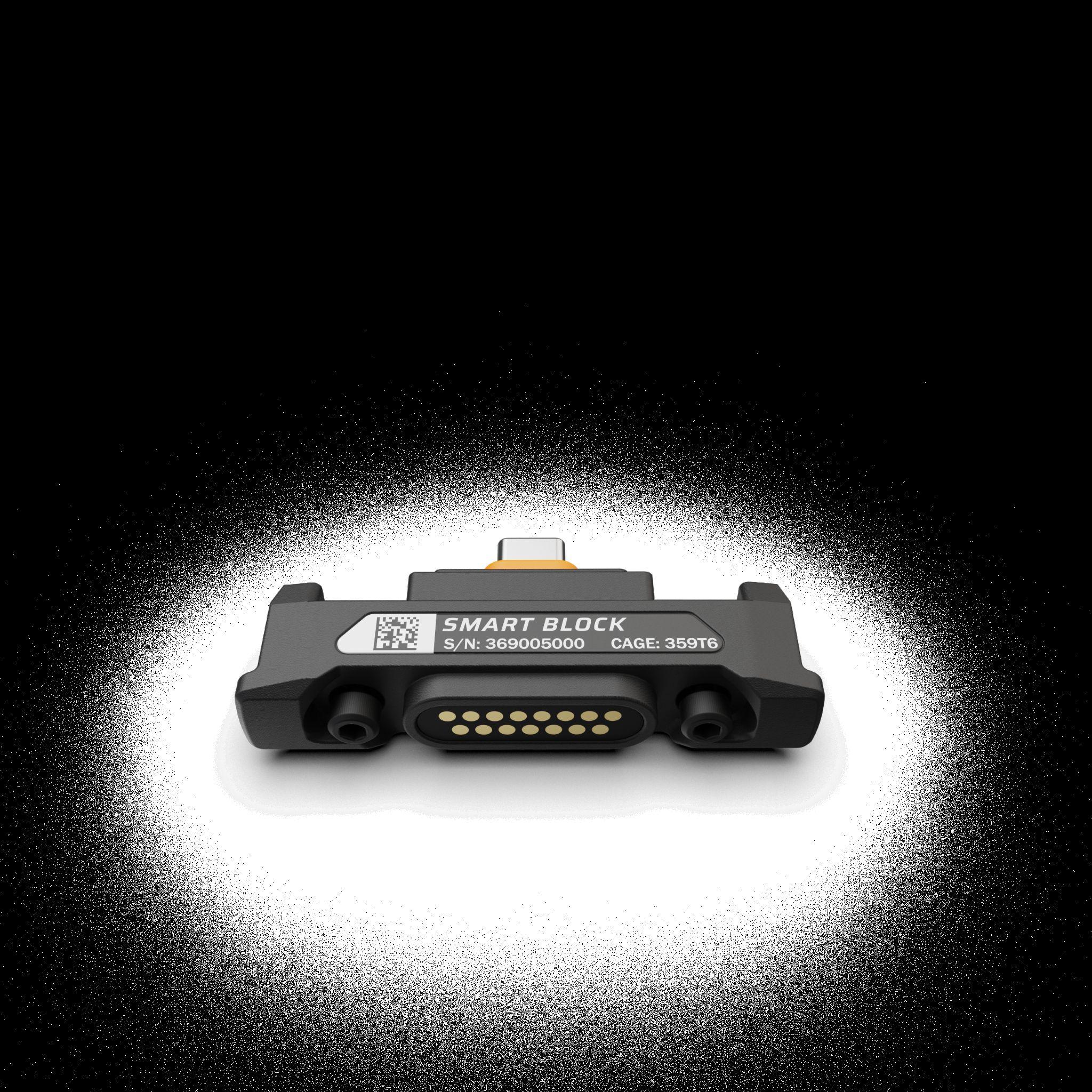

Charge/data connection via 15 pin interface to Smart-Block
IP-54 rated
Pin connection protective cover included 18" cable length
USB-C cable termination
VELOX ECOSYSTEM
VELOX VALIDATION
Collaboration

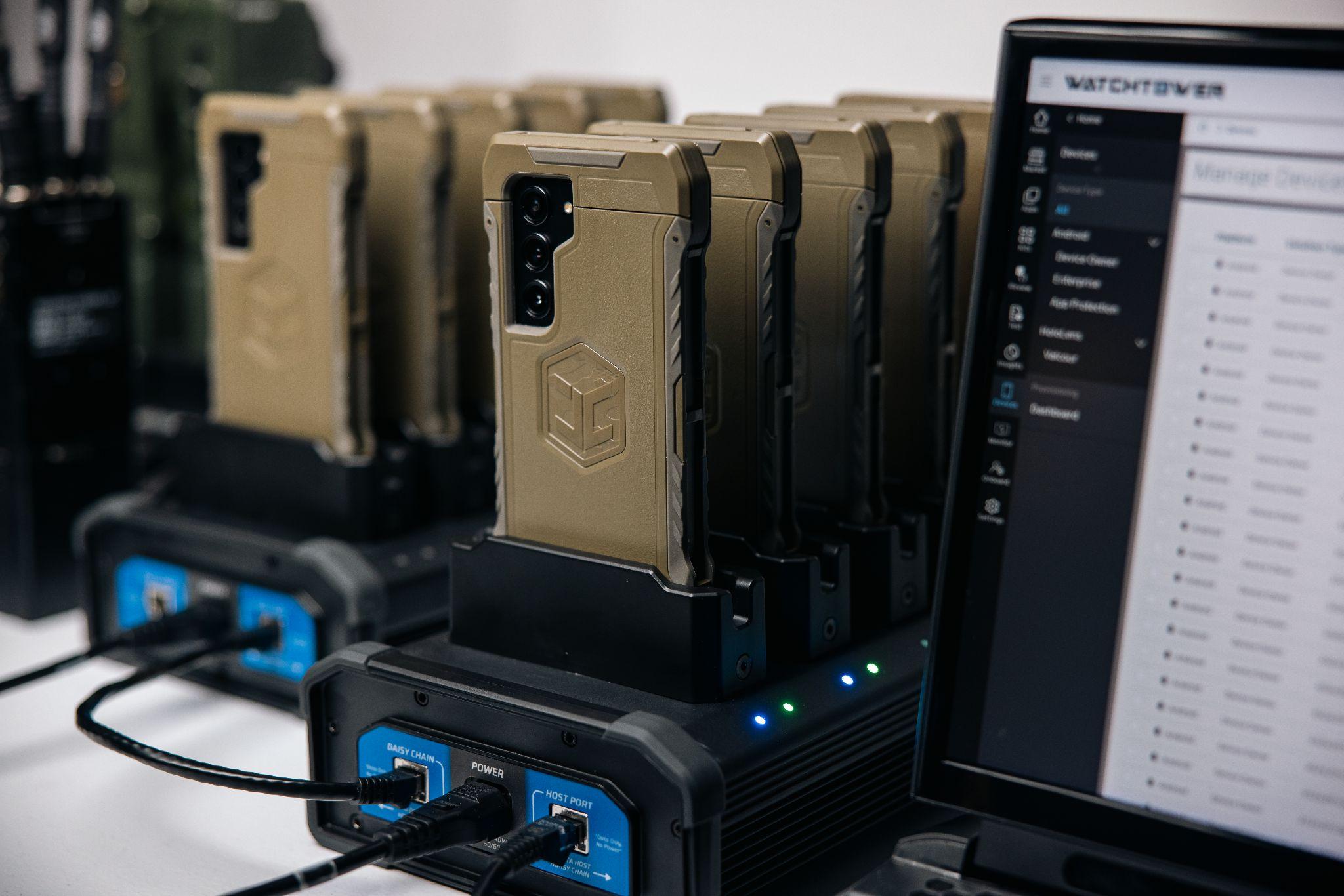

● Validated with Watchtower by Sherpa 6
● Tested in collaboration with L3Harris with AN/PRC-163 & 167 radios for SOCOM
● Agnostic to most radios, hubs, and MDM software
● Tested to MIL-STD-810H & MIL-STD-461
● Fielded in live demonstrations at Tough Stump Rodeo and TAK Pro-Am by Booz Allen Hamilton

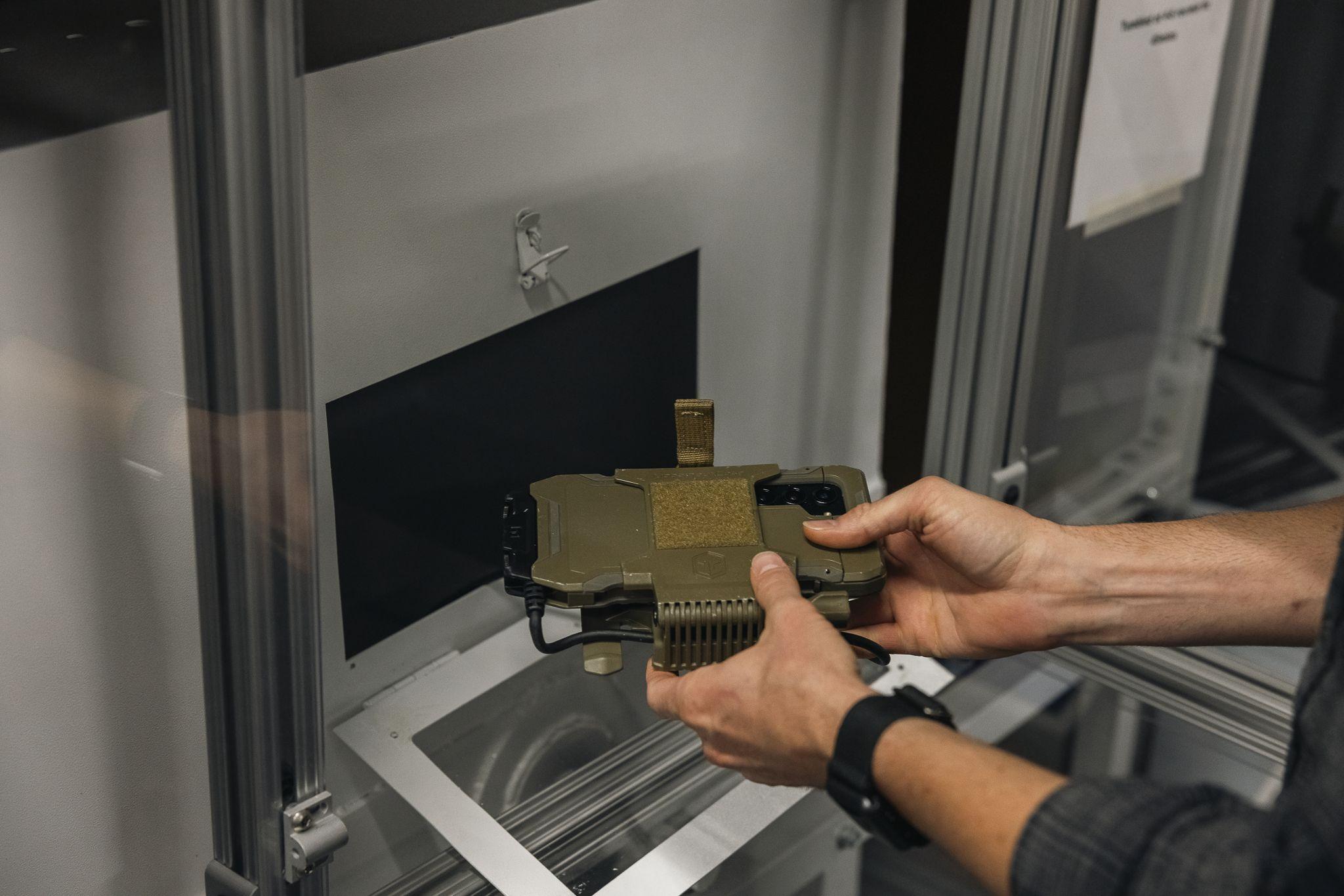

VELOX TEST REQUIREMENTS
DROP
● MIL-STD-810H, Method 516.8, Procedure IV, Logistic Transit Drop
● MIL-STD-202G, Method 203C, Random Drop
● MIL-STD-810H Method 501.7, Procedure II, Operation, High Temperature
● MIL-STD-810H, Method 502.7, Procedure II, Operation, Low Temperature
● MIL-STD-810H, Method 503.7, Procedure I-B, Single Cycle Shock from Constant Extreme Temperature
EMI
● IP68 (1.5m for 30mins)
● MIL-STD-461 RE102
● MIL-STD-461RS103
ESD
● MIL-STD-461 Characterization Testing
● RE102: Radiated Emissions, Electric Field
● RS103: Radiated Susceptibility, Electric Field
● CS114: Conducted Susceptibility, Bulk Cable Injection, 10 kHz to 200 MHz
● CS115: Conducted Susceptibility, Bulk Cable Injection, Impulse Excitation
● CS116: Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
● CS118: Conducted Susceptibility, Personnel Borne Electrostatic Discharge
