INDUSTRIAL STORAGE RACK PROGRAM

METAL FABRICATION PROGRAM

For more information and to shop all products, visit: WWW.DEWALTSHELVING.COM • WWW.DEWALTWELDING.COM


INDUSTRIAL STORAGE RACK PROGRAM WWW.DEWALTSHELVING.COM METAL FABRICATION PROGRAM WWW.DEWALTWELDING.COM OFFICIALLY LICENSED BY


TABLE OF CONTENTS RACK PROGRAM OVERVIEW

4

INDUSTRIAL RACKS

6

RACK ACCESSORIES

14

SHOP SEATING

22

METAL FABRICATION

26

INDEX

30

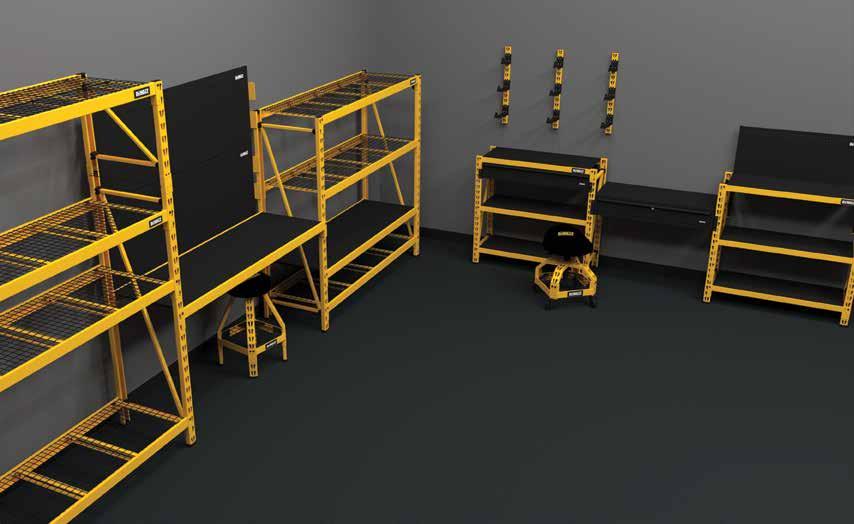

BUILD UP. BUILD OUT.

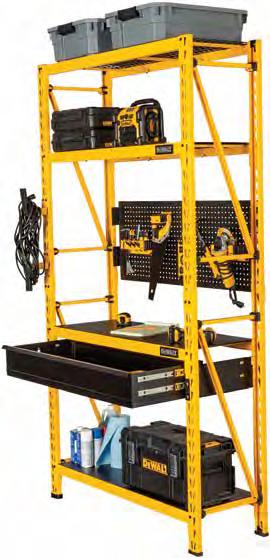

RACK PROGRAM OVERVIEW

THE ULTIMATE WORK STATIONS

The DEWALT Storage Rack Program at a glance. BASE PRODUCTS & CONFIGURATIONS DXST10000 INDUSTRIAL RACK 6-FOOT. TALL / 4-SHELF pg. 8

DXST10000PBK 2 PIECE STEEL PEGBOARD KIT

DXST10000EXT 2-FOOT TALL / 1-SHELF HEIGHT EXTENDER KIT

DXST4500PBK 2 PIECE STEEL PEGBOARD KIT

DXST4500DK DRAWER KIT

DXST4500WTD WORKTOP DRAWER KIT

DXSTA2CM 2 PIECE CORD MINDER

DXSTA10MPB MAGNETIC PARTS BUCKET

For DXST10000 pg. 14

For DXST10000 pg. 16

4 STANDARD

CONFIGURATION

DXST4500 DXST4500 INDUSTRIAL RACK 4-FOOT TALL / 3-SHELF pg.9

For DXST4500 pg. 14

For DXST4500 pg. 15

For DXST4500 pg. 15

STANDARD

CONFIGURATION

ACCESSORIES FOR ALL RACKS DXSTA26CLB 2 PIECE 6-INCH CANTILEVER BRACKETS pg. 16

WWW.DEWALTSHELVING.COM

DXSTA04MP 4 PACK LEVELING FEET pg. 17

pg. 18

pg. 18


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™

1 2 3 4 5

CHOOSE YOUR RACK ��������������������������������������������������������������������������������������������������������������������������������������������������������6-Foot Tall / 4-Foot Tall CHOOSE YOUR PEGBOARD�������������������������������������������������������������������������������������������������������������� 6-Foot Tall Rack / 4-Foot Tall Rack CHOOSE YOUR DRAWER (available only for 4-foot configurations) ������������������������������������������������������ Drawer Kit / Worktop Drawer Kit ADD YOUR ACCESSORIES �������������������������������������������������������������������������������������������������������������������� Storage / Organization / Lighting BUILD YOUR CONFIGURATION ��������������������������������������������������������������������������������������������������������Standard / Stacked / Workbench * DXST10000 workbench configuration requires two complete racks

RACK PROGRAM OVERVIEW

GET STARTED:

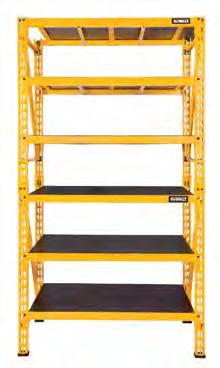

5 STACKED

WORKBENCH

CONFIGURATION

CONFIGURATION * DXST4500 stacked and workbench configurations require two complete racks

WORKBENCH

STACKED

CONFIGURATION

CONFIGURATION

DXSTA500LM 3 PACK MOTION SENSOR LIGHT KIT pg� 19

DXSTA151PS 15 AMP POWER STATION WITH GFCI AND DETACHABLE WORK LIGHT pg� 19

NEXT STEP:

COMPLETE YOUR WORK STATION WITH SHOP SEATING: See pages 20-23

DXSTFH030 SWIVEL SHOP STOOL ��������������������������������������� pg� 22 DXSTAH025 ADJUSTABLE SHOP STOOL WITH CASTERS �������������������������������������������������� pg� 22 DXSTFB048 GARAGE BENCH ������������������������������������������������� pg� 23 OFFICIALLY LICENSED BY


INDUSTRIAL RACKS 6

ALL DEWALT STORAGE RACKS FEATURE:

PROTECTIVE TOP CAPS

FLUSH TOP SHELF MOUNT & SHELF LOCKING PINS

TWO DIFFERENT TYPES OF LOAD-BEARING STRAPS

INDUSTRIAL WIRE GRID & GRID STABILITY CLIPS


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™

ABOUT THE RACKS YOUR RACK. BUILT DEWALT TOUGH. The DEWALT line of Industrial Racks was designed and engineered to provide heavy-duty storage for the professional and home user. Each rack features innovative details that aren’t typically found on industrial racks, such as dense wire grids that prevent items from falling through, safety straps with weld nuts for ease of assembly, and top caps that protect both you and your items from possible damage.

STRENGTH YOU CAN COUNT ON. The DXST4500 and DXST10000 feature the highest total load capacity for any storage rack their size. We’re talking about two and five tons of pure DEWALT might. To ensure the shelves stay strong, we’ve added two types of support straps that prevent them from buckling under pressure. No other brand can stack up to that kind of muscle.

HASSLE-FREE ASSEMBLY. Both racking systems expand out of their boxes with pre-installed upright bolts, greatly reducing the stress that comes from assembling industrial racks. We’ve even included a hex bit to use with your favorite DEWALT impact driver, so you’ll be in, out, and organized in no time.

STACKING PLATES & POWDER-COATED FINISH

PROTECTIVE CAPPED NYLON FEET

SAFETY WALL MOUNT BRACKET

UNSURPASSED CAPACITY


DXST10000

INDUSTRIAL RACK 6-FOOT TALL / 4-SHELF

INDUSTRIAL RACKS

56829

8

Height

72" (182.8 cm)

Width

77" (195 cm)

Depth

24" (61 cm)

2500 LB. SHELF CAPACITY

• 10,000 lb. maximum capacity from 3 industrial wire grid shelves and 1 wood composite deck that can each support 2,500 lb. when evenly distributed • Durable, industrial powder-coating on the steel uprights, support straps, crossbeams and brackets resists rust and wear and won’t chip or fade like paint • Rugged glass fiber-reinforced nylon feet protect flooring from accidental scratches and add traction to prevent the rack from sliding when loading and unloading shelves • Each of the 4 shelves feature a total of 8 support straps between the crossbeams to prevent them from twisting or spreading under heavy loads • 4 clips on each wire rack lock the grid into place on the crossbeams keeping it secure and preventing warping • Multiple safety features include steel locking pins to ensure that shelves remain secured in place and a wall mounting anchor bracket to secure the rack against accidental tipping • Shelf heights are fully customizable allowing each to be individually adjusted in 3-inch increments

24"

60.96 CM

• Easy to assemble design comes with pre-installed horizontal and diagonal support beams on two uprights

RACK DEPTH

3"

7.62 CM INCREMENTS

ADJUSTABLE SHELVES

CAPPED FEET PROTECTS AGAINST CORROSION

* Configurations require two complete racks

WORKBENCH

CONFIGURATION WWW.DEWALTSHELVING.COM


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™ DXST4500

INDUSTRIAL RACK 4-FOOT TALL / 3-SHELF 56831

47" (119.4 cm)

Width

49.5" (125.7 cm)

Depth

18" (45.7 cm)

1500 LB.

INDUSTRIAL RACKS

Height

SHELF CAPACITY

• 4,500 lb. maximum capacity from the 3 black laminate wood composite decks that can each support 1,500 lb. when evenly distributed • Durable, industrial powder-coating on the steel uprights, support straps, crossbeams and brackets resists rust and wear and won’t chip or fade like paint • Rugged glass fiber-reinforced nylon feet protect flooring from accidental scratches and add traction to prevent the rack from sliding when loading and unloading shelves • Each of the 3 shelves features a total of 5 support straps to prevent twisting or spreading under heavy loads • Multiple safety features include steel locking pins to ensure that shelves remain secured in place and a wall mounting anchor bracket to secure the rack against accidental tipping

9

• Shelves are adjustable in 2.35-inch increments • Join multiple racks together to create a complete storage or workspace solution • Easy to assemble design comes with pre-installed horizontal and diagonal support beams on two uprights

18"

45.72 CM

RACK DEPTH

2.35"

5.97 CM

CAPPED FEET

INCREMENTS

ADJUSTABLE SHELVES

PROTECTS AGAINST CORROSION

* Configurations require two complete racks

STACKED

CONFIGURATION

WORKBENCH

CONFIGURATION OFFICIALLY LICENSED BY


DXST4500-W

INDUSTRIAL RACK WITH WIRE GRIDS 4-FOOT TALL / 3-SHELF

INDUSTRIAL RACKS

41590

10

Height

47" (119.4 cm)

Width

49.5" (125.7 cm)

Depth

18" (45.7 cm)

1500 LB. SHELF CAPACITY

• 4,500 lb. maximum capacity from the 3 wire grid shelves that can each support 1,500 lb. when evenly distributed • Durable, industrial powder-coating on the steel uprights, support straps, crossbeams and brackets resists rust and wear and won’t chip or fade like paint • Rugged glass fiber-reinforced nylon feet protect flooring from accidental scratches and add traction to prevent the rack from sliding when loading and unloading shelves • Each of the 3 shelves features a total of 5 support straps to prevent twisting or spreading under heavy loads • Multiple safety features include steel locking pins to ensure that shelves remain secured in place and a wall mounting anchor bracket to secure the rack against accidental tipping • Shelves are adjustable in 2.35-inch increments • Join multiple racks together to create a complete storage or workspace solution • Easy to assemble design comes with pre-installed horizontal and diagonal support beams on two uprights

18"

45.72 CM

RACK DEPTH

2.35"

5.97 CM

CAPPED FEET

INCREMENTS

ADJUSTABLE SHELVES

PROTECTS AGAINST CORROSION * Configurations require two complete racks

STACKED

CONFIGURATION WWW.DEWALTSHELVING.COM

WORKBENCH

CONFIGURATION


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™ DXST3000WB

2-SHELF INDUSTRIAL STORAGE RACK WORK STATION 41631

56.25" (142.9 cm)

Width

49.5" (125.7 cm)

Depth

18"

1500 LB.

(45.7 cm)

INDUSTRIAL RACKS

Height

SHELF CAPACITY

• 3,000 lb. maximum capacity from the 1 black laminate wood shelf and 1 wire grid shelf that can each support 1,500 lb. when evenly distributed • Durable, industrial powder-coating on the steel uprights, support straps, crossbeams and brackets resists rust and wear and won’t chip or fade like paint • Drawer measures 6-inches tall x 42-inches wide x 16.5-inches deep, has smooth, gliding ball-bearing slides and a 120 lb. capacity • Steel pegboard panel mounts between uprights or on its own vertical supports and features 1-inch on center spacing • Kit includes 6 pegboard hangers to let you store power tools, screwdrivers, pliers, air tools, and more • Rugged glass fiber-reinforced nylon feet protect flooring from accidental scratches and add traction to prevent the rack from sliding when loading and unloading shelves

11

• Multiple safety features include steel locking pins to ensure that shelves remain secured in place and a wall mounting anchor bracket to secure the rack against accidental tipping

18"

45.72 CM

RACK DEPTH

5.97 CM

INCREMENTS

ADJUSTABLE SHELVES

PROTECTS AGAINST CORROSION

* Configurations require two complete racks

INCLUDES: 1 2 3 4 5 6

CAPPED FEET

2.35"

(2) Upright Assemblies (1) Wire Decks (1) Laminate Decks (1) Drawer (1) Pegboard (6) Pegboard Tool Organizers

(1) Large Tool Holder

5

(3) Single Peg Hooks

(1) Screwdriver Holder

(1) Power Tool Holder

6

3

4

1

WORKBENCH

CONFIGURATION

STACKED

CONFIGURATION

2

OFFICIALLY LICENSED BY


DXST6000WB

4-SHELF INDUSTRIAL STORAGE RACK WORK STATION 41609

INDUSTRIAL RACKS

HORIZONTAL

12

VERTICAL

Height

47"

(119.4 cm)

Height

49.5" (125.7 cm)

Width

148.5" (337.2 cm)

Width

94"

(238.8 cm)

Depth

18"

Depth

18"

(45.7 cm)

(45.7 cm)

1500 LB. SHELF CAPACITY

• 6,000 lb. maximum capacity from the 2 black laminate wood shelves and 2 wire grid shelves that can each support 1,500 lb. when evenly distributed • Durable, industrial powder-coating on the steel uprights, support straps, crossbeams and brackets resists rust and wear and won’t chip or fade like paint • Drawer measures 6-inches tall x 42-inches wide x 16.5-inches deep, has smooth, gliding ball-bearing slides and a 120 lb. capacity • Steel pegboard panel mounts between uprights or on its own vertical supports and features 1-inch on center spacing • Kit includes 6 pegboard hangers to let you store power tools, screwdrivers, pliers, air tools, and more • Customizable cord minder lets you conveniently store extension cords and have rotating end stops for easy cord removal • Rugged glass fiber-reinforced nylon feet protect flooring from accidental scratches and add traction to prevent the rack from sliding when loading and unloading shelves • Multiple safety features include steel locking pins to ensure that shelves remain secured in place and a wall mounting anchor bracket to secure the rack against accidental tipping * Tools not included

INCLUDES: 1 2 3 4 5 6 7

(4) Upright Assemblies (2) Wire Decks (2) Laminate Decks (1) Drawer (1) Pegboard (6) Pegboard Tool Organizers (1) Cord Minder Set

(1) Large Tool Holder

5

(3) Single Peg Hooks

(1) Screwdriver Holder

6

3

7

4

1

WORKBENCH

CONFIGURATION 2

WWW.DEWALTSHELVING.COM

(1) Power Tool Holder

STACKED

CONFIGURATION


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™

COMING SOON… 1

DXST4500BLK

41658 4-Foot / 3-Shelf Industrial Rack, Black

2

DXST4500BLK-W

41659 4-Foot / 3-Shelf (Wire) Industrial Rack, Black

3

DXST10000BLK

41660 6-Foot / 4-Shelf Industrial Rack, Black

INDUSTRIAL RACKS

INDUSTRIAL RACKS WITH SLEEK BLACK POWDER COATING

13 3

2

1

OFFICIALLY LICENSED BY


RACK ACCESSORIES 14

VERSATILE DEWALT ACCESSORIES INCLUDE:

STEEL PEGBOARDS MOUNT DIRECTLY TO UPRIGHTS OR WALL

MAGNETIC MOUNT BUCKETS & PEGBOARD ACCESSORIES

DRAWERS CONVERT YOUR RACK INTO A FUNCTIONAL WORK STATION

CORD MINDERS KEEP CORDS TIDY & CONVENIENT


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™

ABOUT THE ACCESSORIES DEWALT TOUGH ADD-ONS. Designed and engineered to the same exact requirements as the racks they are meant to attach to, these add-ons feature the same durable powder-coated steel construction as the industrial racks. So go ahead and customize your storage rack with the confidence that each piece is DEWALT TOUGH.

UPGRADING DONE RIGHT. Accessories are meant to take something useful or handy and make it indispensable. From bringing more secure footing on uneven flooring to adding additional storage through more shelves, drawers, pegboards, and lighting, each of these accessories take the basic DEWALT storage rack to new heights of organizational might.

HASSLE-FREE ASSEMBLY. An easy to assemble storage rack deserves accessories that are just as easy to attach. These easily installed accessories utilize the same holes on the uprights used to mount the shelves and powerful magnets to attach to the steel rack so you can spend less time on assembly, and more time on projects.

CANTILEVER BRACKETS STORE LONG OBJECTS ON YOUR RACK

CANTILEVER RACK CREATES EXTRA STORAGE FOR LONG SUPPLIES

MULTI-FUNCTIONAL POWER STATION

LIGHTING COMPLETES YOUR SETUP TO ILLUMINATE YOUR SPACE


DXST10000PBK

2 PIECE STEEL PEGBOARD KIT FOR DXST10000 INDUSTRIAL RACK

RACK ACCESSORIES

41554

Height

24" (61 cm)

Width

71" (180.3 cm)

• Pegboards are constructed of durable steel that will easily outlast wood and composite boards • Industrial grade powder-coating won’t chip or fade and matches the appearance and texture of the rack’s existing laminate wood composite deck • Locking pins on the mounting brackets keep them in place • Included mounting brackets and extensions let you attach a panel to both sides of the rack, stack two on the back, or one side and one back • Features standard 1-inch on center spacing with 1/4-inch diameter holes to fit most standard pegboard accessories • Each steel pegboard panel measures 24-inches x 71-inches • With no tools required to attach the panels, installation is easy regardless of chosen mounting configuration

16

• Includes hardware for mounting directly to a finished wall as an additional organization option

MOUNTS TO UPRIGHTS

DXST4500PBK

2 PIECE STEEL PEGBOARD KIT FOR DXST4500 INDUSTRIAL RACK 41557

Height

18" (45.72 cm)

Width

44" (111.76 cm)

• Pegboards are constructed of durable steel that will easily outlast wood and composite boards • Industrial grade powder-coating won’t chip or fade and matches the appearance and texture of the rack’s existing laminate wood composite decking • Locking pins on the mounting brackets keep them in place • Included mounting brackets and extensions let you attach a panel to both sides of the rack, stack two on the back, or one side and one back • Features standard 1-inch on center spacing with 1/4-inch diameter holes to fit most standard pegboard accessories • Each steel pegboard panel measures 18-inches x 44-inches • With no tools required to attach the panels, installation is easy regardless of chosen mounting configuration • Includes hardware for mounting directly to a finished wall as an additional organization option

WWW.DEWALTSHELVING.COM

MOUNTS TO UPRIGHTS


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™ DXST4500DK

DRAWER KIT FOR DXST4500 INDUSTRIAL RACK 41559

6.21" (15.77 cm)

Width

42.95" (109.09 cm)

Depth

16.86" (42.82 cm)

120 LB.

RACK ACCESSORIES

Height

LOAD CAPACITY

• Turn your existing 4-foot storage rack into a functional workbench with a shelf-sized storage drawer • Drawer measures 6-inches tall x 42-inches wide x 16.5-inches deep for storage that stretches from upright to upright • The drawer’s durable steel construction has an industrial grade powder-coating finish that won’t chip or fade • Smooth gliding ball bearing drawer slides open and closed easily • Drawer can comfortably support up to 120 lb. of stored tools when distributed evenly across its interior • Uses the same 2.35-inch adjustment as the shelf crossbeams to let it sit snugly underneath an existing shelf • Comes with front, back, and side panels pre-attached to drawer floor for quick and easy assembly

MOUNTS TO UPRIGHTS

DXST4500WTD

WORKTOP DRAWER KIT FOR DXST4500 INDUSTRIAL RACK 41567

Height

8.27" (21.01 cm)

Width

44.13" (112.09 cm)

Depth

19.12" (48.56 cm)

1000 LB.

120 LB.

WORKTOP CAPACITY

DRAWER CAPACITY

• Turn your existing 4-foot storage rack into a functional workbench with this worktop drawer that functions as a shelf replacement or an additional shelf/work surface • With the capacity to support up to 1,000 lb. on the work surface, the worktop drawer can be used to join two DXST4500 Industrial racks together to create the ultimate workbench • The drawer’s durable steel construction has an industrial grade powder-coating finish that won’t chip or fade • Smooth gliding ball bearing drawer slides open and closed easily • Drawer can comfortably support up to 120 lb. of stored tools when distributed evenly across its interior • Uses the same 2.35-inch adjustment as the shelf crossbeams

MOUNTS TO UPRIGHTS OFFICIALLY LICENSED BY

17


DXST10000EXT

2-FOOT TALL / 1-SHELF HEIGHT EXTENDER KIT FOR DXST10000 INDUSTRIAL RACK

RACK ACCESSORIES

41545

18

Height

24" (61 cm)

Width

77" (195 cm)

Depth

24" (61 cm)

2500 LB. SHELF CAPACITY

• Add another 2-feet of height and another shelf to your existing 6-foot DEWALT storage rack • Wire grid shelf has the same massive capacity as existing shelves at 2,500 lb. when evenly distributed • The industrial powder-coating finish on the steel uprights, support straps, and crossbeams won’t chip or fade • Wire grid shelf features a total of 8 shelf and beam support straps to prevent twisting or spreading under heavy loads • Steel stacking plates securely connect the extension to existing rack uprights • Locking pins on crossbeams and stacking plates secure them in place while grid clips hold the wire deck and prevent warping • Shelf is adjustable in the same 3-inch increments as the DXST10000 rack • Rugged glass-filled nylon feet prevent scratched flooring and allow extension to be used as a short, stand-alone rack

CAPPED FEET PROTECTS AGAINST CORROSION

24"

60.96 CM

RACK DEPTH

3"

7.62 CM INCREMENTS

ADJUSTABLE SHELVES

DXSTA26CLB

2 PIECE 6-INCH CANTILEVER BRACKETS 41599

Height

5.25" (13.3 cm)

Width

2.65" (6.7 cm)

Depth

7.25" (18.4 cm)

50 LB. LOAD CAPACITY

• Each arm can support 50 lb. for a total storage capacity of 100 lb. when evenly distributed • Made of durable steel with an industrial grade powder-coating finish that won’t chip or fade • The arms on each bracket feature a 2.5-inch flat tab on the end to prevent round stock from rolling off • Locking pins secure brackets to rack uprights and prevents movement when bumped or while loading material • Mounts to the uprights on both DXST4500 4-foot, and DXST10000 6-foot DEWALT storage racks

UNIVERSAL UPRIGHT MOUNT FITS DXST4500 & DXST10000 RACKS

WWW.DEWALTSHELVING.COM


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™ DXSTACLR

3 PIECE WALL MOUNT CANTILEVER RACK

Assembled Height

36" (91.44 cm)

Arm Load Capacity

Small Arm Length

6" (15.24 cm)

50 lbs

Medium Arm Length

10" (25.4 cm)

25 lbs

Large Arm Length

12" (30.48 cm)

16 lbs

• Each short arm can support 50 lb., 25 lb. per medium arm, and 16 lb. per long arm for a total of 273 lb. of evenly distributed storage • Set includes 3 different cantilever arm lengths with 6-inch, 10-inch, and 12-inch lengths • Arms and rails are made of durable steel with an industrial grade powder-coating finish that won’t chip or fade • Each support arm features a 2.5-inch flat tab on the end to prevent round stock from rolling off • 36-inch tall wall mount rails easily mount to both finished walls or to bare 2x4 studs • Cantilever arms can be adjusted in 2.35-inch increments • 6-inch, 10-inch, and 12-inch arms support common lumber depths to make functional shelves

6"

15.24 CM

10 " 25.4 CM

2.35"

5.97 CM INCREMENTS

12 " 30.48 CM MULTIPLE ARM DEPTHS

ADJUSTABLE ARMS

DXSTA04MP

4 PACK LEVELING FEET 41568 • Add additional security to your DEWALT storage rack with these leveling mounting plates • Mounting plates are made of durable steel and replace the rack’s existing glass filled nylon non-marring feet • Provides up to 7-inches of height adjustment to each upright allowing for easy rack leveling on uneven floors • Designed to fit DEWALT DXST10000, DXST4500, and DXST4500-W storage racks • Includes wedge anchors to allow plates to be secured to concrete floors for additional tipping prevention

LEVEL OUT UNEVEN SURFACES OFFICIALLY LICENSED BY

RACK ACCESSORIES

41589

19


DXSTA10MPB

MAGNETIC PARTS BUCKET

RACK ACCESSORIES

41564

Height

3.5" (8.89 cm)

Width

7"

(17.78 cm)

Depth

5"

(12.7 cm)

• Bucket mounts securely on storage rack beams and supports, steel pegboards, tool boxes, lifts, and almost any metal surface • Rugged polypropylene construction can absorb impacts from hard use and resists most chemicals and solvents • 3 powerful neodymium mounting magnets let the bucket hold a few pounds of parts and components • 3 back and 3 bottom magnet mounting points allow you to mount the bucket vertically or horizontally • Grooved dividers on the interior surface help separate small parts while working • Bucket measures 7-inches wide x 3.5-inches high x 5-inches deep

20

MAGNETIC MOUNT

DXSTA2CM

2 PIECE CORD MINDERS 41600

Height

6.3" (16 cm)

Width

2.7" (6.9 cm)

Depth

6.8" (17.3 cm)

50 LB. LOAD CAPACITY

• Each set of arm brackets can support a total of 50 lbs. easily enough to hold 100-feet of 10/3 heavy-duty cord • Mounts to the uprights on both DXST4500 4-foot, and DXST10000 6-foot DEWALT storage racks • Industrial grade powder-coating finish won’t chip or fade and protects against rust and corrosion • The end stops on each bracket feature a spring loaded rotating end stop that can lock into place in 90-degree increments • Locking pins secure the cord minder brackets to rack uprights and prevents movement when bumped or while loading

UNIVERSAL UPRIGHT MOUNT 360º ROTATING BRACKET

WWW.DEWALTSHELVING.COM

FITS DXST4500 & DXST10000 RACKS


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™ DXSTA500LM

3 PACK MOTION SENSOR LIGHT KIT 41553 • Made of durable and lightweight aluminum with a fire-retardant ABS plastic casing and a polycarbonate lens over the LEDs

RACK ACCESSORIES

• Included motion sensor with on/off/sensor modes and a 5-minute automatic shutoff delay if no motion is detected • The 3 light strips each provide 500 lumens of bright LED illumination without the heat generated by traditional bulbs • Low profile design uses a minimum footprint to provide light to your racks without using up your storage space • Each light has a pair of powerful neodymium magnets for easy and secure attachment to any steel storage rack • Kit includes 8 hook-and-loop strips to help manage power and jumper cords and keep your storage area tidy • Link together up to 6 LED strips per sensor to cast light on the largest storage racks (additional LED strips sold separately)

500 LED LUMENS

HANDS-FREE OPERATION

MAGNETIC MOUNT

DXSTA151PS

15 AMP POWER STATION WITH GFCI AND DETACHABLE WORK LIGHT 41594

Height

5.5"

(13.97 cm)

Width

14.75" (37.47 cm)

Depth

3.5"

(8.89 cm)

• 8 standard 3-prong outlets and 2 USB outlets • Detachable and rechargeable LED work light built into handle produces up to 500 lumens of illumination with a 4 hour battery life • Built-in, resettable 15 AMP circuit breaker protects against damage from power surges • In-line GFCI will cut electricity to the entire power station if unintended current flow is detected • Anti-skid rubber feet keep the unit from moving when used as a light and can be removed to allow for wall mounting • Includes a pair of mounting brackets to allow easy mounting to DXST100000 or DXST4500 series industrial racks • 50 lb. capacity steel cord minder has rotating end stops able to hold up to 100-feet of 10/3 cable and mounts to DEWALT rack uprights

UNIVERSAL UPRIGHT MOUNT

500 LED LUMENS

SJTW 12/3

FITS DXST4500 & DXST10000 RACKS

OFFICIALLY LICENSED BY

21


SHOP SEATING 22

ALL DEWALT SHOP SEATING FEATURES:

FOAM-PADDED SEAT WITH TEXTURED VINYL COVER

ALL STEEL FRAME WITH POWDER-COATING FINISH

WIRE GRID LOWER SHELF

PROTECTIVE, GLASS-FILLED NYLON FEET


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™

ABOUT THE SEATING TOUGH STEEL. COMFORTABLE SEAT. Professional and home workshops need seating that can handle the often rough conditions found there, so we took the features that made our industrial racks stand out and used them to provide seating options that outlast all others in durability. Durable steel frames coupled with rip-resistant cushioned seating that can take the knocks, falls, and rigors of the workshop and keep coming back for more.

HASSLE-FREE ASSEMBLY. In the tradition begun with the industrial storage racks, the DEWALT stools and bench are designed so their assembly is as stress-free as we can make it. So stress-free in fact that for the stools, we’ve done most of the assembly for you ahead of time, so you need only take a few minutes to attach the seat and you’re off.


DXSTFH030

SWIVEL SHOP STOOL 41561

Height

30"

Width

17.25" (43.82 cm)

(76.2 cm)

Depth

17.25" (43.82 cm)

300 LB. SEAT CAPACITY

SHOP SEATING

• 360-degree swiveling, foam-padded seat with textured vinyl cover that resists rips and tears • Industrial strength wire grid lower shelf to store necessary tools and supplies • Rugged glass-filled nylon feet prevent scratched flooring and can be easily hand adjusted • Heavy-duty, all steel frame construction with a 300 lb. capacity • Industrial grade powder-coating finish won’t chip or fade and protects against rust and corrosion • Durable and heavy-duty bolted frame comes pre-assembled

360˚

24

SWIVEL SEAT

CAPPED FEET SELF-LEVELING

DXSTAH025

ADJUSTABLE SHOP STOOL WITH CASTERS 41562

Height

22.5" - 26.75" (57.15 - 67.9 cm)

Width

15.75" (40 cm)

Depth

15.75" (40 cm)

300 LB. SEAT CAPACITY

• 360-degree swiveling, foam-padded seat with textured vinyl cover that resists rips and tears • Pneumatic adjustable seat adjusts stool height from 22.5 to 26.75-inches to best suit your needs • Industrial strength wire grid lower shelf to store necessary tools and supplies • Choose mobility or floor protection with the included 360-degree casters and glass-filled nylon feet • Heavy-duty, all steel frame construction with a 300 lb. capacity

360˚

CAPPED FEET

• Industrial grade powder-coating finish won’t chip or fade and protects against rust and corrosion • Durable and heavy-duty bolted frame comes pre-assembled with casters attached WWW.DEWALTSHELVING.COM

SWIVEL SEAT

SWIVEL CASTERS

PROTECTS AGAINST CORROSION

PROTECTS AGAINST CORROSION


INDUSTRIAL STORAGE RACK PROGRAM BUILD UP. BUILD OUT.™ DXSTFB048

GARAGE BENCH 41563

Height

19.75" (50.16 cm)

Width

49.6" (126 cm)

Depth

18"

(45.7 cm)

1000 LB.

1500 LB.

SEAT CAPACITY

SHELF CAPACITY

• Benchtop can easily support 1,000 lb. and the wire grid shelf can hold an evenly distributed 1,500 lb. • Four locking grid clips keep the wire shelf deck secure and prevent warping under heavy loads • Rugged glass-filled nylon feet prevent scratched flooring • Heavy-duty, all steel frame construction with locking pins to keep crossbeams securely seated • Industrial grade powder-coating finish won’t chip or fade and protects against rust and corrosion • Storage shelf can be adjusted in 2.35-inch increments

2.35"

5.97 CM

CAPPED FEET

SHOP SEATING

• Comfortable, high density foam-padded seat with textured vinyl cover that resists rips and tears

INCREMENTS

ADJUSTABLE SHELVES

PROTECTS AGAINST CORROSION

25

THE ULTIMATE SOLUTIONS. WWW.DEWALTSHELVING.COM/AR-VIEW offers an Augmented Reality view to see DEWALT shelving in your own space before you buy. Just look for this icon! OFFICIALLY LICENSED BY


26

METAL FABRICATION


METAL FABRICATION PROGRAM WORK SMART. WELD SAFE.™

WORK SMART. WELD SAFE.™ Welding exposes you to a slew of dangerous conditions including sharp metal, coarse surfaces, high temperatures, molten metal, and bright lights. DEWALT’s line of welding gloves and helmets are designed to protect you from all of these with high quality, fire-resistant materials and lightning fast lens filters that can stand up to the normal wear and tear just as well as the intense heat of welding. To complement that protection, DEWALT welding tables and sawhorses give you a stable platform on which to work.

DEWALT TOUGH. NO BULL. Toughness in welding gloves is not a convenience, it is a requirement. Our welding gloves are made using 100% grade-A leather across the palms and our fabricator gloves feature additional padding on the knuckles for impact protection. Both lines feature Kevlar® threading and reinforcing patches on hard wearing locations to bring you unparalleled toughness and protection that doesn't come at the cost of the dexterity you need.

ADJUSTABILITY, AND THEN SOME. Our welding sawhorses and work table are designed to be more than just a flat, height adjustable surface to rest projects on. They are engineered to give you a range of convenient features not found on standard portable sawhorses and tables intended solely for welding. Strategically located slots and post holes allow easy clamping of work projects of any size and shape and integrated ground studs give a secure place for grounding leads. All these and more, in a collapsible, easily portable package.


METAL FABRICATION

WELDING GLOVE PART #

DXMF01011

DXMF01052

DXMF02051

DXMF03051

DXMF04051

PRODUCT DESCRIPTION

PREMIUM FABRICATOR WELDING GLOVES

PREMIUM SHORT CUFF FABRICATOR WELDING GLOVES

PREMIUM MIG/TIG WELDING GLOVES

PREMIUM TIG WELDING GLOVES

PREMIUM STICK WELDING GLOVES

METAL FABRICATION

METAL FABRICATION

MIG/TIG WELDING

✔ ✔

TIG WELDING

✔ ✔

STICK/MIG WELDING

✔ ✔ ✔ ✔

✔ ✔ ✔ ✔

✔ ✔ ✔

TYPE OF WELDING

Available in 6 sizes, Small–3X-Large

28

100% Grade-A buffalo leather provides maximum abrasion resistance without sacrificing dexterity 100% Grade-A Goat leather provides maximum abrasion resistance without sacrificing dexterity Glove features heat and fire-resistant Kevlar® stitching throughout the entire glove Leather reinforcing along the thumb saddle, palm, finger caps, and a drag patch for long glove life Snug-fitting elastic-sewn wrist keeps out debris while welding and allows glove to be easily slipped on and off Adjustable cuff enclosure provides a custom fit Made of fire-resistant materials to protect you from open flames, sparks, slag, and spall 100% leather shell provides excellent fire and heat insulation to protect against open flames, sparks, slag and spall Long, gauntlet-style open cuff is quick to put on and easily accommodates fire-resistant sleeves and jackets Long, gauntlet-style open cuff is quick to put on and features a hook-and-loop adjustable design for a snug fit Additional fire-resistant cotton padding provides increased impact protection to knuckles Index finger is fully seamless to promote accurate welds and help decrease slag drips

WWW.DEWALTWELDING.COM

✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ✔ ✔ ✔ ✔

✔ ✔

✔ ✔

✔ ✔

✔ ✔

✔ ✔


METAL FABRICATION PROGRAM WORK SMART. WELD SAFE.™ DXMF4618WT

ADJUSTABLE WELDING TABLE 92796

8" - 36" (20.3 - 91.4 cm)

Width

46" (116.8 cm)

Depth

18" (54.7 cm)

1000 LB.

METAL FABRICATION

Height

WORKTOP CAPACITY

• Strategically located slots / post holes for mounting and clamping any shape project • Useable folded up atop existing work table or as a 36-inch tall free-standing welding station • Table legs have both spring pin / snap button locks and locking for added security under load • Conveniently located ground stud for connecting grounding clamps and leads • Oversized eye bolt ideal for holding welding guns and electrodes between uses • Cord minder helps keep cord slack under control and prevent tripping hazards

3/4"

PLASTIC FEET

FITS STANDARD POSTS

NON-CONDUCTIVE

3/4"

PLASTIC FEET

FITS STANDARD POSTS

NON-CONDUCTIVE

HOLES

ADJUSTABLE LEGS

DXMF3603WSH

ADJUSTABLE LEG WELDING SAWHORSE 92799

Height

25" - 33" (63.5 - 83.8 cm)

Width

36" (91.4 cm)

Depth

3" (7.6 cm)

1300 LB. LOAD CAPACITY

• Strategically located 3/4-inch diameter post holes for mounting and clamping any shape project • Two V-shaped, toothed notches hold pipes and other stock for cutting and welding • Sawhorse legs have both tension latch locks and locking pins for added security when under load • Conveniently located grounding stud for connecting grounding clamps and leads • Oversized eye bolt ideal for holding welding guns and electrodes between uses

HOLES

METAL SUPPORTS

• Fold-out tabs on legs help support square stock, pipes, and other welding materials

HOLD LONG MATERIALS

OFFICIALLY LICENSED BY

29


METAL FABRICATION / INDEX

DXMF21011

30

LARGE WINDOW AUTO-DARKENING WELDING HELMET 41603

Pano Viewing Area

20�4 sq in (51�8 sq cm)

Shade Range

DIN 4 / 5-8 / 9-13

Grind Mode

Yes

Arc Sensors

4

Switching Time

1/15,000 s

Delay Range

0�2 - 1 s

Weight

1�55 lb (703 g)

Power Supply

CR2450 battery, solar assist (included) ACCESSORIES AND REPLACEMENT PARTS:

• 4 lightning fast arc sensors engage and darken the filter in 1/15,000 of a second

41603-ADF

• Independent shade control allows you to fine tune the DIN level according to preference or welding process

41603-FPL

Replacement Front Protective Lens

41603-IPL-5PK

Inner Protective Lens 5-Pack

41603-HDGR

Replacement Adjustable Headgear

• Adjustable lightening delay can be set from 0.2 - 1.0s to reduce user eye strain and fatigue

Replacement Auto Darkening Filter

Z87+

• Auto-darkening filter is protected from sparks and slag by both a large exterior and a smaller interior protective lens • CR2450 battery is augmented by a solar cell that charges as you weld for lasting power • Multi-point adjustable headgear with integrated sweat band stays comfortable during long welding jobs

AUTO DARKENING

PANORAMIC VIEW

GRINDING MODE

IMPACT PROTECTION

PAGE REFERENCES AND PACKAGING INFORMATION INDUSTRIAL RACKS DXST10000 ������������������������������������������������������������pgs� 4, 5, 6, 7, 8, 12 INDUSTRIAL RACK 6-FOOT TALL / 4-SHELF 56829 PACKAGING DIMS: 75�25" L x 25�25" W x 5�44" H WEIGHT: 183 lbs

DXST10000BLK ���������������������������������������������������������������� pgs� 6, 7, 13 INDUSTRIAL RACK 6-FOOT TALL / 4-SHELF, BLACK 41660 PACKAGING DIMS: 75�25" L x 25�25" W x 5�44" H WEIGHT: 183 lbs

DXST6000WB�������������������������������������������������������������������� pgs� 6, 7, 12 4-SHELF INDUSTRIAL STORAGE RACK WORK STATION 41609 PACKAGING DIMS: 49�61" L x 19�29" W x 9�84" H WEIGHT: 149�91 lbs

DXST3000WB�������������������������������������������������������������������� pgs� 6, 7, 11 2-SHELF INDUSTRIAL STORAGE RACK WORK STATION 41631 PACKAGING DIMS: 50�39" L x 19�09" W x 6�81" H WEIGHT: 108�02 lbs

WWW.DEWALTWELDING.COM

DXST4500-W�������������������������������������������������������������������� pgs� 6, 7, 10 INDUSTRIAL RACK WITH WIRE GRIDS 4-FOOT TALL / 3-SHELF 41590 PACKAGING DIMS: 48�5" L x 18�5" W x 4�75" H WEIGHT: 70 lbs DXST4500BLK-W ������������������������������������������������������������ pgs� 6, 7, 13 INDUSTRIAL RACK WITH WIRE GRIDS 4-FOOT TALL / 3-SHELF, BLACK 41659 PACKAGING DIMS: 48�5" L x 18�5" W x 4�75" H WEIGHT: 70 lbs DXST4500 �������������������������������������������������������pgs� 2, 3, 4, 5, 6, 7, 9, 20 INDUSTRIAL RACK 4-FOOT TALL / 3-SHELF 56831 PACKAGING DIMS: 48�5" L x 18�5" W x 4�75" H WEIGHT: 71 lbs

DXST4500BLK ������������������������������������������������������������������ pgs� 6, 7, 13 INDUSTRIAL RACK 4-FOOT TALL / 3-SHELF, BLACK 41658 PACKAGING DIMS: 48�5" L x 18�5" W x 4�75" H WEIGHT: 71 lbs


METAL FABRICATION PROGRAM WORK SMART. WELD SAFE.™ PAGE REFERENCES AND PACKAGING INFORMATION RACK ACCESSORIES

DXSTACM ����������������������������������������������������������� pgs� 4, 14, 15, 20, 22 2 PIECE CORD MINDERS 41600 PACKAGING DIMS: 7" L x 6�75" W x 3�5" H WEIGHT: 2�78 lbs

DXST10000EXT ���������������������������������������������������� pgs� 4, 5, 14, 15, 18

SHOP SEATING

DXST10000PBK���������������������������������������������������� pgs� 4, 5, 14, 15, 16

2 PIECE STEEL PEGBOARD KIT for DXST10000 Industrial Rack 41554 PACKAGING DIMS: 75�98" L x 24�8" W x 2�36" H WEIGHT: 61�73 lbs

DXSTAH025 ������������������������������������������������������������� pgs� 5, 22, 23, 24 ADJUSTABLE SHOP STOOL WITH CASTERS 41562 PACKAGING DIMS: 16�93" L x 16�93" W x 15�16" H WEIGHT: 23�15 lbs

DXST4500DK������������������������������������������������������pgs� 2, 4, 5, 14, 15, 17 DRAWER KIT for DXST4500 Industrial Rack 41559 PACKAGING DIMS: 45�07" L x 19�48" W x 1�97" H WEIGHT: 30�86 lbs

DXSTFB048 ������������������������������������������������������������� pgs� 5, 22, 23, 25 GARAGE BENCH 41563 PACKAGING DIMS: 52�36" L x 20�87" W x 6�69" H WEIGHT: 59�52 lbs

DXST4500PBK �������������������������������������������pgs� 3, 4, 5, 14, 15, 16, 22 2 PIECE STEEL PEGBOARD KIT for DXST4500 Industrial Rack 41557 PACKAGING DIMS: 48�03" L x 18�9" W x 3�54" H WEIGHT: 28�46 lbs DXST4500WTD ��������������������������������������pgs� 3, 4, 5, 6, 14, 15, 16, 22 WORKTOP DRAWER KIT for DXST4500 Industrial Rack 41567 PACKAGING DIMS: 46�25" L x 21" W x 9" H WEIGHT: 64�65 lbs

DXSTFH030 ������������������������������������������������������������pgs� 3, 5, 22, 23, 24 SWIVEL SHOP STOOL 41561 PACKAGING DIMS: 18�3" L x 18�3" W x 26�38" H WEIGHT: 22�04 lbs

METAL FABRICATION DXMF21011 ������������������������������������������������������������������ pgs� 26, 27, 30 LARGE WINDOW AUTO-DARKENING WELDING HELMET 41603 PACKAGING DIMS: 12�13" W x 15�19" H x 10" D WEIGHT: 1�55 lbs

DXSTA04MP ������������������������������������������������������������ pgs� 4, 14, 15, 19 4 PACK LEVELING FEET 41568 PACKAGING DIMS: 11�25" L x 6�75" W x 3�5" H WEIGHT: 5�43 lbs

DXMF3603WSH ����������������������������������������������������������� pgs� 26, 27, 29

DXSTA10MPB���������������������������������������������������������� pgs� 5, 14, 15, 20 MAGNETIC PARTS BUCKET 41564 PACKAGING DIMS: 7�3" L x 5�2" W x 3�6" H WEIGHT: 0�65 lbs

DXMF4618WT �������������������������������������������������������������� pgs� 26, 27, 29

DXSTA151PS ������������������������������������������������������� pgs� 4, 5, 14, 15, 21 15 AMP POWER STATION WITH GFCI AND DETACHABLE WORK LIGHT 41594 PACKAGING DIMS: 17�5" L x 7�4" W x 9" H WEIGHT: 9�95 lbs

WELDING GLOVES ������������������������������������������������������� pgs� 26, 27, 28

DXSTA26CLB �������������������������������������������������������������� pgs� 4, 14, 15, 18 2 PIECE 6-INCH CANTILEVER BRACKETS 41559 PACKAGING DIMS: 45�07" L x 19�48" W x 1�97" H WEIGHT: 30�86 lbs

DXSTA500LM ������������������������������������������������������ pgs� 5, 6, 14, 15, 21 3 PACK MOTION SENSOR LIGHT KIT 41553 PACKAGING DIMS: 16�25" L x 4�75" W x 11�5" H WEIGHT: 2�54 lbs

INDEX

2 FOOT TALL / 1-SHELF HEIGHT EXTENDER KIT for DXST10000 Industrial Rack 41545 PACKAGING DIMS: 13�39" L x 75�59" W x 3�54" H WEIGHT: 56 lbs

ADJUSTABLE LEG WELDING SAWHORSE 92799 PACKAGING DIMS: 36" L x 3" W x 6�5" H WEIGHT: 27 lbs

ADJUSTABLE WELDING TABLE 92796 PACKAGING DIMS: 46" L x 18" W x 8" H WEIGHT: 45 lbs

GLOVE MODEL SIZES AND PART NUMBERS DXSTF01011 DXSTF01052 DXSTF02051 DXSTF03051 DXSTF04051 S

DXMF01011SM

DXMF01052SM

DXMF02051SM

DXMF03051SM

DXMF04051SM

M

DXMF01011MD

DXMF01052MD

DXMF02051MD

DXMF03051MD

DXMF04051MD

L

DXMF01011LG

DXMF01052LG

DXMF02051LG

DXMF03051LG

DXMF04051LG

XL

DXMF01011XL

DXMF01052XL

DXMF02051XL

DXMF03051XL

DXMF04051XL

2XL DXMF01012XL

DXMF010521XL DXMF020512XL DXMF030512XL DXMF040512XL

3XL DXMF01013XL

DXMF010523XL DXMF020513XL DXMF030513XL DXMF040513XL

DXSTACLR ��������������������������������������������������������������������pgs� 14, 15, 19 3 PIECE WALL MOUNT CANTILEVER RACK 41589 PACKAGING DIMS: 36�5" L x 12�25" W x 3" H WEIGHT: 23�05 lbs

OFFICIALLY LICENSED BY

31


Copyright © 2021 DEWALT. DEWALT® and the DEWALT Logo are trademarks of the DEWALT Industrial Tool Co., or an affiliate thereof and are used under license. The yellow/black color scheme is a trademark for DEWALT power tools & accessories.

JS PRODUCTS • 6445 MONTESSOURI STREET • LAS VEGAS, NV 89113 CUSTOMER SERVICE: 855.558.2422 • FAX: 775.808.8773 WWW.DEWALTSHELVING.COM • WWW.DEWALTWELDING.COM V18 - DIGITAL USE ONLY
