Selected Works

Awards/Recognitions Masters Thesis selected for Jicwood Prize 2023 Archstorming 2022 Competition: A Learning Center in Mozambique Cleared 3rd Round of Selection VRN 2022: Encounters with the Urban Night, Estonia Dissertation research Selected & Presented at conference EMRG 2020: Festival of Light, New Delhi Entry selected for Installation Skills autocad/revit sketchup/rhino lumion/v-ray photoshop/indesign/illustrator dialux/agi32 Languages Hindi (Native) English (IELTS 7.5) French (Diploma A2)

3

01

A Second Life Adaptive Reuse (New Delhi, India) Individual Work Masters Thesis’23 Following India’s independence in 1947, architecture played a crucial role in showcasing a progressive India by constructing modern cultural and educational buildings. Unfortunately, in recent times, these historically significant structures have fallen victim to political decisions, resulting in their reckless demolition.

This project focuses on a specific case study, the Hall of Nations in New Delhi, and proposes a solution based on the principles of adaptive reuse that safeguards the preservation of an architectural heritage while simultaneously maintaining its significance in the modern urban fabric. The project proposes to convert these exhbition pavillions into a museum for architecture showcasing works from the post-colonial era.

4

Selected Works

5

A brick walkway is inserted inside the smaller halls that can be accessed via grand staircases

The new intervention is deliberately placed at a distance from the existing halls, creating a contrast and enabling visitors to simultaneously appreciate both layers of architecture.

6

Selected Works

A two storey exhibit is situated as a free standing brick structure in the large open hall. A ‘floating’ ramp around the structure provides views and access for the visitors.

The organic brick ‘connection’ between the Halls is a form of parisitic architecture, creating contrast between the geometric exsiting and the dynamic new.

7

Brutalist Architecture Bold & aggresive expressionism

8

Geometric Shapes Primary shapes informed design

Monumentality Engendering a sense of awe

Indigenous Materials Use of brick & concrete

Response to Microclimate Open plan spaces

Critical Regionalism Rooted in traditional vocabulary

Selected Works

Materiality “exploring brick tectonics through model-making”

9

4

6

5 3

2

1

Floor Plan 1. Exhibition Pavillion 2. Outdoor Public Area 3. Hall of Nations 4. Exhibition Space 5. Ramp 6. Spiral Staircase

10

Selected Works

Perforated Brick Ceiling First floor, exhibition gallery overlooking the courtyard

Brick Jaali creates a porous facade Large openings create connection to existing

Ground floor, brick vaulted exhibition gallery around a central courtyard

11

12

Selected Works

Exterior Perspective “a brick nest inside the hall”

13

Brick parapet

Arched circular opening

Model & Sculpture exhibition

Triangular Brick Jaali

Brick tile Cement Mortar RCC Slab

Groin Vaulted Arch

Vaulted Display Gallery Brick Masonry Wall

Brick Tile Cement Mortar RCC Slab Crushed Rock Rammed Earth

Concrete Footing Wall Section

14

Selected Works

Interior Perspective “experiencing bricks”

15

Brick Jaali Worshop space

Brick tile flooring Cement mortar Waffle Slab Brick Wall

Crafts exhibiton space

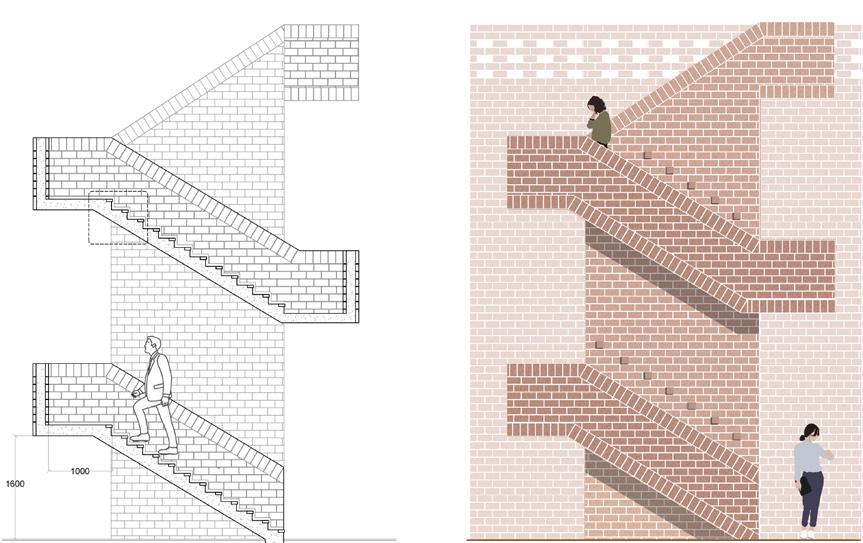

Section “facade textures & brickwork treatment ”

16

Brick tile flooring Cement mortar Concrete Slab Crushed rock Rammed earth

Selected Works

Perspectives “a cultural journey”

17

1:200 Timber Model ‘ sectional model showcasing intervention’

18

Selected Works

19

02

Continuing the Meadow Adaptive Reuse (Monyash,UK) Individual Work Masters Project’22 Drawing from my hands-on experience in a vernacular construction project, specifically earthbag construction, as well as six months of sustainable research, I was inspired to explore a similar concept for repurposing a barn within the village context of Monyash.

Situated within the conservation zone of the Peak District, the site is very auspicious and asks for a building that is deeply rooted in its cultural and physical context. The idea was to inculcate natural materials found around Monyash and apply them using contemporary tectonics. A lush meadow behind the barn was the inspiration for the concept of continuing the meadow with the idea of making the barn a seamless part of the landscape.

20

Selected Works

21

Elevation “vernacular extension to the meadow”

22

Selected Works

Existing Barn

Public Axis

Intervention

23

Construction Systems “gabion wall and glulam green roof”

24

Selected Works

Interior Perspective “a shell around the existing”

25

Vegetation barrier Vegetation substrate Root barrier Drainage layer Waterproof membrane Drainage gutter I-Beam Glulam beam Metal plate Insulation Panel Glulam post Gabion basket

Gabion basket Glulam post

Knife plate connector Anchor bolts Concrete footing

Wall section

26

Selected Works

1:2 Detail Model “connection detail”

27

03

Three Trees Learning Center for Girls (Chivonguene, Mozambique) Worked in a group of 2 Archstorming Competition Selection’22 Around 94% of girls in Mozambique enroll in primary school, but despite this high number, only 11% of girls continue to study in secondary schools. To accomplish that mission, Kurandza, a NGO, are building a new learning center where girls can feel safe and comfortable, a place where they can learn, play, run and discover.

The learning centre aims to provide a safe and an enclosed environment for girls where they can freely express their thoughts, aspirations and desires as well as explore their individual identities. The design intends to explore this idea by creating a communal courtyard centered around three trees with inward looking spaces. This courtyard aims to act as the secure space for the girls of Chivonguene, a space for them to play, learn and grow. Furthermore, the design explores dynamism and playfulness by introducing colourful windows, organic brickwork and punctured walls.

28

Selected Works

29

Massing Extruded

30

Functional C

Connectivity

Selected Works

Creating a Community

31

1

6

7 5

1 4

8

3

2

7

1

1. Classroom 2. Creche 3. Office 4. Meeting Room

5. Kitchen 6. Toilet 7. Play area 8. Courtyard

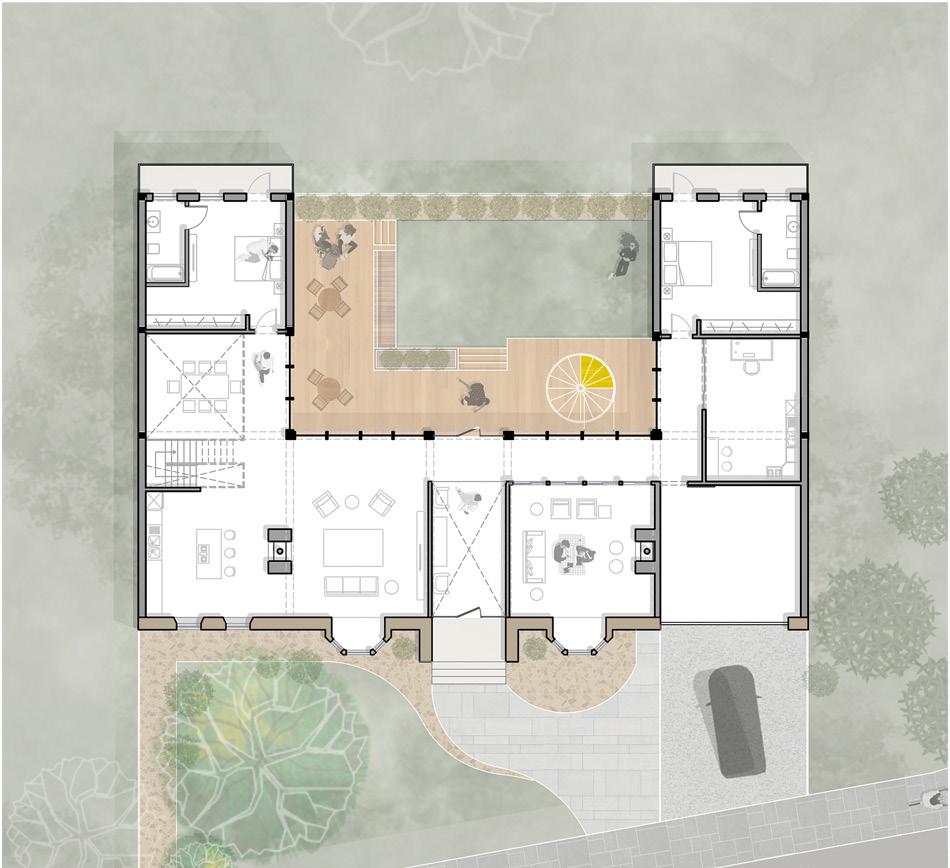

Floor Plan “ building around a central courtyard”

32

Selected Works

PV panel system installed on roof

Metal sheet roofing system

Timber column with adobe base

Timber Post & Beam structure

Backyard farming area & playground

Central courtyard creates a cooler microclimate

Building blocks constructed out of adobe bricks

Exploded Axonometric “vernacular construction with active strategies”

33

Exterior Perspective ‘courtyard with the three trees’

34

Selected Works

35

04

Professional Work Lighting, landscaping & details Individual works as a Junior Designer

During my tenure at Lirio Lopez Consultants, I successfully managed and designed lighting and landscaping solutions for over 10 projects within a span of less than 2 years. These projects encompassed a diverse range of scales, including residential properties, hotels, and even an indoor arena.

I am well-versed in dealing with clients and vendors, attending site analysis meetings and performing efficiently at a professional level. The following collection showcases a selection of my individual works completed during my time at the firm.

36

Selected Works

37

Facade lighting elevation NLAG arena

Landscaping & Lighting plan Bhartiya City

38

Selected Works

Facade lighting visualization NLAG arena

Landscaping & Lighting visualization Bhartiya City

39

05

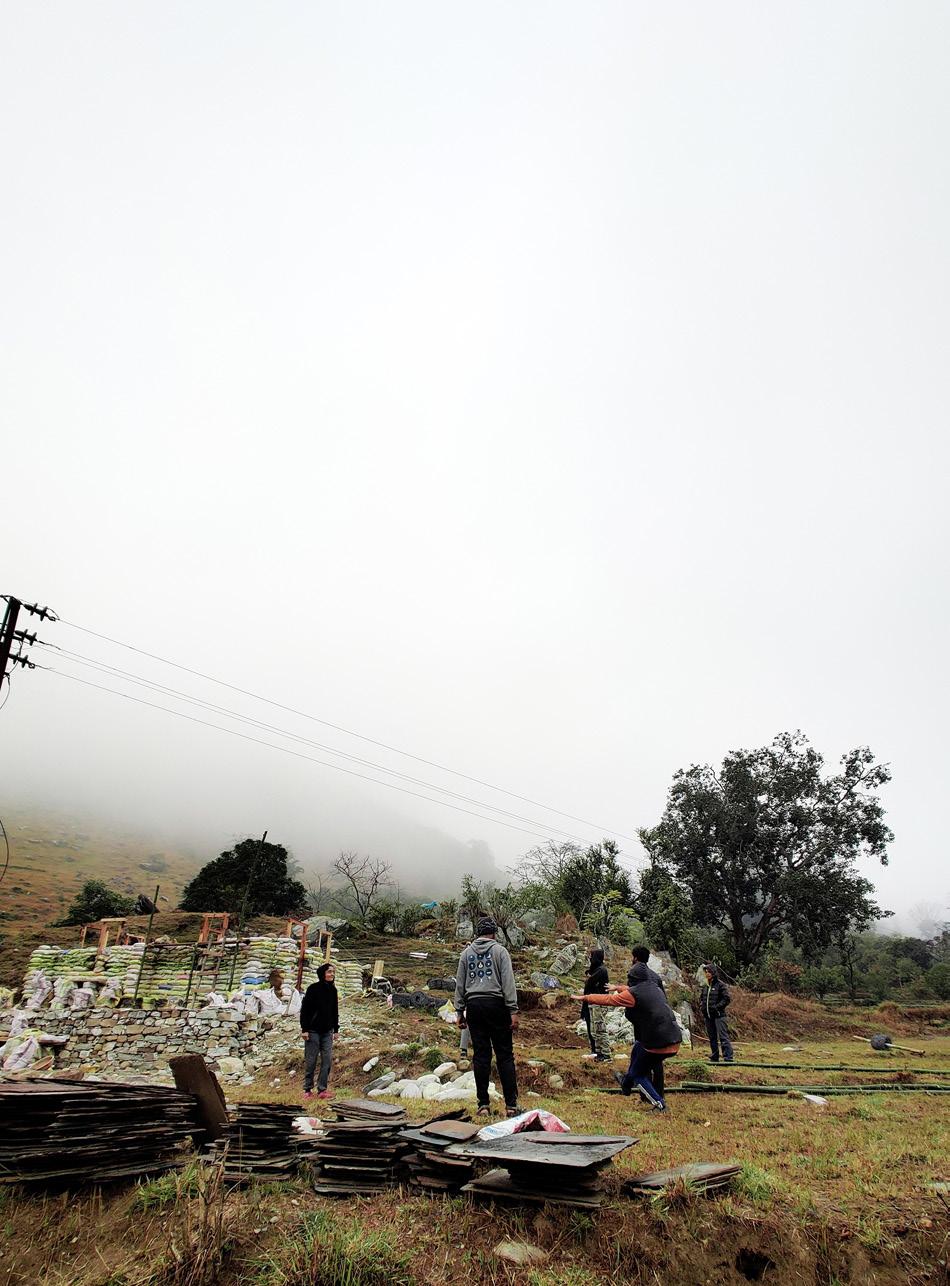

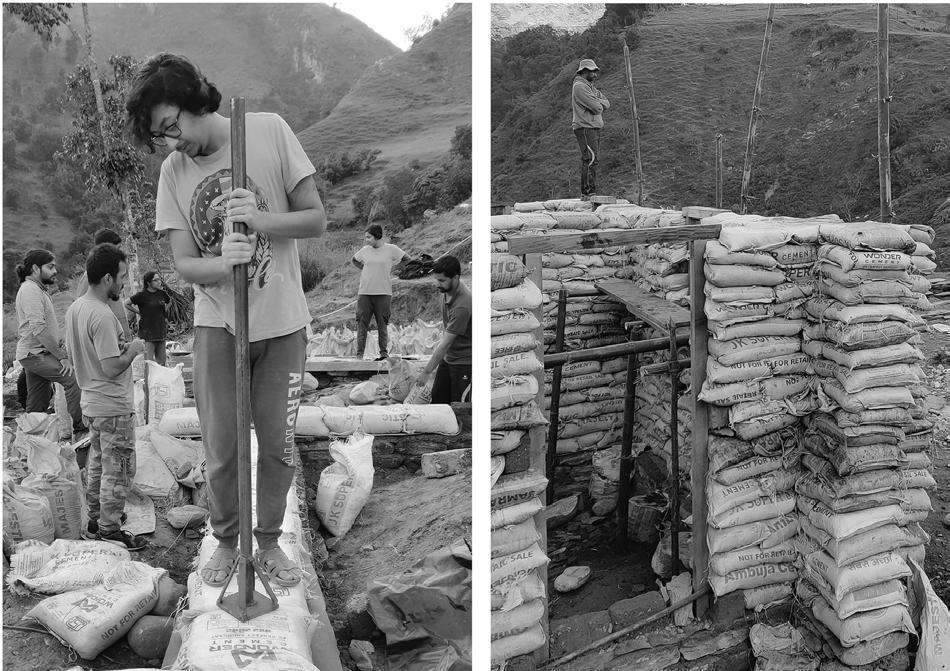

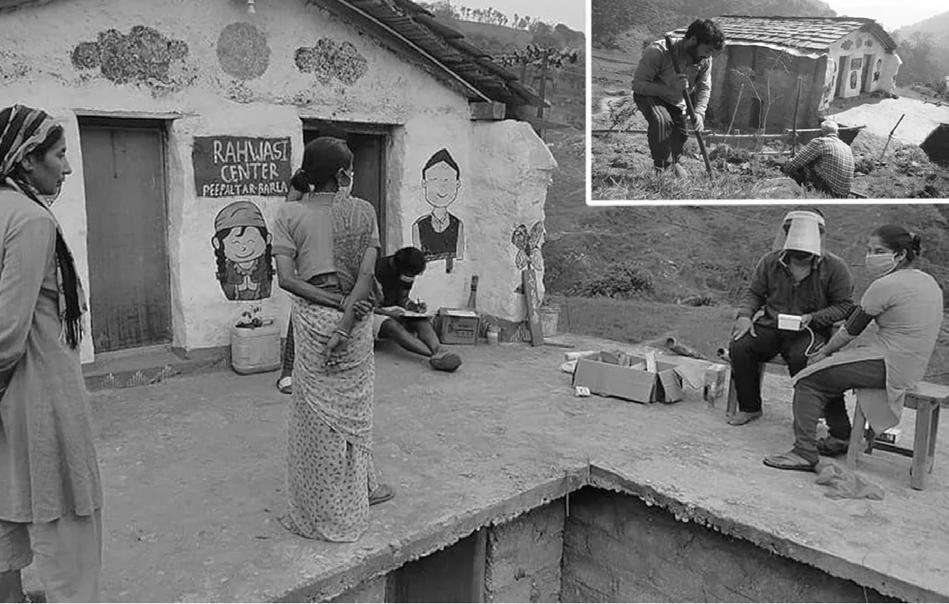

Building in the Mountains As part of a 15-person team, I was involved in the designing & construction of a community center in the remote village of Muwani, India. This village, home to a small community of 30-40 people, faced challenges related to limited access to construction materials and transportation options.

To address these constraints, we introduced rammed earthbag technology as a sustainable construction method that utilized raw materials readily available on-site. We completed the first phase of the project within 10 days working with the local community.

40

Selected Works

41

06

Finding the Balance Multi-generational Home (Furness Vale,UK) Individual Work Masters Project’22 The programme for the project engaged with the current housing crisis in the UK. The proposal was to design a multi-generational home in Furness Vale, UK employing passive and active design principles with a fabric-first approach.

While exploring Furness Vale, I noticed a unique character of its buildings, particularly along the canalfront. The High Peak Design Guide Document sets the standard for building design in this area, emphasizing the preservation and enhancement of their distinctive individuality. It is crucial that any new construction in this village harmonizes with its historical context.

My design approach was to push the boundaries of the Design Guide Document while maintaining the village’s vernacular characteristics. I aimed to strike a balance by incorporating contemporary materials and building techniques, ensuring the design remains contextual and respectful of the village’s heritage.

42

Selected Works

43

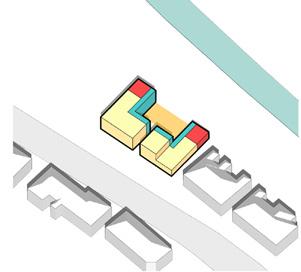

Massing extruded with Courtayrd

44

Maximising views to the canal

Functional zoning: public & private spaces

Selected Works

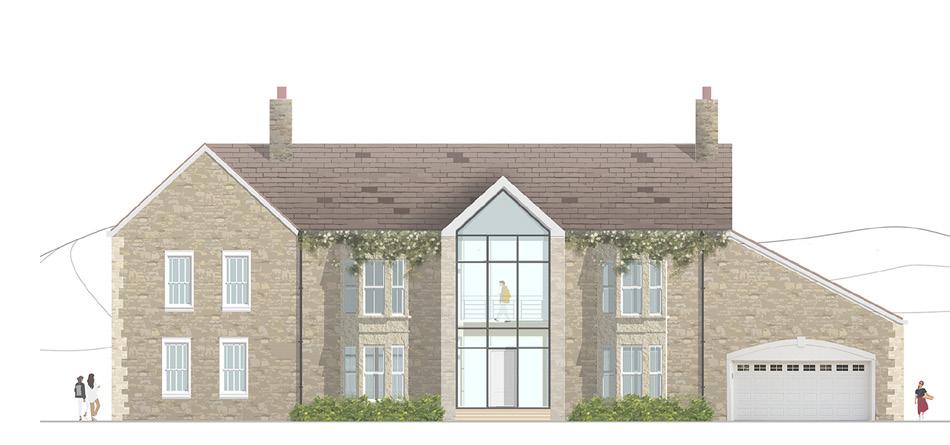

Front elevation ‘continuity of the vernacular character’

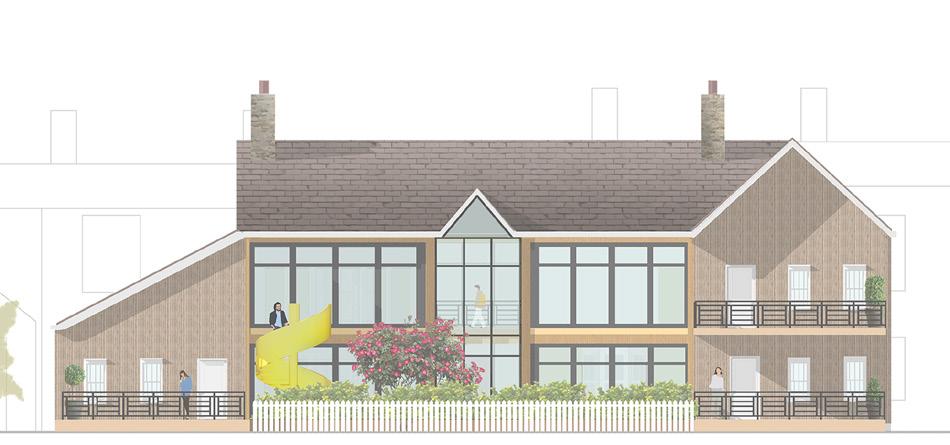

Rear elevation ‘contemporary glulam construction overlooking the canal’

45

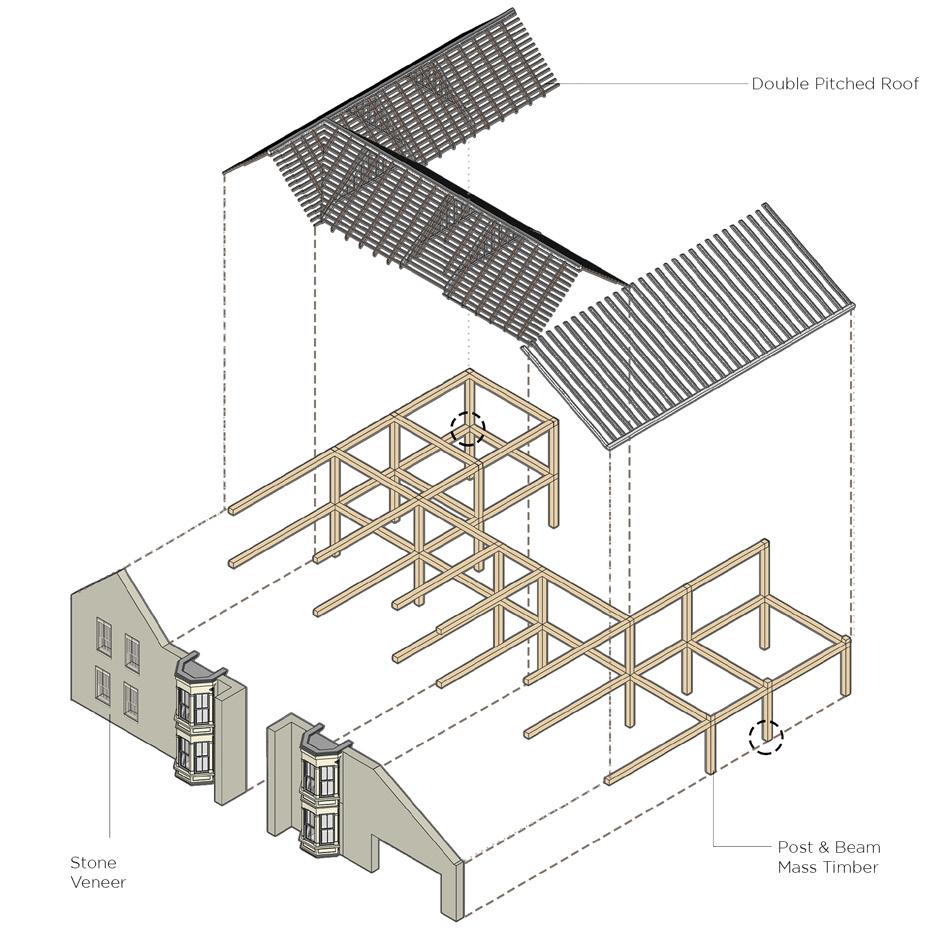

Double Pitched roof

Stone veneer wall

Mass timber post & beam construction

Glulam Column Concealed Beam hanger

Glulam Column

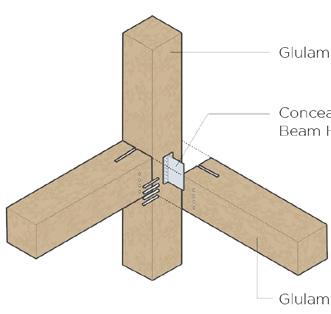

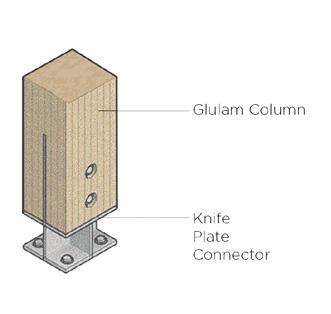

Knife plate connector Glulam Beam

46

Selected Works

47

Interior Perspective ‘family communal space overlooking the canal’

48

Selected Works

49
