Sustainability Through Architectural Storytelling Sustainable architecture for me is a unique process of constantly analyzing, evaluating, and learning from our surrounding environment. It is about how we can use that knowledge and push the boundaries of design towards a more sustainable future.

Architecture can be perceived through various means, but for me, it has always come most naturally through the ancient practice of storytelling. It can convey one’s experiences simply through the manipulation of space. By intertwining the built environment with the surrounding nature in which it is placed, a beautiful narrative emerges, one that we can all feel familiar with.

That narrative that sits at the core of storytelling holds experiences that we all have in common: values, beliefs, and vocabularies, all of which can be experienced through the delicate and conscious craft of the built site. By making architecture sustainable and incorporating nature within itself, not only is it connecting us all through familiar experiences but allowing us the opportunity to give back that which it has provided us.

This portfolio investigates what sustainable architecture means to me through the art of storytelling.

Projects As Above | So Below 01 Living in the Green 02 Agua 03

Synergy Park 04

01

As Above | So Below Spring 2019 | Study Abroad Design Studio | Florence, Italy Collaborator: Matthew Young

As Above | So Below

As Above | So Below

The phrase “as above, so below” can be interpreted in many ways. One interpretation of the said phrase is that whatever can happen in the macrocosm (world, society, totality), is also true and mirrored in the microcosm (community, place, individual). In essence, “as above, so below” draws forth a narrative in which there is a duality in play, one half seen as the “above” and the other seen as the “below,” where a relationship between the two is established.

The program of As Above | So Below consists of a space where creatives can live and work in one of the world’s most inspirational and exhilarating cities. Situated within the premises of the Baluardo a San Giorgio, As Above | So Below provides a temporary, one-to-six-month residency for three artists where they can explore their potential while living in one of the world’s most inspirational cities - Florence, Italy.

The conical shape of the apartments along with being placed above the bastion allows the artists to have a living space where they can relax while drawing inspiration from the surrounding views that can be seen from the high altitude of the site. In opposition to the apartments, the studio space is situated below the ground level of the site, allowing the artists to fully immerse themselves in their work without any external distractions. The physical wall of the Baluardo a San Giorgio establishes a bold relationship between the ²¾ ¬¨_mt¬Ņ m«t_² _ ¶ Ètp ¨« tm² ¾ m ² t _«² ¬² m_ ² « ¼tŊ

As Above | So Below

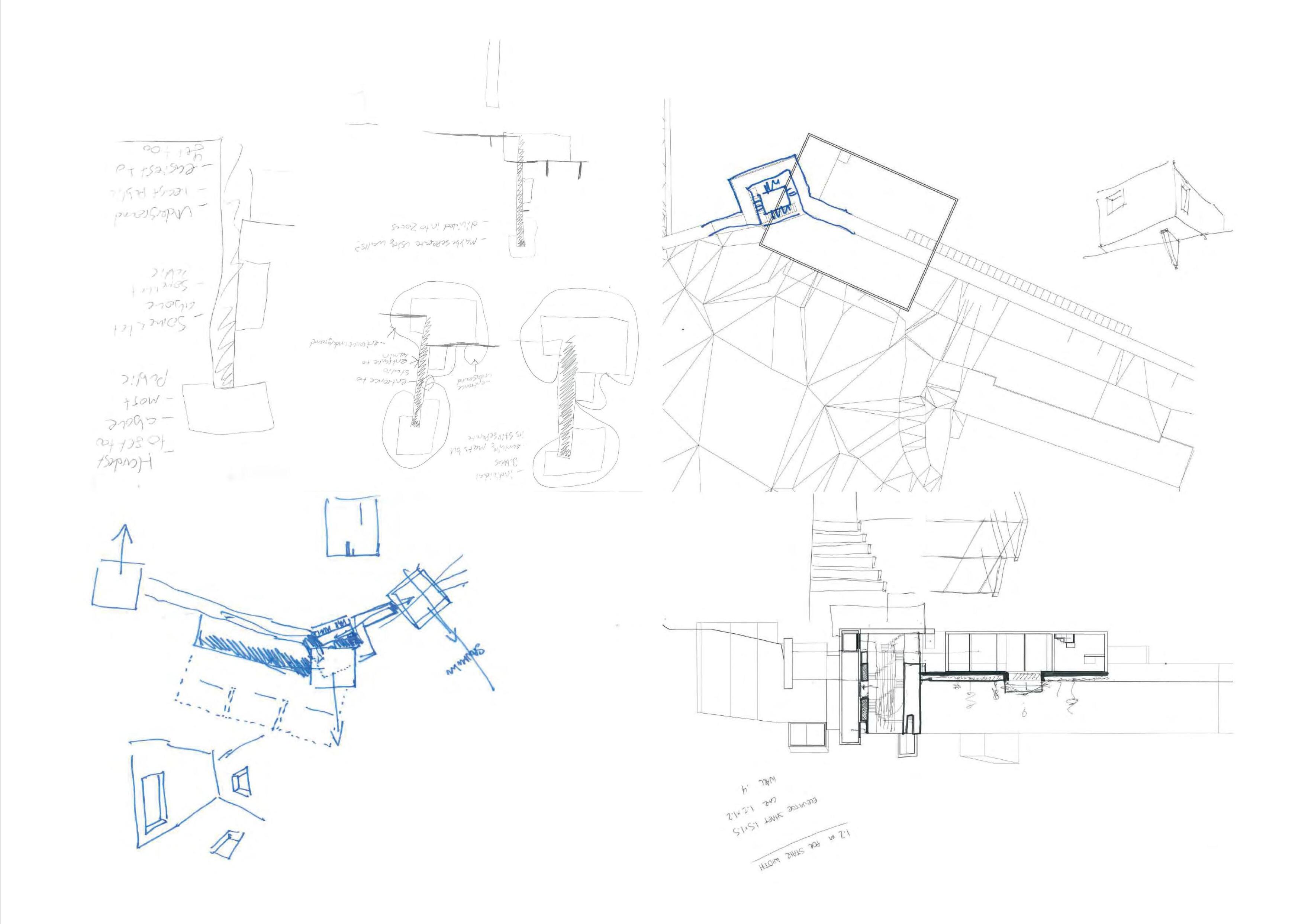

Preliminary Sketches

As Above | So Below

10

6 9 7

1

5 4

8

1 2 3 4 5

Apartment facing il Duomo di Firenze Suspended Staircase Apartment facing l’Abbazia di San Miniato al Monte Open-Air Studio Lobby Gallery Skylight

Site Plan

6 7 8 9 10

Apartment facing il Forte de Belvedere Open-Air Shared Studio Private Studio Skylight / Public Bench Baluardo di San Giorgio La Loggetta di Villa Bardini

3

2

As Above | So Belo low

D B

A

Studio Plan Ground Floor

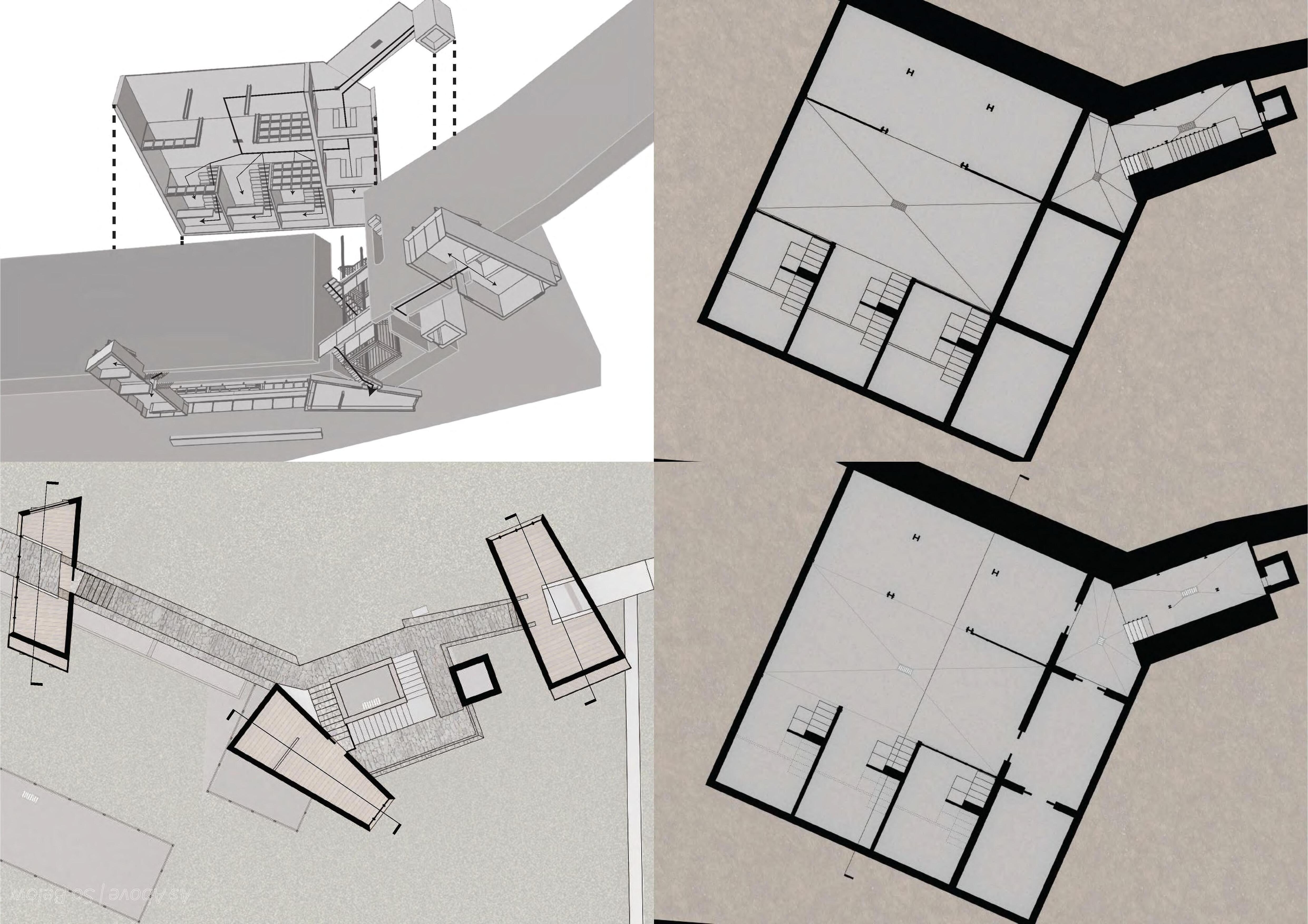

Apartments Floor Plan

Studio Plan Loft

Circulation Diagram

C

As Above | So Below

Section A

Section B

Section C

Section D

As Above | So Below

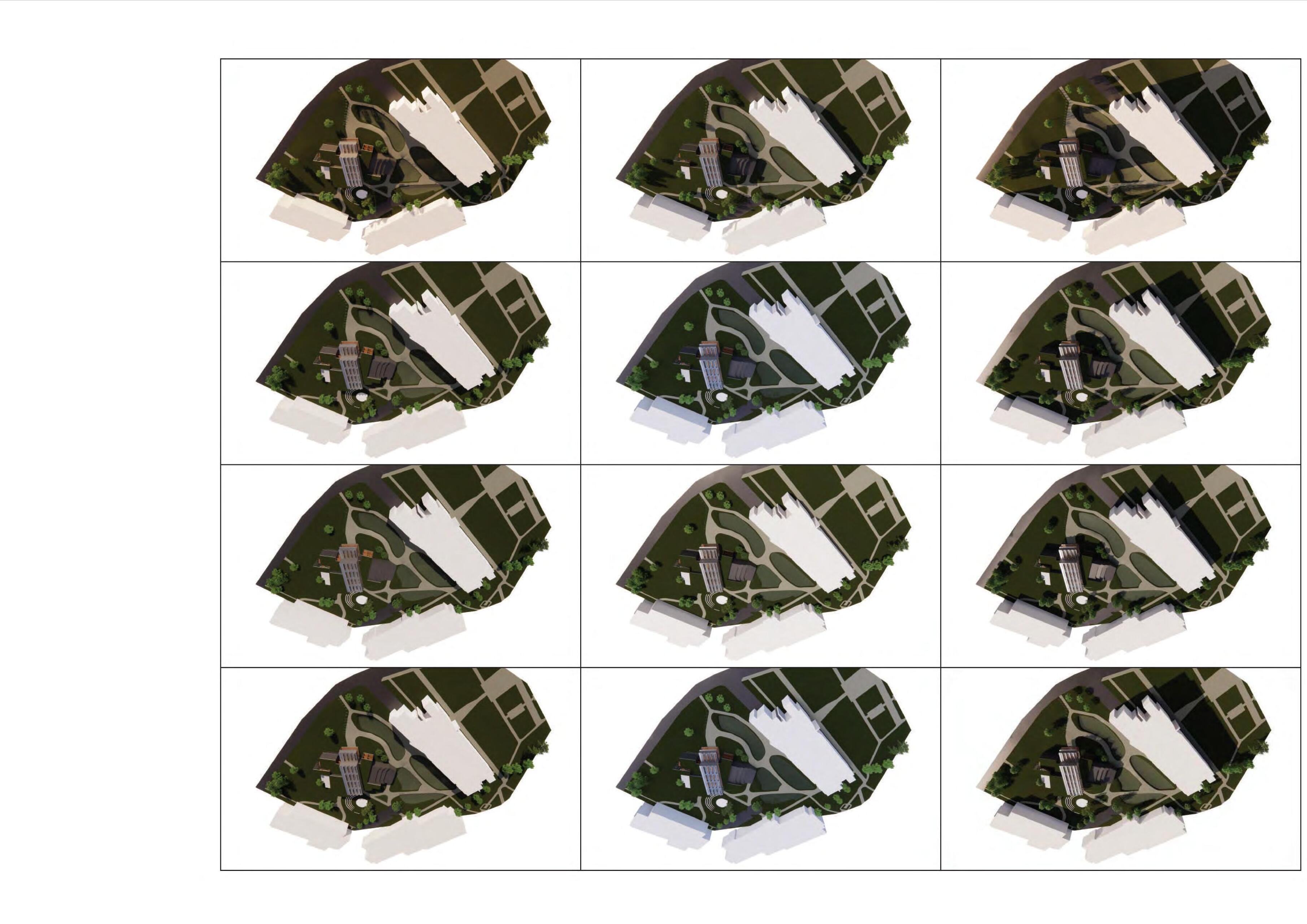

Winter Light Study 1

Winter Light Study 2

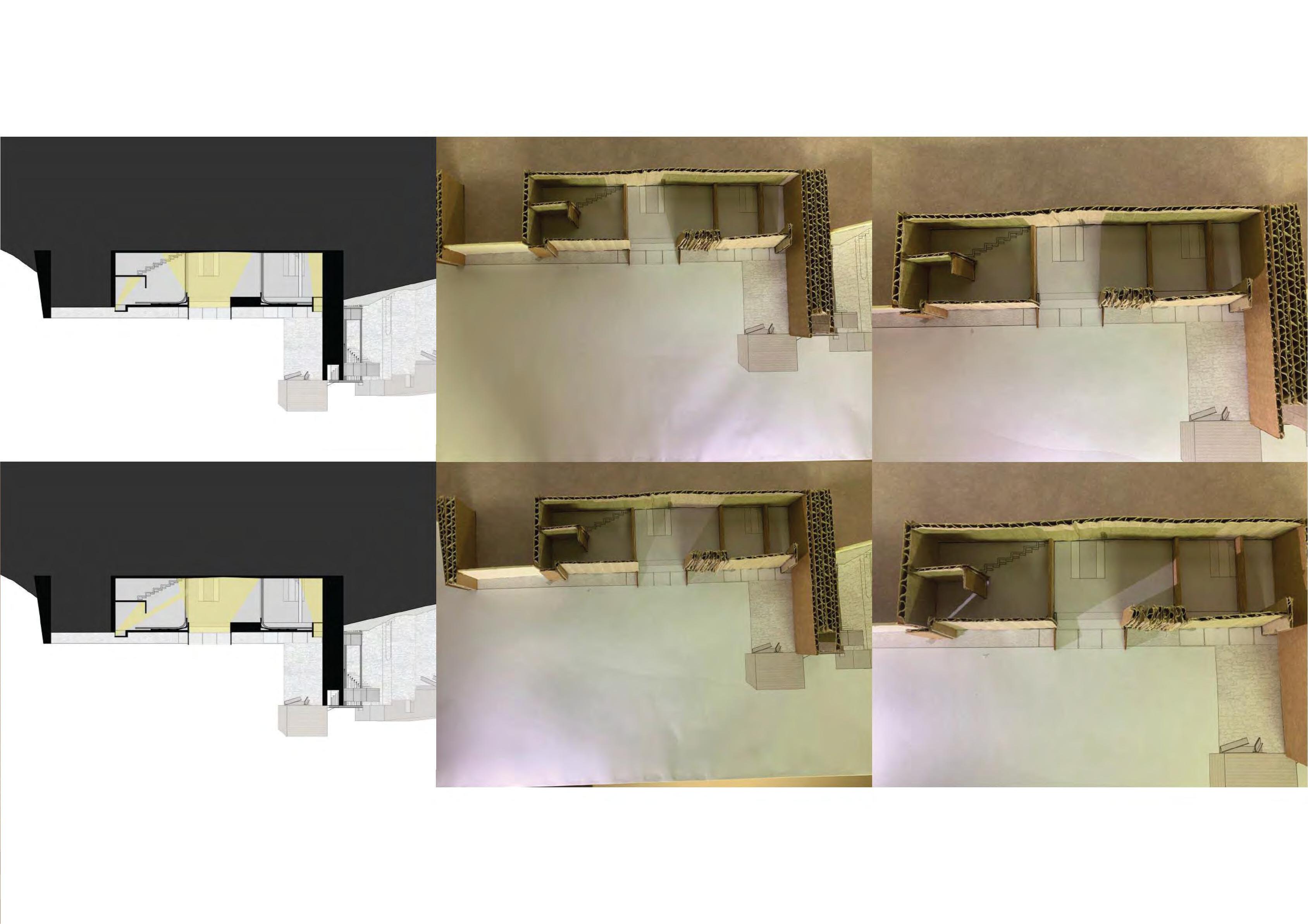

Section Light Study - Winter

Summer Light Study 1

Summer Light Study 2

Section Light Study - Summer

As Above | So Below

Interior Render - Gallery

Interior Render - Shared Studio

Interior Render - Facing Private Studios

Exterior Render

02

Living in the Green Fall 2019 | Design Studio VII | Olde City, Philadelphia, PA

Living in the Green

Living in the Green

Sustainability in architecture can have a major impact on manipulating the social fabric of society while _ ¾ _ ¶¬t«Ŭmt ²« m pt¬ ² É ¶« ¬ Ŋ K ¬ ¾ ¶ p ¼t ² t ¶¬t«¬ _ k¶ p ² t¬ ² _ ¨_«²Ŭ¾ t relationship with their surrounding context. In this setting, meaningful stories would emerge, from the inhabitants of a residence telling about how their lives have changed by moving to a new location to the k¶ p ²¬t ¼ _ _««_² ¼t ¾ ²¬ ¬¶«« ¶ p ¬² «À _¬ ɶt mtp ²¬ pt¬ Ŋ The program of Living in the Green is aimed at designing a mixed-use, senior housing building within the Central District of Philadelphia, PA. In Central District, Philadelphia, there are not many areas where its inhabitants can interact with each other in which there is also some form of nature. One of the few locations where people can interact with each and be within nature is Independence National Park. This merger of nature with the social fabric of Philadelphia is what sits at the core of Living in the Green.

By aiming at making an affordable residence for seniors while also providing some community engagement, these residents can have a chance to still be a part of their community. Roughly 64% of seniors living in Philadelphia aged 55 years or older are still part of the workforce. By creating a mixeduse, residential building, the residents can still be a part of the workforce while staying close to home and nature. With the mix of community engagement and interaction through nature, the opportunity arises for Living in the Green to aid in the prevention and deterrence of isolation found highly among the senior population.

Living in the Green

Preliminary Study

Living in the Green

Preliminary Study

Living in the Green

UP DN

DN

DN

DN

UP

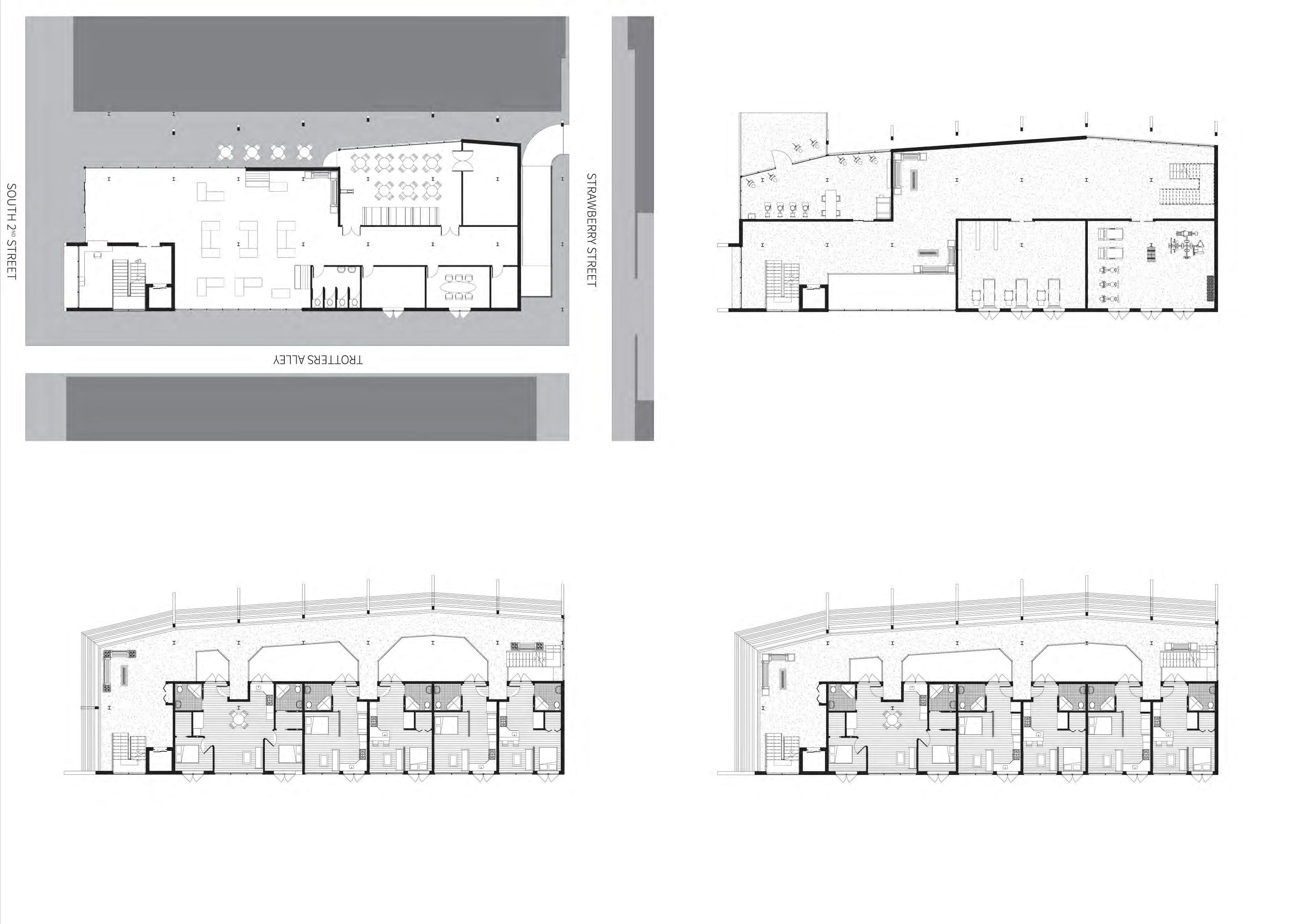

Eighth Floor

Seventh Floor

UP

UP DN

DN

DN

DN UP

Fourth Floor

UP

Third Floor

Living in the Green

UP DN

UP DN

DN

DN

UP

UP

Sixth Floor

Fifth Floor

UP DN

UP

Second Floor

Ground Floor

Living i ing ng in in tthe th hee Gree h Gre Green Greeen

VAV FLOOR HVAC SYSTEM RUNS ALONG STRUCTURE

NUTRIENT WATER TANK SUPPLY FOR HYDROPONIC FARM

Sustainability Diagram

Green Wall Section

ANGLED SUPPORTS FOR HYDROPONIC FARM PIPES

VERTICAL CIRCULATION STAIRS - 4’-0” WIDTH ELEVATOR - 7’-4” x 6’-7”

ELECTRICAL CLOSETS EGRESS PATH

ENTRANCE TO PARKING GARAGE

Axonometric Diagrams

EXTERIOR WALKWAYS MIN 5’-0” WIDTH

MECHANICAL ROOM

3/8” WHITE STAINED WOOD FINISH 1/2” PLYWOOD 2” BRICK VENEER 1” AIR CAVITY

5 x 12 STEEL BEAM WITH RIGID INSULATION 3/8” STEEL CONNECTION PLATE

VAPOR RETARDER 2” RIGID INSULATION 6” CONCRETE WALL 1 1/2” DIAMETER ANCHOR BOLTS

1” CONCRETE SLAB 1/4” GYPSUM BOARD

1/2” GYPSUM BOARD

Cross Section

Wall Detail

Living in the Green

Exterior Render

Interior Render - Mixed-Use Space

Exterior Render - Residential Communal Space

Exterior Render - Alleyway

03

Agua Fall 2020 | Design Studio IX | Marywood Campus, Scranton, PA AIA Cote Top 10 Submission

Agua

Agua

Sustainability in architecture must be ever-changing, adapting to any situation to thrive. It must ¬t_ t¬¬ À É ¾ ² « ¶ ² t _k« m ¬ m t²À ² m k_² _ À ¶²¶«t ¨« k t ² _² ² _« ¬tŊ ¬ t_«p and seen in many stories around the world, water plays a major impact on how sustainable a building or ¬ ²t m_ ktŊ ( _ _ tp t Èm t ² ÀŅ ¾_²t« ¬²«t ² t ¬ ¬ m _ Ņ tm mŅ _ p t ¼ « t ²_ ¬À¬²t ¬ ¾ t faced with various, unpredictable situations.

The program of Agua is aimed at designing a pandemic-friendly building containing classrooms and an auditorium within Marywood University’s campus in Scranton, PA. The building showcases how architecture can respond and adapt to a global pandemic. This was accomplished through AIA’s design decisions regarding integration, community, discovery, wellness, resources, change, economy, water, ecology, and energy. This required the transformation of nature, such as a free water surface wetland and wind turbine “trees”, in which Agua can adapt to any situation with open arms.

Implementing curtain walls in the central core of the building allows for students and staff to have consistent visual connections to nature throughout the day. A new pathway along a dynamic water feature and an improved amphitheater allows the community to interact with the university seamlessly while encouraging physical health and mental well-being. From a photovoltaic array built into a sinuous roof to circulating water from the wetland through a radiant heating system into the building to a rainwater _«¼t¬²t« _ p È ²«_² ¬À¬²t ² ¨« ¼ pt m t_ ¾_²t« ² ² t t ² «t k¶ p Ņ Agua is ready to adapt and respond to any situation put in front of it. Agua creates moments where students, staff, and members of the community alike can tell stories for ages to come.

Agua

Preliminary Study

Agua

Preliminary Study

Agua A Ag gu gua

er y

Discov Spatial Diagram

Sustainability Section

ation Explor

y

it Curios

Agua

Accessible Roof

Third Floor

Second Floor

Ground Floor

9:00 AM

12:00 PM

3:00 PM

Agua

VERNAL EQUINOX (3/21)

SUMMER SOLSTICE (6/21)

AUTUMNAL EQUINOX (9/21)

WINTER SOLSTICE (12/21)

Light Study

Agua

1/2" Gypsum Board 1/2" Acoustically Enhanced Gypsum Board 10" x 10" x 1/2" Steel Wide Flange Column Backer Rod & Sealant With Light Ga. Metal Backer 16 Φ x 1 1/2" W. Strap Anchor With 2" Vertical Legs

Interior Render

Grout & Vertical Reinforcement Horizontal Joint Reinforcement 10" x 8" x 16" Single Wythe Concrete Masonry

Classroom Wall Assembly

Amphitheater Render

04

Synergy Park Spring 2021 | Design Studio X | Glazer’s Parking, Scranton, PA

Synergy Park

Synergy Park

The concept driving Synergy Park stems from the concept of community. This is achieved by integrating Jane Jacob’s idea of “eyes on the street” into different mixed-use spaces to bring together people together from many backgrounds, forming a synergetic community. This setting proactively promotes storytelling among members of the community, allowing traditions and cultures to be shared and kept alive.

By incorporating spaces where residents and visitors, can interact and eat food among other things, a sense of community can be reached. Many commercial spaces, along with farmer’s market stalls, encourage the reuse of resources throughout the entirety of the building and invite local merchants and artisans to come in and help revitalize the local community of Scranton, PA. The inclusion of various workshop spaces to encourage at-risk youth to learn about urban contexts like Scranton through the eyes of Jane Jacobs helps strengthen the bond between the design and the surrounding urban context.

A major driving force to create a synergetic community within Synergy Park is the addition of a central courtyard where visitors and residents can interact within a personal, comfortable microclimate.

Alleyways leading into the central courtyard provide a sense of a walking culture that encourages visitors ² t¿¨ «t ² È p p t«t ² ¬² ¨¨ ¨ ²¬ _ ² t ¾_ÀŊ ² t¬t m« ¬¬« _p¬ ¾ t«t «t¬ pt ²¬ _ p visitors interact create various stories that stimulate the community found here.

Synergy Park

Preliminary Study

Synergy Park

RESID. LOBBY

RESID. LOBBY

OPEN TO BELOW

DN

DN

PERMANENT EXHIBITION

OPEN TO BELOW JJ

0’

17.5’

35’

70’

140’

0’

35’

17.5’

Fourth Floor

0’

17.5’

35’

70’

70’

140’

Third Floor

140’

Second Floor of Multi-Level Apartments EXEC. EXEC. EXEC. OFF. OFF. OFF.

SCULPTURE STUDIO

WORKSPACE

RESID. LOBBY

BLD. STOR.

SEMINAR CONF. CONF. SEMINAR ROOM ROOM ROOM ROOM

UP

SMALL ASSEMBLY HALL

RESID. LOBBY

CERAMICS STUDIO

BACKSTAGE

DN

BREAK ROOM

AUDITORIUM

DN

RES. OFFICE

UP

UP

PERMANENT EXHIBITION

FITNESS CENTER

LIBRARY JJ

JJ

FOOD BANK

RECEPTION/ INFORMATION

OPEN TO BELOW

UP UP

UP

ARCHIVES

DN

CLOAKROOM

DN

DN

BAKERY JJ

TEMPORARY EXHIBITION

JJ

0’

17.5’

35’

70’

140’

Second Floor

CAFE

BOOKSHOP

0’

JJ

17.5’

35’

70’

140’

Ground Floor

Synergy Park

Relax ation

Learn in

g

Intera

ction

Cross Section

Spatial Diagram

Sustainability Diagram 0’

5’

10’

20’

40’

Synergy Park

Apartment Render

Art Gallery Render

“Storytelling is our obligation to the next generation. If all we are doing is marketing, we are doing a disservice, and not only to our profession, but to our children, and their children. Give something of meaning to your audience by inspiring, engaging, and educating them with story. Stop marketing. Start storytelling.” ~ Laura Holloway
