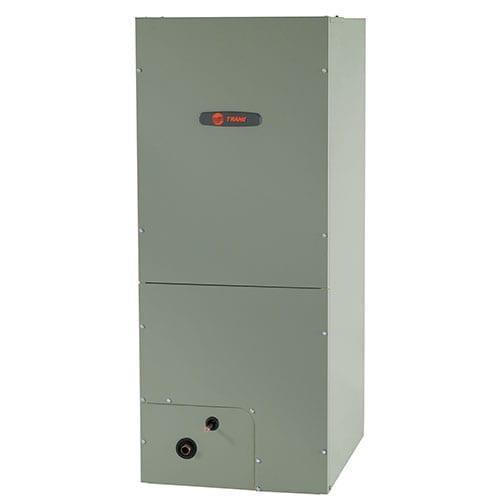

Trane 4 Ton 2-Stage Variable Speed Convertible & Multi 3/4 HP Air Handler TEM6A0C48H41SB

Sale! Source: Trane 4 Ton 2-Stage Variable Speed Convertible & Multi 3/4 HP Air Handler TEM6A0C48H41SB $1,900.00 $1,564.00 available in stock QUANTITY ONLY FOR REGISTERED CLIENTS DESCRIPTION Trane 4 Ton 16 SEER 48000 BTU Variable Speed Convertible Air Handler TEM6A0C48H41SB* is another efficient air handling unit from Trane’s TEM6 series. This 4 Ton unit allows leakage of at most 2% or even less.

Product Number: TEM6A0C48H41SBCategory: Trane Air HandlerTags: 16 SEER, 2 Stage, 4 Ton, 48000 BTU, Air Handler, Convertible, Multi, TEM6, TEM6A0C48H41SB, Trane, Trane 2 Stage Air Handler, Trane 4 Ton, Trane 4 Ton Air Handler, Two Stage, Variable Speed

TEM6A0C48H41SB is another efficient air handling unit from Trane’s TEM6 series. This 4 Ton unit allows leakage of at most 2% or even less. And yes, this 4 Ton Air Handler unit TEM6A0C48H41SB can be used with both ACs and heat pumps. It’s compact and thus can be set into an attic, basement, utility room, closet, or even in your crawlspace. Besides, the cabinet of this 4 Ton air handler model TEM6A0C48H41SB is painted to avoid all kinds of rust and corrosion related damage. Features

 PRODUCT DESCRIPTION

Trane 4 Ton 16 SEER 48000 BTU Variable Speed Convertible Air Handler

of Trane

SEER

BTU TEM6 Variable Speed Convertible Air

1. ECM motor 2. Multi position configuration – Horizontal Right, Left, Upflow, Downflow 3. Low voltage pigtail connection 4. All-Aluminium coil with a patented coil fin 5. Less than 2% air leak 6. Equipped with R-4.2 insulation valve 7. Fused 24 V power 8. Painted metal cabinet for longevity 9. Horizontal drain pan 10.Draw through design

4 Ton 16

48000

Handler TEM6A0C48H41SB

Specifications of Trane 4 Ton 48000 BTU 16 SEER TEM6 Variable Speed Convertible Air Handler TEM6A0C48H41SB

Air Handler Specifications

Nominal Capacity 4 Ton

Cooling Capacity 48000 BTU

Indoor Coil Type Plate Fin

Horsepower 3/4 HP

Air Handler Electrical Data Voltage 208-230 V Phase 1 Frequency 60 Hz

Air Handler Dimensions

Air Handler Height 55.75 Inch

Air Handler Width 23.5 Inch

Air Handler Depth 21.125 Inch

Line Size – IN. O.D. Gas 7/8 Inch

Line Size – IN. O.D. Liquid 3/8 Inch

Air Handler Weight

Air Handler Weight 174 Pound

Shipping Weight 185 Pound
