Contents 1 BA1 - Pottery Studio BA3 - Design Prep BA1 - Sketches Personal Works - Digital Art BA3 - Hybrid Building 2 3 4 5
BA3 - Hybrid Building
Located in commercial road city centre, this new hybrid build acts as an hub for all those in the area. With the aim of the project being to tackle and hopefully aid in amending the lack of certain necessities in the local area creating envi ronments that the local community can make the most off, while also providing affordable housing both to those in the local area and also the new comers to Portsmouth, hopefully giving back to local community.
BA3 - Hybrid Building
HYBRID RESIDENTIAL
Step 3
Earlier in the academic year we had a project which was set in the same area of Commercial Road, that project was a city planning and rejuvenation project, with us analysing the Com mercial Road Area and looking at ways to revitalize the area. 5 key points I focused on were Market,Education,Entertainment,FarmerstheVegetation,andcommunity, however a lack of affordable residen tial property was also an issue in the local area and this is an issue I wanted to tackle, within this project.

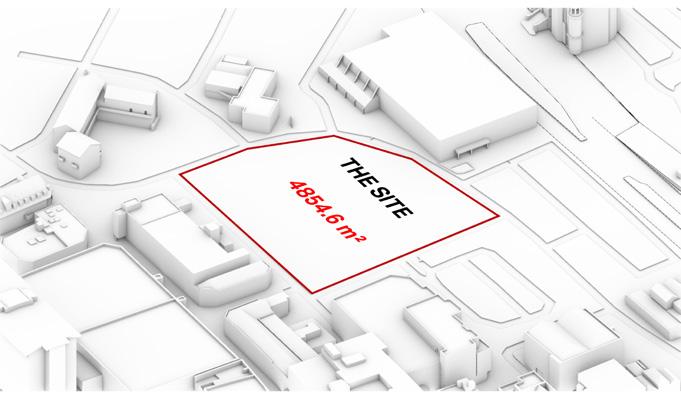

The site is chosen is located near the North East of overall the overall Commercial Road site which is an site located close to many of the main uses within commercial road.
On the site there was a building which was one of the many unused buildings on the site. The building will be torn down however some of the materials will be reused in the new build in order to reuse the materials which can be re - used and also to pay homage to the building which used to be a prevalent part of commercial road.
Initial Concepts and Design Approach
Step 1 After experimentation the second idea would make use of the similar ground floor, however it would have another entrance from the residential areas located to the East of the site. The ground floor would have multiple uses which are uses lacking in the overall area as well as uses based on the information and advice given by the meeting with local council members in the Portsmouth area.
Step 2 The Residential units will then be located on top of the mixed use areas, facing the direction of the south facing sun while also creating a sense of privacy as their apartments would be facing away from the more public areas located on the ground floor.
Farmers Market Education Entertainment/Community Homelessness Vegetation
BA3 - Hybrid Building
Step 5 Step 6Idea 1 gf - Mixed use Old building Idea 1 upper floors - Residential Realistic Approach The Site
In order to understand what was needed in the local Commercial Road area to gain inspiration for the residential building, a few students and I booked a meeting with a local council member in order to gain more knowledge on what implementation would actually be important for the area and what focus would be key when building residential buildings in this area. She gave two documents to read as well as providing advice given to her from locals in the area
DESIGN SYNTHESIS -
As the building went upwards it would see staggered build of residential spaces and private green areas which the resi dents would have use too. However this initial idea made the building closed off to the central city centre as the entrances were covered and the building did not feel inviting.
The overall shape of the building was then adjusted again, curving more to the site and creating a more seamless building shape
An initial idea on how to build on the site, saw the building shape fit to the curve on the site, with points of entrances to the overall spaces located at the main points on entrance around the site. one from commercial road, the other from the train station and bus routes. The south sun would also bring light into the uses located on this gf.
Residential spaces would be stacked and staggered allowing for private roof gardens to be located in these areas where the tenants can make use of these areas
Step 4
BA3 - Hybrid Building 1 - Public Entrance Court yard 2 - Communal Area 3 - Cafe 4 - Sports Area 5 - Library 6 - Language Learning area 7 - Food Market Area 8 - Bookable Office spaces 9 - Kindergarten 10 - Food Bank 11 - Private Entrance to Residential dwellings 12 - Bin storage 13 - Bike storage 14 - Toilets 15 - Courtyard 1 7 14 1012 13 11 4 12 1311 32 11121365 9 8 15 The ground floor plan showcases all the mixed use areas in which are available to be used by the local Portsmouth community. The goal of the uses are to add to the local community creating areas in which can be used by them, from rent able offices in which smaller local business can use, to an central farm ers market which the local farmers can sell their goods to the library area, an homeless aid area in which local homeless can get items in which they need for free and communal areas and atrium which can act as a sports centre space, which can be used by the children in the area as well as booked out to be a hall for any other use. The hope is this scheme will bring a more unified area of community to an environment which currently doesn’t have one. GF plan Communal Area Showcase Area Sports Area
BA3 - Hybrid Building 24 - 4 Bed Co living 25 - 3 Bed Affordable Flat 26 - 2 Bed Affordable Flat 27 - 1 Bed Affordable Flat 28 - Communal Space 29 - Walkway 30 - Residential Roof Garden 31 - Stairs and Elevators 32 - Storage 24 - 4 Bed Co living 25 - 3 Bed Affordable Flat 26 - 2 Bed Affordable Flat 27 - 1 Bed Affordable Flat 28 - Communal Space 29 - Walkway 30 - Residential Roof Garden 31 - Stairs and Elevators 32 - Storage 29 2nd floor 4th floor 303128 25 27 27 25 31 32 28 2624 26 25 25 27 31 32 26 30 3024 27 25 26 312632 26 27 26 25323124 29 2nd floor Private Garden2nd Floor Communal Space 4th floor walkway
South Elevation BA3 - Hybrid Building Section AA
South Entrance Community Green Area Axo view Programmatic Diagram BA3 - Hybrid Building North Entrance
1 bedroom layout 2 bedroom layout 1 bedroom Serial view 2 bedroom Serial View2 bedroom axo 1 bedroom axo1 bedroom floor plan 2 bedroom floor plan 1 - Open plan living and dining 2 -Kitchen 3 - Office space 4 - Storage 5- Bathroom 6- Bedroom 12 3 4 5 6 1 - Open plan living and dining 2 - Kitchen 3 -Storage 4 - Bathroom and Toilets 5 - 1 bedroom 6 - 2 bedroom 1 2 3 4 5 6 BA3 - Hybrid Building HOUSING INFORMATION Approximate size for all: 45m2 Number of Units: 8 units Total possible capacity of people: 16 HOUSING INFORMATION Approximate size for all: 60m2 Number of Units: 9 units Total possible capacity of people: 27
3 bedroom layout 4 bedroom layout 3 bedroom axo 3 bedroom Serial View3 bedroom floor plan 4 bedroom Serial View4 bedroom axo4 bedroom floor plan 1 - Open plan living and dining 2 - Kitchen 3 - Storage 4 - Bathroom and Toilets 5 - 1 bedroom 6 - 2 Bedroom 1 - Open plan living and dining 2 - Kitchen 3 - Storage 4 - Bathroom and Toilets 5 - 2 Bedroom 1 2 3 4 5 6 4 5 1 2 3 4 5 4 5 5 5 BA3 - Hybrid Building HOUSING INFORMATION Approximate size for all: 75m2 Number of Units: 10 units Total possible capacity of people: 27 HOUSING INFORMATION Approximate size for all: 100m2 Number of Units: 4 units Total possible capacity of people: 16
1 - Reused Brick - 112 x 80 x 240 mm 2 - Brick Slip 3 -Reinforced Concrete Wall - 300 x 300mm 4 - Insulation - 80mm 5 - Vapour membrane - 10mm 6 - Plasterboard - 30mm 7 - Railing 900 x 50 mm 8 - CLT Floor slab - 400mm 9 - Roof Garden Soil -100mm 10- Roof Garden Reservoir Layer - 10mm 11 - Roof Garden Moisture Retention Layer - 5mm 12 - Roof Garden Thermal Insulation - 60mm 13 - Roof Garden Drainage Layer - 5mm 14 - Roof Garden Root Barrier - 5mm 15 - Roof Garden Waterproof Membrane layer - 5mm 16 - Reinforced Concrete Beam - 300 x 300 mm 151413121110987 1 2 3 4 5 6 16 16 BA3 - Hybrid Building 1: 20 in A2 Materials and Detail Section 1: 20 in A2 Detail Legend
1 - Interior CLT Panel wall - 300mm 2 - Vapour membrane - 5mm 3 - Air gap - 10mm 4 - Insulation - 100mm 5 - Exterior CLT Panel wall - 150mm CLT Wall Detail 1: 5 CLT wall Detail 1: 5 CLT wall Detail Axo 1 2 3 4 5 Detail Location 1 2 3 4 5 BA3 - Hybrid Building
Personal Works - Digital Art On the2021way

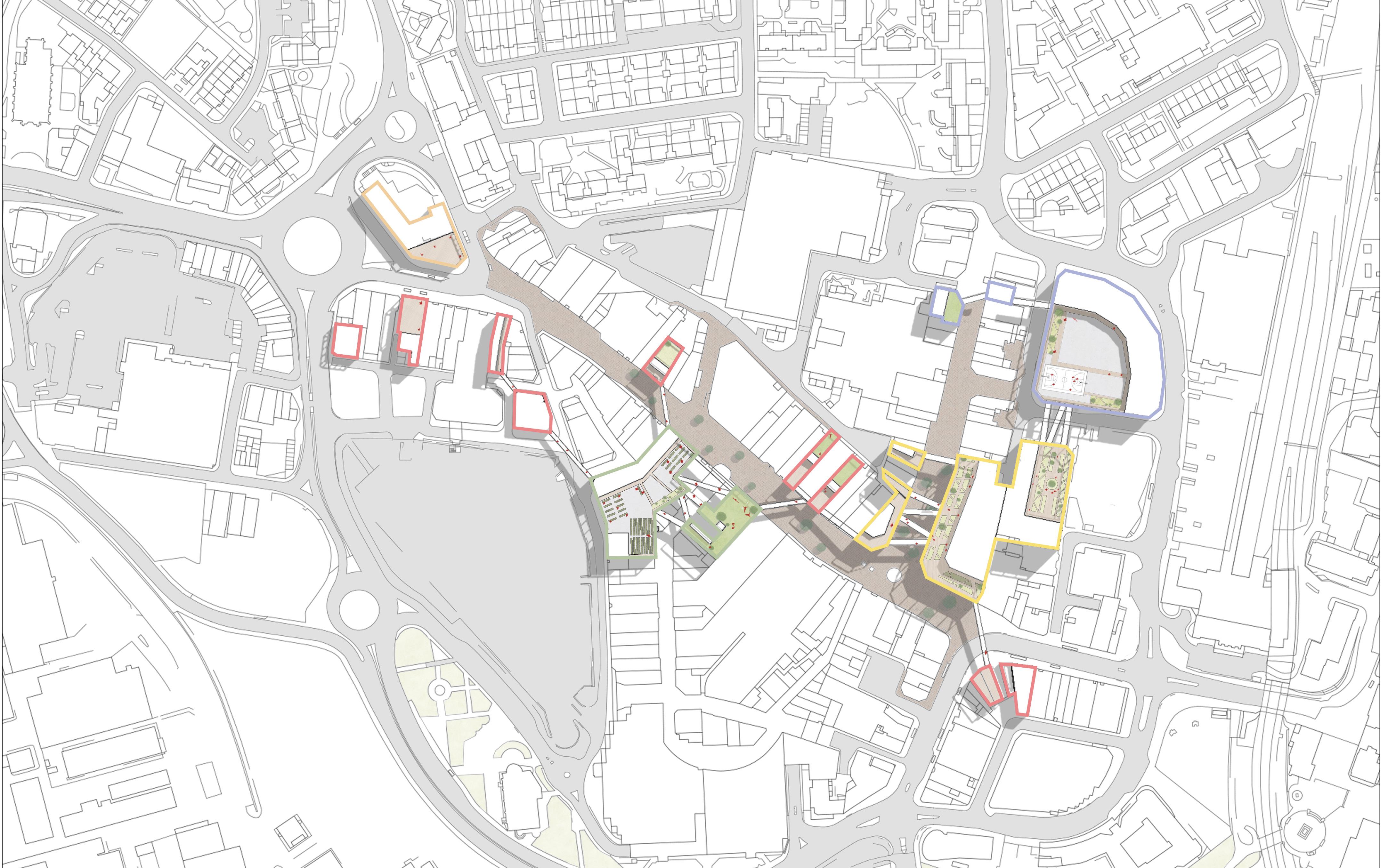

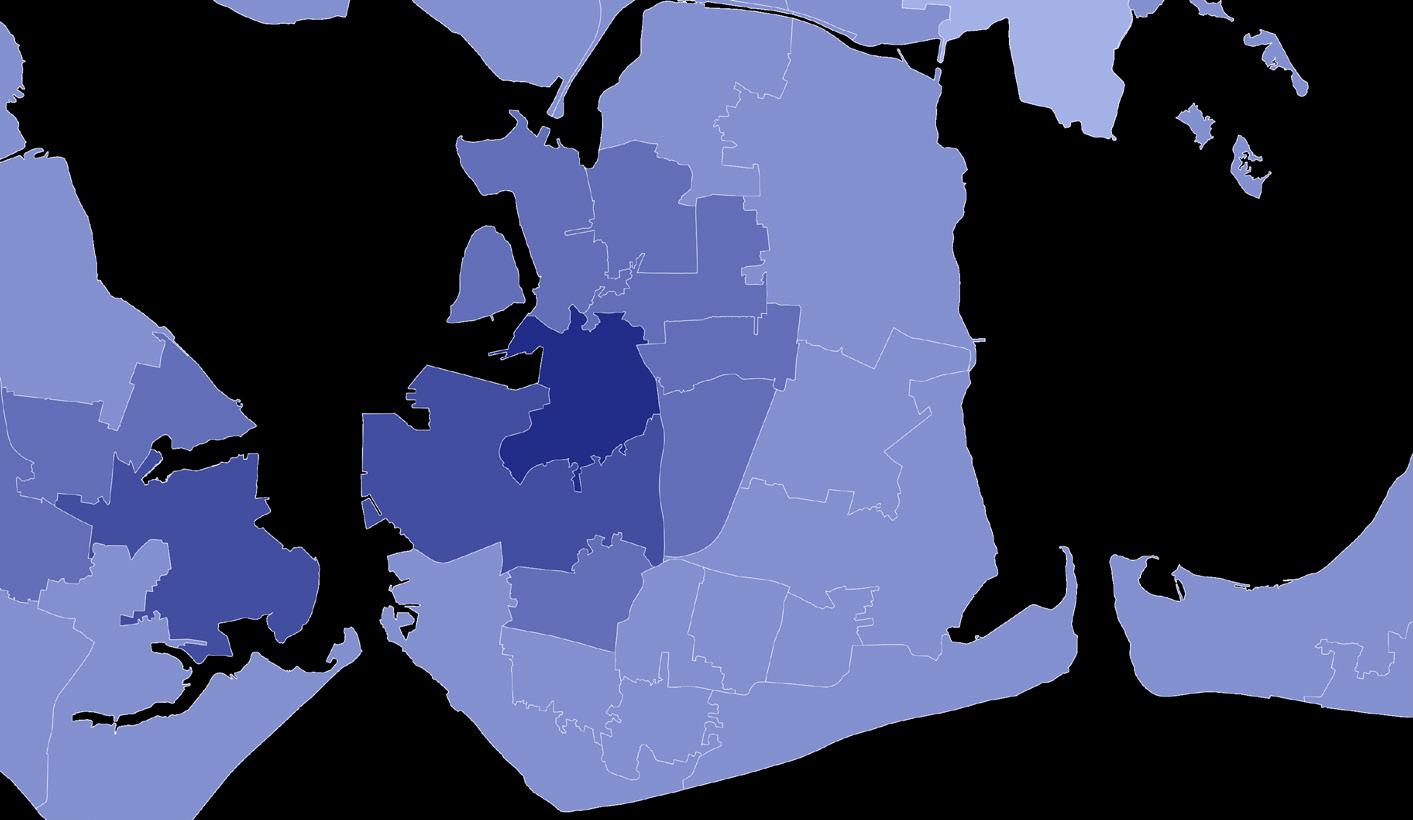

0 e Ana ys s P o o p O U O Urban Fabric Map CirculationMap NoliMap Unused Buildings Map HomelessVegetationMapDataMap Key Residential: Students and Locals Food/Drinks Shops EntertainmentPublicHomeTransportClothingitemsServices Health and Beauty Religious Use GreenBanksTech OtherUnusedAreasStores Walk Routes Map Key Main Road 1 Main Road 2 Train station Bus EntrancesStops to Commercial Road Map BuildingsKey Map UnusedKeyBuildings Map VegetationKey

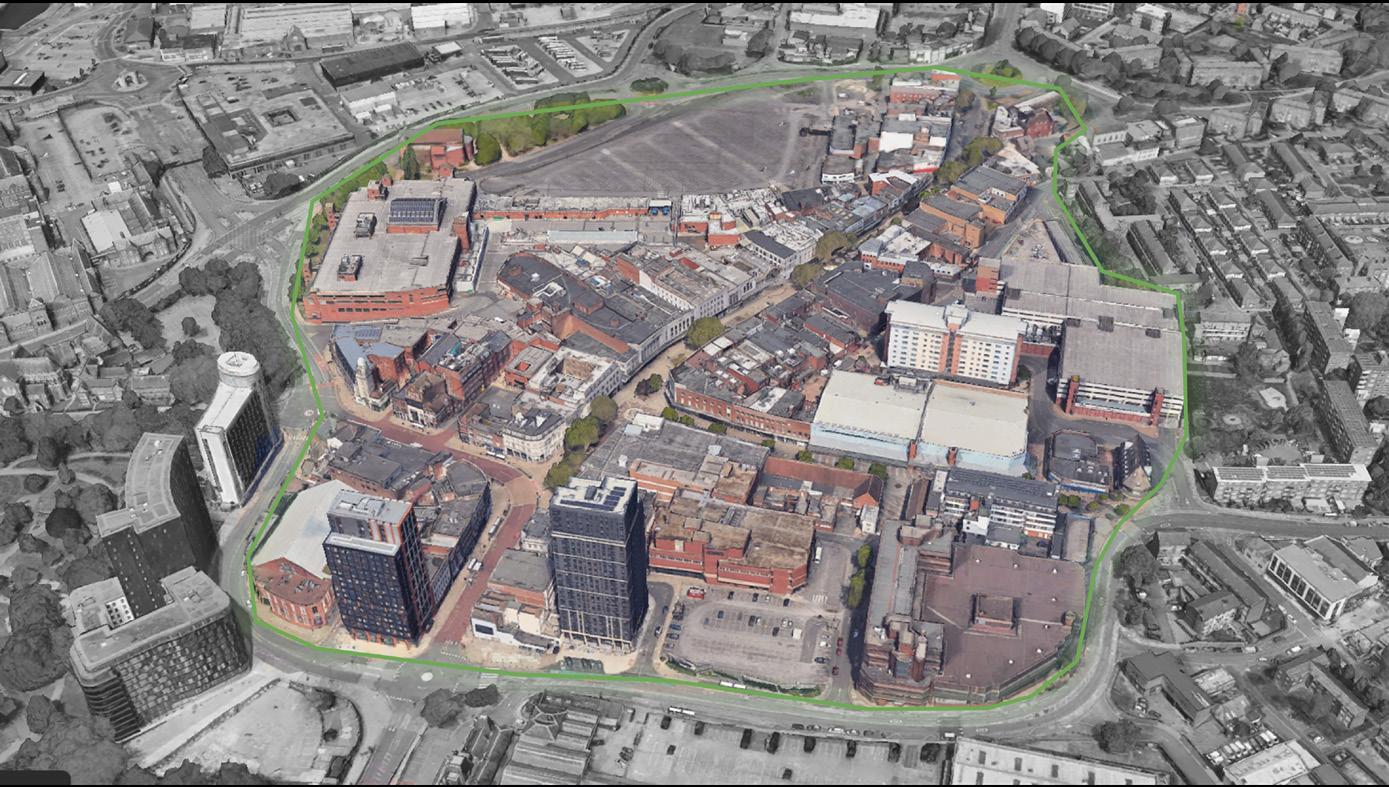

For our 1st project in the 3rd year of university we were given the task of creating ways to revitalise Com mercial Road. An popular City Centre within Portsmouth which overtime has begun to lose it’s purpose, whether due to the change in society in how we purchase or due to situations out of they’re control such as a global pandemic. The goal was to analyse the site, understanding what is present, what is missing, what could be added and what could be improved in order to bring more life to this area bringing it back to it’s old glory.
BA3 -Design Preparation Commercial Road BA3 - Design Prep
Entertainment
After analysing commercial road a few things stood out to me in terms of what commercial road had or prioritised and what was missing or could be added in order to revitalise commercial road increasing it’s positive effect on the Portsmouth landscape.
Community Education Farmers Market Homeless aid Vegetation
CommunityHubs EducationHub EntertainmentHub FarmersHubsMarket Homeless aid Hub BA3 - Design Prep Un Buildingsused Community Hub Education Hub Farmers Market Hub Homeless aid VegetationEntertainmentHubHubs Mass Site Proposal Axo
My focuses were on 6 points: Entertainment - Vegetation - Education - Farmers Market - Homeless aid - Community.
Mass Site plan BA3 - Design Prep Community Hub Education Hub Farmers Market Hub Homeless aid VegetationEntertainmentHubHubs
Communal Hub - Walkway Communal Hub - Roof Garden/Area Communal Hub - Roof Garden/Area Connecting to Education Hub Education Hub - Roof play area Farmers Market Hub - Urban Farm Area and linking walkways Walkway view 1 2 3 4 5 6 2 1 3 4 5 6 BA3 - Design Prep Community Hub Education Hub Farmers Market Hub Homeless aid VegetationEntertainmentHubHubs Mass Site Axo
Personal Works - DigitalChurchArt2021
BA1 - Pottery Studio
BA1 -Pottery Studio
Located in the Heart of Albert Road a bustling Road in Portsmouth known for it’s culture and creativity, the Pottery Studio will add this already established culture, creating an space where artisan and art lovers alike can come to make and ad mire the works made by Portsmouth Ceramists.
Site plan + Ground floor plan 1 - Showroom 2 - Cafe 3 - Stairs/elevator 1 2 3 BA1 - Pottery Studio
1st floor plan 1 - Balcony 2 - Testing/Showcase Area 3 - Toilets 4 - Stair/Elevator 2nd floor plan 1 - Workshop 2 - Creative Studios 3 - Toilets/Elevator 4 - Stair/Elevator 1 2 33 4 1 22 3 4 BA1 - Pottery Studio Basement floor plan 1 - Balcony 2 - Testing/Showcase Area 3 - Toilets 4 - Stair/Elevator 1 1

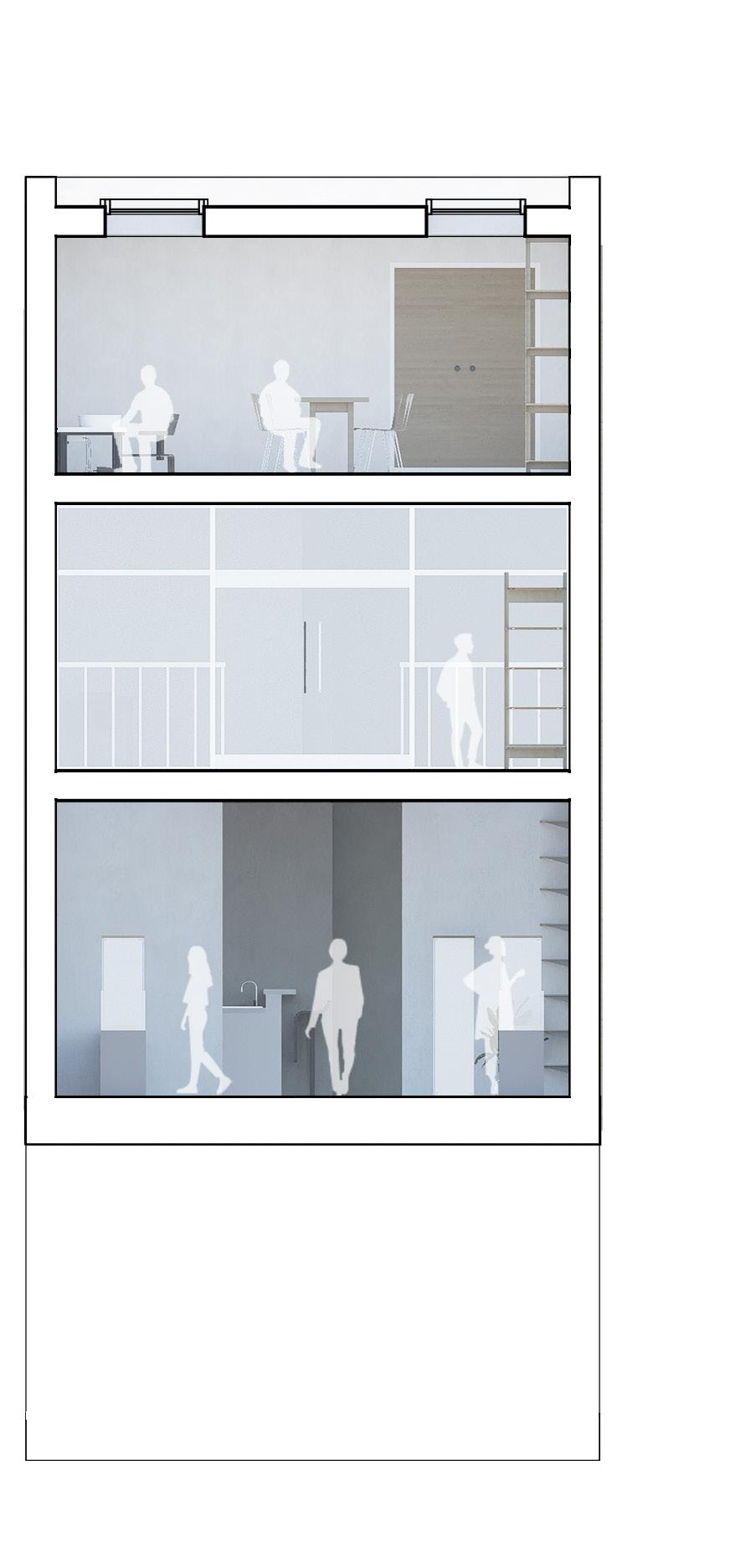

Section BB AA BB AA
