WATER-DRIVEN FOAM PUMP PROPORTIONER WITH HIGH-VISCOSITY CONCENTRATES

The importance to select the most suitable water driven pump type for high-viscous foam agents, including Fluorine-Free concentrates.

necessary to for personal development.

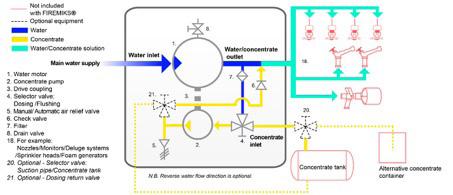

FIREMIKS 2400-3-GP-F-ALU with Gear pump

THE IMPORTANCE OF KNOWING THE VISCOSITY OF CONCENTRATE TO CHOOSE THE RIGHT TYPE OF FOAM PUMP. Today the different brand and types of foam concentrate comes in a wide range of viscosities. To be able to select an

GEAR PUMP TYPES Water driven foam pump systems equipped with Gear pump are particularly suited for use in systems with higher flow rates, such as deluge systems and large fire monitors. Gear pumps are also very suited for high viscosity concentrates, They are equipped with counter rotating gears that creates an even flow that doesn’t agitate the concentrate, furthermore the gears seal even better with high viscosity additives, such as some Fluorine-free concentrates. We have tested a Fluorinefree concentrate up to around 8040 cSt (Brookfield Viscometer spindle #4, rpm 30) with excellent result. (Contact us if you are interested in summary of test report.) Compound from all observations when testing our units using very highviscosity concentrate, is that one should, apart from always having gravity feed and as straight line as possible, ensure that diameter on the piping is big enough for the concentrate delivery and to avoid longer concentrate lines. For help with more detailed recommendations of optimal foam delivery line, feel free to contact us.

PISTON PUMP TYPES Water driven foam pump systems equipped with Piston/plunger pumps are particularly suited for use in systems with low start flows, for example sprinkler systems. Piston pumps are also very suited for low and medium viscosity concentrates. Important to know is that Piston pumps have a limit upwards to high viscosity concentrates for correct dosing (normally around 4,000-4,500 cSt) due to the Piston pump principle; for each revolution the plunger sucks concentrate and then presses it out and the concentrate goes from zero to full speed twice per revolution. If the static viscosity is too high with non-Newtonian concentrates, the concentrate will not flow smoothly and therefor the correct dosing rate might not be achieved. FIREMIKS proportioners is offered with both types of pumps, Gear and Piston (plunger). Among several important factors, by them flow and pressure, we always collect info of the concentrate, incl viscosity, before we propose which type of foam pump we will offer our unit with. FIREMIKS is available in different flow sizes, from max capacity of 150 lpm up to 10,000 lpm, (with units installed parallel on skids, we offer flows up to 20,000 lpm) and with fixed dosing alternatives of 0,5% 1%, 2%, 3%, and selectable 0,3-0,6-1% or 1-2-3%, and on some models 1-3-6%. Other dosing options are available on request. FIREMIKS 10000-3-GP-F-ALU Belt drive option NEW GEAR PUMP GENERATION We have recently expanded our line of Gear pump model by also offering a Belt drive solution to our standard direct Drive gear models, with this we can now offer an even broader array of suitable solutions for different applications. Including units with separately UL-approved Gear pumps. Some advantages: Lower pressure drops than before can be achieved with optimized water motor speed. Possibility to optimize dosing rate for different operation scenarios, and an even more compact solution with a reduced footprint. ECONOMIC AND ENVIRONMENTAL SAVINGS WITH DOSING RETURN VALVES All FIREMIKS-units can, if requested, be supplied with a Dosing return valve (DRV) enabling regular tests without consuming any concentrate, an economically and environmentally beneficial option. See also Principle flow chart, pos 21: FIREMIKS meets applicable parts of NFPA 11 and NFPA 1901 and production is made according to European directive 2006/42/EC = CE marked. A selected line of six sizes are FM-approved, incl. different water motor material: hard anodized and PTFE-coated ALU, Al-NiBronze or Stainless-steel ASTM 316 L. We offer also Third-party inspection certificates from for ex. DNV-GL, towards NFPA 11 and/or EN 13565 for

the whole range.

For more information, go to www.firemiks.com Per Aredal Firemiks AB / 2020-10-05

ABOUT THE AUTHOR Per Aredal is International Sales Director at Swedish company Firemiks AB, with long experiences of producing water driven foam pump proportioners.
