ART X-CHANGE PROJECT Shai Nibbs | Joanna Waliuba | Helen Dymek

CHALLENGES

INNOVATIONS

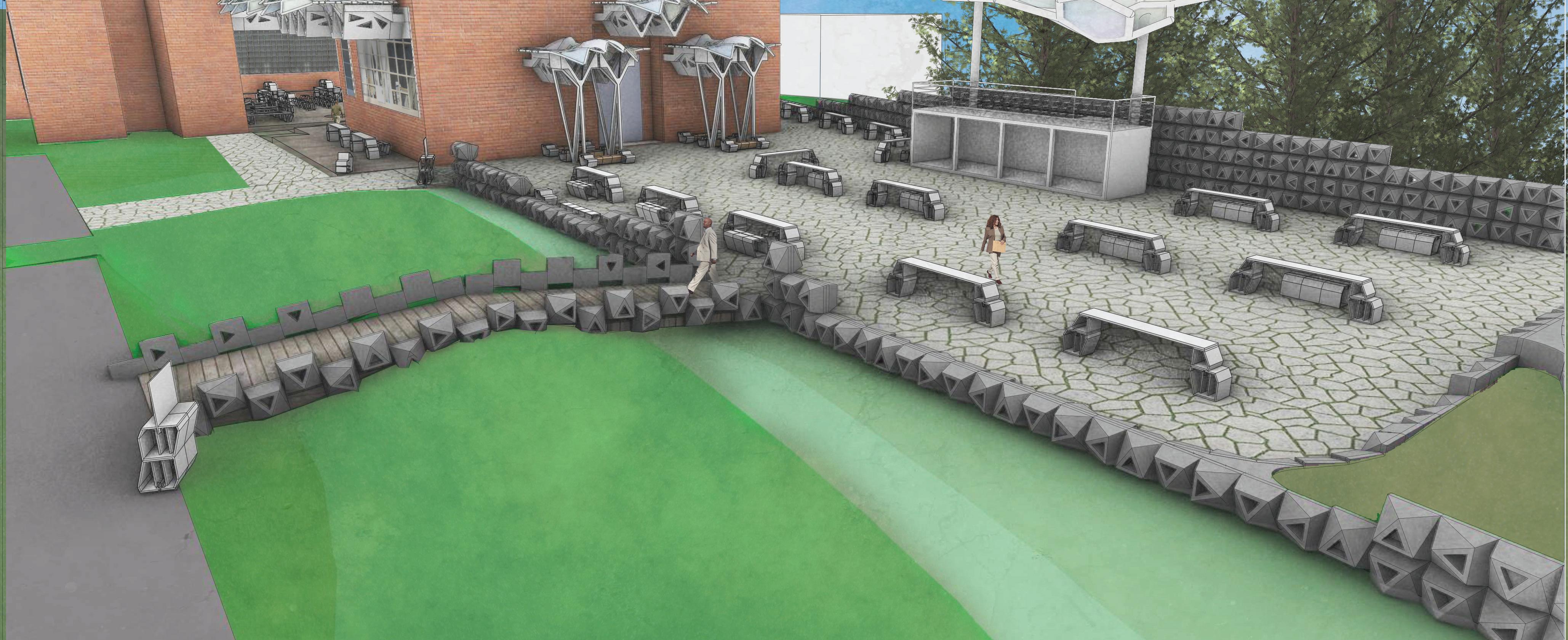

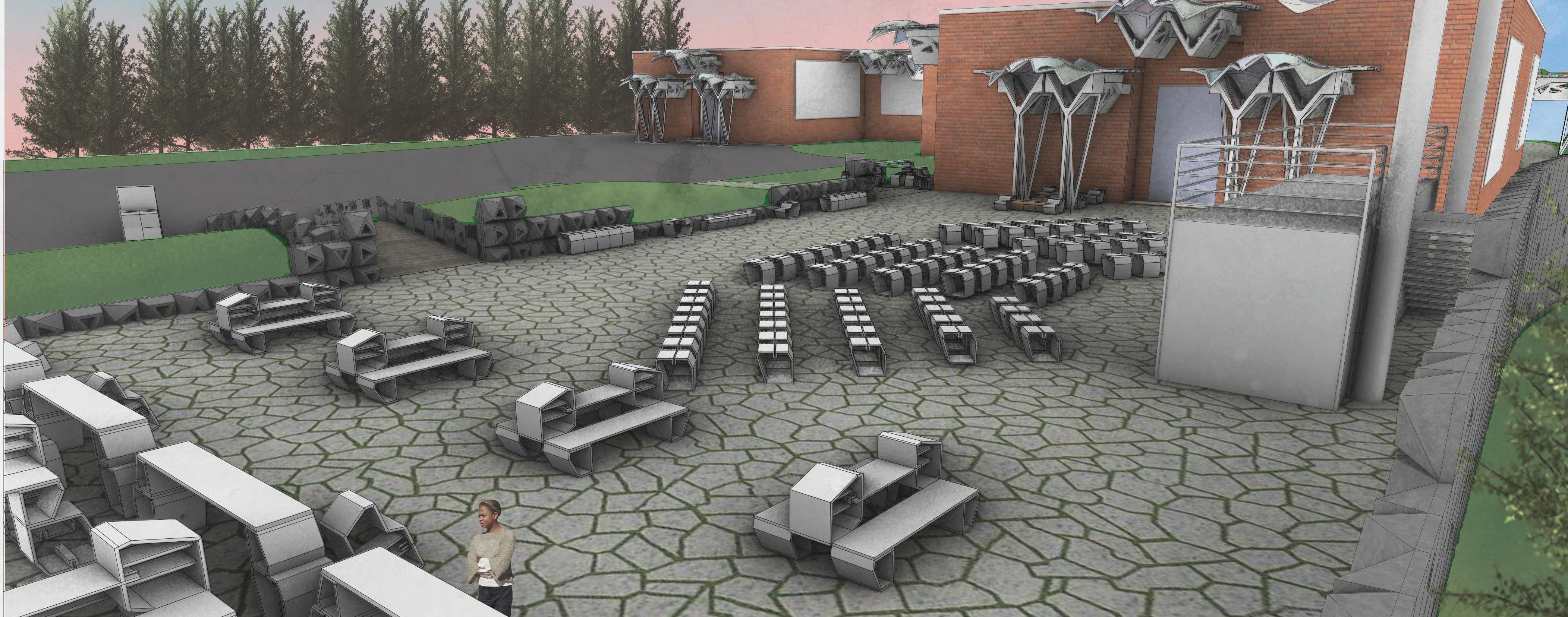

Outdoor area organization

Modular furniture

Heating

Canopy

Landscape

Concrete Wall

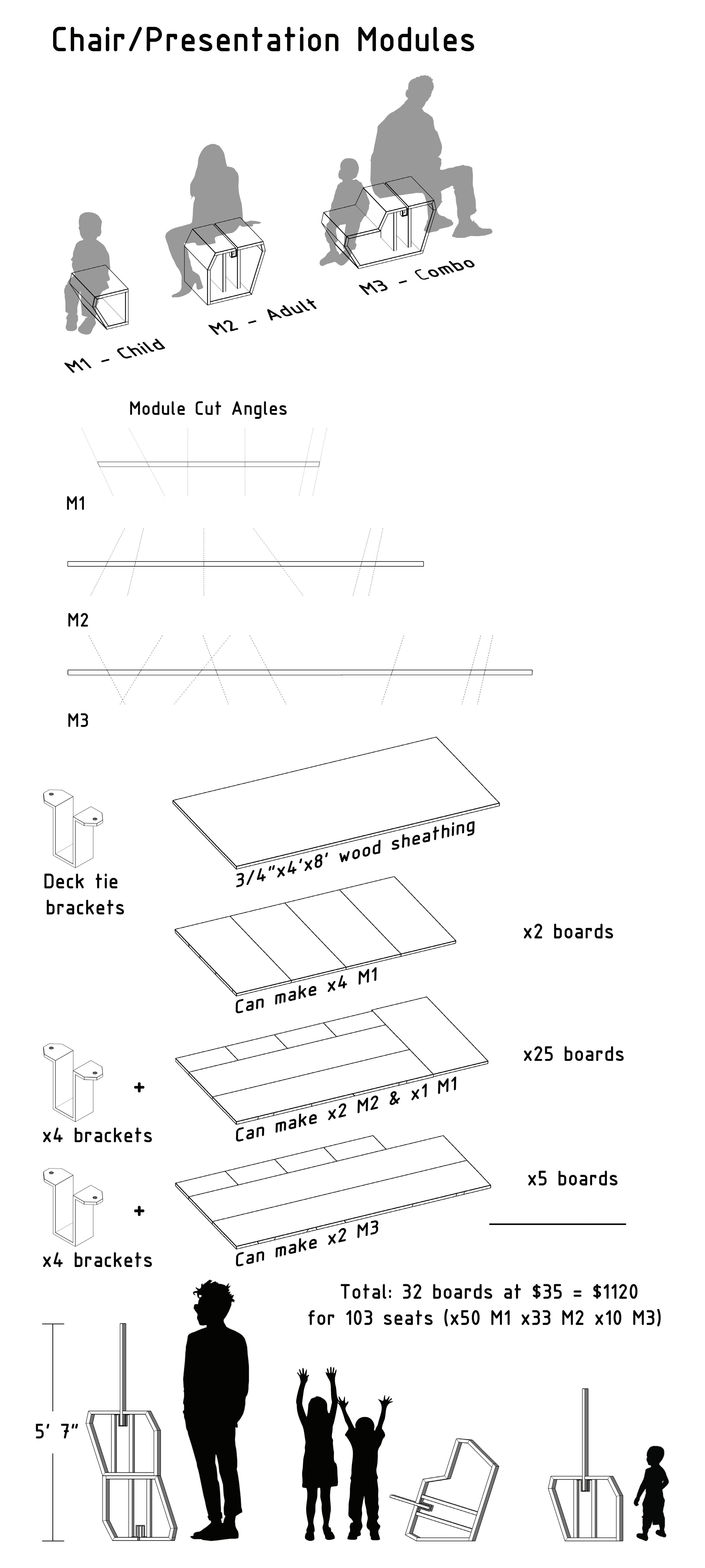

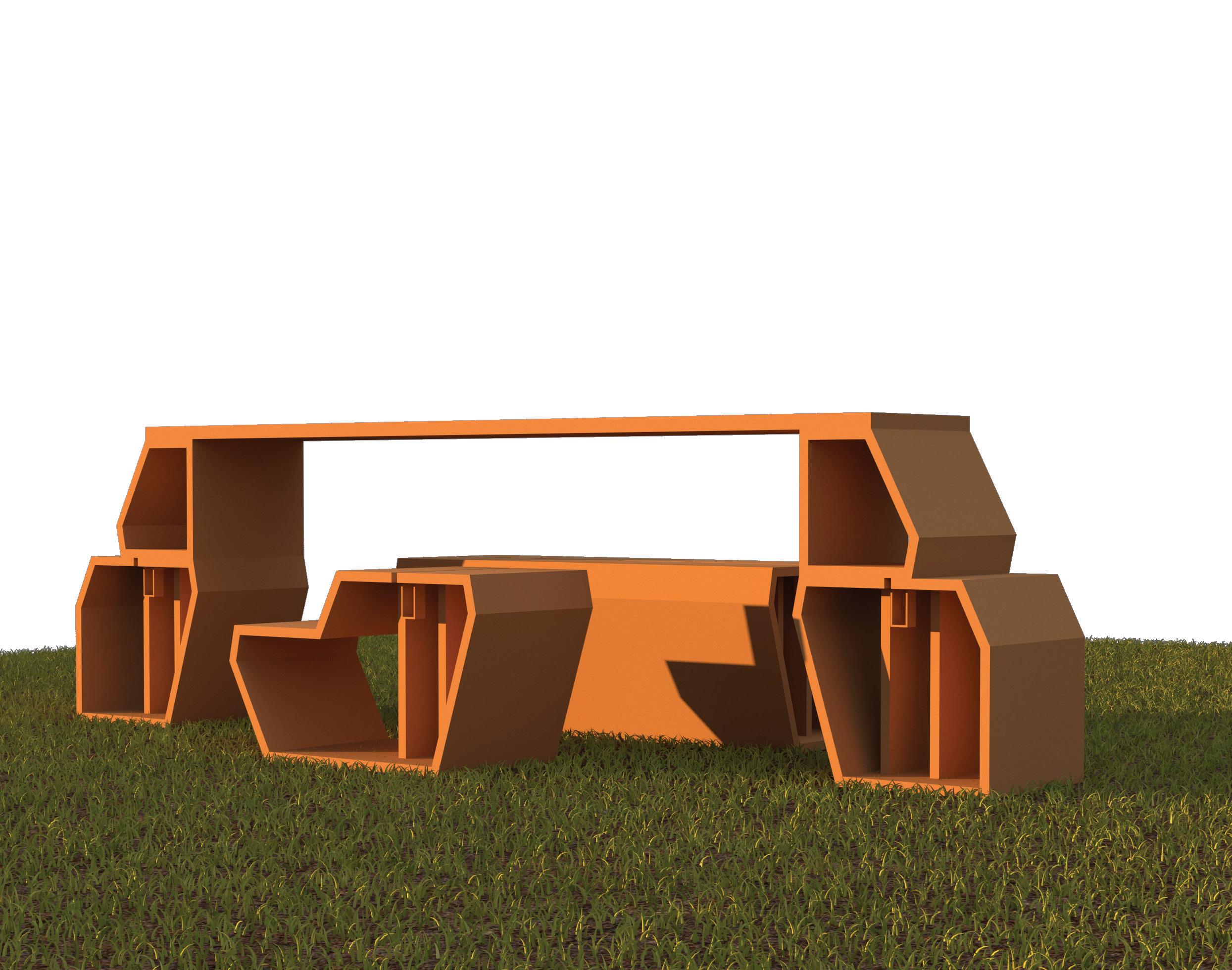

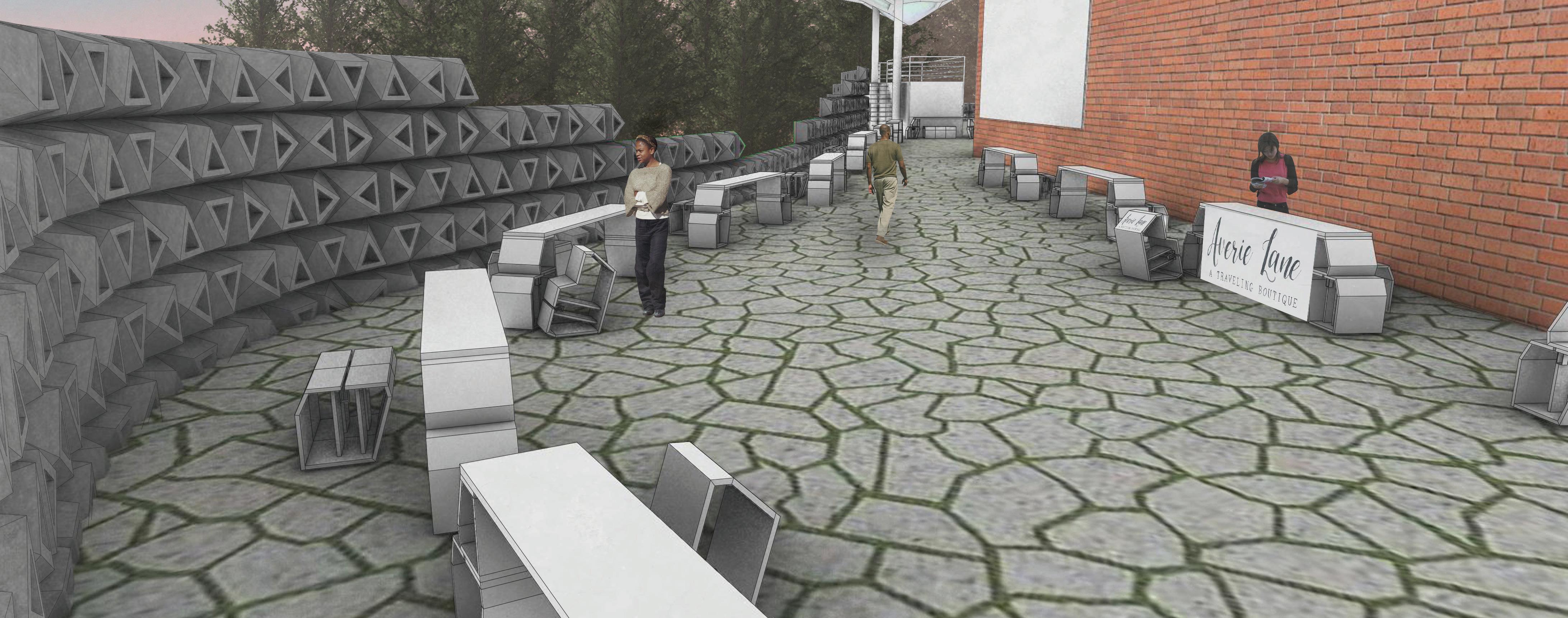

Furniture Designed to be used by all ages, this modular seating is also able to be presentation stands, display units, and tables. There are 3 modules creating many possible combinations and seating/display arrangments based on specific events. They are also design to be built from a standard 4’x8’ sheet of wood to waste less material

WOOD SHEATHING / OSB LUMBER

COST:

CHALLENGES

INNOVATIONS

Outdoor area organization

Modular furniture

Heating

Canopy

Landscape

Concrete Wall

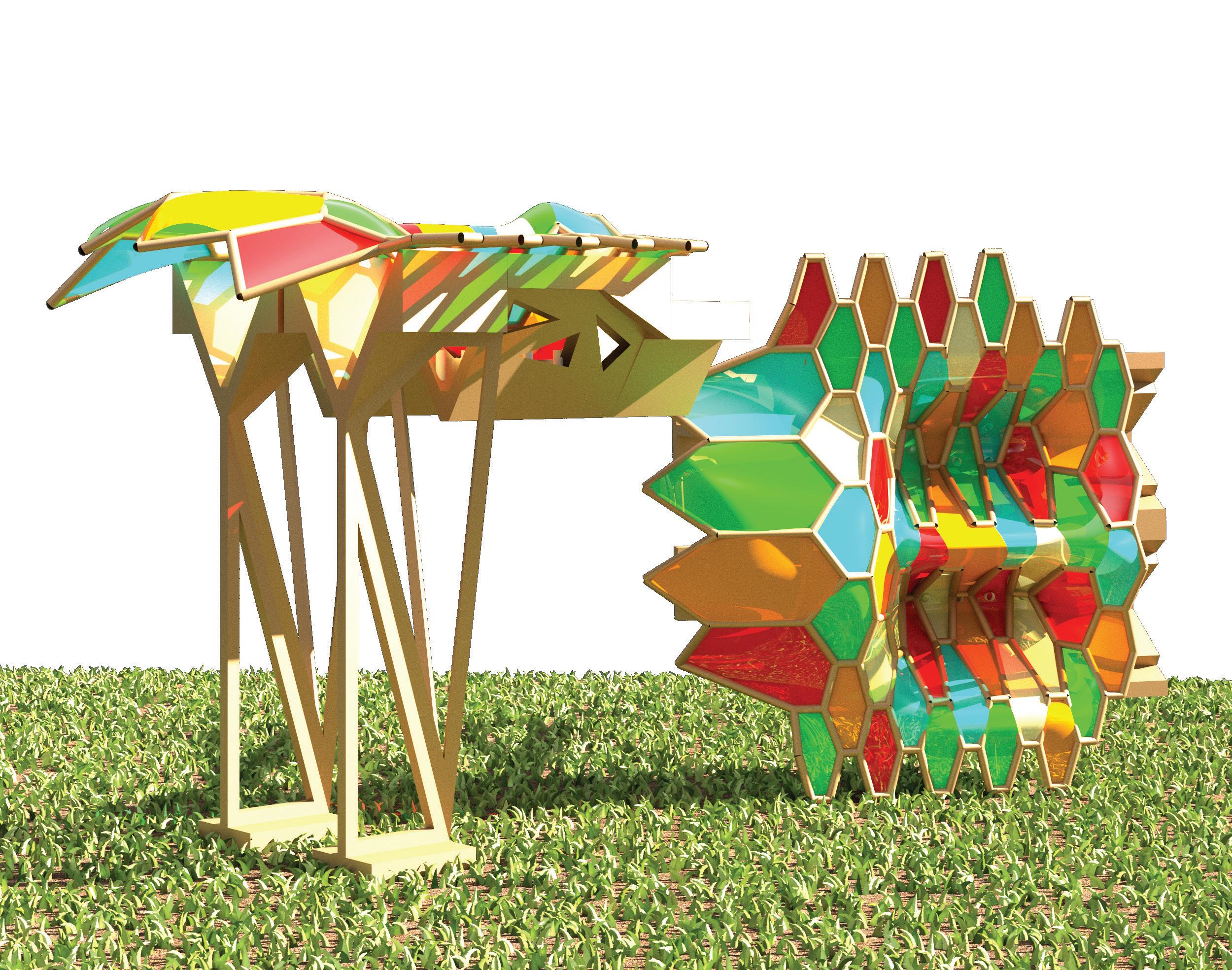

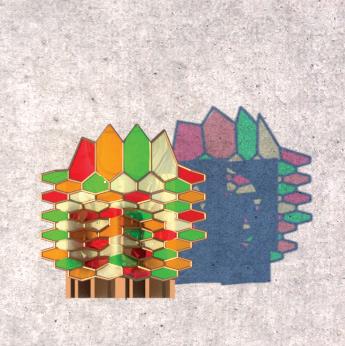

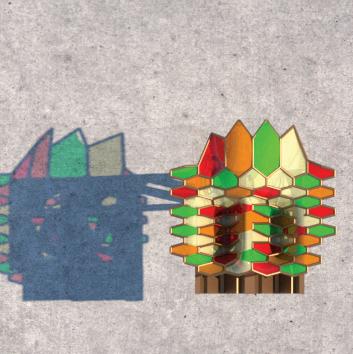

The Canopy Designed to shade the building and offer a standing out quality in the neighbourhood. Presented in a modular manner, the canopy can be installed in phases.

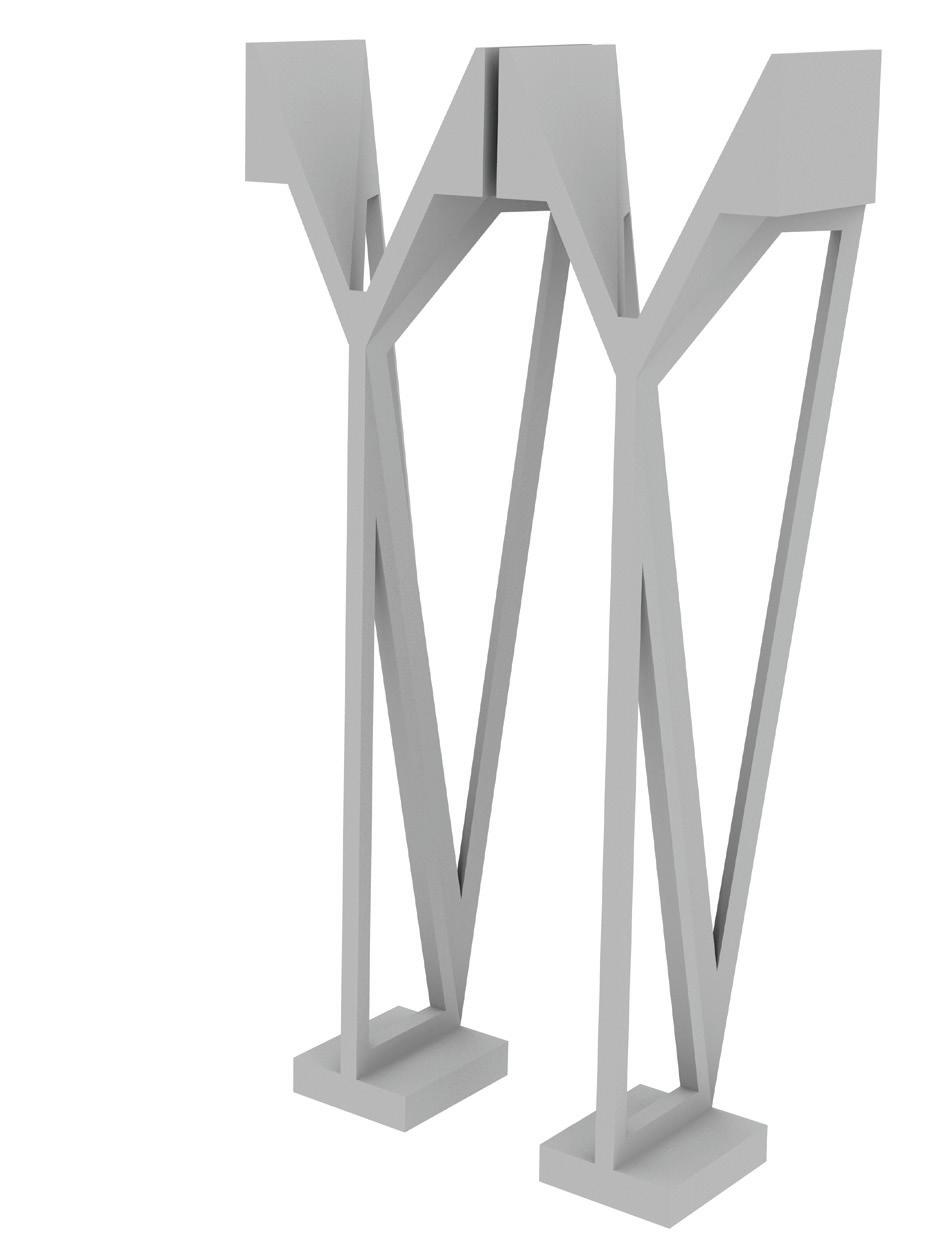

Support -

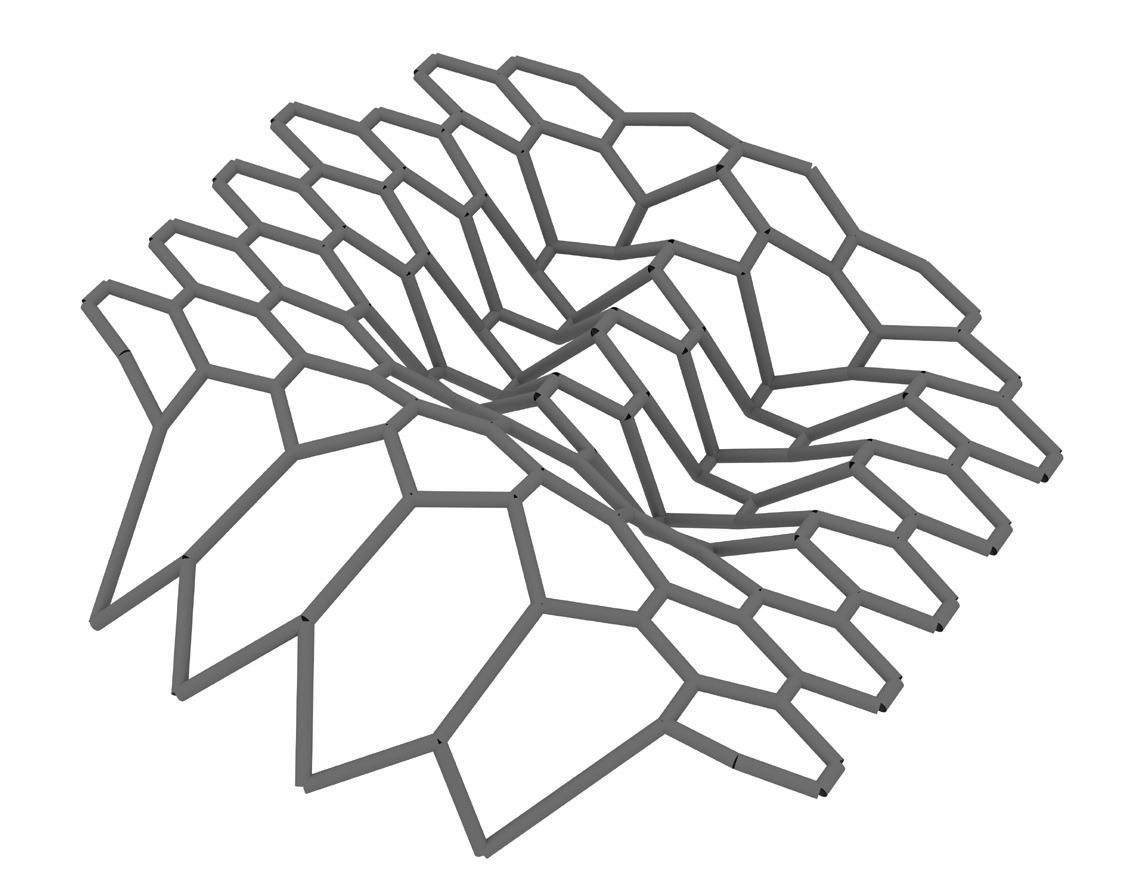

Canopy Frame

Aside from support, this serves as a rain water outlet. Made up of dowels to connect with the Canopy frame

Canopy ‘drape’

Support base

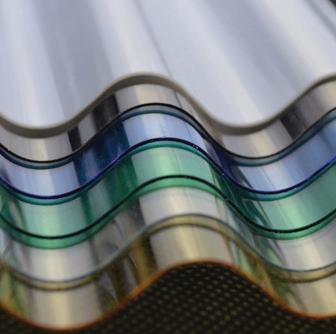

POLYCARBONATE ROOF

STEEL| CONCRETE

7 ft

Contender based on Precedent

12 ft

Recycled metal from the playground.

24” X 24” = $8 One module ranges from $380 - $500

scrap metal prices start at $2 a pound

15 ft

9:00 a.m.

12:00 noon

3:00 p.m.

CHALLENGES

INNOVATIONS

Outdoor area organization

Modular furniture

Heating

Canopy

Drainage

Retention pond

Landscape

Concrete Wall

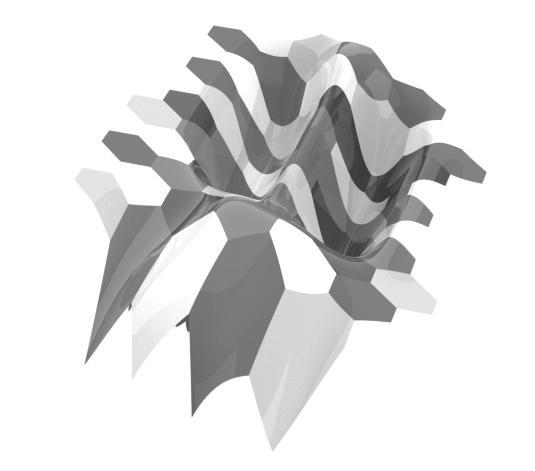

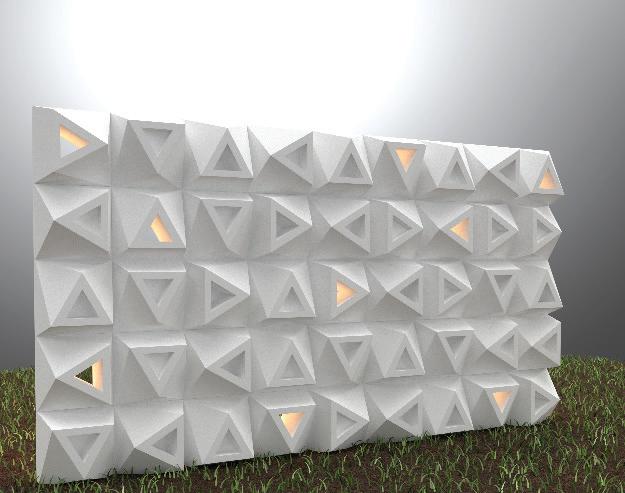

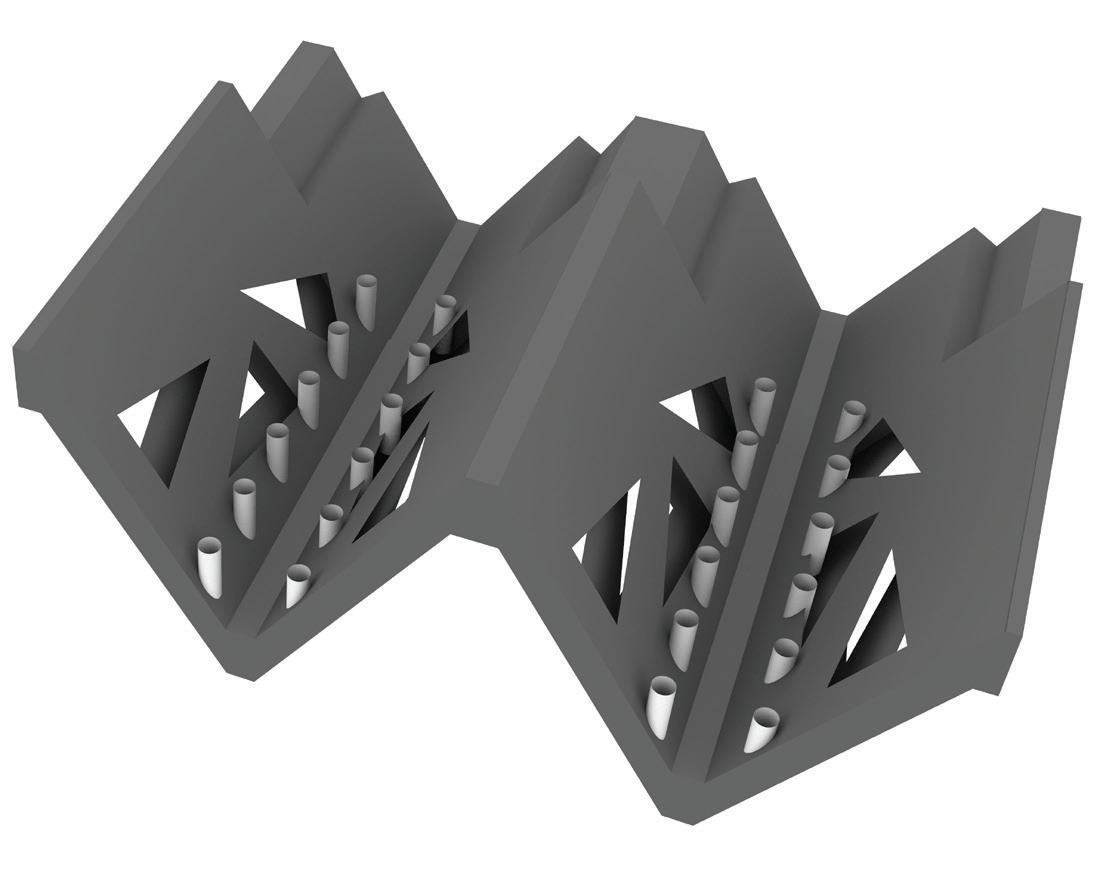

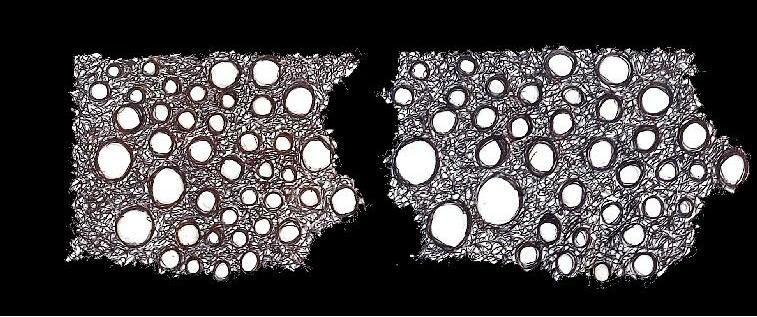

Parametric Framework

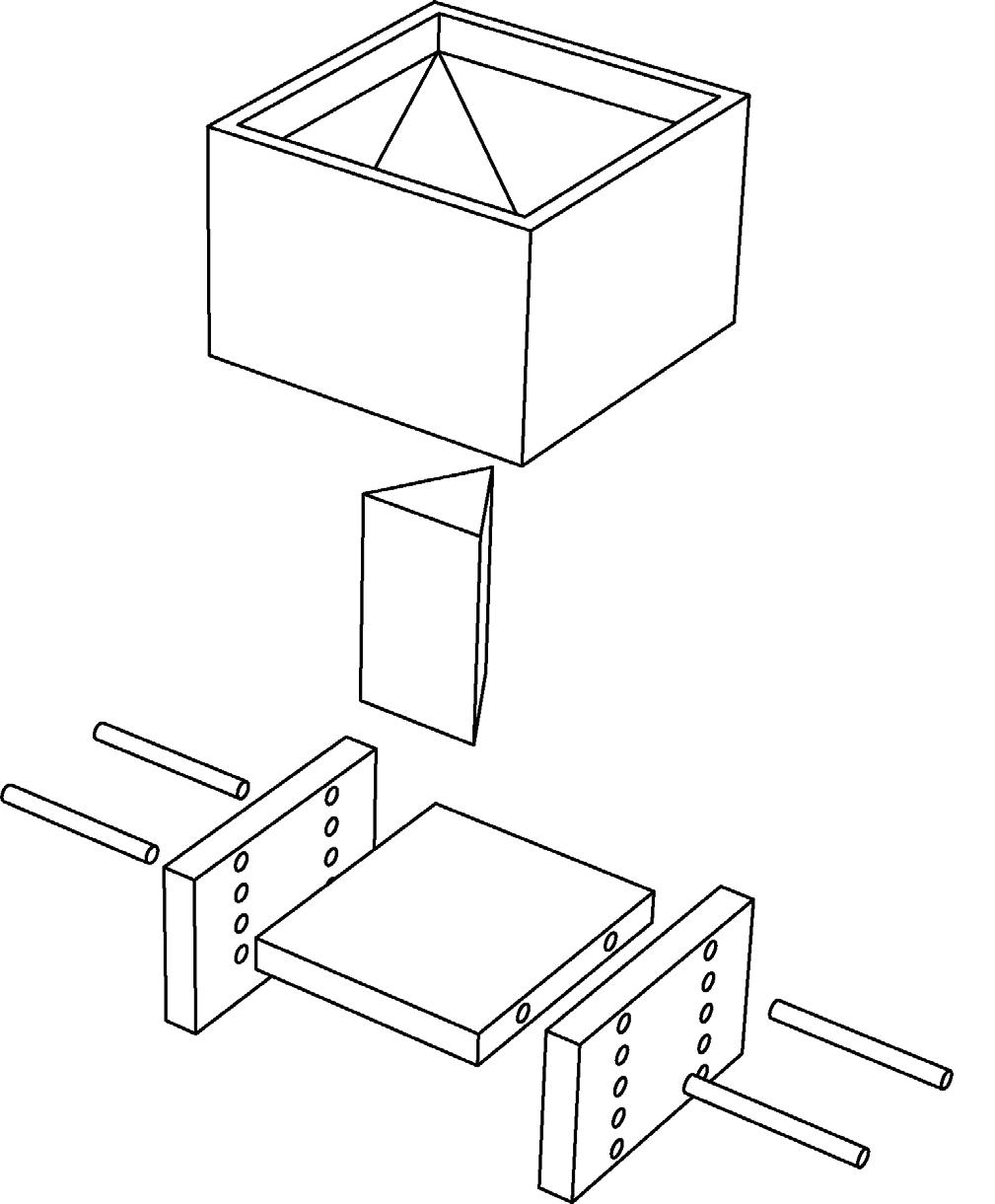

Formliner and Casting

2’

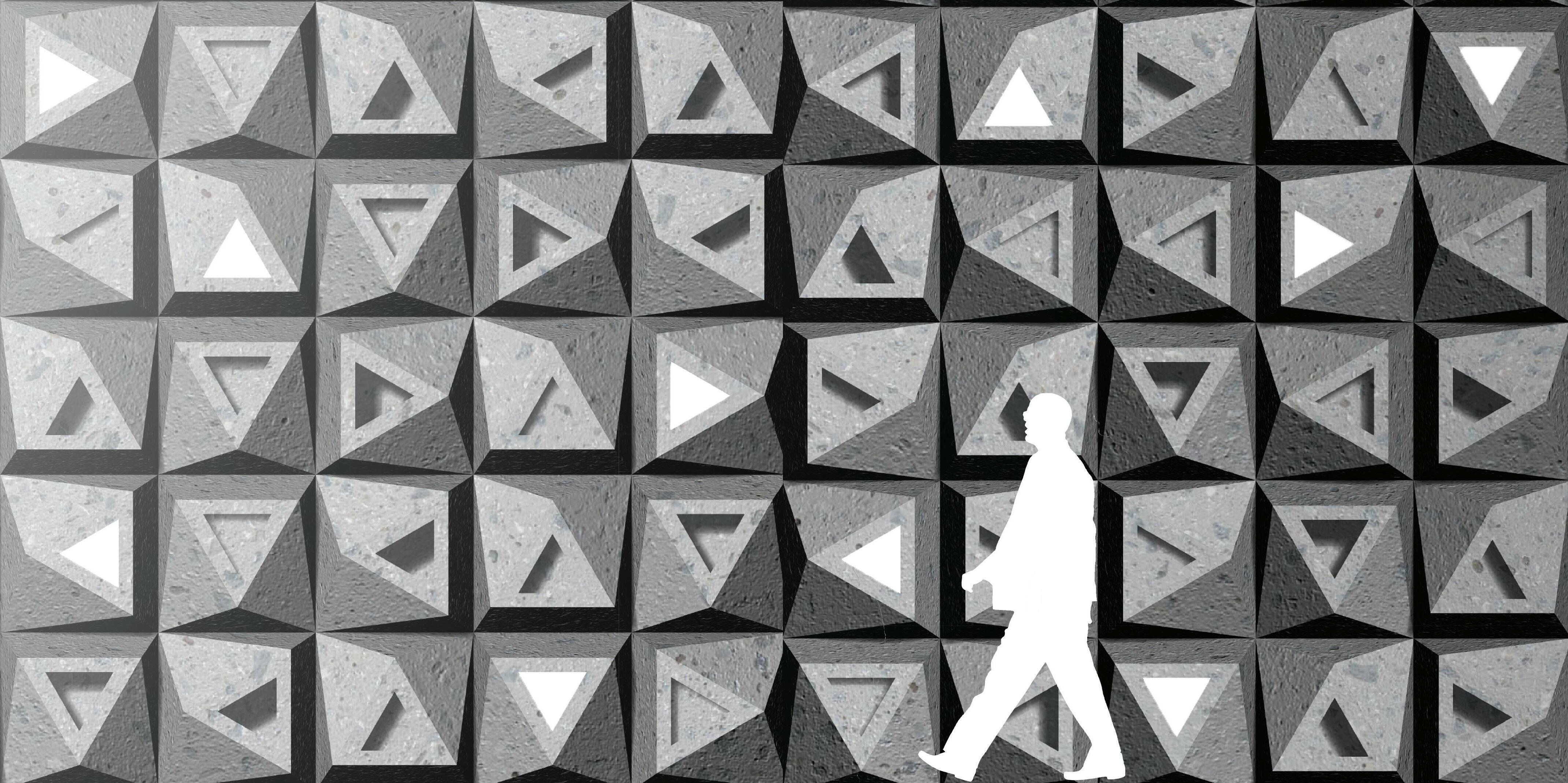

2’ The Wall

Pegs in the form liner allow for varying depths in the concrete.

Bublé Lookout Tower

JadeLefebre | Toyin Olurebi | Keilani Patton | Vincent Ramos | Joanna Waliuba

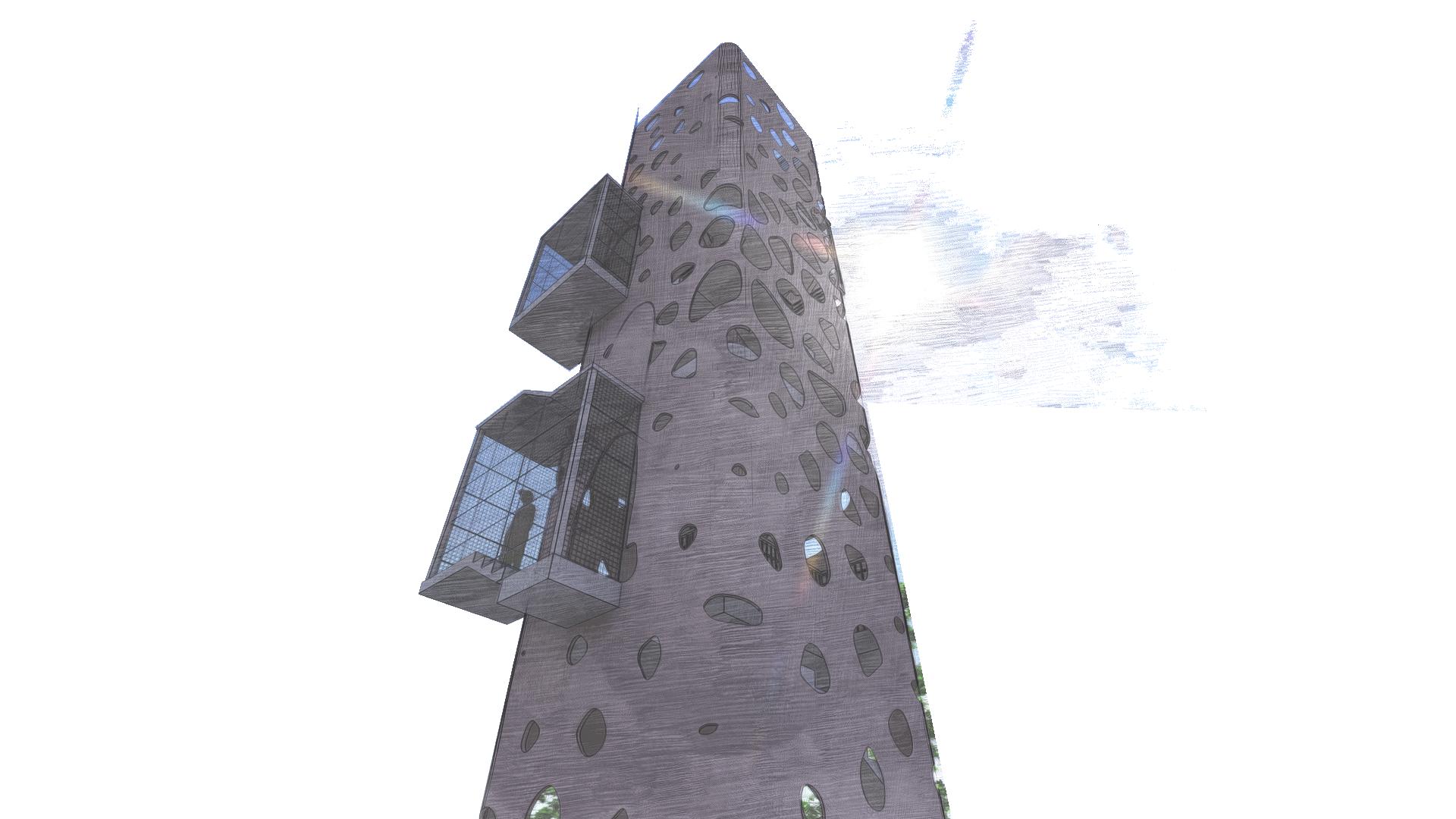

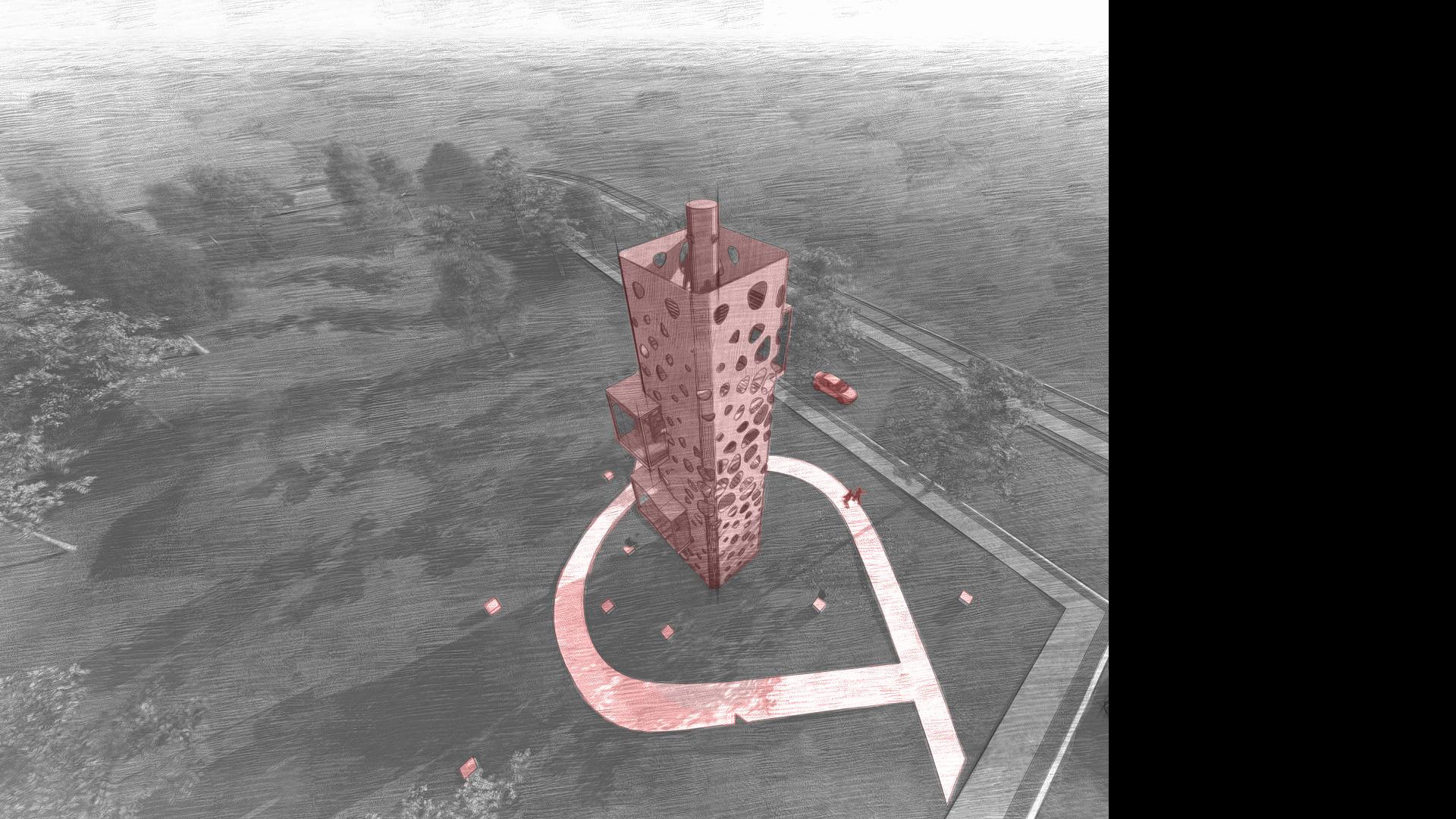

Bublé Lookout Tower JADE LEFEBVRE TOYIN OLUREBI KEILANI PATTON VINCENT RAMOS JOANNA WALIUBA

“The Bublé look out tower is a total

level. It also Includes parametric cir-

pre cast structures in the heart of

cular openings that vary based on

sweet auburn district, which allows

location, sun, and optical view. This

for scenic views on all sides. It fea-

towers sleek design lets it stand out

tures a indoor to outdoor circulation

from afar without over bearing the

to catch a glimpse of the city at any

area in which is resides.”

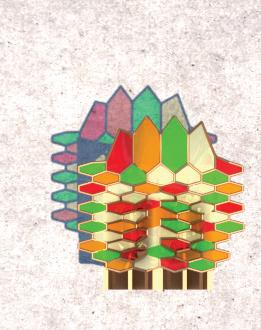

FORM

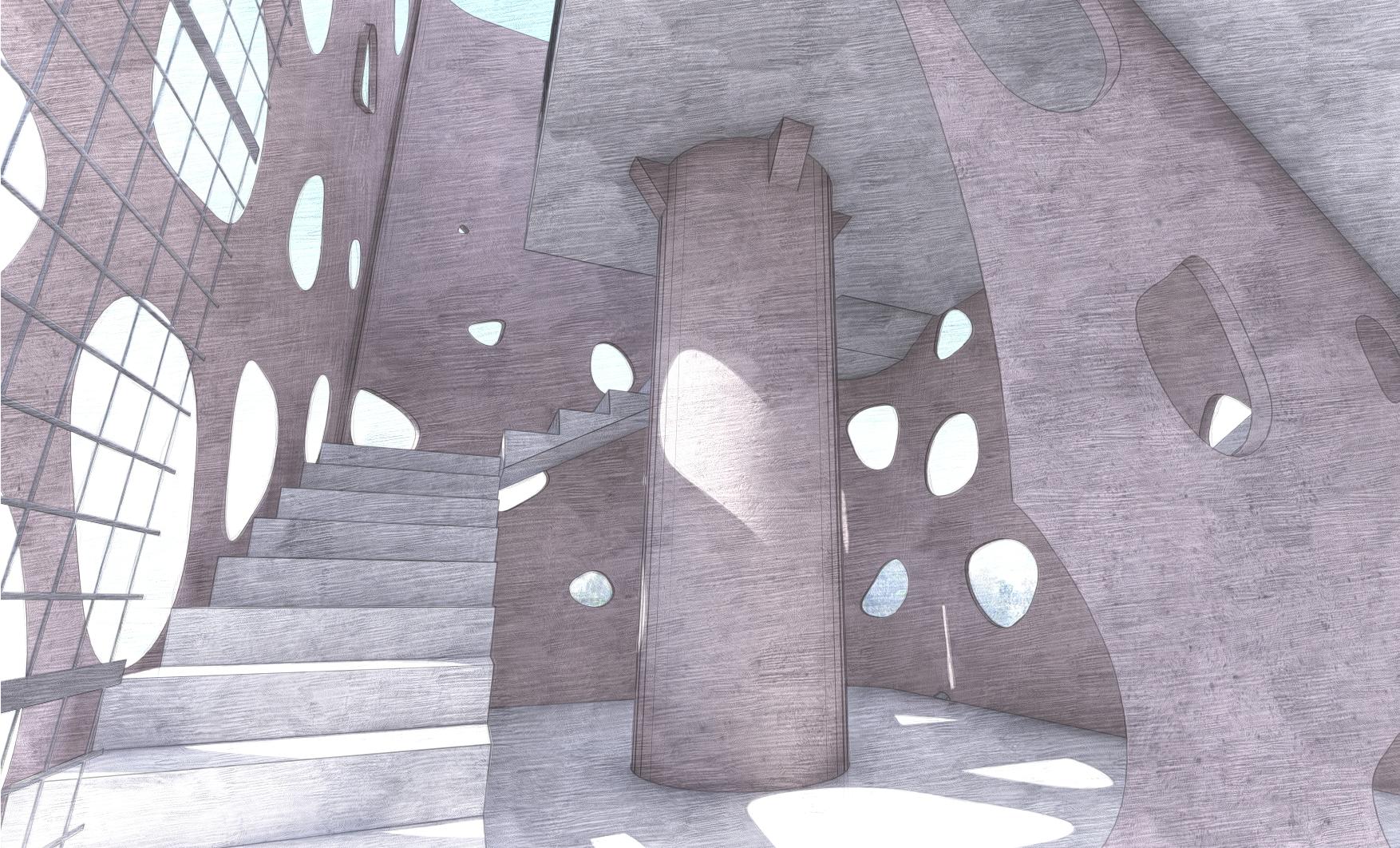

CIRCULATION

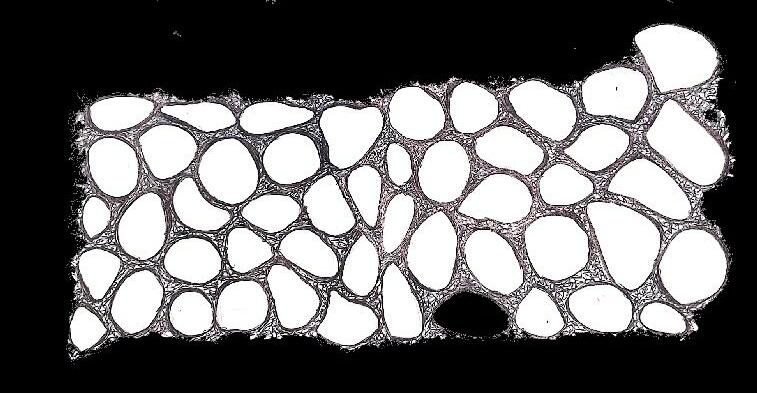

SKIN

SITE PLAN

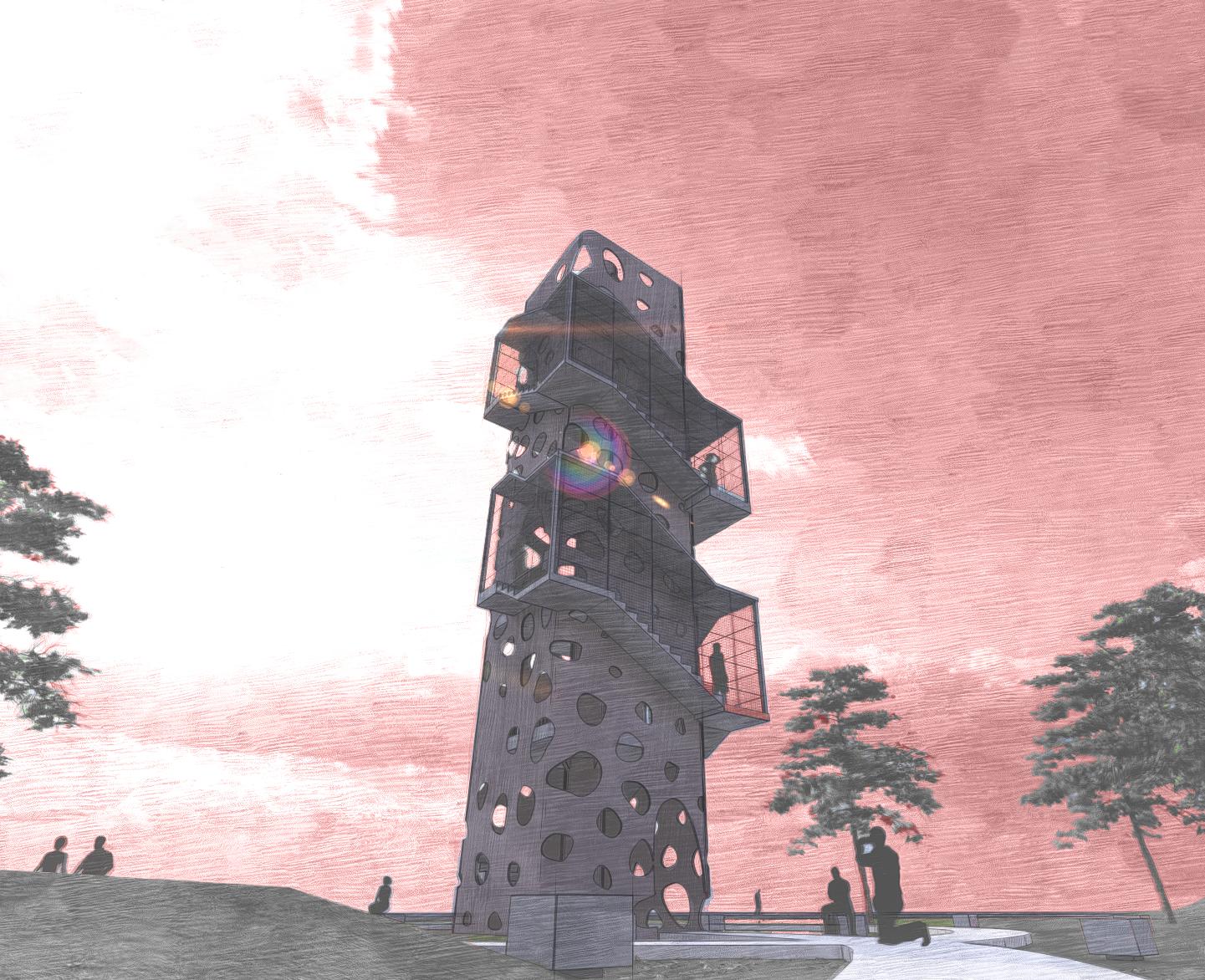

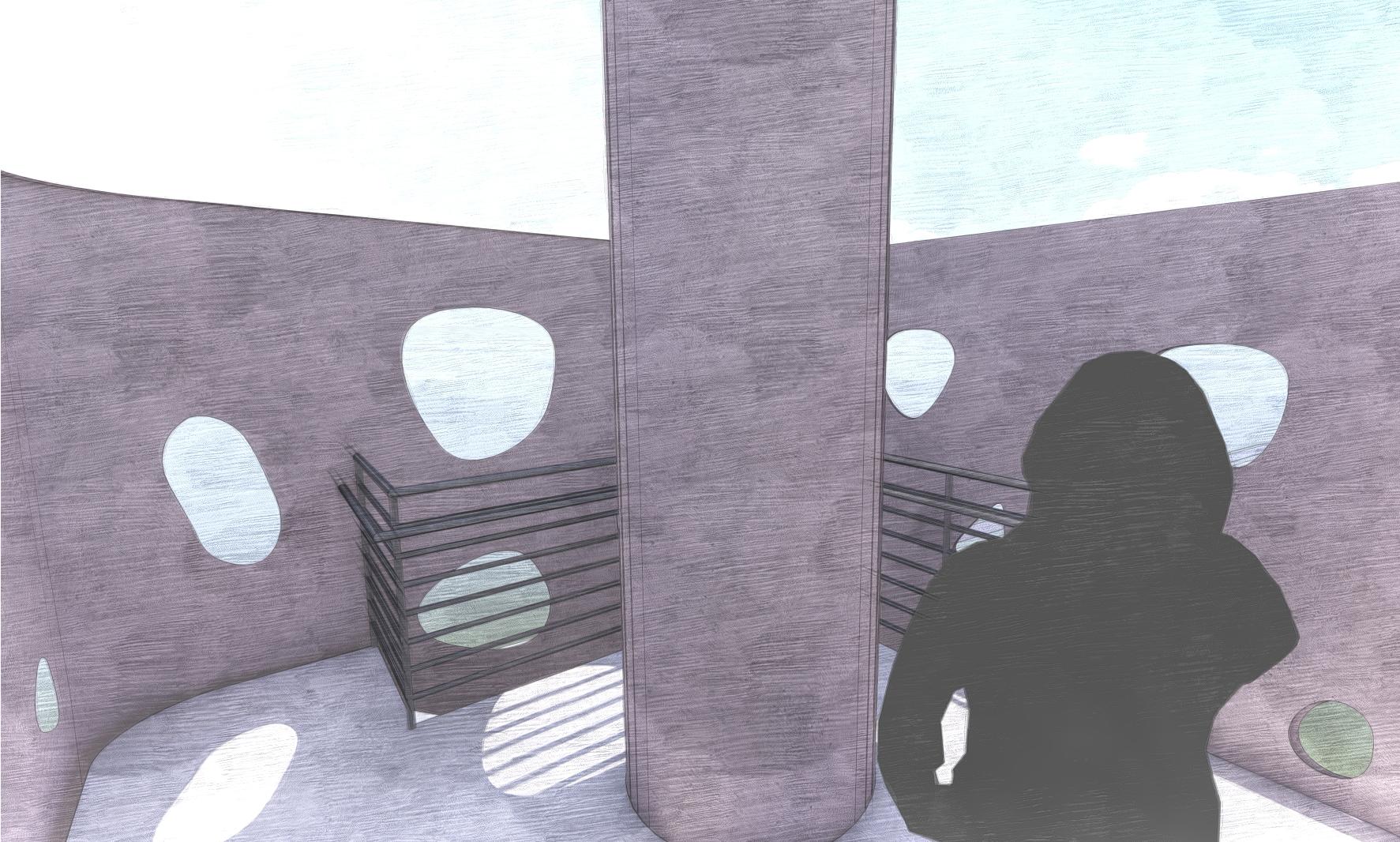

FINAL

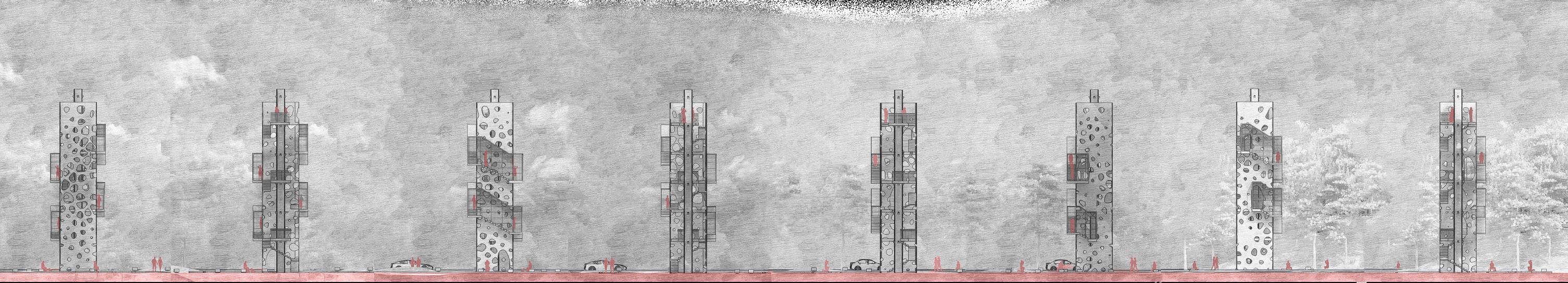

ORTHOGRAPHICS

NORTH ELEVATION

NORTH SECTION

SOUTH ELEVATION

SOUTH SECTION

EAST ELEVATION

EAST SECTION

WEST ELEVATION

WEST SECTION

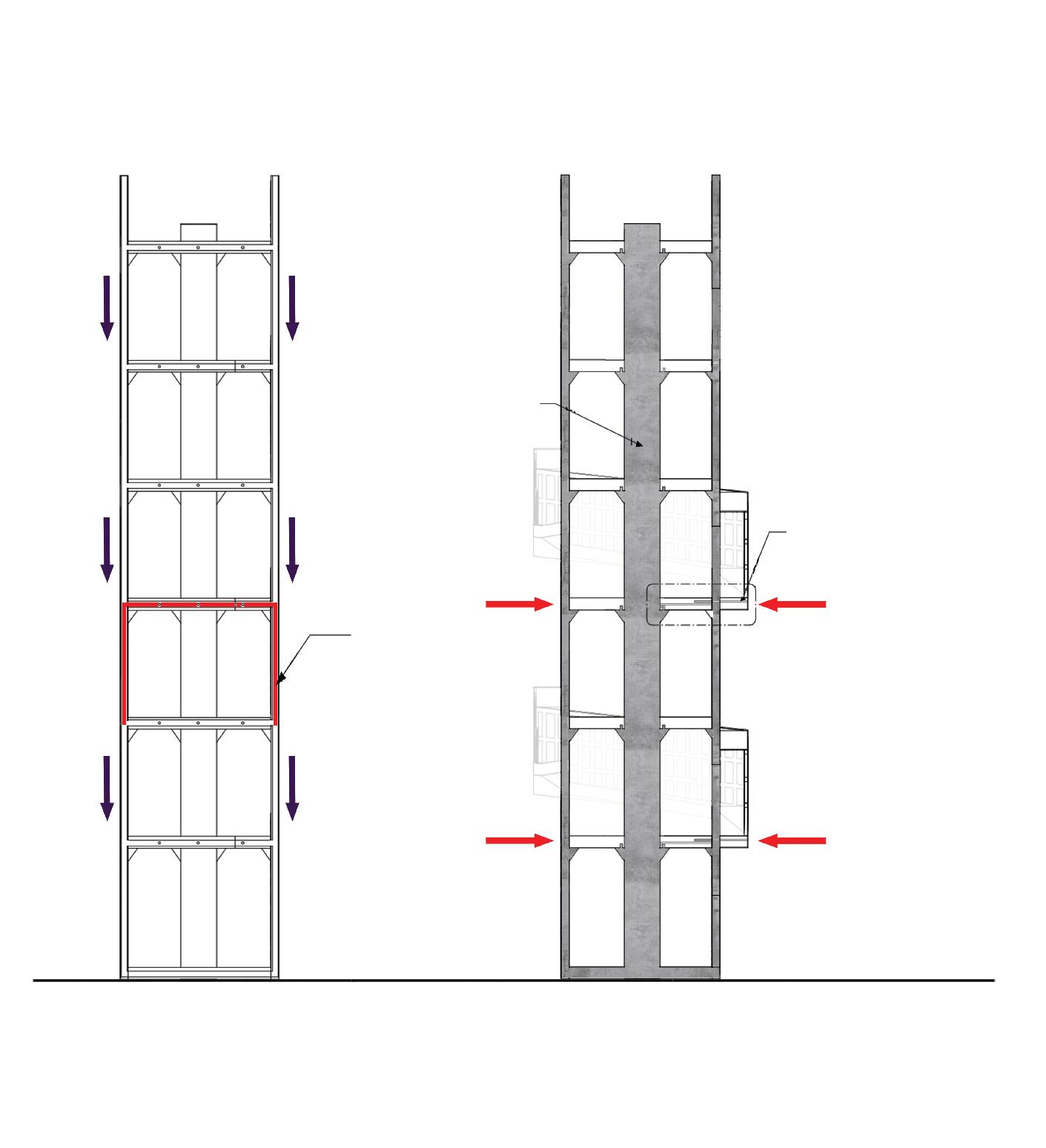

STRUCTURAL MEMBERS Moment Resistance Frame:

Lateral Resistance:

•The portals are precast concrete

•The core helps the lateral loads that

members that are responsible for

are transferered from the walls to the

supporting the towers vertical loads.

floors to the core.

•The portal and core support both the floor and stairs.

CORE

STEEL BARS

PORTAL

SECTION CUT

REBAR

LOCK MECHANISM

REVIT BOLT

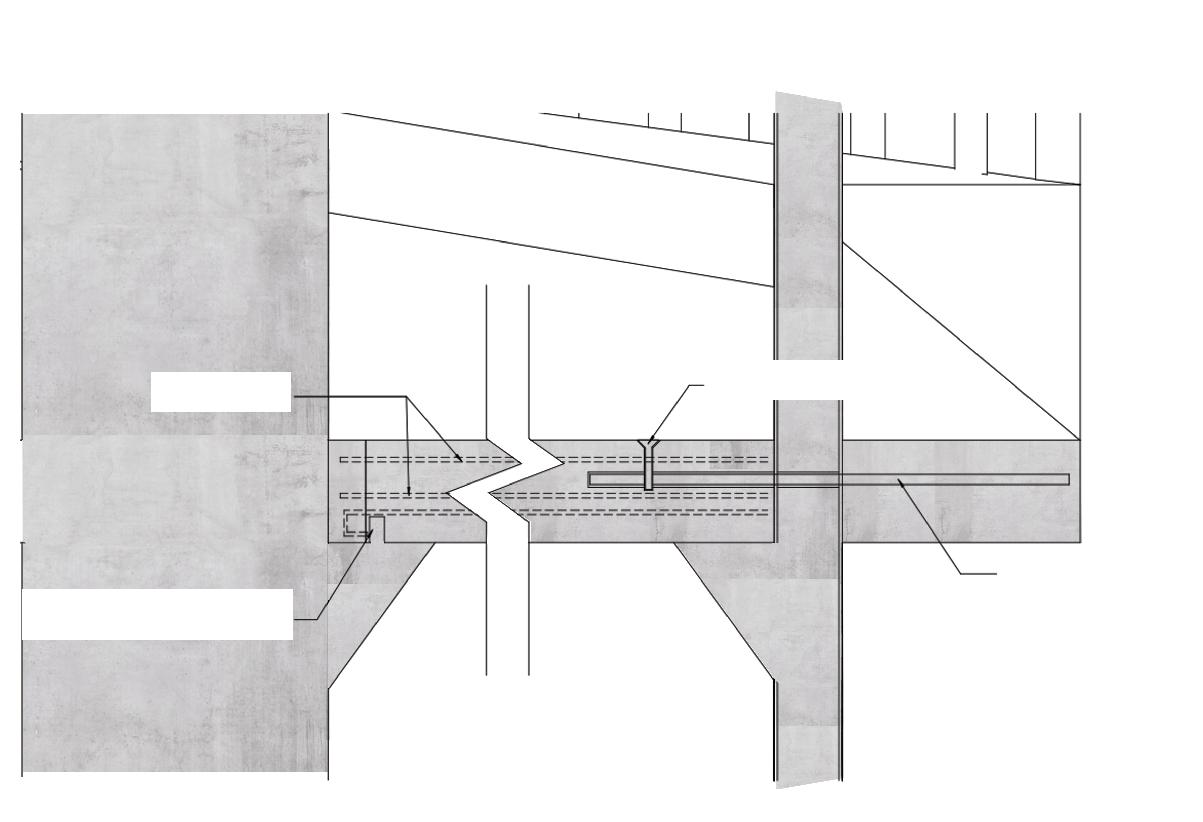

STEEL MEMBER CONNECTION

ZOOM IN ON STEEL CONNECTION

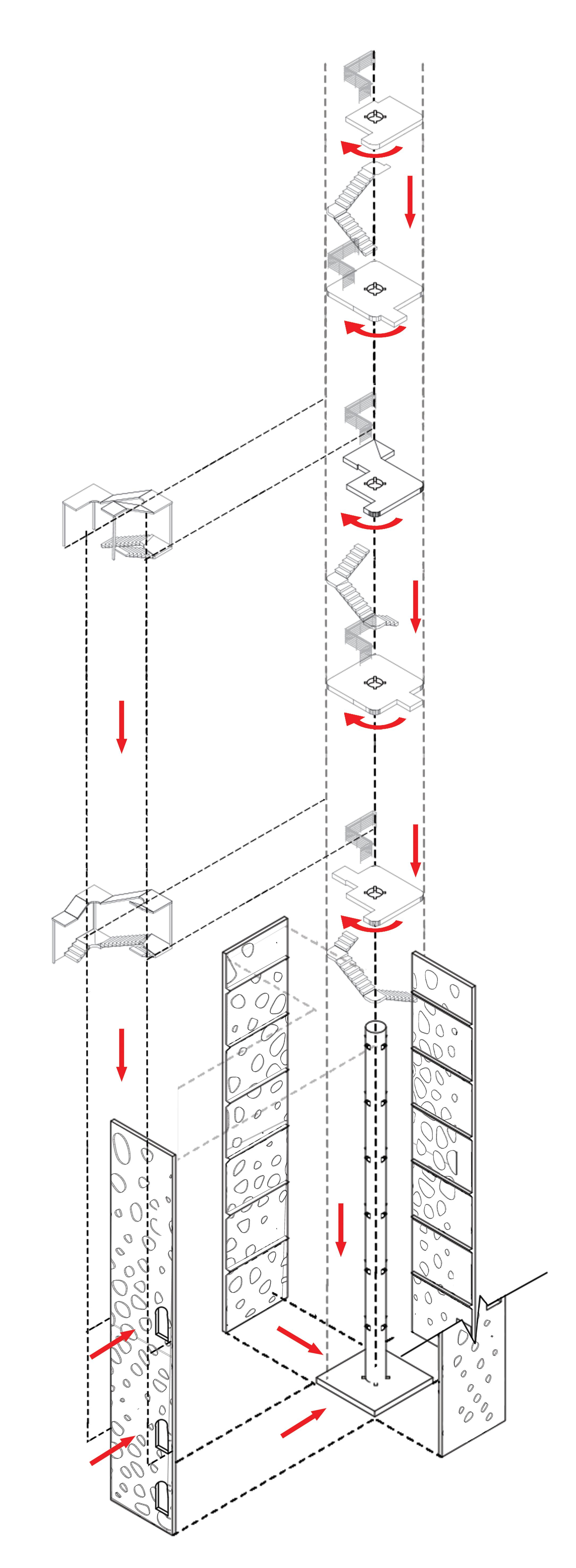

EXPLODED AXONOMETRIC

ROLE OF PRECAST This being a total pre cast build, the design process with the knowledge of the material being used entailed creating a unique skin and a sound circulation system, Here is a breakdown of how the material ie being

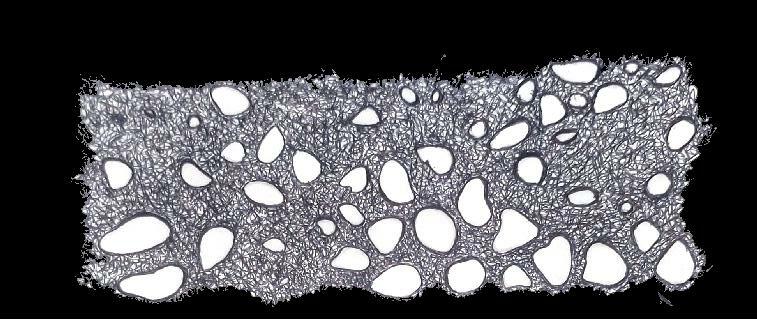

SKIN DEVELOPMENT

implemented.

PRECAST PANEL( SKIN) 4 ( 67’-6” BY 13’ -4”) ZOOMED IN PANEL

A

B B

C

PRECAST CIRCULATION ELEMENTS A - PILLAR ROOF SUPPORT B - ROOF OVER STAIRCASE C - STAIRCASE AND LANDING

PRE CAST CORE 63’-5” BY 3’-0” DIAMETER
