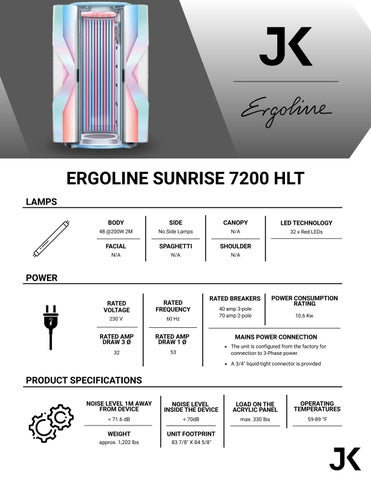

ERGOLINE SUNRISE 7200 HLT LAMPS BODY
SIDE
CANOPY
LED TECHNOLOGY
48 @200W 2M
No Side Lamps
N/A
32 x Red LEDs
FACIAL
SPAGHETTI
SHOULDER
N/A
N/A
N/A
RATED VOLTAGE
RATED FREQUENCY
230 V
60 Hz
RATED AMP DRAW 3 Ø
RATED AMP DRAW 1 Ø
32
53
POWER RATED BREAKERS 40 amp 3-pole 70 amp 2-pole
POWER CONSUMPTION RATING 10.6 Kw
MAINS POWER CONNECTION The unit is configured from the factory for connection to 3-Phase power. A 3/4" liquid-tight connector is provided
PRODUCT SPECIFICATIONS NOISE LEVEL 1M AWAY FROM DEVICE
NOISE LEVEL INSIDE THE DEVICE
LOAD ON THE ACRYLIC PANEL
OPERATING TEMPERATURES
< 71.6 dB
< 70dB
max. 330 lbs
59-89 °F
WEIGHT
UNIT FOOTPRINT
approx. 1,202 lbs
83 7/8" X 84 5/8"
*Owner is responsible for all wiring up to the terminal block connection inside the device. As well as ensuring the wire is properly sized for the amp draw and breaker selection per the electrical code in their area. Slow-blow fuses and/or Breakers with Trip curve “D” are required. **Minimum footprint size for proper operation and cooling of the unit. Does not account for door sizes or obstructions in the room. (Footprint measurement is not the room size)
MEASUREMENTS
in.
mm.
H
91.14
2,315
346.5
H1
5.71
145
13.64
346.5
H2
94.5
2,400
TK
94.49
2,400
H3
85.43
2,170
TK1
24.84
631
TK2
11.81
300
B
48.875
1,242
B6
23.23
590
B1
22.83
580
B4
29.92
760
B8
56.69
1,440
T
54.92
1,395
T1
57.81
1,469
T3
30.31
770
in.
mm.
BK
76.18
1,935
BK1
13.64
BK2
