LOCATION: SITUATED IN THE HEART OF LIPA, BATANGAS, SOUTH OF METROPOLITAN CATHEDRAL OF SAN SEBASTIAN BANYUHAY
METROPOLITAN CATHEDRAL OF SAN SEBASTIAN
STORES AND COMMERCIAL AREAS
MACRO SITE ANALYSIS
CASA DE SEGUNDA
PROPERTY COVERS A TOTAL AREA OF 7049 SQ.M
P. TORRES STEET
KALIPULAKO STREET
01
LANDMARKS: Plaza Independencia
Cultural Center of Lipa
Lipa City Community Park Balintawak River
N
Claro M. Recto Event's Center
Claro M. Recto High School
Lipa City Colleges STI Colleges
San Antonio Hospital N.L. Villa Memorial
Lipa City Youth and
THE SITE
Cultural Center
LCC SILVERCREST
Puregold
STORES AND COMMERCIAL AREAS
Medical Center
G. REYES STREET
L. DIMAYUGA STREET
02
BANYUHAY
PROPERTY COVERS A TOTAL AREA OF 7049 SQ.M
MICRO SITE ANALYSIS
LOCATION: SITUATED IN THE HEART OF LIPA, BATANGAS, SOUTH OF METROPOLITAN CATHEDRAL OF SAN SEBASTIAN
THE TERRAIN IS GENERALLY FLAT, WITH GENTLE SLOPE OF 2% TOWARDS P. TORRES STREET. THE LOT BEARINGS ARE AS FOLLOWS: POINT 1-2: N 69 E 110 POINT 2-3: N 17 W 65 POINT 3-4: S 68 W 112.82 POINT 4-1: S 20 E 61.62
03
LEGEND
AMIHAN
HABAGAT
NOISE
WINTER SUNPATH
N
SUMMER SUNPATH
04
BANYUHAY
05
P R O B L E M
S T A T E M E N T
The site located in the heart of Lipa City, specifically south of the Metropolitan Cathedral of San Sebastian, faces a growing challenge of balancing urban development with cultural preservation. As Lipa City continues to expand, there is a risk of losing the historical significance of the area surrounding the Cathedral, a vital landmark in the region. The challenge is to create a development plan that promotes economic growth, accessibility, and modern infrastructure while preserving the historical and cultural heritage of the site. This includes addressing concerns related to traffic congestion, environmental sustainability, and maintaining the site's aesthetic and architectural integrity in the face of urbanization.
D E S I G N
C O N S I D E R A T I O N
FLOODING
NATURAL LIGHTING
TRAFFIC CONGESTION
ACOUSTICS & SOUND QUALITY
LOCATION
06
07
08

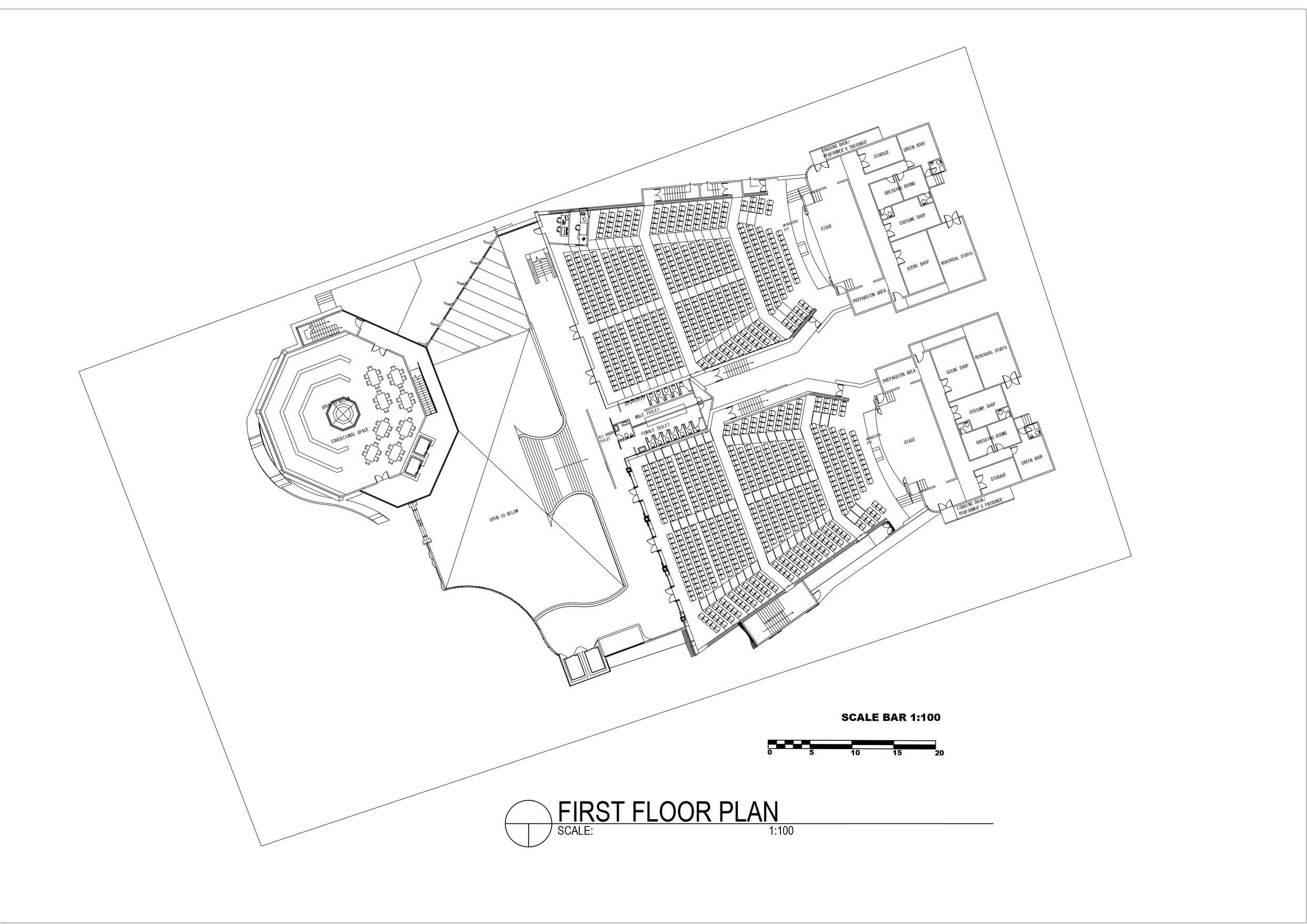

floorplan BANYUHAY
09
N
10
floorplan BANYUHAY
11
N
12
floorplan BANYUHAY
13
AC HV
N
14
floorplan BANYUHAY
15
N
16
BANYUHAY
FRONT ELEVATION SCALE
NTS
REAR ELEVATION SCALE
NTS
RIGHT SIDE ELEVATION SCALE
NTS
LEFT SIDE ELEVATION SCALE
NTS
17
18
THEATER A
PERSP
19
PECTIVE
THEATER B
20 BANYUHAY
EXTERIOR
PERSP
21
PECTIVE
EXTERIOR
22 BANYUHAY
EXTERIOR
PERSP
23
PECTIVE
FACADE EXTERIOR
24 BANYUHAY
EXTERIOR
PERSP
25
PECTIVE REAR (EXTERIOR)
26 BANYUHAY
PERSP
LOBBY (INTERIOR)
27
PECTIVE ART GALLERY
28 BANYUHAY
INTERIOR
PERSP
29
PECTIVE LOBBY INTERIOR
