MANIFESTO “Harnessing design by rooting it in the social, political and technological conditions, I believe in rethinking and reevaluating architecture as a fundamental movement in order to nurture a better world.

The recent rapid evolution and intelligent advancement of architecture through its unique amalgamation with other industries and arts can further reshape our built environment, establishing innovative and highly creative new autonomous movements of architecture.

We have a societal responsibility and take our pansophical position as architects to investigate the issues of global life, culture and history and push our solutions into the ever expanding boundaries with the continual goal to the public benefit.

Our architectural methodology can always be enhanced through cultural experience, involvement and the discovery and diversity of activities derived from travel, research and discussion. We always need to absorb the ingredients and implement the consumed knowledge into our recipe of design.

Focus and Documentation to be sure of the efficiency of our work and allow more time to enhance it. We need to make decisions in a time frame and effectively communicate and exchange what we do through discussion, learning and collaboration.

We must never sit still in architecture and should be continuously experimenting and advancing our art, skills, designs and techniques, to aid in a better world and to sink solid foundations for future architects to continue the story.”

1

SOFTWARE

.x.x.x.x.x. .x.x.x.x.x.

Revit .x.x.x.x.x.

Grasshopper .x.x.x.x.x.

Enscape .x.x.x.x.x.

Navisworks .x.x.x.x.x.

IESVE .x.x.x.x.x.

Photoshop Indesign .x.x.x.x.x.

Illustrator .x.x.x.x.x.

Premiere .x.x.x.x.x. .x.x.x.x.x.

After Effects Vray .x.x.x.x.x. .x.x.x.x.x.

Lumion .x.x.x.x.x.

Sketch up .x.x.x.x.x.

3DS Max .x.x.x.x.x.

Autocad Rhino

2

EDUCATION 10/2021 09/2022

MSc. BIM Enabled Sustainability University of Northampton, UK

09/2016 07/2019

MArchD. Architecture (RIBA/ARB Part II) Oxford Brookes University, UK

09/2011 09/2014

BSc. Architecture

LimKokWing University, Malaysia

WORK EXPERIENCE Current 08/2020

Part II Architectural Assistant MEB Design

08/2020 01/2020

Part II Architectural Assistant Design Collective Architects

08/2016 09/2015

Part I Architectural Assistant T.R Hamzah & Yeang

06/2015 10/2014

Part I Architectural Assistant Paolo Cucchi Architects

12/2014 02/2015

Architectural Intern Design Collective Architects

12/2013 02/2014

Architectural Intern LNL

3

CONTENTS

1

9

4

10

11

12 6

ACADEMIC

page 2-17

1 Bioplastic Vertical Green Hub

page 18-25

2 The Verandah Terrace

page 26-37

3

Hybrid - Transport Hub page 38-39

4

The City of Corner page 40-47

5

In-Between Mixed Complex page 48-49

6

Living Bridge

4

3

2

5

7

8 13

PRACTICE

13

page 66-67

Dday House - Refurbishment

12

page62-65

Ill Met by Moonlight

11 10 9 8 7

page 60-61

Waverley Abbey Redevelopment page58-59

Science Laboratory of UON page 54-57

East Enfield Medical Centre page 52-53

Elixir-Bio Medical Centre page 50-51

Bangsar 61 Office Headquarters

1

1 Bioplastic Vertical Green Hub Theme :

Digital, Technology and Sustainability

Location :

Canary Wharf

Type :

Tower

Year :

2017

Stage :

Academic Design

Role

Independent Design

Design Statement

Form-Finding

This architectural proposal seeks to address the increasing challenge beset upon cities by the emerging vertical environments and the monotony of office working life.

By taking a high-rise site in London as the design setting, the proposal will establish a new environment for office workers to relax and find peace as a simple daily exercise; a creation of elevated wellbeing within a structure of connections and technology.

The initial investigation into the design began with inspiration from recycling materials, namely bioplastic which is a renewable and biodegradable; these plastics are derived from renewable biomass sources, including vegetable fats and oils, corn starch and microbiota.

Bioplastic has a very interesting behaviour when heated, one which can be used as experimental formfinding in conceptualising the design proposal - a bridge and public realm which connects towers resulting in vibrancy, meaning and existence in the void space between buildings. During this experimental process the total tensegrity of the material was observed. From this, in order to utilise biomimetic qualities into the design, a search began for an organic property with similar properties. Minimal Surfaces (which are the surfaces of the smallest area spanned by a given boundary) are used in making the shell to save the usage of materials.

The urban green sky farm is a sprawling set of green planter box inserts, which are plugged into the main structural skeleton.

Urban farms are sprawling up the tower and create a sky farm and garden. There will also be an emphasis on recycling waste from the office towers to supply nutrients for the green network of the proposal, as well as through the harvesting of greywater collecting from the canopy design on top.

The proposal’s farm will produce fresh, sustainable and healthy food and can utilise drone technology to monitor the plantations. The green will grow vertically as the building rises up; bringing it to the centre of the space - connecting the users visually to it to aid in the de-stress exercise.

2

Software:

Rhino, Grasshopper, Vray, Photoshop, Autocad

A Vertical Park that connect people into sky ...

Connection into the buildings

+206M

Citibank

Sky Garden

Healthy Lifestyle

One Canada Square

HSBC

+126M

6

Canary Square’s Park

+ 0M

3

In the City of London, more and more high-rise office blocks are scrambling for position against the skyline. In defiance of short-term economic cycles, four towering new structures are under way: 22 Bishopsgate (272m); 52-54 Lime Street (206m); 100 Bishopsgate (184m) and 120 Fenchurch Street (68m). All will take their place against 52 tall buildings over 75m. Another eight are under construction. Over to the east, Canary Wharf, London’s second financial district, is thick with supersized buildings.

Canary Wharf is a busy financial area filled with skyscrapers like the glittering One Canada Square.

High-skilled worker

HQ of major banks, professional services firms, & media organisations

Canary Wharf AVR. AN. Salary 100k 105,000 Worker

Increase Construction of Highrise.

4

Issue Air pollution will also be addressed. To alleviate this, and to allow the harmonious tranquil spaces, green spaces shall be inserted into the proposal. By creating beautiful spaces of urban nature that will in turn support a healthy environment for the city.

RAIN WATER COLLECTION

URBAN GREEN

ORGANIC FOOD

- Healthy Living at a higher level of the urban realm -Urban farming: provide organic food for healthy living and create job opportunity for low skilled worker -Generate renewable energy

URBAN METABOLISM

5

ENVIRONMENT STUDY

BIOMIMICRY

Environment Study

BIOMIMICRY

Sun Path

Stability of Structure

STRUT One Canada

Radiolaria's siliceous skeletons consists of connected arrays of tubular struts forming a great variety of shells, often with a hexagonal structuring on their surface.

Exposure to Sun

Windrose

SUN

MORE SURFACE

Optimizing exposure to sunlight. Reef corals optimize the amount of light available to the algae they host by branching in pattern

ITERATION

Turning the park to vertical green

Iteration 1

Connect the buildings

6

Iteration 4

Iteration 2

Iteration 5

Iteration 3

Iteration 6

Iteration 7

OPTIMIZATION

OPTIMIZATION

Structural Optimization

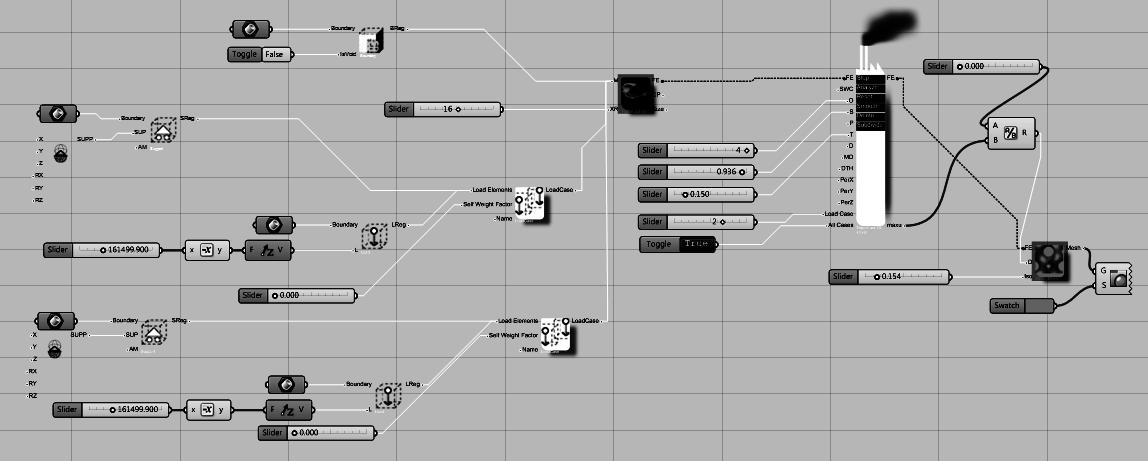

Topology Optimization Topology optimization finds the best distribution of material given an optimization goal and a set of constraints. It works by taking a solid block of material in any shape and removes material from it to minimize or maximize an optimization objective such as mass, displacement, or compliance while satisfying a set of constraints such as maximum stress or displacement.

Birds have evolved to maximum bone

Birds have evolved to maximum bon strength strength and stiffness with minimum bone and stiffness with minimum bone mass and volmass and volume.Bird bones are hollow ume.with Birdminimal bones are hollow with minimal matter in matter in exactly the right xactly the right spot.

The smart of matter spot. This smart utilization ofutilization matter makes makes them strong yet lightweight. them strong yet lightweight;

Topostrut 3d from Milipede

Form Finding and Minimal Surface

Minimal Surface (Kangaroo Script)

Pipe Wireframe

Mesh

Minima Surface

7

8

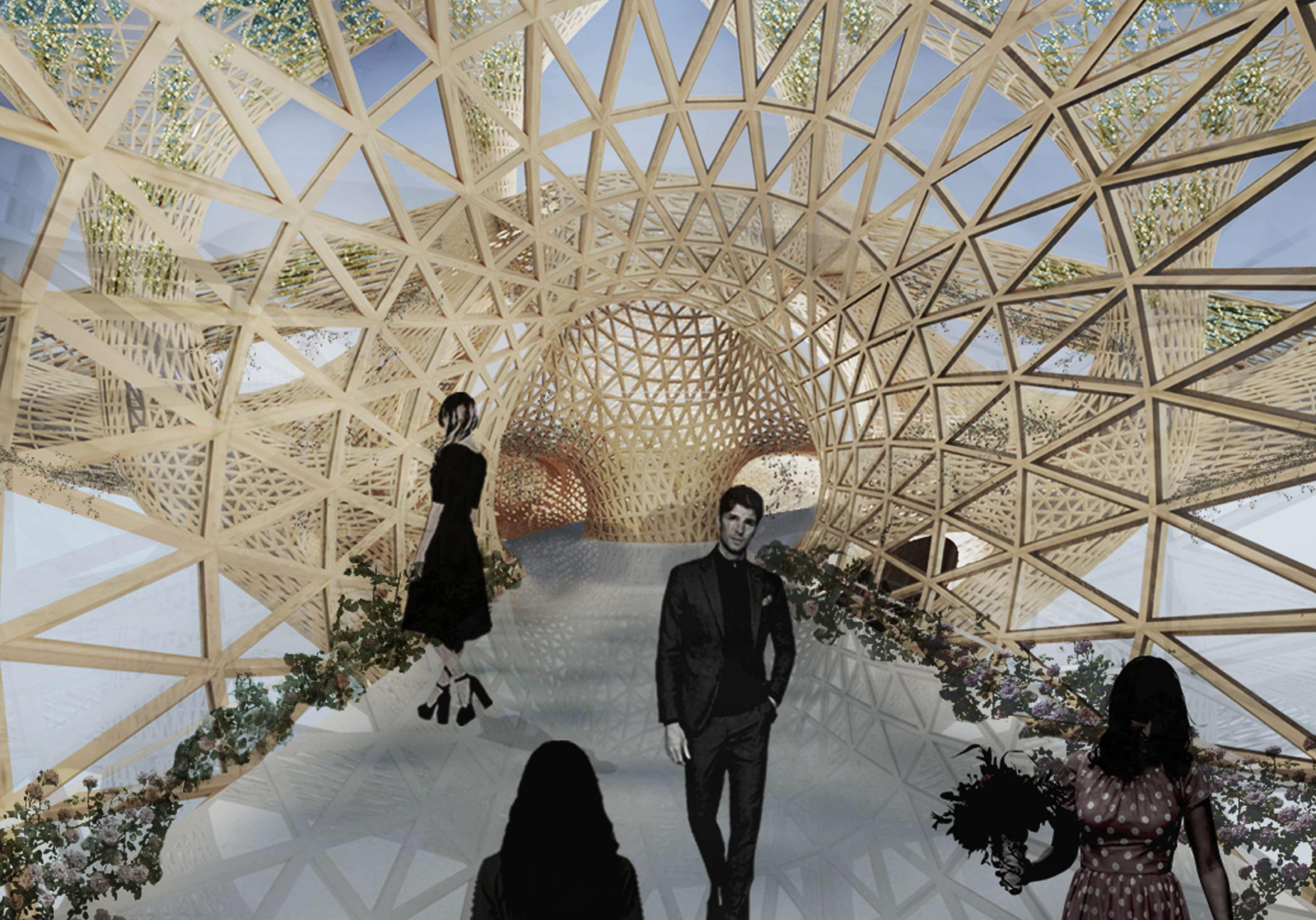

CONNECTING PEOPLE THROUGH BRIDGE

9

SITE SITEPLAN PLAN

SITE PLAN

GARDEN

GARDEN

DIAGRAM

DIAGRAM DIAGRAM Circulation Circulation

Vertical movement segregated people and the horinzontal movement proposed in higher level.

Vertical movement segregated peoView movement Out ple and the horinzontal proposed in higher level.

View Out

Create opportunities of view toward the london city.

Slot In In Slot

Open the walkway into the buildings.

Open the walkway into the buildings. View In

View In

Beautifull scupture creation in the centre of canary square.

GreenGreen

Elevate the green to higher level rather than park.

Elevate the green to higher level Social Node rather than park.

Social Node

It acts as a central of the Canary Wharf and hence a social nodes.

10

Create opportunities of view to-

Beautifull scupture creation in the

It acts as a central of the Canary

SECTIONAL PERSPECTIVE

SECTIONAL PERSPECTIVE SITE sECTIOO PLAN

Garden

+134M Coctail Bar

+126M Shops

+117M Fitness and Wellness Studio +112M Food Market +107M Resataurants

Vettical Green

11

c

Top level (+134m)

j

Coctail Bar

g g

k g

Legend a b c d e f g h i j k

Entrance Lift Green Bridge Plaza Restaurants Food Markets Fitness Studio Shops Coctails Plants

SCALE 1:2000 12

Level 2 (+112m)

Food Markets

PLAN

c

i d

e

h i

Level 4 (+126m)

PLAN

c

Shops

Level 3 (+117m)

Fitness & Wellness Studio

c

k c

Level 1 (+107m)

f

e k

Restaurants

a e

b c

Ground Level Park and Entrance

13

Garden Deck

Staircase

Pilling Foundation

Lift

Wooden frame self-structure Bridge

14

15

STRUCTURE

Structural Frame

ETFE

Light-weight Concrete Bridge

Is Lightweight, Wood Construction the Future?

and

Robotic

The proposal has been primarily focused on a lightweight and unobtrusive structure being constructed by drone technology with the goal to minimise time and financial expenditure. The timber is incredibly lightweight and pliable enough to be factory formed into any shape and carried on site. This lightweight material can make it possible for drones to carry and control it in allocation during the construction process.

Planter-Column

Core-Column & Lift

Piling Foundation

TECHNOLOGY STRUCTURAL DIAGRAM 16

TECHNOLOGY TECHNOLOGY DIGITAL FABRICATION

Robotic Construction

The components will be arranged perfectly on site by drones via unique placement data. This breakthrough in on-site construction co-ordination will help to evolve and challenge the method of contemporary construction, reducing numbers of site workers, improving safety and by having exact robotic placement of parts it will reduce the material waste and benefit the environment.

Space Frame Construction Detail

Bioplastic Planter Box

Vertical Planter Detail

Lasercutters would be used to cut the bespoke sizes and shapes of the timber according to the information. Timber sections would then be attached via flitch plates and made into singular components using the mathematical data information and sent to the site.

Bridege to Frame Detail 17

2 The Verandah Terrace Theme :

Domesticity

Location :

N/A

Type :

Housing

Year :

2022

Stage :

Design Proposal

Role :

Independent

Software: Rhino,Enscape, Autocad,Photoshop

Design Statement This is a project to break the generic typology of typical terraced housing by connecting occupants to the stunning outside environment that the country boasts. It provides a fluid and highly flexible sequence of spaces, culminating in balcony access all with the goal of promoting better wellbeing for residents. Whilst the master bedroom has always been the primary selling point in this competitive residential market, it has here been provided with an additional and unique bathing experience – the exterior view to the sky. The Wind Chimney has been customised for promoting the ventilation of the central area whilst simultaneously allowing for humid air to evaporate from the bathroom. With the advancement of remote working, a healthy and productive home working space is a reasonable aspiration by 2030 and this new typology will accomplish that focus by sewing together the external with the internal.

18

19

9

9

8

8

7

7

5

5

4

4 6

3

6

3

15

2

1

9

2

1

Legend

GROUND GROUND FLOOR FLOOR PLANPLAN SCALE 1SCALE : 100 1 : 100

20

1. Porch 2. Lounge 3. Kitchen 4. Dining 5. Bath 6. Store 7. Laundry 8. Study 9. Garden

13

14

13

5

5

5

5

14

15 12

11

10

12

9

11

10

Legend

FIRSTFIRST FLOOR FLOOR PLANPLAN SCALE 1SCALE : 100 1 : 100

10. Balcony 11. Leisure 12. Master Bed 13. Bedroom 1 14. Bedroom 2 15. Verandah

21

Form & Urban

22

1

Top view of the study model.

2

Front view of the study model.

UNIQUE FEATURE • • • •

Large window and opening on front and back side of the link house to allow more infiltration of natural light Covered car porch has an opening to allow more light into the ground level Bright colored roof to reduce heat gain The wind chimney connects to the bath allow passive ventilation

23

1

24

Modular Construction and Cross-Laminated Timber(CLT)

Assembly in Factory

2 Prefabricated Timber Modular System

On-site stone wall construction

The construction process for the building involves a hybrid approach that combines off-site prefabrication and on-site construction methods. The upper floor of the building will be constructed as a prefabricated timber box, complete with partition sets, using locally sourced timber in a factory setting. Meanwhile, the ground floor level will be built on site using stone materials.

This approach offers several advantages, including the efficient use of resources, reduced waste, and improved quality control. It also allows for a more streamlined construction process and shorter overall project timeline.

1

In-between spaces can provide numerous benefits for promoting a healthy lifestyle, including relaxation, 3calm, social interaction, tranquility and gardening and outdoor activities, such as yoga.

2

Keeping an eye on the neighbourhood is an effective method of enhancing resident safety and security.

3

The terrace provides the convenience of enjoying the outdoors while remaining at home.

25

3 Hybrid - Transport Hub Theme :

Political; Urban and Landscape

Location :

Anaklia, Georgia

Type :

Railway Station and Museum

Year :

2022

Stage :

Academic Design

Role :

Independent

Software: Revit, Autocad,Photoshop

Design Statement The design proposal of the hybrid project seeks to exploit the exchange and transfer of ideas across both the international and local communities. Increasing the awareness of national pride via domestic business and industry is apropos towards harnessing a globalised interest in the region utilising the traditional and familiar logistical systems of the contemporary world. Anaklia, thanks to its strategic gateway location acts as the protagonist in this 21st Century marriage of East meets West; two political societies converging. Siting the concept of informal knowledge exchange within the primary transport hub is the major driver of both the building’s architectural form as well as its infrastructural systems; two disparate ends of a global spectrum are amalgamated to be consolidated into a singular whole - global-national business; global-local knowledge; regionalnational-global transport.

26

The project’s overall scope is in creating a successful and highly viable scheme in this remote location both in terms of it being firstly a village and secondly a new sea port’s; with its domineering operation it may be that the importance flips in the future. The sea port itself becomes an appointed intersection between the nation of Georgia (and its immediate locality) and the global community.The museum is the metamorphosis of the manufacturing of knowledge and the connected trainline is the logistical of transfer of that knowledge. This hybridisation is to bring beneficial learning to people across the larger expanses beyond Anaklia.

Legend 1. Platform 2. Arrival 3. Seaport’s gates 4.Ticket Counter 5. Reading Concouse 6.Stall 7.Ticket Machine 8. Cafe 9.Workshop 10. Seminar 11. Office 12. Gallery Ramp 13. VR room 14. Rooftop

27

Legend 1. Platform 2. Arrival 3. Seaport’s gates 4.Ticket Counter 5. Reading Concouse 6.Stall 7.Ticket Machine 8. Cafe 9.Workshop 10. Seminar 11. Office 12. Gallery Ramp 13. VR room 14. Rooftop

28

COLLECTIVE

HYBRID

The central space in the station is a circular room acting as a collective space, goods and body resulting in the exchange of ideas. In the idea of the Social Condenser, architecture would serve as a tool for the construction of radical new kinds of human communities: communities of collective residence, work, and public culture, in which the alienation and privation of bourgeois or peasant life would be overcome and communities of equality and empathy, in which the old hierarchies of class and gender would be designed out of existence. Hence, flexibility and sharing can be a powerful tool of the Social Condenser. The sharing of infrastructural space and knowledge provides growth opportunities for a variety of different people.The central circle is wrapped by different programmes like reading, social, business and rest. The flexibility of the space allows the user to transform the space in its form and function according to their present needs, such as for events and informal business. The circulation design in this space directs the human travel flow as an opportunity for events and socialisation.

The gallery will be located in a separate space that is accessible to all visitors.

The staircase is the mechanism to seperate the users of the station and gallery. The train ticket counter is near to the entrance to the train arrivals and departures whilst the museum tickets counter will be at the other side with some workshops, seminar rooms and archives beside it. A cafe is facing to the sea with some steps in front with the open green public space which allow users to sit around to socialise and rest whilst enjoying the sea views.

INTERSECTION The intersection of train station and the cross movement with the seperation of movement via the verticality of zones as all the programmes merge in this space and the vast number of people meet and act.

THRESHOLD When they arrive in Anaklia, users will see the sea port to their left and Anaklia to their right. A longitudinal block is in front of platform leading people to the main building with the nearby sea being in a full framed view as they walk. This important void between the village and port is the threshold is the control point of the security of the village that controls the flow of people. This block is the transition, mediation, and passage for the people. The people who are heading to the Anaklia village and the sea will move to the right while the workers will move to the left. There is also some control gates located here to protect the security of the seaport. The locals who would like to enter the port can pass into the main building and exit via the main doors and then walk parallel to the sea. The display racks hanging the physical models of the different logistical vehicles will showcase the significance of logistics.The exhibits in this main space will be constantly expanded and modified to maintain a sense of marvel and interest.

29

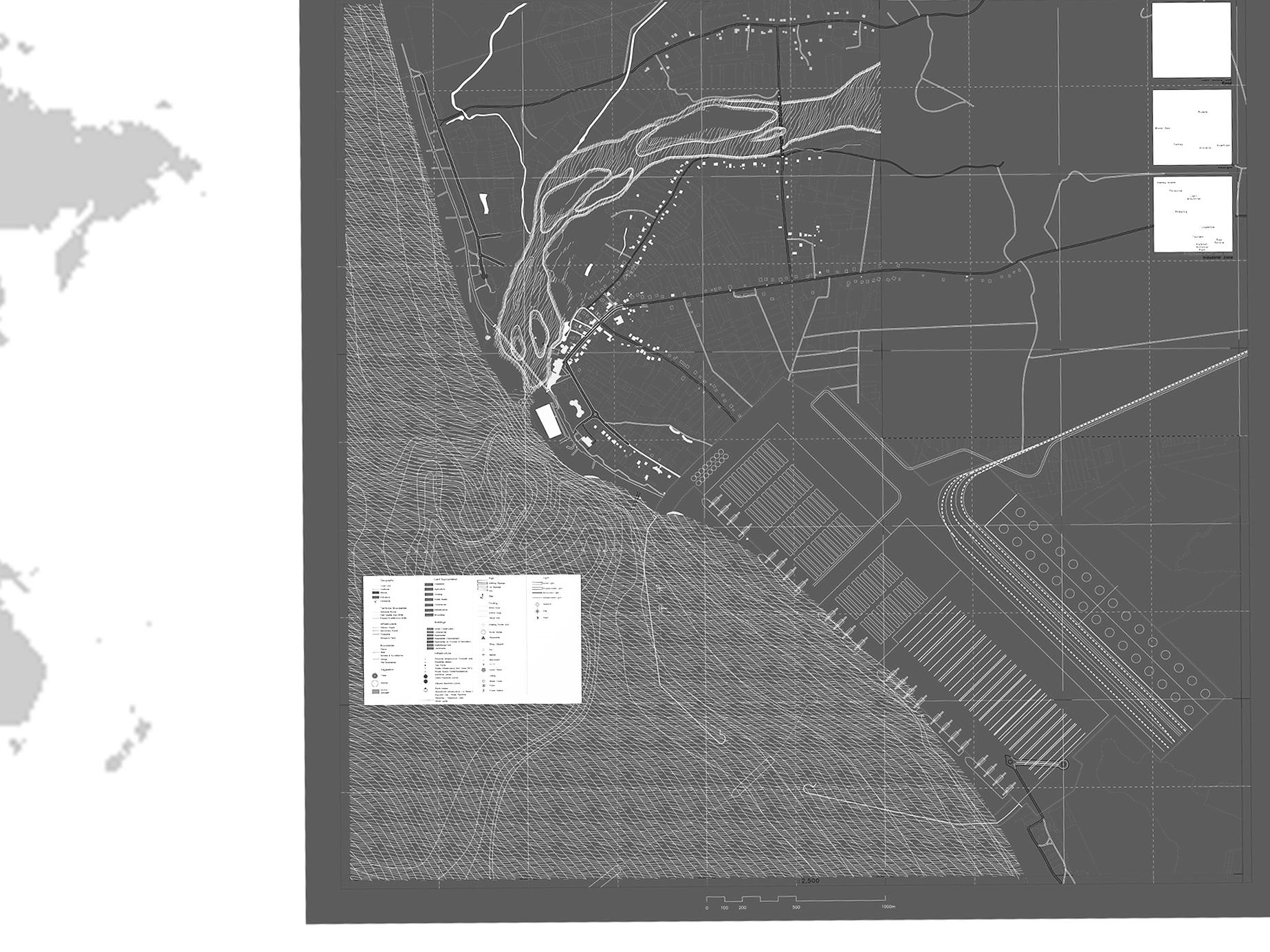

DEEP SEA PORT - ANAKLIA Georgia, a country at the intersection of Europe and Asia, is a former Soviet republic that’s home to Caucasus Mountain villages and Black Sea beaches. While Anaklia is a town and seaside resort in western Georgia. It is located in the Samegrelo-Zemo Svaneti region, at the place where the Enguri River flows into the Black Sea, near the administrative border with Abkhazia.

Anaklia Deep Sea Port will serve as the main gateway for imports for approximately 17 million inhabitants of landlocked Caucasus and Central Asian countries and provide critical supply routes for nearly 146 million people living within the Port’s immediate region. The goal is to serve Central Asia and the New Silk Road trade route between China and Europe.The sea port is estimated to create 6,400 new job opportunities for people and these people might come from the local areas aswell as the surrounding region. The business and management workers from Georgia’s capital, Tbilisi will also need to arrive here.It is estimated to create 6,400 new job opportunities for people and these people might come from the local areas as well as the surrounding region.

“As a site of multiple, overlapping or nested forms of sovereignty, where domestic and transnational jurisdictions collide, infrastructure space becomes a medium of what might be called extrastatecraft—a portmanteau describing the often undisclosed activities outside of, in addition to, and sometimes even in partnership with statecraft.” Extrastatecraft, by Keller Easterling.

30

CULTURAL PRODUCTION The collective of good and bodies in the Concourse in exchange of ideas.

The great bustling crowds will become even more ambitious wrapped by different programmes.

THE AMBITION

POWER OF LOGISTIC

The endeavours of the project will be primarily to create a cultural revolution with the goal of transformation of the nation into an industrial nation with a better economy and beginning its insertion into the global league. This can be achieved by catering to the growth of the logistical industry and national identity attracting foreign investment effectively. Globalisation of complex industrial production processes has increased the importance of seaports in the global supply chain.

Creating a port at Analkia would become a catalyst for the development and integration of similar and comparable logistical systems, including air, rail, automobiles and smaller scale marine; the establishment of contemporary logistics centres would then spontaneously occur. Port activity is no longer limited to just cargo handling; logistics service provision in an international context has become a core part of the business. The goods can be transferred to the free trade zone (FTZ) warehous in the capital - Tbilisi. While the trainline for passenges is the mechanism altering the movement of nation through connecting the port and Tblilisi. This connecting line governing the space of everyday life as well as the nation’s social economy. This infrastructure increase the mobility of people from all classes to this new develop port-city. The sharing of this commuting mechanism will aslo create the equal society’s space and responsibility in creating a sustainable and greener world.

TRANSFER OF KNOWLEDGE TO THE NATION Logistical operations where certain bodies are transfered through the space: covering the entire distribution chain from production to the end consumer. The museum gives you the opportunity to become familiar with various practical logistical spheres: production, storage, processing and cargo transport. By visiting the Logistics Museum, the visitors will become acquainted with the present state of modern day logistics as well as its trends and prospects for future development.

31

ENTERTAINMENT

32

ANAKLIA VILLAGE

BEACH

BORDER

SEAPORT

33

DIVERSITY This poject sits between three architectural languages: the vernacular, the legacy of soviet concrete and the upcoming contemporary port operations. Three openings was designed for users to move to different destinations which is the sea, the village and the seaport. Due to the very close proximity of the sea port to village, the new railway line that will be constructed establishes a emblematic boundary between the two and as such divides the area for work and residential; it is the entrance point of both Anaklia as a village and Anaklia as a sea port. Providing arrival via train, to the sea port, the beach, the village - for all the different sets of people and inhabitants: businessmen, politicians, workers, tourists and locals – the permanent and the temporary will pass each other in the situation of the station. The urban operation have been based upon the use of the railroad air rights to develop a complex of superimposed programmes by covering over tracks.

34

35

36

JOURNEY

TRACKING

HYBRID

Journey showcase of the logistic knowledge. People moving and enjoying the sea the exhibition along the ramp The dialogue established between the visitor entity and the local entity is physically distinguished via the cut of the window whereby the properties of transparency help accentuate and merge the two entities.

Advanced Technology, is the most powerful tool for people. At the end of the walk of learning is the true experience of observing the seaport operations and peopletracker through a bespoke app and a chance to see the real ships. The viewing platform also accommodates a succession of vantage points overlooking the whole of the Anaklia vicinity.

The duality program of train station and Musuem of Logistic and history of transport. Bodies are transferred through the space: covering the entire distribution chain from production to the end consumer like the program of museum with various practical logistical spheres: production, storage, processing and cargo transportion.

Legend 1 Platform 2 Gate 3 Concourse 4 Counter 5 Lockers 6 Money Exchange 7 Office 8 Seminar 9 Workshop 10 Cafe Scale 1:250

37

4 The City of Corners Theme :

Infrastructure

Location :

London, Uk

Type :

City Complex

Year :

2022

Stage :

Sketch Drawings

Role :

Independent

Software: Hand-Sketch

Design Statement The City of Corners is a repeating, a scaling and a journey around the architectural space. The corners dictate the spatial environment for people to meet, interact and socialise. The infrastructure acts as a set of rules to govern the space. Civilisations of any place in the world are always transforming with the evolving requirements of the population.

38

The exposed pipeline leads the connection of the zone and integrates with the residential life in the city. The threshold of the space brings together the dialogues of the possibilities of wildly different imaginations and activities such as playgrounds, vast green spaces, landscaped gardens or a community centre

39

5 In-Between Mixed Complex Theme :

Microraion; Cultural; Identity

Location :

Borneo, Malaysia

Type :

Mixed Complex of Office, Retail & Residential

Year :

2021

Stage :

Design Proposal

Role :

Independent Design

Software: Rhino,Vray, Autocad,Photohsop

Design Statement Located at the center of Kuching, ‘In Between’ is a commercial complex that has established the culture of live together and with nature. It is a development of café, retail, galleries and SoFo, Gym, and bars that used to promote culture interchange, share knowledge and skills, push personal boundaries & experience adventure.

The program that consists of the event like café and food at the bottom and weekend bazaar the with light-filled, inviting open space. Take the inspiration of Sarawak’s longhouse, the buildings have the bottom as the public life with supplies (food), the middle is the production and the top is the spiritual/ Embedding and gathering.. This is the healthy, emotional, and productive habitat for rest, work, and living.

Provide the nature and enjoy the hustle-bustle life in the city. Located in the proximity of 15 mins to the Kuching airport, this project can be both a welcome door (visitors are greeted) as well as a stop before the tourists start their adventures but for the exit door.

The greenery interspersed around which allowing dwellers to coexist harmoniously with the biodiversity of local flora and fauna. With the green shared areas, tiny forests, and gardens that cascade up and down the entire building, dwellers can benefit from their close connection with nature. The entertainment/play is at the top of the building, contains gyms and workout areas, yoga rooms, spas, and relaxation chambers, and more and more activities.

40

41

42

43

3

2

8 Legend

1

1. Arrival 2. Entrance to Car Park 3. Car Park 4. Bus Stop 5. Seating 6. Food Court 7. Cafe 8. Groceries 9. Lift

4

6

6

9

5

7

7

5

6

6

Ground Floor Plan

44

The area of the block getting smaller gradually following the height restriction rule.

Supply, Production and Play from bottom to top.

Porosity: in between of the 3 main parts of the body.

The column of woods to form the flexible open spaces with the smell of nature.

The roof top garden has a bar that provide opportunity for the visitor enjoy the view of the city with connected to mountain and sea in the horizon.

Double-volume spaces allow the less stressful environment and flexibility of spatial articulation.

Axometry View from the Main Road

Third Floor Plan

Fifth Floor Plan

Rooftop Plan

45

46

In Between - Open Market - Cultures

47

6 Living Bridge Theme :

Natural; Self-Suffienciency

Location :

Pampeinara, Spain

Type :

Bridge

Year :

2017

Stage :

Sketch Drawinng

Role :

Independent

Software: Hand-Sketch

Design Statement We use natural system- the tree branches to build the connection for mountain community. This will ensure a sustainable construction in our nature yet benefit to the ecosystem. As the bridge are alive and still growing, they actually gain strength over the time.

Waterwork in Mountain The spring from mountain is the safest and the best gift for human’s health.

With the connection of the bridge system, the water is transfered to the domestic use.

48

Traditional construction technique for a better world.

People can start build their own house on their own through learning this traditional construction method and build their own house remotely in the mountain.

49

7 Bangsar 61 Office headquarters Theme :

Workplace; Retail & Residential

Location :

Kuala Lumpur

Type :

High-Rise Mixed Development

Year :

2016

Stage :

Design Proposal

Role :

Collect data from consultants and engineers; Graphic representation; Prepare RFI and design reports; Prepare strategist design and drawings

Software: Rhino, Autocad, Indesign

Design Statement Bangsar 61 has 3 blocks of towers with mixed program and the public and private car parks under the ground level. The design based on aesthetically appropriate and motivating, what makes the design credible as a functional design producing that meets the criteria of cost, security and buildability, what makes our design topical, super green and energy saving, and what makes our design relevant.

Credit toTRHY

50

51

8 Elixir-Bio Medical Centre Theme :

Healthcare

Location :

N/A

Type :

High-Rise

Year :

2016

Stage :

Design Proposal

Role :

Collect data from consultants and engineers; Graphic representation; Prepare drawings and design

Software: Rhino, Autocad, Indesign

Design Statement This is the tallest hospital in the world with the green planting around the building, Located in a hidden gem beside Kuala Lumpur, it has unobstructed view to the surrounding area, With biophilic deThe green and water create a beautiful environment to the patient,The hospital is planned to provide high end and predominately elective care but with some provision for urgent and emergency care; covering all medical specialties except maternity.

52

Credit toTRHY

Credit toTRHY

53

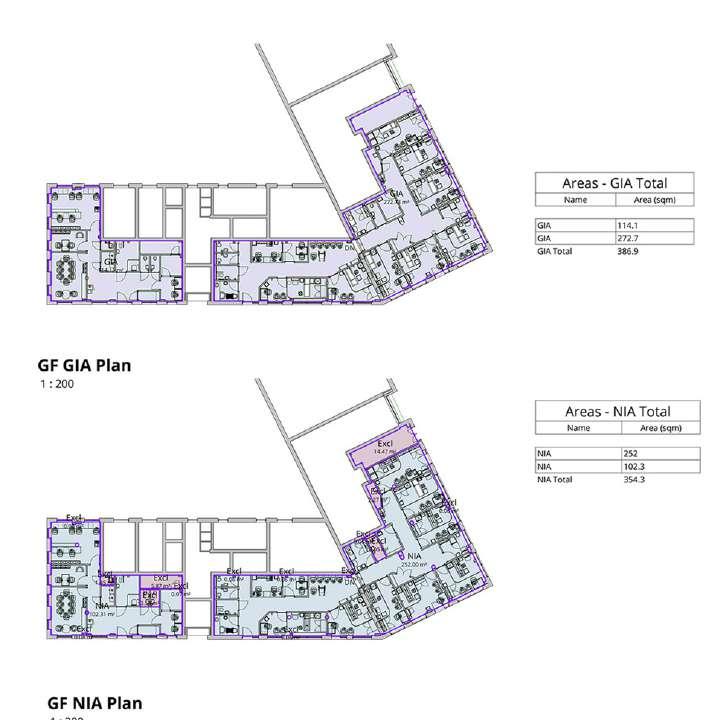

9 East Enfield Medical Centre Theme :

Medical

Location :

N/A

Type :

Fit-Out

Year :

2022

Stage :

Design Proposal

Role :

Under director supervision; Prepare Revit modelling and interior fit-outs, coordination and scheduling; Prepare Room data sheets and drawing sets that include room 3D perspective (Revit), Room elevations, room enlarged plans and room-wise medical equipment schedules for all the rooms; Testing the embodied carbon calculation using Hbert; Liase with clients and consultants

Software: Revit

Design Statement The project involves the fitting up of a medical facility on the ground floor of a new residential development which is scheduled for completion by the end of 2022.

Overall, the project consists of two blocks, one of which is an administrative block, and the other is a consultation block. A Very Good rating is the minimum requirement for the Breeam. For the project to be feasible within the allocated budget, some sustainability design elements have been considered from the Breeam consultation.

54

55

Gypframe GA4 Steel Angle where required for acoustic performance Gyproc Sealant

2no. layers of 15mm Glasroc F FIRECASE

724

722

Gypframe FireStrip

Gyproc Sealant

Speedline head channel

Gyproc FireStrip

*to suit ceiling height

Speedline head channel

Gypframe GA4 Steel Angle where required for acoustic performance

25mm deflection

*to suit ceiling height

25mm deflection

2no. layers of 15mm Glasroc F FIRECASE

600

600

25mm APR Isover cavity insulation continued up to head

Rockfon suspended ceiling edge 'L' trim refer to finishes schedule and RCP for specification

346 600

British Gypsum Acoustic System (ref A206A166) achieves sound insulation 53 RwdB and 60 minute fire rating (manufacturer's data).

Two layers of British Gypsum 12.5mm Gyproc Soundbloc 3mm painted plaster skim coat each side of 70mm British Gypsum stud at 600mm centres.

600

18mm ply pattress in all locations requiring wall mounted fixtures, unless fixed through to the studs including IPS Backboards - as British Gypsum detail TY-783ZZZZ-01

100mm Coved Vinyl with Cove Former & Capping Strip refer to finishes schedule

100mm Coved Vinyl with Cove Former & Capping Strip refer to finishes schedule

Speedline floor channel

Speedline floor channel

Gyproc sealant

Gyproc sealant

600

600

18mm ply pattress in all locations requiring wall mounted fixtures, unless fixed through to the studs including IPS Backboards - as British Gypsum detail TY-783ZZZZ-01

600

*to suit ceiling height

British Gypsum Acoustic System ref A206A198 achieves sound insulation 58 RwdB and 60 minute fire rating (manufacturer's data).

Two layers of British Gypsum 12.5mm Gyproc Soundbloc 3mm painted plaster skim coat each side of 70mm British Gypsum stud at 600mm centres. 25mm Isover Acoustic Partition Roll

600

346

*to suit ceiling height

Rockfon suspended ceiling edge 'L' trim refer to finishes schedule and RCP for specification

Bulk fill Gyproc jointing materials (where gap exceeds 5mm)

Bulk fill Gyproc jointing materials (where gap exceeds 5mm)

275

275

Chamfered 19x100mm softwood skirting refer to finishes schedule

Partition Type A Ref: A206A198

Partition Type B Ref: A206A166

1 : 10 3 312

1 : 10

1 312

2 312

9 312

5 312 56

8

7 312

6 312

3mm painted plaster skim coat

Two layers of British Gypsum 12.5mm Gyproc Soundbloc

This drawing and design project described below.

MEB Design and must no written consent.

Medium duty corner guard to the corner

All dimensions and settin construction. Do not sca

70mm British Gypsum stud @600mm centres

IP1

1

25mm Isover Acoustic Partition Roll (no insulation to partition type B)

1 : 10

All corners and joints tape sealed prior to skim coat and paint finish

6

IPD 6

If drawings are extracts f Model (Autodesk Revit o and any items outside th separate Structural and

1 : 10 42mm studs with 12.5mm plasterboard and 3mm painted skim coat boxing

All joints and corners sealed prior to skim coat

D&D plasterboard to existing masonry wall with painted 3mm skim coat

IPD2

Linked and imported ele remain the copyright and MEB Design Ltd

3D and rendered images illustrative purposes only relied upon and do not f

Medium duty corner guard to the corner

70mm British Gypsum studs

2

The drawing is to be read relevant to the project. A the attention of MEB Des

© MEB Design Ltd GENERAL NOTES

25mm Isover insulation

1 : 10

7

CWD 1 1 : 10

REV

DATE

DESCR

A

23/3/23

Parti

All joints and corners sealed prior to skim coat 25mm Isover Acoustic Partition Roll insulation

D&D plasterboard to existing masonry wall with painted 3mm skim coat

70mm British Gypsum studs

IPD3

3

42mm studs with 12.5mm plasterboard and 3mm painted skim coat boxing

1 : 10 All joints and corners sealed prior to skim coat

70mm Speedline C studs

Painted softwood timber frame

8

CWD 2 1 : 10

25mm Isover insulation

4

Con

IPD 4 1 : 10

D&D plasterboard to existing masonry wall with painted 3mm skim coat 225mm studs with 12.5mm plasterboard and 3mm painted skim coat boxing

CLIENT

Countryside

70mm British Gypsum studs

70mm Metal stud screw fixed to existing masonry wall

5

IPD 5 1 : 10

D&D plasterboard to existing masonry wall with painted 3mm skim coat

9

EWD 1

70mm Metal stud screw fixed to existing masonry wall

PROJECT TITLE

Beam Park

1 : 10 DRAWING TITLE

Proposed F Setting Out SCALE

As indicated@A1 57

10 Science Laboratory of UON

58

Theme :

Sustainability; Building Simulation

Location :

Northampton

Type :

Laboratory

Year :

2022

Stage :

Sustainability Design

Role :

Independent Study

Software: Revit, IESVE,Photohsop

59

11 Waverley A b bey Red evelo p m e nt Theme :

Grade II listed Historical Building; Ecclesiastical; Community

Location :

United Kingdom

Type :

Fit-Out and New Build of Cathedral; Accomodation

Year :

2022

Stage :

Design Proposal

Role :

Under director supervision; Prepare Revit modelling for all the existing buildings and proposed drawings

Software: Revit

Design Statement

Development of a grade 2 heritage site, which includes the improvement of historical buildings, bridges, ruins, the design of a new cathedral, and additional accommodation.

60

61

12 Ill Met by Moonlight Theme :

Gothic

Location :

Augmented Space

Type :

Art and Cinematic Architecture

Year :

2016

Stage :

Academic Design

Role :

Independent Academic Design Research

Design Statement This is the design reseach project exploring between art, cinematography and architecture which used the differect modelling technique in creating the 3D physical space such as smocking,printing,CNC milling and Laser Cutting. While creating the visual art through movie making, different computation representation was explored.

62

63

Literature and art are confronted with particular challenges by the idea of the anthropocene. This moviemaking project is taking inspiration from Grimm’s Rapunzel, who was imprisoned inside an impenetrable tower and has impossibly magnificent long flowing locks of hair, as fine as spun gold. When she heard the voice of the witch she wound her braids around one of the hooks of the window, and then the hair fell down the side of the tower and the witch climbed up by it. The tower had no stairs or doors, but only a little window at the very top. Cinematic shots were composed to create the story of Rapunzel inside the tower. How her experience of the space would differ from that of any others who just read about it.

The creation of space was defined through the physical model and a collection of tools; utilised with the directed lighting to recreate Rapunzel’s experience of incarceration and the darkness of the room.

The indifferent scale of the anthropocene induces a crushing sense of the cultural sphere’s impotence.

Grimm’s famous story was conceived, composed, lit and filmed. Time is the 4th dimension of the space.

Through considered materiality and prop behaviour, such as flowing water, the pushing of the mirror, the glow of a candle: this spatial behaviour creates the experience for the spectators. The beautifully lit shot of glass portrays the geometrical elegance the subtle glimpse of light appearing on the surfaces of objects directs and attracts the eye of the observer.

64

65

13 Dday House - Refurbishment of Terrace Theme :

Domesticity

Location :

N/A

Type :

Refurbishment

Year :

2014

Stage :

Construction

Role :

Prepare construction drawings; Prepare materials and products catalogues.

Software: Rhino, Autocad, Indesign

Design Statement A small renovated two storey terrace house for a young family of 4. The house is designed to allow for multiple activity areas that interlace one another. A strong concept of natural ventilation allows it become award winning buildings.

Credit to DCA 66

67
