1999 GULFSTREAM GV SPECIFICATION - Jan-26
AIRCRAFT OVERVIEW 1999 GULFSTREAM GV SN V-558 HIGHLIGHTS:
ADDITIONAL FEATURES:
Starlink Internet Purchased & Pending Installation
HUD | SVS | EVS
Engines enrolled on JSSI Essential
FANS-1/A+ (CPDLC, ADS-C)
APU enrolled on JSSI
3rd FMS
Avionics enrolled on HAPP
ACAS II
Primus Elite Planedeck DU-885
RAAS
Gogo ATG-5000 Wi-Fi
ADS-B Out
2012 Interior | 2007 Exterior | 13 Pax
Dual EVAS AFIS w/ Satellite Link Puritan Bennett External Camera System Alto Sound Solution & Cadence CMS Collins Tailwind 500 Entertainment
The content wherein is intended for informational purposes and does not constitute representations or warranties. Interested buyers are responsible for confirming the accuracy of all details. Images shown may have been edited, including removing identifying information to respect the privacy of the current owner. This aircraft may be removed from the market without notice.
AIRCRAFT SPECIFICATIONS 1999 GULFSTREAM GV SN V-558 EXTERIOR DIMENSIONS:
WEIGHTS:
LENGTH
96.4 ft
WINGSPAN
93.5 ft
HEIGHT
25.8 ft
CABIN DIMENSIONS:
MAX FUEL CAPACITY
41,300 lb
MAX PAYLOAD
6,100 lb
MAX TAKEOFF
90,500 lb
BASIC OPERATING
48,400 lb
MAX LANDING
75,300 lb
LENGTH
50.1 ft
WIDTH
7.3 ft
HEIGHT
6.2 ft
SPEEDS:
CABIN VOLUME
1,812 cu ft
NORMAL
488 kts
BAGGAGE VOLUME
226 cu ft
LONG-RANGE CRUISE
459 kts
MISC VOLUME (Galley, Lav, etc.)
713 cu ft
MAXIMUM CRUISE
508 kts
OCCUPANCY:
LANDING PERFORMANCE:
CREW
2+1
FAA FIELD LENGTH
PASSENGERS
13
TAKEOFF PERFORMANCE:
3,750 ft
SL ISA BFL
6,200 ft
5000' +20C BFL
9,150 ft
RANGE: LONG-RANGE CRUISE (4 Pax)
6,500 nm
FERRY (2 Crew + Full Tanks)
6,675 nm
SEATS FULL
6,250 nm
MAX CRUISE (4 Pax)
6,100 nm
AIRCRAFT SPECIFICATIONS 1999 GULFSTREAM GV SN V-558 AIRFRAME:
MAINTENANCE:
Registration: N211DR (FAR Part 135) Base Location: MN, USA Year of Manufacture: 1999 Entry Into Service: 1999 Total Hours*: 8,693 Total Landings*: 4,463
INSPECTION
Engine 1
Engine 2
Rolls-Royce BR710A1-10
11227
11228
Total Hours*
8,693
8,693
Total Cycles*
4,463
4,463
ENGINES:
Time Between Overhaul
On Cond. On Cond.
COMPLIED WITH
NEXT DUE
12 M
22-Apr-25 (8,123 HR)
31-Mar-26
24 M
22-Apr-25 (8,123 HR)
31-May-27
36 M
01-Feb-23 (6,259 HR)
31-Mar-26
48 M
31-May-24 (7,398 HR)
31-May-28
72 M
05-May-23 (6,412 HR)
30-Apr-29
96 M
02-Jun-23 (6,412 HR)
30-Jun-31
144 M
19-May-15 (4,377 HR)
31-May-27
192 M
22-May-15 (4,377 HR)
31-May-31
June 2019
-
Landing Gear 5,000 Ldg
-
5,000 Ldg
Landing Gear 20,000 Ldg
-
20,000 Ldg
Eng 1 250 HR BSI (On Condition)
05-Nov-25 (8,624 HR)
8,874 HR
Eng 2 250 HR BSI (On Condition)
05-Nov-25 (8,624 HR)
8,874 HR
Eng 1 OH (On Condition)
-
250 HR BSI Intervals
Eng 2 OH (On Condition)
-
250 HR BSI Intervals
CB 228B (Horizontal Stabilizer)
PROGRAMS:
APU: Honeywell RE220 (GV)
P-163
ENGINES: JSSI Essential Pro Rata (JSSI 68% | Owner 32%)
Total Hours**
6,705
APU: JSSI
Total Starts**
TBC
*Hours & Cycles as of 02-Dec-25 **Hours & Cycles as of 03-Nov-25
Avionics: HAPP Maintenance Tracking: MYCMP
AIRCRAFT SPECIFICATIONS 1999 GULFSTREAM GV SN V-558 AVIONICS: GULFSTREAM PLANEDECK ADF:
Dual
Collins ADF-462
AP/FD:
Dual
Honeywell SPZ-8500 AFCS
COMMS (HF):
Dual
Collins HF-9000
COMMS (VHF):
Dual
Collins VHF-422C
CVR:
Single
Teledyne Controls CVR
DME:
Dual
Collins DME-442
EFIS:
4-Tube
Honeywell DU-885 Primus Elite
FDR:
Single
Honeywell
FMS:
Triple
Honeywell w/ v6.1 Software & CD-820
IRS:
Triple
Honeywell Laseref III
NAV:
Dual
Collins VIR-432
RAD ALT:
Dual
Honeywell RT-300
TAWS:
Dual
AlliedSignal Mark V EGPWS
TCAS:
Single
ACSS TCAS-II
WX RAD:
Single
Honeywell Primus 880
XPDR:
Dual
Collins TDR-94D
AIRCRAFT SPECIFICATIONS 1999 GULFSTREAM GV SN V-558
ADDITIONAL EQUIPMENT: ADC:
Triple
Honeywell IC-800
AUTO-THROTTLE:
Dual
Honeywell PZ-800
DIGITAL AIR DATA SYSTEM:
Dual
Honeywell AZ-84
DATA ACQUISITION UNIT:
Dual
Honeywell DA-80
ELT:
Single
Artex C406
FLIGHT GUIDANCE COMP:
Dual
Honeywell FC-880
FLIGHT WARNING COMP:
Dual
Honeywell FZ-820
SATCOM:
Single
TrueNorth DLU Iridium
ADDITIONAL FEATURES: Head Up Display
Synthetic Vision System
Enhanced Vision System
FANS-1/A (CPDLC, ADS-C)
ADS-B Out
RAAS
ACAS II
Dual EVAS
AFIS w/ Satellite Link
Flight Deck Lighting Mods

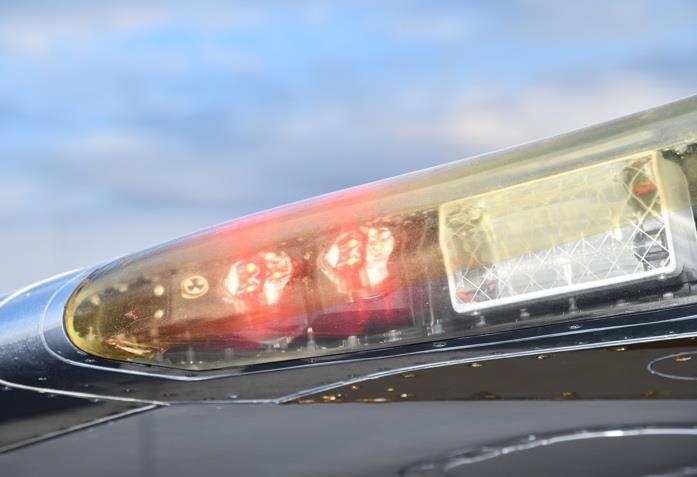

Landing Light Mod – Pulselite
Clean Air System - Installed May-20
Dual Magnetic Compass System
Secondary Flight Display Provisions
Secondary NAV Display Provisions
Electronic Digital Clocks
Honeywell IAC NZ 6.0 Software Upgrade
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558 LAYOUT: Configuration: Thirteen (13) Passengers
GALLEY: Equipment:
Seating:
Aft Full-Service Galley with Microwave & Dual Coffee Maker

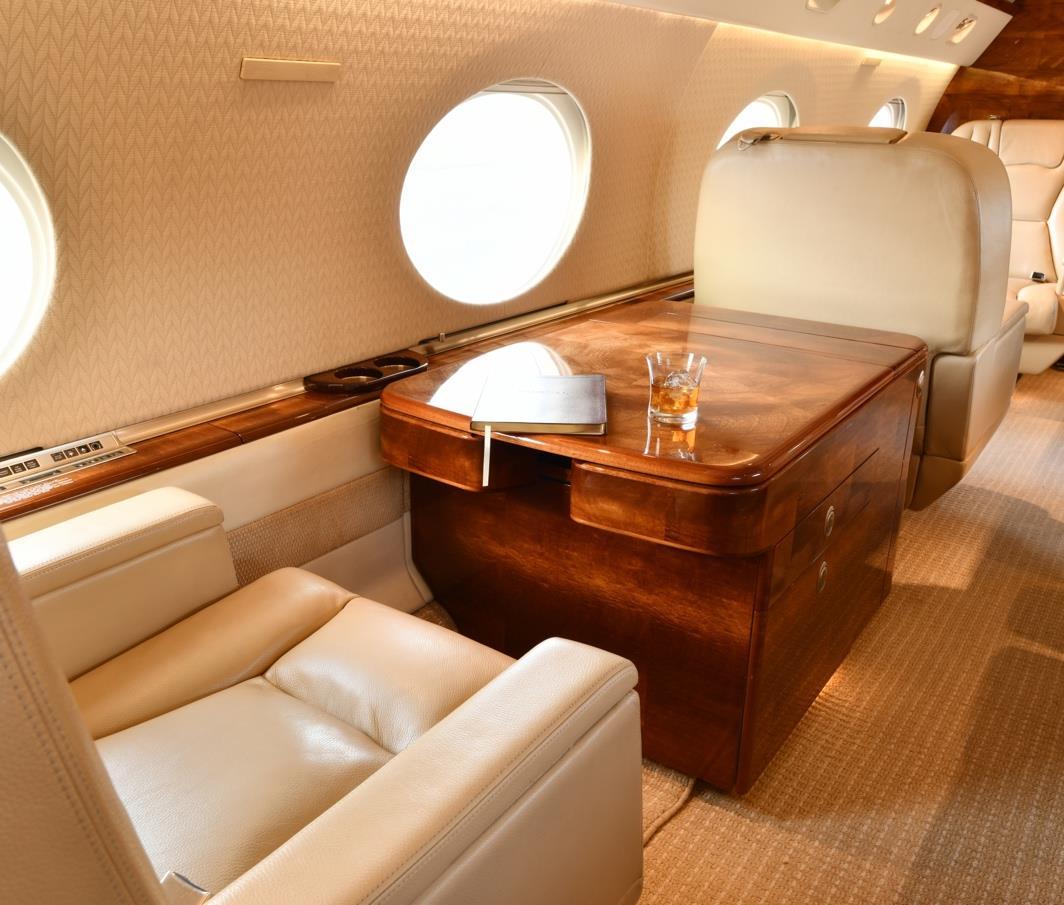

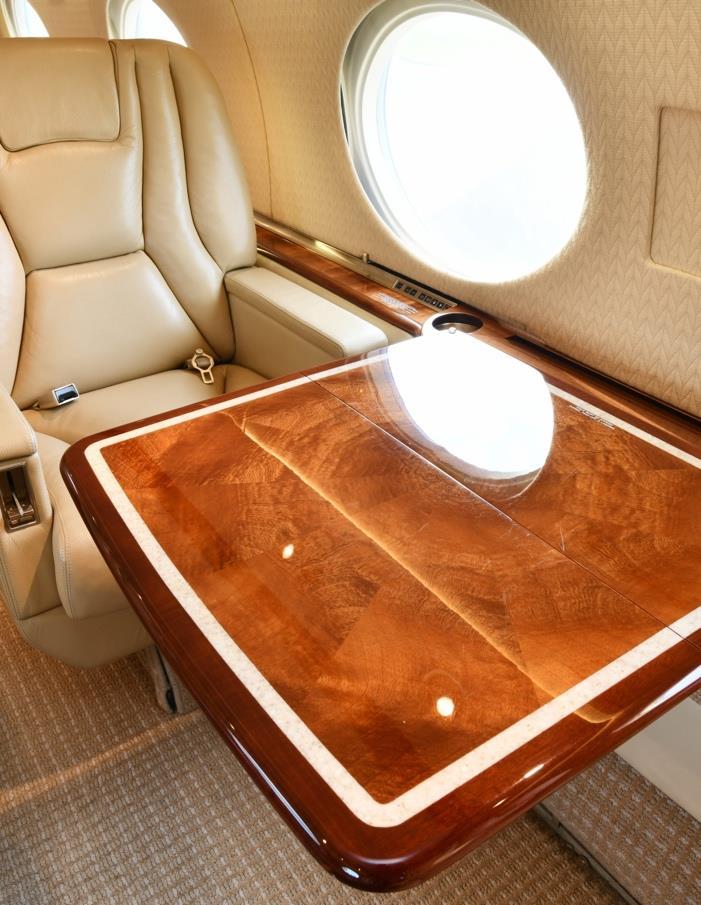

Forward Cabin: Four (4) Place Club w/ Fold-Out Tables
LAVATORY: Forward Crew + Aft Executive Lavatories
Mid Cabin: Four (4) Place Divan + Single (1) Seat Aft Cabin: Four (4) Place Conference Group + Credenza Crew Rest Area: One (1) Forward RS Enclosed Crew Seat Jump Seat: Yes
CONNECTIVITY & ENTERTAINMENT: Starlink Internet Purchased & Pending Installation Gogo ATG-5000 Wi-Fi Five 8.4" LCD Personal Monitors 14.2" LCD Crew Monitor 20" LCD Mid Cabin Monitor w/ Mechanical Lift 14.2" LCD Aft Cabin Monitor Puritan Bennett External Camera System Alto Sound Solution & Cadence CMS | DVD Player Collins Tailwind 500 Entertainment
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558
AESTHETICS: Colors: Brown, Beige, Gray & White Condition: Refurbished 2012
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558

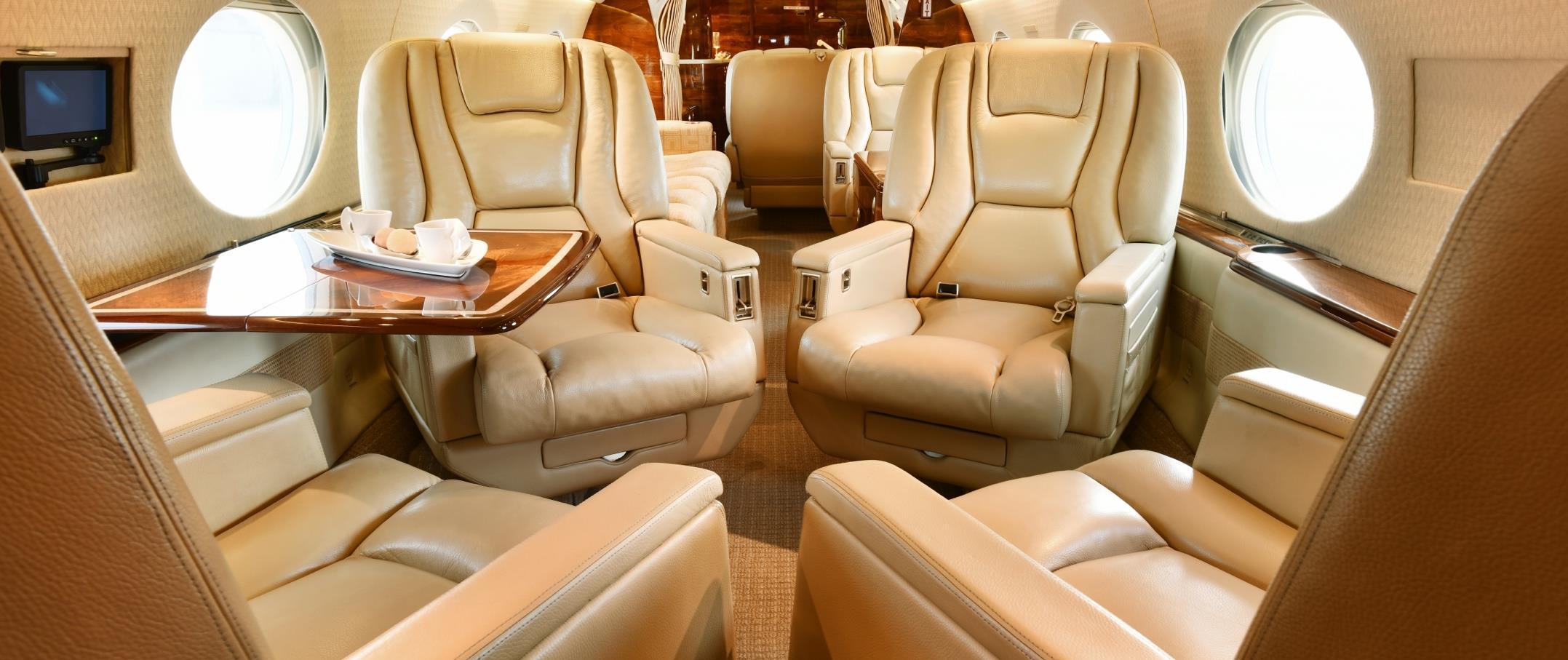

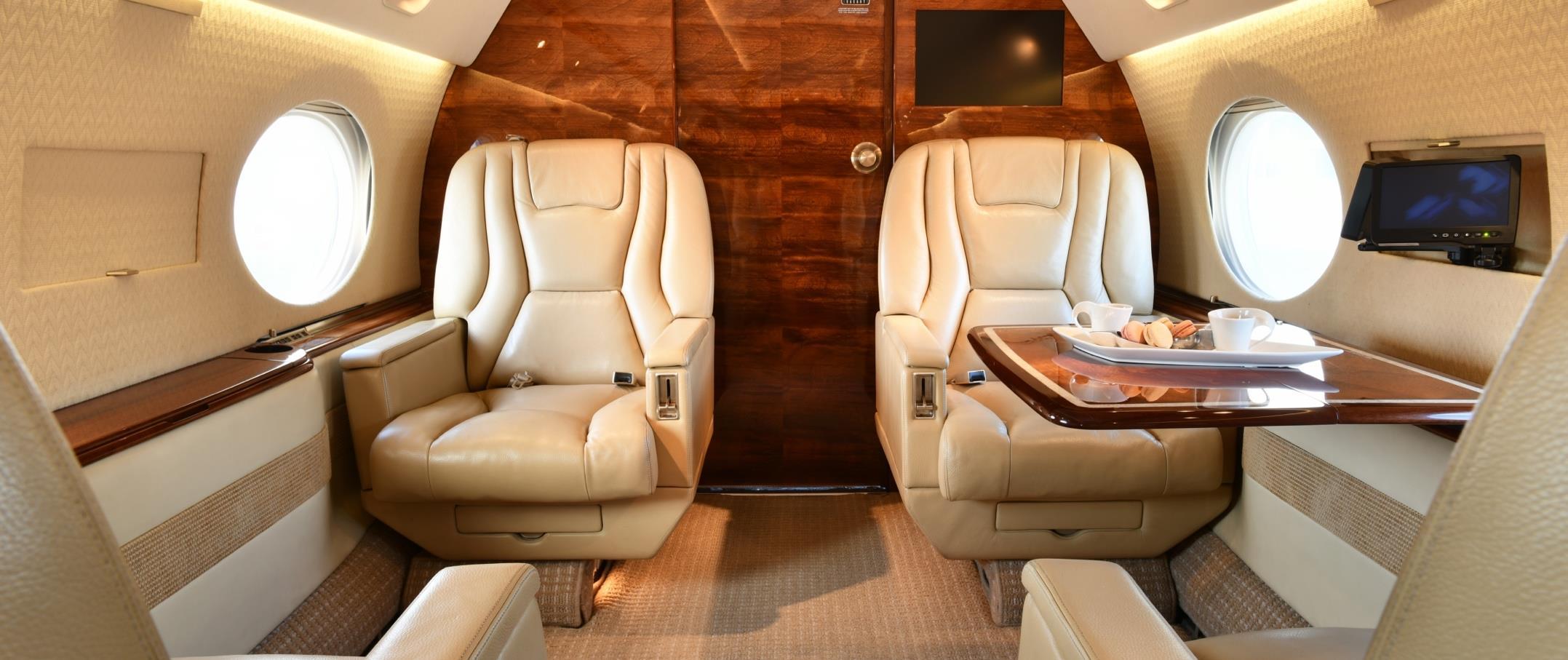

FORWARD CABIN LOOKING AFT
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558
MID CABIN LOOKING AFT
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558
AFT CABIN LOOKING AFT
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558

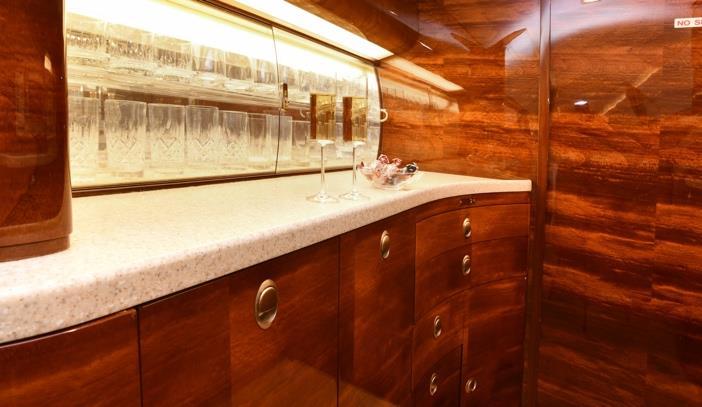

AFT GALLEY LOOKING AFT
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558

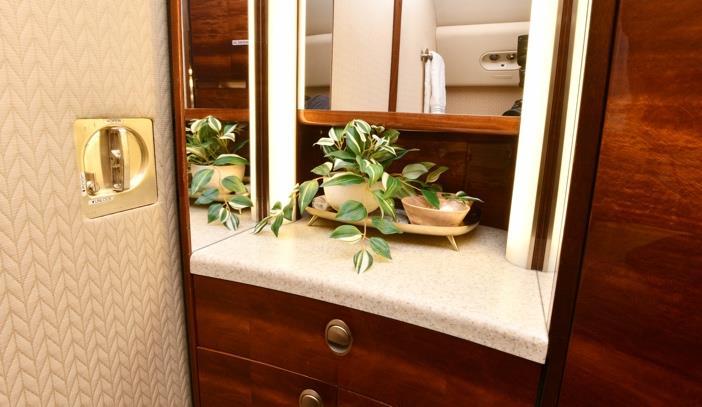

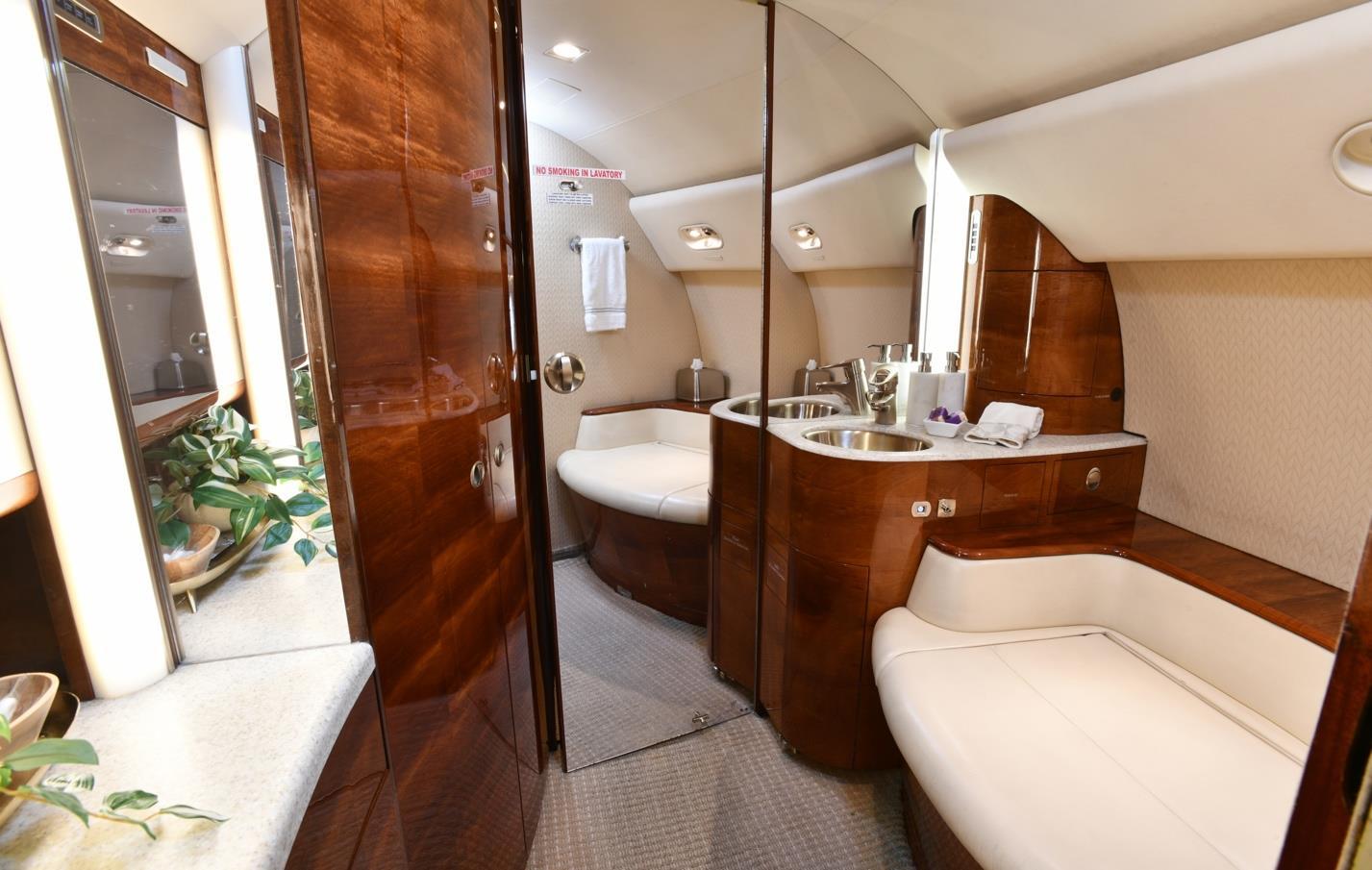

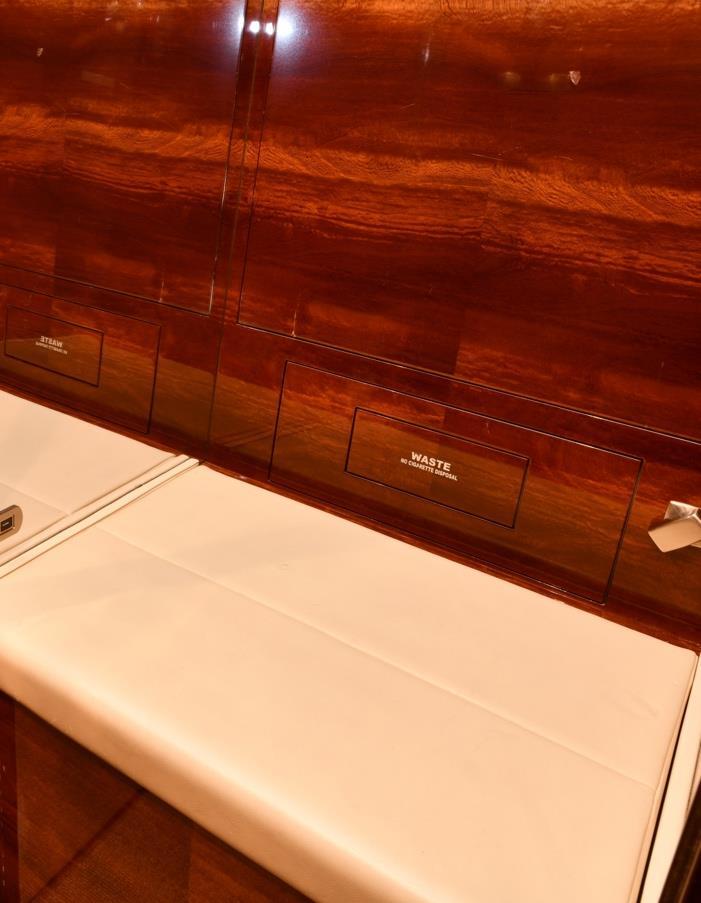

AFT EXECUTIVE LAVATORY
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558
AFT GALLEY LOOKING FORWARD
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558
AFT CABIN LOOKING FORWARD
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558
MID CABIN LOOKING FORWARD
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558
FORWARD CABIN LOOKING FORWARD
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558
FORWARD CREW REST AREA WITH MONITOR
FORWARD CREW LAVATORY
AIRCRAFT INTERIOR 1999 GULFSTREAM GV SN V-558
CABIN CONFIGURATIONS
FLIGHT DECK 1999 GULFSTREAM GV SN V-558
GULFSTREAM PLANEDECK AVIONICS SUITE

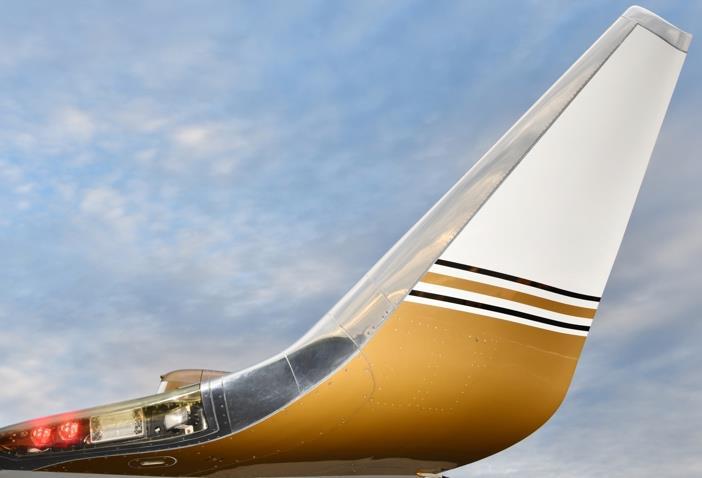

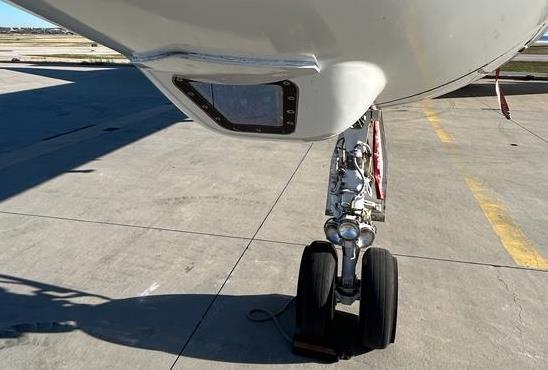

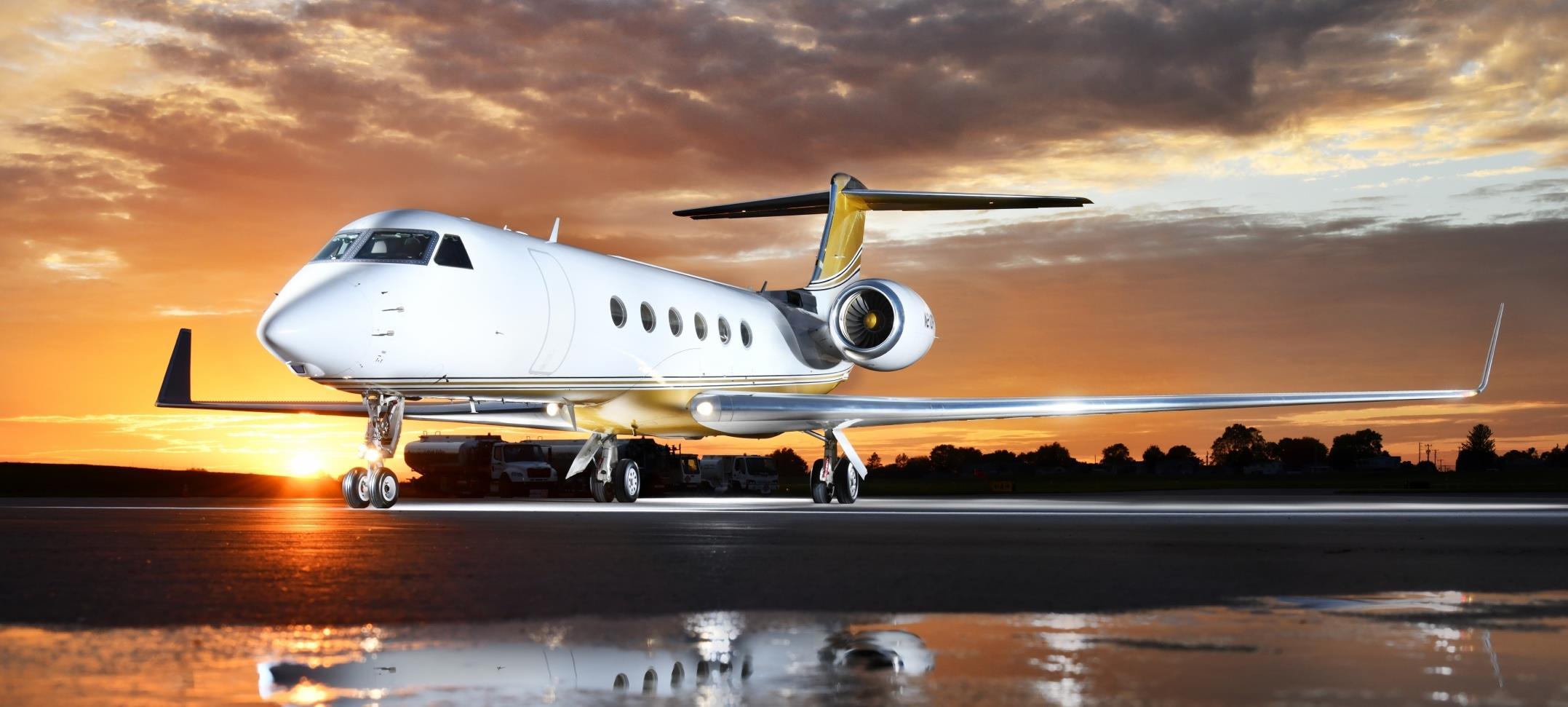

AIRCRAFT EXTERIOR 1999 GULFSTREAM GV SN V-558

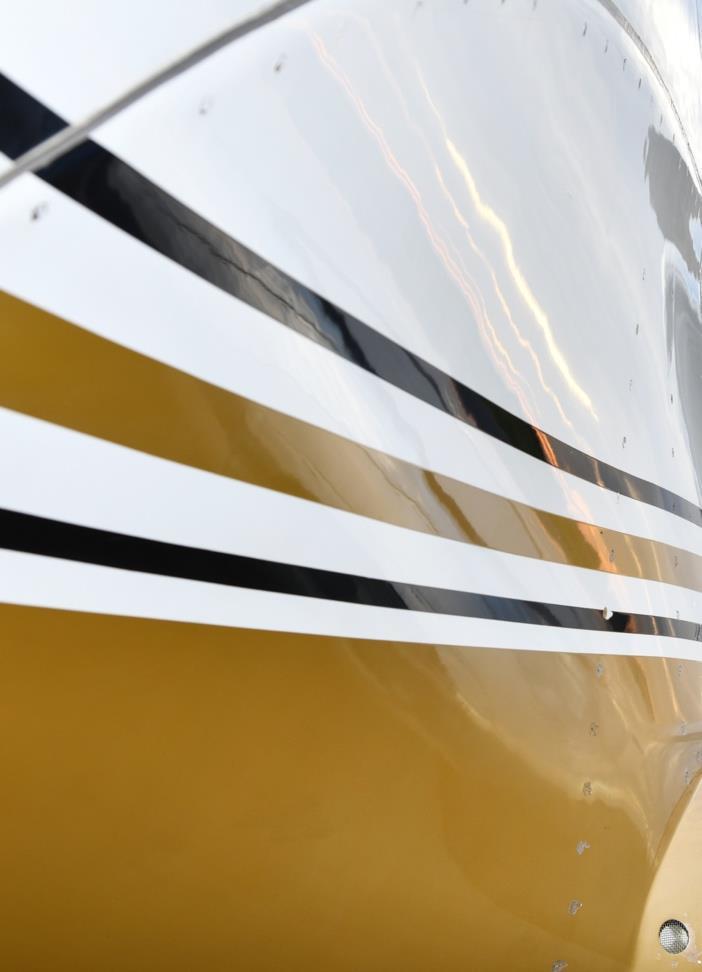

AESTHETICS: Base Paint: Matterhorn White Accent Colors: Vegas Gold Metallic, Phantom Gray & Gamma Gray Condition: Re-Painted June 2007
AIRCRAFT EXTERIOR 1999 GULFSTREAM GV SN V-558
