1999 DASSAULT FALCON 2000 SN 86
AIRCRAFT OVERVIEW
HIGHLIGHTS
Ø Engines Enrolled MSP-Gold
Ø APU Enrolled JSSI APU Plus
Ø New Carpet & Aft Bulkhead Refurbishment 2023
Ø Full Re-Paint 2017 & Stripe Re-Paint 2022
Ø GoGo Biz ATG-4000 Broadband Wi-Fi
Ø Recent C Inspections & Landing Gear Completed
AIRFRAME

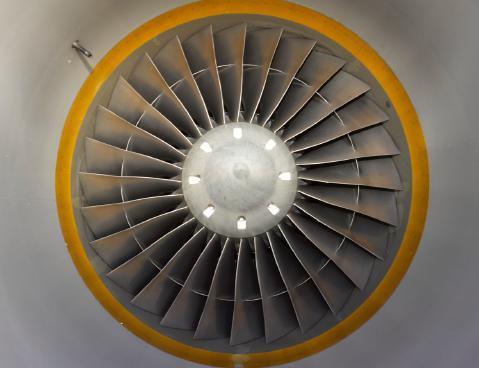

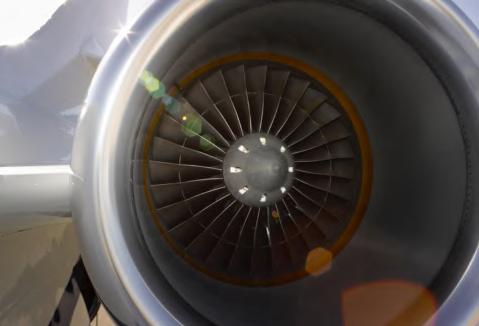

ENGINES
APU
GTCP 36-150 (F2M)
Number P-193
Hours** 5,350
Cycles ** 7,005
PROGRAMS
*All information is subject to verification PAGE 2
Serial
Total
Total
Engines MSP Gold APU JSSI APU Plus Maintenance CAMP
Serial Number 86 Registration Number N319ES Base Location FL, USA (KFXE) Entry Into Service September 1999 Total Hours* 9,643 Total Landings* 4,609
CFE738-1-1B Engine 1 Engine 2 Serial Number P105305 P105311 Total Hours* 9,168 8,779 Total Cycles* 4,297 4,141 Time Between Overhaul* 5,000 5,000 *Airframe & Engines Hours & Cycles as of February 16, 2024. **APU Hours & Cycles as of February 8, 2024. 1999 DASSAULT FALCON 2000 SN 86
AIRCRAFT DETAILS
AVIONICS – COLLINS PROLINE 4 W/ VERSION 6.1 UPGRADE
Ø EFIS: Four (4) Collins EFIS-4000 & Electronic Checklist
Ø SFD: Meggitt Secondary Flight Display
Ø FMS: Dual Collins FMS-6100 with Collins DBU-5010E
Ø CDU: Dual Collins CDU-6100
Ø AFCS: Collins w/ FADEC Mach Hold
Ø ADS: Dual Collins Air Data Computers
Ø VHF: Dual Collins w/ 8.33 kHz Spacing
Ø GPS: Dual Collins GPS-4000S
Ø AUDIO: Dual Audio Panels w/ Observer Interphone
Ø RTU: Dual Collins Radio Tuning Units
Ø SATCOM 1: AlliedSignal/Honeywell Unit for AFIS only
Ø SATCOM 2: Aircell/Gogo Axxess II Iridium
Ø RADAR: TWR-850 Turbulence WX Radar w/ Dual Control Panels
Ø LRNAV: Dual Honeywell LASEREF IV IRU
Ø AHRS: Collins AHC-85E
Ø NAV: Dual Collins
Ø DME: Dual Collins
Ø ADF: Dual Collins
Ø RADAR ALT: Dual Collins
Ø TAWS: Honeywell EGPWS
Ø TCAS: Collins TCAS II with Change 7.1
Ø XPNDR: Dual Collins TDR-94D
Ø CVR: AlliedSignal/Honeywell Solid-State
Ø ELT: Socata ELT 97A 406 MHz
Ø HF: Dual Collins w/ SELCAL
Ø DATALINK: AlliedSignal/Honeywell SATAFIS
*All information is subject to verification PAGE 3
1999 DASSAULT FALCON 2000 SN 86
MAINTENANCE
*All information is subject to verification PAGE 4
1999 DASSAULT FALCON 2000 SN 86
AIRCRAFT DETAILS
INSPECTION
COMPLETED
DUE Ø 12 Month|800Hr June 29, 2023 May 2024 Ø 24 Month|1600Hr June 29, 2023 May 2025 Ø 36 Month|2400Hr June 29, 2023 May 2026 Ø 1B July 29, 2020 10,429 Hrs. (786 Hrs. Remaining) Ø 2B July 29, 2020 12,029 Hrs. (2,386 Hrs. Remaining) Ø 3B July 29, 2020 13,692 Hrs. (4,049 Hrs. Remaining) Ø 1C June 29, 2023 June 2029 Ø 2C June 29, 2023 June 2035 Ø 3C July 14, 2017 Ø 4C Jun 29, 2023 Ø Engine 1 CZI June 30, 2009 9,480 Hrs. (312 Hrs. Remaining) Ø Engine 2 CZI Jan 27, 2011 10,000 Hrs. (1,221 Hrs. Remaining) Ø Landing Gear Overhaul June 29, 2023 June 2035
LAST
NEXT
AIRCRAFT DETAILS
ADDITIONAL FEATURES
Ø ADS-B Compliant
Ø RVSM
Ø Pulse & Logo Lights
Ø 115 cu. ft. Oxygen Bottle
Ø Refurbished Flightdeck Seats
Ø Flight Dynamics CAT IIIa Heads-Up Guidance System
INSTALLED STC & MODS
Ø Passenger Door Electrical Lifting System
Ø Increase of Maximum Take-off Gross Weight to 36,500 lbs.
Ø Wing Tank Mod
Ø Aircell ATG-4000
Ø Honeywell Laseref IV
*All information is subject to verification PAGE 5
1999 DASSAULT FALCON 2000 SN 86
AIRCRAFT DETAILS

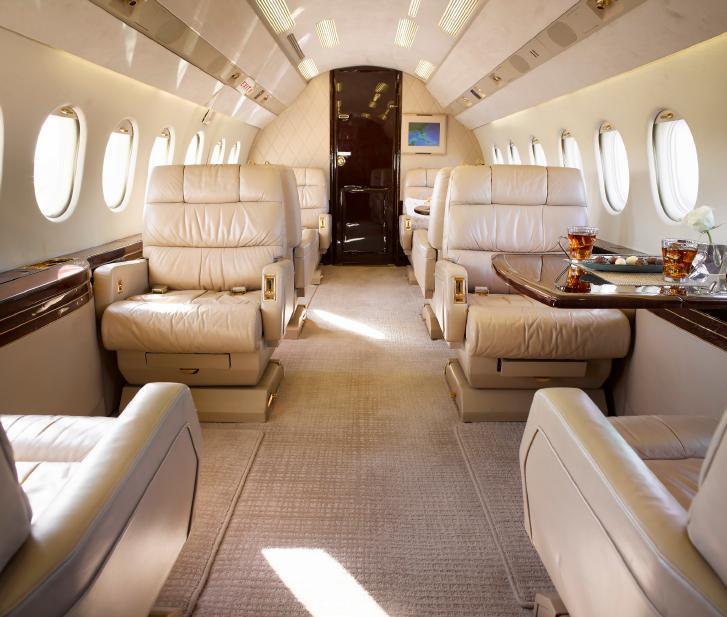

INTERIOR
Configuration / PAX:
Eight (8) Passenger Executive Cabin Seating
Seating:
Forward Four (4) Place Club w/ Dual Fold-Out Tables
Aft Four (4) Place Club w/ Dual Fold-Out Tables
Refreshment Center:
Forward Full-Service Galley w/ Oven; Microwave; Coffee Maker; Dual (2) Coffee Carafes; Dual (2) Ice Drawers; Pop-Out Work Surface; Sink w/ Faucet; Dedicated China/Cutlery/Crystal Storage
Condition:
New Carpet & Updated Aft Bulkhead 2023
Displayed color swatches are an approximation
Lavatory:
Aft Electric-Flushing Externally Serviced Lavatory w/ Mirrored Vanity; Sink & Storage
Connectivity/Entertainment:
Airshow 400
GoGo Biz ATG-4000 Broadband Wi-Fi
Aircell/Gogo Axxess II Iridium Satcom w/ Multiple Handsets
Additional Features:
In-Flight Accessible Baggage Compartment
Entry Door Acoustic Curtain
115V/60HZ Throughout Cabin
Forward Cabin Pocket Door
Full Size Jump Seat Certified for Take-Off/Landing (for Crew Only)
*All information is subject to verification PAGE 6
1999 DASSAULT FALCON 2000 SN 86

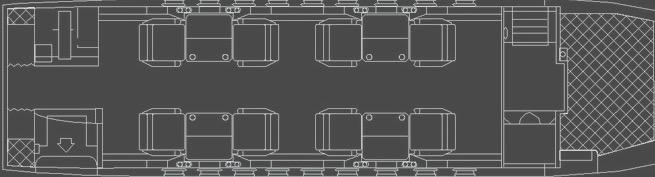

*All information is subject to verification PAGE 7 LAYOUT AIRCRAFT DETAILS 1999 DASSAULT FALCON 2000 SN 86

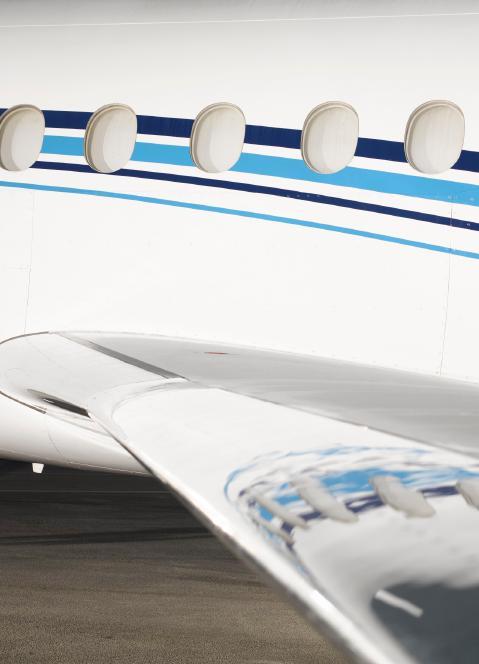

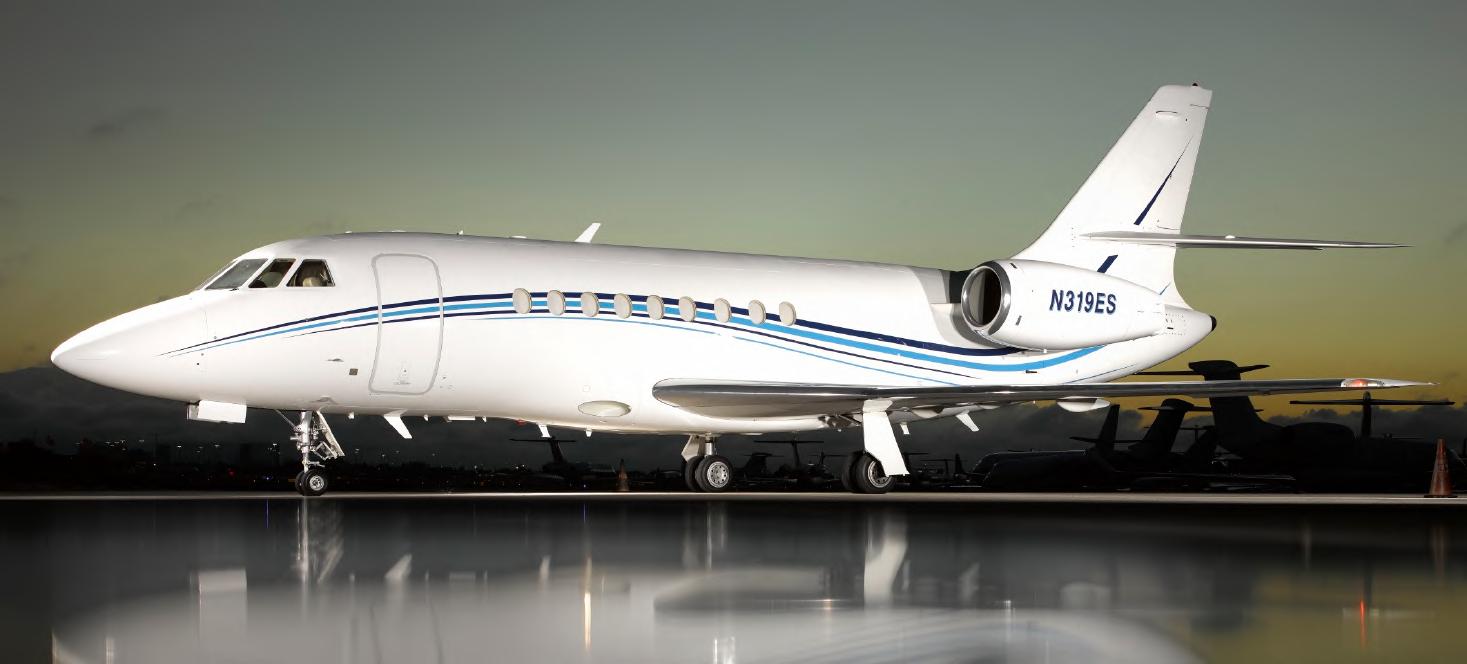

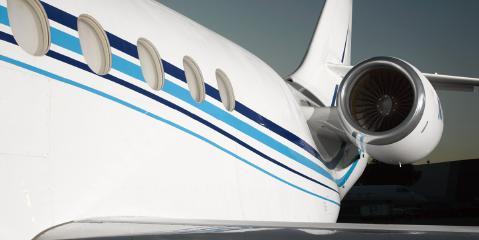

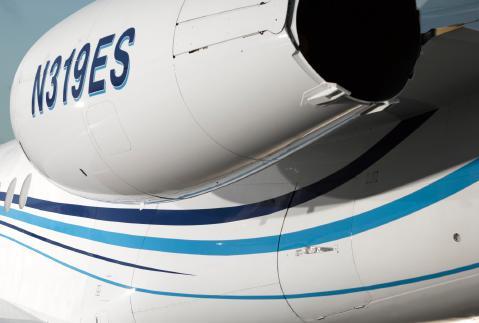

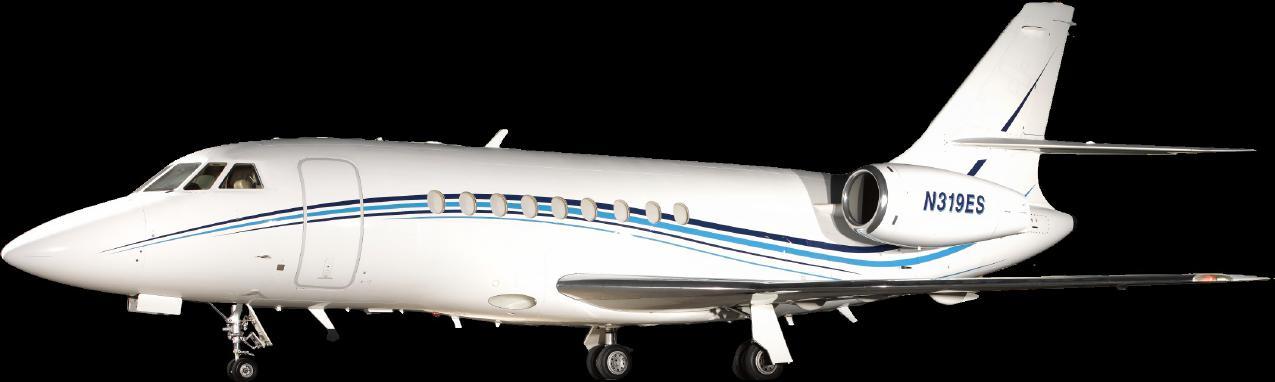

EXTERIOR
Base Paint: Matterhorn White
Accent Colors: Light Blue & Navy Blue
Condition: Full Re-Paint in 2017
Restripe in 2022
Displayed color swatches are an approximation
*All information is subject to verification
1999 DASSAULT FALCON 2000 SN 86
AIRCRAFT DETAILS

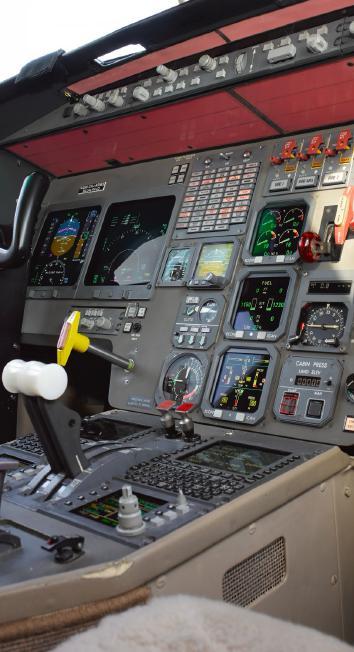

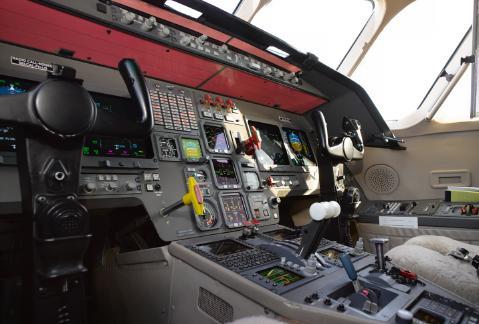

*All information is subject to verification PAGE 9 FLIGHT DECK 1999 DASSAULT FALCON 2000 SN 86

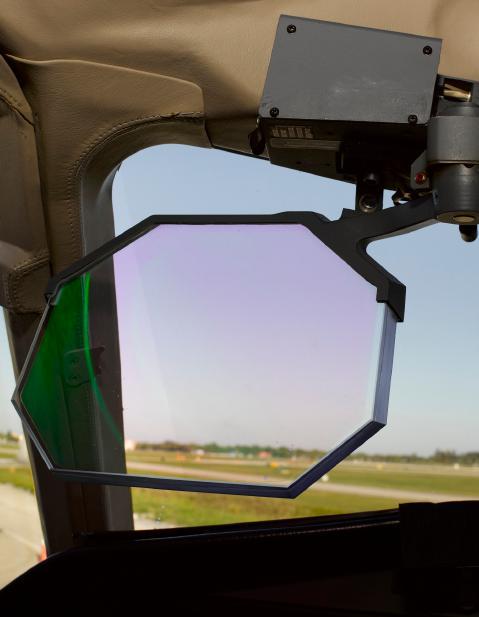

*All information is subject to verification PAGE 10 Head-Up-Display Flight

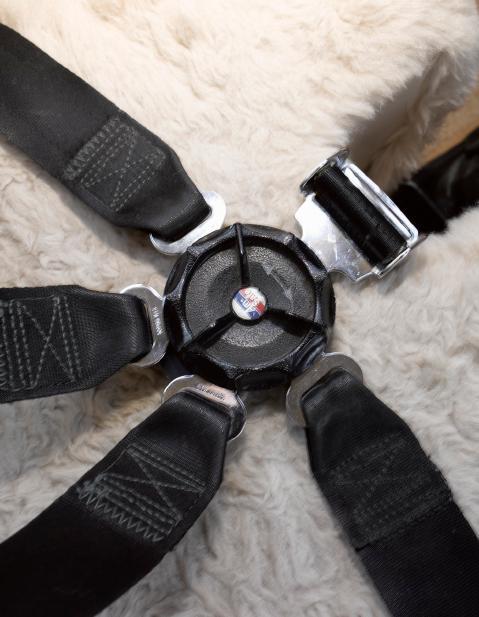

5-Point
INTERIOR 1999 DASSAULT FALCON 2000 SN 86
Deck

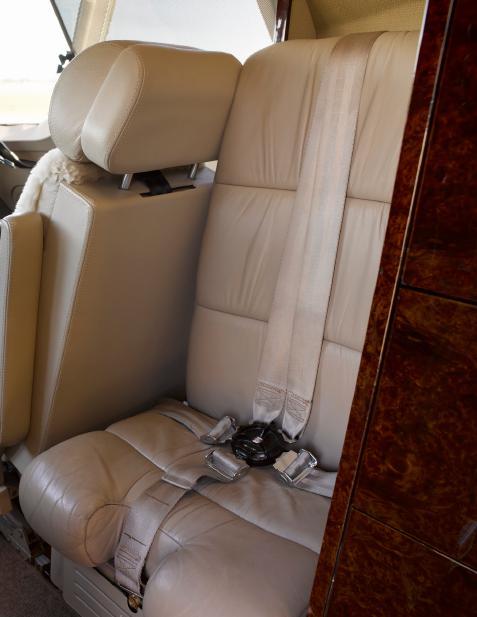

Harness Crew Jump Seat
*All information is subject to verification PAGE 11
RH
INTERIOR 1999 DASSAULT FALCON 2000 SN 86
Forward

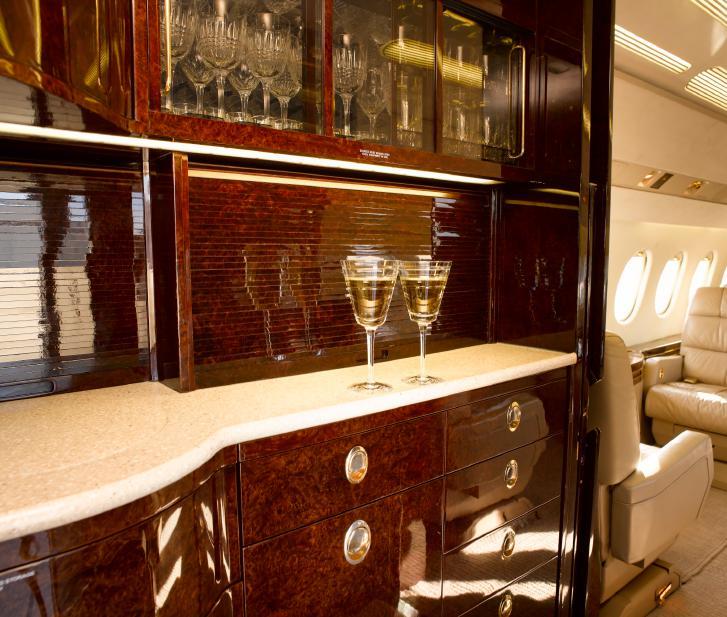

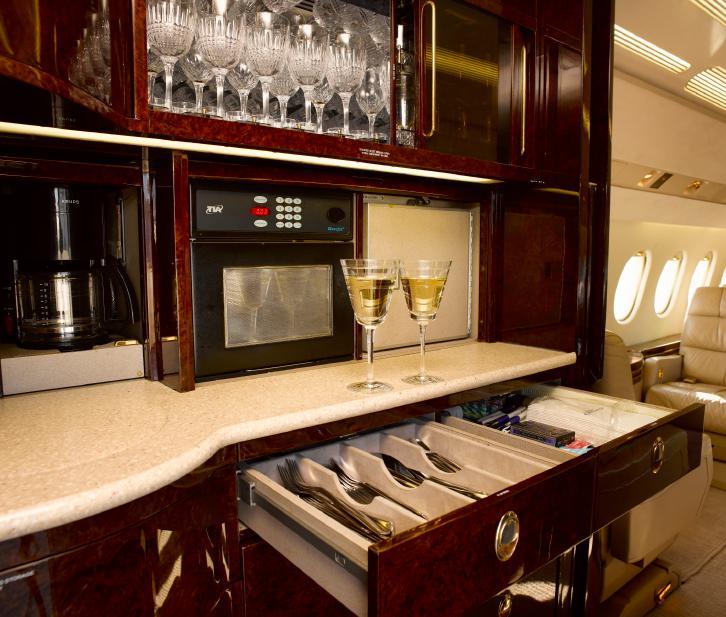

Galley Galley Equipment & Storage

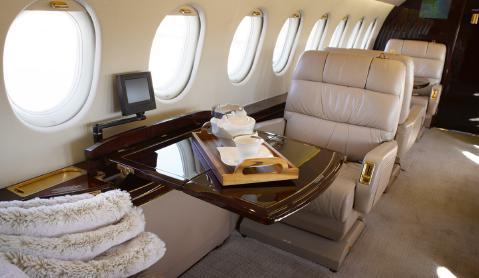

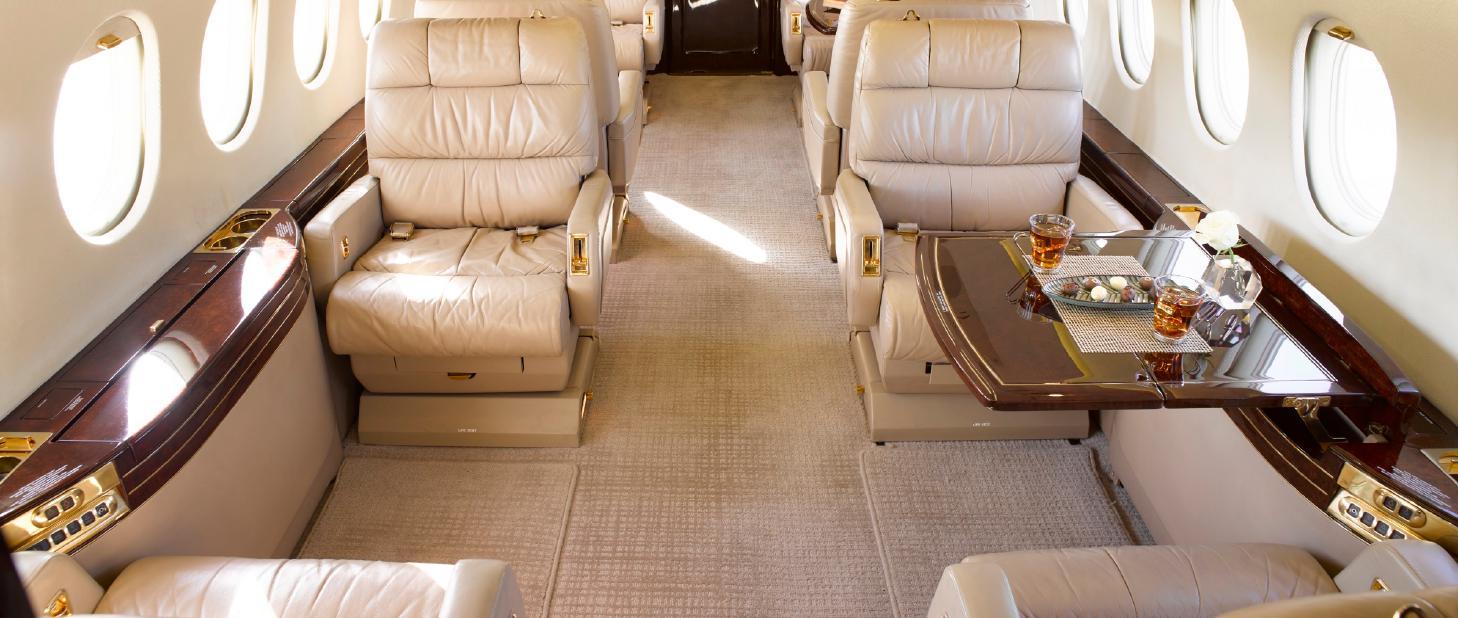

*All information is subject to verification PAGE 12 Forward Four (4)-Place Club Facing Aft INTERIOR 1999 DASSAULT FALCON 2000 SN 86
*All information is subject to verification PAGE 13 Aft Four (4)-Place Club Facing Aft INTERIOR 1999 DASSAULT FALCON 2000 SN 86

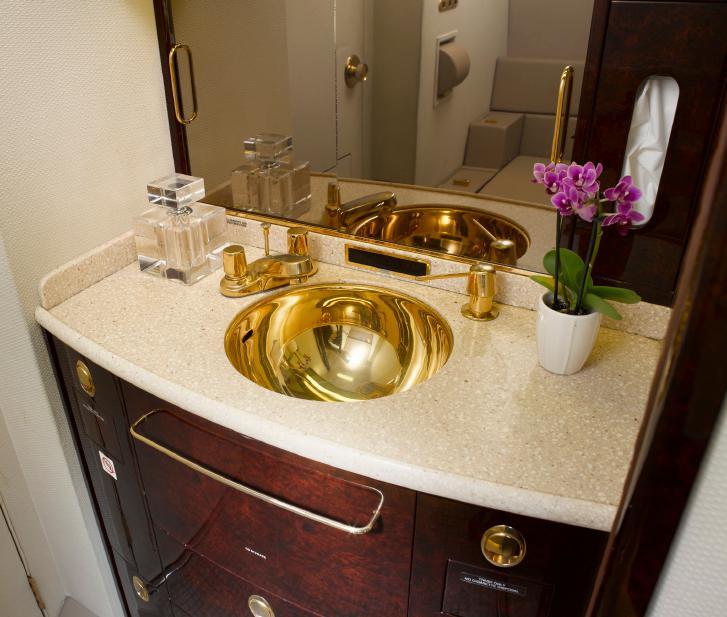

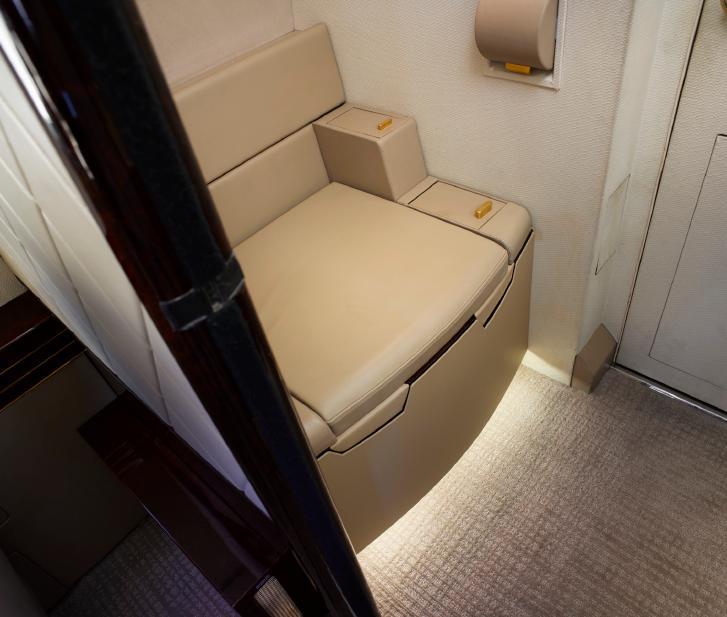

*All information is subject to verification PAGE 14 Aft Lavatory Aft Lavatory Vanity & Sink INTERIOR 1999 DASSAULT FALCON 2000 SN 86

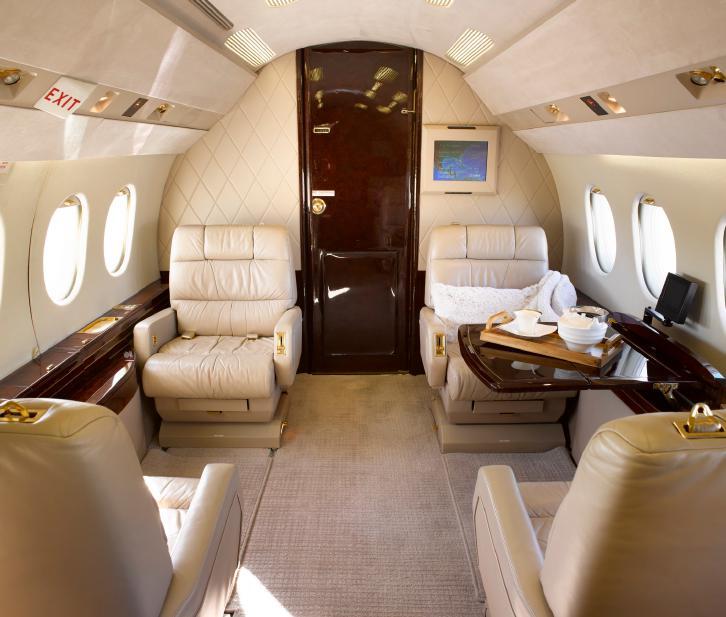

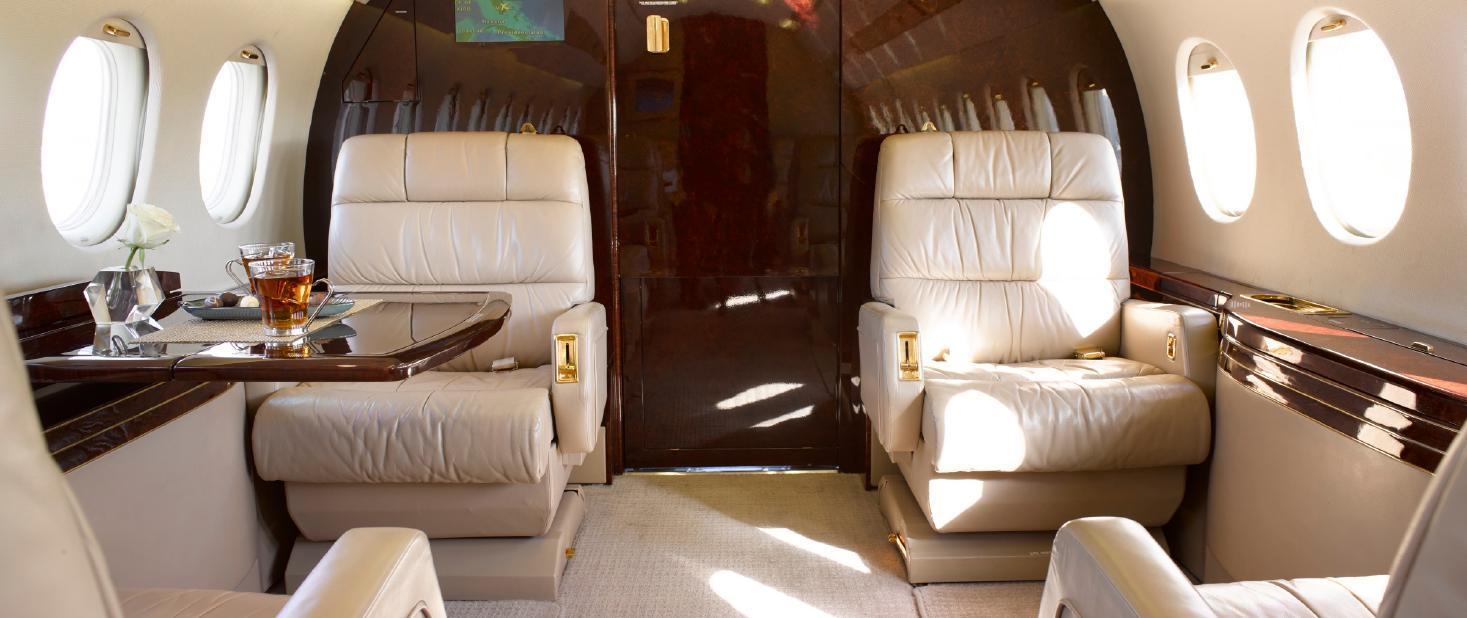

*All information is subject to verification PAGE 15 Aft Seating Facing Forward Forward Seating Facing Forward INTERIOR 1999 DASSAULT FALCON 2000 SN 86

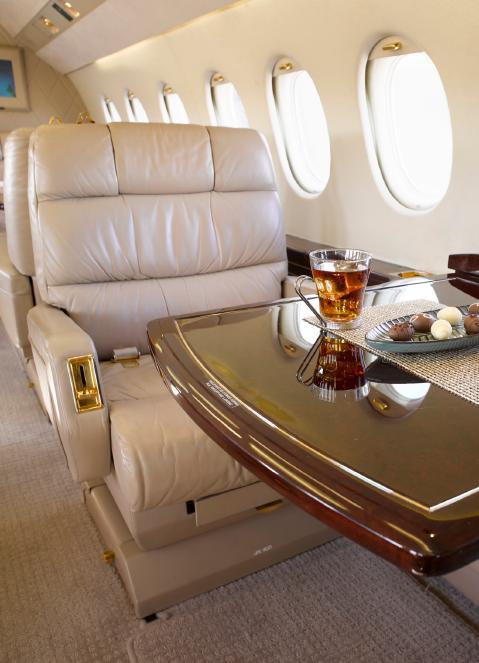

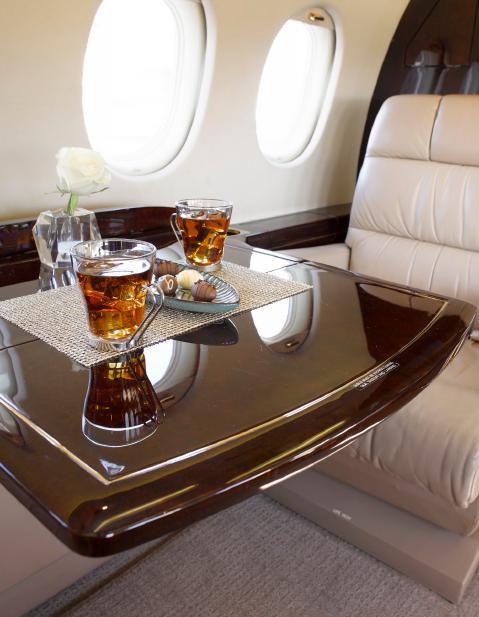

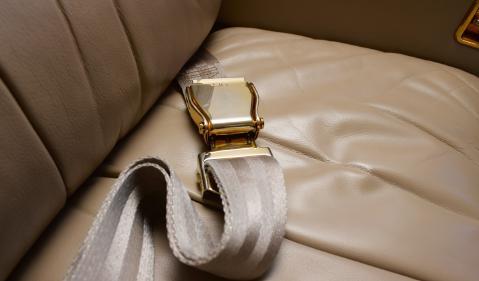

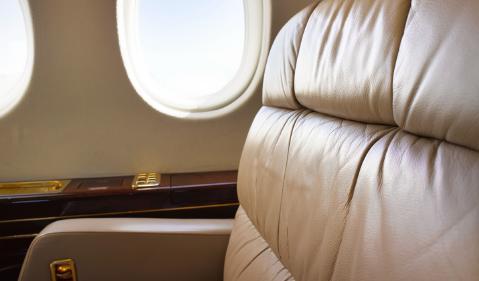

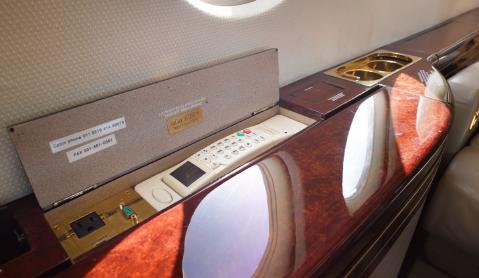

*All information is subject to verification PAGE 16 Aft Executive Table Detail Seatbelt Detail In-Flight Phone Leather Seat Detail Forward RH Club Seating INTERIOR 1999 DASSAULT FALCON 2000 SN 86

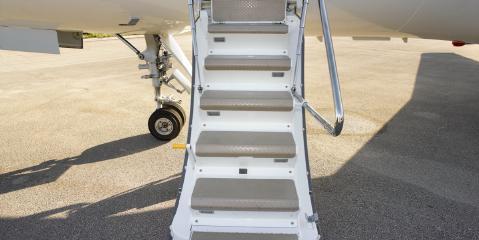

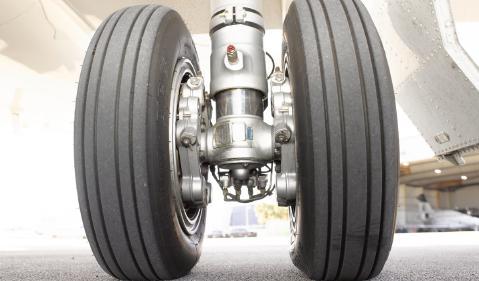

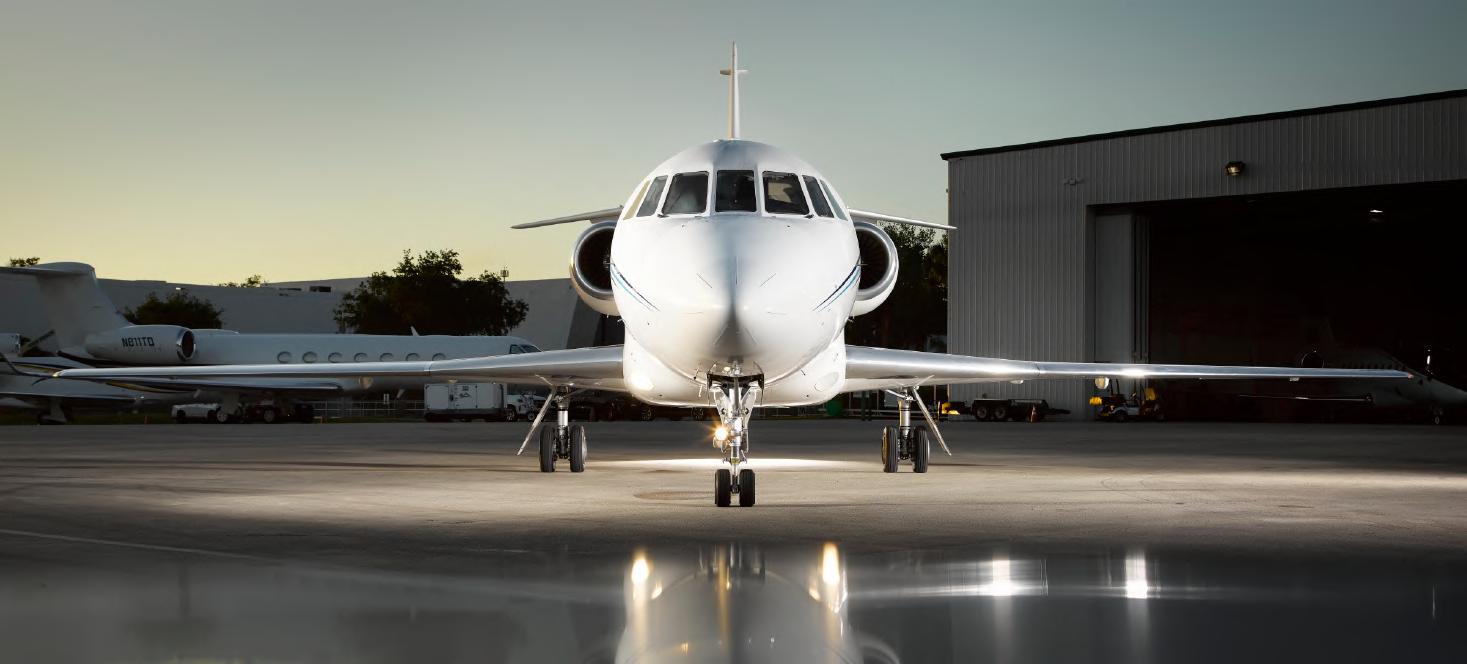

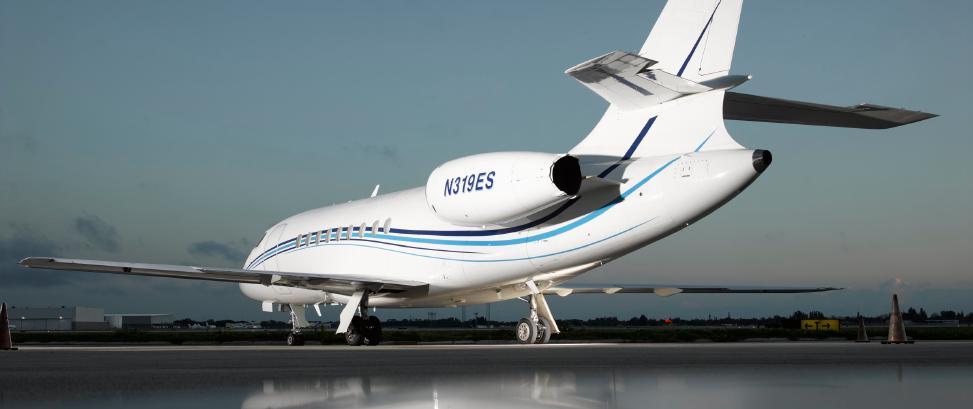

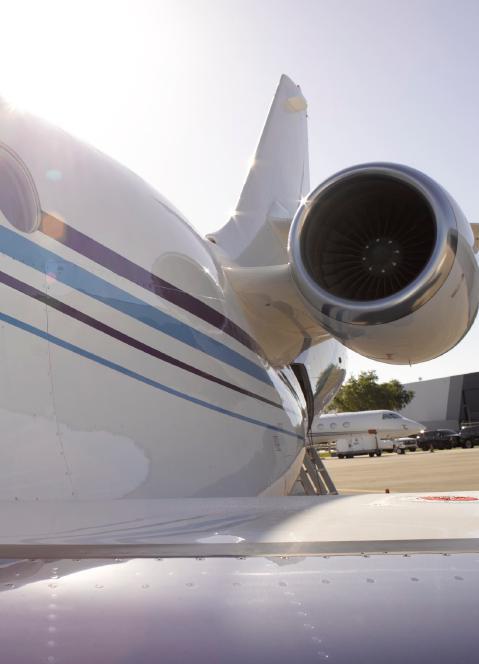

*All information is subject to verification PAGE 17 EXTERIOR 1999 DASSAULT FALCON 2000 SN 86
*All information is subject to verification PAGE 18 EXTERIOR 1999 DASSAULT FALCON 2000 SN 86
*All information is subject to verification PAGE 19 EXTERIOR 1999 DASSAULT FALCON 2000 SN 86
