2005 HAWKER 400XP SN RK - 436
AIRCRAFT OVERVIEW
HIGHLIGHTS
Ø Recent A & B Inspections
Ø Recent Minor Engine Inspections
Ø 2018 Interior & 2010 Exterior
Ø Collins Pro Line 4 | ADS-B Out | 8 Pax
Ø Always Hangared | No Damage History
AIRFRAME
Serial Number RK-436
Base Location Monterrey, Mexico (MMAN)
Entry Into Service October 2005
Total Hours* 4,708
Total Landings* 4,817
*All Hours & Cycles as of 28-Apr-2024
ENGINES
P&WJT15D-5 Engine 1 Engine 2
Serial Number PCE-JA0660 PCE-JA0661
Cycles*
PROGRAMS
Maintenance Tracking CAMP
*All information is subject to verification PAGE 2
2005 HAWKER 400XP SN RK - 436
Total
4,708 4,708 Total
4,817 4,817 Time
3,600 Hours
1,129 1,129 Cycles
1,243 1,243
Hours*
Between Overhaul*
Since Overhaul*
Since Overhaul*
AIRCRAFT DETAILS 2005
AVIONICS
Ø SUITE: Collins Pro Line 4
Ø ADC: Dual Collins ADC-850D
Ø ADF: Dual Collins ADF-462
Ø AHRS: Collins AHC-85E
Ø AP/FD: Collins APS-4000 w/APP-85
Ø COMMS (VHF) Dual Collins VHF-422C
Ø CVR: Single L3 FA2100
Ø DME: Dual Collins DME-442
Ø EFIS: 3-Tube Collins FIS-870
Ø ELT: Single Artex C406-2
Ø FD: Dual Collins FCS-4000
Ø FMS: Dual Collins FMS-5000
Ø GPS: Dual Collins GPS-4000A
Ø NAV: Dual Collins VIR-432
Ø RAD ALT: Single Collins ALT-55B
Ø RMI: Dual Collins SDU-640
Ø SATCOM: AirCell ST-3100 Iridium
Ø TAWS: Honeywell Mark V EGPWS Class A&B
Ø TCAS: Collins TTR-4000 TCAS-II w/ ch. 7.0
Ø XPDR: Dual Collins TDR-94D Mode S
Ø WX RAD: Single Collins RTA-854
*All information is subject to verification PAGE 3
HAWKER 400XP SN RK - 436
AIRCRAFT DETAILS
ADDITIONAL FEATURES
ADS-B Out Davtron Clocks Dual DB-438 Audio Panels Dual Collins RTU-870 Collins CDU-5000 L3 ESIS
MAINTENANCE
*All information is subject to verification PAGE 4
2005 HAWKER 400XP SN RK - 436
Collins DBU-5000
INSPECTION COMPLIED WITH DUE INSPECTION COMPLIED WITH DUE A (200 HR) 13-Oct-23 (4,598 HR) 4,798 HR Eng. 1 Minor (200 HR) 13-Oct-23 (4,598 HR) 4,798 HR B (400 HR) 22-Oct-23 (4,420 HR) 4,820 HR Eng. 2 Minor (200 HR) 13-Oct-23 (4,598 HR) 4,798 HR C (1,200 HR) 29-Aug-17 (3,616 HR) 4,816 HR Eng.1 HSI (1,800 HR) 31-May-17 (3,579 HR) 5,379 HR D (5,000 HR) - 5,000 HR Eng. 2 HSI (1,800 HR) 31-May-17 (3,579 HR) 5,379 HR NG Strut - 15,000 Ldg Eng. 1 OH (3,600 HR) 31-May-17 (3,579 HR) 7,179 HR LG Strut - 15,000 Ldg Eng. 2 OH (3,600 HR) 31-May-17 (3,579 HR) 7,179 HR RG Strut - 15,000 Ldg
AIRCRAFT DETAILS
INTERIOR
Configuration / PAX:
Seven (7) Passenger Executive Cabin Seating + One (1) Belted Lav.
Eight (8) Pax Total
Seating:
Forward
One (1) Aft-Facing Executive Seat
Mid
Four (4)-Place Club Executive Seating
Aft
Dual (2) Forward-Facing Executive Seats
Refreshment Center:
Forward RS
Displayed color swatches are an approximation
Lavatory:
Aft Private Lavatory w/ One (1) Belted Lav. Seat
Connectivity & Entertainment:
Fwd RS Monitor (10.4”)
Airshow 400 | Moving Map
Teledyne AvVisor Cabin Flight Info. Display
Condition:
Refurbished in 2018
Additional Features:
110 VAC Outlets
CD/DVD Player
*All information is subject to verification PAGE 5
HAWKER 400XP SN RK - 436
2005
*All information is subject to verification PAGE 6
2005 HAWKER 400XP SN RK - 436

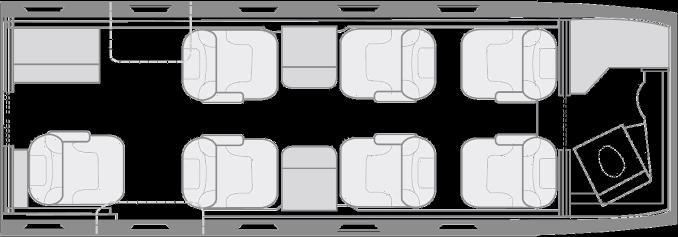

LAYOUT AIRCRAFT DETAILS
AIRCRAFT DETAILS
EXTERIOR
Accent Colors:
Condition:
Re-Painted in May 2010
San Antonio Service Center - Textron
Displayed color swatches are an approximation
*All information is subject to verification PAGE 7
2005 HAWKER 400XP SN RK - 436
Base Paint:
White
Blue & Gold

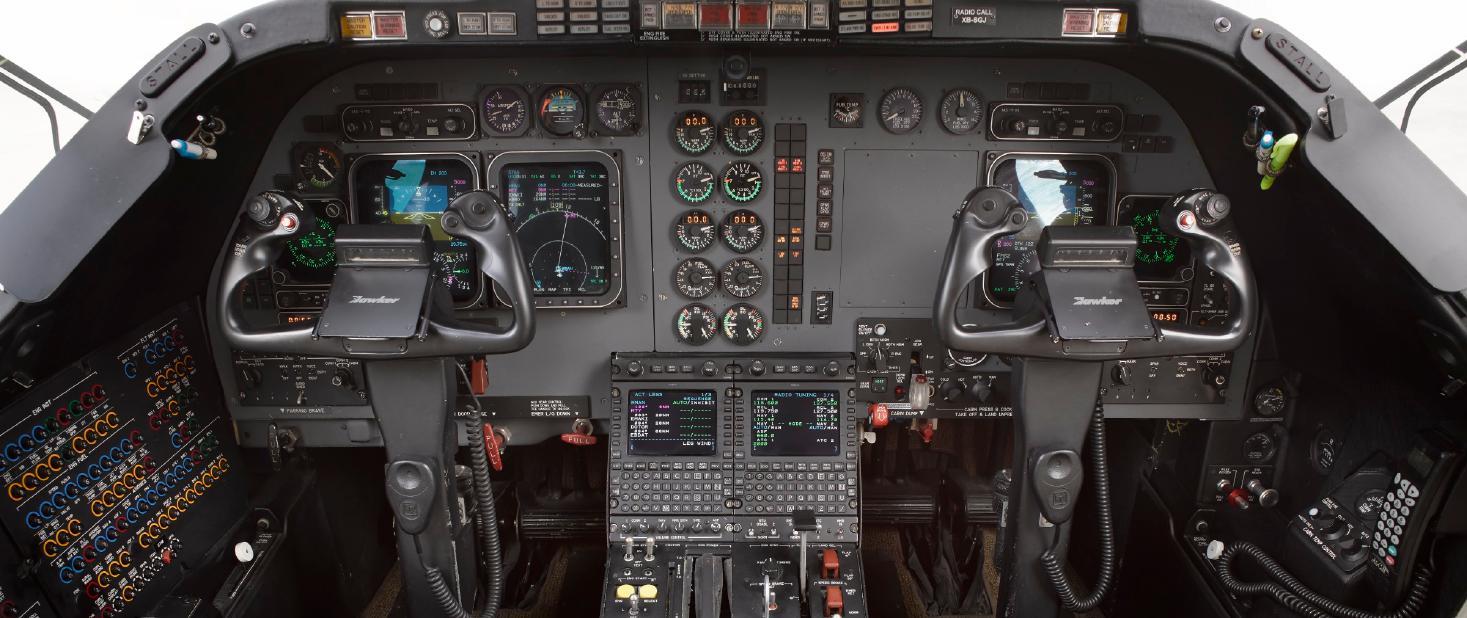

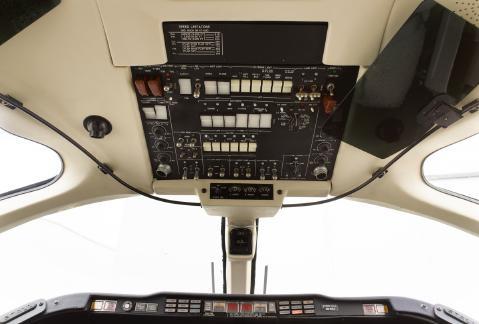

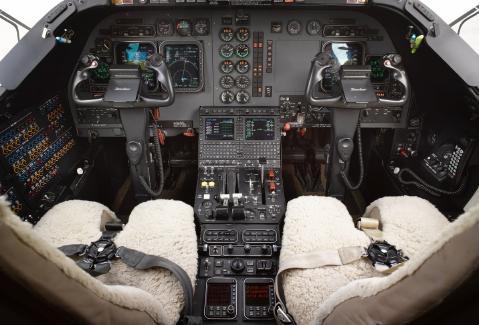

FLIGHT DECK
*All information is subject to verification PAGE 8 Collins Pro Line 4 Avionics Suite
2005 HAWKER 400XP SN RK - 436
*All information is subject to verification PAGE 9

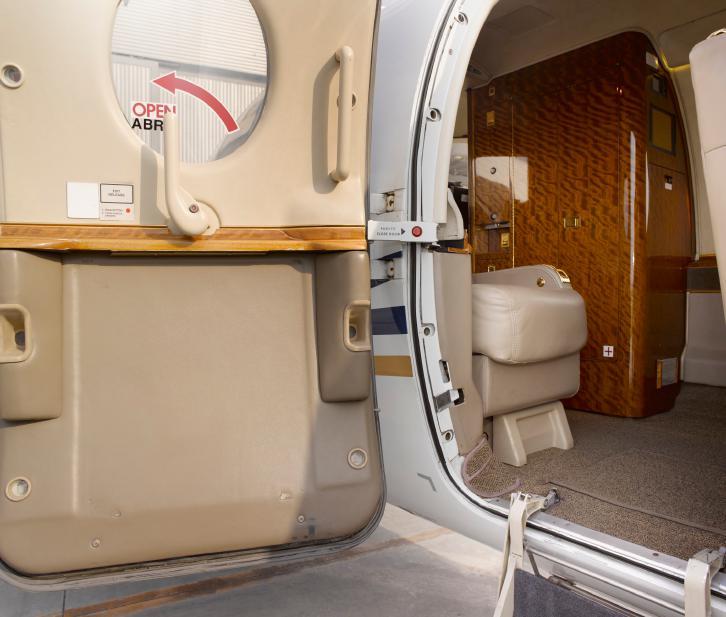

Entrance
2005 HAWKER 400XP SN RK - 436

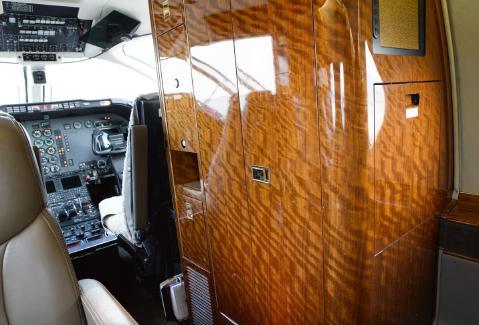

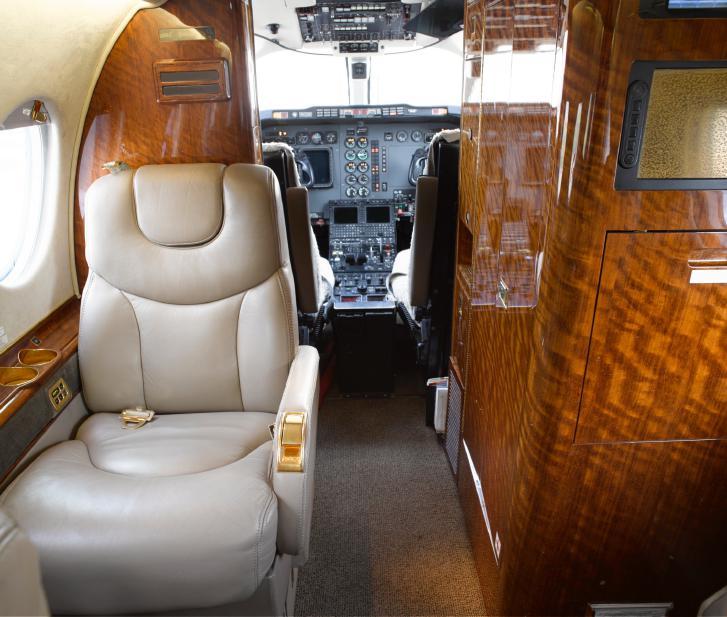

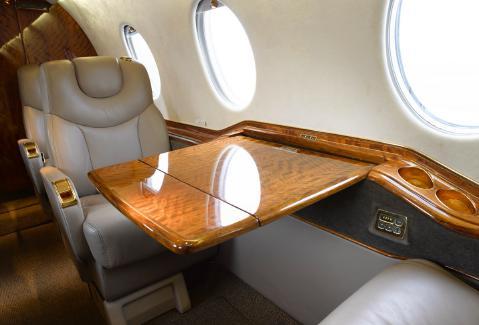

Fwd Cabin Aft-Facing Seat & Refreshment Center
INTERIOR
*All information is subject to verification PAGE 10

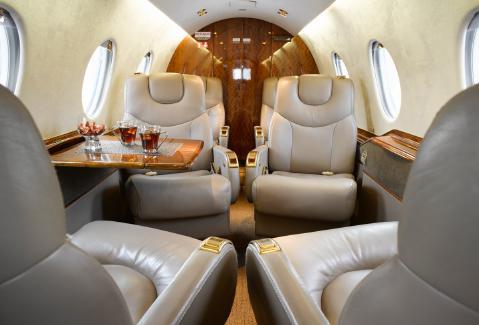

Mid Cabin Four-Place Club Facing Aft
INTERIOR 2005 HAWKER 400XP SN RK - 436

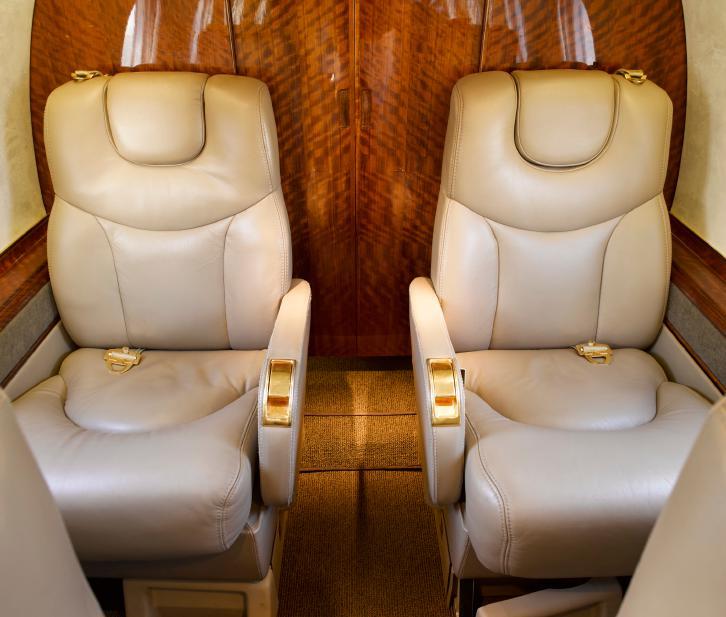

Aft Cabin Fwd-Facing Seats
*All information is subject to verification PAGE 11

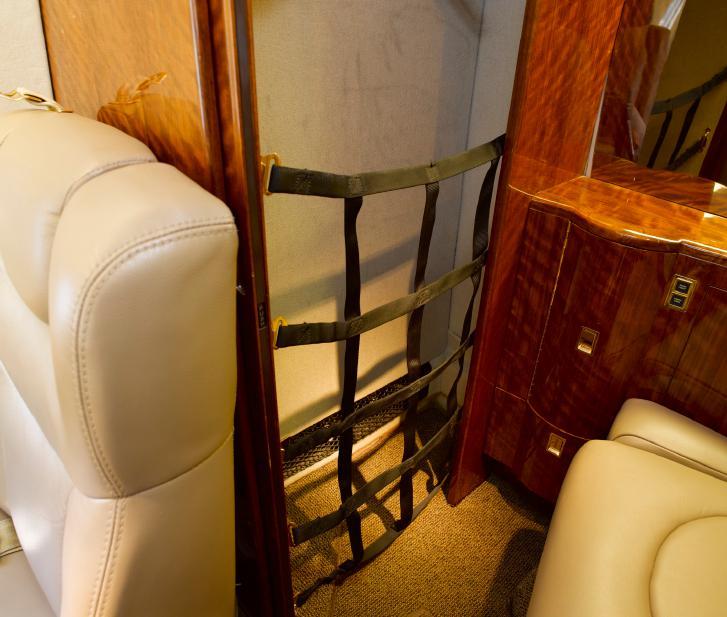

Aft Baggage & Coat Rack Area
2005 HAWKER 400XP SN RK - 436

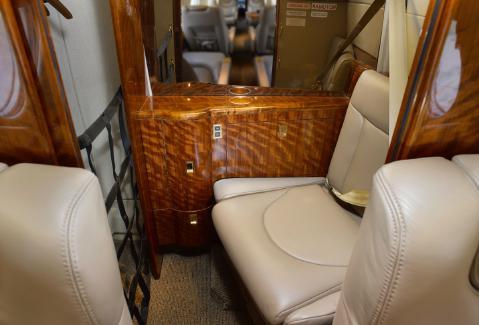

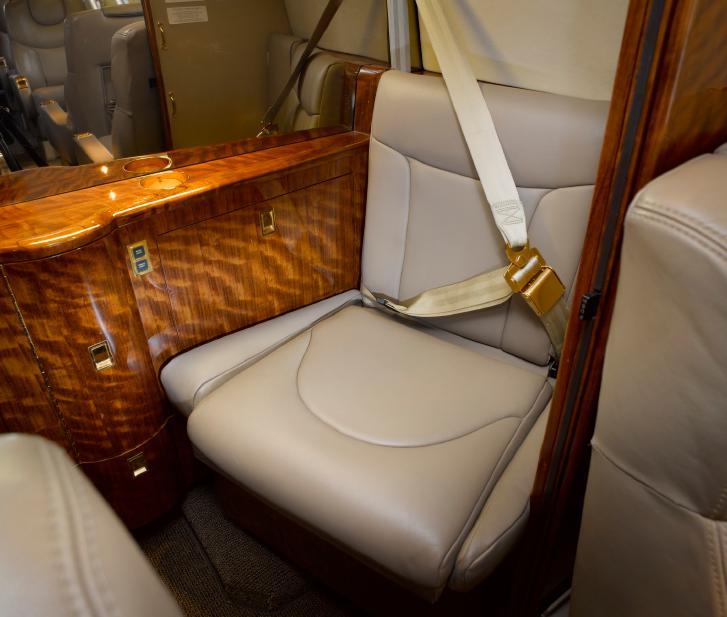

Belted Lavatory Seat
INTERIOR
*All information is subject to verification PAGE 12

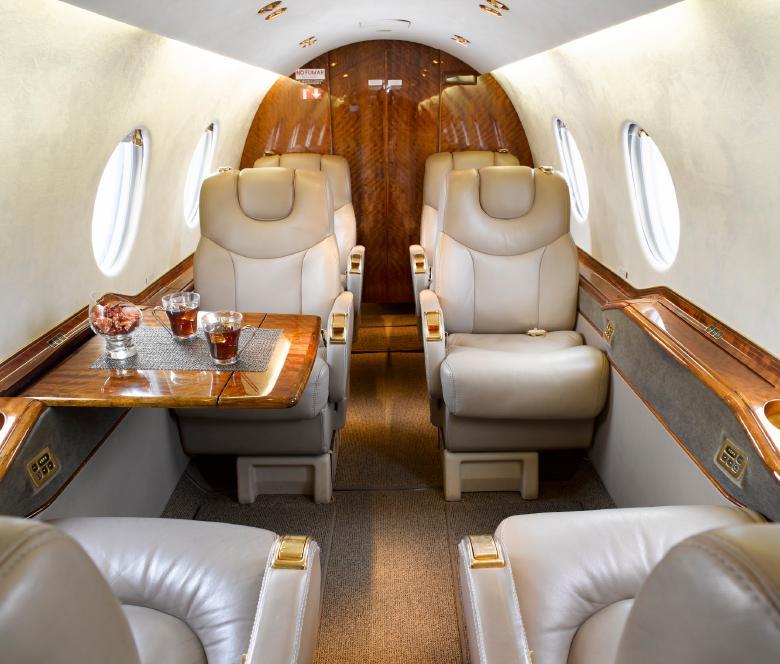

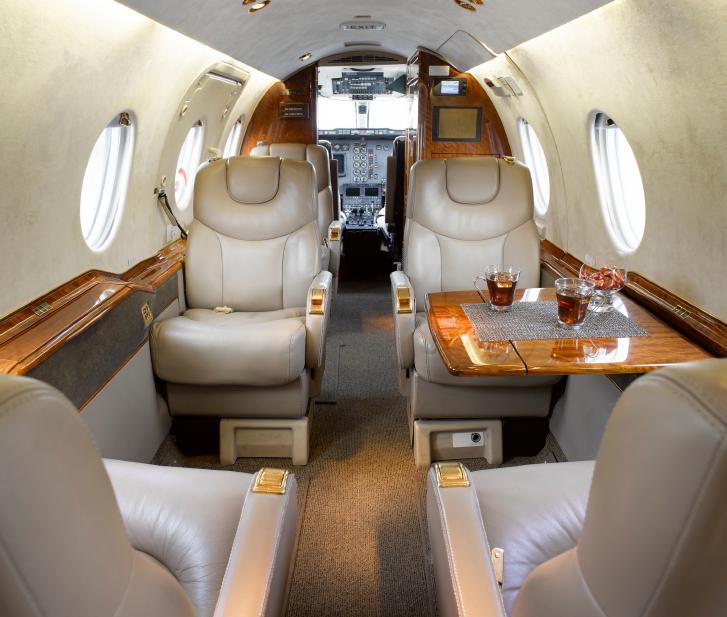

Aft Cabin Facing Fwd
INTERIOR 2005 HAWKER 400XP SN RK - 436

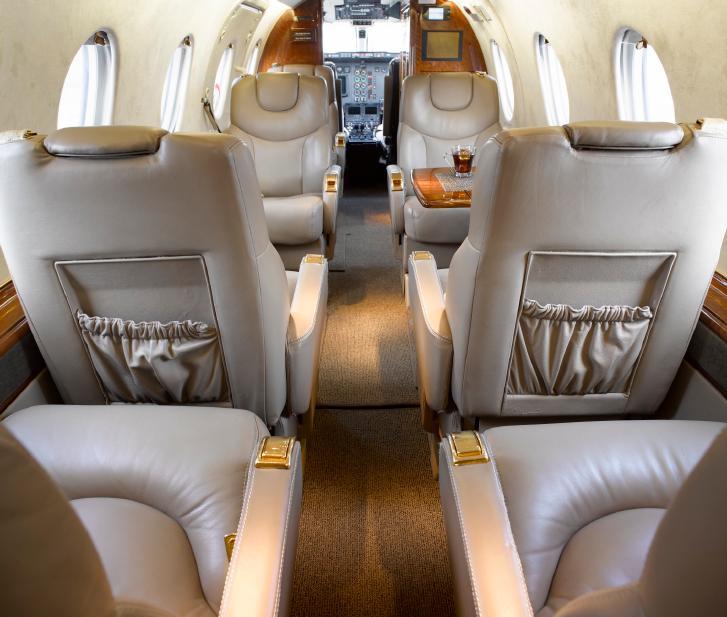

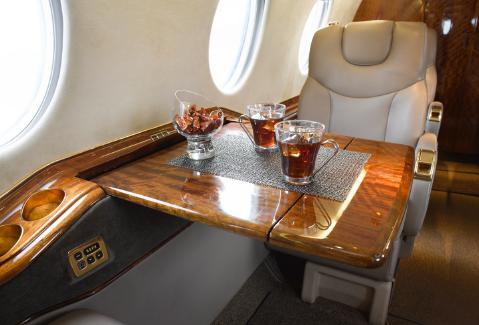

Mid Cabin Four-Place Club Facing Fwd
*All information is subject to verification PAGE 13
2005 HAWKER 400XP SN RK - 436
INTERIOR
*All information is subject to verification PAGE 14
2005 HAWKER 400XP SN RK - 436

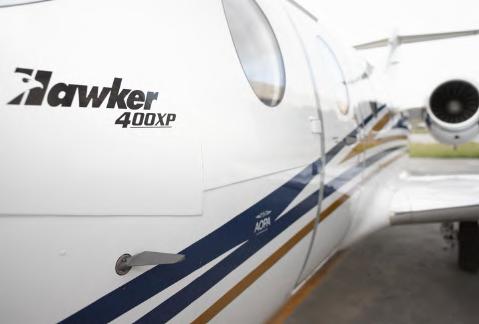

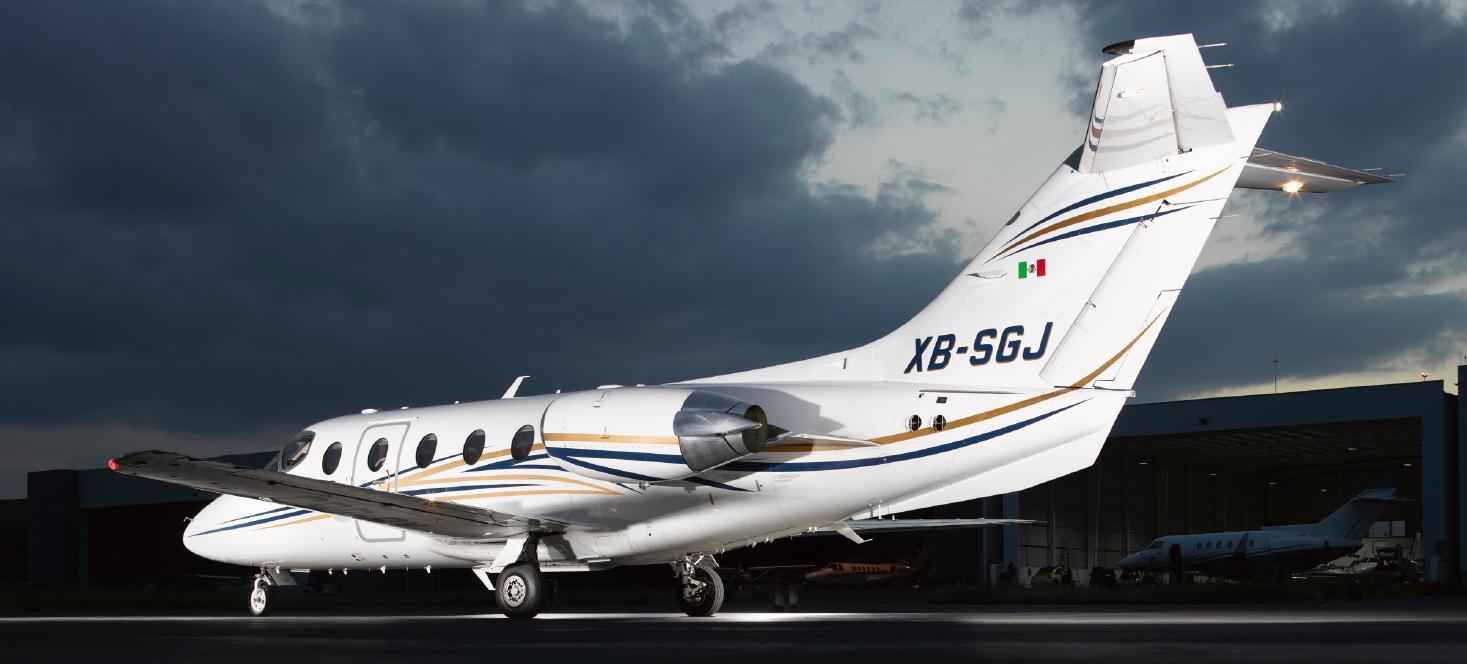

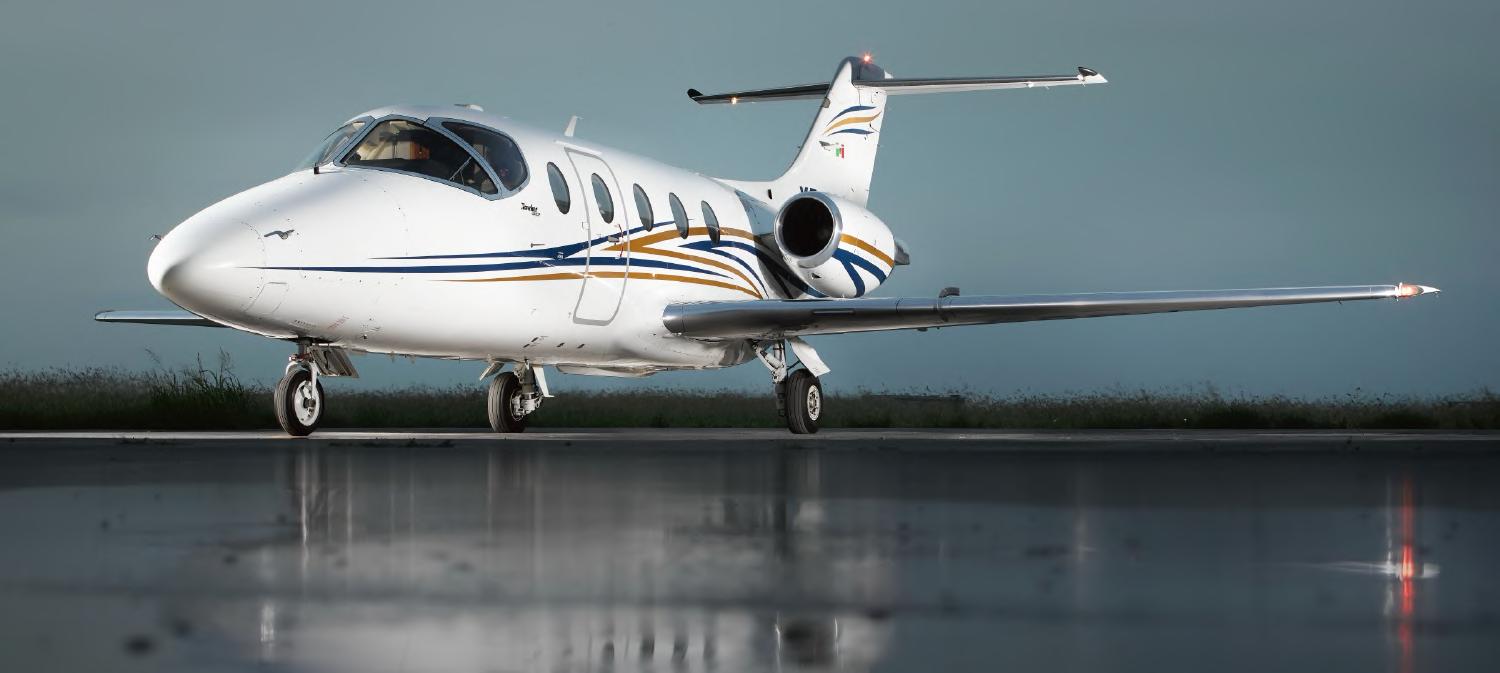

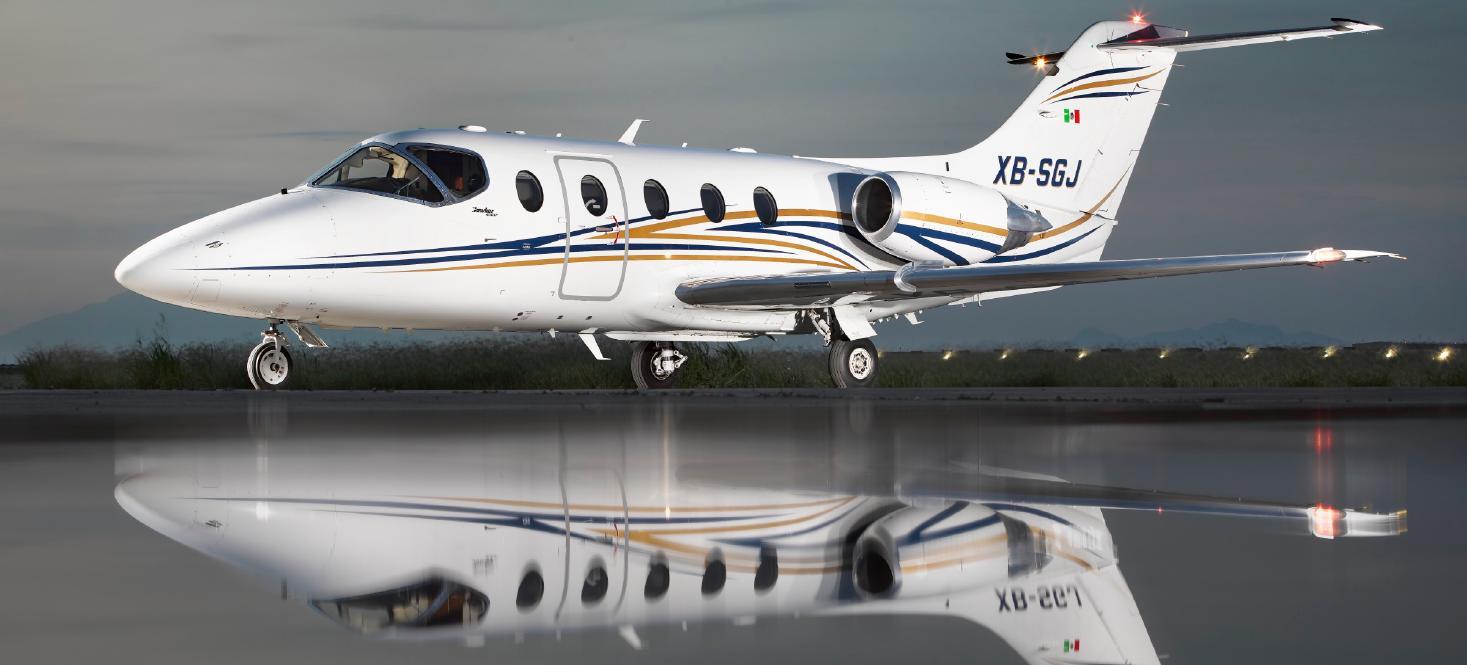

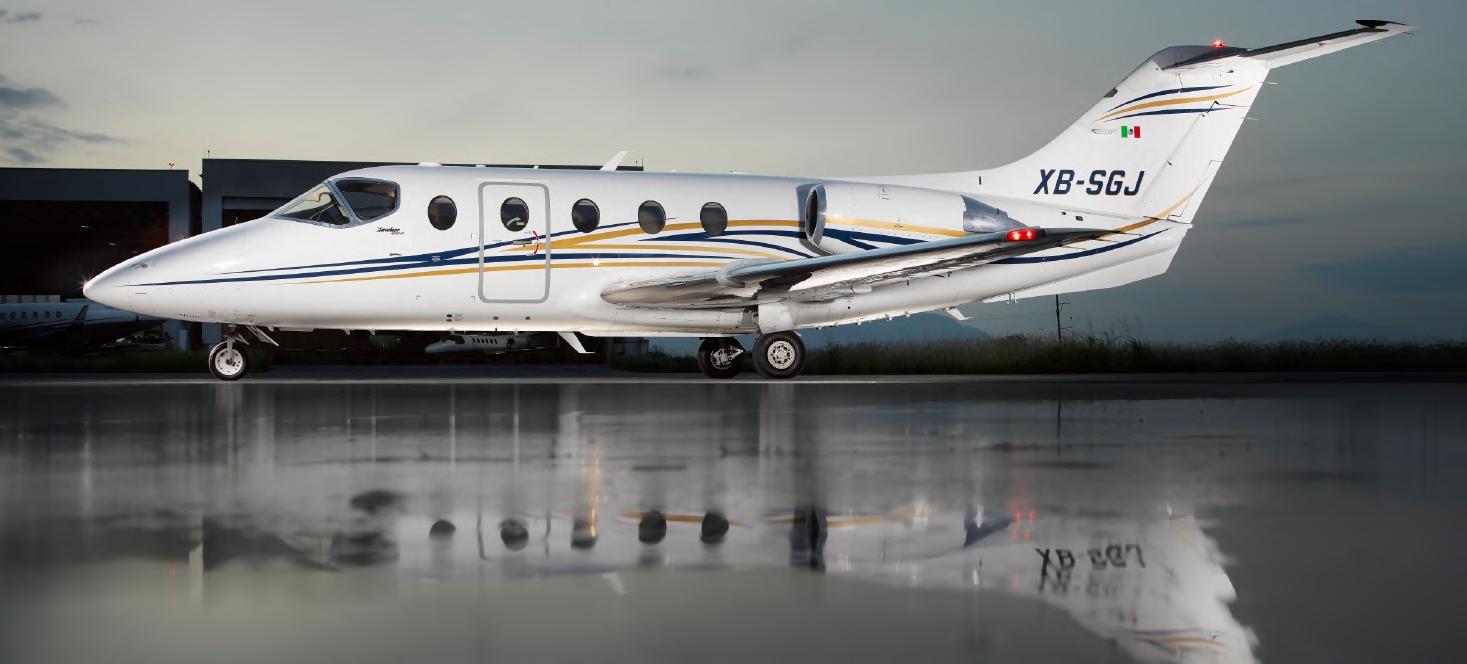

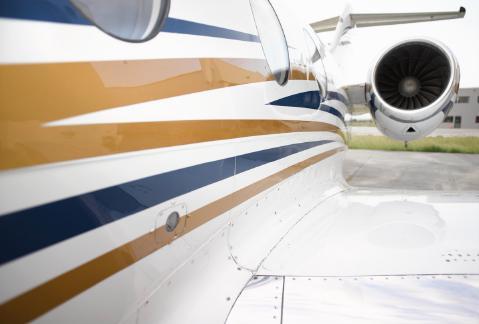

EXTERIOR
EXTERIOR
*All information is subject to verification PAGE 15
2005 HAWKER 400XP SN RK - 436

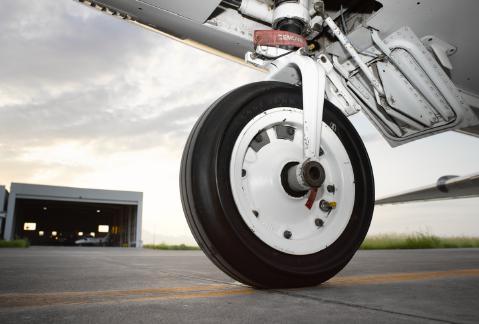

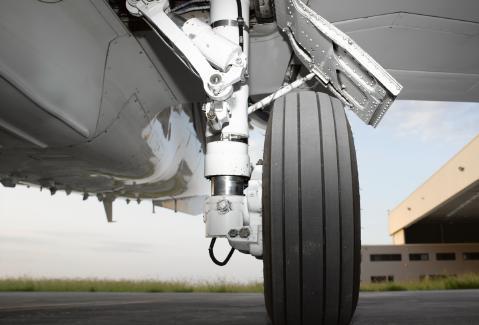

EXTERIOR
*All information is subject to verification PAGE 16
2005 HAWKER 400XP SN RK - 436
