2018 PILATUS PC - 12 NG SN 1825
HIGHLIGHTS
Ø Honeywell Primus Apex Premium Package
Ø ADS-B In/Out | WAAS/LPV | SmartView SVS | XM Rad & WX
Ø Wireless Connected Flight Deck | eConnect IFE Wi-Fi
Ø Honeywell MSP Avionics & MSP Mechanical
Ø One Owner Since New | Always Hangared

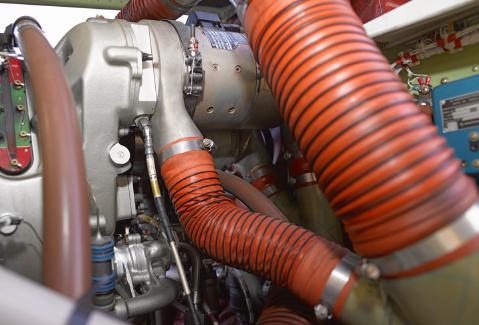

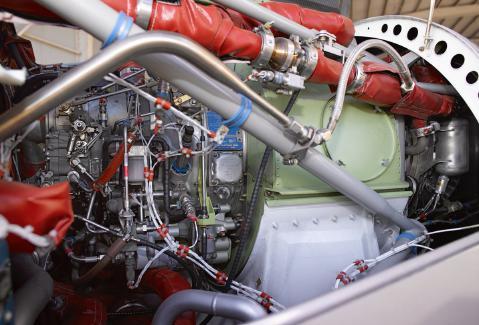

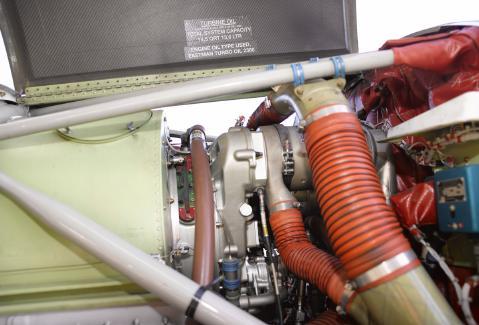

ENGINE
P&WPT6A-67P
Serial Number PCE-RY0901
PROGRAMS
Avionics & Mechanical Components Honeywell MSP Avionics & MSP Mechanical Maintenance CAMP
AIRFRAME
Serial Number 1825
Registration N825NX
Entry Into Service September 2018
Total

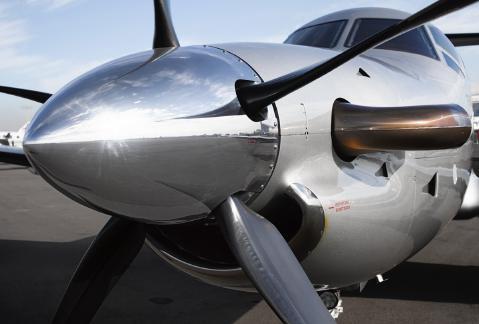

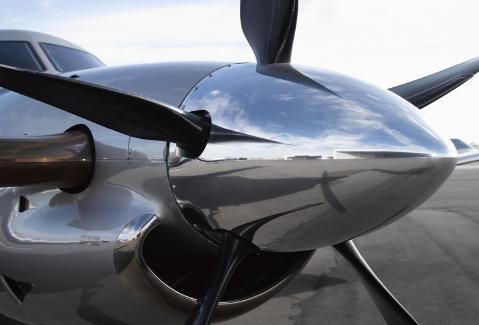

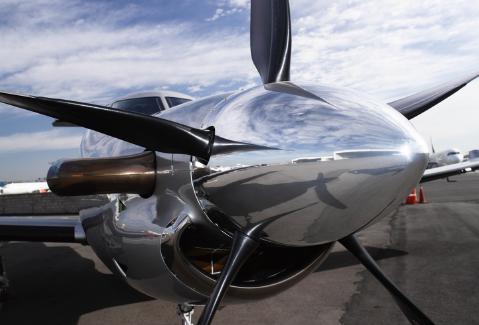

PROPELLER
5-Blade Hartzell HC-E5A-3A
*All information is subject to verification PAGE 2 AIRCRAFT OVERVIEW 2018 PILATUS PC-12 NG SN 1825
Hours*
1,491
Total Landings* 978
Total Hours* 1,491 Total Cycles* 978 Time Between Overhaul* 3,500
*All Hours & Cycles as of Feb 13, 2024
Serial Number
Total Hours* 1,491 Total Cycles* 978 Time Between Overhaul* 72 M / 4,000 HR
SA773
EQUIPMENT DETAILS
AVIONICS
Ø SUITE: Honeywell Primus Apex Premium Package
Ø RAD ALT: Single Honeywell KRA-405B
Ø ADF: Dual Honeywell KTR-2280
Ø AHRS: Dual Honeywell KSG-7200
Ø AP/FD: Dual Honeywell IFCS w/ FGC
Ø COMMS (VHF): Dual Honeywell KTR-2280
Ø CVR: Single CVFDR
Ø DME: Dual Bendix/King KN-63
Ø EFIS: 4-Tube Honeywell KDU-1080 (10.4”)
Ø ELT: Single Kannad 406 AF
Ø FDR: Single CVFDR
Ø FMS: Dual Honeywell
Ø GPS: Dual Honeywell KGS-200
Ø NAV: Dual Honeywell KTR-2280
Ø SATCOM: Single Aerowave 100 Inmarsat
Ø STORMSCOPE: Single L3 WX-500
Ø TAWS: Single Honeywell KMH-920 EGPWS Class B
Ø TCAS: Single Honeywell KMH-920 TCAS-I ch. 7.1
Ø XPDR: Dual Honeywell KXP-2290A Mode S
Ø WX RAD: Single Honeywell RDR-2060
*All information is subject to verification PAGE 3
2018 PILATUS PC-12 NG SN 1825
EQUIPMENT DETAILS
ADDITIONAL FEATURES
Honeywell Primus Apex Premium Package Multi-Function Display with Cursor Control Device
ADS-B In/Out | WAAS/LPV Smart Landing & Smart Runway | RAAS
SmartView Synthetic Vision System Central Maintenance Computer | Quick Access Recorder
Jeppesen Electronic Charts Copilot Audio & Marker Panel
Honeywell KMC-9200 Coupled VNAV XM Radio & Weather
MAINTENANCE
*All information is subject to verification PAGE 4
2018 PILATUS PC-12 NG SN 1825
INSPECTION C/W DUE INSPECTION C/W DUE 300 HR 23-Jul-23 (1,327 HR) 1,627 HR Prop. OH (72M/4,000HR) - 30-Jul-24 300 HR / 12 M 23-Jul-23 (1,327 HR) 23-Jul-24/1,627 HR Eng. 300 HR 26-Jul-23 (1,327 HR) 1,627 HR 600 HR 23-Jul-23 (1,327 HR) 1,927 HR Eng. HSI (1,750 HR) - 1,750 HR 600 HR / 12 M 23-Jul-23 (1,327 HR) 23-Jul-24/1,927 HR Eng. OH (3,500 HR) - 3,500 HR 1,200 HR / 12 M 23-Jul-23 (1,327 HR) 23-Jul-24/2,527 HR Ldg. Gear (12M/2,000HR) 23-Jul-23 (1,327 HR) 23-Jul-24 2,400 HR / 24 M 31-Oct-22 (1,064 HR) 31-Oct-24/3,464 HR Prop.12M/400HR 26-Jul-23 (1,327 HR) 26-Jul-24/1,727HR
INTERIOR
INTERIOR
Configuration / PAX:
Six (6) Executive Seats + Two (2) Removable Aft Seats
Eight (8) Passengers Total
Seating:
Forward:
Four (4) Place Club Seating with Fold-Out Tables
Mid:
Two (2) Fwd-Facing Seats with RS Fold-Out Table
Aft:
Two (2) Fwd-Facing Removable Seats
Refreshment Center:
Forward
Lavatory:
Fwd Enclosed Lavatory with Pocket Privacy Door
Connectivity & Entertainment:
Wireless Connected Flight Deck
EMTEQ eConnect IFE Wi-Fi System
XM Radio & Weather
110 VAC Outlets | USB Outlets
Other Notable Features:
Aft Cargo Door
Baggage Net
Condition:
Original 2018
*All information is subject to verification PAGE 5
are an approximation
Displayed color swatches
2018 PILATUS PC-12 NG SN 1825

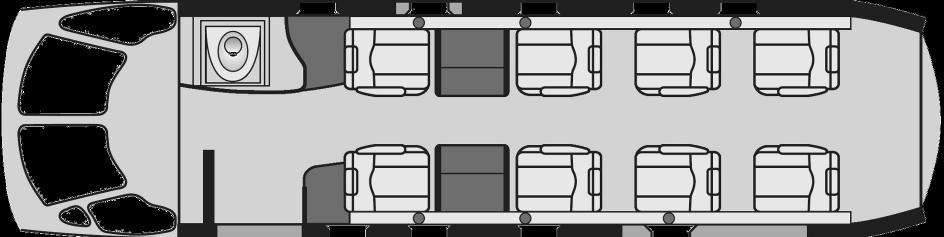

*All information is subject to verification PAGE 6 AIRCRAFT DETAILS 2018 PILATUS PC-12 NG SN 1825 LAYOUT

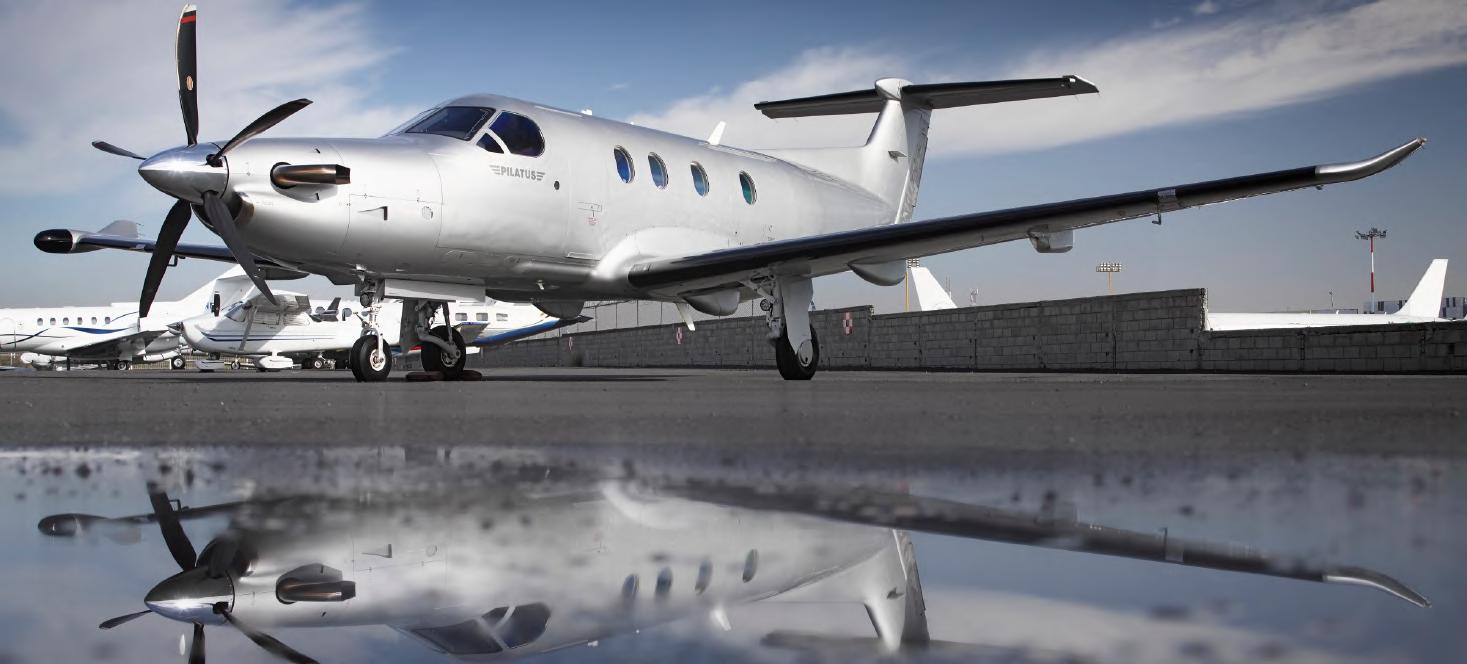

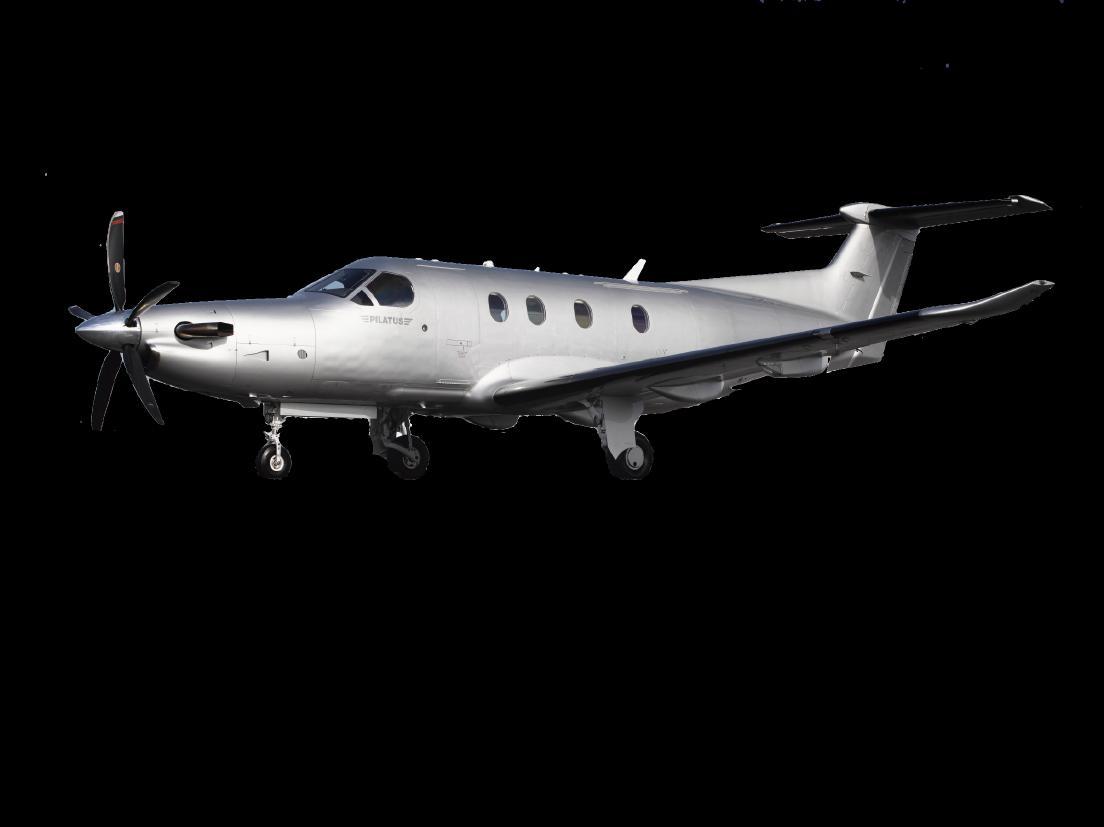

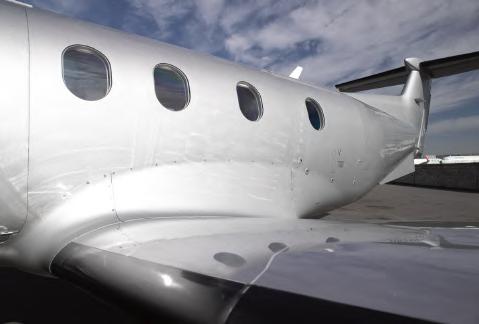

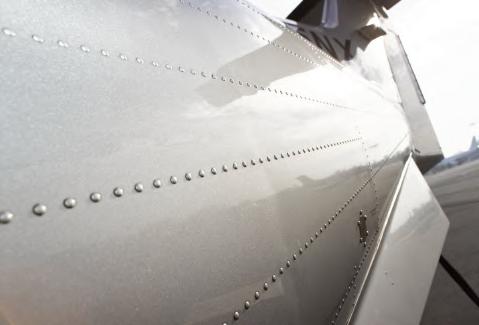

EXTERIOR
Base Paint:
Metallic Silver
Accent Colors:
None
Condition:
Original 2018
*All information is subject to verification PAGE 7
EXTERIOR
are an approximation
Displayed color swatches
2018 PILATUS PC-12 NG SN 1825

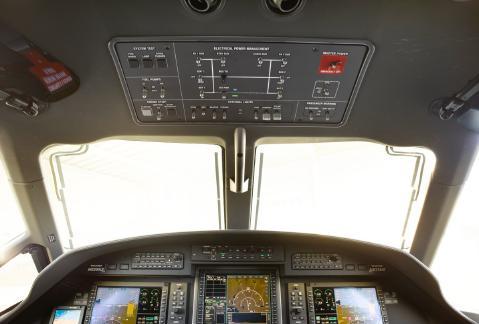

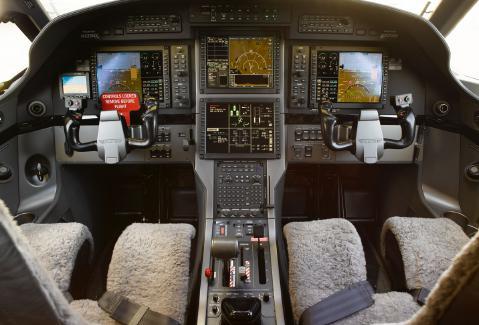

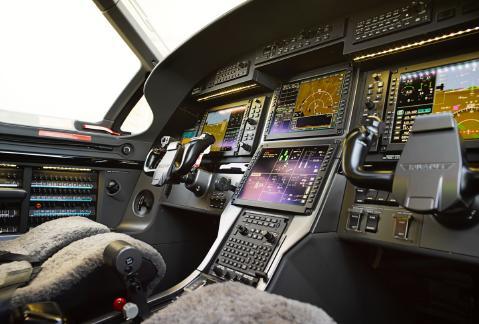

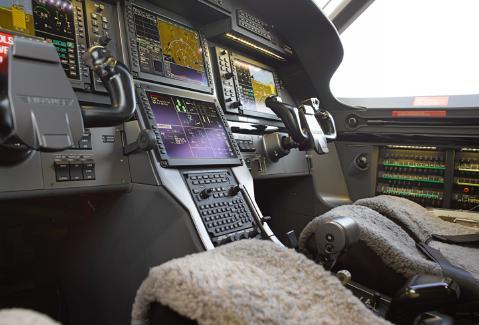

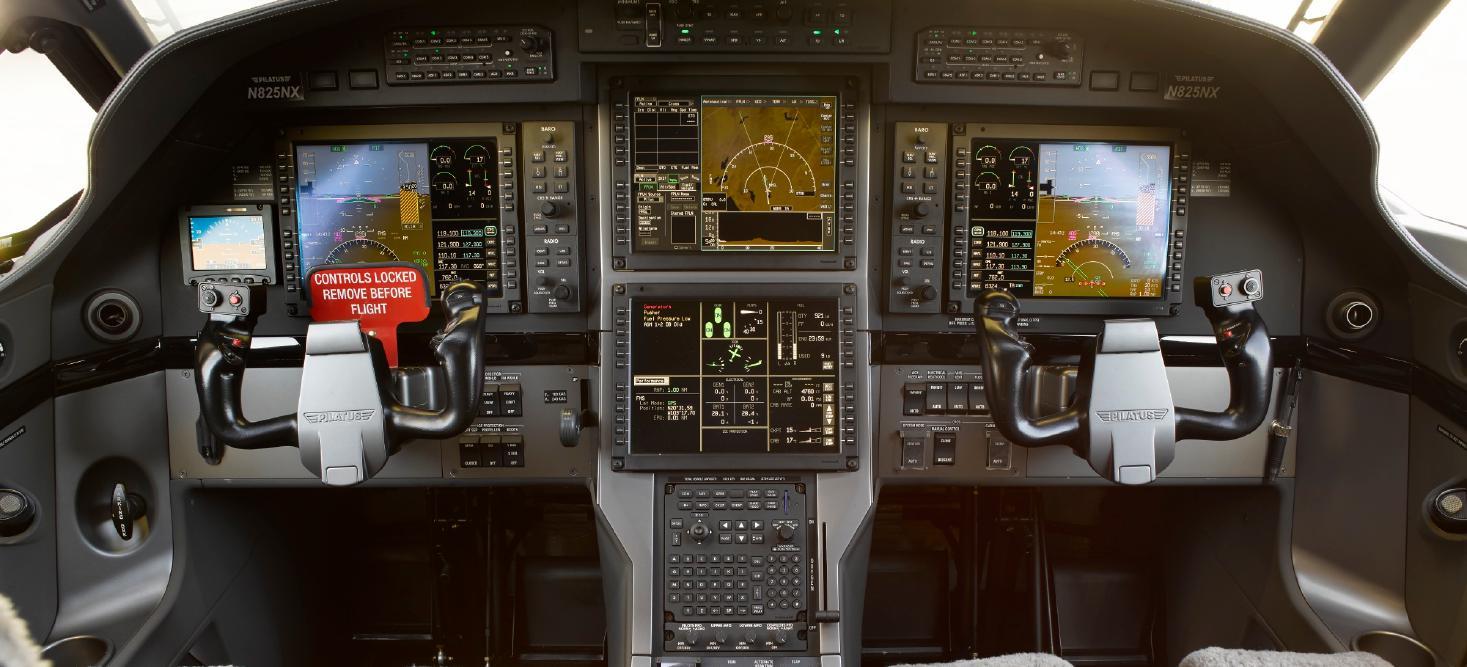

*All information is subject to verification PAGE 8 FLIGHT DECK 2018 PILATUS PC-12 NG SN 1825
*All information is subject to verification PAGE 9

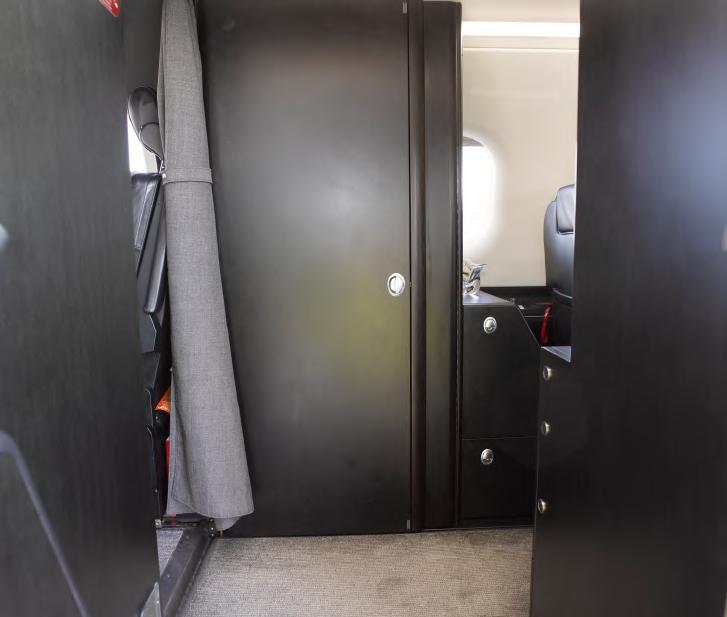

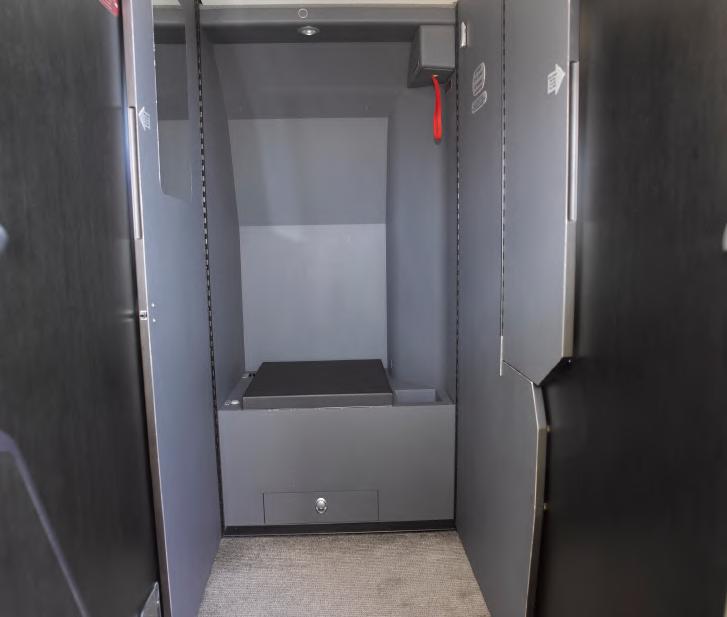

Fwd Lavatory (Door Closed)
INTERIOR 2018 PILATUS PC-12 NG SN 1825
Fwd Lavatory (Pocket Privacy Door Extended)
*All information is subject to verification PAGE 10

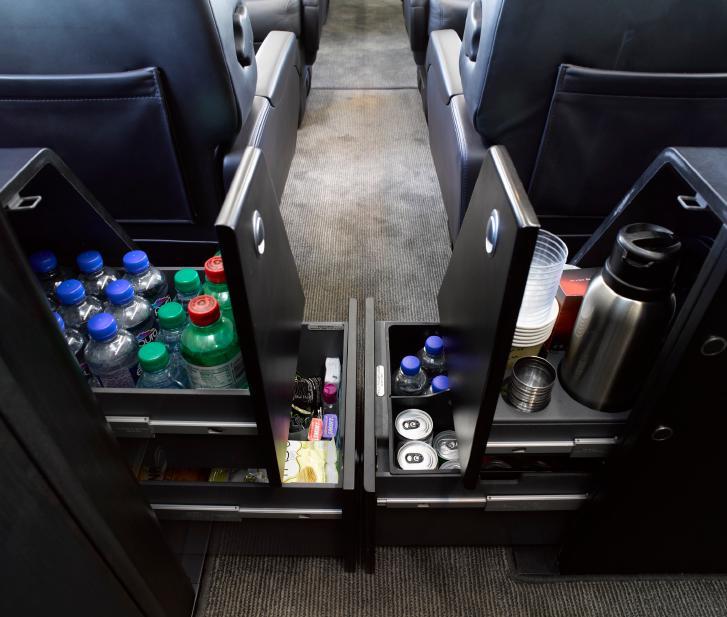

Fwd Refreshment Center (Closed)
INTERIOR 2018 PILATUS PC-12 NG SN 1825
Fwd Refreshment Center (Open)

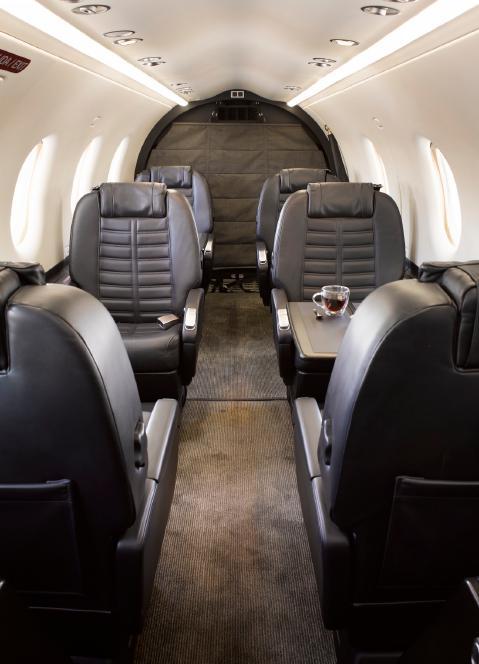

*All information is subject to verification PAGE 11 Fwd Cabin Facing Aft Four-Place Club Swivel Seats INTERIOR 2018 PILATUS PC-12 NG SN 1825
*All information is subject to verification PAGE 12

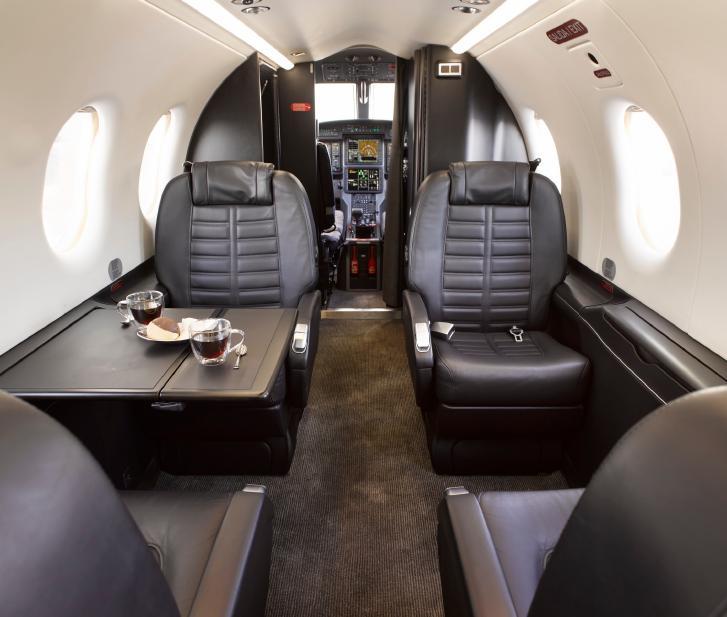

Fwd Cabin Four-Place Club
INTERIOR 2018 PILATUS PC-12 NG SN 1825

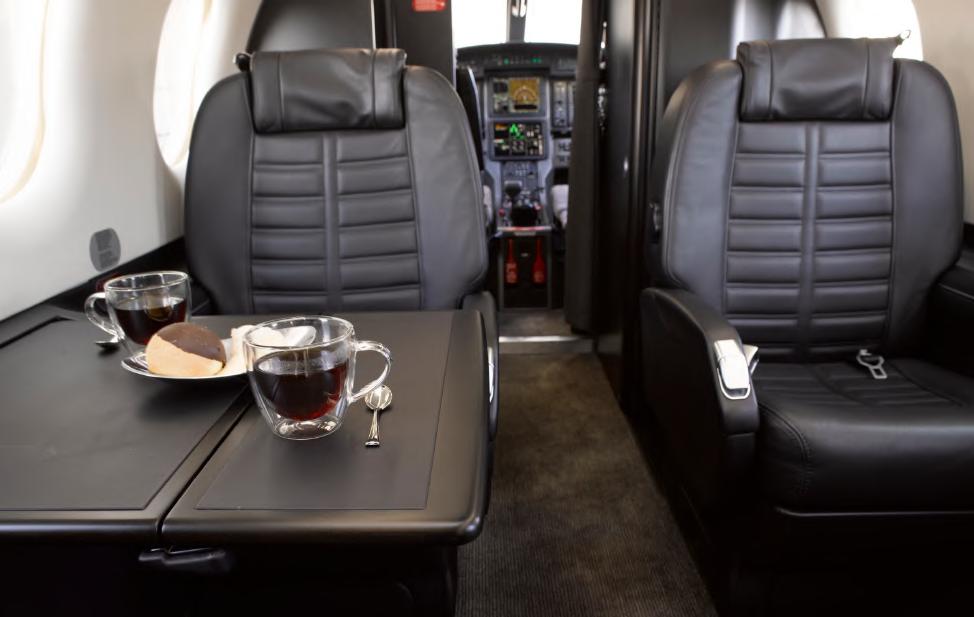

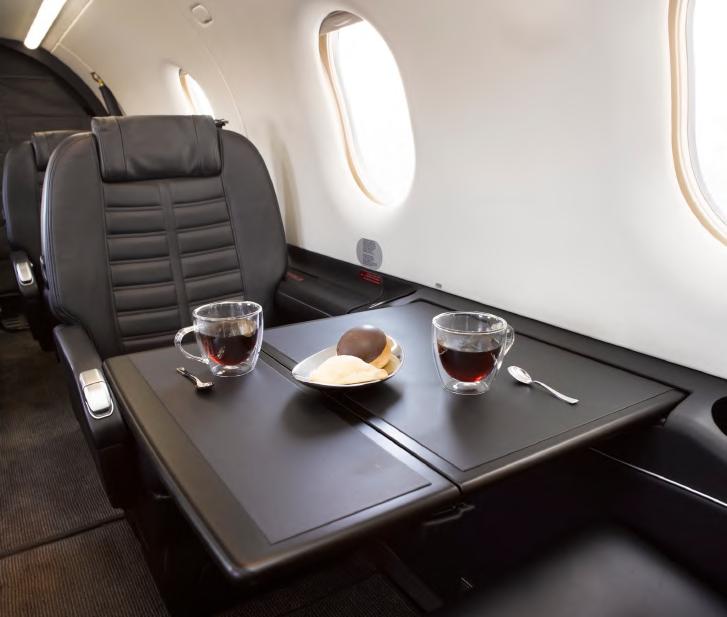

Four-Place Club Table Detail
*All information is subject to verification PAGE 13

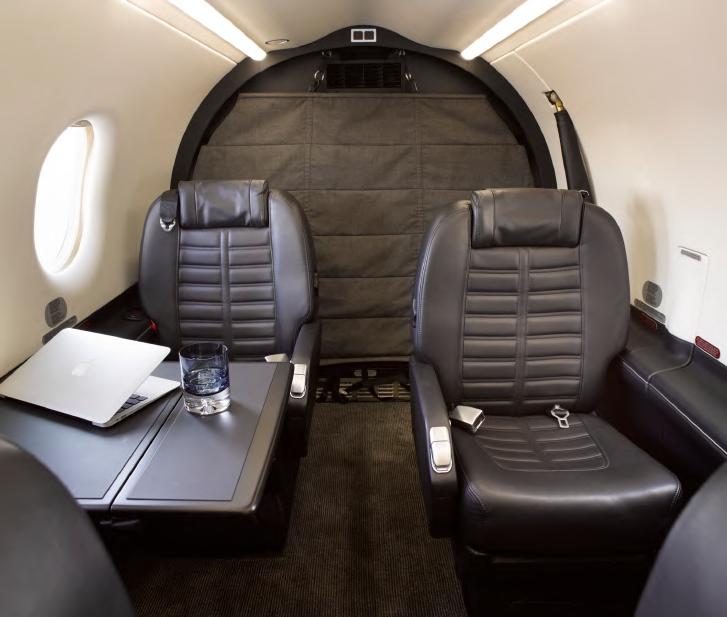

Aft Fwd-Facing Seats with Table Extended (Baggage Net in Background)
INTERIOR 2018 PILATUS PC-12 NG SN 1825

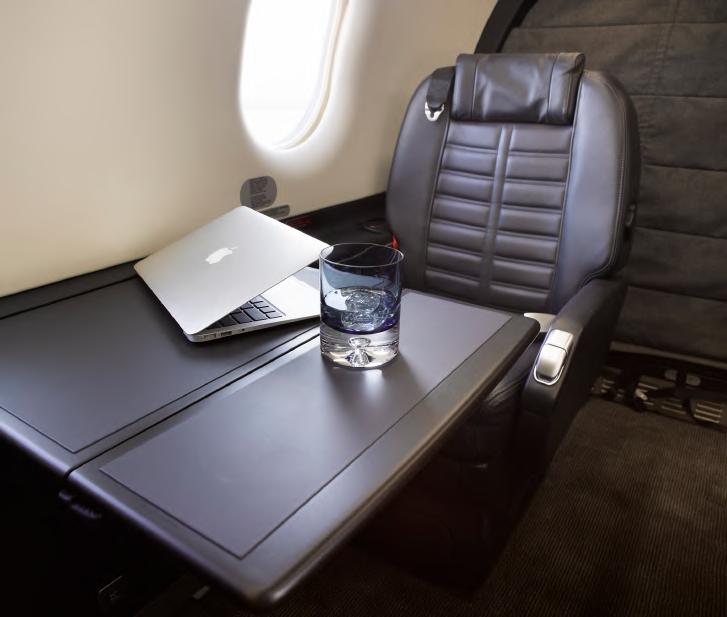

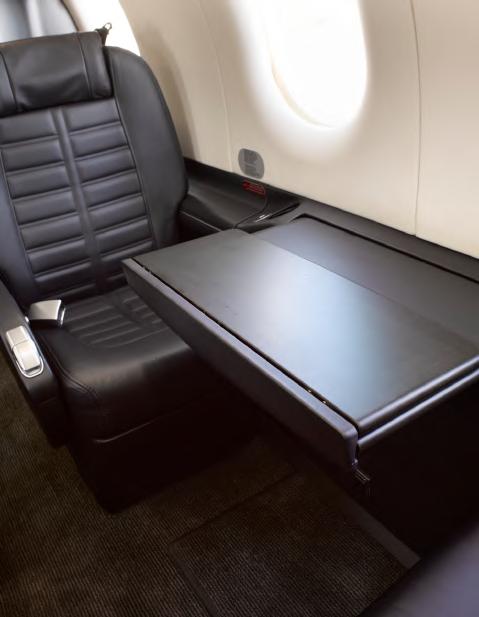

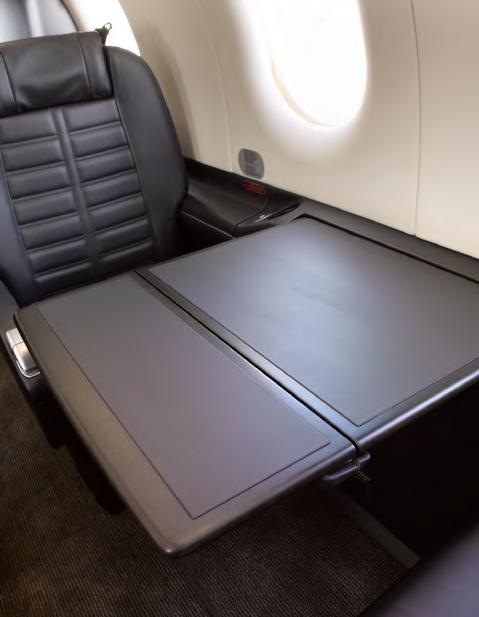

Aft Fwd-Facing Seat Table Detail
*All information is subject to verification PAGE 14

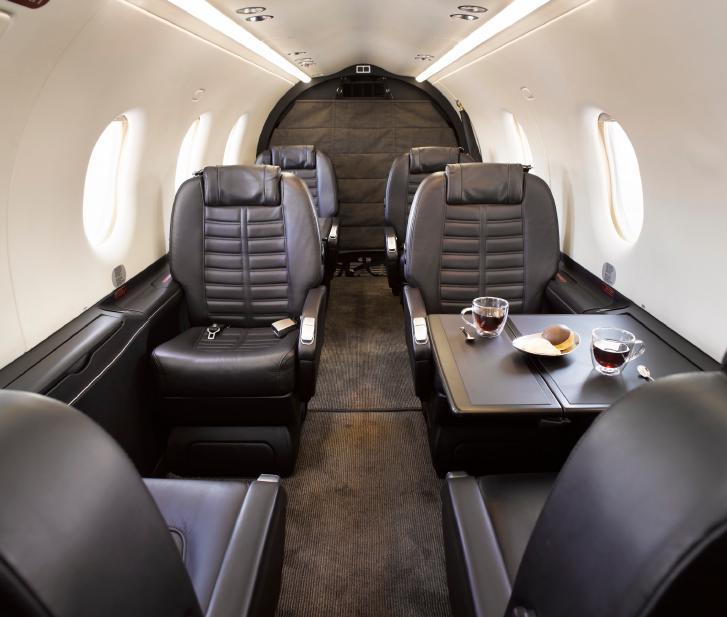

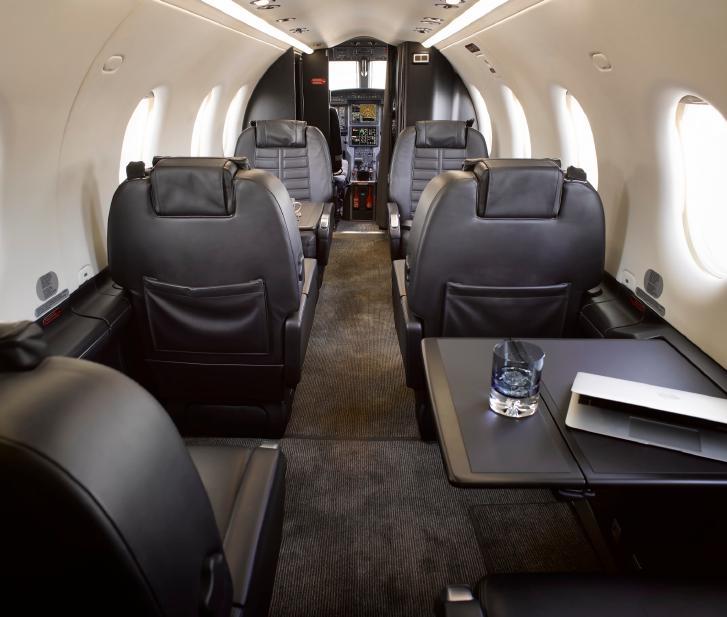

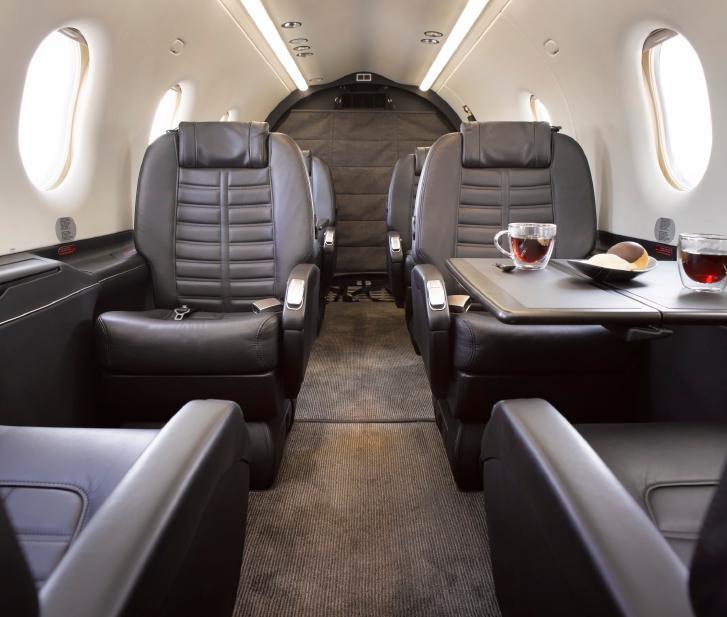

Aft Cabin Facing Forward
INTERIOR 2018 PILATUS PC-12 NG SN 1825

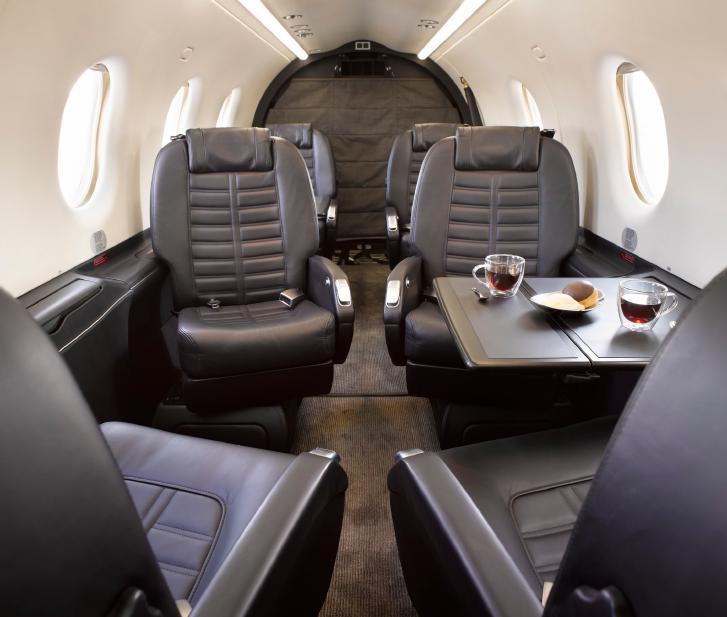

Four-Place Club Facing Forward

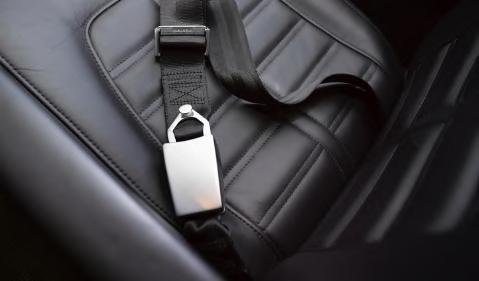

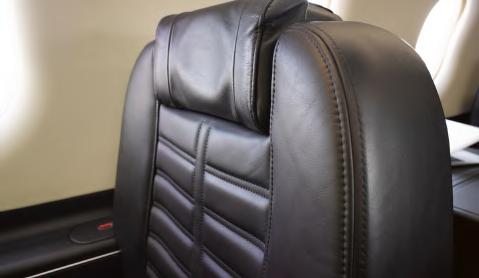

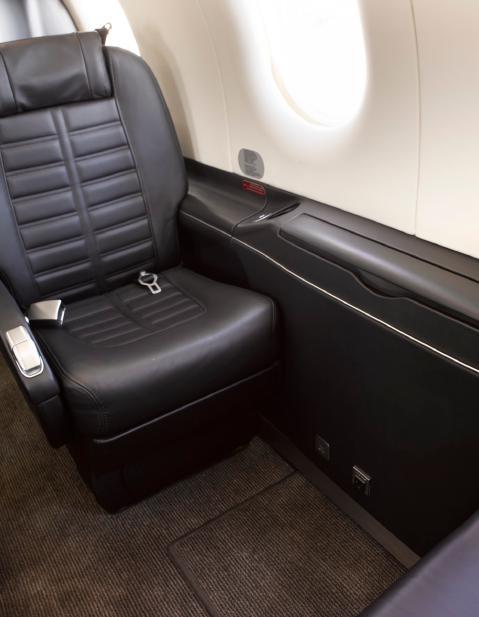

*All information is subject to verification PAGE 15 Fwd Four-Place Club Seats with One Table Extended Seat Detail Leather Detail INTERIOR 2018 PILATUS PC-12 NG SN 1825
*All information is subject to verification PAGE 16
Four-Place Club Table (Stowed)
Four-Place Club Table (Partially Extended)
INTERIOR 2018 PILATUS PC-12 NG SN 1825
Four-Place Club Table (Fully Extended)
*All information is subject to verification PAGE 17

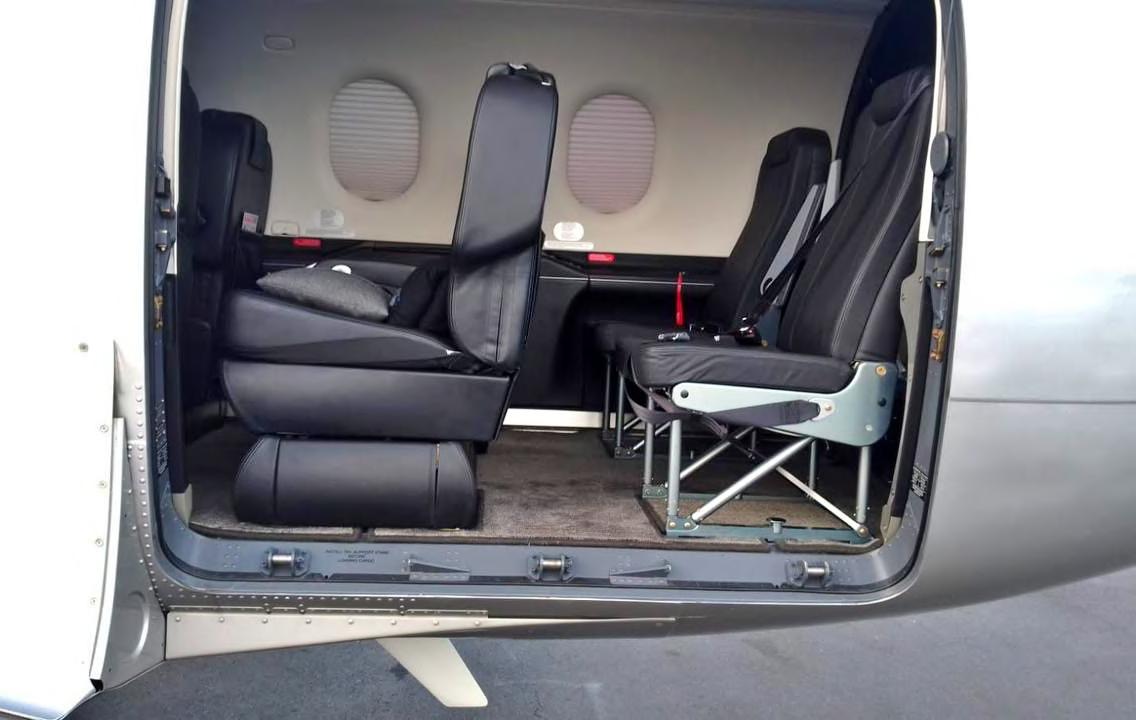

Aft Cabin Removable Seats

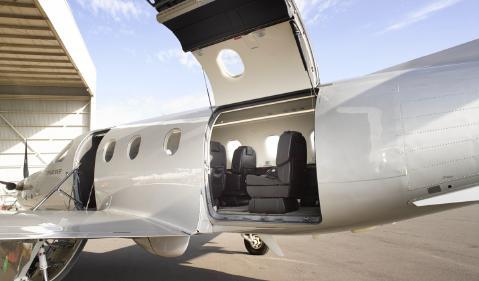

Aft Cargo Door (Open)
INTERIOR 2018 PILATUS PC-12 NG SN 1825
Aft Cargo Door (Closed)

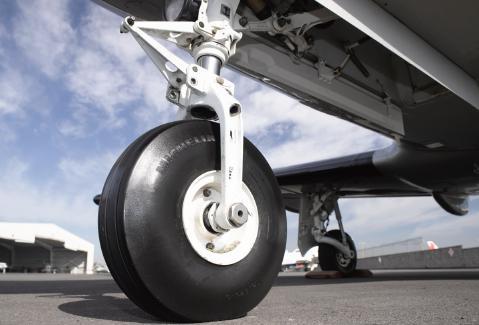

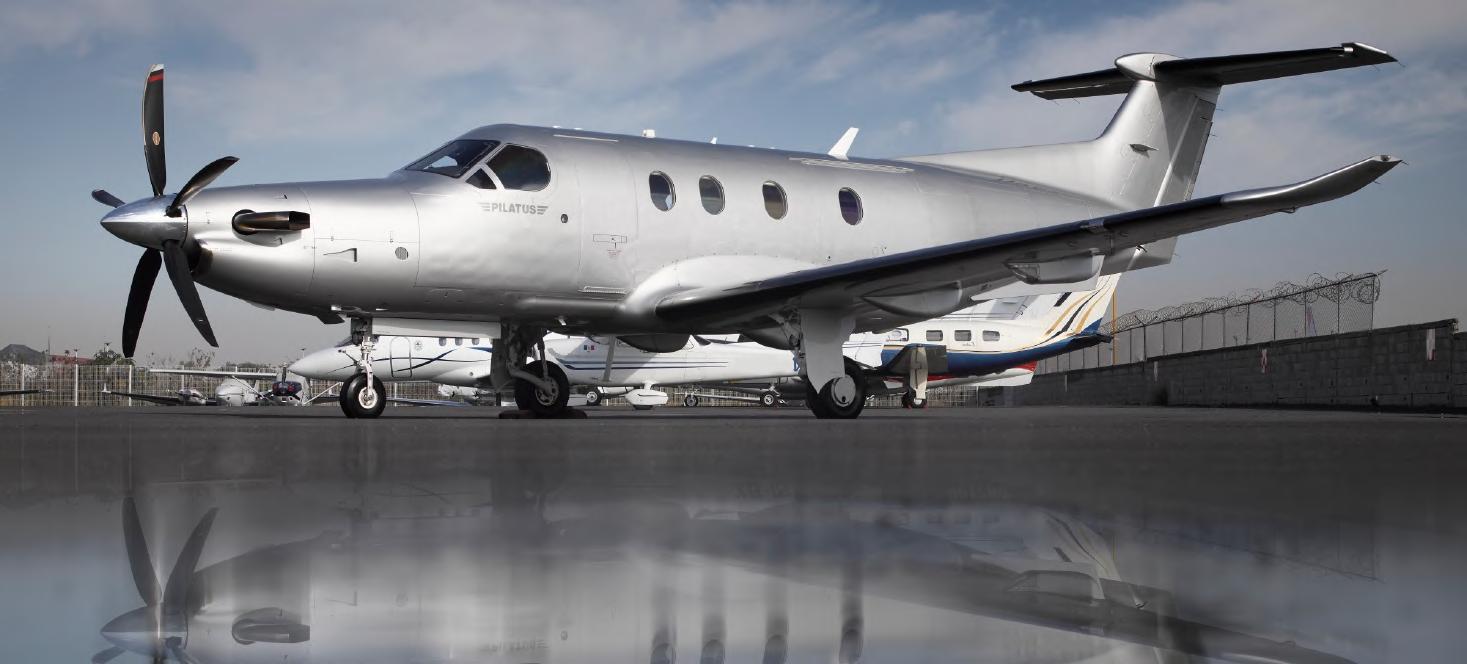

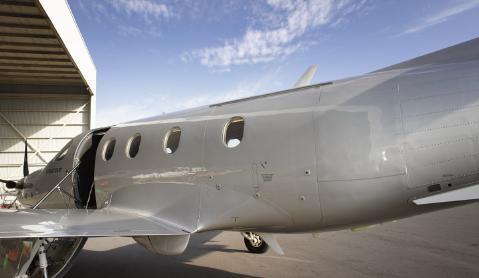

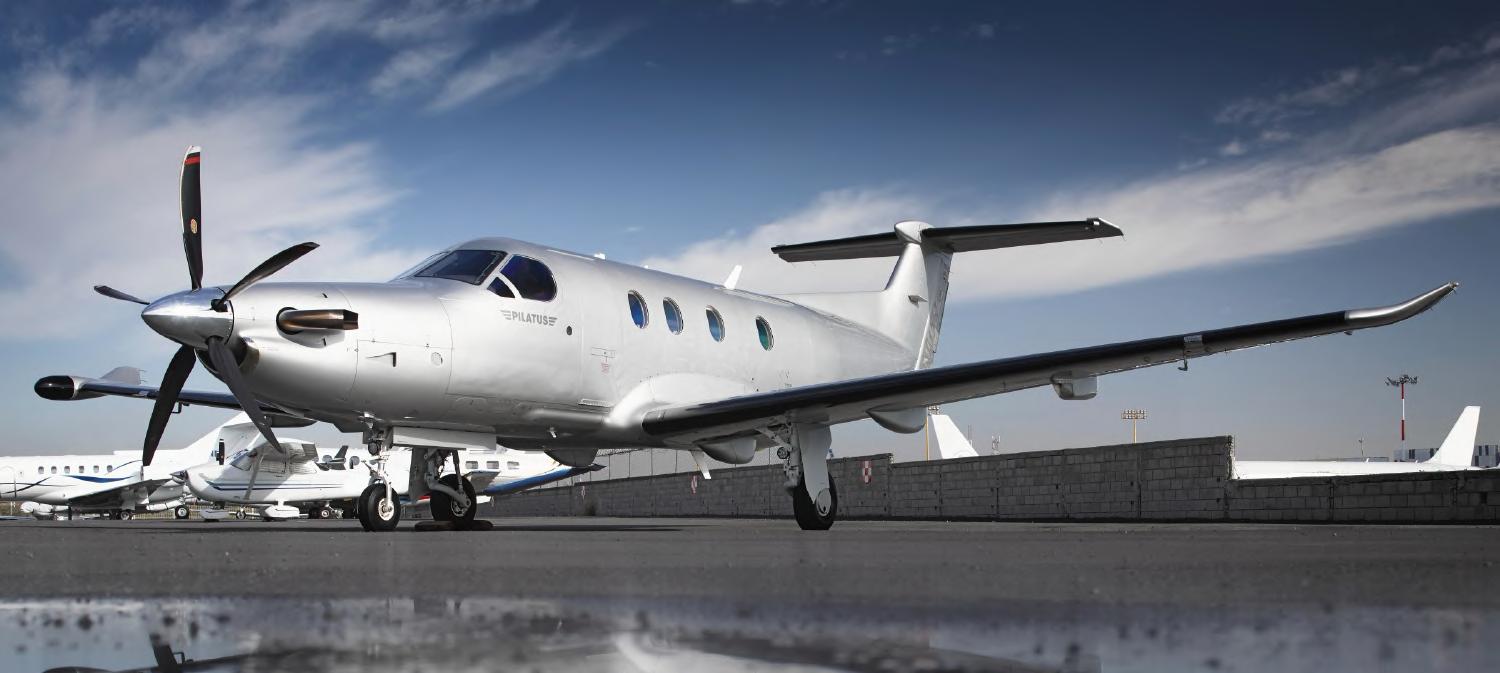

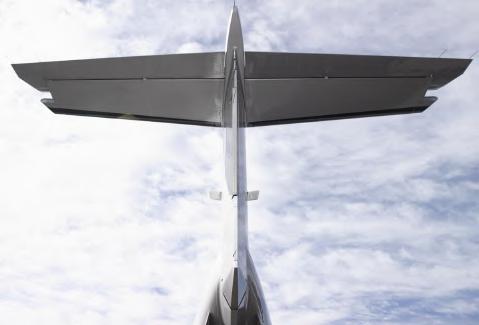

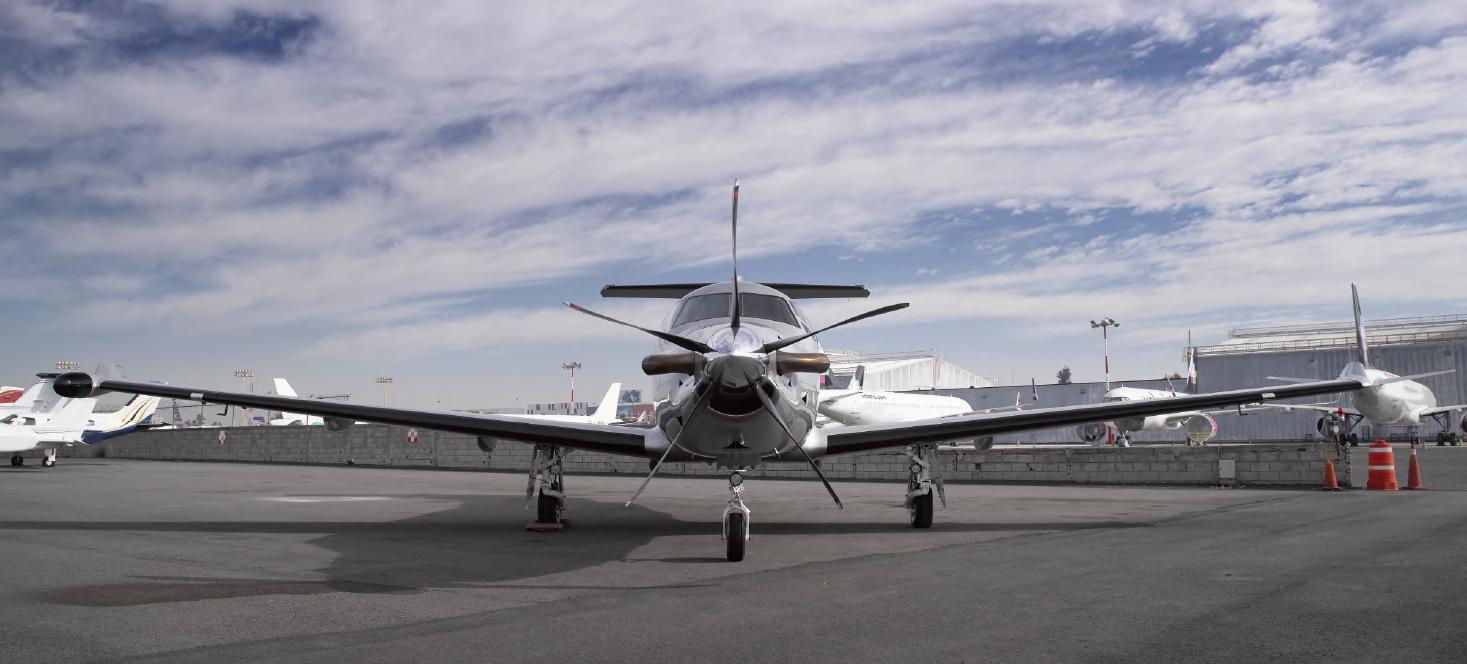

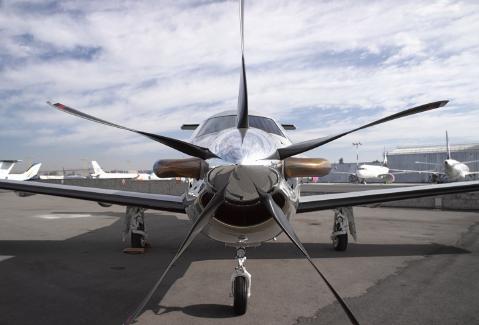

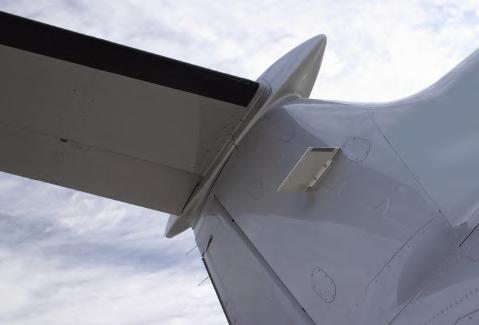

*All information is subject to verification PAGE 18 EXTERIOR 2018 PILATUS PC-12 NG SN 1825
*All information is subject to verification PAGE 19 EXTERIOR 2018 PILATUS PC-12 NG SN 1825
*All information is subject to verification PAGE 20 EXTERIOR 2018 PILATUS PC-12 NG SN 1825
*All information is subject to verification PAGE 21 EXTERIOR 2018 PILATUS PC-12 NG SN 1825
*All information is subject to verification PAGE 22 EXTERIOR 2018 PILATUS PC-12 NG SN 1825
