2017 Bell 407GXP - JetHQ Specs - Jun 2026

2017 BELL 407GXP SPECIFICATION | JUN 2026

AIRCRAFT OVERVIEW 2017 BELL 407GXP HIGHLIGHTS:

Sound Insulation Panel Cargo Hook Provisions Tail Rotor Camera High-Skid Landing Gear Windshield Wipers Engine Inlet Barrier Filter System Air Conditioner

2017 Interior | 2017 Exterior | 5 Pax

The content wherein is intended for informational purposes and does not constitute representations or warranties. Interested buyers are responsible for confirming the accuracy of all details. Images shown may have been edited, including removing identifying information to respect the privacy of the current owner. This aircraft may be removed from the market without notice.

AIRCRAFT SPECIFICATIONS 2017 BELL 407GXP EXTERIOR DIMENSIONS:

WEIGHTS:

LENGTH

34.2 ft / 10.4 m

MAX FUEL CAPACITY

128 gal / 483 lit

WIDTH

7.5 ft / 2.3 m

MAX PAYLOAD

1,142 lb / 518 kg

HEIGHT

11.8 ft / 3.6 m

MAX TAKEOFF

5,250 lb / 2,381 kg

BASIC OPERATING

3,000 lb / 1,360 kg

MAX LANDING

5,250 lb / 2,381 kg

CABIN: LENGTH

5 ft / 1.52 m

WIDTH

3 ft 9 in / 1.28 m

HEIGHT

3 ft 9 in / 1.28 m

CABIN VOLUME

85 cu ft / 2.4 cu m

NORMAL

121 kts

BAGGAGE VOLUME

16 cu ft / 0.5 cu m

LONG-RANGE CRUISE

138 kts

MAXIMUM CRUISE

153 kts

OCCUPANCY:

SPEEDS:

CREW

1 or 2

SERVICE CEILING:

16,050 ft

PASSENGERS

5

CLIMB PERFORMANCE:

1,895 fpm

RANGE: LONG-RANGE CRUISE (4 Pax)

300 nm

FERRY (2 Crew + Full Tanks)

337 nm

SEATS FULL

288 nm

AIRCRAFT SPECIFICATIONS 2017 BELL 407GXP AIRFRAME:

MAINTENANCE:

Base Location: Hebei, China Year of Manufacture: 2017 Total Hours*: 1,159.28 Total Landings*: 5,386

ENGINES: Rolls-Royce RR250-C47B Total Hours*

1,159.28

Total Cycles*

1,097

TBO*

2,000

GEARBOXES: Type: Total Hours*

1

2

407-040-007-103

406-040-400-121

1,159.28

1,159.28

INSPECTION

COMPLIED WITH

NEXT DUE

150 HR / 12 M

2 Apr 2026

2 Apr 2027

300 HR / 12 M

2 Apr 2026

2 Apr 2027

Engine Overhaul

-

2000 HR

AIRCRAFT SPECIFICATIONS 2017 BELL 407GXP AVIONICS: GARMIN G1000H AD:

Single

GDC-74H

ADAHRS:

Single

GRS-77H

COMMS (VHF):

Dual

Garmin GIA-63H

COMPASS:

Single

C-2300-L4-24-B-L

ELT:

Single

Garmin C406-1HM

ESP:

Single

GEA-71H

GPS:

Single

013-00244-00

PFD/MFD:

Dual

GDU-1040H

RAD ALT:

Single

RA-4500

XPDR:

Single

Garmin GTX-33H

AIRCRAFT SPECIFICATIONS 2017 BELL 407GXP ADDITIONAL EQUIPMENT: Tail Post Antenna Bracket

Standard Interior Sound Insulation Panel

Cargo Hook Provisions

Tail Rotor Camera

High-Skid Type Landing Gear WSPS Line Cutter

Windshield Wipers

ADS-B Out

INSTALLED STC’s: 407-805-502

LED Super Nightscanner

407EC-203-2

Air Cond. Dual fwd Evap

106000-107

Engine Inlet Barrier Filter System

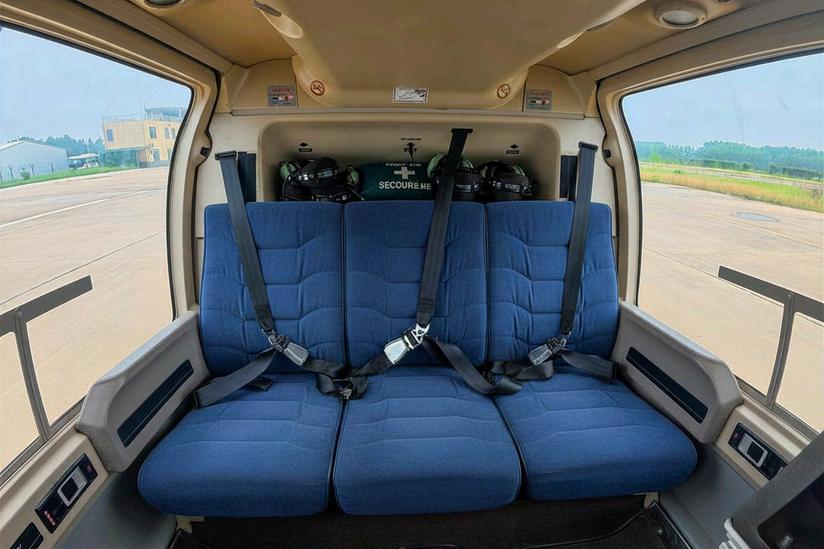

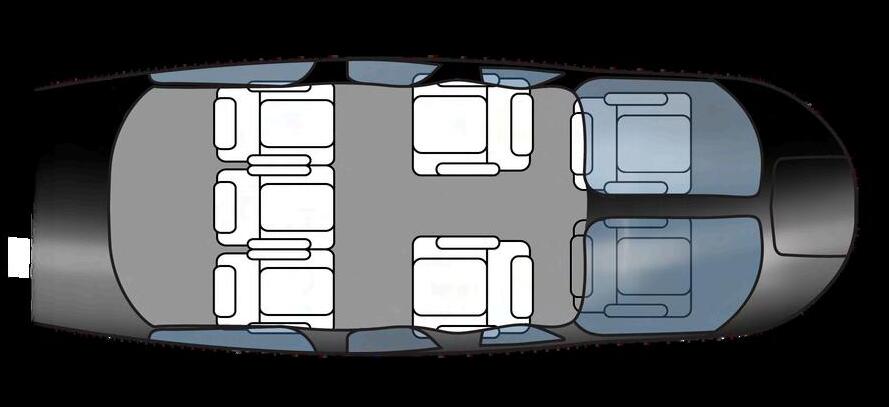

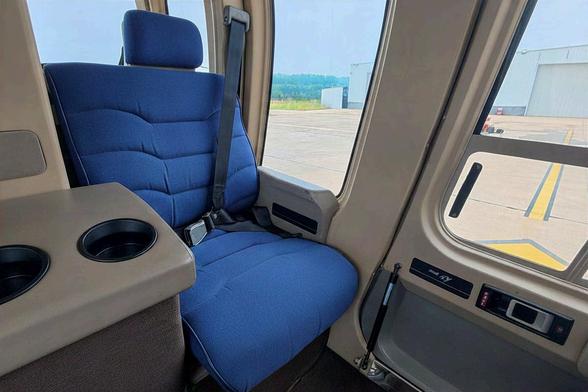

AIRCRAFT INTERIOR 2017 BELL 407GXP LAYOUT: Configuration: Five (5) Passengers Seating: Three (3) Forward-Facing Seats Two (2) Aft-Facing Seats

AIR CONDITION / HEATING: Air Conditioner

AIRCRAFT INTERIOR 2017 BELL 407GXP

AESTHETICS: Colors: Blue & Beige Condition: Original 2017

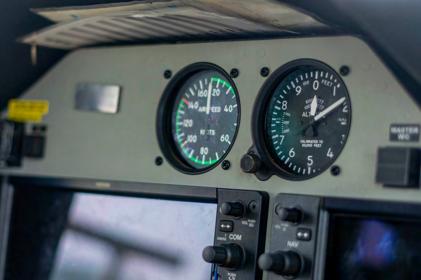

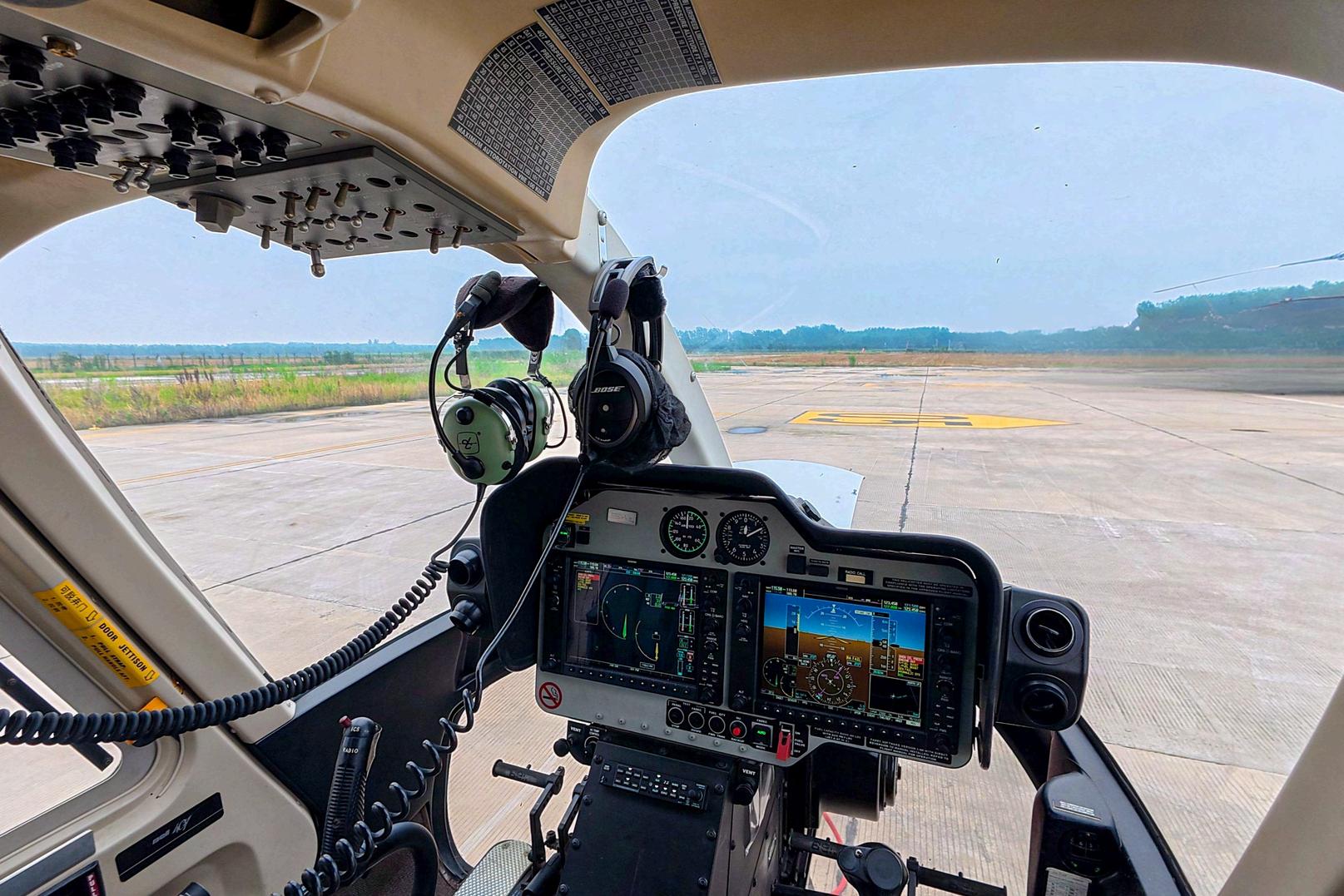

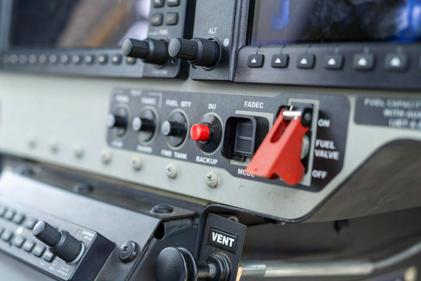

FLIGHT DECK 2017 BELL 407GXP

GARMIN G1000H AVIONICS SUITE

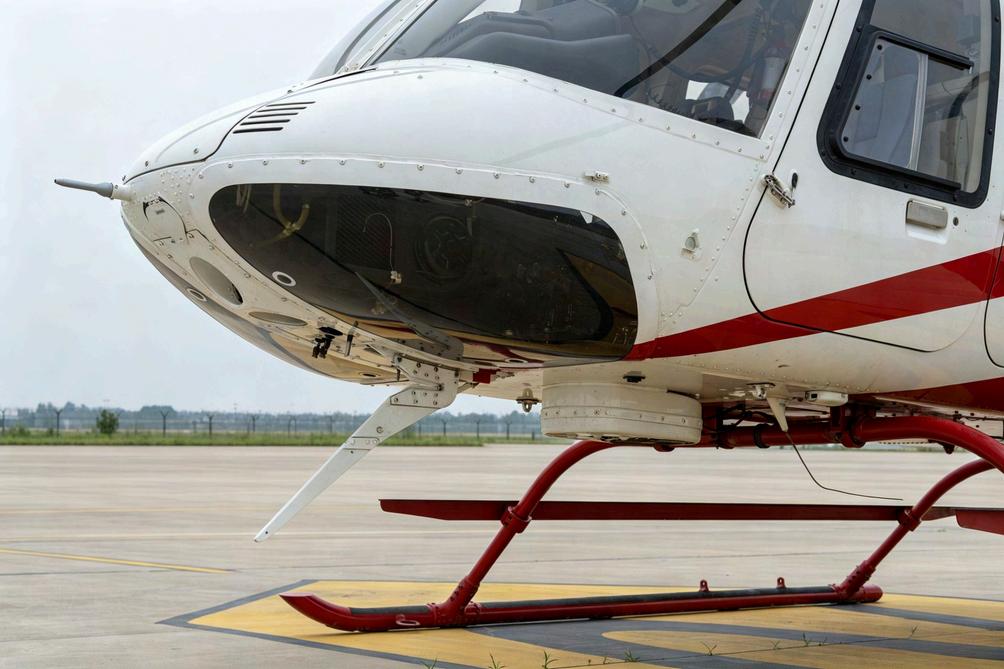

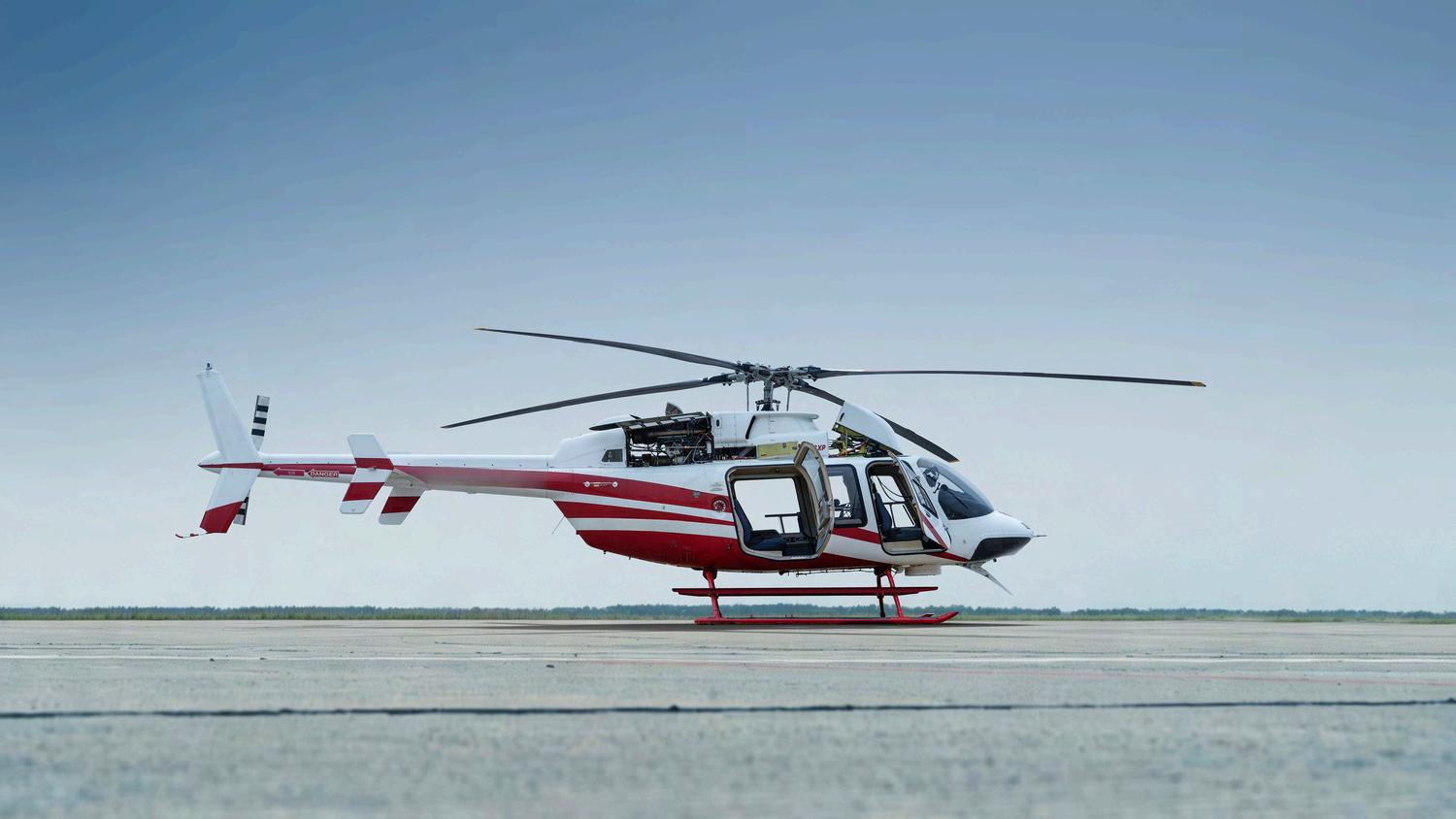

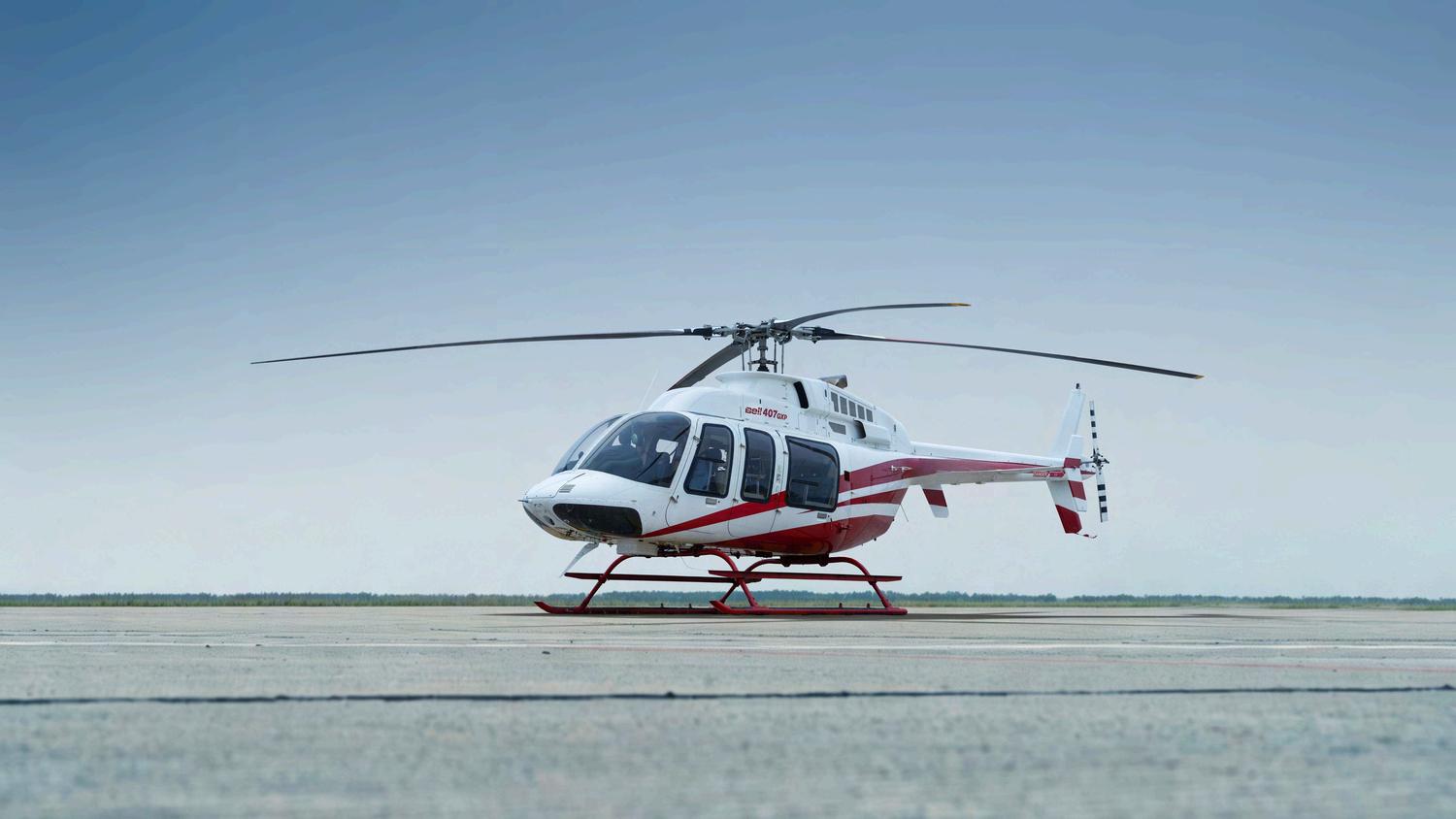

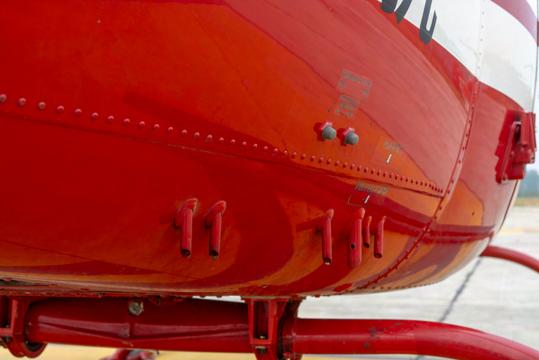

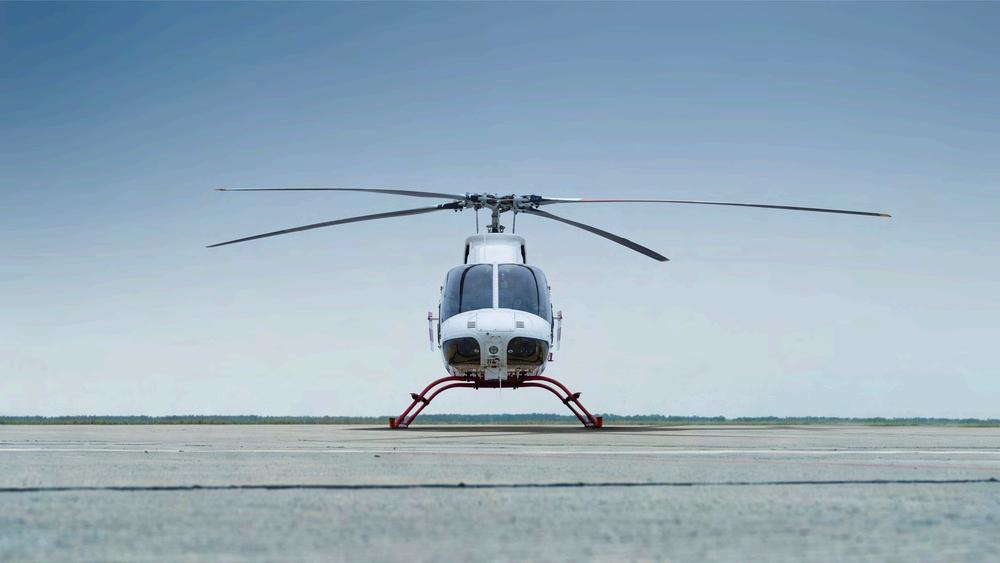

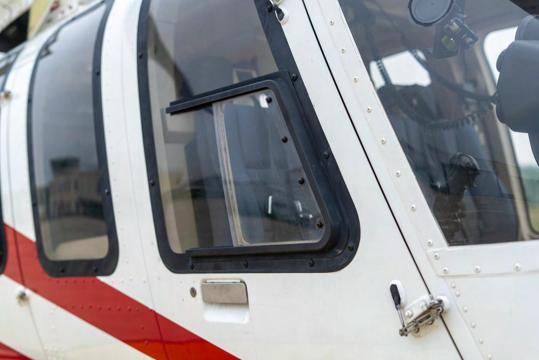

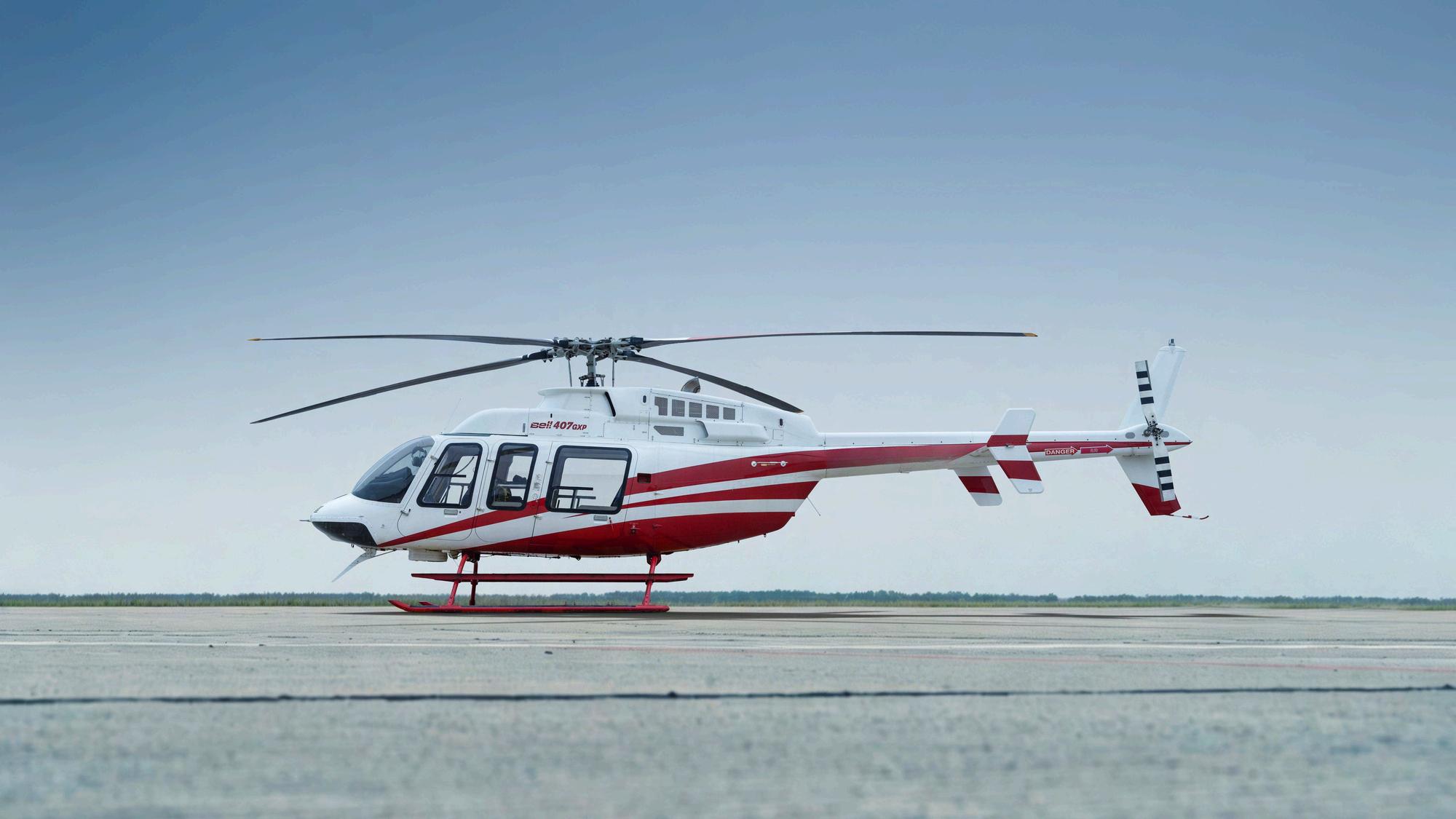

AIRCRAFT EXTERIOR 2017 BELL 407GXP

AESTHETICS: Base Paint: White Accent Color: Red Stripes Condition: Original 2017

AIRCRAFT EXTERIOR 2017 BELL 407GXP
