2 0 0 7 G U L F S T R E A M G 2 0 0
SPECIFICATION - JUL 26
AIRCRAFT OVERVIEW
2007 GULFSTREAM G200 SN 165
HIGHLIGHTS:
Gogo ATG-5000 WiFi
Collins Airshow 400
2023 Interior | 2016 Exterior | 9 Pax
ADDITIONAL FEATURES:
ADS-B Out
FDR (88 Parameters)
ELT | EVAS
The content wherein is intended for informational purposes and does not constitute representations or warranties Interested buyers are responsible for confirming the accuracy of all details. Images shown may have been edited, including removing identifying information to respect the privacy of the current owner. This aircraft may be removed from the market without notice
AIRCRAFT SPECIFICATIONS
2007 GULFSTREAM G200 SN 165

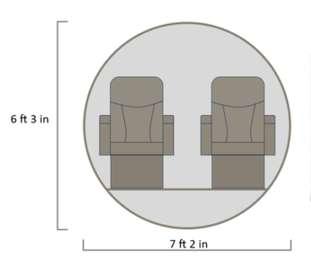

DIMENSIONS:
CRUISE
kts LANDING PERFORMANCE:
TAKEOFF PERFORMANCE: SL ISA BFL 6,083 ft
+20C BFL 8,800 ft RANGE: LONG-RANGE CRUISE (4 Pax) 3,346 nm FERRY (2 Crew + Full Tanks) 3,400 nm SEATS FULL 2,800 nm MAX CRUISE 2,900 nm
AIRCRAFT SPECIFICATIONS
2007 GULFSTREAM G200 SN 165
AIRFRAME:
Base Location: Shenzhen, China (ZGSZ)
Year of Manufacture: 2007
Total Hours*: 8,984
Total Landings*: 5,432
Between Overhaul On Cond. On Cond. ENGINES:
& Whitney PW306A PCE-CC0040 PCE-CC-038
Hours* 9,338 9,657
Cycles* 5,439 5,422
(G200)
PROGRAMS:
Maintenance Tracking: MyCMP
*HoursandCyclesasof04-May-26
**HoursandStartsasof27-Apr-26
AIRCRAFT SPECIFICATIONS
2007 GULFSTREAM G200 SN 165
AVIONICS:
COLLINS PROLINE 4
ADF Dual Collins
AHRS: Dual Collins AHC-3000
AUTOPILOT: Dual Collins FCC-4005
COMMS(HF): Dual Honeywell KHF-950 w/SELCAL
COMMS (VHF): Dual Collins VHF-4000E
CVR: Single Honeywell Cockpit Voice Recorder SSCVR (120 Minute)
EFIS: Single Collins 4 Tube
ELT: Single Emergency Locator Transmitter
FMS: Dual Collins FMS-6100
NAV: Dual Collins NAV-4000 / Collins NAV-4500
RAD ALT: Single Collins ALT-4000
SATCOM: Single Aircell Axxess II Iridium
TAWS: Single Honeywell Mark V EGPWS
TCAS: Single Collins TCAS-4000 w/ Upgrade to 7.1 Version
XPDR: Dual Collins TDR-94D Mode S
WX RADAR: Single Collins TRW-85
AIRCRAFT SPECIFICATIONS
2007 GULFSTREAM G200 SN 165
ADDITIONAL FEATURES:
ELT - Artex C406 Mhz
FDR - Dual Collins Flight Data Recorder (88-parameter)
STC ST10289SC-D - Baggage Compartment Cargo Net
STC ST00892LA - Emergency Vision Assurance System (EVAS)
STC ST10760SC-D - Installation of Aircell Axxess II Airborne SATCOM System
VHF - Upgrade to VHF-422D Communication System Extended Frequency Range and 8.33 KHZ Channel Spacing
AIRCRAFT INTERIOR
2007 GULFSTREAM G200 SN 165

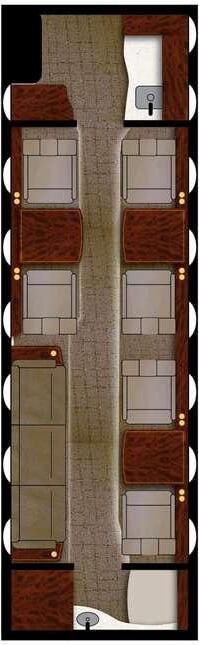

LAYOUT:
Configuration: Nine (9) Passengers
Seating:
Forward Cabin:
Four-Place (4) Club w/ Fold-Out Tables
Aft Cabin:
Two-Place (2) Seats Opposite ThreePlace (3) Divan
GALLEY: Forward Full-Service Galley with Countertop & Sink, Pull-Out Work Surface, CD/DVD Players
LAVATORY: Aft Executive Lavatory
Other Features: Jumpseat
CONNECTIVITY & ENTERTAINMENT: Collins Airshow 400 CD/DVD Player

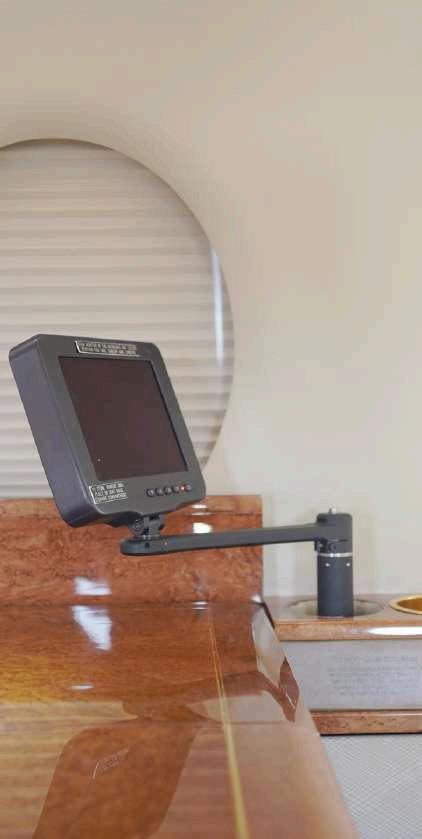

Single Seat Monitor (Aft Bulkheads) GOGO Biz ATG-5000 Wifi
AIRCRAFT INTERIOR
2007 GULFSTREAM G200 SN 165
AESTHETICS:
Colors: Light Beige, Beige, Dark Brown
Condition: Partial Refurb in 2023
2007 GULFSTREAM G200 SN 165

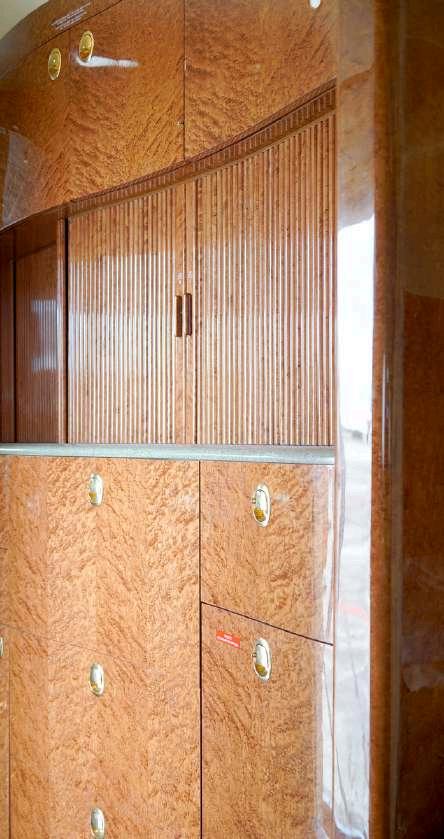

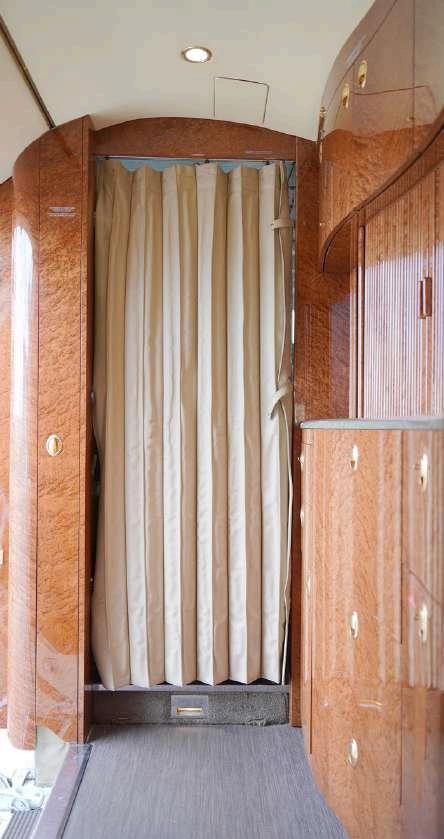

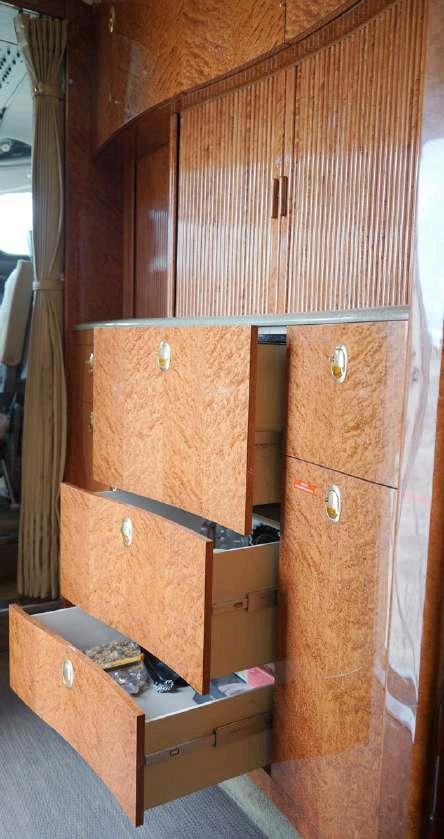

FORWARDGALLEY
2007 GULFSTREAM G200 SN 165

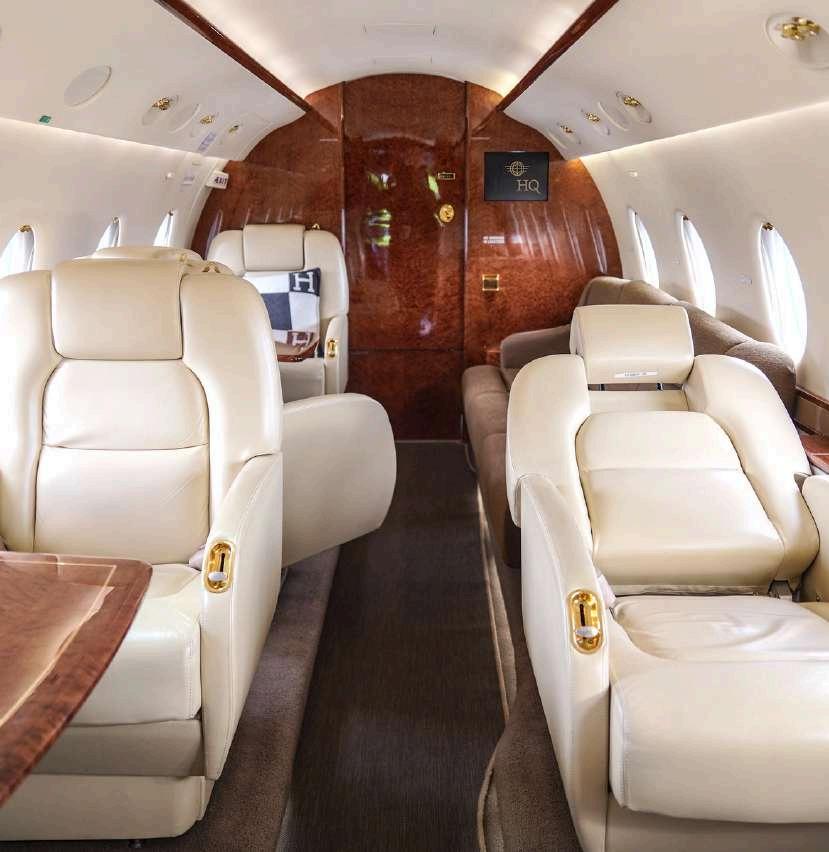

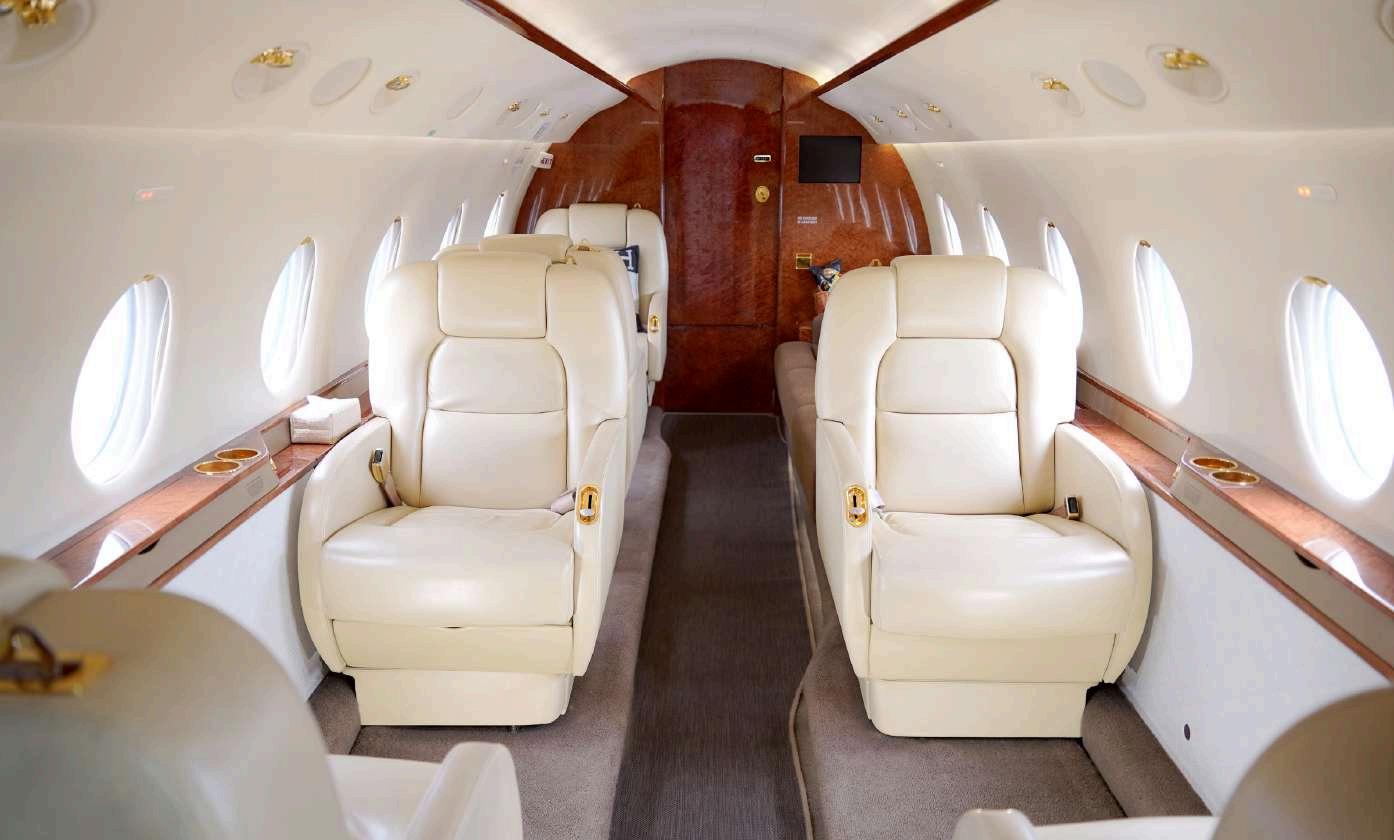

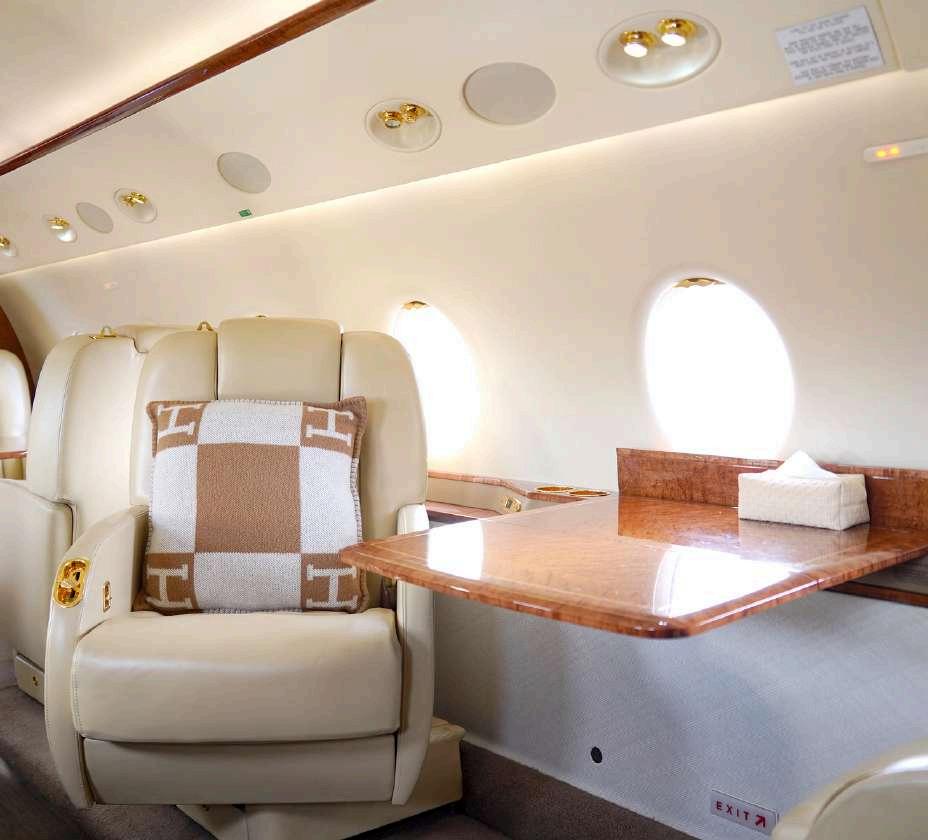

FORWARDCABINLOOKINGAFT
2007 GULFSTREAM G200 SN 165

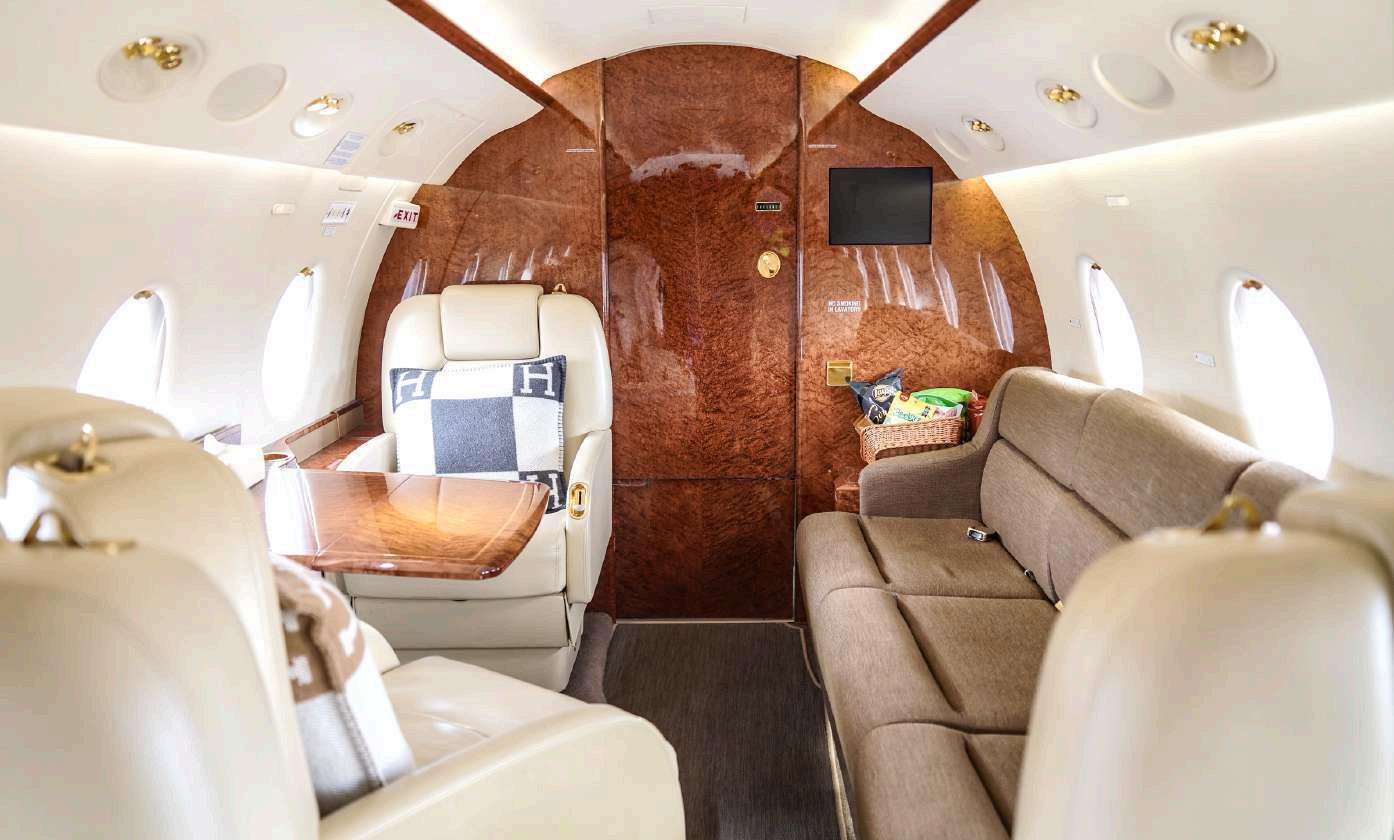

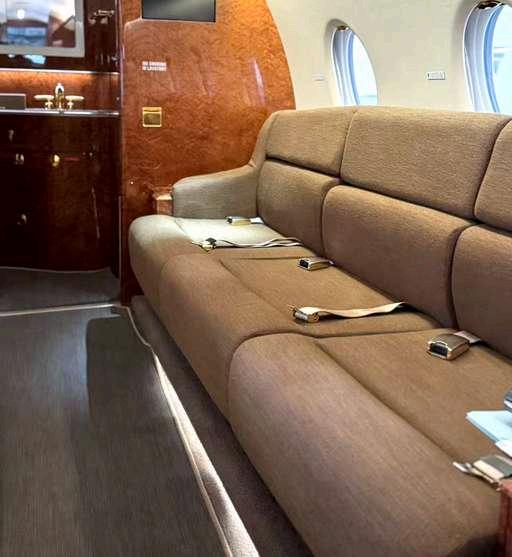

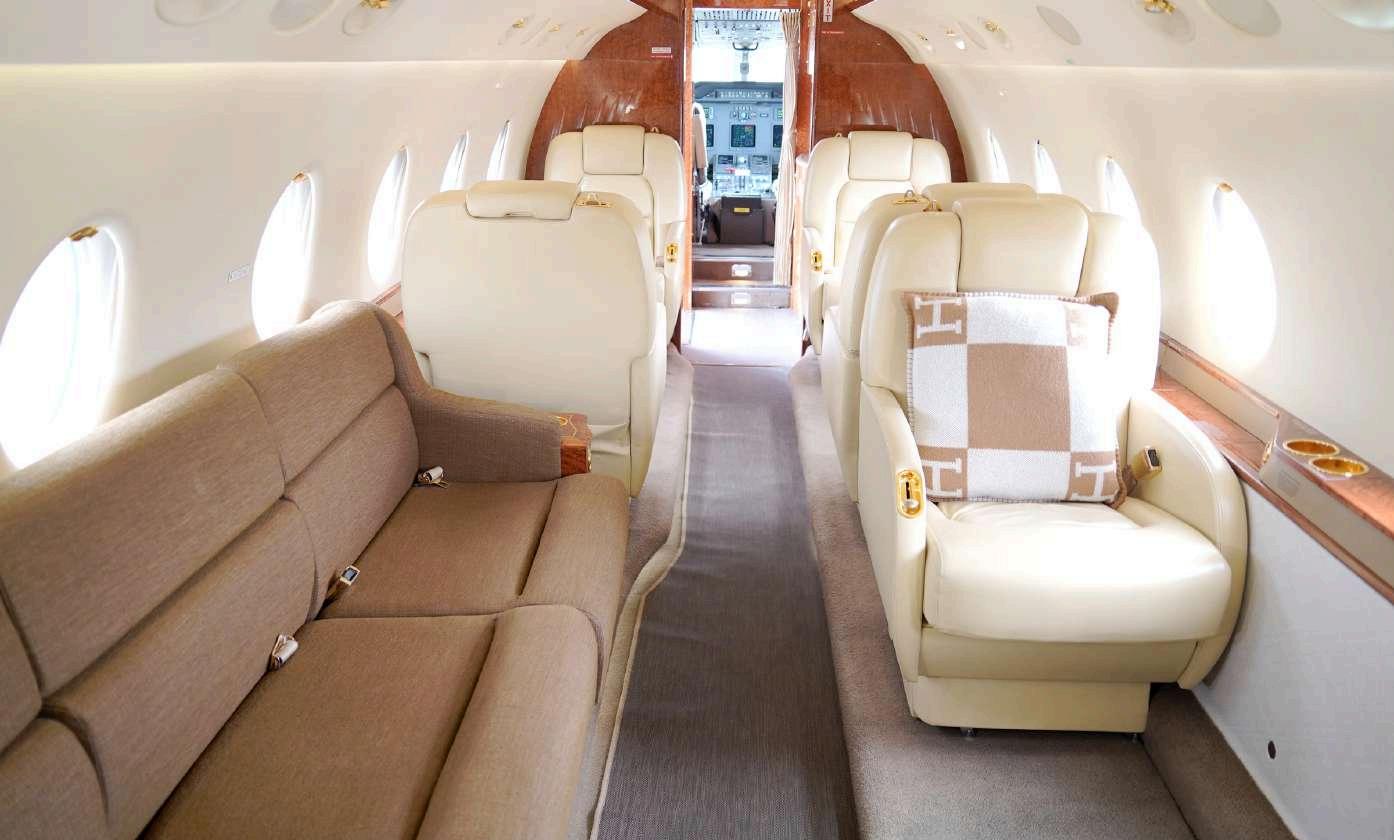

AFTCABINLOOKINGFORWARD
2007 GULFSTREAM G200 SN 165

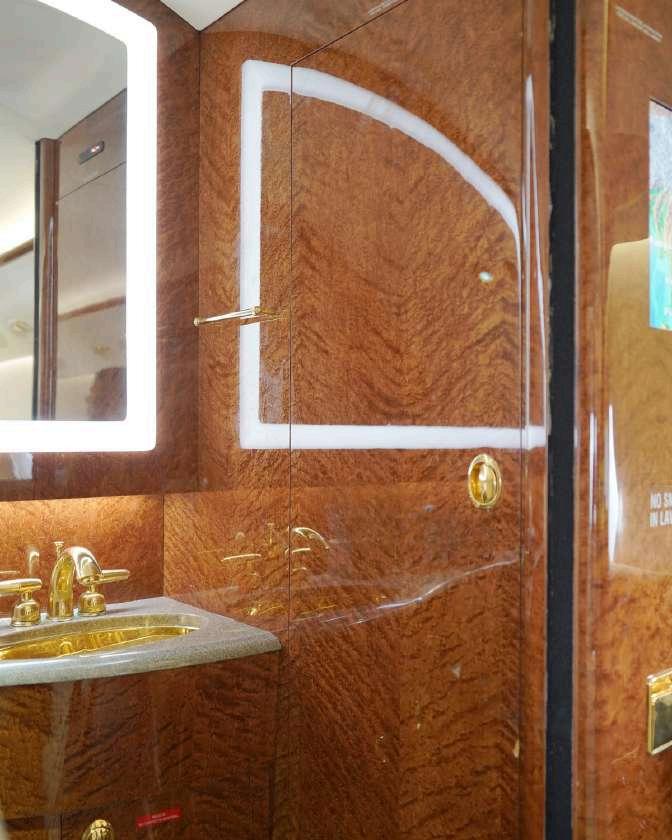

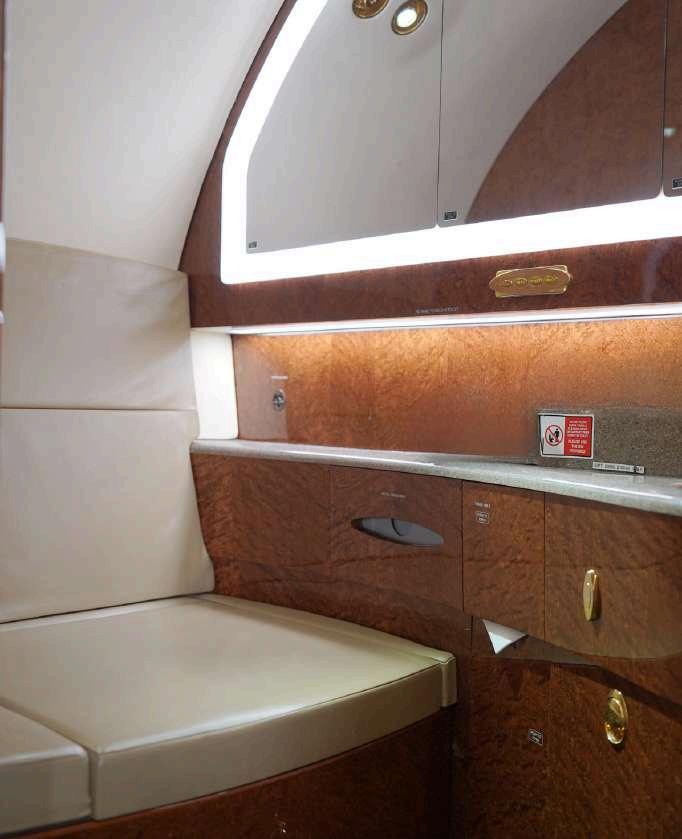

AFTLAVATORY

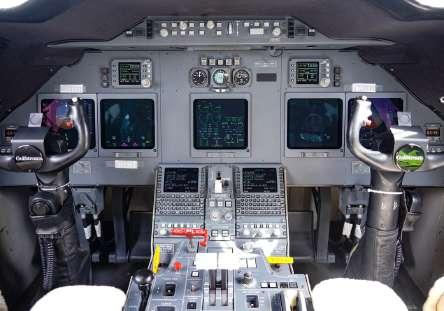

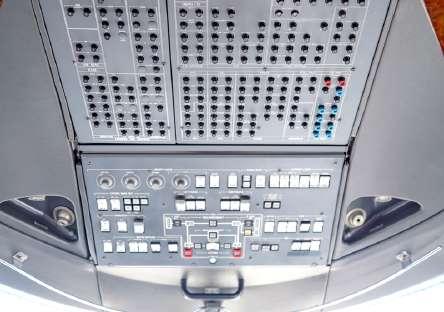

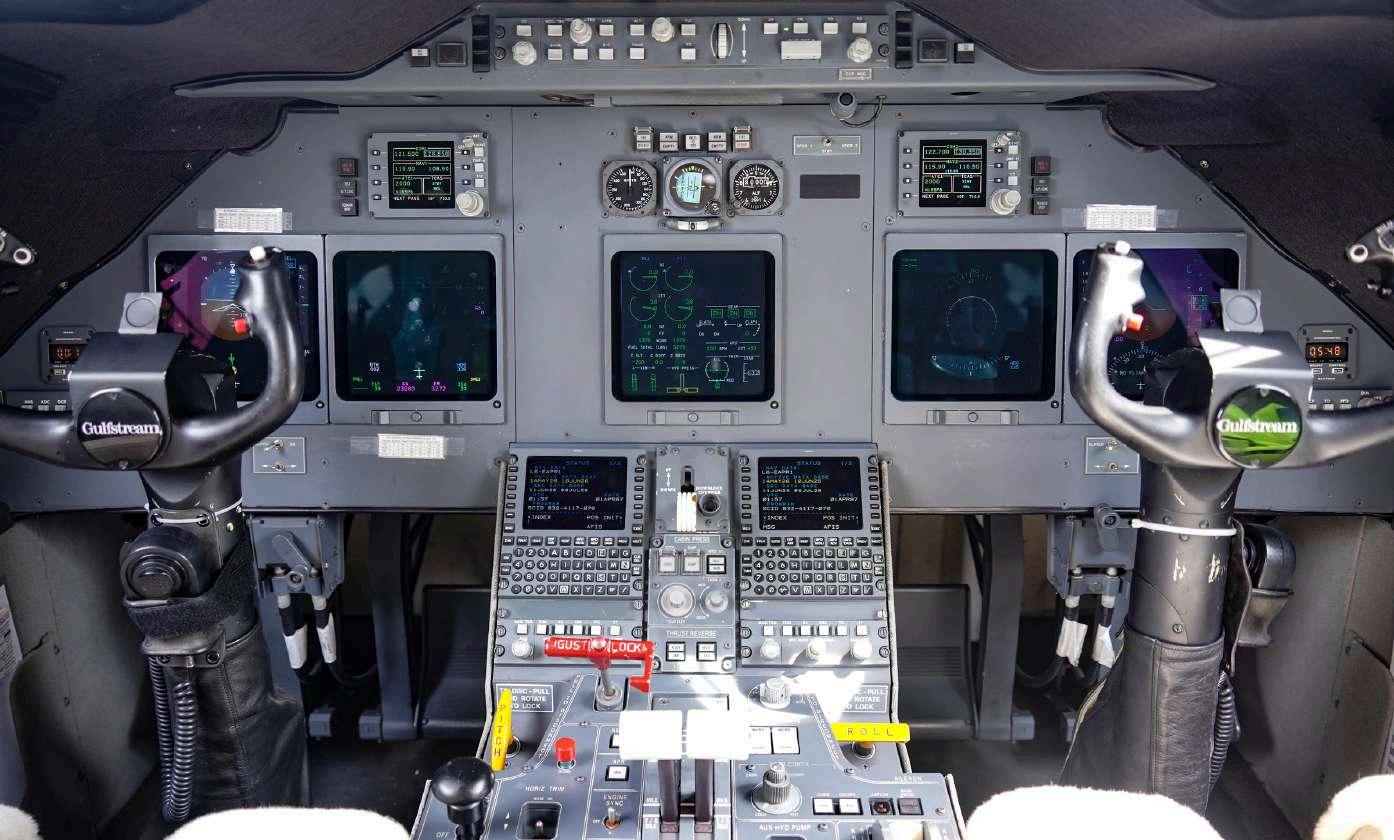

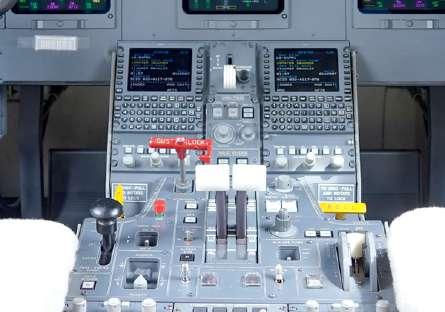

FLIGHT DECK
2007 GULFSTREAM G200 SN 165
COLLINSPROLINE4AVIONICSSUITE

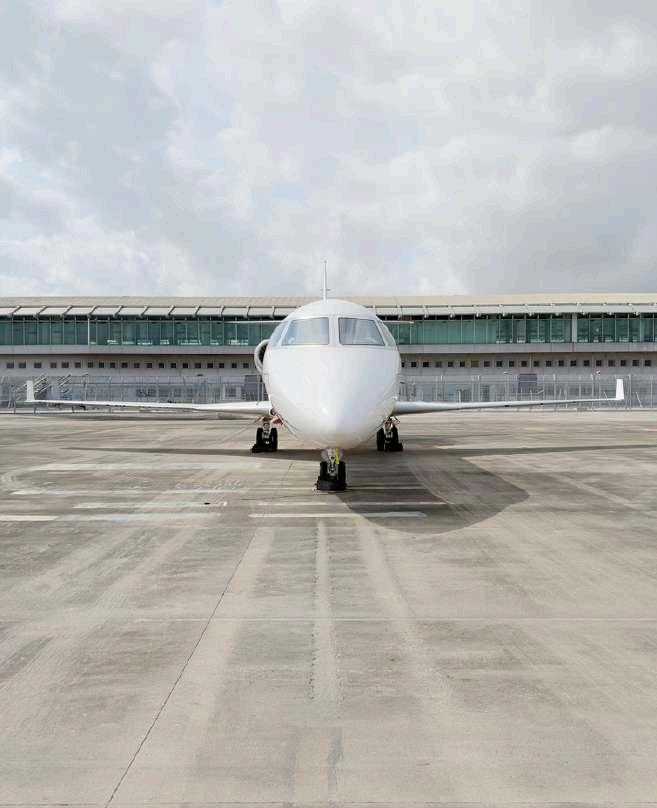

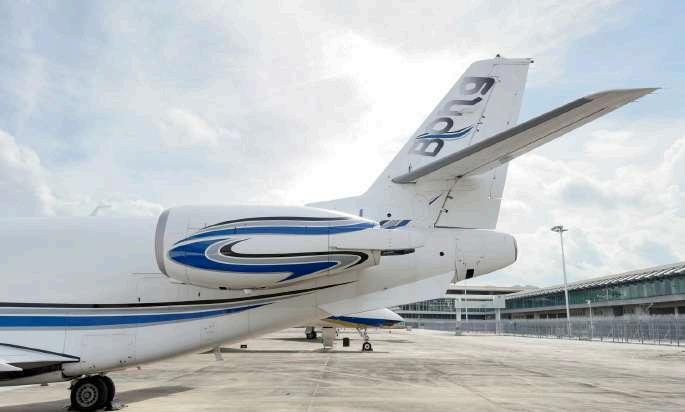

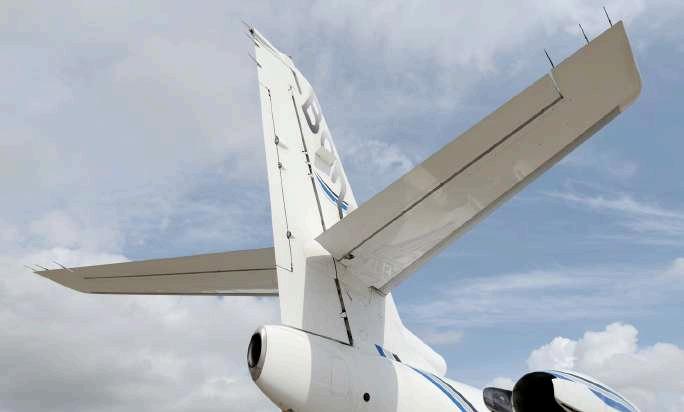

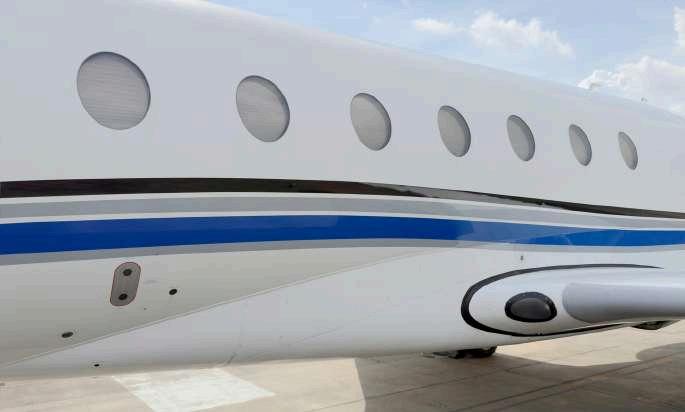

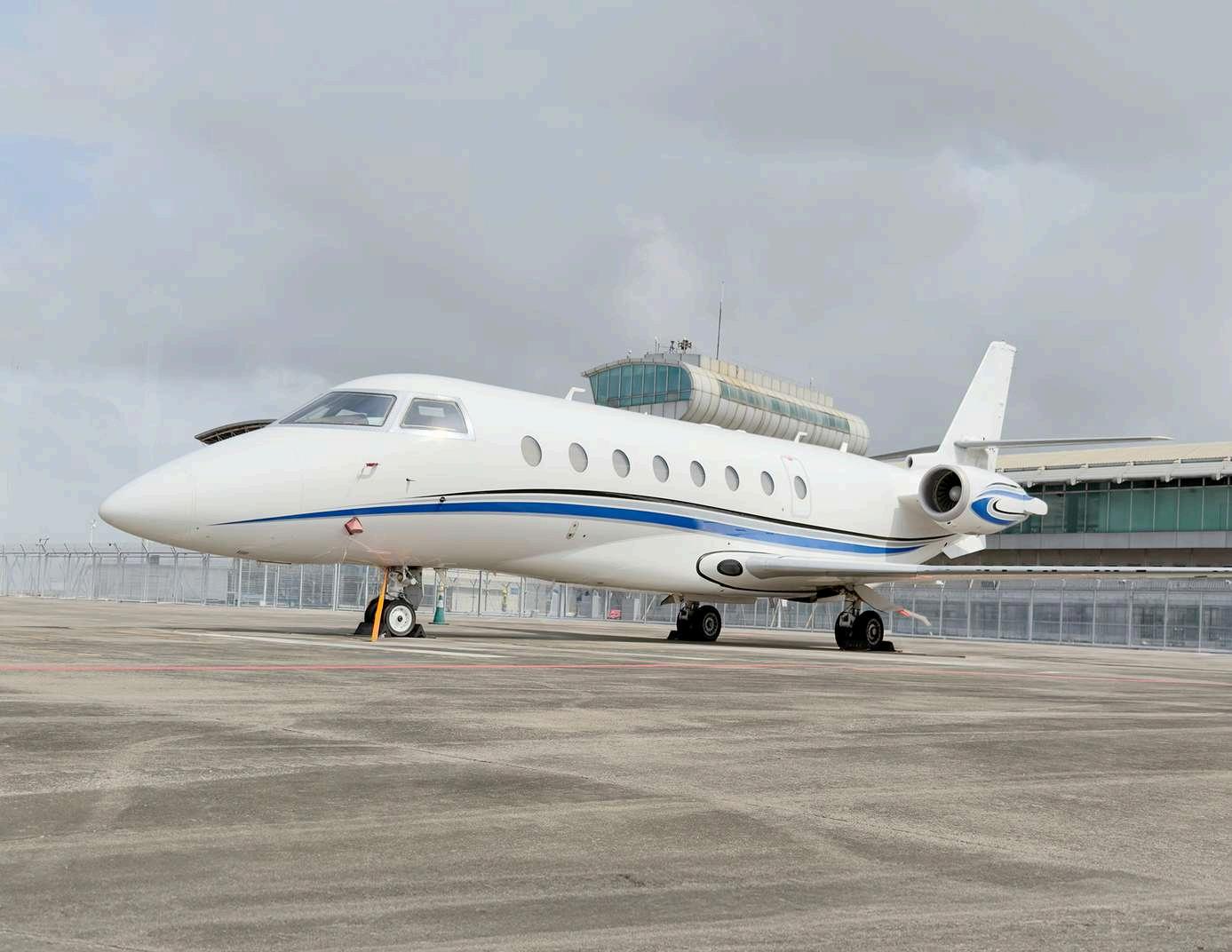

AIRCRAFT EXTERIOR
2007 GULFSTREAM G200 SN 165
AESTHETICS:
Base Paint:Matterhorn White
Accent Colors: Blue, Silver and Black Stripes
Condition: Repainted in 2016
