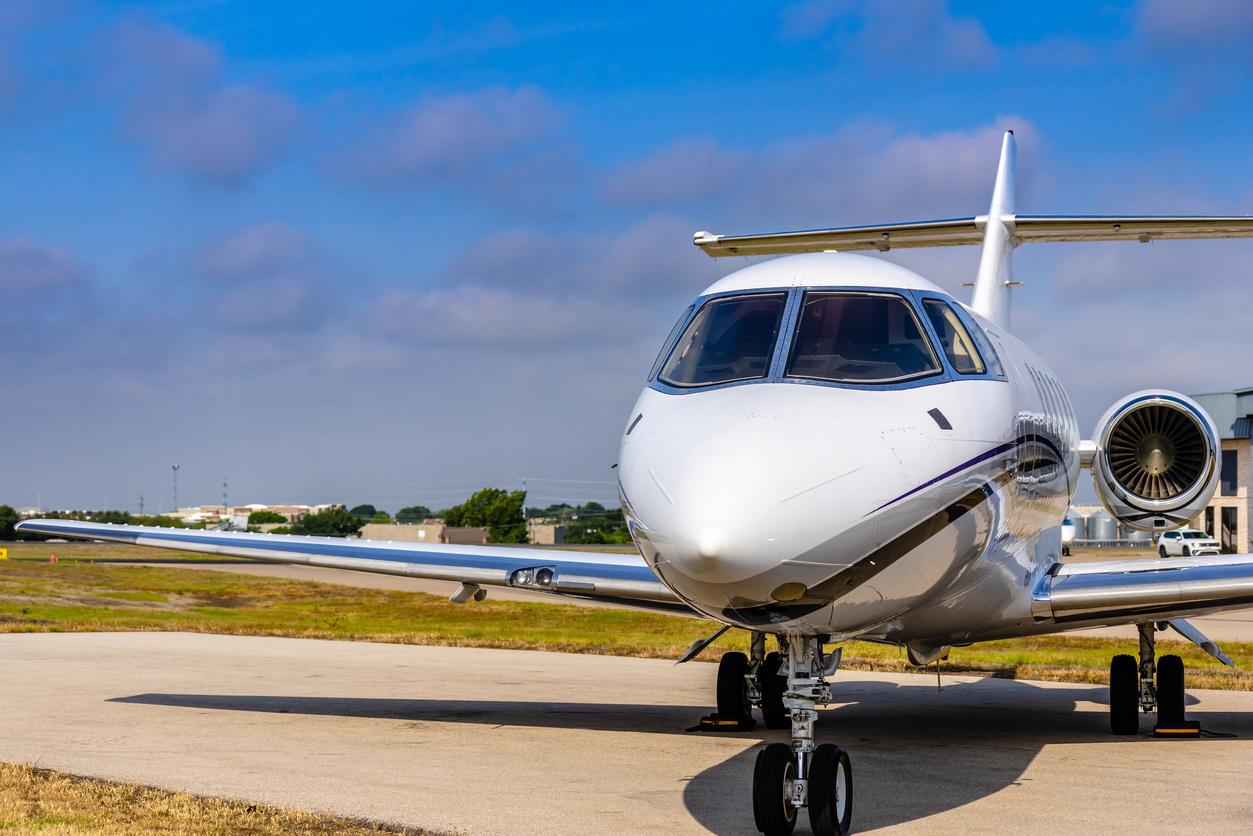

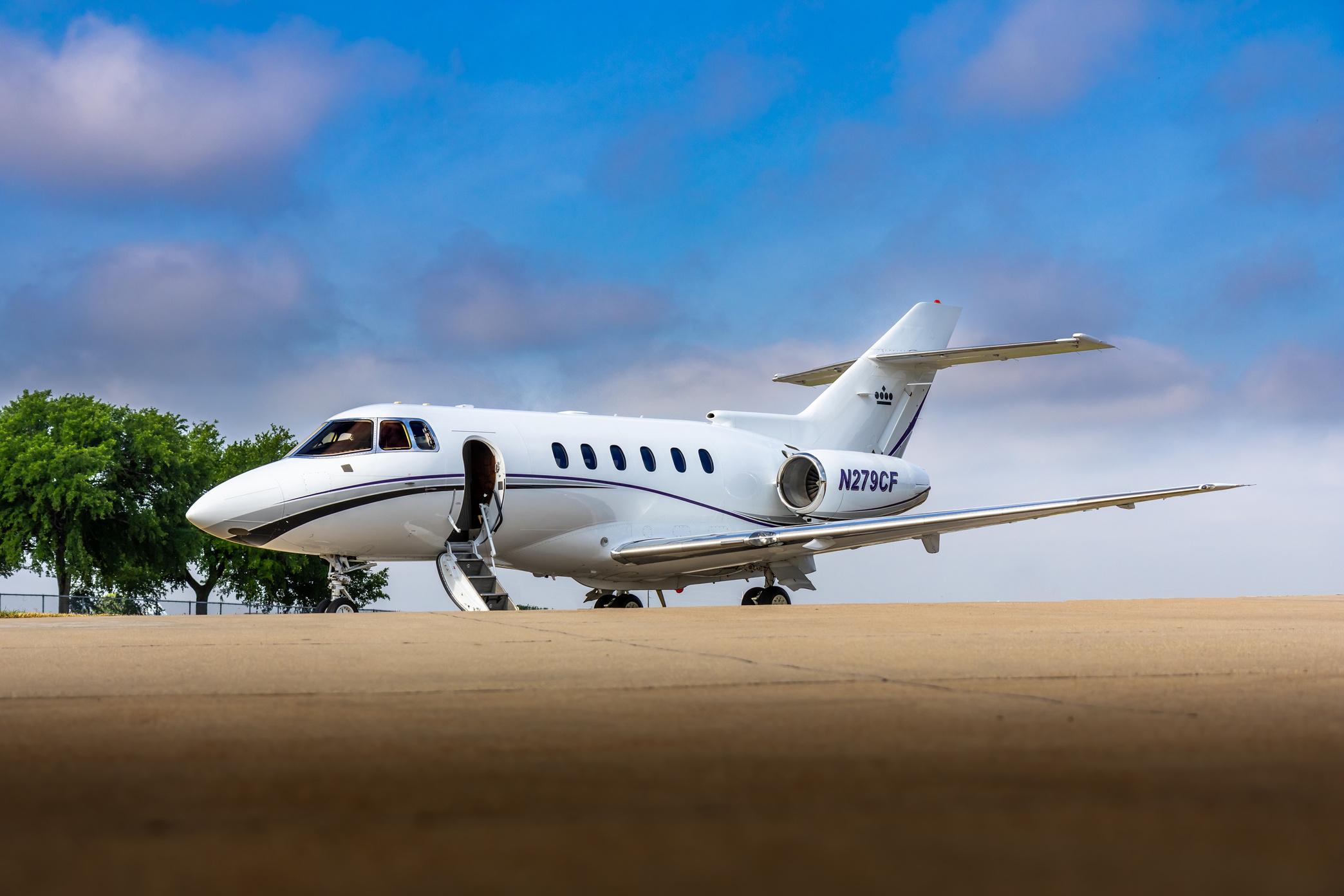

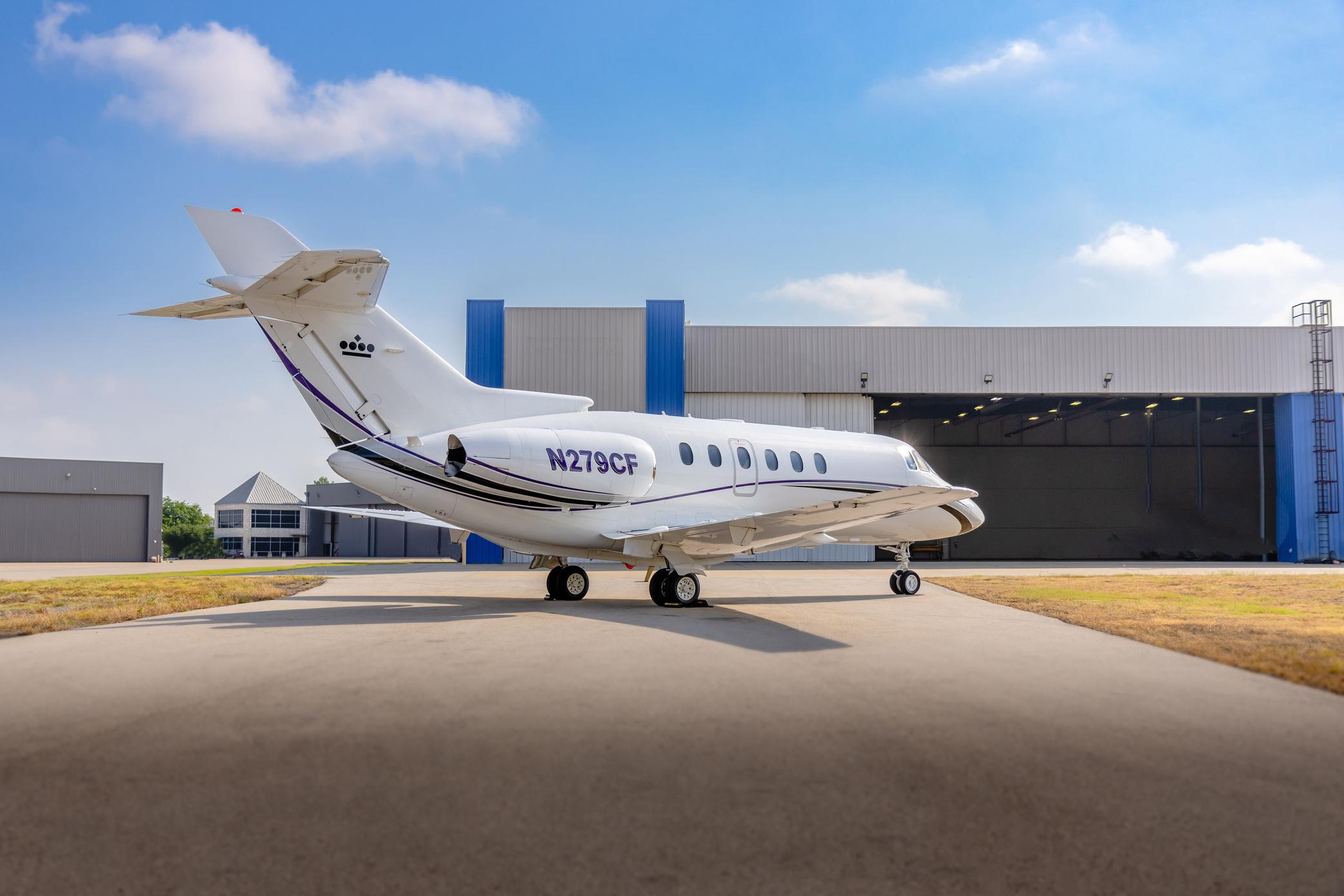

2003 Hawker 800XP
HIGHLIGHTS
Low Total Time Aircraft
Collins Pro Line 21 Modernization Package
Nine (9) Passenger Accommodations
No Damage History
Engines on MSP Gold | Avionics on CASP
Interior Refurbishment 2019
Synthetic Vision
Delivers w/ Fresh E Inspection
ENGINES
*Total Hours & Cycles as of May 8, 2023
**Typical CZI Interval at 4200, TBD MSP
AIRFRAME
PROGRAMS
Total Hours* 2653

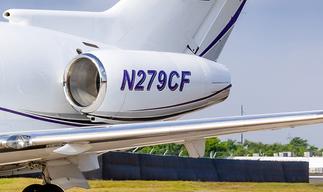

Serial Number Registration Entry Into Service Total Hours* Total Landings* APU Honeywell GTCP36-150W CASP Flightdocs MSP Gold Avionics Maintenance Tracking Engines 258642 N279CF 2003 3442.2 2150
Total Hours* Total Cycles* Total Hours Since MPI* MPI Interval Hours 3442.5 2150 1747.2 4600 3442.5 2150 1747.2 4600 Honeywell TFE731-5BR-1H ENGINE 1 ENGINE 2
4200 4200 CZI **
AVIONICS MAINTENANCE
Collins Pro Line 21 Modernization Package Installed
EFIS:
VHF Comms:
HF Comms:
NAV: GPS:
APS: Radar ALT:
WX Radar:

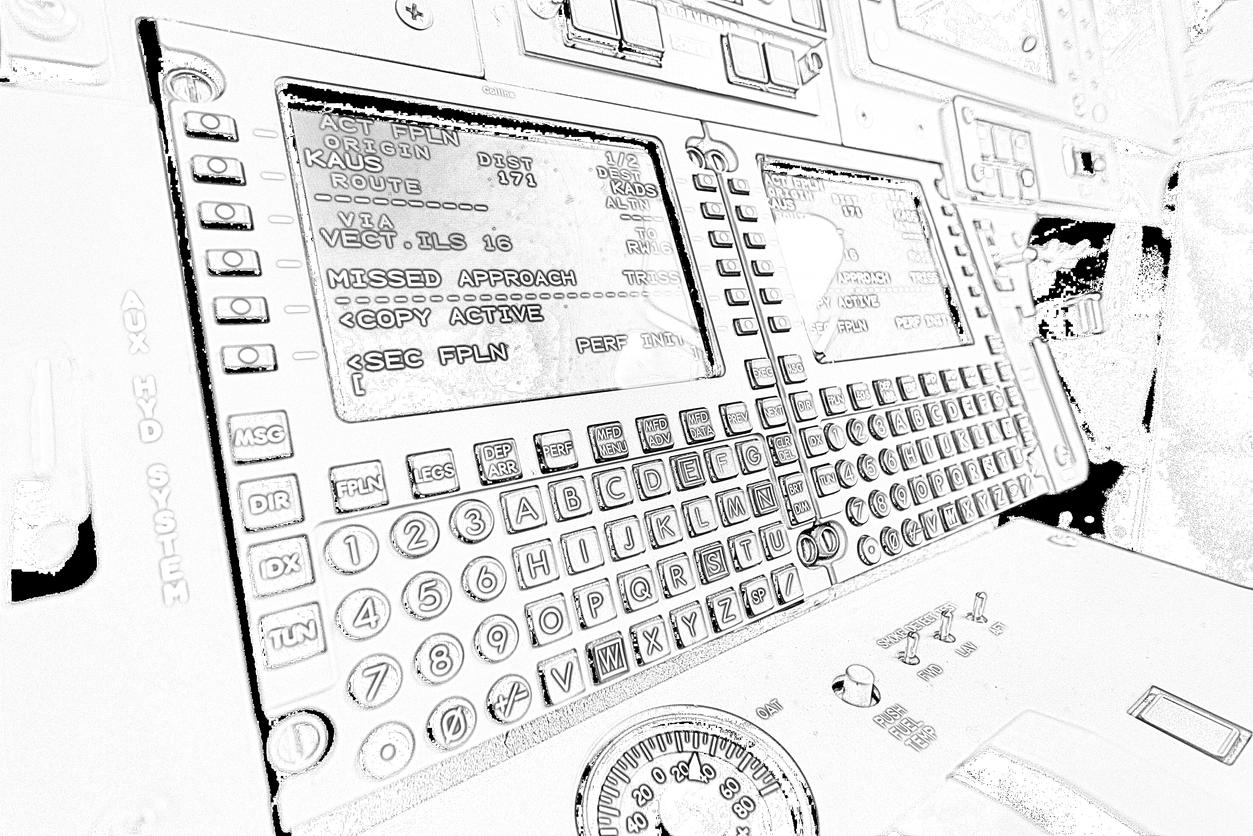

FMS:
XPNDR:
TCAS:
ADC:
DME:
ADF:
IFIS:
AHRS:
CVR:
ELT:
4-Tube AFD - 3010E Upgrade
Dual VHF-422C w/ 8.33 KHz Spacing
Collins HF-9000 w/ SELCAL (Provisions for 2nd)
Dual Collins VIR-432 w/ FM Immunity
Dual Collins GPS-4000S w/AD 2021-08 -07
Dual Collins FGC-3000
Collins ALT-4000
Collins TWR-850 w/ Turbulence Detection
Dual Collins FMS-6000; Software V 4.2
Dual Collins TDR-94D w/ Enhanced Flight ID
Honeywell TCAS-4000 w/ Change 7.1
Dual Collins ADC-3000
Dual Collins DME-422
Dual Collins ADF-462
IFIS-5000
Dual Collins AHC-3000
Universal CVR; 120-Minutes
Artex C406-2
B (800 Hr Interval)
C (1600 Hr Interval)
D (3200 Hr Interval)
E (12 Month Interval)
F (24 Month Interval)
G (48 Month Interval)
Main Landing Gear Overhaul
July 2024
August 2024
August 2024
August 2028
ADDITIONAL FEATURES
ADS-B Out Compliant via SB 34-4148
RVSM Capable
SW Airframe Iridium System AirText
Synthetic Vision
Time
2003 Hawker 800XP
Inspection Next Due 3987.8 Total Time 4795.7 Total Time 6400.0 Total
INTERIOR
Configuration / PAX:
Seating:
Nine (9) Passenger Accommodation
Forward Four (4) Place Club Seating
w/ Dual Fold-Out Tables
Aft RH Three (3) Place Divan
Opposite LH Single (1) Seat

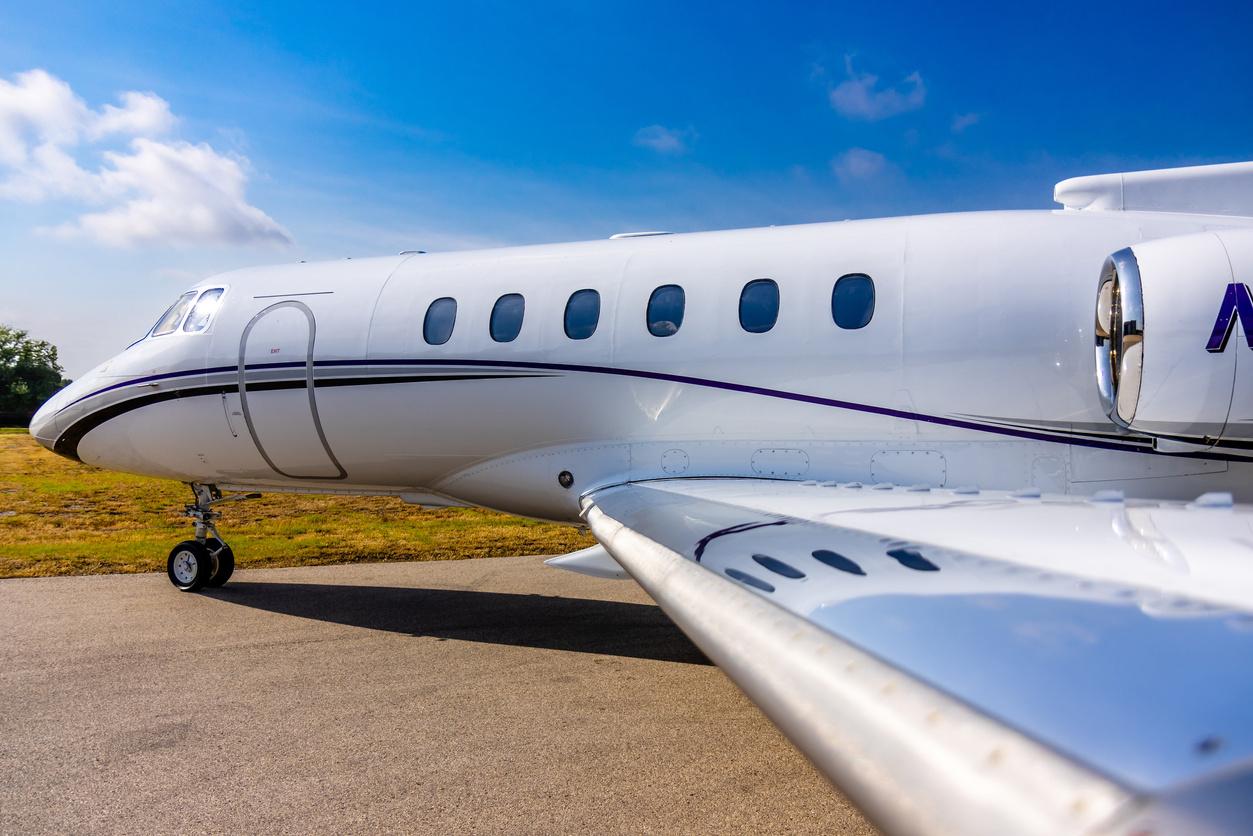

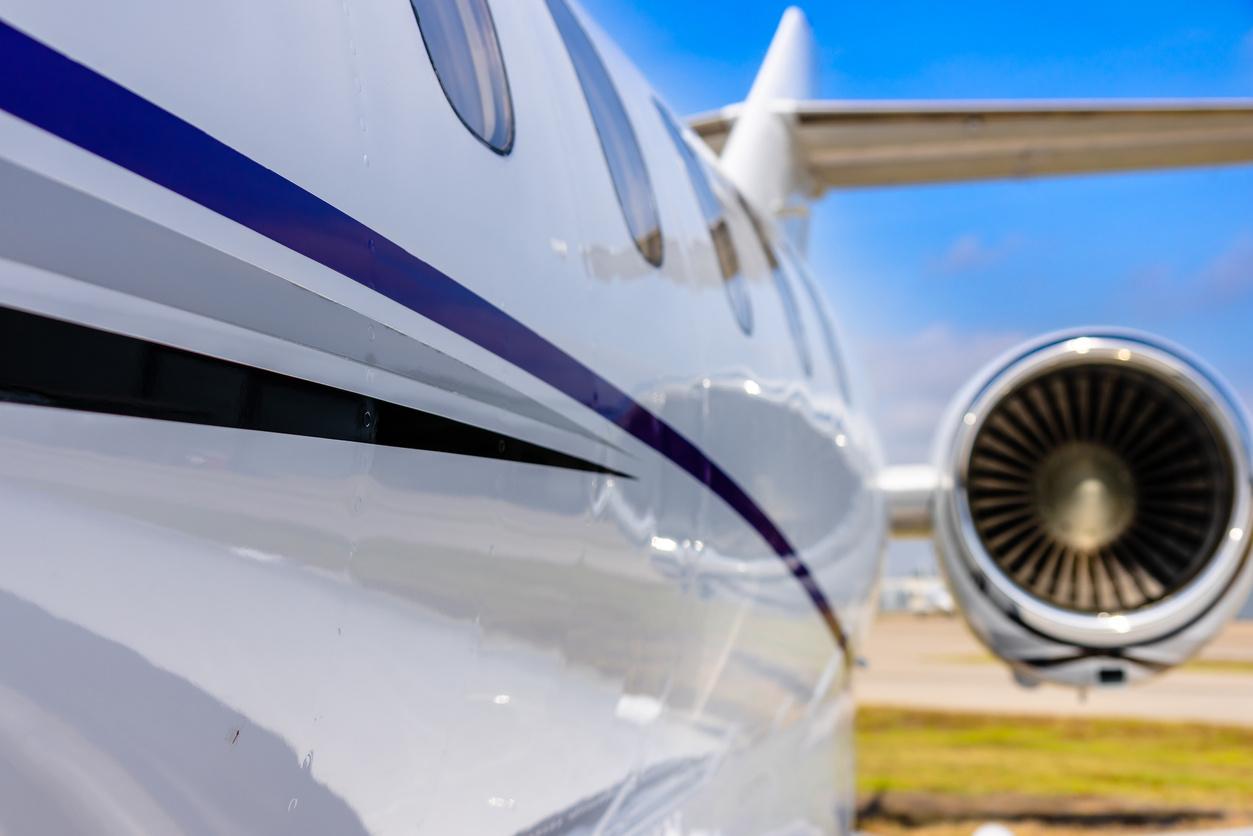

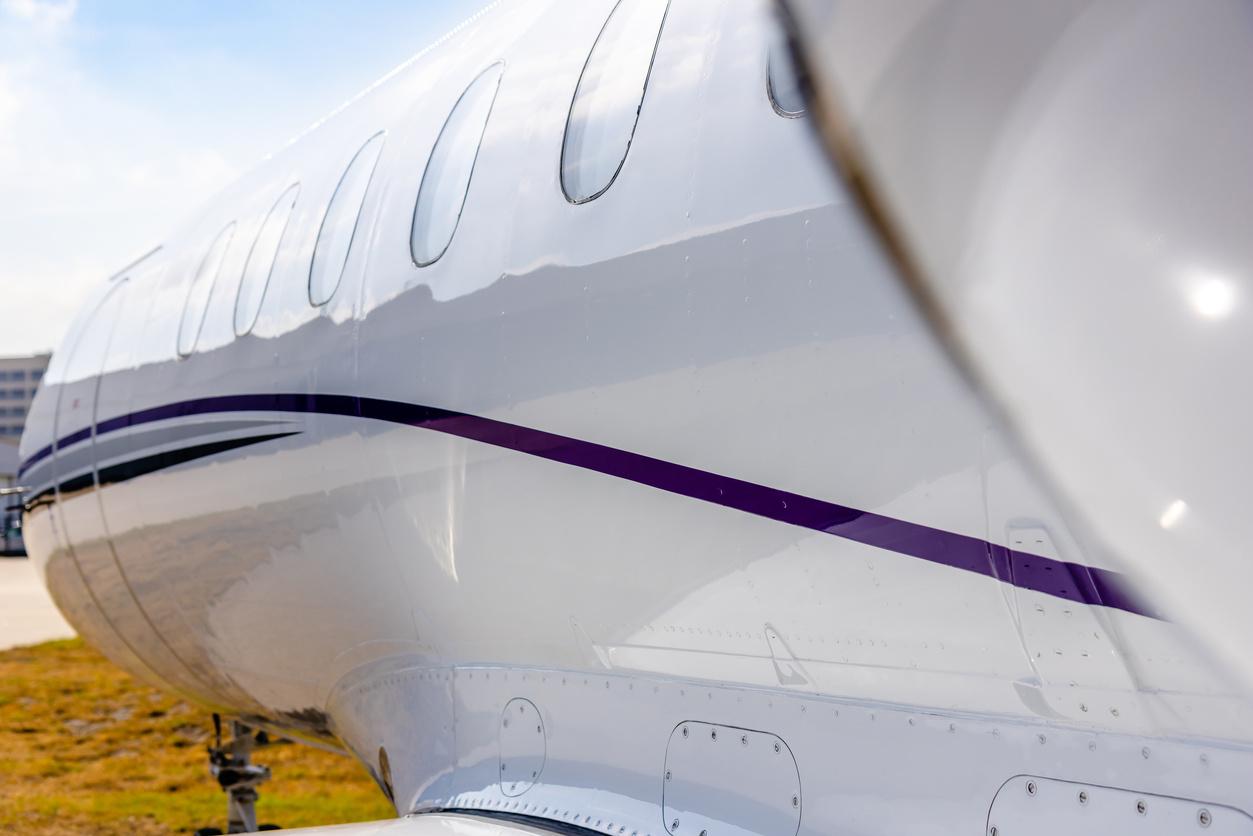

EXTERIOR
Base Paint:
Accent Colors:
Last Painted:
Matterhorn White Purple, Light Grey & Black 2016
Galley:
Lavatory:
Connectivity:
Forward LH Galley
Aft Private Lavatory w/ Belted Lav Seat
MagnaStar C-2000 In-Flight Phone System
AirText System
Entertainment:

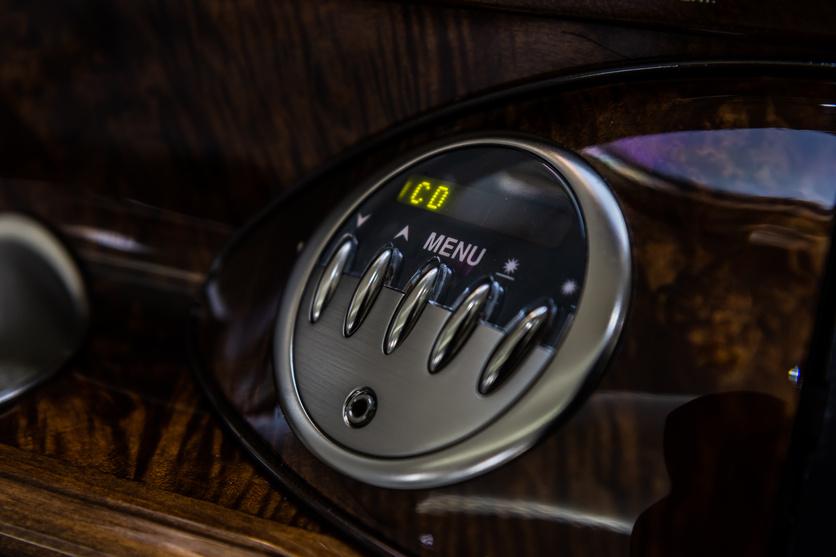

Airshow 400 Passenger Information & Entertainment
System; Airshow Briefer System; Two (2) 15-Inch
Cabin Bulkhead Monitors; DVD Player; CD-Changer
*Estimated Interior Accent Colors Swatch
*Estimated Exterior Accent Colors Swatch
2003 Hawker 800XP

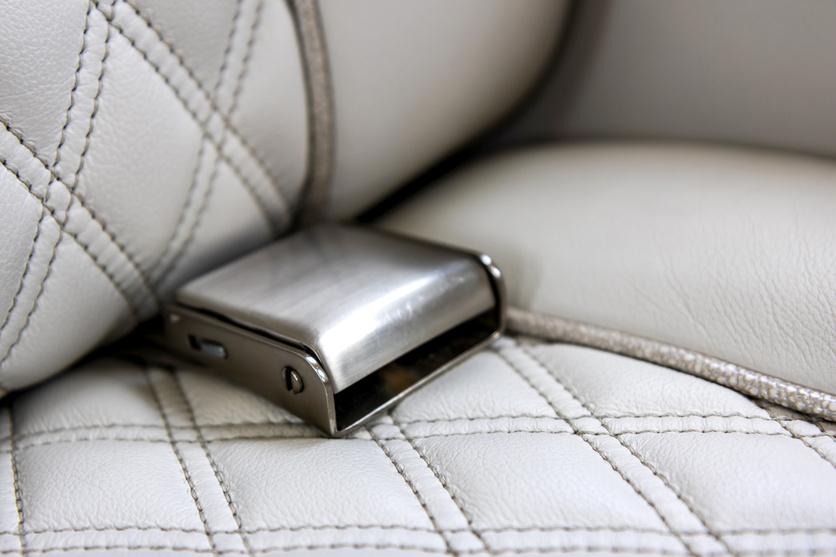

Wood Detail Metal Plating Seat Detail 3rd Stripe 2nd Stripe 1st Stripe
Cabin Layout
2003 Hawker 800XP
INTERIOR | FLIGHT DECK INTERIOR | FLIGHT DECK
2003 Hawker 800XP

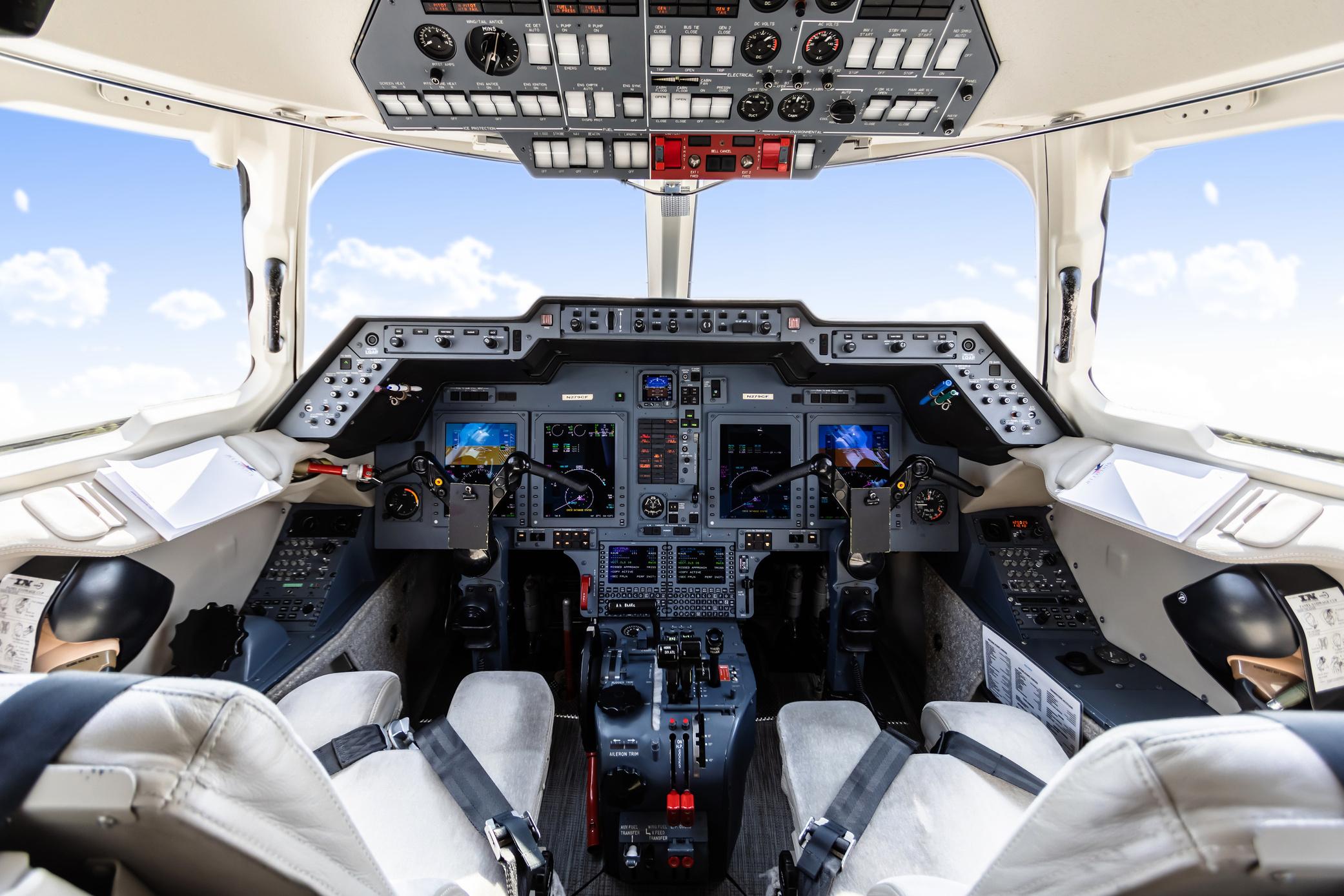

INTERIOR | FLIGHT DECK

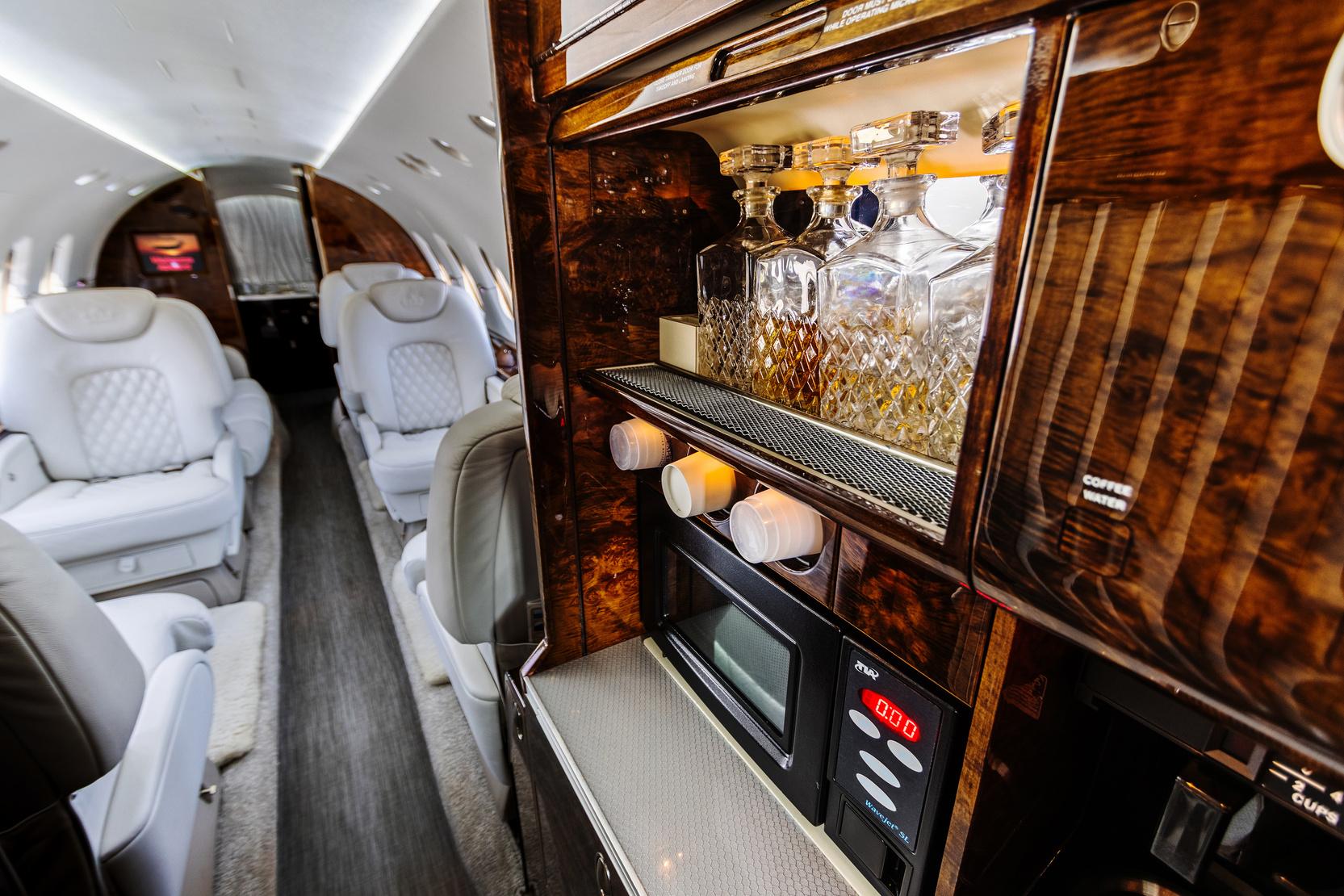

INTERIOR | FORWARD GALLEY
2003 Hawker 800XP

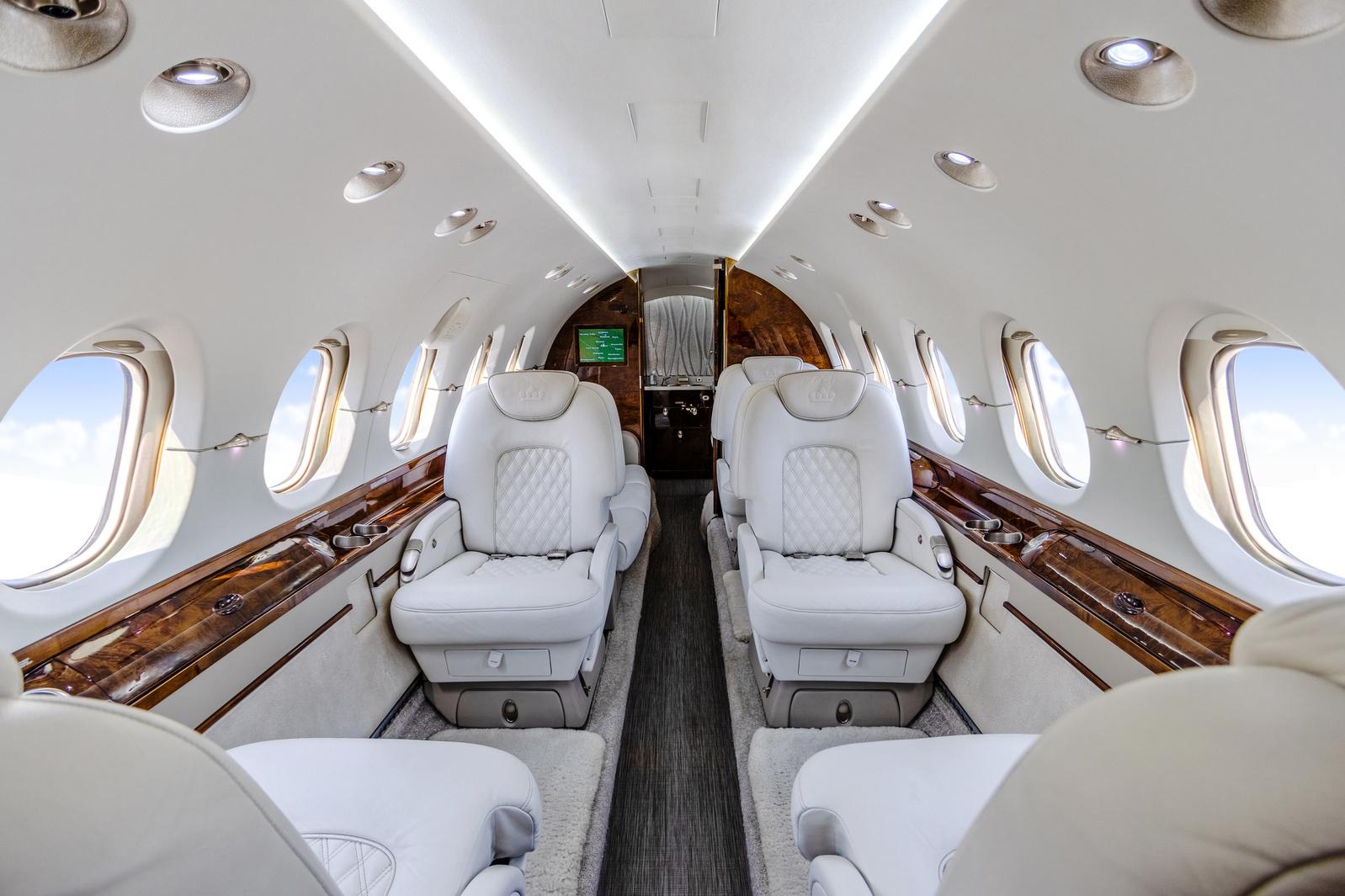

INTERIOR | FLIGHT DECK INTERIOR | MAIN CABIN SEATING
2003 Hawker 800XP
TABLES

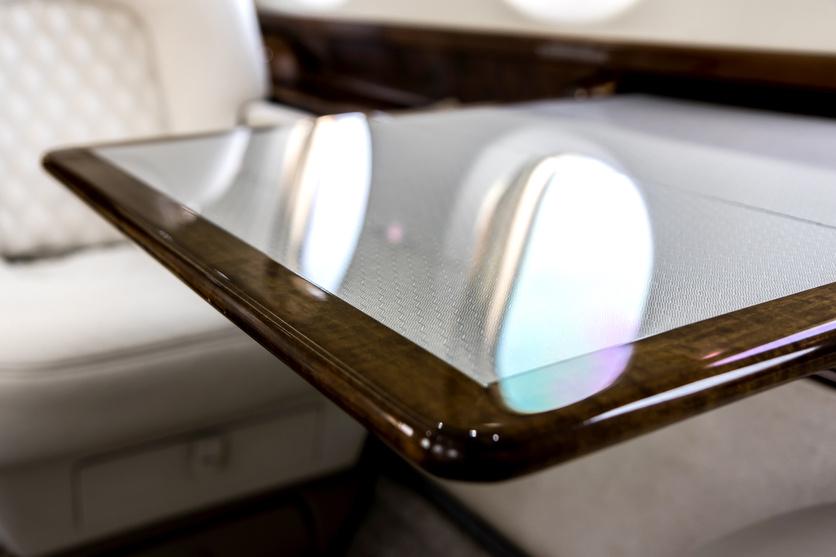

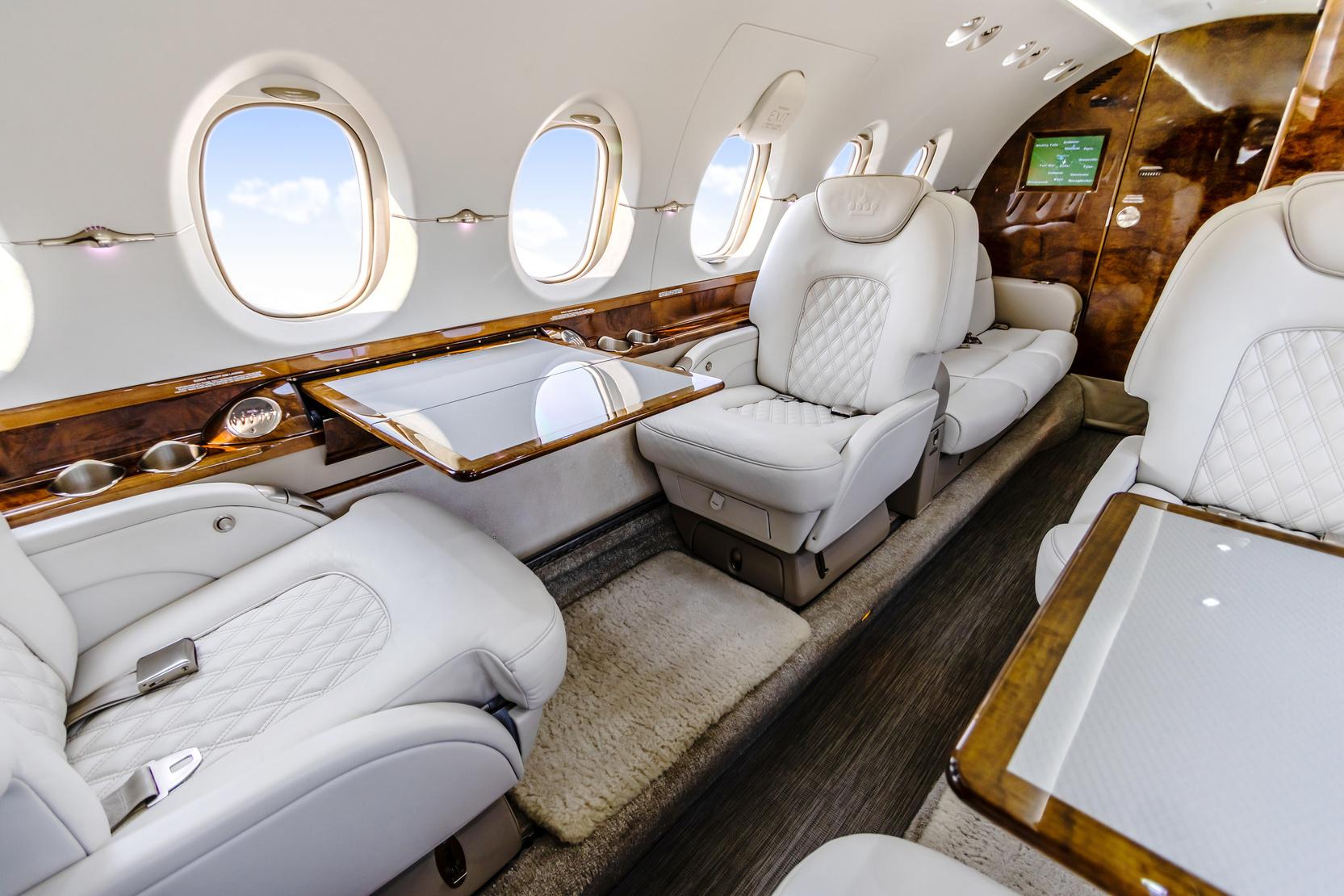

FOUR (4) PLACE CLUB W/ FOLD-OUT

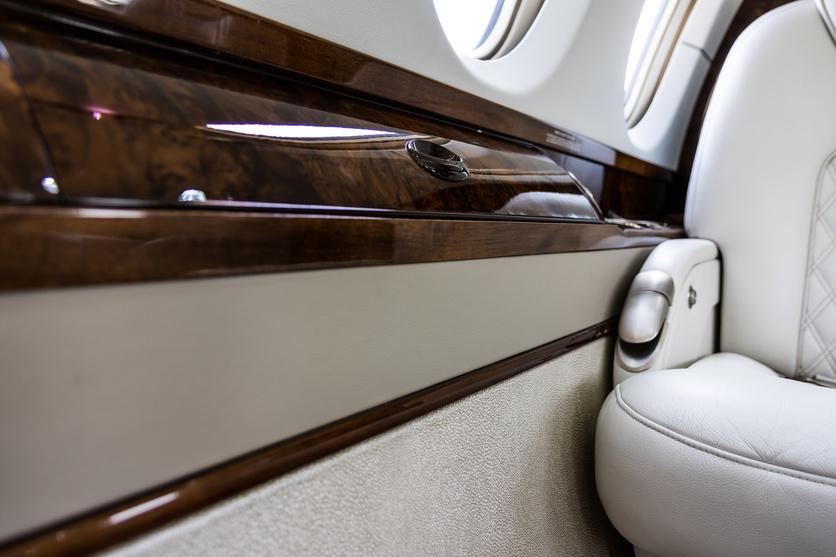

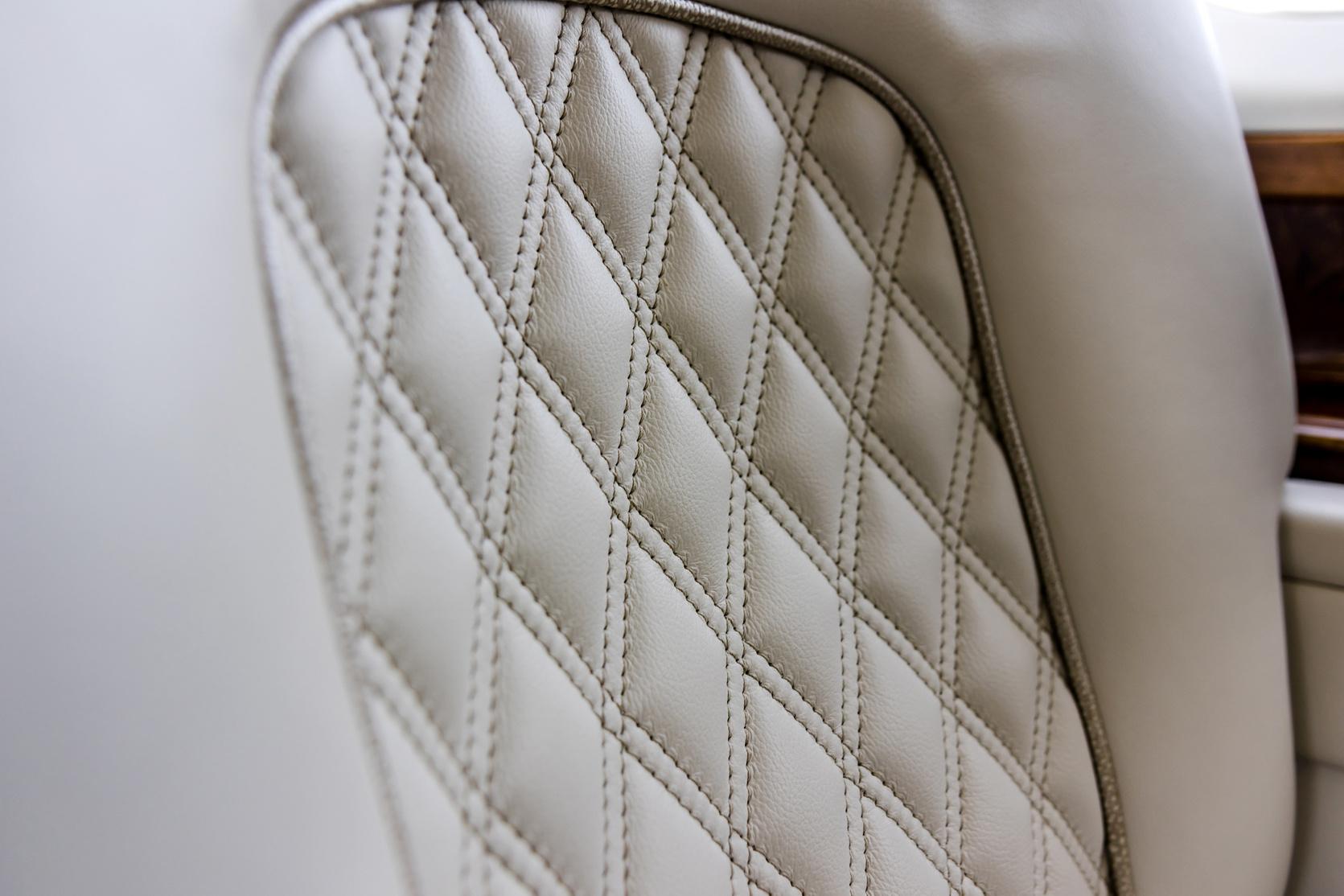

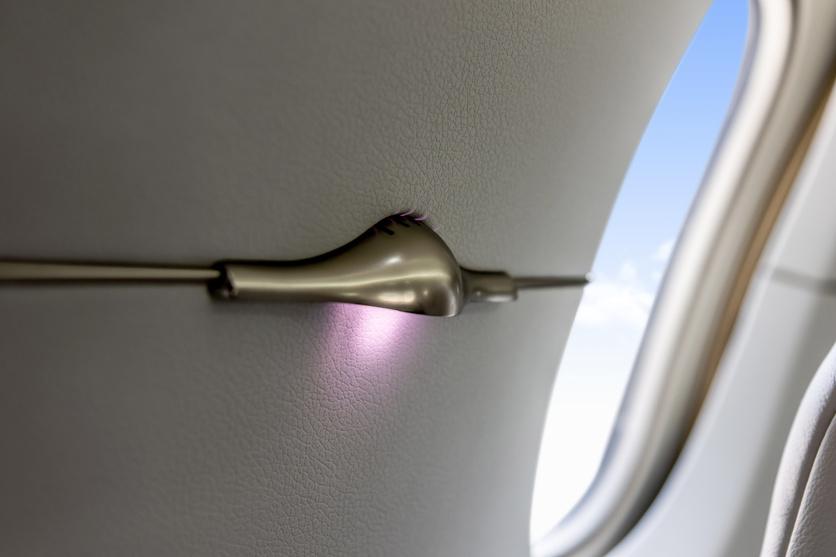

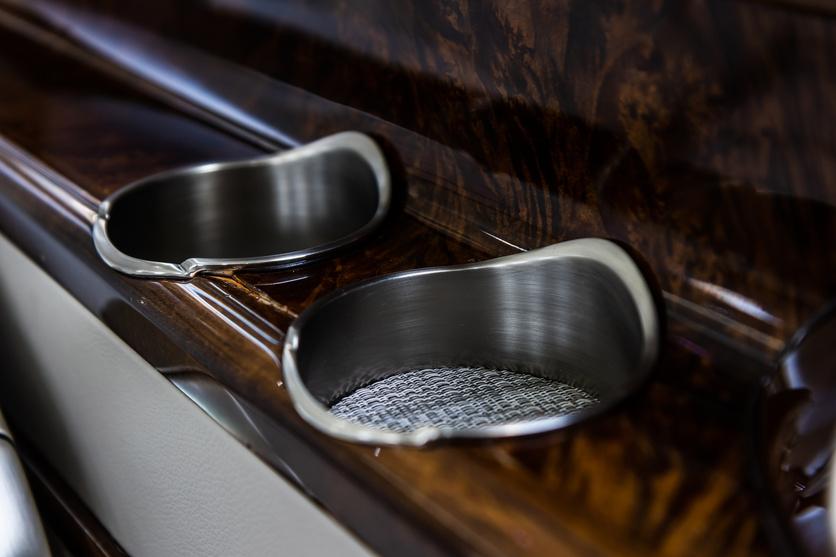

INTERIOR | FLIGHT DECK INTERIOR | FORWARD CLUB LOOKING AFT | CABIN DETAILS
2003 Hawker 800XP

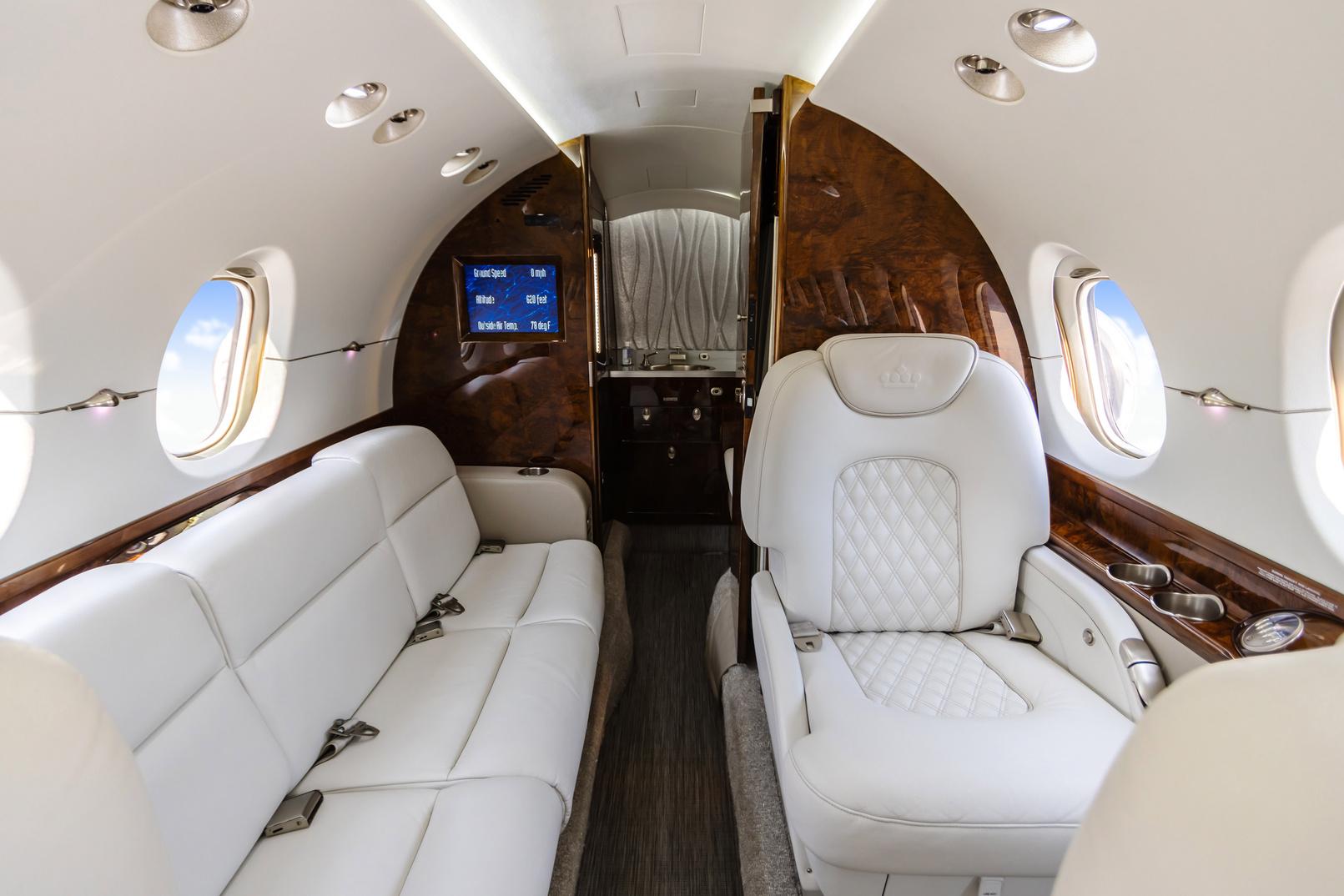

INTERIOR | FLIGHT DECK INTERIOR | AFT CABIN THREE (3) PLACE DIVAN & FORWARD FACING SEAT
2003 Hawker 800XP
INTERIOR | FLIGHT DECK

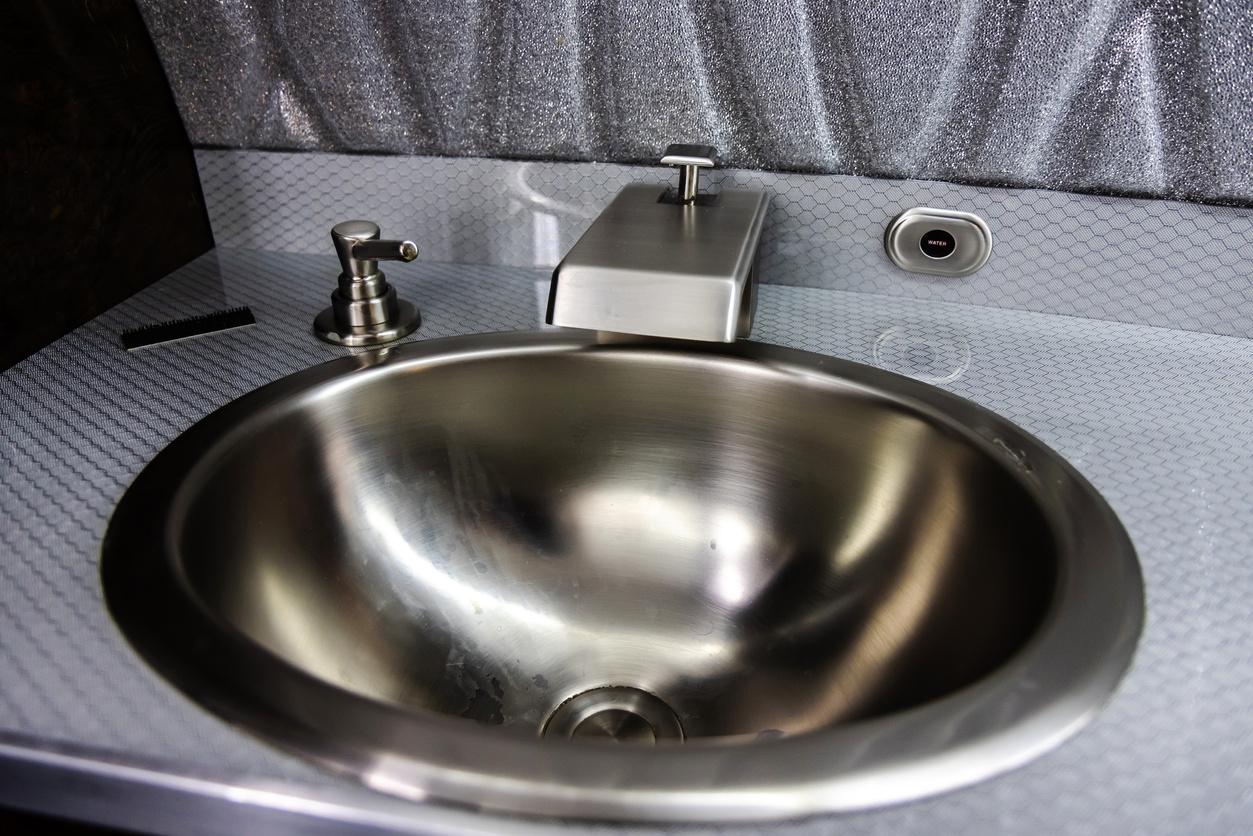

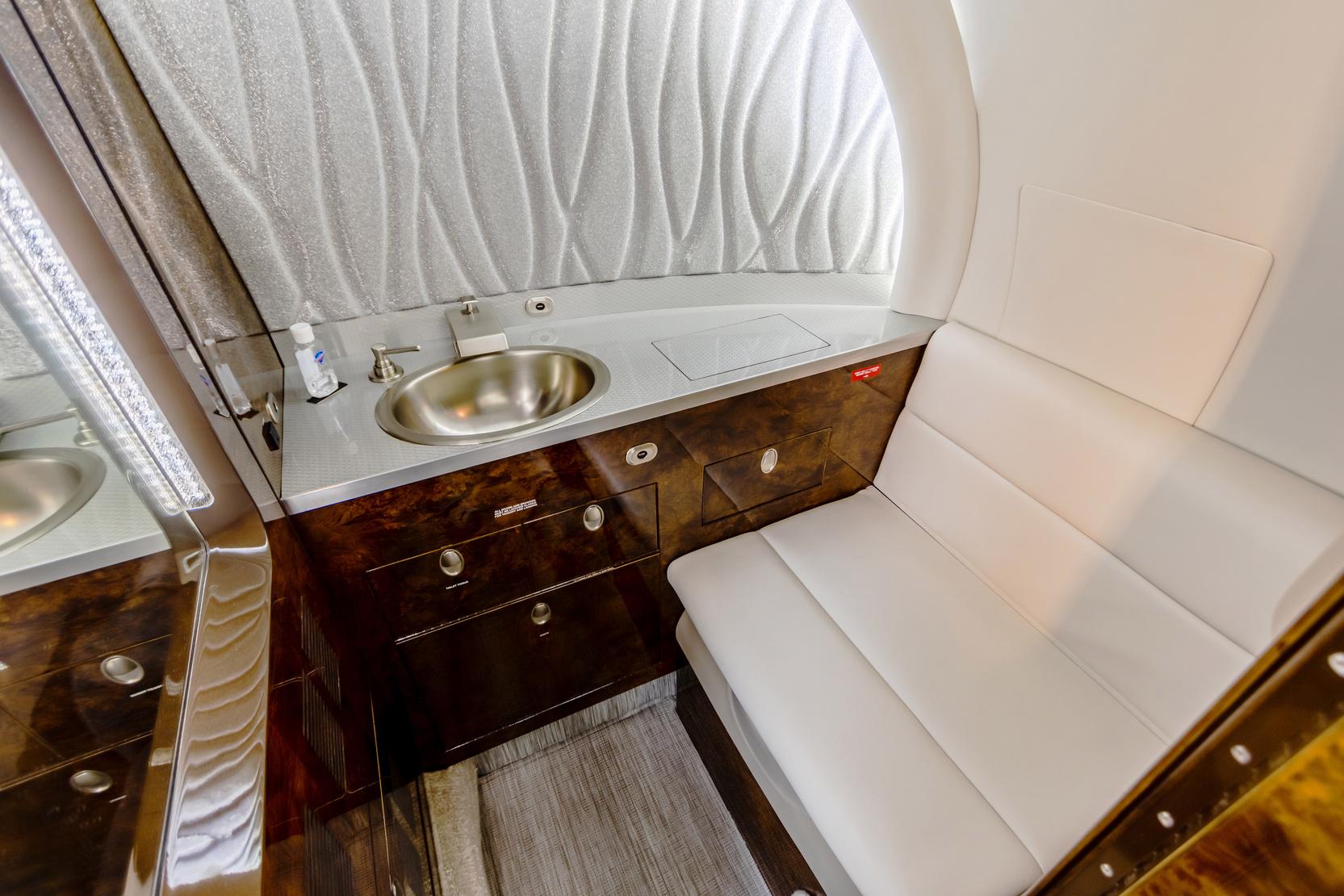

INTERIOR | AFT PRIVATE LAVATORY & SINK
2003 Hawker 800XP

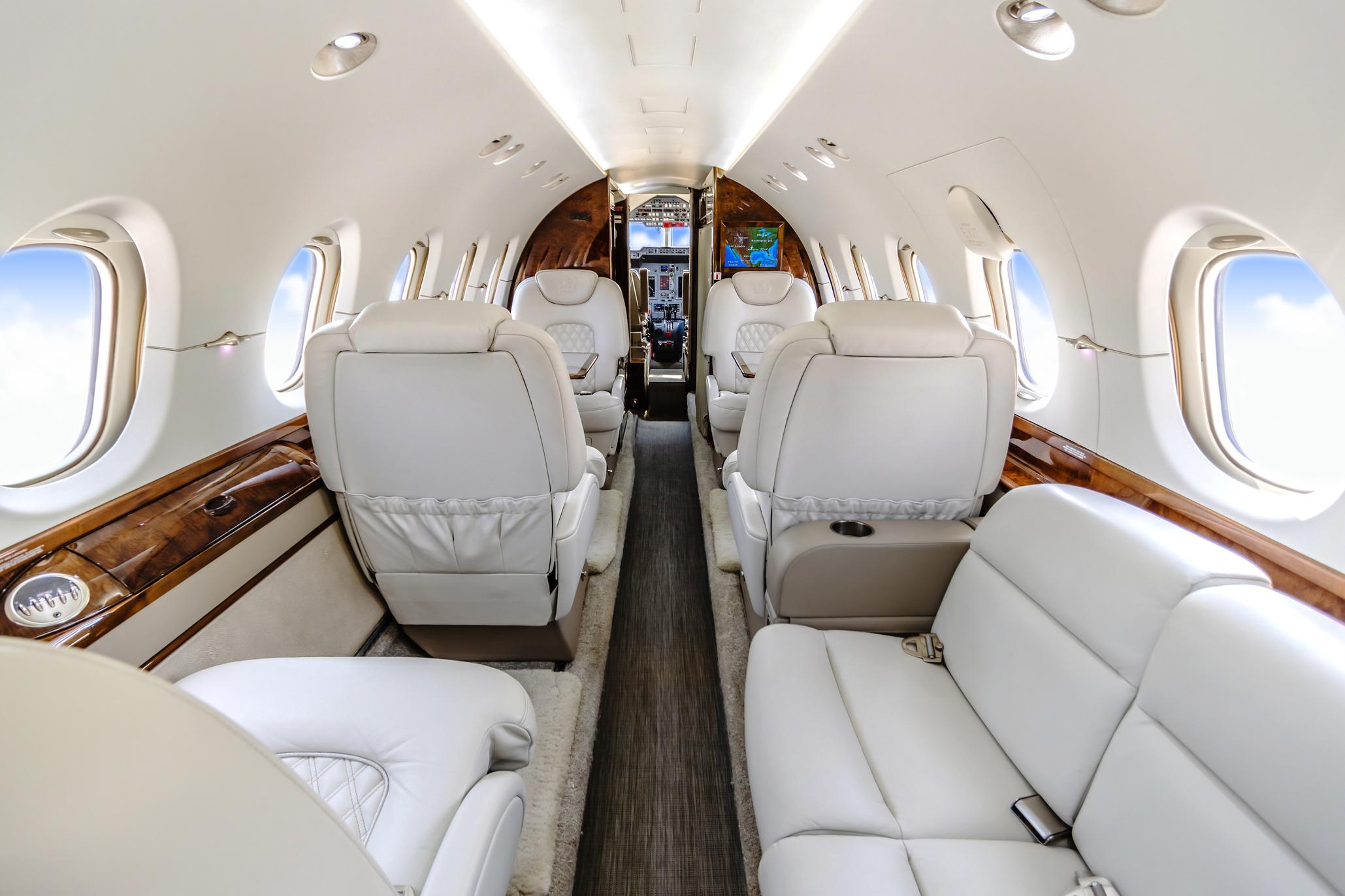

INTERIOR | FLIGHT DECK INTERIOR | AFT CABIN LOOKING FORWARD
2003 Hawker 800XP
2003 Hawker 800XP
INTERIOR | FLIGHT DECK
