01 L A ST P URE L A ND Disaster Prevention | Group Project | 2021 Casa Blanca, Honduras Honduras is a Central American country that is often hit by hurricanes. The complex gangs in the area make the country's crime rate among the highest in the world. However, the Casa Blanca community is regarded as the last pure land in this area, where people did not choose to join any gangs. Residents in this community want to have a safe place to protect themselves and their families.

We focus on the most serious problems on the site: floods, crime, and poverty. Therefore, we design escape routes, floating islands, and refuges to protect people from floods or violence. Besides, to achieve self-sufficiency of the community, the design provides the raised farmland and livestock space in the community for residents to produce crops, vegetables, fruits, meats, etc. Moreover, people can also sell agricultural products and handmake products to others through the renewed commercial corridor. The last pure land will be preserved in this way and becomes a sustainable and safe community.

Raised Livestock Space Livestock Production and Food Supply

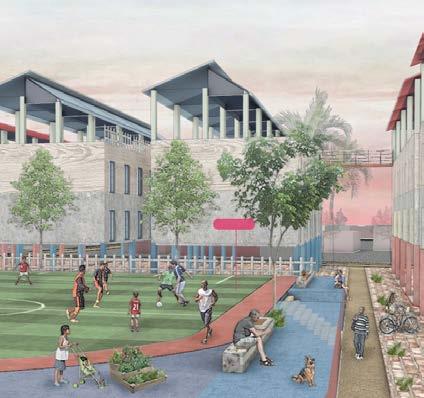

Floating Central Hub Soccer Field & Shelter

Raised Children Activity Space Leisure Space and Psychological Healing

24/7 Commercial Corridor Economic recovery & Criminal Monitor

Floating Centeral Hub Wastewater treatment Center & Shelter

Raised Farmland Agriculture Activity & Food Supply

Escape Route Criminal and Disaster Prevention

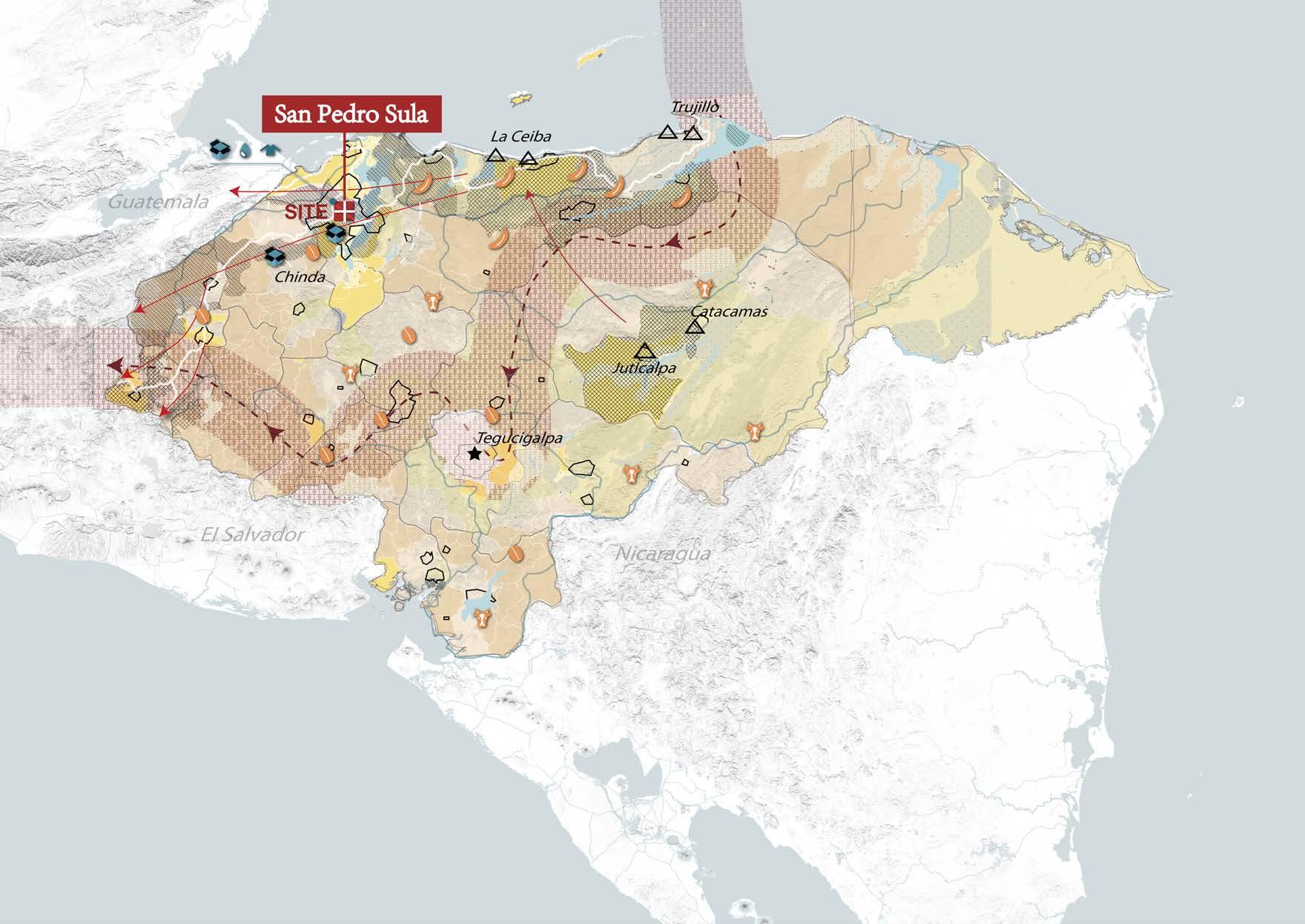

CRISIS MAP OF HONDURAS

HIGH CRIME RATE % 60

Homicide Rate / 100,000 Residents (2008) EI Salvador

50

Honduras

Honduras

40 Mexico

30

Guatemaia

20 10 0

Global Average

America Canada

24%

13%

Only 24% of homicides were investigated.

Only 13% of homicides were convicted.

POVERTY Billion

The GDP of Central American Countries

100 Cuba

80 60

Guatemala

40

N

Honduras

20 0

Nicaragua 2000

MAP LEGEND

2004

2008

2012

2016

2020 Year

HURRICANE & FLOOD Main Economic Activity

Poverty gap index in Honduras Drug trade landing point Most violent municipios

1998 Hurricane Mitch in Honduras;

Flooded Areas

Main drug trading road

Partially flooded

Other drug trading road

Watersheds

0.04 - 0.05

7,000 people were killed 11,000 were missing in the months after the storm; Greatest water depth recorded was 12.5 m near Chinda.

POOR

Capital

Track of Hurricane Mitch

0.05 - 0.16 0.16 - 0.21

Food processing

Beverages

Clothing

Coffee

Livestock

Banana

0.21 - 0.27 0.27 - 0.50

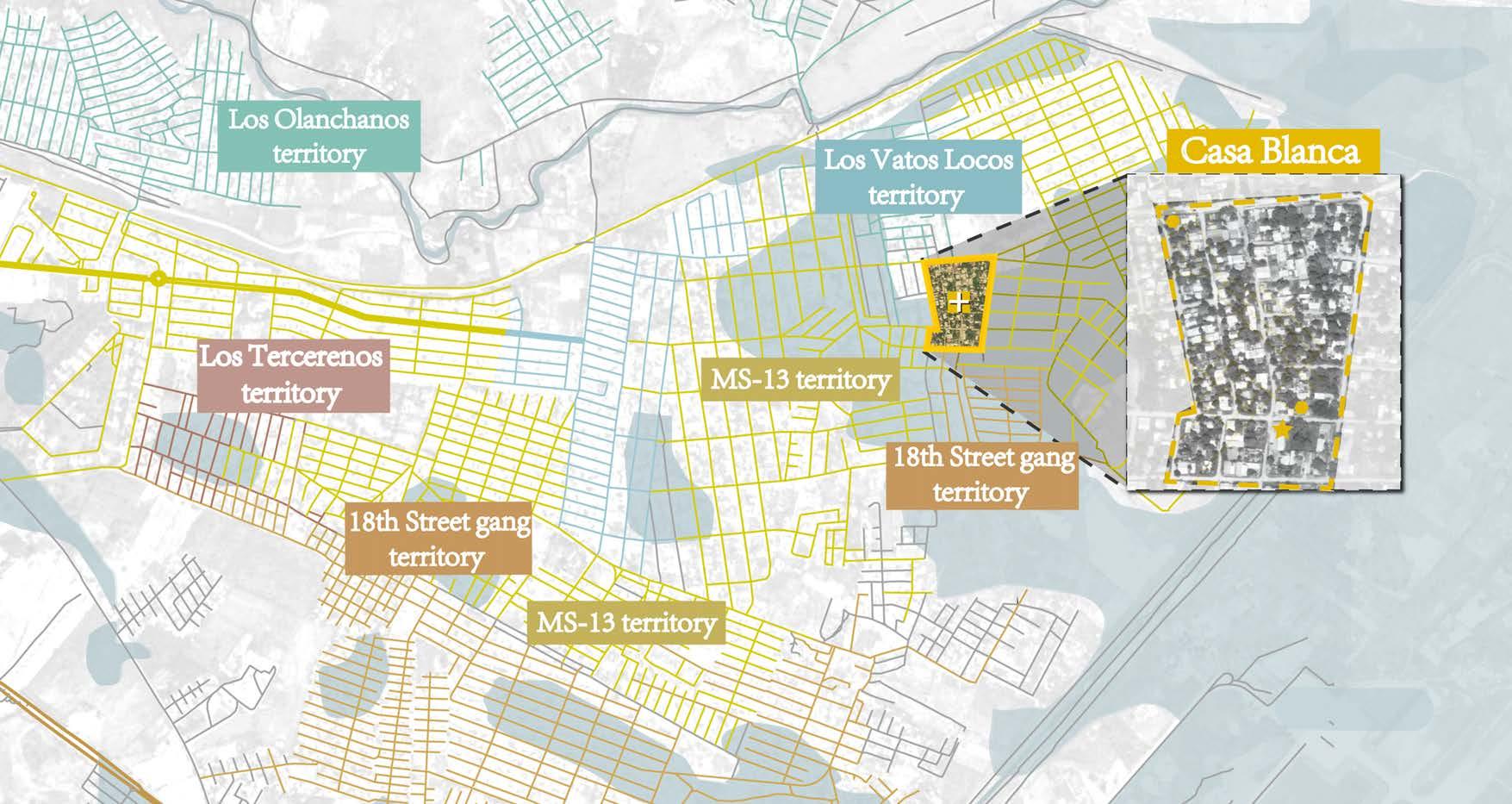

STREET GANGS TERRITORY DISTRIBUTION

Vermilion River

Several grocery store Hrist missionary church

Most of the neighborhoods around Casa Blanca are occupied by gangs. The dozens of people who survived Casa Blanca came together to guard this peaceful neighborhood.

N

VIOLENT HISTORY OF COMMUNITIES

1970 - Agriculture Sugarcane fields and pastures.

1970 - Crowded street Hurricane FIFI destoryed people's homes

Daniel Pacheco

1980 - Gang fights emerge Gangs fought for resources & land

2013 - Serious gang fights Residents die in gang fights

2015 to 2019 - Casa Blanca Community A pastor worked with local members to protect the last pure land - Casa Blanca.

No clean water, shelters and emergency supplie.

2020 - Hurricane Eta In the valley surrounding San Pedro Sula, several rivers and flood canals overflowed.

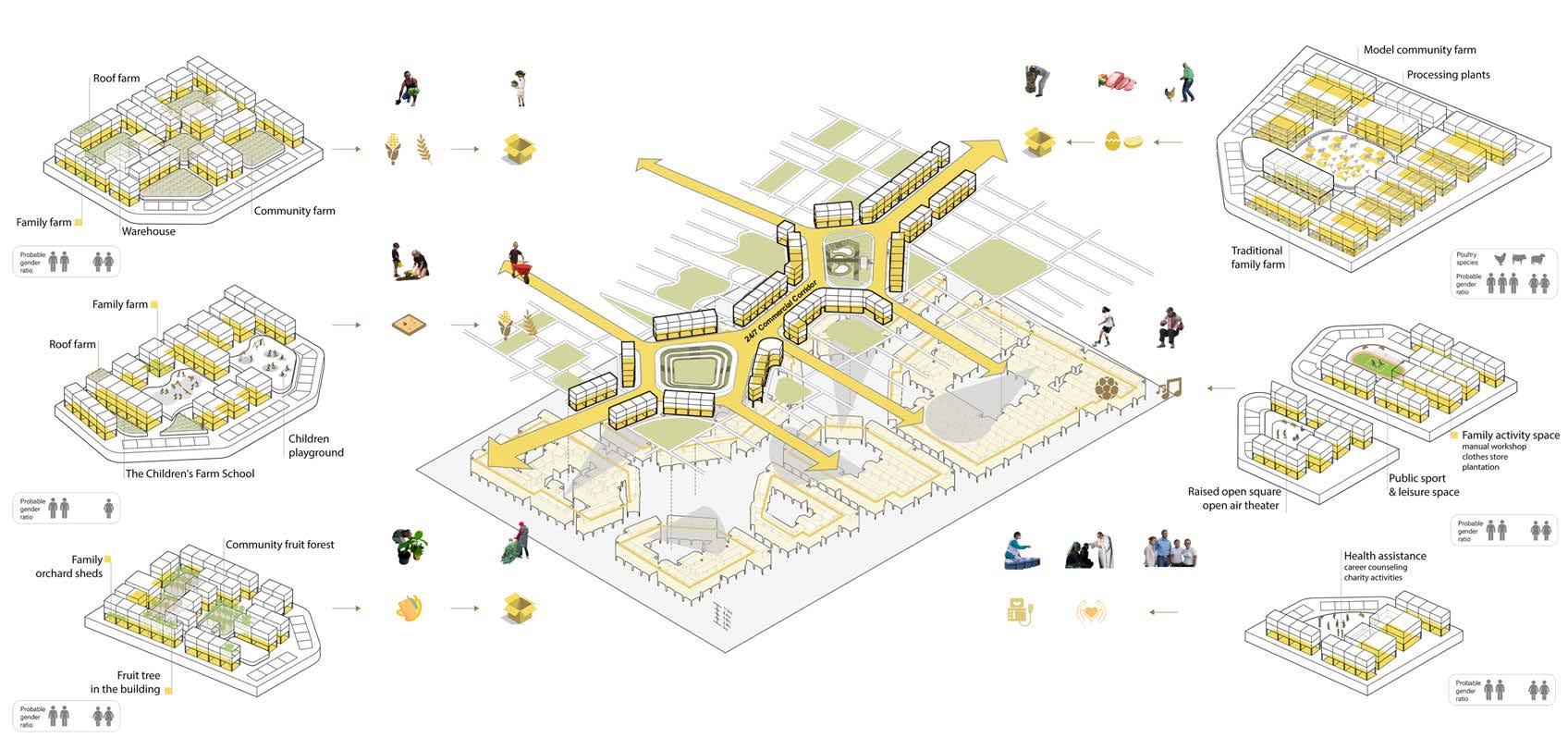

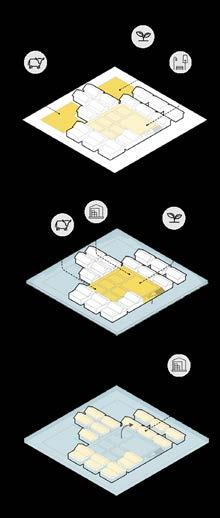

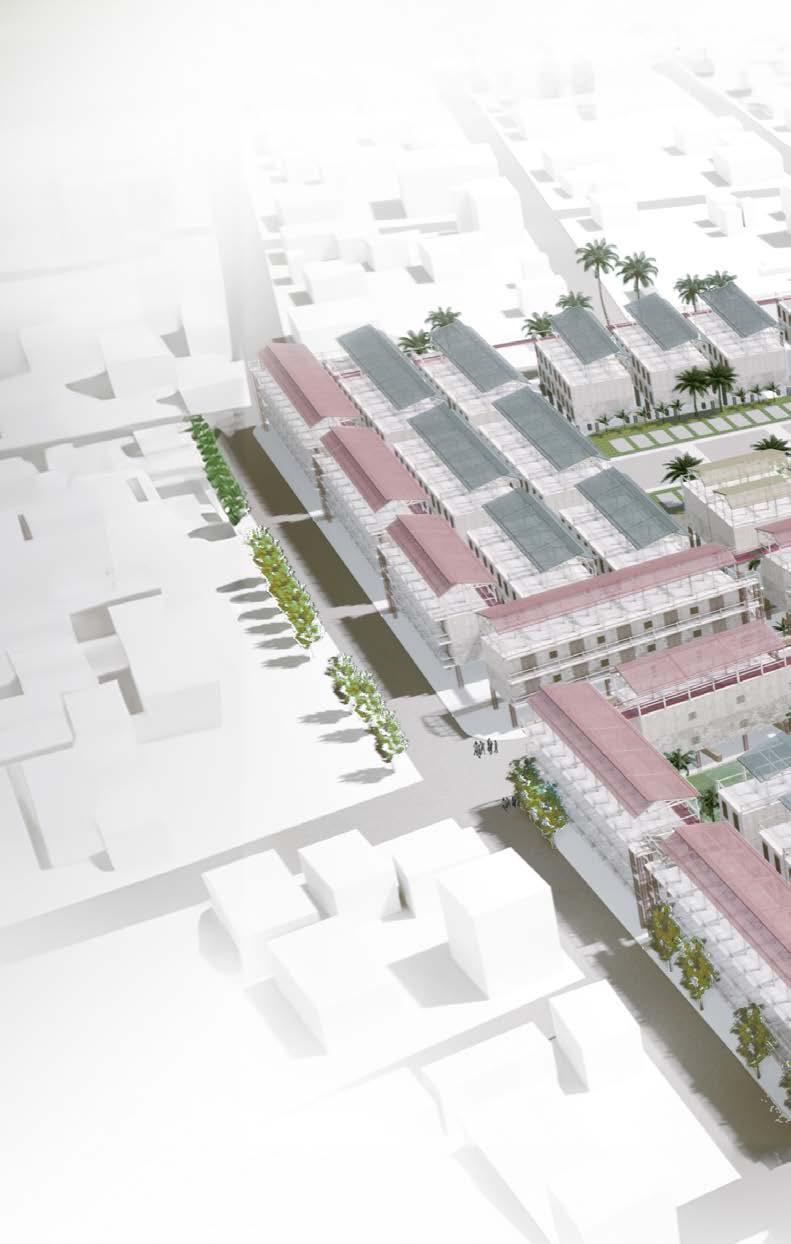

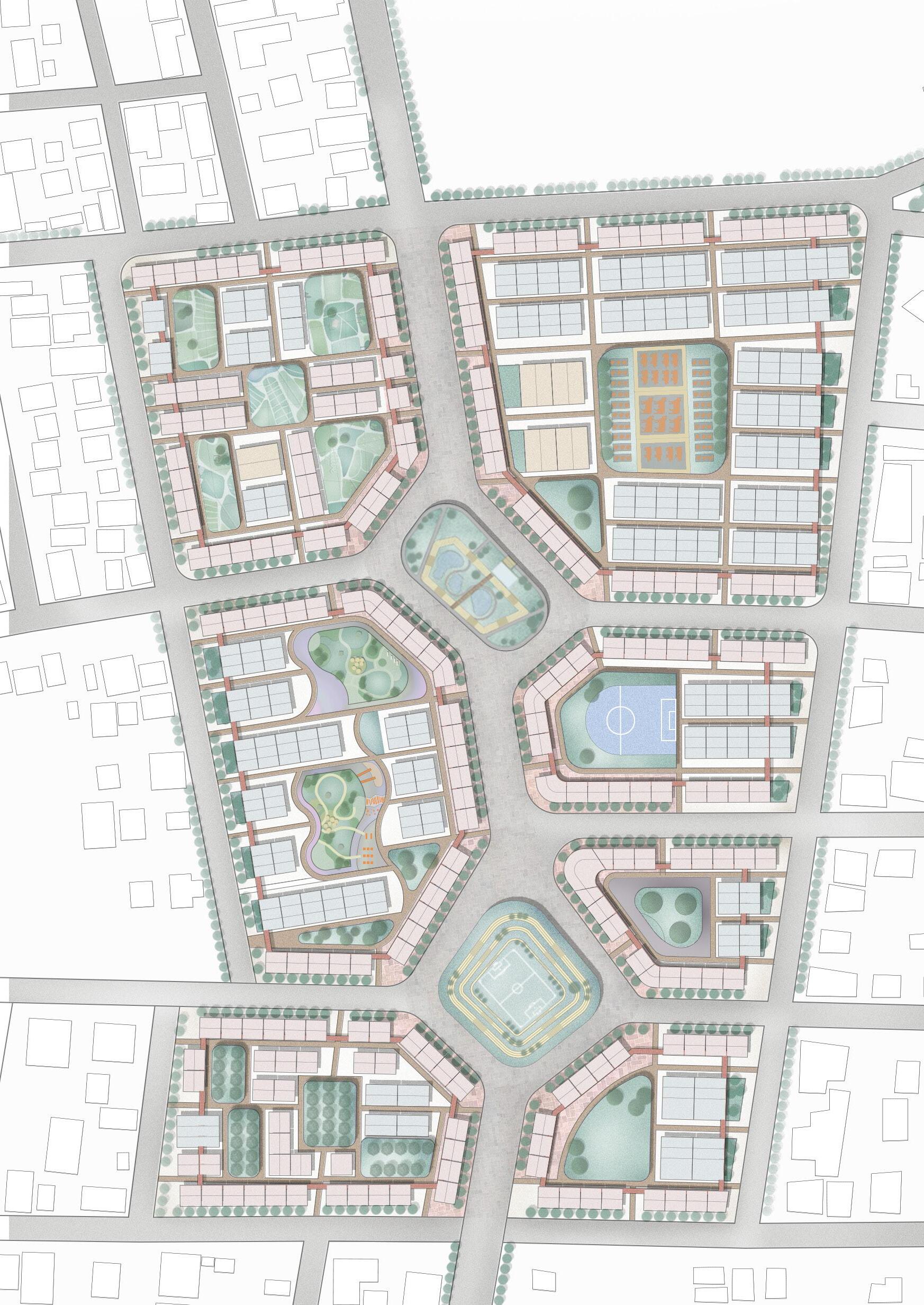

MASTER PLAN

1 2 3 4 5

Raised Livestock Space Raised Leisure Space Raised Welfare Institution Raised Farmland Raised Children Activity Space

4

6

Raised Orchard Floating Centeral Hub 8 24/7 Commercial Corridor 9 Escape Route

EXISTING ISSUES

7

1

Criminal activity

Hurricane damage

Poverty

Psychic trauma

Need clean water

Need jobs

Vulnerable groups under threat of life

Damaged houses

Starvation

Raised island

Roof system

9

7

STRATEGIES

2

5

Building configuration 8

Single family Multi-family Warehouse

7

Rebuild community

Leisure space

Shelter

Agro-pastoral

24/7 stores

Water cycle system

Rain catcher

Escape route

6 3

N

10M Agriculture space Commercial street

Security camera Warning system

STRATEGY FOR POVERTY & CRIME Job

Job Floating Centeral Hub

1

2 Grow crops

Carrier

Carrier

Grow livestock

Meat processing

1

Farmland

Livestock Space

9 2 Family classes

3

Grow crops

4

4

Children Activity Space

Soccer player

5

Music player

9

3

Leisure Space 6 7

Grow fruit trees

Carrier

Physical care

Mental care

Help to find jobs

6

5

Orchard

Welfare Institution Escape Route

Security Camera

Security Camera

Security Camera

Security Camera

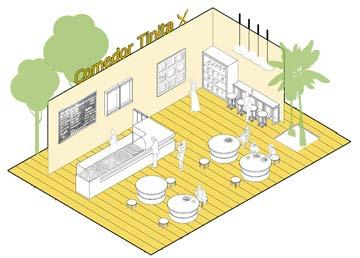

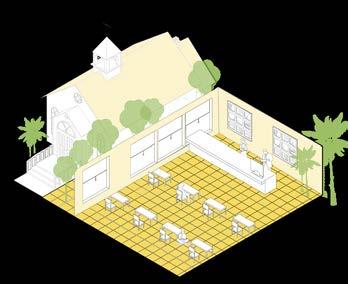

Restaurant

Church & School

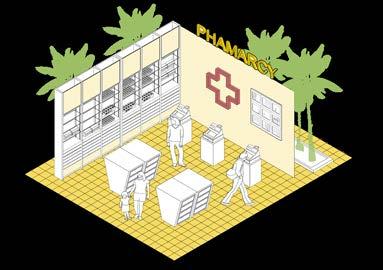

Self-service pharmacy

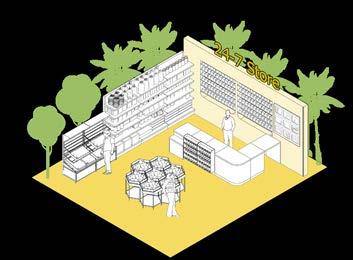

24/7 Store

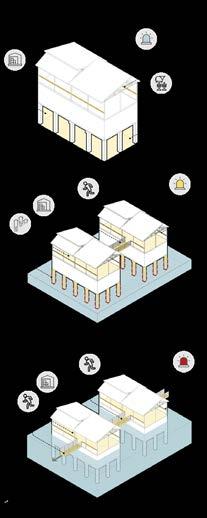

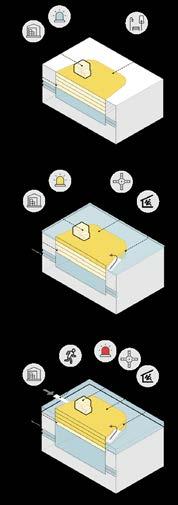

STRATEGY FOR FLOOD WATER LEVEL

WATER RECYCLE SYSTEM

FLOATING ISLANDS

RAISED ISLANDS

WATER COLLECTION

BUILDINGS

5.6m 2.8m 0.0m

Normal water level

5.6m

③ Rainwater storage tank

① Roof rain catcher

② Daily greywater collection

2.8m 0.0m

Mild flooding

5.6m 2.8m 0.0m

④ Permeable pavement

⑤ Terraced water filteration

⑧ Agriculture

⑦ Livestock

⑨ Daily life

Severe flooding

WATER FILTRATION Shelter

Distribution center

Warning system

Escape route

Warehouse

Raised home

Leisure space

Livestock space

Agriculture space

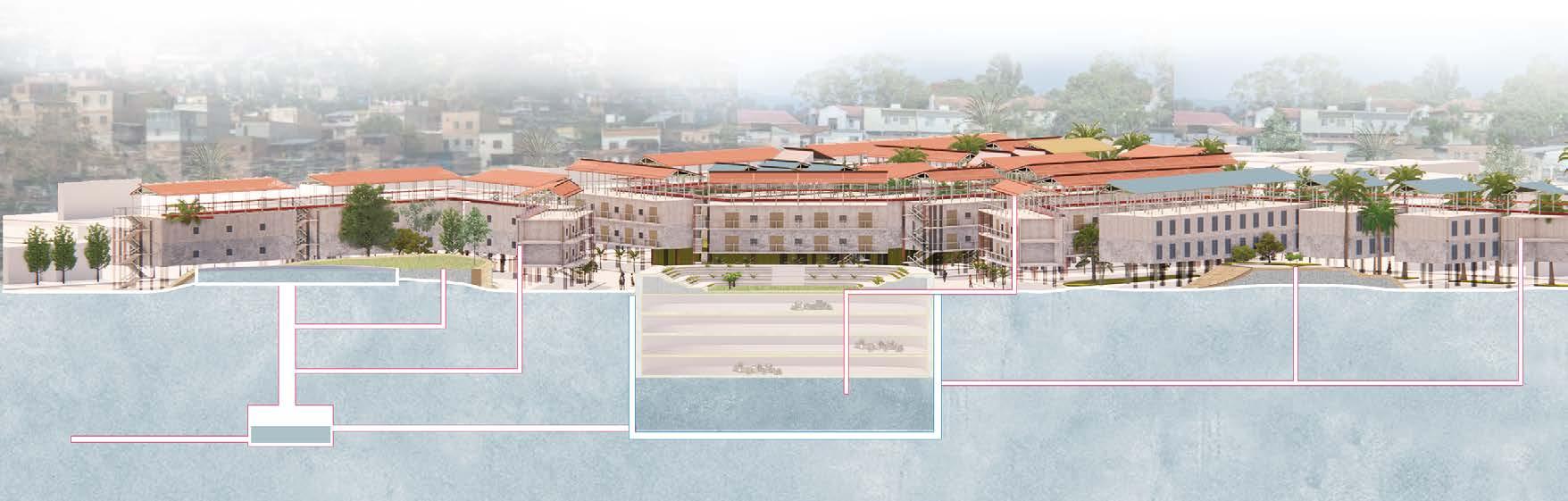

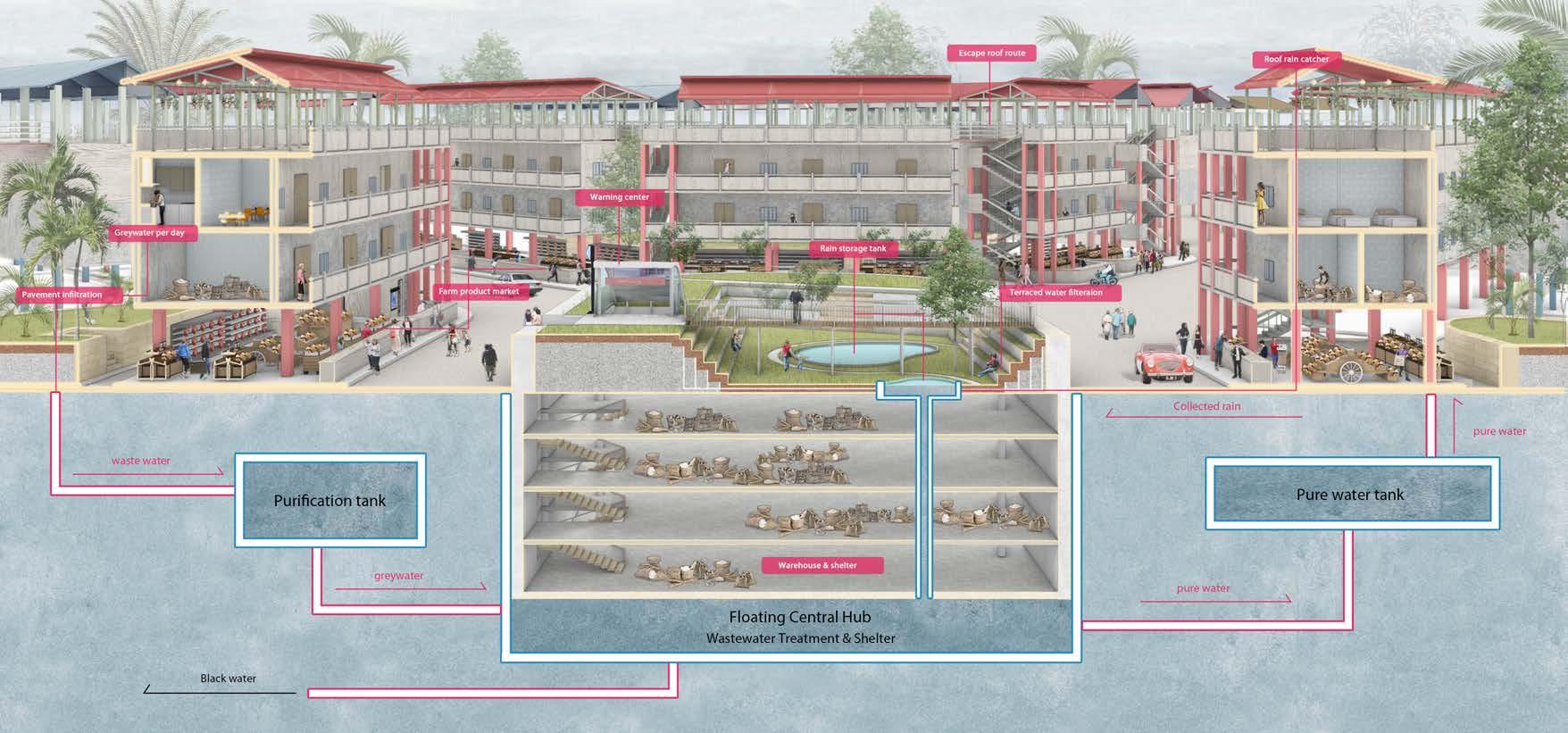

SECTION OF WATER RECYCLE SYSTEM Rain

Rain ③ Rainwater storage pool

WATER REUSE

⑤ Terraced water filteration

Rain

① Roof rain catcher

Raised island

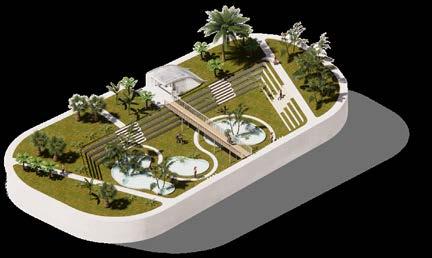

Floating Island (Floating) 14m

Buildings 8.4m

5.6m

Raised Island

Flood water level： level：2.8m

2.8m 0m

④ Pavement infiltration

⑦⑧ Water use in agriculture and livestock

Floating Island (Normal) ② Daily greywater collection

Black water

Purification tank

Grey water after the first filtration

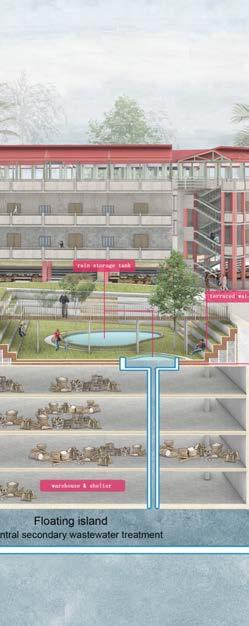

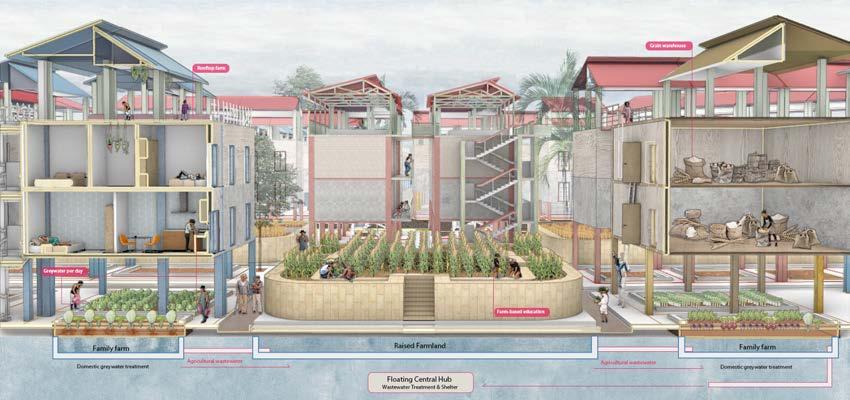

Floating Central Hub Wastewater treatment center & Shelter

Pure water

⑨ Water use in people's daily life

Temporary on the roof Sheltershelter on the roof

Warehouse

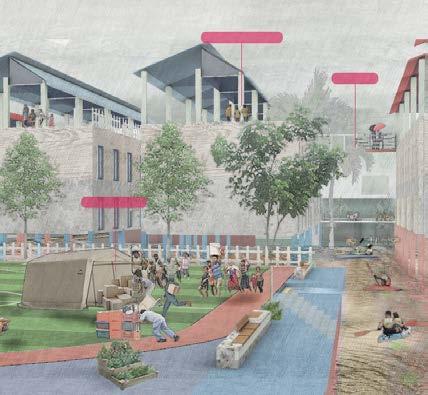

BEFORE

Roof farming

AFTER

Escape route Escape route

Temporary warehouse Temporary warehouse Sports space Leisure space

Permeable pavement Gray water

Farming activities

RAISED FARMLAND

BEFORE FLOOD

FLOODING

FLOATING CENTRAL HUB & 24/7 COMMERCIAL CORRIDOR Escape roof route

Warning center Greywater from daily life Storage tank

Pavement infiltration

Farm product market

Terraced water filteration

Warehouse & Shelter

Roof rain catcher

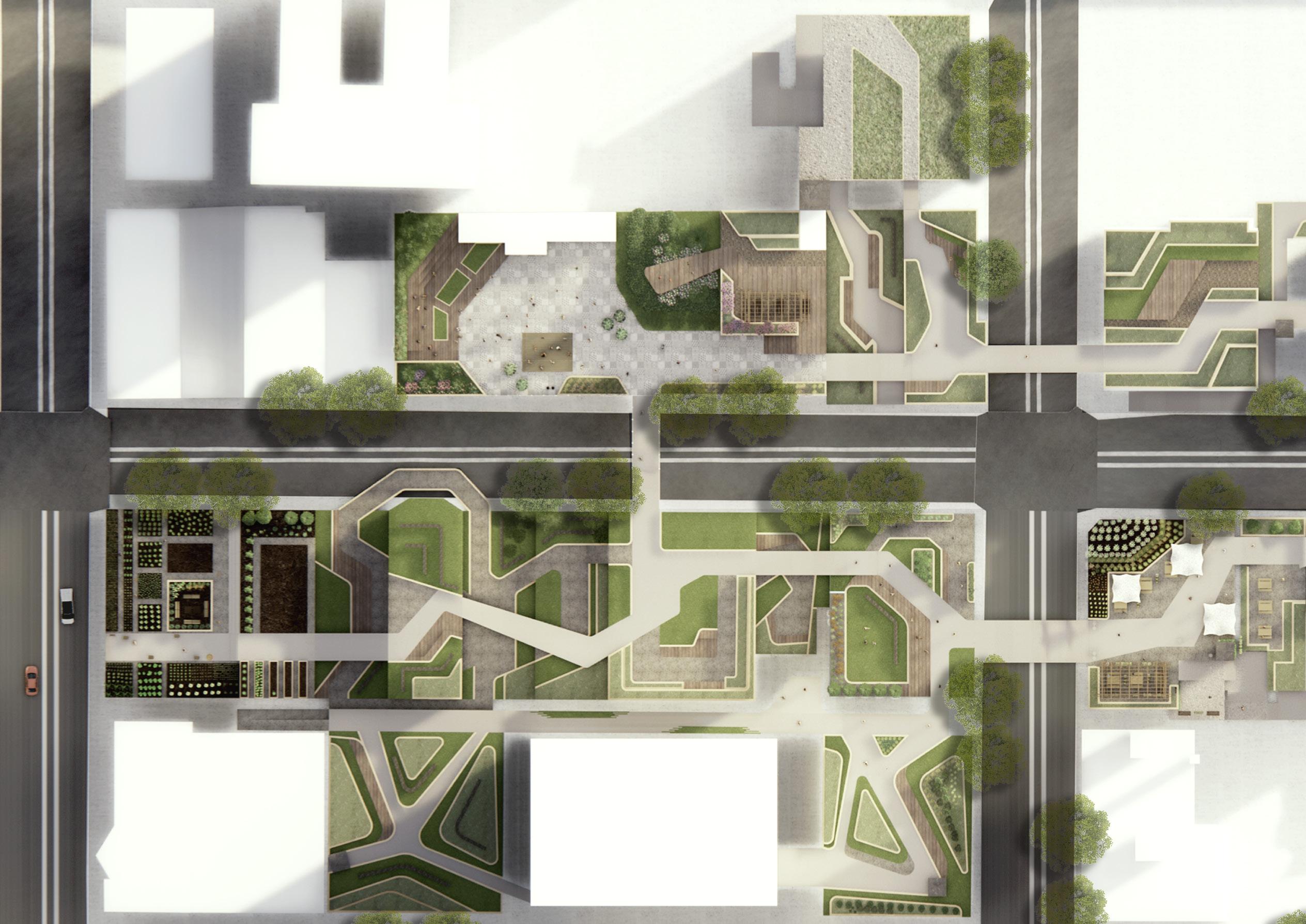

02 HA NGING G R EEN

U DISTRICT STATION P

Urban Green Roof | Group project | 2022 University District, Seattle, WA The U District is a bustling hub, home to a dynamic mix of work, study, and residential life. Despite its vibrancy, University Ave faces a pressing challenge: the scarcity of green spaces. The existing green areas are either too small or too distant from the Ave, leading to underutilization. Furthermore, the rapid construction of new towers is reducing ground-level space even more.

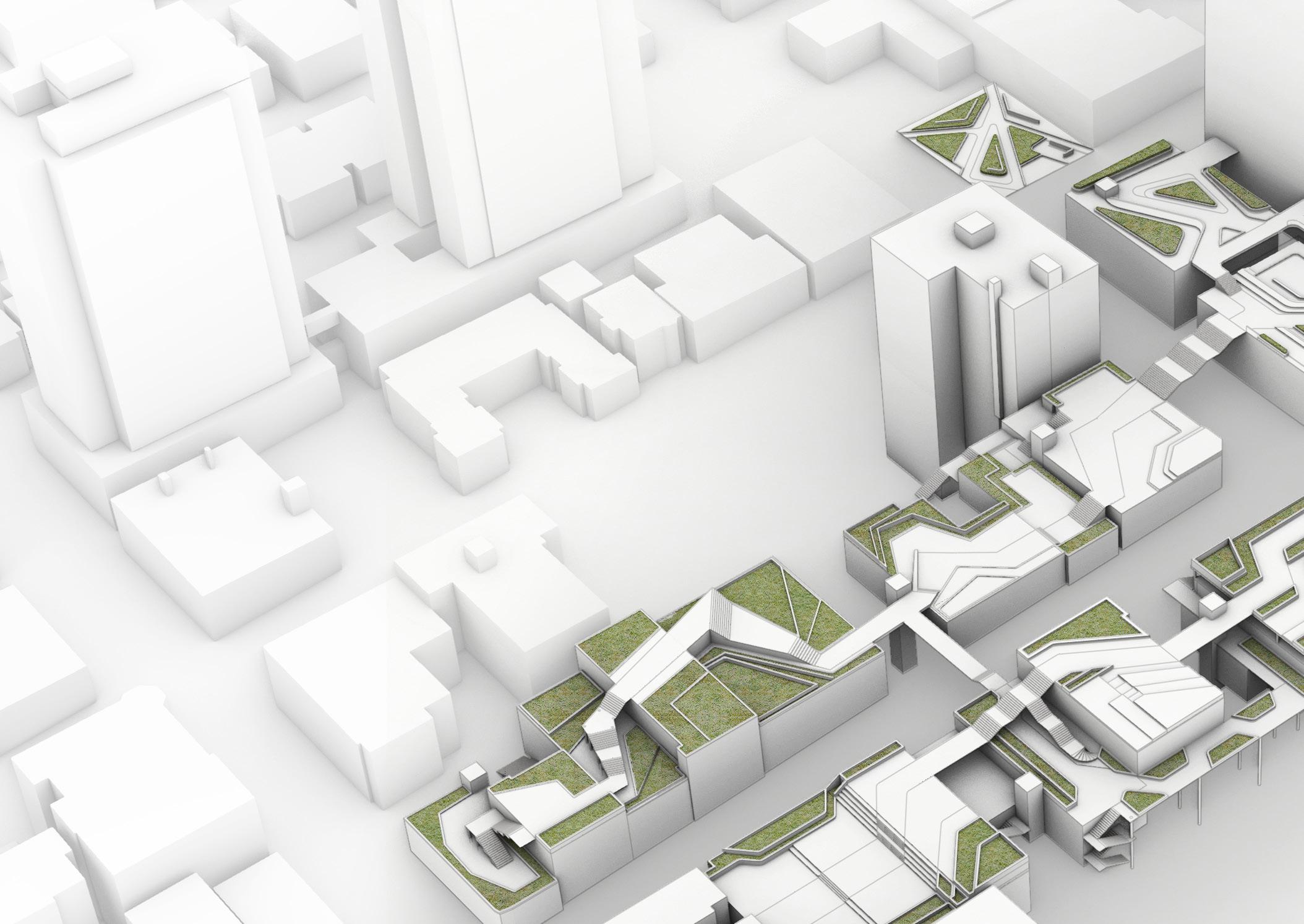

To address this issue, our project introduces an innovative solution: elevating greenery to rooftops. By harnessing the potential of upper spaces, we aim to

FLOWER RESTAURANT & BAR

infuse the U District with vital green elements. This initiative not only expands the community's access to green spaces but also enhances the district's aesthetics with lush, green vistas. Moreover, by increasing green coverage, we contribute to mitigating the urban heat island effect, making the U District a cooler, more pleasant place to live, work, and study.

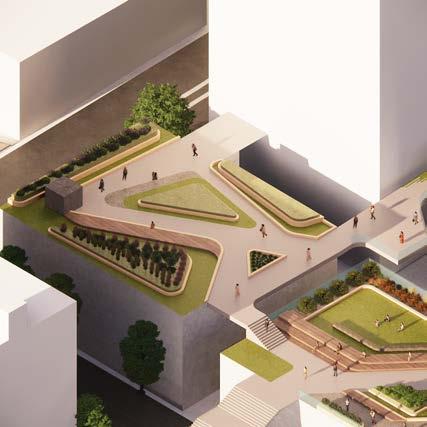

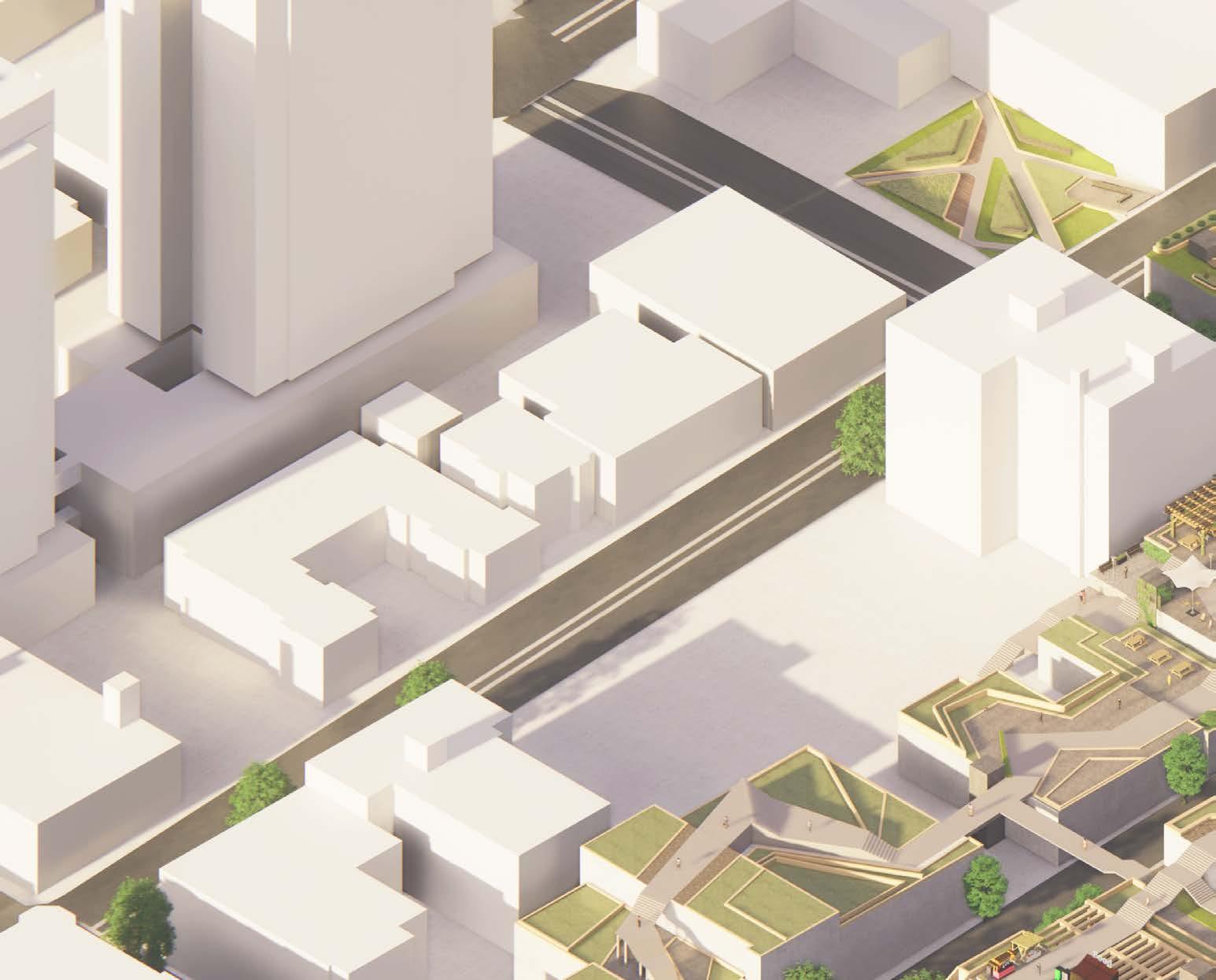

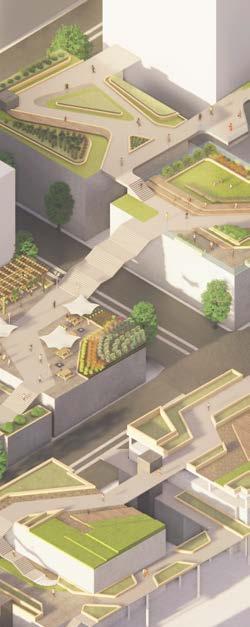

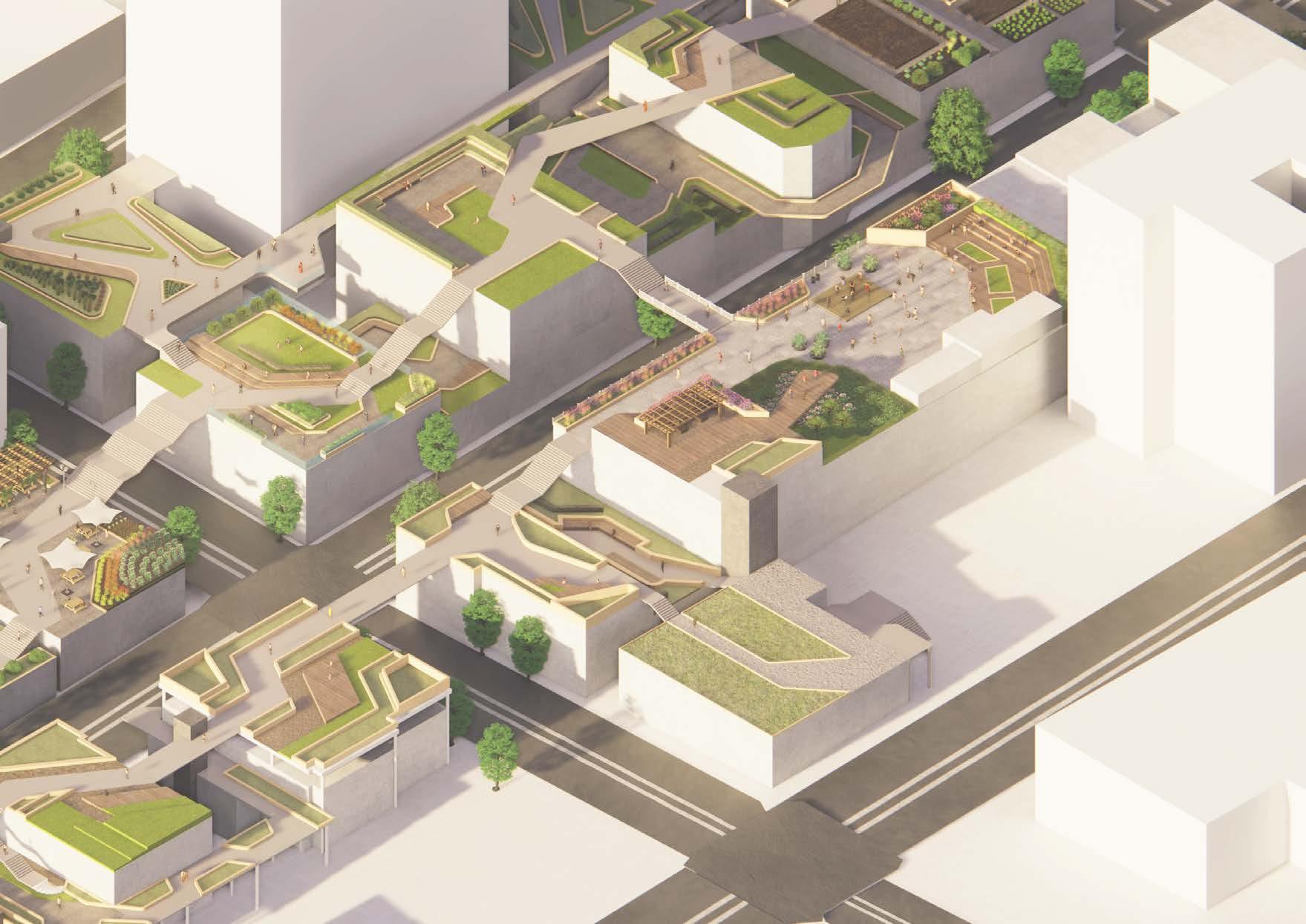

DESIGN INTERVENTION

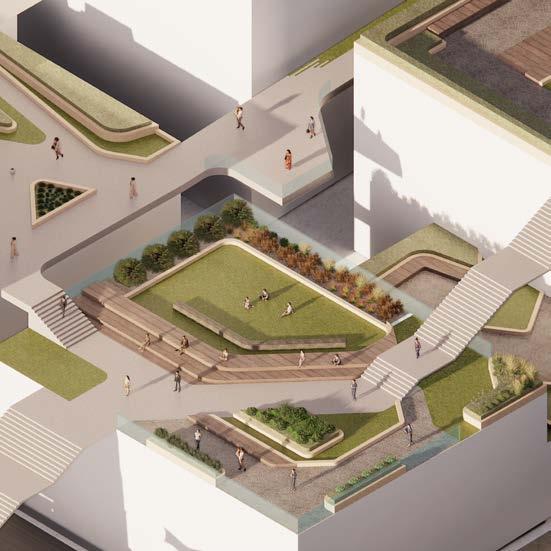

RECREATIONAL TERRACED LAWN

AR AP CURRENT

T Phase 1

PROPOSED

Phase 2

FUTURE

Phase 3

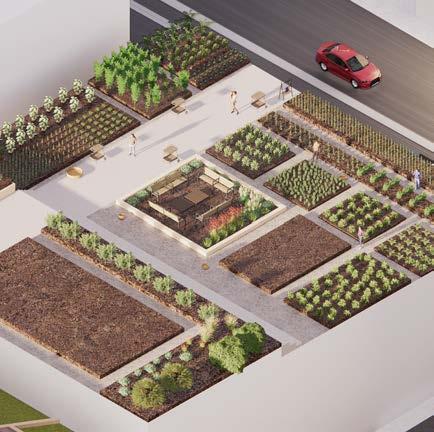

POCKET PARK U DISTRICT STATION PLAZA COMMUNITY FARMLAND

URBAN VIEW DECK

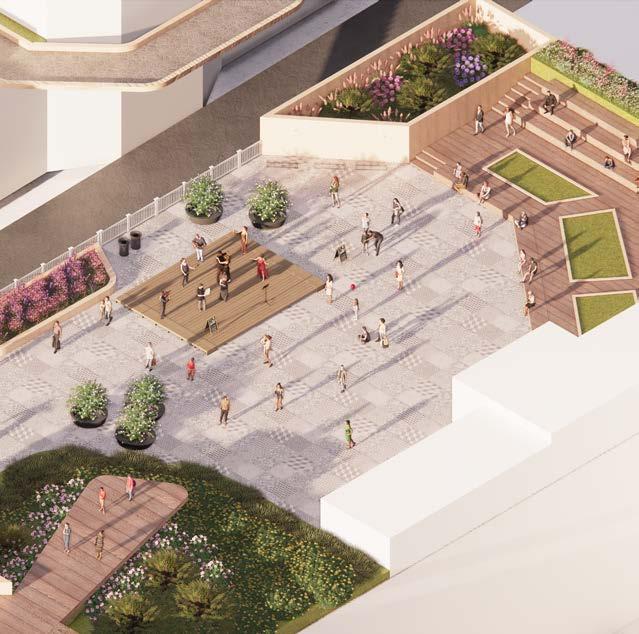

BOOKSTORE PLAZA

ROOFTOP READING CORNER

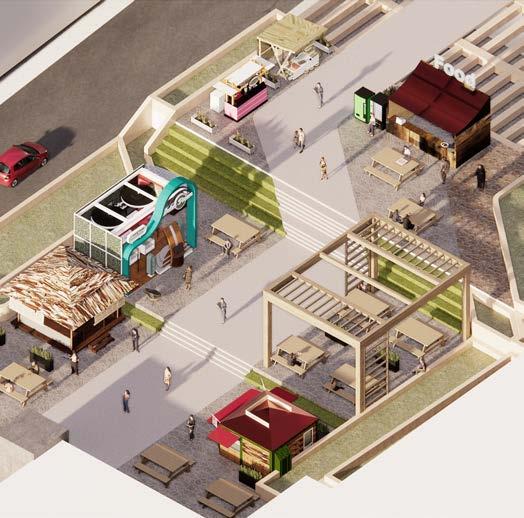

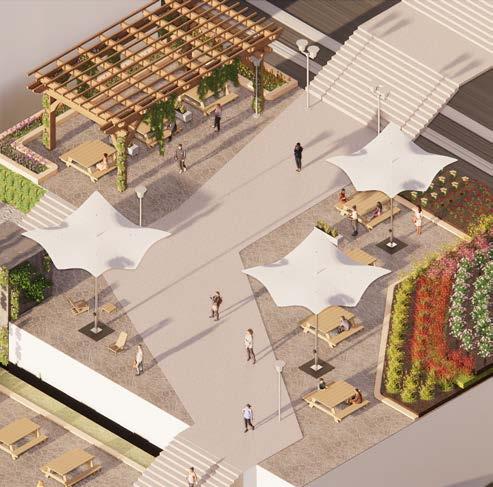

ROOFTOP FOOD COURT

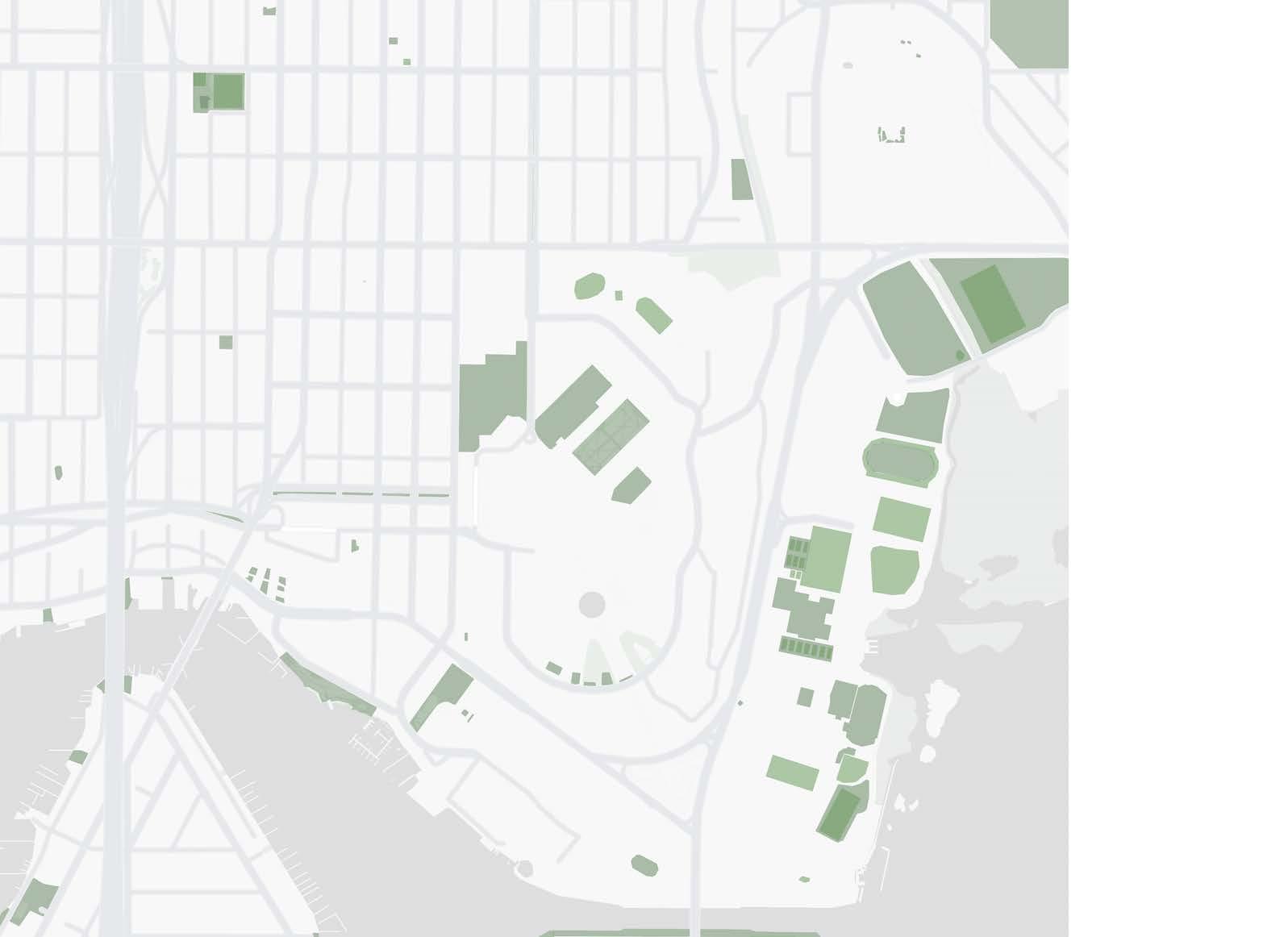

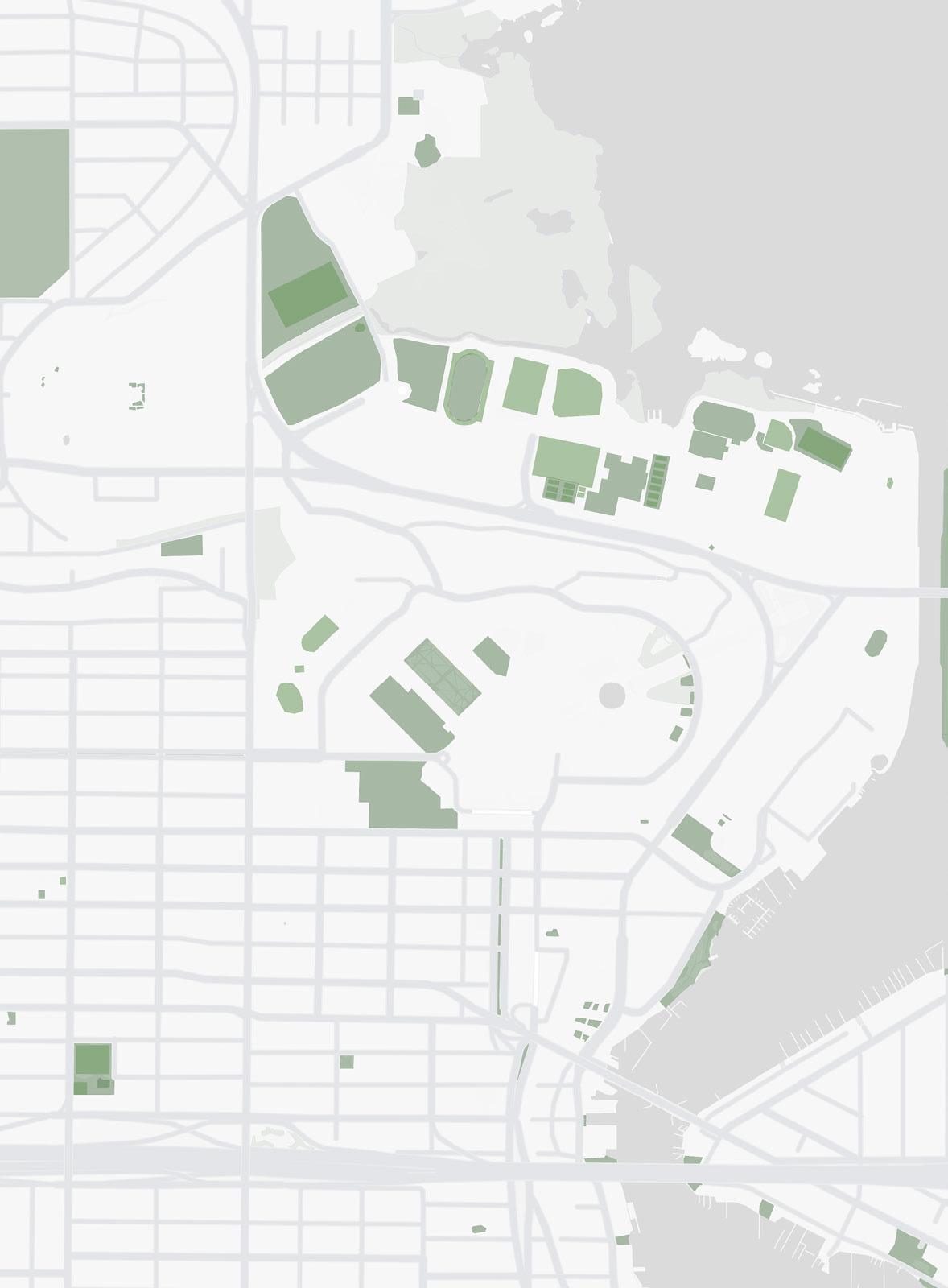

GREEN SPACE ANALYSIS

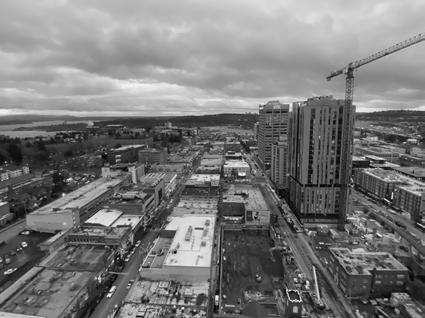

PHOTO OF UNIVERSITY AVENUE TOP4 Christie Park

TOP2 Ravenna Park

TOP1 UW Campus TOP3 Fritz Hedges Waterway Park

SI

TE

TEGY EGY

13.2%

31.6%

13.2%

Rooftop Usage Rate in UD 1.8% Green Roof

26.4% The photos of UNIVERSITY AVE show barely green by the sidewalks, no rooftop gardens, narrow streets, and buildings squeezed close to each other. There's a big need for more space for both greenery and people.

13.2%

TOP4 Bulldog News Parklet

ROOF Rooftop Usage Rate in UD 1.8% Green Roof

RTT R A P A Rooftop Green Space AAP

ROOF

Popular Green Spaces

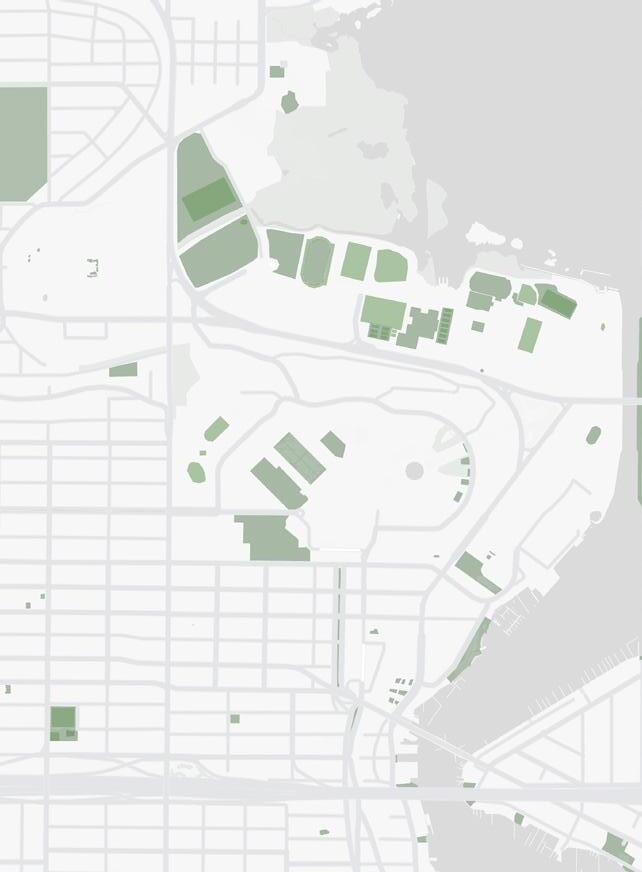

Green Space Distribution in UD

98.2% Not used

31.6%

USER GROUP ANALYSIS

Green Space Distribution in UD

13.2%

24.7%

94.1% Ground Green Space

Ground Green Space

98.2% Not used

GREEN

5.9% Green Roof 26.4%

31.6%

18.3%

24.7%

Rooftop Usage Rate in Ground UD Green Space Green Space Distribution in UD 94.1% 13.2%

GREEN

TRANSPORTATION ANALYSIS

5.9% Green Roof

26.4%

24.7%

LANDUSE ANALYSIS

1-2 days/wk

5-6 days/wk

31.6%

PRESENCE AT UD

ACTIVE FLOOR

PRESENCE AT UD

ACTIVE FLOOR

24.7%

18.3%

OFFICE USER 26.4% WORKERS

4-5 days/wk

FAMILY

PRESENCE AT UD

ACTIVE FLOOR

PROFESSIONALS 18.3%

24.7%

18.3%

Bus Route Link Route

Campus Area Residential Area Mix-used Area Commercial Area

STUDENTS daily

PRESENCE AT UD

ACTIVE FLOOR

31.6%

UNIVERSITY AVE ANALYSIS

Mobility Mobility

Building Height difference Building Height difference

Community Density

Community Density Transit Node

Entertainments

Entertainments

4.1%

4.1% 2.8%

2.8%

Community Density Building Height difference Community Density

Mobility

Transit Node Transit Node

Community Density

Transit Node

4.1%

Residentials

Residentials

Mobility Topography Analysis Topography Analysis

Building Height difference Building Height Difference Topography Analysis Multi-functions

Multi-funtion Multi-functions

Entertainments Entertainments

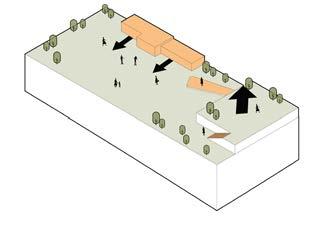

DESIGN STRATEGY 2.8%

Education Education

2.8%

4.1% 2.8%

4.1%

2.8%

4.1%

Community Density

Residentials Residentials

Transit Node

Community Density

Multi-functions Multi-functions

Entertainments

Education Protruding Buildings

Combined

Private

Transit Center Transit Center

4.1%

Topography Analysis Topography Analysis Similar Height 2.8%

Transit Center

Transit Center

4.1%

Mobility

Education

Education

2.8%

2.8%

Transit Node

Additional Connect

Transit Node

Entertainments

Extreme Heights 2.8%

4.1%

Set up Private and Public Route

Education

4.1%

2.8%

2.8%

Transit Center 4.1%

Transit Center 4.1%

Private

Topography Analysis

Taller Buildings

Privete Space

Extreme Heights

Elevated

Residentials

Residentials

Topography Analysis

Multi-functions

Flat Roofs

Similar Height

Larger Open Space

Larger Open Space Space

Extreme Heights

Multi-functions

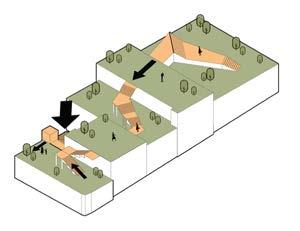

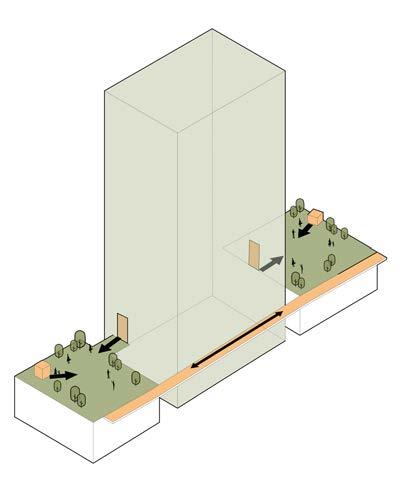

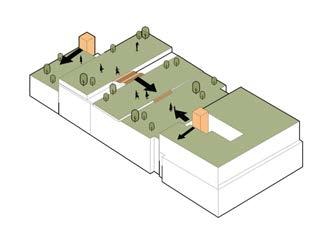

Utilize Nearby Roof to Circulate

Slightly Height Difference

Connect with Stairs

Protruding Buildings

Uneven Building Heights

Inside the Building Passes

Terrace

B' C

8

7

A

A

4

11

4 5

3

6

9

D 2

B

2

12

B

14

13

A'

1

U District Station Pocket Park

2

U District Station Plaza

3

Community Interaction Farming

4

Private Socializing

5

Office Rest Garden

6

Overlooking the Lounge

7

Bookstore Festival Plaza

8

Rooftop Reading Corner

9

Flower Restaurant & Bar

10

Recreation Terraced Lawn

11

Office Rest Garden

12

Air Corridor

13

Food Court

14

Mobile Vending Areas

10 E

1 0 10

20

100ft

LANDING TYPE

A

B

C

D

E

FUTURE SCENARIO

PRESENT

10 YEARS

20 YEARS

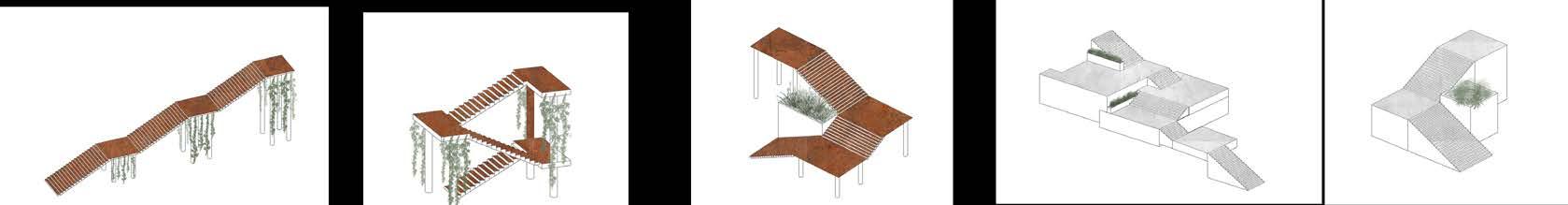

VERTICAL CIRCULATION

TRAJECTORY

LANDING

FUNCTION

FOOD RESTAURANT AREA PLANTING AREA SOCIAL AREA MULTI-FUNCTION (EVENTS) TRANSITION HUB

MAIN ROAD MINOR ROAD

ELEVATOR

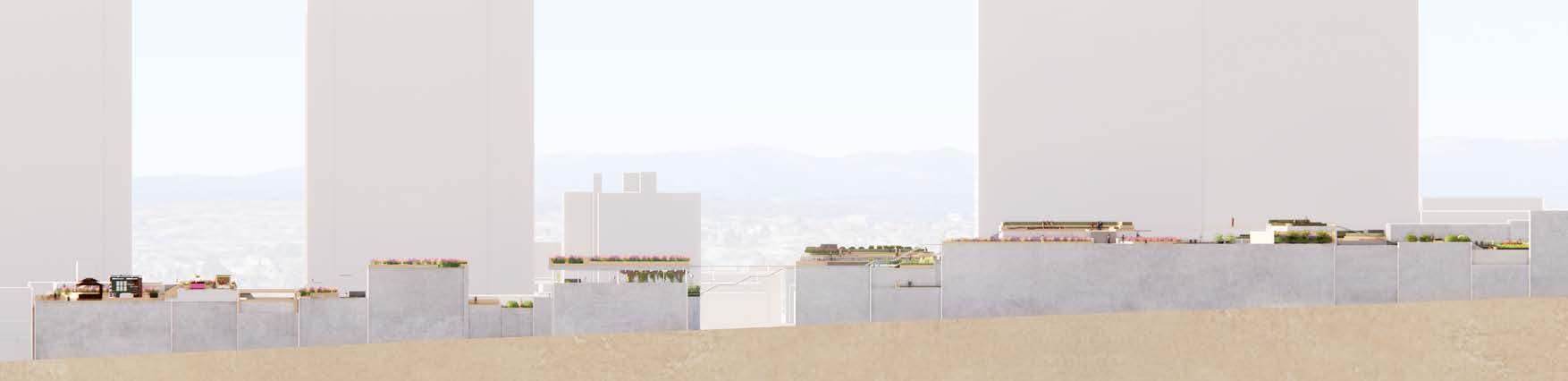

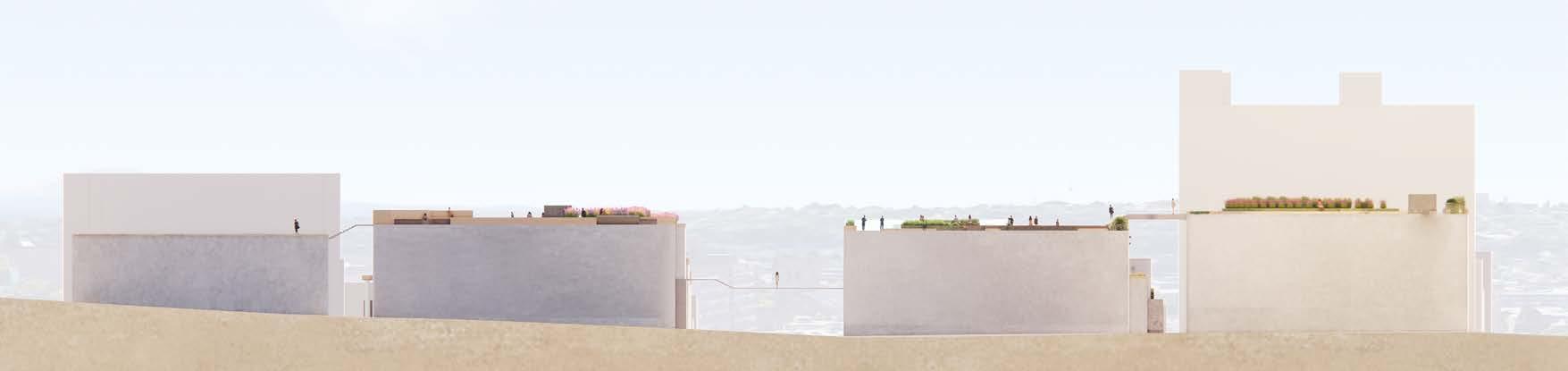

B - B' SECTION

Syringa vulgaris 'Madame Lemoine'

BOOKSTORE PARKING LOT

Nassella tenuissima

Iris pallida ‘Variegata’

Nassella tenuissima

Allium sphaerocephalon

Galanthus elwesii

Echinacea purpurea

Verbena bonariensis

Geum flore plena ‘Blazing Sunset’

Veronica liwanensis

Salvia nemorosa

Polystichum munitum

U DISTRICT STATION PLAZA

BOOKSTORE RECREATION PLAZA

URBAN VIEW DECK

10'

70'

0

A - A' SECTION

Paeonia officinalis

Lavandula spica

Nassella tenuissima Syringa vulgaris 'Madame Lemoine'

Iris pallida ‘Variegata’ Lactuca sativa

Verbena bonariensis Galanthus elwesii

Sesleria autumnalis Zinnia marylandica

Brassica oleracea

Allium sphaerocephalon

Nassella tenuissima Lathyrus odoratus

30'

Cucurbita pepo

Salvia nemorosa Geum flore plena ‘Blazing

Helictotrichon sempervirens

Phaseolus vulgaris Salvia nemorosa

FLOWER RESTAURANT & BAR

U DISTRICT STATION PLAZA

BOOKSTORE RECREATION PLAZA COMMUNITIY INTERACTION FARMLAND

ROOFTOP FOOD COURT

10' 0

70' 30'

U

E

AN

T

& BA

F

W LO

R R E S TA U R

R

R

OO

P F TO

FOO D C

OU

RT

D

IS T

R IC T

STATI O N

PL

AZ

A

NF AR

M LA

M

R A C TI O

U

AN RB

VI E W D

EC

K

B

CO

ND

M

U

T NI

N TE YI

O

OK

ST

ER OR

E C R E ATI

ON

PL

AZ

A

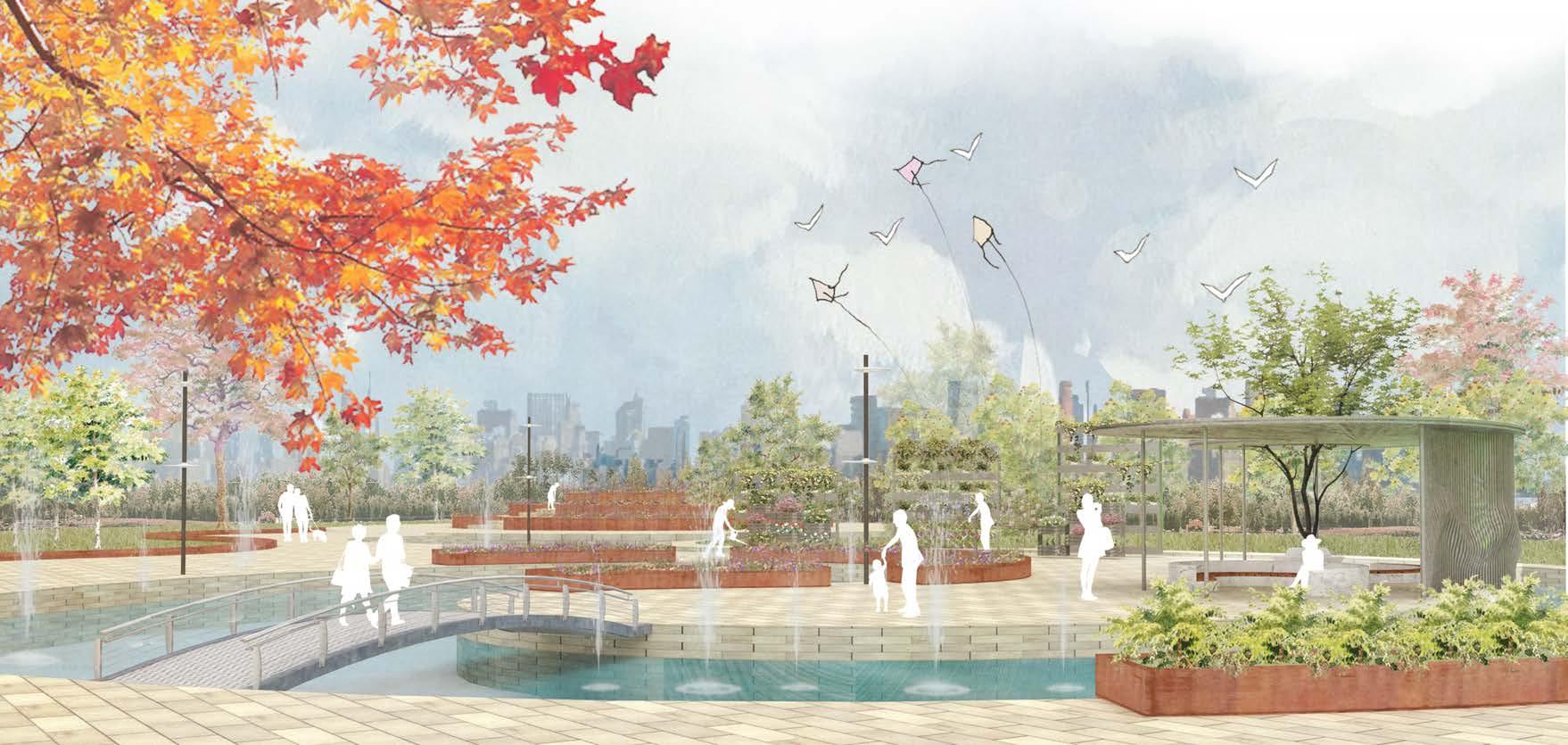

03 RED RIB B ON Community Park | 2021 Gulou District, Fuzhou, China

Lack of outdoor activities

Lack of outdoor activities

Lack of communication

Provide outdoor gathering space

Lack of outdoor facility & space

Provide sport facilities & space

High pressure in the city

Provide green space to relieve stress

Lack of security at night

Provide light for safety at night

In the heart of Gulou District, Fujian Province, where cities grow fast and green spaces are hard to find. People living here face many problems: they don’t get enough time outdoors, they’re too caught up with their phones and screens, there’s not enough room or facilities for fun outdoor activities, stress is high from work and school, and it feels unsafe to go out at night.

Red Ribbon steps in as a fresh breath of air. It’s designed for Gen Z and all who’ll come after, changing gray and boring city areas into lively places with sports fields, places to hang out, and top-notch sports spots for all ages. But Red Ribbon is about more than just having fun outside; it’s about making sure everyone can join in. It has a special play area for kids and older folks with safe, fun equipment. It’s a place where families can come together, play, and enjoy the outdoors.

Red Ribbon is all about bringing people together, making it easier to talk, play, and be healthy. It’s a response to city life’s challenges, offering a safe, welcoming place for everyone to relax, meet up, and have a good time.

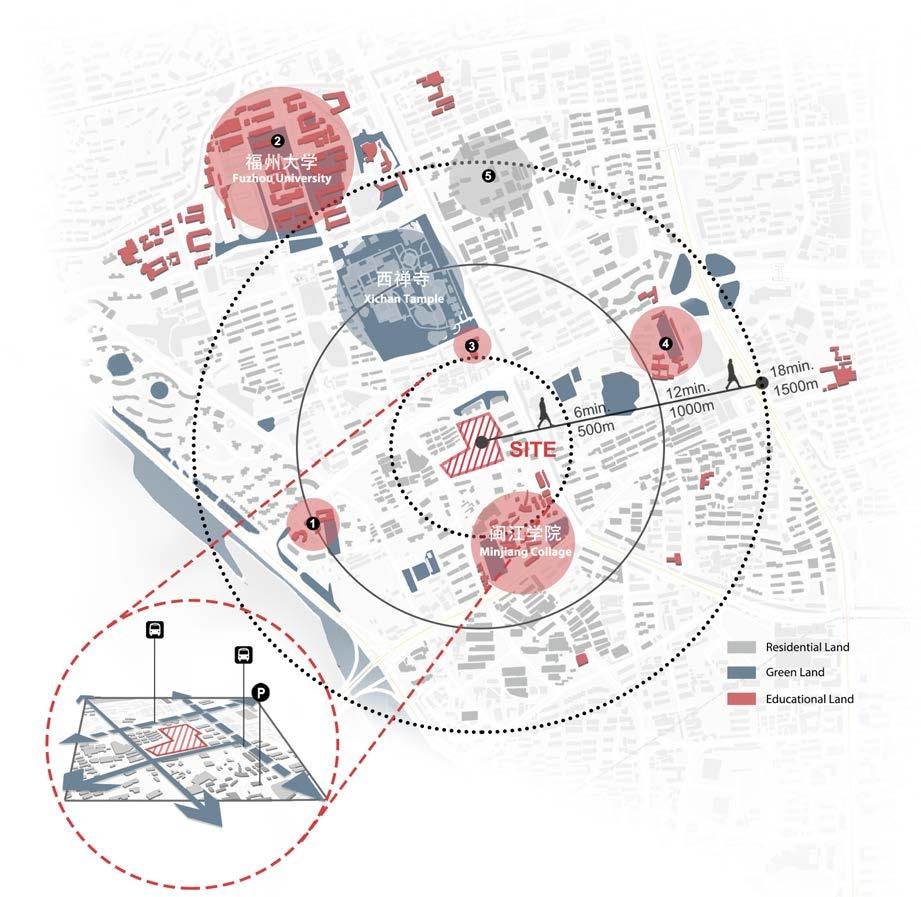

MAP OF GULOU DISTRICT

SURVEY ABOUT COMMUNITY N

72% 54%

of participants noted an overreliance on screens and a desire for more outdoor activities and face-to-face interactions.

32%

Running Ball Game

of respondents expressed a concern over the insufficient availability of outdoor spaces in their area.

Thai Chi

21% 18%

Relaxing & Gathering

29%

People like running in the morning & evening. 54% of respondents raised concerns about safety and accessibility in existing outdoor spaces, especially after dark or for those with mobility challenges.

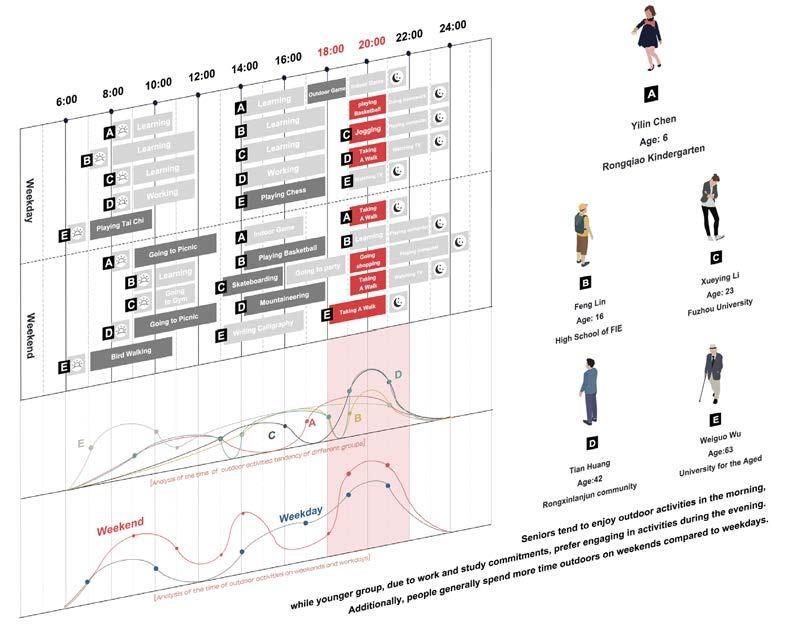

WEEKLY SCHEDULE OF RESIDENTS

We should find a park to play in after school.

I'm searching for a place to play basketball

I need a spot for practicing Tai Chi.

Where can I relax after school?

Looking for a good spot for family outings.

STRATEGY FOR DIFFERENT AGE GROUPS

Rongqiao Kindergarten

Fuzhou University

Fujian Senior University

High School of FIE

Ronxinglanjun Community

Children Activity Space General Sport Space

Senior Activity Space

Public Activity Space

Green Space

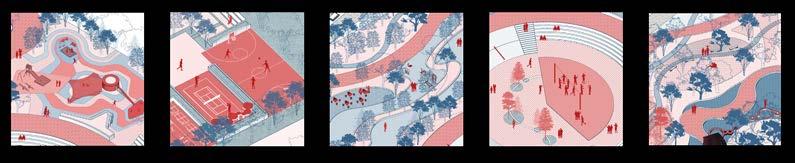

STORYBOARD OF RESIDENTS' ACTIVITIES

I'm meeting old friends to play chess in the park today.

Coming here to play basketball is so convenient.

It's great to walk the dog and unwind in the park on weekends.

I hang out here with my friends every day after school.

Ning Liu Age: 18 Job: Student

Linan Wang

Yanping Lin

Le Yang Age: 7 Job: Student

Age: 40 Job: Accouting

Age: 65 Job: Retired

Xiang Li Age: 23 Job: Student

I often take walks here to enjoy the fresh air.

The beautiful scenery makes it perfect for relaxing.

This park is ideal for all ages, preserving precious outdoor space for Generation Z and families.

Xia Wang Age: 32 Job: Housewife

Yuxin Chen Age: 26 Job: Student

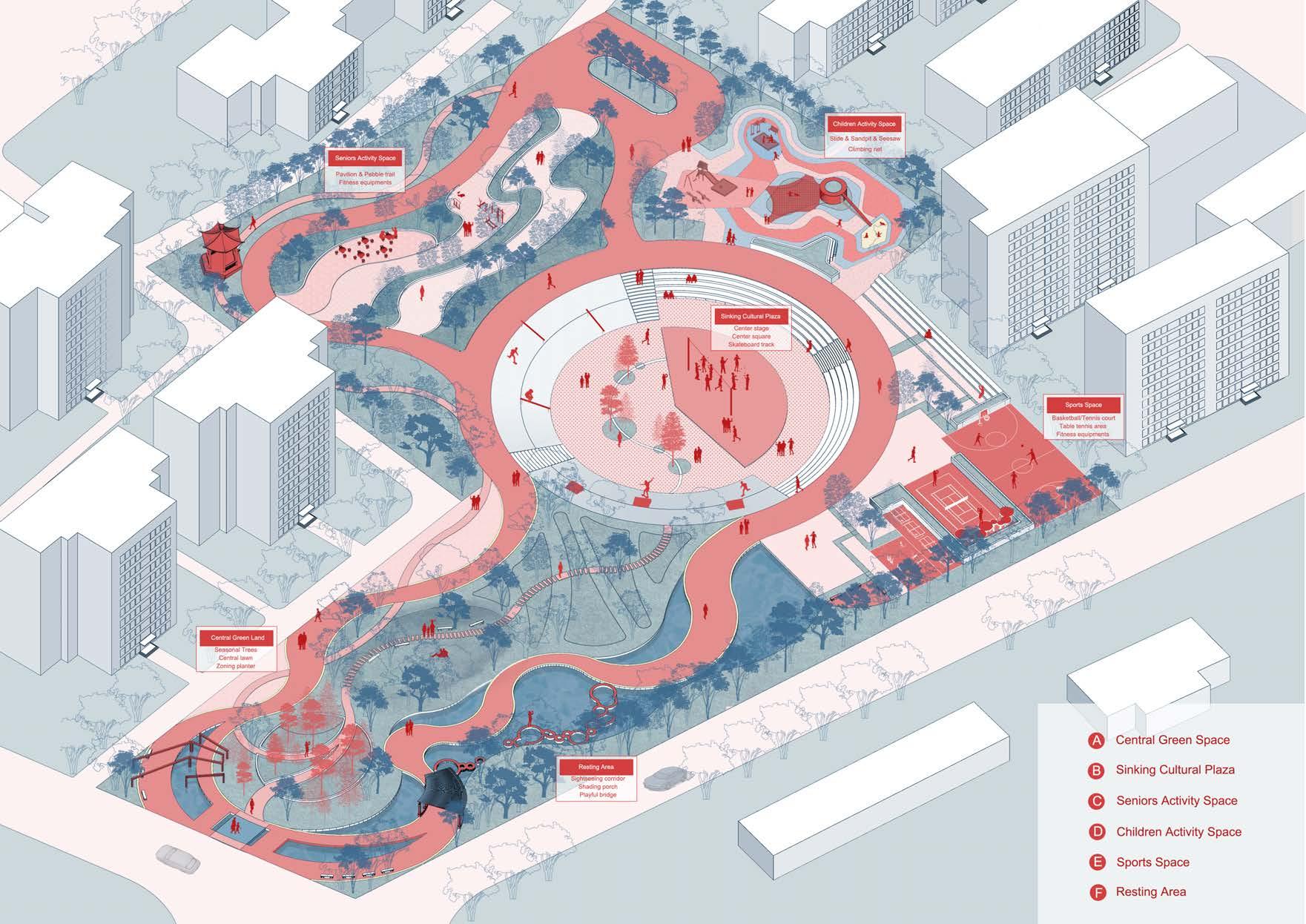

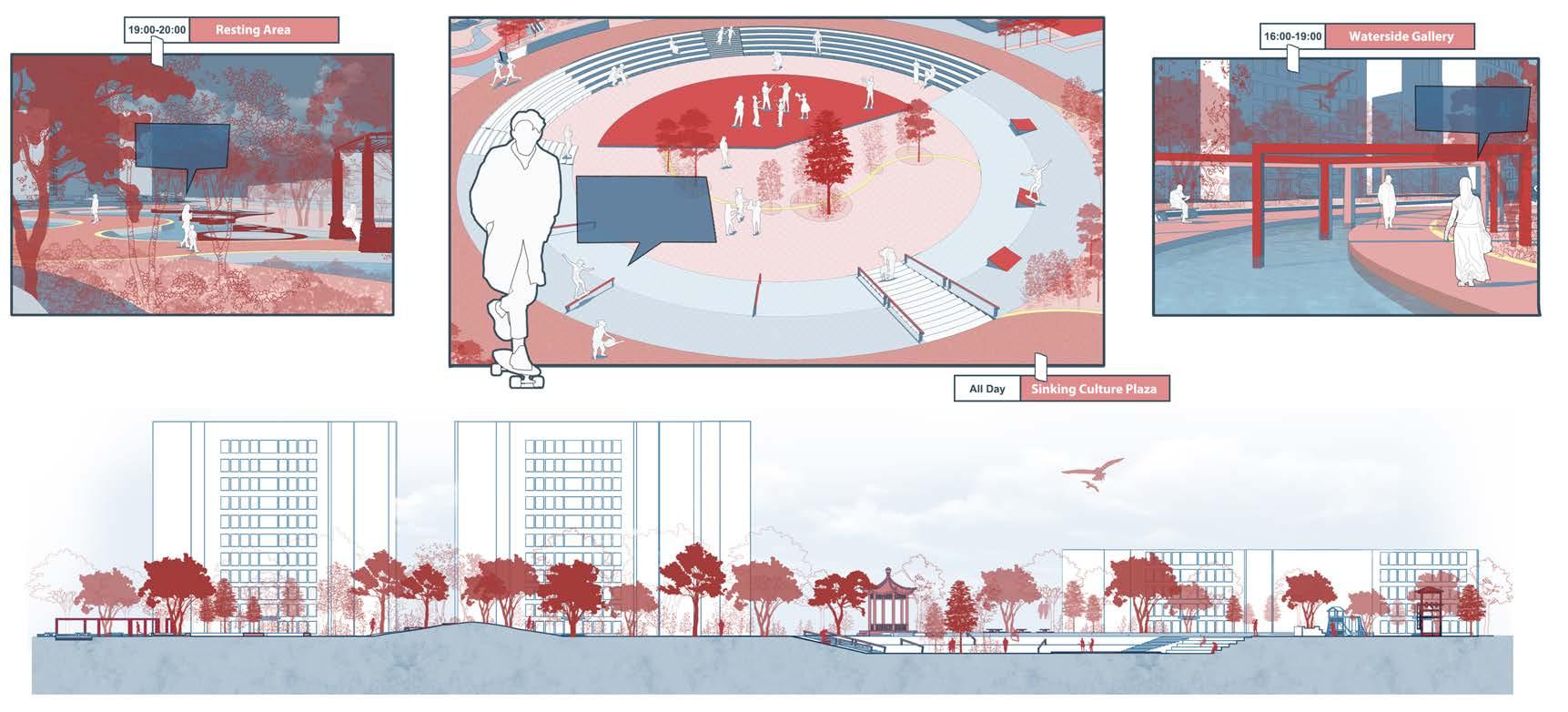

SECTION OF RED RIBBON

Seniors Activity Space

Waterside Gallery

Central Green Space

Seasonal Zoning Planter

Sinking Cultural Plaza

Children Activity Space

04 G REE NWAY R EV I VA L Community Agriculture | 2020 Richmond, Metro Vancouver Richmond's roots are deeply embedded in agriculture, but as the city has modernized, much of its farmland has been cut up by major roads and bridges. This change has left some communities feeling disconnected and led to the neglect of once-thriving agricultural lands. Recognizing these challenges, the design strategy aims to tackle both environmental issues and social disconnection. The project plan to rejuvenate the area with a focus on agricultural themes, creating a series of engaging spaces to encourage community interaction and rekindle an interest in farming.The vision is to weave these elements into a green, productive corridor, transforming Richmond into a model for post-industrial, agrarian urban living.

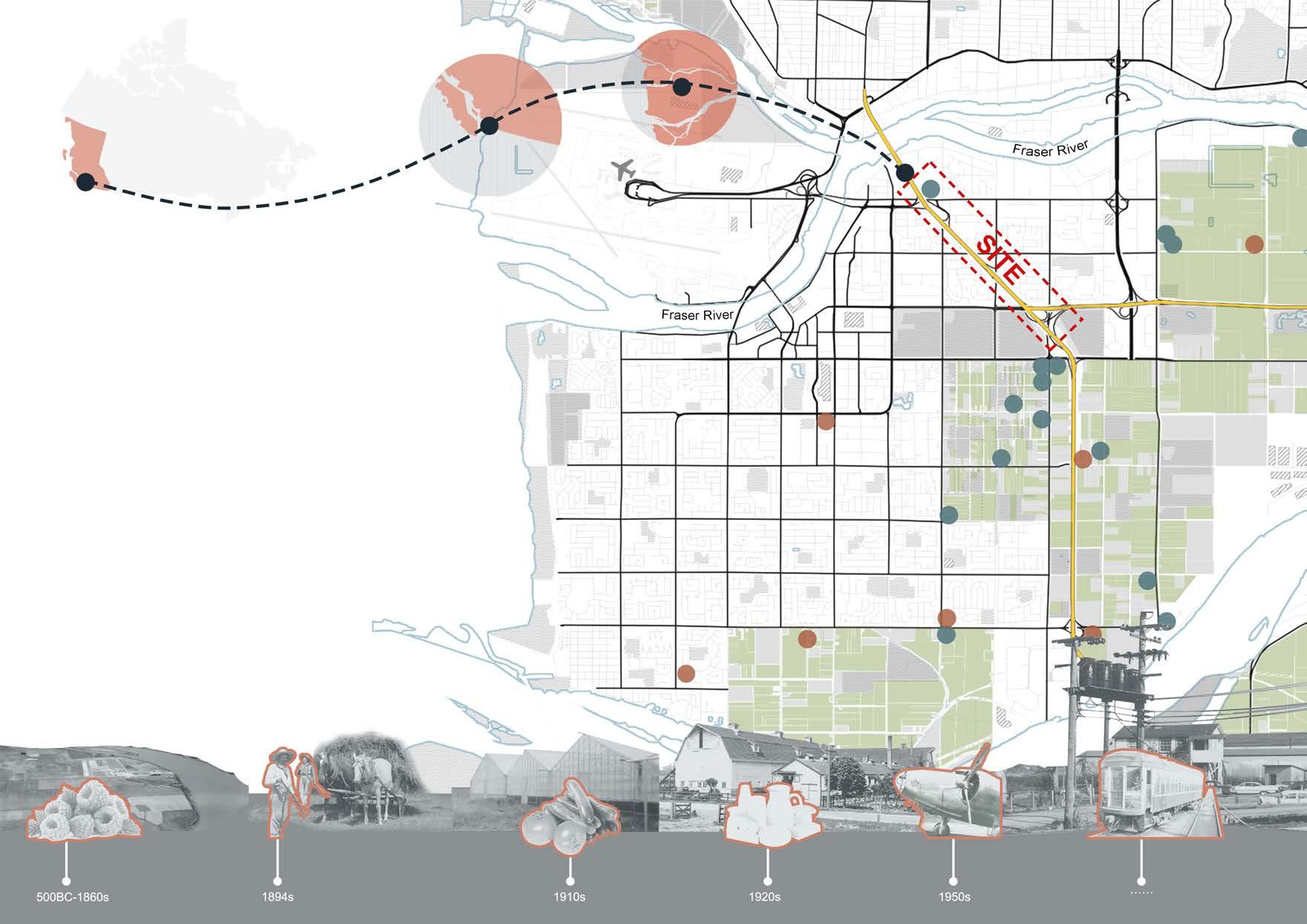

AGRICULTURE HISTORY OF RICHMOND Richmond's history is rootedin fishing, agriculture, shipping, aviation, and later in manufacturing, service and technological industries. The Metro Vancouver

island of Richmond was built and shaped by the Fraser River.

Richmond

British Columbia

Richmond

Metro Vancouver

LAND USE Used for farming & residential Used for farming Used for farming & other activities

Agricultural land used for farming accounts only for

24%

The competition for land in Metro Vancouver means that farmland is often targeted for residential, commercial, industrial use.

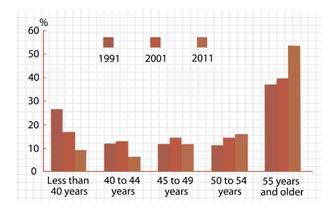

AGING FAMERS Average age of farmers in Richmond is

56 years old The percentage of farmers under 35 years old only account for

5%

FIELD CROPS SUPPLY IN CANADA Total Supply

Site Park

N

Farming Land 99 Railway

Export

YVR Airport Farm Market Farm Stand

Import

TIMELINE OF AGRICULTURE DEVELOPMENT

Fertile soil for agriculture

Agricultural expansion

Greenhouse

Dairy Industry

International Airport

More transportation

The first European settlers used the fertile soil here to develop agriculture.

6,907 acres of the 12,897 privately-owned acres on Lulu and Sea Islands are under cultivation.

Richmond builds the first greenhouse the Porter and Tomsett Greenhouses.

Richmond’s largest Frasea Farms Dairy Industry was established.

Frasea Farms was enlisted to expand Vancouver International Airport.

More and more bridges and tunnels were constructed.

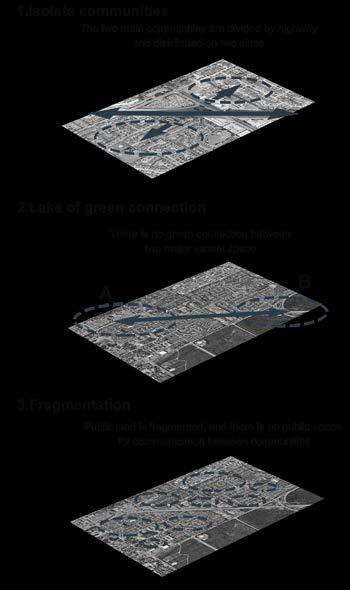

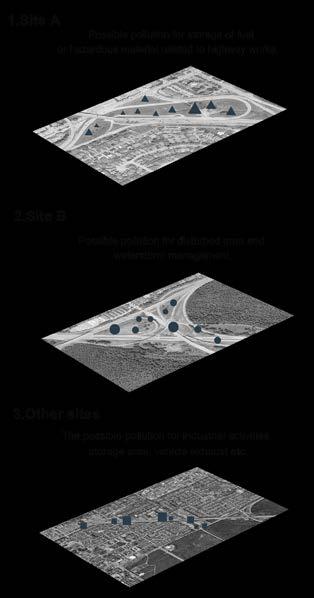

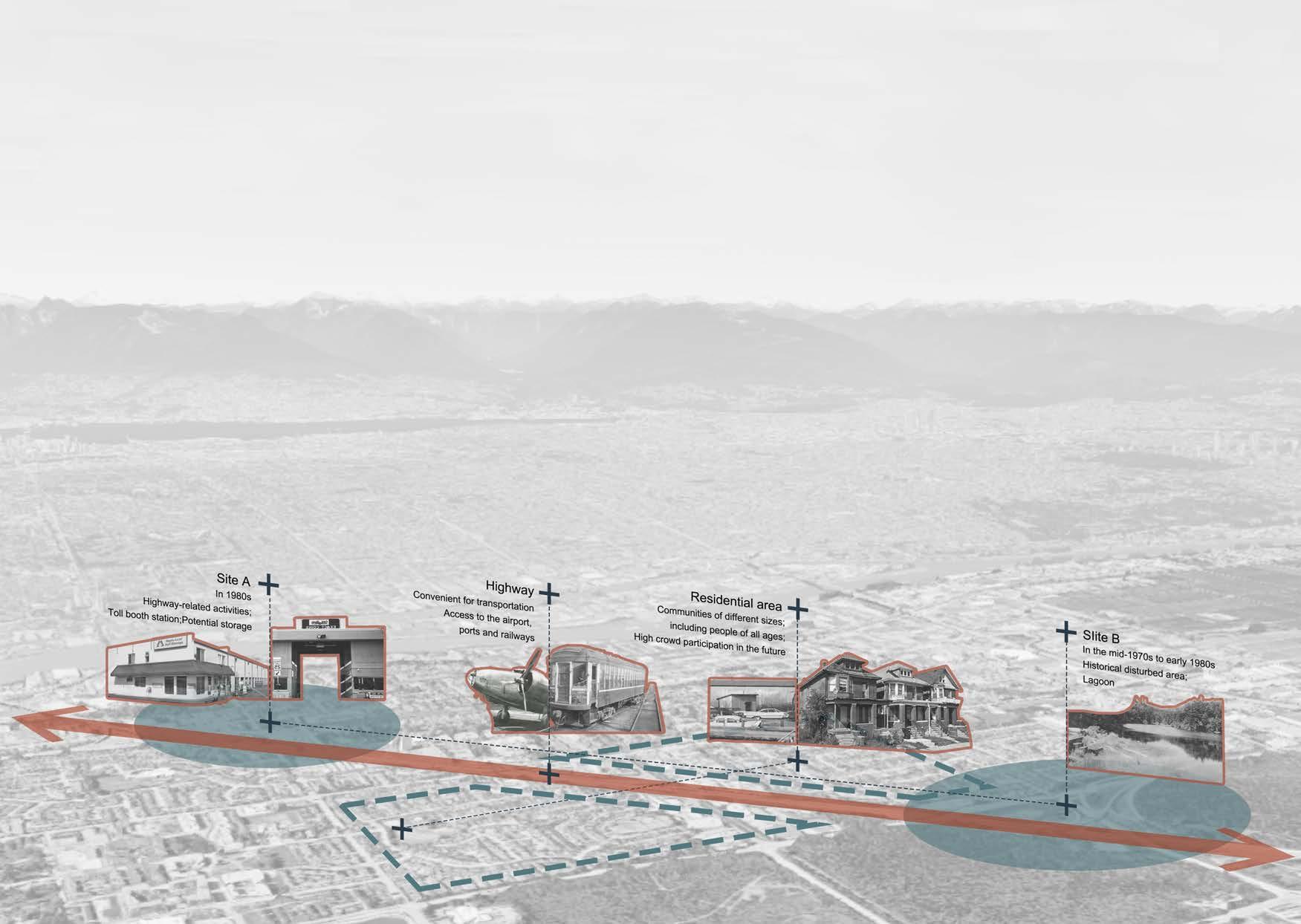

PROBLEM OF POLLUTION & DISCONNECTION

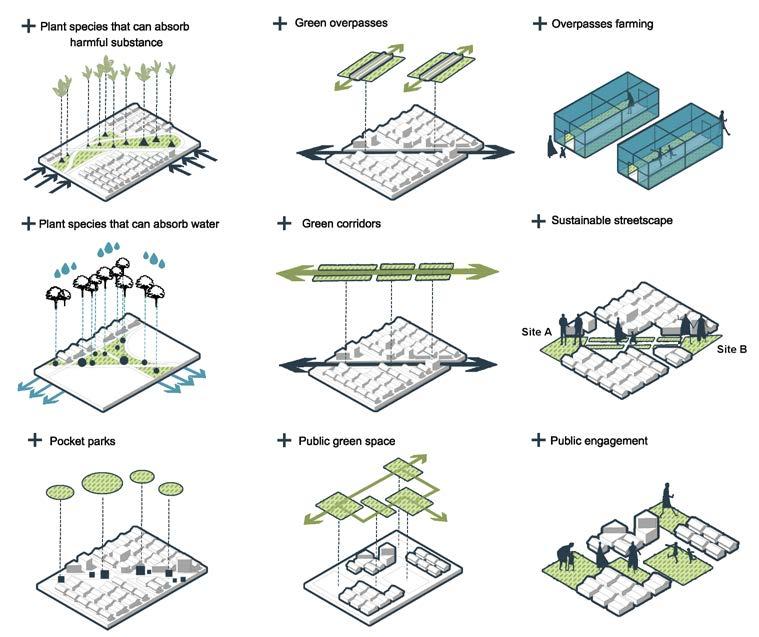

STRATEGY FOR POLLUTION & DISCONNECTION

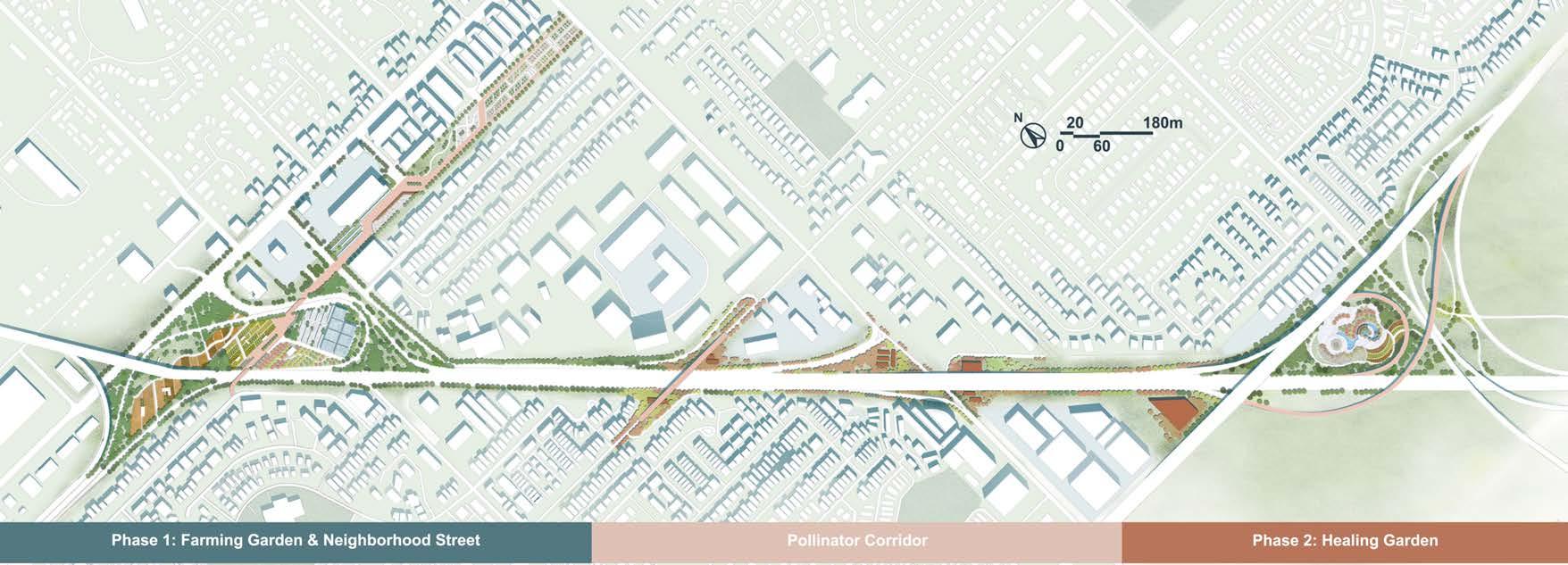

MASTER PLAN 6

5

4

3 2

9 8

1 7

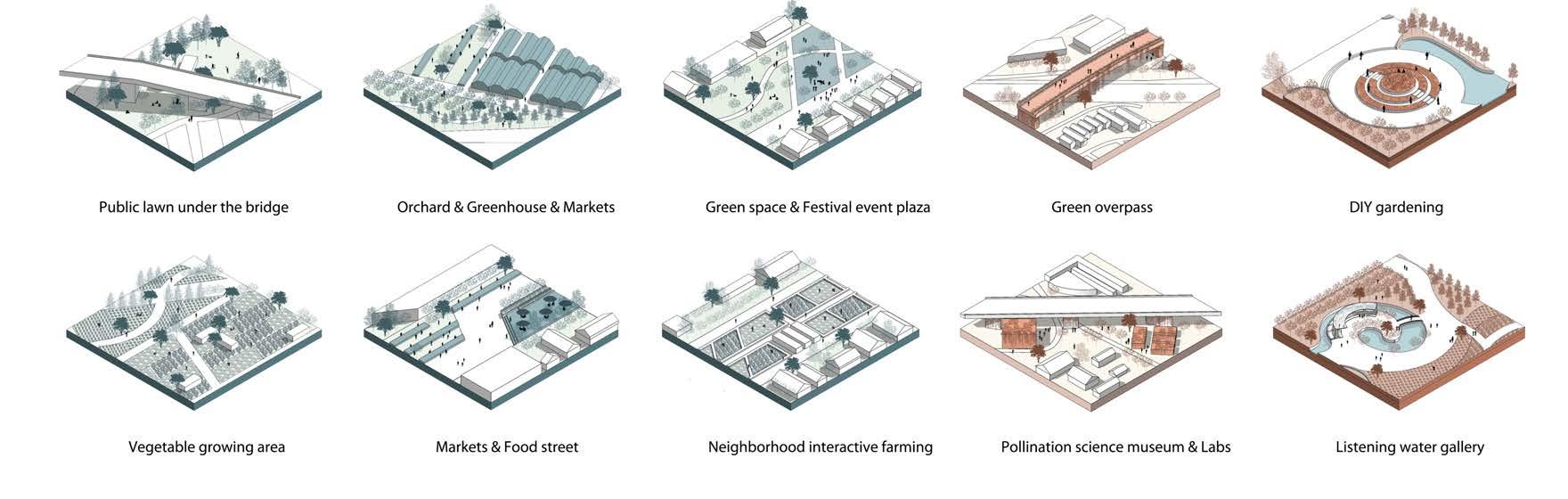

TYPOLOGY

1

3

5

7

9

2

4

6

8

10

10

EDIBLE PLANTING DESIGN

al

M

HEALING GARDEN

un

m

m

om

d us

is

t es

Pr

u

s nu

do

r

Py

om

c us

sis en o on dr r ed es a y n r e t ig bi de a s n oisy nus ea a do u o u c n Pi Rh Ch Pr Pi a

t na

sp .

ica

a

ic

t es

x

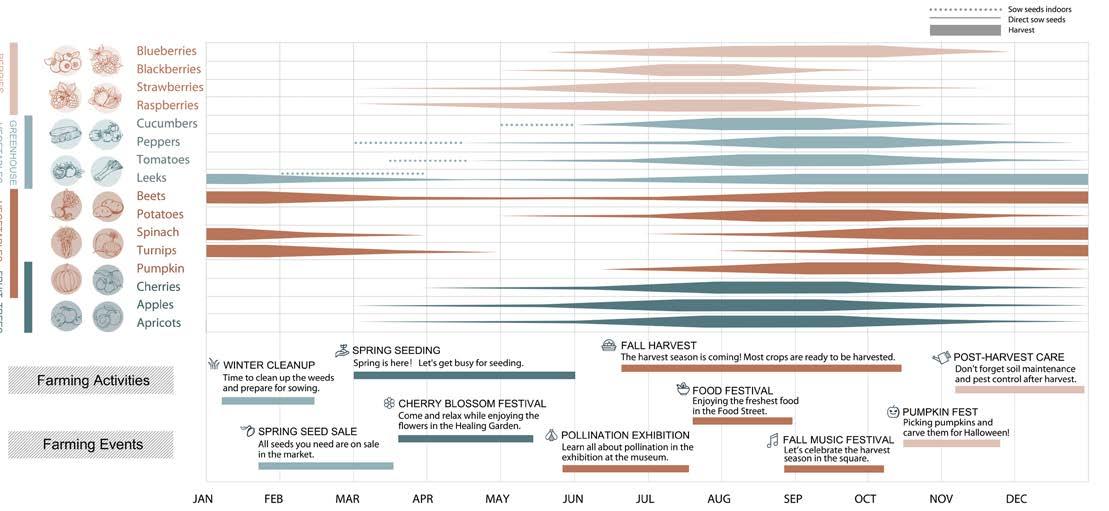

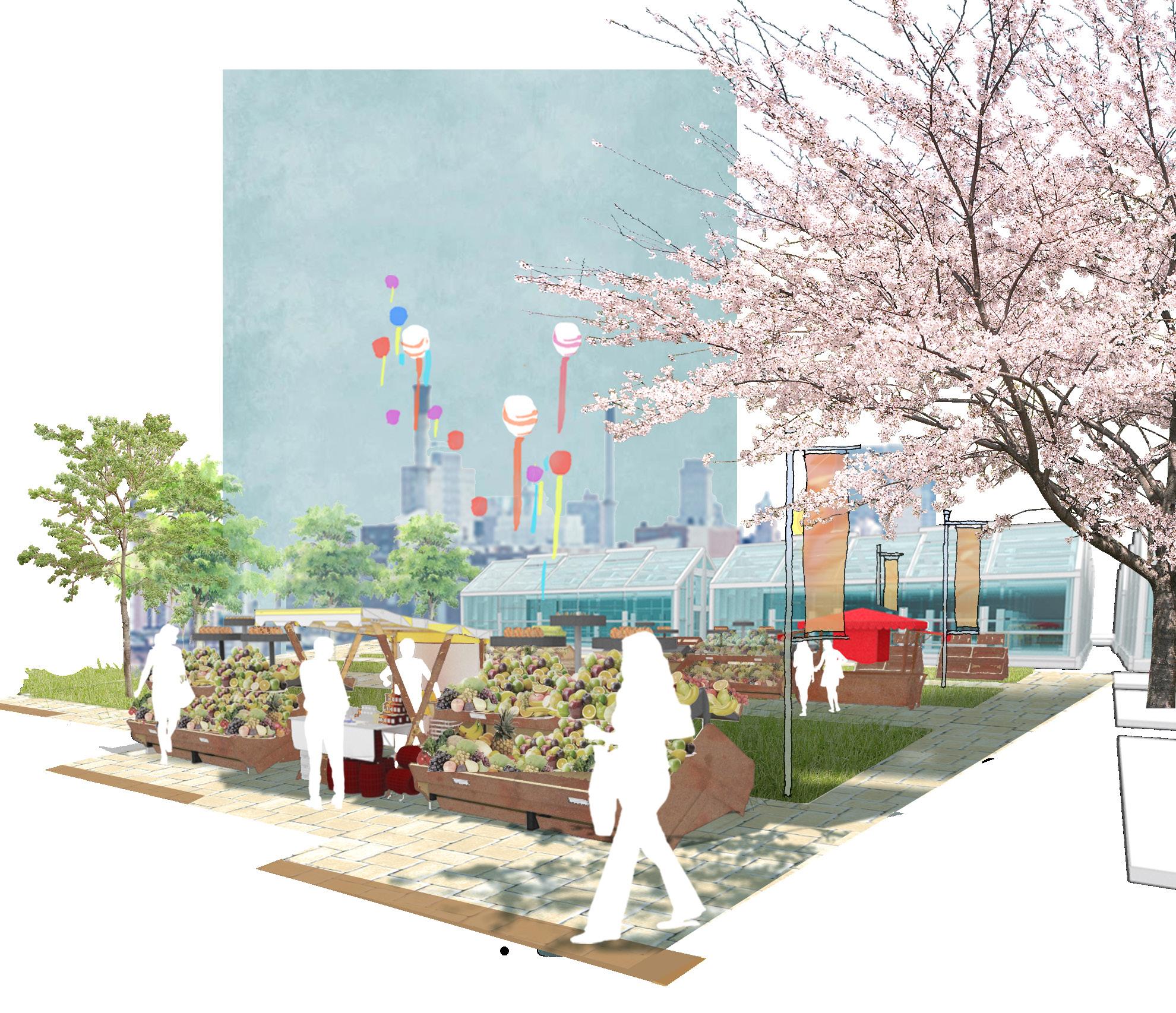

AGRICULTURE & EVENTS CALENDAR

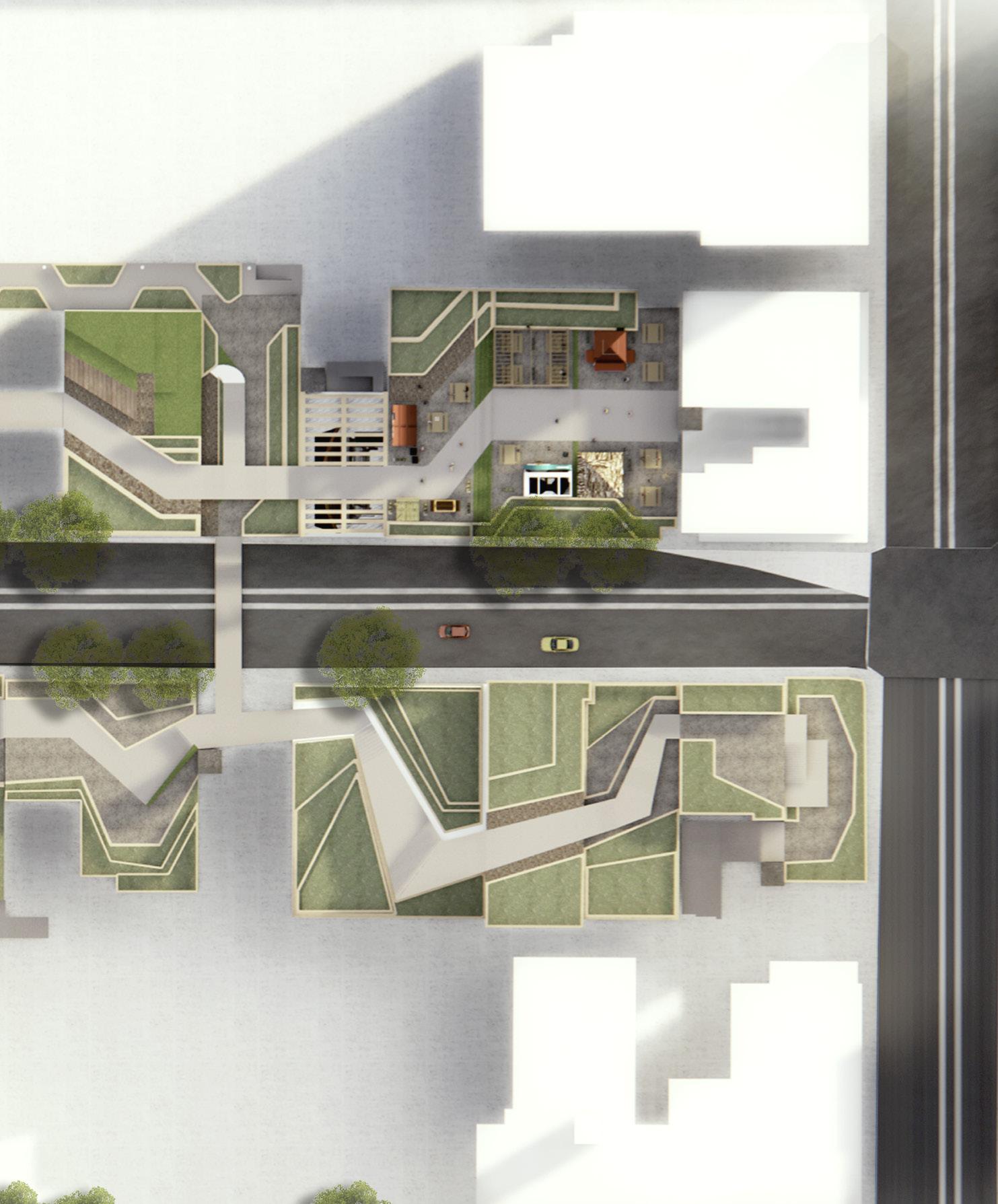

05 DO CU M ENTAT I A ON Community Park | 4734 32ST AVE S, Seattle, WA | 2023

WA SH

H

PERMEABLE SETTING AGGREGATE 10" CONCRETE CURB

CONCRETE CURB PERMEABLE BASE AGGREGATE

SPADE EDGE OF MULCH PERIMETER 6"

PLATING SOIL

SAND LAYER

10"

NAIL/REBAR 1'

6"

6"

SCARIFY SIDES AND BOTTOM OF TREE PIT TO PREVENT GLAZING OF SUBGRADE. SET TREE DIRECTLY ON FIRMLY PACKED SUBGRADE TO PREVENT SETTLING.

2'-1"

N

CITY OF SEATTLE

PLATING SOIL

UNITE AND ROLL BACK BURLAP FROM 31 MIN. OF ROOT BALL SYNTHETIC WRAP IS UNACCEPTABLE. CUT AND REMOVE EVERYTHING EXCEPT BURLAP.

6"

IT

S EN

EC

LI C

T

N

4

02

O /2 ED . 1 0 0 E X P. 02 R C LA A NDSCAPE

5' RING OF 4" SPECIFIED SHREDDED BARK MULCH

1'-2"

TO

PLANT SHALL BE SET AT OR SLIGHTLY ABOVE THE ESTABLISHED FINISH GRADE

1'-73 4"

IN

RC STUDENT LA

ST

E

G

AT

OF

TREE HEIGHT 8-10 FT. PRUNE TO REMOVE DEAD BRANCHES

SUBGRADE

AND GRAVEL TRANSITION DETAIL 2 LAWN SCALE: 1" = 1'-0"

1 TYPICAL TREE PLANTS SCALE: 3/4" = 1'-0"

1'-3 21 " 3"

B&J GARDENING

COMPACTED SOIL

1X6 IPE SLATS, 1/8" SPACING

UNILOCK CONCRETE PAVERS

1X4 IPE SLATS, 1/8" SPACING

2"

1 8"

JOINT SAND

2"

ADJACENT PLANTING AREA

AGGREGATE BASE 6"

STEEL EDGING

SUBGRADE CONCRETE SLAB OVER COMPOSITE METAL DECK

BENCH 3 PLAZA SCALE: 1:3

GEOTEXTILE

PAVER 4 CONCRETE SCALE: 3" = 1'-0"

DATE: 03/14/2023 SHEET #

8/8

L400

4734 31ST AVENUE SOUTH, SEATTLE, WA 98108

COMMUNITY PARK

1 FEET DEPTH PLANTING SOIL

1/4" GALV. MOUNTING PLATE

REVISION #:

DRAWN BY:

CONCRETE CURB

DETAIL

ALUMINUM ANGLE EDGING STAINLESS STEEL ANCHOR BOLT; 12" O.C. (TYP.)

1" 11" 2

BASE FOOT, 4" SQ. STL PLATE CONNECTION WELDED TO "LEG" ATTACH TO CONCRETE SLAB WITH GALV. FASTENERS.

6"

11"

1'

1" 54

2" SQ. GALV TUBE FRAME WITH VENT HOLES

CHECKED BY:

SAND SETTING BED 1" X 2" GALV. TUBE

Chromatic Garden | ST Morgan Street, Seattle, WA | 2023 SS

SS

SS

SS

SS

SS

SS

SS

SS

SS

SS

SS

SS

SS

SS

CHROMATIC GARDEN

SS

PLANT SCHEDULE P P

x

18",12"CED

x P

x x

P

x

x x P

x x P

x

x P

x x P

x

x P

x x

P

x x x x

x x

ST MORGAN STREET, SEATTLE, WA, 98118

SS

x x x

x x

x x x x

x x x x x x

x x G

G

G

G

G

G

G

G

G

G

G

G

G

G

x

SS

G

G

G

G

0

1/8" = 1'

8

16

24

32 feet

JESSIE LIN 04/26/2023 1/8" = 1'

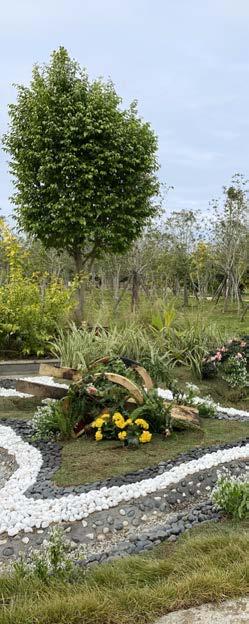

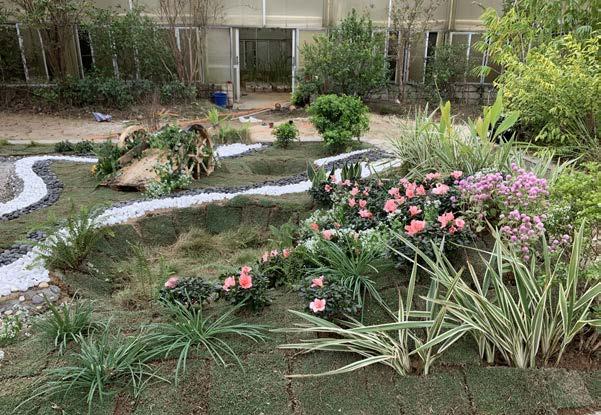

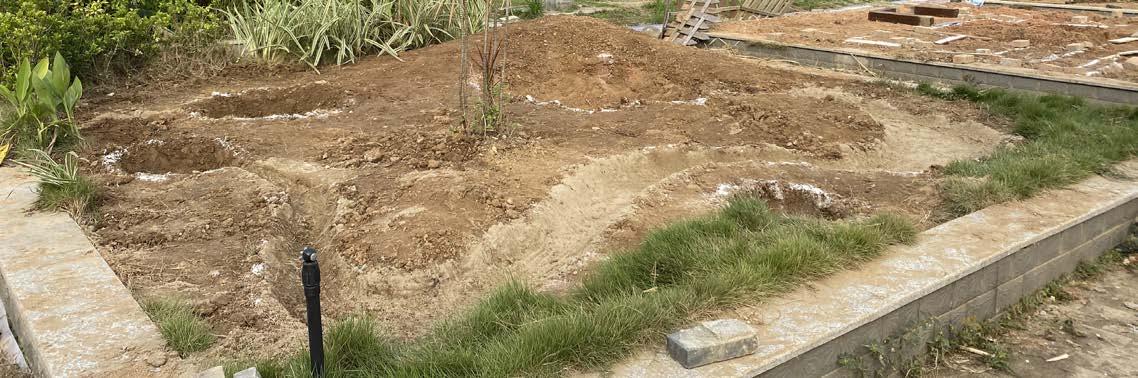

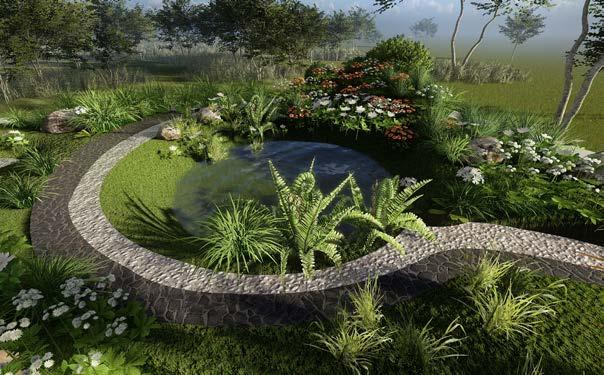

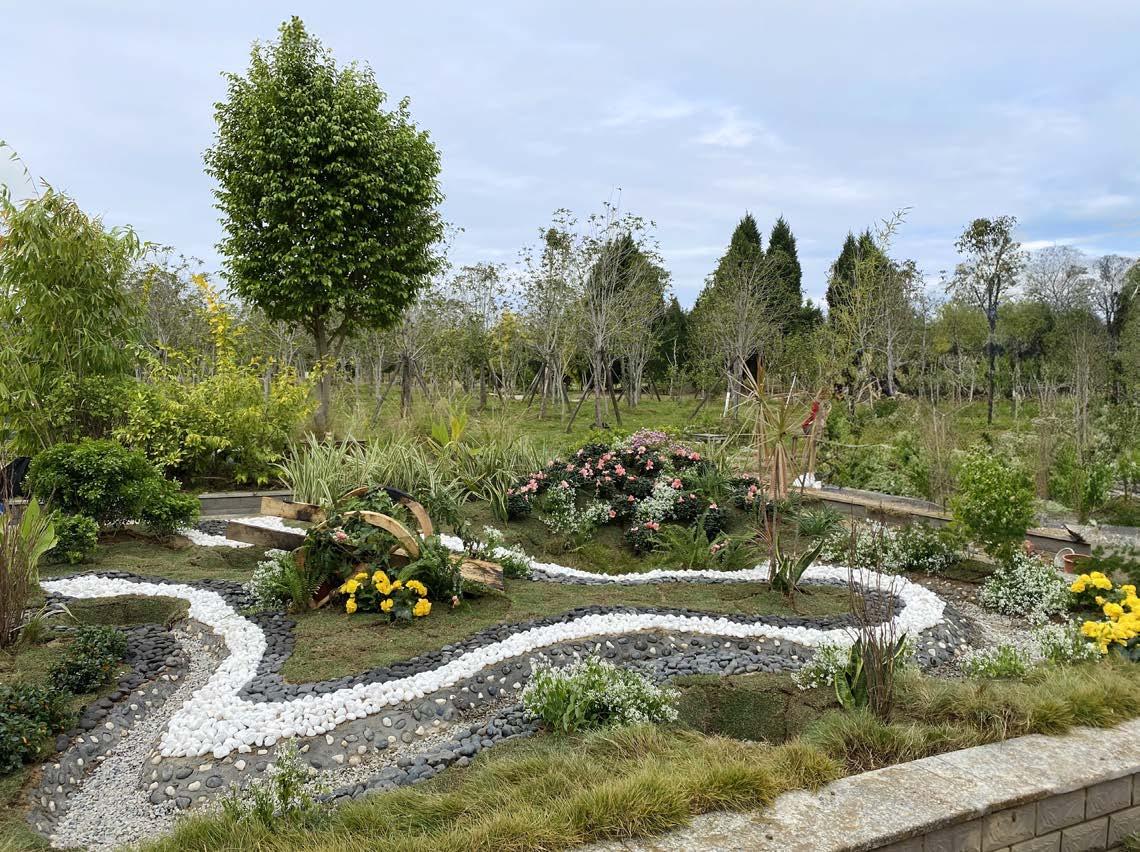

05 SENS O RY G AR D EN Landed Project | Third Prize of Creative Garden Competition | Fujian, China | 2020

1: 25 CONSTRUCTION LAYING OUT

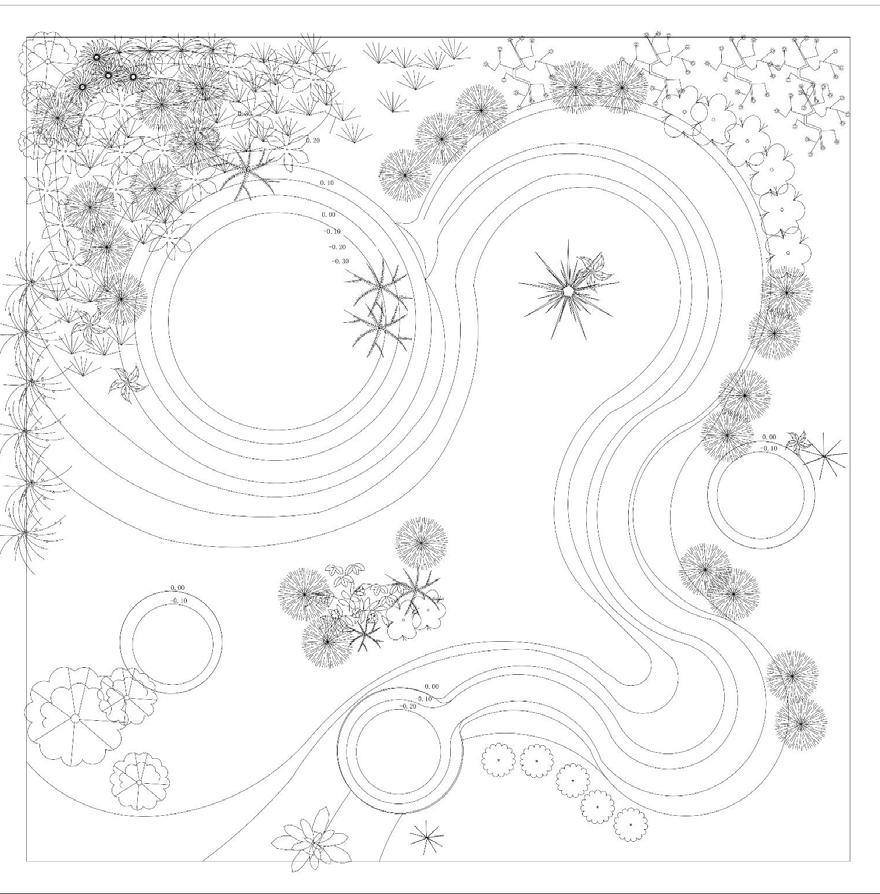

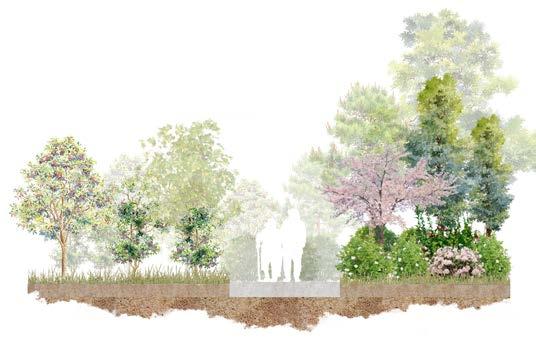

1: 25 PLANTING PLAN

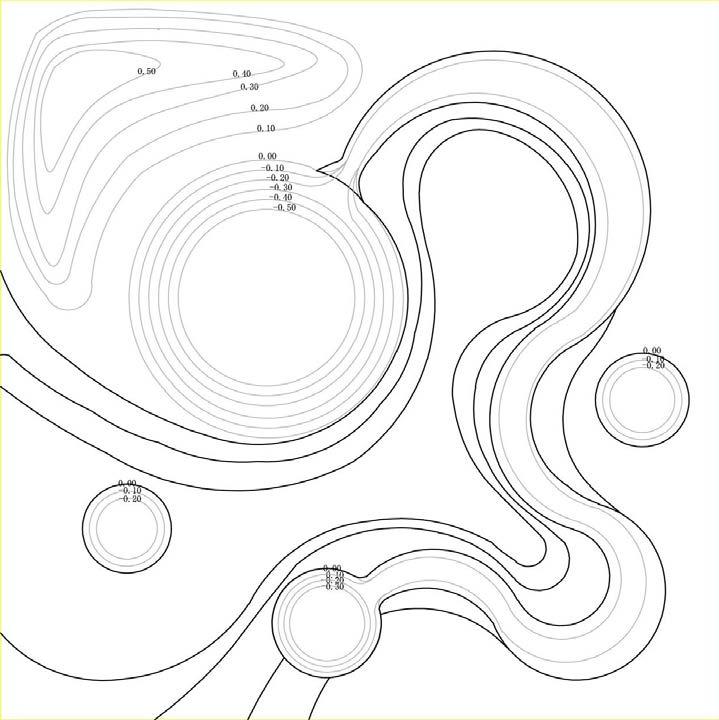

GRADING

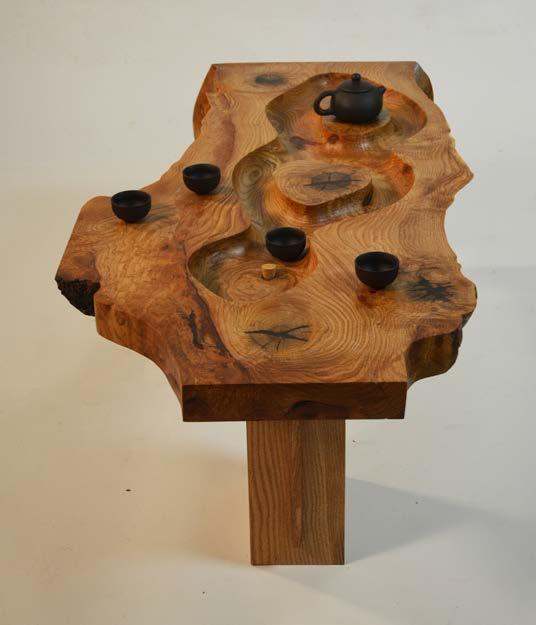

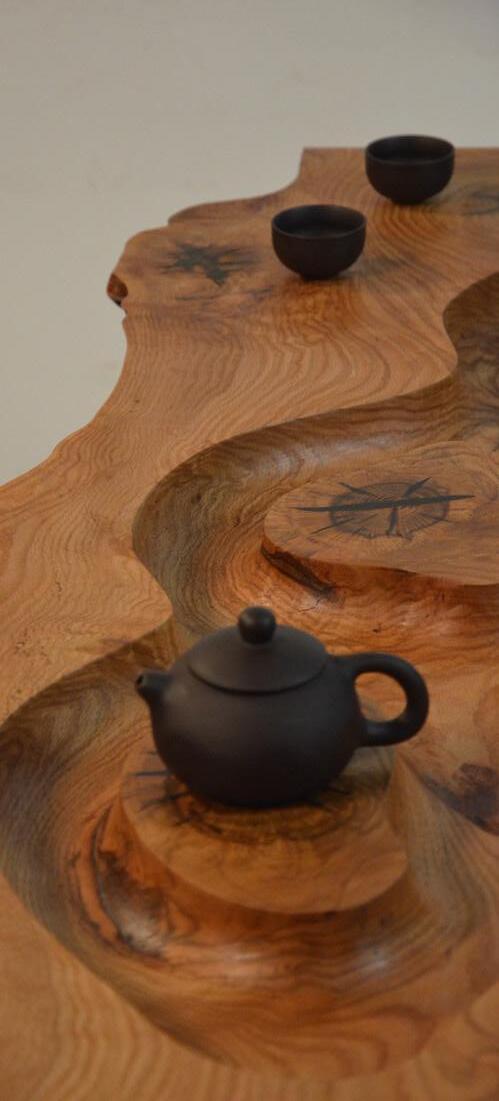

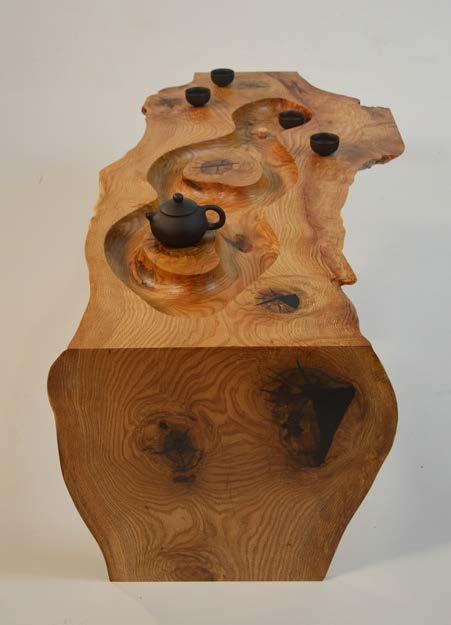

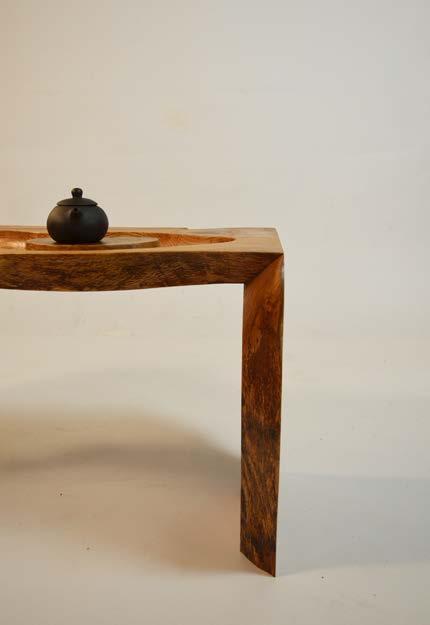

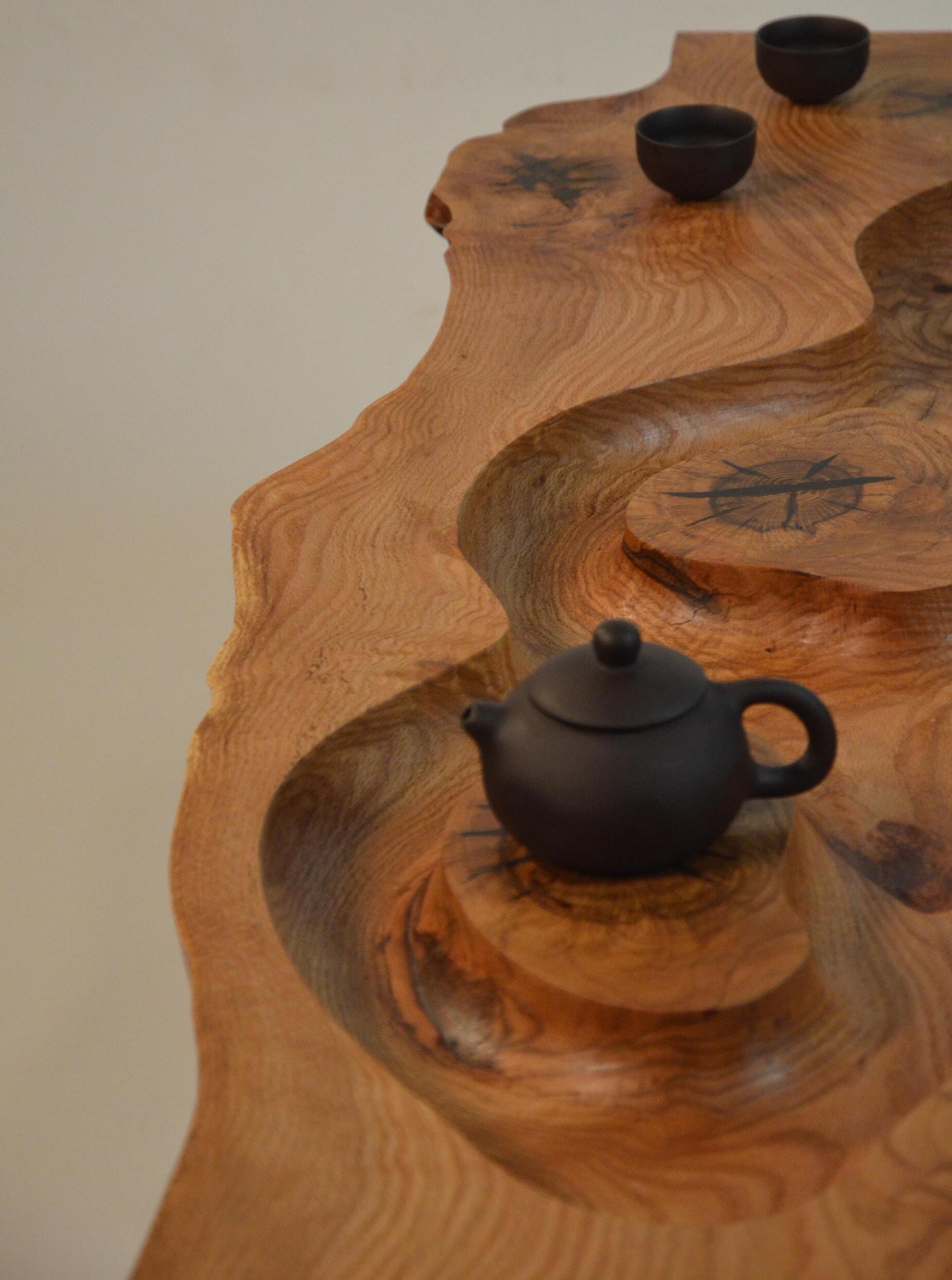

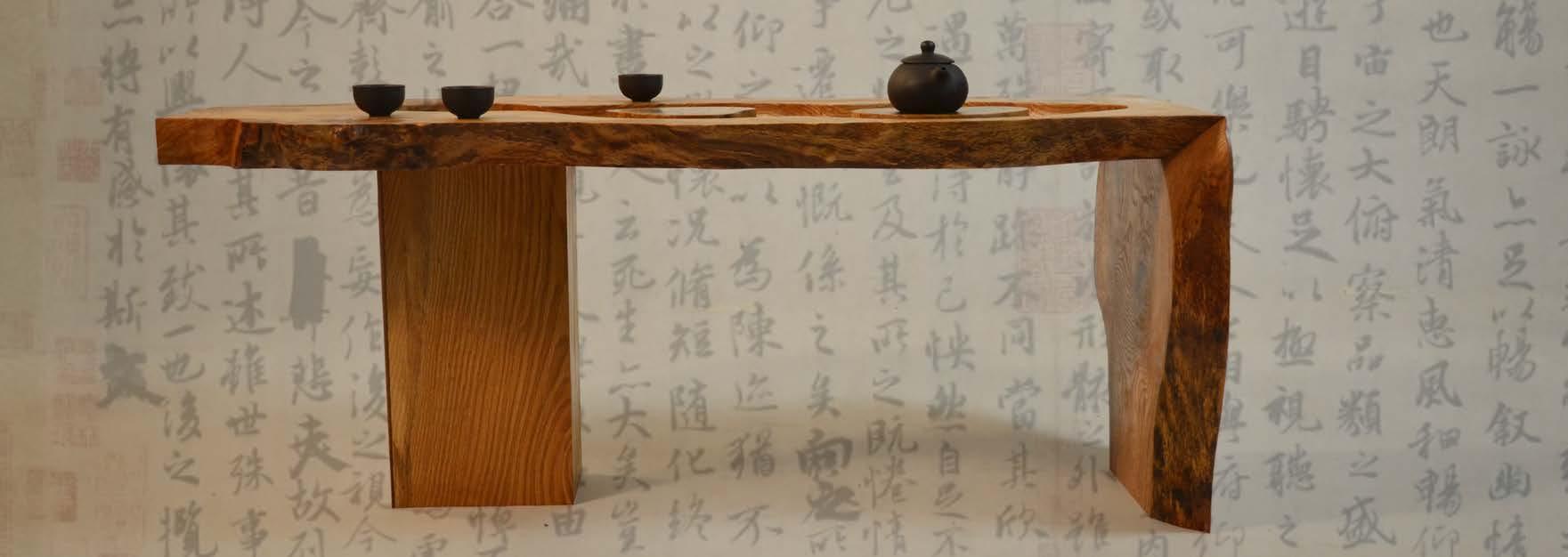

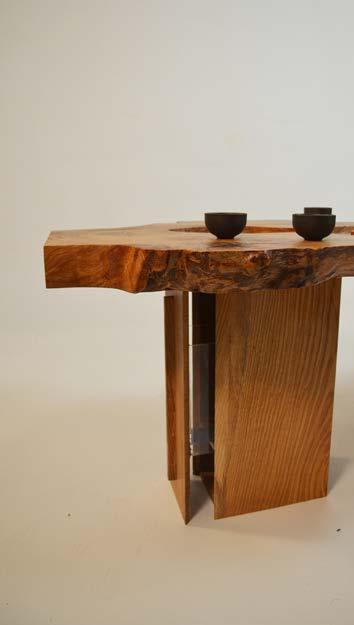

06 RI VER T EA TAB L E Furniture Studio | 2023

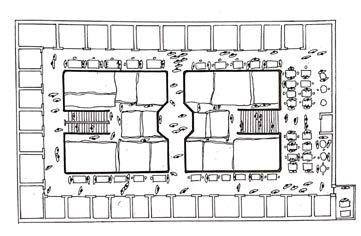

ART PRA C T I C E Watercolor December, 2018

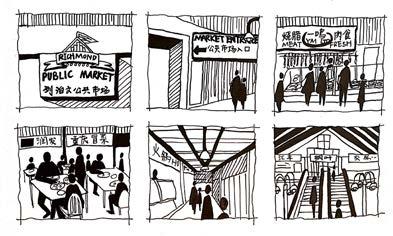

Richmond Survey December, 2019

Watercolor December, 2018

Watercolor Januaray, 2019

Photomontage December, 2023 Sanluocuo Sketching October, 2020

Silk Painting November, 2023

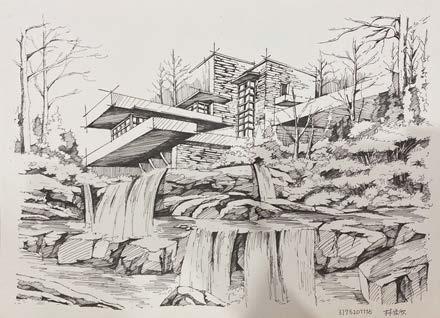

Fallingwater Skeching April, 2017

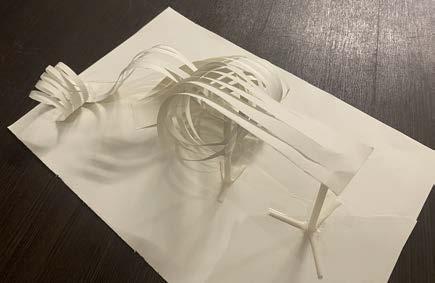

Concept Model December, 2022

Jessie Lin jessielin0015@gmail.com
