ARCHITECTUAL DESIGN
JERSON SALAZAR
PORTFOLIO
JERSON SALAZAR
ARCHITECT STUDENT
PERSONAL INFORAMTION
JERSON SALAZAR 24 YEARS (929) 330-7655
SOFTWARE SKILLS
JERRSONSALAZAR1222@GMAIL.COM BRONX, NEW YORK AUTOCAD REVIT SKETCHUP PHOTOSHOP ILLUSTRATOR VRAY LUMION
MS OFFICE
3D MAX
INTEREST
AI ENHANCED DESIGN INTERIOR DESIGN PHOTOGRAPHY
ABOUT ME
I’M JERSON SALAZAR, AN ASPIRING ARCHITECT WITH A KEEN INTEREST IN PROJECT MANAGEMENT AND CONSTRUCTION MANAGEMENT. MY GOAL IS TO SHAPE SPACES THAT ENHANCE COMMUNITY CONNECTIVITY AND ENVIRONMENTAL SUSTAINABILITY. CURRENTLY, STUDYING ARCHITECTURE AND GAINING PRACTICAL EXPERIENCE, I’M COMMITTED TO CREATING IMPACTFUL, RESILIENT DESIGNS THAT ADDRESS THE NEEDS OF MODERN URBAN LIFE.
EDUCATION
NEW YORK CITY COLLEGE OF TECHNOLOGY 2023-2025 (EXPECTED GRADUATION) ARCHITECTURAL TECHNOLOGY
UNIVERSIDAD TECNOLOGICA INDOAMERICA 2018-2020 ARCHITECTURE
LANGUAGES KNOWN
ENGLISH SPANISH
HOBBIES
MARTIAL ARTS GAMING SOCCER
VINYL/ ALUM SIDING (RAINSCREEN)
1'' Air space (Drainage SPACE)
2X1 FURRING Strips @16'' O/C MAX
2x8'' header with beads of sealant
(DRAINAGE BARRIER)
14'' (r-7.5) polyiso board insulation sheating (cont. insulation)
3'' (R-19.5) spray foam polyurethane INSULATION (AIR BARRIER)

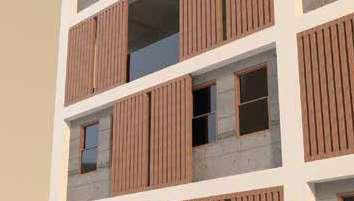

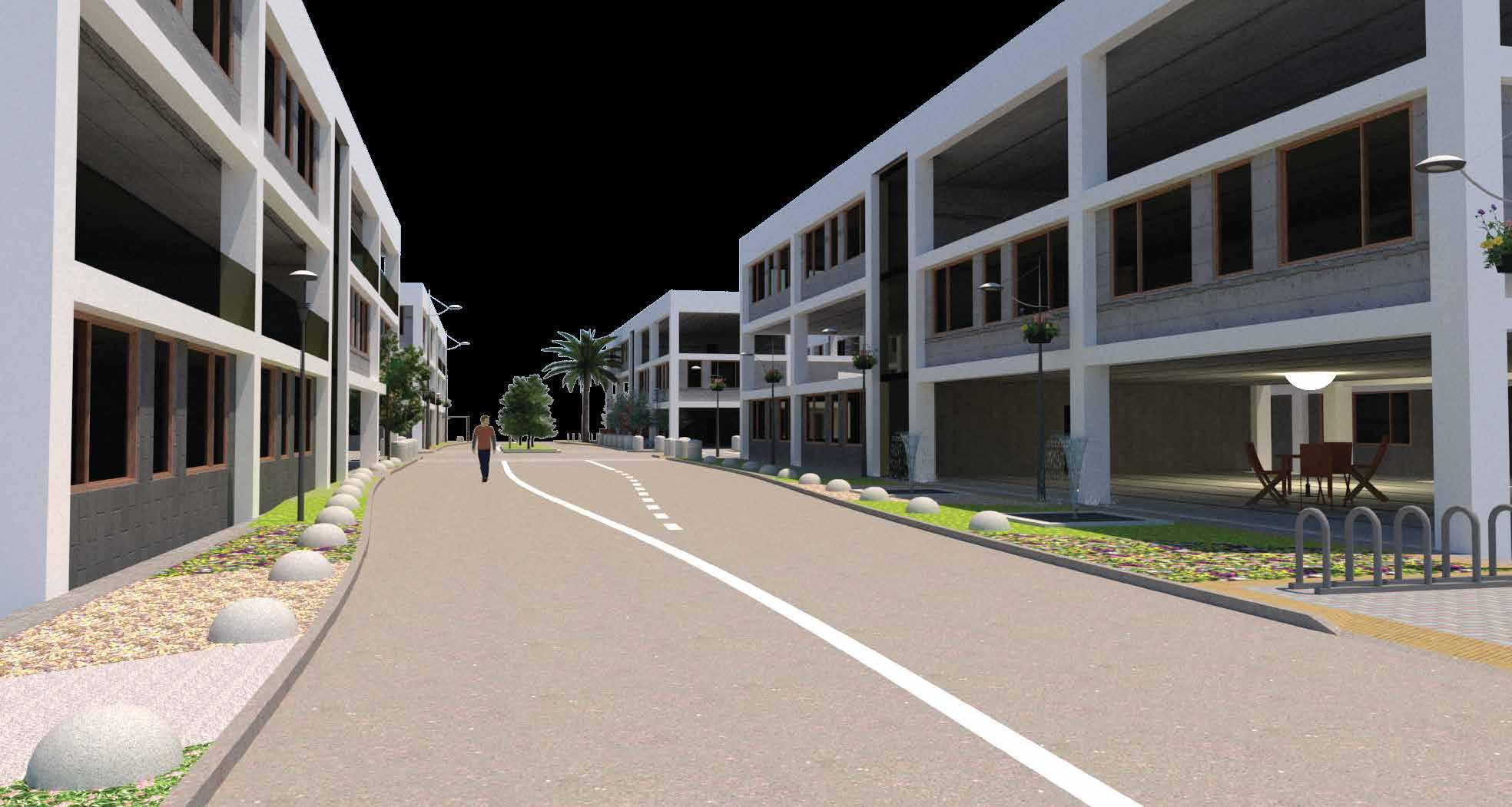

RESIDENTIAL COPMPLEX

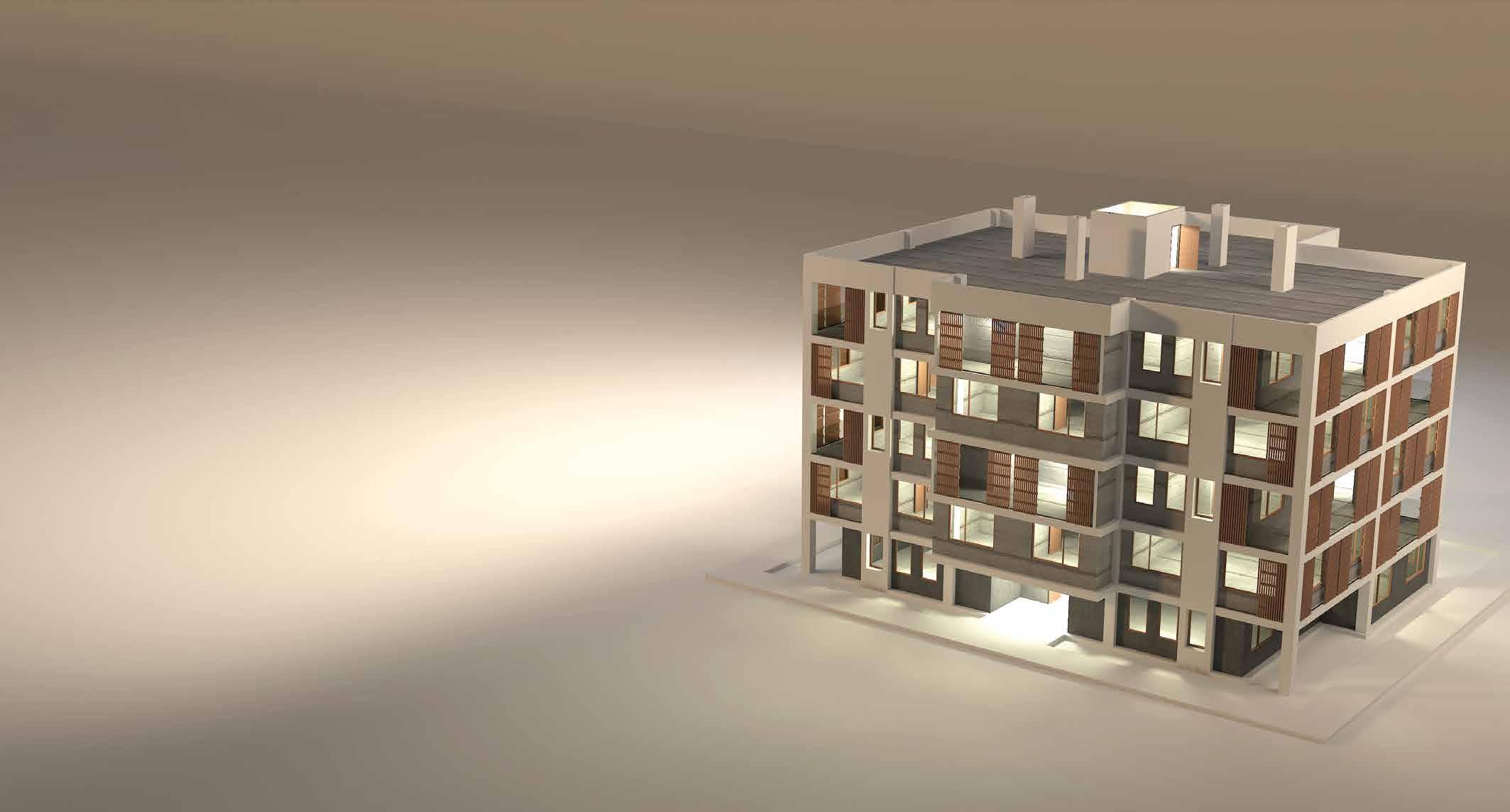

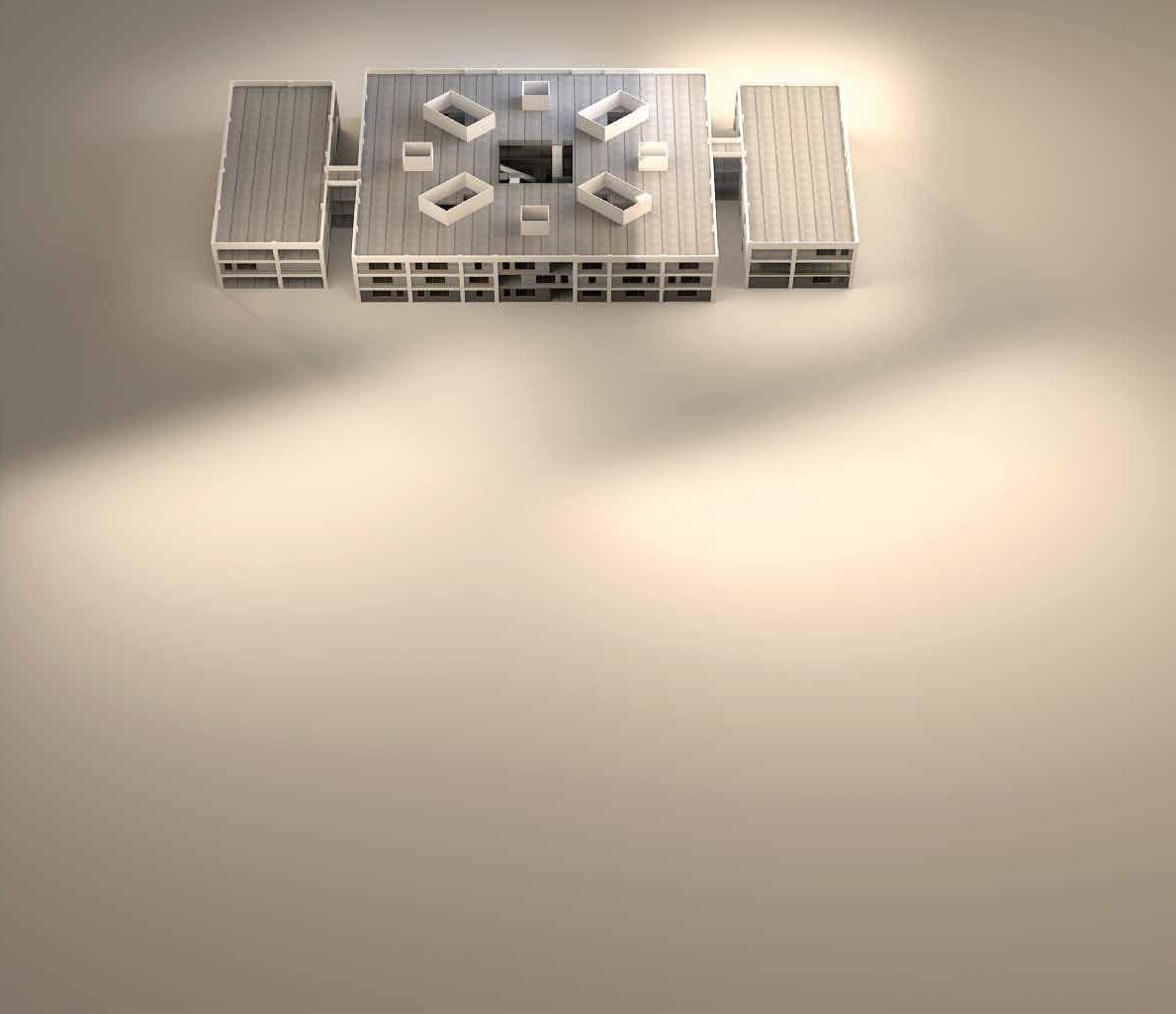

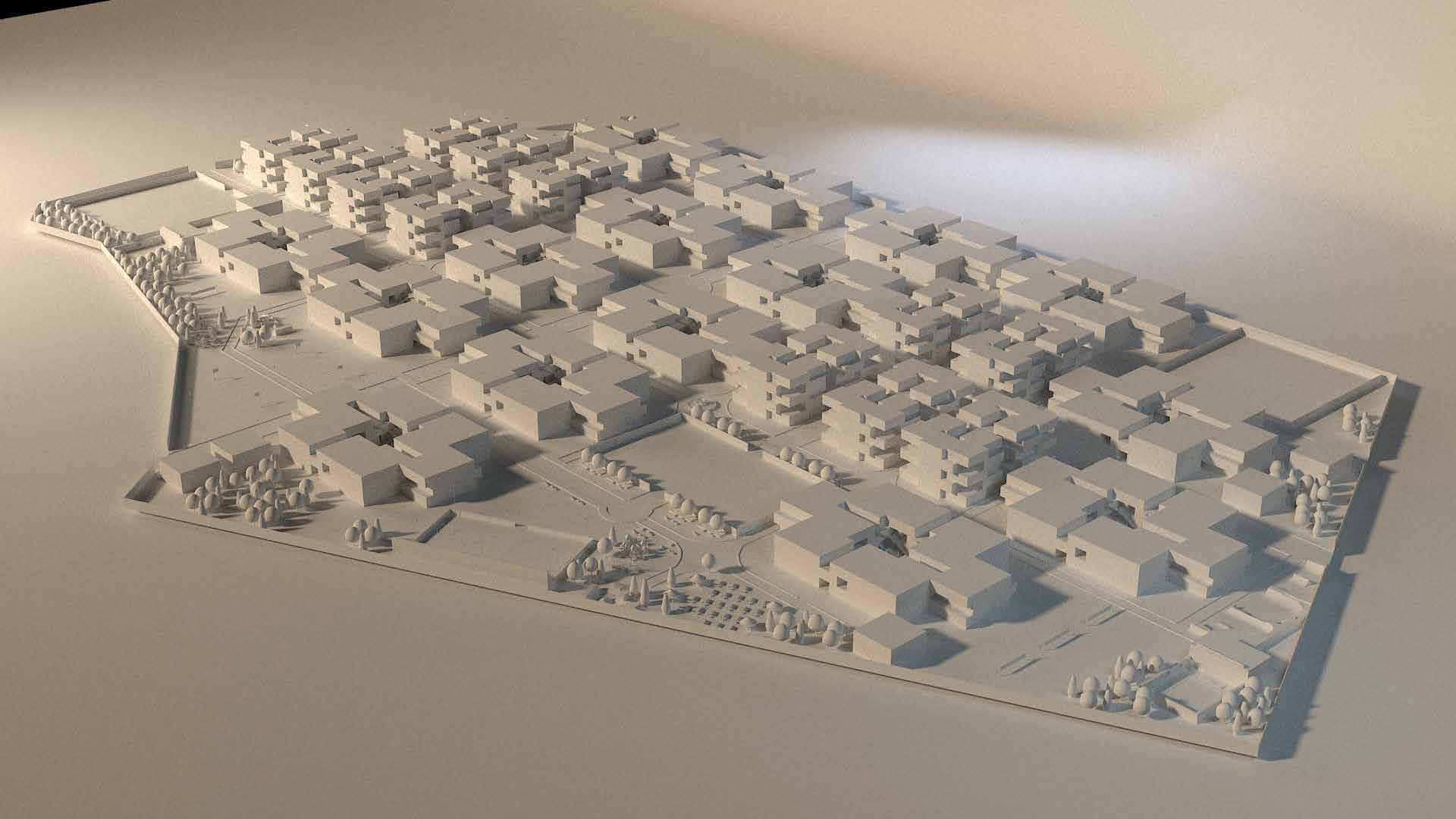

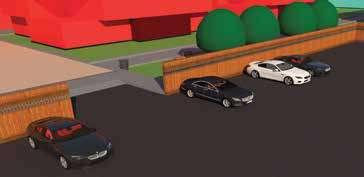

DESIGNED TO HOUSE 2,466 RESIDENTS, THIS COMPLEX INTEGRATES ABUNDANT GREEN SPACES AND VARIOUS SERVICES, INCLUDING ENTERTAINMENT, HEALTH, AND PERSONAL AMENITIES. LUSH GARDENS, WALKING TRAILS, AND ROOFTOP GREENERY PROMOTE A SENSE OF COMMUNITY AND ENHANCE AIR QUALITY, WHILE A DEDICATED PARKING AREA IS AVAILABLE FOR THOSE OPTING FOR PERSONAL GARAGES. THE DESIGN PRIORITIZES ECO-FRIENDLY, HUMAN-POWERED TRANSPORTATION SUCH AS BIKING, SKATEBOARDING, AND WALKING AS PRIMARY MODES OF MOVEMENT WITHIN THE COMPLEX.
FLOORS 2 & 4
FLOORS 3 & 5
FLOOR 1
FRONT FACADE
SIDE FACADE
9 This building complex was designed for multiple users in mind, who will have to coexist. The buildings have areas for entertainment, studies and green areas. These areas have different purposes included but not limited to; social interaction, fun, gardening, etc.
4)
5)
7)
8)
9)
10)
CONCRETE SLAB
IRON ROD
STEEL PROFILE
WHEELS
WOOD PANEL 6) CEMENT
BRICK
CERAMIC
GLASS
WOOD PROFILE

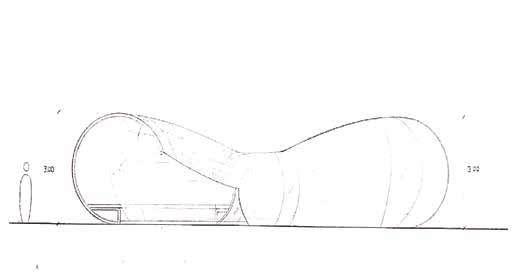

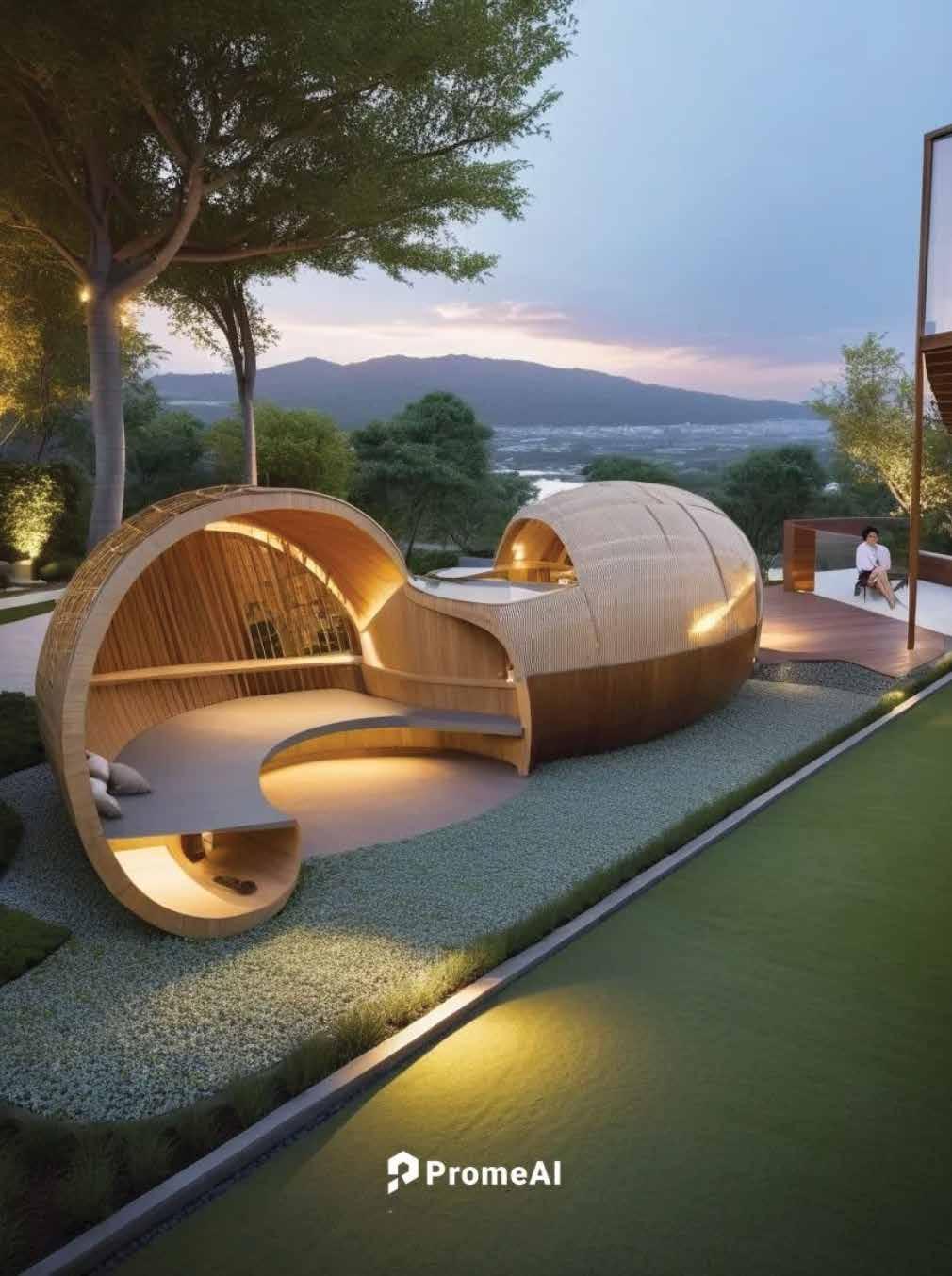

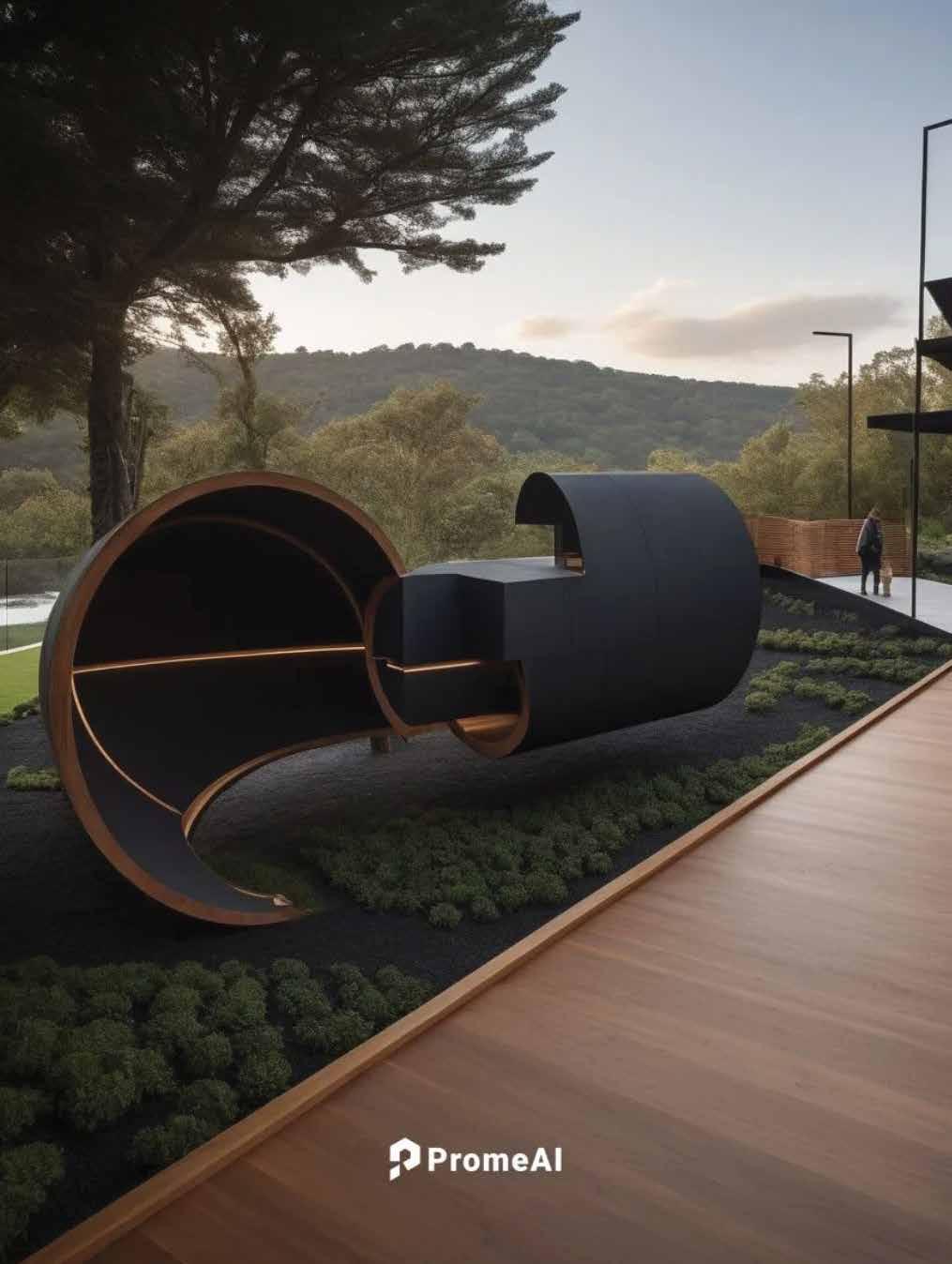

EPHEMERAL PAVILION

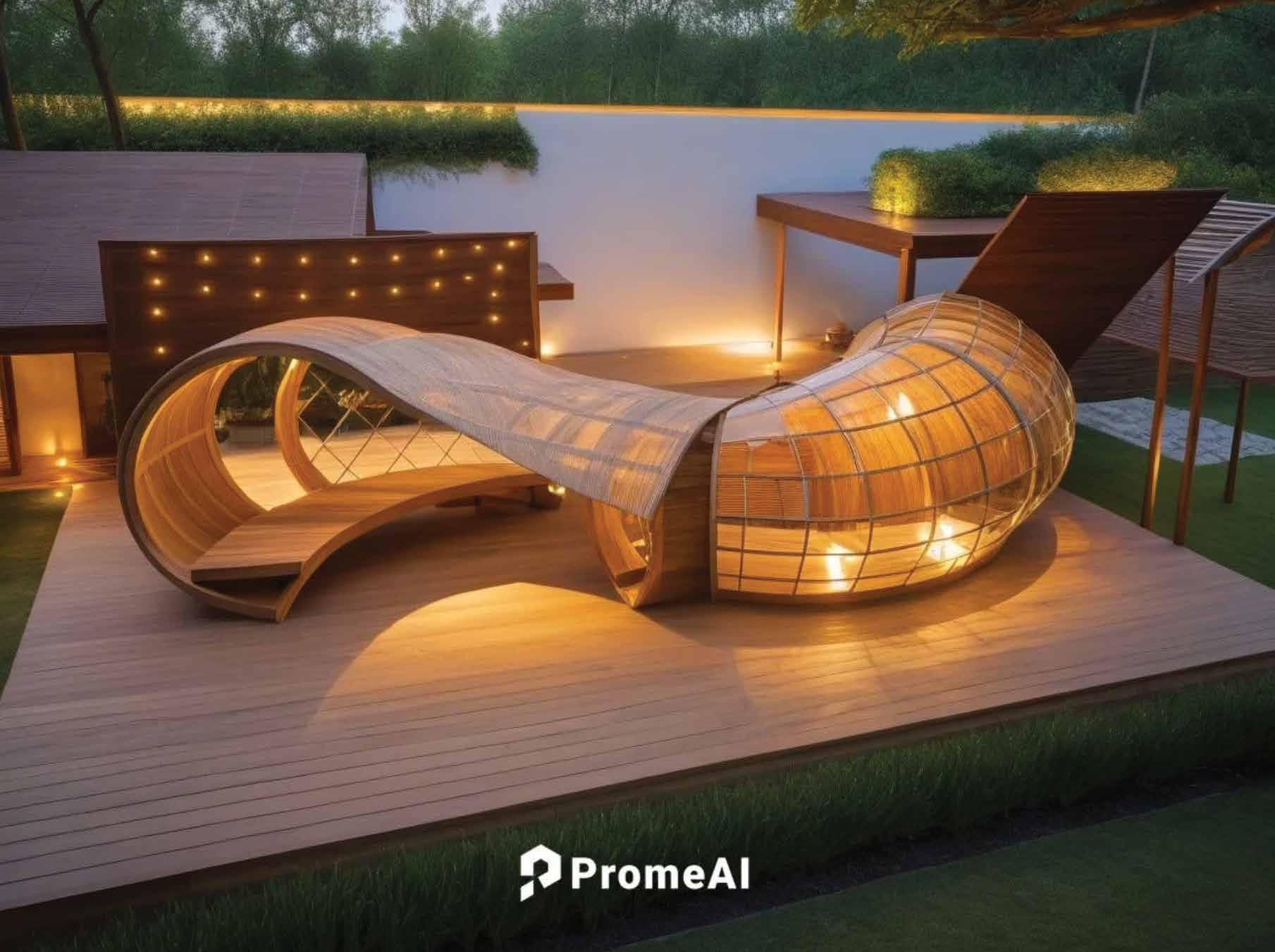

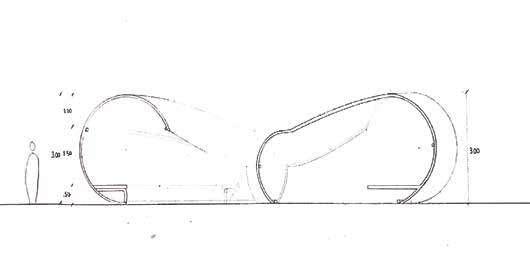

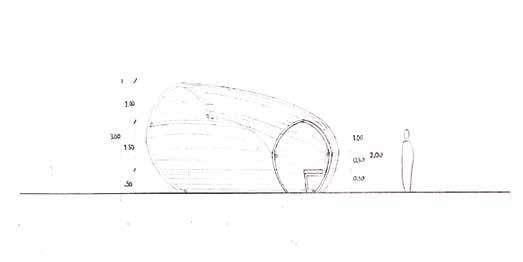

THIS PAVILION DESIGN IS AN EPHEMERAL, SELF-SUPPORTING STRUCTURE INSPIRED BY THE ORGANIC FORM OF A SEASHELL. UTILIZING THE GOLDEN RATIO FOR SYMMETRY AND HARMONY, IT ACHIEVES STABILITY WITHOUT EXTERNAL SUPPORTS, ALLOWING FOR EASY TRANSPORT AND ASSEMBLY. EVOKING THE SEA’S TRANQUILITY, THE PAVILION CREATES A SERENE SPACE FOR OUTDOOR READING AND REFLECTION. SOME IMAGES WERE CREATED WITH AI.
A-A’

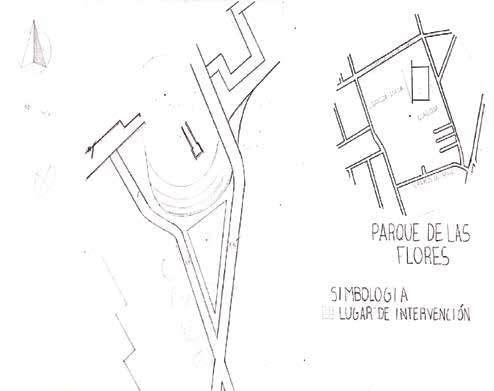

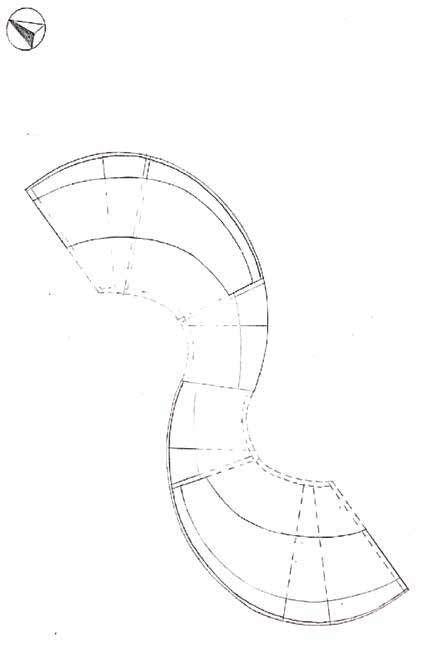

SECTION B-B’ FLOOR PLAN
FRONT FACADE

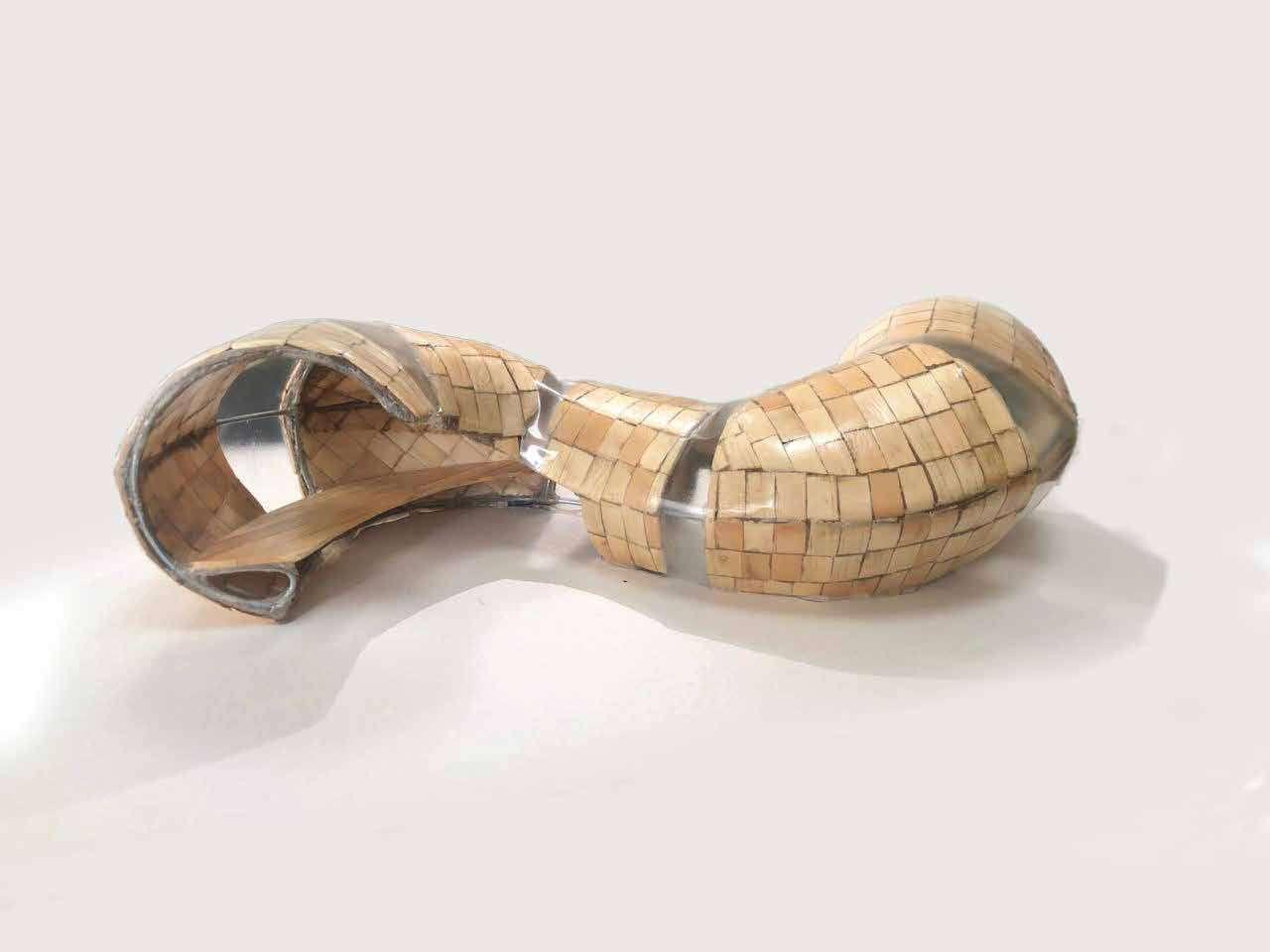

HANDMADE MODEL
SIDE FACADE

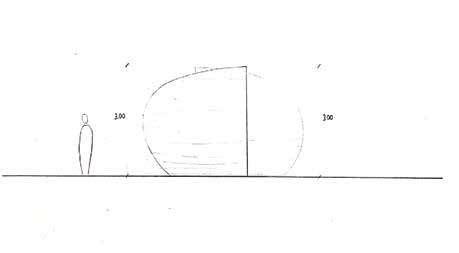

SECTION

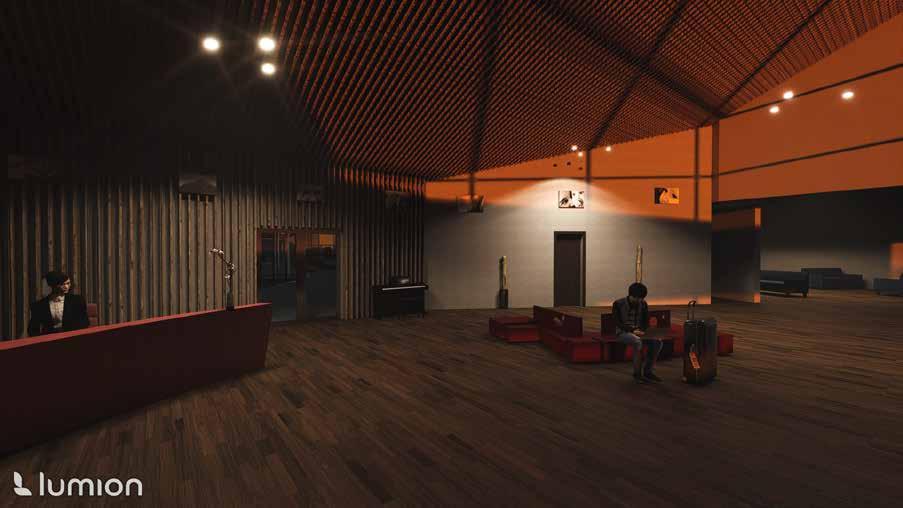

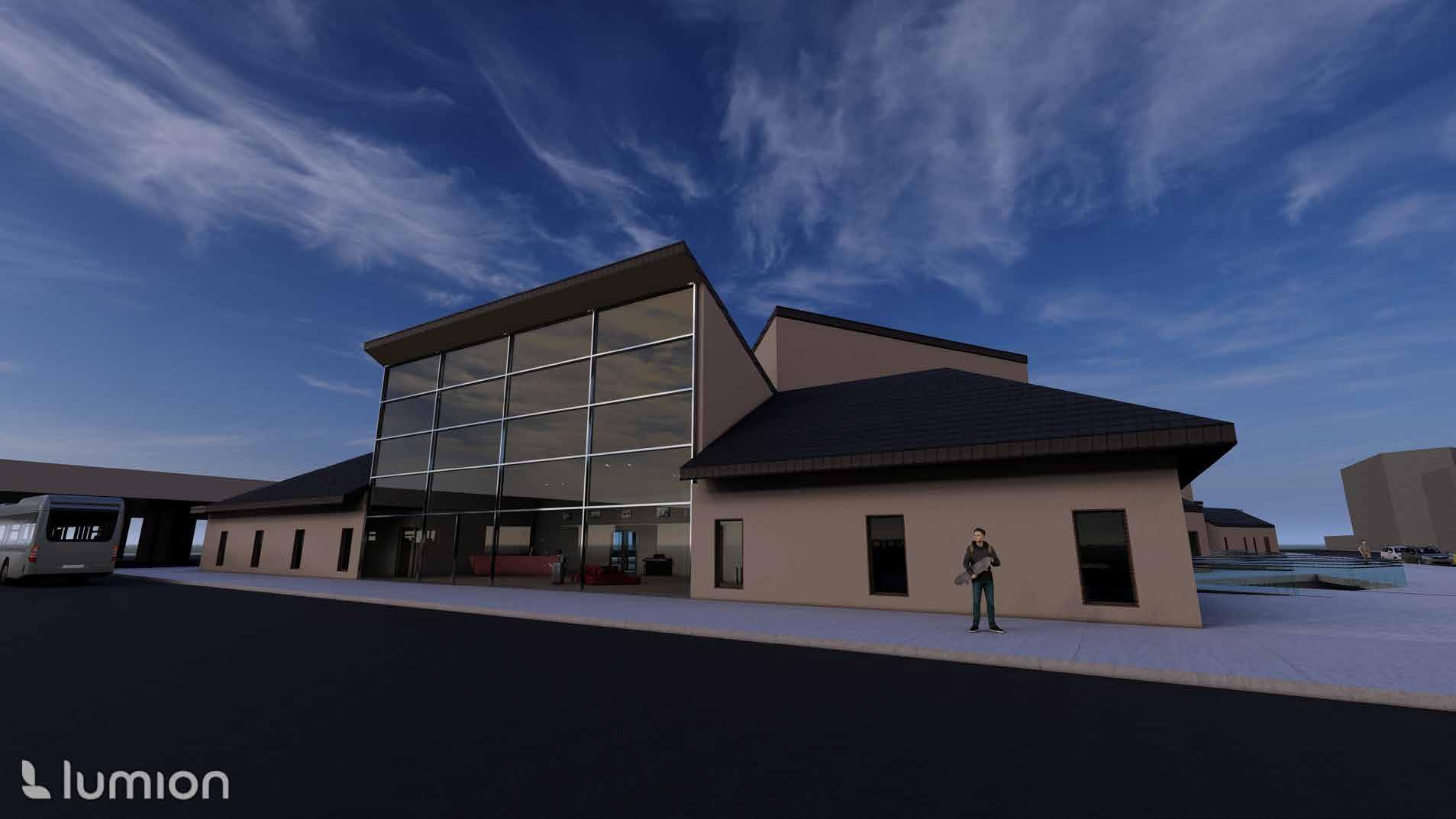

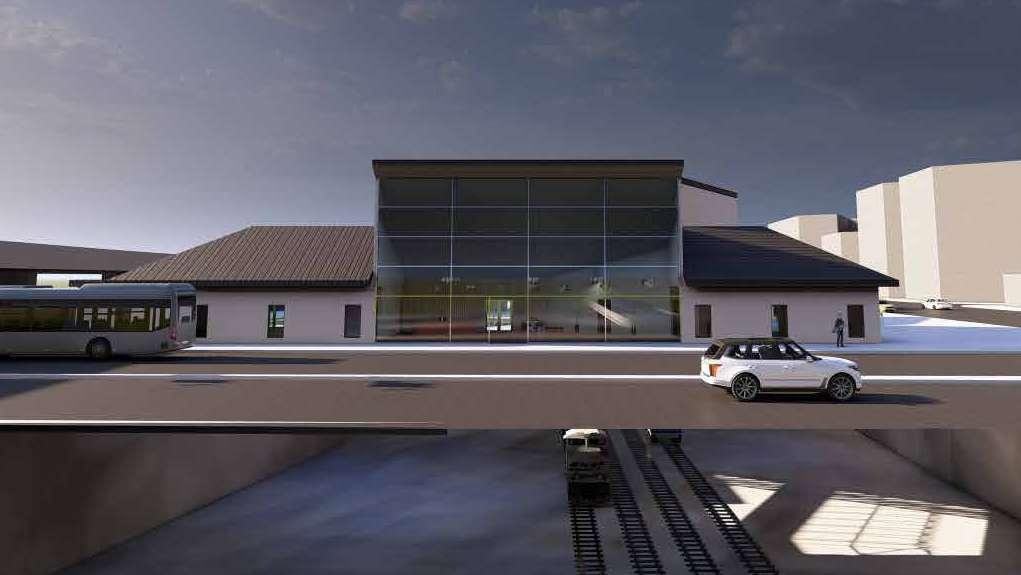

BROXLANDIA ADAPTIVE REUSE

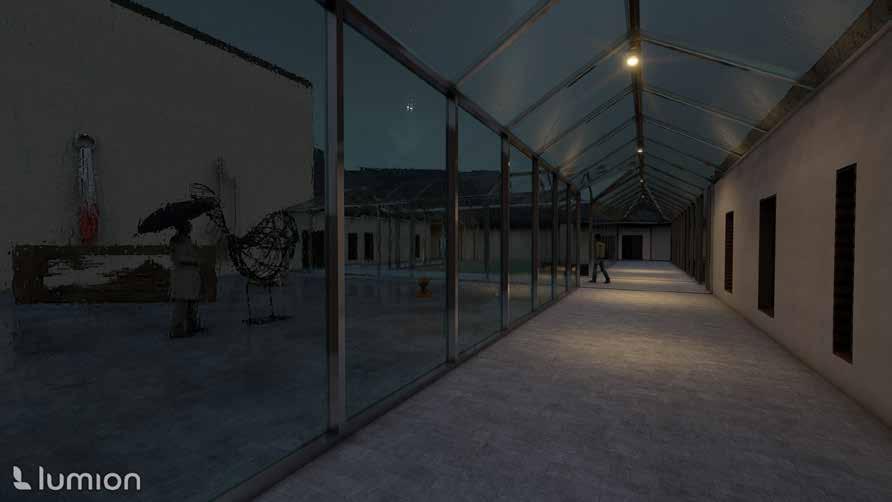

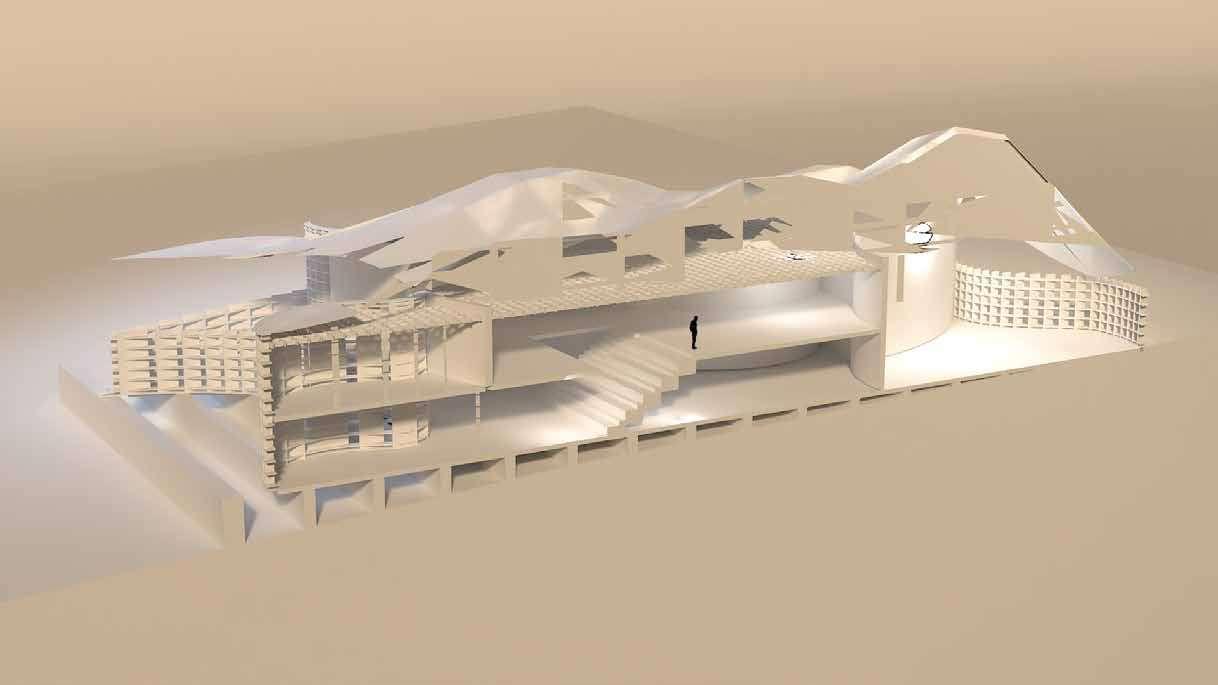

THIS PROJECT INVOLVES THE ADAPTIVE REUSE OF BRONXLANDIA, TRANSFORMING THE SPACE INTO A VIBRANT HOSTEL. THE DESIGN MAINTAINS THE SITE'S HISTORICAL CHARACTER WHILE INTRODUCING MODERN AMENITIES THAT ENHANCE THE GUEST EXPERIENCE. KEY FEATURES INCLUDE COMMUNAL SPACES DESIGNED FOR INTERACTION AND ENJOYMENT, FOSTERING A SENSE OF COMMUNITY AMONG VISITORS. THE PROJECT AIMS TO REVITALIZE THE AREA, PROVIDING A WELCOMING ENVIRONMENT WHERE LOCALS AND TRAVELERS ALIKE CAN CONNECT AND APPRECIATE THE RICH CULTURAL HERITAGE OF THE BRONX.
FRONT FACADE
SIDE FACADE
SECTION A-A’
SECTION B-B’

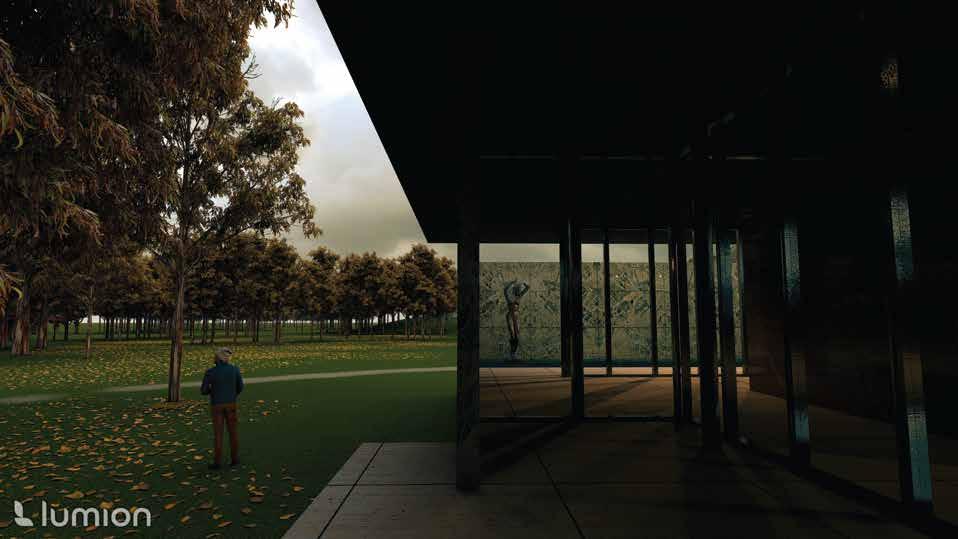

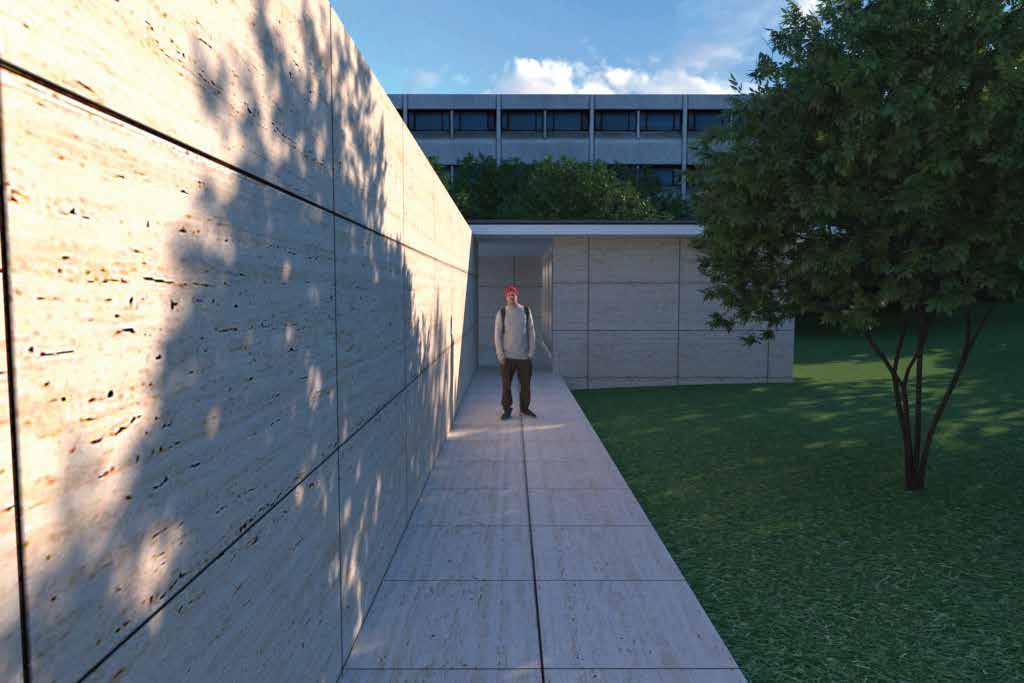

BARCELONA PAVILION RENDERS

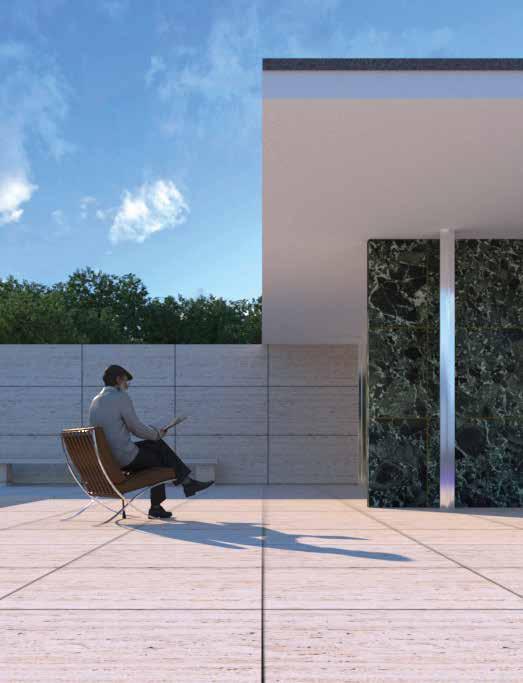

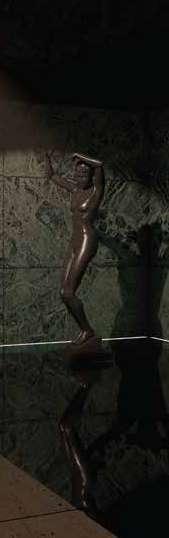

THIS PROJECT FEATURES HIGH-QUALITY RENDERINGS OF THE ICONIC BARCELONA PAVILION, MODELED IN 3DS MAX AND RENDERED USING LUMION AND V-RAY. THE RENDERINGS SHOWCASE THE PAVILION’S ARCHITECTURAL ELEGANCE, CAPTURING ITS CLEAN LINES, MATERIAL TEXTURES, AND LIGHTING EFFECTS TO EMPHASIZE THE STRUCTURE’S MINIMALIST BEAUTY. IN ADDITION TO THE PAVILION, I INCORPORATED MY OWN UNIQUE ROLE BY DESIGNING ELEMENTS OUTSIDE THE PAVILION TO SHOWCASE NATURE, ENHANCING THE OVERALL EXPERIENCE AND CONNECTION BETWEEN THE ARCHITECTURE AND ITS SURROUNDING ENVIRONMENT.

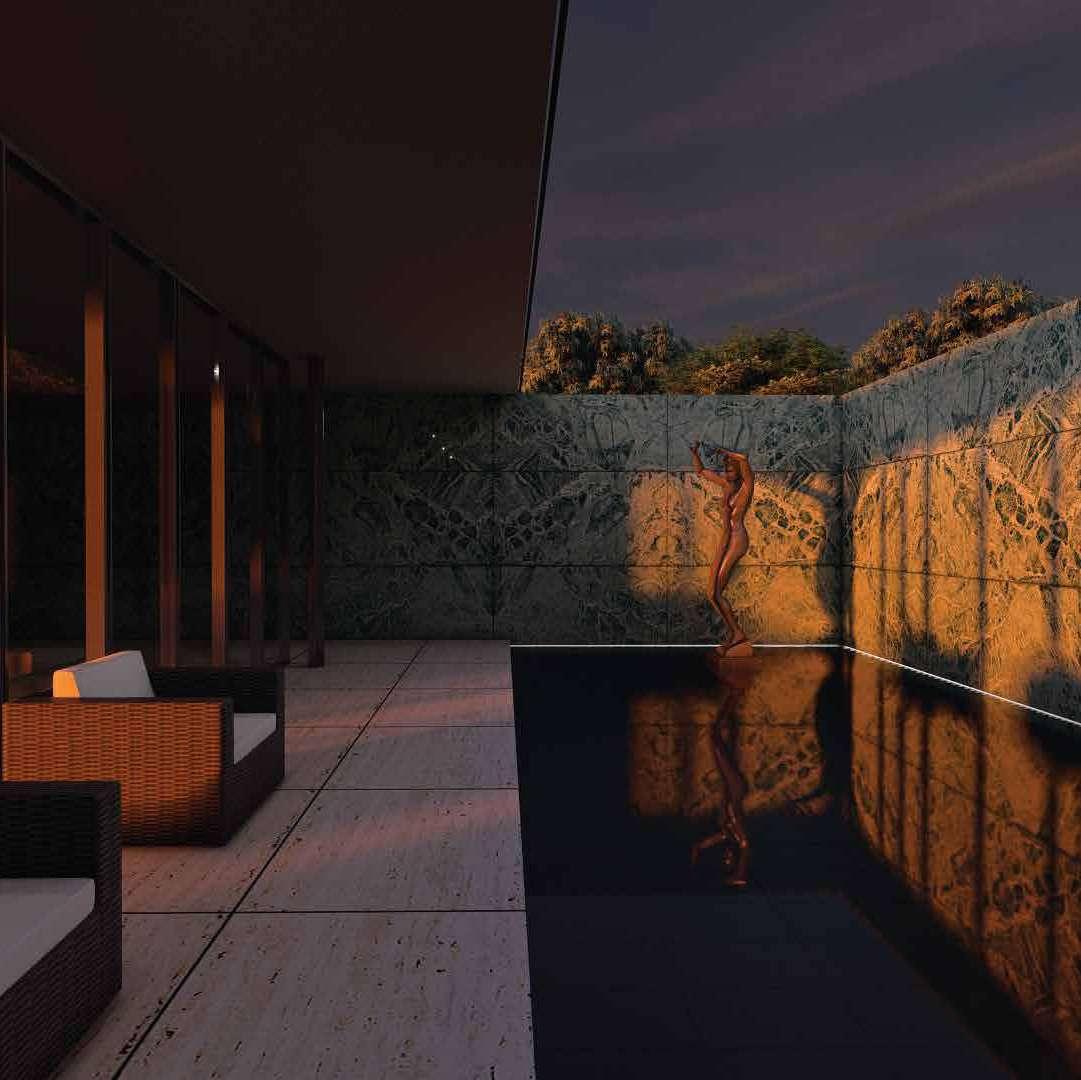

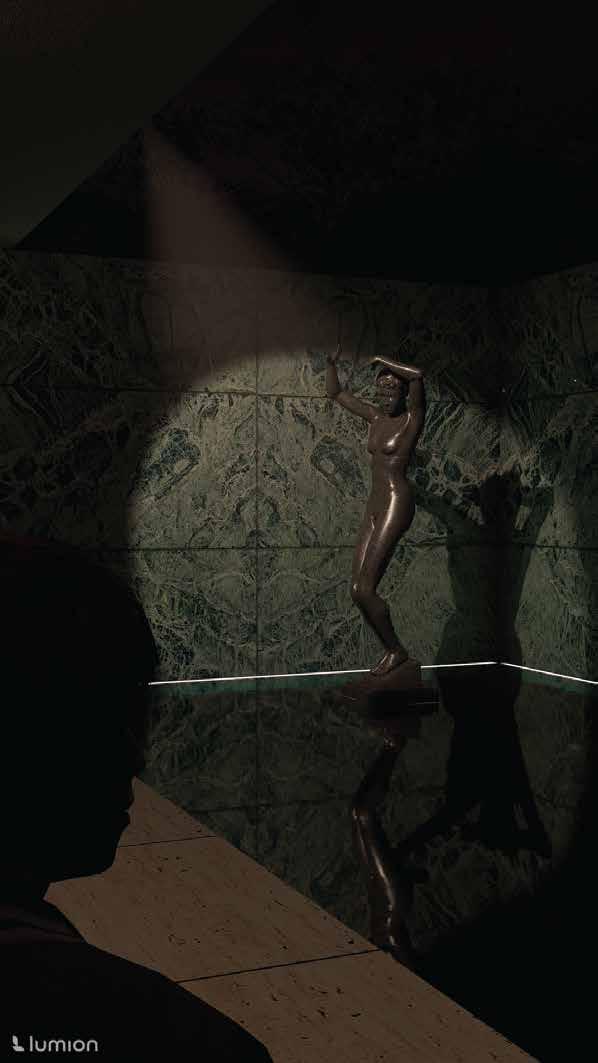

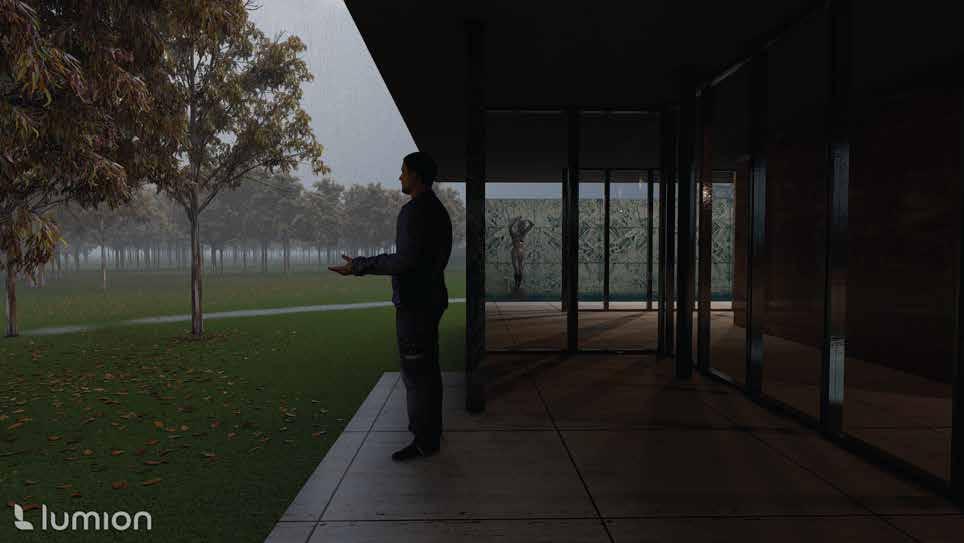

LUMION

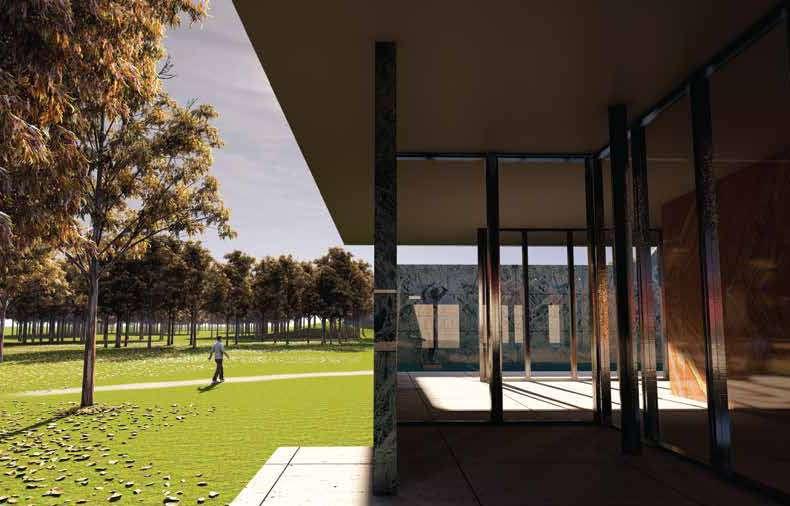

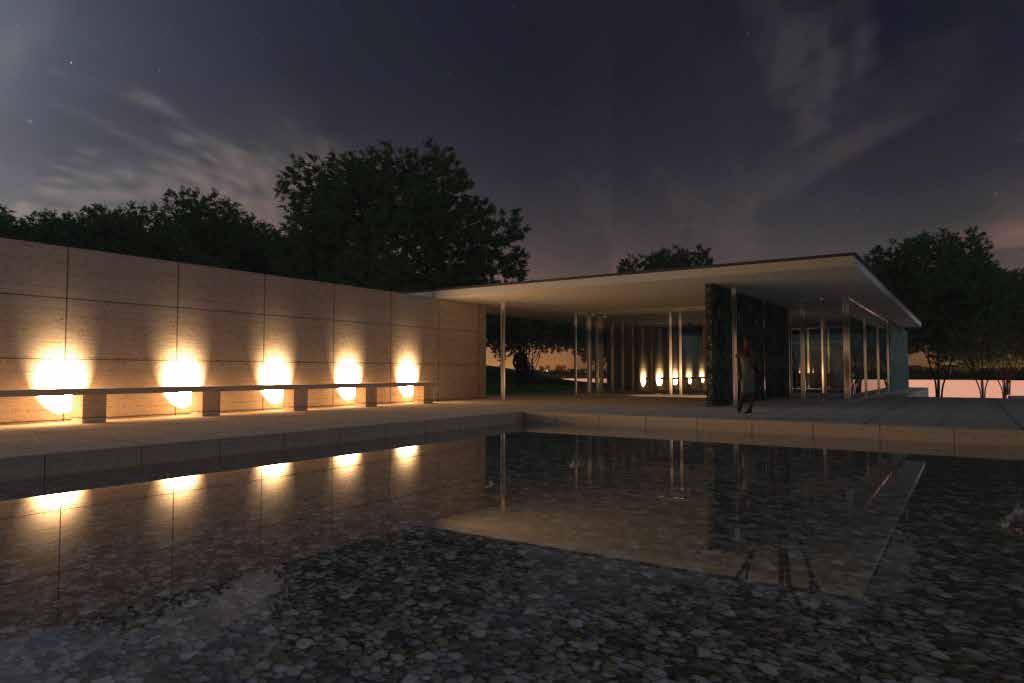

VRAY

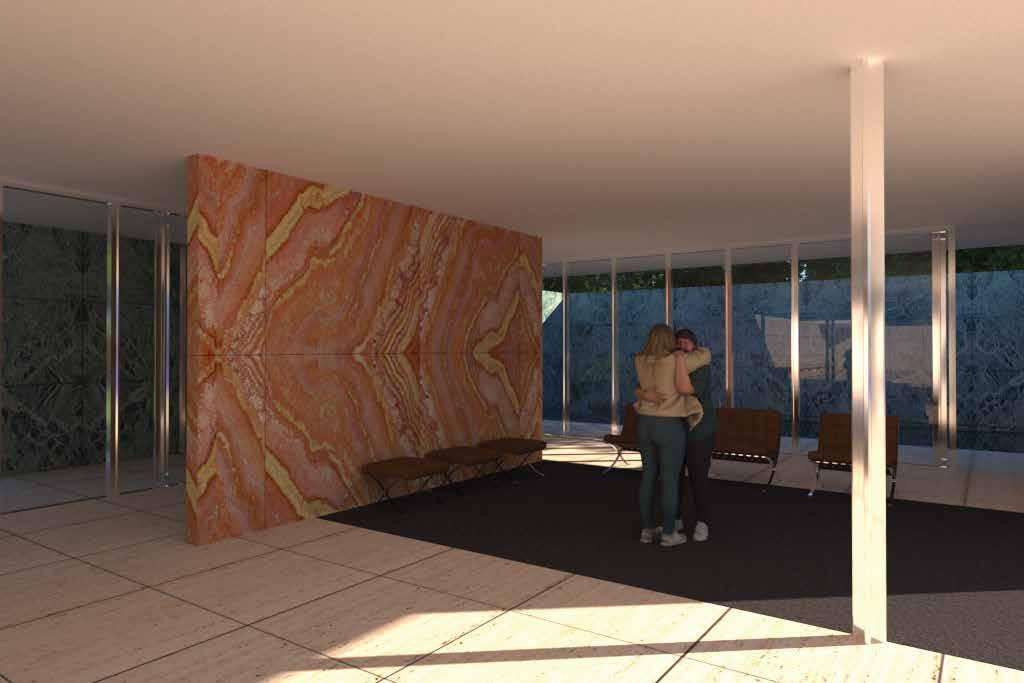

VRAY
VRAY
ARCHITECTURAL DETAILS
THIS PROJECT SHOWCASES VARIOUS WALL TYPES AND CONSTRUCTION DETAILS, EMPHASIZING THEIR ROLE IN UNDERSTANDING BUILDING CONSTRUCTABILITY EACH DETAIL INCLUDES SPECIFICATIONS FOR MATERIALS, INSULATION, AND FINISHES, ALONGSIDE CONNECTION METHODS THAT ENSURE STRUCTURAL INTEGRITY. THIS COMPILATION SERVES AS A RESOURCE FOR COMPREHENDING THE PRACTICAL CONSIDERATIONS IN BUILDING DESIGN AND CONSTRUCTION PROCESSES.
VINYL/ ALUM SIDING (RAINSCREEN)
2X1 FURRING Strips @16'' O/C MAX 1'' Air space (Drainage SPACE)
2x8'' header with beads of sealant
6 mil Polyethelene (VAPOR BARRIER)
self draining house wrap (DRAINAGE BARRIER)
1 1 4'' (r-7.5) polyiso board insulation sheating (cont. insulation)
2X6'' SOLE PLATE IN BEADS OF SEALANT
ACOUSTICAL SEALANT
3 4'' PLYWOOD
2x8'' WOOD JOIST @16" O/C MAX
Vapor Air Pressure
3'' (R-19.5) spray foam polyurethane INSULATION (AIR BARRIER)
5 8'' Gwb Ptd
2- 2x6'' top plates w/ beads of sealant
AIR & VAPOR MOVEMENT Drying
HOT CLIMATE WALL DETAIL
SCALE: 1'-1/2'' = 1'-0''
2 1 2'' UTILITY SPACE
2X6'' WOOD STUDS @16'' O/C MAX
VINYL/ ALUM SIDING (RAINSCREEN)
1'' Air space (Drainage SPACE)
2X1 FURRING Strips @16'' O/C MAX
2x8'' header with beads of sealant
self draining house wrap (DRAINAGE BARRIER)
1 1 4'' (r-7.5) polyiso board insulation sheating (cont. insulation)
2X6'' SOLE PLATE IN BEADS OF SEALANT
ACOUSTICAL SEALANT
3 4'' PLYWOOD
2x8'' WOOD JOIST @16" O/C MAX
VINYL/ ALUM SIDING (RAINSCREEN)
1'' Air space
(Drainage SPACE)
2X1 FURRING Strips @16'' O/C MAX
2x8'' header with beads of sealant
6 mil Polyethelene (VAPOR BARRIER)
self draining house wrap (DRAINAGE BARRIER)
5 8'' Gwb Ptd
2- 2x6'' top plates w/ beads of sealant
1 1 4'' (r-7.5) polyiso board insulation sheating (cont. insulation)
Vapor Air Pressure
3'' (R-19.5) spray foam polyurethane INSULATION (AIR BARRIER)
2 1 2'' UTILITY SPACE
2X6'' WOOD STUDS @16'' O/C MAX
MIXED CLIMATE WALL DETAIL
3 SCALE: 1'-1/2'' = 1'-0'' FLOW THRU METHOD
2X6'' SOLE PLATE IN BEADS OF SEALANT
ACOUSTICAL SEALANT
3 4'' PLYWOOD
2x8'' WOOD JOIST @16" O/C MAX
Vapor Air Pressure
2 AIR & VAPOR MOVEMENT
3'' (R-19.5) spray foam polyurethane INSULATION (AIR BARRIER)
5 8'' Gwb Ptd
2- 2x6'' top plates w/ beads of sealant
AIR & VAPOR MOVEMENT
2 1 2'' UTILITY SPACE
2X6'' WOOD STUDS @16'' O/C MAX
MIXED CLIMATE WALL DETAIL 4 SCALE: 1'-1/2'' = 1'-0'' MIDDLE OF WALL VAPOR BARRIER
1 1 2'' exterior stucco (rainscreen/ Rainseal) wire mesh - cont.
horizontal joint reinforcedment @16" o/c vertically - typ.
10" reinf. cmu wall (water storage reservoir)
FACE SEAL BARRIER WALL W/ WATER STORAGE RESERVOIR
5 SCALE: 1'-1/2'' = 1'-0'' *BEST USED IN REGION OF MODERATE ANNUAL RAINFALL OF 20" TO 40"
1'' stucco W/ W.P. ADDITIVE (FACE seal) NYLON mesh - cont.
2 layers of self draining water barrier (drainage surface)
2" rigid insulation 2x6 wood plate
3 4" exterior plywood sheating
FACE SEALED WALL WITHOUT WATER STORAGE RESERVOIR 6 SCALE: 1'-1/2'' = 1'-0'' *BEST USED IN REGION OF MODERATE ANNUAL RAINFALL OF 20" TO
VINYL SIDING (RAINSCREEN)
WATERPROFING MEMBRANE (DRAINAGE SURFACE)
1'-1/2'' = 1'-0'' DRAINAGE SURFACE W/O DRAINAGE SPACE
USED IN REGION OF MODERATE ANNUAL RAINFALL OF 20" TO 40"
VINYL SIDING (RAINSCREEN)
WATERPROFING MEMBRANE (DRAINAGE SURFACE) 2x6 wood studs @16" O/C MAX
1" AIR SPACE W/ VERTICAL FURRING STRIPS (DRAINAGE SPACE)
SCALE: 1'-1/2'' = 1'-0'' DRAINAGE SURFACE W/ A DRAINAGE SPACE
USED IN REGION OF HIGH ANNUAL RAINFALL OF 40" TO 60"
