PHANTOM FABRIC
Redefining Multispectral Concealment Technology

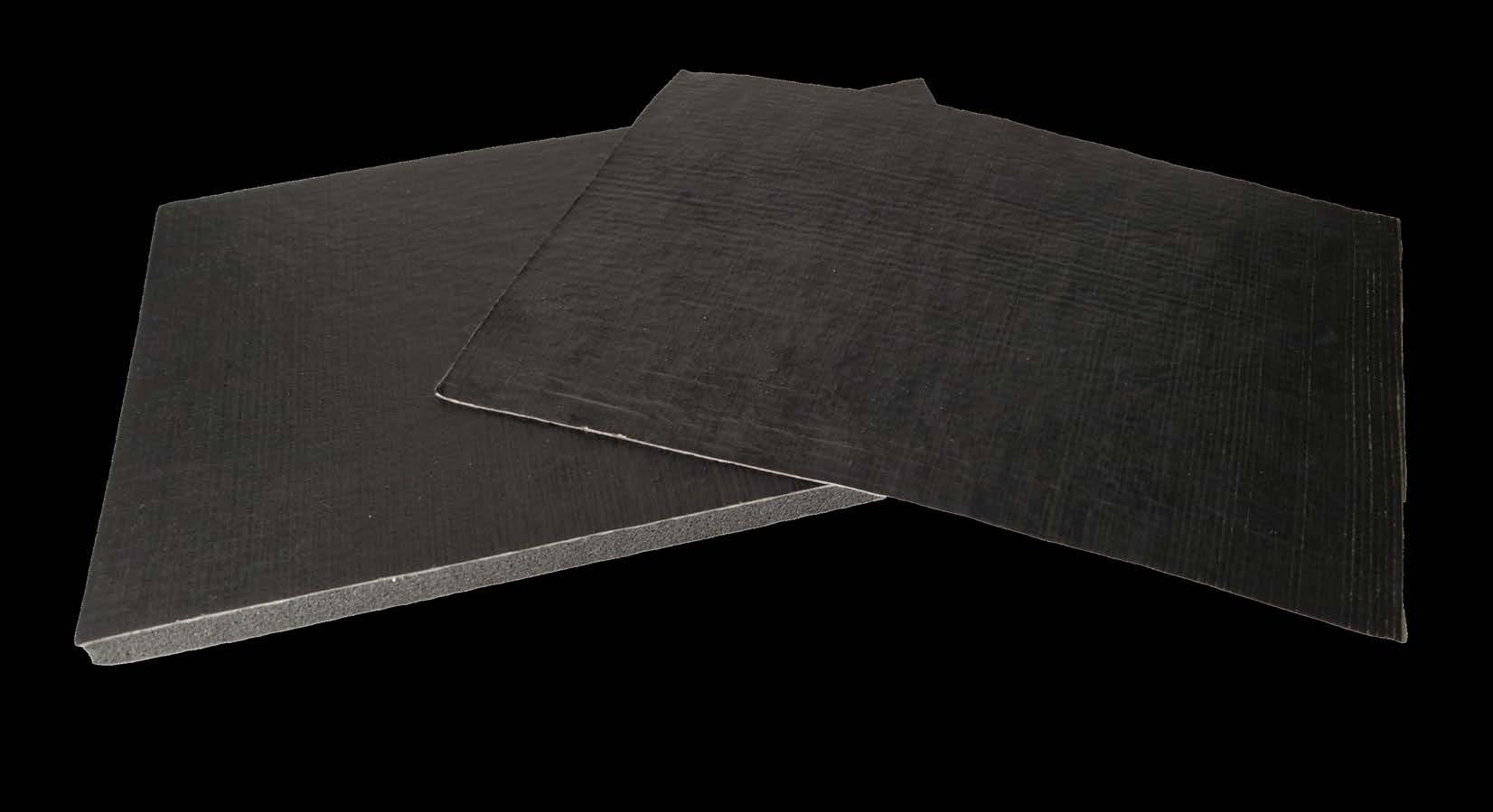

Polar Apex Phantom Fabric stands as a pinnacle of innovation in the realm of multispectral signature management. Its unique composition consists of carbon nanotube-coated surface layer, proprietary thin yet rigid aerogel, and an ultra-thin reflective surface, setting it apart from conventional concealment materials.
Complete Multispectral Protection
This advanced fabric offers comprehensive concealment across a wide spectrum of sensors, including ultraviolet (UV), visual (VIS), near infrared (NIR), short-wave infrared (SWIR), thermal infrared (TIR), and radar (RR). By minimizing the contrast between objects and their surroundings, it makes sensory detection more challenging, prompting adversaries to close in for engagement.
LIGHT WEIGHT
SUPERIOR THERMAL MANAGEMENT
COMPLETE MULTISPECTRAL PROTECTION
PHANTOM FABRIC
Efficient Heat Signature Management
A key feature of Polar Apex Phantom Fabric is its efficient heat signature management, maintaining stealth even after prolonged exposure. By preventing the emission of detectable heat signatures, it enhances operational security and ensures sustained concealment.
Versatility and Adaptability
Crafted for ease of use, Polar Apex Phantom Fabric can also be manufactured in block form with adhesive backing, facilitating seamless integration onto land, air, or sea vehicles. This user-friendly design enables swift deployment and operational adaptability across a range of mission scenarios.

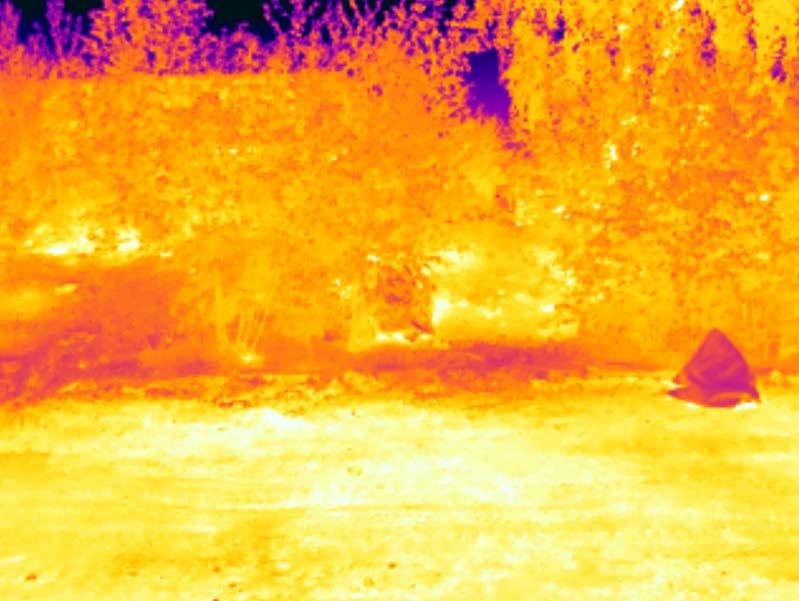

Subject under Polar Apex Phantom Fabric
Subject under fabric: 27 min Outside temperature: 17 °C Hottest spot on fabric 19 °C Distance 1.5 meters

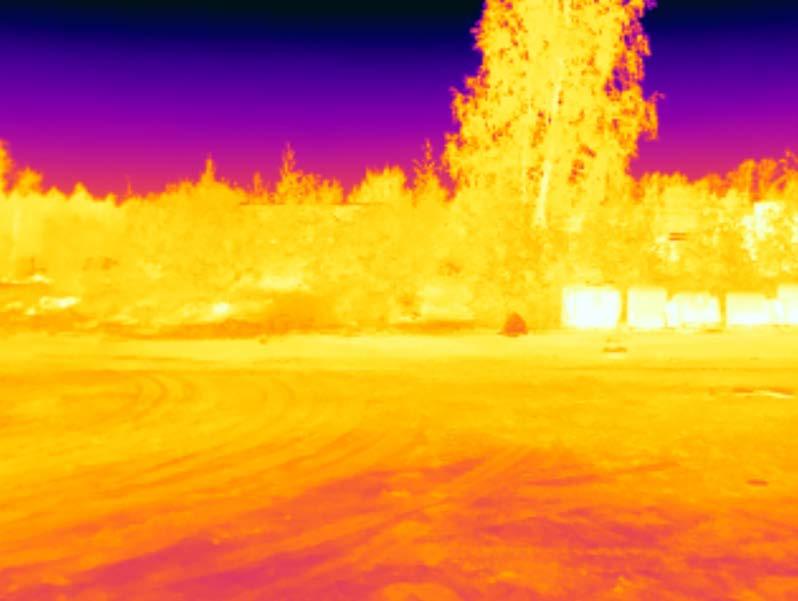

Subject under Polar Apex Phantom Fabric Reference regular camo-fabric
Reference regular camo-fabric
Subject under fabric: 27 min Outside temperature: 17 °C Hottest spot on fabric 19 °C Distance 15 meters

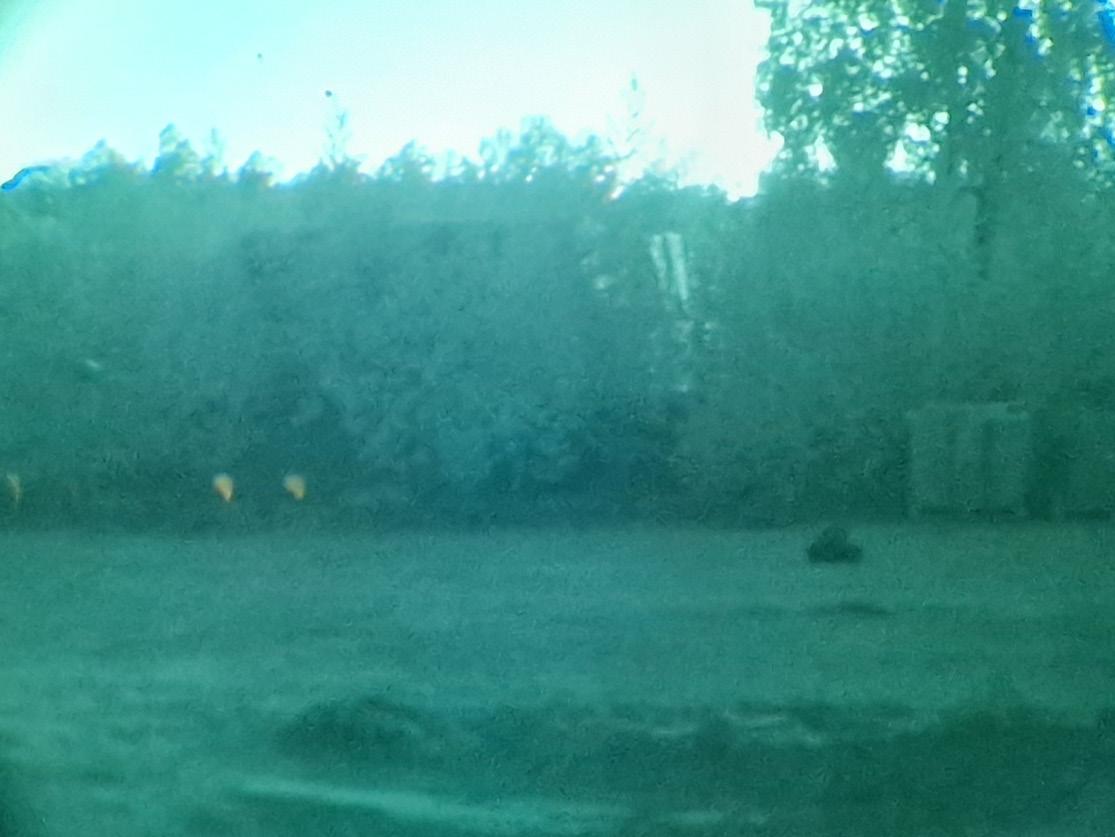

Subject under Polar Apex Phantom Fabric with no camo-pattern (through night vision)

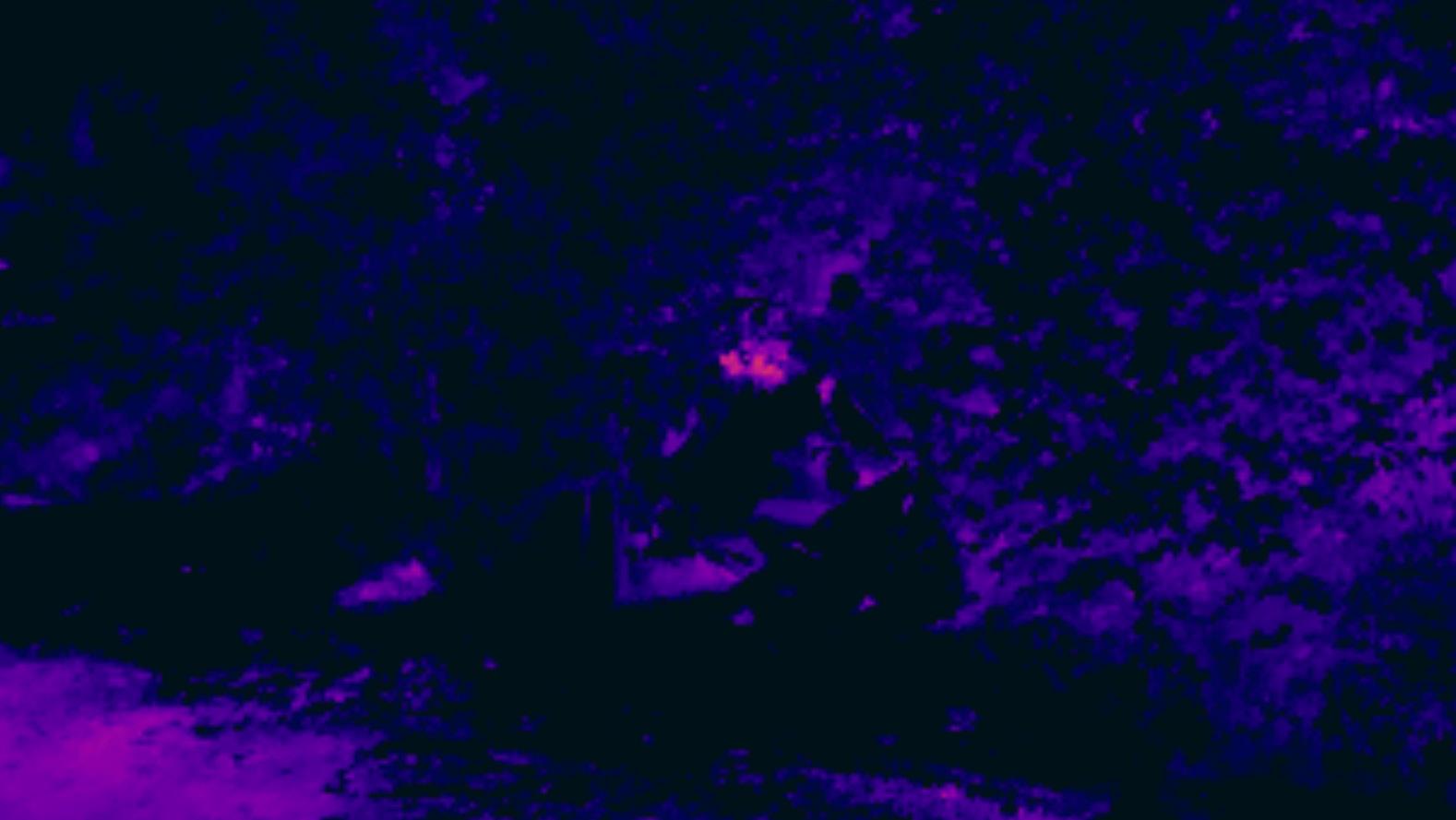

Subject without any cover
Outside temperature: 17 °C Distance 1.5 meters

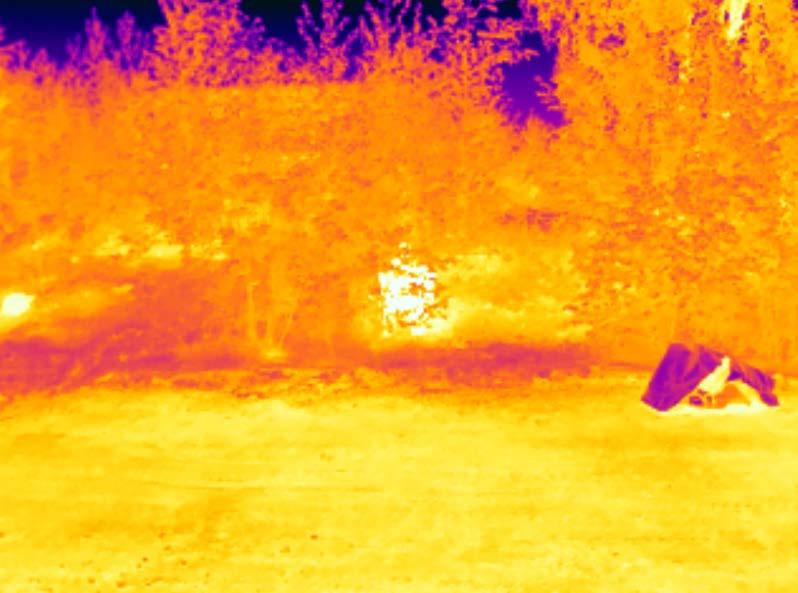

Subject under Polar Apex Phantom Fabric against wooden structure, without foilage
Reference regular camo-fabric
ACTinBlack Night Vision Distance 1 meter
Subject under fabric: 12 min Outside temperature: 18 °C
Hottest spot on fabric 17 °C Distance 10 meters

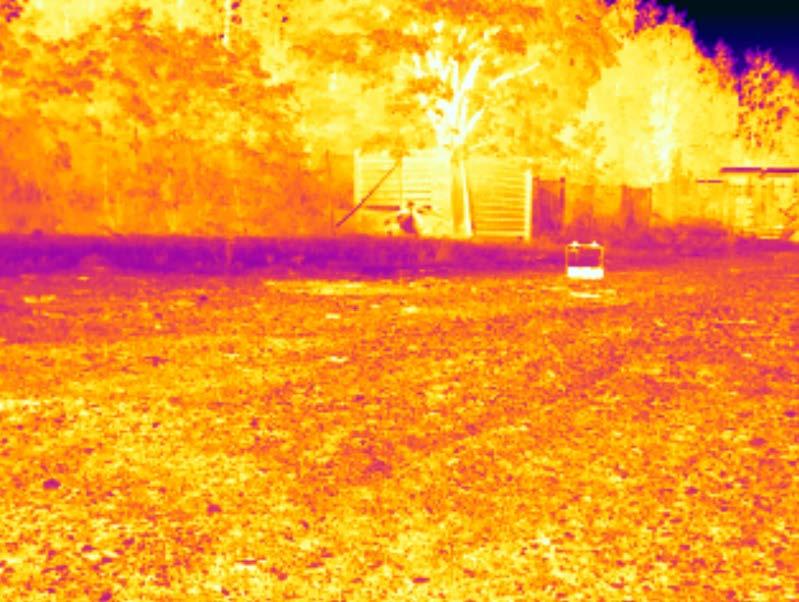

Subject under Polar Apex Phantom Fabric against wooden structure, without foilage
Reference NIR camo-fabric

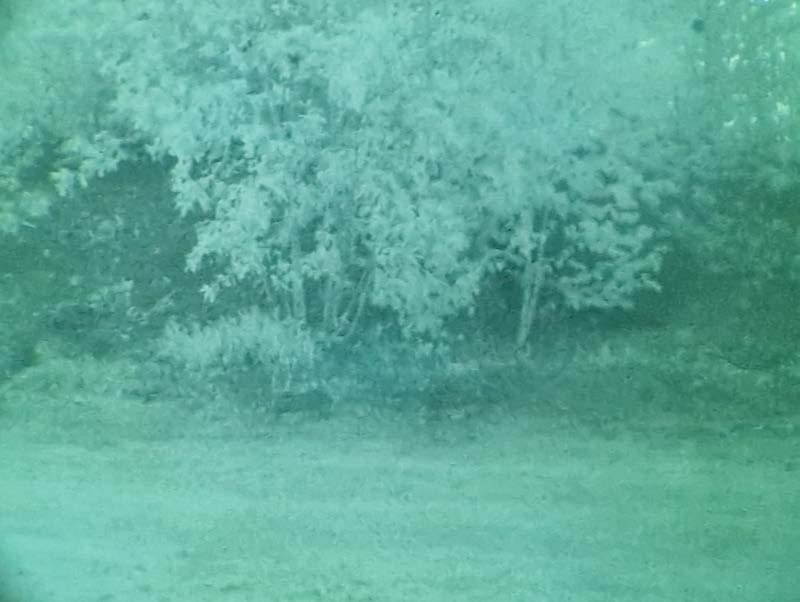

Night Vision Distance 15 meters
ACTinBlack
PHANTOM FABRIC
Dimensions
Width (W) Based on use application
Height (H) Based on use application
Thickness Thinnest at 1.25 mm, panel size based on requirements
Weight Based on use application
Materials
Top Layer* Carbon nanotube coated (can be in camo pattern also with coating)
Middle
Bottom
Stiching
