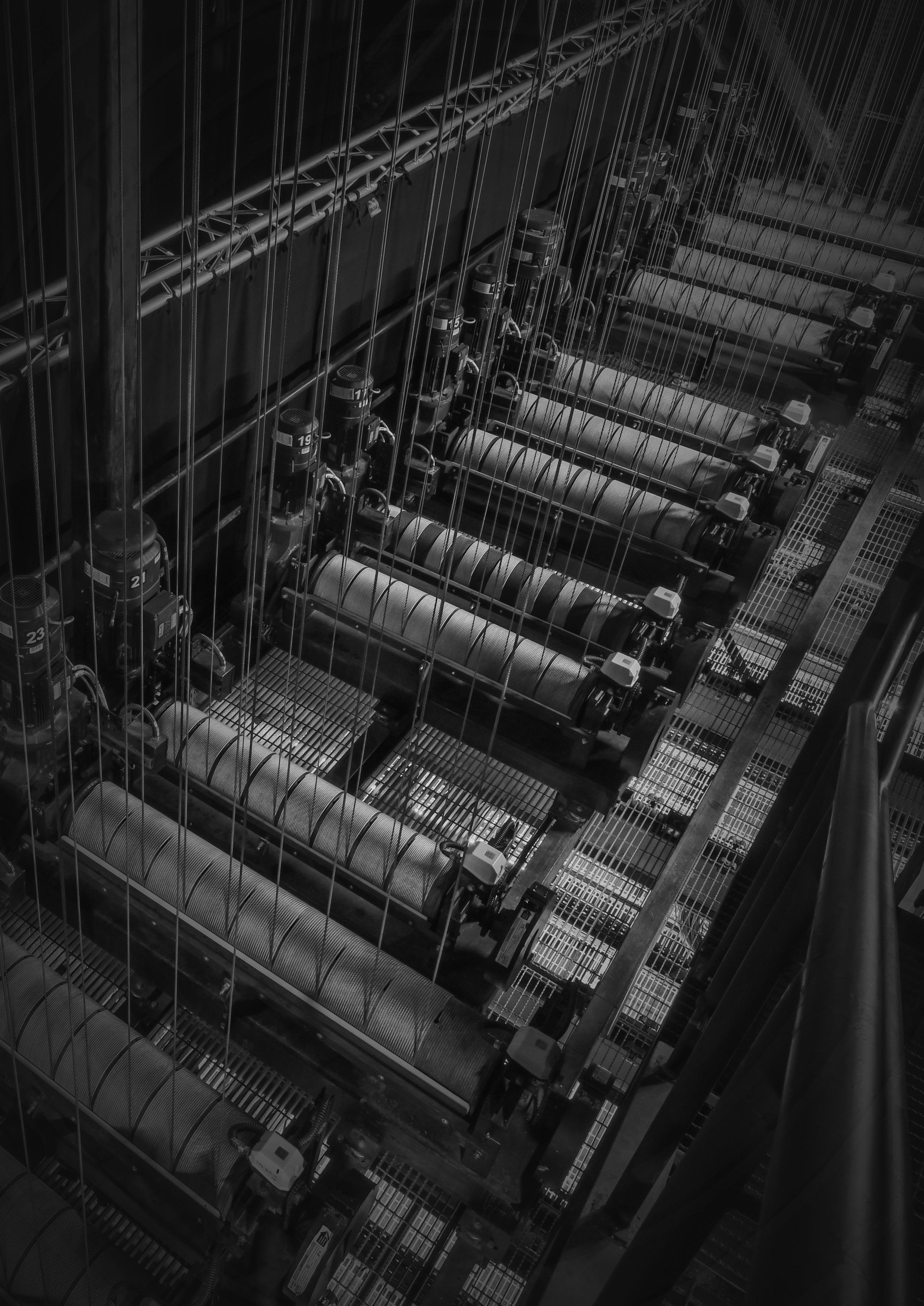

POWERED

FLYING SYSTEMS

Contents Stagehand 17206 Pilewind

04

Stagehand Pilewind

08

Pulleys

12

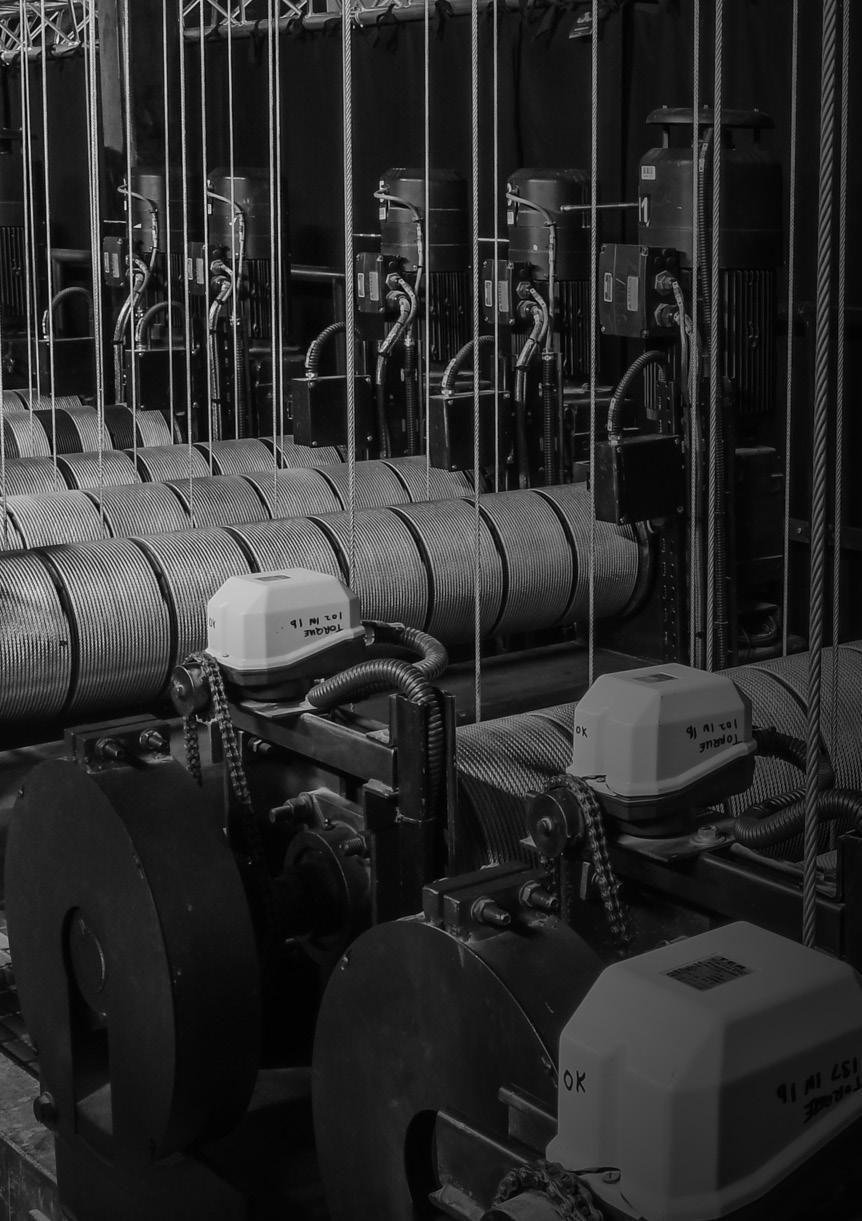

STAGEHAND PILEWIND WINCH

17206

Page 04

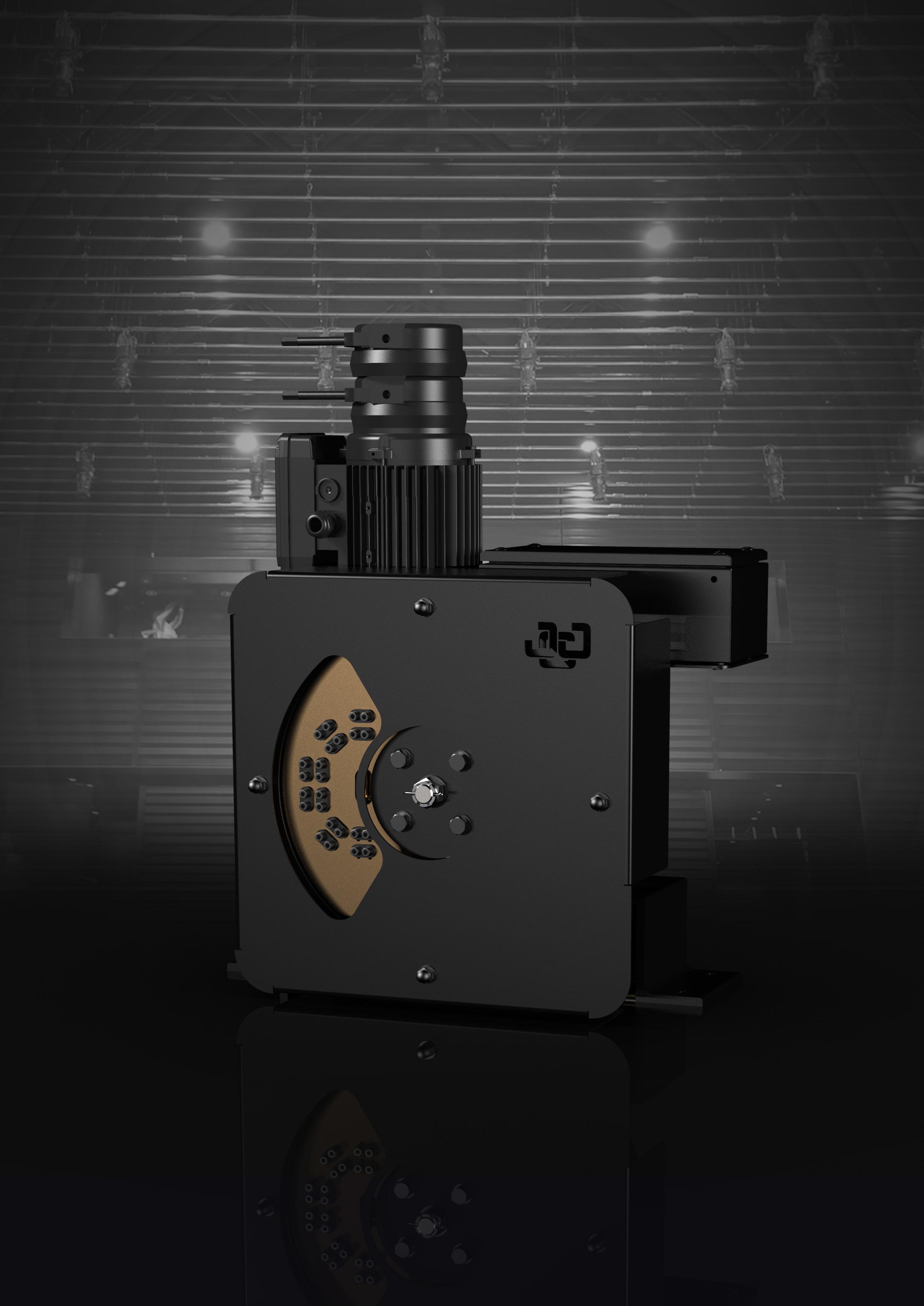

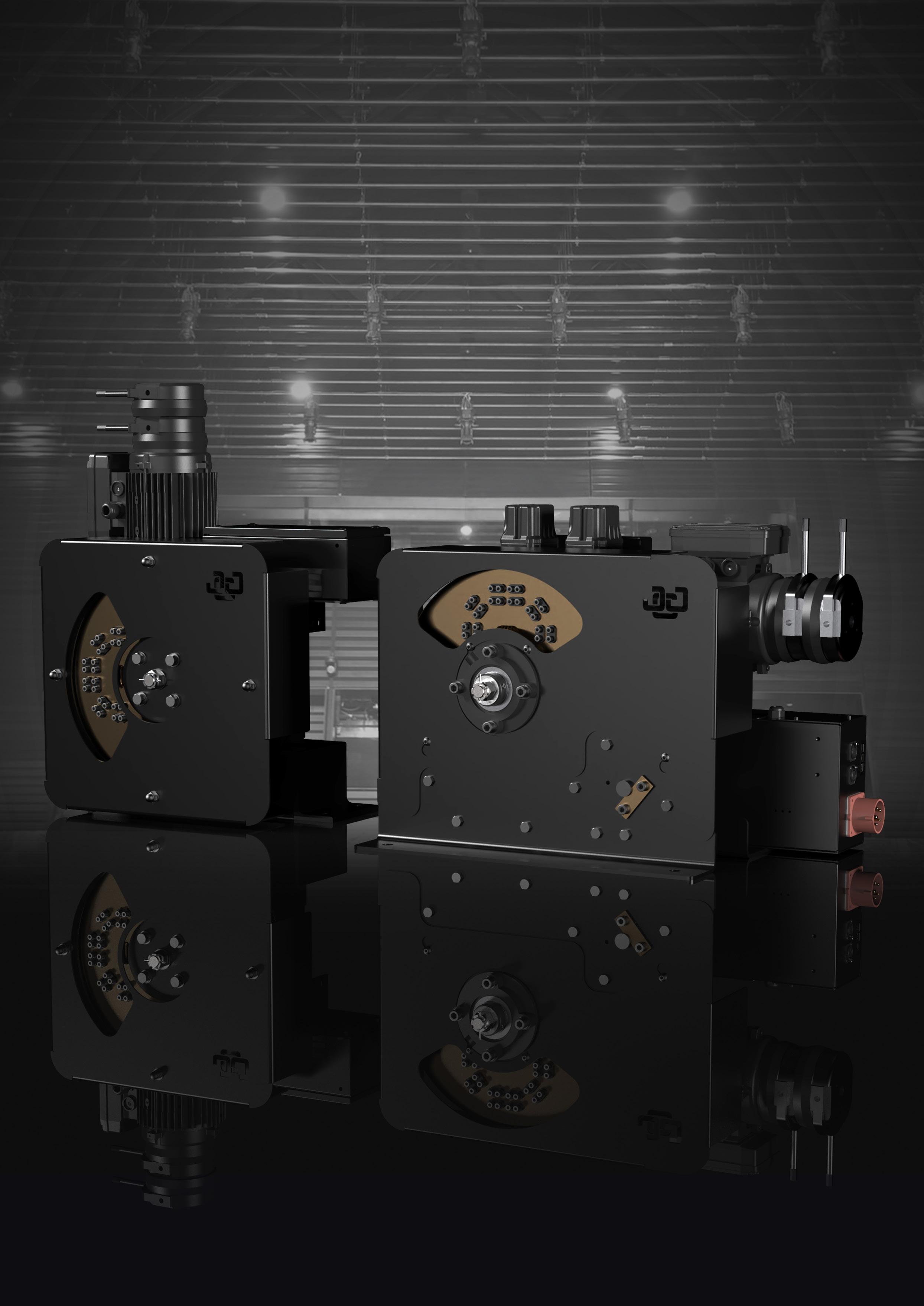

J&C Joel’s EN 17206:2020 UC1 & UC2 Compliant Pilewind Winch

At a Glance The Stagehand 17206 Pilewind Winch brings additional safety at a cost effective price for theatre lifting applications.

It comes fully EN 17206:2020 compliant for UC1 and UC2 and is CE marked. We offer a range of WLL capacities and can vary the number of lines to suit your needs. The standard sizes are shown in the table below. Custom options are available upon request.

Standard Features • MGM Motor with self-sustaining gearbox • Two Precima Brakes with manual release • Load-cell head pulley • Overload and underload protection • Two limit switches for end & ultimate travel • Redundant rope keeps on the drum • Floor, wall or ceiling mountable • EN 17206:2020 Compliant for UC1 & UC2 • CE Marked

Optional Features • Soft start/stop & variable speed • Absolute Encoder • Slack line detection • Motor overheat detection • Brake release sensors

LOCAL

CONTROL

TEST

POWER

BYPASS

UP LIM

UP LIM

UP

BYPASS

DO LIM

DOWN

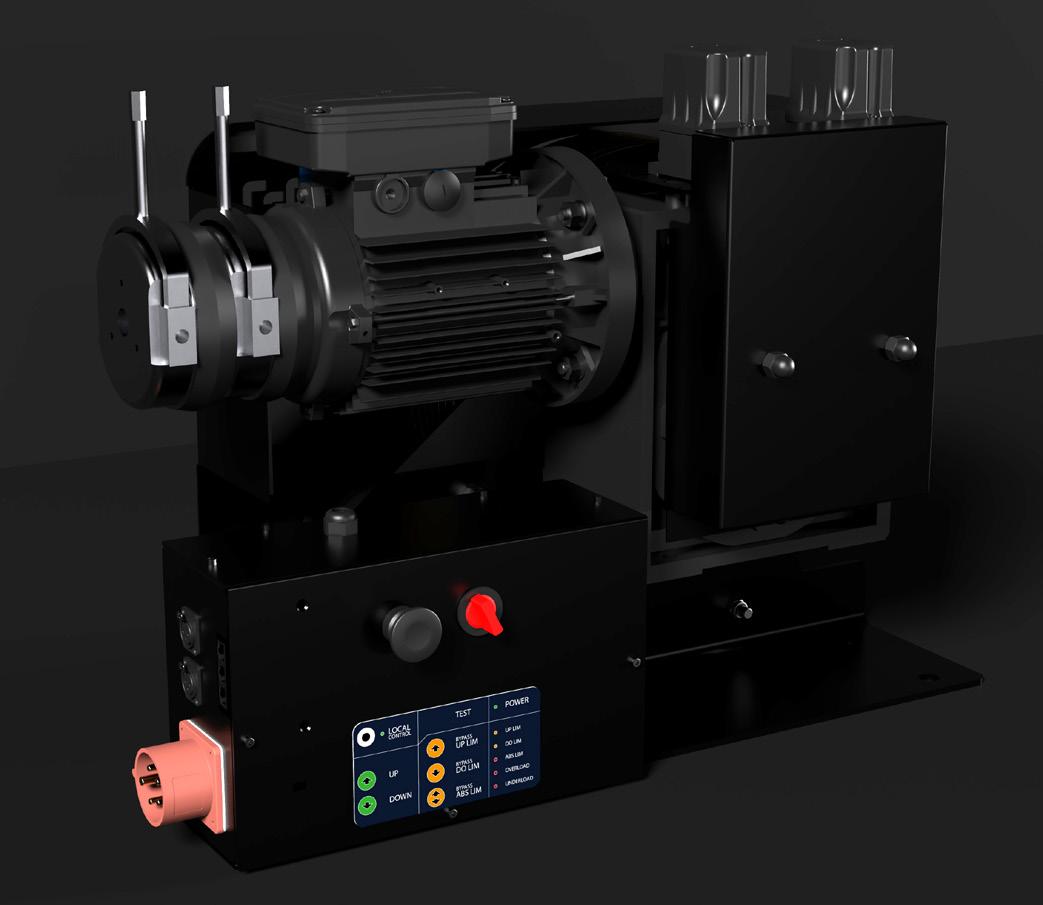

Local Control Features

BYPASS

ABS LIM

Every Stagehand 17206 comes with a control box local to each unit, which includes a series of features that ensure EN 17206:2020 compliancy.

DO LIM

The local controller uses a series of toggle switches to

ABS LIM

set the winch for local control and remote control. A set

OVERLOAD

of LED lights indicate the current status of the hoist, for

UNDERLOAD

example whether the system is overloaded or if a limit switch is triggered.

• Local / remote control selection toggle • Power status indication • Limit struck indication • Limit switch bypass for testing • Overload / Underload detection • Power source failure indication • Local e-stop for individual winch • Local isolator on control box

Page 05

Local Control Interface

System Control Overview

System Control Schematic

The Stagehand 17206 is compatible with numerous control systems and J&C Joel can advise on the most suitable for your needs. Full schematics are available on request.

Pilewind

An entry level, cost effective control schematic is shown to the left. This includes a power distribution MCC and a wall

Pilewind

mounted controller. The Controller comes supplied with a key for security and an E-stop. The key features are;

4 core 1.5mm YY cable

5 core 2.5mm YY Cable 380V 50Hz

Pilewind

E-Stop

E-Stop

2 core 1.0mm YY Cable

4 core 1.0mm YY cable

MCC

Key operated Wall Panel Control

• Entry level control which is EN17206:2020 compliant • Wall mounted control panel • Winch selection on the control panel • Key to lock the panel when not in use

380V 50Hz

Stagehand 17206 Variants Winch ID JCJ-PW+300-3 JCJ-PW+300-4 JCJ-PW+300-5 JCJ-PW+300-6 JCJ-PW+500-3 JCJ-PW+500-4 JCJ-PW+500-5 JCJ-PW+500-6 JCJ-PW+700-3 JCJ-PW+700-4 JCJ-PW+700-5 JCJ-PW+700-6 JCJ-PW+1000-3 JCJ-PW+1000-4 JCJ-PW+1000-5 JCJ-PW+1000-6 JCJ-PW+300-3-T JCJ-PW+300-4-T JCJ-PW+300-5-T JCJ-PW+300-6-T JCJ-PW+500-3-T JCJ-PW+500-4-T JCJ-PW+500-5-T JCJ-PW+500-6-T JCJ-PW+700-3-T JCJ-PW+700-4-T JCJ-PW+700-5-T JCJ-PW+700-6-T JCJ-PW+1000-3-T JCJ-PW+1000-4-T JCJ-PW+1000-5-T JCJ-PW+1000-6-T

WLL (kg) 300 300 300 300 500 500 500 500 700 700 700 700 1000 1000 1000 1000 250 250 250 250 450 450 450 450 650 650 650 650 900 900 900 900

No. Lines 3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6

Speed (m/s) 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.04-0.08 0.04-0.08 0.04-0.08 0.04-0.08 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.1-0.2 0.04-0.08 0.04-0.08 0.04-0.08 0.04-0.08

Travel (m) 14 14 14 14 12 12 12 12 12 12 12 12 12 12 12 12 22 22 22 22 18 18 18 18 18 18 18 18 18 18 18 18

Rope Ø (mm) 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6 6 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6 6

Self Weight 123 129 136 143 159 166 173 180 194 200 207 214 206 212 219 226 128 134 141 148 164 171 178 185 199 205 212 219 211 217 224 231

Power (kw) 1.1 1.1 1.1 1.1 1.85 1.85 1.85 1.85 2.2 2.2 2.2 2.2 1.5 1.5 1.5 1.5 1.1 1.1 1.1 1.1 1.85 1.85 1.85 1.85 2.2 2.2 2.2 2.2 1.5 1.5 1.5 1.5

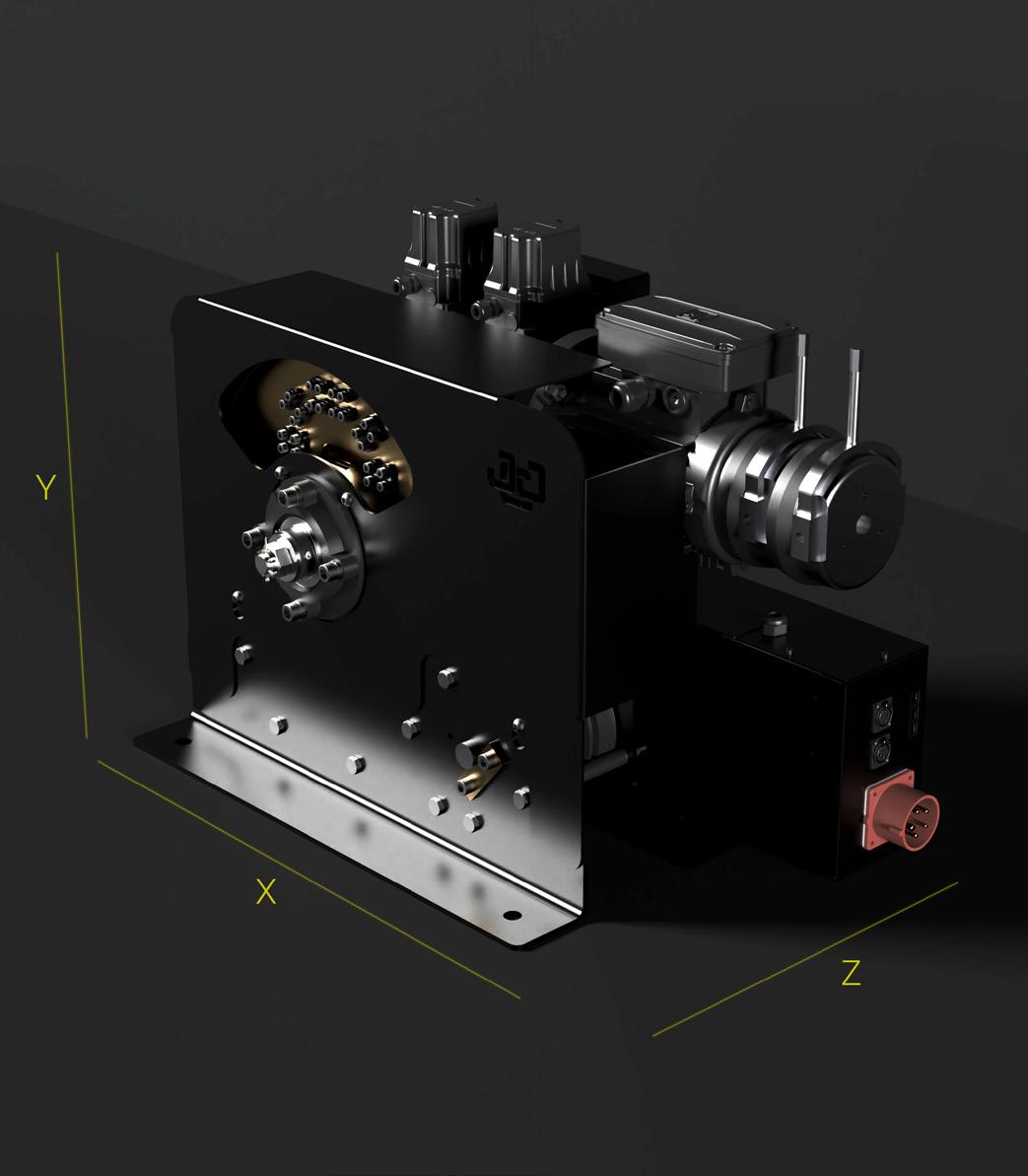

Dim. X (mm) 763 763 763 763 802 802 802 802 888 888 888 888 998 998 998 998 763 763 763 763 802 802 802 802 888 888 888 888 998 998 998 998

Dim. Y (mm) 537 537 537 537 601 601 601 601 641 641 641 641 706 706 706 706 537 537 537 537 601 601 601 601 641 641 641 641 706 706 706 706

Dim. Z (mm) 467 467 467 467 685 685 685 685 515 515 515 515 506 506 506 506 467 467 467 467 685 685 685 685 515 515 515 515 506 506 506 506

Spacing Spacing A (mm) B (mm) 488 244 488 244 488 244 488 244 706 353 706 353 706 353 706 353 536 268 536 268 536 268 536 268 526 263 526 263 526 263 526 263 488 244 488 244 488 244 488 244 706 353 706 353 706 353 706 353 536 268 536 268 536 268 536 268 526 263 526 263 526 263 526 263

Centre to Centre Spacing

Page 06

Set centres with hoists adjacent - See table spacing A

Set centres with hoists offset - See table spacing B

Page 07

Page 08

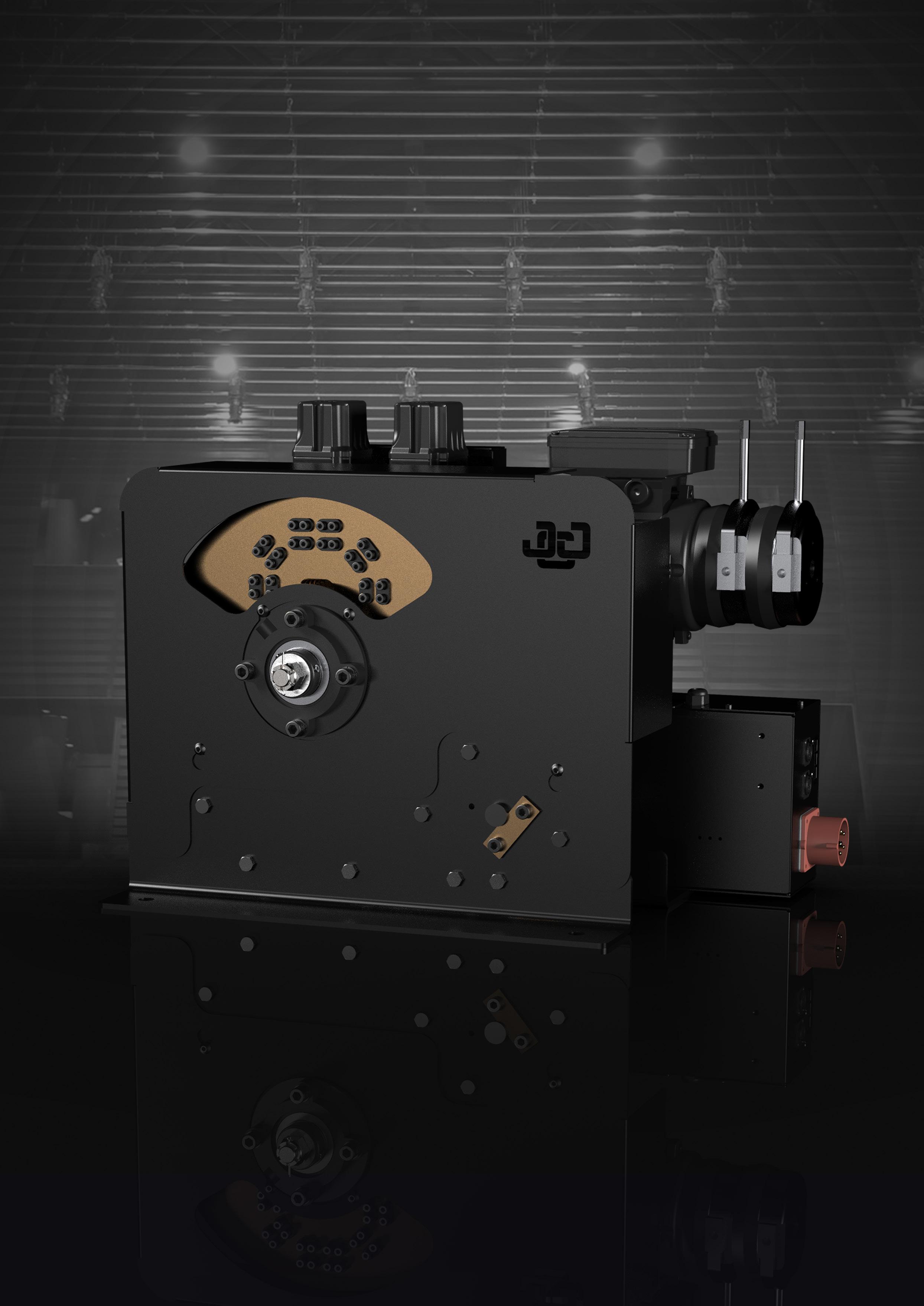

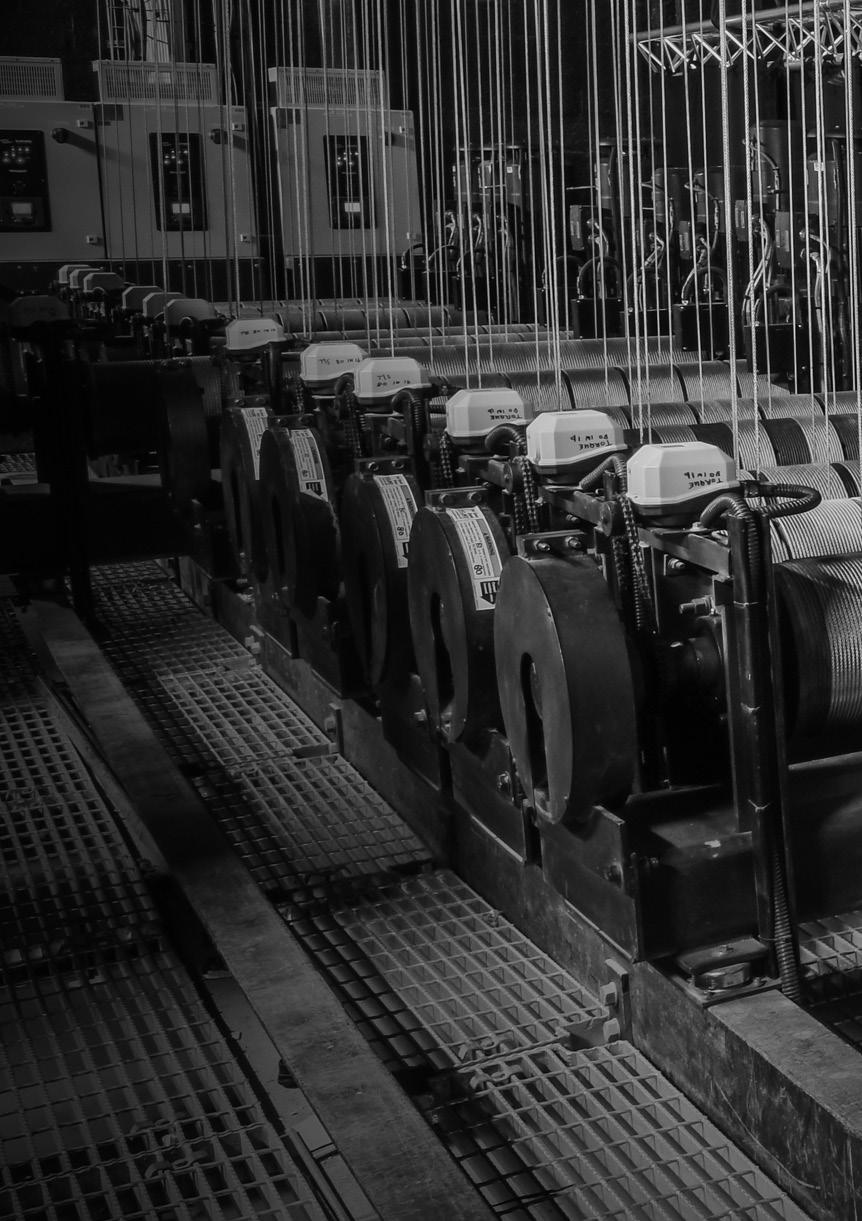

STAGEHAND PILEWIND WINCH

At a Glance The Stagehand Pilewind Winch is J&C Joel’s entry level winch for theatre lifting applications. We offer a range of ELL capacities and can vary the number of lines to suit your needs. The standard sizes are shown in the table below.

Custom options are available upon request.

Standard Features • MGM Motor with self-sustaining gearbox • Single or double Precima Brakes • Two limit switches for end & ultimate travel • Redundant rope keeps on the drum • Local control - up, down, e-stop • Floor, wall or ceiling mountable • CE Marked

Optional Features • Load-cell head pulley

andard Pilewind - Girts Control

• Overload and underload protection • Soft start/stop & variable speed • Absolute Encoder • Slack line detection • Motor overheat detection • Brake release sensors

Local Control Overview

System Control Schematic

Every Stagehand Pilewind Winch comes with a control box local to each unit. This includes an up, down and local e-stop.

System Control Overview

Pilewind

The Stagehand is compatible with numerous control systems and J&C Joel can advise on the most suitable for your needs. Full schematics are available on request.

An entry level, cost effective control schematic is shown

Pilewind

to the left. This includes a power distribution MCC and a wall mounted controller. The Controller comes supplied with a key for security and an E-stop.

4 core 1.5mm YY cable

5 core 2.5mm YY Cable 380V 50Hz

Pilewind

It is also possible to offer the Stagehand equipped with a cost effective soft start and stop add-on which uses a variable frequency drive.

380V 50Hz

4 core 1.0mm YY cable

MCC

Key operated Wall Panel Control

E-Stop

2 core 1.0mm YY Cable

Page 09

E-Stop

Stagehand Variants Winch ID

ELL (kg)

No. Lines

Speed (m/s)

Travel (m)

Rope Ø (mm)

Self Weight

Power (kw)

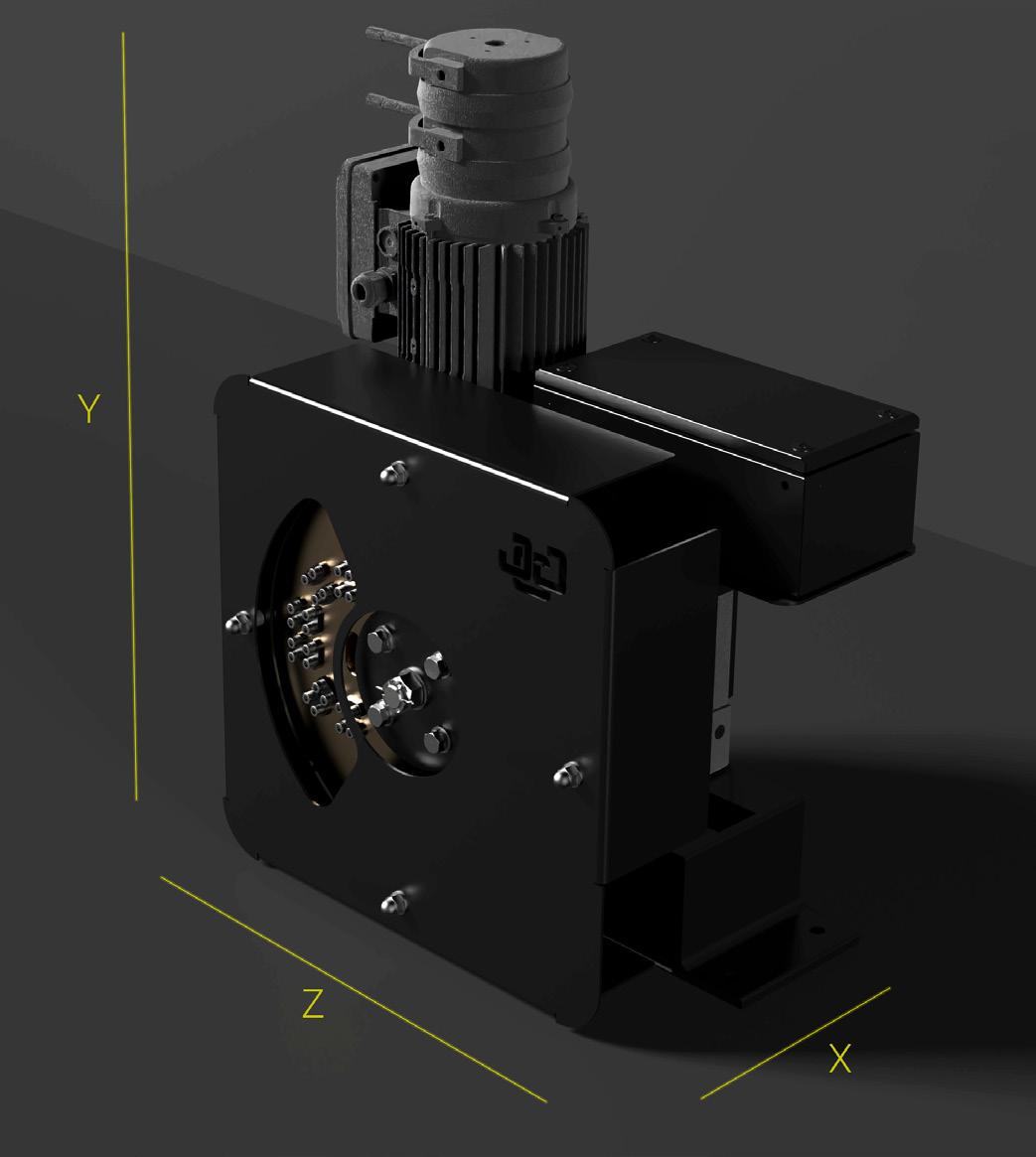

Dim. X (mm)

Dim. Y (mm)

Dim. Z (mm)

JCJ-PW-250-3 JCJ-PW-250-4 JCJ-PW-250-5 JCJ-PW-250-6 JCJ-PW-500-3 JCJ-PW-500-4 JCJ-PW-500-5 JCJ-PW-500-6 JCJ-PW-1000-3 JCJ-PW-1000-4 JCJ-PW-1000-5 JCJ-PW-1000-6 JCJ-PW-1000-3-F JCJ-PW-1000-4-F JCJ-PW-1000-5-F JCJ-PW-1000-6-F JCJ-PW-250-3-T JCJ-PW-250-4-T JCJ-PW-250-5-T JCJ-PW-250-6-T JCJ-PW-500-3-T JCJ-PW-500-4-T JCJ-PW-500-5-T JCJ-PW-500-6-T JCJ-PW-1000-3-T JCJ-PW-1000-4-T JCJ-PW-1000-5-T JCJ-PW-1000-6-T

250 250 250 250 500 500 500 500 1000 1000 1000 1000 1000 1000 1000 1000 200 200 200 200 450 450 450 450 900 900 900 900

3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6

0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.04 - 0.07 0.04 - 0.07 0.04 - 0.07 0.04 - 0.07 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.15 - 0.30 0.04 - 0.07 0.04 - 0.07 0.04 - 0.07 0.04 - 0.07

14 14 14 14 12 12 12 12 12 12 12 12 12 12 12 12 22 22 22 22 18 18 18 18 18 18 18 18

5 5 5 5 6 6 6 6 6 6 6 6 6 6 6 6 5 5 5 5 6 6 6 6 6 6 6 6

145 154 161 168 172 179 186 193 199 206 215 222 199 206 215 222 145 154 161 168 172 179 186 193 199 206 215 222

1.1 1.1 1.1 1.1 2.2 2.2 2.2 2.2 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.1 1.1 1.1 1.1 2.2 2.2 2.2 2.2 1.5 1.5 1.5 1.5

348 360 373 385 376 389 402 414 404 417 429 442 404 417 429 442 348 360 373 385 376 389 402 414 404 417 429 442

760 760 760 760 845 845 845 845 725 725 725 725 725 725 725 725 760 760 760 760 845 845 845 845 725 725 725 725

600 600 600 600 600 600 600 600 868 868 868 868 868 868 868 868 600 600 600 600 600 600 600 600 868 868 868 868

Spacing Spacing A (mm) B (mm) 368 380 393 405 396 409 422 434 424 437 449 462 424 437 449 462 368 380 393 405 396 409 422 434 424 437 449 462

184 190 196 202 198 205 211 217 212 218 225 231 212 218 225 231 184 190 196 202 198 205 211 217 212 218 225 231

Please note, the “-F” range requires use of the soft start and stop add-on.

Centre to Centre Spacing

Page 10

Set centres with hoists adjacent - See table spacing A

Set centres with hoists offset - See table spacing B

Page 11

Page 12

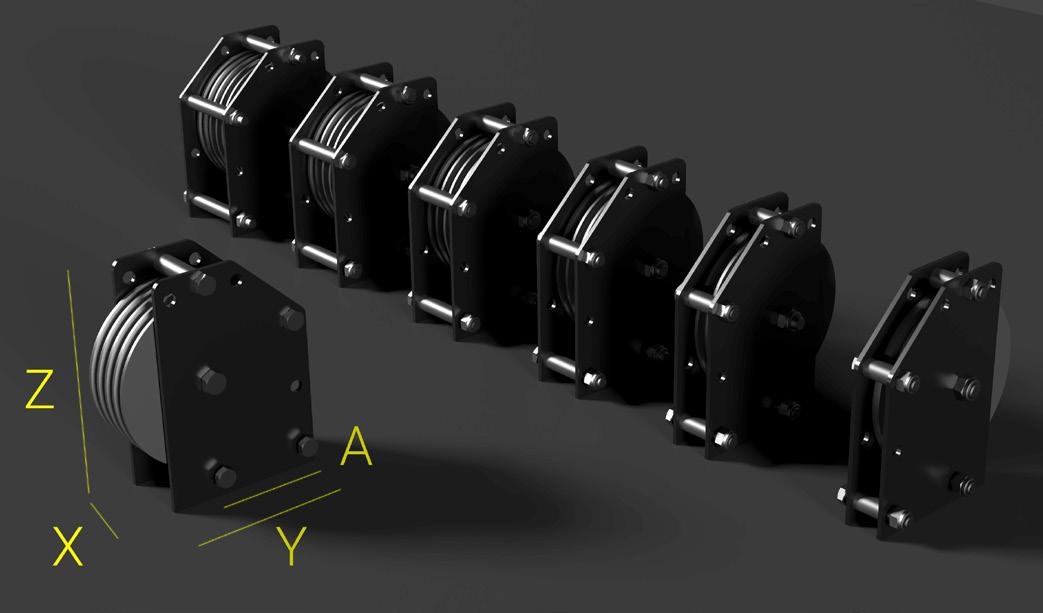

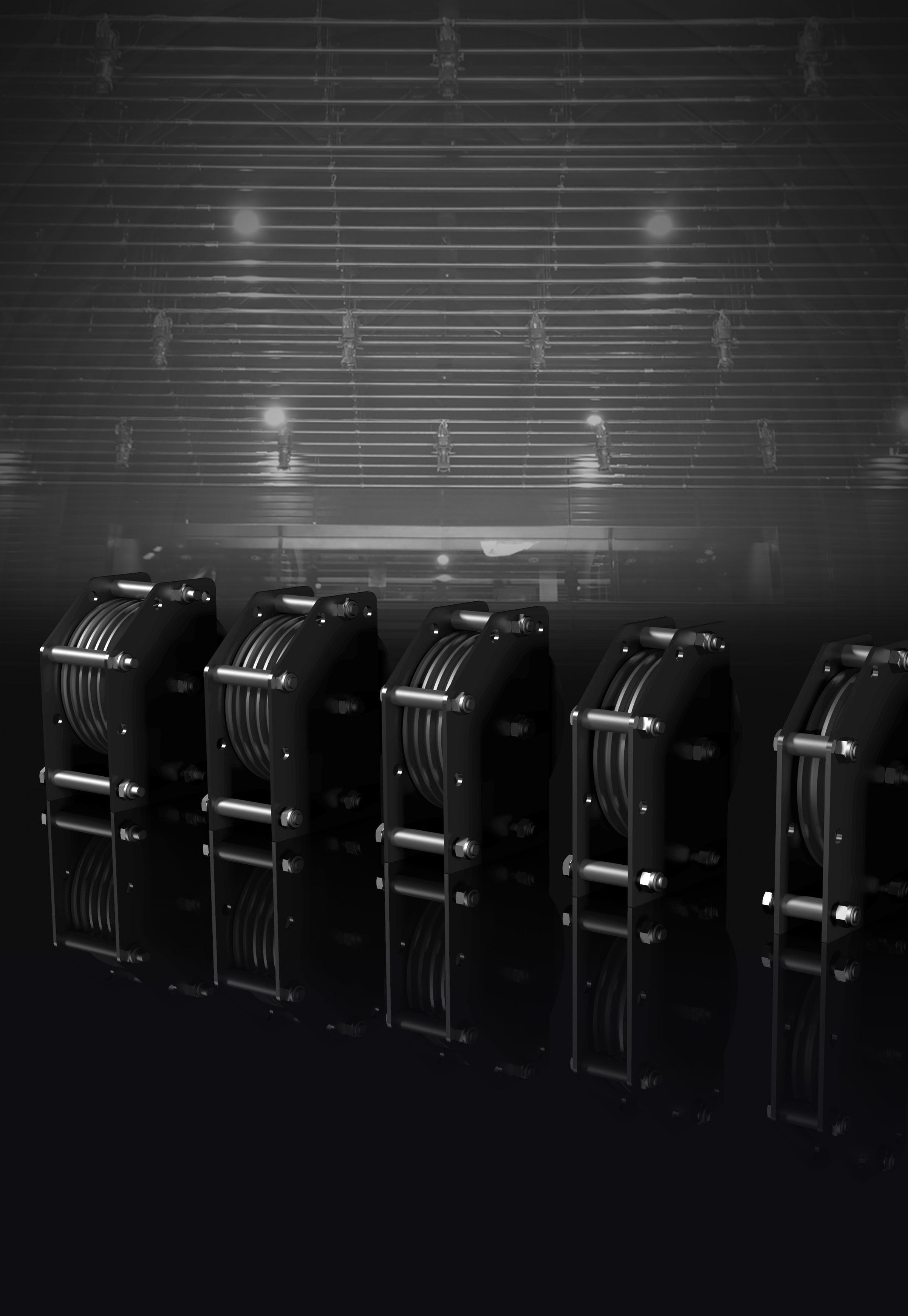

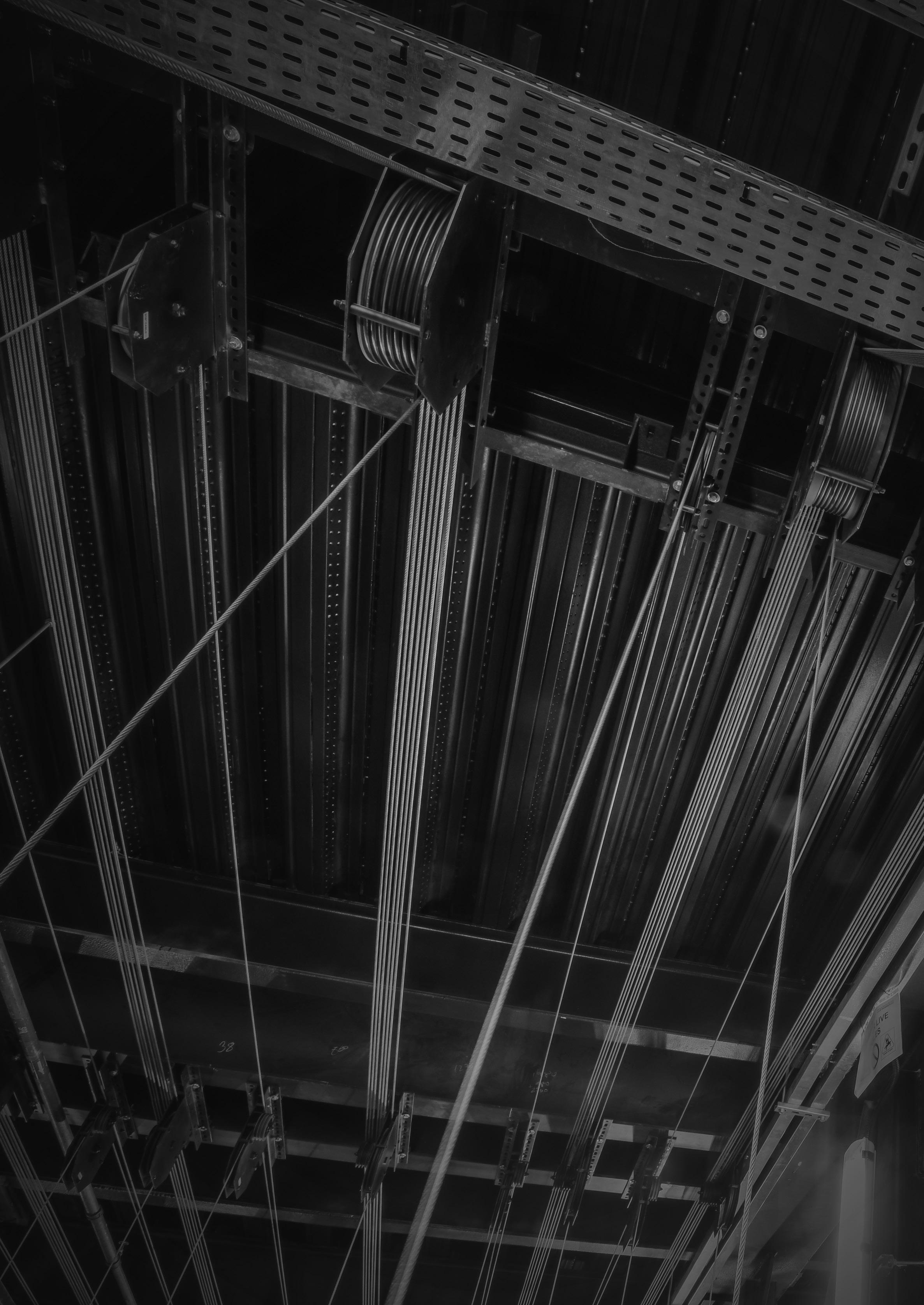

PULLEYS

At a Glance J&C Joel offer a range of pulleys designed for use with flying systems. We offer various WLL capacities and lines per pulley. Standard sizes are shown below. Custom options are available upon request.

Features • Suitable for manual or motorised systems • Dual ball bearings to assure smooth operation • Pulleys manufactured from black polyamide • Steel side plate and frame • WLL of upto 1000kg available on request • Standard and custom mounting brackets available • CE Marked

Mounting & Girder Dogs We have a range of solutions to clamp each pulley block onto an I beam. Our standard fixes to beams with a flange width between 41 - 207mm and a flange thickness of 10mm, with a safe working load of 250kg.

Custom brackets are available on request.

Pulley Variants WLL (kg)

Pulley Ø (mm)

Rope Ø (mm)

No. Lines

Dim. X (mm)

Dim. Y (mm)

Dim. Z (mm)

Dim. A (mm)

JCJ-PU-100-1 JCJ-PU-100-2 JCJ-PU-100-3 JCJ-PU-100-4 JCJ-PU-100-5 JCJ-PU-100-6 JCJ-PU-150-1 JCJ-PU-150-2 JCJ-PU-150-3 JCJ-PU-150-4 JCJ-PU-150-5 JCJ-PU-150-6 JCJ-PU-150-1-500 JCJ-PU-150-2-500 JCJ-PU-150-3-500 JCJ-PU-150-4-500 JCJ-PU-150-5-500 JCJ-PU-150-6-500

125 125 125 125 125 125 250 250 250 250 250 250 500 500 500 500 500 500

100 100 100 100 100 100 150 150 150 150 150 150 150 150 150 150 150 150

4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 6 6

1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6

36 36 45 53 62 70 36 42 54 66 78 90 40 46 58 70 82 94

142 142 142 142 142 142 167 167 167 167 167 167 172 172 172 172 172 172

150 150 150 150 150 150 200 200 200 200 200 200 205 205 205 205 205 205

80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80

Self Weight Plate (kg) Thickness 1.60 1.60 1.70 1.85 1.95 2.15 2.40 2.55 2.85 3.40 3.80 4.10 3.95 3.95 4.00 4.40 4.90 5.45

4 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6

Page 13

Pulley ID
