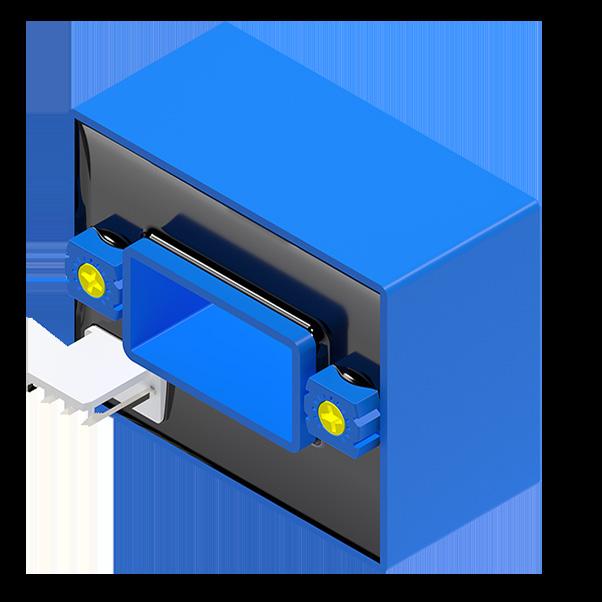

Hall-Effect Transducer

Features

• Hall-Effect current measurement principle • Galvanic seperation between primary and secondary circuit • 3.3kV Insulation resistance • Low power consumption • Single (+5V) power supply • Accurate and wide measurement range of AC and DC current • RoHS compliant materials and processes

Part Number Primary Current Maximum Current Accuracy Class Supply Voltage Output Voltage

(RL=10kΩ; IPN=0) Current Consumption External Load Resistor Interface Connector

HCVS001 Model Dependent 50 ~ 600A 50A: ± 150A 100A: ± 300A 150A: ± 450A 200A: ± 600A 300A: ± 900A 500A: ± 900A 600A: ± 900A 0.1 5V ± 0.25 2.5V ± 0.25 Typical: 19mA Maximum: 25mA 10kΩ Molex: 5045-04A

Note: This product can be used in applications that require measuring of current in AC and DC applications, not only AC applications as is the case with KG’s standard CTs.
