JBA-12.0

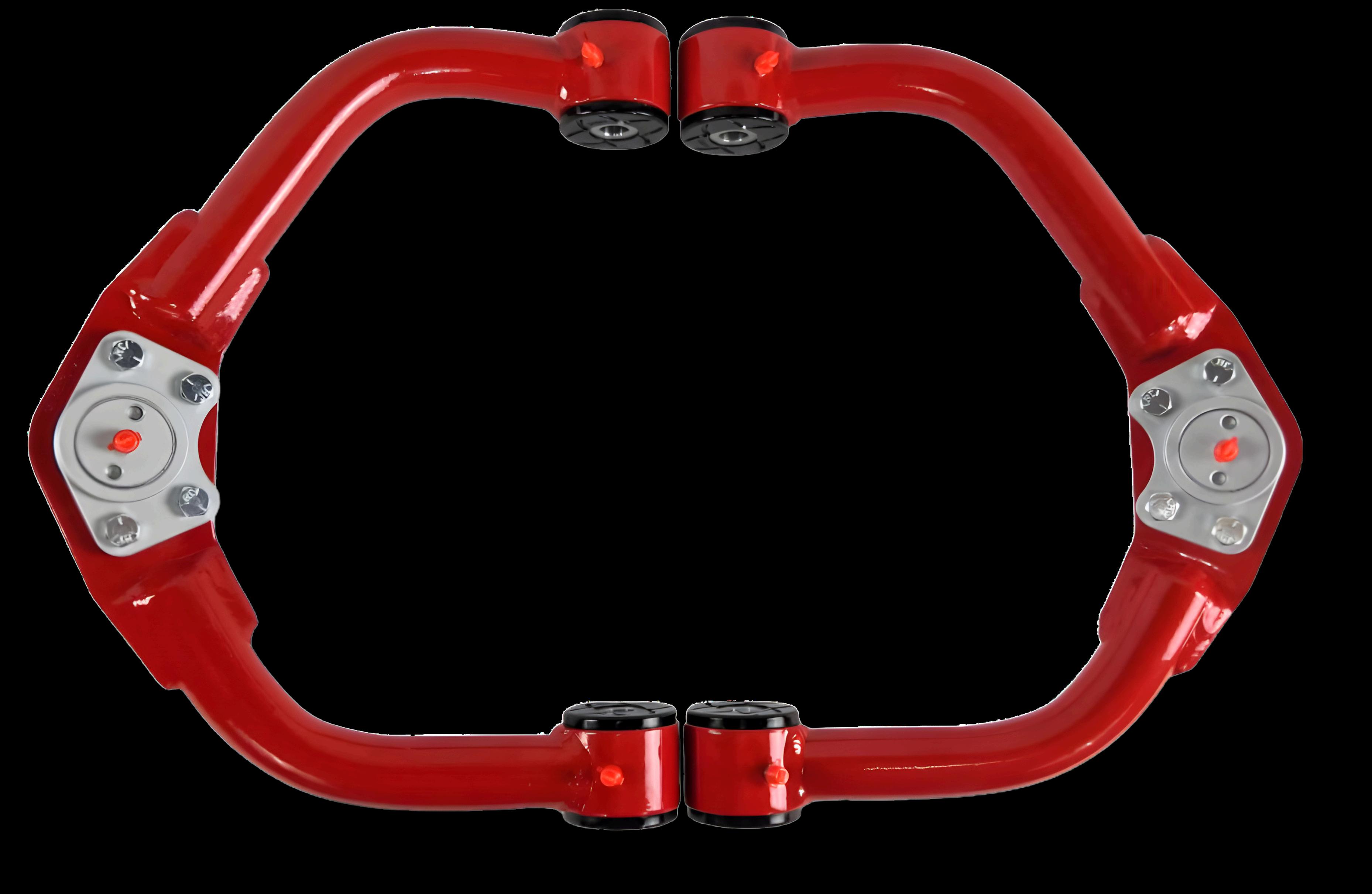

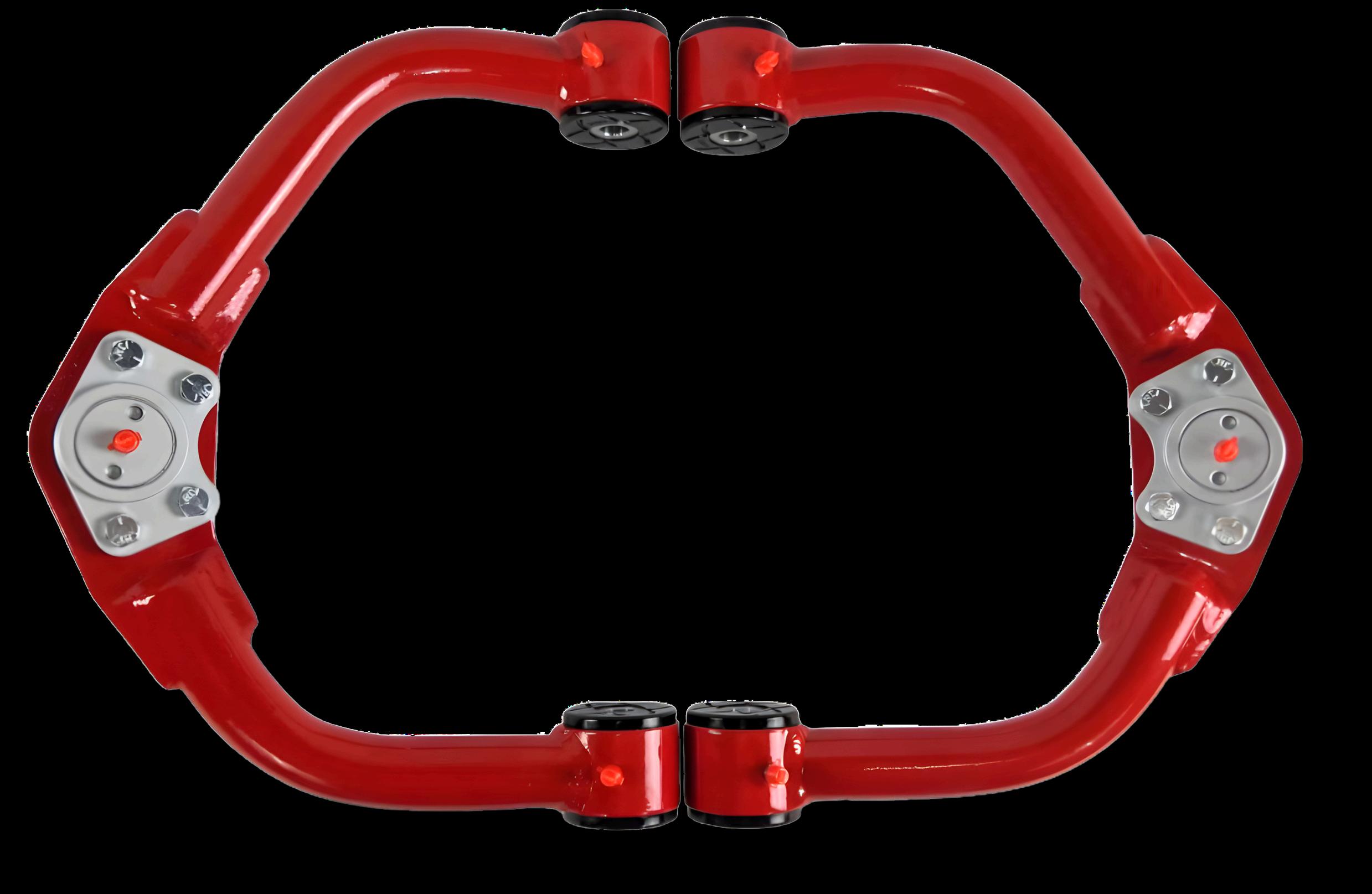

Upper Control Arms JBA-12.0

INSTRUCTION MANUAL Dodge Ram 1500 2006-2008 Dodge Ram 1500 2009-2010 Ram 1500 2011-2018 Ram 1500 2019-Current PLEASE READ, INSTALLATION IS DIFFERENT THAN FACTORY CONTROL ARMS.

IMPORTANT

READ BEFORE INSTALLATION. WARNING: DO NOT ADD BALL JOINT SPACERS OR MODIFY THE BALL JOINT MOUNTS. ADDING SPACERS CREATES ADDITIONAL LEVERAGE AND STRESS ON THE UPPER CONTROL ARM, WHICH CAN CAUSE BENDING, CRACKING, OR SUDDEN STRUCTURAL FAILURE. THIS CAN RESULT IN LOSS OF VEHICLE CONTROL, SERIOUS INJURY, OR DEATH.

JBA UPPER CONTROL ARMS ARE ENGINEERED FOR SPECIFIC GEOMETRY WITHOUT SPACERS OR MODIFICATIONS. SUCH MISUSE VOIDS ALL WARRANTIES AND IS DONE ENTIRELY AT THE USER’S OWN RISK. JBA ASSUMES NO LIABILITY FOR ANY DAMAGES, INJURIES, OR LOSSES RESULTING FROM MODIFICATIONS OR MISUSE. GENERAL WARNINGS: NEVER WORK UNDER AN UNSUPPORTED VEHICLE. ALWAYS USE JACK STANDS RATED FOR YOUR VEHICLE'S WEIGHT. JBA UPPER CONTROL ARMS SHOULD BE INSTALLED BY A QUALIFIED TECHNICIAN OR EXPERIENCED INSTALLER. A PROFESSIONAL FRONT-END ALIGNMENT IS REQUIRED AFTER INSTALLATION. RE-CHECK ALL MOUNTING HARDWARE TORQUE SPECIFICATIONS AFTER THE FIRST 100–300 MILES. GREASE BALL JOINTS AND BUSHINGS WITH LITHIUM MOLY FORTIFIED EP GREASE BEFORE FIRST USE AND EVERY 3,000– 5,000 MILES THEREAFTER.

Table of TABLE OF CONTENTS Contents 01

INTRODUCTION Warranty Information Verifying Your Order JBA Build Database

02

PRODUCT OVERVIEW EZ Lube Bushings JBA Ball Joints Powder Coat Process

03

10 11 12

MAINTENANCE Control Arm Maintenance Bushing Replacement Owner Record

05

06 07 08

INSTALLATION Upper Control Arm Removal Upper Control Arm Installation Front-End Alignment Specs

04

02 03 04

14 15-16 17

ABOUT JBA Our Story Customer Service Team Gear

19 20 21

INTRODUCTION BUILT WITH PURPOSE.

01

Warranty Information JBA upper control arms are engineered for specific vehicle applications.

Use outside intended specifications voids warranty coverage. Warranty determinations are made at JBA’s discretion. JBA Offroad components should be installed by a qualified technician or experienced installer.

JBA UCA WARRANTY JBA has a lifetime warranty on the structural integrity of our upper control arms.

JBA has a one-year warranty on ball joints, bushings, and powder coating.

WHAT WILL VOID YOUR JBA WARRANTY? Adding ball joint spacers to the JBA upper control arms. Adding spacers creates additional leverage and stress on the upper control arm, which can cause bending, cracking, or sudden structural failure.

Adding bump stops that hit the JBA upper control arms.

Adding limiting straps attached to the JBA upper control arms.

Cutting, grinding, welding, or modifying the JBA upper control arms.

Using the JBA arms on a vehicle, and/or a lift kit they were not designed for.

JBA upper control arms are not designed to be used when stacking two lift kits together.

Taking part in any of these practices voids all warranties and constitutes misuse for which JBA bears no responsibility or liability.

WARRANTY CLAIMS

Scan to begin your claim.

To submit a claim, please provide: Proof of purchase (including order ID).

Description of the issue.

Clear photos of the affected component.

02

Verifying Your Order BEFORE INSTALLATION, CONFIRM THE FOLLOWING: Part number matches your order.

High Caster (HC) or Cradle Drop (CD) version.

Driver or Passenger side (USA driven vehicles).

Matching left and right arms.

If anything is incorrect, contact us before installation and we will resolve it as quickly as we can.

Do not disassemble your vehicle until your parts have been verified.

EXAMPLE:

12.0

HC

PS

HIGH DRIVER/PASS PRODUCT CASTER/CRADLE SIDE (USA) NUMBER DROP

03

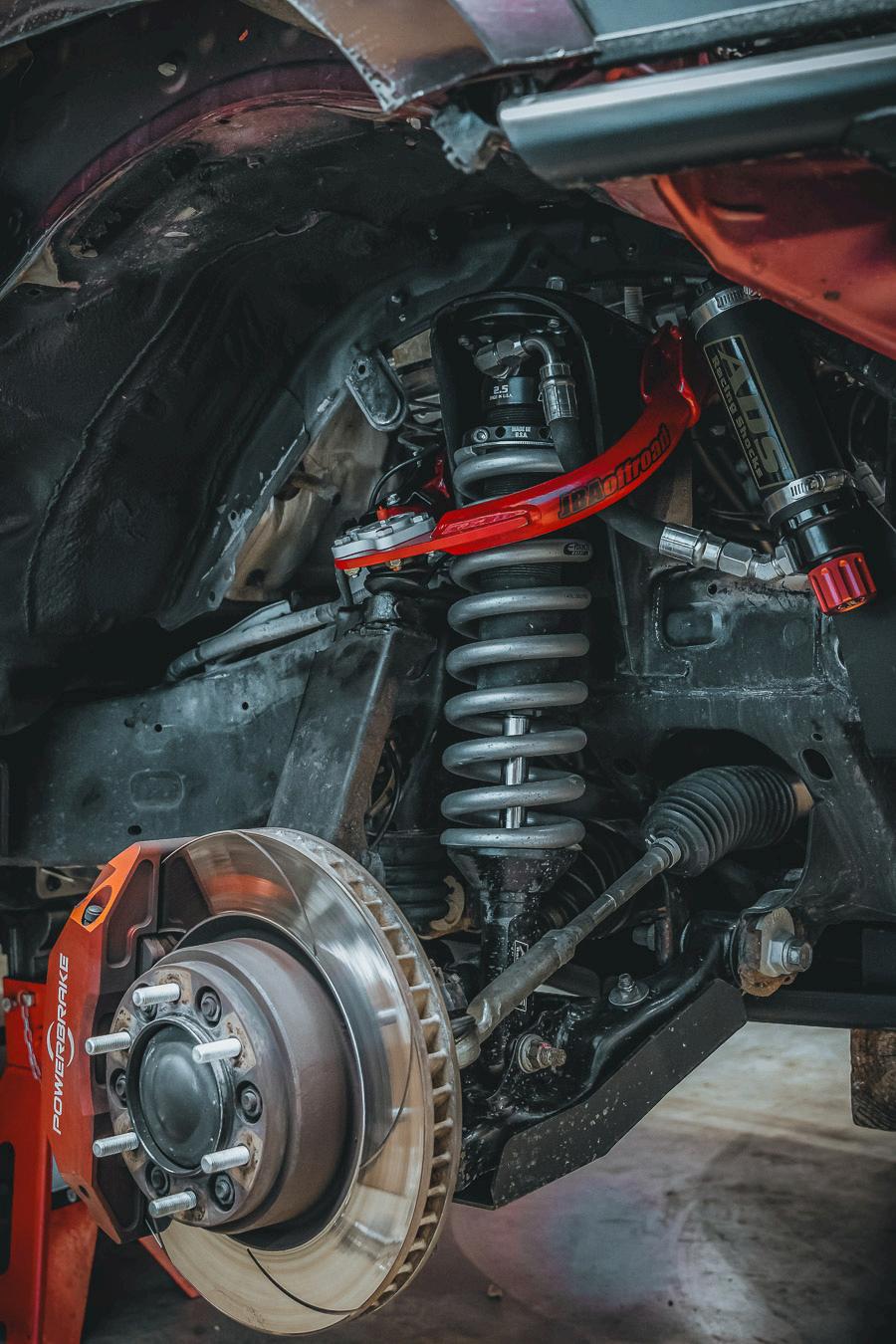

JBA Build Database REAL PEOPLE. REAL BUILDS. REAL RESULTS. Explore our database of customer builds using JBA Upper Control Arms.

Filter by vehicle, lift height, tire size, and more.

Owner: @Panahrama

Owner: @LooseAxles

2016 Toyota Tacoma Tire Size: 315/70/r17 Wheel Offset: -38 Lift Height: 3" Control Arm: HD High Caster

2007 Toyota 4Runner Tire Size: 35x12.5 R17 Wheel Offset: -38 Lift Height: 3.5" Control Arm: HD High Caster

EXPLORE THE FULL BUILD DATABASE Scan to browse builds or submit your own.

04

PRODUCT OVERVIEW ENGINEERED. NOT IMITATED.

05

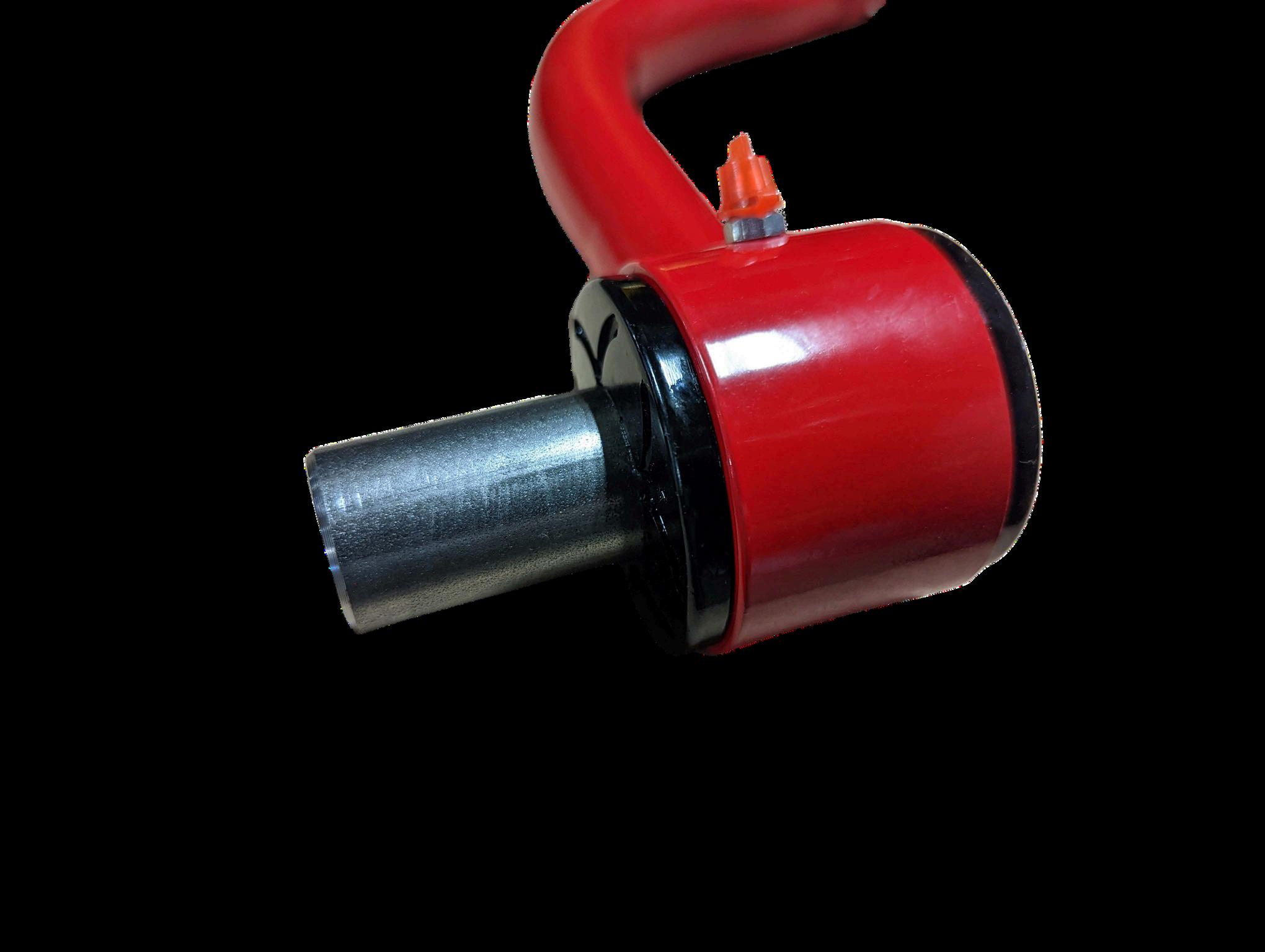

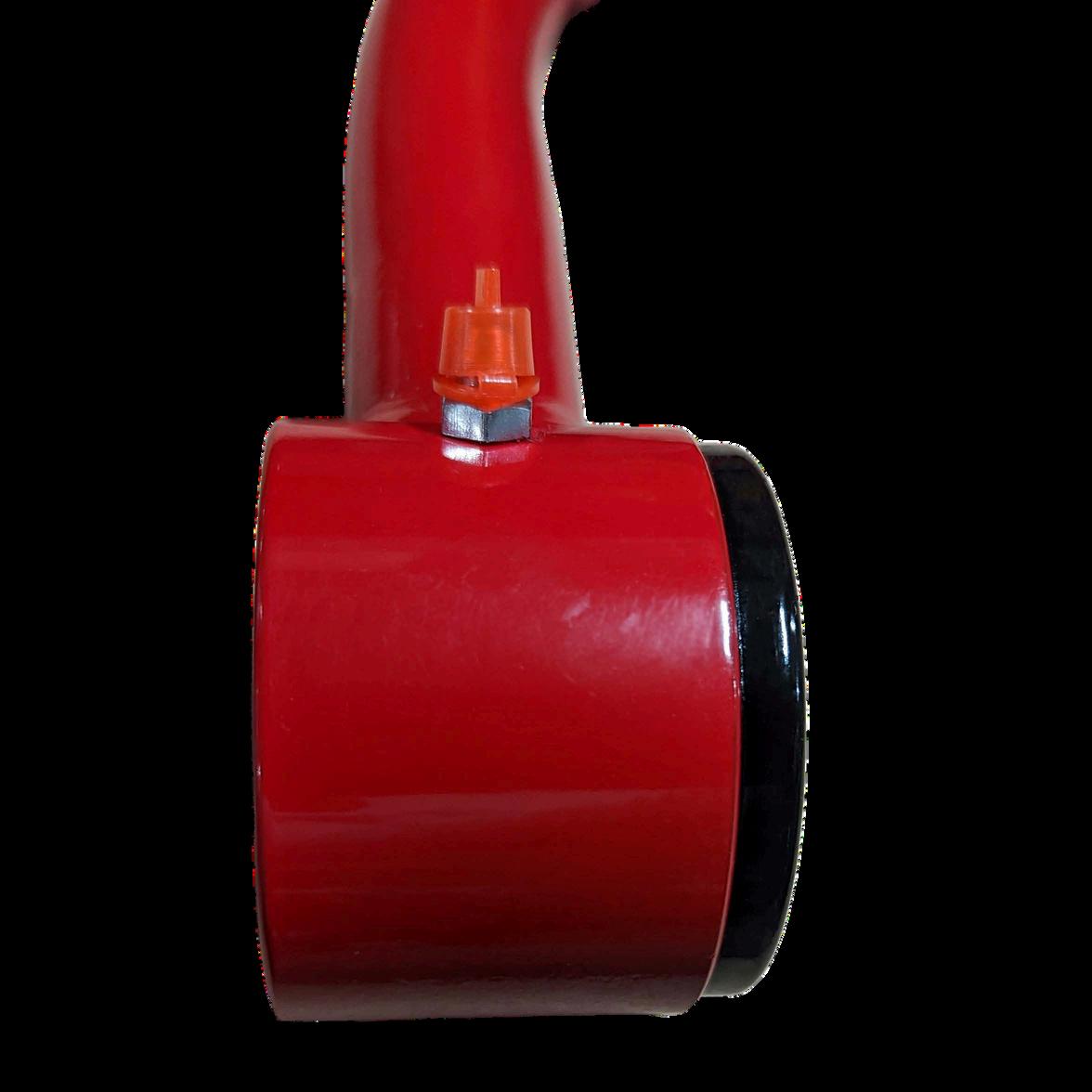

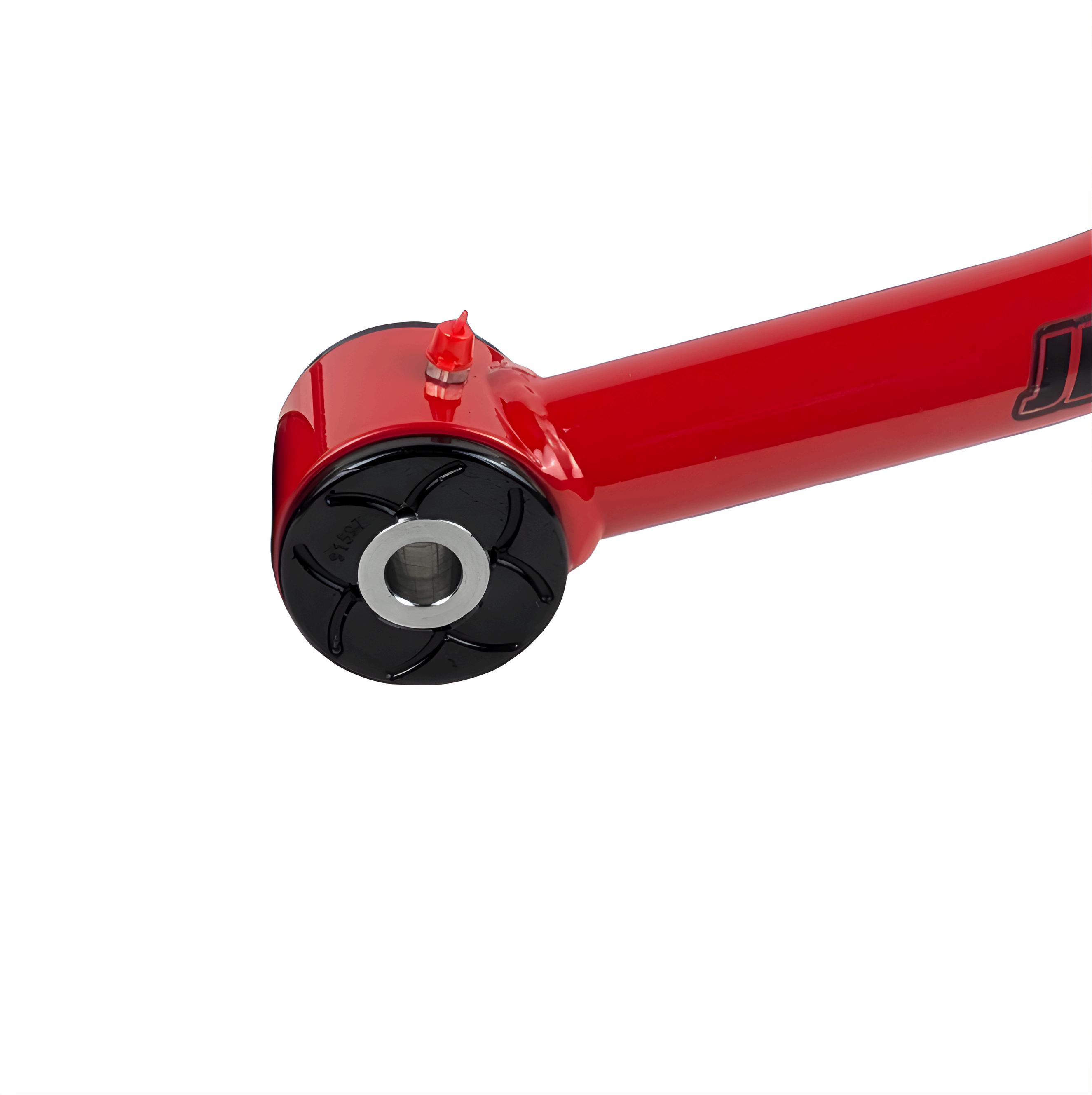

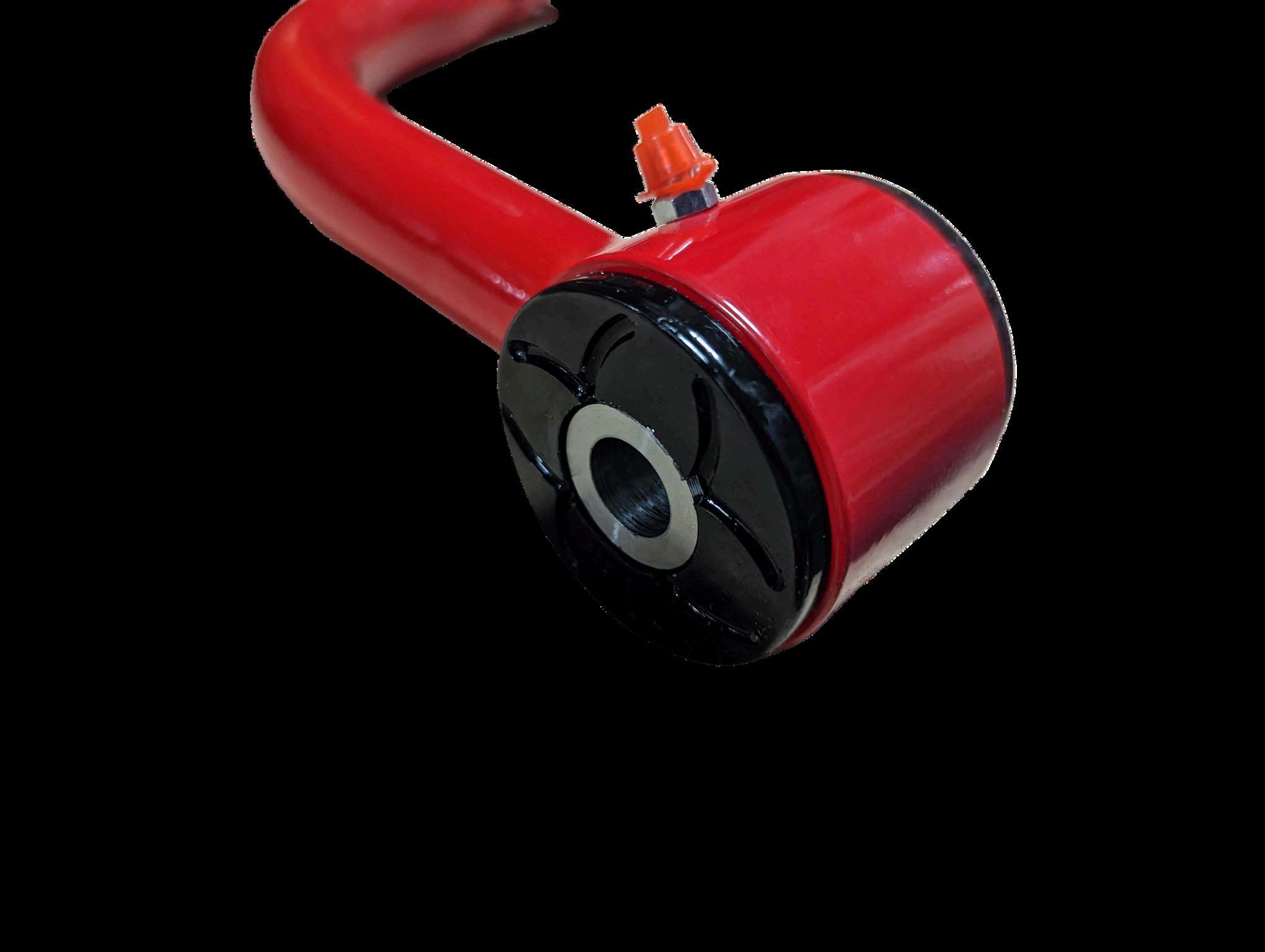

JBA EZ Lube Bushings EZ LUBE BUSHING OVERVIEW JBA EZ Lube Bushings are patented, fully serviceable bushings designed for durability and quiet performance.

One way relief valves seal out dirt and water.

Advanced synthetic elastomer construction.

Internal lubrication channels for full surface greasing.

Serviceable without loosening control arm mounting bolts.

EZ Lube Bushings are used in all JBA Upper Control Arms.

U.S. Patents: 11,293,511 • 11,603,897 • 11,953,070 • 12,247,631

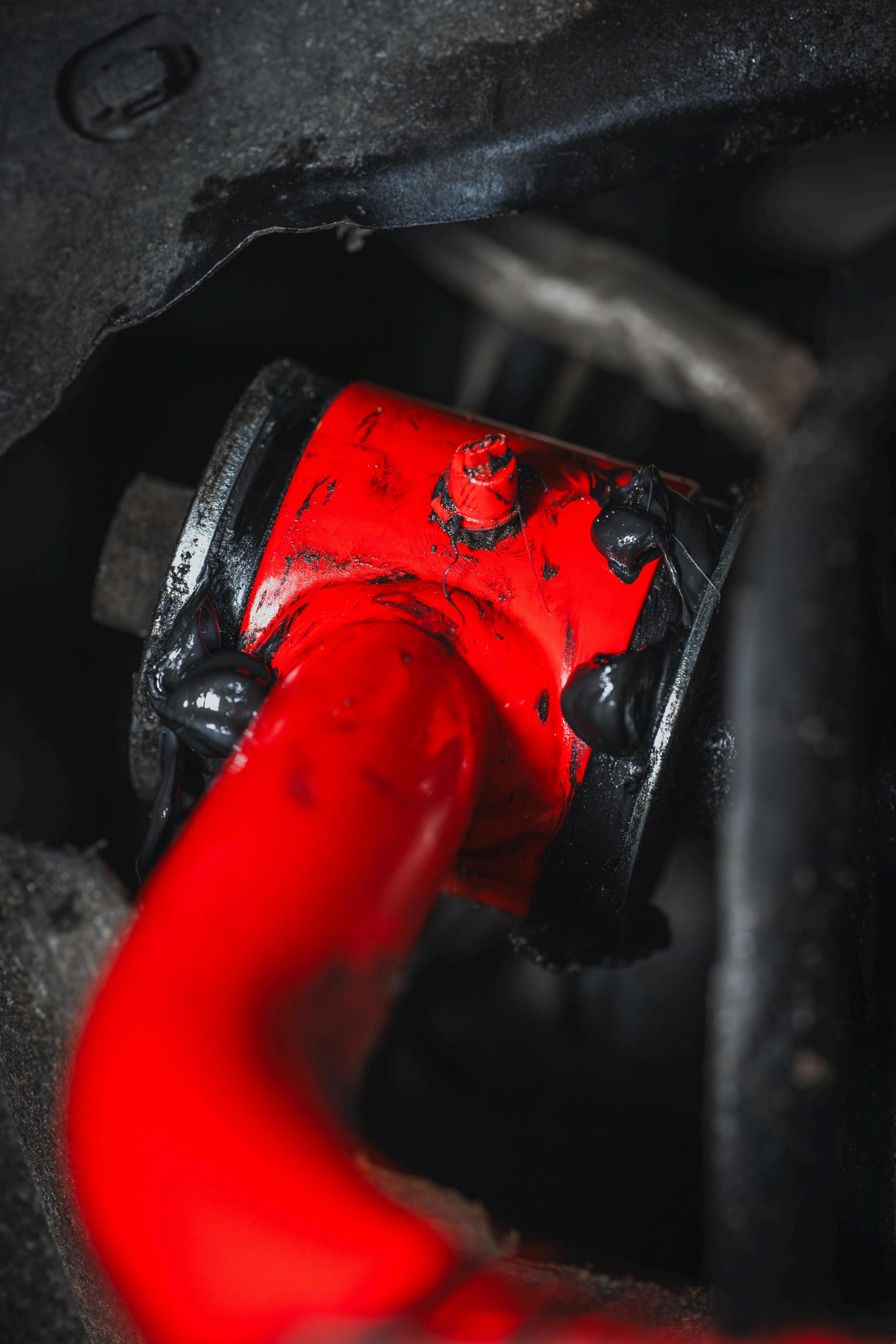

GREASING & INSPECTION To Service Bushings: Do not loosen mounting bolts during greasing.

Attach grease gun to bushing fitting.

Pump lithium moly fortified EP grease until fresh grease appears between washers.

Wipe away excess grease.

Service Interval: Grease every 3,000 to 5,000 miles.

After deep mud, water crossings, or heavy off-road use.

Inspect For: Squeaking, binding, and excess movement.

Damaged fittings.

For grease specifications, see Maintenance Procedure (page 14) or visit our FAQ. 06

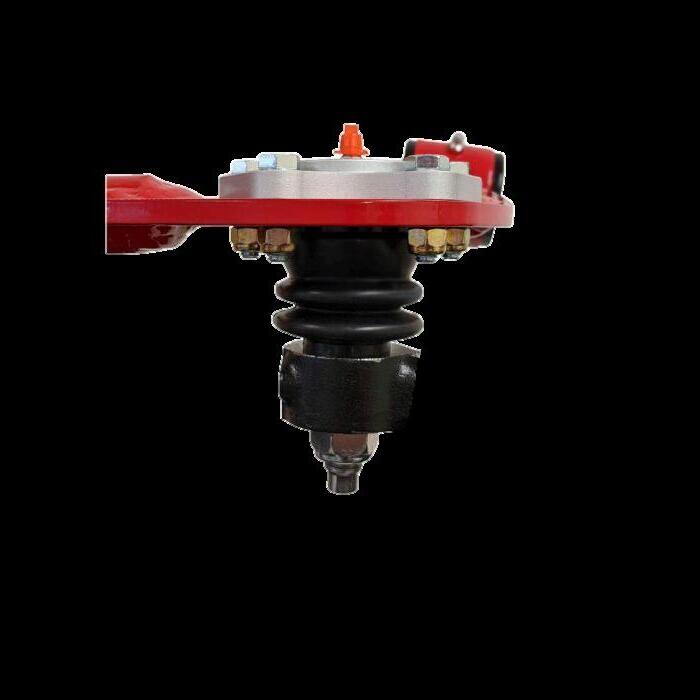

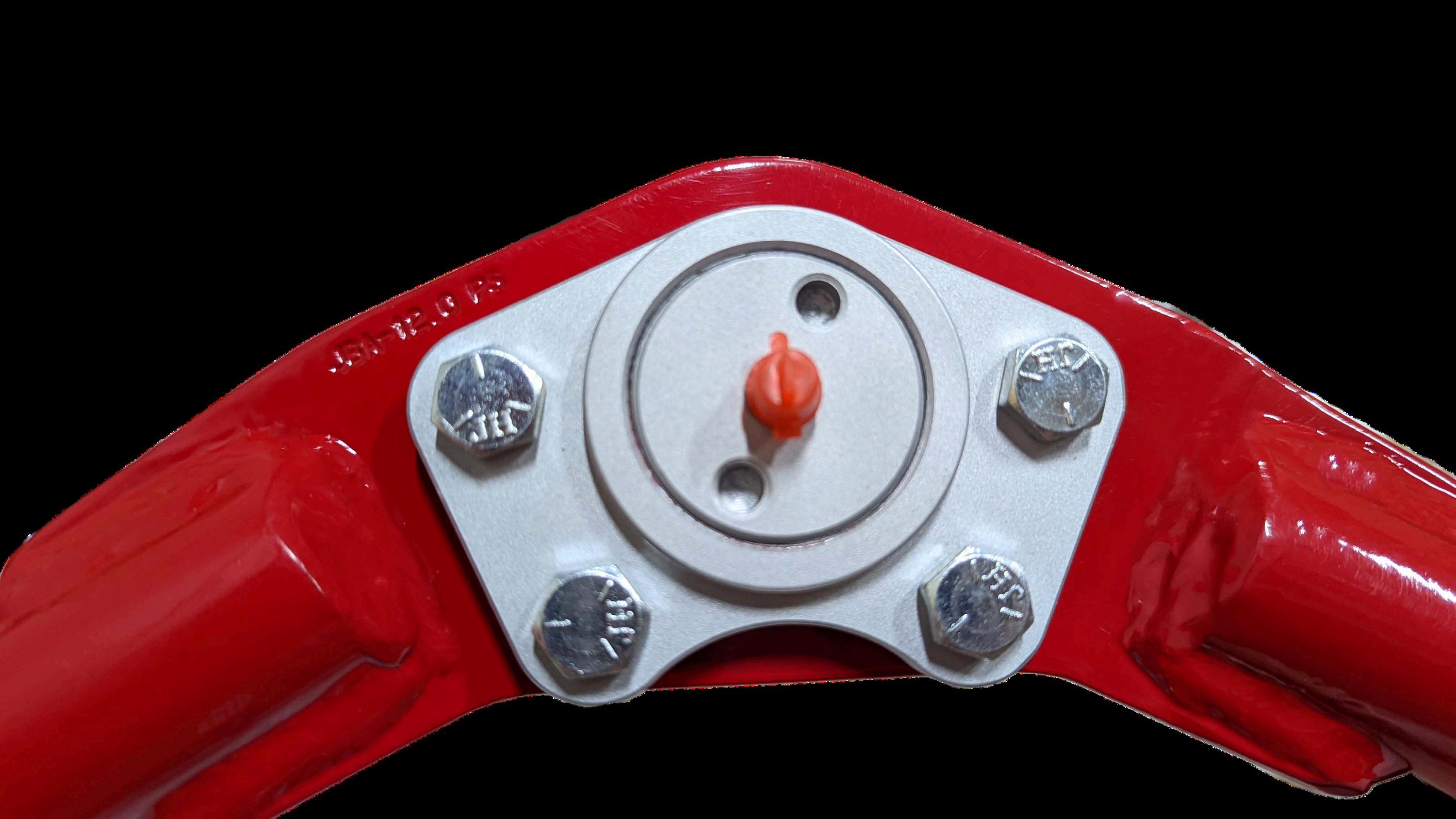

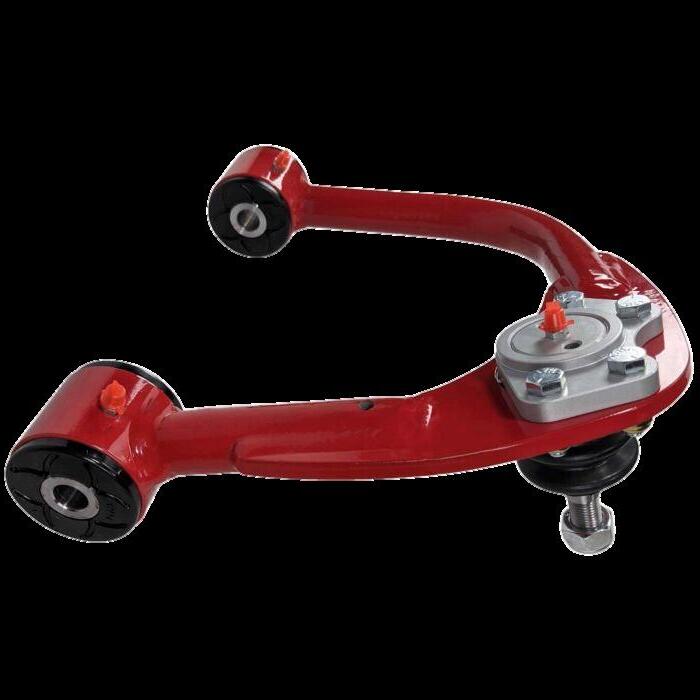

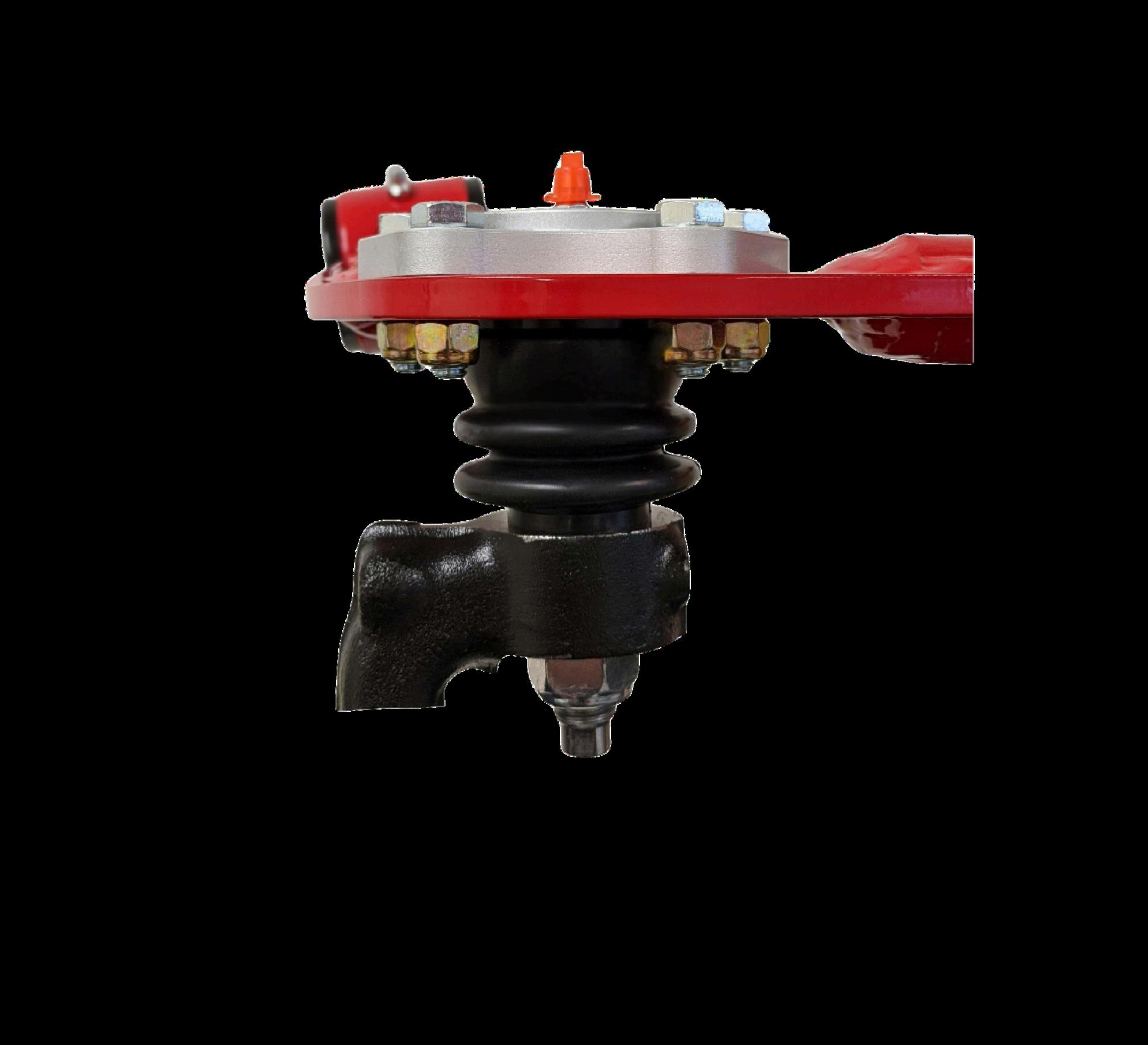

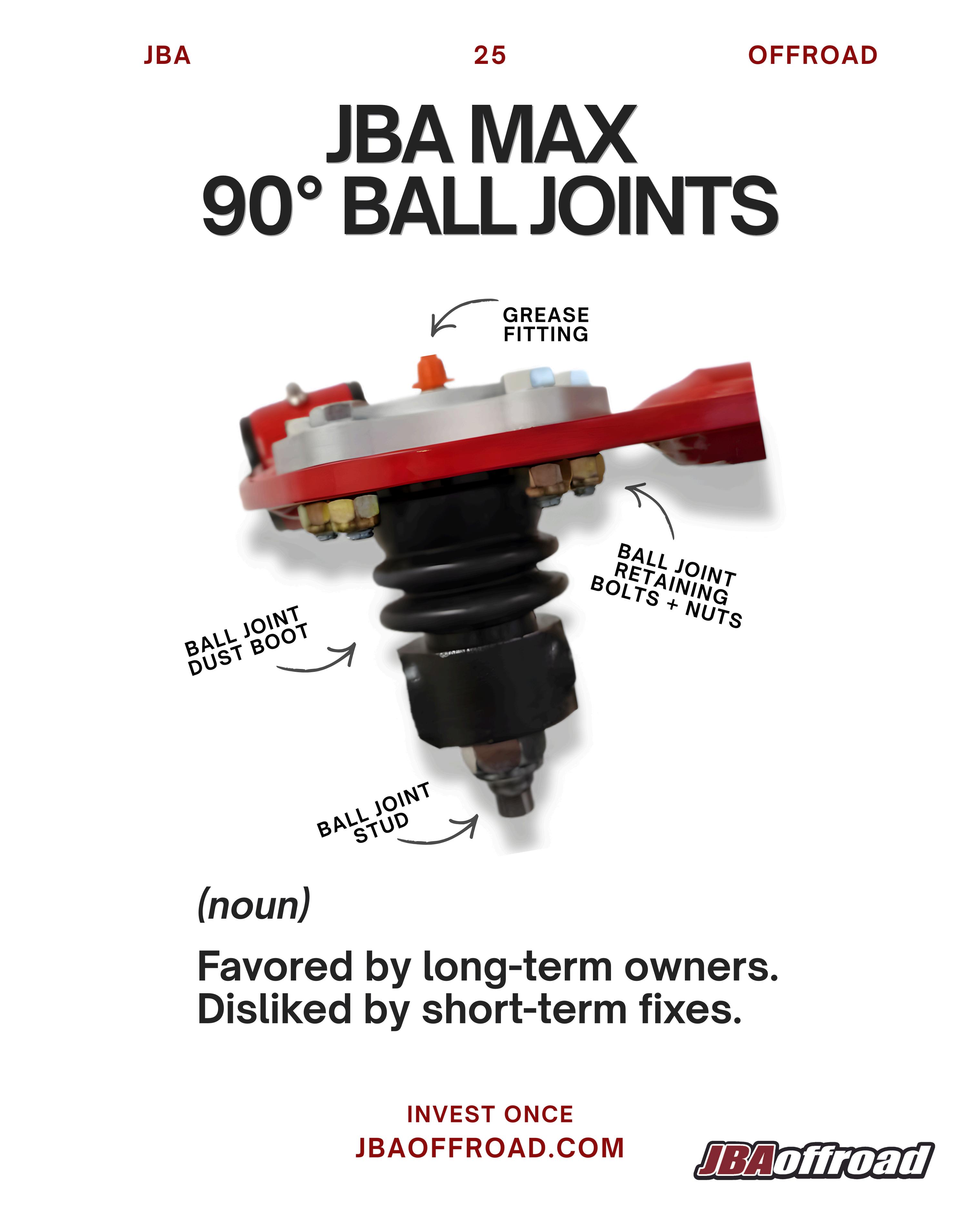

JBA Ball Joints

BALL JOINT OVERVIEW

JBA joints are fully serviceable and designed for long term durability.

Heavy duty construction for off-road use.

Replaceable internal components.

Greaseable design for extended life.

Serviceable without replacing the entire Ball Joint control arm.

Retaining Nuts 90 degrees of articulation.

13 ft. lbs.

WARNING: DO NOT ADD BALL JOINT SPACERS OR MODIFY THE BALL JOINT MOUNT. DOING SO CAN RESULT IN LOSS OF VEHICLE CONTROL, SERIOUS INJURY, OR DEATH.

Ball Joint Stud Nut 60 ft. lbs.

GREASING & INSPECTION For long lasting ball joints, ensure you: Add 3 to 5 pumps of lithium moly fortified EP grease until the boot slightly expands. Old grease may vent out of the boot.

Clean the grease fitting before and after servicing.

Service every 3,000 to 5,000 miles or after mud, water, or heavy off-road use.

Inspect for: How to Check Boot cracks or tears.

JBA Ball Joints: loose or damaged fittings.

Scan to learn Excess play or noise. more!

Contamination.

For grease specifications, see Maintenance Procedure (page 14) or visit our FAQ. 07

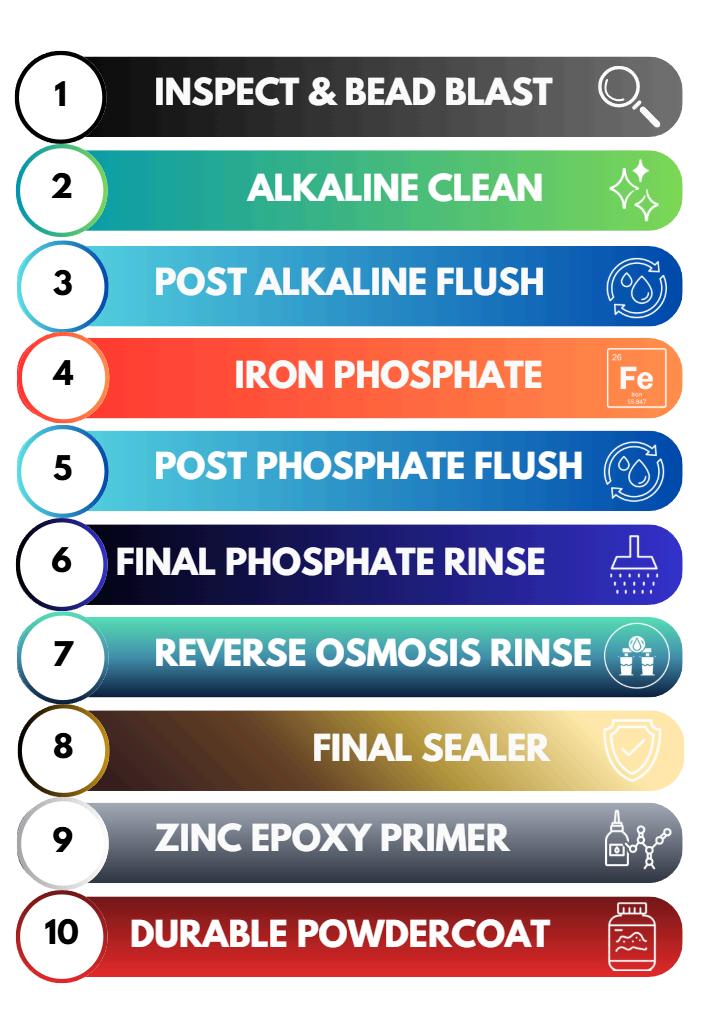

Powder Coat Process INDUSTRIAL POWDER COATING JBA steel upper control arms undergo a 10-stage industrial powder coating process.

Each step prepares the steel, prevents corrosion, and ensures maximum coating adhesion for long term durability.

This multi stage system protects against rust, chipping, peeling, and premature coating failure.

FINAL QUALITY INSPECTION Every JBA upper control arm undergoes a final visual inspection to verify coating consistency, full coverage, and finish quality before leaving our facility.

WHAT POWDER COAT DO YOU USE? The upper control arms are finished with Tiger Drylac Bengal Red powder coating and oven cured at 400°F to achieve a fully cured, durable, and long-lasting finish.

LOOKING FOR TOUCH UP PAINT? Minor chips or shop accidents can happen.

We offer factory matched touch up paint.

Scan the code for ordering details.

08

INSTALLATION DONE RIGHT THE FIRST TIME.

09

Upper Control Arm Removal Removal Procedure 1. Prior to installation, verify the part number received matches your order. Confirm Driver and Passenger side arms are correctly identified and oriented prior to removal (stamped near the ball joint).

2. Raise the vehicle and support it securely with jack stands placed under the frame rail behind the front wheel. Air suspension vehicles must be put into “Tire Jack Mode” before raising the vehicle. Never work under an unsupported vehicle.

3. Remove the wheel and pull the plastic ABS wire clip from the control arm.

4. Remove the cotter pin from the ball joint stud and the remove castle nut.

5. Separate the ball joint from the steering knuckle. A puller tool may be required. IE: OEM/Pitman arm puller (27016).

6. Use jack stands to support the loose spindle by the bottom of the brake caliper. Make sure the brake lines don’t stretch.

7. Unbolt the UCA (Upper Control Arm) from the frame pockets. You may want to remove the ground wires on the driver side to get to the front bolt easier.

8. Remove the UCA from the vehicle and repeat on the other side.

10

Upper Control Arm Installation Installation Procedure 1. Apply a light coat of grease to the outer surface of the EZ Lube bushings prior to installation.

2. Bend the sheet metal tabs of the mounting pockets open to create space for the JBA Bushings.

3. Hold the UCA in place and insert the UCA mounting bolts. Torque the bolts to 97 ft-lbs.

4. Insert the upper ball joint stud into the steering knuckle and install the ball joint stud nut. Use an open end 3/8"wrench on the stud to keep it from spinning.

Torque the ball joint stud nut to 60 ft-lbs.

Torque ball joint retaining nuts to 13 ft-lbs.

5. Re-attach ABS wire to the side of the UCA. For stock geometry upper control arms with air ride, attach sensor link to ball stud.

Ball Joint Retaining Nuts 13 ft. lbs.

6. Mount the wheel and torque the lug nuts in a star pattern Ball Joint Stud Nut 60 ft. lbs. to factory specifications. After lowering an air suspension vehicle, ensure the vehicle is taken out of “Tire Jack Mode”.

7. Grease the ball joint with 3–5 pumps of lithium moly fortified EP grease until the ball joint boot just begins to swell.

8. Grease the bushings with lithium moly fortified EP grease until fresh grease is visibly pushing out from the EZ Lube ports.

9. Repeat the installation procedure on the opposite side.

10. Re-check all mounting hardware torque specifications after the first 100–300 miles.

11

Front End Alignment OPTIMIZED ALIGNMENT SPECIFICATIONS The following specifications are recommended for your specific JBA equipped vehicle:

0

0

3.5

3.5

0.05

0.05 ALIGNMENT SPECS FOR JBA 12.0

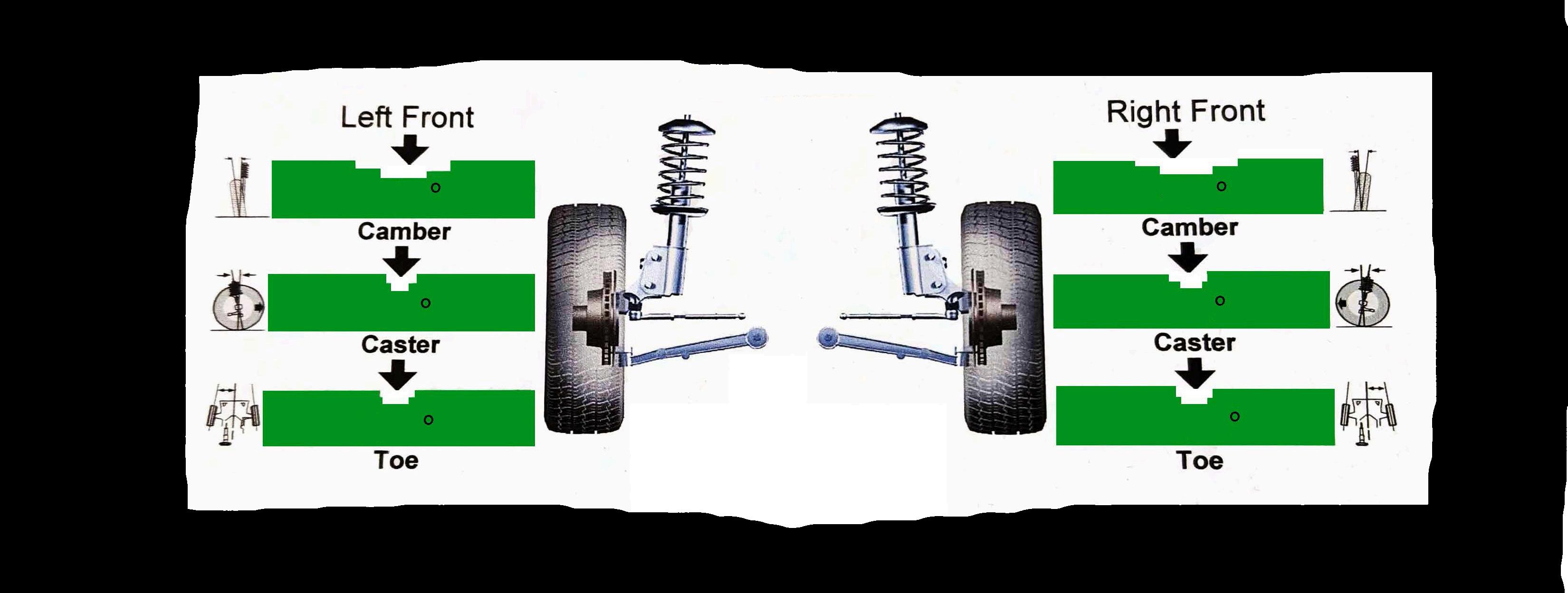

ALIGNMENT TERMS & LIFT EFFECTS Camber is the inward or outward tilt of the tire when viewed from the front of the vehicle. Too much negative or positive camber can cause uneven tire wear.

Caster is the forward or rearward tilt of the steering axis when viewed from the side. More positive caster improves straight-line stability and steering wheel return to center.

Toe is the direction the tires point relative to each other when viewed from above. Incorrect toe is the fastest way to destroy tires.

Lifting an independent front suspension reduces positive caster, which can cause light steering and reduced highway stability. JBA upper control arms restore lost caster to improve tracking, steering return, and overall stability.

12

MAINTENANCE PROTECT YOUR INVESTMENT.

13

Maintenance Procedure BALL JOINTS Pump grease into the ball joint zerk fitting until the rubber boot just starts to swell, at least 3-4 pumps.

EZ-LUBE BUSHINGS Pump grease into the bushing zerk fitting until fresh grease exits the EZ-Lube ports.

SERVICE INTERVAL Pump fresh grease into the ball joints and EzLube Bushings every 3000-5000 miles or after deep mud, water crossings, or heavy off-road use.

WHAT GREASE SHOULD I USE? Use only lithium moly fortified EP grease. Using the wrong grease can lead to premature wear and failure.

APPROVED GREASE EXAMPLES: Mobilgrease XHP 222 Special Grease Chevron EP Moly Valvoline Multi Vehicle Moly Fortified REPEAT EVERY 3-5K MILES Pennzoil EP with Moly John Deere HD Moly Motomaster Moly Extreme Pressure Shell Rotella SD Moly Phillips 66 Megaplex XD5 Liqui Moly LM 47 Grease Plus MoS2

14

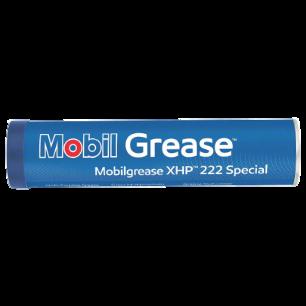

OUR #1 PICK: MOBIL GREASE XHP 222 SPECIAL GREASE

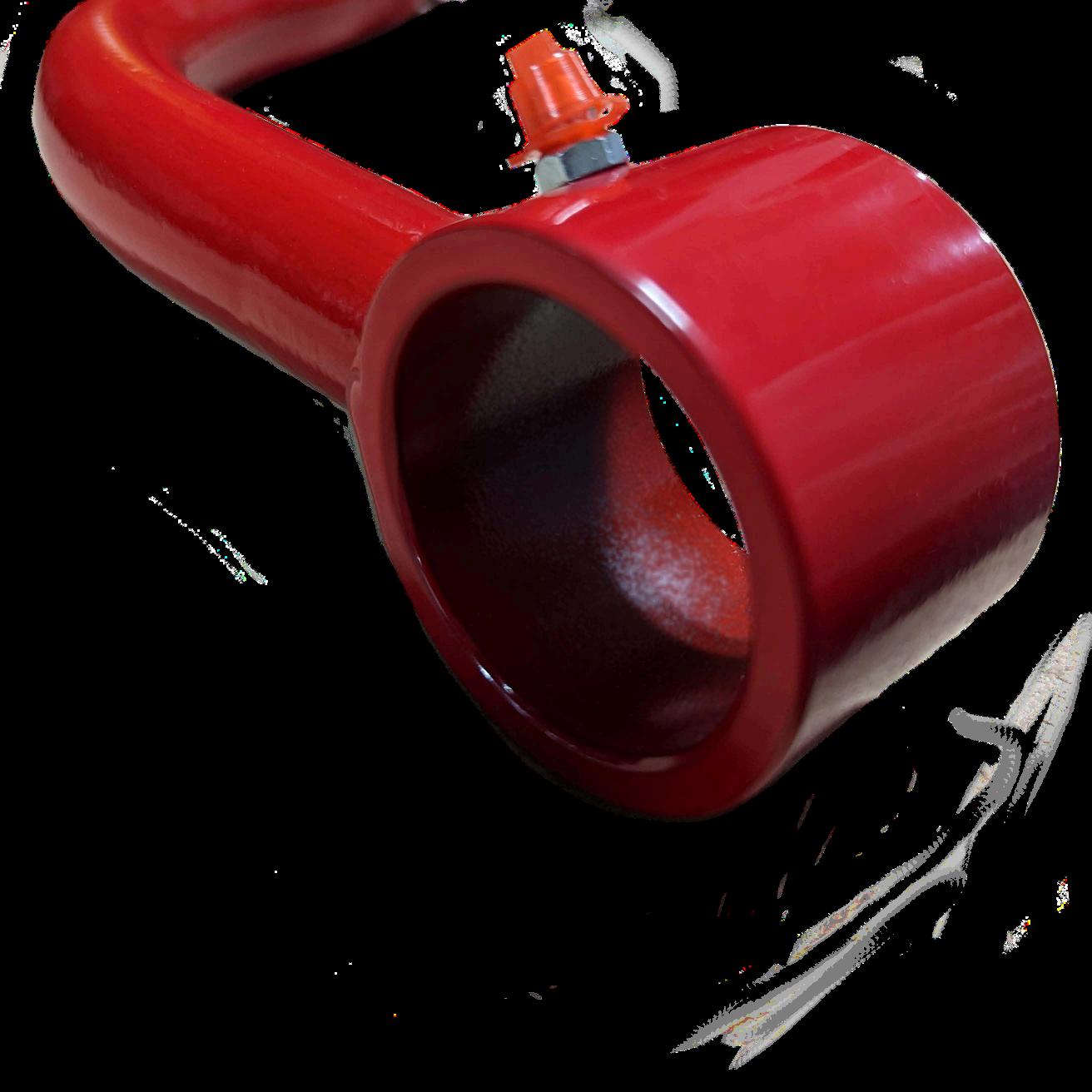

Bushing Replacement BUSHING KIT REPLACEMENT PROCEDURE - PART 1 Part Number: #JBA-TC-69000-EZ-XX 1. Press the inner bushings into the control arm first.

2. Open the supplied grease packet. Apply grease evenly to the inside surface of each bushing bore (¾" inner diameter).

3. Apply a thin, even coat of grease to the steel sleeves.

4. Apply additional grease between the inner bushing faces to ensure the cavity between the bushings is fully lubricated.

5. Press the outer bushings into the control arm housing until fully seated.

15

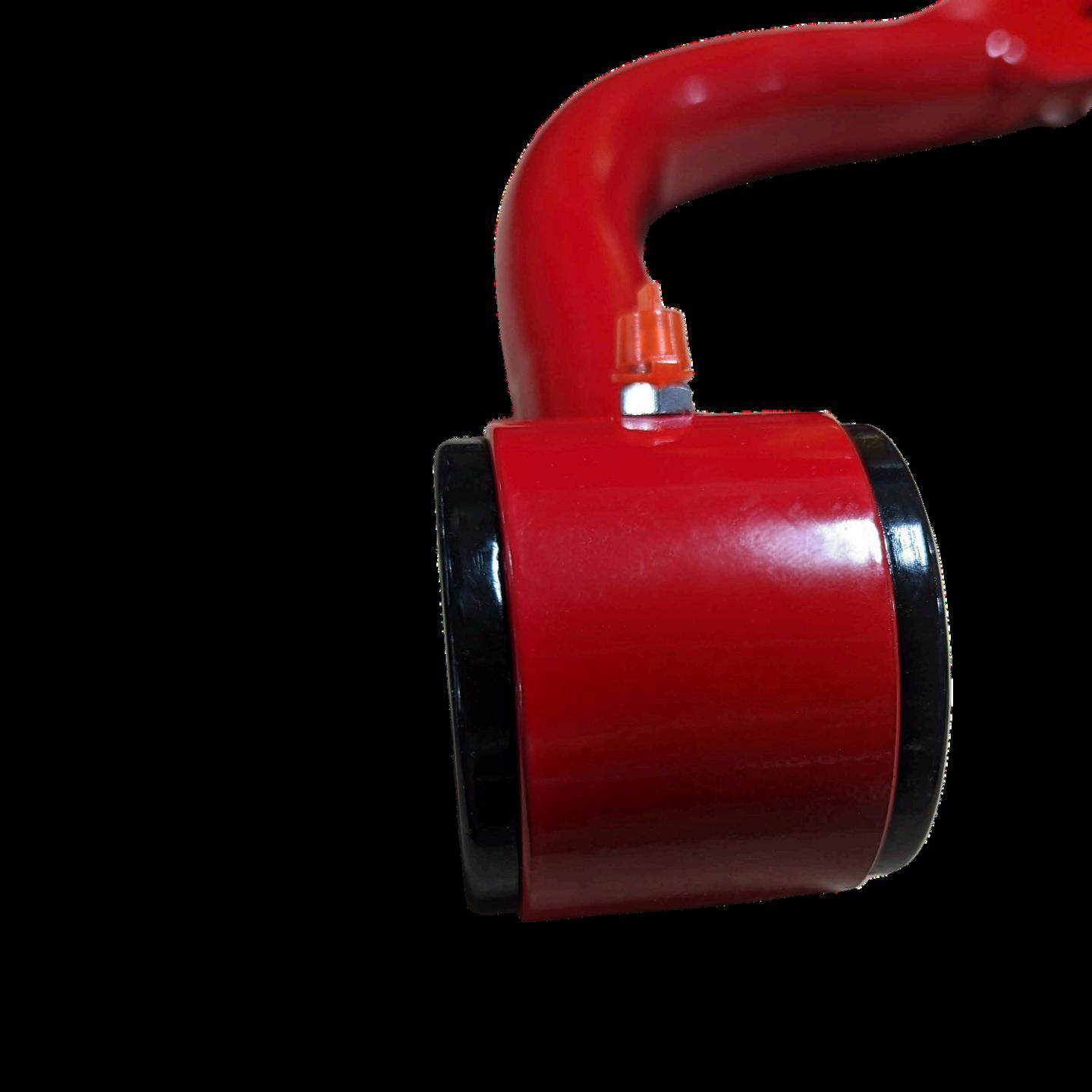

Bushing Replacement BUSHING KIT REPLACEMENT PROCEDURE - PART 2 Part Number: #JBA-TC-69000-EZ-XX 6. Install the steel sleeves through the bushings until flush and fully seated.

7. Spread any excess grease evenly around the outer faces of the bushings.

8. Continue installation per the Upper Control Arm Installation Procedure.

16

Owner Record INSTALL RECORD Installation Date:______________________________ Vehicle Mileage: _______________________________ Installation Notes:

RIDE HEIGHT MEASUREMENTS Measure from center of wheel hub to bottom edge of fender flare.

FRONT

REAR

Driver Side Before:________________________ After:__________________________

Driver Side Before:________________________ After:__________________________

Passenger Side Before:________________________ After:__________________________

Passenger Side Before:________________________ After:__________________________

MAINTENANCE INTERVAL Every 3 months or 3,000-5,000 miles.

Mileage:

Date:

Mileage:

Date:

Mileage:

Date:

Mileage:

Date:

Mileage:

Date:

Mileage:

Date:

Mileage:

Date:

Mileage:

Date:

Retain your alignment printout with this record for future service reference.

17

ABOUT US WHY JBA EXISTS.

18

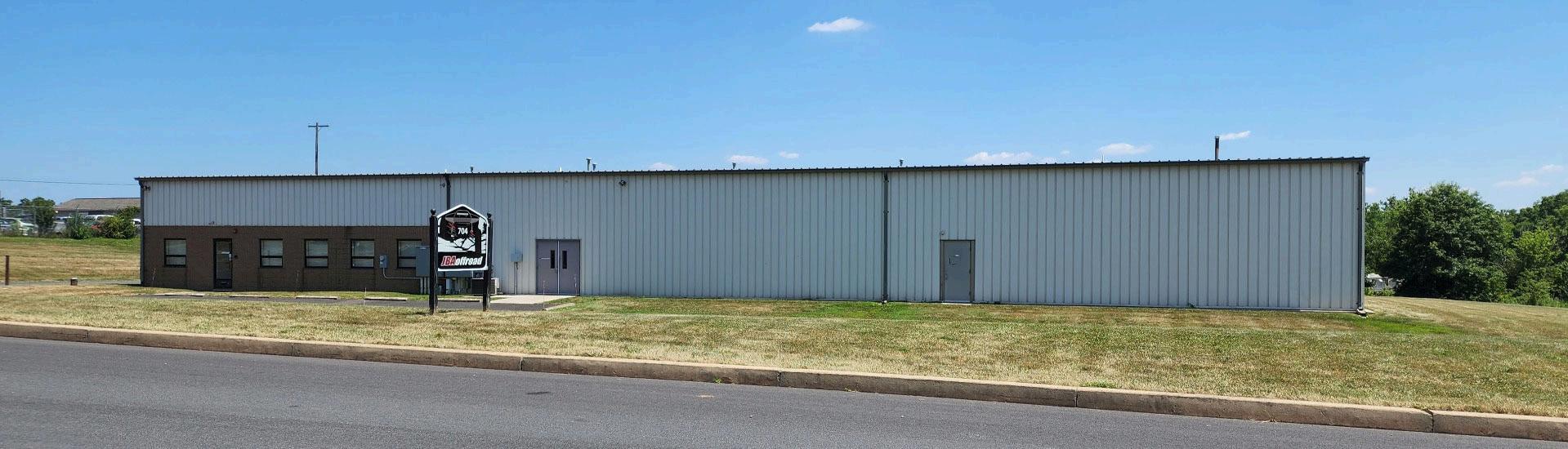

Our Story WHERE IT BEGAN JBA started in 2004 when Al Handy lifted his Jeep Liberty and the factory upper control arms failed prematurely. As an engineer, he refused to accept that compromise was normal. He designed a better upper control arm, modeled after oval track race car geometry, and installed the first generation on his own vehicle. One solution became a mission.

HOW IT GREW Through multiple generations of refinement and expanded platforms, that original design evolved. In 2007, Marlin Gehman’s ownership carried the vision forward, improving serviceability, introducing bolt-in ball joints, and ultimately focusing exclusively on building the best upper control arms possible. Growth didn’t mean chasing everything. It meant sharpening our focus.

BUILT WITH CONVICTION We are a family-run company, and we strive to treat people the way we would want our own family treated. That applies to our customers, our team, and our partners.

Our Christian faith guides how we do business. For us, that means honesty, humility, fairness, and keeping our word. It means taking responsibility when we fall short and working to make it right. We believe the opportunity to build and serve others is something we’re entrusted with, and we take that seriously.

Business, to us, is stewardship — using our skills and resources in a way that reflects integrity and respect.

19

Customer Service WE’RE HERE TO SUPPORT YOU If you have questions about your parts, installation, maintenance, or fitment, we’re glad to help. You can reach us by phone or email during regular business hours.

CONTACT INFORMATION:

BUSINESS HOURS:

Phone: (215) 660-3770 Email: sales@jbaoffroad.com

Monday – Friday 8:30 AM – 4:30 PM Closed on holidays

Mailing Address: 704 Forman Road Souderton, PA 18964

We strive to respond promptly and respectfully to every inquiry.

CONNECT WITH US Follow us on Instagram, Facebook, and Youtube for product updates, installs, customer builds, and opportunities to be featured: @jbaoffroad

HAVE MORE QUESTIONS? Our FAQ (Frequently Asked Questions) page on our website may have the answers you are looking for - scan the QR code to check!
