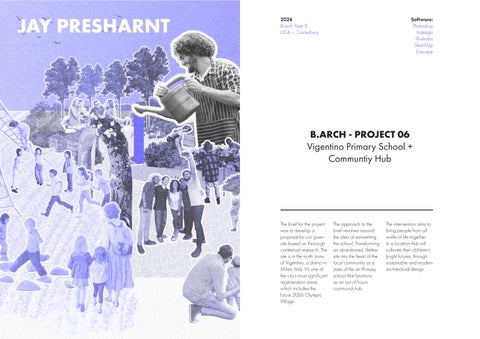

B.ARCH - PROJECT 06 Vigentino Primary School + Communtiy Hub

The brief for the project was to develop a proposal for our given site based on thorough contextual research. The site is in the north zone of Vigentino, a district in Milan, Italy. It’s one of the city’s most significant regeneration areas which includes the future 2026 Olympic Village.

22

The approach to the brief revolves around the idea of reinventing the school; Transforming an abandoned, lifeless site into the heart of the local community as a state of the art Primary school that functions as an out of hours communal-hub.

The intervention aims to bring people from all walks of life together in a location that will cultivate their children’s bright futures, through sustainable and modern architectural design.

Programme and typology

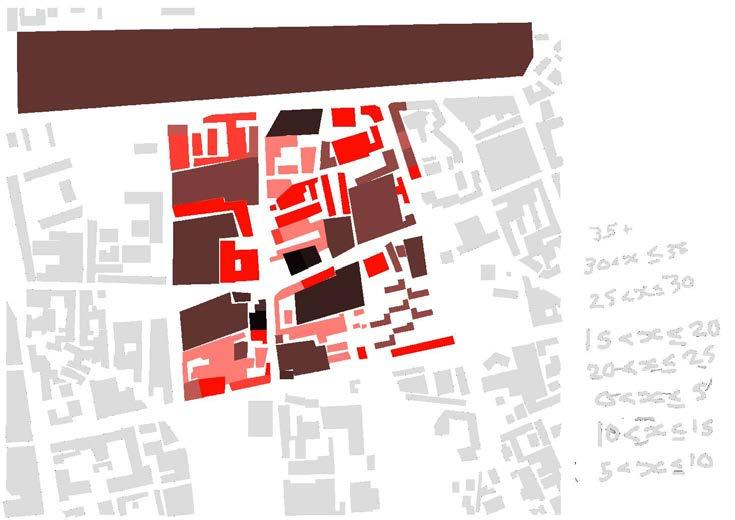

Building heights

E

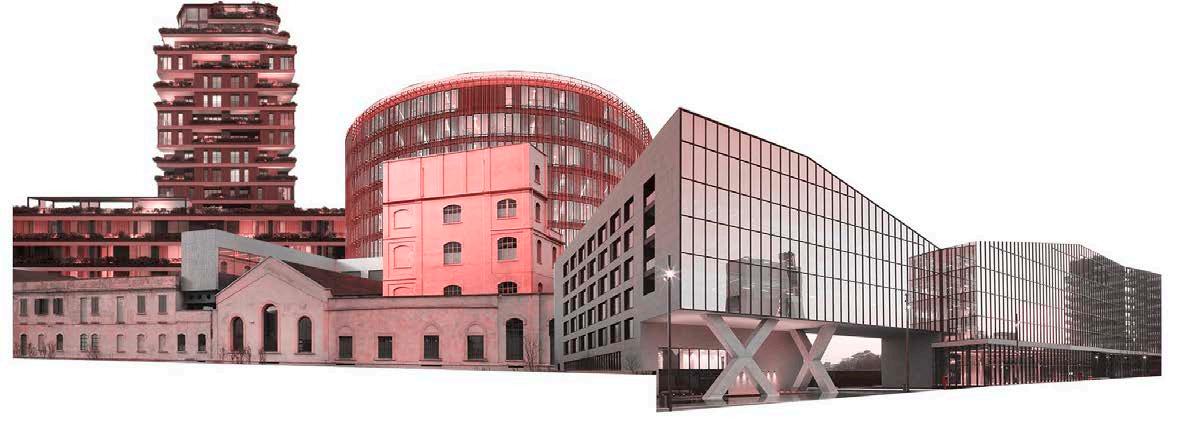

local buildings collage

1,350,000

site

site

0m

100m

200m

300m

Commercial

Arts + culture

Unidentified

Resturaurnts

Shared living

gr c (m2 p

site

0m

projected

building typologies immediate to the site

Site Summary

300m

25-30

20-25

Construction sites Parking Vacant Education

200m

actua

30+

Communal

Private housing

100m

0-5

!

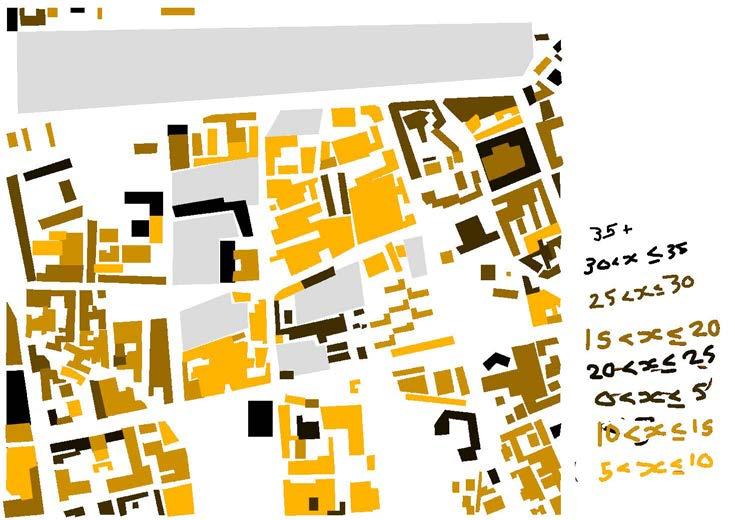

15-20 10-15 5-10 Building heights in the immediate area (m)

Environmental conditions

Materiality

Environmental conditions

Materiality

ollage

ollage

00m

0

ea (m)

0

ea (m)

greenspace

transport

0m

100m

200m

300m

transport

0m

100m

200m

actual greenspace

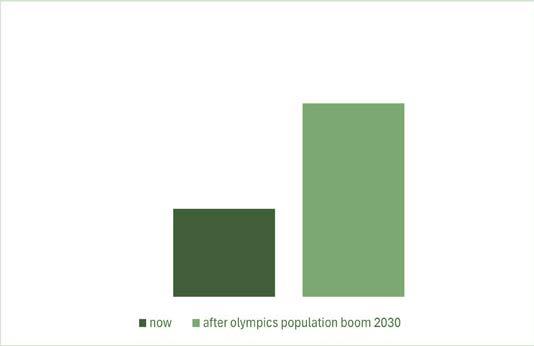

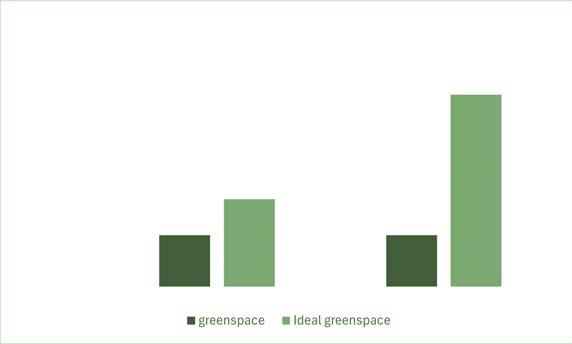

Greenspace projections for 2030 (m2 per capita)

45,664

1,350,000

2,300,000

1,350,000

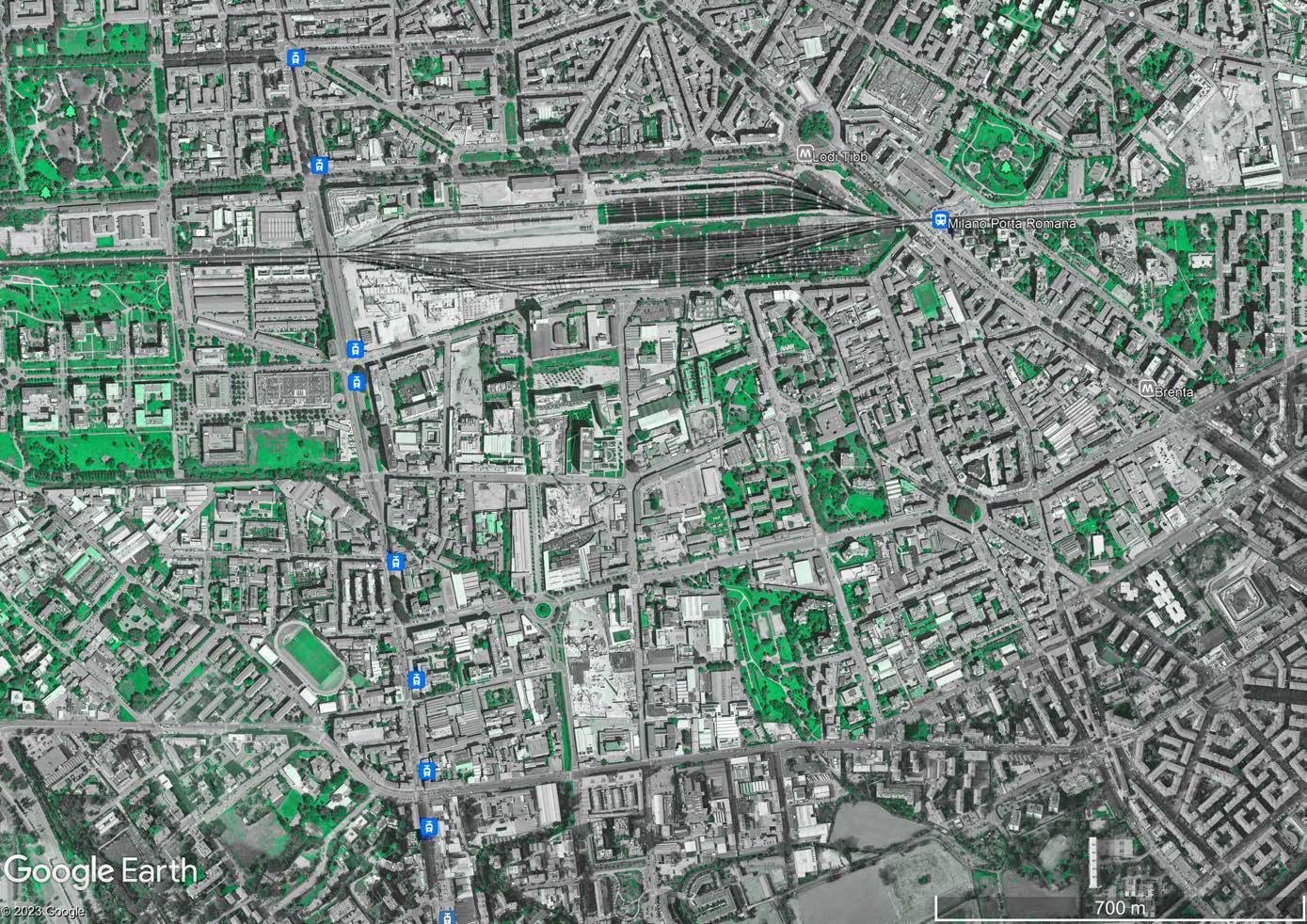

Vigentino statistics Current greenspace conditions (m2 per capita)

100,000 100,000

greenspace

45,664

1,350,000

site

2,300,000

1,350,000

Vigentino statistics 5,000,000 5,000,000

00m

site

Current population

ideal greenspace

300m

projected 2030 population

Greenspace Current Current projected Air quality index: Moderate projections for greenspace population 2030 2030 conditions population Car pollutant concentration x5.6 AQI 2 2 (m per capita) (m per capita)

!

guideline ideal greenspace

actual greenspace

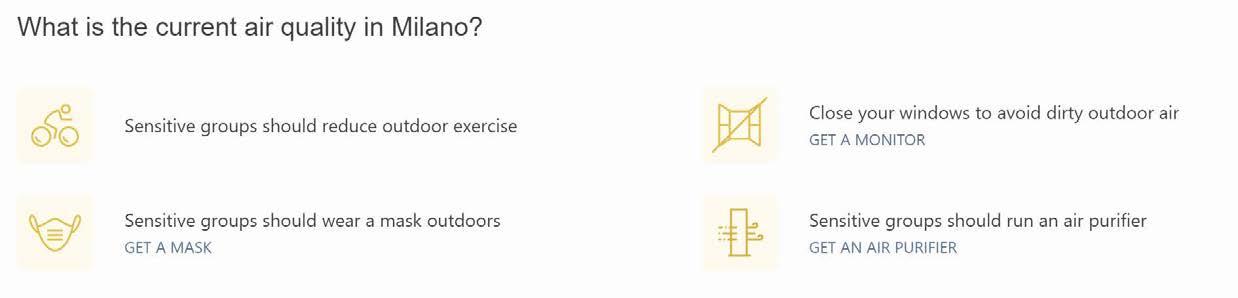

Air purifier required Air quality index: Moderate

!

Face masks required outdoors Car pollutant concentration x5.6 AQI guideline Reduced window ventilation Air purifier required Reduced outdoor exercise Face masks required outdoors

Negative impacts of current poor air quality in the area

Reduced window ventilation Reduced outdoor exercise Negative impacts of current poor air quality in the area

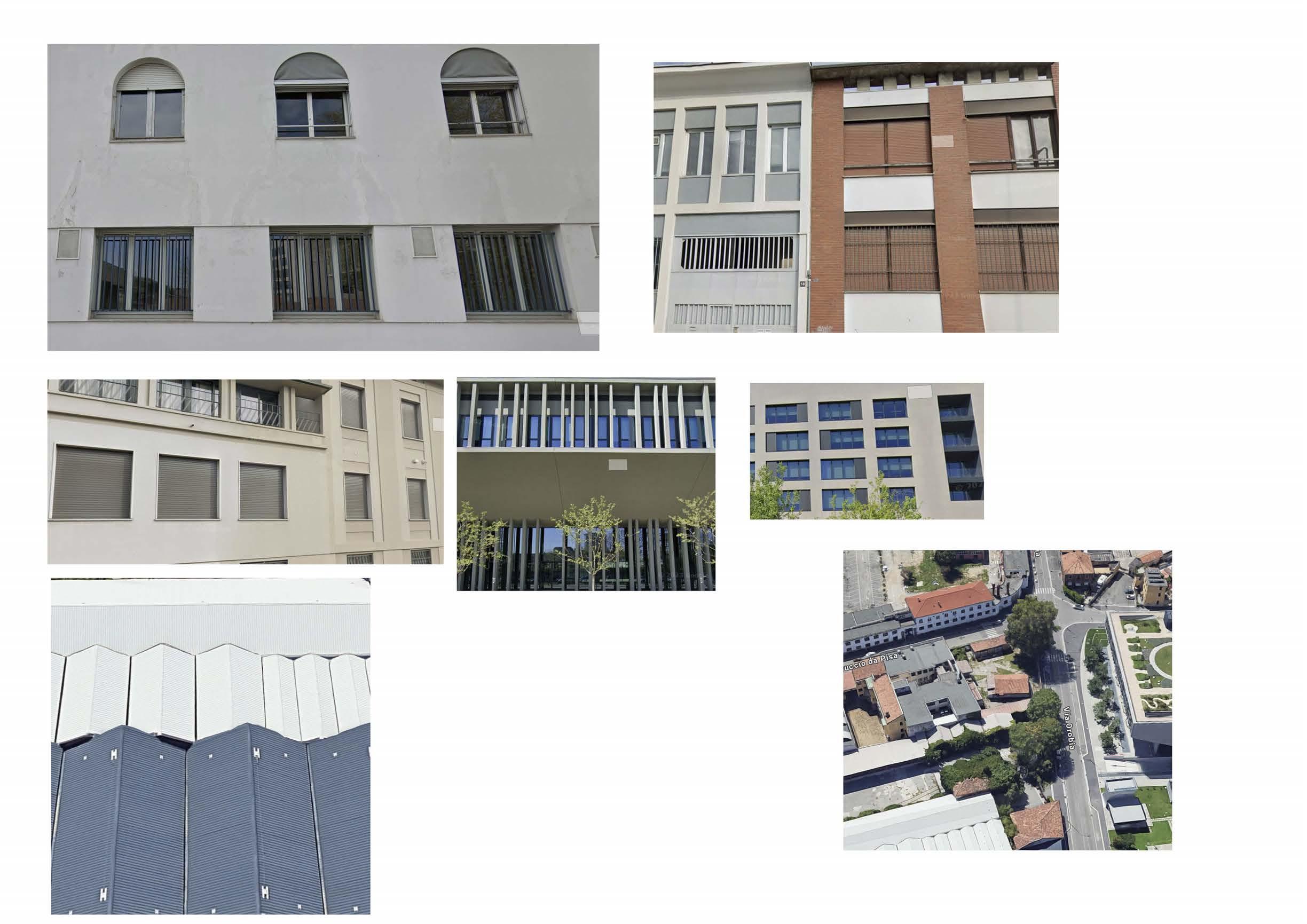

local buildings materiality study

The site is in Vigentino Zone 5 of +Milan, Italy.

VIGENTINO PRIMARYinSCHOOL The immediate area COMMUNITY HUBhas an extremely dominant proportion of commerical developments and B.Arch 3rd Year | 2024 | SiteisSummary relatively few residencies, which projected to local buildings materiality study be the inverse in the next decade due to Milan being theishost city of the The site in Vigentino in2026 ZoneOlympics, 5 of Milan,which Italy. has had a very consistent trend of drastically The immediate area has an extremely dominant increasing thecommerical population.developments and proportion of relatively few residencies, which is projected to These also predict a great of be the projections inverse in the next decade due lack to Milan greenspace forcity theof new density as being the host thepopulation 2026 Olympics, which well as an extreme lack of schools available has had a very consistent trend of drasticallyin the area. the population. increasing These projections also predict a great lack of greenspace for the new population density as well as an extreme lack of schools available in the area.

7.

7.

6.

5.

5.

5.

5.

4.

1.

1.

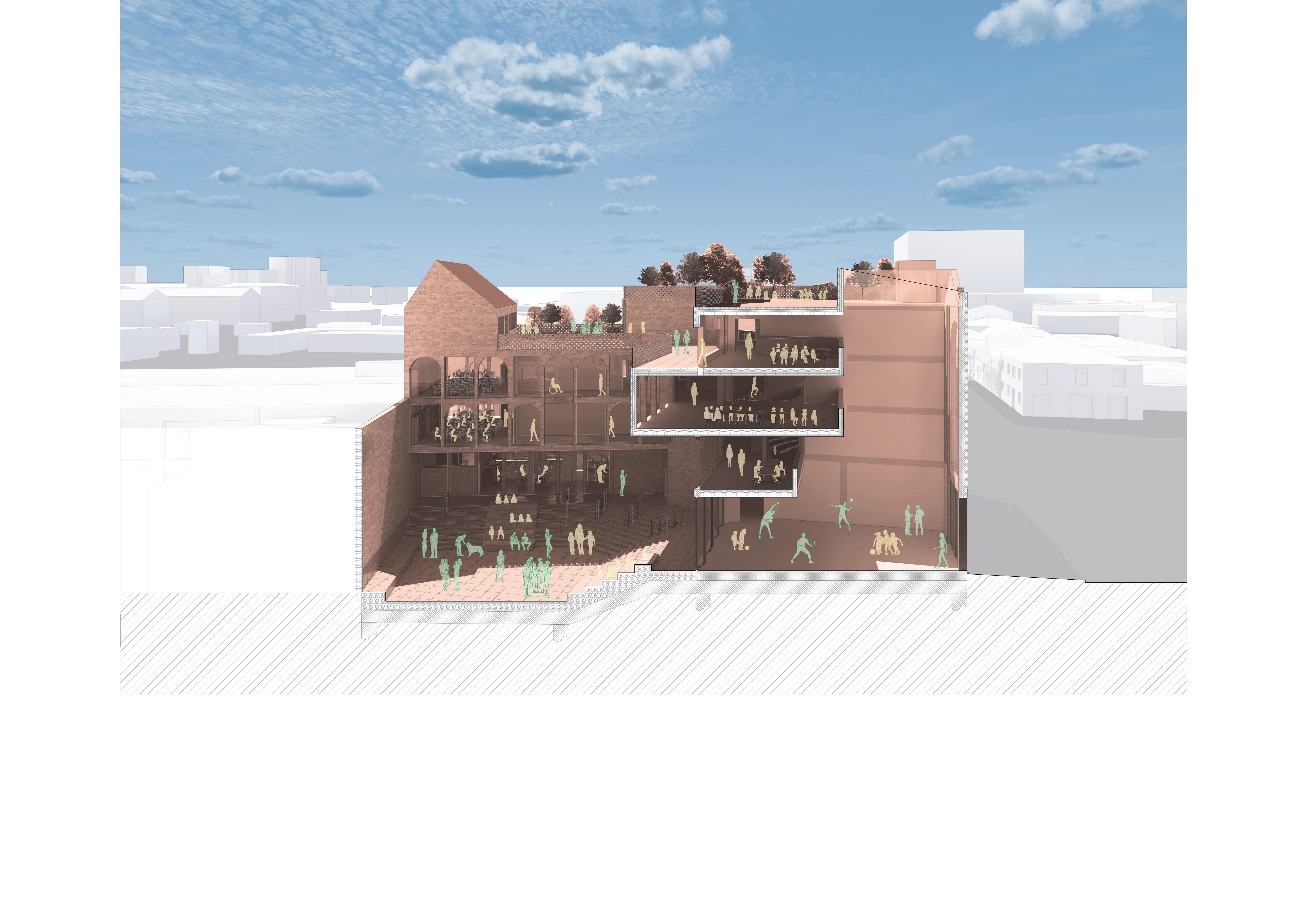

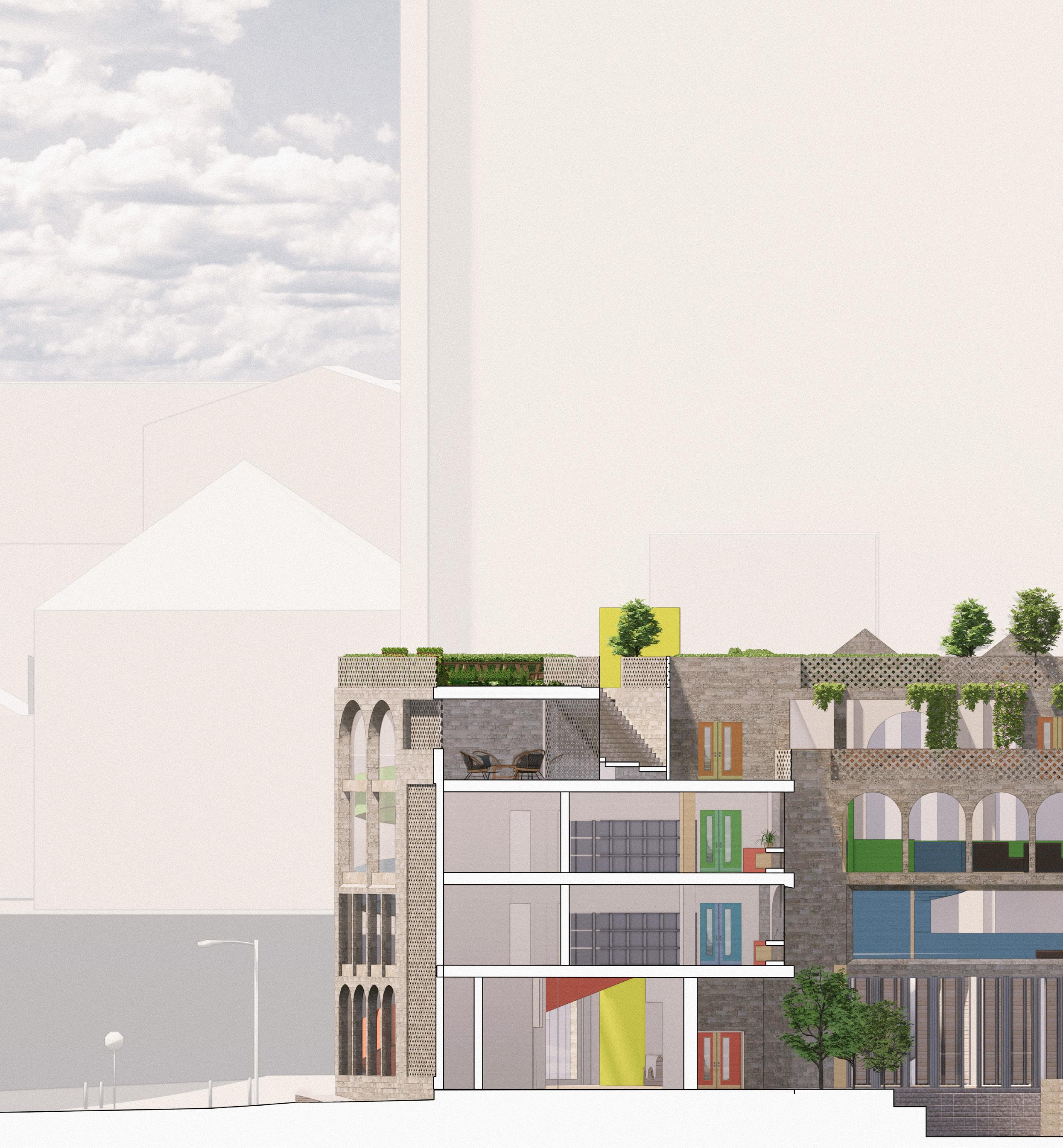

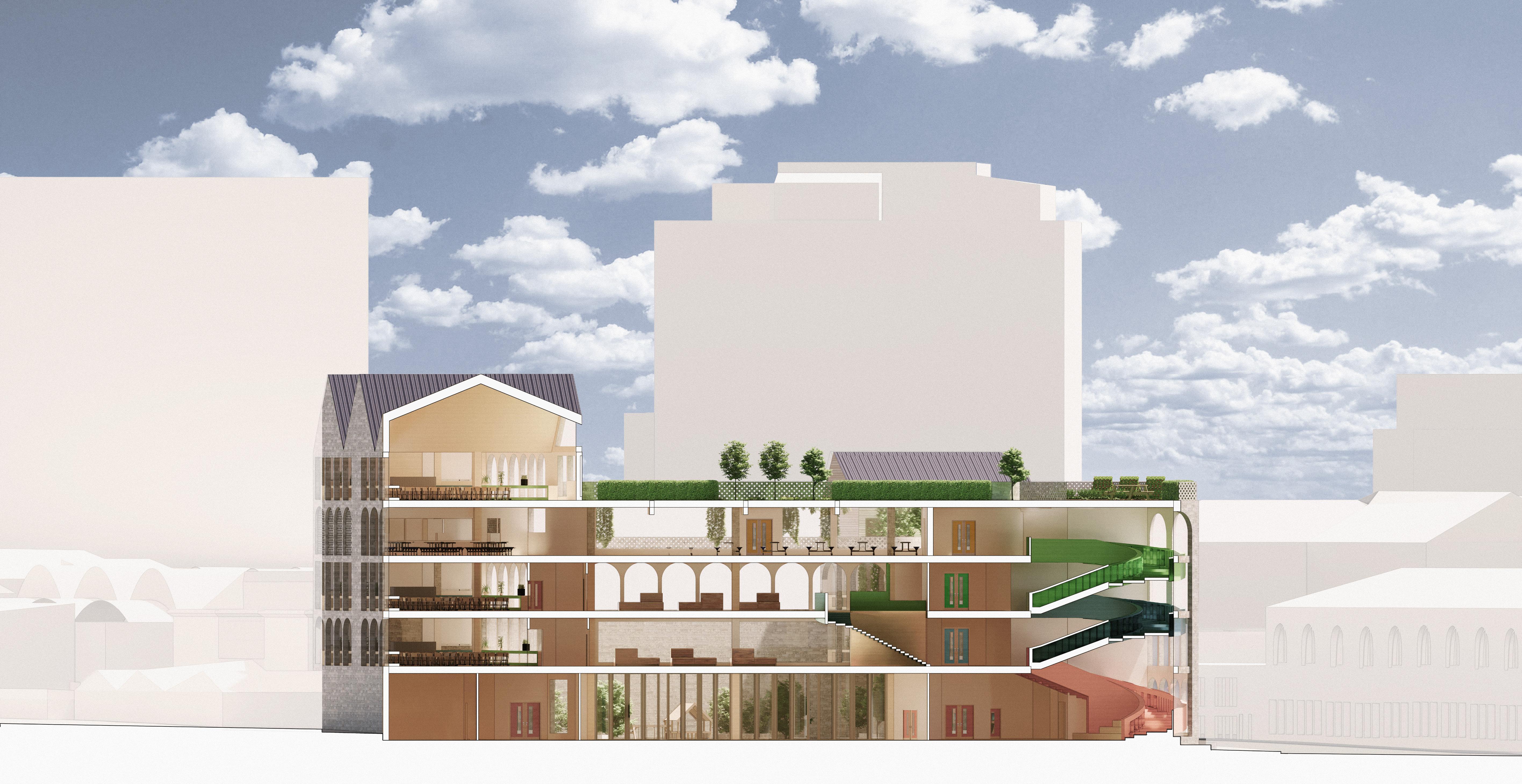

VIGENTINO | B.Arch 3rd Year | 2024 | 1:50 Section on A0 key 1.

2.

3.

4.

courtyard multi-function hall dining hall + social space staff room

5.

6.

7.

classrooms terrace green roof green roof shed

0 1:50

8

16

40m

6.

3.

6.

3.

3.

2.

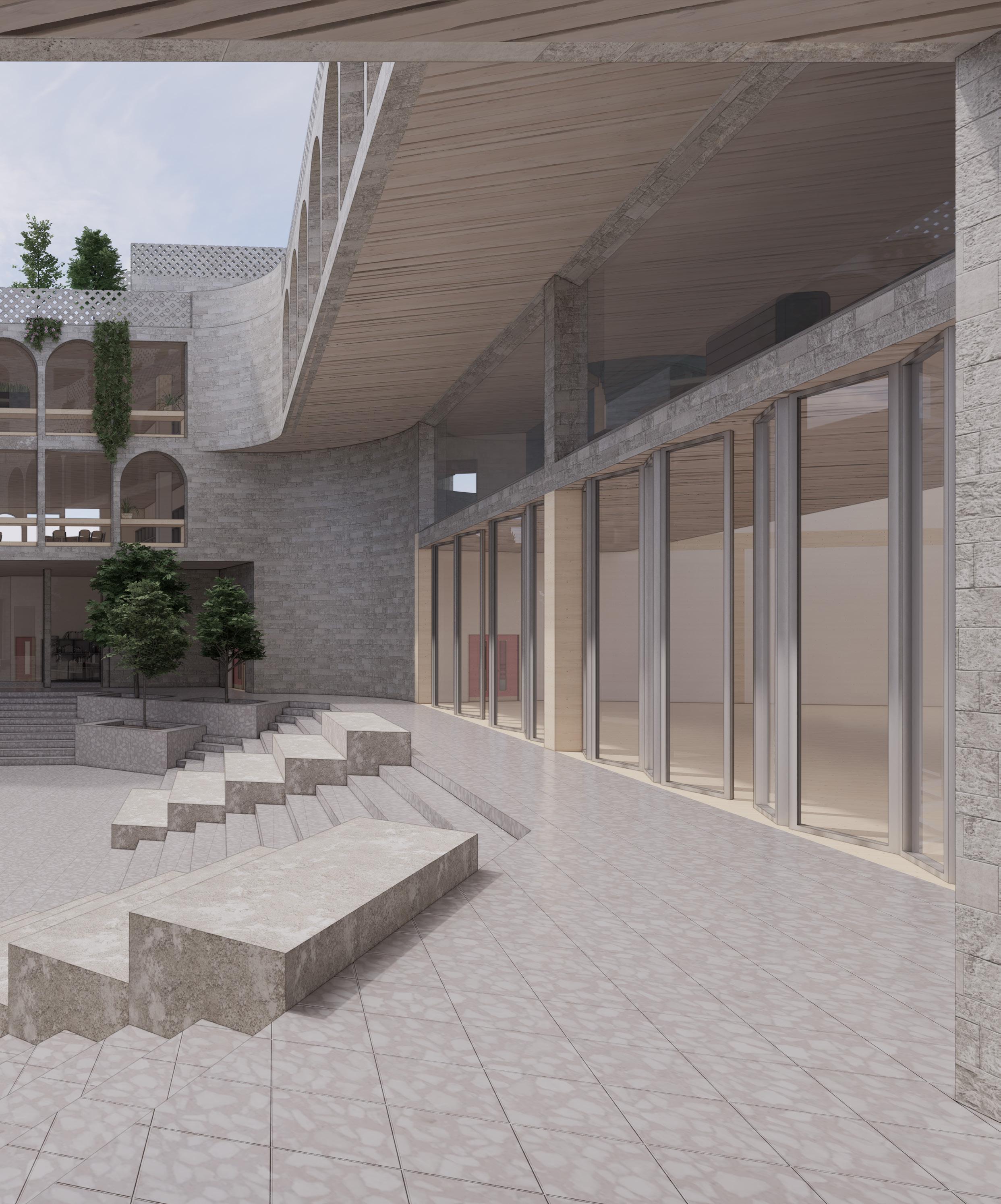

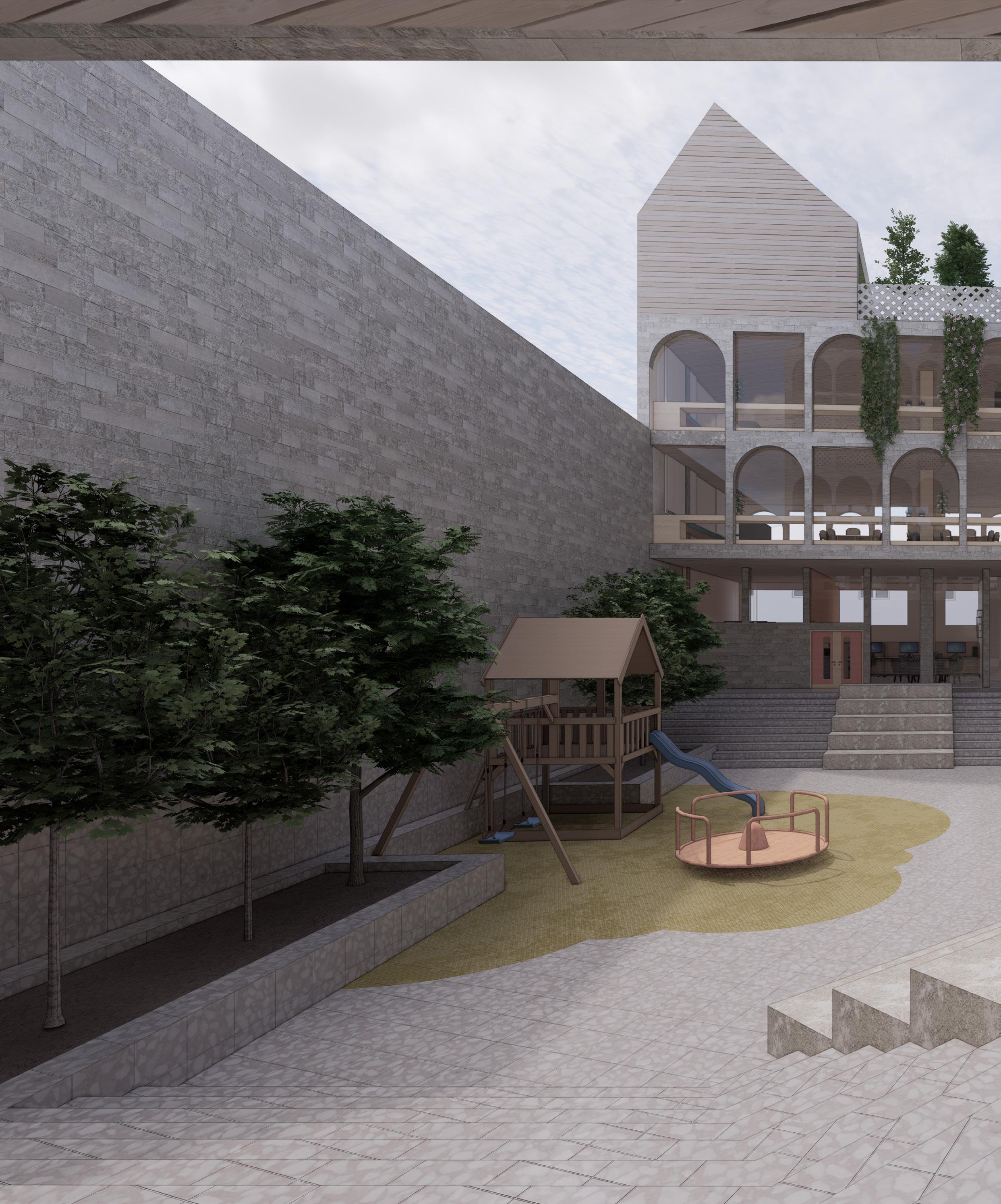

VIGENTINO | B.Arch 3rd Year | 2024 | External View: Courtyard

• Staggered building heights give optimal sunllight to the space.

• Surrounded by glass giving a big transparent, open and welcoming atmosphere.

• Lots of trees to promote wellbeing and fresh air admist the poor air quality in the area.

• Stone seating which also aids in the communal element and encourages use of the space.

• playground and play equipment for the students.

• recycled tiles to reduce the buildings carbon footprint.

8.

7.

8.

6b.

4.

6a.

3a.

3b.

5c.

5a.

2.

5b.

7.

1.

VIGENTINO | B.Arch 3rd Year | 2024 | Ground Floor Plan

0 1:200

2

4

10m

key 1. entrance 2. foyer 3a. reception desk 3b. reception storage 4. main hall

5a.

5b.

5c.

6a.

6b.

7.

8.

staff room meeting room nurses office courtyard playground toilets changing rooms

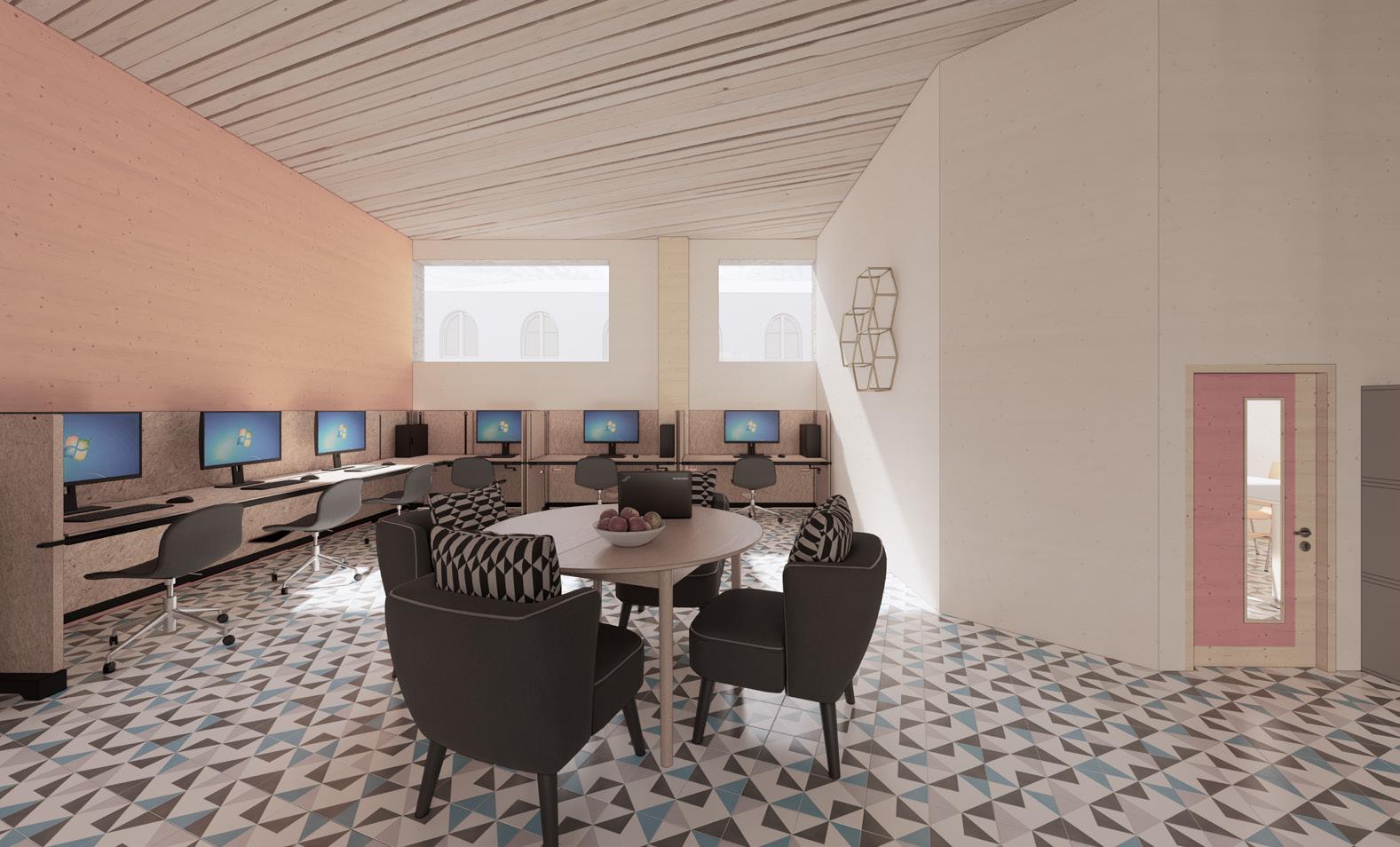

VIGENTINO | B.Arch 3rd Year | 2024 | Renders Internal View: Staff Room Space has high up windows to ensure enough privacy but sufficient daylight.

Has nurse’s office and conference spaces. The materiality of the space uses carpet flooring, CLT walls and wooden slat ceiling.

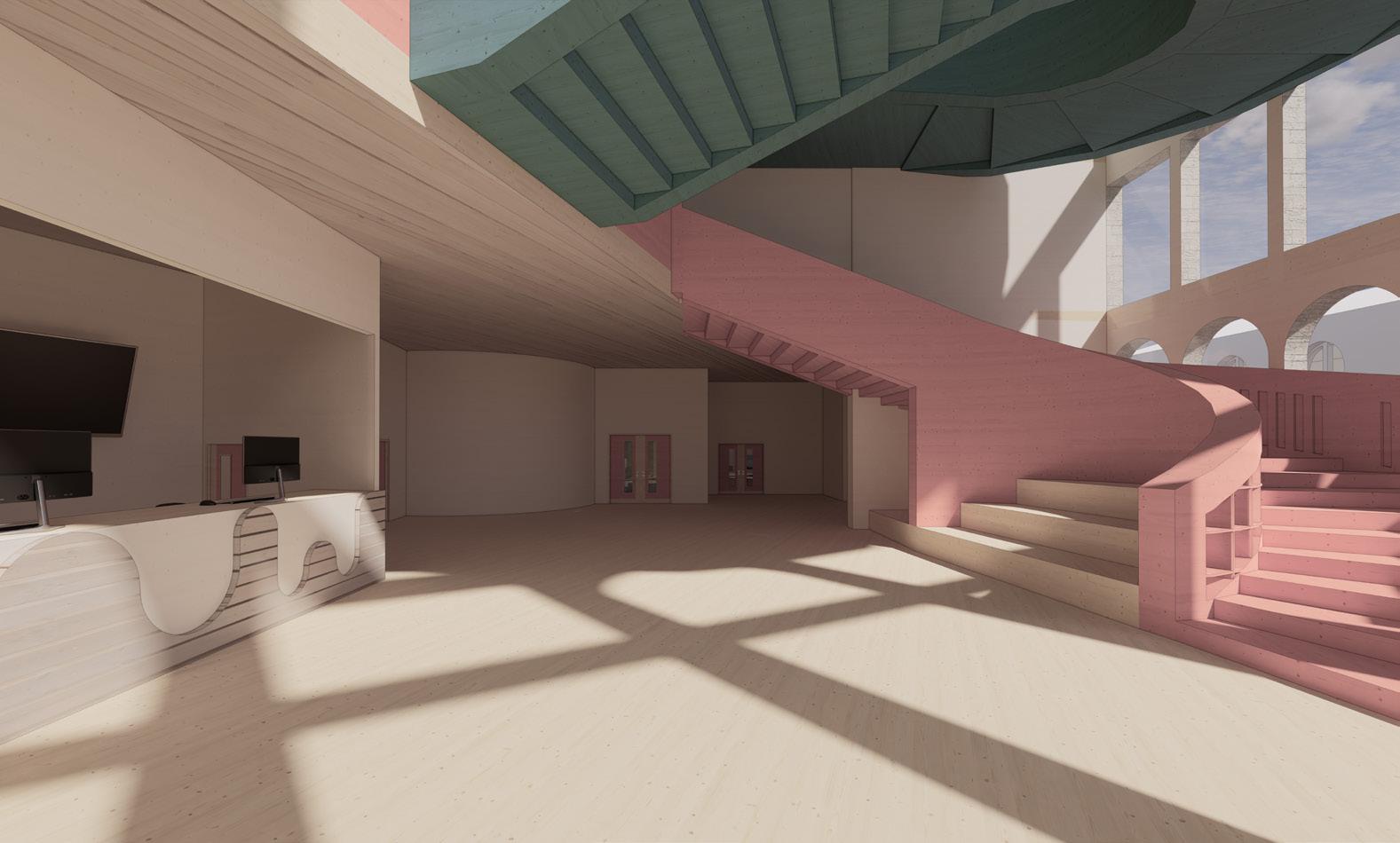

Internal View: Foyer Big open entrance atrium with accented vibrant CLT staircase.

Reception and staff rooms are situated such that they’re immediately accessible upon entry into the building for all users, students, staff and the wider community.

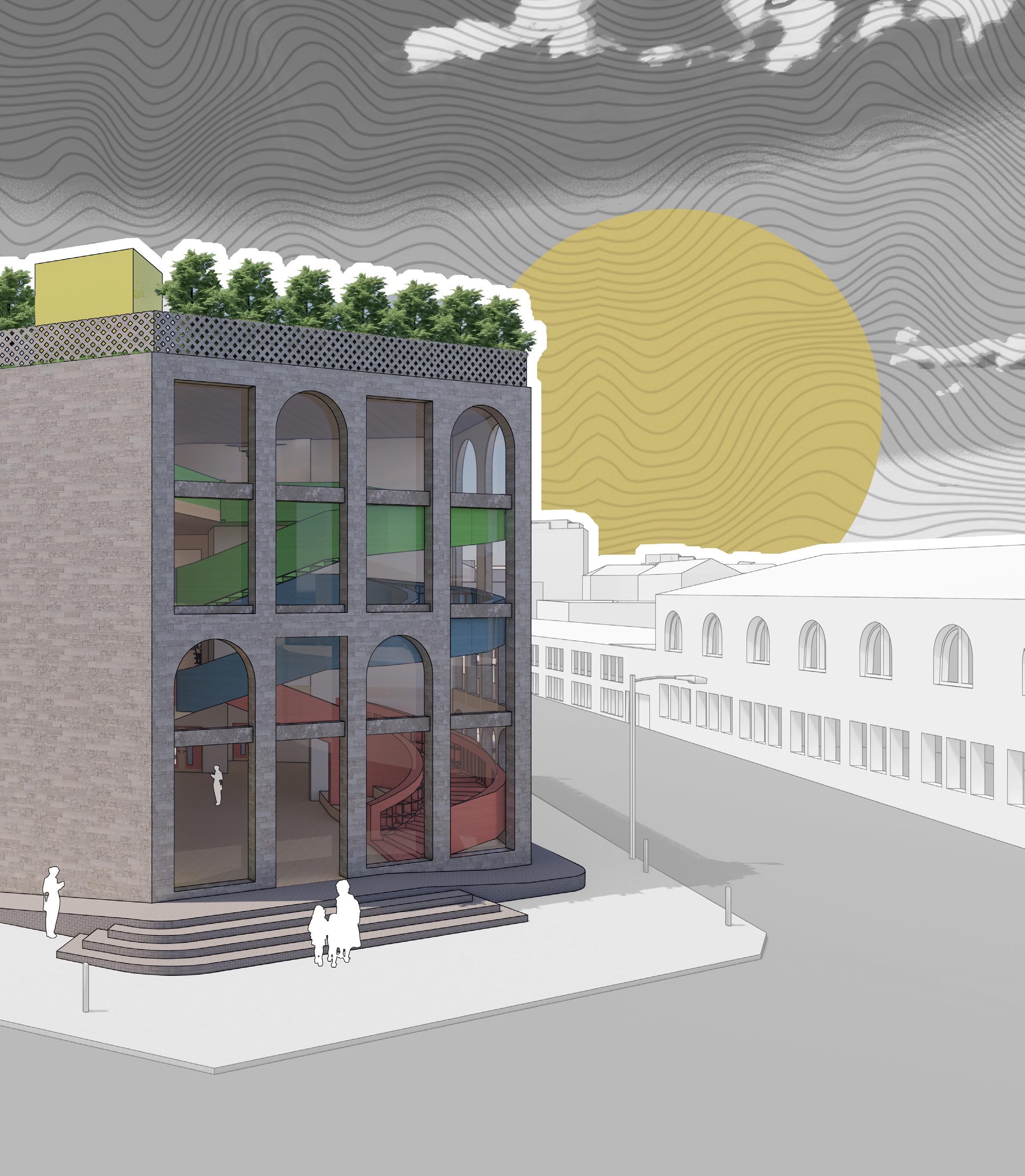

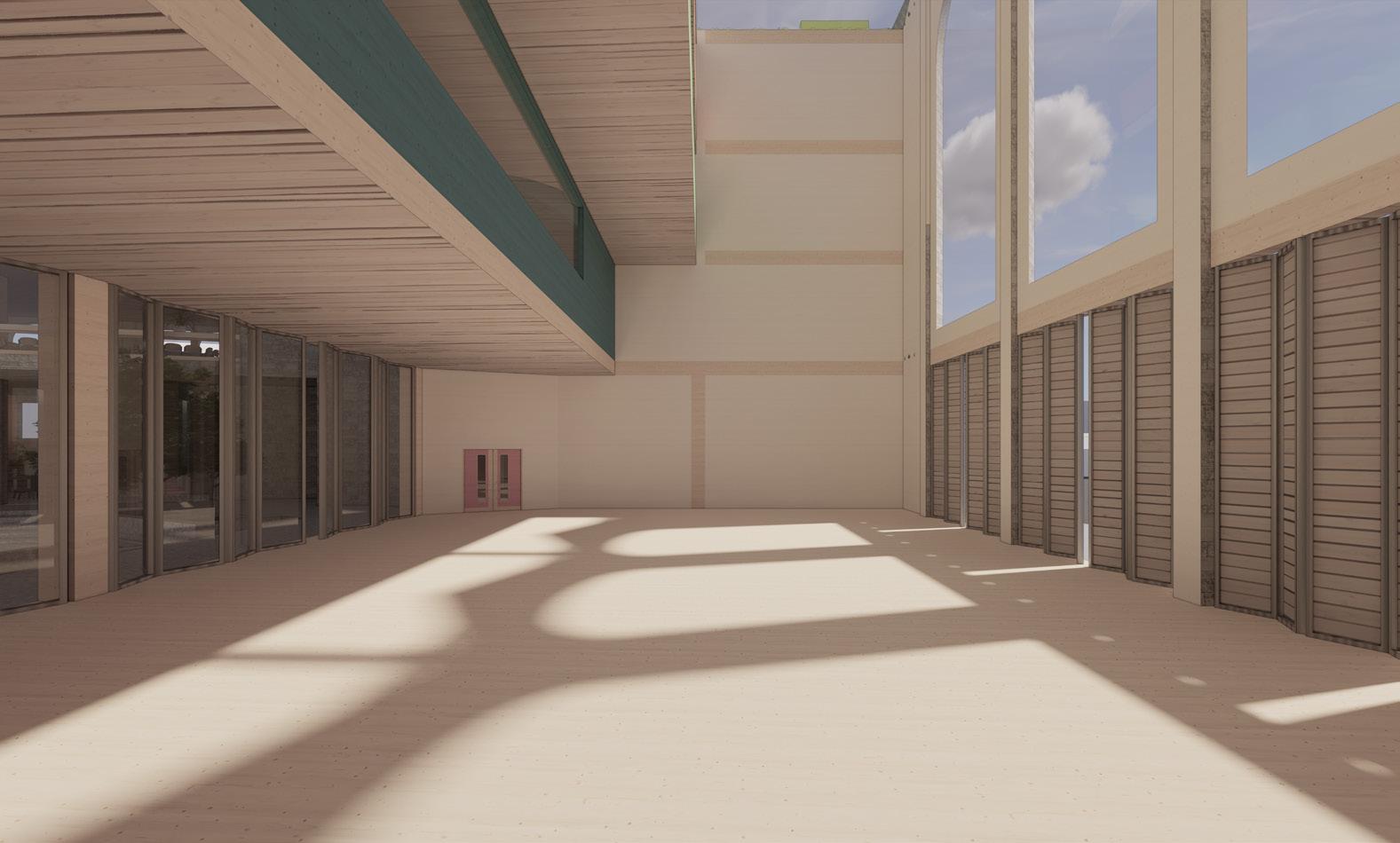

Internal View: Entrance The multifunctional sports hall has Bifolding concertina doors that open to create direct circulation from the street, through the sports hall and into the courtyard to maximise the openness of the space and the desired communal atmosphere.

6.

5.

1a.

4.

1b.

3.

1a.

1a.

2.

VIGENTINO | B.Arch 3rd Year | 2024 | Fourth Floor Plan

0 1:200

2

4

10m

key 1a.

1b.

2.

3.

terrace greenroof terrace balcony vegetable garden greenroof shed

4.

5.

6.

courtyard secondary access classroom

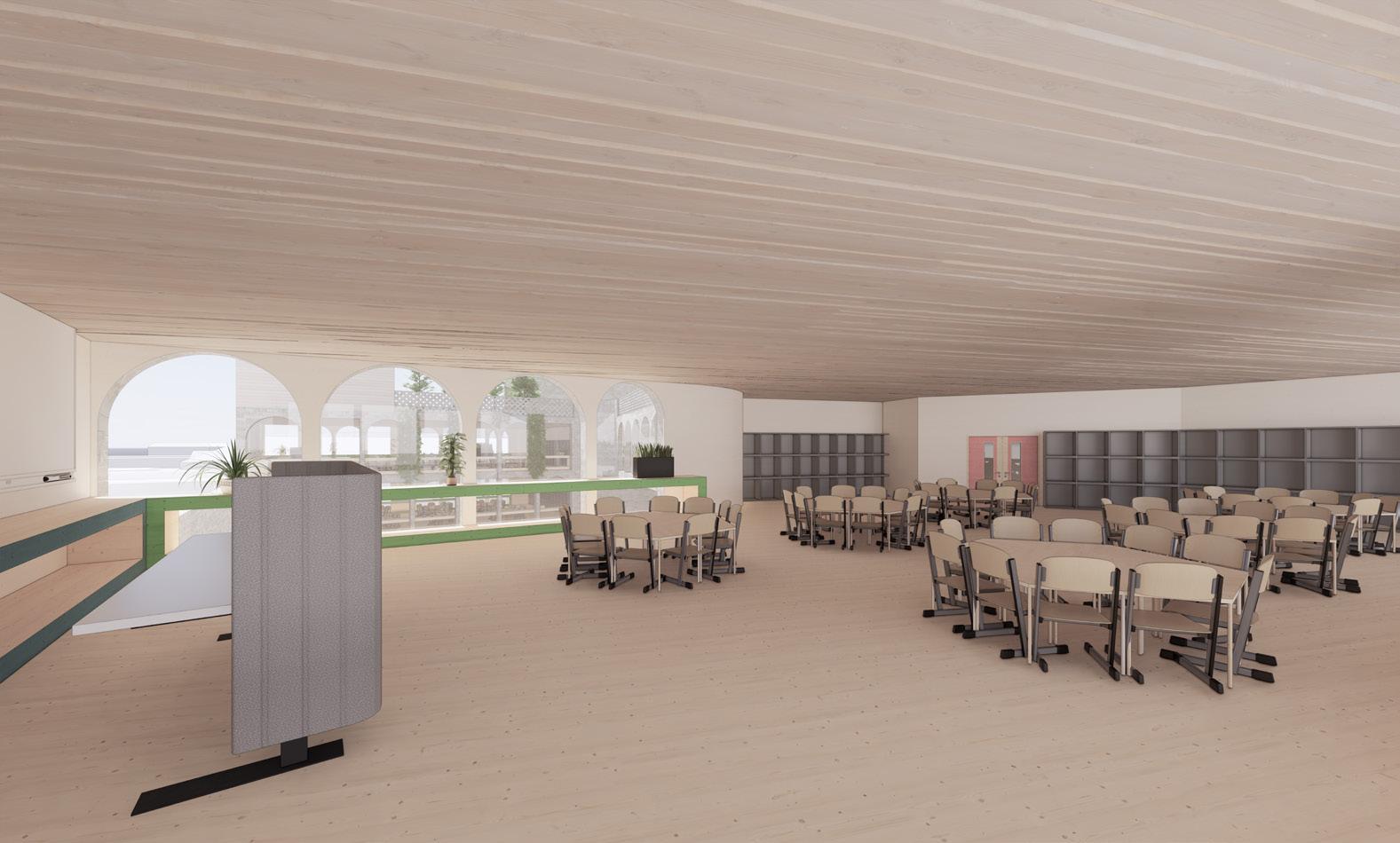

VIGENTINO | B.Arch 3rd Year | 2024 | Renders Internal View: Classroom Large open plan with each classroom accomodating 60+ children. Excellent views into the courtyard and ample amounts of storage space.

Adjustable table configurations to suit the needs of different classes and subjects.

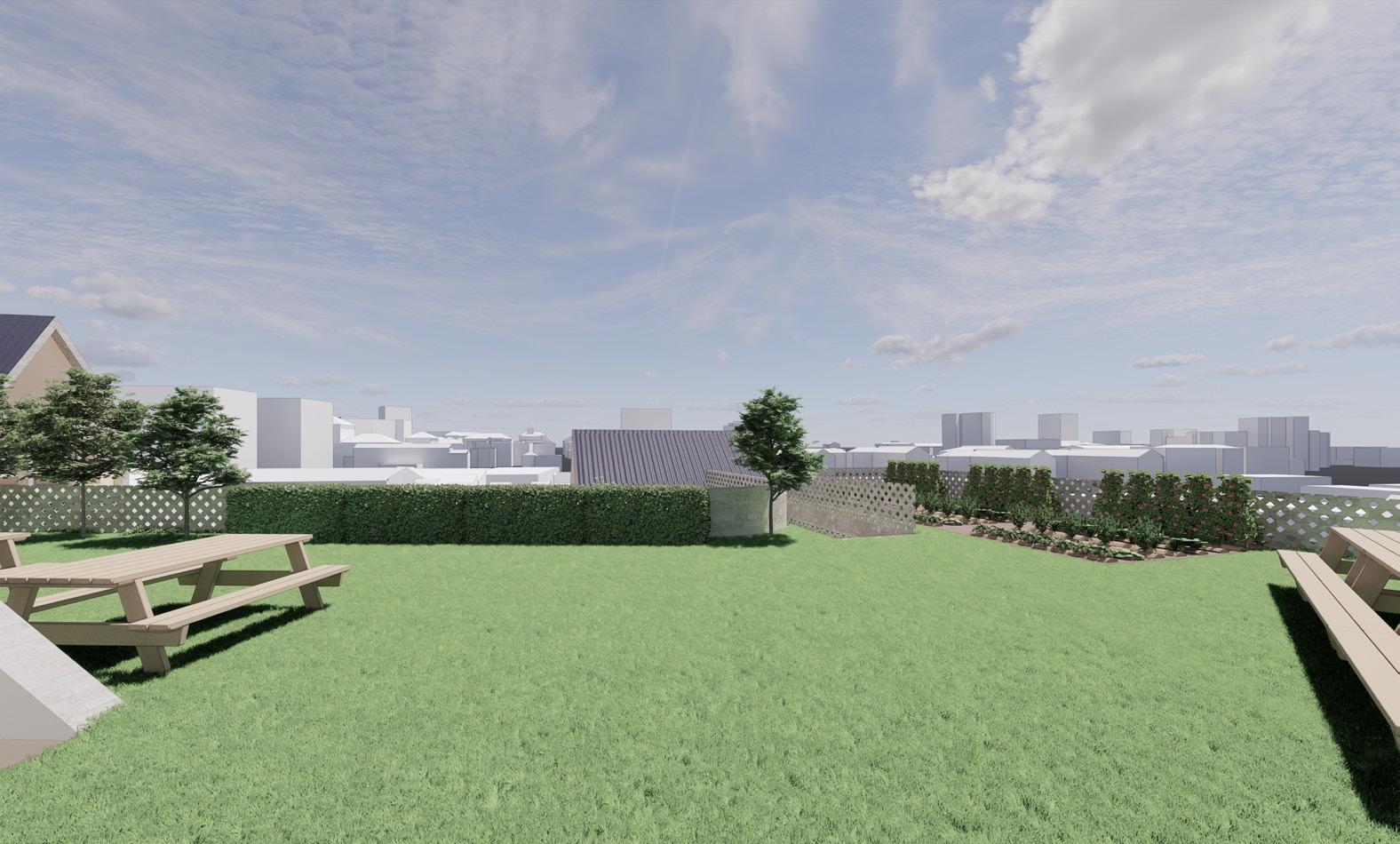

External View: Greenroof 4 storeys high with a large amount of greenspace, promoting user wellbeing. Seating to enjoy the area and aid the communal element of programme.

Open floor plan to the allow the childrena a space to run and play freely.

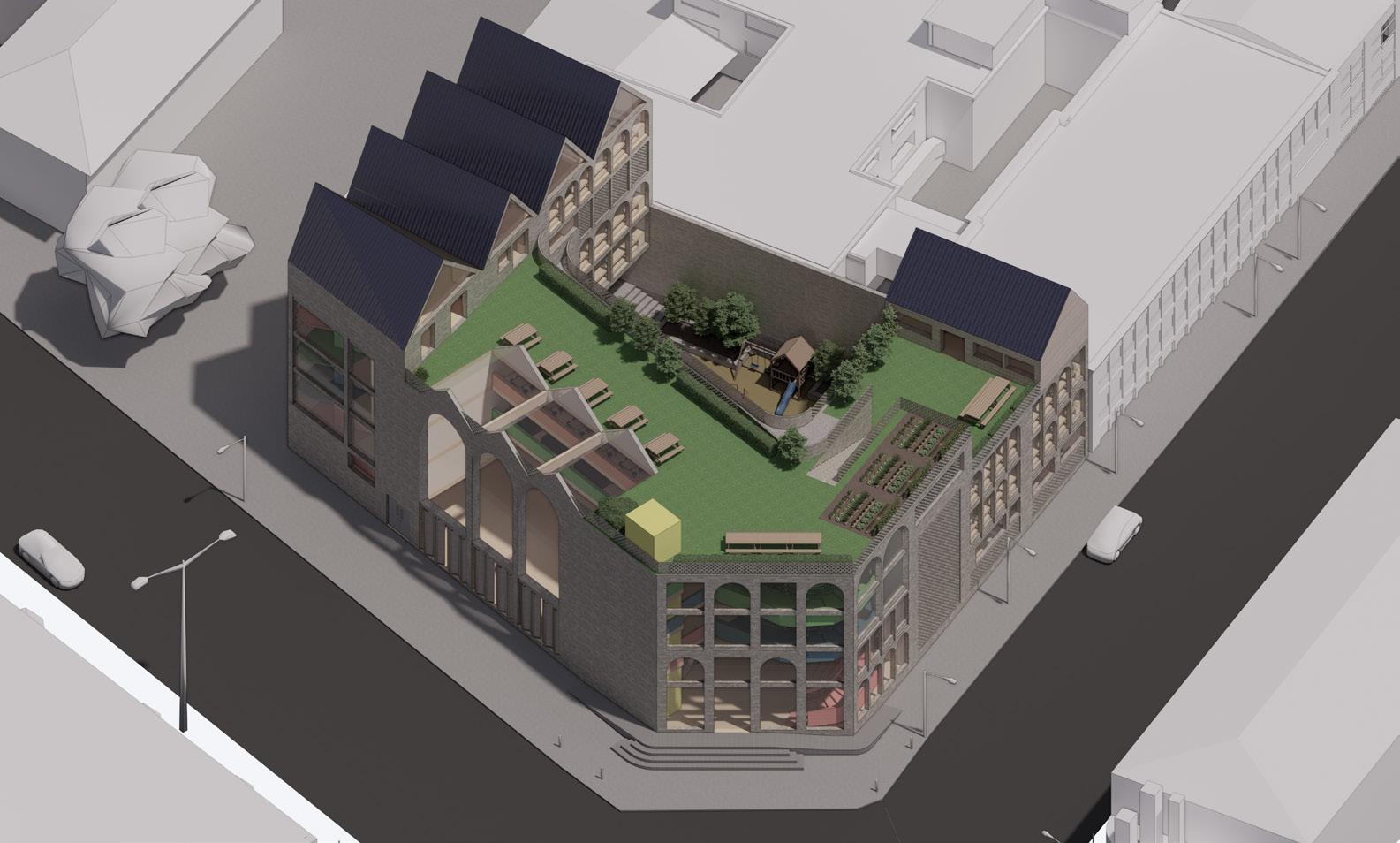

Aerial View This view shows the aerial perspective of my proposal. From here you can see all the street-facing facades of the building as well as the greenroof terrace and the ground floor courtyard and how these spaces are lush with greenery and vegitation

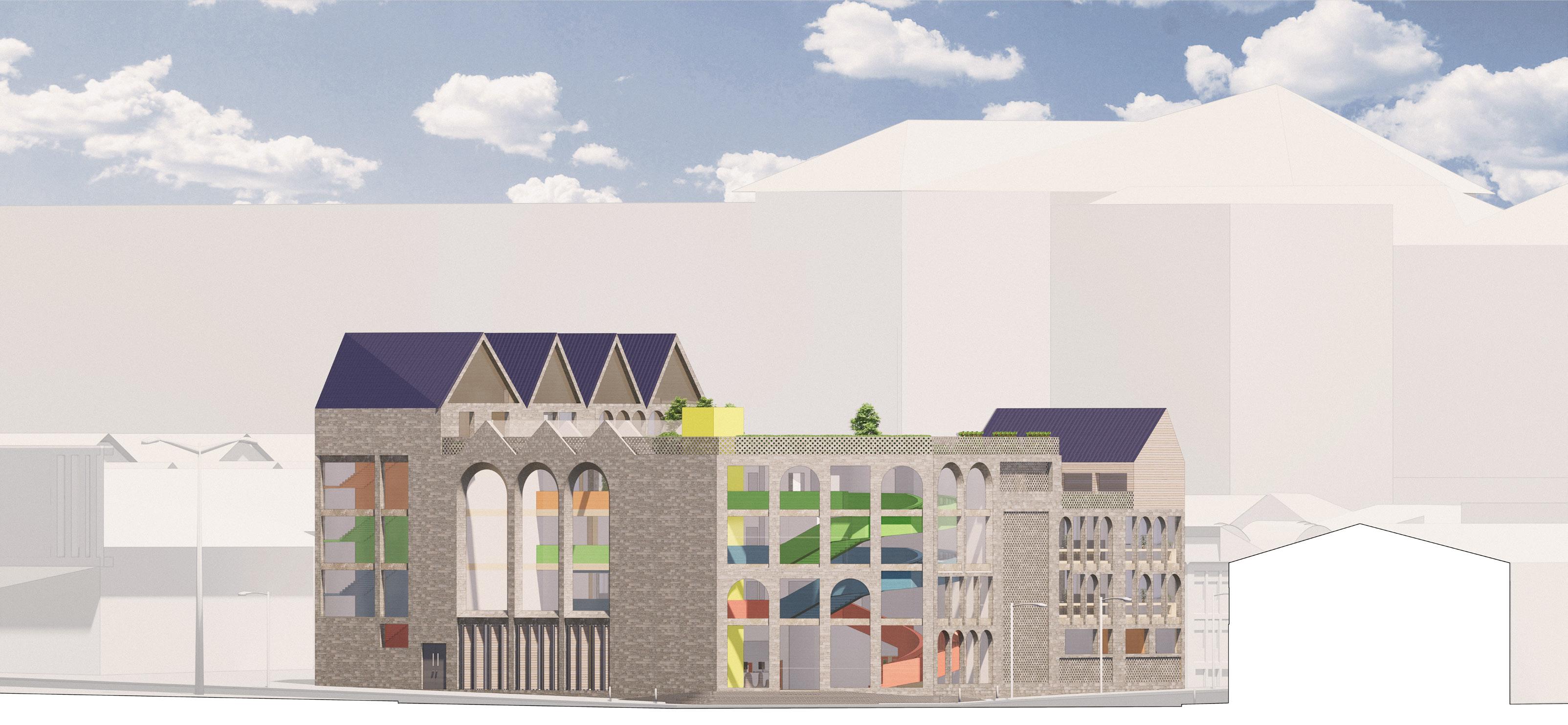

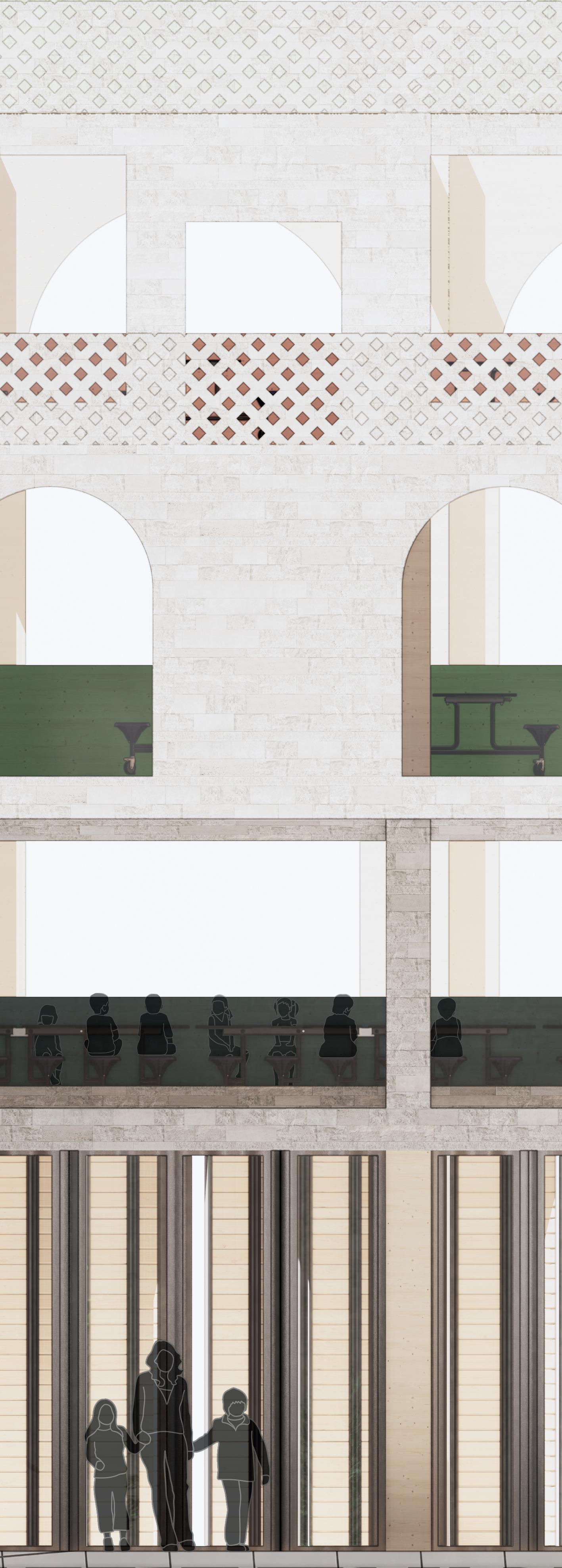

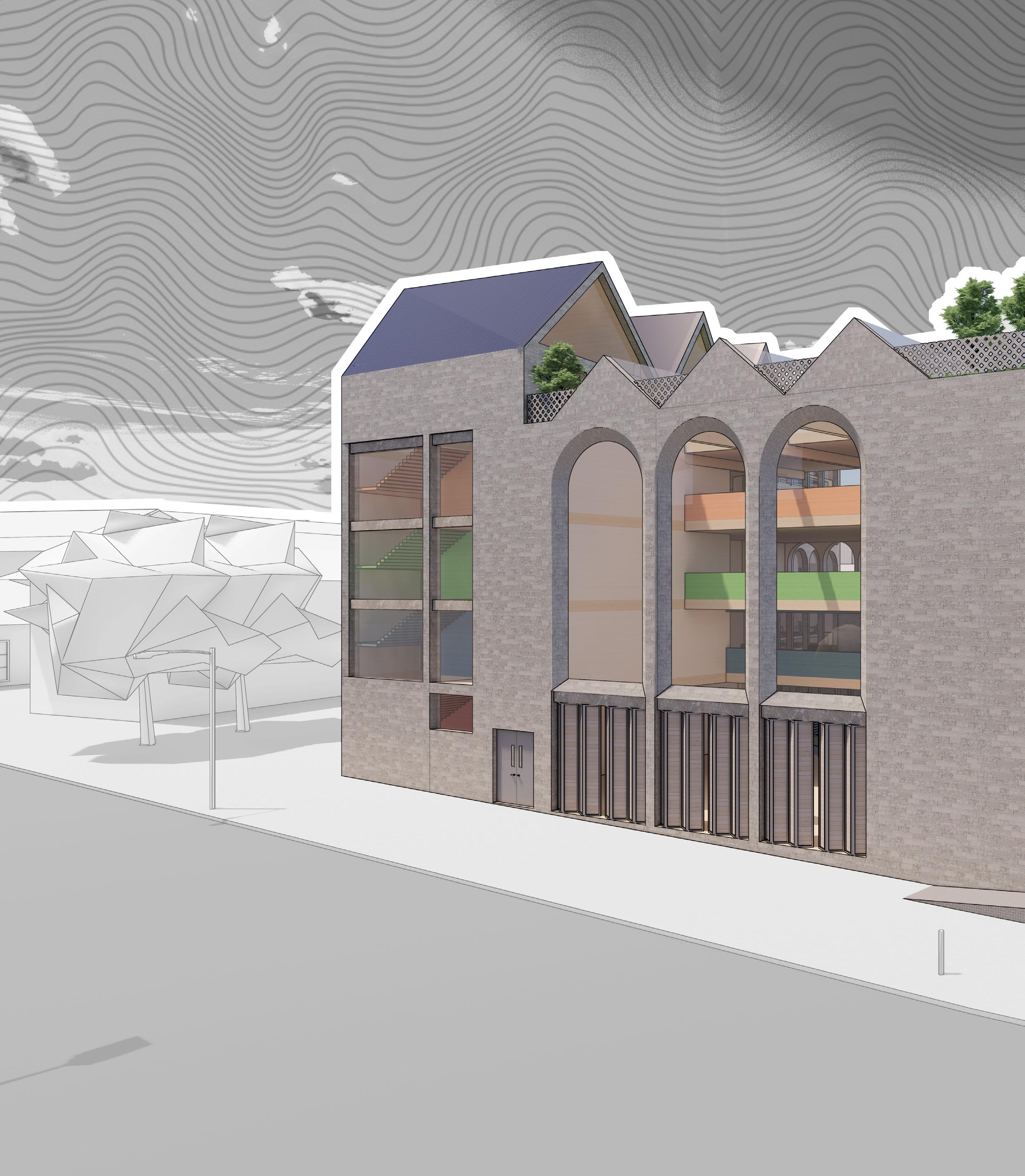

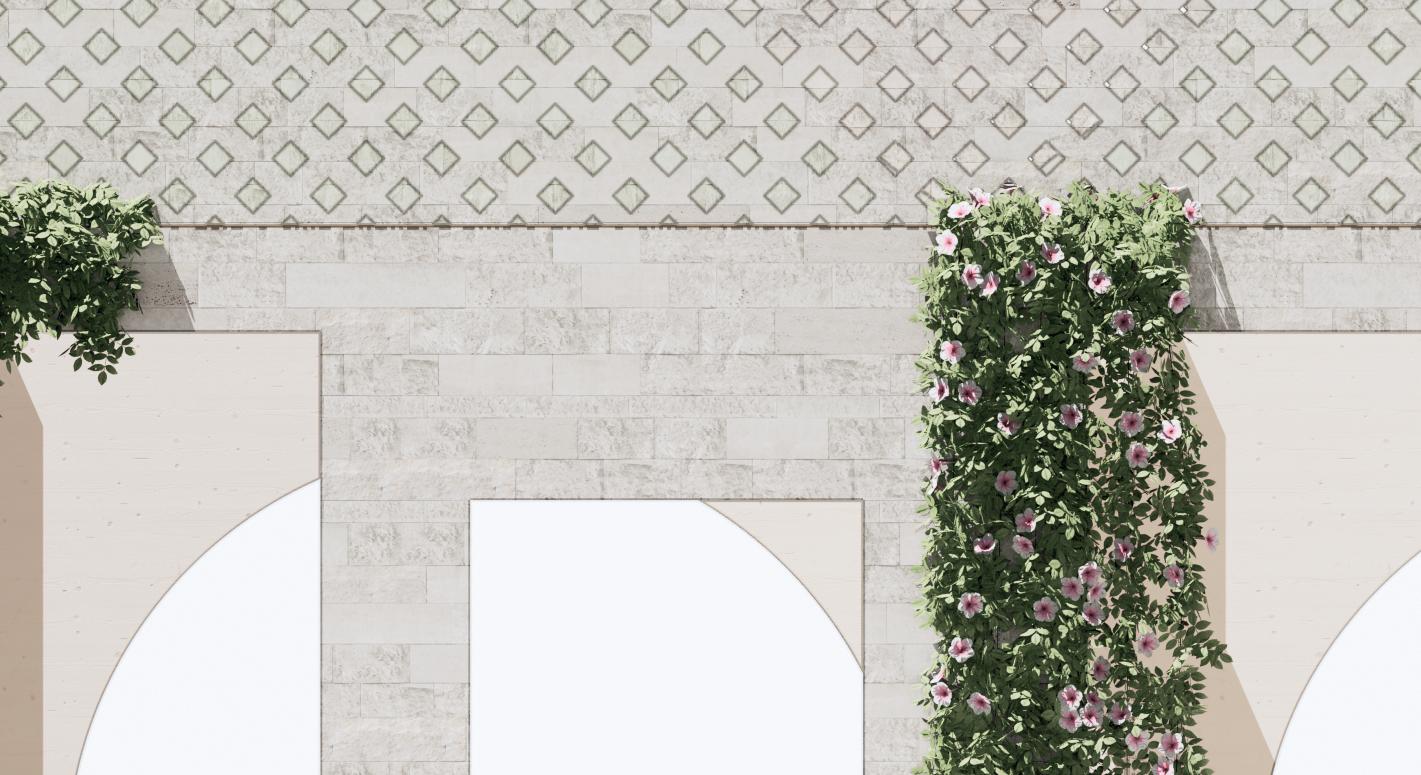

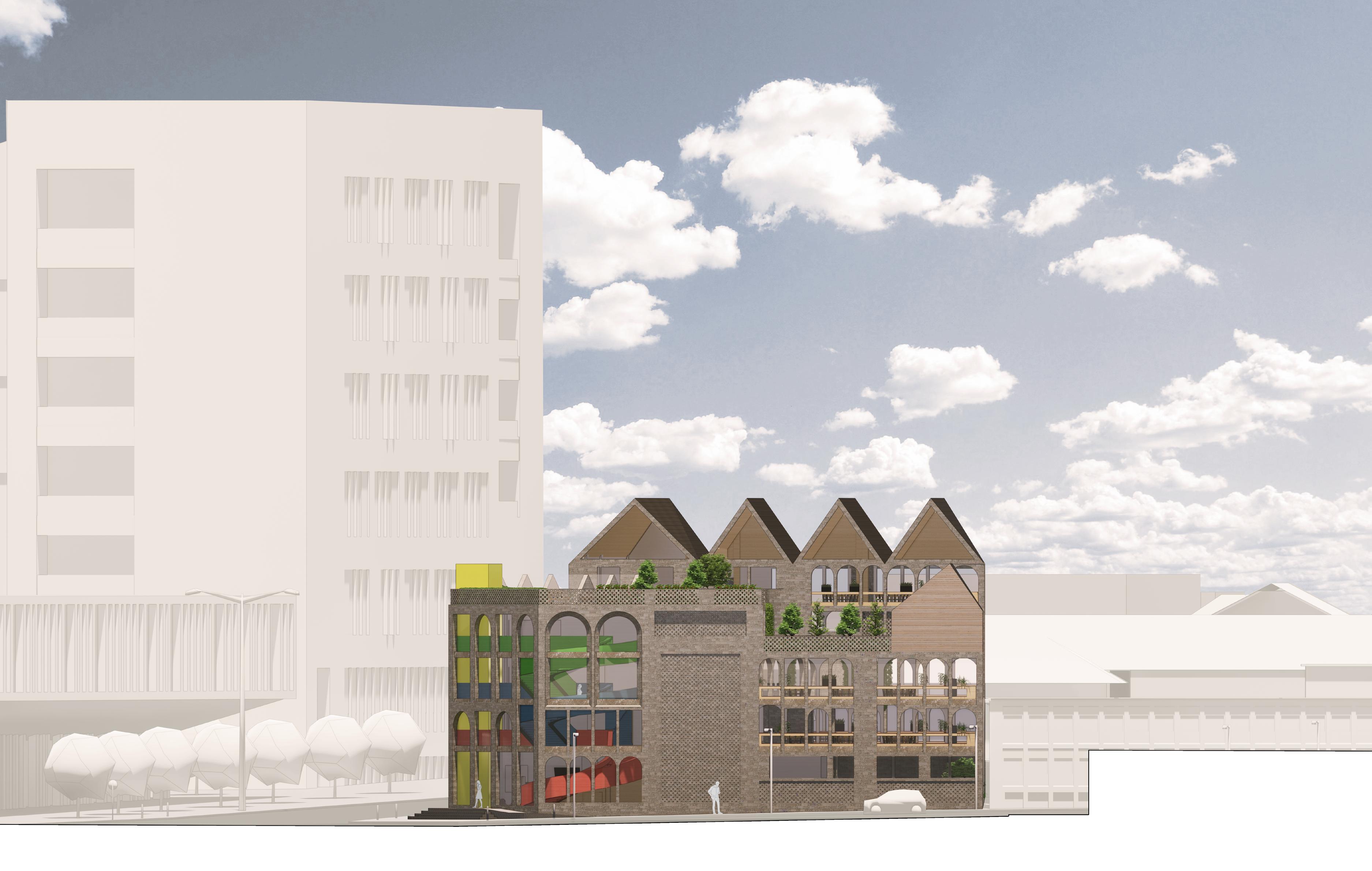

VIGENTINO | B.Arch 3rd Year | 2024 | Elevations

VIGENTINO | B.Arch 3rd Year | 2024 | 1:20 Detail

8.

6.

7.

5.

4.

3.

2.

1.

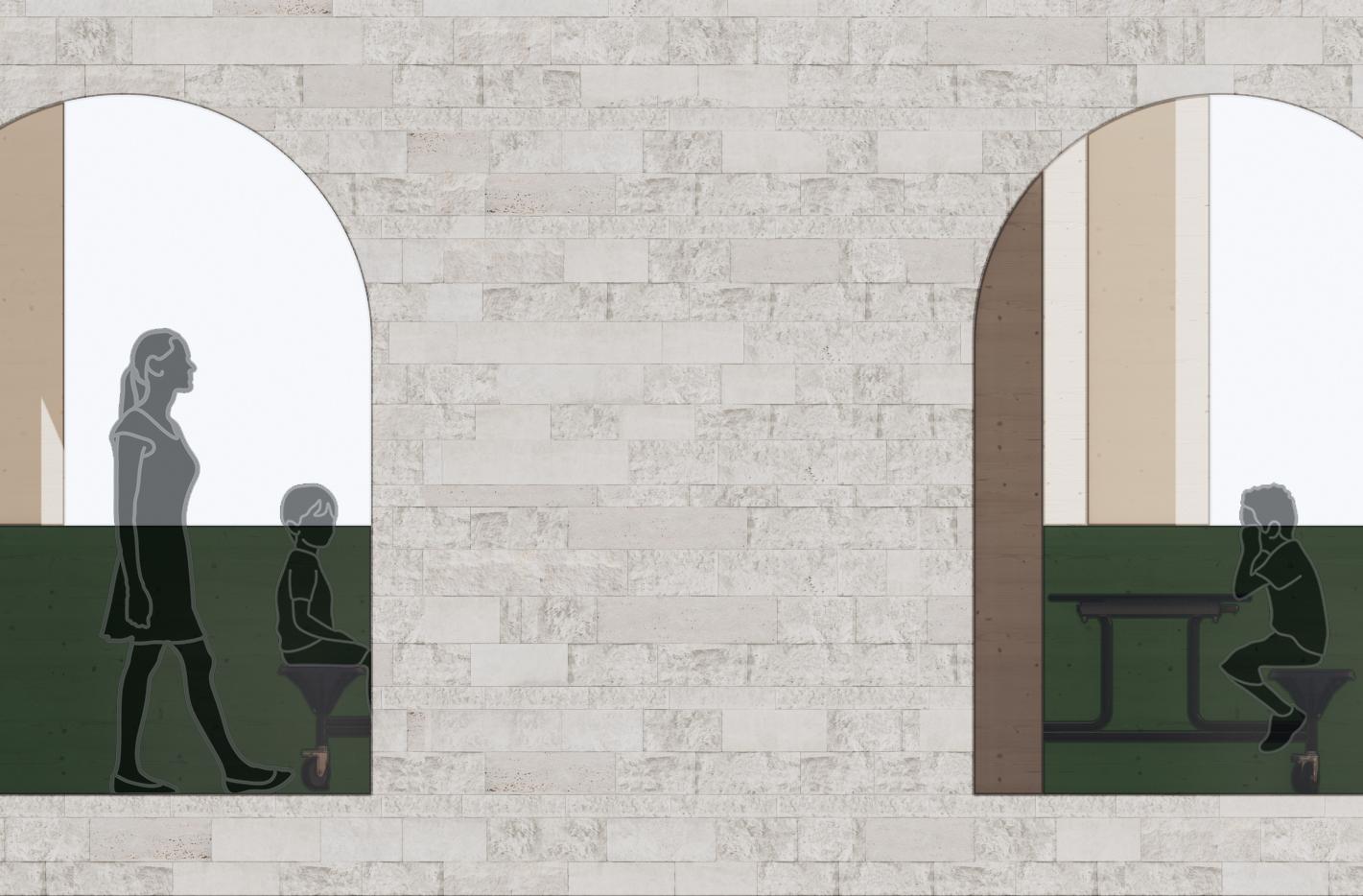

1:20 Bay Study 2.

• • • •

internal floor build-up

20mm floor finish oak flooring 40mm screed 200mm rigid insulation 700mm concrete

1.

• • •

external floor build-up

20mm, recyled terrazzo tile flooring 40mm gravel 100mm hardcore

3.

• • • •

1st floor build-up

20mm floor finish, oak flooring 40mm screed 40mm acoustic insulation 380mm clt structure

4.

• • • • • • •

2nd floor build-up

20mm floor finish, oak flooring 40mm screed 40mm acoustic insulation 380mm clt floor plate 2mm water insulation 180mm rigid insulation 40mm cantelever cladding

5.

• • •

external wall build-up

100mm clt structure 180mm rigid insulation 100mm stone brick cladding

6.

• • • •

terrace floor build-up

20mm terrazzo tile flooring 40mm screed 180mm rigid insulation 380mm clt floor plate

7.

• • • • •

3rd floor internal build-up

20mm floor finish, oak flooring 40mm screed 40mm acoustic insulation 140mmx70mm glulam beams 380mm clt floor plate

8.

• • • • • • •

terrace green roof build-up

grass/ greenery 200mm soil 200mm gravel waterproofing membrane 100mm drainage layer 180mm rigid insulation 380mm clt floor plate
