Product Catalogue #4 Product specifications are approximate only due to variable factors such as tool temperature, battery life, age and wear on tool, position of tool, size and strength of rebar being processed, etc.

®

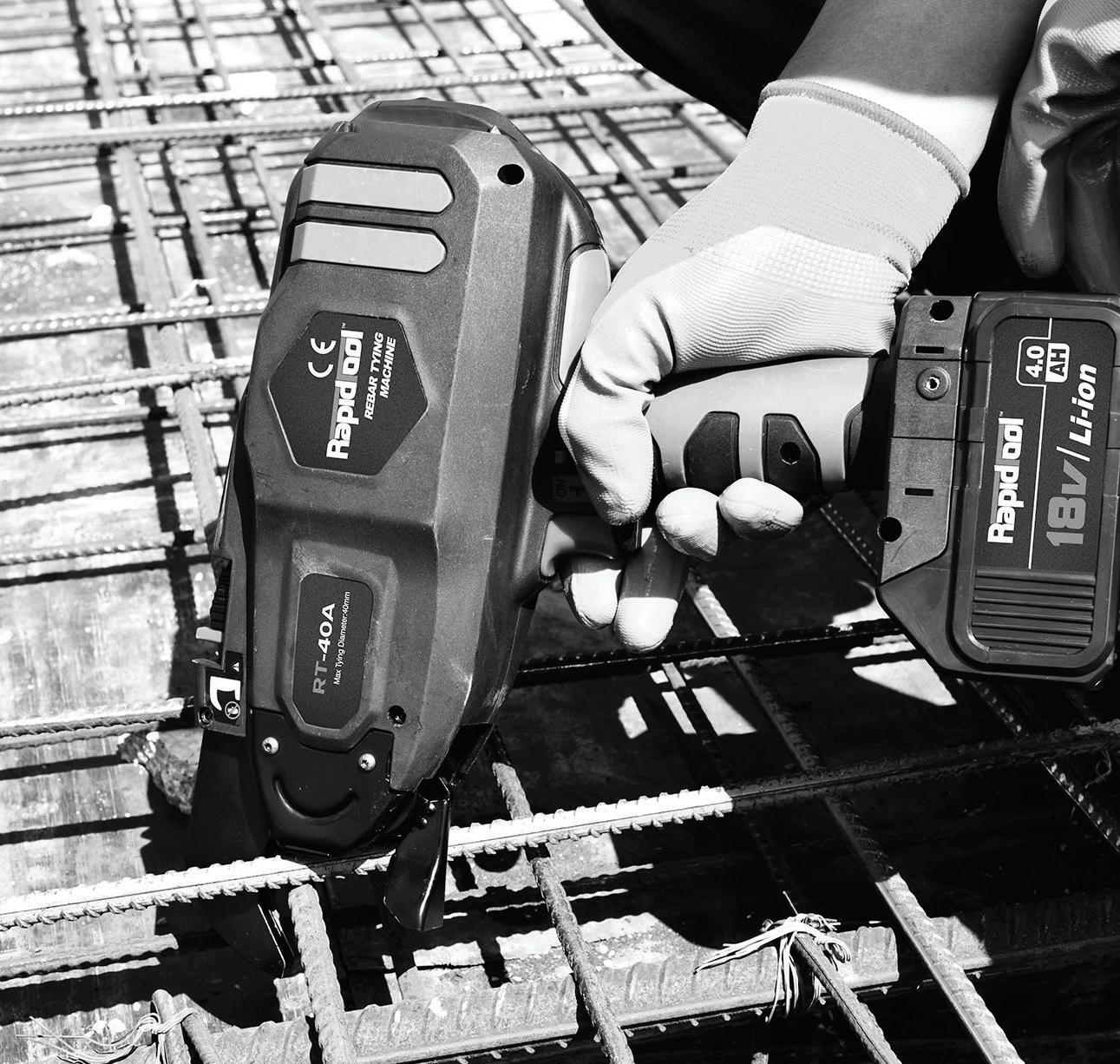

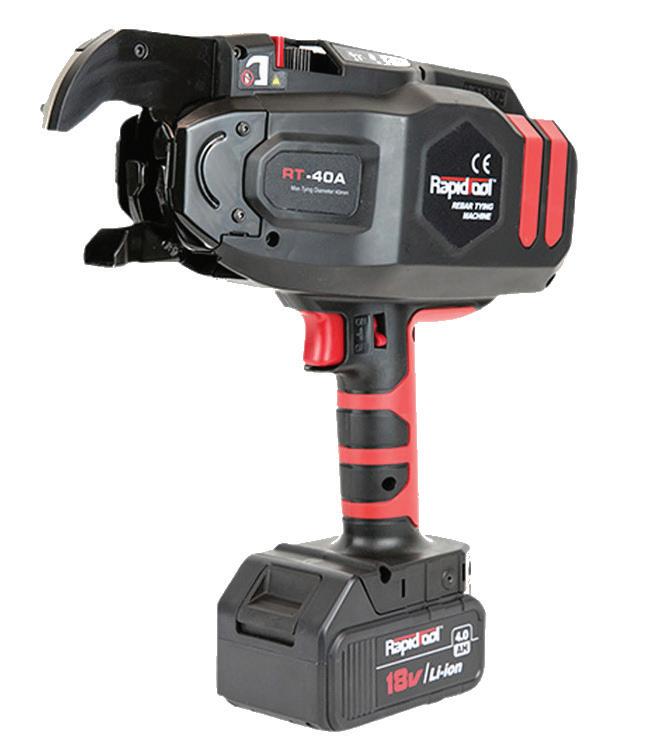

CORDLESS REBAR TYING MACHINES RT-40A REBAR TYING MACHINE

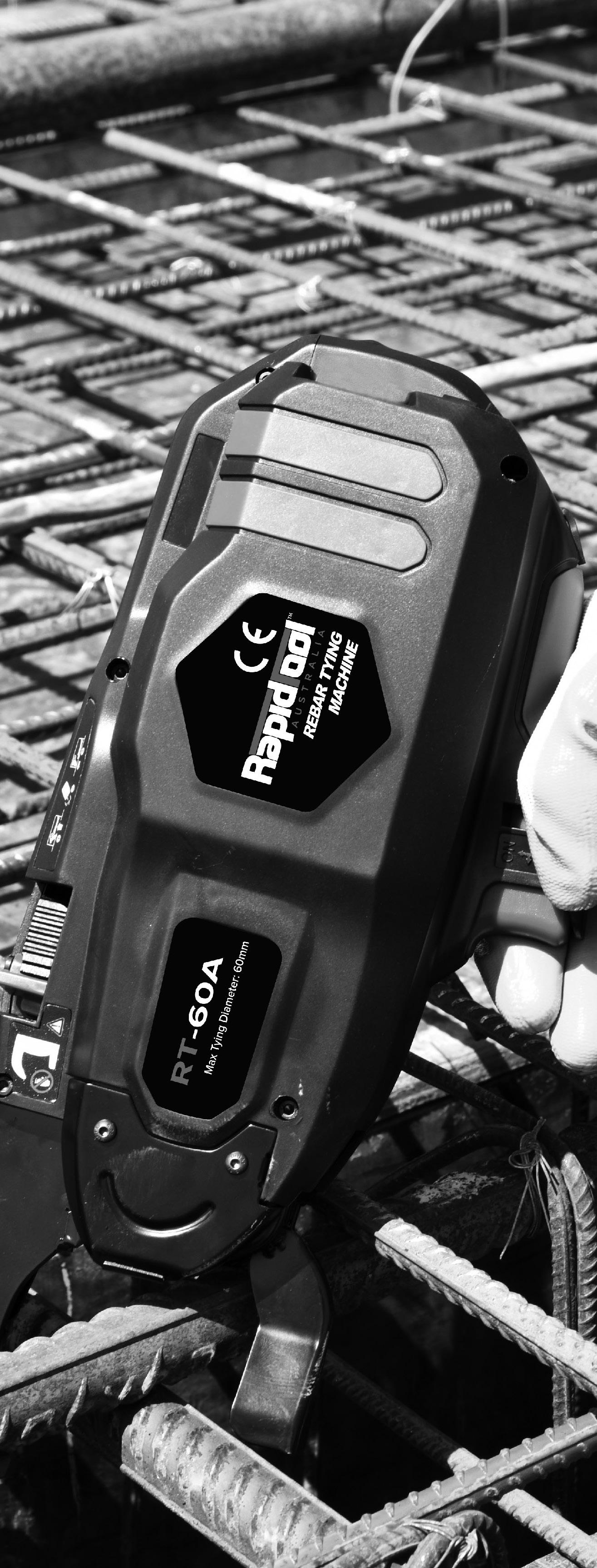

RT-60A REBAR TYING MACHINE

approx. 0.6 seconds

approx. 0.8 seconds

• Lightning-fast tie speed

• Lightning-fast tie speed

• Ties 12-40mm rebar

• Ties 30-60mm rebar

•

• Over 4500 ties (3 wraps) and

(20 x 20mm bar max)

(28 x 32mm bar max)

Over 5000 ties (2 wraps) and over 4500 ties (3 wraps) per battery charge

over 4000 ties (4 wraps) per battery charge

Kit includes tie machine, 2 x 18V 4.0Ah Li-Ion batteries, charger, 4 x tie wire coils and carry case

SPEED AND RELIABILITY

INCREASE

FIXING SPEED • Quick bar release mechanism and automatic wire reload UP TO Precision engineered and superior durability tested to > 2 million ties • 8 TIMES! • Up to 35% cheaper run cost than competitors • Triple wrap tie tension with digital tension control • Slim arm for tight ties and shorter tie height SAVE • Dual brushless twisting and feeding motor technology and control system for longer life span UP TO 75% Total labour • Industry leading reliability with no servicing required + material costs Advanced warning sensor protection • vs manual • No wire offcuts tying Ergonomic, lightweight design • Ask us for a DEMO machine now • Reduces impact on the body including hands, arms and back

STARTER KIT DEAL

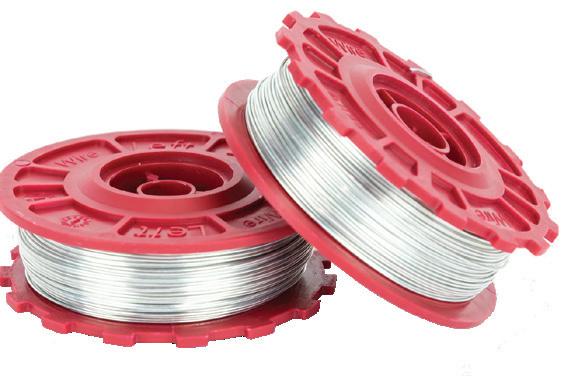

TWG-50A TIE WIRE

3 CARTONS WIRE (150 COILS) + RT-40A REBAR TIER RT-60A REBAR TIER

Suits RAPIDTOOL rebar tying machines

• • Galvanized (TWG-50A) or

50 tie wire coils per carton stainless steel (TWSS-50A) tie wire coils available

$AP VTOE U

$250

HALF PALLET DEAL

• 95m tie wire coil length

$AP VTOE

20 CARTONS WIRE (1000 COILS)

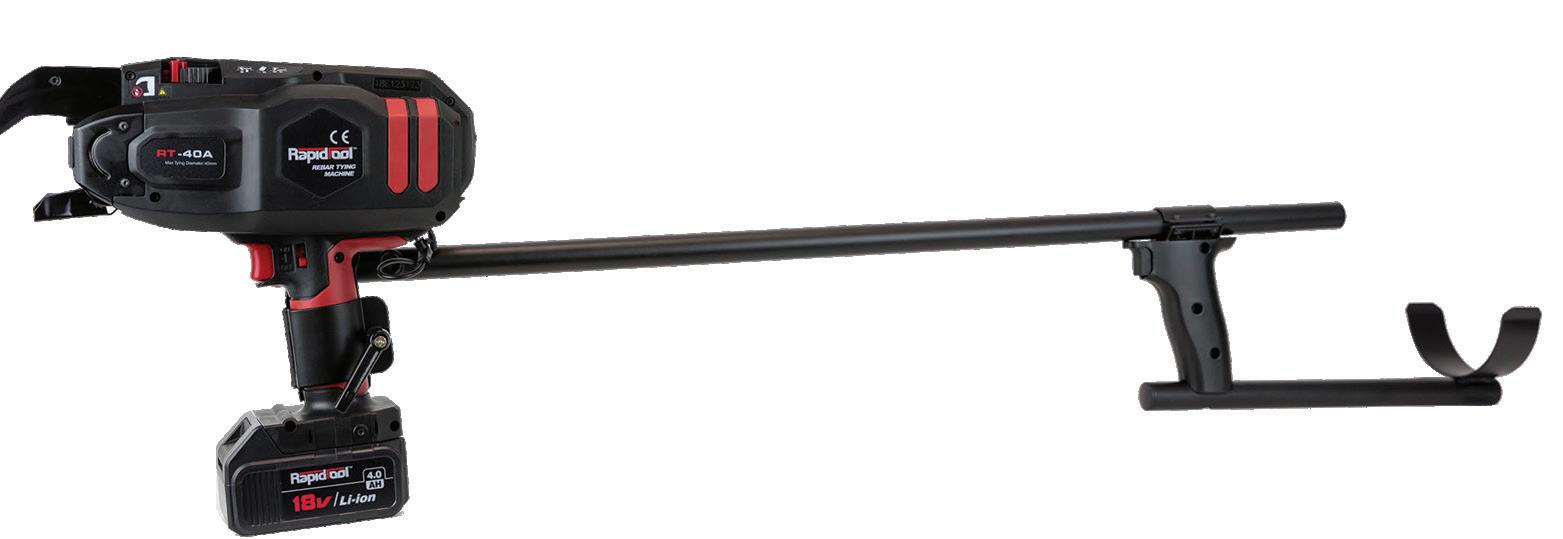

RT-EXA ELECTRONIC EXTENSION ARM

U

+ FREE

$4000

RT-40A OR RT-60A REBAR TIER

FULL PALLET DEAL

$AP VTOE

40 CARTONS WIRE (2000 COILS)

U

+ 2 X FREE

$8,250

RT-40A OR RT-60A REBAR TIER

Savings include GST and are based on supplier RT-60A package RRP (may vary). Package deals cannot be used in conjunction with any other offers, special promotions or discounts. Specifications based on RT-40A model using double or triple wrap operation. Features in comparison to original RT-40 model.

www.rapidtool.com.au

SCAN QR CODE TO VIEW MORE PRODUCTS

®

®

CORDLESS REBAR CUTTERS

RAPIDTOOL PREMIUM !

NEW CORDLESS REBAR CUTTERS

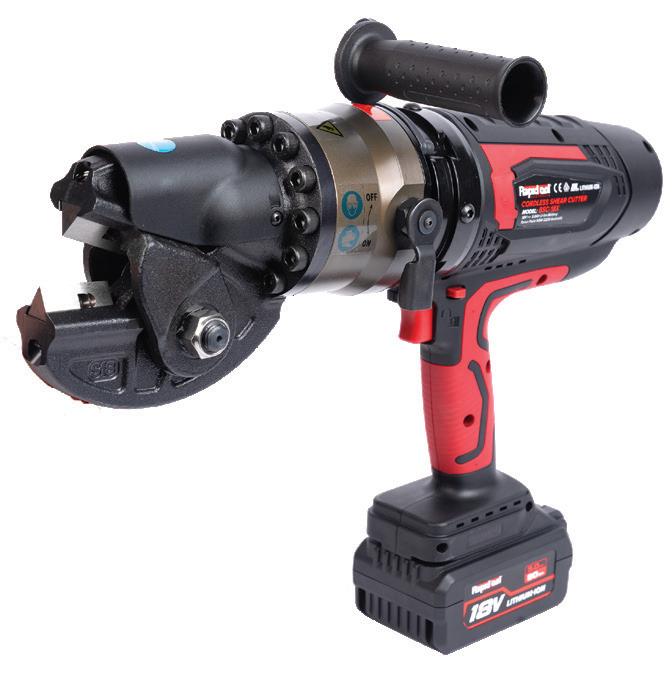

BSC-18X SHEAR CUTTER

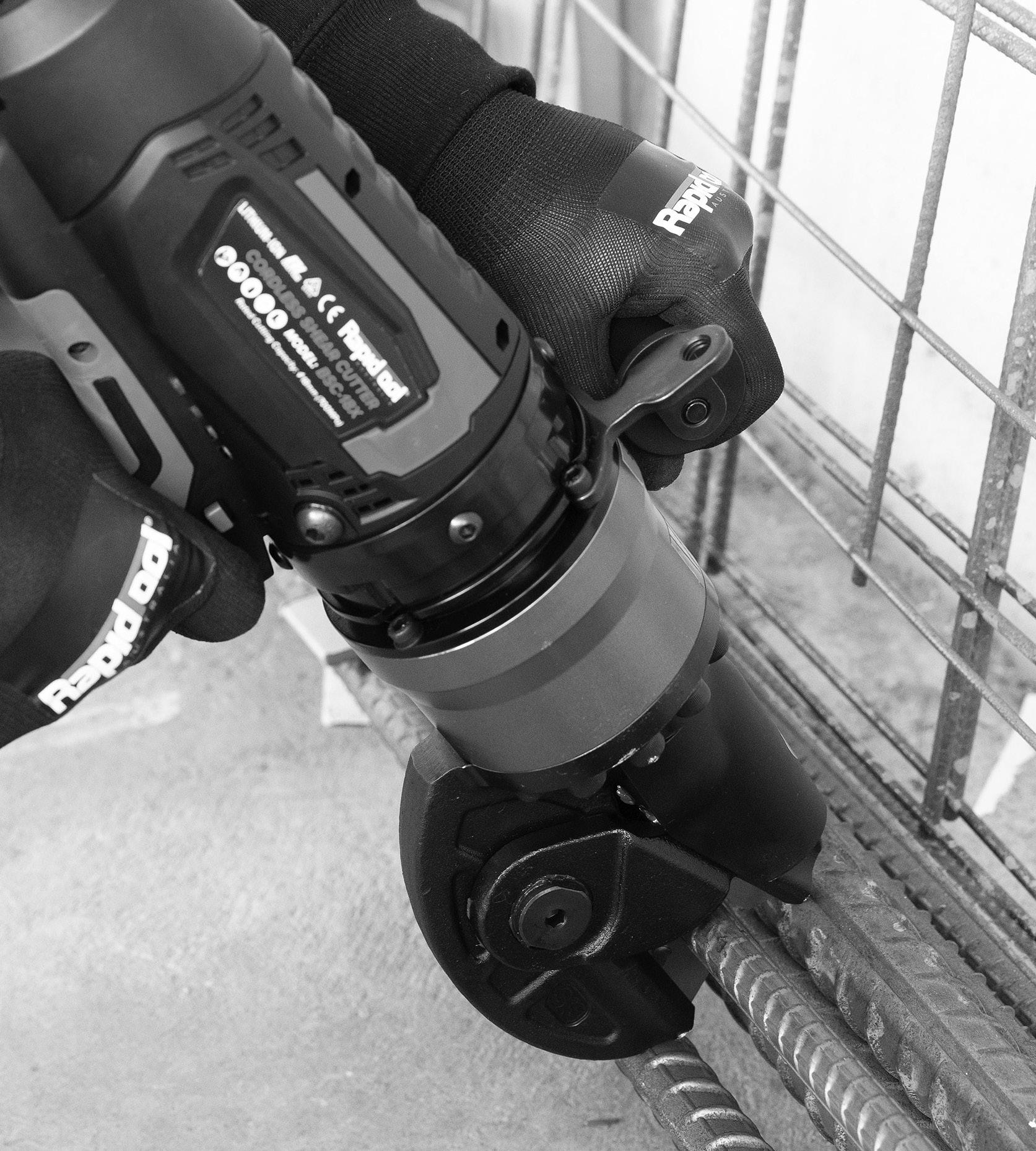

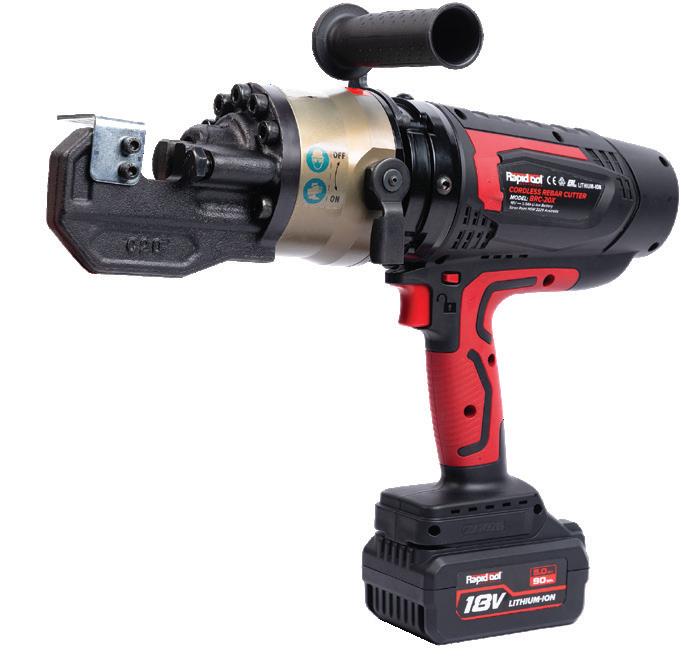

BRC-20X REBAR CUTTER

• Powerful, smooth

• Powerful, smooth

cuts 6-18mm rod

cuts 6-20mm rebar (D500N)

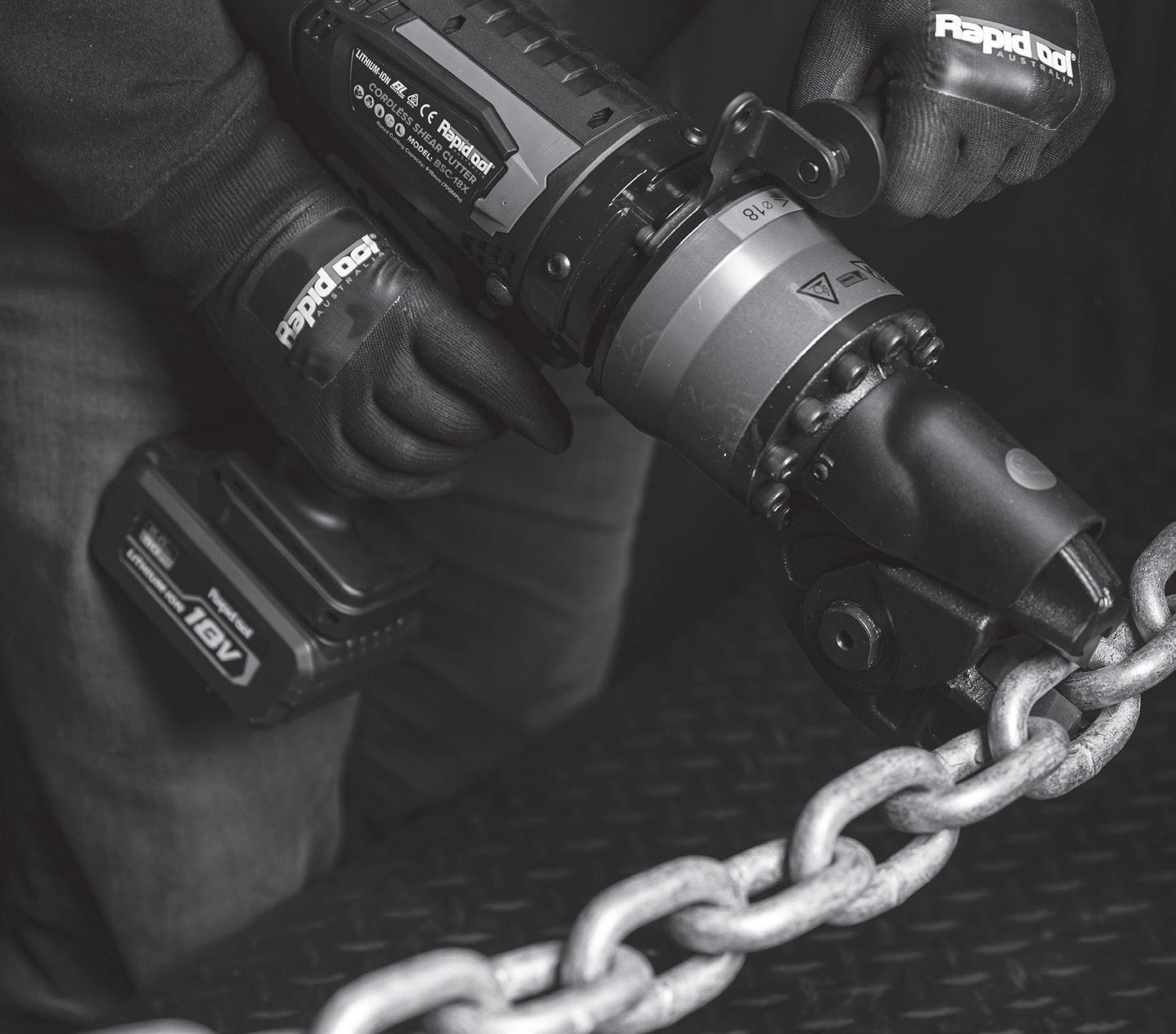

• Ideal for cutting rebar,

• Up to 115 cuts (20mm

chains and padlocks

• Access tight spaces

rebar) and 390 cuts (12mm rebar) per battery charge

with shear (scissor) style bolt cutter head

• Up to 150 cuts (16mm rebar) and 320 cuts (12mm rebar) per battery charge

Kit includes cutter unit, 2 x 18V 5.0Ah Li-Ion batteries, charger, detachable handle and carry case

• Spark free cuts in approx. 4 seconds • Lightweight, ergonomic design with detachable handle and 360° rotating head • Advanced safety features with smart controls and warning detection system • Advanced brushless motor technology providing low vibration, low noise cuts • Industry leading electric hydraulic precision manufacturing for ultimate reliability

Minimum diameter limit may be higher depending on material ductility.

www.rapidtool.com.au

SCAN QR CODE TO VIEW MORE PRODUCTS

®

®

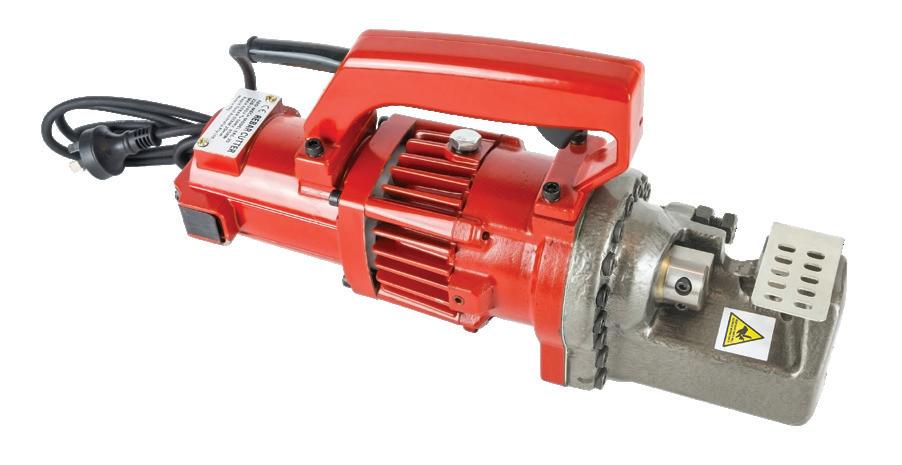

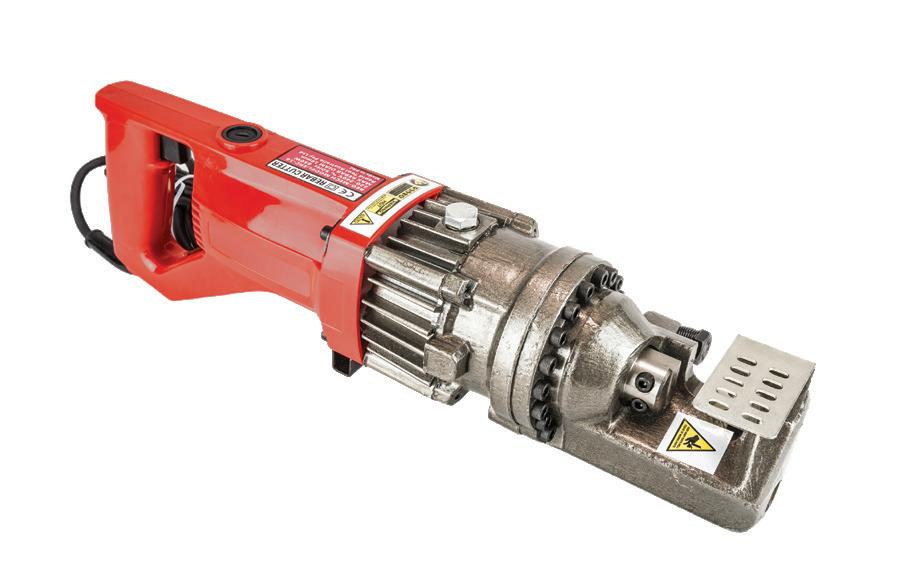

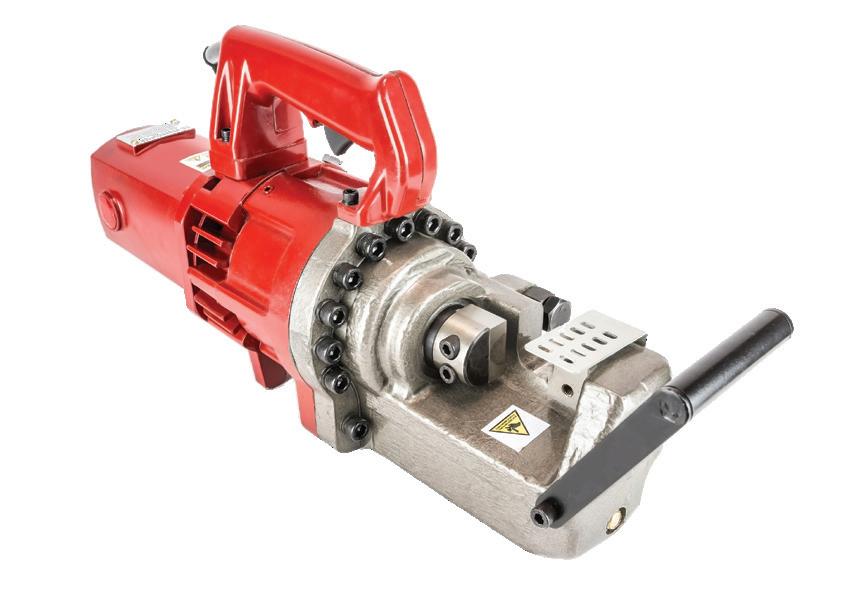

CORDED REBAR CUTTERS ERC-16 REBAR CUTTER

ERC-20 REBAR CUTTER

• Fast cut speed - approx. 2 seconds • Cuts 4-16mm rebar (D500N) • Powerful 220-240V 1200W motor • Ergonomic and lightweight portable model (8kg)

• Powerful hydraulics for a clean, accurate and efficient cut

• Industrial strength machine head • No sparks operation • Superior quality and performance • Increases efficiency and safety on site • Includes carry case, maintenance kit & safety guard

• Fast cut speed - approx. 2.5 seconds • Cuts 4-20mm rebar (D500N) • Powerful 220-240V 1200W motor • Ergonomic and lightweight portable model (13kg)

ERC-25 REBAR CUTTER

• Fast cut speed - approx.

3 seconds

• Cuts 4-25mm rebar (D500N) • Powerful 220-240V 1550W motor

ERC-32A REBAR CUTTER

• Fast cut speed - approx.

4 seconds

• Cuts 4-32mm rebar (D500N) • Powerful 220-240V 3000W motor - 15A plug

CORDED REBAR BENDER ERB-16 REBAR BENDER

• Fast bend speed - approx. 5 seconds (90°) • Bends 4-16mm rebar (D500N) • Bend 0-130° (with standard Ø30mm head) and 0-90° (with additional Ø80mm bend die)

• Powerful 220-240V 1200W motor • Powerful hydraulics for an efficient, clean and accurate bend • Includes carry case, maintenance kit and additional large bend module and die (Ø80mm)

www.rapidtool.com.au

SCAN QR CODE TO VIEW MORE PRODUCTS

®

®

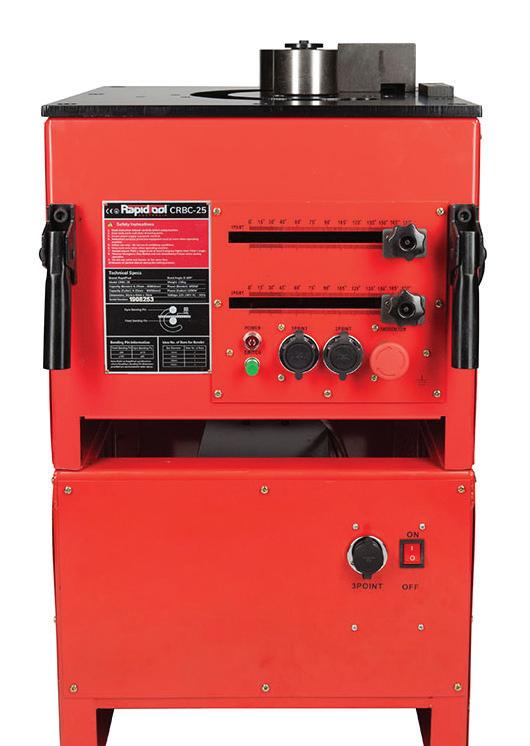

INDUSTRIAL REBAR BENDERS/CUTTERS CRBC-25 INDUSTRIAL REBAR BENDER/CUTTER

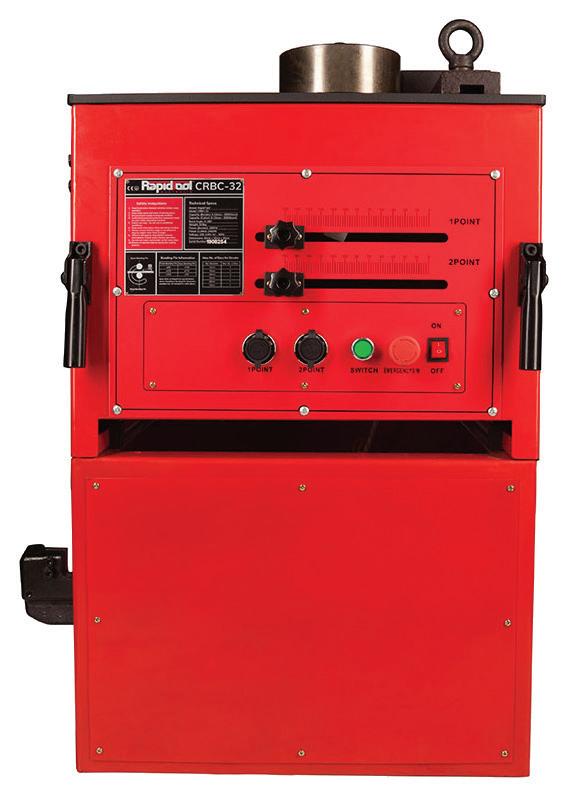

CRBC-32A INDUSTRIAL REBAR BENDER/CUTTER

• Industrial strength rebar

• Industrial strength rebar

bender/cutter combo unit bends and cuts up to 25mm rebar (D500N)

bender/cutter combo unit bends and cuts up to 32mm rebar (D500N)

• Bending capacity - 6-25mm

• Bending capacity - 6-32mm

• Cutting capacity - 4‑25mm

• Cutting capacity - 6‑32mm

• Powerful single phase - 220-

• Powerful single phase -

• Comes with foot pedals and additional fixed bending pin

• Comes with foot pedals and additional fixed bending pin

rebar (D500N) with a fastbending speed - approx 2.5 seconds (90°)

rebar (D500N) with a fast-bending speed approx. 2.5 seconds (90°)

rebar (D500N)

rebar (D500N)

240V AC - 50Hz electric motor with bender power input - 1050W and cutter power input - 1550W

diameters of 80mm/105mm (custom sizes may be purchased on request)

220-240V AC - 50Hz electric motor with bender power input - 2400W and cutter power input - 3000W (15A Plug)

diameters of 80mm/120mm/140mm (custom sizes may be purchased on request)

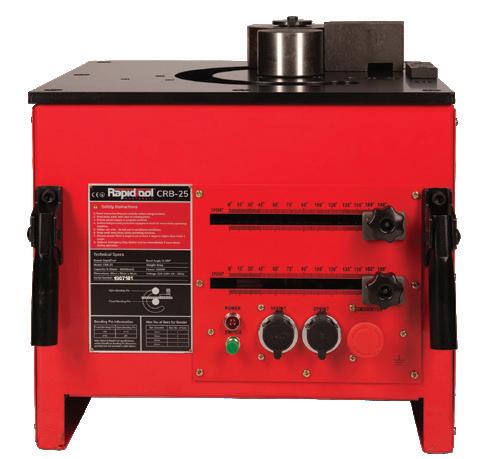

INDUSTRIAL REBAR BENDERS CRB-25 INDUSTRIAL REBAR BENDER

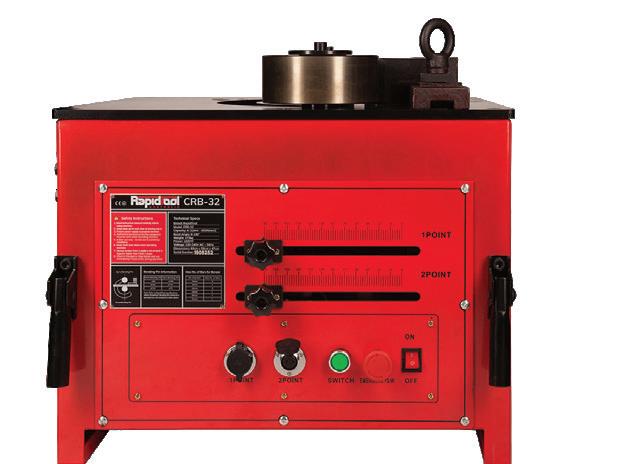

CRB-32 INDUSTRIAL REBAR BENDER

• Fast-bending speed -

• Fast-bending speed

approx. 2.5 seconds (90°)

- approx. 2.5 seconds (90°)

• Industrial strength rebar •

• Industrial strength rebar

bending capacity - 6-25mm rebar (D500N)

bending capacity 6-32mm rebar (D500N)

Powerful single phase - 220240V AC - 50Hz electric motor with power input 1050W

• Powerful single phase

• Comes with foot pedals and additional fixed bending pin diameters of 80mm/105mm (custom sizes may be purchased on request)

• Powerful and efficient, accurate bends • Controlled, accurate bending angle range from 0-180° • Superior quality and performance • Increases efficiency and safety on site • Maximise performance on site or in workshop environments • Compact unit – easy to fit in your workshop or job site

www.rapidtool.com.au

SCAN QR CODE TO VIEW MORE PRODUCTS

- 220-240V AC - 50Hz electric motor with power input - 2400W

• Comes with foot pedals and additional fixed bending pin

diameters of 80mm/120mm/140mm (custom sizes may be purchased on request)

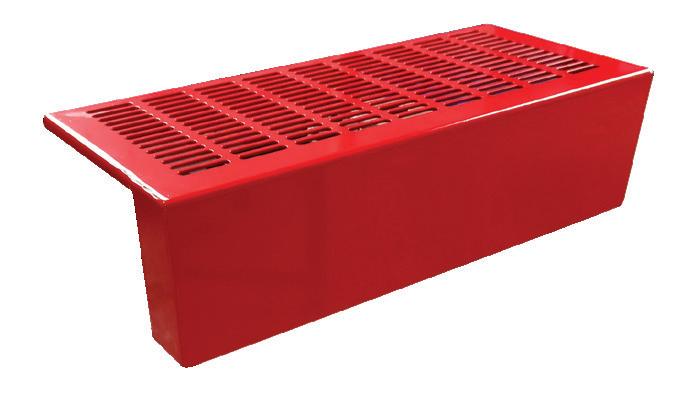

INCLUDES SAFETY GUARD + FOOT PEDAL

®

®
