MAKING YOUR LIFE EASIER IN 4 WAYS!

We can have your order delivered to site in 4 business hours!

NO BACKORDERS

We stock what we sell and we sell what we stock! So your order will we be sent to site, in full and on time!

If you find a lower price for an equivalent to any product in our catalogue or website, Jaybro will beat that price by 5%

ONE STOP SHOP

The Civil & Infrastructure Supply Experts

Streamline your procurement and reduce costs!

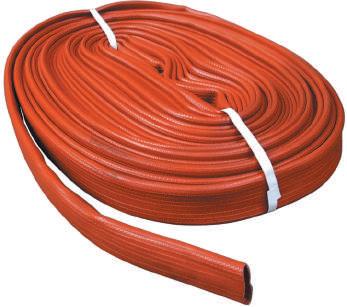

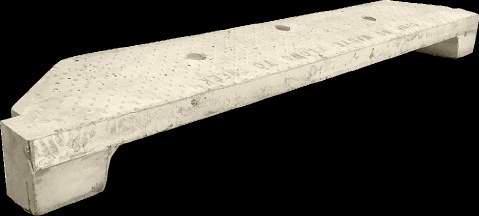

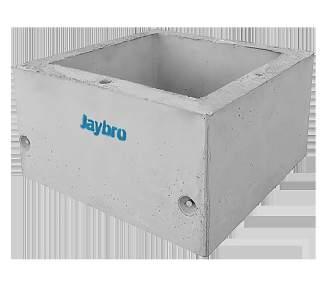

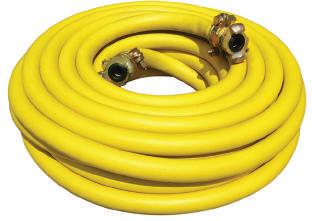

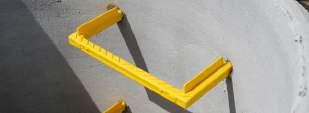

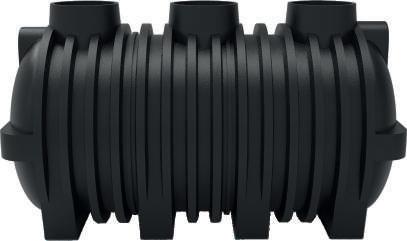

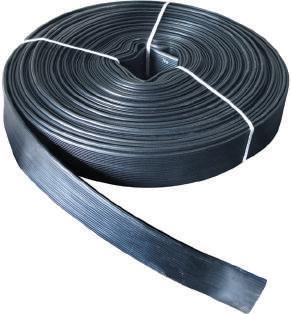

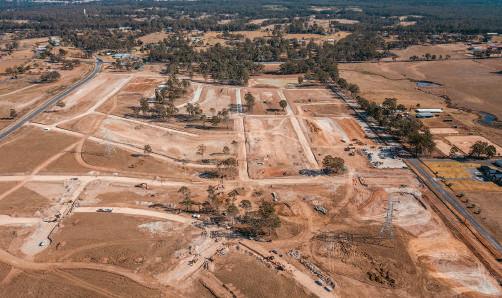

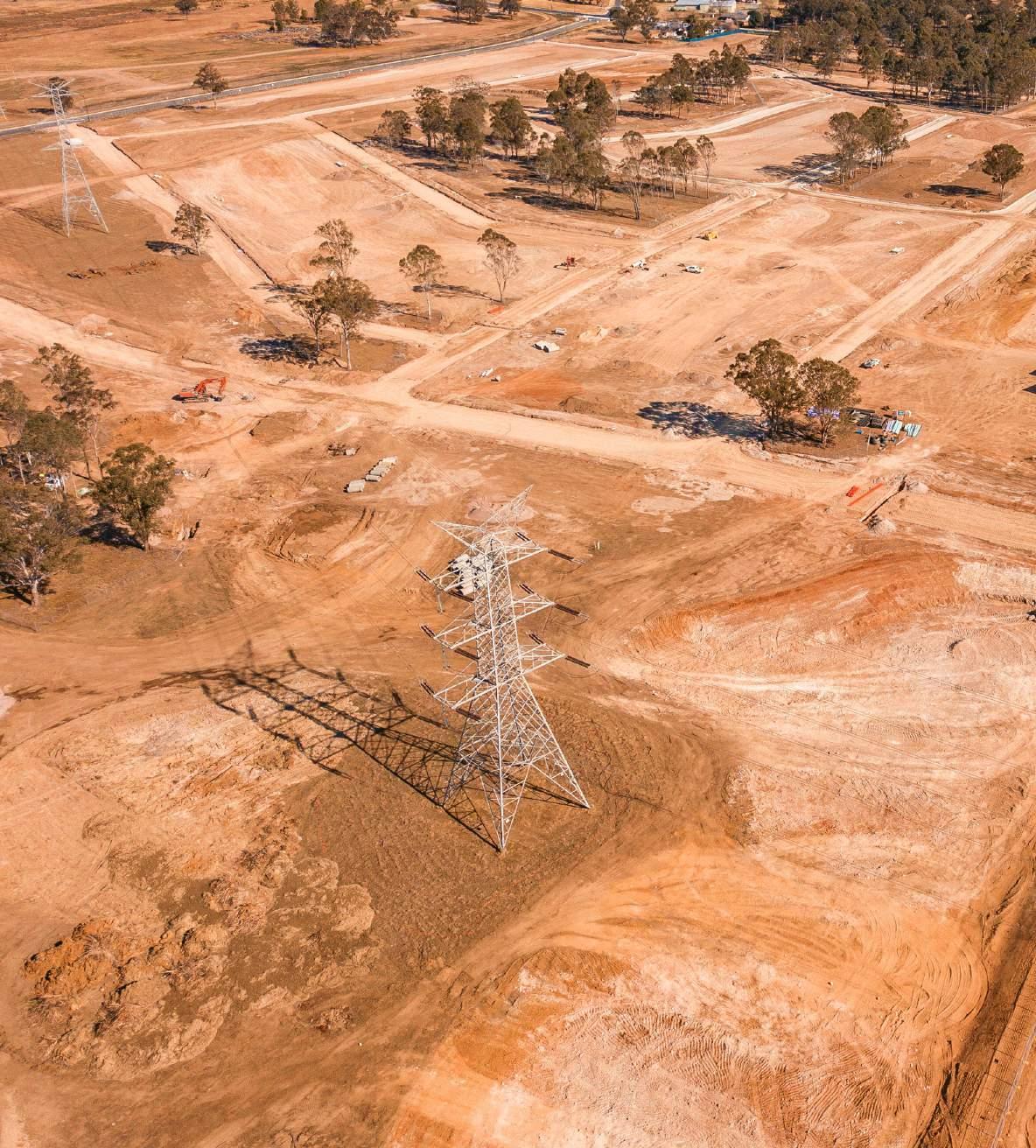

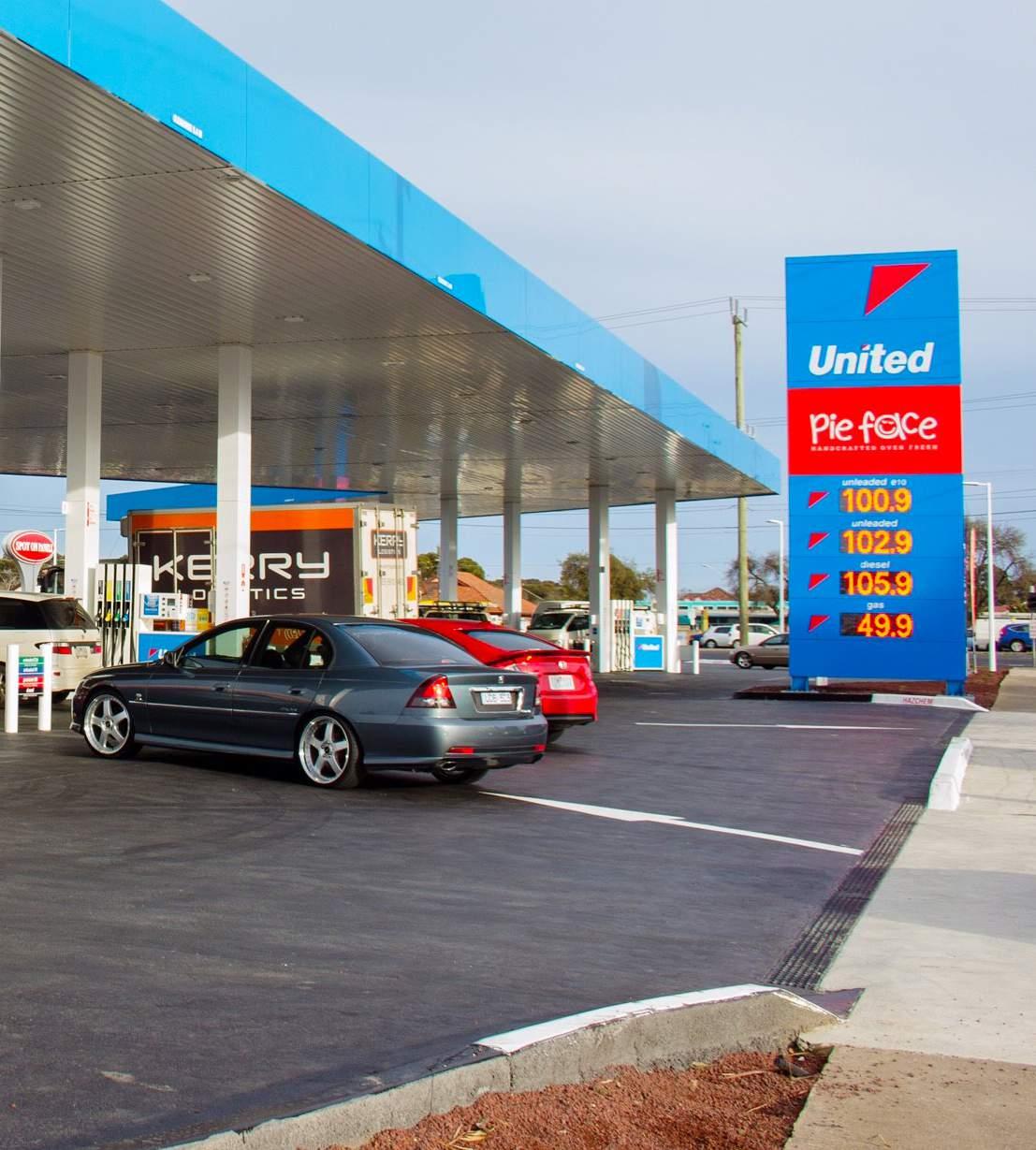

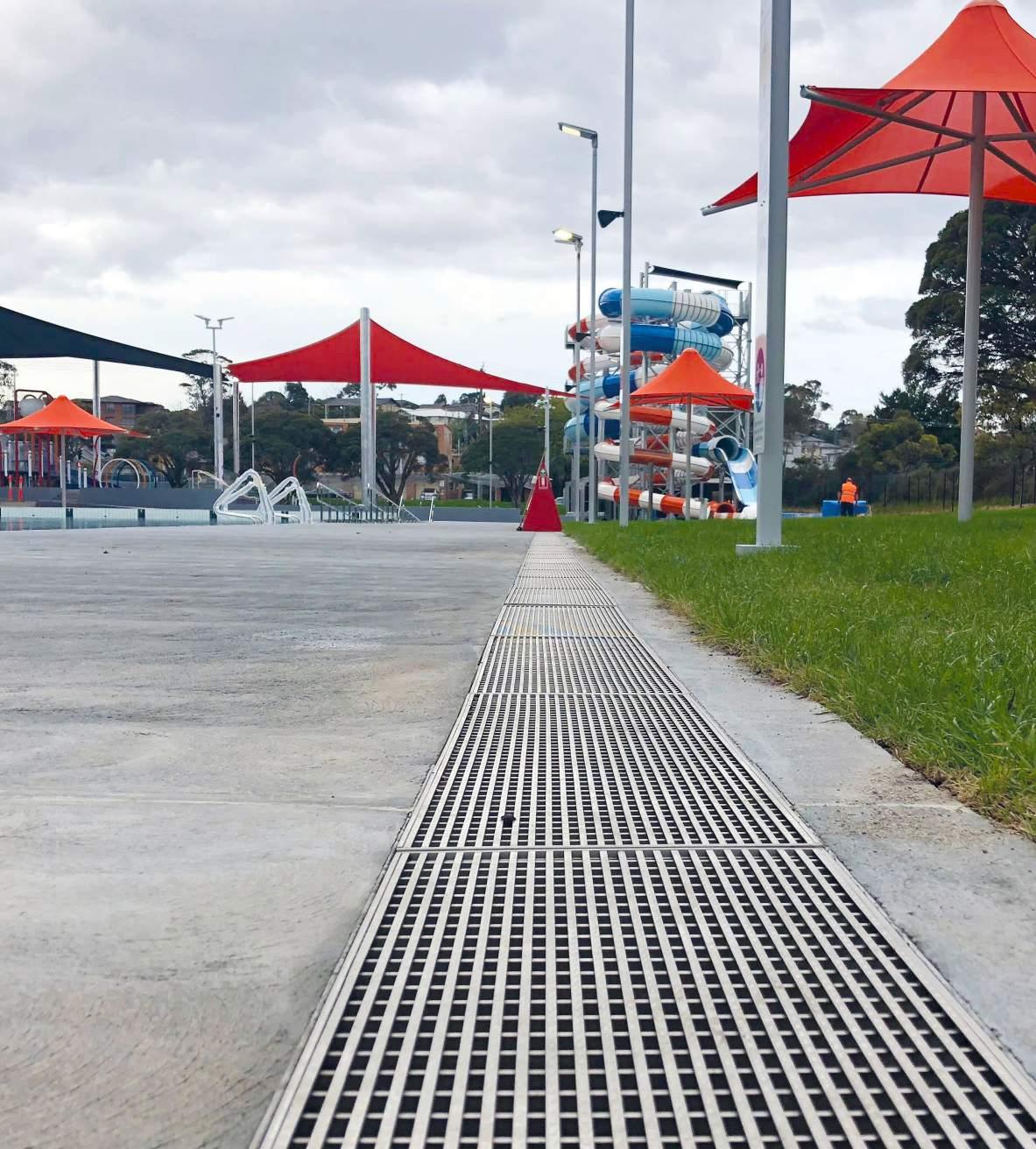

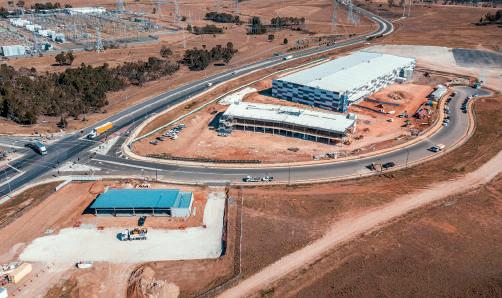

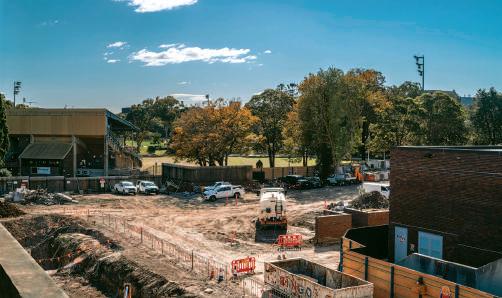

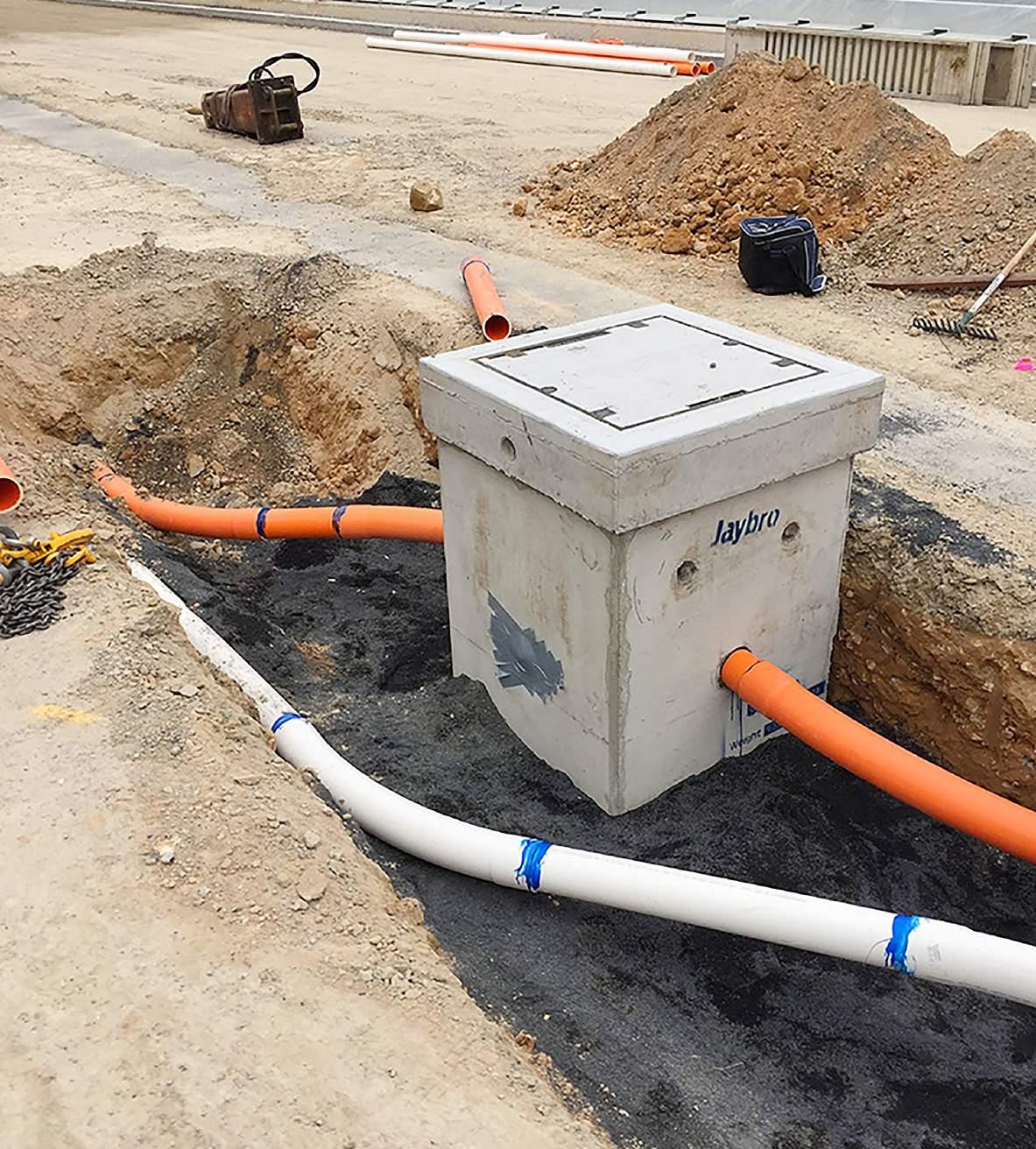

RECENT PROJECTS

600

PRODUCTS

•

FUJITSU HEADQUARTERS

PRODUCTS

•

PRODUCTS

•

PRODUCTS

•

LOAD CLASS SELECTION

Jaybro supply to the Australian Standard for Access Covers and Grates, AS3996 .

The standard sets a series of load classifications for products based on the anticipated load. These classes range from extra light duty (Class A) through to extra heavy duty – G (Class G).

Below is a summary of the load classifications, including areas for their intended use.

Areas (including footways and light tractor paths) accessible to vehicles (excluding commercial vehicles) or livestock (light duty).

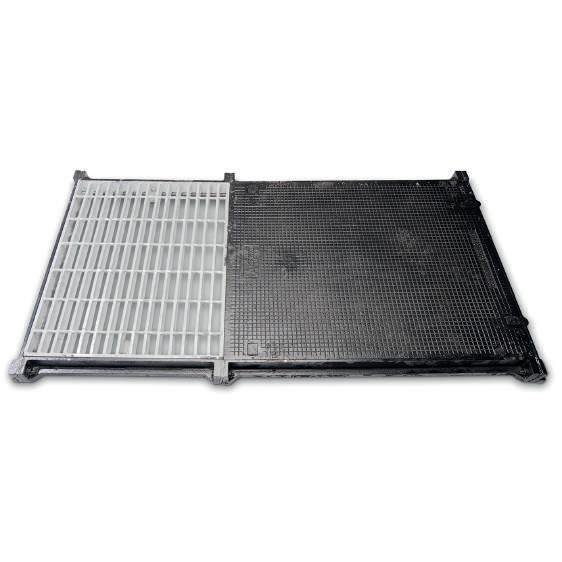

GRATES & FRAMES

GRATES & FRAMES 7

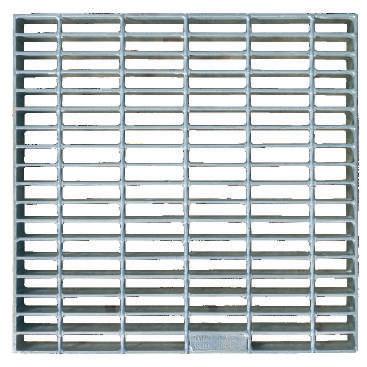

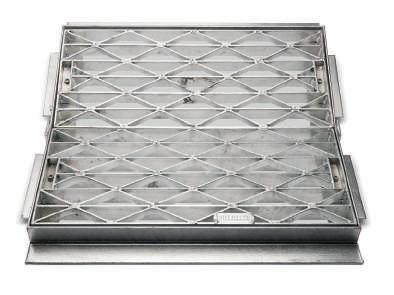

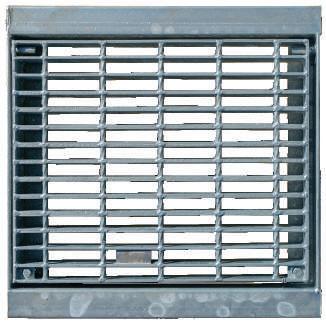

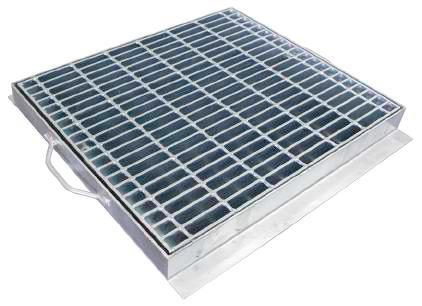

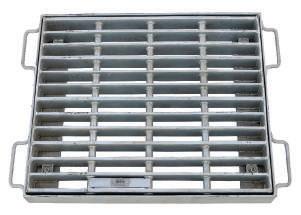

HGF – CAST IN HINGED GRATE AND FRAME

Features:

y Availabe in concrete surround

y Tested to AS3996

y Hinged & Lockdown

y Bicycle Safe

CLASS B

CODE

DESCRIPTION

HGF4545B 450x450 Class B Galvanised Hinged Grate and Frame

HGF0606B 600x600 Class B Galvanised Hinged Grate and Frame

HGF0906B 900x600 Class B Galvanised Hinged Grate and Frame

HGF0909B 900x900 Class B Galvanised Hinged Grate and Frame

HGF1212B 1200x1200 Class B Galvanised Hinged Grate and Frame

ACP-SG3030B 300x300 Class B Galvanised Grate and Frame

ACP-SG4545B 450x450 Class B Galvanised Grate and Frame

ACP-SG6060B 600x600 Class B Galvanised Grate and Frame

ACP-SG6090B 900x600 Class B Galvanised Grate and Frame

ACP-SG9090B 900x900 Class B Galvanised Grate and Frame

ACP-SG9012B 900x1200 Class B Galvanised Grate and Frame

ACP-SG1212B 1200x1200 Class B Galvanised Grate and Frame

HGF – CAST IN HINGED GRATE AND FRAME

Features:

y Availabe in concrete surround

y Tested to AS3996

y Hinged & Lockdown

y Bicycle Safe

CLASS D CODE DESCRIPTION

HGF4545D 450x450 Class D Galvanised Hinged Grate and Frame

HGF0606D 600x600 Class D Galvanised Hinged Grate and Frame

HGF0906D 900x600 Class D Galvanised Hinged Grate and Frame

HGF0909D 900x900 Class D Galvanised Hinged Grate and Frame

HGF1212D 1200x1200 Class D Galvanised Hinged Grate and Frame

ACP-SG3030D 300x300 Class D Galvanised Grate and Frame

ACP-SG4545D 450x450 Class D Galvanised Grate and Frame

ACP-SG6060D 600x600 Class D Galvanised Grate and Frame

ACP-SG6090D 900x600 Class D Galvanised Grate and Frame

ACP-SG9090D 900x900 Class D Galvanised Grate and Frame

ACP-SG9012D 900x1200 Class D Galvanised Grate and Frame

ACP-SG1212D 1200x1200 Class D Galvanised Grate and Frame

GRATES & FRAMES

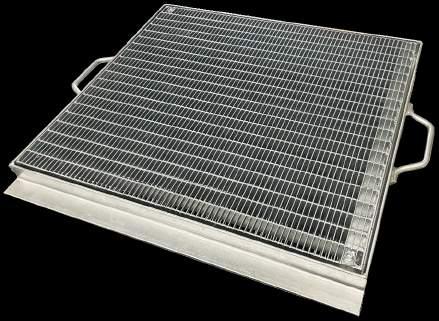

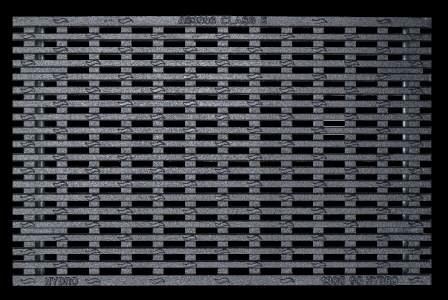

SG - HINGED GRATE AND FRAMES CONCRETE SURROUND

Features:

y Class E Extra Heavy Duty

y Lockdown

y Bicycle Safe

y Nominal Wheel Loading 13,700 kg

Uses:

y Factories

y Industrial environments

CLASS E

CODE DESCRIPTION

ACP-SG6060E 600x600 Class E Weave Style Grate and Frame

ACP-SG6090E 600x900 Class E Weave Style Grate and Frame

ACP-SG9090E 900x900 Class E Weave Style Grate and Frame

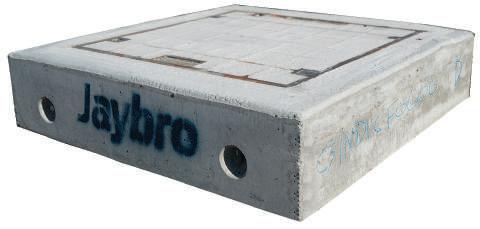

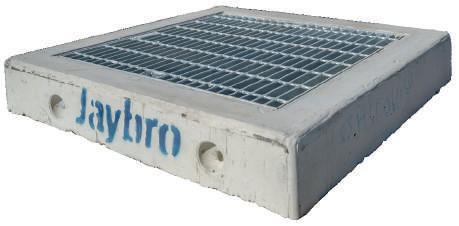

CSHGF - HINGED GRATE AND FRAMES CONCRETE SURROUND

Hinged grate and frame manufactured with a precast concrete surround designed for fast installation on site. Applications include subdivision inter allotment drainage, landscape area’s as well as asphalt car parks. It’s ready for quick installation, tested for wheel loading, has a minimum 40mpa concrete, and a steel reinforcement to AS4671.

Class B Features:

y Bicycle Safe

y Class B Light Duty

y Hinged & Lockdown

y Tested to AS3996

y Nominal wheel

Class B Uses:

• Garden areas

• Landscaped areas

• Subdivision inter allotment drainage

• Parklands

• Sporting grounds loading 2,670 kg

Class D Features:

y Bicycle Safe

y Class D Heavy Duty

y Hinged & Lockdown

y Tested to AS3996

y Nominal wheel loading 8,000 kg

Class D Uses:

• Car parks

CLASS B

CODE DESCRIPTION

CSHGF4545B 450x450 Class B Hinged Grate and Frame Conc Surr.

CSHGF0606B 600x600 Class B Hinged Grate and Frame Conc Surr.

CSHGF0906B 900x600 Class B Hinged Grate and Frame Conc Surr.

CSHGF0909B 900x900 Class B Hinged Grate and Frame Conc Surr.

CSHGF1212B 1200x1200 Class B Hinged Grate and Frame Conc Surr.

CSHGF991212B 900x900 Class B Hinged Grate and Frame Conc Surr. Suit 1200x1200 Pit

CSHGF991515B 900x900 Class B Hinged Grate and Frame Conc Surr. Suit 1500x1500 Pit

CLASS D

CODE DESCRIPTION

CSHGF4545D 450x450 Class D Hinged Grate and Frame Conc Surr.

CSHGF0606D 600x600 Class D Hinged Grate and Frame Conc Surr.

CSHGF0906D 900x600 Class D Hinged Grate and Frame Conc Surr.

CSHGF0909D 900x900 Class D Hinged Grate and Frame Conc Surr.

CSHGF1212D 1200x1200 Class D Hinged Grate and Frame Conc Surr.

CSHGF991212D 900x900 Class D Hinged Grate and Frame Conc Surr. Suit 1200x1200 Pit

CSHGF991515D 900x900 Class D Hinged Grate and Frame Conc Surr. Suit 1500x1500 Pit

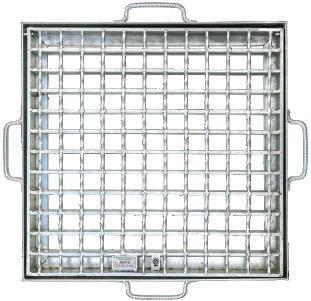

SGH - HEELGUARD GRATE AND FRAME

The bolt down heel proof grate and frames are designed for use in areas with high pedestrian traffic. The gap on the grated surface are manufactured to be safe for high heel shoes. The range comes with casting handles to allow them to be cast into pavement areas above the pit. Manufactured and tested to meet AS3996 this range of grates are available in Light duty Class B, as well as Heavy duty Class D.

Class B Features:

y Bicycle Safe

y Hinged & Lockdown

y Nominal wheel loading 2,670 kg

y Available in concrete surround

Class D Features:

y Bicycle Safe

y Hinged & Lockdown

y Nominal wheel loading 8,000 kg

Class B Uses:

• Footpaths

• OSD Tanks

• Schools

• Big Box Retail Developments

Class D Uses:

• Roads

• Car parks

• Driveways open to commercial traffic

• OSD Tanks on commercial properties

CLASS B

CODE DESCRIPTION

ACP-SGH3030B 300x300 Class B Galvanised Heelguard Grate and Frame

ACP-SGH4545B 450x450 Class B Galvanised Heelguard Grate and Frame

ACP-SGH6060B 600x600 Class B Galvanised Heelguard Grate and Frame

ACP-SGH6090B 900x600 Class B Galvanised Heelguard Grate and Frame

ACP-SGH9090B 900x900 Class B Galvanised Heelguard Grate and Frame

ACP-SGH9012B 900x1200 Class B Galvanised Heelguard Grate and Frame

ACP-SGH1212B 1200x1200 Class B Galvanised Heelguard Grate and Frame CLASS

ACP-SGH3030D 300x300 Class D Galvanised Heelguard Grate and Frame

ACP-SGH4545D 450x450 Class D Galvanised Heelguard Grate and Frame

ACP-SGH6060D 600x600 Class D Galvanised Heelguard Grate and Frame

ACP-SGH6090D 900x600 Class D Galvanised Heelguard Grate and Frame

ACP-SGH9090D 900x900 Class D Galvanised Heelguard Grate and Frame

ACP-SGH9012D 900x1200 Class D Galvanised Heelguard Grate and Frame

ACP-SGH1212D 1200x1200 Class D Galvanised Heelguard Grate and Frame

DIGH - DROP IN HINGED GRATE AND FRAMES

Designed for a range for drainage applications ranging from residential inter allotment drainage through to commercial complexes. The drop in grate and frames are manufactured to suit the rebate of Jaybro’s precast stormwater pits. Manufactured and tested to meet AS3996 this range of grates are available in Light duty Class B, as well as Heavy duty Class D.

Class B Features: Class B Uses:

y Bicycle Safe

y Hinged & Lockdown

y Nominal wheel loading 2,670 kg

y Drop into Rebate of Jaybro precast pit also available

• Residential Driveways

• Garden areas

• Subdivision Inter Allotment Drainage

Class D Features: Class D Uses:

y Bicycle Safe

y Hinged & Lockdown

y Nominal wheel loading 8,000 kg

• Roads

• Carparks

• Driveways open to commercial traffic

y Drop into Rebate of Jaybro

• OSD Tanks on commercial properties precast pit also available

CLASS B

DIGH4545B 450x450 Class B Galvanised Hinged Grate and Frame Drop In

DIGH0606B 600x600 Class B Galvanised Hinged Grate and Frame Drop In

DIGH0906B 900x600 Class B Galvanised Hinged Grate and Frame Drop In

DIGH0909B 900x900 Class B Galvanised Hinged Grate and Frame Drop In

CLASS D

DIGH4545D 450x450 Class D Galvanised Hinged Grate and Frame Drop In

DIGH0606D 600x600 Class D Galvanised Hinged Grate and Frame Drop In

DIGH 0906D 900x600 Class D Galvanised Hinged Grate and Frame Drop In

DIGH0909D 900x900 Class D Galvanised Hinged Grate and Frame Drop In

GRATES & FRAMES

DIG - DROP IN GRATE

Light duty drop in grates manufactured to suit the rebate of Jaybro’s Precast stormwater pits. Designed for slow moving light traffic and garden areas. Manufactured and tested to meet AS3996.

Features:

y Class B Light Duty

y Drop Into Rebate of Jaybro precast pit also available

y Bicycle Safe

y Nominal Wheel Loading 2670 kg

Uses:

y Garden areas

DIG4545B 450x450 Class B Drop In Grate

DIG0606B 600x600 Class B Drop In Grate

DIG0906B 900x600 Class B Drop In Grate

DIG0909B 900x900 Class B Drop In Grate

NGGF - CAST IN WEAVE STYLE GULLY GRATE AND FRAME

Designed for council roads and subdivisions where a kerb gully pit is required. Manufactured and tested to meet AS3996.

Features:

y Bicycle Safe

y Lockable

y Bolt Down

Uses:

y Kerb Gully

HINGED GULLY GRATE AND FRAME

Designed for council roads and subdivisions where a kerb gully pit is required. Available with and without skirts to meet the standard required. For use with Jaybro’s precast Kerb Lintel and is also available in a complete kerb entry unit. Manufactured and tested to meet AS3996.

Features:

Uses:

y Bicycle Safe • Kerb Gully

y Lockable

y Bolt Down

RMS SA GULLY GRATE AND FRAME

Designed and manufactured to RMS R0220 drawings. Complies to AS3996. Lockable

RMS MEDIAN GULLY GRATE AND FRAME RMS GULLY GRATE AND FRAME

Designed and manufactured to RMS R0220 drawings. Complies to AS3996. Lockable

VGGF - VEE GULLY GRATE AND FRAME

Designed for channels and gullies in trafficable areas the VGGF range of grates is lockable as well as bicycle safe. The grates come with bolts to reduce noise when driven over. Manufactured and tested to meet AS3996, this range of grates is available in Heavy Duty Class D.

Features:

y Bicycle Safe

y Lockable

Uses:

y Channels

y Gullies

VGGF0606D 600x600 Class D Vee Hinged Grate and Frame Cast In

VGGF0906D 900x600 Class D Vee Hinged Grate and Frame Cast In

VGGFRK0906D 900x600 Class D Roll Kerb Vee Hinged Grate and Frame Cast In VGGF0909D 900x900 Class D Vee Hinged Grate and Frame Cast In

VGGF - VEE GULLY GRATE AND FRAME WEAVE

Features: Uses:

y Bicycle Safe • Channels

y Lockable • Gullies

VGGF4545DWS 450x450 Class D Vee Grate and frame Weaved Style

VGGF0606DWS 600x600 Class D Vee Grate and frame Weaved Style

VGGF0903DWS 900x375 Class D Vee Grate and frame Weaved Style

VGGF0904DWS 900x450 Class D Vee Grate and frame Weaved Style

VGGF0707DWS 750x750 Class D Vee Grate and frame Weaved Style

VGGF0906DWS 900x600 Class D Vee Grate and frame Weaved Style

VGGFBN0906DWS 900x600 Class D Vee Grate and frame Weaved Style Bull Nose

VGGFRK0906DWS 900x600 Class D Vee Grate and frame Weaved Style Roll Kerb

VGGF0909DWS 900x900 Class D Vee Grate and frame Weaved Style

VGGF0909DWS-OS 900x900 Class D Vee Grate and frame Weaved Style Off Set

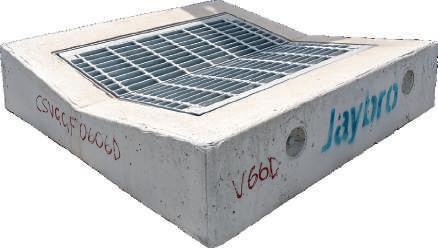

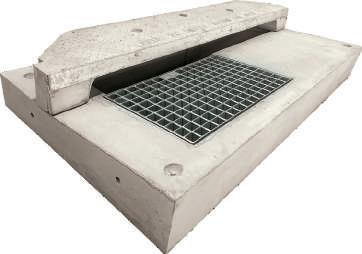

CSVGGF - VEE GULLY GRATE AND FRAME CONCRETE SURROUND

Vee gully grate and frame manufactured with a precast concrete surround designed for fast installation on site.

Features: Uses:

y Bicycle Safe

y Lockable

• Channels

• Gullies

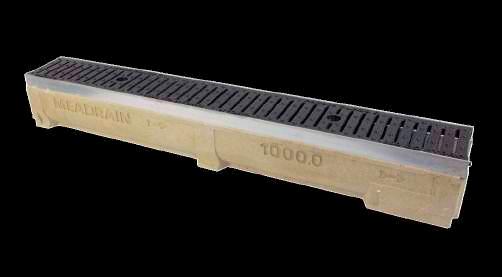

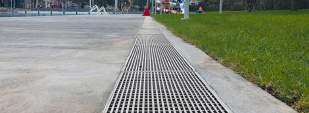

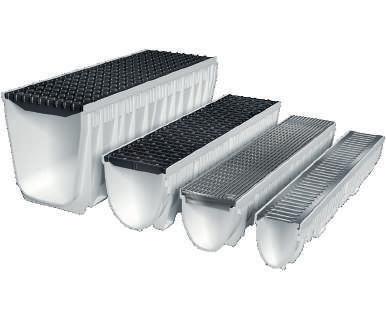

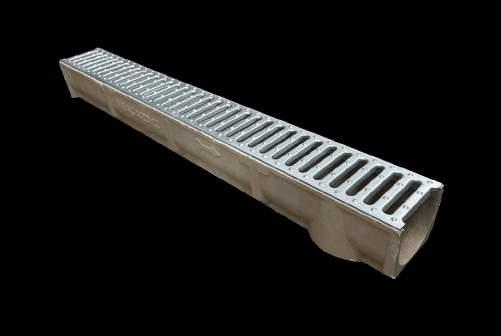

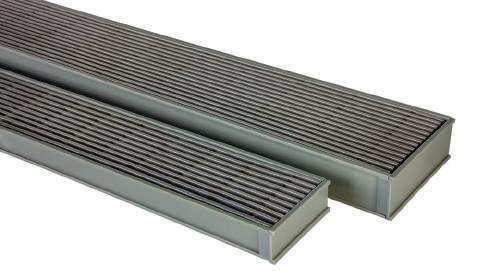

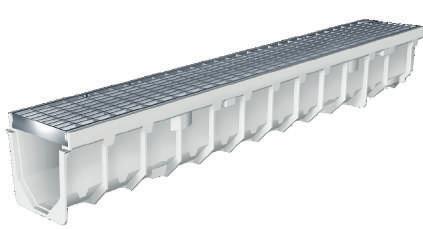

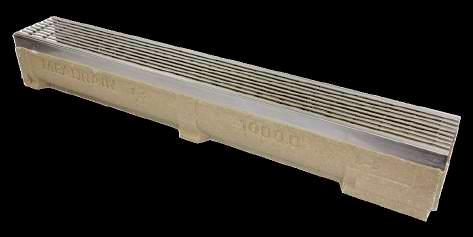

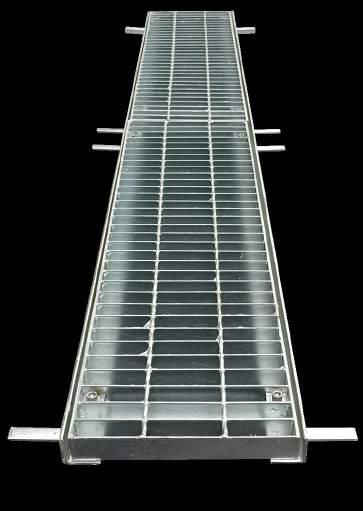

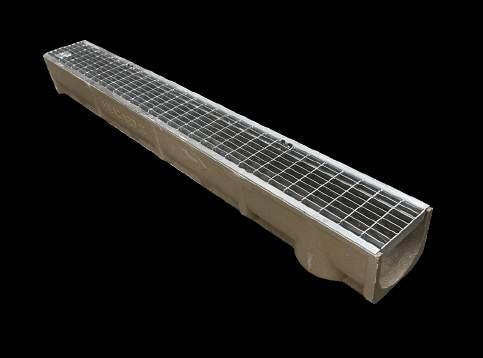

TG - TRENCH GRATE AND FRAMES

Designed for drive way and carparks the TG range trench grate and frames is available in both bicycle safe and heel safe options. The grates come with bolts to reduce noise when driven over. Manufactured and tested to meet AS3996, this range of grates are available in Class C as well as heavy duty Class D.

Features:

y Bicycle Safe

y Lockable

y Bolt Down

Uses:

• Commercial properties

• Car parks

GRATES & FRAMES

TGH - HEELGUARD TRENCH GRATE AND FRAMES

Designed for drive way and carparks the TGH range trench grate and frames is available in both bicycle safe and heel safe options. The grates come with bolts to reduce noise when driven over. Manufactured and tested to meet AS3996, this range of grates are available in light duty Class C, as well as heavy duty Class D.

Class B Features:

y Bicycle Safe

y Class B Light Duty

y Hinged & Lockdown

y Tested to AS3996

Class D Features:

y Bicycle Safe

y Lockable

y Bolt Down

Class B Uses:

• Footpaths

• Schools

• Big Box Retail Developments

Class D Uses:

• Commercial properties

• Car parks

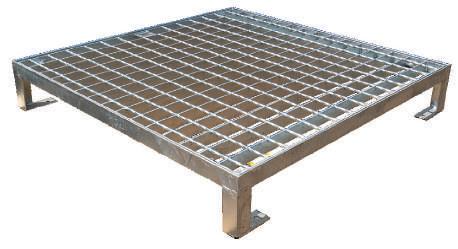

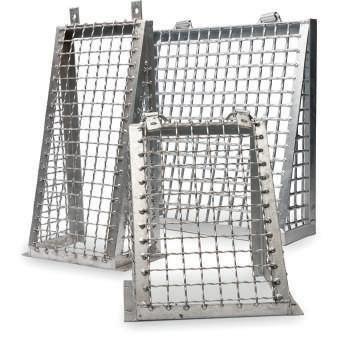

SGF - SURCHARGE GRATE AND FRAMES

The SGF range of light duty raised surcharge grate and frames are perfect for landscaped areas subject to high volumes of storm water. Designed to be lockable and bicycle safe the grates come with bolt down legs to easily fit to the top of Jaybro’s precast storm water pits.

Class B Features: Class B Uses:

y Bicycle Safe

y Class B Light Duty

y Hinged & Lockdown

• Parklands

• Sporting Grounds

• Subdivision drainage

• Areas subject to high volumes of storm water

Type 1 Surcharge grate and frame specifically designed to meet IPWEAQ standards in the Queensland market. Used in Subdivision Field surcharge pits and manufacuted as per drawing DS-050.

Class D Features: Class D Uses:

y Bicycle Safe

y Class D Heavy Duty

y Tested to AS3996

• Council Assets

• Subdivisions

• Bio-Basin Pits

SGF0606A 600x600mm - Class D Surcharge Grate and Frame

SGF0906A

SGF0909A

- Class D Surcharge Grate and Frame

- Class D Surcharge Grate and Frame SGF1212A

- Class D Surcharge Grate and Frame

SGF0606T1 600x600 IPWEAQ Surcharge Grate and Frame T1

SGF0906T1 900x600 IPWEAQ Surcharge Grate and Frame T1

SGF0909T1 900x900 IPWEAQ Surcharge Grate and Frame T1

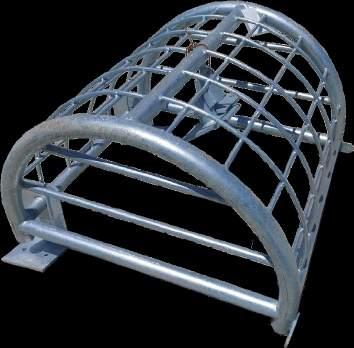

SGF - DOME SURCHARGE GRATE AND FRAME

Manufactured from galvanised mild steel to council standards, the dome gully grate is used in area’s where high volume intake is necessary.

Features:

y Lockable

Uses:

y Subdivisions

y Bio-Basin Pits CLASS D

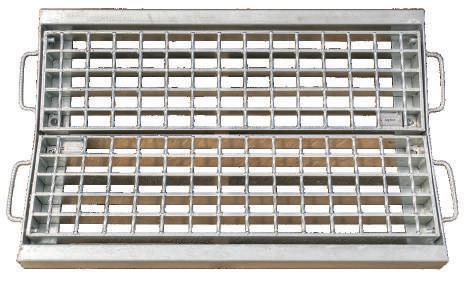

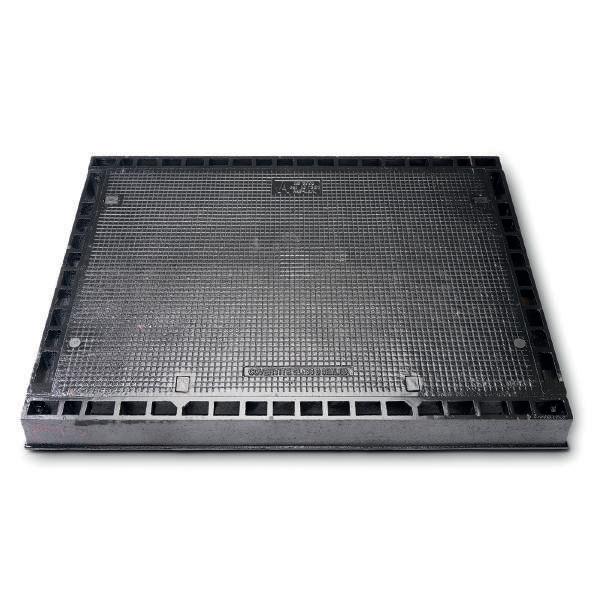

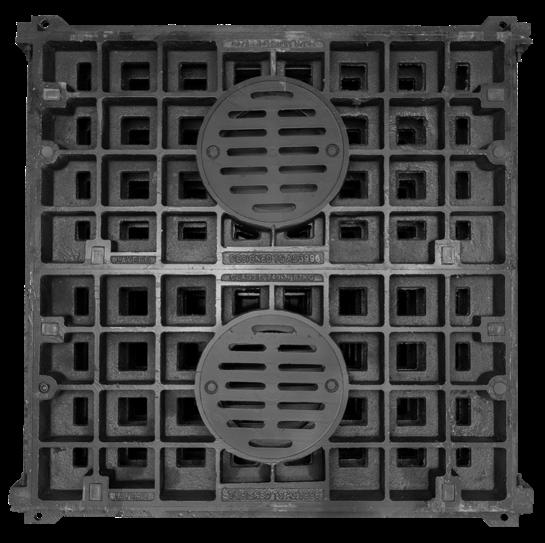

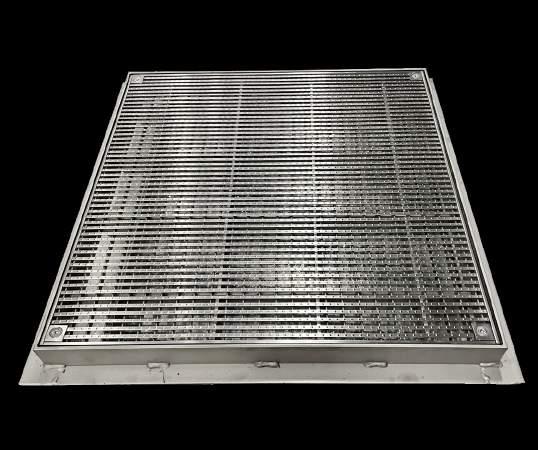

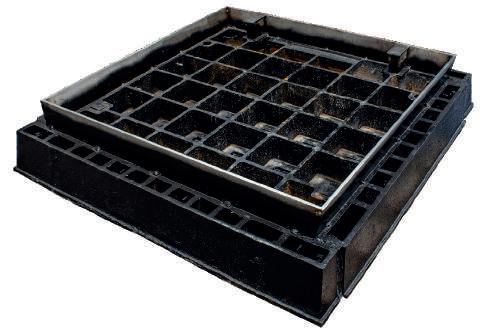

SGF0606DOME 600x600 Dome Surcharge Grate and Frame

SGF0906DOME 900x600 Dome Surcharge Grate and Frame

SGF0909DOME 900x900 Dome Surcharge Grate and Frame

POLYMER DRAINAGE CHANNELS

& CUSTOM

STAINLESS STEEL

POLYMER DRAINAGE CHANNELS

CUSTOM STAINLESS STEEL GRATES

The stylish range of stainless steel drainage products extensively covers both commercial and residential applications for indoor and outdoor use. As well as being highly aesthetically pleasing and funtional, the products are of high quality #304 and #316 stainless steel providing the ideal solution where hygiene and corrosion resistance is paramount. These products are custom fabricated to suit any project. The hard, smooth surface ensures efficient water flow and easy cleaning across all applications. The stainless steel product range conforms with WaterMark Levels 1 & 2.

Uses:

y Residential

y Commercial Kitchens

y Bathrooms & Showers

y Landscape areas

y Chemical & pharmaceutical plants

• Wineries & brewing bottling plants

• Food processing areas

• Public areas

• Hotels, restaurants & cafes

• Sport & leisure facilities

POLYMER DRAINAGE CHANNELS

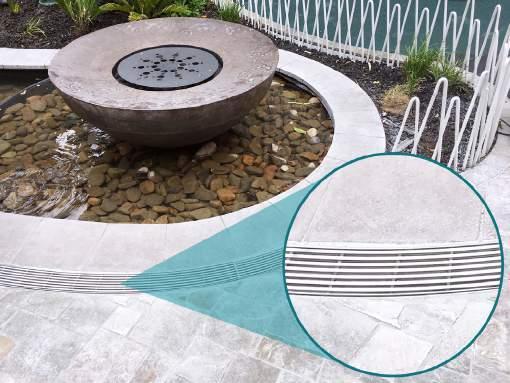

PERFORMER STAINLESS GRATES FLOOR WASTES

This high-performance, cost-effective range features architectural wedgewire grating and tile inserts which will blend seamlessly with the floor surface. The Performer Series product range conforms with WaterMark Levels 1 & 2.

Uses:

y Bathrooms & Showers

y Swimming Pools

y Courtyard & Patio

y Residential

y Sports & Leisure Facilities

y Wet Areas

y Hotel, Restaurants & Cafes

y Commercial Kitchens

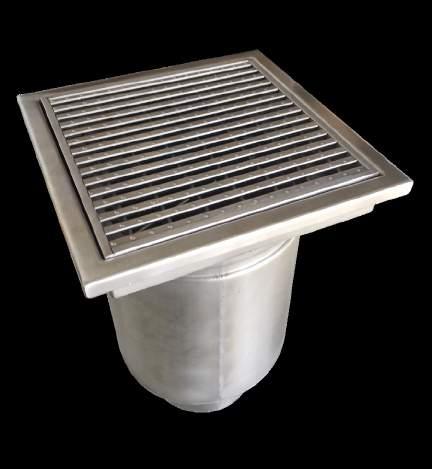

ACP-HW-120/76 Performer Series Square HG Floor Drain 120mm Square x 15mm Deep c/w wIth 76mm Dia Outlet & Dtrainer

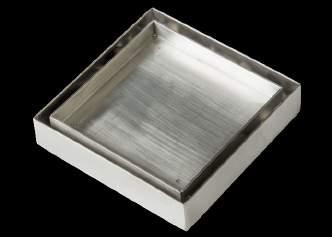

ACP-ST-100/50 Performer Series Square Tile Insert Floor Drain 115mm Square x 25mm Deep c/w with 50mm Dia Outlet & Strainer

ACP-ST-115/76 Performer Series Square Tile Insert Floor Drain 150mm Square x 25mm Deep c/w with 76mm Dia Outlet & Strainer

ACP-ST-150/100 Performer Series Square Tile Insert Floor Drain 150mm Square x 25mm Deep c/w with 100mm Dia Outlet & Strainer

PERFORMER STAINLESS GRATES QUANTUM HEELGUARD SHOWER GRATES PERFORMER STAINLESS GRATES QUANTUM TILE INSERTS SHOWER GRATES

CODE

o/a long 304

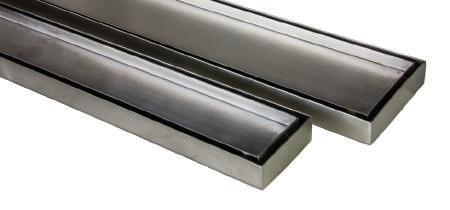

ACP-GW99PL-900 Performer Quantum UPVC Linear Drain w/SS HG Grate 104mm o/a wide x 1000mm o/a long 304

ACP-GW99PL-1000 Performer Quantum UPVC Linear Drain w/SS HG Grate 104mm o/a wide x 1200mm o/a long 304

ACP-GW99PL-1200 Performer Quantum UPVC Linear Drain w/SS HG Grate 104mm o/a wide x 1000mm o/a long 304

DESCRIPTION

ACP-TL60PL-900 Performer Quantum UPVC Linear Drain w/SS Tile Insert 76mm o/a wide x 900mm o/a long 304

ACP-TL60PL-1000

ACP-TL60PL-1200

ACP-TL60PL-1500

ACP-TL80PL-900

Performer Quantum UPVC Linear Drain w/SS Tile Insert 76mm o/a wide x 1000mm o/a long 304

Performer Quantum UPVC Linear Drain w/SS Tile Insert 76mm o/a wide x 1200mm o/a long 304

Performer Quantum UPVC Linear Drain w/SS Tile Insert 104mm o/a wide x 1200mm o/a long 304

ACP-TL80PL-1000 Performer Quantum UPVC Linear Drain w/SS Tile Insert 104mm o/a wide x 1200mm o/a long 304

ACP-TL80PL-1200

ACP-TL80PL-1500

Performer Quantum UPVC Linear Drain w/SS Tile Insert 104mm o/a wide x 1200mm o/a long 304

POLYMER DRAINAGE CHANNELS 19

PERFORMER STAINLESS GRATES ALLURE HEELGUARD SHOWER GRATES

CODE DESCRIPTION

ACP-SHG-70/900

ACP-SHG-70/1000

ACP-SHG-70/1200

ACP-SHG-70/1500

ACP-SHG-100/900

ACP-SHG-100/1000

ACP-SHG-100/1200

ACP-SHG-100/1500

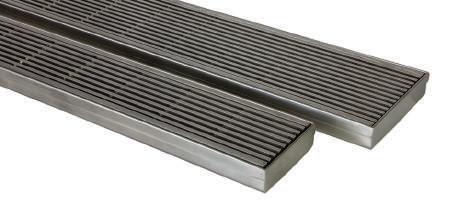

Performer Allure HG Grated Linear Drain 70mm o/a wide x 900mm o/a long 304

Performer Allure HG Grated Linear Drain 70mm o/a wide x 1000mm o/a long 304

Performer Allure HG Grated Linear Drain 70mm o/a wide x 1200mm o/a long 304

Performer Allure HG Grated Linear Drain 70mm o/a wide x 1500mm o/a long 304

Performer Allure HG Grated Linear Drain 100mm o/a wide x 900mm o/a long 304

Performer Allure HG Grated Linear Drain 100mm o/a wide x 1000mm o/a long 304

Performer Allure HG Grated Linear Drain 100mm o/a wide x 1200mm o/a long 304

Performer Allure HG Grated Linear Drain 100mm o/a wide x 1500mm o/a long 304

GALVANISED

SPECIFICATIONS

Clear Opening: 100mm, 150mm, 200mm & 300mm

Material: Polymer Concrete

Edge Rail: Galvanised Steel

Depth: 60mm – 300mm

Grate: Ductile Iron

Grate Type: Heelguard Longitudinal Classes: D

Locking Type: Clipfix & Clipfix Anti-Shunt

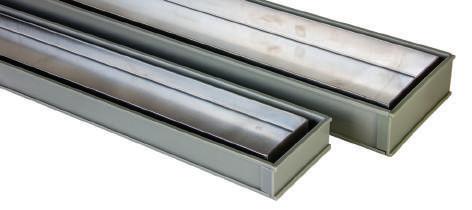

PERFORMER STAINLESS GRATES ALLURE TILE INSERT SHOWER GRATES

CODE

ACP-STI-70/900

ACP-STI-70/1000

ACP-STI-70/1200

ACP-STI-70/1500

ACP-STI-100/900

ACP-STI-100/1000

ACP-STI-100/1200

ACP-STI-100/1500

DESCRIPTION

Performer Allure Tile Insert Linear Drain 70mm o/a wide x 900mm o/a long 304

Performer Allure Tile Insert Linear Drain 70mm o/a wide x 1000mm o/a long 304

Performer Allure Tile Insert Linear Drain 70mm o/a wide x 1200mm o/a long 304

Performer Allure Tile Insert Linear Drain 70mm o/a wide x 1500mm o/a long 304

Performer Allure Tile Insert Linear Drain 100mm o/a wide x 900mm o/a long 304

Performer Allure Tile Insert Linear Drain 100mm o/a wide x 1000mm o/a long 304

Performer Allure Tile Insert Linear Drain 100mm o/a wide x 1200mm o/a long 304

Performer Allure Tile Insert Linear Drain 100mm o/a wide x 1500mm o/a long 304

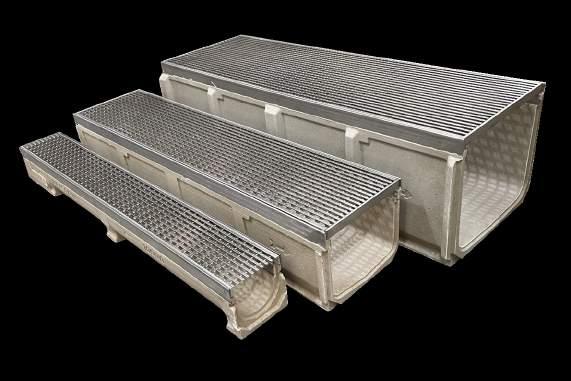

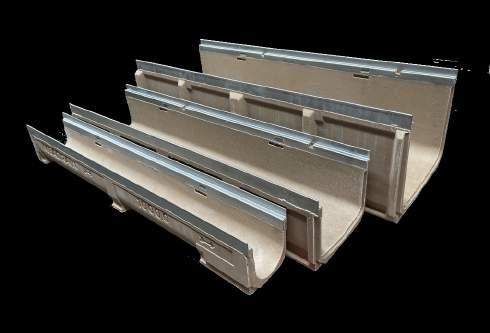

POLYMER CONCRETE - GALVANISED & STAINLESS STEEL EDGE CHANNEL GALVANISED COMPOSITE HEELGUARD SLOTTED GRATE

SPECIFICATIONS

Clear Opening: 100mm

Material: Polymer Concrete

Edge Rail: Galvanised Steel

Depth: 80mm – 300mm

Grate: Composite Plastic

Grate Type: Heelguard Slotted Classes: D

Locking Type: Locking Bar

Note: Presloped option also available

POLYMER DRAINAGE CHANNELS

POLYMER CONCRETE - GALVANISED & STAINLESS STEEL EDGE CHANNEL STAINLESS STEEL HEELGUARD GRATE

SPECIFICATIONS

Clear Opening: 100mm, 200mm & 300mm

Material: Polymer Concrete

Edge Rail: Stainless Steel 304mm

Depth: 60mmm – 300mm

Grate: Stainless Steel

Grade: 304 & 316

Grate Type: Heelguard Anti-Slip

Classes: A, B & C

Locking Type: Clipfix

Note: Presloped option in 100mm width only

POLYMER CONCRETE - GALVANISED & STAINLESS STEEL EDGE CHANNEL STAINLESS STEEL COMPOSITE HEELGUARD SLOTTED GRATE

SPECIFICATIONS

Clear Opening: 100mm

Material: Polymer Concrete

Edge Rail: Stainless Steel 304

Depth: 80mm – 300mm

Grate: Composite Plastic

Grate Type: Slotted Heelguard

Classes: D

Locking Type: Locking Bar

Note: Presloped option also available

POLYMER CONCRETE - GALVANISED & STAINLESS STEEL EDGE CHANNEL STAINLESS STEEL COMPOSITE HEELGUARD SLOTTED GRATE

SPECIFICATIONS

Clear Opening: 100mm

Material: Polymer Concrete

Edge Rail: Stainless Steel 304

Depth: 80mm – 300mm

Grate: Composite Plastic

Grate Type: Slotted Heelguard

Classes: D

Locking Type: Locking Bar

Note: Presloped option also available

POLYMER DRAINAGE CHANNELS 21

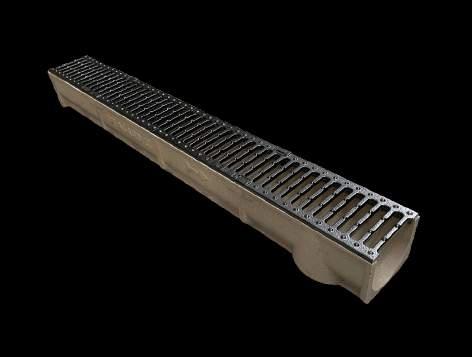

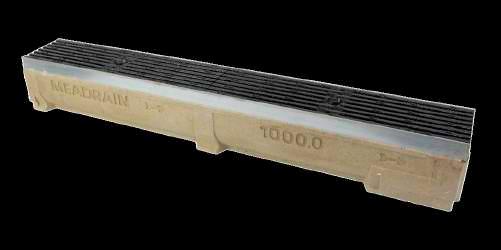

POLYMER CONCRETE - DUCTILE IRON EDGE CHANNEL DUCTILE IRON HEELGUARD GRATE

SPECIFICATIONS

Clear Opening: 100mm, 200mm & 300mm

Material: Polymer Concrete

Edge Rail: Ductile Iron

Depth: 130mm – 490mm

Grate: Ductile Iron

Grate Type: Heelguard

Classes: E

Locking Type: Profix & 4 Point Bolt

Note: No presloped option available

POLYMER CONCRETE - DUCTILE IRON EDGE CHANNEL DUCTILE IRON SLOTTED GRATE

SPECIFICATIONS

Clear Opening: 100mm, 200mm & 300mm

Material: Polymer Concrete

Edge Rail: Ductile Iron

Depth: 130mm – 490mm

Grate: Ductile Iron

Grate Type: Heelguard

Classes: E

Locking Type: Profix & 4 Point Bolt

Note: No presloped option available

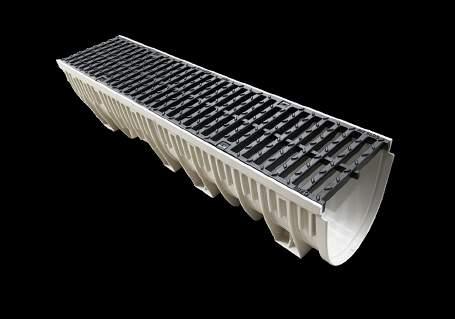

POLYMER CONCRETE - DUCTILE IRON EDGE CHANNEL DUCTILE IRON HIGH FLOW GRATE

SPECIFICATIONS

Clear Opening: 200mm & 300mm

Material: Polymer Concrete

Edge Rail: Ductile Iron

Depth: 130mm – 490mm

Grate: Ductile Iron

Grate Type: Not Bicycle Safe

Classes: D

Locking Type: Profix

POLYMER DRAINAGE CHANNELS

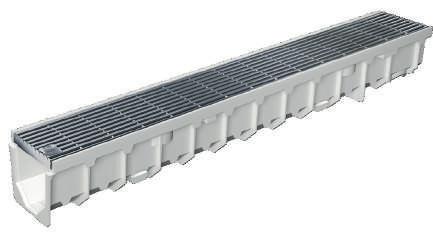

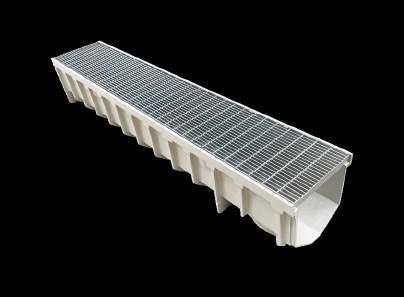

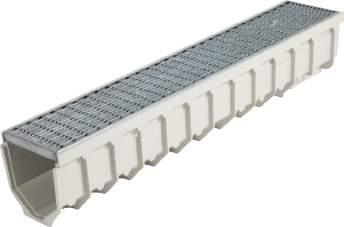

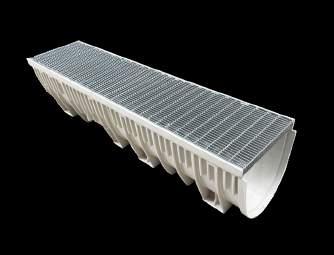

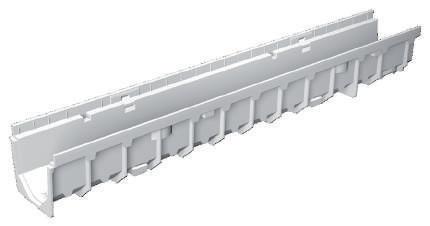

GRP CHANNEL GALVANISED HEELGUARD GRATE

SPECIFICATIONS

Clear Opening: 100mm, 150mm, 200mm & 300mm

Material: GRP

Edge Rail: GRP

Depth: 55mm -397mm

Grate: Galvanised Steel

Grate Type: Heelguard

Classes: B & D

Locking Type: Clipfix

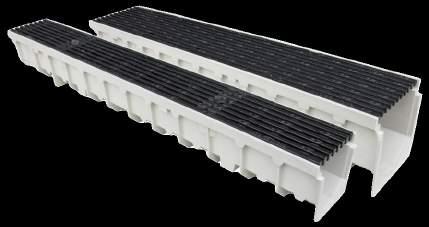

GRP CHANNEL DUCTILE IRON LONGITUDINAL HEELGUARD GRATE

SPECIFICATIONS

Clear Opening: 100mm, 150mm, 200mm & 300mm

Material: GRP

Edge Rail: GRP

Depth: 55mm – 397mm

Grate: Ductile Iron

Grate Type: Longitudinal Heelguard

Classes: D

Locking Type: Clipfix & Clipfix Anti-Shunt (only in 200mm & 300mm)

GRP CHANNEL DUCTILE IRON SLOTTED GRATE

SPECIFICATIONS

Clear Opening: 200mm

Material: GRP

Edge Rail: GRP

Depth: 100mm & 242mm

Grate: Ductile Iron

Grate Type: Slotted

Classes: D

Locking Type: Clipfix

POLYMER DRAINAGE CHANNELS

GRP EDGE CHANNEL GALVANISED LONGITUDINAL SPORTS SLOTTED GRATE

SPECIFICATIONS

Clear Opening: 100mm

Material: GRP

Edge Rail: GRP

Depth: 55mm - 127mm

Grate: Galvanised Steel

Grate Type: Sports Slotted Classes: A

Locking Type: N/A

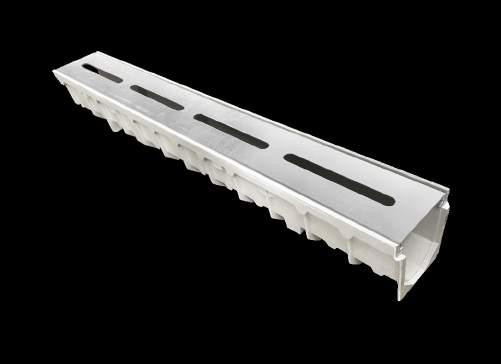

GRP EDGE CHANNEL GALVANISED STEEL SLOTTED GRATE

SPECIFICATIONS

Clear Opening: 100mm Material: GRP Edge Rail: GRP

Depth: 55mm – 127mm

Grate: Galvanised Steel

Grate Type: Slotted Classes: A

Locking Type: N/A

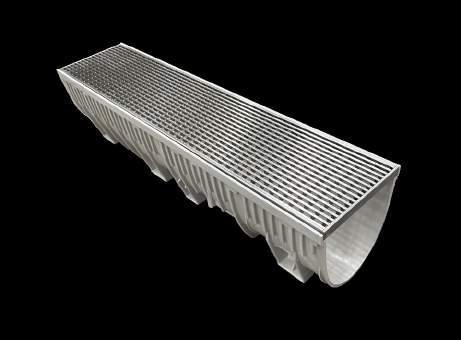

CHANNEL STAINLESS STEEL HEELGUARD GRATE

SPECIFICATIONS

Clear Opening: 100mm, 150mm, 200mm & 300mm Material: GRP

Edge Rail: GRP

Depth: 55mm – 397mm

Grate: Stainless Steel

Grade: 304 & 316

Grate Type: Heelguard Anti-Slip

Classes: A, B & C

Locking Type: Clipfix

POLYMER DRAINAGE CHANNELS

MEAGUARD GRP EDGE CHANNEL DUCTILE IRON SLOTTED

GRATE

SPECIFICATIONS

Clear Opening: 100mm & 150mm

Material: MeaGuard

Edge Rail: GRP

Depth: 110mm - 150mm

Grate: Ductile Iron

Grate Type: Slotted

Classes: B

Locking Type: N/A

MEAGUARD GRP EDGE CHANNEL GALVANISED STEEL

SPECIFICATIONS

Clear Opening: 100mm & 150mm

Material: MeaGuard

Edge Rail: GRP

Depth: 110mm – 150mm

Grate: Galvanised Steel

Grate Type: Mesh

Classes: B

Locking Type: N/A

MESH GRATE

MEAGUARD GRP EDGE CHANNEL GALVANISED STEEL SLOTTED GRATE

SPECIFICATIONS

Clear Opening: 100mm

Material: MeaGuard

Edge Rail: GRP

Depth: 110mm

Grate: Galvanised Steel

Grate Type: Slotted

Classes: A

Locking Type: N/A

POLYMER DRAINAGE CHANNELS 25

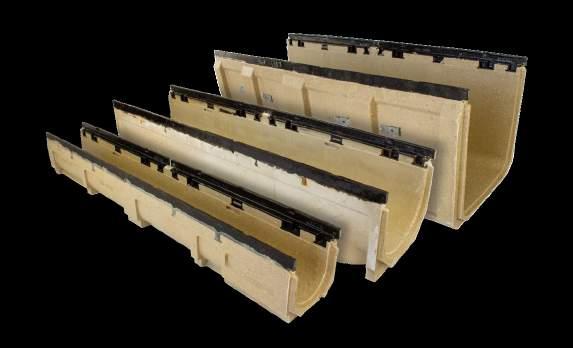

MEA SUPREME CAST IRON EDGE RANGE

The MEADRAIN EN and ENS drainage systems are optimally designed for heavy-duty in which high wheel loads act on the channels. With force-fit ductile iron edges, these also meet the toughest requirements. The extensive range of products in nominal widths up to 400 mm with different heights offers the perfect solution even for the most demanding requirements.

Features:

y Loading Class F 900

y Lateral ribs for more stability and optimal anchorage in the concrete bed

y Matching covers for the highest load

y Covers optionally available with boltless grating protection or 4-fold boltable

y Various constructive heights available

G

ACP-C1015G

ACP-C1020G

ACP-C1030G

ACP-C2000G

ACP-C2010G

ACP-C2020G

ACP-C3000G

ACP-C3010G

ACP-C3020G

POLYMER DRAINAGE CHANNELS

MEA SUPREME GALVANISED EDGE RANGE

When it comes to the drainage of pedestrian zones, parks and car parks, MEA DRAIN Supreme is the ideal solution in terms of functionality and visual appeal. Thanks to its slender edge rails, this product range’s perfect joint with adjoining slabbed and paved surfaces is guaranteed. The edge rails are embedded in channel bodies made from eco-friendly, high-strength polymer concrete which protects groundwater reliably from chemically aggressive liquids.

Features:

y Wide range of grate options

y Safe and secure

y Various depth options

CLASS B

100MM CLEAR OPENING

Uses:

• Car parks

• Shopping centres

• Schools

• Public areas

ACP-LZ1000/60BG 100x60mm Deep Galvanised Heelguard

ACP-LZ1000/80BG 100x80mm Deep Galvanised Heelguard

ACP-Z1000/120BG 100x120mm Deep Galvanised Heelguard

ACP-Z1000BG 100x150mm Deep Galvanised Heelguard

ACP-Z1005BG 100x175mm Deep Galvanised Heelguard

ACP-Z1010BG 100x200mm Deep Galvanised Heelguard

ACP-Z1015BG 100x225mm Deep Galvanised Heelguard

ACP-Z1020BG 100x250mm Deep Galvanised Heelguard

ACP-Z1030BG 100x300mm Deep Galvanised Heelguard 150MM CLEAR OPENING

ACP-AZ1500BG 150x150mm Deep Galvanised Heelguard 200MM CLEAR OPENING

ACP-LZ2000BG 200x130mm Deep Galvanised Heelguard

ACP-AZ2000BG 200x200mm Deep Galvanised Heelguard 300MM CLEAR OPENING

ACP-LZ3000BG 300x130mm Deep Galvanised Heelguard

ACP-AZ3000BG 300x300mm Deep Galvanised Heelguard

CLASS D 240kN (AS3996)

CODE DESCRIPTION 100MM CLEAR OPENING

ACP-LZ1000/60DDI 100x60mm Deep Ductile Iron Longitudinal Heelguard

ACP-LZ1000/80DDI 100x80mm Deep Ductile Iron Longitudinal Heelguard

ACP-Z1000/120DDI 100x120mm Deep Ductile Iron Longitudinal Heelguard

ACP-Z1000DDI 100x150mm Deep Ductile Iron Longitudinal Heelguard

ACP-Z1005DDI 100x175mm Deep Ductile Iron Longitudinal Heelguard

ACP-Z1010DDI 100x200mm Deep Ductile Iron Longitudinal Heelguard

ACP-Z1015DDI 100x225mm Deep Ductile Iron Longitudinal Heelguard

ACP-Z1020DDI 100x250mm Deep Ductile Iron Longitudinal Heelguard

ACP-Z1030DDI 100x300mm Deep Ductile Iron Longitudinal Heelguard 150MM CLEAR OPENING

ACP-AZ1500DDI 150x150mm Deep Ductile Iron Longitudinal Heelguard 200MM CLEAR OPENING

ACP-LZ2000DDIH 200x130mm Deep Ductile Iron Longitudinal Heelguard

ACP-AZ2000DDIH 200x200mm Deep Ductile Iron Longitudinal Heelguard 300MM CLEAR OPENING

ACP-LZ3000DDI 300x130mm Deep Ductile Iron Longitudinal Heelguard

ACP-AZ3000DDI 300x300mm Deep Ductile Iron Longitudinal Heelguard

CLASS D 240kN (AS3996) CODE DESCRIPTION

100MM CLEAR OPENING

ACP-LZ1000/60DG 100x60mm Deep Galvanised Heelguard

ACP-LZ1000/80DG 100x80mm Deep Galvanised Heelguard

ACP-Z1000/120DG 100x120mm Deep Galvanised Heelguard

ACP-Z1000DG 100x150mm Deep Galvanised Heelguard

ACP-Z1005DG 100x175mm Deep Galvanised Heelguard

ACP-Z1010DG 100x200mm Deep Galvanised Heelguard

ACP-Z1015DG 100x225mm Deep Galvanised Heelguard

ACP-Z1020DG 100x250mm Deep Galvanised Heelguard

ACP-Z1030DG 100x300mm Deep Galvanised Heelguard

150MM CLEAR OPENING

ACP-AZ1500DG 150x150mm Deep Galvanised Heelguard

200MM CLEAR OPENING

ACP-LZ2000DG 200x130mm Deep Galvanised Heelguard

ACP-AZ2000DG 200x200mm Deep Galvanised Heelguard

300MM CLEAR OPENING

ACP-LZ3000DG 300x130mm Deep Galvanised Heelguard

ACP-AZ3000DG 300x300mm Deep Galvanised Heelguard

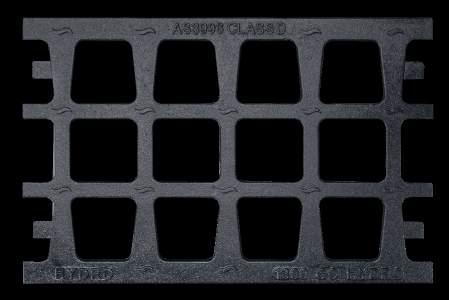

CLASS D 240kN (AS3996)

CODE DESCRIPTION

200MM CLEAR OPENING

ACP-LZ2000DIS 200x130mm Deep Ductile Iron Slotted

ACP-AZ2000DIS 200x200mm Deep Ductile Iron Slotted

POLYMER DRAINAGE CHANNELS

MEA SUPREME STAINLESS STEEL EDGE RANGE

MEA DRAIN Supreme is the ideal solution in terms of functionality and visual appeal. Thanks to its slender edge rails, this product range’s perfect joint with adjoining slabbed and paved surfaces is guaranteed. The edge rails are embedded in channel bodies made from eco-friendly, high-strength polymer concrete which protects groundwater reliably from chemically aggressive liquids.

Features:

y Wide range of grate options

y Safe and secure

y Various depth options

Uses:

y Car parks

y Shopping Centres

y Schools

y Public Areas

POLYMER DRAINAGE CHANNELS

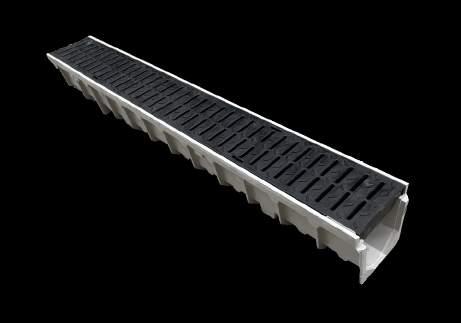

MEA FLUID GRP CHANNELS

MEAFLUID redefines the boundaries in the use and installation of channels thanks to the versatility of possibilities in which this system can be used for drainage purposes. It is ideal for all who are searching for a professional quality drainage solution coupled to an easy to handle and fast to mount product at a fair price.

Features:

y Extremely sturdy thanks to the GRP material

y Very light and extremely stable

y Smooth surface and optimized water flow

y Easy to install

CLASS B

CODE DESCRIPTION

100MM CLEAR OPENING

Uses:

• Gardens

• Front yards

• Green spaces

ACP-FLUID100BG 100x127mm Deep Galvanised Heelguard

150MM CLEAR OPENING

ACP-FLUID150BG 150x127mm Deep Galvanised Heelguard

CLASS B

CODE DESCRIPTION

100MM CLEAR OPENING

ACP-FLUID100BSS 100x127mm Deep Stainless Steel SureGrip

150MM CLEAR OPENING

ACP-FLUID150BSS 150x127mm Deep Stainless Steel SureGrip

MEA FLUID GRP CHANNELS

CLASS D 240kN (AS3996)

CODE DESCRIPTION

100MM CLEAR OPENING

ACP-FLUID100DG 100x127mm Deep Galvanised Heelguard

150MM CLEAR OPENING

ACP-FLUID150DG 150x127mm Deep Galvanised Heelguard

CLASS D 240 kN (AS3996)

CODE DESCRIPTION

100MM CLEAR OPENING

ACP-FLUID100DDI 100x127mm Deep Ductile Iron Longitudinal Heelguard

150MM CLEAR OPENING

ACP-FLUID150DDI 150x127mm Deep Ductile Iron Longitudinal Heelguard

POLYMER DRAINAGE CHANNELS

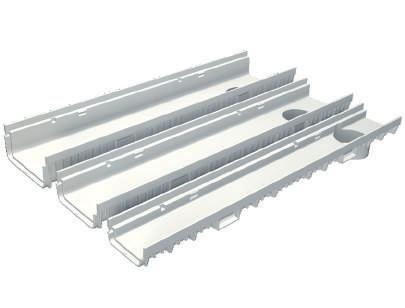

MEARIN PLUS & FLAT GRP CHANNELS

Glass-fibre-reinforced composite is a real all-rounder in the area of drainage. The high-quality material with an extremely low weight is suitable for installation up to loading class E 600. The complete MEARIN product range has been adapted to fit to our universal CLIPFIX grating fixing mechanism

Features:

y Lightweight

y Highly stable

y Sustainable: 100% recyclable

y High temperature resistance

y Dimensional stability

DUCTILE IRON COVERS

DUCTILE IRON COVERS 31

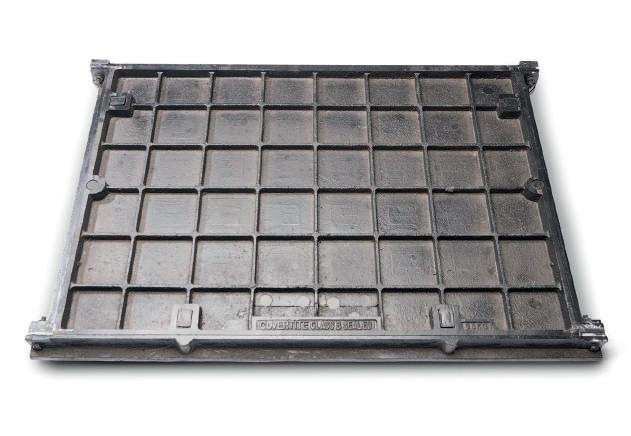

DUCTILE IRON COVERS INDI - DUCTILE IRON INFILL COVER AND FRAME

Commonly used for junction pits and onsite detention tanks the range of infill covers are designed to allow access for maintenance. The frame is designed to be cast into concrete slab in the tank or above the pit and the cover is filled with concrete making the pit or tank sealed for gas, air and water. Manufactured and tested to meet AS3996, this range of covers are available Class B and Class D.

Class B Features:

y Class B Light Duty

y Bolt down

y Gas, Air, and Water Tight

y Nominal Wheel Loading 2,670 kg

Class B Uses:

y OSD Tanks

y Junction Pits

y Streetscape Areas

y Footpaths

Class D Features:

y Class D Heavy Duty

y Bolt Down

y Gas, Air, and Water Tight

y Nominal Wheel Loading 8,000 kg

y Available in concrete surround

Class D Uses:

y Roads

y Car parks

y Driveways open to commercial traffic

y OSD Tanks on commercial properties

DUCTILE IRON COVERS

DUCTILE IRON COVERS STDI - SOLID TOP COVER AND FRAME

Commonly used to seal electricity pits as well as storm water pits and onsite detention tanks the range of Solid covers are designed to allow access for maintenance. The frame is designed to be cast into concrete slab in the tank or above the pit and the cover is filled with concrete making the pit or tank sealed for gas, air and water. Manufactured and tested to meet AS3996, this range of covers are available Class B and Class D.

Class B Features:

y Class B Light Duty

y Bolt down

y Gas, Air, and Water Tight

y Nominal Wheel Loading 2,670 kg

Class B Uses:

y OSD Tanks

y Junction Pits

y Streetscape Areas

y Footpaths

Class D Features:

y Class D Heavy Duty

y Bolt Down

y Gas, Air, and Water Tight

y Nominal Wheel Loading 8,000 kg

y Available in concrete surround

Class D Uses:

y Roads

y Car parks

y Driveways open to commercial traffic

y OSD Tanks on commercial properties

DUCTILE IRON COVERS

PAVER INFILL COVER & FRAMES STAINLESS STEEL DECORATIVE EDGE

For aesthetic purposes our decorative edge covers are available in stainless steel or brass and are designed to increase the rebate depth to accommodate the required tile or paver. Traditionally these covers are used in high pedestrian areas such as restaurants, shopping centres, walkways and airport terminals. All Hydro covers are manufactured to Australian Standards AS3996 load ratings and come in either Class B or Class D.

Class B Features:

y Class B Light Duty

B Uses:

Restaurants

y Gas, Air, and Water Tight • Shopping Centres

y Nominal Wheel Loading 2,670 kg

Walkways • Airport Terminals

Class D Features: Class D Uses:

y Class D Heavy Duty • Restaurants

y Gas, Air, and Water Tight • Shopping Centres

y Nominal Wheel Loading 8,000 kg

Walkways • Airport Terminals

ACP-A66DSS25

ACP-A99DSS25

ACP-A44DSS40

ACP-A66DSS40

ACP-A96DSS40

ACP-A99DSS40

ACP-A66DSS60

ACP-A96DSS60

ACP-A99DSS60

ACP-A99DBR60

DUCTILE IRON COVERS

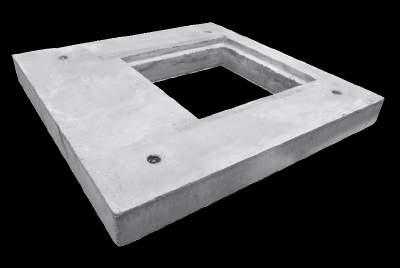

CSINDIC - INFILL COVER CONCRETE SURROUND

Class B Features:

y Ready for quick installation

y Tested for wheel loading

y Minimum 40mpa Concrete

Class B Uses:

• Garden areas

• Landscaped areas

• Subdivision inter

y Steel Reinforcement to AS4671 allotment drainage

• Parklands

• Sporting grounds

Class D Features:

y Ready for quick installation

y Tested for wheel loading

y Minimum 40mpa Concrete

y Steel Reinforcement to AS4671

CSINDICF4545B

CSINDICF0606B

CSINDICF0906B

Class D Uses:

• Carparks

Concrete Surround

Class B Infill Cover and Frame Concrete Surround

CSINDICF0909B 900x900 Class B Infill Cover and Frame Concrete Surround

CSINDICF1212B 1200x1200 Class B Infill Cover and Frame Concrete Surround

CSINDICF991212B

CSINDICF991515B

900x900 Class B Infill Cover and Frame Concrete Surround Suit 1200x1200 Pit

900x900 Class B Infill Cover and Frame Concrete Surround Suit 1500x1500 Pit

CSINDICF4545D

CSINDICF0606D

CSINDICF0906D

CSINDICF0909D

CSINDICF1212D

CSINDICF991212D

CSINDICF991515D

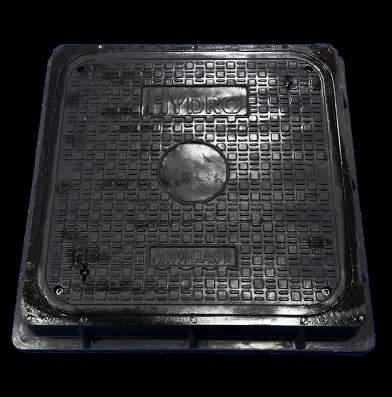

COMPOSITE SOLID TOP COVERS AND FRAMES

450x450 Class D Infill Cover and Frame Concrete Surround

600x600 Class D Infill Cover and Frame Concrete Surround

900x600 Class D Infill Cover and Frame Concrete Surround

900x900 Class D Infill Cover and Frame Concrete Surround

1200x1200 Class D Infill Cover and Frame Concrete Surround

900x900 Class D Infill Cover and Frame Concrete Surround Suit 1200x1200 Pit

900x900 Class D Infill Cover and Frame Concrete Surround Suit 1500x1500 Pit

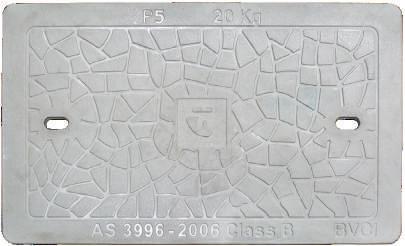

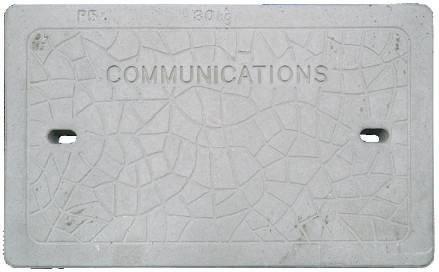

Solid top, single part resin composite covers are constructed from high quality fibre composite materials and are compliant to AS3996-2006. This product is available in square, rectangular, and circular covers. It is an economic alternative to ductile iron and concrete covers, and also has excellent resistance to sewage and a wide range of chemicals. Anti-slip thread surface guarantees safe road conditions in extreme weather. It has a unique key to restrict unauthorised access to dangerous sewer & stormwater pit. Manufactured and tested to meet AS3996 this range of covers are available Class B and Class D.

Features:

y Extremely durable & UV stable

y Anti-corrosive including waterproof

Uses:

• Landscaped areas

• Streetscapes and gastight

y Quick and easy to install

y Available to assist with installation

• Residential areas

• Internal applications

• Swimming pools

• Electrical & communications

ACP-C99SD

DUCTILE IRON COVERS 35

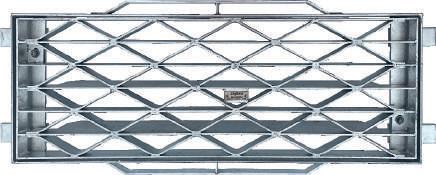

RP - RETENTION PIT COVER

Designed to slow the flow of stormwater during periods of heavy rainfall, stormwater retention pits are often a local council’s requirement as part of their stormwater management technique. To minimise the risk of flooding, councils require a flow control device to limit the discharge to an acceptable rate and a storage system to hold the excess discharge until capacity becomes available in the downstream drainage system, and retention pits serve this purpose. These retention pits require an adequate cover, based on varying circumstances. Manufactured and tested to AS3996 and available in class B and D. Other sizes are also available upon request.

Class B Features:

y Class B Light Duty

y Lockdown

y Bicycle Safe

y Nominal Wheel Loading 2,670 kg

Class B Uses:

y Residential developments

y Landscaped areas

y Garden areas

Class D Features:

y Class D Heavy Duty

y Lockdown

y Bicycle safe

y Nominal Wheel Loading 8,000 kg

Class D Uses:

y Commercial developments

y Car parks

y Driveways open to commercial traffic

PR1290PI 1200x900 Class B Retention Pit Cover and Frame Infill/Grate

RP1360PI 1295x600 Class B Retention Pit Cover and Frame Infill/Grate

RP1390PI 1295x900 Class B Retention Pit Cover and Frame Infill/Grate

PR1460PI 1395x600 Class B Retention Pit Cover and Frame Infill/Grate

RP1290PS 1200x900 Class B Retention Pit Cover and Frame Solid/Grate

RP1360PS 1295x600 Class B Retention Pit Cover and Frame Solid/Grate

RP1390PS 1295x900 Class B Retention Pit Cover and Frame Solid/Grate

RP1460PS

1395x900 Class B Retention Pit Cover and Frame Solid/Grate

CLASS D CODE

RP1260TI

RP1290TI

RP1360TI

PR1390TI

RP1460TI

RP1260TS

RP1290TS

RP1360TS

RP1460TS

1200x600 Class D Retention Pit Cover and Frame Infill/Grate

1200x900 Class D Retention Pit Cover and Frame Infill/Grate

1295x600 Class D Retention Pit Cover and Frame Infill/Grate

1295x900 Class D Retention Pit Cover and Frame Infill/Grate

1395x600 Class D Retention Pit Cover and Frame Infill/Grate

1200x600 Class D Retention Pit Cover and Frame Solid/Grate

1200x900 Class D Retention Pit Cover and Frame Solid/Grate

1295x600 Class D Retention Pit Cover and Frame Solid/Grate

1295x900 Class D Retention Pit Cover and Frame Solid/Grate

1395x900 Class D Retention Pit Cover and Frame Solid/Grate

DUCTILE IRON COVERS

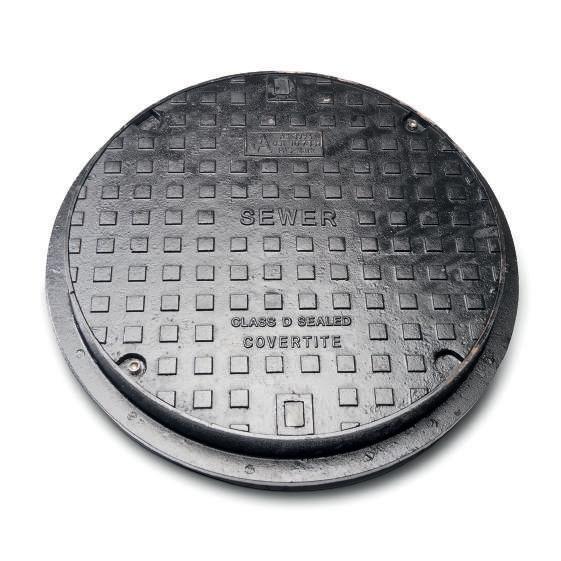

CIRCULAR COVER AND FRAMES

Our circular covers are ideal for sewerage and stormwater drainage systems that require both access and protection. Covers provide for easy access for inspection purposes. All of our covers are bolt down for safety and come with the option of a lifting keys to enable removal with minimal risk of strain or injury. Available in class B and D to AS3996, they also have solid and infill options.

Class B Features:

y Class B Light Duty

y Bolt down

y Gas, Air, and Water Tight

y Nominal Wheel Loading 2,670 kg

Class B Uses:

y Footpaths

y Garden Areas

y Streetscape Areas

y Sports Fields

Class D Features:

y Class D Heavy Duty

y Bolt Down

y Gas, Air, and Water Tight

y Nominal Wheel Loading 8,000 kg

y Available in concrete surround

Class D Uses:

y Roads

y Car parks

y Driveways open to commercial traffic

STDI04SEWERD 435mm

CSSTDI04SEWERD

INDI06D

and Frame

Dia Class D Infill Cover and Frame

INDI06DQUU 600mm Dia Class D Infill Cover and Frame QUU Approved

STDI06SEWERD 600mm Dia Class D Solid Top Sewer Cover and Frame No Bolts

STDI06WATERD 600mm Dia Class D Solid Top Stormwater Cover and Frame No Bolts

STDI06SEWERDBOLT

STDI06WATERDBOLT

BCC Approved

STDI06WATERBBOLT 600mm Dia Class B Solid Top Stormwater Cover and Frame Bolted

STDI06SEWERBQUU 600mm Dia Class B Solid Top Sewer Cover and Frame QUU Approved

Dia Class D Solid Top Sewer Cover and Frame Bolted

Dia Class D Solid Top Stormwater Cover and Frame Bolted

STDI06WATERDBCC 600mm Dia Class D Solid Top Stormwater Cover and Frame BCC Approved

STDI06SEWERDBCC35 600mm Dia Class D Solid Top Stormwater Cover and Frame BCC Approved Raised 35mm

STDI06SEWERDQUU

Dia Class D Solid Top Sewer Cover and Frame QUU Approved

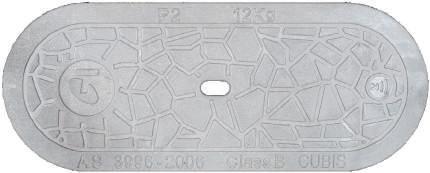

LAMP HOLE COVER

Often used in footpaths and driveways, particularly when extra space is required around the valve. It is also used to cover bolted trap screws, inspection points or provide a finishing point in sewer covers.

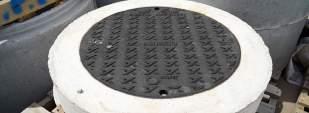

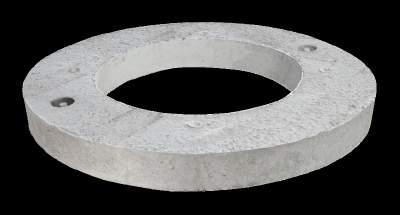

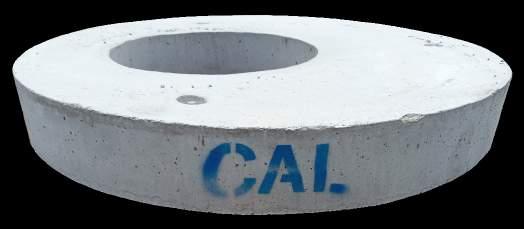

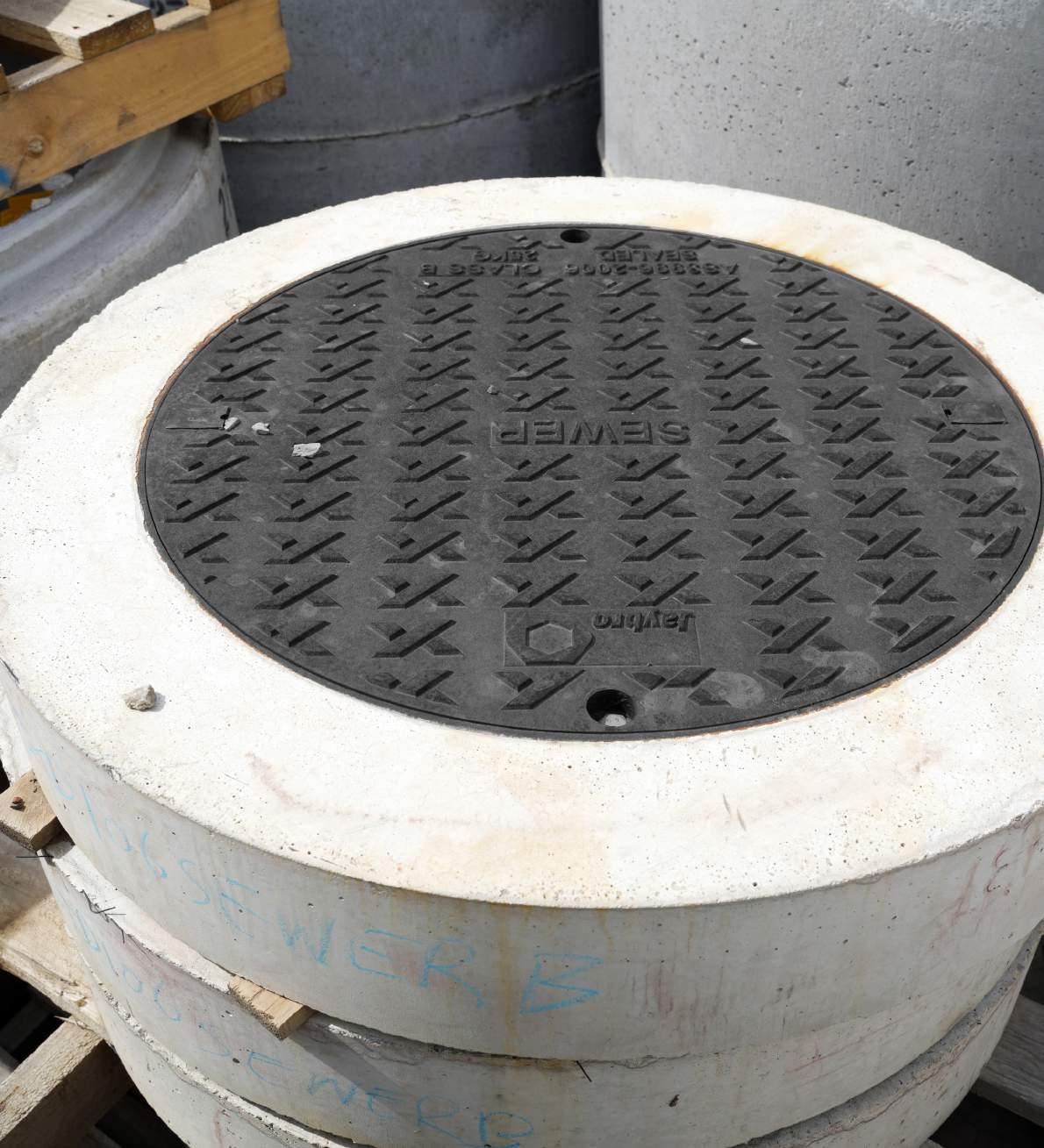

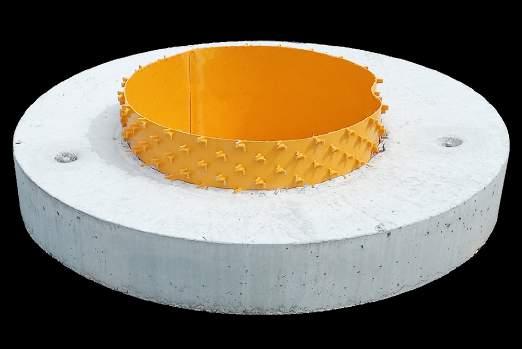

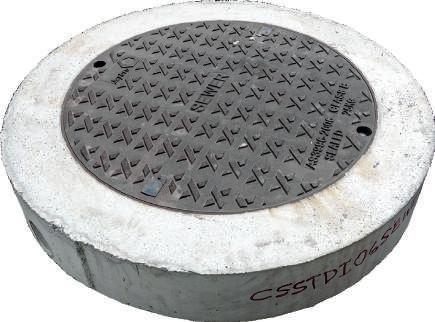

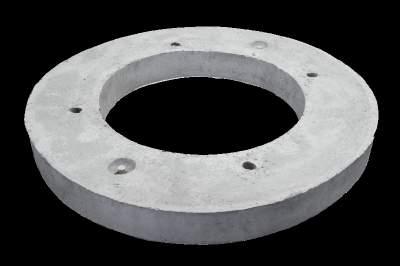

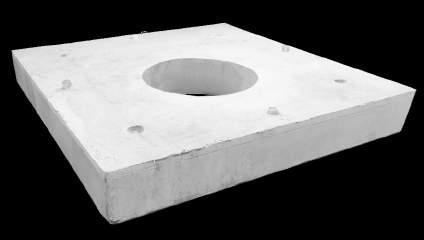

CIRCULAR COVER AND FRAMES CONCRETE SURROUND

Ductile Iron Circular Covers manufactured with a precast concrete surround designed for fast installation on site. It has a minimum of 40mpa concrete and a steel reinforcement to AS4671. Manufactured and tested to AS3996 and available in class B and D.

Class B Features:

y Class B Light Duty

y Bolt down

y Gas, Air, and Water Tight

y Nominal Wheel Loading 2,670 kg

Class B Uses:

y Footpaths

y Garden Areas

y Streetscape Areas

y Sports Fields

Class D Features:

y Class D Heavy Duty

y Bolt Down

y Gas, Air, and Water Tight

y Nominal Wheel Loading 8,000 kg

y Available in concrete surround

Class D Uses:

y Roads

y Car parks

y Driveways open to commercial traffic

CONSUMABLES & ACCESSORIES

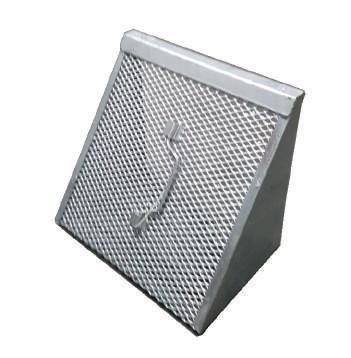

TRASH SCREENS, TRASH GATES & ORIFICE PLATES TSML - TRASH SCREENS

Designed to prevent rubbish being washed into drainage lines the trash screen is bolted to the wall of the pit or tank and covers the outlet. Off the shelf trash screens are available in small and large sizes. Custom trash screens are available on request.

Features:

y Handle for easy lifting

y Galvanised steel

y Custom sizes available

TSML342

TSML652

Uses:

• Residential driveways

• Subdivision inter allotment drainage

• Garden areas

Trash Screen C/W Bracket

TRASH SCREENS, TRASH GATES & ORIFICE PLATES

TG - TRASH GRATES

Our range of trash grates are used to prevent debris and rubbish from being washed into drains. Available in 3 sizes to suit you application.

Features:

y Galvanised steel

TG2530

TG3050

TG5050

Uses:

• Residential driveways

• Subdivision inter allotment drainage

• Garden areas

Trash Grate C/W Bracket

TRASH SCREENS, TRASH GATES & ORIFICE PLATES ORIFICE PLATES

Stainless steel orifice plates are custom made to suit the pipe size and specification. Designed to restrict the flow from the pit or on site detention tank which helps prevent flooding.

Features: Uses:

y Custom made to suit specification

y 316 Stainless steel

• Stormwater pits

• OSD Tanks

CONSUMABLES & ACCESSORIES

BRASS AND STAINLESS KERB MARKERS

Brass and Stainless Steel Kerb Markers to identity different underground utilities.

Features:

y Easy to install

y Manufactured from Brass or Stainless Steel

Uses:

y Easy to install

y Manufactured from Brass or Stainless Steel

CODE DESCRIPTION

05-BRP-C Brass Kerb Marker - Communications

05-BRP-E Brass Kerb Marker - Electrical

05-BRP-G Brass Kerb Marker - Gas

05-BRP-I Brass Kerb Marker - Irrigation

05-BRP-S Brass Kerb Marker - Sewer

05-BRP-SD Brass Kerb Marker - Side Drain

05-BRP-T Brass Kerb Marker - Telstra

05-BRP-W Brass Kerb Marker - Water

05-BRP-WM Brass Kerb Marker - Watermain

CODE DESCRIPTION

05-SSP-C Stainless Steel Kerb Marker - Communications

05-SSP-E Stainless Steel Kerb Marker - Electrical

05-SSP-H Stainless Steel Kerb Marker - Hydrant

05-SSP-S Stainless Steel Kerb Marker - Sewer

05-SSP-TAP Stainless Steel Kerb Marker - Tap

05-SSP-V Stainless Steel Kerb Marker - Valve

05-SSP-W Stainless Steel Kerb Marker - Water

05-SSP-WM Stainless Steel Kerb Marker - Watermain

KERB ADAPTOR SUBSOIL BOXES

This product is used in subdivisions available in a wide range

Features:

y Options to meet council specifications

y Adaptors to PVC Pipe

B1 Kerb Adaptor

B2 Kerb Adaptor

M1 Layback Kerb Adator 10-KAAAE3 B3 Roll Top Kerb Adaptor

Uses:

• Subdivision

• Commercial development

10-PVCKA12575 125x75mm PVC Kerb Adaptor x 100mm DWV 10-PVCKA15050 125x50mm PVC Kerb Adaptor x 100mm DWV

Subsoil boxes are manufactured to cap flushing points in subsoil drainage lines. For use in subsoil drainage and RMS Roads. Available with concrete surround.

Round Gas Box 100mm - 140 x 135 x 97mm

Round Water Box 100mm - 140 x 135 x 97mm

RTA Subsoil Box 100mm - 140 x 135 x 97mm

CONSUMABLES & ACCESSORIES

MARKER TAPES & CABLE COVERS MAINS MARKER TAPE (NON-DETECTABLE)

Features:

y Non-detectable • Size: 150mm x 500m roll

22-150MMC Mains Marker Comm White 150mm x 500m 22-150MME Mains Marker Elec Orange 150mm x 500m

22-150MMF Mains Marker Fire Red 150mm x 500m

22-150MMG Mains Marker Gas Yellow 150mm x 500m

22-150MMPW Mains Marker Potable Green 150mm x 500m

22-150MMRW Mains Marker Lilac 150mm x 500m

22-150MMS Mains Marker Sewer Beige 150mm x 500m

22-150MMST Mains Marker Storm/W Blue 150mm x 500m

22-150MMW Mains Marker Water Green 150mm x 500m

MARKER

TAPES & CABLE COVERS MAINS MARKER TAPE

(DETECTABLE)

Features:

y Plastic tape with 0.5mm 304 grade stainless steel tracer wire

y 22-100MMDW-B - For use in QLD

y Size: 100mm x 250m roll

22-100MMDC Mains Marker Det Comm White 100mm x 250m

22-100MMDE Mains Marker Det Elec Orange 100mm x 250m

22-100MMDF Mains Marker Det Fire Red 100mm x 250m

22-100MMDG Mains Marker Det Gas Yellow 100mm x 250m

22-100MMDPW Mains Marker Det P/W Green 100mm x 250m

22-100MMDRW Mains Marker Det R/W Lilac 100mm x 250m

22-100MMDS Mains Marker Det Sewer Beige100mm x 250m

22-100MMDST Mains Marker Det S/W Blue100mm x 250m

22-100MMDW Mains Marker Det Water Green 100mm x 250m

22-100MMDW-B Mains Marker Det Water Blue 100mm x 250m MARKER TAPES & CABLE COVERS 3-WAY MAINS MARKER TAPE MARKER TAPES

Features:

y Non-adhesive

CONSUMABLES & ACCESSORIES

PIT LID LIFTERS

Features:

y Long Handle Lid Lifter MUST NOT be used to crack seal (initial lift). Use small D-Handle Lifter instead.

y We recommend that lifters be used in pairs.

38-100021

Heavy Duty Long Handle Lid Lifter

40-LHGL Long Handle Lid Lifter

40-SHGL Small D-Handle Lid Lifter

40-ERGL Ergonomic Style Gatic Lid Lifter with wheels

40-TPLF Communications Pit Lid Lifter (For lifting Telstra Pit Lids)

TIMBER WEDGE AND BLOCK

Features:

y Ideal for supporting and blocking pipes

y Available in wedges and blocks

y Material: Timber

y Height: 75mm

LIFTING CHAIN SLINGS LIFTING CLUTCHES D SHACKLE GALVANISED

Features:

y Grade 80 pre-assembled Chain Sling sets.

y Pre-tested Tensile Strength and Safety Tag.

y Supplied with Certificate of Tensile Testing

y Complete with shortening hooks to make leg lengths easily adjustable and clevis type Slinghook with safety latch.

y Reuseable bucket w/lid

Features:

y Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit.

y Manufactured from Grade S material

y Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in millimetre and supplier identification.

y Test certificates are available upon request

y Suitable for lifting applications

y Working Load Limit(WLL)t: 4.7 Tonne

y Conforms to AS2741

y Width: 32mm

y Weight: 1.02kg

This is used for precast concrete products, particularly in civil engineering applications.

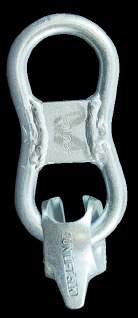

These clutches are typically used for lifting panels, pipes, pits, manholes, box culverts, road barriers, bridge beams, planks, sound walls, culverts, etc.

Features:

y Individually serialised

y Includes testing certificate

y Available in 3 sizes

CONSUMABLES & ACCESSORIES

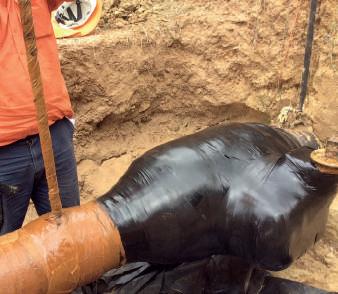

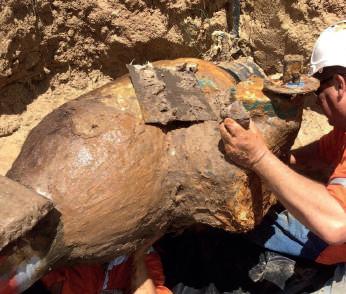

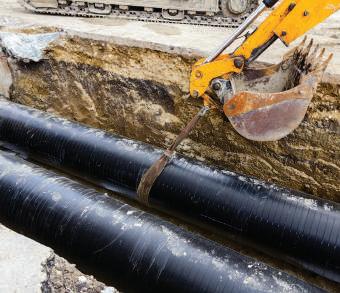

PETROLATUM TAPES are extremely surface tolerant and unyielding to moisture, acids, alkalis and salt solutions. RAM PETROLATUM TAPE systems utilize microcrystalline waxes which achieves excellent characteristics including high conformability, superior adhesion / amalgamation to itself and substrates whilst being user friendly to semi skilled applicators.

PETROLATUM MULTI-PURPOSE PRIMER

Features:

y 1st step in the petrolatum pipe protection process

y Fills surface imperfections and ensures intimate contact between mastic tapes

y Used to prepare, seal, and waterproof metal surfaces

y Protects pipelines from corrosion above and below ground

y Ideal for use as a rust preventative on exposed metal work

PETROLATUM MASTIC

Features:

y 2nd step in the petrolatum pipe protection process

• Great for use around flanges, bolts,

y Suited for use as a filler for voids pipe joints, and valves

y Used to profile irregular shapes in preparation

• 3 litre block for application of petrolatum tape

Petrolatum Mastic - 3 kg Block

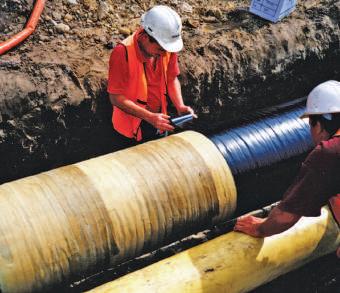

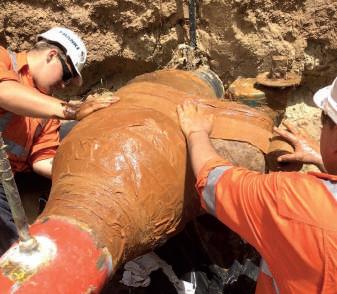

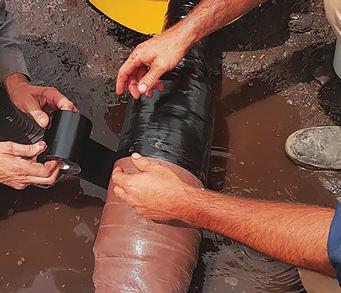

PETROLATUM TAPE

Features:

y 3rd step in the petrolatum pipe protection process

y Synthetic, non-stitched, fabric based tape

• Ideal for protecting pipelines, joints, fittings, etc.

• Often used to waterproof seal most surfaces above & below ground

y Impregnated and coated with petrolatum (2 types, above ground and below ground) based compound

06-PTAG100 Petrolatum

• Prevents corrosion even under water

PETROLATUM OUTER WRAP

Features:

y 4th step in the petrolatum pipe protection process

y Rubber based, pressure sensitive adhesive

• Resistant to sunlight, salt water, alkalis,

CONSUMABLES & ACCESSORIES

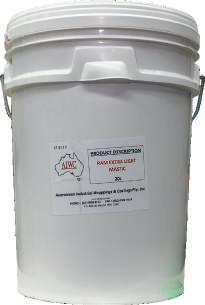

EXTRA LIGHT MASTIC

y The RAM Extra Light Mastic consists of a compound being made of microcrystalline waxes, oils and inert fillers, and reinforced with closed cell polymer beads

y The RAM Extra Light Mastic was specifically designed for easy moulding / filling for profiling around flanges, fittings, nuts, bolts and other irregular shapes to achieve streamline contours for subsequent tape wrapping. Can be used in low and high temperatures.

y Self supporting compound that does not harden. Conforms to irregular shapes and profiles. Chemically inert and resistant to moisture

y Specific Gravity: 0.61 Approximately

y Weight: 3L Block (min), 10L Pail or 20L Pail

y Flash Point 195 °C

y Drop Melting Point 90 °C

y Colour: Pale Brown

y VOC Content: None

CODE DESCRIPTION

06-ELM20 Extra Light Mastic 20lt Pail

06-ELM3 Extra Light Mastic 3lt Block

FLEXISEAL 1000 TAPE

y FlexiSeal 1000 is ideal for corrosion prevention and dielectric protection and is typically used for underground pipe work and metal structures, particularly for the coating of welded joints of pipelines for gas, liquid and water transport. Flexi Seal 1000 is consists of a self adhesive bituminous rubber compound protected by a medium thickness PE film. The tape has an integral hi-tensile, flexible PE backing which provides high mechanical strength, impact resistance and controlled elasticity/hoop tension.

y FlexiSeal 1000 is a successfully proven tape that is the best solution for the coating of pipeline welded joints and/or repair due to its tenacious adhesion, mechanical characteristics, ease of use, good elongation and flexibility.

y FlexiSeal 1000 is engineered for toughness, conformability and controlled elasticity; the tape exhibits flexibility during application, permitting the installer to achieve a tight fitting, self sealing sheath over the pipe substrate.

y FlexiSeal 1000 can be applied by machine or by hand, minimal tension is required to achieve intimate contact between pipe and coating.

CODE DESCRIPTION

06-FS100 FlexiSeal 1000 100mm x 10m

06-FS150 FlexiSeal 1000 150mm x 10m

06-FS250 FlexiSeal 1000 250mm x 10m

06-FS300 FlexiSeal 1000 300mm x 10m

FLEXISEAL PRIMER

y FlexiSeal Primer is ideal for corrosion prevention and dielectric protection and is typically used for underground pipe work and metal structures, particularly for the coating of welded joints of pipelines for gas, liquid and water transport.

y FlexiSeal Primer is based on bitumen modified with rubber and resins to produce a specifically formulated primer for the Flexi Seal range of tapes.

y Advantages: Excellent adhesion to steel, plastic, concrete, timber and brick work. It can be applied by brush, roller, or spray application. Cost effective.

y Limitations: Substrate must dry. Highly flammable in liquid state. Areas to be primed must be well ventilated.

CODE DESCRIPTION

06-FSPRM1 Flexi Seal Primer 1lt

06-FSPRM4 Flexi Seal Primer 4lt

06-FSPRM20 Flexi Seal Primer 20lt

CONSUMABLES & ACCESSORIES

PIPE LOCATORS & ACCESSORIES

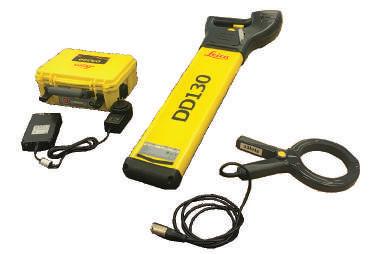

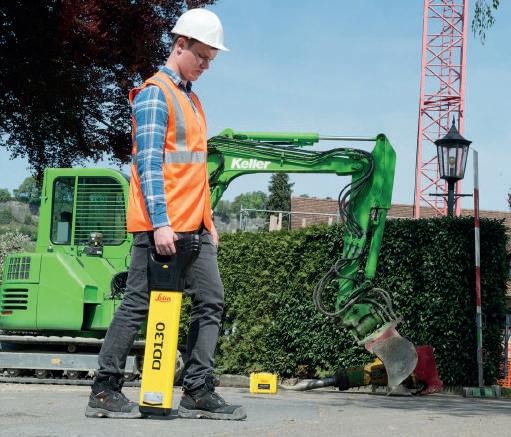

LEICA DD130 PIPE & CABLE LOCATOR

The Leica DD130 cable locator feature advanced automatic controls making the DD130 easy-to-use, requiring minimal user experience. Avoiding underground cables and pipes is a major concern on construction sites. Therefore, detecting the position of buried cables and pipes before excavation work can help prevent operator injury, asset damage and any subsequent costs. Use the DD130 cable locators in conjunction with a DA220 signal transmitter or range of accessories to achieve improved accuracy and application scope.

With Automatic Pinpointing there is no need for you to manually adjust the sensitivity of your Digicat cable locator ensuring you’re using the optimum sensitivity for the environment you are detecting the underground utilities in. Reducing the likelihood of human error and enabling easier and more efficient cable and pipe locating. Ultimately saving you time and money.

Features:

y DD130 Locator (50Hz), Alkaline

y DA220, 1 Watt Signal Transmitter with Earth Spike, Crocodile clip connector & cables

y Transmitter 100mm(5” Signal Clamp) 2m

y Locator System Carry Bag

CODE DESCRIPTION

45-DIGISYSTEM130 Leica Digicat DD130 Pipe & Cable Locator Kit

PIPE LOCATORS & ACCESSORIES

LEICA DD230 SMART PIPE & CABLE LOCATOR

The new Leica DD SMART utility locator solution, comprising the DD230 cable locator, DX Shield software and the DA220 signal transmitter is the only complete portfolio of detection solution for utility professionals and anyone who is breaking ground. The Leica DD SMART utility locator uses industry-leading digital signal processing to identify underground assets deeper, faster, and more accurately than any other system.

The new SMART utility locator solution allows users to detect buried utilities, transfer and access data remotely to a hosted service for multiple users, across multiple sites to manage site activities. The Leica DD SMART utility locator uses industry-leading digital signal processing to identify underground assets deeper, faster and more accurately than any other system. SMART technology records information to manage site activities and map buried utilities, protecting your assets, personnel and utilities.

Features:

y DD130 Locator (50Hz), Alkaline

y DA220, 1 Watt Signal Transmitter with Earth Spike, Crocodile clip connector & cables

y Transmitter 100mm(5” Signal Clamp) 2m

y Locator System Carry Bag

CODE DESCRIPTION

45-DIGISYSTEM230 Leica Digicat DD230 SMART Pipe & Cable Locator (Bluetooth/GPS) Kit

CONSUMABLES & ACCESSORIES

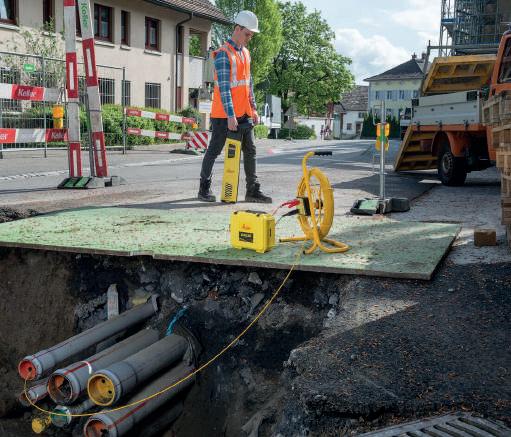

The Trace Rod for Leica DA Signal Transmitter traces the route of non-metallic drains, ducts or pipes.

Features:

y Use together with the DA Signal Transmitter, DD100 Series Locator or DD200 Series Smart Locator

y Detection range up to 10’

y Detects non-metallic utilities with up to 4” diameter

y Size: 19.3” L x 17.3” W x 8.3” H

y Line Length: 165 ft.

y Weight: 8.8 lbs.

y Protection Class: IP57

y 1

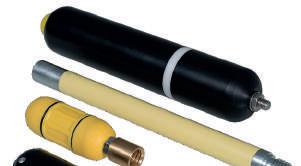

Features:

y Small, yet functional; tracks drains, sewers and other non-conductive utilities

y Has a M10 male thread with M10 female adapter

y Works with the DD100 Series Locators and the DD200 Smart Series Locators

y Depth range of up to 16 feet (5 m)

y Operating frequency of 8 kHz and 33 kHz

y Diameter: 1.5”

y Fully submersible

y Battery: 1 AA alkaline battery

y Battery Life: up to 40 hours of intermittent use at 20°C

y 1 Year Manufacturer’s Warranty

Features:

y MAXISONDE (8kHz & 33 kHz)

y 55mm dual frequency sonde

y Can be used to trace deep lying drains, sewers and other non-conductive utilities

y Depth range of 12 meters

y 1 Year Manufacturer’s Warranty

Features:

y 1 Year Manufacturer’s Warranty

Features:

y 1

CONSUMABLES & ACCESSORIES

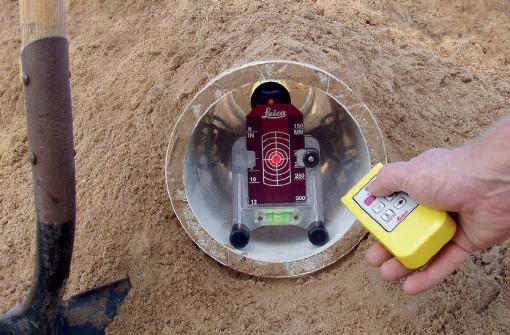

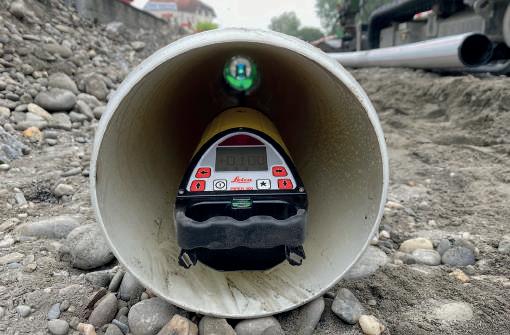

PIPE LASERS & ACCESSORIES LEICA PIPER 100 PIPE LASER KIT

Solid performance in the pipe, over the top or in the manhole. The Leica Piper series helps you to work with confidence having the perfect instrument for your application. Built with a rugged aluminium housing, these pipe lasers perform powerfully even in tough jobsite conditions.

Piper automatically self-levels over a full grade range and eliminates the need to tip the laser for steep slopes. Piper 100 provide pipe and sewer contractors with smart, user-friendly features for enhanced application performance.

Strobe Mode - its multi-functional remote control strobes the laser beam for increased visibility.

Features:

y Laser beam color: 635nm 520nm 635nm 520nm

y Laser class: 3R 2M 3R 2M 3R 3R

y Max. average radiant power: 4.75mW 1.2mW 4.8mW 1.2mW 4.75mW 4.8mW

y Working range: <200m/650 ft

y Grade range: -10% to +25%

y Self-levelling range: -15% to +30%

y Line movement: 6m at 30m / 20ft at 100ft

y Battery*: Li-Ion, up to 40h

y Charging time*: 4h

y Operating temperature: -20°C to +50°C / -4°F to +122°F

Kit includes:

y LEICA PIPER 100 with Remote, Target, and Li-Ion Battery

y PIPER 100, Laser with Carrying Case and manual

y IR Remote Control

CODE DESCRIPTION

45-LG6016058

Leica Piper 100 Pipe &Laser Kit

• Target Assy with small red insert, 300mm

• GEB221, Lithium-ion Battery, 4Ah

• GKL311, GEB221 Charger (Incl. AC & car adapter)

PIPE LASERS & ACCESSORIES LEICA PIPER 200 LASER WITH ALIGNMASTER KIT

The most versatile pipe lasers in the market, the Leica Piper 200 and 100 bring exceptional performance, accuracy, and simplicity to sewer construction and pipe applications. The compact Piper fits inside a 100 millimetre (4 inches) pipe, assuring easy and efficient setup even in the smallest inverts.

The housing rolled up to ± 3°, the Piper will compensate and correct for the grade errors due to its Automatic Grade Compensation. Leica Geosystems is your partner with the longest laser experience in the market.

Features:

y BEAM: Highly visible red beam

y DISPLAY: Large, easy to read LCD display

• Laser class: 3R 2M 3R 2M 3R 3R

• Max. average radiant power: 4.75mW 1.2mW

y ALIGNMASTER*: Yes 4.8mW 1.2mW 4.75mW 4.8mW

y LINE AND GRADE LOCKS: Yes

y WIDE LINE ADJUSTMENT: Yes

y SELF-LEVELLING: Over full range

y GRADE ENTRY: Direct or by digit

y REMOTE CONTROL: Yes, wireless

y HOUSING: Rock solid metal

y BATTERY PACK: Rechargeable Lithium-Ion

• Working range: <200m/650 ft

• Grade range: -10% to +25%

• Self-levelling range: -15% to +30%

• Line movement: 6m at 30m / 20ft at 100ft

• Battery*: Li-Ion, up to 40h

• Charging time*: 4h

• Operating temperature: -20°C to +50°C / -4°F

y Laser beam colour: 635nm, 520nm, 635nm, 520nm to +122°F Kit includes:

y LEICA PIPER 200 with Alignmaster, Remote,

• Target Assy with small red insert, 300mm Target, & Li-Ion Battery

y PIPER 200, Laser with Carrying Case and manual

y IR Remote Control

CODE DESCRIPTION

45-LG6016958

• GEB221, Lithium-ion Battery, 4Ah

• GKL311, GEB221 Charger (Incl. AC & car adapter)

Leica Piper 200 Laser with Alignmaster Kit

PRECAST CONCRETE LINTELS & KERB ENTRY UNITS

DL - NSW CONCRETE DRAINAGE LINTEL

Designed for use in new subdivisions and on council roads. Jaybro’s range for drainage lintels are manufactured using 40mpa wet cast concrete and reinforced with AS4671 steel reinforcement.

Features:

y Wet cast

y Minimum 40mpa Concrete

y Steel reinforcement to AS4671

y Concrete Lifting eye’s for safety

y For use with Jaybro’s range of gully grates and frames

Uses:

y Subdivision

y Council roads

y Carparks

y Kerb and gutter

PRECAST CONCRETE LINTELS & KERB ENTRY UNITS QDL - QLD CONCRETE DRAINAGE LINTEL

Designed for use in the Queensland market. Designed to local council specification. Options of “Flows to Creek” and “Flows to Ocean” marked on top of lintel.

Features:

y Wet cast

y Minimum 40mpa Concrete

y Steel reinforcement to AS4671

y Concrete Lifting eye’s for safety

y For use with Jaybro’s range of gully grates and frames

Uses:

y Subdivision

y Council roads

y Carparks

y Kerb and gutter

PRECAST CONCRETE

PRECAST CONCRETE LINTELS & KERB ENTRY UNITS

RMS CONCRETE DRAINAGE LINTEL

Designed and manufactured to RMS R0220 drawings.

Features:

y Manufactured to R0220 drawings

Uses:

y RMS Road Projects

CODE DESCRIPTION

JLRMSSA1 1000mm SA1 RMS Precast Concrete Kerb Lintel

JLRMSSA2 2000mm SA2 RMS Precast Concrete Kerb Lintel

JLRMSSA3 3000mm SA3 RMS Precast Concrete Kerb Lintel

JLRMSSFC RMS SF Kerb Lintel Centre

JLRMSSFL RMS SF Kerb Lintel Left

JLRMSSFR RMS SF Kerb Lintel Right

CPL1069RMS 1050x690mm Precast Concrete Lid to Suit RMS SF Lintel R0220

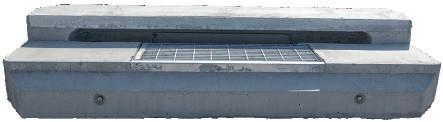

PRECAST CONCRETE LINTELS & KERB ENTRY UNITS

CDL - NSW KERB ENTRY UNIT

Designed for use in new developments and on council roads. Jaybro’s range for kerb entry units are manufactured using 40mpa wet cast concrete and reinforced with AS4671 steel reinforcement. They come complete with a Class D road gully grate ready for fast installation. It comes with 900mm x 450mm Class D Gully Grate.

Features:

Uses:

y Wet cast • Subdivisions

y Minimum 40mpa Concrete • Council roads

y Steel reinforcement to AS4671 • Car parks

y Concrete Lifting eye’s for safety

y For use with Jaybro’s range of gully grates and frames

CODE DESCRIPTION

• Kerb and gutter

CDL18DC 1.8mt Clear Openning Kerb Entry Unit Center

CDL18DL 1.8mt Clear Openning Kerb Entry Unit Left

CDL18DR 1.8mt Clear Openning Kerb Entry Unit Right

CDL24DC 2.4mt Clear Openning Kerb Entry Unit Center

CDL24DL 2.4mt Clear Openning Kerb Entry Unit Left

CDL24DR 2.4mt Clear Openning Kerb Entry Unit Right

PRECAST CONCRETE LINTELS & KERB ENTRY UNITS

QCDL - QLD KERB ENTRY UNIT

Designed for use in the Queensland market. Designed to local council specification. Options of “Flows to Creek” and “Flows to Ocean” marked on top of lintel. Precast as one unit with a class D gully grate ready for fast installation. It comes with 900mm x 450mm Class D QLD Gully Grate.

Features:

y Wet cast

y Steel reinforcement to AS4671

y Concrete Lifting eye’s for safety

y For use with Jaybro’s range of

Uses:

• Subdivisions

• Council roads

• Car parks

• Kerb and gutter gully grates and frames

PRECAST CONCRETE PITS, RISERS, SLABS & HEADWALLS

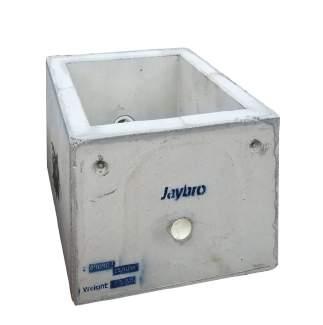

PB - PRECAST STORMWATER PIT BASE

Jaybro manufacture a range of precast stormwater pits which are designed to offer an off the shelf solution for drainage projects including subdivision inter allotment drainage through to commercial and industrial complexes.

Features:

Uses:

y Wet cast • Residential Drainage

y Tested to Class D wheel loading • Sports fields

y Minimum 40mpa Concrete • Commercial & Industrial Complexes

y Steel reinforcement to AS4671

y Polypropylene fiber reinforcement mean strength of 650mpa

y Concrete Lifting eye’s for safety

For use in sewer, communication & water, concrete drainage manhole pits. Jaybro’s manhole step irons are manufactured from high strength steel bar & fully coated in yellow plastic with a nonslip tread, this makes them durable, visible & anti slip. Jaybro’s step irons have been tested and certified in accordance with AS4198-1994, with an ability to withstand 180kg in tension pull-out position & 360kg in cantilever bending, with no affect. They can be set into precast structures during concrete pour, caulked into a drilled hole with epoxy resin or quick setting cement. Test certificates available upon request.

DESCRIPTION

PRECAST CONCRETE PITS, RISERS, SLABS & HEADWALLS

PR - PRECAST STORMWATER PIT RISER

Jaybro manufacture a range of precast stormwater risers which are designed to offer an off the shelf solution for drainage projects including subdivision inter allotment drainage through to commercial and industrial complexes. The risers come in a range of standard sizes offering greater flexibility on site compared with cast insitu and custom made pits. Manufactured and tested as per AS4671 to meet class D wheel loading.

Features:

y Wet cast

Uses:

• Residential Drainage

y Tested to Class D wheel loading • Sports fields

y Minimum 40mpa Concrete • Commercial & Industrial Complexes

y Steel reinforcement to AS4671

y Polypropylene fiber reinforcement mean strength of 650mpa

y Concrete Lifting eye’s for safety

PR060601

PR060603

PR060604

Precast Pit Riser

PR060606 600x600x600mm Precast Pit Riser

PR090601 900x600x150mm Precast Pit Riser

PR090603 900x600x300mm Precast Pit Riser

PR090604 900x600x450mm Precast Pit Riser

PR090606 900x600x600mm Precast Pit Riser

PR090609 900x600x900mm Precast Pit Riser

PR090901 900x900x150mm Precast Pit Riser

PR090903 900x900x300mm Precast Pit Riser

PR090904 900x900x450mm Precast Pit Riser

PR090906 900x900x600mm Precast Pit Riser

PR090909 900x900x900mm Precast Pit Riser

PR121201 1200x1200x150mm Precast Pit Riser

PR121203 1200x1200x300mm Precast Pit Riser

PR121206 1200x1200x600mm Precast Pit Riser

PR121209 1200x1200x900mm Precast Pit Riser

PR121212

Precast Pit Riser

PR151503 1500x1500x300mm Precast Pit Riser

PR151506 1500x1500x600mm Precast Pit Riser

PR151509

PR151512

PR151515

Precast Pit Riser

Designed and Manufactured to RMS R155 Specification. Available with custom configurated electrical bellmouth couplings.

Features:

y Custom bellmouth configurations

y Manufactured to R155 Specificaiton

y Covers manufactured with Precast Surround y Brass Label to RMS specification

Uses:

Designed and Manufactured to RMS R155 Specification. Available with custom configurated electrical bellmouth couplings.

Features: Uses:

y Engineered to Class D

y Made to suit Jaybro Precast Risers

y Subdivision

PRECAST CONCRETE PITS, RISERS, SLABS & HEADWALLS RTA - PRECAST CONCRETE BATTER OUTLETS

Precast batter outlets are designed as a headwall for subsoil drainage pipe.

Features: Uses:

y Available in Flat and Steep options

• Subsoil Drainage to meet the specification

• RMS Roads

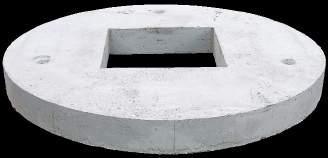

PCS - PRECAST STORMWATER ASPRO

Precast stormater Aspro’s are used to reduce the opening of a manhole or pit to a smaller opening size. Manufactured to meet local council specifications.

Features:

y Precast concrete

y Meet local council specifications

y Concrete Lifting Eyes for safety

Uses:

y Subdivisions

y Commercial developments

y Residential developments

y Council stormwater upgrades

PCS12090917

PCS150617 1500mm Precast Stormwater Aspro C/W 600mm Hole 175mm Thick

PCS15090817 1500mm Precast Stormwater Aspro C/W 920x830mm Hole 175mm Thick

PCS15090917 1500mm Precast Stormwater Aspro C/W 900x900mm Hole 175mm Thick

PCS15120917 1500mm Precast Stormwater Aspro C/W 1200x900mm Hole 175mm Thick

PCS121217 1500mm Precast Stormwater Aspro C/W 1200x1200mm Hole 175mm Thick

PCS150620

PCS150622

Precast Stormwater Aspro C/W 600mm Hole 200mm Thick

Precast Stormwater Aspro C/W 600mm Hole 225mm Thick

PCS180625 1800mm Precast Stormwater Aspro C/W 600mm Hole 250mm Thick

PCS18090625 1800mm Precast Stormwater Aspro C/W 900x600mm Hole 250mm Thick

PCS18090925 1800mm Precast Stormwater Aspro C/W 900x900mm Hole 250mm Thick

PCS18121225 1800mm Precast Stormwater Aspro C/W 1200x1200mm Hole 250mm Thick

PCS12090915

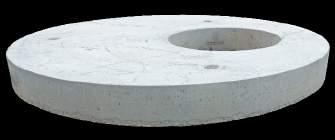

PCS - PRECAST STORMWATER ASPRO

Precast sewer Aspro’s are used reduce the openning of a manhole to a smaller opening size. Manufactured to meet local council specifications.

Features:

y Precast concrete

y Meet local council specifications

y Concrete Lifting Eyes for safety

y IPAM approved

Uses:

y Subdivisions

y Commercial developments

y Residential developments

y Council stormwater upgrades CODE

PCS090615C

PRECAST CONCRETE 55

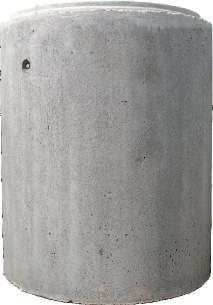

PRECAST CONCRETE MANHOLE SHAFTS

MHS - PRECAST CONCRETE STORMWATER SHAFT

Precast

Features:

Uses:

PRECAST CONCRETE MANHOLE SHAFTS

MHS - PRECAST CONCRETE SEWER SHAFT

Precast concrete sewer chambers manufactured for local council stormwater projects.

Features:

y Precast concrete

y Meet local council specifications

y Concrete Lifting Eyes for safety

Uses:

y Subdivision

y Commercial developments

y Residential developments

y Council stormwater upgrades

PCS100620C_H

SYDNEY WATER PRODUCTS 57

SYDNEY WATER DTC SEWER PRECAST MAKE UP RING

Designed and manufactured to Sydney Water DTC 2000 Sewer drawings.

Features:

y Designed to Sydney Water DTC drawings

y Precast AKS Liners available

Uses:

y Sydney Water Sewer Upgrades

y Subdivisions

y Major Projects

SYDNEY WATER DTC SEWER PRECAST CONVERSION SLAB

Designed and manufactured to Sydney Water DTC 2000 Sewer drawings.

Features:

y Designed to Sydney Water DTC drawings

y Precast AKS Liners available

Uses:

y Sydney Water Sewer Upgrades

y Subdivisions

y Major Projects

PCS161601

PCS161602 1600x1600x225mm Sydney Water DTC Conversion Slab

PCS161602L 1600x1600x225mm Sydney Water DTC Conversion Slab C/W AKS Liner

PCS191903 1900x1900x300mm Sydney Water DTC Conversion Slab

PCS191903L 1900x1900x300mm Sydney Water DTC Conversion Slab C/W AKS Liner

PCS222203

2200x2200x300mm Sydney Water DTC Conversion Slab

PCS222203L 2200x2000x300mm Sydney Water DTC Conversion Slab C/W AKS Liner

SYDNEY WATER DTC SEWER 175MM PLASTIC STEP IRONS

SYDNEY WATER PRODUCTS

SYDNEY WATER DTC HYDRANT RISERS

Designed and manufactured to Sydney Water DTC 1110 Water drawings.

Features:

y Designed to Sydney Water DTC drawings

Uses:

y Sydney Water Watermain Upgrades

y Subdivisions

y Major Projects

SYDNEY WATER DTC SUPPORT BEAMS

Designed and manufactured to Sydney Water DTC 1110 Water drawings.

Features:

y Designed to Sydney Water DTC drawings

Uses:

y Sydney Water Watermain Upgrades

y Subdivisions

y Major Projects

SYDNEY WATER DTC SLABS, HYDRANT BOXES, AND INFILL COVERS

Designed

manufactured

SYDNEY WATER PRODUCTS

PIPE COUPLINGS & BUSHES VIPSEAL STANDARD COUPLING (VSC)

Constructed from the highest quality elastomeric rubber, the standard coupling provides shear resistance under heavy earth loads and is bolstered by stainless steel tension bands that create a leak proof seal.

All couplings comply with BS EN295-4, WIS 4-41-01 and BS EN16397 standards. Suitable for Sydney Water Networks. Visit jaybro.com.au/about/vipseal-chart to find out which size coupling and bushing fits your pipe.

Features:

y Manufactured from high grade materials

Uses:

• Suitable for Sydney Water Networks ensuring high performance and long

• As a coupling to join plain ended pipes service life.

y Heavy duty worm drives

y Shear band provides resistance against

• To repair damaged sections of pipe

• Where a post or lateral connection is required

• Where the diameters of pipe differ deflection and shear forces caused by heavy

• Joining short and cut lengths of pipe loads or vacuums

y Withstands internal pressures up to 2.5 bar,

• Introducing rocker pipes to an outside structure or manhole

• As a connection for soil, waste, and vent applications constant working pressure.

VSC410A Standard Coupling 385-410mm 316 SS 385-410mm 190mm

VSC430A Standard Coupling 405-430mm 316 SS 405-430mm 190mm

VSC550A Standard Coupling 520-550mm 316 SS 520-550mm 190mm

VSC620A Standard Coupling 590-620mm 316 SS 590-620mm 190mm

For use where pipe diameters differ significantly, VIPSeal™ bushes are engineered from the same high quality elastomeric rubber as our seals. Visit jaybro.com.au/about/vipseal-chart to find out which size coupling and bushing fits your pipe.

GREASE TRAPS & LITTER BASKETS

GREASE TRAPS AND RISERS

Our range of grease traps are manufactured to Australian standards and certified by BSI group. The purpose of the grease trap is to reduce the amount of fats, oils and greases from entering the main sewer. These pollutants entering the main sewer cause major blockages and odours.

Features:

y Meets local council specifications

y Lightweight for easy installation

y Risers to get to correct invert level

y Class D Lid to suit

CODE DESCRIPTION

GT-PCGT-1000L 1000lt Grease Trap

GT-PCGT-1500L 1500lt Grease Trap

GT-PCGT-2000L 2000lt Grease Trap

GT-PCGT-3000L 3000lt Grease Trap

GT-PCGT-4000L 4000lt Grease Trap

GT-PCGT-5000L 5000lt Grease Trap

GT-RISER-300 300mm Grease Trap Riser

GT-RISER-600 600mm Grease Trap Riser

GT-RISER-1000 1000mm Grease Trap Riser

Uses:

• Shopping Centres

• Commercial developments

• Restaurants

GT-LID-450D 450mm Clear Openning Class D Grease Trap Cover and Frame

MHSEAL3 3.6m Precast Concrete Mastic

GT-PCGT-1000K 1000L Grease Trap Below Ground incl. 2 x 450 mm D covers/frames

GT-PCGT-1500K 1500L Grease Trap Below Ground incl. 2 x 450 mm D covers/frames

GT-PCGT-2000K 2000L Grease Trap Below Ground incl. 2 x 450 mm D covers/frames

GT-PCGT-3000K 3000L Grease Trap Below Ground incl. 3 x 450 mm D covers/frames

GT-PCGT-4000K 4000L Grease Trap Below Ground incl. 3 x 450 mm D covers/frames

GT-PCGT-5000K 5000L Grease Trap Below Ground incl. 3 x 450 mm D covers/frames

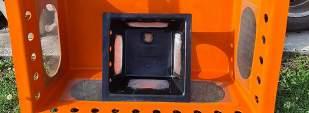

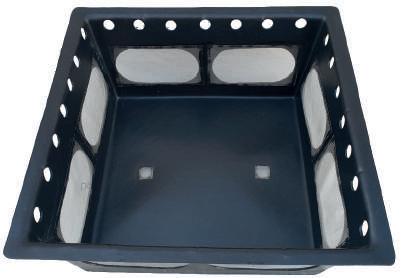

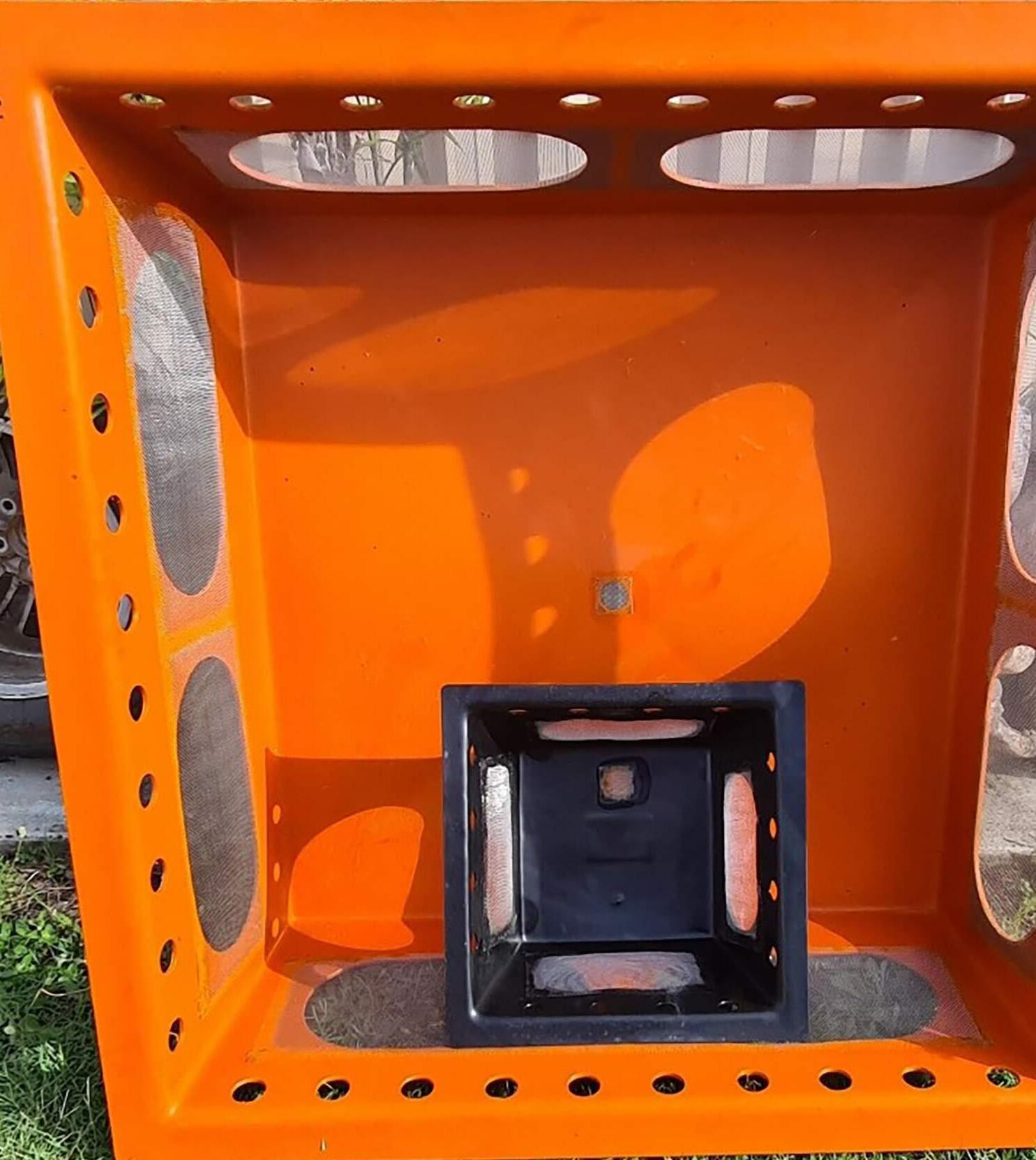

SQID LITTER BASKETS

This simple and innovative product provides an inexpensive way to guard against pollutants and other debris from being washed into waterways. Designed to provide a stormwater filtration system that is hydraulically efficient, easy to install and simple to maintain, the SQID range of devices are also economical.

Features:

y UV Stable

y Available to suit concrete and plastic pits

y Made from 100% recyclable materials

Uses:

y New developments

y Existing Pits requiring upgrades

TELSTRA PITS

PLASTIC PITS & RISERS

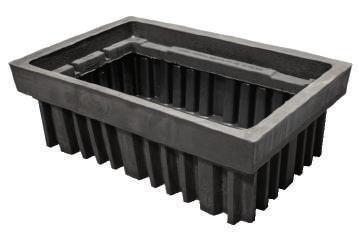

PLASTIC PITS

The CUBIS Systems range of plastic pits and risers provide a unique side wall design that offers the necessary structural integrity to withstand the loads applied by the compaction of the surrounding soil while still supporting the vertical loads required in general use.

PLASTIC PITS & RISERS

PLASTIC RISERS

PLASTIC PITS & RISERS CROSSARM BARS

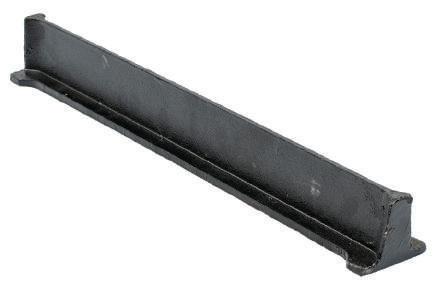

Steel Crossarm Bar

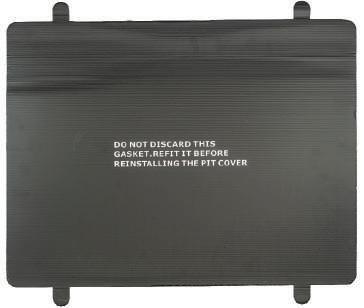

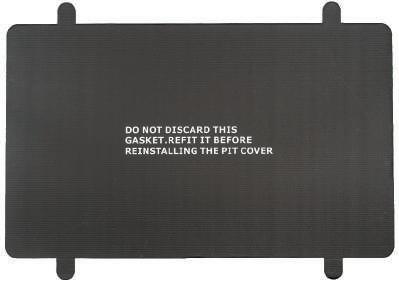

P5 Gasket PLASTIC PITS & RISERS

P6/P8/P9 Gasket PLASTIC PITS & RISERS

COMPOSITE PIT LIDS

Jaybro carries a range of CUBIS Systems pit lids,fitting within the preformed rebate at the top of the pit or pit riser. Pit lids sit flush with the top of the pit making it strong and safe. Our pit lids come in electricity, communications, Telstra and Optus, in all sizes.

Features:

y Equipped with Radio Frequency Identification (RFID)

y Telstra, NBN & TPG Approved

y Class B load rating - AS/NZ 3996

y Lightweight to meet OH&S requirements 20kg (P5) and 25kg (P6-8-9)

y UV Stabilised

y Highest slip resistance rating against AS 4586

y Abrasion - wears at 50% rate of concrete

y No moisture absorption

y Will not float

y Can be found with a metal detector if required

CONCRETE PIT LIDS

Jaybro carries a range of CUBIS Systems pit lids, fitting within the preformed rebate at the top of the pit or pit riser. Pit lids sit flush with the top of the pit making it strong and safe. Our pit lids come in electricity, communications, Telstra and Optus, in all sizes.

FLUID TRANSFER SOLUTIONS

FLUID TRANSFER SOLUTIONS 67

HOSE KITS

BLUE LAYFLAT HOSE KIT

Features:

y General purpose layflat hose kit for agriculture and industrial applications

y Fitted with male and female camlocks

y Temperature: -10˚C to +60˚C

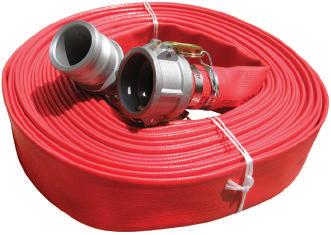

HOSE KITS

RED LAYFLAT HOSE KIT WITH CAMLOCKS

Features:

y Heavy duty layflat kit suitable for mining and construction use.

y Fitted with male and female camlocks

y Temperature: -10˚C to +60˚C

HOSE KITS

RED LAYFLAT HOSE KIT WITH CAMLOCKS

Features:

y Fitted with male and female bauers

y Temperature: -10˚C to +60˚C

HOSE KITS

BLACK LAYFLAT HOSE KIT

Features:

y Heavy duty dewatering hose kit ideal for irrigation, construction, and high wall dewatering projects

y Fitted with male and female bauer fittings

y Temperature: -20˚C to +80˚C

FLUID TRANSFER SOLUTIONS

HOSE KITS

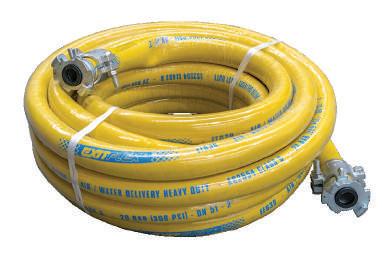

JACK AIR HOSE KIT

Features:

y Heavy duty hose kit for jackhammer and air compressor use

y Ideal for civil and piling contractors

y Fitted with claw couplings

y Temperature: -25˚C to +80˚C

x 20m

HOSE KITS TUNELLING AIR HOSE KIT

Features:

y Ideal for tunnelling contractors

y 300psi rated

y Fitted with claw couplings

y Temperature: -25˚C to +80˚C

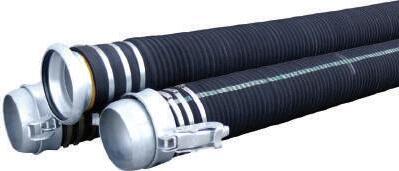

HOSE KITS ACE SUCTION HOSE KIT

Features:

y Highly flexible hose for negative pressure water transfer applications

y Safety Factor: <= 127mm 3:1 152 - 254mm 2.5:1

y Temperature: -30°C +80°C

ASHK-1603

x 3m

x 6m 150

ASHK-1604 ø200mm x 3m 150

ASHK-1605 ø200mm x 6m 150

HOSE KITS GARDEN HOSE KIT

Features:

y General purpose garden hose with nozzle and fittings

y UV stabilised

x 30m

FLUID TRANSFER SOLUTIONS 69

HOSES

GREY SUCTION HOSE

Features:

y Suitable for conveyance of water, slurries, sludge, waste matter, some

y Commonly used for liquid waste and pump suction hose.

y Construction: Grey PVC

y Reinforcing: Rigid PVC Gelix

y Mirror

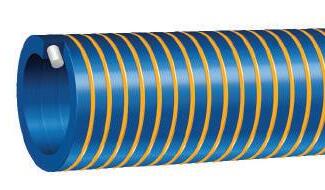

HOSES BLUESOIL SUCTION HOSE

Features:

y Suitable for Collection of liquid waste, pumping grease pits, sewerage collection, fuels, lubricants and most chemicals

y Construction: Blue PVC

y Reinforcing: Rigid PVC Gelix

y Temperature:

HOSES

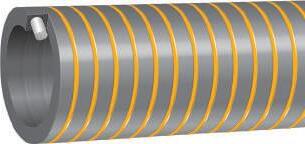

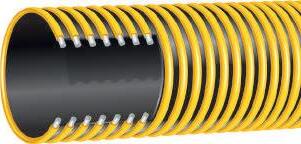

TIGERTAIL SUCTION HOSE

Features:

y Suitable for flexible and lightweight suction hose suitable for chemicals, fuel and waste. Specially designed for abrasive material like gravel, cement etc. and used in vacuum excavation.

y Construction: PVC

y Reinforcing: Rigid PVC Gelix

y Temperature: -5˚C to +60˚C

y Highly abrasion resistant

FLUID TRANSFER SOLUTIONS

HOSES KANAFLEX HOSE

Features:

y Excellent in handling abrasive material, specifically for use in vacuum excavation industry where a heavy suction hose required for the suction of rocks, sand, slurry etc.

y Reinforcement: Rigid PVC Helix Anti-Shock

y Inner Tube: Black SBR Rubber Conductive

y Cover: Black Corrugated SBR

y Temperature: -40°C To +60°C

y Safety Factor: 3:1

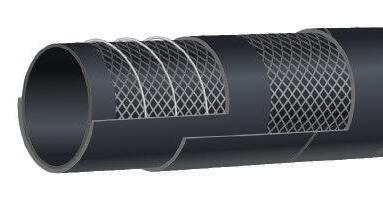

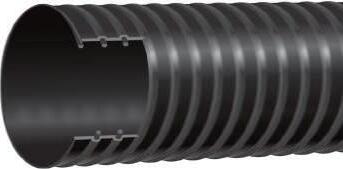

HOSES ACE WATER SUCTION HOSE

Features:

y General water suction and delivery

y Tube: Black EPDM

y Reinforcing: High Tensile Textile Cords with Embedded Steel Helix Wire

y Cover: Black EPDM - Abrasion and Ozone Resistant

y Temperature: -15°C +60°C

y Highly flexible

y Safety Factor: 3:1

WU-HS-1809M

HOSES BLUE LAYFLAT HOSE

Features:

y General discharge of water, chemicals and fluids for agriculture and industrial use

y Available in 100m coils

y Safety Factor: 3:1

y Temperature: -10˚C to +60˚C

y Custom lengths will incur cutting fees

FLUID TRANSFER SOLUTIONS 71

HOSES RED LAYFLAT HOSE

Features:

y Safety Factor: 3:1

y Custom lengths will incur cutting fees

HOSES BLACK LAYFLAT HOSE

Features:

y Heavy duty

FLUID TRANSFER SOLUTIONS

HOSE FITTINGS - CAMLOCKS CAMLOCK KIT - 50MM

Features:

y Aluminium male & female camlock hose tails with Supa Clamps to suit

SCK-WU-1001 Aluminium M/F Camlocks w/ Supa Clamps - 50mm

SCK-WU-1002 Aluminium M/F Camlocks w/ Supa Clamps - 75mm

ALUMINIUM CAMLOCKS y Also available in stainless steel

SCK-WU-1003 Aluminium M/F Camlocks w/ Supa Clamps - 100mm HOSE FITTINGS - CAMLOCKS TYPE

HOSE FITTINGS - CAMLOCKS TYPE D CAMLOCK

FLUID TRANSFER SOLUTIONS 73

HOSE FITTINGS - CAMLOCKS TYPE E CAMLOCK

HOSE FITTINGS - CAMLOCKS TYPE DC CAMLOCK

AL-DC-1603

AL-DC-1604

AL-DC-1605

AL-DC-1607

HOSE FITTINGS - CAMLOCKS TYPE F CAMLOCK

HOSE FITTINGS - CAMLOCKS TYPE DP CAMLOCK

AL-DC-1606 3

AL-DC-1608

FLUID TRANSFER SOLUTIONS

HOSE FITTINGS - TRAVIS FITTINGS GALVANISED TRAVIS FITTING SET

Features:

y Galvanised male and female spigots, fitting clamp and seals

HOSE FITTINGS - CLAW TYPE A CLAW FITTINGS

HF-WU-3103

FLUID TRANSFER SOLUTIONS 75

HOSE FITTINGS - CLAW TYPE A CLAW FITTING TO HOSE TAIL

1” (25mm) Claw Fitting 3 Way Adaptor

HF-WU-3203 1” (25mm) Type A Claw Fitting Seals

HF-WU-3303 Type A Locking Pins

HOSE FITTINGS - CLAW TYPE A CLAW FITTING MALE BSP

HOSE FITTINGS - WHIP CHECKS WHIP CHECKS

Features:

y Safety cables to help prevent injury if a hose connection separates

y Max W.P. - 200psi

HOSE FITTINGS - CLAW TYPE A CLAW FITTING CLAMP

HOSE FITTINGS - CLAW TYPE A CLAW FITTING FEMALE BSP

FLUID TRANSFER SOLUTIONS

HOSE FITTINGS - BAUERS BAUER KIT

Features:

FLUID TRANSFER SOLUTIONS 77

HOSE FITTINGS - BAUERS MALE CLOSURE RING

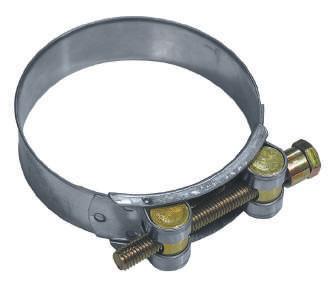

HOSE FITTINGS - SUPA CLAMPS PART STAINLESS STEEL SUPA CLAMPS

Features:

y Heavy duty, part stainless steel, single bolt clamp

SS-ST-1300 17mm - 19mm Steel Supa Clamp

SS-ST-1301 20mm - 22mm Steel Supa Clamp

SS-ST-1302 23mm - 25mm Steel Supa Clamp

SS-ST-1303 26mm - 28mm Steel Supa Clamp

SS-ST-1304 29mm - 31mm Steel Supa Clamp

SS-ST-1305 32mm - 35mm Steel Supa Clamp

SS-ST-1306 38mm Steel Supa Clamp

SS-ST-1307 40mm - 43mm Steel Supa Clamp

SS-ST-1308 44mm - 47mm Steel Supa Clamp

SS-ST-1309 48mm - 51mm Steel Supa Clamp

SS-ST-1310 52mm - 55mm Steel Supa Clamp

SS-ST-1311 56mm - 59mm Steel Supa Clamp

SS-ST-1312 60mm - 63mm Steel Supa Clamp

SS-ST-1313 64mm - 67mm Steel Supa Clamp

SS-ST-1314 68mm - 73mm Steel Supa Clamp

SS-ST-1315 74mm - 79mm Steel Supa Clamp

SS-ST-1316 80mm - 85mm Steel Supa Clamp

SS-ST-1317 86mm - 91mm Steel Supa Clamp

SS-ST-1318 92mm - 97mm Steel Supa Clamp

HOSE FITTINGS - BAUERS BAUER RUBBER ‘O’ RINGS

CODE SIZE (mm)

SS-ST-1319 98mm - 103mm Steel Supa Clamp

SS-ST-1320 104mm - 112mm Steel Supa Clamp

SS-ST-1321 113mm - 121mm Steel Supa Clamp

SS-ST-1322 122mm - 130mm Steel Supa Clamp

SS-ST-1323 131mm - 139mm Steel Supa Clamp

SS-ST-1324 140mm - 148mm Steel Supa Clamp

SS-ST-1325 149mm - 161mm Steel Supa Clamp

SS-ST-1326 162mm - 174mm Steel Supa Clamp

SS-ST-1327 175mm - 187mm Steel Supa Clamp

SS-ST-1328 188mm - 200mm Steel Supa Clamp

SS-ST-1329 201mm - 213mm Steel Supa Clamp

SS-ST-1330 214mm - 226mm Steel Supa Clamp

SS-ST-1331 227mm - 239mm Steel Supa Clamp

SS-ST-1332 240mm - 252mm Steel Supa Clamp

SS-ST-1333 253mm - 265mm Steel Supa Clamp

SS-ST-1334 266mm - 278mm Steel Supa Clamp

SS-ST-1335 279mm - 291mm Steel Supa Clamp

SS-ST-1336 292mm - 304mm Steel Supa Clamp

FLUID TRANSFER SOLUTIONS

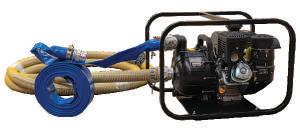

PUDDLE SUCKER PUMP

Applications include: site de-watering, basement and sump drainage, fountains and water features, horticulture, aquaculture, grey water transfer, trade waste disposal, water transfer, aeration of wastewater and abrasive water removal.

Features:

y Discharge port 50mm

y Side discharge

y Stainless Steel motor base

y Cast iron body

y Auto operation with float switch

y Spiral design to pass sand, silt and other solids

y 12 month warranty

Kit includes: NG-TF-1709 (Reducer), HF-WU-2803 (1” Claw fitting), AL-FC-1504 (2” Camlock)

Puddle sucker pumps are able to pump water down to 5mm, which makes it suitable for pumping large or smaller volumes of nuisance water found on flat surfaces in areas such as carparks, hallways and manholes.

Features:

y Top discharge

y Cast iron body

y Manual operation

y 12 month warranty

Kit includes: NG-TF-1709 (Reducer), HF-WU-2803 (1” Claw fitting), AL-FC-1504 (2” Camlock)
