CONTENTS TAMPING RAMPERS

4-5

FORWARD PLATE COMPACTOR

6-7

REVERSIBLE PLATE COMPACTOR

8-11

COMPACTOR ROLLERS

12-16

WE’LL BEAT THAT PRICE BY 5%*

Conditions apply, See page website *

1300 885 364

Ingenious fuel cap with one way vent, tether and safety lock

Heavy duty throttle lever with engine shutoff

Extra fuel filter

Protective top frame cover eliminates possible damage to the engine

Integrated air filter with high efficiency filtration

German manufactured polyurethane ribbed bellow Lifting handle

Laminated wood and steel shoe

SECTION

01

TAMPING RAMMERS

1300 885 364

Login online for your Discounted Trade Account Pricing

PLANT & EQUIPMENT CATALOGUE

COMPACTION TAMPING RAMMERS

Specifications

Masterpac four stroke rammers are perfectly balanced to deliver hard hitting compaction as well as operator comfort, delivering low noise and vibration to the operator.

It is designed to deal with the tough site condition, well balanced, easy to operate and excellent manoeuvrability in trenches and around pipes.

Model

PMR40R

PMR60H

PMR70H

Engine Type

Robin EH09

Honda GX100

Honda GXR120

Power

2.1 kW

2.2 kW

2.7 kW

Weight

46 kg

60 kg

70 kg

Impact Force

12.5 kN

10.7 kN

13 kN

Jumping Stroke

50-70 mm

50 -85 mm

40 -85 mm

Fuel Tank

2.8L

2.8L

2.8L

Shoe Size

270 x 100mm

340 x 265mm

340 x 285mm

Dimensions (mm) PMR60H

C

B

PMR40R

A

E

PMR70H

D

Model

A

B

C

D

E

PMR40R

1120

345

705

100

270

PMR60H

1063

345

703

265

340

PMR70H

1028

345

7038

285

340

CODE

DESCRIPTION

PMR40R

Tamping Rammer Robin EH09

PMR60H

Tamping Rammer Honda GX100

PMR70H

Tamping Rammer Honda GXR120

Features

Tachometer for RPM and Hours are standard

Throttle operation with integrated engine shutoff

Strong cyclone air filter

Optional transport wheel

If you find a lower price for an equivalent to any product in our catalogue or website, JAYBRO WILL BEAT THAT PRICE BY 5%*

Convenient roller for easy loading

Conditions apply, See website for details. *

5

Optional Anti-vibe handle for lower vibration and comfortable operation

Strong protection frame with lifting hook

Sturdy water tank for long-life and asphalt compaction Equipped with transport wheels

Built-in Rubber isolation with quick disconnect handle No tools required

Cast iron base 3-years warranty open design for self-cleaning

Heavy-duty sprinkle bar Sealed belt cover to protect the clutch and belts

SECTION

02

FORWARD PLATE COMPACTOR

1300 885 364

Login online for your Discounted Trade Account Pricing

PLANT & EQUIPMENT CATALOGUE

FORWARD PLATE COMPACTOR FORWARD PLATE COMPACTOR

Specifications

Ideal for all general applications-curbs, gutters, around tanks, forms, column, footings, landscaping, paving blocks, drainage ditches, and light to medium road repair work.

PC70

Model

PC70H / PCV70H

PC90H / PCV90H

PC110H / PCV110H

Engine Type

Honda GX120

Honda GX160

Honda GX160

Power

2.6 kW

40 kW

4.0 kW

Weight

62 kg

85 kg

102 kg

Plate Size

50 x 36 mm

57 x 40 mm

57 x 50 mm

Centrifugal Force 10 kN

15 kN

20 kN

Vibration Frequency

-

95 vpm

-

Travel Speed

-

25 m/min

-

PC70H

Dimensions (mm)

PC90

PC90H

PC110

PC110H

Model

A

B

C

D

PC70

1010

910

531

360

PC90

1045

919

568

400

PC110

1050

920

570

500

CODE

DESCRIPTION

PC70

Forward Plate Compactor 62kg

PC90

Forward Plate Compactor 85 kg

PC110

Forward Plate Compactor 102 kg

Features

Cast iron base 3-Years warranty design for self-cleaning

Sealed belt cover to protect the clutch and belts

Heavy-duty water tank for long-life and asphalt compaction

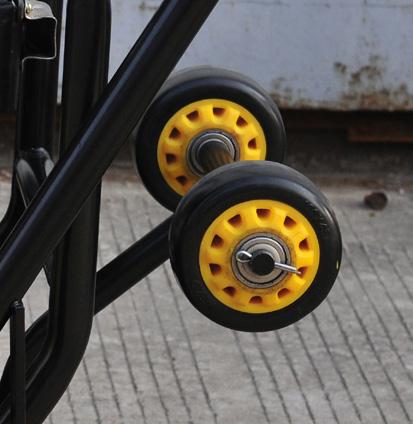

Equipped with transport wheels

If you find a lower price for an equivalent to any product in our catalogue or website, JAYBRO WILL BEAT THAT PRICE BY 5%*

Strong protection frame with lifting hook

Conditions apply, See website for details. *

7

Hydraulic control handles Heavy-duty roll cage with lifting eye User-friendly isolated vibration handle

Unique built-in transport wheel

Impact-resistant and open self-cleaning base plate

Strong shock absorber

SECTION

03

HYDRAULIC REVERSIBLE PLATE COMPACTOR

1300 885 364

Login online for your Discounted Trade Account Pricing

PLANT & EQUIPMENT CATALOGUE

HYDRAULIC REVERSIBLE PLATE COMPACTOR 9 HYDRAULIC REVERSIBLE PLATE COMPACTOR

Specifications Model

PCR4025H

PCR5030H

Reversible plate compactors are ideal and versatile for high production and efficient compaction for sand, gravel and cohesive soils. The reversible vibratory plates offer two eccentric weights which increase the compaction force while creating a smooth transition between forward and reverse travel.

Engine Type

Honda GX160

Honda GX200

Power

4.0 kW

4.8 kW

Weight

145 kg

171 kg

Ideally suited for confined granular and mixed soil applications such as trenches, highways, dams, parking areas, airports bridges, and construction foundations.

y Hydraulic adjustment control lever for easy direction change. y On the spot compaction for problem areas. y Infinitely variable hydrostatic forward and reverse motion. y Reverse travel safely protection ensures the plate automatically reverts to slow forward travel if the operator releases the travel control lever while reversing. y User-friendly isolated vibration handle. y Fully sealed lubricated wear resistant cast iron vibrator assembly. y Handle folds to 450 and 900 position for easy transportation and storage.

Heavy-duty roll cage with lifting eye protects against dirt and damage for easy transporation.

PCR4025

y Impact-resistant and open self cleaning base plate. y Unique built-in transport wheels provides easy tansportation. y Convenient oil drain hose. y Robust design sealed belt cover for clutch and belt protection. y Electric starter is an option for diesel engine. y The optional polyurethane pad for paving applications is available. y Powered by gasoline as HONDA and ROBIN.

Dimensions (mm)

PCR5030

CODE

DESCRIPTION

PCR4025H

Hydraulic Reversible Plate Compactor Honda GX160

PCR5030H

Hydraulic Reversible Plate Compactor Honda GX200

Model

A

B

C

D

PCR4025

1155

1000

580

380

PCR5030

1268

1010

695

500

Features

900 handle position for space-saving storage

450 handle position for easy transport

Rubber mat for paved surfaces

Transport wheel for easy transport

If you find a lower price for an equivalent to any product in our catalogue or website, JAYBRO WILL BEAT THAT PRICE BY 5%*

Electic starter

Conditions apply, See website for details. *

PLANT & EQUIPMENT CATALOGUE

10

HYDRAULIC REVERSIBLE PLATE COMPACTOR

HYDRAULIC REVERSIBLE PLATE COMPACTOR HONDA GX270 Mastapac reversible plate compactors are ideal and versatile for high production and efficient compaction for sand, gravel and cohesive soils.

The reversible vibratory plates offer two eccentric weights which increase the compaction force while creating a smooth transition between forward and reverse travel.

Heavy-duty compactors are suitable for compaction of sand gravel, crushed aggregate as well as mixed soil with some cohesive content.

Widely used in trench work, underground work (cable, water pipe, etc), backfilling along foundations and surface preparation.

Hydraulic adjustment of control lever

Heavy-duty roll cage with lifting eye

User friendly isolated vibration handle

Strong shock absorber

CODE

Impact-resistant and open self cleaning base plate

DESCRIPTION

PCR6040H Hydraulic Reversible Plate Compactor Honda GX270

1300 885 364

Login online for your Discounted Trade Account Pricing

PLANT & EQUIPMENT CATALOGUE

HYDRAULIC REVERSIBLE PLATE COMPACTOR 11

Features

Specifications

y Hydraulic adjustment control lever for easy direction change.

Model

PCR6040H

Engine Type

Honda GX270

Power

6.6 kW

Weight

355 kg

y On the spot compaction for problem areas. y Variable hydrostatic forward and reverse motion. y Reverse travel safely protection ensures the plate automatically reverts to slow forward travel if the operator releases the travel control lever while reversing. y User-friendly isolated vibration handle. y Fully sealed lubricated wear resistant cast iron vibrator assembly.

Dimensions (mm)

y Handle folds to 900 position for ease of transporation. y Heavy-duty roll cage with lifting eye protects against dirt and damaging for easy transporation. y Impact - resistant and open selft cleaning base plate. y Unique built-in transport wheels provides easy transportation. y Convenient oil drain hose. y Robust design sealed belt cover for clutch and belt protection. y Easy access to all maintenance points. y Compact design with lower center of gravity y Electric starter as option for Lombardini diesel engine.

Model

A

B

C

D

PCR6040H

1540

1047

900

600

Features

Handle folds to 900 position for ease of transportation

600 - 700 mm wider plate size

Optional Electric Starter

Impact-resistant and open self-cleaning base plate

If you find a lower price for an equivalent to any product in our catalogue or website, JAYBRO WILL BEAT THAT PRICE BY 5%*

Hydraulic adjustment of controler lever

Conditions apply, See website for details. *

SECTION

04 1300 885 364

COMPACTOR ROLLERS Login online for your Discounted Trade Account Pricing

PLANT & EQUIPMENT CATALOGUE

VIBRATORY ROLLER 13 DOUBLE DRUM VIBRATORY ROLLER Masterpac walk behind rollers are designed rugged and suitable for a wide range of applications in the construction industry. The rollers deliver excellent compaction to all types of gravel and asphalt surfaces for large and confined areas.

Masterpac DVR65 is different from most chain or belt driven roller on the market, comes with a fully hydraulic-drive system that consists of hydraulic pump and motors not only on vibration but also movement, eliminating the need for regular periodic adjustments and charges while providing variable working speed.

CODE

DESCRIPTION

DVR65L

Double Drum Vibratory Roller Lombardini 15LD440

DVR65A

Double Drum Vibratory Roller Hatz 1B40

Features

Specifications

y Deadman control lever offers reversing protection.

Model

DVR65L

DVR65A

Engine Type

Lombardini 15LD440

Hatz 1B40

Power

8.1 kW

7.5 kW

Weight

718 kg

721 kg

y The side and curb clearance allows for the closest possible approach pavements, curbs, walls and other obstacles.

Drum Diameter

650 x Ø 404 mm

650 x Ø 404 mm

y Dual smooth drums with beveled edge eliminates mark on the ground and asphalt.

Static Linear Force

54 N

54 N

Centrifugal Force

21 kN

21 kN

Frequency

3300 vpm

3300 vpm

y Minimum overhang offers suitable side and curb clearance.

Travel Speed

0 - 3.6 km

0 - 3.6 km

y Unique Clutch/Pum drive system provides easy cold weather starting and allows for no-loading starting of engine.

Water Tank Capacity 65 L

y Mechanical parking brake. y Multi-position handle for operator comfort and simplified transport. y Built-in oil cooler will increase t he productivity of machine. y Ergonomically designed handle lever is conveniently positioned to ensure and vibration. y Anti-vibration controls ensure non-fatiguing and low HAV (Hand/Arm Vibration) for the operator.

y Easy access to front mounted Diesel engine. y 65 Liter, corrosion-free water tank mounted at the rear of roller reduces sound and keeps fust to a minimum. y Two scraper bars on each drums ensure a clean drum when working on asphalt.

Engine choice of LOMBARDINI and HATZ

Optional Electric Starter

Sturdy protected throttle control

Minimum overhang offer side clearance and curb clearance

If you find a lower price for an equivalent to any product in our catalogue or website, JAYBRO WILL BEAT THAT PRICE BY 5%*

65 L

Ergonomically design handle with deadman control and reversing protection

Conditions apply, See website for details. *

PLANT & EQUIPMENT CATALOGUE

14

VIBRATORY ROLLER

SINGLE DRUM VIBRATORY ROLLER Masterpac single-drum roller is lightweight and maneuverable for compaction of granular and asphalt applications, ideally suited to smaller repair and maintenance jobs such as footpath, patching, landscaping applications.

CODE

DESCRIPTION

SVR58H

Single Drum Vibratory Roller Honda GX160

SVR58R

Single Drum Vibratory Roller Robin EX17

Features

Specifications

y Hydraulic system provides variable working speed. y Deadman control and reversing protection for maximum operator safety. y Easy reach controls for operator comfort. y Ergonomically designed height-adjustable handle for operator comfort and simplified transport

Model

SVR58H

SVR58R

Engine Type

Honda GX160

Robin EX17

Power

4.0 kw

4.2 kw

Weight

185 kg

185 kg

Drum Diameter

580 x Ø 400 mm

580 x Ø 400 mm

Static Linear Force

28.5 N

28.5 N

Centrifugal Force

10 kN

10 kN

Frequency

4560 vpm

4560 vpm

Travel Speed

0 - 50 m/min

0 - 50 m/min

Water Tank Capacity

15 L

15 L

y Self-cleaning scrapers prevent the build up of dirt. y Beveled drum edge eliminates markings on surface. y Side and curb clearance allow for the closest approach to pavement, wall, curb and other obstacle. y Compact design for easy handling in confined areas. y Thick drum shells for longer drum life. y Large corrossion-free water tank feature in easily removable for filling or cleaning. y Built-in cooling fan is designed for longer life and continuous operation.

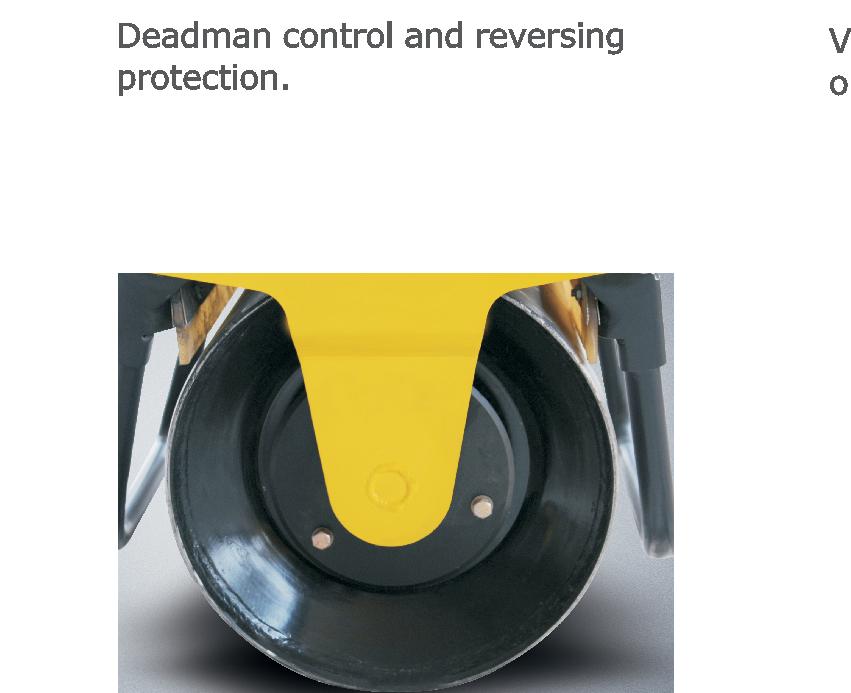

Deadman control and reversing protection

Variable height adjustment for operator’s comfort

1300 885 364

Narrow overhang operation close to walls and curbs

Thick drum shells for longer drum life

Lifting hook

Login online for your Discounted Trade Account Pricing

PLANT & EQUIPMENT CATALOGUE

VIBRATORY ROLLER 15 WALK-BEHIND DOUBLE DRUM ROLLER DVRS65 is a vibratory roller with hydraulic-controlled movement, ideal for applications of asphalt, soil and granular material compaction. Its compact design makes it perfect in the jobs on “curbs and sides” and in confined areas.

CODE

DESCRIPTION

DVRS65L

Walk-Behind Drum Roller Lombardini 15LD350

DVRS65H

Walk-Behind Drum Roller Honda GX390

DVRS65P

Walk-Behind Drum Roller Kipor KM186F

DVRS65K

Walk-Behind Drum Roller Kubota E75-NB3

Features

Specifications

y Deadman control lever offers reversing protection.

Model

DVRS65L

DVRS65H

DVRS65P

DVRS65K

Engine Type

LOMBARDINI 15LD350

HONDA GX390

KIPOR KM186F

KUBOTA E75-NB3

y Side and curb clearance allow for the closest approach to curbs wallks and other obstacles.

Power

4.6 kw

9.6 kw

5.5 kw

6.3 kw

y Dual smooth drums with beveled edges eliminate marks on gound and asphalt.

Weight

640kg

625 kg

630 kg

650 kg

Drum Diameter

650 x Ø 402 mm

650 x Ø 402 mm

650 x Ø 402 mm

650 x Ø 402 mm

Static Linear Force

51 N/cm

51 N/cm

51 N/cm

51 N/cm

Centrifugal Force

11.3 kN

11.3 kN

11.3 kN

11.3 kN

Frequency

3300 vpm

3300 vpm

3300 vpm

3300 vpm

Travel Speed

0 - 3.6 km/h

0 - 3.6 km/h

0 - 3.6 km/h

0 - 3.6 km/h

Water Tank Capacity

40 L

40 L

40 L

40 L

y Mechanical parking brake. y Ergonomically designed handle lever.

y Low maintenance and easy accessible diesel engine y 40L corrosion-free water tank y Two scraper bars ensure a clean drum y High-quality hydraulic pumps and motors

Dimension

Ergonomically designed handle lever

Side and curb clearance allow for the closest approach to curbs walls and other obstacles

23786 x 696 x 1130 mm

Hydraulic motor

Hydraulic Pump

If you find a lower price for an equivalent to any product in our catalogue or website, JAYBRO WILL BEAT THAT PRICE BY 5%*

Conditions apply, See website for details. *

PLANT & EQUIPMENT CATALOGUE

16

VIBRATORY ROLLER

ARTICULATED TANDEM ROLLER Masterpac PDR90H Articulated Tandem Roller is suitable for compaction of asphalt, compaction of non-cohesive soil and compaction of stabilized soils. It is used primarily for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas-places that need compaction but are difficul to reach with a large roller.

CODE

DESCRIPTION

PDR90H

Articulated Tandem Roller Honda GX690

PDR90K

Articulated Tandem Roller Kubota D902-E3B

Specifications DimensionModel

PDR90H

PDR90K

Net Weight

1354 kg

1430 kg

Operating Weight

1529 kg

1575 kg

Engine Type

Honda GX690

KUBOTA D902-E3B

Power

16.5 kw

15.1 kw

Drum Width

185 kg

185 kg

Drum Diameter

560 mm

560 mm

Number of Vibrating Drums

1/Front and rear wheels

2/Front and rear wheels

Driving System

Hydraulic

Hydraulic

Number of Driving Drums

2/Front and rear wheels

2/Front and rear wheels

Dynamic Centrifugal Force Per Drum

18 kN

18 kN

Frequency

60 Hz

60 Hz

Amplitude

0.5 mm

0.5 mm

Dynamic Linear Force

83 N/cm (front wheel)

83 N/cm (front wheel)

Forward/Reverse Speed

0 - 8.7

0 - 8.7

Maximum Gradeability

30%

30%

Turning Radius

2.3m (inside)

2.3m (inside)

Steerinng Angle

+ 300

+ 300

Hydraulic Oil Tank Capacity

37 L

37 L

y Curb clearance 415mm insures flush compaction to the curb.

Water Tank Capacity

100 L

100 L

y Unobstructed driver visibility-open, uncluttered operator’s platform allows clear views.

Fuel Tank Capacity

30 L

30 L

y A spacious, vibration-damped operator platform and an ergonomically positioned step make the machine extremely operator-friendly.

Light

2 (Front). 2 (Back), Warning lamp (Overhear)

Tracting Device

Front and Rear

Front and Rear

Side Clearance

40/40 mm (R/L)

40/40 mm (R/L)

Curb Clearance

415/415 (R/L)

415/415 (R/L)

Features y Articulated movement with power-assist provides accuarate, positive steering control and increases maneuverability in confined job sites. y The hydraulic pump and motors are connected in series to offer the maximum traction and smooth rolling as well as excellent gradeability. y 40mm side clearance allows close operations near walls and obstructions.

y Flip-open engine hood provides easy accessibility to engine a nd components for daily maintenance and service. y Ergonomic layout and design of the operation controls: the easy drive steering wheel, multi-functional control lever, and comfortable armrests. y Large 100L water tank is equipped with pressurized water system offers consistent water flow.

Big drum diameter makes compaction easier even on soft tricky asphalt mixes and thick drum shells for longer life-span

Articulated steering with a maintenance-free hitch and steering cylinder reduces maintenance

1300 885 364

Dimension

Clean and ergonomic layout of dashboard variable height adjustment of steering minimilizing operator fatigue

2019 x 994 x 2308 mm

Ergonomic adjustable seat for maximimizing operator comfort

Login online for your Discounted Trade Account Pricing

COMPACTION DEPTH EFFECT OF MASTERPAC COMPACTION MACHINES Tamping Rammers Layers CM

PMR40R

PMR60H

PMR70H

Hydraulic Reversible Plate Compactor PCR4025 Series

PCR5030 Series

Vibratory Roller

PCR6040 Series

SVR58 Series

DVRS65 Series

DVR65 Series

PDR90 Series

5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

Note: Maximum compaction depths listed are a guideline-actual depths achieve depend on exact soil condition.

Cohesive soils

Granular soils

Call Today!

1300 885 364

NOTES

18

Email any lower priced quote to sales@jaybro.com.au

NOTES

19

WE’LL BEAT THAT PRICE BY 5%*

Conditions apply, See page website *

1300 885 364

When you know it just has to happen… call Jaybro and CONSIDER IT DONE SYDNEY

NEWCASTLE

29 Penelope Crescent Arndell Park, NSW 2148 02 9678 1491

100 Glenwood Drive Thornton, NSW 2322 02 9678 1491

MELBOURNE

ADELAIDE

Building A 1-7 Cyanamid Street Laverton North, VIC 3026 03 8318 5099

U1/17 Ceafield Road Para Hills West, SA 5096 1300 885 364

BRISBANE

PERTH

71 Lavarack Avenue Eagle Farm QLD 4009 07 3056 1701

6 Riversdale Road, Welshpool, WA 6106 1300 885 364

5

% PRICE BEAT

GUARANTEE

If you find a lower price for an equivalent to any product in our catalogue, Jaybro will beat that price by 5%*. *

Conditions apply, See website for details

CANBERRA 3 Daly Street Queanbeyan West, NSW 2620 02 9678 1491

CALL NOW 1300 885 364 jaybro.com.au

Jaybro Group Pty Ltd (ABN: 48 159 122 488) trading as Jaybro, we supply goods and provide services to you, solely in accordance with our terms and conditions. Our terms and conditions can be found at jaybro.com.au/jaybro-policies. As we do not provide advice, it is your responsibility to satisfy yourself that any product or service you receive from us meets your particular needs and requirements.
