Jaybro MEA Water Management & Drainage Solutions Product Guide
Jaybro is proud to be the exclusive distributor of MEA drainage systems in Australia. MEA is a trusted global leader in innovative surface water management, renowned for its German engineering, durability, and high-performance solutions. This catalogue has been tailored for specifiers and design professionals. It showcases our comprehensive range of drainage systems to suit civil, commercial, industrial, and residential projects. Whether you’re designing for high-traffic roadways, public spaces, or complex industrial applications, MEA products provide reliability and compliance across all load classes.
LOAD CLASS SELECTION
Jaybro supply to the Australian Standard for Access Covers and Grates, AS3996. The standard sets a series of load classifications for products based on the anticipated load. These classes range from extra light duty (Class A) through to extra heavy duty – G (Class G). Below is a summary of the load classifications, including areas for their intended use.
Areas (including footways), accessible only to pedestrians and pedal cyclists and closed to other traffic (extra-light duty).
Areas (including footways and light tractor paths) accessible to vehicles (excluding commercial vehicles) or livestock (light duty).
Malls and pedestrian areas open to slow moving
– F).
1. Nominal wheel loads are given as a guide only. Consideration should be given to the type, size and pneumatic pressure of the load applied.
2. Class B design loads exceed AS5100.2 requirements for footway loading.
3. Class D design loads exceed AS5100.2 requirements for a W80 wheel load.
4. Class C loads are based on an intermediate load.
5. The serviceability load is set at 2/3 of the ultimate limit state design load.
6. A force of 1kN approximately equal to 100kg.
MEAFLUID
GRP Drainage Channel
Overview
An extremely light, versatile system particularly adapted for use in gardens, front yards and green spaces. Offers high water drainage levels coupled with stability and extra-long living qualities. Provides an economical, professional quality drainage solution that is fast to mount. Includes connecting facility for vertical discharge outlet connector to channel or inline sump.
Technical Specification
Clear Width Options 100mm & 150mm Length 1000mm
Channel Material Glass-fibre-reinforced composite (GRP)
Resistance Properties Resistant to chemicals, frost, heat, salt & UV

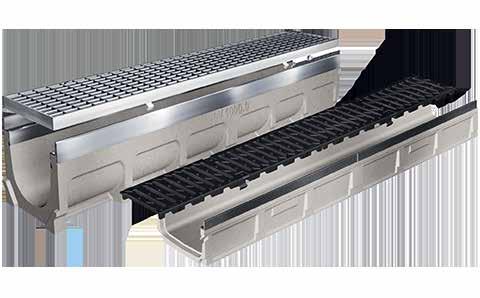

A universal drainage channel that caters to all application fields, from landscaping to industrial areas with maximum traffic. Available with 4mm edges made of galvanised steel, stainless steel or ductile iron, providing a solution for every type of project. Lateral ribs provide optimal anchorage in the concrete bed, with grating locking mechanisms for stability.
Technical Specification
Clear Width Options 100mm, 150mm, 200mm & 300 mm
Channel Material Polymer concrete (natural mineral products inc. quartz, basalt and granite, bonded together with a resinous mixture)
Resistance Properties Resistant to chemicals (between pH 3–9), frost, heat, salt & UV
Water Absorption <0.5%
Tensile Strength 20–30 N/mm²
Flexural Tensile Strength >22 N/mm2
Modulus of Elasticity 25-35 kN/mm2

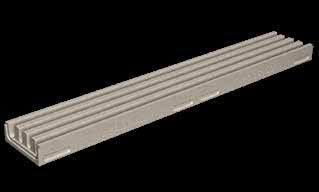

MEA PG
Polymer Concrete Monolithic Drainage Channel
Applications
Overview

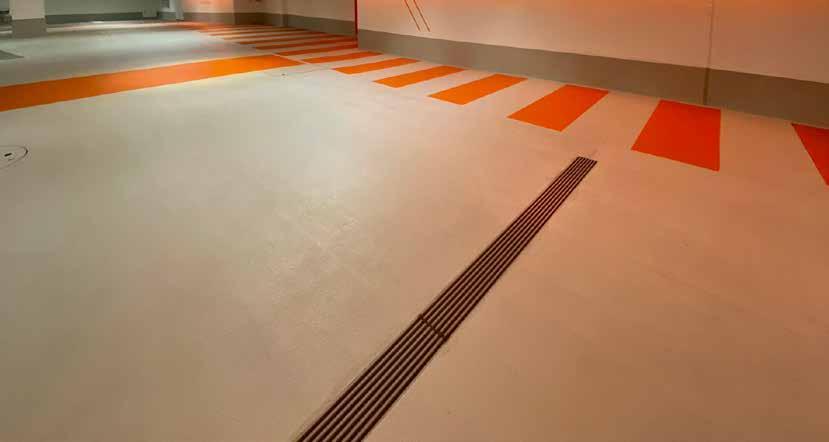

Provides a discreet, quiet and efficient solution for multi-storey car park drainage, with barrier-free access for persons with restricted mobility. With no cover gratings or moveable parts, the drainage channel is easy to clean and provides a smooth surface. Long-lasting and robust design suitable for high load bearing.
Technical Specification
Clear Width Options 100mm, 1500m & 300 mm
Length 1000mm
Channel Material Glass-fibre-reinforced composite (GRP)
Resistance Properties Resistant to fuel, oil, rust & salt
Water Absorption <0.1%
Tensile Strength 65 N/mm²
Modulus of Elasticity 10.000 N/mm²
Flexural Tensile Strength 120 N/mm²

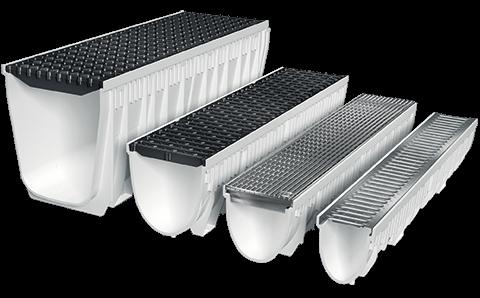

MEARIN PLUS
GRP Drainage Channel
Overview

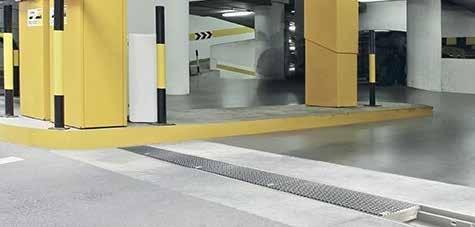

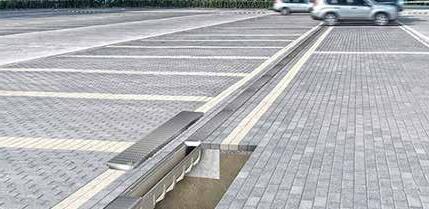

A lightweight, high-quality drainage channel designed for installations up to loading class E. MEARIN Plus offers easy installation without the need for mechanical assistance and features excellent resistance to aggressive substances. Ideal for applications where construction height is critical, such as car parks and airports.
Technical Specification
Clear Width Options 1000mm, 1500mm, 2000mm & 3000 mm
Channel Material Glass-fibre-reinforced composite (GRP)
Resistance Properties Resistant to chemicals (between pH 3–9), frost, heat, salt, oil, petrol & UV-resistant
Water Absorption <0.1%
Tensile Strength 65 N/mm²
Modulus of Elasticity 10.000 N/mm²
Flexural Tensile Strength 120 N/mm²

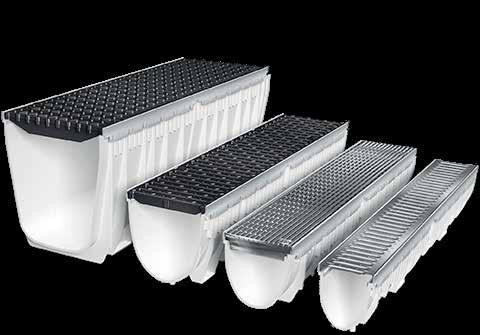

MEARIN EXPERT
GRP Drainage Channel with Steel Edges
Applications
Overview
MEARIN Expert features a permanently affixed galvanised steel edge rail for added protection, enabling installation up to Class F loading for heavy-load applications. Extremely resistant to abrasion, breakage and chemicals.
Technical Specification
Clear Width Options 100mm, 150mm, 200mm & 300mm
Channel Material
Glass-fibre-reinforced composite (GRP)
Resistance Properties Resistant to chemicals (between pH 3–9), frost, heat, salt, oil, petrol & UV
Water Absorption <0.1%
Tensile Strength 65 N/mm²
Modulus of Elasticity 10.000 N/mm²
Flexural Tensile Strength 120 N/mm²
MEAGARD II
Polymer Concrete Drainage Channel
Overview

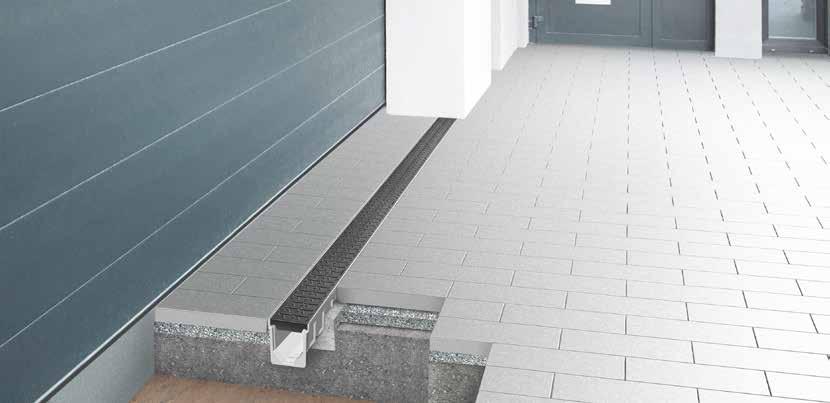

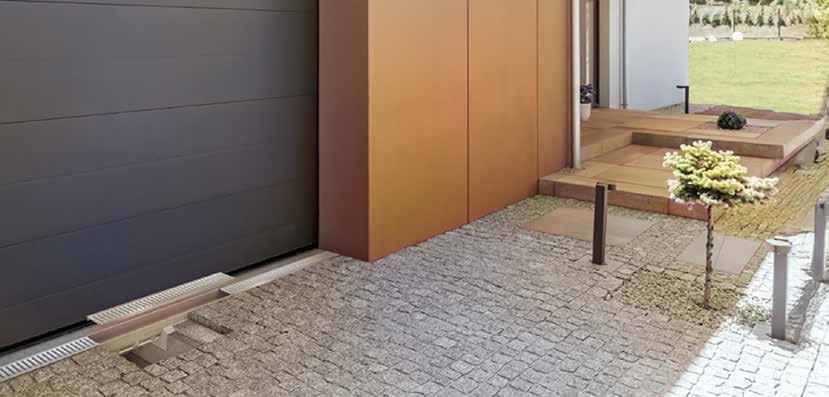

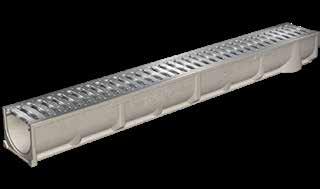

MEAGARD II is extremely robust, resistant to frost and is weatherproof. The drainage system is simple to install and maintain, and suited for residential applications such as private driveways, gardens, and domestic building. The system is compatible with a variety of grating covers and accessories, allowing for tailored configurations based on load class, aesthetics, or drainage performance.
Technical Specification
Clear Width Options 100mm, 150mm & 200mm
Channel Material Polymer concrete with natural minerals

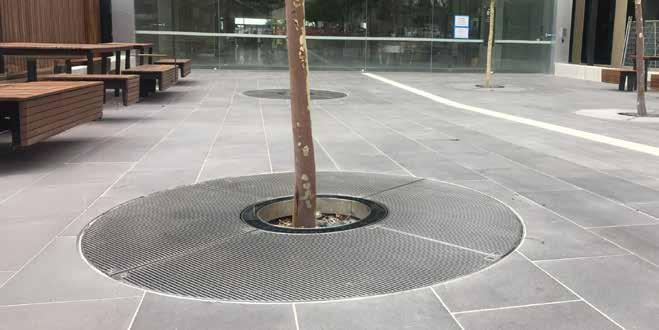

For projects requiring unique shapes, tailored aesthetics, or specific load bearing/performance configurations, we offer custom solutions. Contact our team to discuss how MEA products can be customised to meet your project’s specifications.
End Caps
Inline Pits Polymer Pits
What Makes MEA Drainage Solution Materials Exceptional
POLYMER CONCRETE
Polymer concrete is a high-performance material known for its excellent physical and chemical properties. It is robust yet significantly lighter than traditional concrete, offering superior handling and installation advantages. One of its key benefits is its resistance to chemical fluids, making it ideal for environments with corrosive materials.
GLASS-FIBRE REINFORCED COMPOSITE (GRP)
GRP is widely used in high-performance industries such as aerospace, automotive, and motorsports due to its exceptional mechanical properties. MEA uses SMC technology (Sheet Molding Compound) — a carefully engineered composite of resin, mineral fillers, additives, and glass fibre mats.
This technology results in GRP with maximum strength and dimensional stability. It maintains its shape under extreme temperature fluctuations, with minimal linear expansion. Unlike thermoplastics, once cured, GRP is rigid and permanently stable, ensuring long-term performance and durability in demanding drainage applications.
