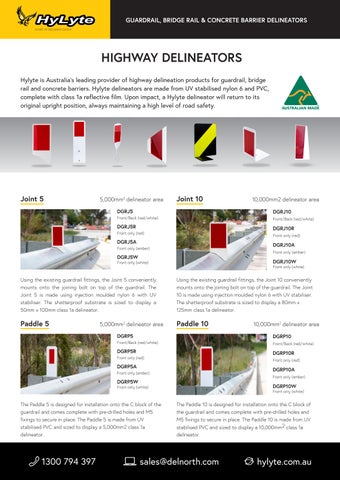

HIGHWAY DELINEATORS

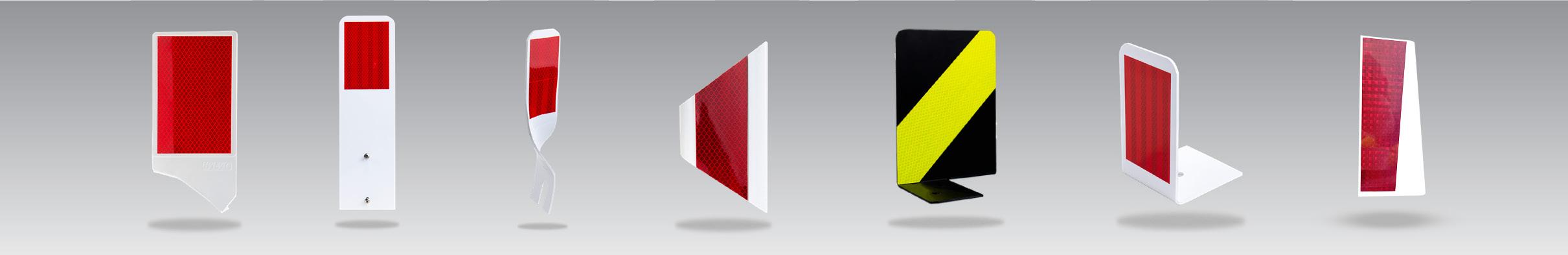

Hylyte is Australia’s leading provider of highway delineation products for guardrail, bridge rail and concrete barriers. Hylyte delineators are made from UV stabilised nylon 6 and PVC, complete with class 1a reflective film. Upon impact, a Hylyte delineator will return to its original upright position, always maintaining a high level of road safety.
Joint 5
5,000mm2 delineator area
DGRJ5
Front/Back (red/white)
DGRJ5R
Front only (red)
DGRJ5A
Front only (amber)
DGRJ5W Front only (white)
Using the existing guardrail fittings, the Joint 5 conveniently mounts onto the joining bolt on top of the guardrail. The Joint 5 is made using injection moulded nylon 6 with UV stabiliser. The shatterproof substrate is sized to display a 50mm x 100mm class 1a delineator.
Paddle 5 5,000mm2 delineator area
DGRP5
Front/Back (red/white)
DGRP5R
Front only (red)
DGRP5A
Front only (amber)
DGRP5W Front only (white)

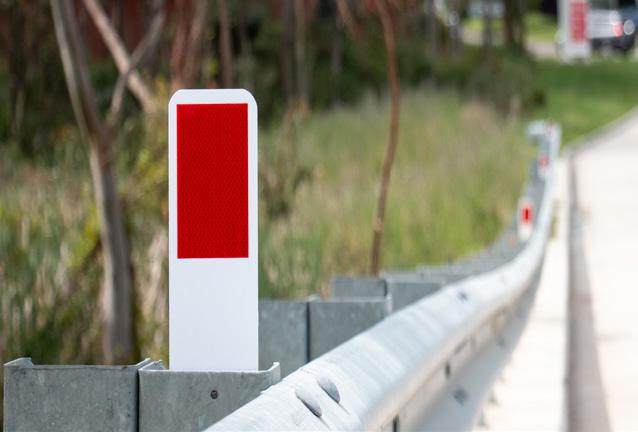

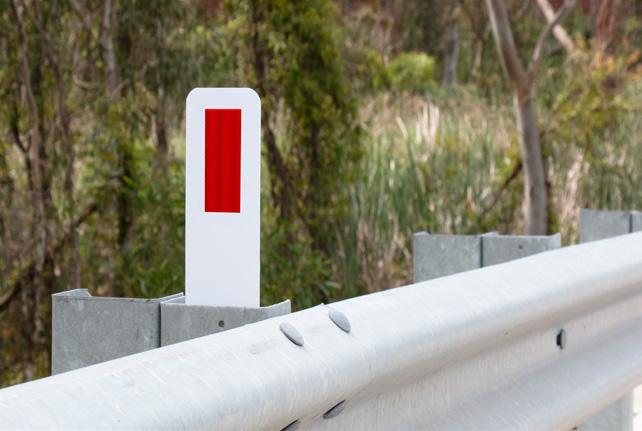

The Paddle 5 is designed for installation onto the C block of the guardrail and comes complete with pre-drilled holes and M5 fixings to secure in place. The Paddle 5 is made from UV stabilised PVC and sized to display a 5,000mm2 class 1a delineator.
Joint 10
10,000mm2 delineator area
DGRJ10
Front/Back (red/white)
DGRJ10R Front only (red)
DGRJ10A Front only (amber)
DGRJ10W Front only (white)

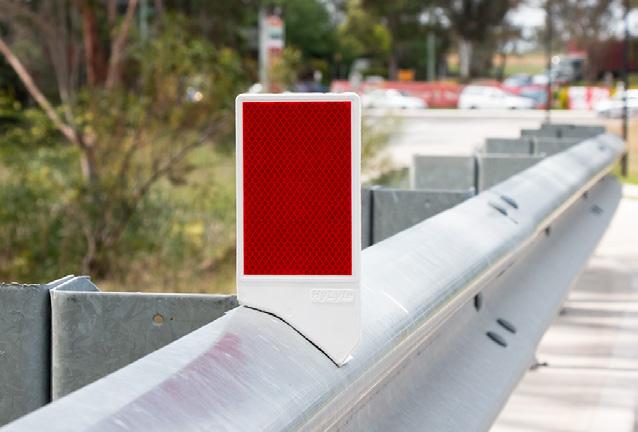

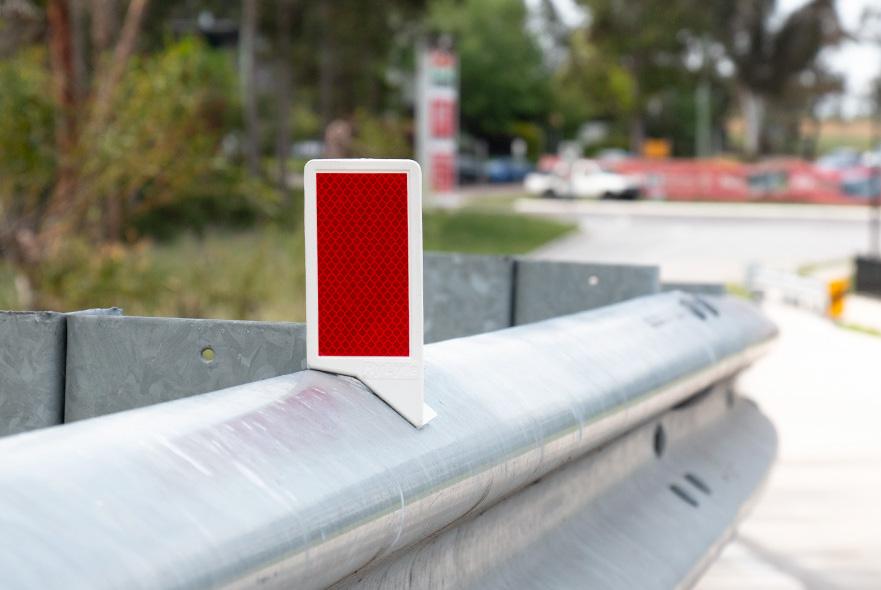

Using the existing guardrail fittings, the Joint 10 conveniently mounts onto the joining bolt on top of the guardrail. The Joint 10 is made using injection moulded nylon 6 with UV stabiliser. The shatterproof substrate is sized to display a 80mm x 125mm class 1a delineator.
Paddle 10 10,000mm2 delineator area
DGRP10
Front/Back (red/white)
DGRP10R Front only (red)
DGRP10A Front only (amber)
DGRP10W Front only (white)
The Paddle 10 is designed for installation onto the C block of the guardrail and comes complete with pre-drilled holes and M5 fixings to secure in place. The Paddle 10 is made from UV stabilised PVC and sized to display a 10,000mm2 class 1a delineator.
Twist 5 5,000mm2 delineator area
DGRT5
Front/Back (red/white)
DGRT5R
Front only (red)

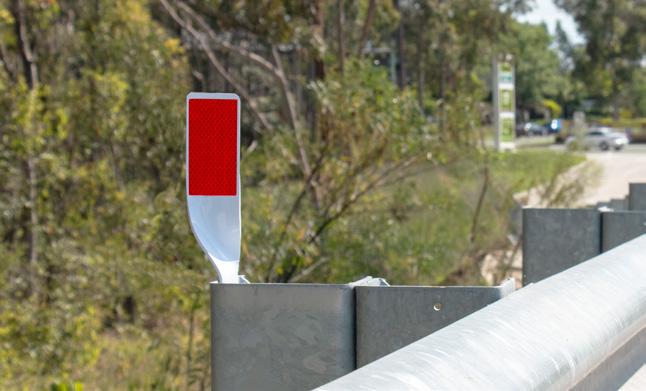

Using existing guardrail fittings, the Twist 5 mounts behind the “W” barrier on the bolt, inside the “U” channel space. The face of the “U” channel locks it in an upright position. The Twist 5 is soft impact and made from 3mm UV stabilised PVC and sized to display a 5,000mm2 delineator.
Elle 5
5,000mm2 delineator area
DCBE5
Front/Back (red/white)
DCBE5R
Front only (red)
DCBE5A
Front only (amber)
DCBE5W
Front only (white)

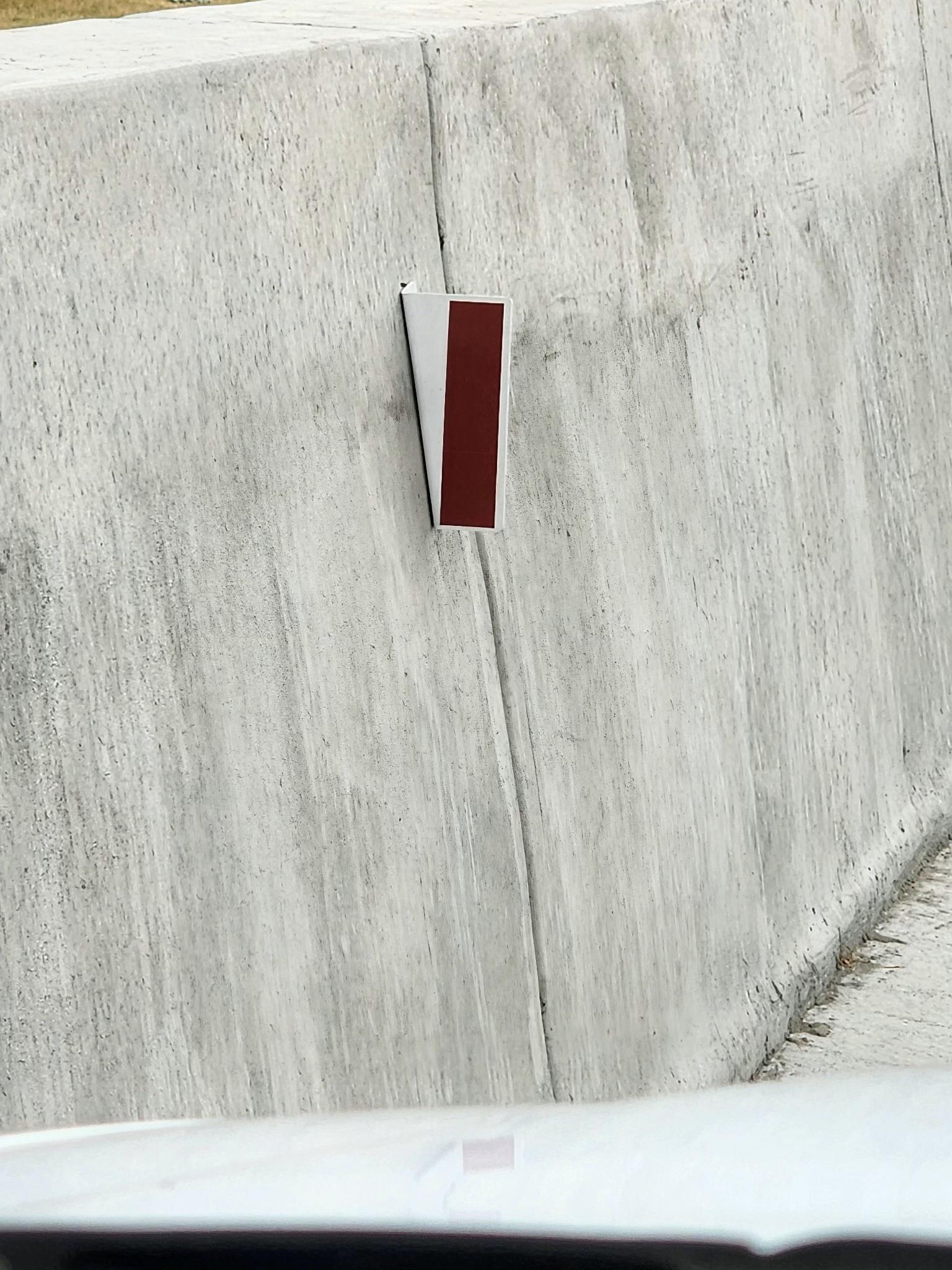

Designed for installation on pre-cast concrete barriers or bridge rails, the Elle 5 is fixed with adhesive onto the concrete barrier and has a slot or hole that slides under the existing bolts on bridge rails. The Elle 5 is a soft impact delineator and is made from UV stabilised PVC and sized to display a 5,000mm2 class 1a delineator.
Butterfly
5,000mm2 delineator area
DGRB
Front/Back (red/white)
Twist 10
10,000mm2 delineator area
DGRT10
Front/Back (red/white)
DGRT10R
Front only (red)

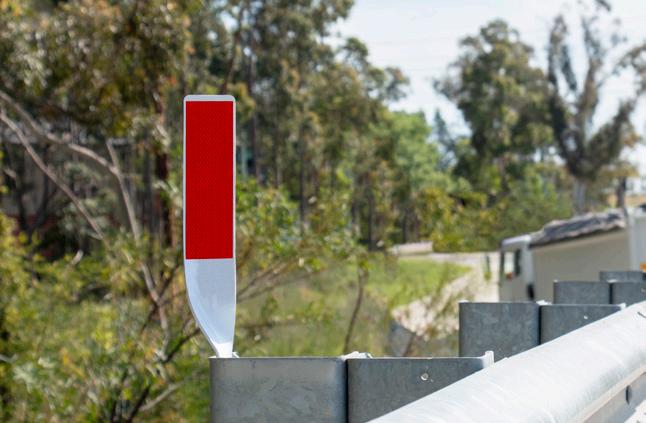

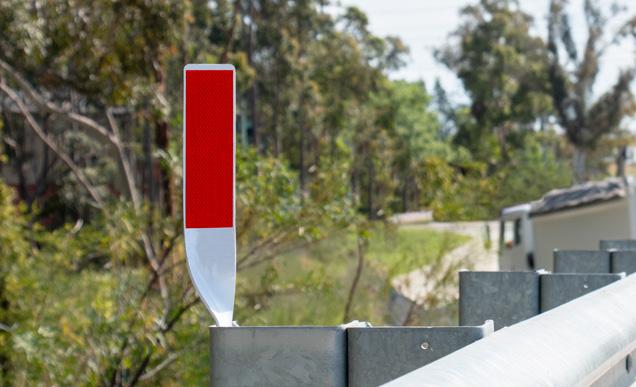

Using existing guardrail fittings, the Twist 10 mounts behind the “W” barrier on the bolt, inside the “U” channel space. The face of the “U” channel locks it in an upright position. The Twist 10 is soft impact and made from 3mm UV stabilised PVC and sized to display a 10,000mm2 delineator.
Elle 10
10,000mm2 delineator area
DCBE10
Front/Back (red/white)
DCBE10R
Front only (red)
DCBE10A
Front only (amber)
DCBE10W
Front only (white)
Designed for installation on pre-cast concrete barriers or bridge rails, the Elle 10 is fixed with adhesive onto the concrete barrier and has a slot or hole that slides under the existing bolts on bridge rails. The Elle 10 is a soft impact delineator and is made from UV stabilised PVC and sized to display a 10,000mm2 class 1a delineator.
Hazard
10,000mm2 delineator area

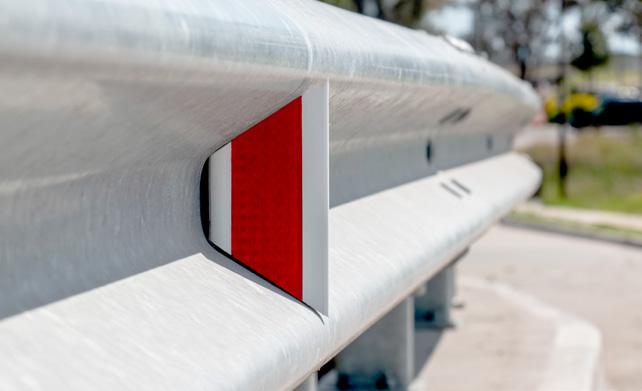

The Butterfly mounts in the ‘V’ of the guardrail onto the existing bolt, with the head of the bolt, used to hold the Butterfly snuggly in place. The Butterfly is made using a high-quality triangular polymer extrusion and available in black or white sized to display a 5,000mm2 delineator.
DCBE11
DGRBY
Front/Back (black and yellow)

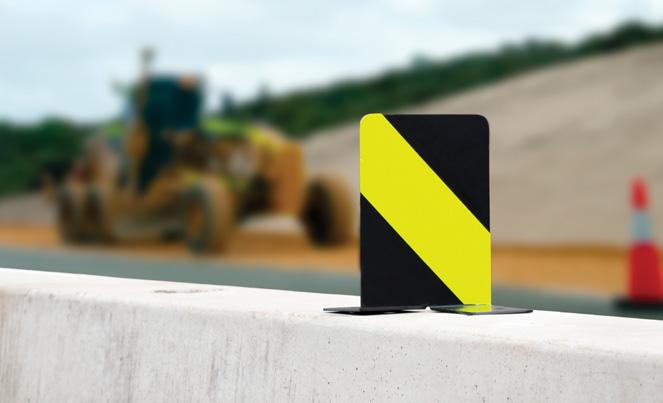

The Hazard Barrier is designed for installation on pre-cast concrete barriers and is fixed with high strength adhesive that forms a rivet type hold when it swells into the 12mm hole. The Hazard Barrier is made from Nylon 6 with UV stabilisation and sized to display a 10,000mm2 Angled Class 1a band.
10,000mm2 delineator area
DCBE11
Front/Back (red/white) Other delineation configurations available.

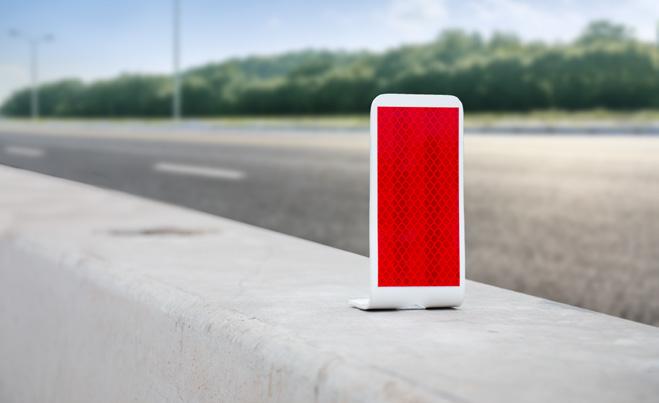

The DCBE11 is designed for installation on the side of pre-cast barriers and is fixed with high strength adhesive that hold when it swells into the 12mm hole. The DCBE11 is made from Nylon 6 with UV stabilisation and sized Class 1a delineator.
