About Me

EDUCATION University of Maryland, College Park, MD Bachelor of Landscape Architecture with a minor in Sustainability Studies August 2019 - Anticipated May 2023 | GPA: 3.98 Maryland Student ASLA (SASLA) | 2022-2023 President Student-run organization that helps foster a sense of community among the UMD landscape architecture department, offering educational, professional and social events College Park Scholars: Environment, Technology, and Economy Program Invite-only, living-learning academic program that explores global sustainability through both classroom and active learning EXPERIENCE Norton Land Design, Ellicott City, MD | Landscape Architecture Intern June 2022 - Present Complete landscaping plans, Natural Resource Inventories, Green Area Ratio plans, grading plans, among other services under the guidance of a licensed landscape architect University of Maryland Landscape Architecture, College Park, MD | Undergraduate Asisstant September 2022 - Present Take part in unique projects for the department such as creating an informational report summarizing studio work, and helping to develop the Design Center through research and grant proposals

Javiera Diaz-Ortiz I am a fourth-year undergraduate student at the University of Maryland, College Park pursuing a Bachelor of Landscape Architecture. My initial interest in the field was sparked by a passion for environmental conservation and restoration. I have involved myself in ecological work through internships and organizations, and I hope I can maintain this focus throughout my professional career. Additionally, I wish to pursue other interests, such as inclusive design, community engagement through education, and nature play.

EMAIL ...jdiazort@umd.edu PHONE NUMBER...(240)-595-7140 Skills AutoCAD Adobe Illustrator Adobe Photoshop Adobe InDesign

Sketchup Lumion ArcGIS Pro

World Wildlife Fund (WWF), Wahsington, D.C. | Country Office Unit Intern June 2021 - August 2021 Assist in communications with WWF country offices in South America, the Caribbean, Africa, and Asia through events such as operational workshops in order to ensure their success Sun Nurseries, Woodbine, MD | Horticulture Intern September 2020 - December 2020 Learn about horticulture at a plant nursery through customer service, weeding, pruning, potting, transporting plants into the display, etc.

AWARDS AND CERTIFICATIONS ASLA Council of Fellows Scholarship | LAF | Mar. 2023 University of Maryland Landscape Architecture Undergraduate Olmsted Scholar | LAF | Feb. 2023 University of Maryland Landscape Architecture Undergraduate Fountain Scholar | CELA | Dec. 2022 Maryland ASLA Scholarship | Maryland ASLA | Dec. 2022 Carville M. Akehurst Memorial Scholarship | Horticultural Research Institute | Dec. 2022 LEED Green Associate Certification | Green Business Certification Inc. | Oct. 2022

Table of Contents 01 02 03 04

Buzzard Point Waterfront Park Washington, D.C. Headen Spring Development Riverdale, MD Kenilworth Avenue Revitalization Riverdale, MD Cross Creek Golf Course Bowie, MD

05 06 07 08

Echo Plaza LARC 141 East Pat Lofts Frederick, MD Prospect Hall Frederick, MD AutoCAD and Hand-Drawings

01

Buzzard Point Waterfront Park Washington, D.C.

D.C.’s Buzzard Point is experiencing gentrification, and its natural ammenities are being underused. Buzzard Point Waterfront Park, for example, offers great potential for recreational, educational and social experiences for community members, and it is currently being neglected as surrounding construction continues.

Project Brief

A reimagined Buzzard Point Waterfront Park will bring people to the Anacostia River by uncovering and highlighting its value. It will serve as a way to connect people to their natural surroundings, both through direct educational programs and more indirect methods such as boating and play. The park will ultimately foster environmental stewardship while simultaneously tackling current issues, such as Buzzard Point’s status as a food dessert and environmental degradation.

Proposed Section A-A’ Programs used: Photoshop

A

Complete Street

1

Pedestrian path among tree canopy

Nature play space

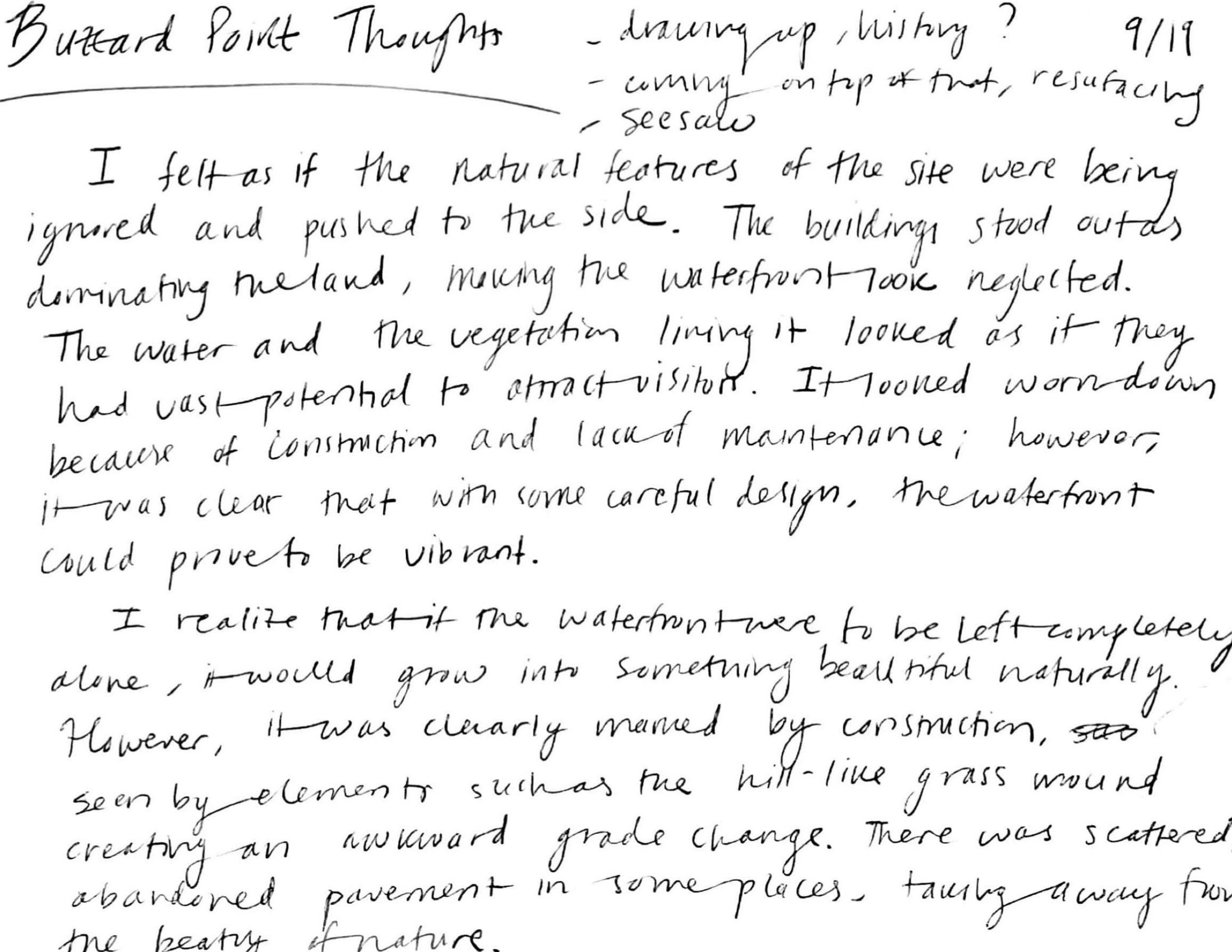

Process

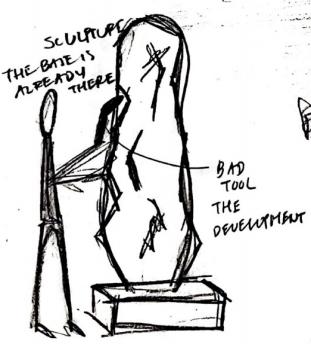

Metaphor development

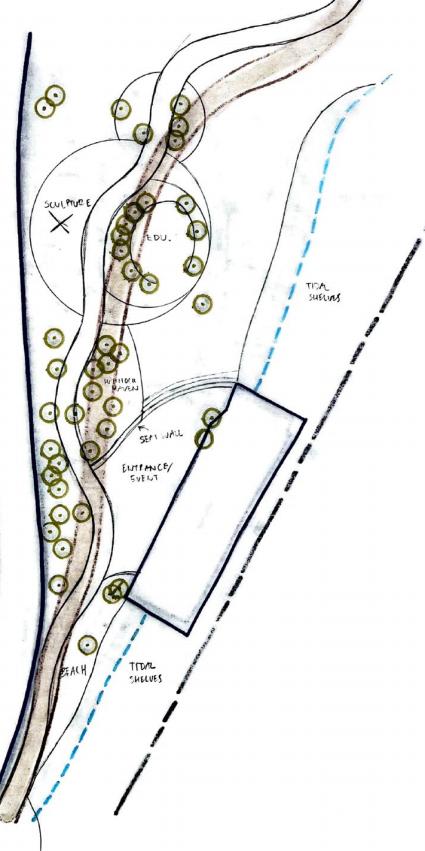

Concept development

Creation of a path within space available among existing trees to preserve as many natural assets as possible

Open beach area

A’

Tidal shelves

2

1

Final Plan

A

2 3

A’ 5

4 Nature play

6

0

40’

Ma Co tthe ns w H erv ati enso on n Ce Eart nte h r

Tidal shelves | Scape Studio

Riv er os tia ac

3 buzzard point waterfront park

An

Half St

SW

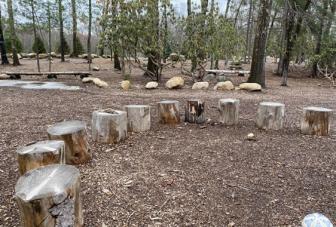

Outdoor education | Source: Childhood by Nature

7

1 Shaded seating overlooking the water 2 Nature play space 3 Tidal shelves 4 Sculpture as a vertical element 5 Outdoor classroom 6 Boat ramp and beach area 7 Pier with shaded seating structures

Shaded seating overlooking the water

buzzard point waterfront park 4

02

Headen Spring Development Riverdale, MD

Programs used: SketchUp and Lumion

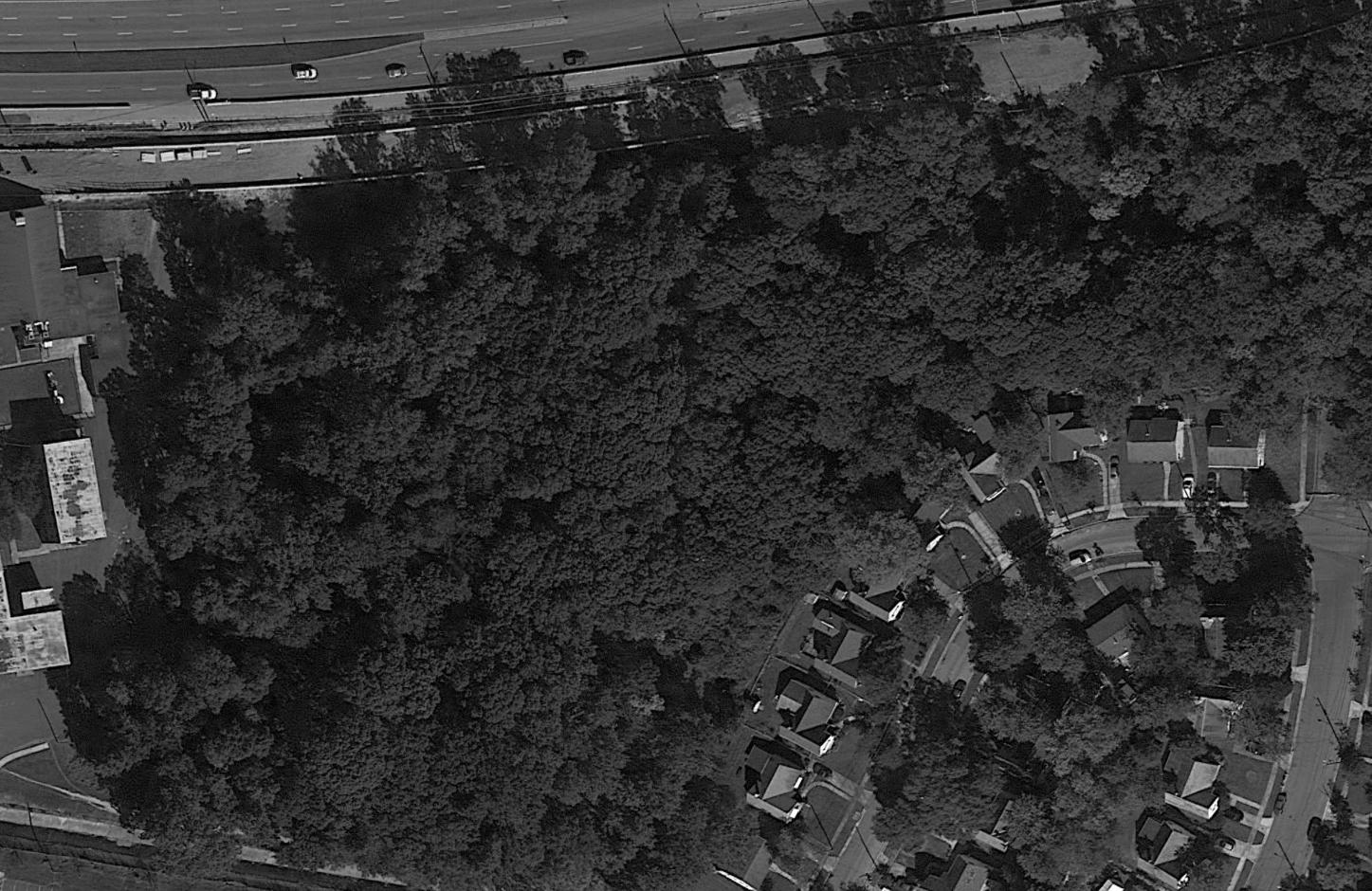

Project Brief The Headen Spring Development is a project proposed in a parcel of woods located southeast of the proposed Riverdale Purple Line station. It is designed to be multi-use, multi-generational and multi-economic. The intent was to investigate the proposed development and propose changes to address the pedestrian connection to the transit station, shopping and services, surrounding community, and environmental opportunities.

The redesign will also provide more open space and a sense of belonging to a community for Headen Spring residents, as well as safe, pedestriancentered circulation.

5

5

3 4 1

1 Performance stage 2 Children’s splash park 3 Art walk

2

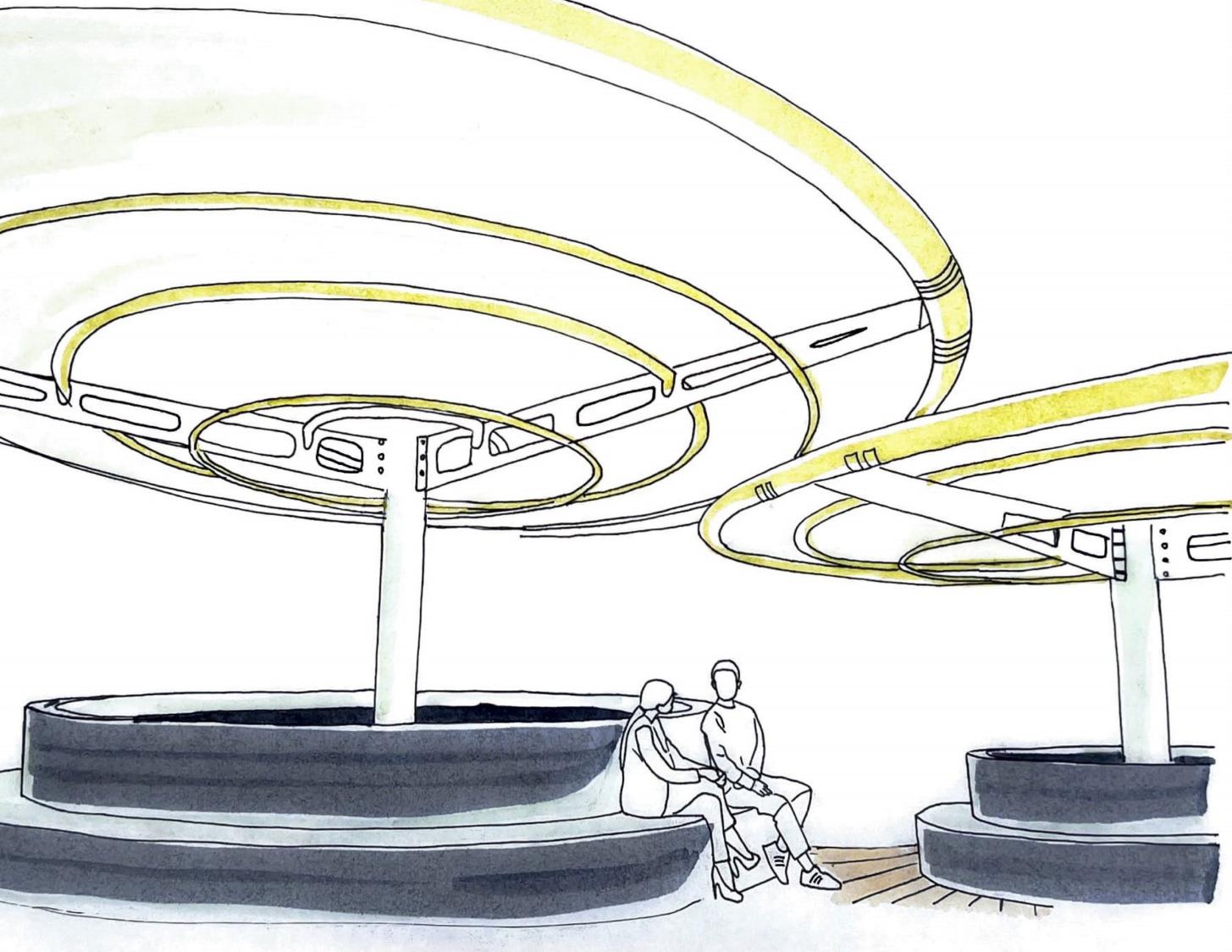

4 Picnic table area shaded with tensil structures 5 Nature walk around the pond

0

80’

6

Process Diagrams Concept 1: Large Commerical Area While the final plan focuses solely on the Headen Spring housing development, attention was also given to the surrounding community through the lens of masterplanning. I had to find ways in which to integrate the Headen Spring residents into the rest of the community, which could be enhanced with more ammenities. This particular concept looks at the possiblity of expanding the exisitig retail area, and adding a cultural center and a youth sports complex.

7 headen spring development

Concept 2: Environmental Education On the other hand, this concept focuses on providing access to nature and environmental education opportunities. In order to maximize space for said ammenities, the retail area is condensed. The parking lot is now a parking garage, taking advantage of the vertical axis. Greenhouses are added to fight the critical food dessert issue, and an enironmental community center is added, featuring pollinator and vegetable gardens and an outdoor classroom.

headen spring development 8

03

Kenilworth Avenue Revitalization Riverdale, MD

Proposed entry into Anacostia River Park from Kenilworth Avenue Programs used: Photoshop

Project Brief The community surrounding Kenilworth Avenue in Riverdale, MD is largely underserved. The area is deprived of pedestrian access, safety, green space, community spaces for various demographics, among several other essential elements. Streetscape additions and adjustments will make Kenilworth Avenue a welcoming place for members of the community. Great consideration was given to understanding the people and the history of Riverdale, as well as the impacts of road improvements and expansion, especially in relation to the new Purple Line metro station.

A focus of this particular project is the redesign of open space surrounding a community building called the Elks Lodge, which would be enhanced with pedestrian paths, a space for farmers markets, a performance area, shade, seating, vegetation, among other elements.

9

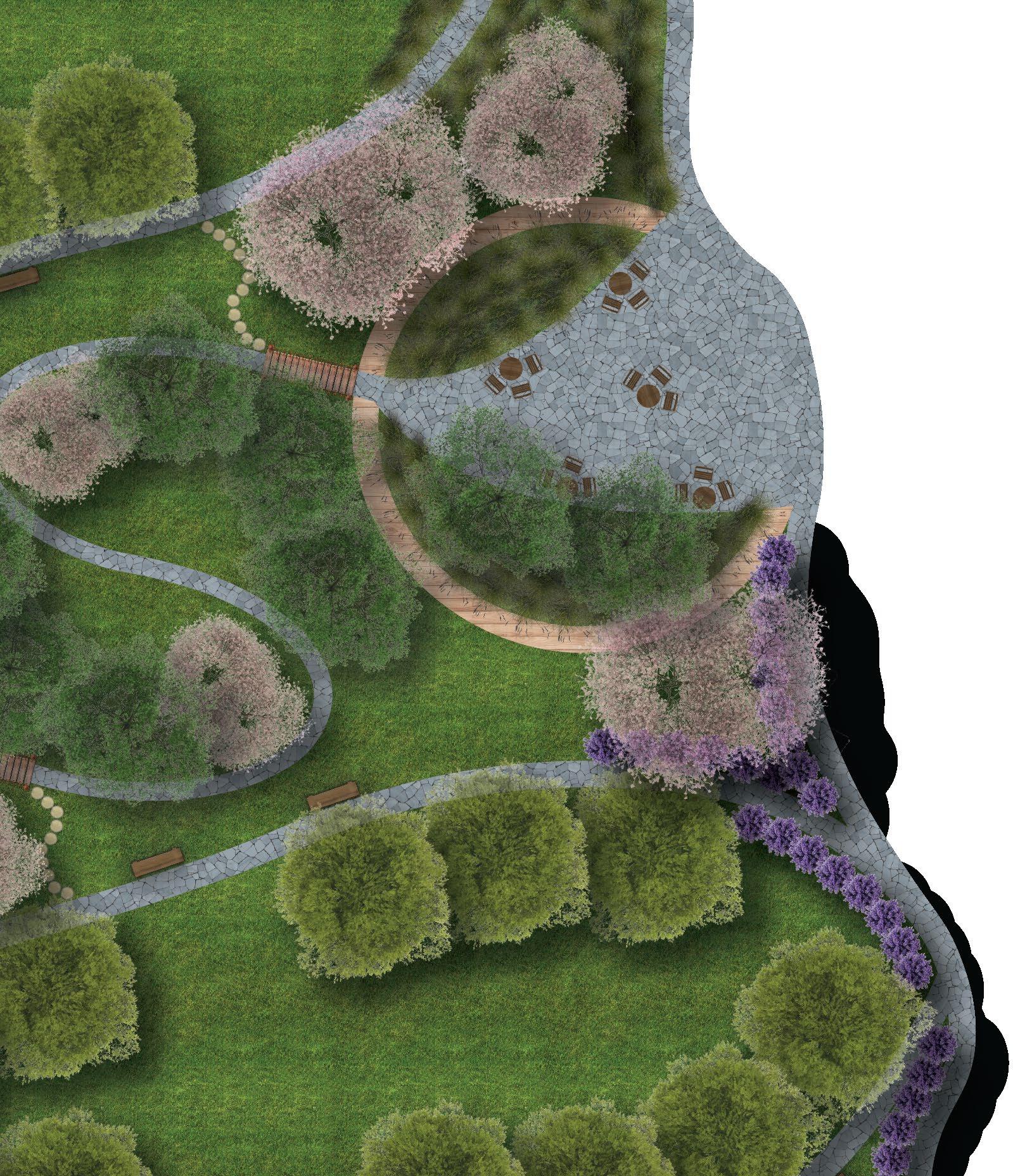

Redesign of Anacostia River Park/Elks Lodge featuring performance area, recreational open space, seating, and farmers market space Programs used: Illustrator

Regional Context

0

60’

10

04

Cross Creek Golf Course Bowie, MD

Project Brief Cross Creek Golf Course is an underused ammenity, and the community is searching for methods that will help revitalize their neighborhood. The redesign converts nine of the golf holes into an Audobon Certified golf course, creating habitat for various species. The rest of the holes will be transformed into different community spaces, such as a sensory garden walk that serves all ages, which is shown in this illustrated plan. GIS was used to complete site analysis, specifically to research characteristics such as exisiting circulation and the location of water bodies in order to find appropriate placement for a sensory garden.

11

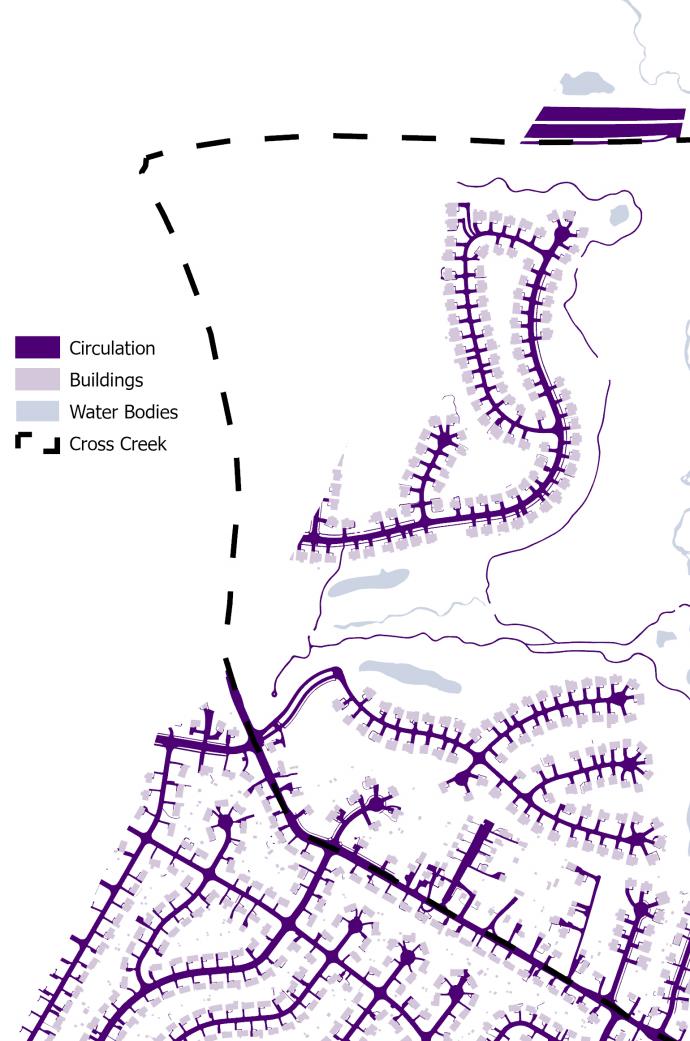

Site Analysis ArcGIS Pro

05

Echo Plaza

LARC 141: Design with Plants

Programs used: SketchUp and Lumion

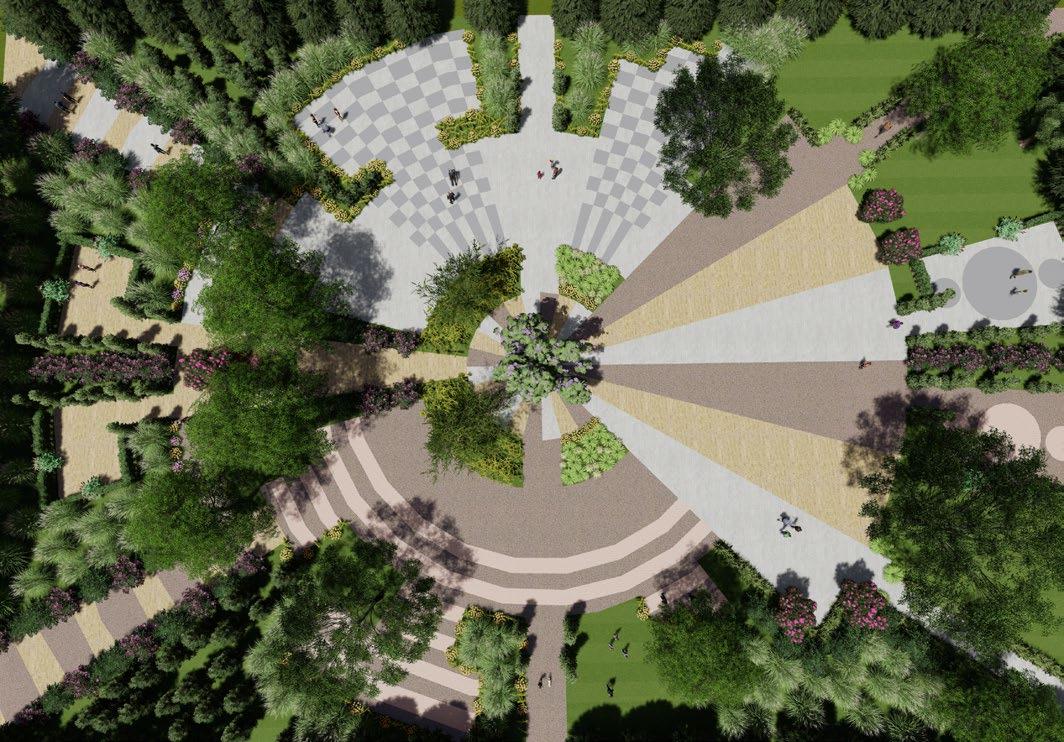

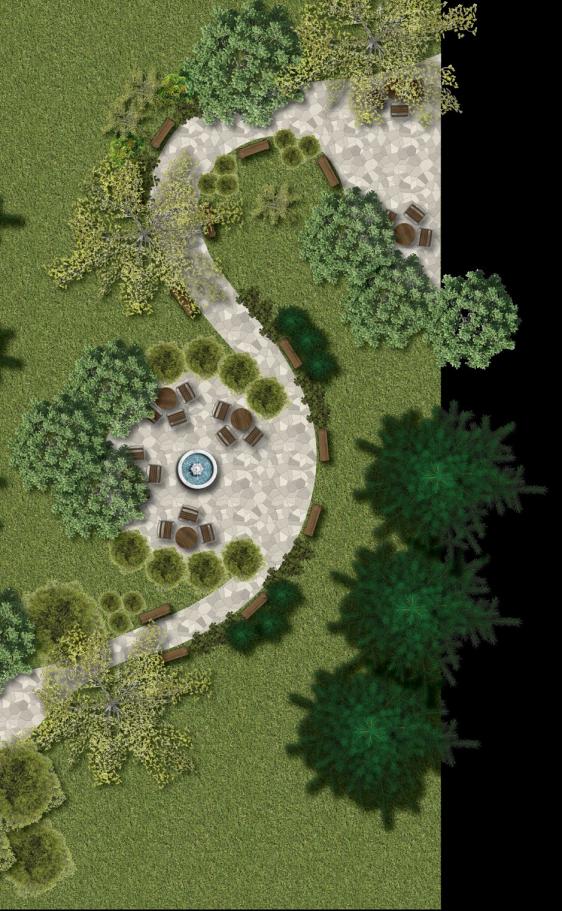

Project Brief This studio project served as an introduction to planting design. Specifically, it was an exercise that emphasized the concept of utilizing plants for more than simply their aesthetic value. Echo Plaza features intimate spaces through screening vegetation and unique paving patterns. The radial patterns place an emphasis on the center of the plaza, and the tree canopies create a sense of transition and comfort.

Concept

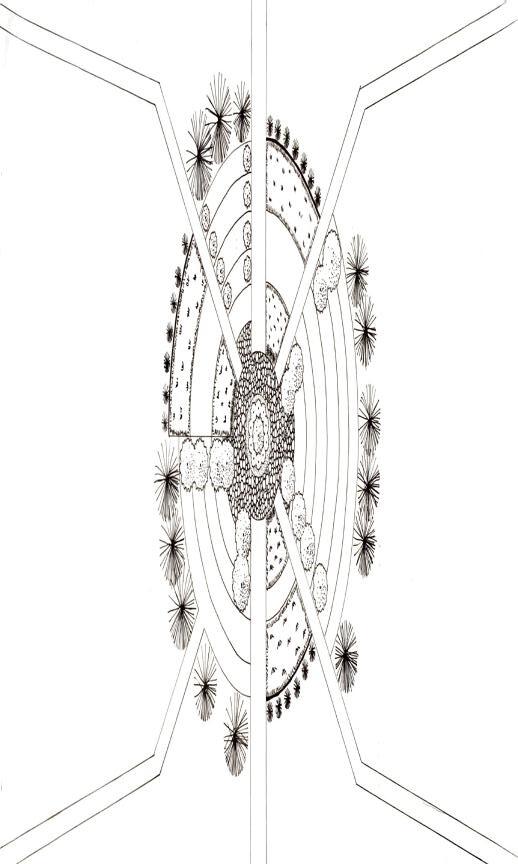

Final Plan

12

06

East Pat Lofts

Frederick, MD | Norton Land Design Internship

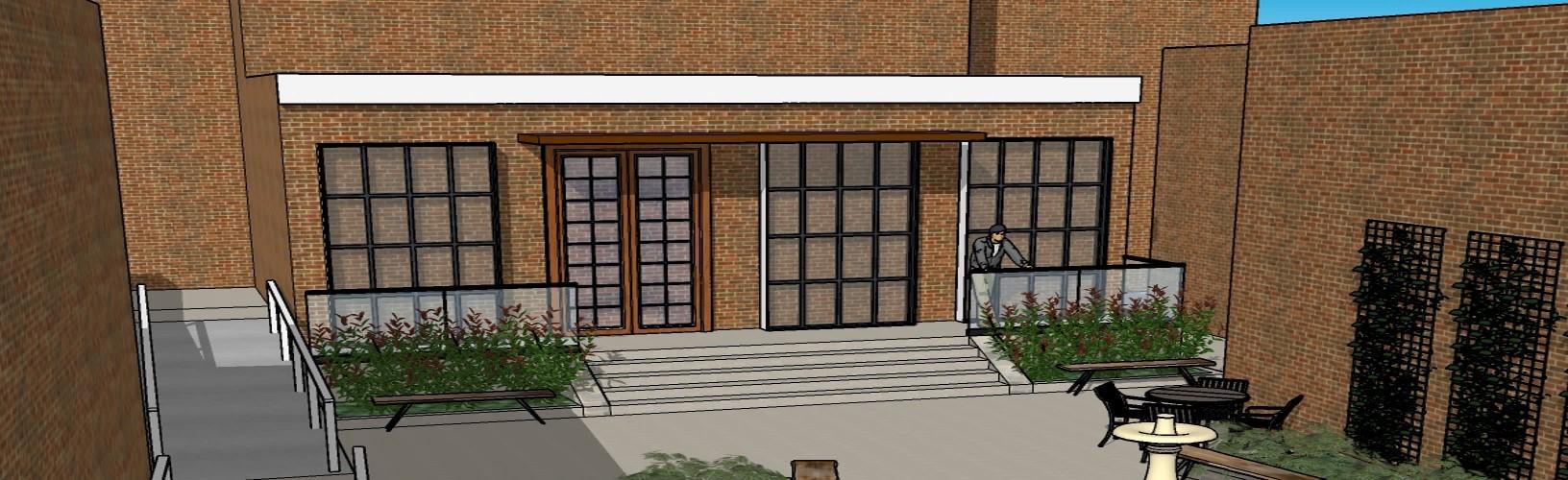

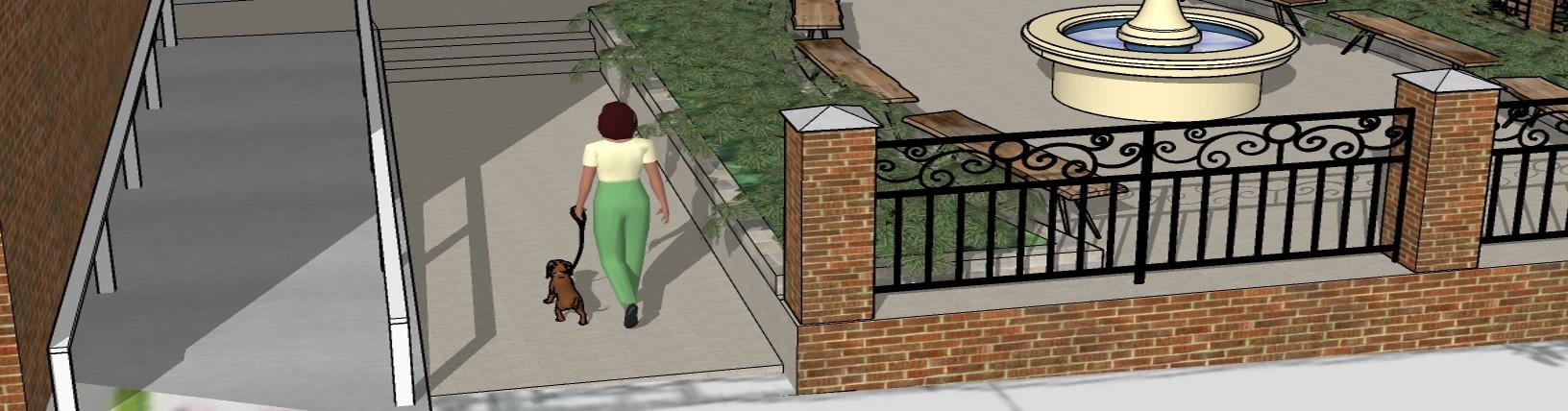

Project Brief East Pat Lofts is a new multi-family residential development, for which Norton Land Design was hired to design the entry plaza. The grade change from the street entrance to the door called for the implementation of stairs and a ramp. The client requested ample seating, a centerpiece, and a grand entrance enhanced through pillars and an elegant fence.

The project process included the creation of hand-drawn concept sketches, 3D models made in SketchUp, and a landscape plan and construction details made in AutoCAD.

13

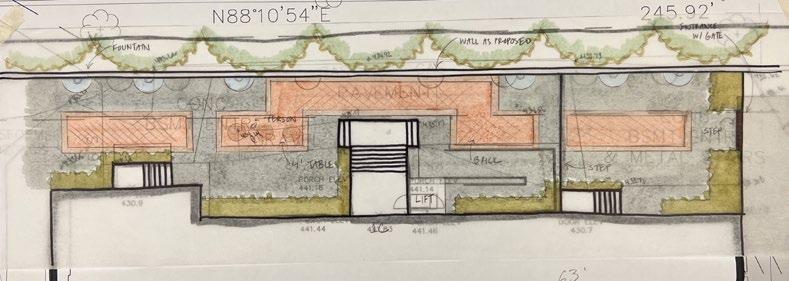

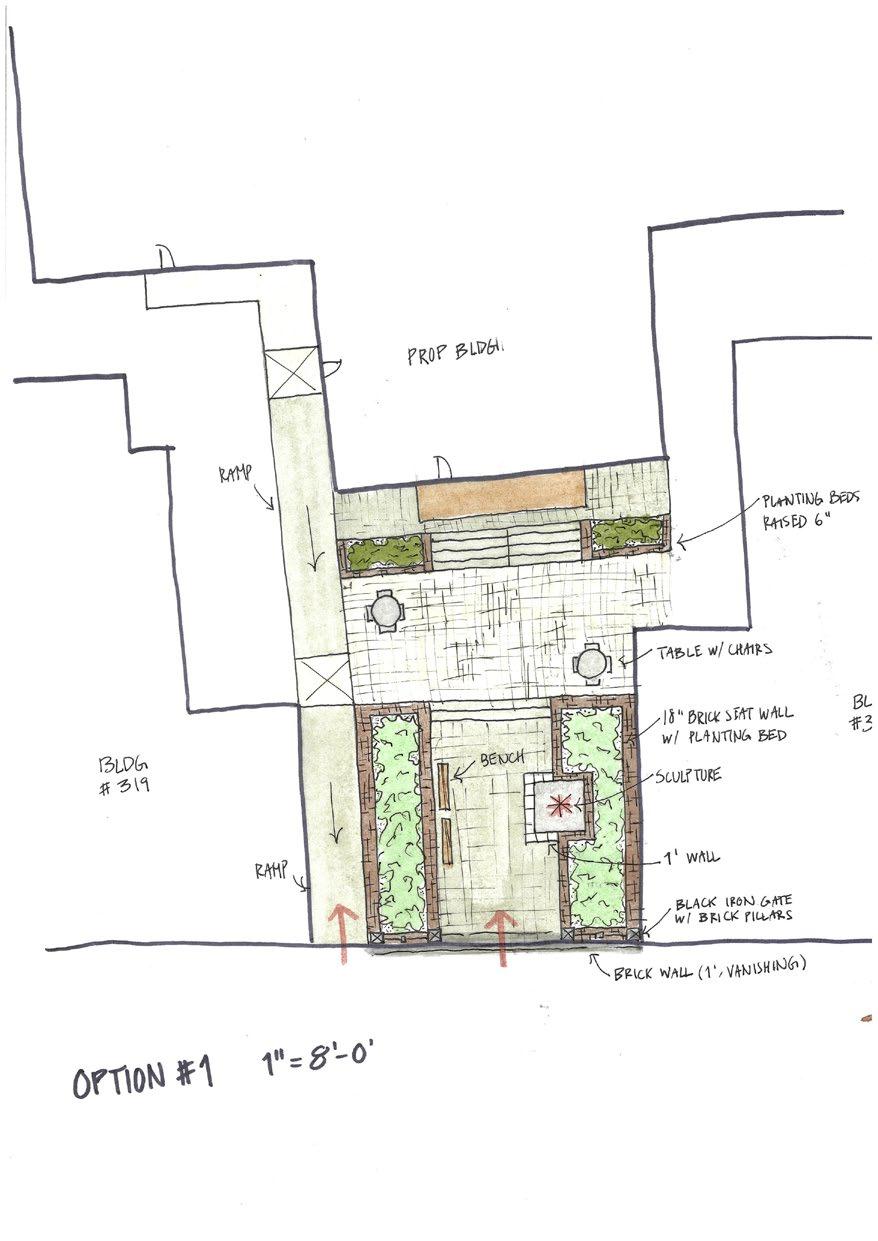

Concept 1: Rectilinear

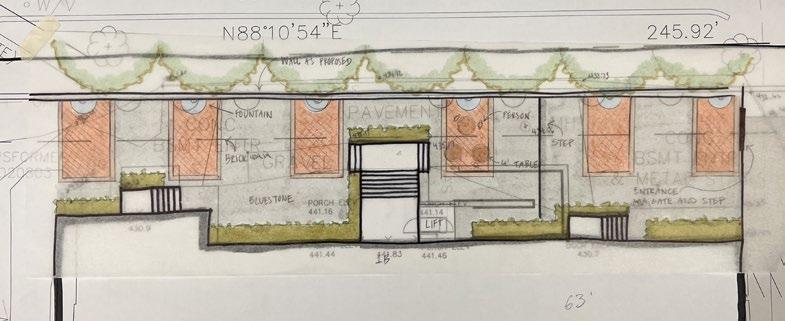

Concept 2: Curvilinear

14

07

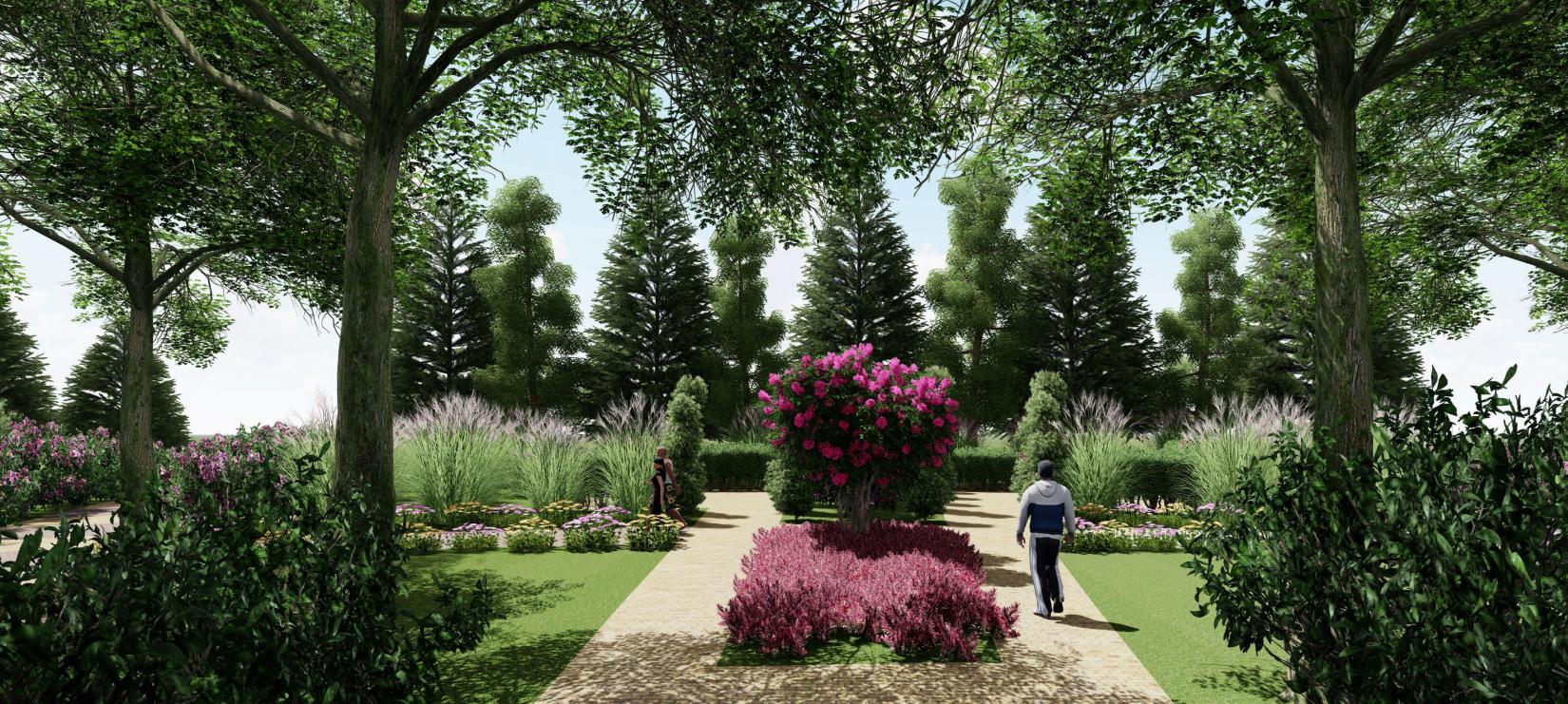

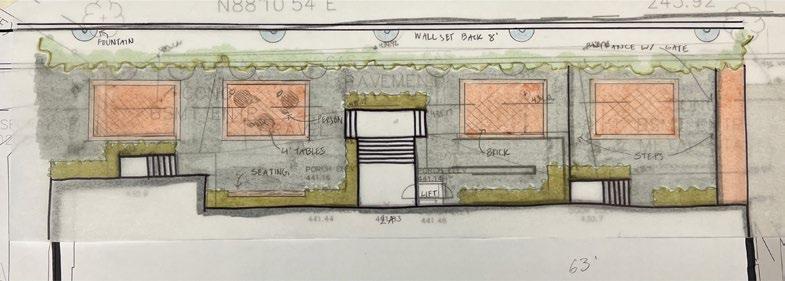

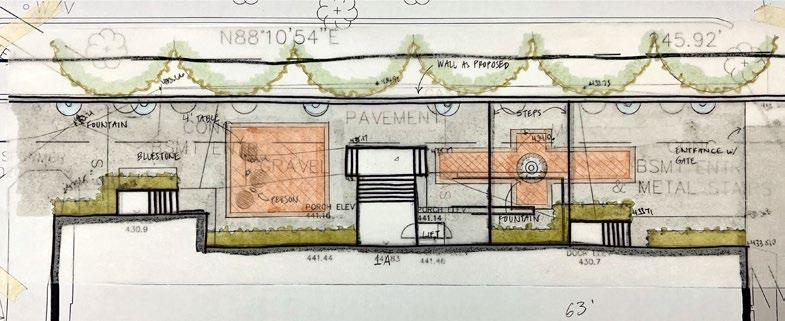

Courtyard Paving Concepts

Prospect Hall

Frederick, MD | Norton Land Design Internship

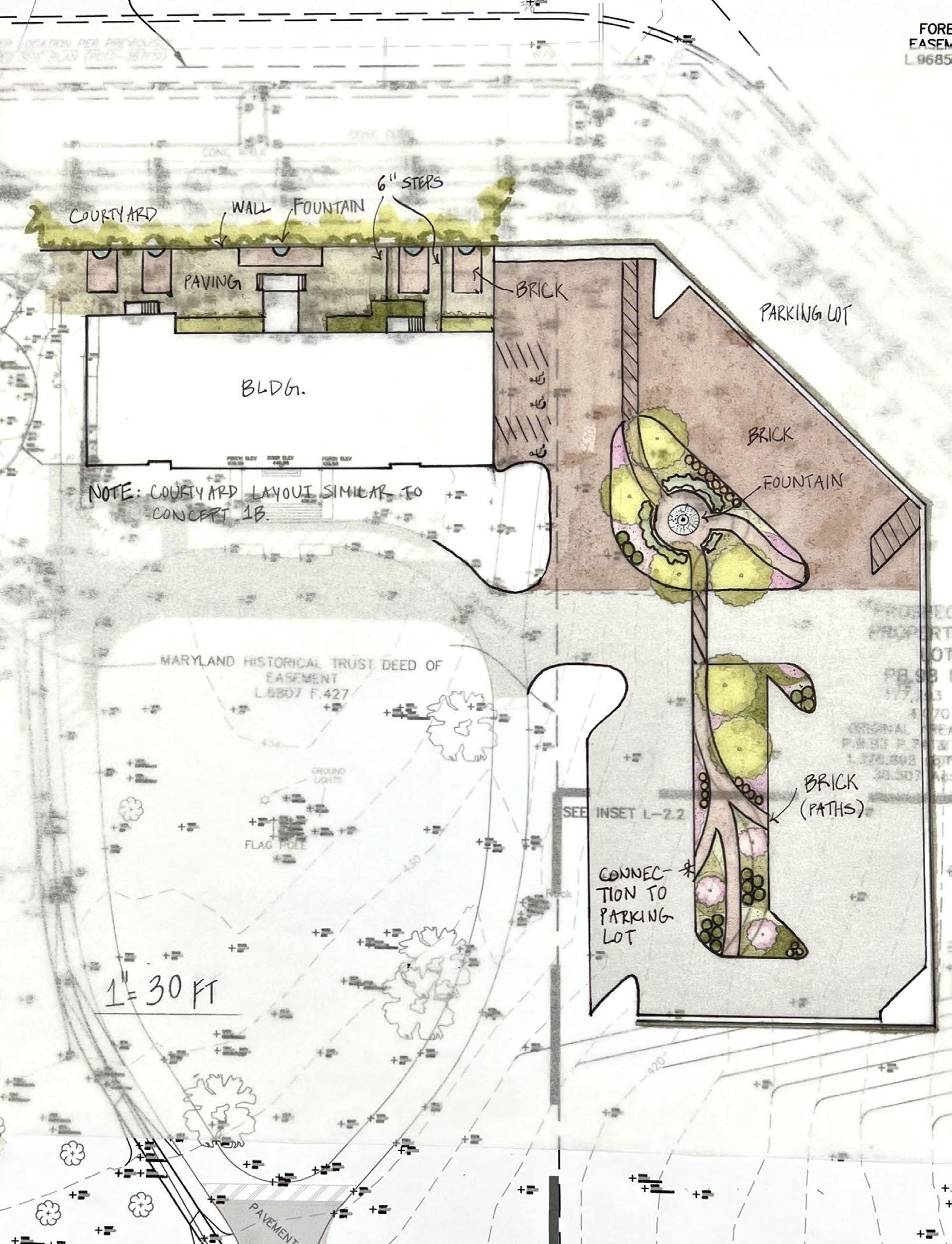

Project Brief Prospect Hall is a historic mansion being converted into an event venue. The client aspires to renovate the building and convert it into a space where guests can host weddings, using both the interior and exterior features of the project. The redesign of Prospect Hall features a courtyard displaying elegant fountains and paving patterns, a parking lot that doubles as a continuity of the courtyard, and elegant plantings that offer both shade and welcoming understory species.

15

NORTON L AND D ESIGN LANDSCAPE ARCHITECTURE + ENVIRONMENTAL PLANNING

Landscape Plan: AutoCAD

16

MASTER PLANT SCHEDULE QTY.

KEY

BOTANICAL/COMMON NAME

SIZE

ROOT

COMMENTS

TREES

08

QP

Quercus palustris

20' Ht

B&B

20' Ht

B&B

15' Ht

B&B

15' Ht

B&B

pin oak AR

AutoCAD Samples

Acer rubrum red maple

LI

Lagerstroemia indica crape myrtle

TO

Thuja occidentalis 'Emerald' Emerald arborvitae

SHRUBS

HA

Hydrangea arborescens

ND

Nandina domestica 'Fire Power'

ED

Erica x darleyensis 'Mediterraneaen Pink'

PV

Panicum virgatum 'Northwind'

4'

Cont.

2'

Cont.

3'

Cont.

smooth hydrangea 1 AR

heavenly bamboo

2 ED 2 ED

13 ND

Mediterranean pink heath

3 ED

1 QP

upright switchgrass

2 TO

50"

47 PV

GROUNDCOVERS

JBS 9 ND

Juniperus squamata 'Blue Star' Blue Star juniper

PSU

13 ND

2 TO

Phlox subulata moss phlox

18"

3 ED

LMU

Liriope muscari 'Variegata' variegated lily turf

4 PV 3 ED

6 ED

18 LMU

Notes: 2' Cont.

1. Similar or equal to 75-Gallon Select Recycling System by Landscape Forms.

2. Each of the three units holds 25 gallons.

3. It is not recommended to drill holes for #1 Cont. anchoring until unit is on site. Maximum 3/8" dia. non-corrosive anchors used for #1 Cont. mounting.

4. Text for vynil text medallion provided by #1 Cont. manufacturer.

5. Powdercoated metal in 'Stormcloud' gray color (provided by manufacturer).

P

P

Hard

9 PSU

1 LI

2 ED

Ø5"

1 QP

Ø5"

Ø5"

POWDERCOATED METAL (GLOSS)

5 JBS

Plan

Layo Sect

1 HA 2 HA

LOCK

7 TO 3 ED

S

1 AR

42"

2 JBS

4" X 4" SQUARE POWDERCOATED ALUMINUM MEDALLION FOR VINYL TEXT

1 HA 2 ND

2 JBS

DOOR #1 5" HOLE

9 PV

2 ED 4 PV

L

DOOR #2 5" HOLE

DOOR #3 5" HOLE

14 ND

1 AR

14 ND

2" 4" MIN. Ø1/4" DRAIN HOLES

7 JBS

ADJUSTABLE GLIDES

6 TO

4 PV

N

Ø 1/2" 2 HOLES FOR SURFACE MOUNTING

13 LMU 1 LI

34"

D

3 ED 2 JBS 14 PSU

10

RECYCLING SYSTEM (75 GALLON CAPACITY) SCALE: 3/4"=1'-0"

My group and I designed a small urban park with program features such as wall seating and a space for food trucks. One of my individual tasks was to create the planting plan sheet in AutoCAD, which is partially displayed here.

17

PLAN & SECTION

JAVIERA DIAZ-ORTIZ 4/19/2022

LARC 321 SPRING 2022 PROFESSOR IRAOLA

DEPARTMENT OF PLANT SCIENCE AND LANDSCAPE ARCHITECTURE

THE SUBMITTED DETAIL IS A COMPUTER DRAWN DETAIL DIGITALLY DRAWN FROM SCRATCH

S

Above is a construction detail drawing of a recycling system for my landscape design project in LARC 321: Landscape Structures and Materials.

S

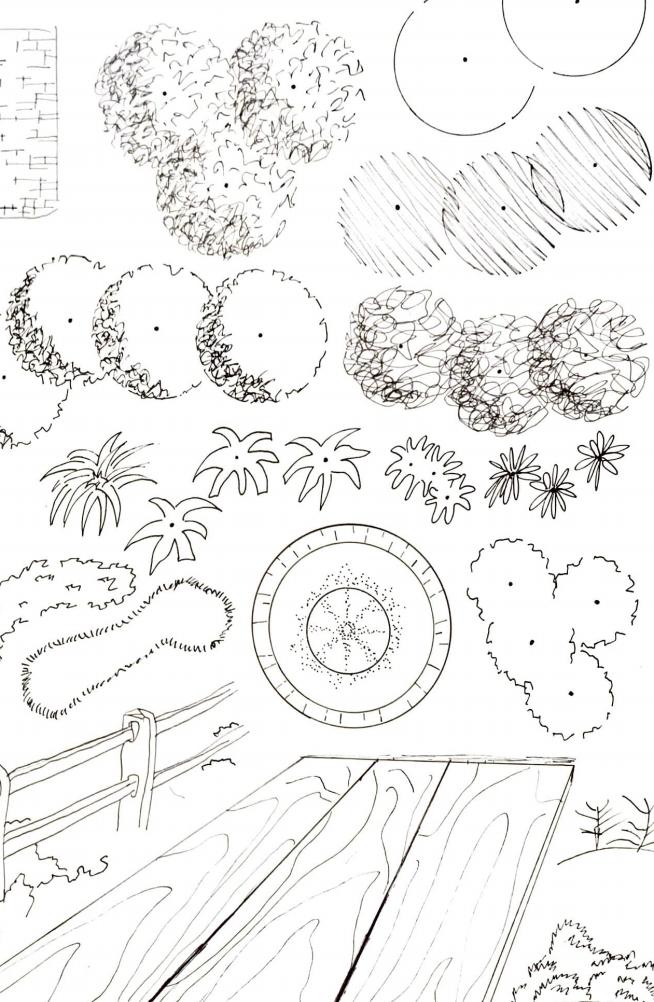

Hand-Drawn Samples

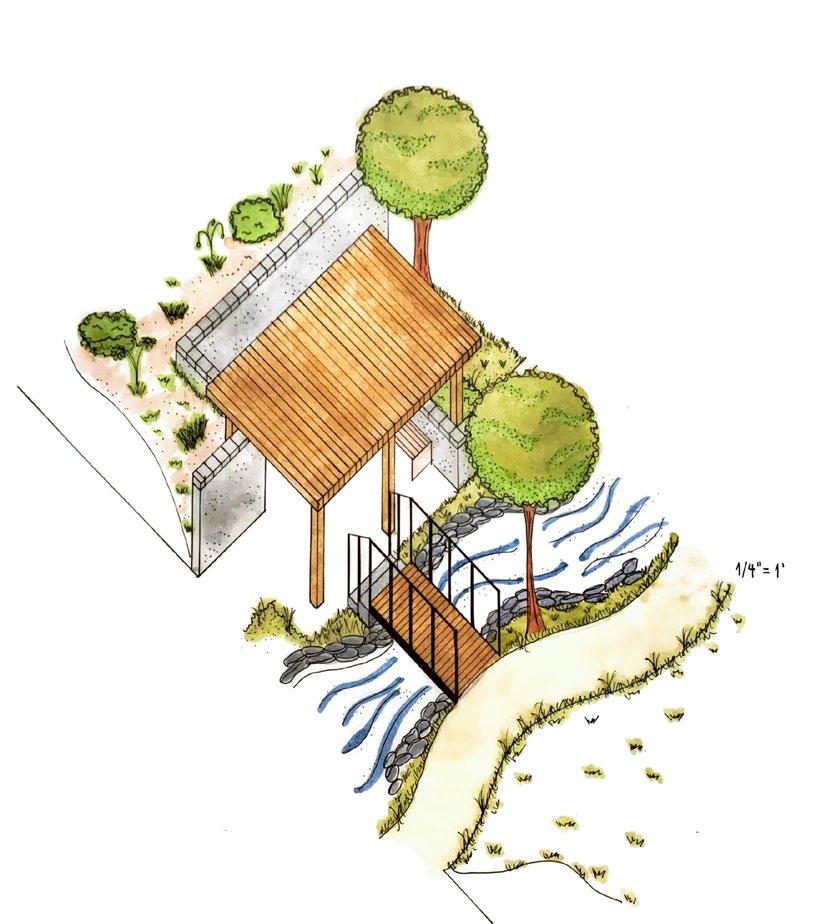

Axonometric Study

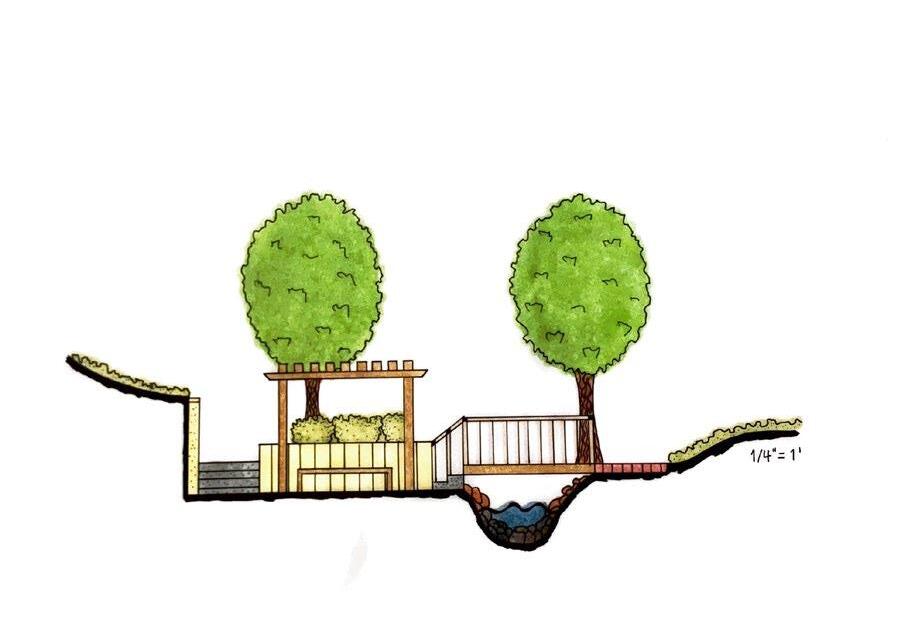

Section Study

18
