Form Development Proposed Site Plan

More public functions, such as sports activities, schools, and commercial development, were proposed for the site plan, which increases public footfall on the site. The club was proposed near the main road in order to attract more people. In the Centre, there was a large communal space the size of a football field. Extending the scope of major public events. The empty spaces on the ground floor beneath the building profile serve as an informal and inclusive market place for various vendors. The site is self-sustaining providing residential and employment activities for the residents through the multiple commercial developments

Making Building forms according to fsi of the site and catering to population

Forming a private courtyard for the buildings

Freeing the ground space to make it more charged

Connecting the L to form a public space

1. Proposed commercial

2. Swings for kids

3. Lawn tennis courts

4. Proposed school building

5. Kids play area

6. Amphitheater

7. Inclusion unofficial market space

8. Open inclusive area

9. Sculpture garden

10. Core for the above building

11. Inclusion unofficial market space

12. Mist garden

13. Club building

14. Ramps for basement

Creating

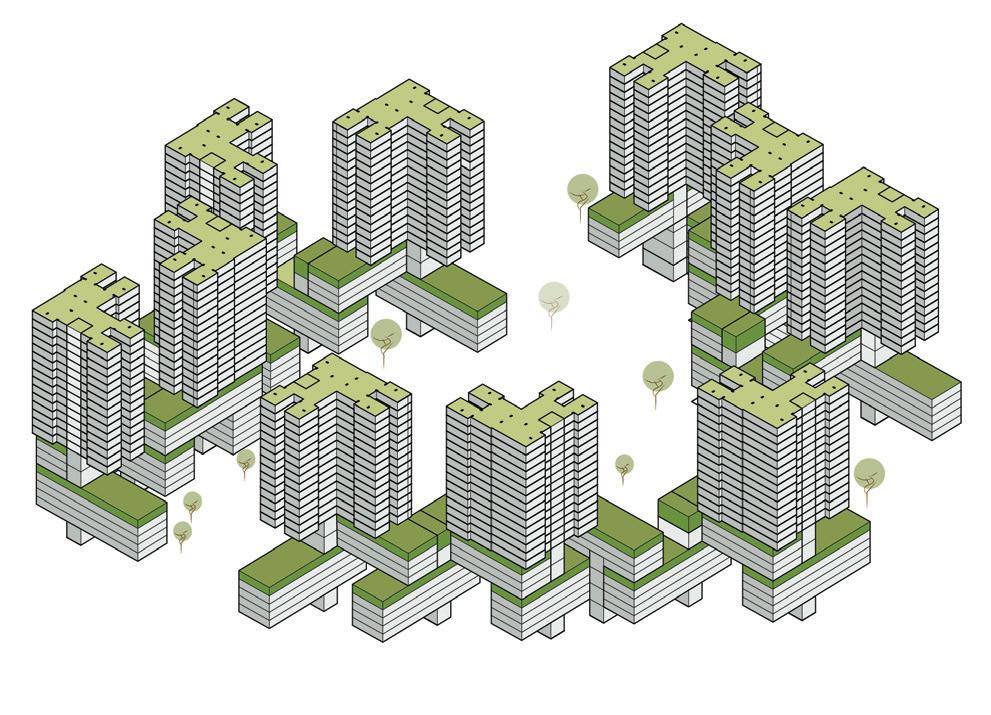

Final socially inclusive democratic sustainable form achieved

Cluster Floor Plans

Visualization

Showing the overall view of the housing, including the shape of the buildings, their surroundings, and their access. The view also depicts the site’s 150% green area, as well as the inclusive open space and charged ground floor. It depicts the response to the site by providing low-rise buildings and open spaces in the area adjacent to Bajghera village in order to avoid social exclusion.

Visualization
