Portfolio-Jahnavi J

architec tu ral por tfol io

Jahnavi J RVCA

1

p a l i mpsest Thesis

4 - 15

Site Issues Program and Concepts Drawings

5-6 7 8 9-15

2 Site Concepts Drawings

(2)

the dese r t getaway 7th semester

1 6 - 1 9 16 16-17 18-19

3 Site Concepts Drawings

C O N T E N T S

inbetwee n pa uses 6th semester

20- 23 20 20-21 22-23

4

bro ke n l ibra r y 5th semester

24-25

5

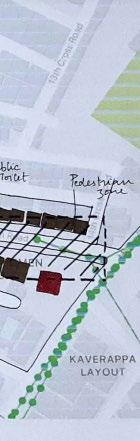

u r b a n d esi g n st u d i o 8th semester

26-27

(3)

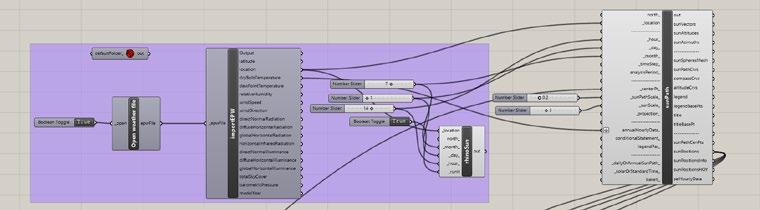

6 digital urban

resea rch

28 -31 28-30 31

7 8

comp etitions

32 - 33

venus colony duma house others

i n ter n shi p wor ks

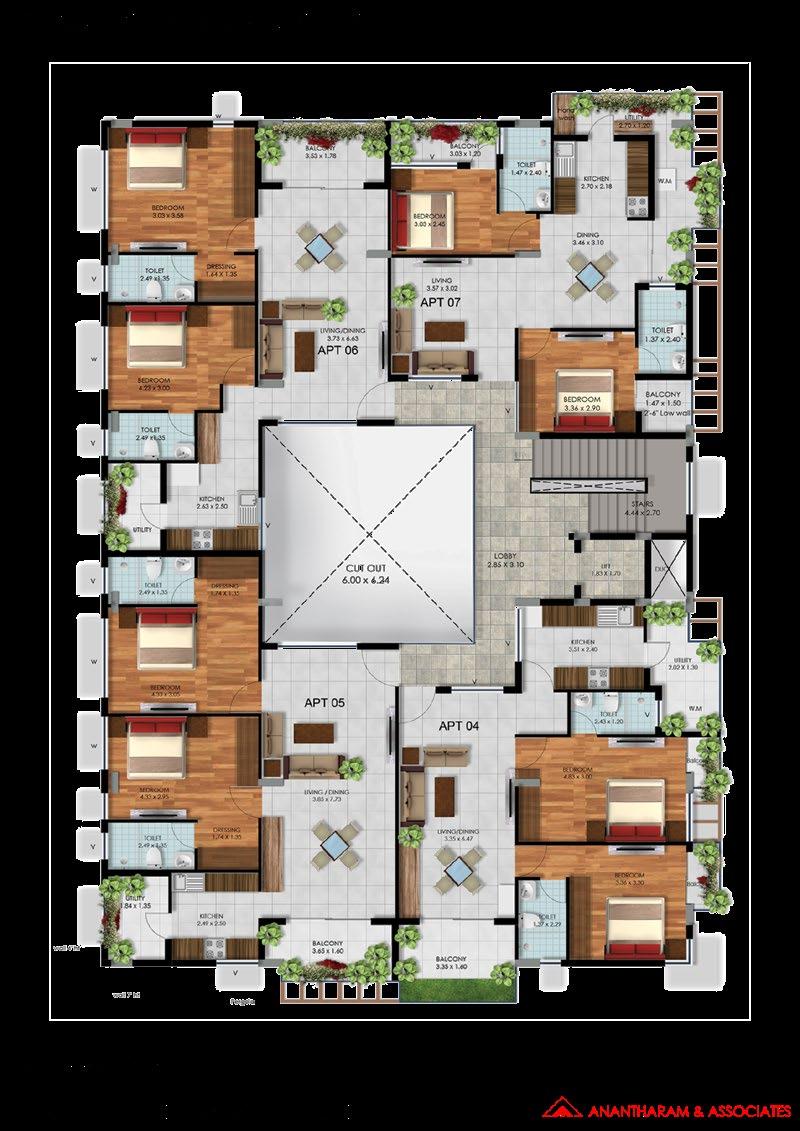

3 4 - 36 34 35 36

9

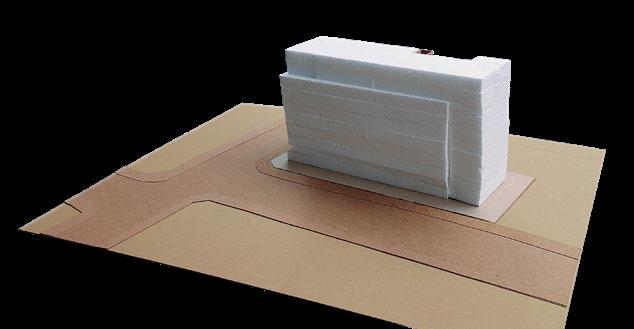

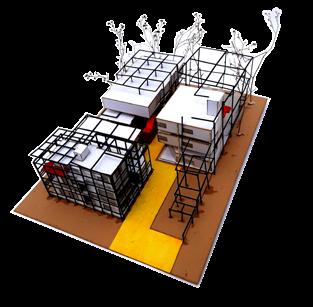

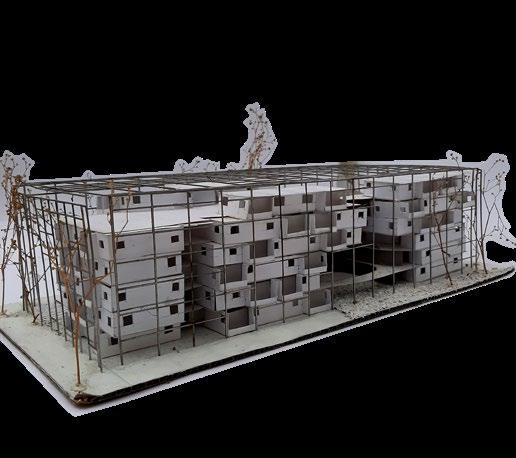

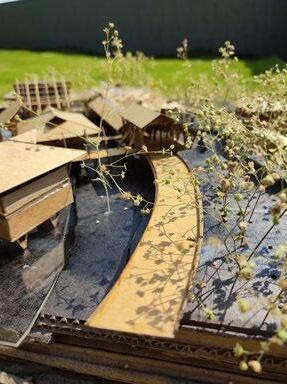

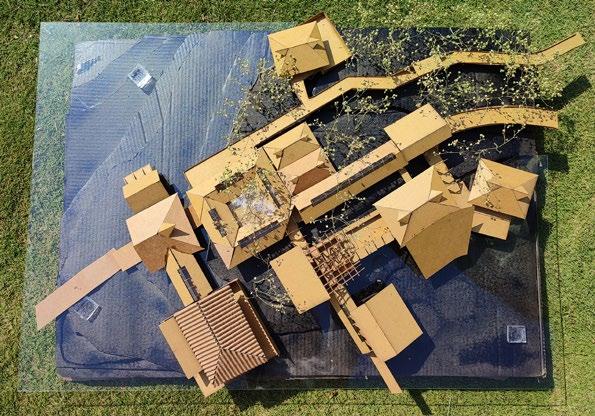

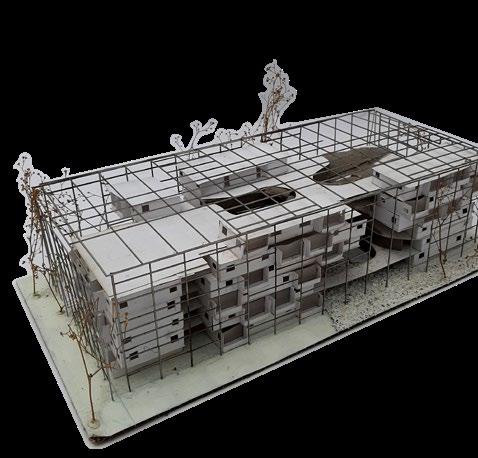

m odels

37

10 11 38

photog ra p hy

38-39

j o u r n a l is m fe l l owsh i p

12

39

a r t wo r ks

PA L I M PSE ST Hard infrastructure with monofunctional conceptions is viewed as standalone objects, away from human interaction. There is purpose FROM the structure but not OF it, especially after their design life. Re-imagining them as haptic spatial elements instead of optic would allow them to weave together communities instead of fragmenting them.

Such infrastructure has minimal capacity for human engagement. They focus on separating conditions rather than integrating them.

And in the long term, have bigger social and ecological repercussions. With the example of the submerged and defunct Hirebhaskara dam in Linganamakki reservoir, Sagar, Karnataka, this thesis claims that such a structure can be repurposed to a hybrid type. The construction of multiple dams on the Sharavathi river led to villages being submerged within the reservoirs, creating a man made island amongst other ecological repercussions.

(4)

THESIS

The people lost not only their homes but also their culture and memories of the land called ‘Kalenadu’. Current communities struggle to survive with lands handed down to them by the Government in Forest areas with barely any resources/ climatic conditions required for agriculture. With lack of any amenities in the ‘island’ the current generation is forced to move out. The plight of the people either seeking connectivity with the outside world or a selfsustained island leads to negative connotations towards any future infrastructure project on the river. This thesis will explore how to extend the axis of this forgotten structure to give back to the community and ecosystem, instead of newer proposals on the river.It addresses the issues of the immediate context to foster resilience and connectivity, thus re-building community and collective memory. It pieces together the narrative of the land by linking past functions and future possibilities, so that people associate the dam with better memories.

LOCATION: Sharavthi valley in Western ghats

Jog falls Hirebhaskara dam Talakalele

1

Sagar

Shimogga

0m

0m 4.5km

4.5km

WAT E R B A S I N : Sharavathi

LAND USE MAP: S h a ra va th i Va l l ey

Legend 6 5 Sharavathi wildlife sanctuary

1

City extents 1- Sagara 2-Tumari

4

1

3

Path 1 : Currently taken route Tumari-Holebagilu ferry-Sagar 10km-40min- 2/3 hours - 34km43min Total: 5/6 hours

NH69

Path 2 : Proposed Tumari-Sigandur/Hirebhaskar damSagar Tumari to sigandur- 7km/13min

1

Sigandoor temple/Hirebhaskar dam

2

Bridge construction/ferry Connects: (Present) NH69 and NH66 (previously) NH206 and NH17 Funded by Central government highway authority- since past 2 years Request sent to State govt. 10 years ago

1

3

Linganamakki dam

4

Talakalele

5

Jog falls- after Linganamakki dam

6

Beyond jog falls

Site 2

3

2

Road widths are not to scale* 2.5km 0km

10km 5km

15km

4

Towards NH66

T I M ELINE: Sharavathi Valley

5

1 Before 1920Sharavathi valley between Ambutheertha and Honnavar with multiple settlementsBio-diversity zone

2 1930sConstruction of Hirebhaskara dam- 3rd and largest siphon volute dam in india at HirebhachhugaruFirst displacement

3 1964Construction of Linganamakki dam Submergence of Hirebhaskara Second displacement

4 PresentBridge construction ongoing between NH66 and NH69 Proposal of artificial waterfall and underground dam 5

WORKING OF VOLUTE SIPHON DAMS HIREBHASKARA DAM 3rd and Largest Volute Siphon dam in India Sagar, Karnataka The Hirebhaskara dam functions with the help of large volute siphons which automate the opening and closing of gates with fluctuations in water levels

LOWEST MEASURED WAT E R L E V E L Sharavathi Valley +558m msl

L AY E R S :

N a t u r a l - Existing contours, Forests: Muppane State forest, Sharavthi river

j u n m ay w-43.1

w-27.9 l-6.25

l-9.65

j u l w-34.4 l-7.7

apr w-78.1 l-17.49

m ar w-78.1 l-17.49

feb w-98.2

(6)

l-22

w-135.81 l-30

Tumari village

Hirebhaskara dam

sep

L AY E R S :

l-27.2

Man made Interventionsubmerged

oct w-139.09

HIGHEST MEASURED WAT E R L E V E L

n ov w-135.81 l-30

Linganamakki dam

N a t u r a l - Existing contours, Forests: Muppane State Forest, Sharavthi river

w-121.4

l-31.15

d ec

Bird yoja

Built

l-19.9

l- water level above base of dam in m BASE OF DAM IS AT 544 MSL w- water stored in the reservoir in TMC

l-27.4

2

3

w-88.9

Shown as a cycle through the year with respect to the amount of rain received every month

jan

S I T E

a ug

SI TE COND ITIONS:

w-122.36

Man made InterventionHirebhaskara dam that intercepts water flow in the river , human settlements like Tumari scattered around the river valley and the agricultural plots with cart roads

4

Talakalele dam Kargal dam

Land

Sharavathi valley

Water

Reservoir

Sharavathi Valley +578m msl

C

B

Jog falls

Mahatma Hydroelec

Images showing Site Character during site visits

A

A: Sharavathi river- Linganamakki reservoir

SITE IMAGES B: Site Conditions near Hirebhaskara Dam and Sigandoor village C: Site Conditions near Linganamakki Dam and Jog falls

IMAGES OF HIREBHASKARA DAM

Nature worship Loss of Gods and temples

ISSUES

1 Festivities like Gopuja

Narayanappa Honnale

“ We can’t use that land. What use is the land here when it rains? Of course my son went outside to earn money. We got the bad end of this deal. They promised us so many things but I see none of them in reality.

So many of our temples have now drowned under the reservoir.

Our elders made a mistake asking for a ferry thinking bridge will cause problems but now we know how hard it is to get anything here. “

Boats and ferry as only means of transport “ When the ferry shut down due to covid lockdown i drove the ambulance from Sagar to take people from here to hospitals in the nearest cities and I used to work all day. I didn’t come back home for half a month at times.

We don’t have a police station here.

If i need to fight for my land in a law office I plan a 2 day trip to Sagar and back because after 6 pm you are stuck on either side of this man made island”

“Our family was displaced twice by both projects and we were given 13 acres of land in Purdal, our community was fully dispersed.

They have declared this area as a Wildlife Sanctuary and deny us amenities until we are forced to move again”

“We planted trees here on this land. We don’t have the land documents and we will never get them also”

HR Raghupathi

Lokpal and Omkar Jain

d’s eye view of Sharavathi ana-Existing dams

Gandhi ctric plant

Simple living in grass huts

“We came here after Gante Harish sir left and we cultivated his land; I do part-time in “When covid struck us here and we Bangalore for extra had to take them to the hospital, income. The water level we had to travel kilometers to receeds in may and reach Sagar, the nearest hospital” we harvest one batch of crop and “Why should we allow Bangalore to take then its submerged water when we ourselves cant use it?

They plough lands belonging to KPCL for the rest of the and they cant even take water for year” agriculture, its only for hydroelectricity”

Site is located along Hirebhaskara dam which was the first among the 4 major dams along Sharavathi river in Sagar taluk in Karnataka, which is currently submerged in the water of the Linganamakki reservoir which stores more water.

Both dams cause relocation of multiple communities and submerged large areas of land and ecosystems.

Hirebhaskara dam was the 3rd and largest siphon dam system in India when it was built.

“We used to have multiple Yakshagana institues in this area. It was called Kalenadu.

Now only 2-3 of them remain.

We are jains in this area. Inititally because of the queen there were a lot of jains in this region ,now the basadis are in ruin ( you will find many on your way to jog falls on the western edge) and our gods are now in the museum near Liganamakki dam.

We would love to perform but we can’t arrange funds if people are not interested”

Highlighting the issues faced due to the nature of the context: 1- Social : Loss of land as it gets submerged in the reservoir, disconnect to mainland, declining local arts and culture without exposure 2-Nature: Fragmentation of habitat, misuse of forest land, decline of endemic species in the bio-diversity rich zone

TIME CYCLE

ISSUES

(7) aug w-88.9 l-19.9

Durbars and markets that happened here are lost

Even though there is one hospital, no doctor wants to visit the place and we dont have other amenities as well

Ferry only works from 8am-6pm and the locals fight for a bridge or else they are stranded on a manmade island

Map showing type of vegetation (natural and cultivated) near the Hirebhaskara Dam in the Sharavathi Valley

West zone- Thickest vegetation cover- lesser variations in fish migratory path and habitat

Central zone- Most frequented by fishermen especially when water level else receeds.

Mostly in need of development due to overuse and lack of proper habitat

Map showing Lion-tailed Macaque sightings and current proposal area 33kV lines cant be taken from Linganamakki because of forest areas that come in the middle East zone- Closest to habitation- lesser forest coverLeads to more flactuations in water temperature causing variations in fish habitats seasonally

Evergreen forests Bamboo dominated forests Mixed plantations Scrub

Map highlighting the issues of fisheries in the area

Breakdown of fish species: Sharavathi

Natural extent

Fragmentation of land due to water body increasing in area

forest

Reduction of forest area by habitation and dam construction

Issue of fragmentation of habitat due to the submergence caused by reservoir constructions Threat to natrual habitats of endemic species in the area Locating the interviewees on the context map 5

Map showing type of fisheries near the Hirebhaskara Dam in the Sharavathi Valley Fishing ban in monsoon+ strict restrictions Fishing prohibited during 1 month initial monsoon

Open to fishing whole year Metalled roads Cart tracks

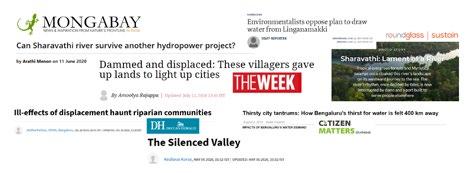

Issues related to ecologyHighlighted in articles

1 4

2 3

1-Holebagilu ferry point 1 2- Holebagilu ferry point 2 3- Tumari- site of interview 4- Sigandoor- site of temple 5- HIrebhaskara dam

Breakdown of the program in relation to the issues identified Visitors for specified functionDormitory Nature walk Seminar halls Studios Visitors who stay at siteReception Rooms Services Auxillary activities Boating Nature walk

HospitalityTourism

Visitors to sacred site and damReception Boating Gathering spaces

A1Resort

HOSPITALITY

A2Culture centre

MAIN CONCEPTS

Condition 1: Lowest water level-

Program For research groupsLab Outdoor work station Studio Seminar halls

Research

Stakeholders

Stakeholders IISc, Bangalore Local community Research groups

Karnatake Forest Department Government

Culture centre

Studio Demostration area

During summerTheatre Workshops- for Stakeholders learning, Local panchayat demonstration, Local community hands-on work Display along gallery During monsoonDisplay from research institute B1C U LT U R E C E N T E R Pavilion Local market Theatre

All spaces support gathering and spread of cultural activities, the dam gallery is part of the design, structure tethered to dam acts as culture centre and exhibition

C1Research facility B2Learning centre

C2Museum for R E S E A R C H U N I T awareness

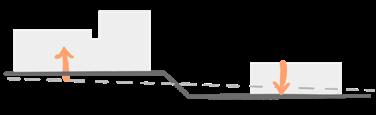

C O N C E P T S

Contrasting character of design on land and waterLand cluster being more solid and rooted and water cluster as a marker for existing structure, more temporal and transperent in character

(8)

Thesis is demonstrated at site of Hirebhaskara dam

The project identifies the cycle and layers existant in the context, analyses the issues faced around the year due to such cycles and proposes 3 major typologies for combating the problems. It is sensitive to both the natural cycles and man-made interventions and needs.

The project retrofits into the cycle as an added layer, without hindering the dynamics; in fact, it compliments it and allows effiecient use of the landscape.

Although the idea originates at an urban level, with consideration of the entire valley, the main focal point and first demonstration of the proposal is detailed as the thesis.

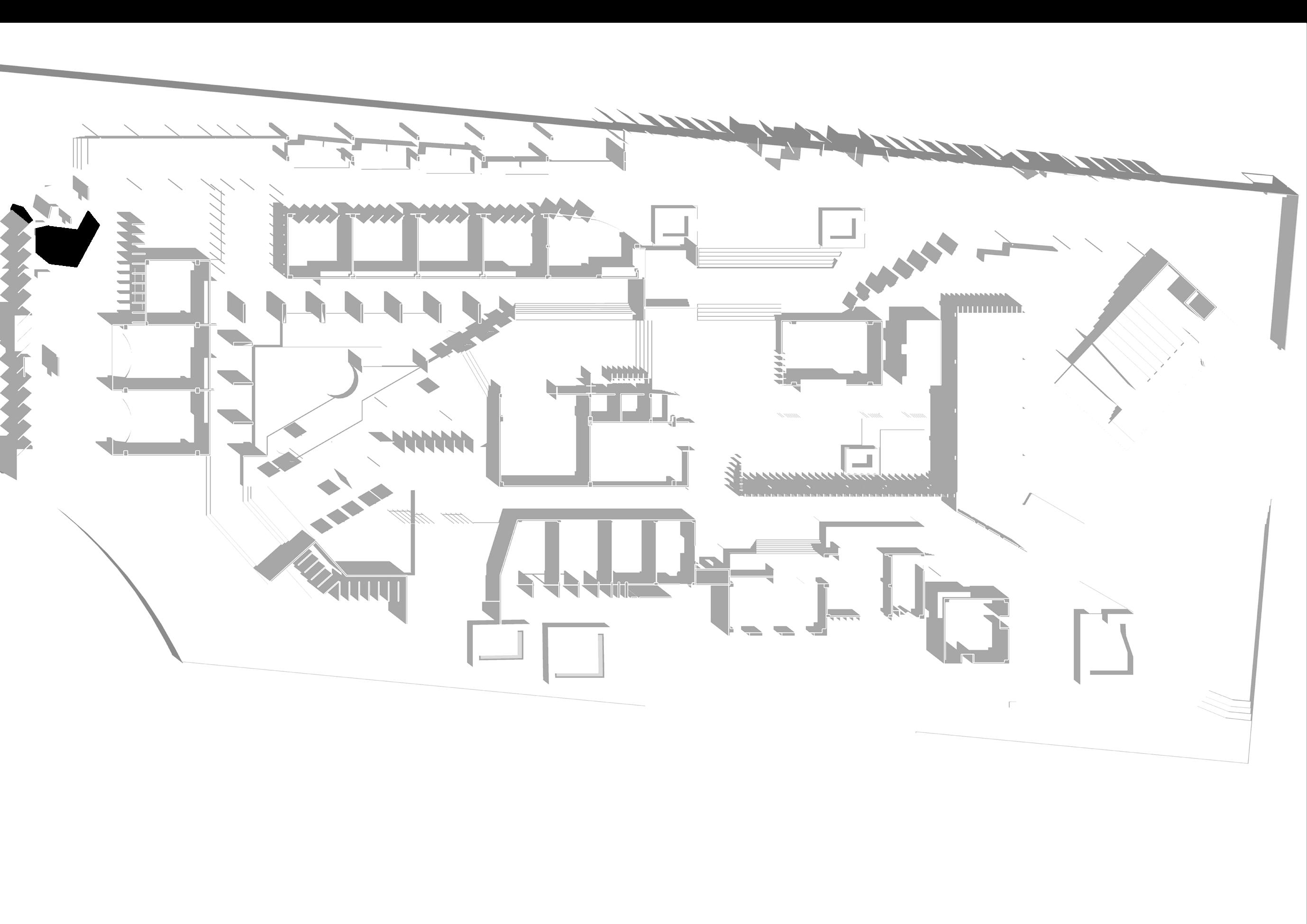

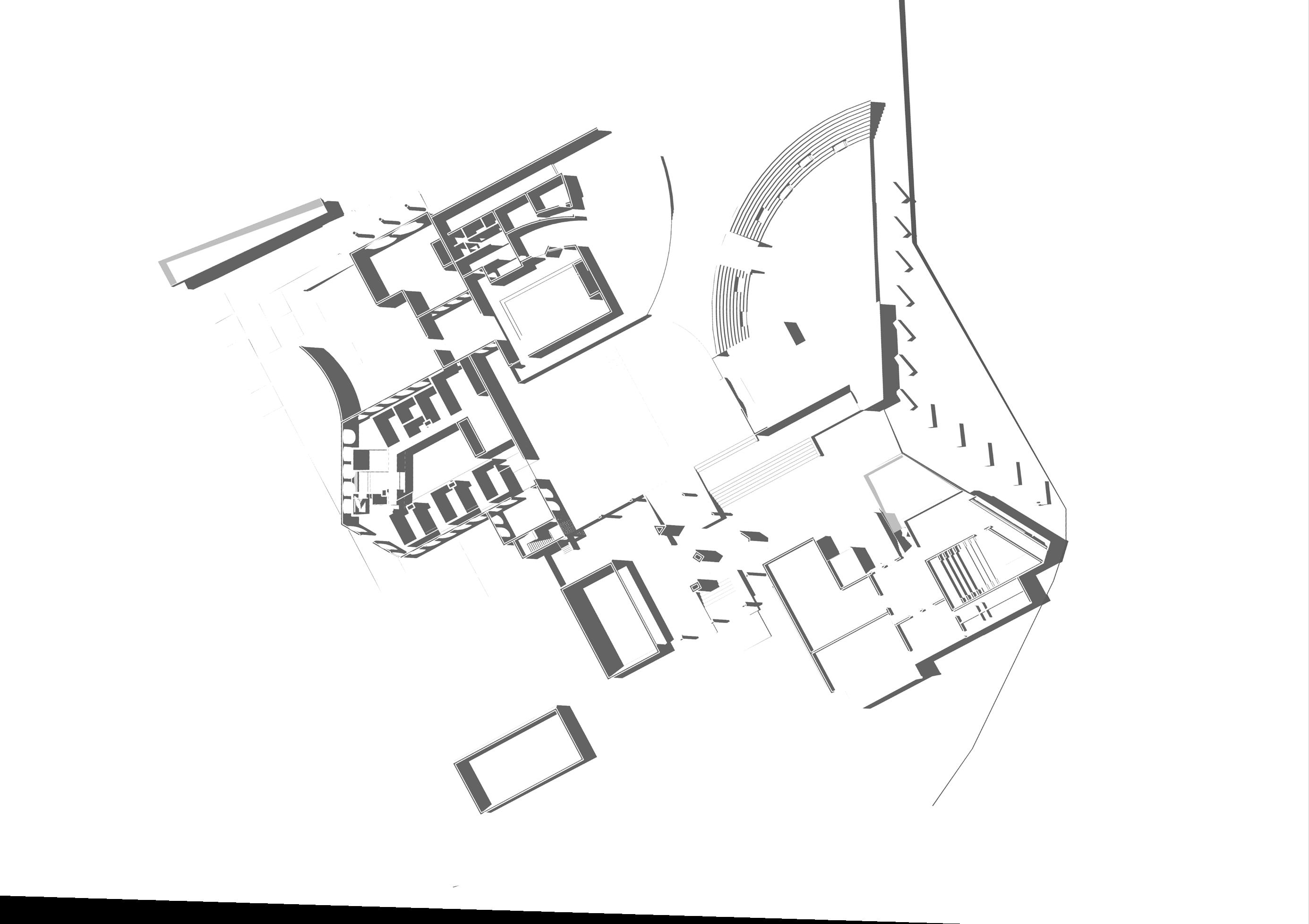

Key Plan of project showing 3 major typologies on site:

Contrasting character of design 1-Light dirzzleon land and waterInteract Land cluster being more solid and rooted and water cluster as 2-Heavy raina marker for existing structure, Rain collectors more temporal and transperent in to create views character

his land; I do part-time in Bangalore for extra income. The water level receeds in may and we harvest one batch of crop and then its submerged for the rest of the year”

Type B- Bottom fish

The design enables experience on siteThe character of site during monsoons makes the site unuseable

1

Hirebhaskara dam

Artificial reef plandeployment of units in complex for theatre structure in design

move again”

“When covid struck us here and we had to take them to the hospital, we had to travel kilometers to reach Sagar, the nearest hospital”

Enable the spread of culture during times of lower water levels- hidden structures resurfacing

Enable the spread of culture during times of lower water levelshidden structures resurfacing Highlighting the issues faced due to the nature of the context: 1- Social : Loss of land as it gets submerged in the reservoir, disconnect to mainland, declining local arts and culture without exposure 2-Nature: Fragmentation of habitat, misuse of forest land, decline of endemic species in the bio-diversity rich zone

“Why should we allow Bangalore to take water when we ourselves cant use it?

They plough lands belonging to KPCL and they cant even take water for agriculture, its only for hydroelectricity”

Introduction of artificial reef using the structure of the tethered design in the reservoir to increase aquatic habitat and help culture of endemic species.

The type of fishes, the unit structure and plan of arrangement of units shown.

Location of tourism spot at hirebhaskara which is an important node for current travellers- reduces the stress on development in Jog region which Even though there is one has endemic habitats hospital, no doctor wants to

Durbars and markets that happened here are lost

visit the place and we dont have other amenities as well

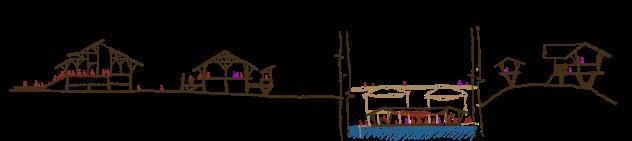

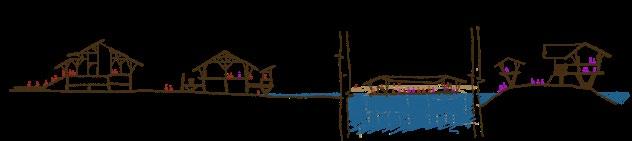

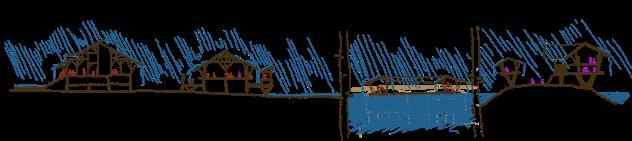

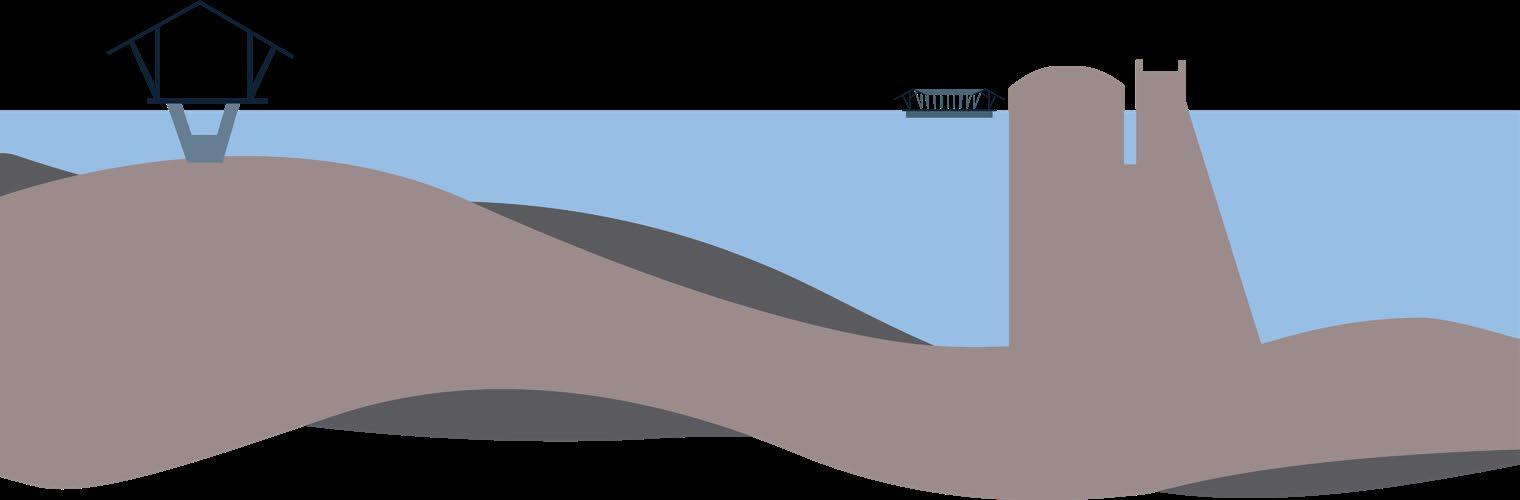

CONCEPT SECTIONS The conceptual section is represented only works from 8amCondition 1: Lowest Ferry water levelType B- Bottom fish as a cycle with 4 main conditions as the 6pm and the locals fight for a bridge or else they are water level fluctuates through the year stranded on a man-made Artificial reef plan- deployment

2

FRL- 577m 572m (MSL)-0m 558m- measured lowest 544m

Key section and levels 0m

Muppane state forest

10m 20m

Key 1- Culture center - near dam 2- Resort/hospitality 3- Research facility and display

0m

Access routes- ferry

5m

10m

15m

of units in complex for theatre structure in design The project is designed to fit into the cycle

theatres.\ Condition 2: Mid When the water level is high and nature water level Ihas the upper hand then the design acts The water level starts as a pavilion view increasing andto rain is the scenic backdrops andminimal. the spaces where activities happen still The cultural activities continue and are introverted.

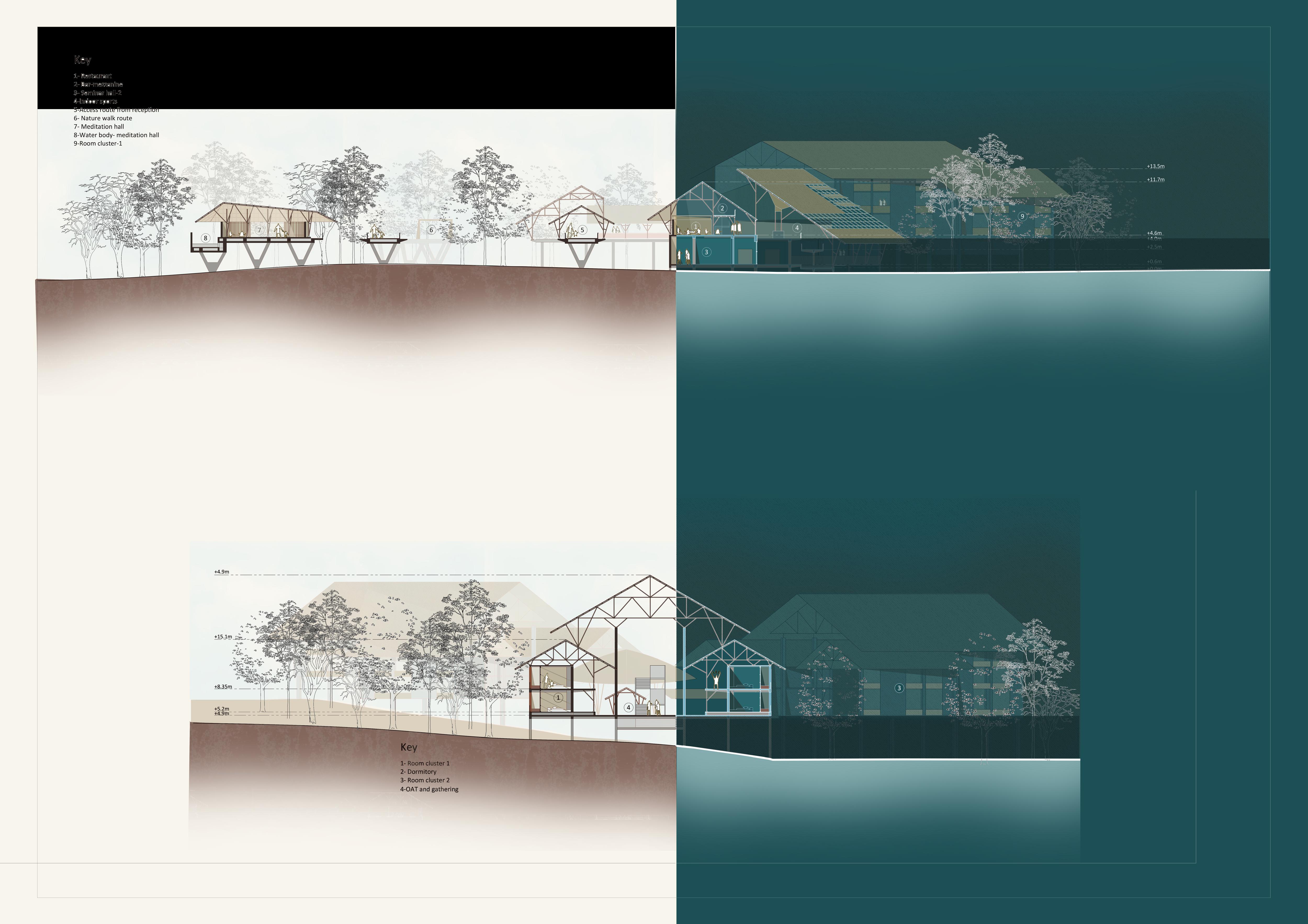

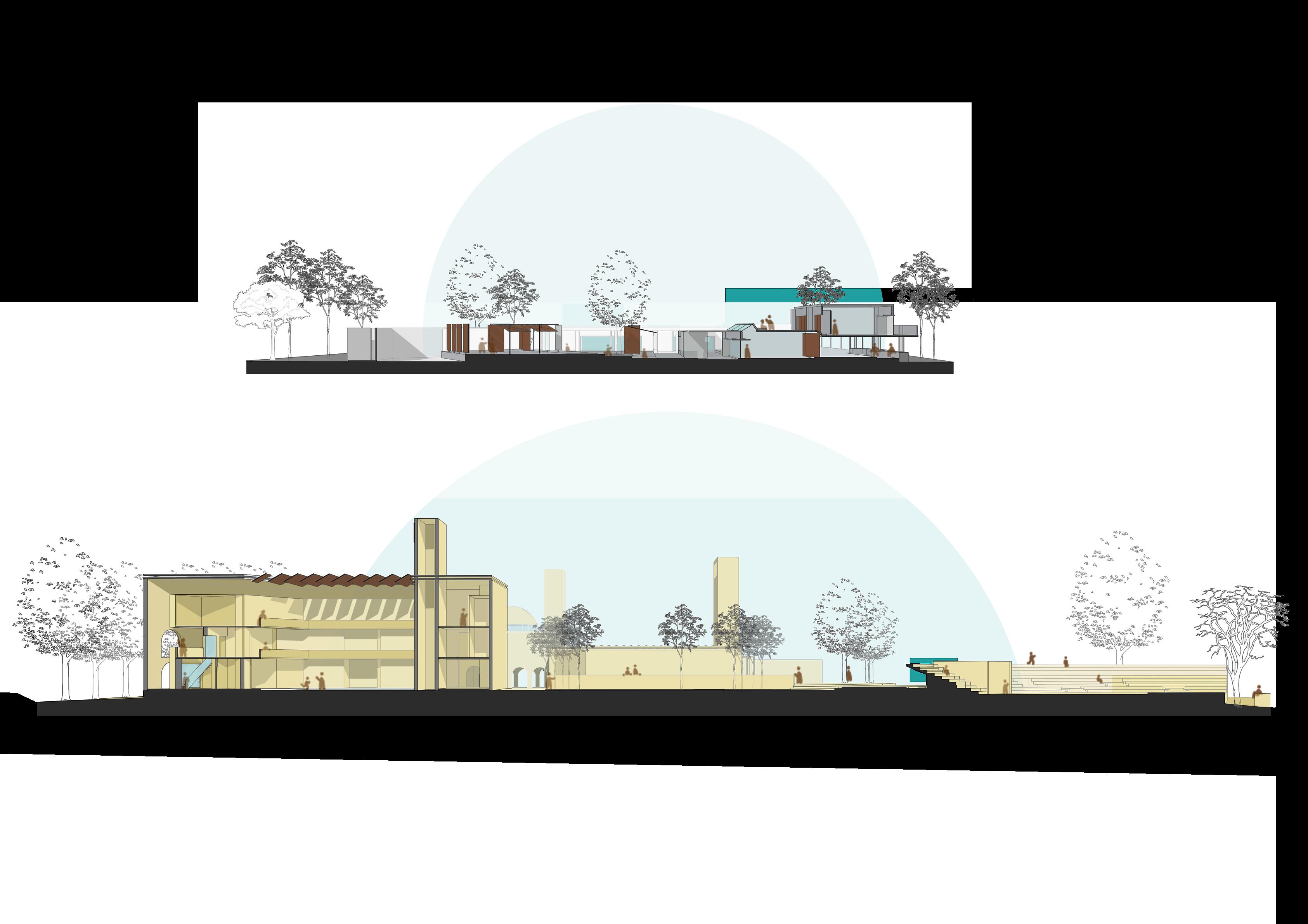

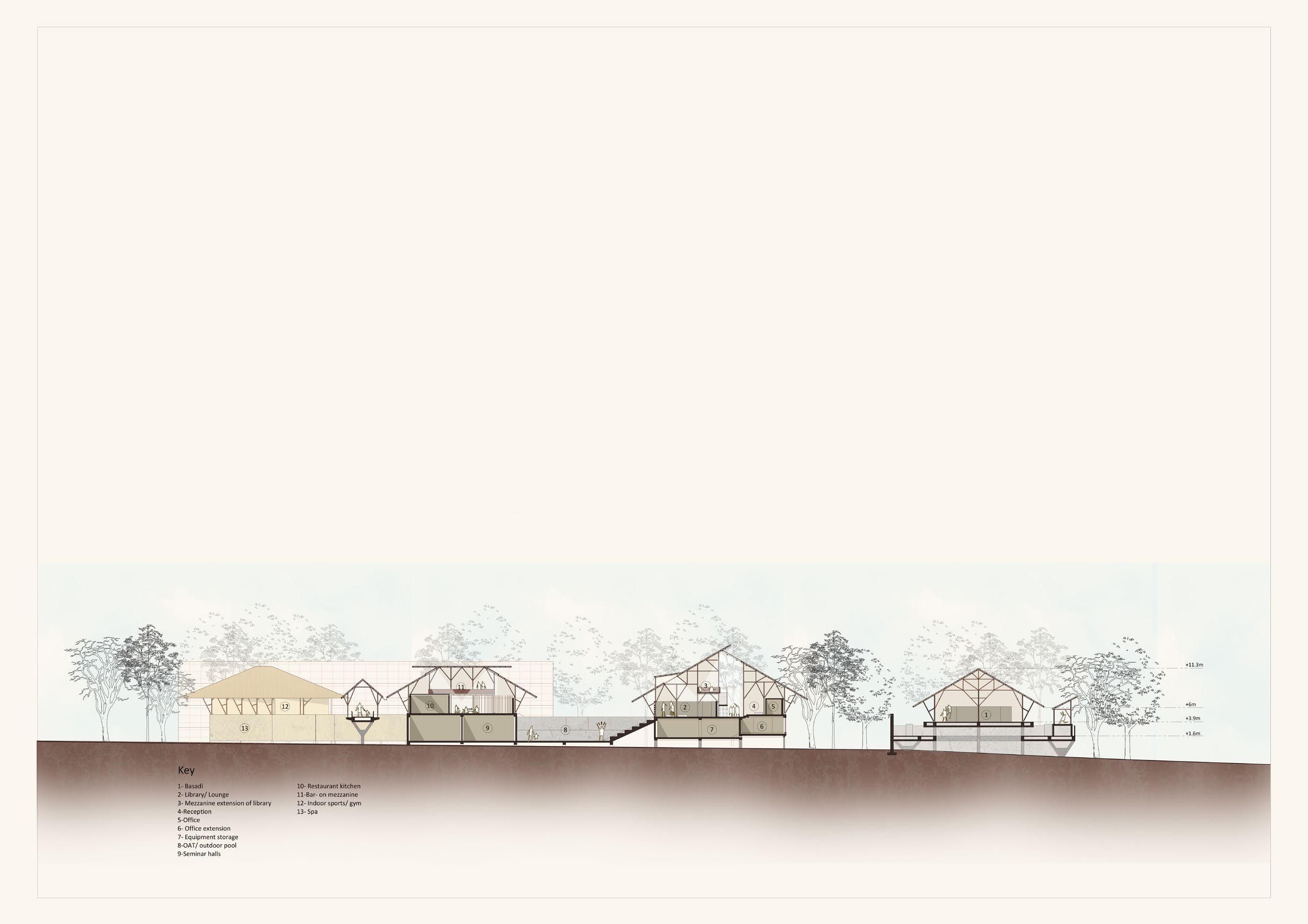

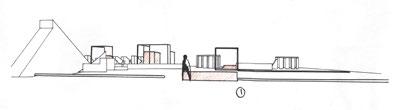

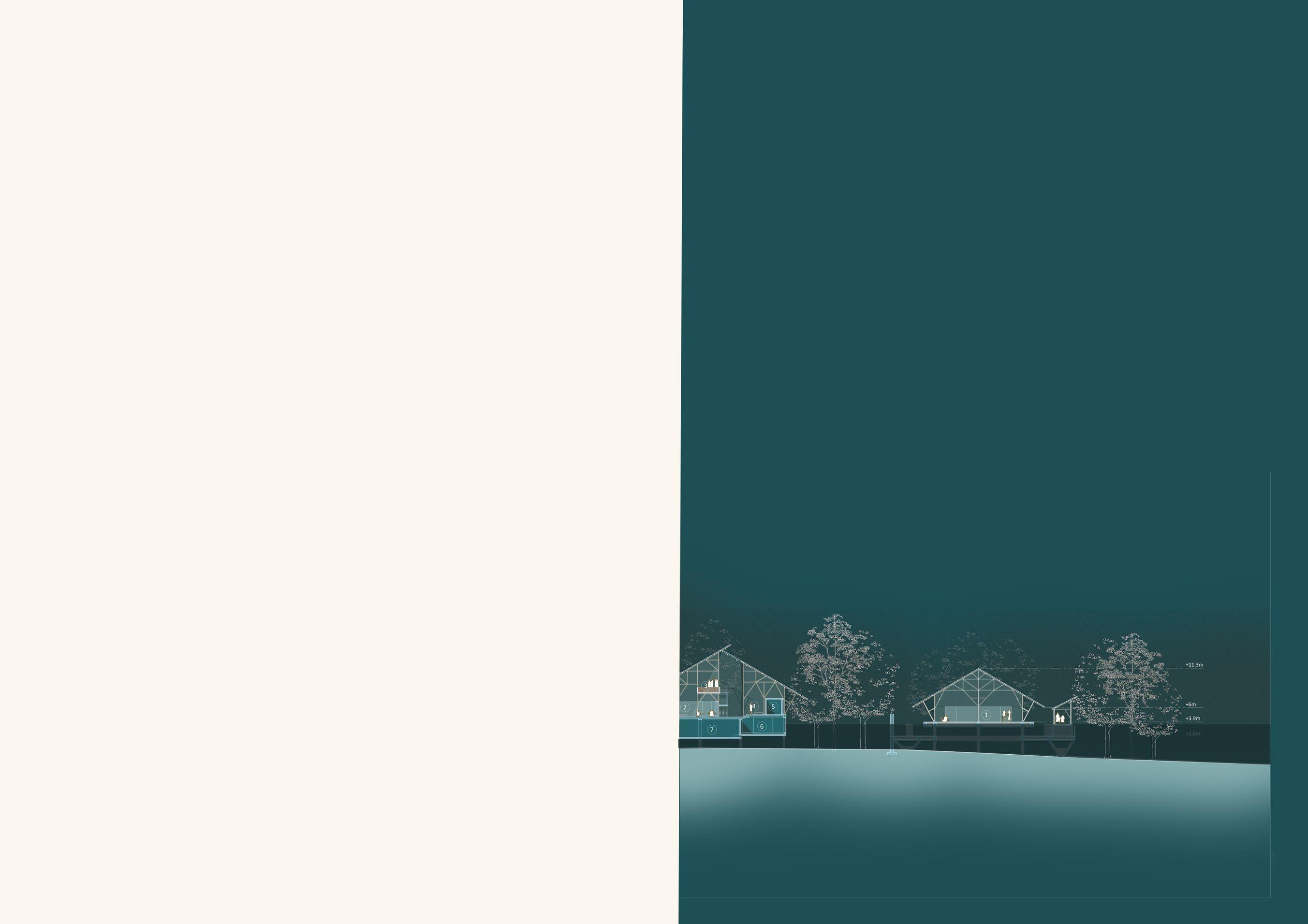

Site Sections

island

exisiting and complement it.

Introduction of artificial reef using the structure of the tethered Condition 2: Mid design in the reservoir to increase When the water level is low and it reveals Type Aaquatic habitat and help culture theMigratory man-made intervention of the dam fish of endemic species. in the context, the design also aims to The type of fishes, the capitalise on the human and social aspect unit structure and plan of arrangement of units shown. by uncovering spaces for workshops and

there is a slow shift of activity towards the hospitality sector.

Boats and ferry as only means of transport

The design enables “Our family was displaced experience on sitetwice by both projects and we were given 13 acres of land in Purdal, our community fully The character of was site dispersed. have declared thismakes area as duringThey monsoons a Wildlife Sanctuary and deny us amenities until we are forced to the site un-useable

Normal medium density rainfallRain wall- form enclosures with “We came here afterstructure Gante roof Harish sir left and we cultivated

EXTENTION OF NATURE

3

Simple living in grass huts

Festivities like Gopuja

“We planted trees here on this land. We don’t have the land documents and we will never get them also”

Type AMigratory fish

1- Cultural Centre- tethered to Dam 2- Resort, Exhibition and Basadi- On Banks of the river 3-Research unit- On the Island at end of the Dam

Nature worship Loss of Gods and temples

The dam as the main human intervention on site

EXTENTION OF CONTEXT Creating a complex network of functions around the valley to re-link the communities dispersed-

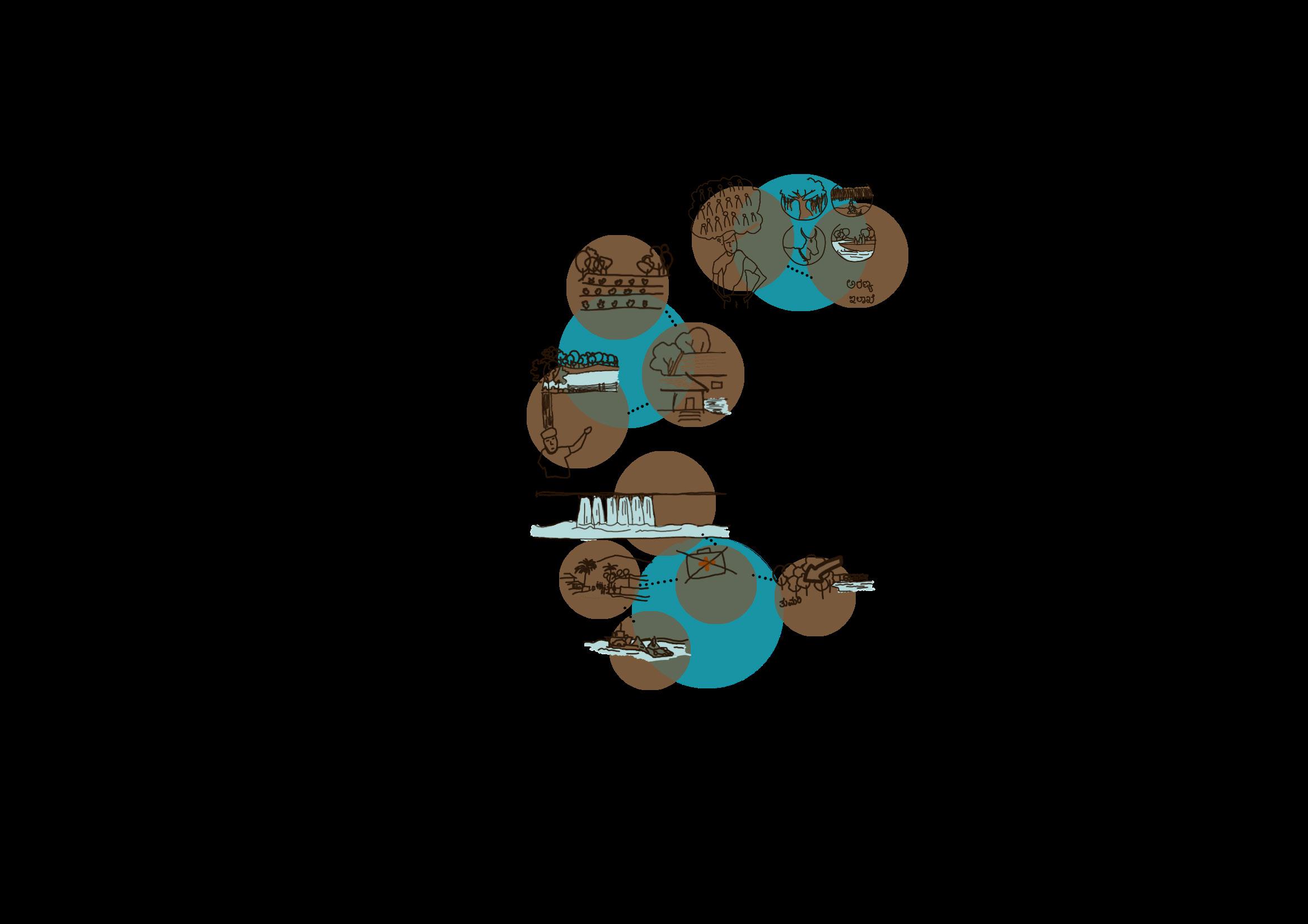

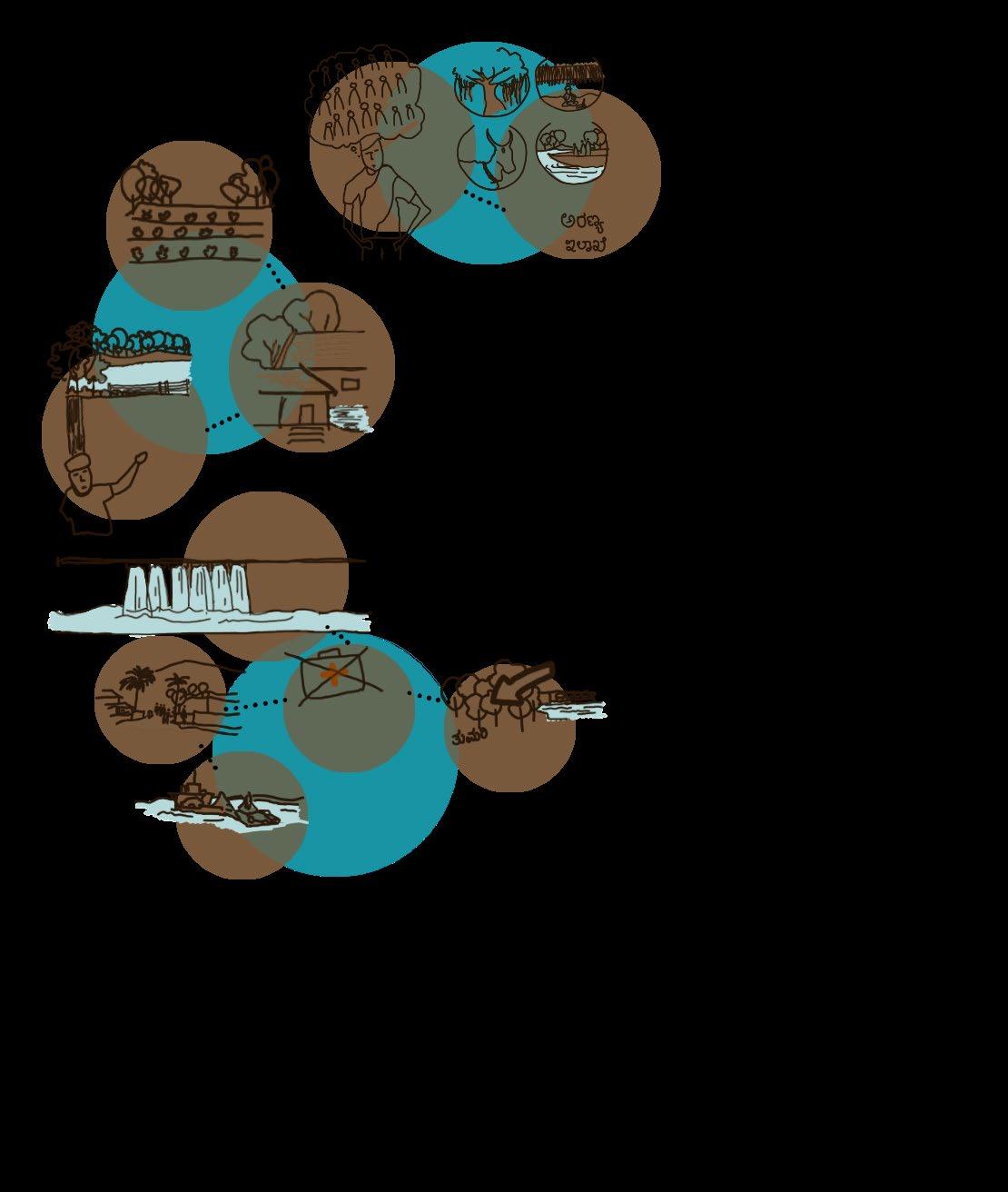

Analysis from Site Visits is represented as a cycle and the co social and nature-related as well as aestheic and cultural i interviews on site and articles published in

The dam as the main human intervention on site

For stayRooms Reception Office Display area

water level I-

West zone- Thickest vegetation cover- lesser variations in fish migratory path and habitat

33kV lines cant be taken from Linganamakki because of All spaces forest areas thatsupport come in thegathering middle

and spread of cultural activities, the dam gallery is part of the design, structure tethered dam East zone-to Closest to acts as habitation- lesser forest culture centre and exhibition cover-

Leads to more flactuations in water temperature causing habitats Thevariations waterin fish level starts Central zone- Most frequented seasonally by fishermen especially when increasing and rain is water level else receeds. still minimal. The cultural Mostly in need of development activities continue and there due to overuse and lack of proper habitat

is a slow shift of activity towards the hospitality sector.

Map highlighting the issues of fisheries in the area

Breakdown species: Sh

Design is tool tocycle experience The conceptual section is represented as a with 4 ma nature.

Research thrives. fluctuates through the year

Condition 3: Highest Water level-

Condition 4: Mid water level II-

The water level starts reducing but the rain continues. The design enables experience of context and interacts with the rain, rather than just shielding

Extended large roof acts as barrier to noise and light escaping from design and creating disturbance for nature around.

Inward looking design.

ROOF

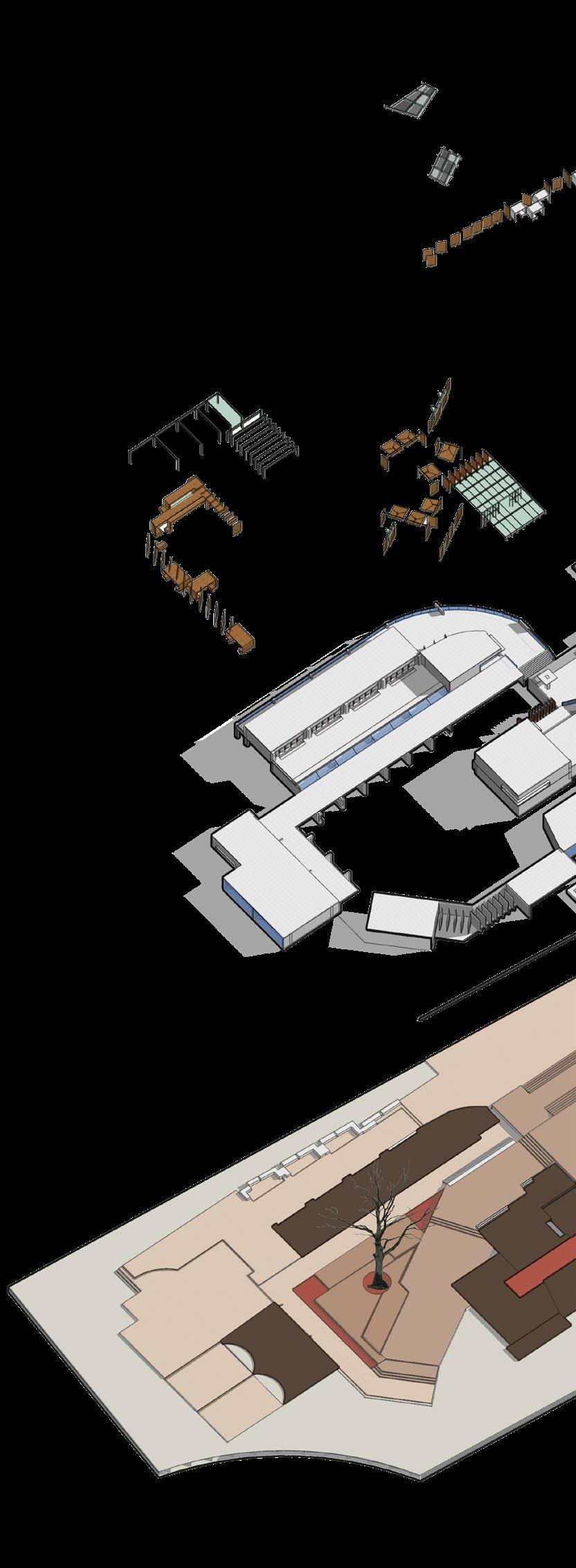

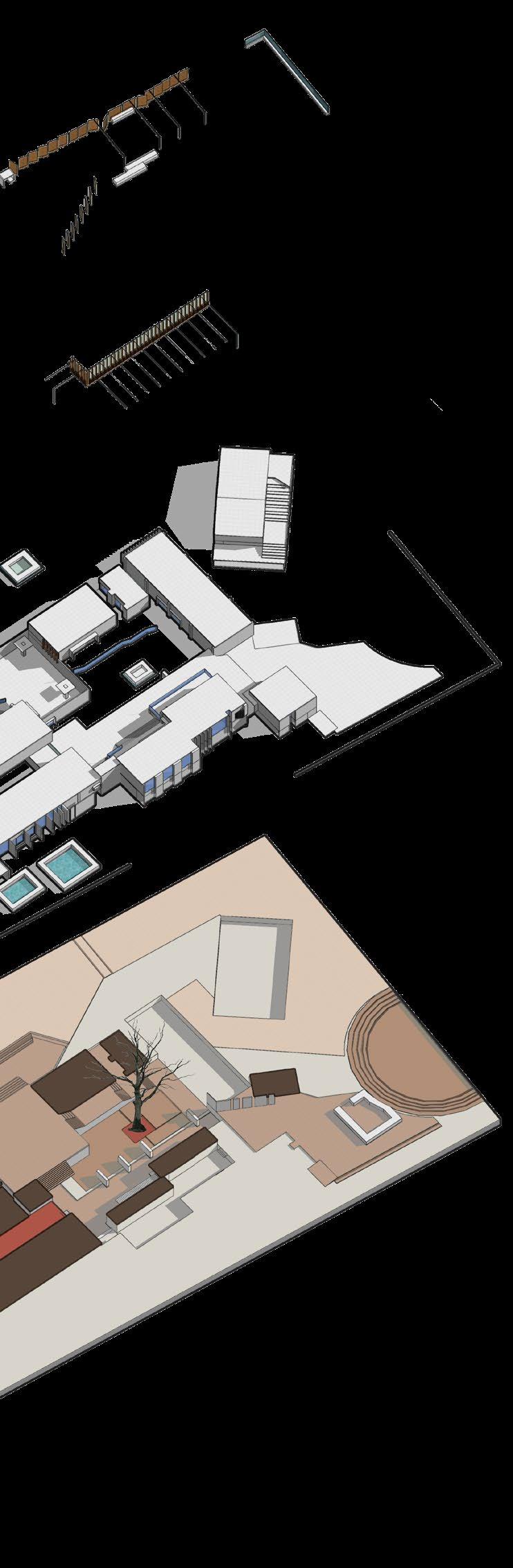

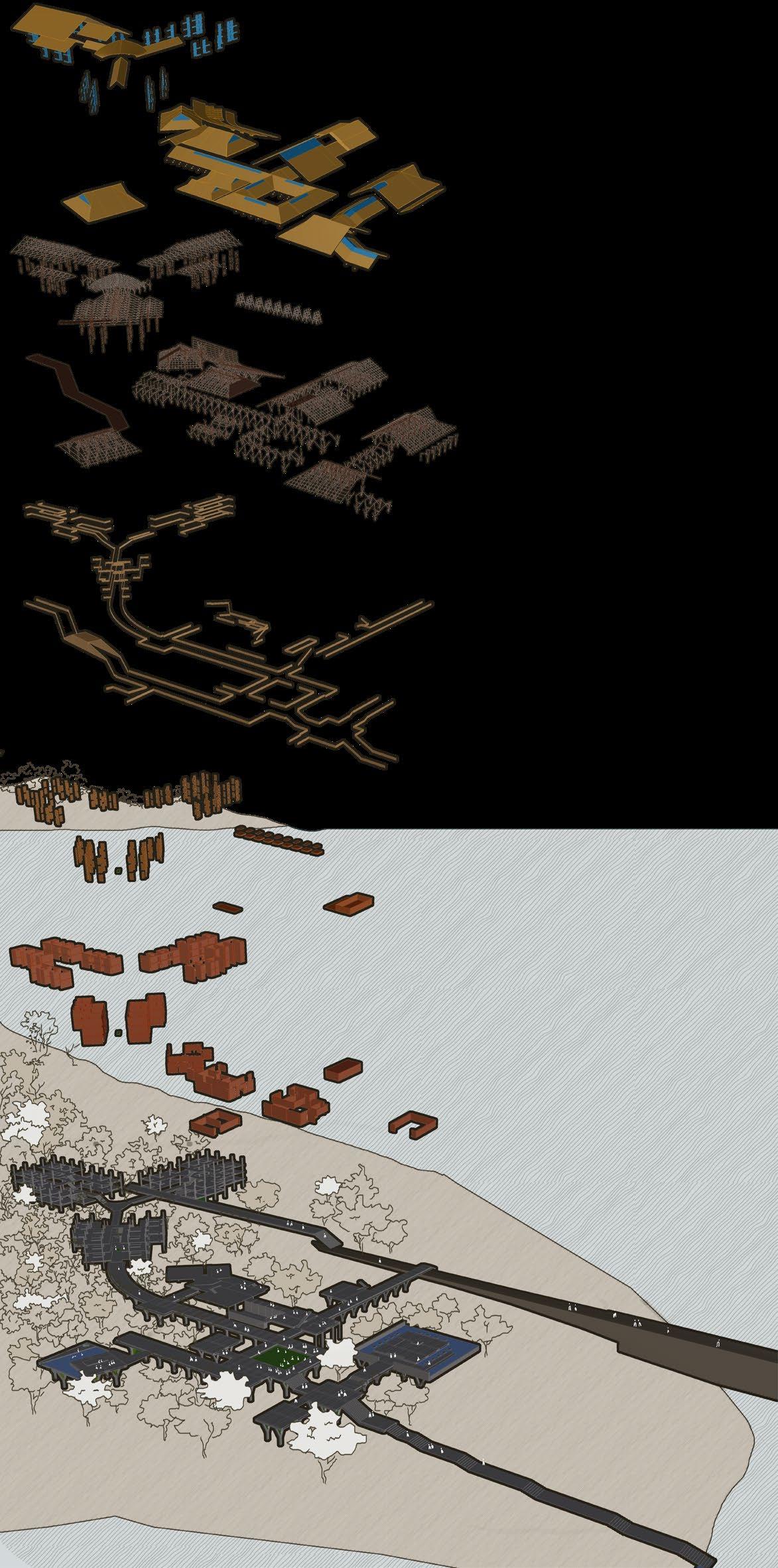

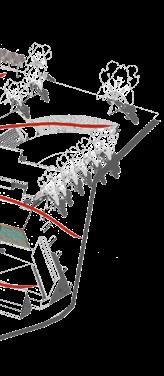

EXPLODED VIEW OF DESIGN ON LAND: EX PL AIN IN G TH E DESIGN DETAILS U SED TO ACH IEVE TH E CON CEPT

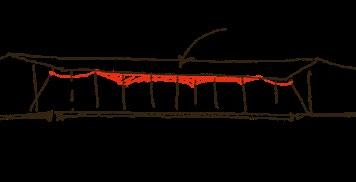

Roof ideas inspired by tree canopy and cover and the roofing in malenadu house, if re-created in a bamboo structure Parapet detail: The simple addition of a slab cut-out paired with the raised plinth is seen to trap insects during rains.

STRUCTURE

Rain wall Skylight Structure Wall

Shaded area

Bamboo half culm

Use of screens allows diffused light in the day; at night it appears to glow dimly

Concrete grout

Steel gusset plate Slab cut-out to trap insects by collecting water

Materiality: Bamboo and clay blocks used as main materials to evoke sense of building with wood and mud.

Located closest to bamboo plantations- easily available Concrete plinth seen as relating to the human intervention of the dam

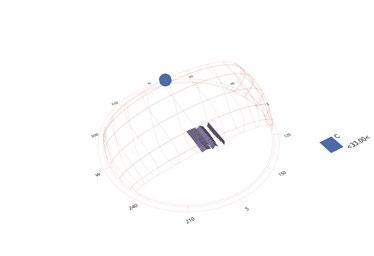

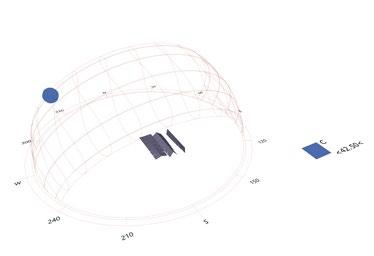

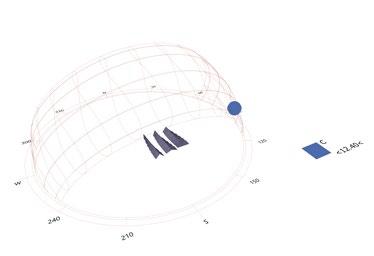

PA R A P E TS Response to sunpath, wind and views- RECEPTION/ Katte 1- Entry 2- Foyer 3- Boating office 4- Basadi 5- Reception 6- Admin office 7- Way to dam and boating 8-Office and Storage for adventure trails 9- Way to adventure trails 10-Meditation centre 11- Restaurant, spa and gym 12- Rooms 13- Floating rooms

SCREENS

ENCLOSURE Relationship with forest edge Idea of a Malenadu house and programatically breaking down its functions for zoning activity on site 13

12

11

6 5

9 8

4 2

10

1 3

PLINTH & CIRCUL ATION

7

Plinth condition- Used by people above and animals below

Raised plinthAllows context to flow as ground cover and canopy Shades the areas of reservoir under the structure

(9)

11 +4.6m

3

10

+4.1m

+4.6m

8 +5.05m

15

9

+4.6m

+4.6m

1 +0m

12 +0.6m

13

2

+5.1m

+3m

17

+3.4m

14

+5.1m

4 +3.3m

6 +4.6m

A

16 +4.6m

18

FRL- 577m 572m (MSL)-0m

+4.6m

558m- measure 544m

Key section and levels 0m

7

Key

+4.6m

1- Entry from ferry 17- Central courtyard for use 2- Threshold 1- sacred zone Performers/ for shorter stay d 3- Basadi 4-Boating office 18-Towards room clusters 5-Meditation hall 6- Nature walk office and storage 7- Treehouses 8-Reception 9-Lounge/ Library 10-Administration 11-Public access to dam 12-OAT/ outdoor pool 13-Restaurant and bar 14- Restaurant deck 15- Indoor sports/ gym 16-Back entrance and threshold 3

5 +4.6m

PLAN WITH RISE IN WAT E R L E V E L S

PLAN:

RECEPTION SIDE

RECEPTION SIDE

0m

SECTION A

10m 20m

5m

10m

15m

BEFORE DAM CONSTRUCTION 3

1

Hirebhaskara dam

2

FRL- 577m 572m (MSL)-0m 558m- measured lowest 544m

Key section and levels 0m

Muppane state forest

10m 20m

Key 1- Culture center - near dam 2- Resort/hospitality 3- Research facility and display

0m

5m

10m

15m

AFTER DAM CONSTRUCTION

Access routes- ferry

KEY PLAN:

ENTIRE DESIGN

When the dam was constructed, most of the villages were submerged fragmenting not just the vegetation but also the cultures AFTER DESIGN:

Lowest water level

(11) Muppane state forest

PLAN:

L A N D PA R T

ed lowest

e by duration

Before construction of dams and hydroelectric projects along the Sharavathi, locals lived peacfully in villages nearby, fishing in the small stream when needed

DESIGN DEVELOPMENT Circulation patterns Use of dam bridge as spine.

The design allows culture to shine through when the water level recedesspreading awareness about the regional traditions AFTER DESIGN: Normal condition

Main axis Dam as datum.

View points generated by forest, reservoir and dam.

It also enables the user to enjoy the scenic beauty of the place; creating a pause point in between over-populated tourist destinations AFTER DESIGN:

Highest water level

Grid introduced on site

The design engages with natural constraints like the weather and fluctuations of water levels, making it a part of the design mechanics

ILLUSTRATING THE CYCLE WITH DESIGN PLUGGED IN

558m- measured lowest 558m- measured lowest 544m 544m

Key Keysection sectionand andlevels levels

0m 10m 20m 0m 10m 20m

Key Key 1- Entry from ferry 1- Entry from ferry 2- Threshold 1Sacred space 2- Threshold 1- Sacred space 3- Basadi 3- Basadi 4-Threshold 2- Courtyard 4-Threshold 2- Courtyard 5-Reception 5-Reception 6- Administration 6- Administration 7-Meditation hallhall 7-Meditation 8-Nature walk office andand storage 8-Nature walk office storage 9-Restaurant 9-Restaurant 10-Indoor sports 10-Indoor sports 11-Restaurant deck 11-Restaurant deck 12-Room cluster-1 12-Room cluster-1 13-Room cluster-2 13-Room cluster-2 14-14Dormitory cluster Dormitory cluster 15-15Detachable rooms Detachable rooms 16-16Towards dam Towards dam 0m 0m

5m 5m

15m 15m

10m 10m

16

13

13

16

15

15

3

6

3

6

5 2

11 5

4

9 10

11 12

2

1 8

4

9

1

10 14 12

8

14

FRL- 577m 572m (MSL)-0m

7

Key section and levels 0m

10m 20m

558m- measured lowest

(12)

7

0m

Key

544m

Key section and levels

1- Entry from ferry 2- Threshold 1- Sacred space 3- Basadi 4-Threshold 2- Courtyard 5-Reception 6- Administration 7-Meditation hall 8-Nature walk office and storage 9-Restaurant 10-Indoor sports 11-Restaurant deck 12-Room cluster-1 13-Room cluster-2 14- Dormitory cluster 15- Detachable rooms 16- Towards dam

10m 20m

Key 1- Entry from ferry 2- Threshold 1- Sacred space 3- Basadi 4-Threshold 2- Courtyard 5-Reception 6- Administration 7-Meditation hall 8-Nature walk office and storage 9-Restaurant 10-Indoor sports 11-Restaurant deck 12-Room cluster-1 13-Room cluster-2 14- Dormitory cluster 15- Detachable rooms 16- Towards dam

1

Reception

ROOF PLAN

LAND SIDE

0m

SECTION 1

Lower water levels

5m

10m

0m

15m

5m

10m

15

Restaurant and spa

(13)

Meditation centre

Rooms

0m

SECTION 1

Higher water levels

4.5m 1.5m

9m

3

1

Hirebhaskara dam

2

FRL- 577m 572m (MSL)-0m 558m- measured lowest 544m

Key section and levels 0m

Muppane state forest

10m 20m

Key 1- Culture center - near dam 2- Resort/hospitality 3- Research facility and display

0m

5m

10m

0m

15m

Access routes- ferry

KEY PLAN:

PLAN:

ENTIRE DESIGN

WAT E R PA R T

A

SECTION A: ROOF PLAN

H I G H E S T WAT E R L E V E L CONDITION

(14)

DETAILED PL AN OF FLOATING STRUCTURES:

DETAILED PL AN OF FLOATING STRUCTURES:

H I G H E S T WAT E R L E V E L CONDITION

NORMAL CONDITION

Bouyant element Anchor for platform Enclosure for supports

Artificial reef

Piles

SECTION A: NORMAL CONDITION

SECTION A: LOWEST WAT E R L E V E L CONDITION

R E N D E R S

5m

10m

15m

EXPLODED VIEW OF D E S I G N O N WAT E R :

BEFORE DAM CONSTRUCTION

E XPL A I N I N G T H E DE SI G N D ETA I LS U SED TO ACHI E V E TH E CON CEPT

Detail of Bouyant Anchor which automatically releases upper surface when water level rises.

Upper platform acts like a lid attached with bouyant element on the periphery to help it rise Detail of Supporting structure which works similar to a scissor lift with a hydraulic hinge. This allows the strcuture to rise up and down (z-axis) with water level but prevents any movement in the horizontal direction(xy plane)

Proposed relation to dam structure Existing dam bridge is used as spine. When the water level receeds, the Dam platform becomes extened part of design Use of galleries in dam to display art during dry part of the year

AFTER DAM CONSTRUCTION

Tensile temporary roof

Rhythm of the columns supporting the siphons in the dam is re-created on site with bamboo trusses

Temporary roof added during the dryer months

Exhibition display Performance stage Mid surface swimmerrohu,cyprinids

Swimming

Benthic fishcyprinids

The platform is designed in way to act as a space for exhibition, performances and workshop during the dry months and allow swimming with rise in water level

AFTER DESIGN:

Lowest water level

Types of fishes found in the Sharavathi river and type of artificial reef adopted

ROOF ALUMINIUM SHINGLES 6

AFTER DESIGN: 4

ROOF SUPPORT STEEL

Normal condition

3

2

1

AFTER DESIGN:

Highest water level

PLINTH & CIRCUL ATION

STRUCTURE ARTIFICIAL REEF

1- Exhibition and Performance 2- Dance and culture workshops 3- Learning studio for locals from the research unit 4- Research unit display and workshops 5- Market and commercial 6- Dam Bridge

ILLUSTRATING THE CYCLE WITH DESIGN PLUGGED IN

2

The Desert Getaway

Located in Jaisalmer near the Bada Bagh Project type : Hospitality, Resort

1

BRIEF .

1.

The Resrvoir and the Dam Integration with site Porous edge

Architecture as a man-made ecosystem, which is self contained and sustainable~

Enery conservation/ Urban heat island The Energy calculations is split into the 3 zones and each of the 3 zones integrate solar panels to generate their power.

The objective of this project was to design climate responsive architecture in harsh climatic conditions of Jaisalmer in India.

EPI expected- 198/200 EPI achieved: Rooms- 113 Public block- 187

It is a retreat for the people of the city as well as the tourists visiting any nearby monuments. Concepts of green architecture and elements of contextual arcchitecture are consciously applied to design a functional and efficient building, an oasis in the desert

Over 50% of the paved spaces are shaded

2

2.

Water conservation/ Landscape

The placement of water bodie the contours and is located at lowest points.

The other water bodies are fille treated waste water from the placed nearby

For landscaping, native trees w have very less water requireme used

Quality of space/ material Buffer spaces Layers

4.

BRO office

(16)

Use of wind catchers/ Comfort conditions

Bada Bagh

Ramgarh road

The two methods in which the windcatchers function: 1- Use of HTD and evaporative pooling by pools and direct supply

3 Site

26.9533742, 70.8834762

Located in Jaisalmer near the Bada Bagh In the location of India’s first wind farm Climate : Hot and dry Resources available : Wind/ Solar energy

Site elements : Effect on design

14.5m

3.6m 0m

SECTION BB 0m

3.6m

10.8m

Wind movement/ Orientation Necessity of screens Windcatcher profile

2- Use of HTD and ducted supply to spaces

GREEN BUILDING QUALITIES

An additional buffer screen is vided for shading since the ra tions are high and the angle fo VSA comes up to be higher a more shading is necessary

Process

DESIGN ELEMENTS

i. Vehical circulation and parking as per proposed circulation ii. Public zone with access to monument through design iii.Semi Public zone with ameneties iv.Private zone with rooms v. Final design with landscapping

iv.

Entry to Semi-public zone

PROCESS AND MOVEMENT

es follows the

Entry to rooms

ii.

Movement through transition zones

ed with clusters

which ent are

The three zones are connected by nodes as transitional spaces

5.

Shading/ Materiality

s proadiaor HAS, and

3.

Orientation The zoning of the spaces in this particular fashion ensures that at all time periods throughout the day, the various activities happen in shaded spaces, opposite of the sunpath

Semi-public zone: 2- Lobby 3- Spa 4- Gym 5- Sports (outdoor)

Varying height of wind catchers as per the heights of the spaces served

SEMI-PUBLIC ZONE

Entry

Used mostly during evening and early morning hours

iii.

Zoning Key: Private zone: 1-Rooms

The levels follow the contours

Public zone: 6-OAT 7-MPH 8-Restaurant 9-Bar 10- Central lawn

7

Landscape as screen is used to shade and demarcate spaces

PRIVATE ZONE 4

Used mostly during night hours and in the afternoon

3 5

OAT follow the design of the ghats

9 6 1 10

PUBLIC ZONE Used mostly during morning hours

ZONING WITH RESPECT TO ORIENTATION AND ACITVITY

Integration of water bodies for cooling

8

2

Proposed circulation Key: Vehicle access

CIRCUL ATION

For people staying at the hotel Acess to public and semipublic areas from rooms General public/ tourists Restaurant and OAT access

(17)

Site

Bro Office

Plan at +1.2m 0m

5m

15m

35m

B 3

1

4 5

6 8

2

11

(18) 13

12

7

10

9

16

A 15

26

25 24

B 14

18 EY

AIR

CK

HO

20

22

17 TW

IN

INDY

50

0W

IDE

27 GA

VR

SE

SK

I SU

PE

ISIS CR IN TIMESD TW II

RG

23 21

19

A

15

1.

2.

3.

4.

28

Plan at +6.5m KEY

1-Main entry 2-Lobby 3-Parking under the OAT 4-Water pool near entrance 5-Kitchen and unloading deck for restaurant 6-Restaurant outdoor deck seating 7-Restaurant 8-OAT 9-Bar dance floor 10-Bar outdoor seating 11-Exit from OAT seating to bada bagh 12-Spillout near lobby 13-Reception node 14-Relaxation zone node

15-Room cluster 1 16-Lawn for banquet- spillout from restaurant and bar 17-Badminton courts 18-Room cluster spillout 19-Services 20-Outdoor shaded court 21-Outdoor court- not shaded 22-Indoor sports 23-Gym 24-MPH 25-MPH spillout 26-Swimming pool 27-Toilets and changing rooms 28-Room cluster 2

(19) 2.

1.

4.

3.

Renders

Section AA 0m 2.5m

7.5m

17.5m

1-Recreation area bird’s eye view 2-Rooms 3-Entrance lobby 4-Semi-public areas +23m

+16.8m

+10.5m

+3.6m +0m -1.3m

3

Site features Natural features on site like the levels due to contours, the trees and the edge conditions are preserved in the design

1.

Screening the building

i n - B e t w e e n p a u s e s : The

Tempor

5.

2.

As a frame

film institue

Boundary edge and building facade

5.

Located in Mysore inside Mysore university campus Project type : Institution

3. as Fenestration

Integration of screen in design

As a stationary screen

4.

Colonnade with seating

BRIEF .

Architecture acts as a lens to capture daily activities which happen within spaces

As a moving screen

The objective of this project was to design a film institute trying to maximise the functionality of the space and heighten the daily experiences within

Edge of promenade, create pause points

Linear actuators and bevels with metal clamps for fixing are used for the screens

The design has porous edges with strategically places voids which capture activities happening within the institute from the exterior whilst also framing the views of the outside from the interior

Plan and sections

While moving between formal spatial modules, the population can spill out and interact in areas created by the screen.

It slows down pedestrian movement , creating pause points like obsticles in an urban street

The existing architecture inside the campus, the view sheds, main circulation paths and acitivity mapping was done to inform the zoning

Mangalore-mysore highway

ad

Karnataka State Open University

Entry

Bo

Campus ro

1.

Accentuating informal space

Context study

OAT

2.

Kukkarahalli lake

The promenade The hierarchy of streets seen in cities is adapted in design. By using the screen pause points are created and the stepped court blurs the sharp edges of the promenade

ga

di r oa

d

Site 12.309034, 76.624669 Located in old Mysore University campus Focus: Experiential architecture Type: Institution

Light fabric roof over certain parts imitates mysore streets during procession

Entry, visual axes and circulation

low density medium density high density

9am-1pm 1pm-4pm after 4pm

Activity mapping

4.

Concepts

rary roof

Idea of the screen Screens

Replacing one solid edge of a courtyard by a porous screen

Interconnected courtyards The porus edge of one courtyard connects to the other to form a hierarchy

Framing the views

Axis

The design captures the views around through the screen, like a film strip

The predominant path for circulation is changed and building is organised along this axis

Key

Public Semi-Public Private Closed Semi-open Open

i. Given site

ii. Massing as per zoning and proximity diagrams

iii.Promenade is introduced on one edge, integration of courtyards

iv.By having the promenade cut through the site, it establishes a relationship between built and circulation paths, an urban street

(21) Zoning

3.

Process v. Variation of levels of promenade so it acts as vertical and horizontal spine

vi. Integration with massing

vii. Addition of courtyard, screens and informal spaces

Iterations

1.

Circulation Vehicles Public Members of the institute

Exploded view of design Section BB

2.

B

18

17 19

6 16 4

7 5

20

15

3

25 14

2

26

8

A

12

21

13

1

28 10

(22)

24 23

9 11

22 27

B

Plan at +2.9m 0m

5m

15m

35m

Section AA 0m

5m

15m

F

F

F

F

F

F

29

Key

16-Library 17-Library spillout 1- Main entry 18-Classroom spillout 2-Prop store 19-Display courtyard 3-Material store 20-Acting hall 2 4-Camera store 21-Courtyard 2 5-Workshop 22-Computer lab 6-Classroom 23-Motion 7-Courtyard 1 photography studio 8-Display/Discussion 24-Service lifts space 25-Dark rooms 9-Lobby 26-Pre-view theatre 10-Faculty rooms 11-Spillout from faculty 27-Lighting studio 28-Toilets space 29-Cafe and spillout 12-Studio 1 OAT 13-Acting hall 30-Auditorium 14-Toilets 31-Public entry from 15-Promenade University OAT

31

Site

30

A

West elevation

(23)

9

1.

Renders

2.

3.

1-Outside the acting studios 2-Library entrance 3-Promenade area 4-Entrance

4.

+4.35m F

F

F

F

F

F

F

F

F

F

+2.1m +0m -2.1m

1

4

2 4

The Broken Library

Located in Jaipur inside Jantar Mantar Project type : Library, Public square

3 Grid structure in jaipur

BRIEF .

How multiple individual entities come together to create meaning in space~ This project started out with 6 cubes and a wall and how we can bring these elements togeher to create a functional yet interesting composition The design devides the wall into the cubes and these are scattered on site such that individually they perform various funtion but when put together they form the intitial wall

Why Jaipur?

Breaking down the cubes

Jaipur has a very rich history and culture. Along with this it boasts of on of the largest literary fstivals in India.

Attention is being given to improve the reading culture among people. A bookstore 10 minutes away from the literary festival is proposed as solution in the Jantar Mantar observatory

The cubes based on their function , acess contain recesses and extensions to emphasize said emotion. The addition of frame, plinth , courtyard etc., serves to define the closed boundary created by wall for each cube. Arched openings establish links with existing architecture and highlight the idea of solid and void.

The addition of frames creates views which lead the observer through the design subconsciously

Mandala

City planning of Jaipur is based on the Indian Shilpa Shastra. The mandala is usually a square of 3*3 to 9*9 but when applied to rectangles the perfect ration is described to be 1:1.5

Application The site is divided into 7*4 grid of 27 m .

The number 7 as well as 9 was very auspiscious as per the vastu shastra.

The instruments are inclined at a 27 degree angle

Creating the axis Identification of grid points for suitable location of project by studying axis , hierarchy and composition on site

1

2

3

i. Freestanding wall

Nahargarh Fort

ii. Wall divided into 6 cubes

Tal Katora Lake

Albert Hall Museum

Ramg a

5

nj Baz a

Ramganj Bazaar

4

Emphasizing the frame around the cube to visually create bigger volume of enclosed space Solid and voids emphasized in design to highlight access , exit and lobby areas Volume of cube removed is added within the constraints of the cubes created by division of wall Emphasis on solid and void with open colonnade spaces Extension or addition of elements of design help to emphasize the invisible boundary established by the wall.

ar Roa

Model

d

Jaipur zoo

iii. Variation of cube sizes within wall grid

Site 26.924720, 75.824231 Located in Jantar Mantar, Jaipur Focus: Deconstructivism Type: Book store

iv. Cubes are separated out and the outer boundary established by the wall grid is used to define space around the cube

v. Wall formed when the final cubes are put back together

Process

Section AA 0m

1.5m

4.5m

10.5m

Sketches Renders 1-Library area 2-Entrance 5 2

1

The cubes without the idea of the wallextention or addition and subtraction is random and is a cluster of separate isolated objects with not relation to each other

The cubes with the wall Addition or extention is limited by the grid due to wall, visually connected and cubes form composition where they are reated to one another

Site Key 1-Library area 2-Bookstore 3-Office 4-New path 5-Pavilions

1

(25)

5 3

4

2

Ground plan 0m

3.5m

10.5m

24.5m

+9.6m

+6.6m

+0.6m

3rd cross park

MCC College

Site 1 Key

Vasantn agar ma in road

Proposed connectivity Proposed sites

Residential Commercial

Proposed traffic movement

Zone of intervention

Expansion of road Expansion of footp 2-way lane 1-way lane

View sheds Bridge

Site 2

Mapping the street The loafer’s lane is mapped and the useage of each building is understood Palace road

Shangrila

URBAN DESIGN STUDIO

SELECTION OF SITES FOR THE STUDIO The three sites were selected after a study of the Vasantnagar region in Bangalore which was done in groups.

The sites identified best suited a public intervention which could weave together the current fragmented activities happening along the main road. The aim of the studio was to create convivial spaces which energise neighbourhoods.

Key

(26)

Heavy traffic Med. traffic Sites Existing play areas Residential Potential pedestrian zone Need for seating

Amenities-opportunity Relations Major project site Problems of traffic/parking

SWOT The swot analysis is done based on mapped information to aid structure plan

7TH SEMESTER

pit(W)all int[]rsect

SITE A N A LY S I S

CONVIVIALITY POSTER C H A R AC T E R O F C O N V I V I A L S PAC E S Multi-functional: The spaces designed can evole with the time and useage. The wall enable people to pull out seating which can also double up as a basket for carraying food from nearby bakeires to the gathering spaces. It enables daily workers like the milk and coffee vendors to have a more formal location along the street

Flexibility: The wall changes when a person interacts with it. For two people using the same space, the character of the wall depends on the previous person’s use. This creates spaces that are for the community yet affected by individual changes

SITE MAPPING

Legend

Where is the theatre?

2.Library

11.

3.Plaza

During the times of covid when people did not go out to malls/ theatres, coming out on their balconies or terraces provided a break from the mundane life

4.Rentals

Silent zone

12.

5.Lobby for theatre

PRIVATE

0m.

+0.0

6.Washrooms 10.

7.Theatre PUBLIC

8.Lounge

DDD

7.

9.Back entry

PALACE

1

2 Intervention of public into site

0m.

9.

+0.9

12.Exhibition

6.

PALACE ROAD

8.

With Plaza as extension of street activity

SITE

The havelis had small viewing chambers around the courtyard for women to sit inside and watch activities.

5m.

+0.7

ROAD

11.Court for dormitory

CONNECT BETWEEN PUBLIC AND PRIVATE ZONES

Vehicular movement

LOOP

0m.

+0.0

10.Dormitory

Havelis

path

0m.

+0.6

1.Cafe

5m.

+0.4

5.

5m.

+0.4

0m.

+0.0

+0.9

2.

A

5m.

4.

+0.4

m.

0 +0.6

0m.

0m.

+0.3

5m.

+0.1

A

3.

1.

5m.

+0.4

Creating small pods/ viewing chambers facing a blank screen wall would provide the privacy demanded whist also creating a public character.

3

4

The design is devided into the front plaza and public space and the hostel area by the wall

+13.5m

+13.5m

+10.2m

+10.2m 6.

+6.9m 3.

1.

EXTENSION OF IDEA FROM OTHER INTERVENTIONS2.

PROCESS SITE 1

5.

+0m

10.

+0m

10m

ECTION SectionSCC

30m

t c e [ ]rs

20m

60m

AA

ar

ag nthn

Vasa t c je r pro

(27)

Majo

+10.2m 9.

+6.9m +3.6m +0m

2.Theatre/Performance space

8.Workshops

3.Washrooms

9.Arcade

4.Open plaza

10.Exhibition and spilllout

5.Cafe and library

11.Competition area

6. Retail

12.Roof garden

OAD 2ND CR OSS R

Creating a ‘pit’ with stairs along edge and blank walls

RO ACE

A

B

SITE 3

B

Key plan Scale-1:500

C

Scale- 1:100

1

2 Removal of existing buildings

Seating along footpath and gathering area

5 Shading the seating area and creating a small resource hub- water, newspaper, storage

Wall additionstrengthening the edge

Activitycrowded

3

Jahnavi J 1RW17AT038

Creating resource hub- water, milk, newspaper, first aid powered by solar panels

4 Seating addition, extention of curb

D Activity-normal

Sections

Activitynormal

4

DDD

AD

7.Rentals

Site Plan D

PAL

D OA SR OS CR 2ND

OAD OSS R 1ST CR

Removal of existing buildings

3

A

PALACE LOOP ROAD

1.Cinema

Major project - Vasanthnagar Detail of chair and wall grid

+0m

C

Legend

Int[ ]rsect 2

7.

Section DD

D

CR

1ST

SITE 2

+3.6m

-3.6m

OA

SR

OS

Legend

2.

10.

Section BB

- Along the streetSpillout spaces for shops and activities in the neighbourhood

3

8.

11.

-3.6m

+6.9m

Addition of flexible wall where people can pull out chairs to sit in gathering areas

Urban Design Studio | Semester 8

RVCA | 2021

Activitycrowded

20 1ST CR OSS R OAD

4.

9.

1.

RO AD

2

7.

12.

VASANTHNAGAR MAIN ROAD

SS

8.

CR O

1.

5.

1

+3.6m

-3.6m

Int 6

- Edge of the streetTheatre and public plaza

11.

-3.6m

0m

1

+6.9m

5.

+3.6m

The grid wall is used in the plaza and the arrangement of pods gives it a character of a pixel wall which isSection in contrastAA with other solid surfaces

1.

1ST

SITE SELECTION From the SWOT analysis of the site, 3 areas are chosen for intervention along the Vasanth nagar main road, also 8th main road:

GROUND FLOOR PL AN

VIEWING PODS/ CHAMBERS ARRANGED AS A WALL BETWEEN ZONES

Ugly Parametric design:

Ugly Design

Process and Structure 0

4

1

5

2

6

Process followed - Split into 4 stages to derive a structure for the next stage/ iteration

1st : • Code to move a fixed layout to the desired final location • Create 7-8 fixed layouts which are the only options to toggle from for the systemKNOWN OPTIONS • Can shuffle between this pool of outcomes with a slider • METHOD : • Create a bounding box for each element with one anchor point • Divide the fixed space boundary to create anchor points according to each iteration • Move to point

U G LY PA R A M E T R I C 3

Digital architecture

7

This project is an attempt to understand to what extent basic or repetitive processes in the design process can be executed by AI- thus aiding the design.

The project looks at a typical residential design process and substitutes inputs from grasshopper where qualitative thinking is not necessary. The name ‘ugly design’ stems from the idea that any process based on Vaastu/ bylaws which is essential part of work does not necessarily include qualitative design thinking and hence can be automated- the ugly part before designing.

The two problems with generative design was discussed1. It needs a sample set of data for easier automation 2. It generates a large set of results which then need to be filtered as needed.

But the attempt is to understand if the process of designing a house- by a set of 6 architectscan be analysed to come up with quantitative interpretations for zoning and layout making which will streamline computer based results without a large pre-fed sample data set.

The process is divied into 4 parts: - The exterior - Stage 3 interior - Stage 1 interior - Stage 2 interior

Limited iterations

• BYLAWS: • Analyse the bylaws to create 3 sliders which can give the offsets from site boundary, with a known height of building and road size • Create the basic site outline

Stage 1: •

(28)

ORGANISATION: Fixed or•• pre-determined layout Attempt to follow a Vaasthu grid- base constraint options for user fortoorganisation choose from • Can anchor spaces but leaves behind un• Organisation principles based on used space Vaastu grid • For a fixed built boundary- sizes of spaces remain fixed and do not change with variation of boundary dimensions • Can shuffle between this pool of outcomes with a slider

Bounding box with anchor points

Output from DCR generator

Selection from pre-determined set of layout options for each space Variable sizes of each spatial element

Fixed spatial dimentions- irrespective of boundary dimensions

Organisation with vaasthu grid

ORGANISATION: Attempt to follow a Vaasthu grid- base constraint for organisation

Stage 2: • REMOVE the TYPICAL FIXED LAYOUT • MAXIMUM FREEDOM- No constraints of an outcome pool- greatest variation in each space • The code can create outcomes beyond manually explored set

FINAL ORGANISATION NEEDS TO BE COMPLETE BEFORE VARIATION

with

Output with spatial plan of variable sizes

h

l w

h

r

For given road width r and height h and site dimensions (regular) l*w

Setback determined from bylaws Building boundary created

Structural grid determined Based of pre-determined minimum clearances

Exterior shell created Based on required floor height

Exterior:

Output from DCR generator

BYLAWS: • Analyse the bylaws to create 3 sliders which can give the offsets from site boundary, with a known height of building and road size • Create the basic site outline

Steps to scale to a larger planApartment scale

STEP 1

Correcting orientation N

eq

eq

900

eq

Stage 3:

Grid and points

2700

900

3

eq

eq

900

eq

WC

eq

900

Shower

2700

1400

Size of bathroom Placement of shower

1400

1400

WC eq

Shower

STEP 1

eq

eq

eq

2

3

3

0

2

•

1

Grid and points 0

1

2

3

0

1

3

2

Shower

Placement of shower

0

1

2

3

0

Model Steps toorientation scale larger planapartment scaleorientation STEP 1 Correcting

STEP 1

Introduction of CONDITIONED LOOPS:

WC-possibility of rotation STEP1 2Placement of shower STEP

•

rotation STEP 2 WC-possibility ofof 1. Placement shower 2

2

3

WC-possibility of rotation 4

2

4

1

2

3

2

2

1 2

1

1

4

4

1 2

3

2

•

1

4

3

2

4

3

2

•

1

4 4

3

3

3

2

2

4

3

1

ADDITIVE DESIGN :

4

1

2

2. WC- Possibility of rotation STEP 3

WB- Remaining index

STEP 3

WB- Remaining index

STEP 3

4 sides available 4 sides available

A loop which can fix the location of preceeding spaces and break it down to create anchor points for the next space Internal layout of spaces can be changed once the layout or organisation is fixed by the additive process

STEP 4

N N

Required orientation Required orientation

available

location + Proximity to entrance 3- MASTER BEDROOM- Main 3MASTER Main after placing BEDROOMliving- windows to after placing living- windows to 4- MASTER TOILET- Attached 4- MASTER TOILET- Attached 5- KITCHEN- Can be along W/ 5- KITCHEN- Can be along W/ COMMON TOILET- Can be 1- ENTRANCE 66COMMON along W/S TOILET- Can be 2- LIVING along W/S

Sequence

3- MASTER BEDROOM 7- DINING- Proximity to kitchen 4- MASTER TOILET 7DININGto kitchen gathering orProximity open space 5- KITCHEN gathering or open space 6- COMMON TOILET 8- BEDROOM 2 7- DINING 8- BEDROOM 2 8- BEDROOM 29- CORRIDOR SPACE- In case CORRIDOR SPACE-toIneach case 9- CORRIDOR 9SPACE that will not be flushed

3 sides available 3 sides available

(29)

1 side available

that will not be flushed to each

1 side 1available side available

Random generator Random generator Stream gate Selection of option Stream gate Selection of option

Random generator

Iterations of layout- Pattern and constraint

WB- Remaining index

Stream gate

Selection of option

• Divide the space into a point grid depending on amount of variation desired • Fix 2-3 functional spaces which will influence the zoning of other spaces

Door placement Remaining index STEP 3.

4 WB-

STEP 4

1. CorrectSEQUENCE orientation SEQUENCE 1- ENTRANCE- Sets orientatio 3 types of possible options 1- ENTRANCE- Sets orientatio 2- LIVING- N/E windows-climat Open sides 2- LIVINGN/E windows-climat location + Proximity to entrance

available

2 1

3

3

Required orientation

2. 3 types of possible options STEP 2 3 types of possible options Open sides STEP 24 sides 3 sides Open sides

1

4

2

1

2

STEP 2 1

4

3

2

1

N N

Model orientation Model orientation

Can verify a condition for a list of values and select necessary outputs

Different approach- instead of initial grid, breakdown of th Different instead of initial grid, breakdown output to approachcreate anchor points for upcoming steps of th output to create anchor points for upcoming steps

Correcting orientation

STEP 2

1

N

Application of additive process to residential layout Steps to scale to a larger planSteps to scale to a larger planApartment scale Apartment scale

Creates anchor points as a list from which required one can be chosen as per parameter

1400

1400

STEP 1

WC

1

Grids and points

Size of bathroom 2700

900

1400

900

0

Iterations of layout- Pattern and constraint

Introduction of GRIDS ;

2

Grid and points

1400

Size of bathroom

1400

1400

1400

eq

Templates

1400

1400

Size of bathroom

1

ng constraints for layout of each space Templates duction of GRIDS ; eq eq Creates anchor points as a list from 900 which required one can be chosen as per parameter constraints for layout of each space Templates ction of GRIDS ; eq eq Wash reates anchor points as a list from 900 Basin hich required one can be chosen as duction of CONDITIONED LOOPS: r parameter Can verify afor condition foreach a listspace of values constraints layout of Templates and select necessary outputs ction of GRIDS ; Wash Basineq eq reates anchor points as a list from 900 hich one can be chosen as ctionrequired of CONDITIONED LOOPS: rnparameter verify a condition for a list of values TIVE DESIGN : d select necessary outputs p which can fix the location of Wash Basin eeding spaces and break it down to e anchor points for theLOOPS: next space ction of CONDITIONED tnamount space verify a of condition a list of values VE DESIGN : wasted for building cannot a particular d select necessary outputs which can fix thefollow location of daryspaces - Worksand for break a single housetoand not ding it down eeds topoints get multiplied anchor for the next space nal layout of spaces can be changed mount of wasted space the layout organisation is fixed by the VE DESIGN ding cannot:orfollow a particular ive- process which can fix location of and not ry Works forthe a single house ding and break it down to ds tospaces get multiplied anchor for the space layout points of spaces cannext be changed mount of wasted space is fixed by the e layout or organisation cannot follow a particular eding process ry - Works for a single house and not ds to get multiplied layout of spaces can be changed e layout or organisation is fixed by the e process

Different approach output to create an

Door placement

Door placement

• Questioning the amount of manual interaction with the code Random generator

Random seed

Random integer output

4. Door placement Random integer output

Selection of list item of that index from grid points

Random generator Random seed Using this point as anchor to move template

Selection of list item of that index points Repeating after removingfrom usedgrid point Stream gate to allow rotation as option from grid

Using this point as anchor to move template Random generator Random seed

Repeating after removing used point Stream gate to allow rotation as of option frominteger grid output Random Selection of list item that index from grid points

Using this point as anchor to move template

Repeating after removing used point from grid

Stream gate to allow rotation as option

Example of additive process with a typical toilet

Parameters considered: • Length • Width • Wet/Dry • Relationship with outside • Entry point

4th : Input needed: • Entry point • Components size • Relationship between components based on proximity

• Organisation within a give site boundary Extention of 1 as the building line is obtained after the bylaws • Divide the space into a point grid depending on amount of variation desired • Fix 2-3 functional spaces like toilet-kitchenentry which will influence the zoning of other spaces • Fixing the locations of these spaces happens manually

• Questioning the amount of manual interaction with the code- how to make it minimal and targetted only at steps that require human thought

Toilet Kitchen Entry Space available for organisation of other functions

Box packing ex. Toilet

Adding or removing parameters that can affect relationship between spaces/ larger spatial distribution

Toilet Kitchen Entry Space available for organisation of other functions

Digital Architecture studio

Project 1: Recreation of Serpentine pavilion by BIG architects on Grasshopper

Through this studio, we explored the use of grasshopper , an extention of Rhino for different types of design projects This included recreating certain famous projects on grasshopper as well as new innovtions which can be developed

1.

2.

3.

4.

(30) Project 2:

Step 1: Feeding the climate data of the city to grasshopper

1.

2.

EXPERIMENTS

Prototype of a automatic adjustable louvre system for roofs which follows the sun path of the location and provides shading all throughout the year most efficiently

3.

Step 2: Use the outputs generated in grasshopper as inputs to external devices through firefly

ELECTIVES Digital architecture

Research

Drawings on site and inferences A attempt at mapping the history and current landmarks and characteristic of the Fort and market area in Bangalore

Mental mapping The start point for the research was a walk through the different locations making a mental map of the streets and buildings

Movement through time and space The different historical maps of bangalore were studies to come up with three maps which show how the city developed over time

(31)

1791

1924

Present

Mapping movement patterns and Ideas for change The circulation patterns near the fort area is studies and then a new movement pattern is proposed with the integration of a local market . By using the guidance of grids and using the elements of the market as nodes , people are subconsciously guided in different paths

C U LT U R E C E N T R E COMPETITIONS.ARCHI

(32)

Details The individual pods provide a serene space for meditation away from all the noise

1. Roof top reading area part of library 2.OAT with water stream 3.Individual pods with katte and altar

The prayer rooms include bamboo curtains so the space can be divided further

1.

Adaptation of the technology of noise cancellation earphones with a double layer enclosure and pressure sensitive tiles which will sense and activate an externally added soundtrack around every person to enhance their experience.

2.

The final form is orangic as it expands and constricts with the type of spaces within 3.

The OAT with the water pool is the central element that brings everyone together

(33)

scan for sound Stage 1 section- No noise reduction or acoustic properties

Can sacred spaces be placed in the centre of the noisiest cities?~

scan for sound Stage 2 sectionNoise cancelling walls incorporated in spaceacoustically better than stage 1

At the time where it is becoming more and more different to get land in over crowded urban scenarios, we have to look for substitutes to large open lands for building quiet spaces. Yú-j is an endeavour to design sacred spaces at the nodes in well-developed cities.

Yú-j makes use of noise cancellation technologies and pressure sensitive tiles to environments within cities which are reminiscent of every individual sacred space.

Sound used well in conjunction to other senses can create spiritual experiences.

Yú-j studies and combines the patterns of sounds which are commonly encountered in various spiritual places and enhance user’s insight.

scan for sound Stage 3 sectionEnhanced experience within the space with externally added sound track

YUJ

S AC R E D S PAC E ARCHDAIS

Site Delhi, India’s capital city being one of the noisiest places, is planned around circles(round-abouts) One of Delhi’s 3 main roundabouts is chosen: MANDI HOUSE CIRCLE The diameter of this particular circle, as many others around the city, is 80m.

This design can be retrofitted to any other round-about or convergence in an urban context

A

C

D

E

450

6

F

2600

4

B

+ 3200mm Overhang

VILWA 1800

+ 2400mm

Entry porch to be detailed after finalisiation of elevation

4975 / as existing

+ 1250mm

3 2000 2150

2

Stilt level +/-0mm

precast planter

Road level - 900mm

sliding gate to be detiled later 1

5

7

150

1

ELEVATION A SCALE 1:25

ELEVATION - FRONT GATE

PROJECT

Venus Colony 1st Street

CLIENT

ARCHITECT

SITE

Chaintanya Foundations Pvt. Ltd.

The Madras Office for Architects and Designers 94,Kamraj Avenue, 2nd Street, Adyar, Chennai 600020 Tel 044 24454827

Door no 6/12, Venus Colony 1st Street, Alwarpet, Chennai - 600018.

venus colony moad

8

REMARKS

NOTES

1:50

All dimensions are to be read and not to be measured.

All dimensions must be verified on site. All dimensions are in mm. Any deviation/discrepancies in the drawing should be brought to the notice of the architect and should be executed at site only after architects approval.

This document contains copyrighted material, any unauthorised usage or duplication of the information contained may result in penalty under applicable laws.

SCALE FILE NAME

A3

06.06.22

FORMAT

DATE

ENTRANCE ELEVATION DWG TITLE

-

A202159

TD

PROJECT NO.

STATUS

-

REVISION

A59.102.10.1.01b DWG NO.

scale to A3 sheet

PLAN

Stilt floor moad

scale to A3 sheet

GROUND

Strip reflector

-160mm

2.5m x 5m

18

5000 3380

4985

3380 Building Profile above 3m setback line

Watchman cabin to be detailed later

2855

porch overhang above

Transformer unit

ramp up A59.102.10.1.01

-600mm 3075

3075

IN

OUT

4975 / as existing

Entry

precast planter

600

Elevation A

100

-900mm

2

PLAN SCALE 1:25

PLAN- FRONT GATE CLIENT

PROJECT

ARCHITECT

SITE

The Madras Office for Architects and Designers 94,Kamraj Avenue, 2nd Street, Adyar, Chennai 600020 Tel 044 24454827

Door no 6/12, Venus Colony 1st Street, Alwarpet, Chennai - 600018.

venus colony moad Chaintanya Foundations Pvt. Ltd.

REMARKS

NOTES

1:50

All dimensions are to be read and not to be measured.

All dimensions must be verified on site. All dimensions are in mm. Any deviation/discrepancies in the drawing should be brought to the notice of the architect and should be executed at site only after architects approval.

This document contains copyrighted material, any unauthorised usage or duplication of the information contained may result in penalty under applicable laws.

SCALE FILE NAME

scale to A3 sheet 4

1

15

14 2

8

9

6

5

4

TD STATUS

A59.102.10.1.01a DWG NO.

10 Line of overhang above

eq

9

Line of overhang above

11

35

r

1135

11

1135

8

12 7 13 6 14 5

Parking

15 4 16 3

2

Parking

17

18 B

1 19

20

up

Ramp UP

Driveway

eq

32

Ramp UP

eq

70

Driveway

32

2330

Lobby

1

PROJECT

Venus Colony 1st street

LOBBY FFL +/-0mm

PLAN SCALE 1:25

PLAN- STAIRCASE

CLIENT

ARCHITECT

SITE

Chaitanya Foundations Pvt. Ltd.

The Madras Office for Architects and Designers 94,Kamraj Avenue, 2nd Street, Adyar, Chennai 600020 Tel 044 24454827

Door no 6/12, Venus Colony 1st Street, Alwarpet, Chennai - 600018.

REMARKS

venus colony moad

NOTES

A

A3

25.05.22

SCALE

FORMAT

DATE

A202259

TD

PROJECT NO.

STATUS

STILT FLOOR STAIR DETAIL- PLAN DWG TITLE

FILE NAME

-/JJ

REVISION

A59.102.01.1.01 DWG NO.

B

22 21

First Floor FFL + 3215

20 19

32mm dia matte PU finish circular MS section as railing

18 17

32mm dia matte PU finish circular MS section baluster fixed to stair by base plate of appropriate size

KEY PLAN

1:25

scale to A3 sheet

All dimensions are to be read and not to be measured.

All dimensions must be verified on site. All dimensions are in mm. Any deviation/discrepancies in the drawing should be brought to the notice of the architect and should be executed at site only after architects approval.

This document contains copyrighted material, any unauthorised usage or duplication of the information contained may result in penalty under applicable laws.

Riser = 160mm Thread = 290mm

16 15

typical apartment layout

14 13 3200 / 20 equal risers

12 11 10

FLAT 1A FLAT 4A

-

REVISION

335

A

A

7

DWG TITLE

A202159 PROJECT NO.

3530

12

ENTRANCE PLAN

3195

13

DATE

2320 / 8 equal treads

11

17’3” x 15’7” 16’9” x 11’1” 17’3” x 4’11” 11’6” x 14’6” 5’5” x 10’1” 6’3” x 10’1” 16’ x 14’10” 4’9” x 10’1” 5’5” x 10’1” 11’6” x 15’4” 5’1” x 10’1” 10’2” x 14’ 5’8” x 10’1” 12’5” x 6’4” 5’1” x 5’8”

06.06.22

Riser = 160mm Thread = 290mm

Line of slab above

290

10

Living Dining Balcony Kitchen Utility Maid’s room Master Bedroom Walk-in Closet Master Bathroom Bedroom 2 Bathroom 2 Bedroom 3 Bathroom 3 Study Study Balcony

A3 FORMAT -

5

eq

(34)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

precast planter

1980

100

ramp up

Venus Colony 1st Street

3

2.5m setback line

1 Entry 2 Driveway 3 Lobby 4 Meter room 5 EB Room 6 Staff Restroom 7 Caretaker’s room 8 Transformer

4.5 m Driveway

2500

Parking

1

Overhang above

17

Overhang above

-300mm

landscape

2

FLAT 1B FLAT 4B

9 8

PLAN

7

5

20mm thick honed granite

scale to A3 sheet

290

4 160

Paint finish 15mm thick plaster

3

Driveway

900

75mm thick curved RCC waist slab to structural detail

1060

6

typical apartment moad

2

Parking

1

Stilt Floor FFL + 600

2

F LAT 1A | F LAT 4A |

SECTION- STAIRCASE

SECTION A

venus colony moad

SCALE 1:25

scale to A3 sheet

FIRST FLOOR

PROJECT

FLOOR P LA N 1 & 4

FOURTH FLOOR

INTERNSHIP P ROJ E CTS moad

B I LVA

Venus Colony 1st street

CLIENT

ARCHITECT

SITE

Chaitanya Foundations Pvt. Ltd.

The Madras Office for Architects and Designers 94,Kamraj Avenue, 2nd Street, Adyar, Chennai 600020 Tel 044 24454827

Door no 6/12, Venus Colony 1st Street, Alwarpet, Chennai - 600018.

REMARKS

1. Venus Colony 1st street project was in the tender stage when assigned. work done: - tender drawings - brochure renders - facade models and design

NOTES All dimensions are to be read and not to be measured.

All dimensions must be verified on site. All dimensions are in mm. Any deviation/discrepancies in the drawing should be brought to the notice of the architect and should be executed at site only after architects approval.

This document contains copyrighted material, any unauthorised usage or duplication of the information contained may result in penalty under applicable laws.

1:25

A3

25.05.22

SCALE

FORMAT

DATE

STILT FLOOR STAIR DETAIL- SECTION DWG TITLE

FILE NAME

A202259

TD

PROJECT NO.

STATUS

-/JJ

REVISION

A59.102.01.1.02 DWG NO.

5500

5500

5500

6000

4726

3000

5738

up

4143

15017

14572

5000

dn

BEDROOMS

3000

3000

tiger varadachari street 1st cross

36907

tiger varadachari street 1st cross

3 Stilt + 4 18.3 m high Floor to Floor - 3.6m

Area - 611.88 FSI - 1.5

Buildable area - 917.82

N

Area / floor / unit - 229.5

4

bylaw

tiger varadachari street

site

- Vastu location for master bedrooms - All private spaces are organised on the west

Total area of 4 floors - 1284

bylaw - option 3 (stilt + 4 18.3m high 3.6m each floor)

1

Tiger Varadachari 1st cross street

Bedrooms

Area after set back - 321

5738

5500

5500

5500

6000

4726

5000 4143

area to be protected from sun

5500

5500

6000

4726

dn

master bedroom

5500

up

dn

- Close to master bed - not ideal

5738

entry / study / balcony

up

kitchen

7

organisation - horizontal

5000

08

kitchen

OPENPLAN

4143

30

access

tiger varadachari street 1st cross predominant wind direction

Open plan - living dining and open kitchen all located on east and facing south - allows for flexibility and sense of sprawling

climate

climate

2

Area to be shaded As per sun path

5

vastu

tiger varadachari street

H O U S E

tiger varadachari street

tiger varadachari street

38876

3000

D U M A

5738

5500

5500

5500

6000

8

organisation - horizontal

5738

4726

5500

5500

5500

6000

up

up

dn

5000

dn

SERVICE

4726

landscape area

pool

4143

retail

tiger varadachari street 1st cross

vehicular entry

Grouping Services - All services are located away from periphery - Works for vastu

Retail - 52

sqm/560 sft 52.45 sqm

retaining trees along south and east edge extension as landscaped area on stilt level

trees bylaw - option 3 (stilt + 4 18.3m high 3.6m each floor)

3

trees

organisation - horizontal

OPTION 4 + Entry through landscape area -

6

pedestrian entry

Vaasthu limitation

9

bylaw - option 3 (stilt + 4 18.3m high 3.6m each floor)

schematic plan - stilt plan

DESIGN DEVELOPMENT duma house

5500 [18'-0 1/4"]

5500 [18'-0 1/4"]

5500 [18'-0 1/4"]

5500 [18'-0 1/4"]

6555 [21'-5 1/2"]

(35)

balcony

2216 [7'-3"]

5450 [17'-10 1/4"]

1753 [5'-9"]

4147 [13'-7"]

court area not considered for FSI

2460 [8'-0 3/4"]

5597 [18'-4"]

maid's room living

kitchen

line of floor below

5230 [17'-1 1/2"]

3904 [12'-9 1/2"]

1625 [5'-3 3/4"] 3338 [10'-11 1/4"]

4500 [14'-8 3/4"]

bedroom 1

2254 [7'-4 1/2"]

master bedroom

3560 [11'-8"]

4985 [16'-4"]

3590 [11'-9"]

utility

foyer

bedroom 2

4968 [16'-3 1/4"]

walk in closet

bathroom 1

7108 [23'-3 1/4"]

court

2420 [7'-11"]

3126 [10'-2 3/4"]

walk in closet

dn

master bath

5145 [16'-10 1/4"]

2896 [9'-5 3/4"]

1964 [6'-5 1/4"]

2593 [8'-6"]

4030 [13'-2 1/2"] up

2410 [7'-10 3/4"]

common bathroom

dining

study

11200 [36'-8 1/4"]

2. Duma House project was in the design stage when assigned. work done: - massing models - concept design - basic drawings - tender drawings - models ( digital and physical )

for Duma house the client approached with a narrow site, with ideas of constructing luxury apartments which provided the user an experience of living in an individual house. Barring Vaastu constraints, the plan attempts to open up the spaces to the outside with large green areas to create the illusion of a house on the ground at all levels.

option for foldable wall option for louvers Strip window/ glazing

PLAN- PENTHOUSE duma house moad

scale to A3 sheet

PENTHOUSE PLAN OPTION A 269 SQM BUILDABLE

A3/Scale 1:100

DUMA HOUSE

©the madras office for architects and designers

RENDERS

and Designers

BLOCK MODELS

Slab Sofit lvl +3500mm S.No SYMBOL DESCRIPTION 1

WC01

Water closet- align top to +450mm from FFL

2

WC01

Urinal- align bottom to +600mm from FFL

3

WC01

Water closet for specially abledalign top at +450mm from FFL

4

WB01

Wash basin- align top at +800mm from FFL

5

T01

6

BA01

Health faucet- mounted at +600mm from FFL

7

BA02

Tissue paper holder mounted at +600mm from FFL

8

BA03

Urinal divider- align bottom to +300mm from FFL

9

BA04

Basin mixer- mounted at +800mm from FFL

10

BA05

Mirror- align centre to +1650mm from FFL

11

BA06

Automatic hand dryer- mounted at +1150mm from FFL

12

BA07

Master control stop cock mounted at +1500mm from FFL

13

BA08

Vertical Grab bar long - align centre of bar to +1100mm from FFL

14

BA09

Grab bar- mounted at +1100mm from FFL

15

BA10

Vertical Grab bar normal - align centre of bar to +1100mm from FFL

16

VF01

GD3

700

700

600

20mm drop

B

BA04

860 T01

BA04 WB01

as existing

WB01

WC01

align to centre BA02

Surface mounted spot - large

20mm drop

Hanger rod

Adjustment spring and channel hoist

4

BCM 7th semester rvca

4

scale to A3 sheet

3

250

250

800

4375 1050

700

3250

4375 1050

800

600

150

150

1225

740

1225

600

4375 1050 1225 150

PLATE TITLE: SUBJECT CODE:

4375 150

740 740

A

SEC:

A

PLATE NO.

15ARC7.2 5 38mm main FALSE CEILING channel SUBJECT NAME: SUBJECT CODE: PLATE NO. MATERIALS AND METHODS IN 5 38mm main 15ARC7.2 BUILDING CONSTRUCTION VII channel SUBJECTINTERNAL NAME: MARKING: MATERIALS AND METHODS IN 2 1 LATE BUILDING CONSTRUCTION VII

_

_

INTERNAL MARKING:

_

2 LATE RV COLLEGE OF ARCHITECTURE

1

_

_

Key Key

Hanger rod Adjustment spring/ Hanger channel rod hoist Adjustment spring/ 38mm main channel channel hoist 38mm main channel Resolve suspended A ceiling panel 600mm Resolve(12 suspended mm) ceiling panel 600mm (12 mm) Rangemaster RMB70HPNGFGL

DETAIL AT D DETAIL AT D - 1:20 SCALE SCALE - 1:20

70cm 5 burner kitchen hob

2- Gypsum falsefilling ceiling with acoustic with metal hanger/supports 300 acoustic filling with metal hanger/supports with chamfered panelsGyproc 500 with chamfered panelsGyproc Expansion 3-Wooden panel falsebolt ceiling 3-Wooden panel false ceiling 4-PVC falseHanger ceilingrod with metal supports Adjustment spring/ 4-PVC 5false ceiling with metalGyproc supports Metal false ceilingchannel hoist

5- Metal false ceiling- Gyproc

PLAN- KITCHEN

BCM 7th semester rvca

1- Gypsum false ceiling without C B 3200 1- Gypsum falsefilling ceiling without acoustic with metal hanger/supports- Gyproc 200th Concrete wall acoustic withfalse metalceiling hanger/supportsGyproc 2-filling Gypsum with

600

Nirali single bowl, anti scratc kitchen sink

20mm nosing in granite slab A

Main tee Bosch HBG633BS1J built in oven

Tee runner hoist 38mm main channel

Extra storage space for Juicer, Dry mixer and wet grinder(Prestige)

Main tee runner Gyproc Quattro 71 1200*2400mm

1219.2 Stool for breakfast counter

B

DETAIL AT E SCALE - 1:20 50

250

250 7

SEM: FALSE CEILING 7

scale to A3 sheet

SECTION AA SCALE - 1:50

3250

DETAIL AT F Subhash house DETAIL AT F - 1:20 SCALE AA Sadashivnagar SCALE - 1:20 scale to A3 sheet

2

3

800 3250

740

Hanger rod Adjustment spring/ channel hoist Adjustment spring/ channelTee hoist runner hoist 38mm main channel Tee runner hoist Suspension 38mm main channelchannel fo Derako lineair system Suspension channel for111 wood closed module Derako lineair system closed module 111 PLAN- APARTMENT TYPICAL

SEC:

Expansion bolt 250

700

1220 1220 740 SEM:

Expansion bolt

2390 2100

740

740

1025 500

Tee runner hoist

Hanger rod

RV COLLEGE OF ARCHITECTURE

600

150

C

150

2390 2100

1210

740

490

1025 500

750

KSGJ IREWCVXFSJ

4300

KSGJ IREWCVXFSJ

SECTION DD SCALE - 1:50 SECTION DD SCALE - 1:50

500

1020

321.5 740 2425

139

800

2400 750

500

740

D

scan for gif

3

3250

4375

3250

1

Ceiling tile with chamfers

Tee runner hoist

Expansion bolt

STUDENT NAME:

_

F

3

Ceiling tile with chamfers

Expansion bolt

2800

F

E

Hanger rod

2

C

831.85

800 250

2

REMAR

2

JAHNAVI J

USN:

Adjustment spring and channel hoist

3

3

3

JAHNAVI PLATE J TITLE:

PLAN, SECTION, DETAILS- FALSE CEILING

3

2

Sir C.V Raman Block Anna University Chennai

scale to A3 sheet

IRW17AT038

Main tee

3250

2

INTERNSHIP MODELS moad

DETAIL AT C DETAIL AT C - 1:20 SCALE SCALE - 1:20

Main tee

5- Metal false ceiling- Gyproc

A

B

Expansion bolt

4375

3-Wooden panelceiling false ceiling 4-PVC false with metal supports

SITE

AA Sadashivnagar

USN: STUDENTIRW17AT038 NAME:

with3-Wooden chamfered panelspanel falseGyproc ceiling

E

Model development gif

2820

3250 250

800 800

F

ARCHITECT

The Madras Office for Architects and Designers 94,Kamraj Avenue, 2nd Street, Adyar, Chennai 600020 Tel 044 24454827

PLAN- SABHA MANTAPA FLOORING

Expansion bolt Hanger rod Adjustment spring/ Hanger rod hoist channel Adjustment spring/ 38mm main channel channel hoist Tee runner hoist 38mm main channel teehoist runner TeeMain runner Gyproc Cilp in plain Main tee runner metal tile 600*600mm Gyproc Cilp in plain metal tile 600*600mm

Expansion bolt SCALE - 1:20 Hanger rod Adjustment spring/ Hanger rod channel hoist Adjustment spring/ 38mm main channel channel View ofhoist Installation of false ceiling Suspension channel for wood panel Not to scale 38mm main channel Derakooflineair system View of Installation false ceiling Suspension channel for111 wood panel Not to scale closed module Derako lineair system closed module 111

acoustic filling with Gyproc 2- Gypsum falsemetal ceilinghanger/supportswith acoustic false fillingceiling with metal 2- Gypsum with hanger/supports with chamfered panelsGyproc acoustic filling with metal hanger/supports

250

800 800

F

F

4-PVC falsefalse ceiling with metal supports 5- Metal ceilingGyproc

SCALE - 1:50 SECTION CC - 1:20 SCALE - 1:50

6.

F

F

3

Expansion bolt

150

740

490 740

490

2390 150 2100 150

500 500

740

SCALE

F

5

DETAIL AT B Expansion bolt SCALE 1:20 DETAIL AT- B

Expansion bolt

Key1- Gypsum false ceiling without acoustic false fillingceiling with metal hanger/supports- Gyproc 1- Gypsum without

150

4375 2390 2100

4375

3250 740

3250

SECTION DD SCALE - 1:50 SECTION DD SCALE - 1:50

DETAIL AT D SECTION CC SCALE 1:20 DETAIL AT- D

3

2400

F

E

SECTION BB SCALE - 1:50 SECTION BB SCALE - 1:50

2400

F

Expansion bolt F Hanger rod Adjustment spring/ Hanger rod hoist channel Adjustment spring/ 38mm main channel channel hoist 38mm main suspended channel Resolve ceiling panel 600mm (12 mm) Resolve suspended ceiling panel 600mm (12 mm)

5

3250

3

5

Key

1

Expansion bolt

B

3250

4

4

1

B

CLIENT

Dept of Information Technology Govt of Tamilnadu

207

150 250 F

E

Duma house D

2820

3250

3

DETAIL AT F SCALE 1:20 DETAIL AT- F

A

3

2

1025 740 500

800

750 750

A

8400

A

2

12000

12000

12400 1200 600

A

8400

8000

SCALE - 1:20

250

800

12400

4375

8000

Adjustment spring/ Hanger rod channel hoist Adjustment spring/ channel hoist hoist Tee runner 38mm main channel Tee runner hoist Suspension channel for wood panel 38mm mainlineair channel Derako system closed module 111 Suspension channel for wood panel Derako lineair system closed module 111

150

SECTION CC SCALE - 1:50 SECTION CC SCALE - 1:50

800

Expansion bolt Hanger rod

3

SCALE 1:25

600

2400 740

740

490

490

5.

3

5

800

F

4375

3250

F

4375

F

3250

F

F

2400

F

5

Expansion bolt

3

C SECTION

680

800

5

Tamilnadu Technology Hub

810 100

3

3

250

B

PROJECT

220

4 Expansion bolt 4 Expansion bolt Hanger rod Adjustment spring/ Hanger rod hoist channel Adjustment spring/ 38mm main channel channel hoist channel for wood panel Suspension 38mm mainlineair channel Derako system Suspension channel for wood panel closed module 111 B Derako lineair system closed module 111 B DETAIL AT C REFLECTED CEILING PLAN - 1:50 SCALE -C 1:20 SCALE DETAIL ATREFLECTED CEILING PLAN SCALE - 1:50 SCALE - 1:20

1

F

150

740

600

600

800

1

5

250

800

B

800

A

F

SCALE - 1:20

600

220

3

250

3 A

600

DETAIL SCALE 1:20 DETAIL AT- A

600

A

8400

150

740

1

450

3

C

iTNT

Expansion bolt Hanger rod Adjustment spring/ Hanger rod Dhoist channel Adjustment spring/ 38mm main channel channel hoist hoist D 5 Tee runner 38mm main channel Main tee runner Tee runner hoist Gyproc Gypboard plain Main tee runner 600*600mm Gyproc Gypboard plain 600*600mm AT A

C C

1200

C

600

Expansion bolt

4

4375

8400

2425

800

139 139 250

A

8000

B REFLECTED CEILING PLAN SCALE - 1:50 REFLECTED CEILING PLAN SCALE - 1:50

250 4375

3250 740

1

1200

B

SCALE - 1:20

4

4375 800

8000

DETAIL AT E SCALE 1:20 DETAIL AT- E

1

1210

321.5 321.5

1225 150

800 3250

1220

600

640

740

C

300

SECTION AA SCALE - 1:50 SECTION AA SCALE - 1:50

1

1

1

Tee38mm runnermain hoistchannel Main tee runner 38mm main channel Gyproc Quattro 71 Main tee runner 1200*2400mm Gyproc Quattro 71 1200*2400mm

2425

1225

D

1

3250

D

2

1200

3

1220

700

SECTION BB SCALE - 1:50 SECTION BB SCALE - 1:50

3

810 100

640 220

4

5

810 100

220

1200

600

4

700

2820

3250 2820

3250

600

1200

5

600

600

3

600

1200 1200

C

600

4.

5

2

450

FFL ± 00mm

DWG NO.

Expansion Hanger bolt rod

3

C

600

1

800

12000

12400 12000

12400

600 600

1

C

3

A00.101.02.1.01a

Adjustment spring/ Hanger rod channel hoist Adjustment spring/ channel hoist Tee runner hoist

KSGJ IREWCVXFSJ

4

C

5

D

D

-/SM

REVISION

600

DWG TITLE

450

JANITOR ROOM

4300

4

STATUS

KSGJ IREWCVXFSJ

5

TD

3

4300

5

A202200

PROJECT NO.

KSGJ IREWCVXFSJ

750

2400

FILE NAME

300

11_COMMON TOILET PLAN

Expansion bolt

150

740

750

2400

DATE

4375 1050

4375 1050

700

3

1210

600

600

1210

700

3250

1020

3

26.07.22

FORMAT

300

600

450

2

2

3

C

A3

SCALE

490

250

250

3

C

A

1:50

KSGJ IREWCVXFSJ

SECTION AA SCALE - 1:50 SECTION AA SCALE - 1:50

1020

740

740

490

750

KSGJ IREWCVXFSJ

KSGJ IREWCVXFSJ

4300

490

1025 500

D

1025 500

800

139

4300

2

D KSGJ IREWCVXFSJ

750

2400

2

KSGJ IREWCVXFSJ

3.

139

750

2400

2425

321.5

3

321.5

D

2425

D

To be demolished

A

B

D

3

800

2

750

D

3

1

All dimensions are to be read and not to be measured.

All dimensions must be verified on site. All dimensions are in mm. Any deviation/discrepancies in the drawing should be brought to the notice of the architect and should be executed at site only after architects approval.

This document contains copyrighted material, any unauthorised usage or duplication of the information contained may result in penalty under applicable laws.

Proposed wall to be built

800

2

B

NOTES

Existing Wall

Demolished and Rebuilt wall

1

3

REMARKS

3250

A

B

SITE

Sir C.V Raman Block Anna University

740

A

ARCHITECT

The Madras Office for Architects and Designers 94,Kamraj Avenue, 2nd Street, Adyar, Chennai 600020 Tel 044 24454827

800

Tamilnadu Technology Hub

CLIENT

Dept of Information Technology Govt of Tamilnadu

450

600

Sill lvl +900mm

W O R K I N G D R AW I N G S PROJECT

iTNT

B

BA06 +1150mm

2419

SCALE 1:50

450

300

OPEN TO SKY

1020

PLAN

REMAR

Wall mounted light

1210

1

Sir C.V Raman Block Anna University Chennai

Lintel lvl +2100mm

1020

3300 MM WIDE CORRDIOR

SITE

Reflected light

existing chajja above

SD2

1200

ARCHITECT

The Madras Office for Architects and Designers 94,Kamraj Avenue, 2nd Street, Adyar, Chennai 600020 Tel 044 24454827

scale to A3 sheet

Surface mounted spot - small

align to centre

1270 / as existing

CLIENT

Dept of Information Technology Govt of Tamilnadu

Beam Bottom lvl +2900mm

iTNT toilets moad

SYMBOL DESCRIPTION

700

3210 / as existing

Tamilnadu Technology Hub

PLAN

BA06

900

(36)

600 T01

BA01

640

1500mm X 1500mm wheelchair turning space

20mm drop

400 400

LADIES TOILET BA10

Slab Sofit lvl +3500mm

PROJECT

iTNT

T01

810 100

BA09

align to centre BA01

SCALE 1:25

4375

900 2680

SECTION

1

SF- Shower Fixtures BA- Bath Accessories T- Traps WB- Wash basin WC- Water closet

740

900

BA08

WC01

JANITOR ROOM

Ventilator fan

490

600 min

WC03

BA02

845

BA05

d u c t

T01

T01

SPECIALLY ABLED AND GENDER NEUTRAL TOILET

BA02

1445

150

320

20mm drop

250

500

BA05

align to centre

FFL ± 00mm

600

BA07

4.1

WC01

1460

WB01

600

GENTS TOILET

1445

eq

20mm drop

eq

BA01

845

BA06

950

2.

A

C

3210 MM WIDE CORRDIOR

JANITOR ROOM

VF01

150

WC02

Sill lvl +900mm

700

20mm drop

BA06 +1150mm

640

1270 / as existing

900

700

700

700

Lintel lvl +2100mm

Trap at FFL

800

as existing

OPEN TO SKY

BA03

1.

align to centre

3300 MM WIDE CORRIDOR

existing chajja above

access controlled door

Beam Bottom lvl +2900mm

Whirlpool refrigerator

761.77 Plan at 1200mm from ground 1:25

N

align to centre

iTNT toilets moad

existing ventilator

d

u

c

t

scale to A3 sheet

1200

BA06

WC02

WC02 +600mm WC01 +450mm

WC01

BA03

BA03 +300mm

GENTS TOILET

RKS

RKS

MODELS

SECTION

NOTES All dimensions are to be read and not to be measured.

All dimensions must be verified on site. All dimensions are in mm. Any deviation/discrepancies in the drawing should be brought to the notice of the architect and should be executed at site only after architects approval.

This document contains copyrighted material, any unauthorised usage or duplication of the information contained may result in penalty under applicable laws.

1:25

A3

26.07.22

SCALE

FORMAT

DATE

11_TOILET - SECTION 11.1

FILE NAME

DWG TITLE

A202200

TD

PROJECT NO.

STATUS

A00.101.01.2.01

-/SM

REVISION

DWG NO.

TILE LAYOUT- SECTION iTNT toilets moad

existing ventilator

scale to A3 sheet 600

600 d

300

450

300

u

c

t

600

450

WC02 +600mm WC01 +450mm

300

BA03 +300mm

600

GENTS TOILET

NOTES All dimensions are to be read and not to be measured.

All dimensions must be verified on site. All dimensions are in mm. Any deviation/discrepancies in the drawing should be brought to the notice of the architect and should be executed at site only after architects approval.

This document contains copyrighted material, any unauthorised usage or duplication of the information contained may result in penalty under applicable laws.

1:25

A3

26.07.22

SCALE

FORMAT

DATE

FILE NAME

11_TOILET - SECTION 11.1 TILE LAYOUT DWG TITLE

A202200

TD

PROJECT NO.

STATUS

-/SM

REVISION

A00.101.01.2.01 DWG NO.

(37) 1. 6th semester AD The use of the primary studio

colours to highlight different elements and the intergration of the grid

thesis models

2. 6th semester AD

Process models to aid studio design

SECTION- KITCHEN

200th Concrete wall

ch

720

3000 2300

3. 5th semester AD The contrast between the studio Tile dado

Drawer for utensils 19mm MDF

Standard Breakfast counter at 900mm from gnd

Storage space for larger utensils

Drawer for cutlery and glasses

780

25mm th Granite counter top

75 75mm gap filled with screed

Shelf pin

680 26

321.5

Nirali single bowl, anti scratch kitchen sink Storage for dustbin and cleaning equipment

Floating shelves

B

Hettich Euro style hinge

900

1327

MI Smart water purifier of size 523*300*207mm

780

Storage for gas cylinder

80

Rangemaster RMB70HPNGFGL 70cm 5 burner kitchen hob

26

Tile dado

24*9*164mm door handles

Extra storage space for Juicer, Dry mixer and wet grinder(Prestige)

900

645

680

3000

690*690mm window

650

Hindware 90cm 1100m3/h chimney

1400 331 331

19mm MDF shutters

720

Hindware 90cm 1100m3/h chimney

321.5

200th Concrete wall

organic form within the rigid grid system to create varied experiences inside with a characteristic form on the exterior

75

75mm gap filled with screed

Sectional Elevation AA 1:25

Sectional Elevation BB 1:25

malleshwaram rangona bangalore.

malleshwaram bangalore. nandi tirtha kalyaani kshetra bangalore.

malleshwaram rangona bangalore.

honaganahalli karnataka.

sankey tank bangalore.

P H O T G R A P H Y

Life on the Threshold:

The post-disaster reality of India’s Last Land - Danushkodi Within a span of 12 hours, Danushkodi went from a bustling trade center and pilgrimage to a melancholic ghost town in ruins. What was once a well-planned town is now home to only a handful of scattered fishermen.

Ruins of a church in Danushkodi, Rameshwaram Source: Flicker|Nitish

Night 11:55 pm. December 22nd, 1964.

Train no.653, the Pamban-Danushkodi passenger train started its usual journey from Pamban with 110 people including a batch of students, pilgrims, and 5 railway staff. At Danushkodi outer, Arunachalam Kumaraswamy, the bridge inspector who was piloting the train, saw that the signal went out and stopped the train for a while. Owing to the lack of proper radio connectivity during that time, he assumed that the signal must have failed due to the heavy rains and decided to take the risk to continue forward. Moments later, a massive tidal wave of over 20 feet hauled the entire train into the ocean, making it the last day for everyone on board.

On that day, a cyclone which had originated in the South Andaman Sea 6 days prior, tore down the entire town of Danushkodi to rubble, with wind speeds reaching 280 km per hour and a death toll of over 1800.

wat arun bangkok.

sanctuary of truth pattaya.

honaganahalli karnataka.

wat arun bangkok.

Destroyed rail tracks near Danushkodi after the cyclone,1964. Source: The Indian Express/file photo

The town, Danushkodi, lies to the South-East of Pamban, 15 km from Rameshwaram in India and around 29 km from Talaimannar in Sri Lanka. It shares the only land border between India and Sri Lanka, 45 meters in length on a shoal1 in the Palk Strait, often known as India’s last land.

Before disaster struck, this was one of the major hubs for transporting people and goods between India and Ceylon2. The Boat Mail, introduced by the British in 1914 for communication between the two countries under their control, connected Egmore in Chennai to Danushkodi pier via rail link and then to Talaimannar pier via ferry service, initially by ships named after English viceroys like Irwin and Koshan and later with the rise of Indian competitors, the Madras Maru. Passengers could further take the Talaimannar Fort Night Mail to Colombo from the pier.

malleshwaram rangona bangalore.

The passengers traveling via Boat Mail had to undergo formalities like basic health tests and passport issues at Danushkodi. To cater to this, the town had well-planned public buildings like a hospital, railway office, church, Dharamshala3, school, mosque, church, and temples, all built in the British style. The houses were organized in clusters, easily accessible through a marketplace. Since these were built of stone or brick masonry, parts of these structures survive today as ghosts of the lively city.

city palace jaipur.

rambagh palace jaipur.

Surviving parts of storage vaults built from brick. Source: flickr/inuyasha maru For the reader: 1Shoal is an area of shallow water 2Ceylon refers to the old name of Sri Lanka 3Dharamshala refers to a public rest house or shelter 4Kothandaramar translates to the one who yields the bow- refers to Lord Rama 5Char Dham- 4 pilgrimage sites in India, it is believed that one who visits all four attains moksha/salvation

wat arun bangkok biennale.

floating market pattaya.

Sources: • • • • • • • •

The Indian Express The Times of India Wings of Fire- an autobiography by Abdul Kalam Madras Musings- Danushkodi memories Casualwalker- Kothandaramar temple Boat Mail: Remembering the train and steamer service from India to Ceylon- Ajay Kamalakaran MyRameshwaram- The story of Ghost town 1 and 2 Podcast- The Musafir Stories

But its significance as a trade link was not the only reason this city was frequented by visitors. The land of Danushkodi as mentioned in the Hindu epic Ramayana had immense mythological relevance to the people all over the country. It was believed that when Maa Sita was kidnapped by the demon king Ravana, Lord Rama, his devotee Hanuman, and the army of monkeys built the bridge, Ram Setu, to Lanka starting from here. The same in Islamic records could be found by the name Adam’s Bridge since it was believed that Adam crossed over to India from Sri Lanka through this bridge. The name Danushkodi also originates from the belief that Lord Rama destroyed the bridge with his bow after returning from their mission, Danush meaning bow, and Kodi meaning end.

Surprisingly, the only structure that remained intact after the cyclone, The Kothandaramar4 temple, was the place where Lord Rama is believed to have coronated Vibeeshana, Ravana’s brother, as the king of Lanka. A visit to this temple and a dip in the confluence of the Bay of Bengal and the Indian Ocean was considered sacred and usually preceded the pilgrimage to one of the Char Dham5, the Ramanathaswamy temple in Rameshwaram, adding value to Danushkodi that sat on the threshold of these oceans.

ART

benaka mahotsava poster.

31.08.19

VENUE TIME

digital art for graphics committee

MPH 2.30 ONWARDS

BENAKA

MAHOTSAVA

flee market poster. digital art for graphics committee

autumn sunset. gouache on canvas.

onam poster.

digital art for graphics committee.

Man walking towards the Kothandarama temple with the Bay of Bengal on the right and Gulf of Munnar on the left. Source: Flickr/Ravikanth Kurma

Former Indian President Dr.A.P.J Abdul Kalam, whose father managed a ferry business that transported pilgrims between Rameshwaram and Danushkodi, talks about how the locals here had learned to sleep through cyclones and storms since it was a frequent occurrence in the Bay of Bengal. Naturally, everyone in Danushkodi had assumed that things would return to normal within a few days, despite the heavy rains on the day of the 1964 cyclone. But 2 days later when the tragedy caused by the cyclone came to light by a bulletin from the railway headquarters, the Government declared the place unsafe for habitation.

Amidst the dilapidated structures of the past, a few fishermen’s families presently live in huts with thatched walls and roofs, and small wells that tap the sea aquifers for sweet water. Sometimes their children attempt to sell seashells to tourists who decide to visit the ghost town in awe of the marine wealth and natural beauty as well as the flock of migratory birds.

logo design.

A website that aims to integrate the ideas from different platforms like zoom and skillshare to create a network of resources to bring people together and empoer them in their work.

(39) jun.

digital art.

commercial street chaos. digital art.

Fisherman huts in present-day Danushkodi. Source: Flickr/ Thiagarajan Alagarsamy

Danushkodi is fascinating for people of various backgrounds because of its vast expanses of beach scattered with city ruins, surrounded by astounding natural beauty, and shrouded in an air of somber memories and mythological tales. Visitors had to board a matador and travel over knee-deep, muddy seawater on bumpy roads to reach Old Danushkodi. But in 2016, the 9.5 km road link from Muhuntharayar Chathiram to Danushkodi was finished by the Union Ministry of Road Transport and Highways, making it simpler to get there.

Standing on the narrow strip of land after sunset, one feels small in comparison to the wide sea and the sky’s starry expanse.

Danushkodi is perched on the cusp of exciting and eerie, wedged between two oceans, bridging two nations, and a site of veneration with the fear of impending doom.

the teacup.

artwork for blog.

mysterious dancer. gouache on canvas.

kaavad workshop.

Traveling on a matador to reach Old Danushkodi. Source: Flickr/Kartik Kumar S

le corb for breakfast. @crabs.on.venus

chocolate fountain. @crabs.on.venus

an attempt to combine past culture of rajastan in the form of kaavad with the future of the place represented by the rajkumari ratnavati school.

fin Thank you
