Jaewon Lee Architecture Portfolio 2024

Architecture Portfolio

Jaewon Lee Selected works from 2020 - 2024 Bachelor’s & Master’s degree of Architecture

Jaewon Lee

2

D.O.B

:

20 / 12 / 2000

Phone

:

+64 21 027 40343

Email

:

Jaewon.L2000@gmail.com

Behance

:

https://www.behance.net/jaewonlee24

Instagram

:

https://www.instagram.com/archi_plebe/

Linkedin

:

https://www.linkedin.com/in/jaewon-lee-9003aa21a/

1 234567

La Fête in the Oeuvre

The Happiness Project

Resurgence Powhiri to to Cuba Aotearoa

Ngaio Library

The Turtle & The Shark

Extra Works

Pg 4

Pg 14

Pg 24

Pg 38

Pg 42

Pg 46

Pg 32

3

1

La Fête in the Oeuvre 2023-2024 Master’s Thesis

La Fête in the Oeuvre Online Publication

In 1967, Henri Lefebvre published “The Right to the City,” critiquing modern capitalist society for prioritizing profit over the social needs of urban life. In response, he envisioned a utopian city centered on the Oeuvre, a collective creation by all citizens that embodies the city’s identity and restores unity.

My thesis explores the concept of the Oeuvre, bridging the gap between Lefebvre’s sociological ideas and architectural design by producing a methodology which priorities social wellbeing. This thesis’ title, “La Fête in the Oeuvre,” translates to “a celebration in the city.” It represents a design and a process worth celebrating, holding the architects responsible for creating a work of art in the city that accentuates differences and celebrates diversity, allowing the Oeuvre and its inhabitants to flourish. The research reminds us the city will continually evolve, so it is up to each one of us to guide the changes for the better, into an Oeuvre.

4

5

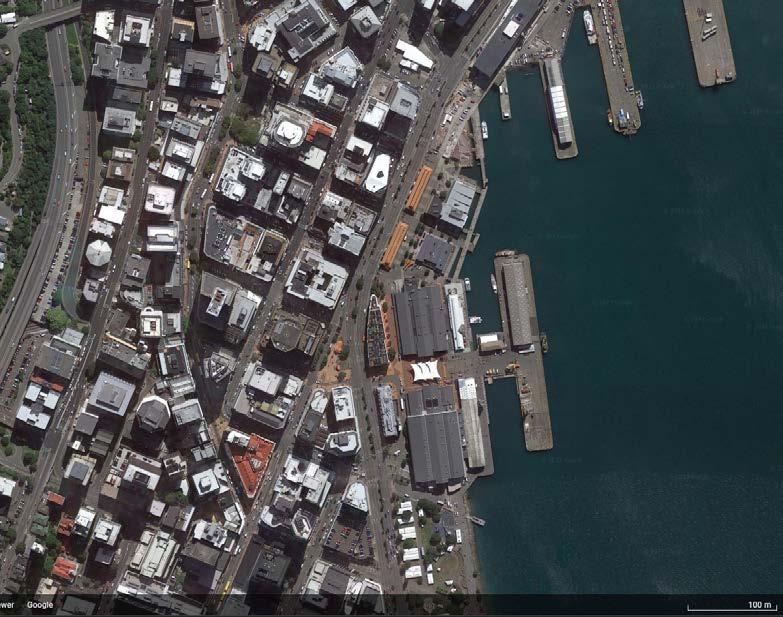

Dérive : Analysis of Social Spaces

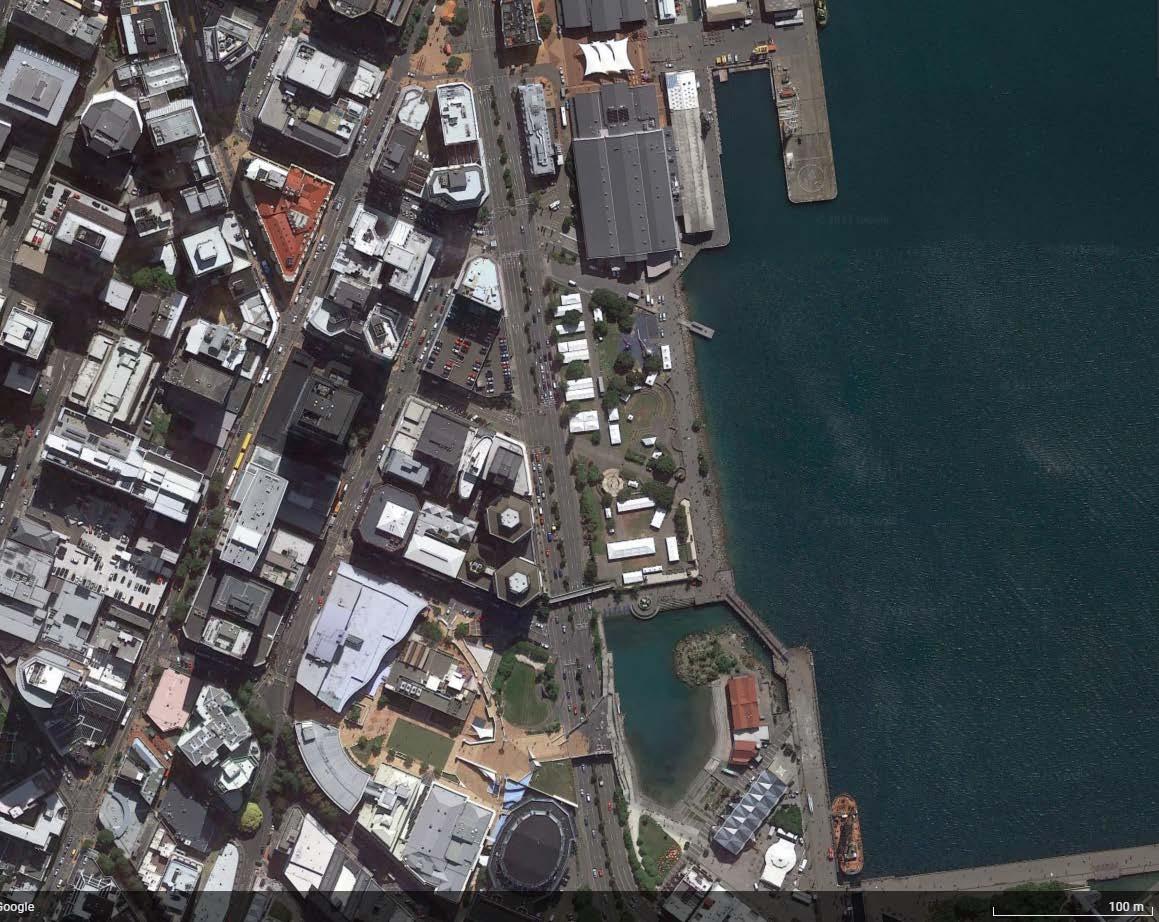

The Perceived Space Analysis

The Conceived Space Analysis

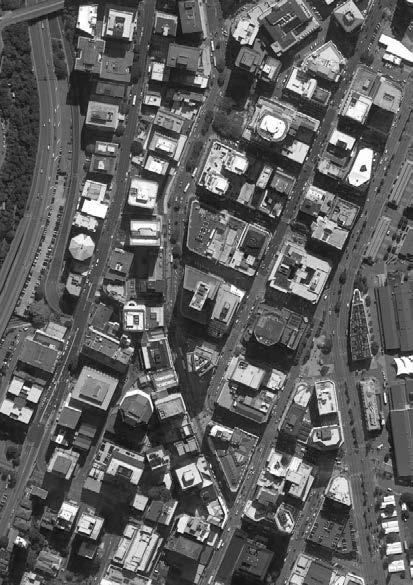

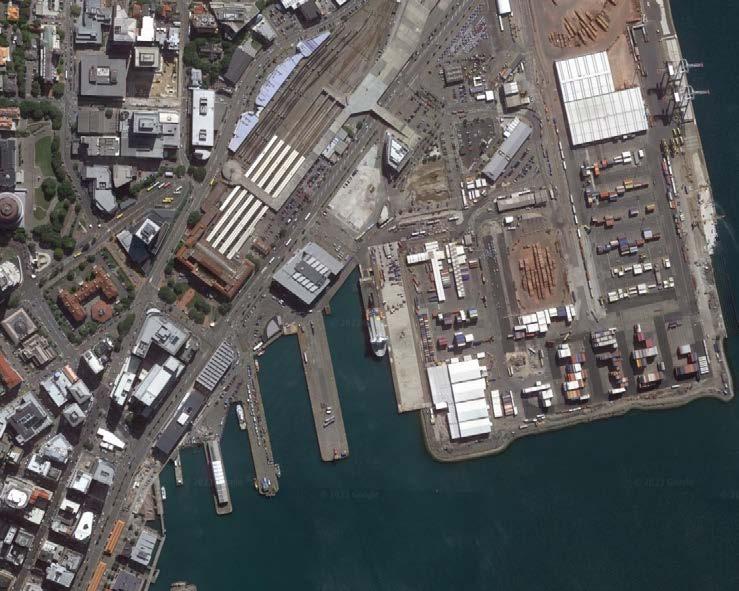

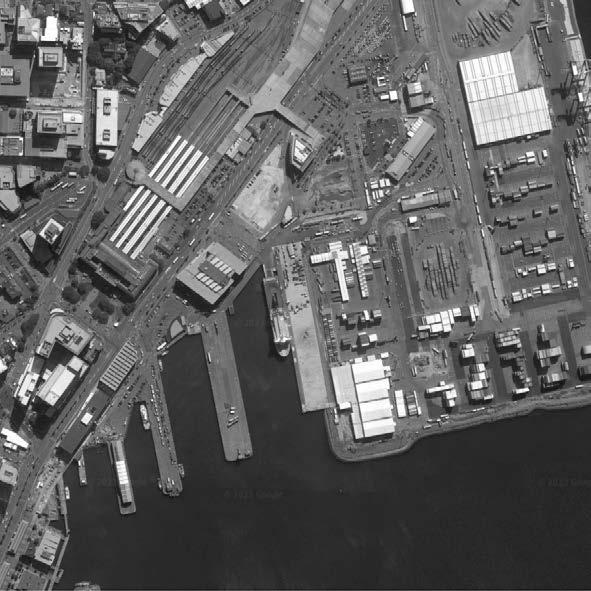

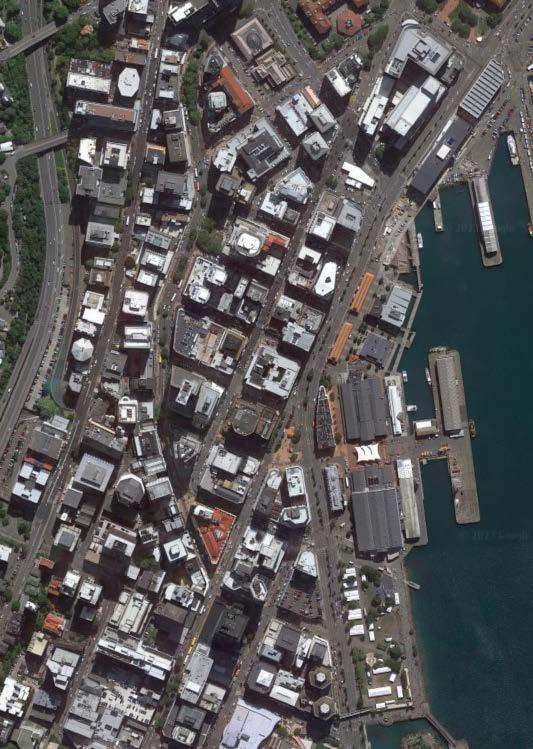

The methodology started with a deep understanding of Wellington’s social spaces.

The analysis conducted on the three dimensions of space from Lefebvre “The Production of Space”; the perceived, the conceived and the lived. Each dimension of space had its own process of collecting data and producing a design outcome and informing the next dimension of space.

The lived space is where the analysis concludes with spatial narratives as a culmination of the previous studies as a holistic view of the social space. These spatial narratives highlight a problem or an opportunity within Wellington and guides the design brief for the next stages of the thesis.

6

0m

50m

100m

200m

0m

Behind the Facade Spatial Narrative Extraction Video

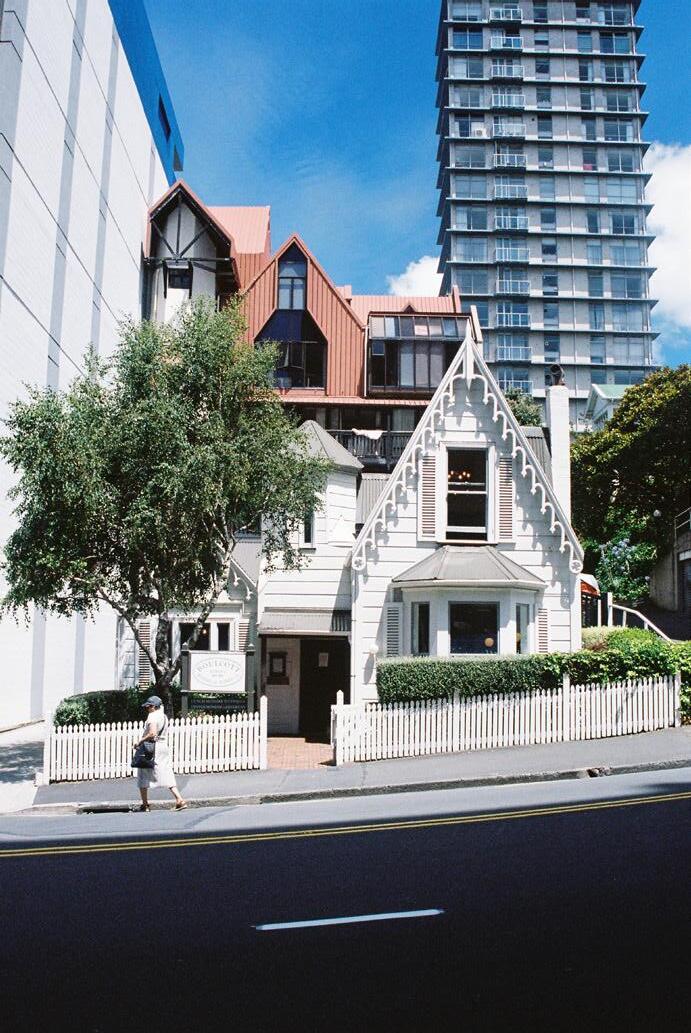

Plimmers Steps

Behind the Facade reveals the small and hidden ambiences created in the alleyways only seen by those who actively seek. These spaces, often connected by semi-private elevators within hotels and office buildings, showcase hardworking, small businesses discreetly nestled away from the main streets.

2

Mindless Jo Through the Spe Spatial Narrative Extraction Video

Lambto

Down the busiest street in the hea city, the march embodies the unf machine-like walk down Lambt leaving inhabitants on a dizzying Each individual walking like they for a meeting creates a fast-paced forcing you to walk down the rapi other

25m

50m

100m

0m

ourney ectacle

on Quay

art of the forgiving, ton Quay, g journey. y are late d rhythm, id beat of r’s drums.

25m

50m

100m

0m

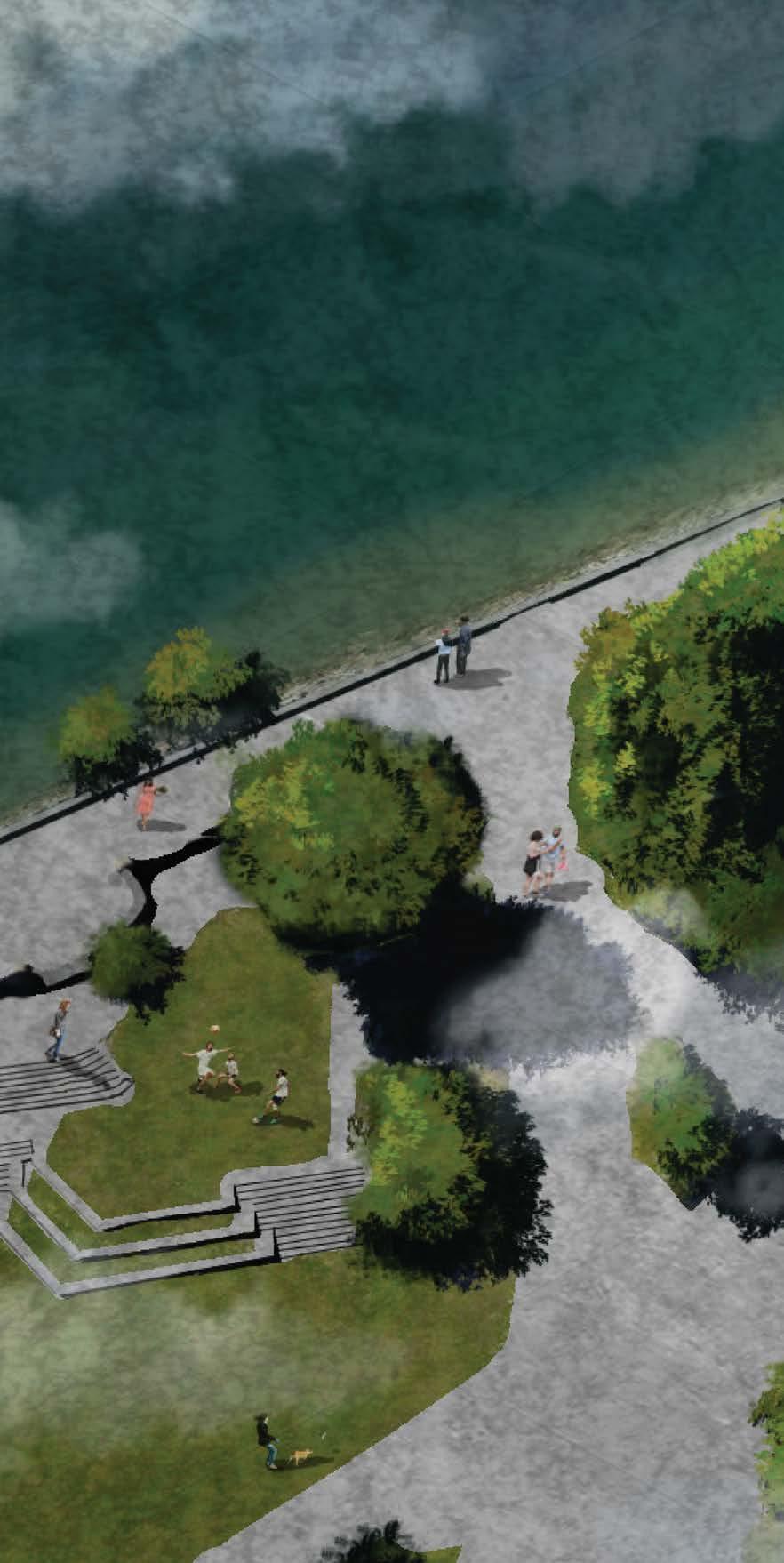

The Great Divide Spatial Narrative Extraction Video

Frank Kitts Park

In searching for a holistic view of the city, we discover the city to be divided in two.

One a complex city and the other a nature filled waterfront. The unavoidable divider between these two extravagant aspects is the vehicle-dominant highway, Jervois Quay. an inevitable blockade across Wellington.

50m

100m

200m

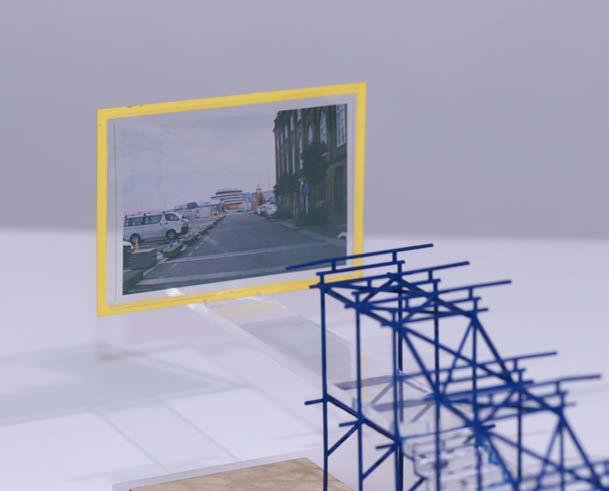

Road to Nowhere Spatial Narrative Extraction Video

Lady Elizabeth Lane

The waterfront experience unfolds through a scenic walkway commencing at Miramar, near the Airport. The walkway is enriched by all the social practices on the waterfront journey into the city centre, culminating in an unexpected and disappointing endpoint—a desolate parking lot.

7

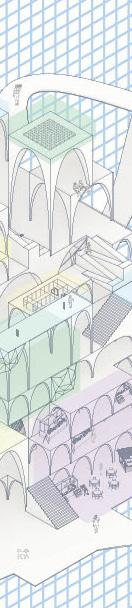

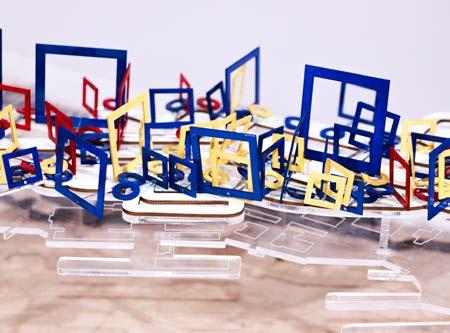

Spatial Follies : Concept Design The concept design is driven by a central question: “Can architectural forms impact, influence, and shape space and spatial practices?” by designing Spatial Follies directly respond to the Spatial Narratives. Influenced by the Follies at Parc de la Villette, which share the likeness in name, this part of the thesis has taken the programme out of the equation to truly investigate the architectural forms’ effects on the urban fabric and inhabitants.

8

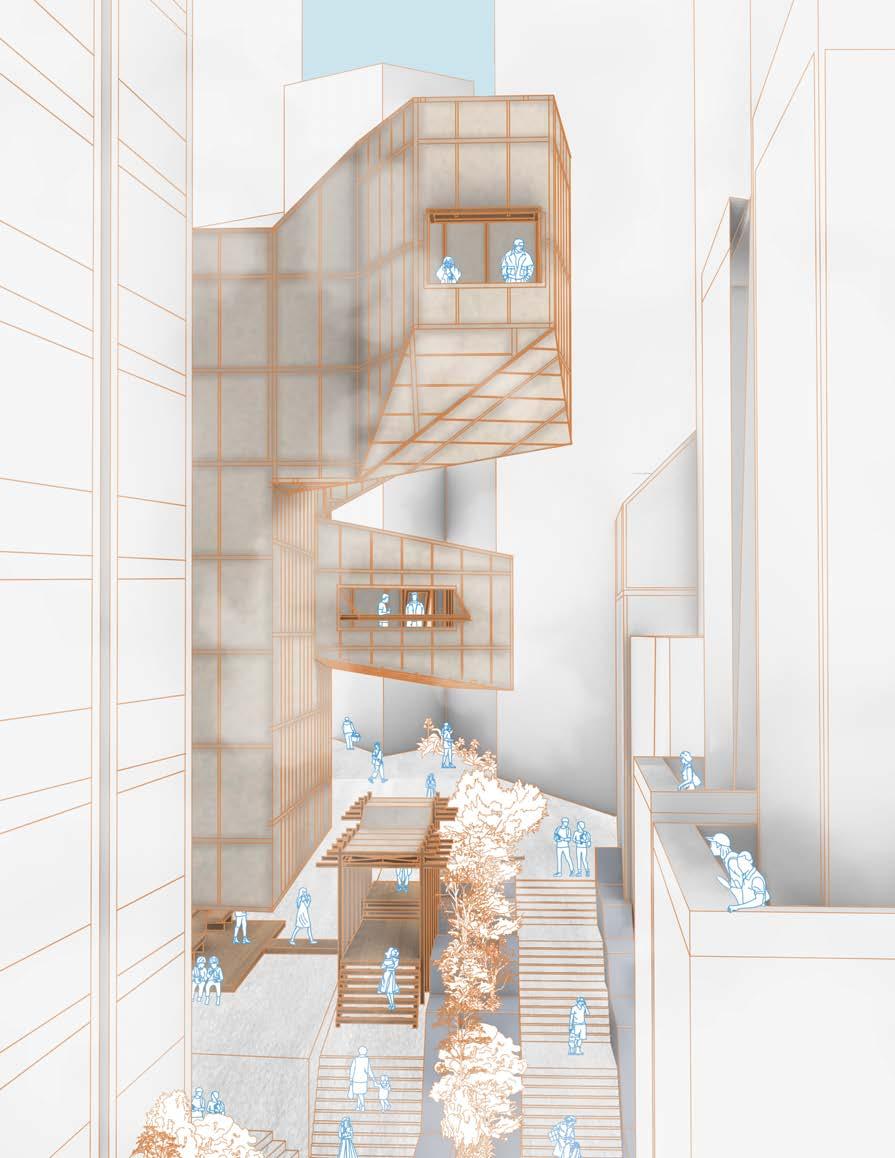

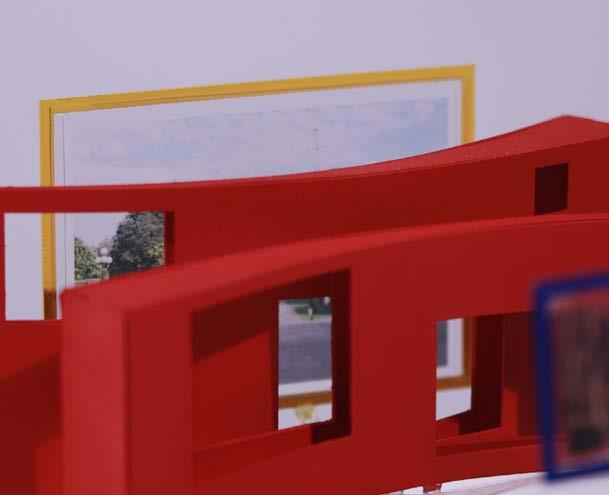

Framing Chaos Plimmers Steps Behind the Facade Full Concept Design

Nestled within the intricate fabric of the city, Framing Chaos acts as a sanctuary for social interaction. This design drew inspiration from traditional Japanese tea houses. This structure provides the inhabitants the control to take in the complexity of the city.

Full Concept Design

Tr th

to

Serendipitous Distraction

Gates to the City

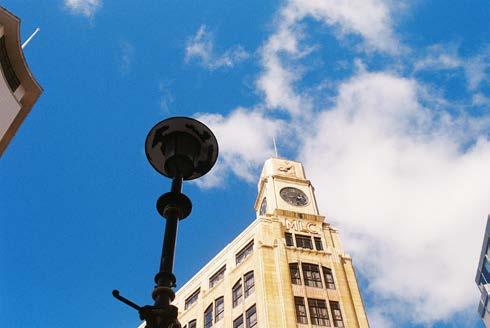

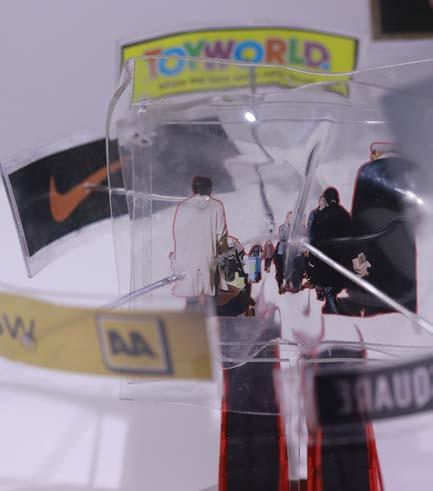

James Cook Arcade Mindless Journey Through the Spectacle

Frank Kitts Park The Great Divide

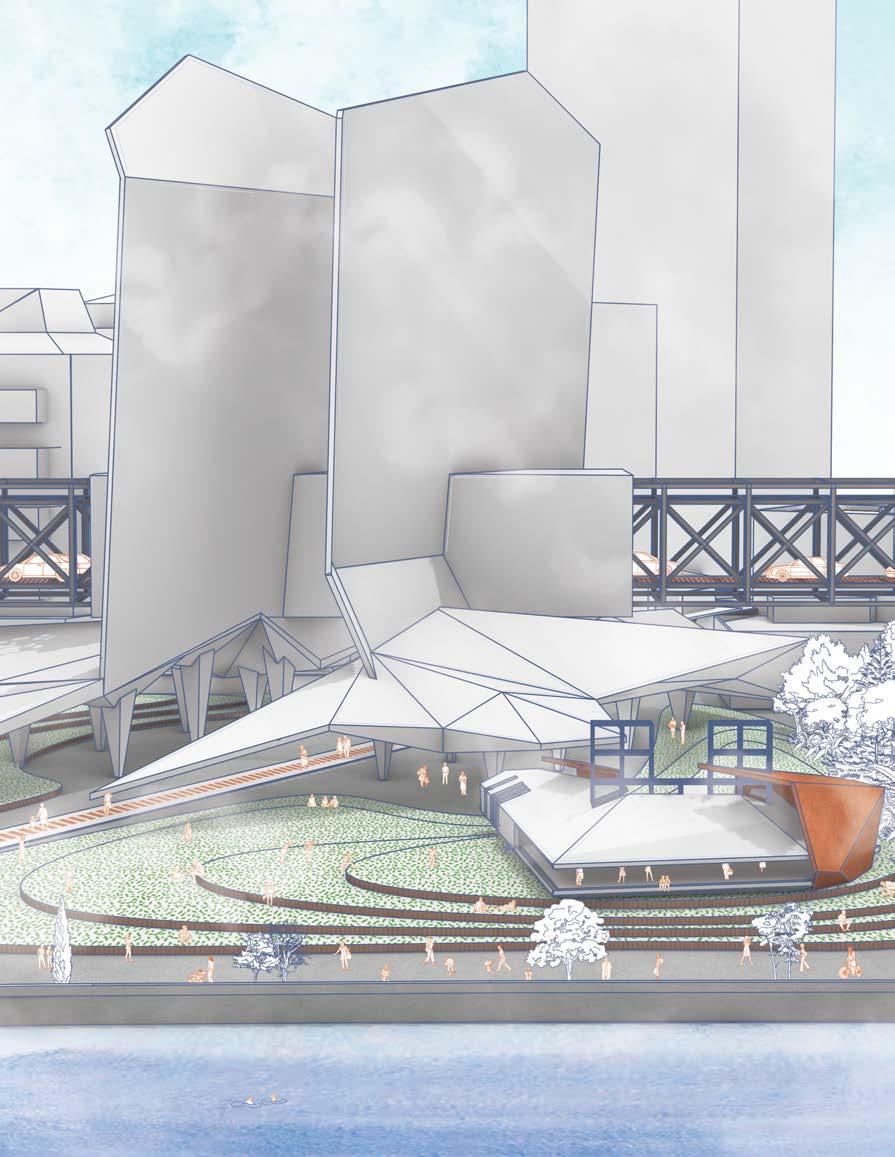

Traditionally a place of formality and structure labelled he heart of the central business district of Wellington, this space provides the opposite, encouraging adults o embrace their child-like intuition, utilising the theory of play to ostracise the spatial practice of the march.

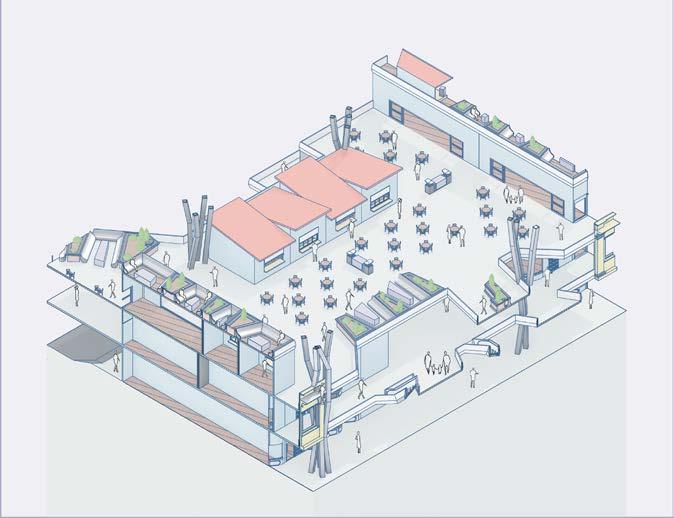

Full Concept Design

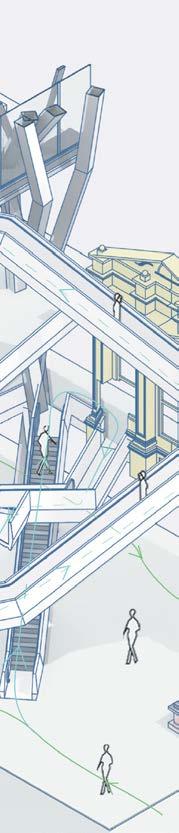

This design aims to glamorise and simplify the passage from the waterfront to the city while understanding the importance of the city’s infrastructure. The structure lifts Jervois Quay into the sky, creating an ample social space underneath.

9

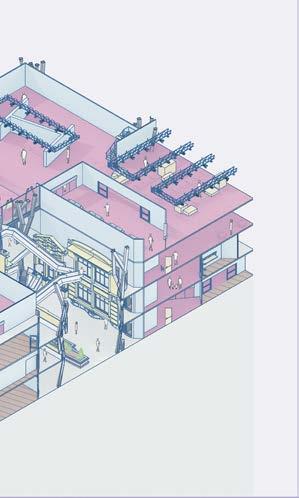

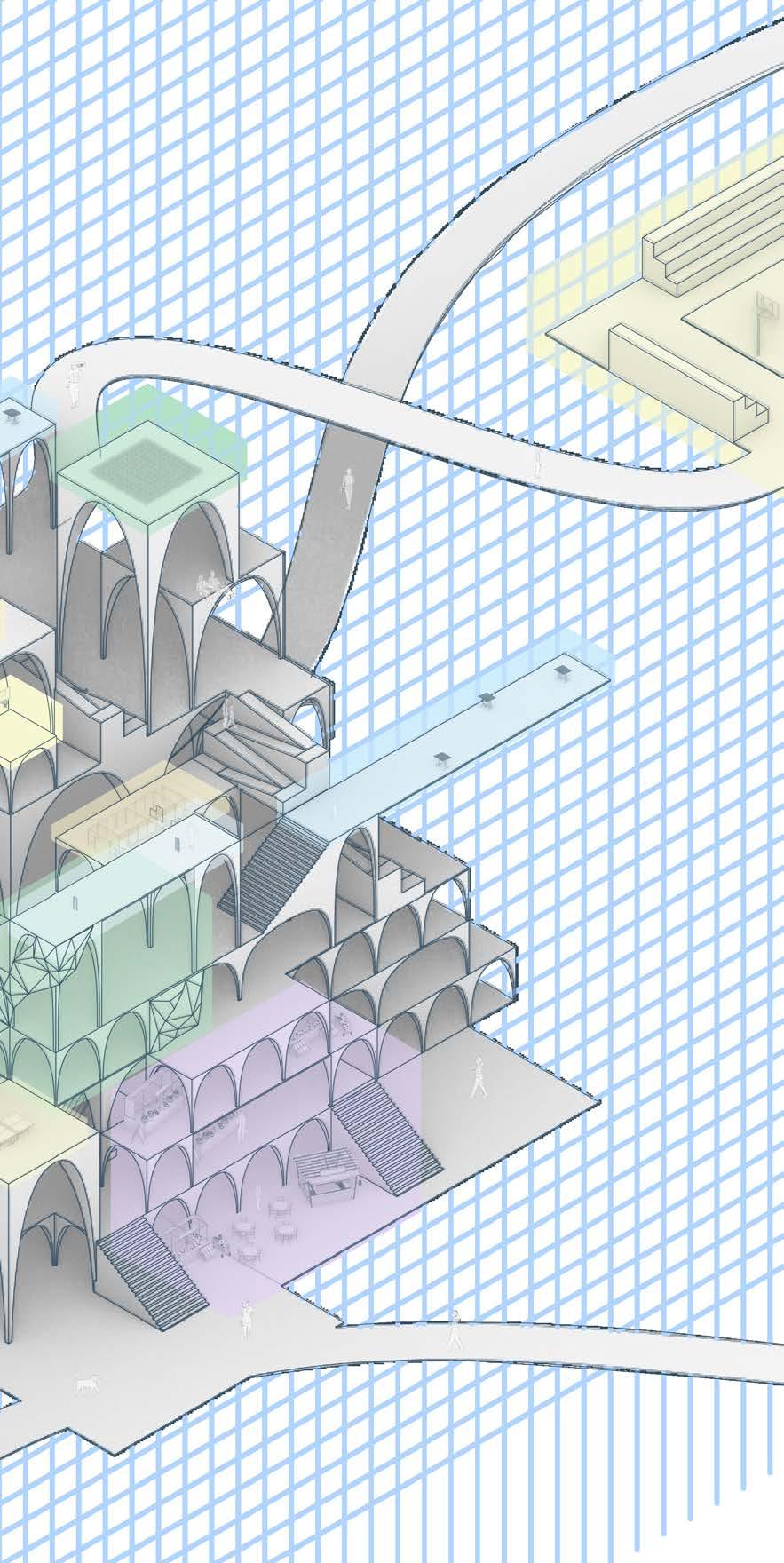

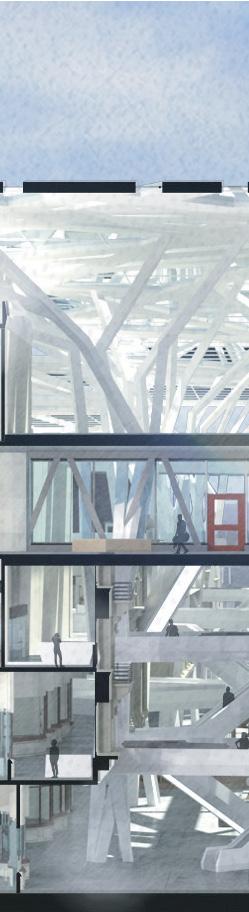

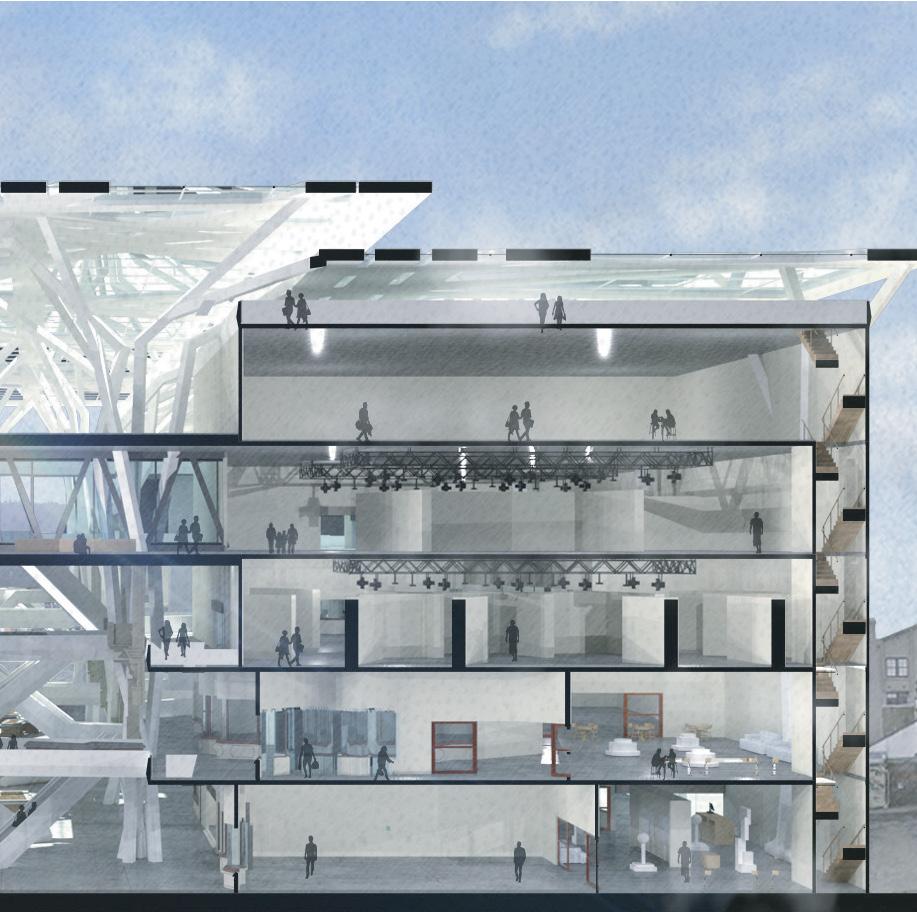

Détournement : Final Design

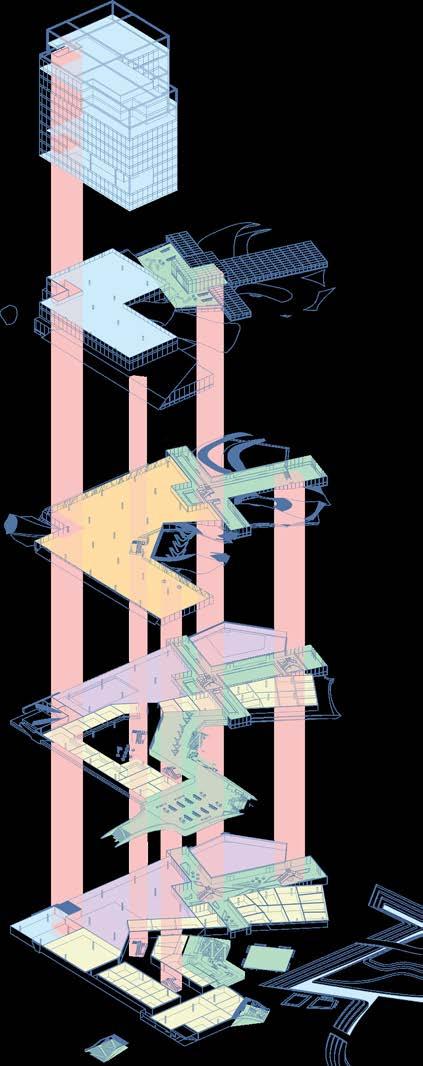

Final Design Complete set

Level 5 +

Level 3 - 4

La Fête in the Oeuvre Lady Elizabeth Lane Road to Nowhere

Level 2

Level 1

Ground Floor

10

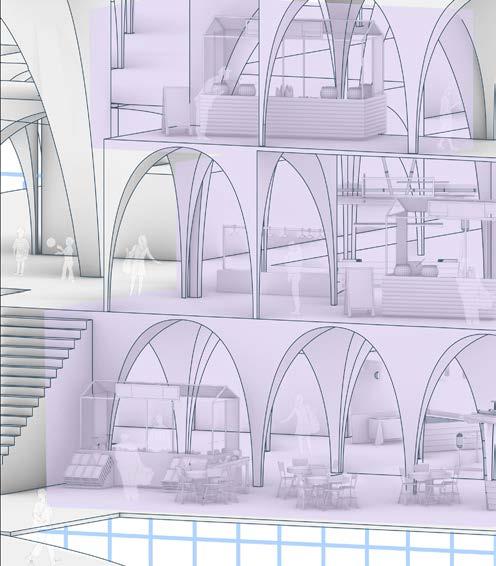

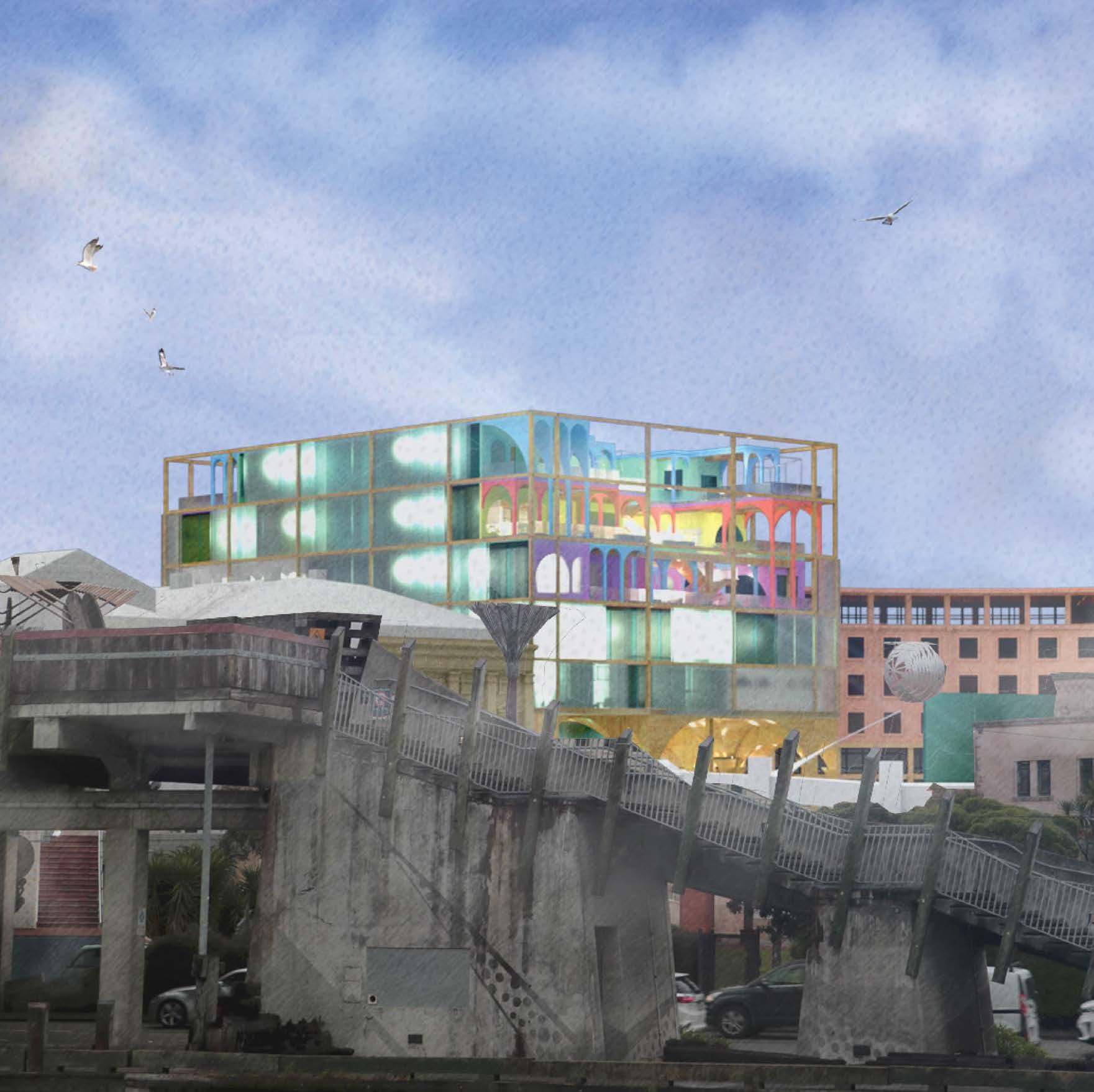

La Fête in the Oeuvre proposal centred around the main building at the walkway’s end. An extension of the city that looks to re-establishes Wellington’s Oeuvre. This space focuses on social interaction by allowing the architecture to accentuate differences and celebrate diversity. This design aims to spark redevelopment of the Wellington port into a high-density, inhabitantfocused community.

0m

10m

20m

40m 11

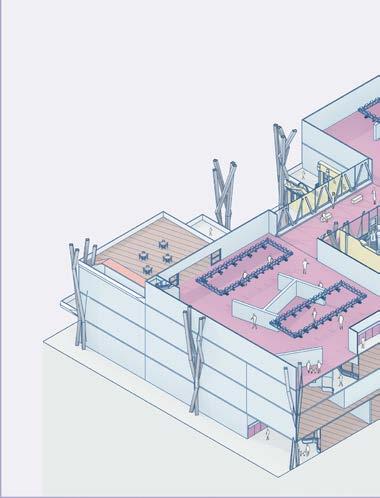

Harmonious Design This design proposes a multifaceted structure that seamlessly integrates commercial, residential, public, and civic programmes into a mixeduse building in the Wellington CBD. The design intends for the public and commercial spaces to work together and enhance the inhabitant’s experience. The commercial stores will utilise the public seating for their customers, and the commercial stores, library and community centre will encourage the public spaces to be populated.

12

13

2

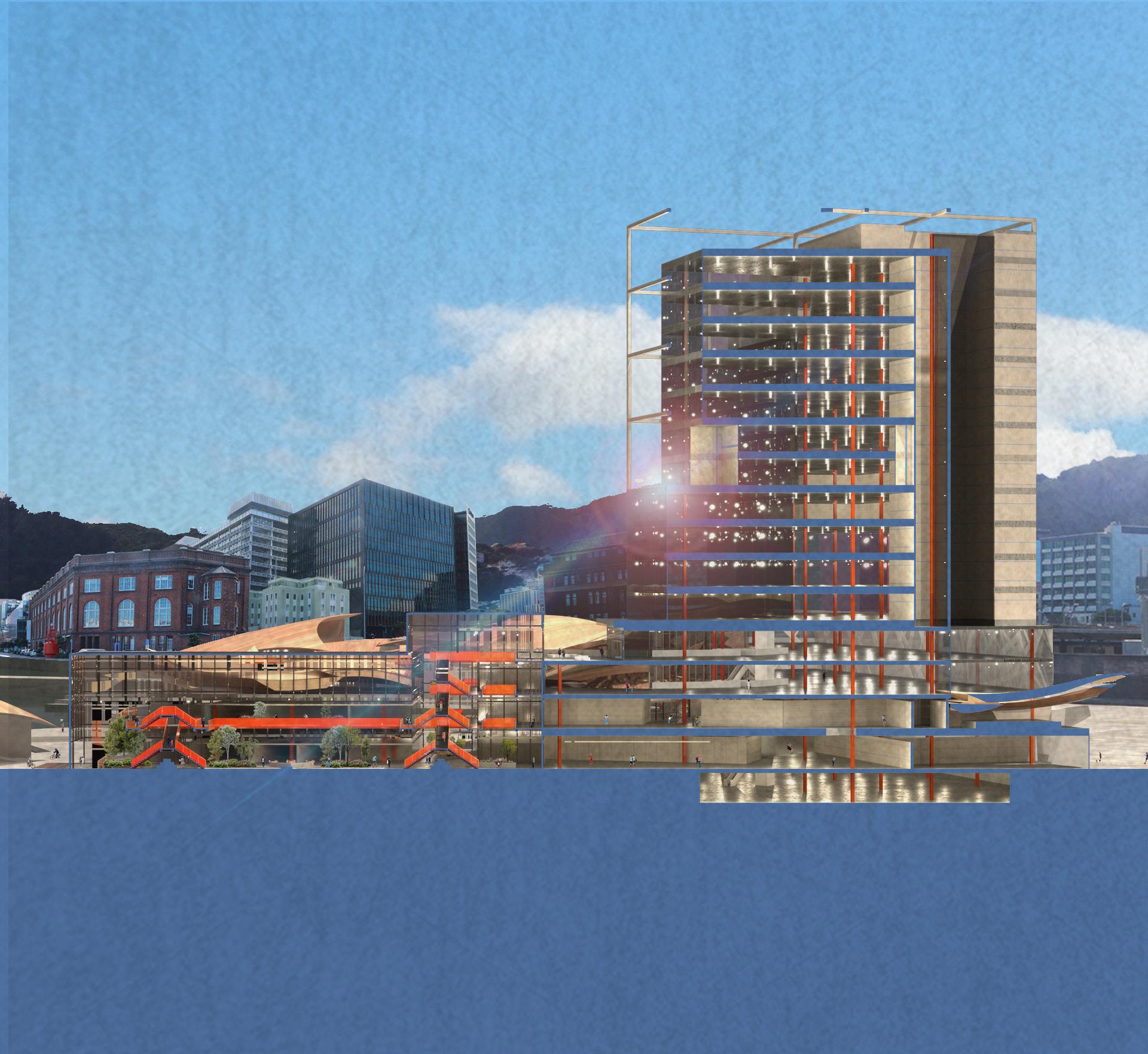

The Happiness Project 2022 ARCI 412

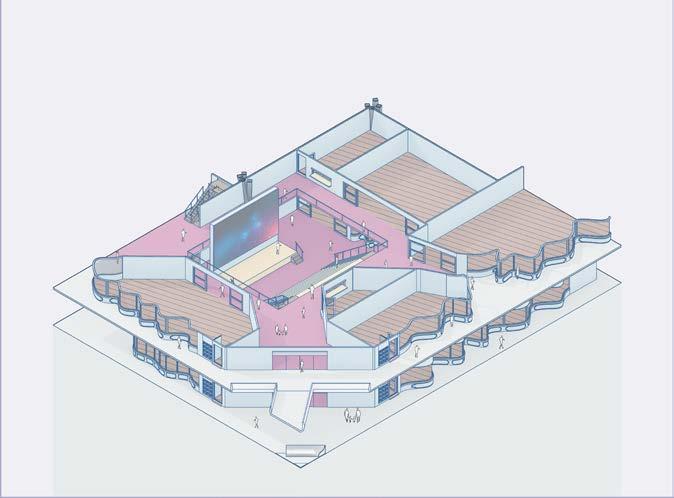

The Happiness Project Complete Project

This Project was to redesigning the Municipal Office building at the site of Te Ngākau Civic Precinct into a sports and recreational center. This project creates a structure designed for wellness, to bringing people together face-to-face, for inclusion and for facilitating healing and affording happiness. The aim was to improve our understanding of the importance of the built environment in the prevention and rehabilitation of poor mental health and wellbeing. Creating a building which can facilitate social interactions and the physical and mental well-being benefits derived from sports.

Conceptual Model 14

Social Interaction Derived from Play

Facilitating Competitive Sports for Physical Wellbeing

Revitalising Pathways by Populating Streetscapes

15

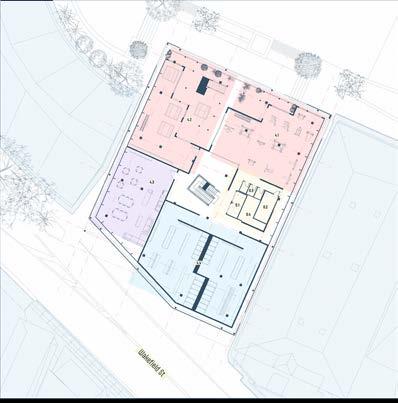

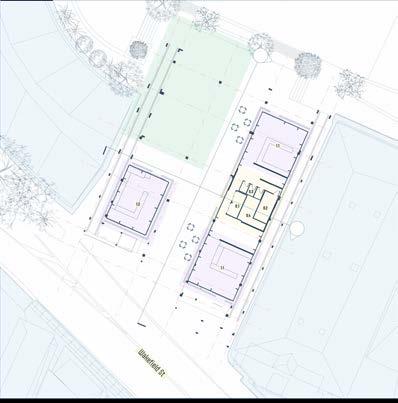

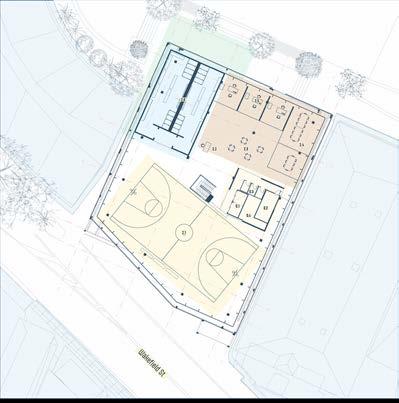

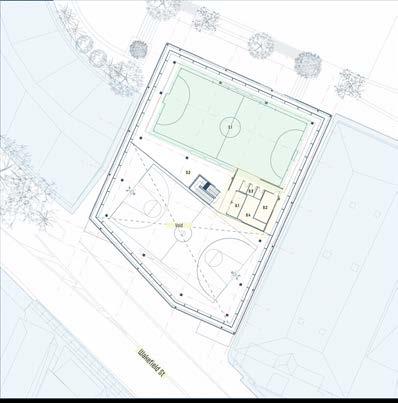

Floor Plans

16

17

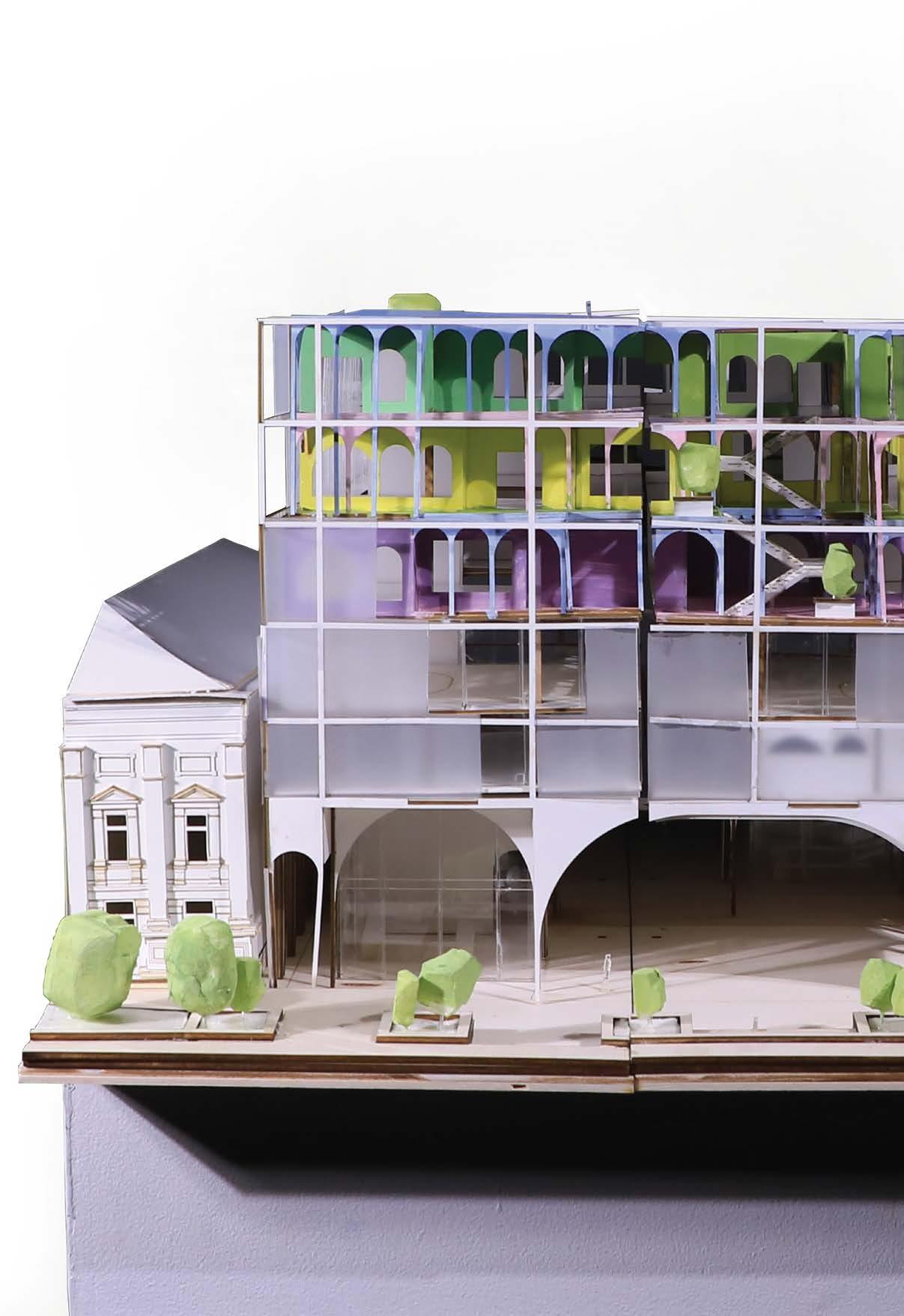

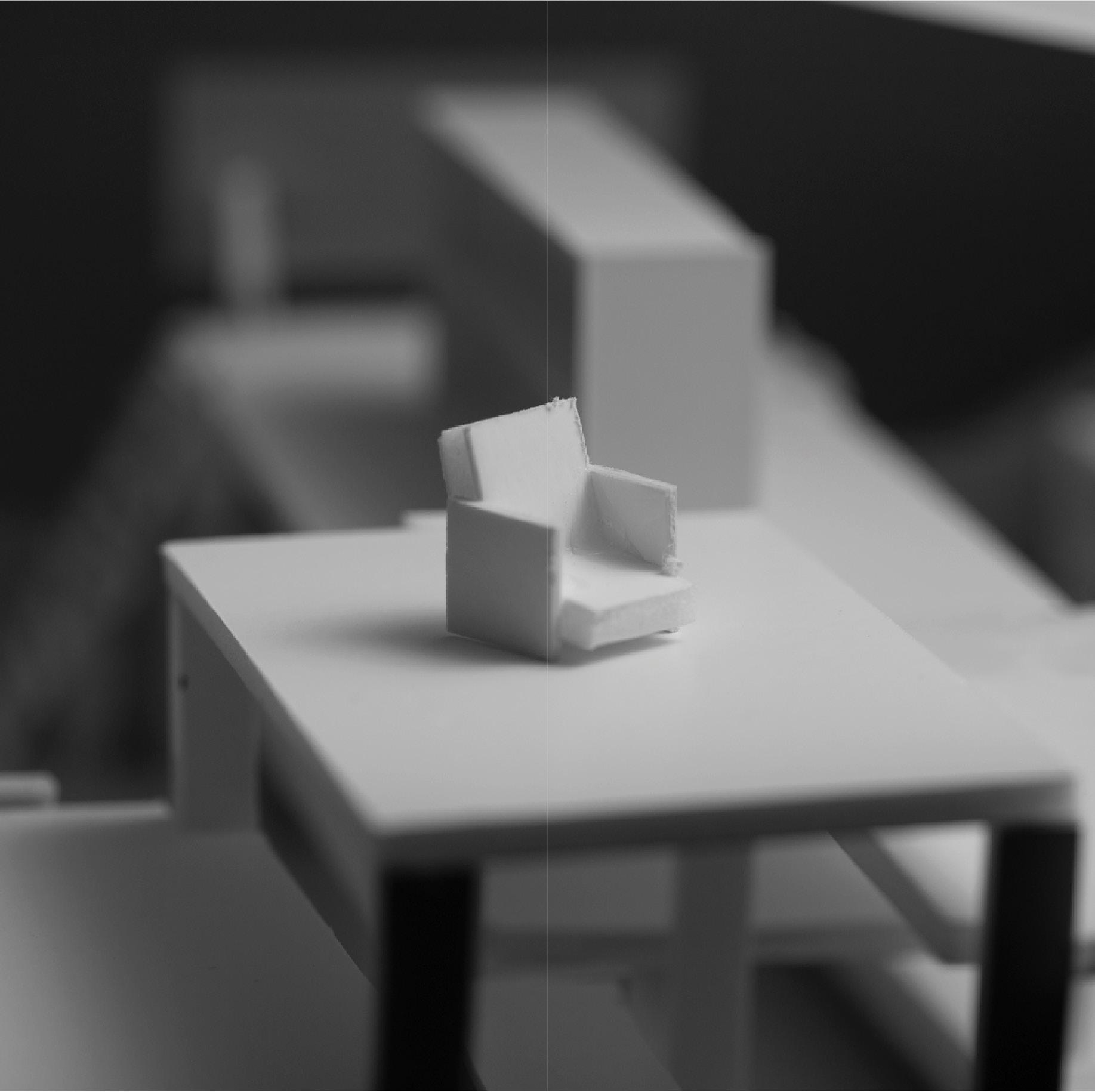

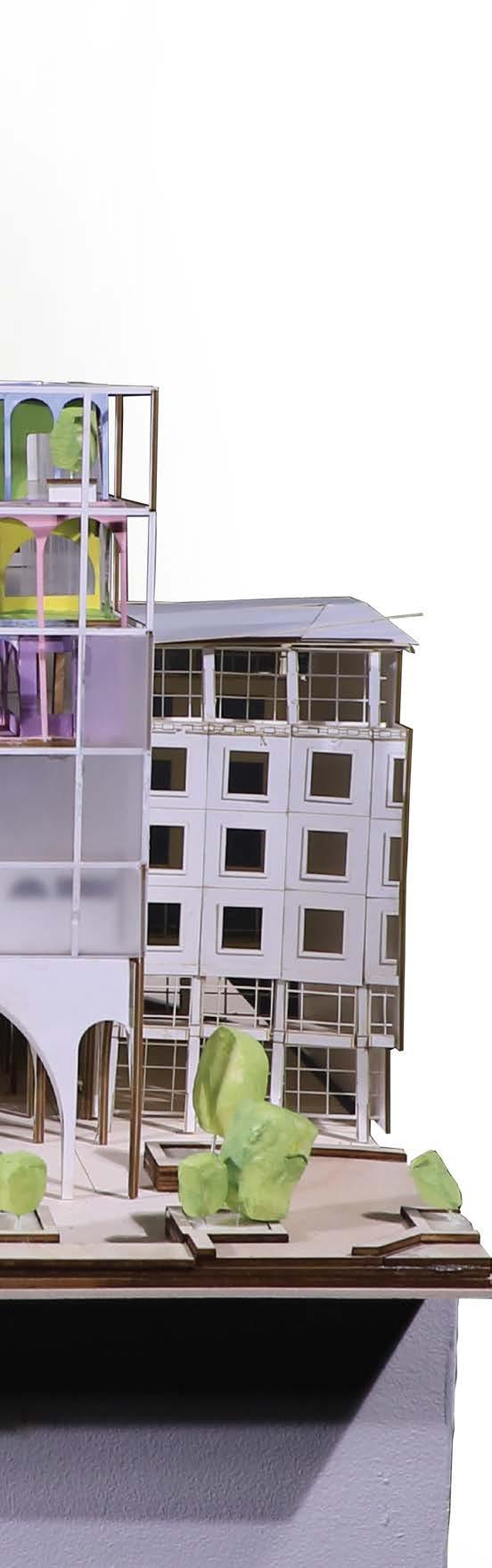

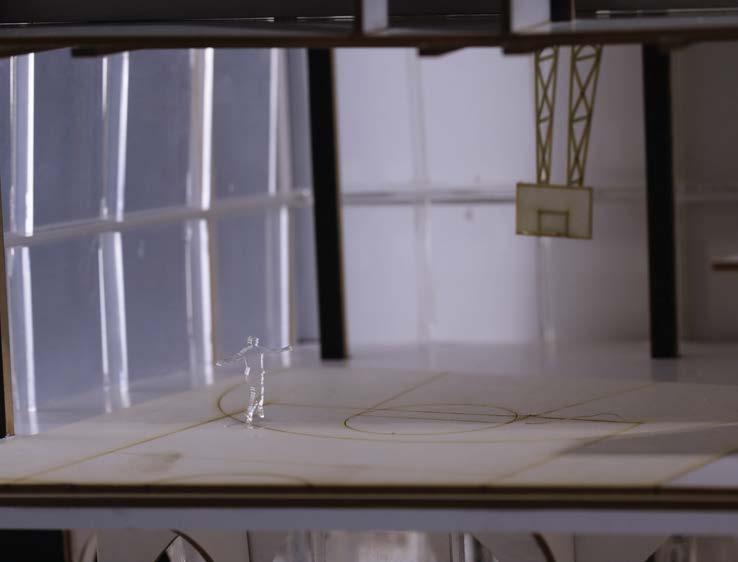

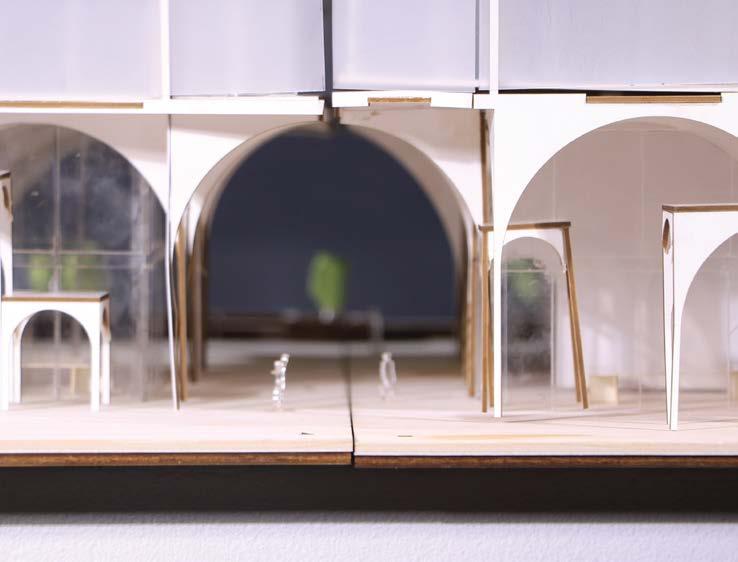

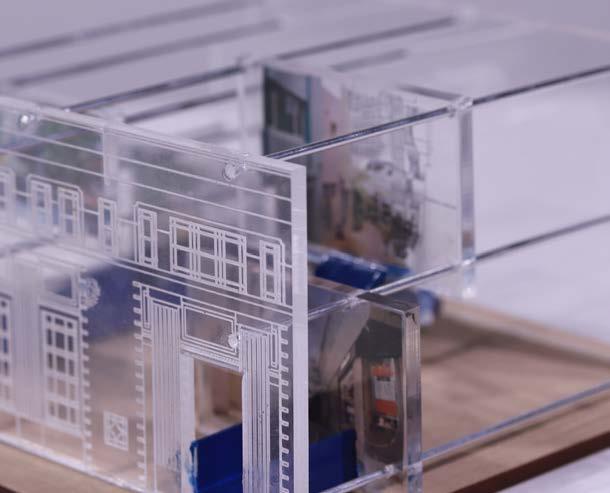

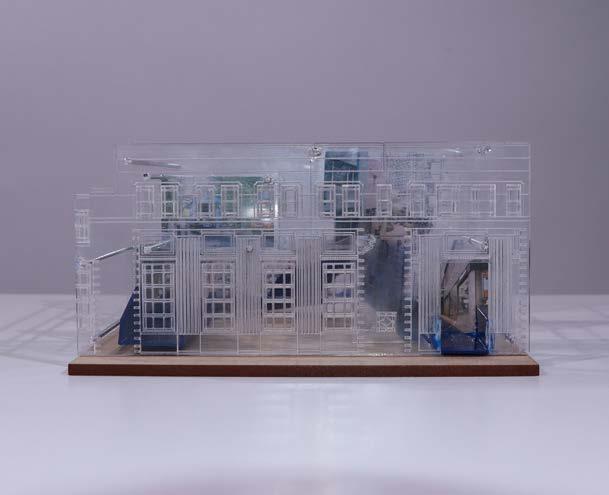

Physical Model Scale @ 1 : 100

More Model Photograph

18

Social Interaction Derived from Play

Facilitating Competitive Sports for Physical Wellbeing

Revitalising Pathways by Populating Streetscapes

19

Construction Drawings

Complete Drawing Set

Construction Drawings This project was followed until the documentation stage producing a set of drawings which studied the market for manufacturer and materials to provide a plauable and quality design. understanding the new architectural technology and intergrating them within our design.

20

1 300

2 700

2000

OUTDURE QWICKBUILD PROPRIETARY DECK FRAME & SUPPORT SYSTEM

150

COMFLOR 60 - CONCRETE - 4.4m MAX SPAN AT 1 HOUR FIRE RATING

295

RAIN WATER COLLECTOR, WATER GOING TOWARDS WATER TANK @ SERVICE CORE

512

227

NEWMILL COMPOSITE JOIST - REFER TO STRUCTURAL ENGINEER FOR SPECIFICATIONS

1178

487

498

348

24300 04 FOURTH FLOOR BEAM ENCASED IN GIB, WATERPROOF MEMBRANE & WOOD FINISH

23300 03 CEILING RONDO DONN® EXPOSED GRID CEILING SYSTEM INCLUDING ; ACOUSTIC, PERFORATED PLASTERBOARD AS PER G6 AIRBOURNE & SOUND IMPACT

1786

1

761

3695

APL ARCHITECTURAL SERIES AWNING WINDOW 106mm FRAME & AEROVENT

1

777

RONGOA PLANTS WALL MAKE UP WITH 140mm PINKBATT & SHADOWCLAD® NATURAL TEXTURE AS PER NZS 3602 & H1/AS2

POLYCARBONATE BALUSTRADE

348

19300 03 THIRD FLOOR

500

150

DANPAL® FACADE TRADITIONAL TP SYSTEMS

PRIMARY BEAM - UNITED STEEL UB 410 UB 54 - REFER TO STRUCTURAL ENGINEER FOR SPECIFICATIONS

SUSPENDED FLOORS ALLOWING OUTDOOR DECKING TO BE LEVEL WITH THE FLOOR WITH GUTTERING SYSTEM. RAIN WATER COLLECTOR, WATER GOING TOWARDS WATER TANK @ SERVICE CORE

CURTAIN WALL ADAPTED FROM AEROVENT TRANSOMS AND HEROAL C 50 GD MULLIONS LEGEND

PROJECT NAME

NOTES & REFERENCES

CIVIC SQUARE SPORTS & LEISURE CENTER

1

BALCONY DETAIL AREA SECTION 1 : 20 @ A2

CONCRETE

GROUND

TIMBER

GRAVEL

PROJECT LOCATION SCALE

TIMBER SLATS

INSULATION

GYPSUM

WARM ROOF INSULATION

STEEL

1 : 20 @ A2

101 WAKEFIELD STREET, TE ARO, WELLINGTON. 6011

DRAWN BY

DRAWING DESCRIPTION

TITLE

DATE

JAEWON LEE 300487329

ARCI 412 / ARCI 421 - PHASE 4 DEVELOPED DESIGN - ENVELOPE

Balcony Detail Area Section

26 / 10 / 2022

SHEET NO.

A10

21

Construction Drawings

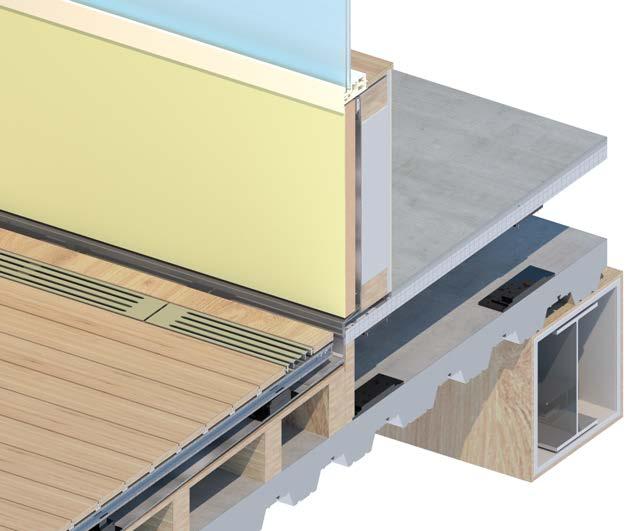

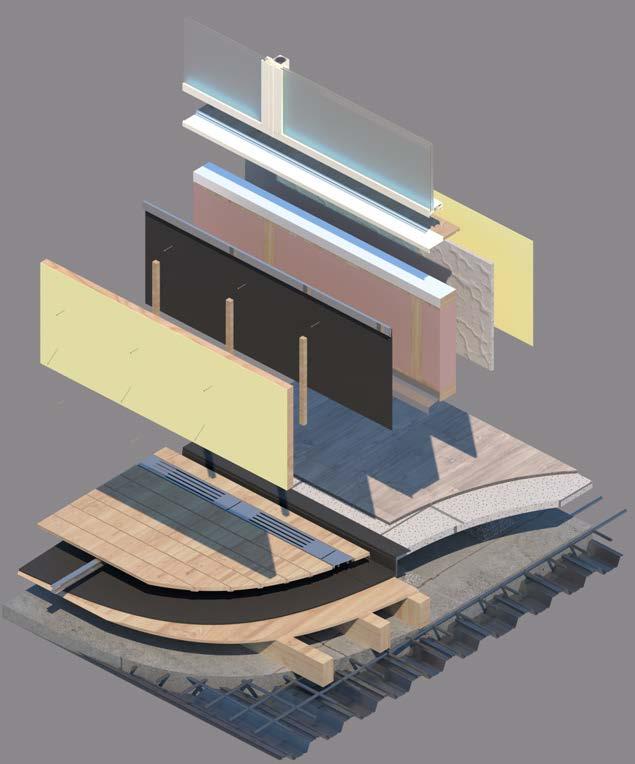

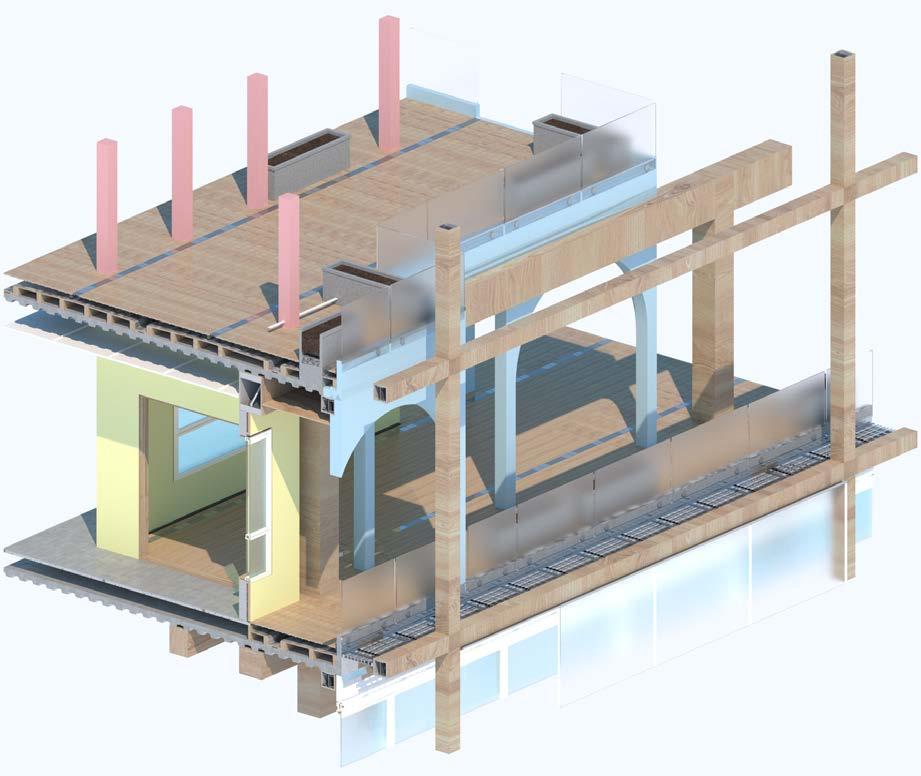

Detailed Drawings The Project investigated multiple connections details for the design. This allowed a deep understanding for how the design was built as I worked through the building envelop and connections details to demonstrate how they are put together shown in the exploded isometrics.

22

250 5484

140

SHADOWCLAD® NATURAL TEXTURE CAVITY BATTEN WATERPROOF MEMBRANE

20

BUILDING UNDERLAY Pink® Batts® Ultra® R4.3 140mm Wall

EXTERIOR COLOUR FINISH

2 x 10 mm GIB FYRELINE

90

ALUMINIUM FLASHING AIR SEAL

INTERIOR WALL FINISH

NATURALLY AUTOMATED TRICKLE VENTILATOR FOR STACK VENTILATION

INTERIOR JAMB OVER TIMBER PACKER FIT AIR SEAL OVER PEF

OPENABLE WINDOWS ON NORTH AND SOUTH SIDE FOR CROSS VENTILATION APL ARCHITECTURAL SERIES AWNING WINDOW 106mm FRAME & AEROVENT®

AIR SEAL ALUMINIUM FLASHING

TIMBER FRAME 140 x 90 mm

OUTDURE QWICKGRATE POSITIONED SECOND BOARD IN OUTDURE® DECKING OUTDURE® QWICKBUILD BEARER 45X45F

DAMP PROOF COURSE

OUTDURE® JACK TARAFLEX® SPORTS FLOORING 24

OUTDURE® QWICKBUILD JOIST45X45F

19300 03 THIRD FLOOR

HIGH DENSITY GIB BOARD

VIKING® TORCH-ON SHEET MEMBRANE

STEEL SHEET PEDESTAL CAP EUROPAD

140

VIKING PIR POLYISO INSULATION SHEET PLYWOOD SHEETS MINIMUM ANGLE 1.5° PER E2/AS1 TIMBER SLATS NEGATIVE REINFORCEMENT TO PREVENT CRACKING REINFORCING MESH REFER TO STRUCTURAL ENGINEER FOR SPECIFICATIONS COMFLOR 60 - 30 MPA CONCRETE - 1 HOUR FIRE RATING

RAIN WATER COLLECTOR, WATER GOING TOWARDS WATER TANK @ SERVICE CORE

1

DECKING TO WALL & WINDOW DETAIL 1 : 5 @ A2

23

3

Resurgence to Cuba 2022 ARCI 411

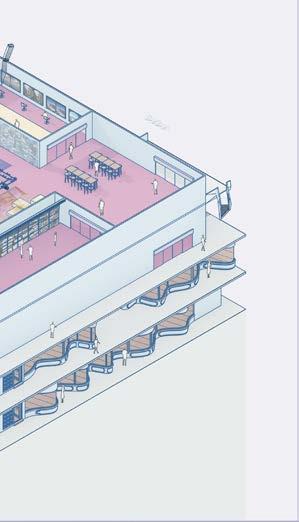

Resurgence to Cuba Complete Project

This project is a redesign of Cuba Street and it starts as a question of “How can the people of Wellington return to doing social rituals like dining out and experiencing retail during the times of COVID-19 pandemic?” It aims to to help the businesses on Cuba street to operate safely during and after the pandemic to recover the economy and give the people of Wellington a place of belonging and a place for well being.

24

0m

50m

100m 25

Retail Store Floor 1

Takeaways

26

Beauty & Body Care

Takeaways & Sit - in Restaurtant

Pub & Clubs Floor 2

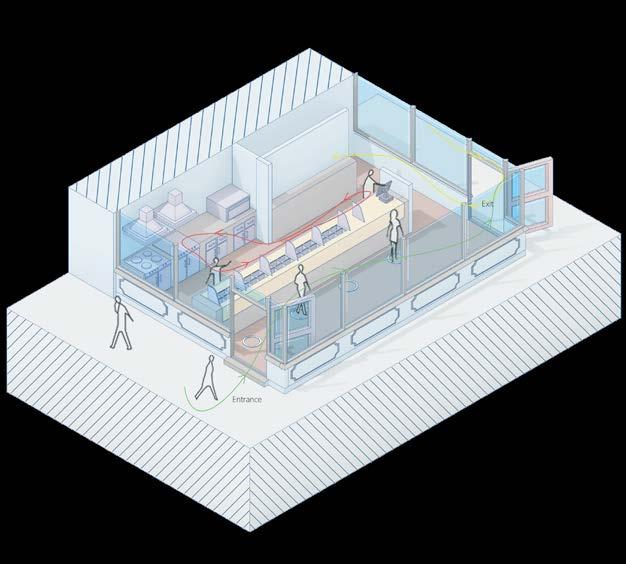

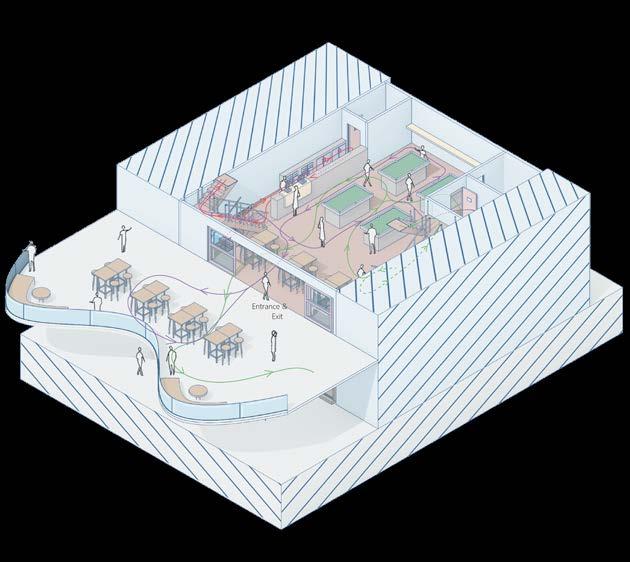

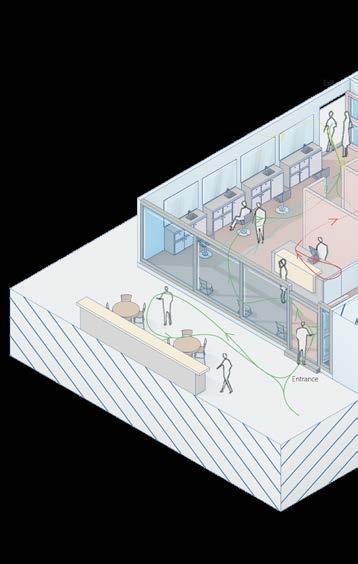

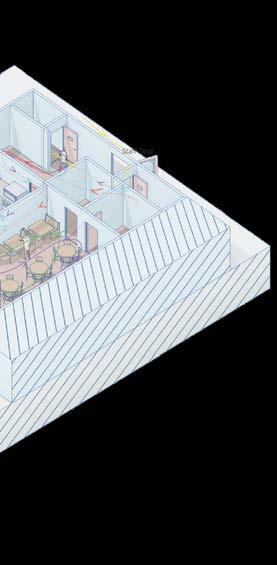

Concept Store Diagram For this project I listed all the shops on Cuba Street and put them into different types of categories from retail stores, restaurants and more. Then I analysed the movement of workers, customers and any other which highlighted where the connection which spread COVID-19 and redesign the store which would minimise contact between people.

27

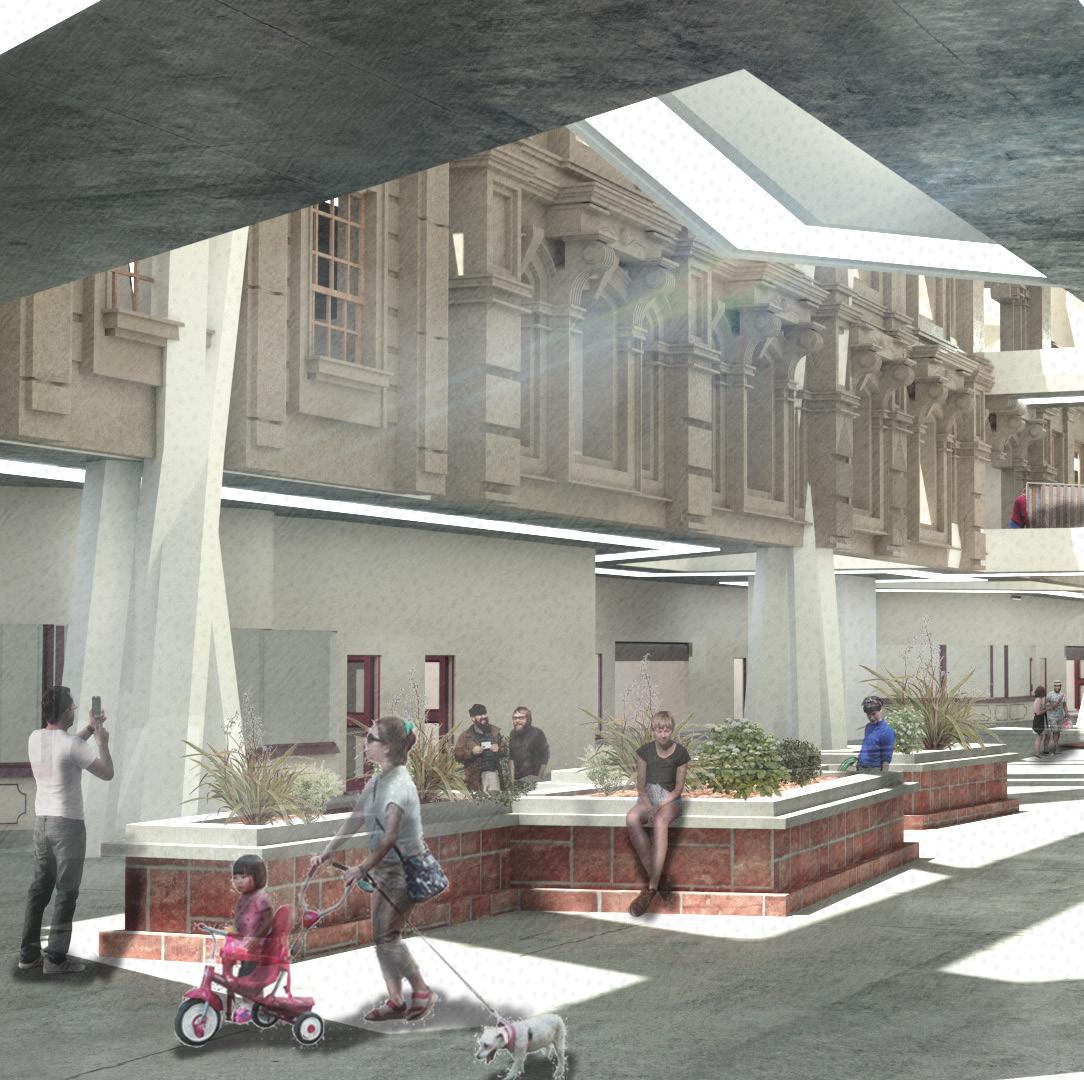

Moment of Pause 28

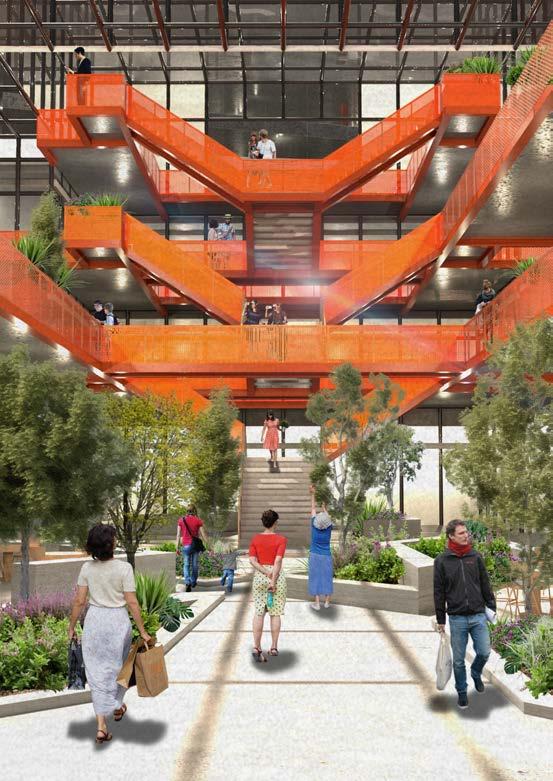

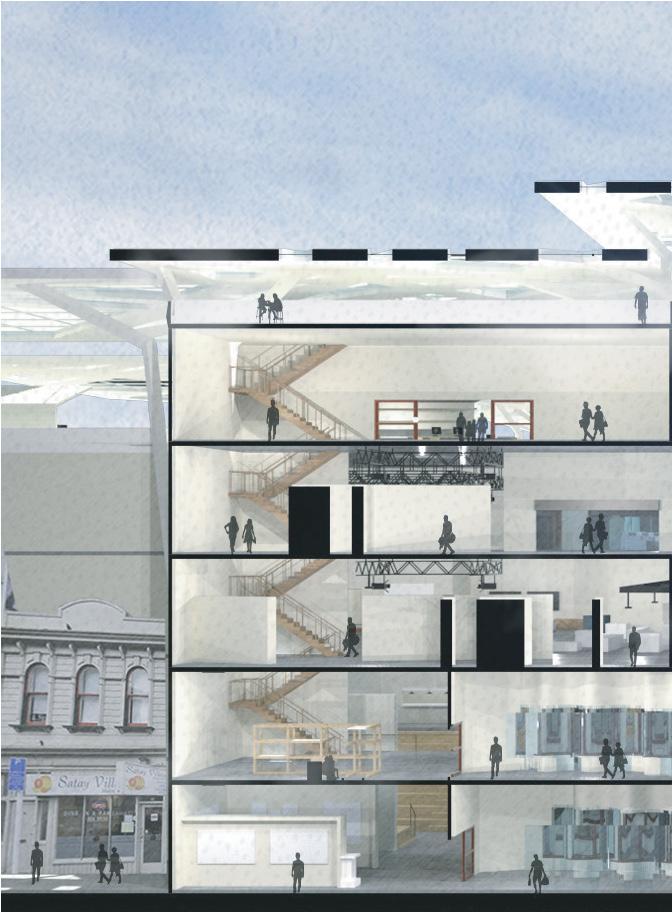

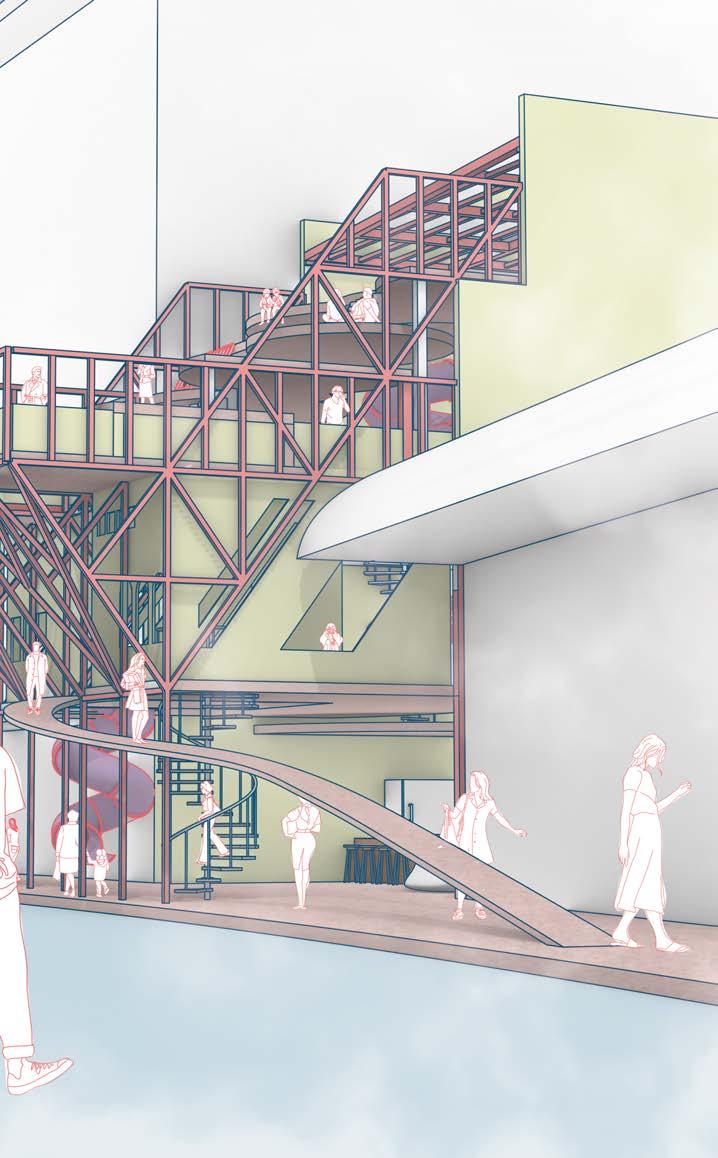

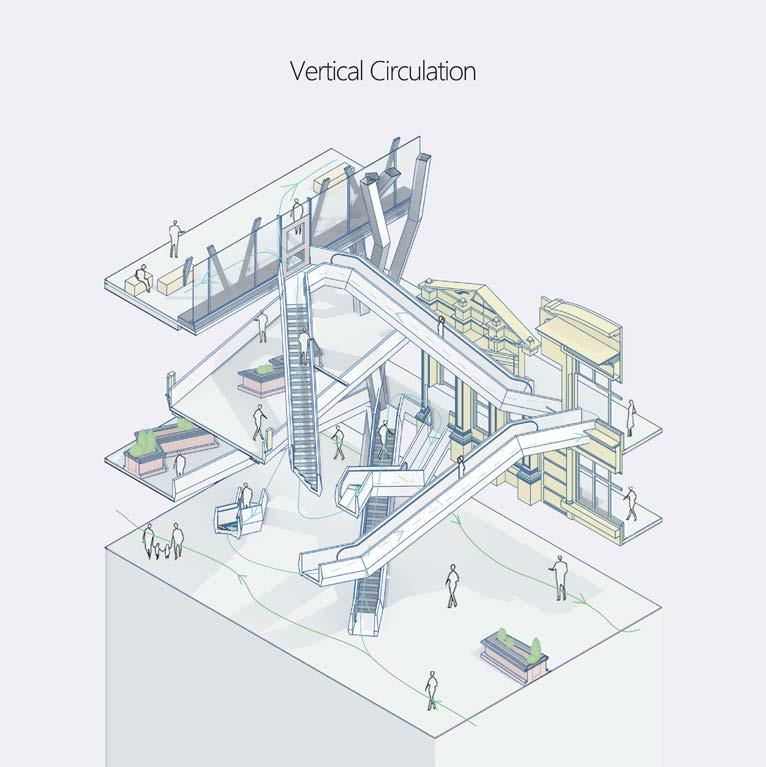

Vertical Circulation There are 3 Nodes for Vertical circulation and an elevator on site. The stairs makes it easy for a person walking on the street to turn their body slightly to encourage using the stairs and keeping the flow of movement.

29

Food Court

Tech Centre Floor 2

30

Tech Centre Floor 4

Gallery Floor 4

Reading Area

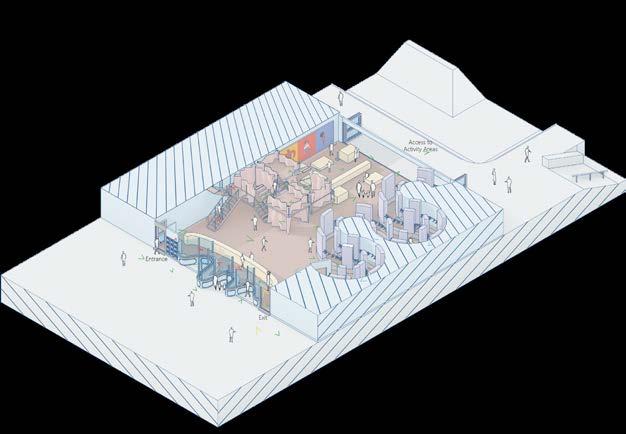

Activity Area One strong way to sell products is to have people spend time in their store but because of COVID it is not possible. Creating large and open areas and having the stores surround this space so when you are using the activity area it feels like you are still in the store. I want to think of these Areas as destinations and the Shops that are in between them is the journey and a pathway that connects each Activity Area.

Activity areas act as destinations and shops as the journey to create more movement in the site and even access the activity area through the store.

31

4 Powhiri to Aotearoa 2021 ARCI 312 - P2

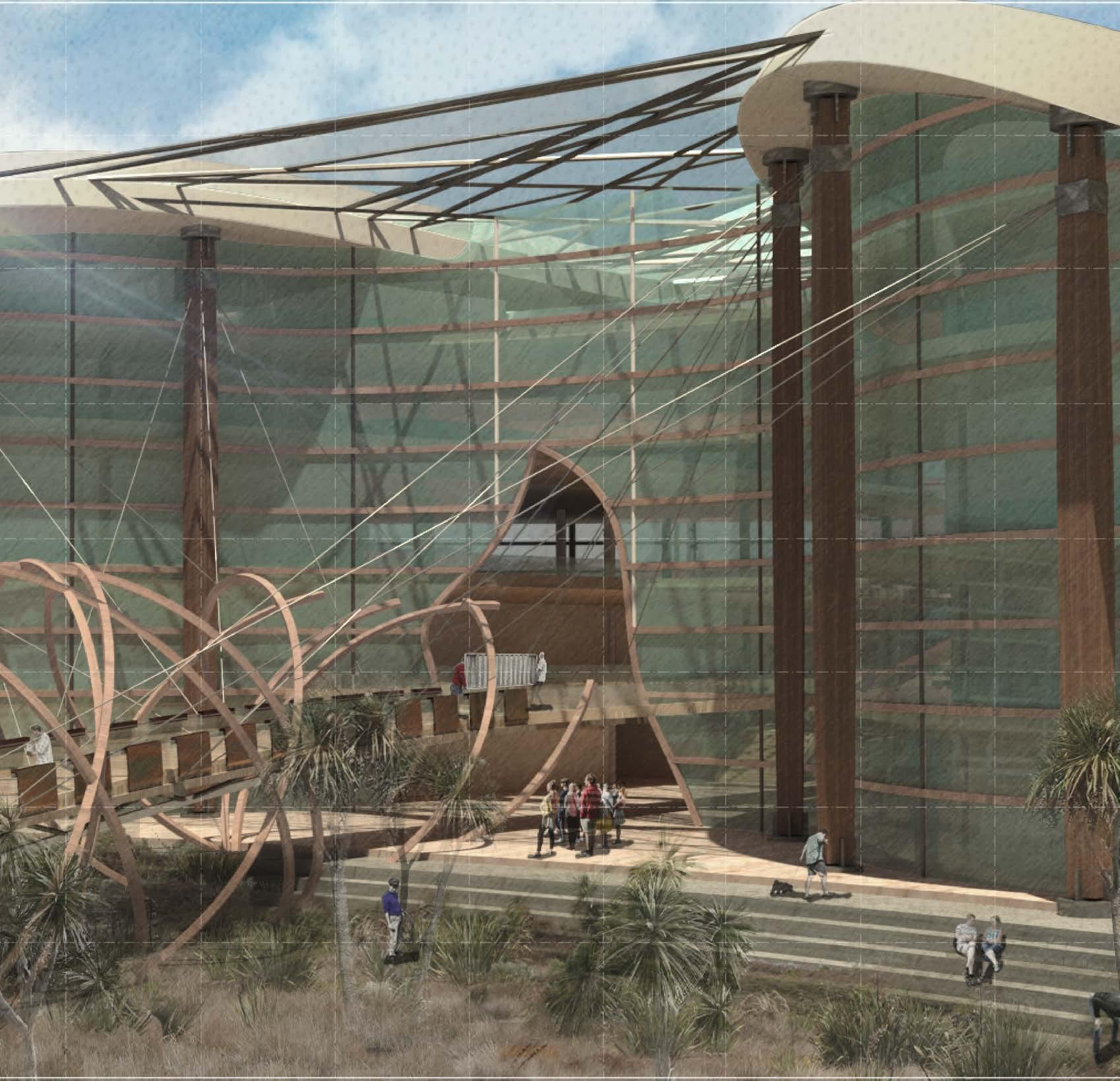

Powhiri to Aotearoa Complete Project

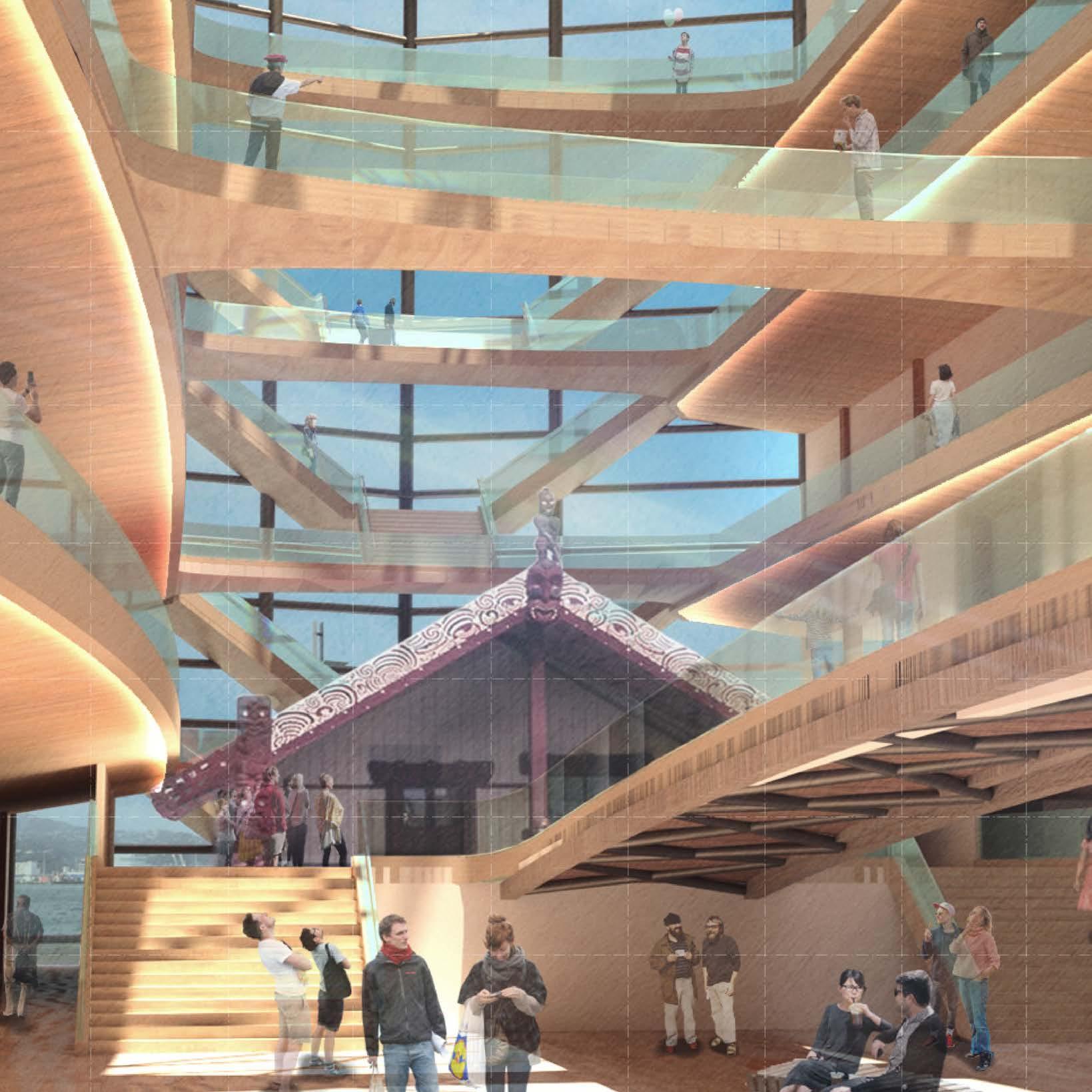

This Project is a redesign of Te Papa, National Museum of New Zealand.

My design studies the process of the powhiri, a traditional Maori welcoming ceremony. I wanted to create a space that celebrates all of New Zealand by using the powhiri as the process that will welcome people from all walks of life. In my design I have emphasised connections and paths in my form to recreate the amazing sensation of a traditional powhiri. The powhiri is a process of removing tapu (scares) from the visitors. I want to show the connections built by this process from whatever path of life you are from. This building represents New Zealand as the welcoming country it is but in our traditional way. The powhiri today is used very commonly in New Zealand and has been a part of many, I feel there is nothing that would represent the kindness and true nature of New Zealand.

32

33

34

L4.

L3.

L2.

L1.

Powhiri Process The powhiri is broken up into 6 stages; the karanga (call), the whaikorero(speeches), the waiata (song), koha (exchanging gift) the kariru (shaking of hands), the kai (food). All these has been representedby the programme of the museum toreplicate the process of the powhiri tothe experience of TeblockPapa museum.

1 - entry & circulation. block 2 - garden.

G.

block 3 - exhibitions. block 4 - venues. block 5 - auditoriums. block 6 - marae. block 7 - staff office.

35

1.B 2.A

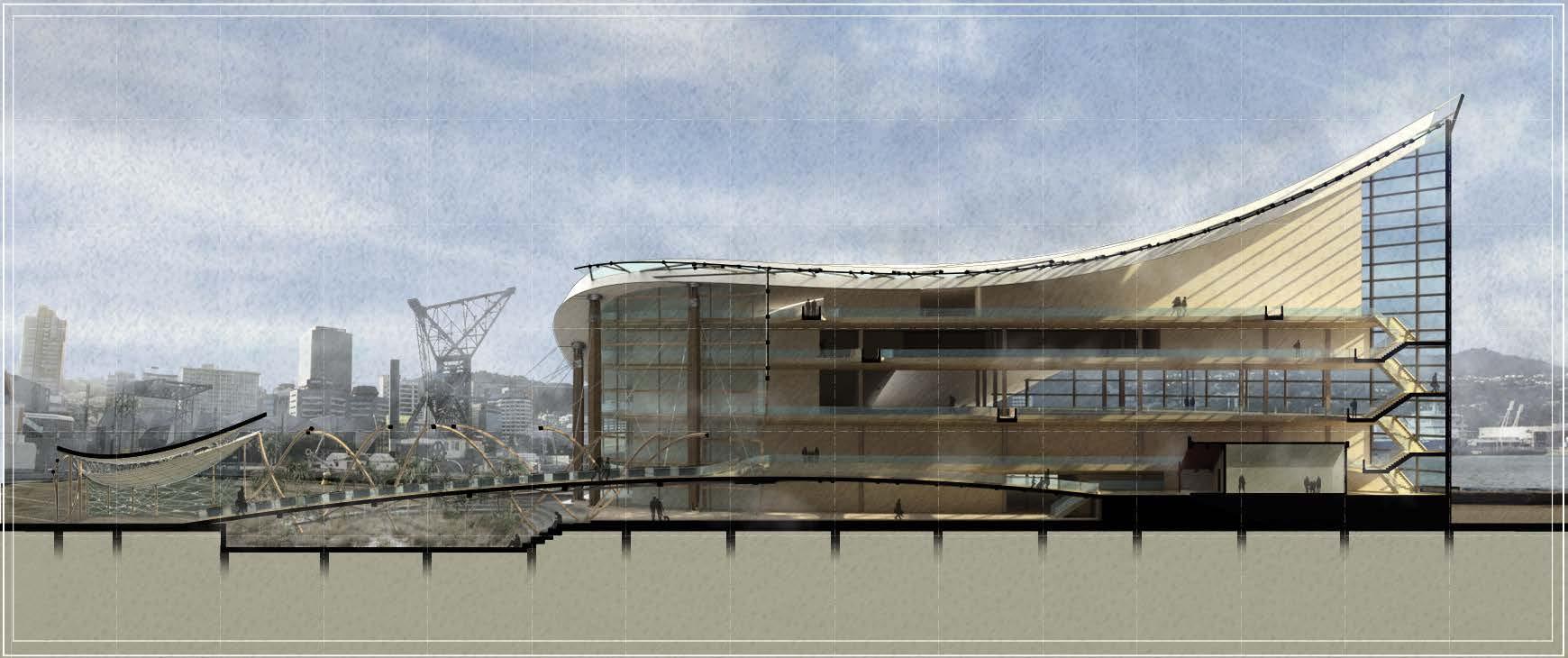

Long Section

key.

36

vertical circulation.

0.A - main stairs.

0.B - support lifts.

0.C - emergence circulation.

0.D - service circulation. block 1 - main entry.

1.A - main atrium.

block 2 - exterior/interior city bush.

2.A - garden.

2.B - amphitheatre. block 3 - exhibitions.

3.A - foyer.

3.B - permanent exhibition 1.

3.C - permanent exhibition 2.

block 4 - venues.

4.A - venue 1.

4.B - venue 2.

4.C - venue 3. block 5 - auditorium.

5.A - large auditorium.

5.B - small auditorium.

block 6 - marae.

6.A - te marae.

6.B - marae atea.

6.C - mana whenua .

6.D - support and storage. block 7 - staff block.

7.A - reception and open plan offices.

5.C

7.A

24000 5.B

5.B

19000

3.B

12000 0.A

6000 6.B 3.A

6.A

3000

1.A

0

0m 0m

10m 10m

20m 20m

37

5 Ngaio Library 2020 ARCI 212

Ngaio Library Complete Project

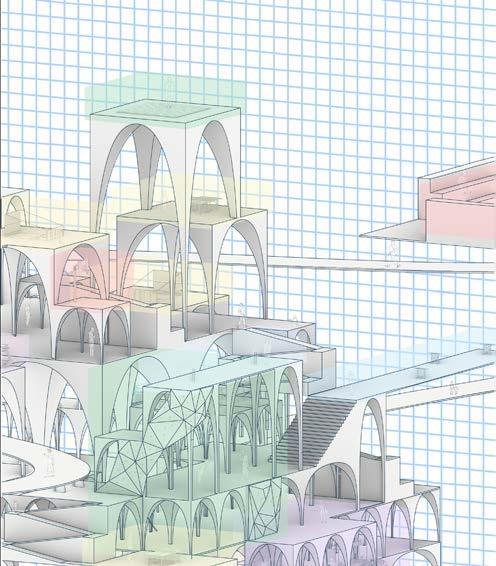

This Project is a redesign of the Ngaio library. This design studies House N.A by Sou Fujimoto and the idea of being playful, this idea looks at the floors of the house as being in a tree where you have both privacy and openness. This idea is deployed in the reading area of the design to have different levels and uses a frosted exterior shell to allow soft light into the design acting as the leaves.

38

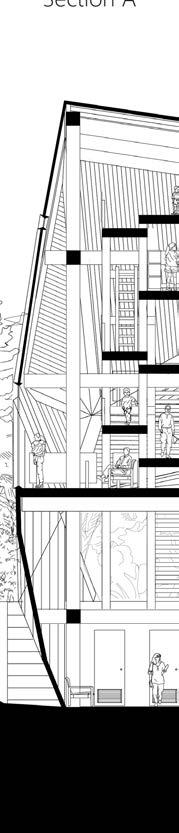

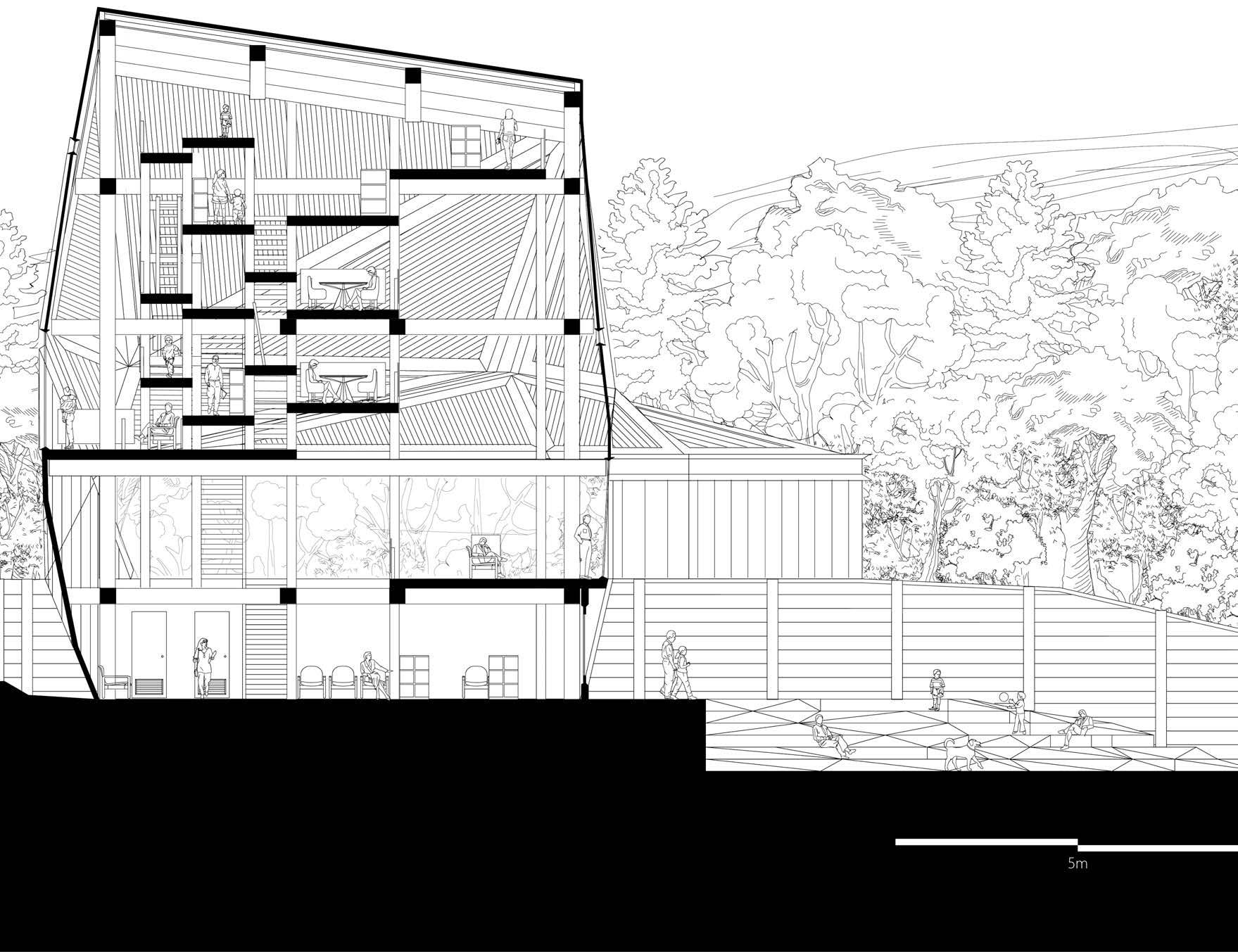

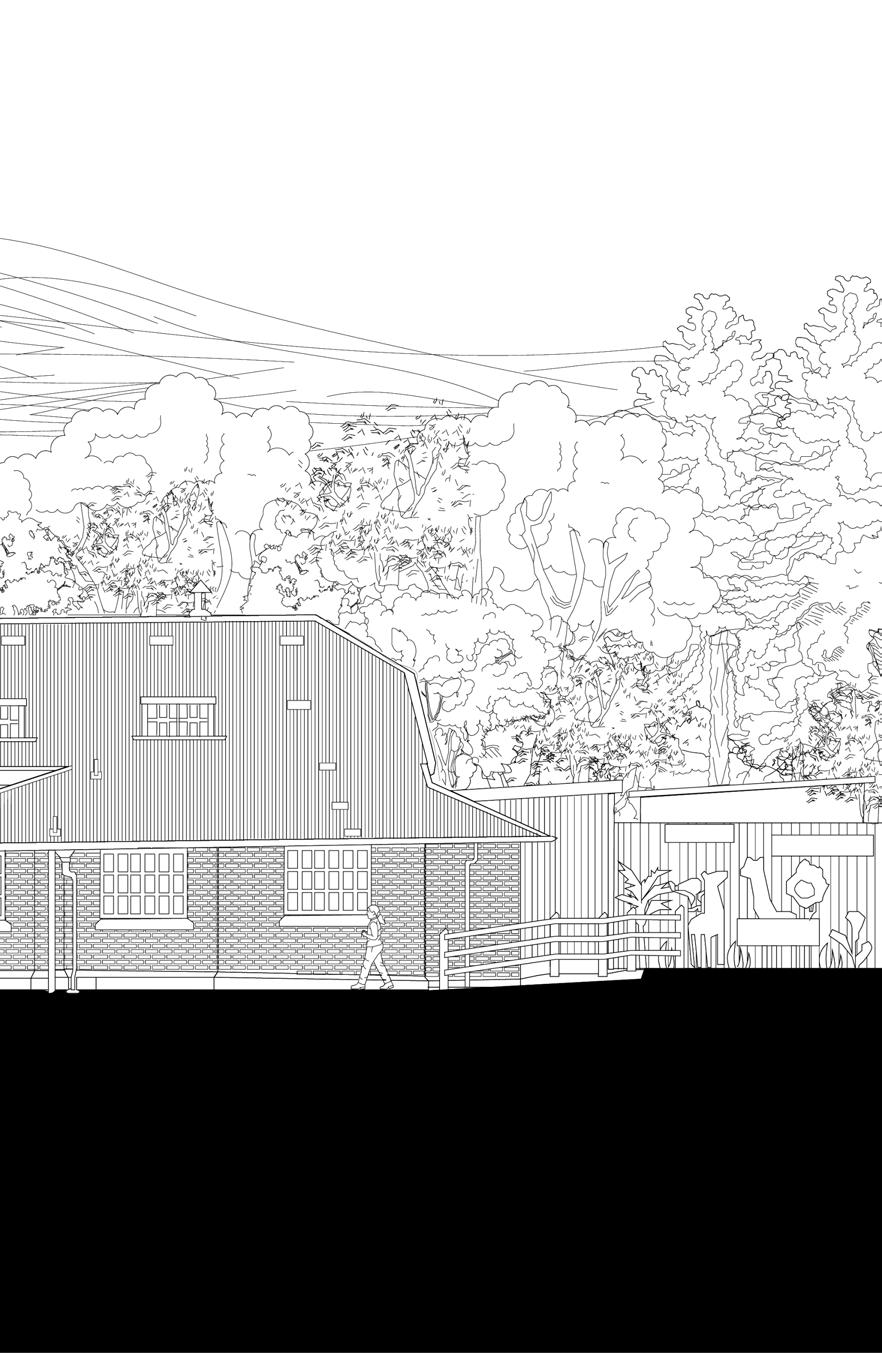

Section A

0m

5m

10m 39

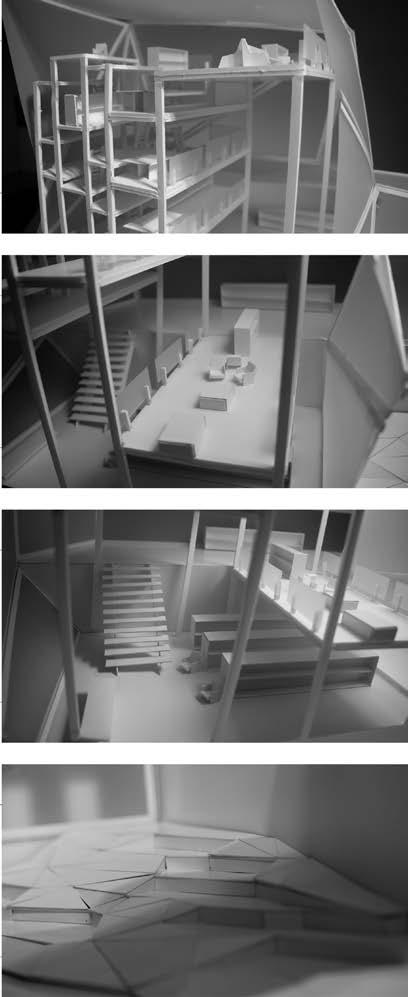

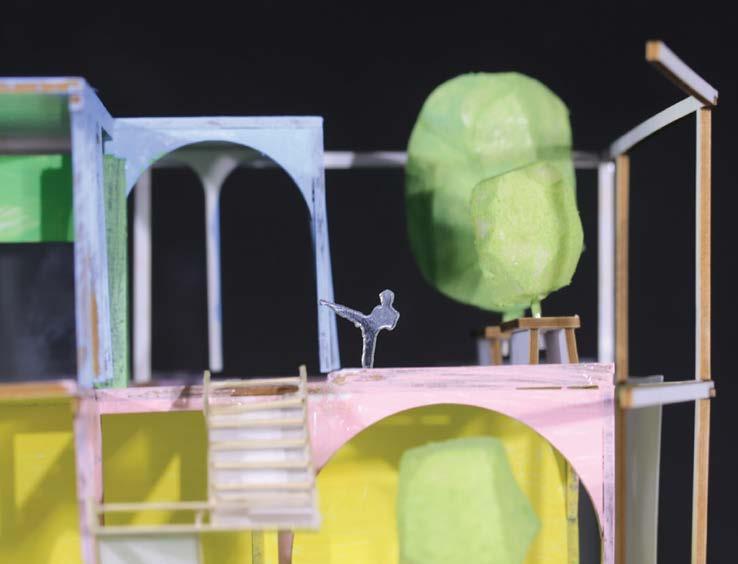

Physical Model Scale @ 1 : 50 40

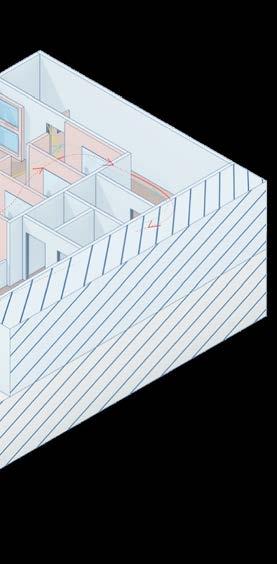

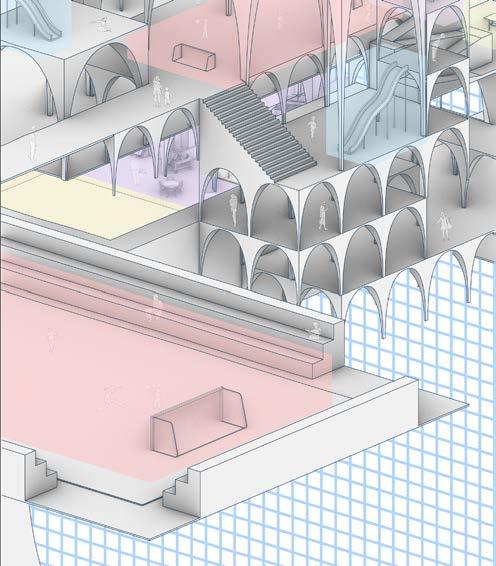

Exploded Floor Plans This design provides a range of spaces to host different types of activities. Starting on the ground and first floor for storing library books. the upper floors for more private spaces and the outdoor decking next the the stream.

41

6 The Turtle & the Shark

2021 ARCI 312 - P1

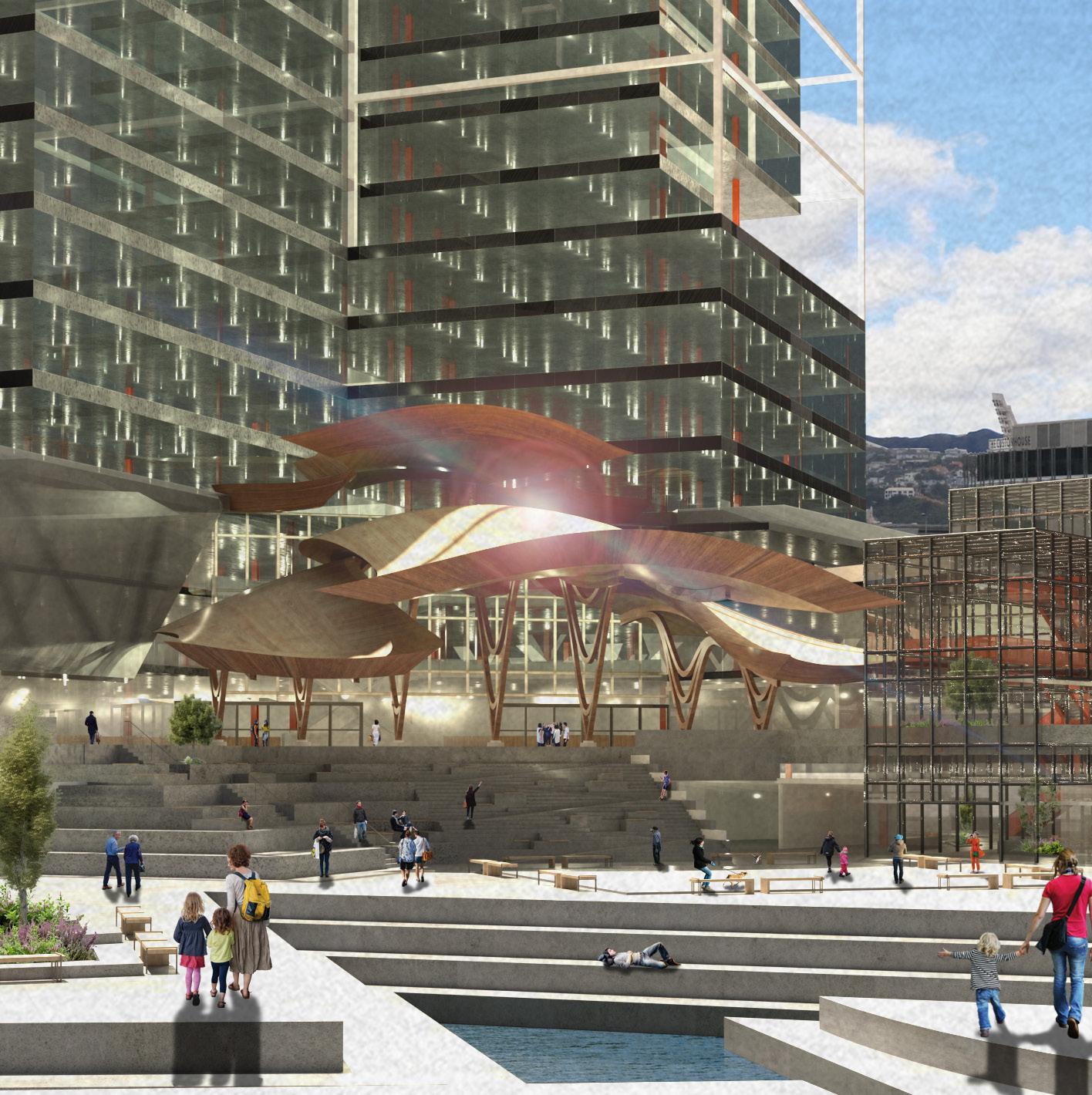

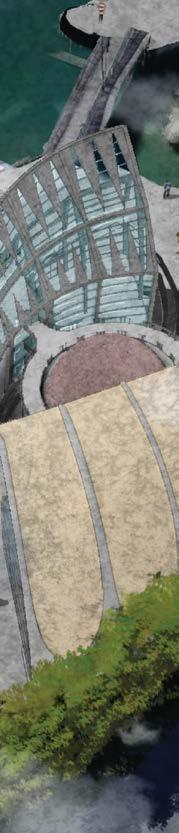

The Turtle & The Shark Complete Project

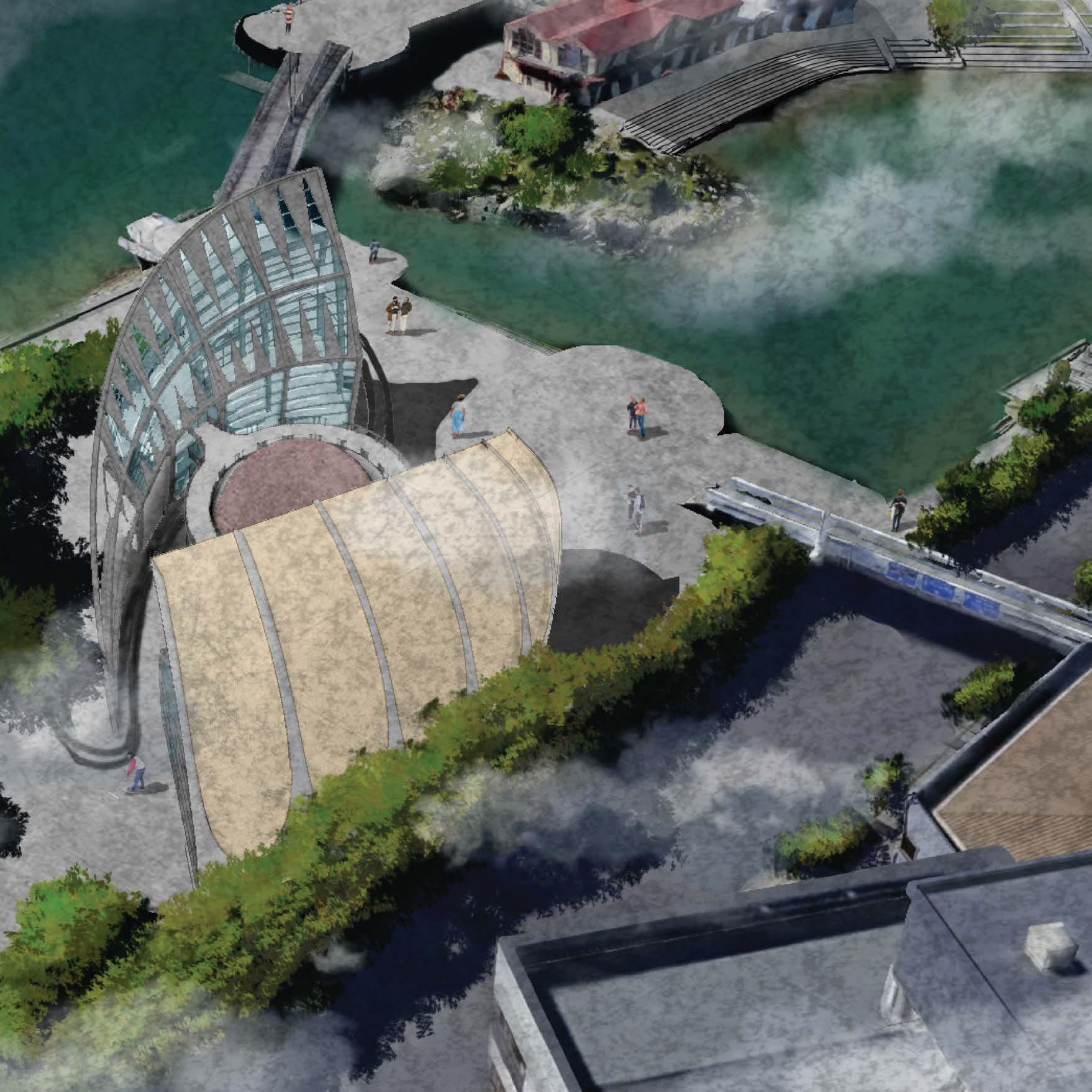

This project is to design the National Fale Malae in Frank Kitts Park, Wellington. The main goal of this design I pulled from the brief is to create an iconic Polynesian space which will encourage the growth of their community in New Zealand. Being an immigrant myself I know it is hard to find something in a new country, something that is truly yours. Even when I fully embraced the New Zealand culture for me there was always something missing. So I wanted to create a space that is iconic to Pasifika people and bring the culture here so in this space they will never feel like that.

42

43

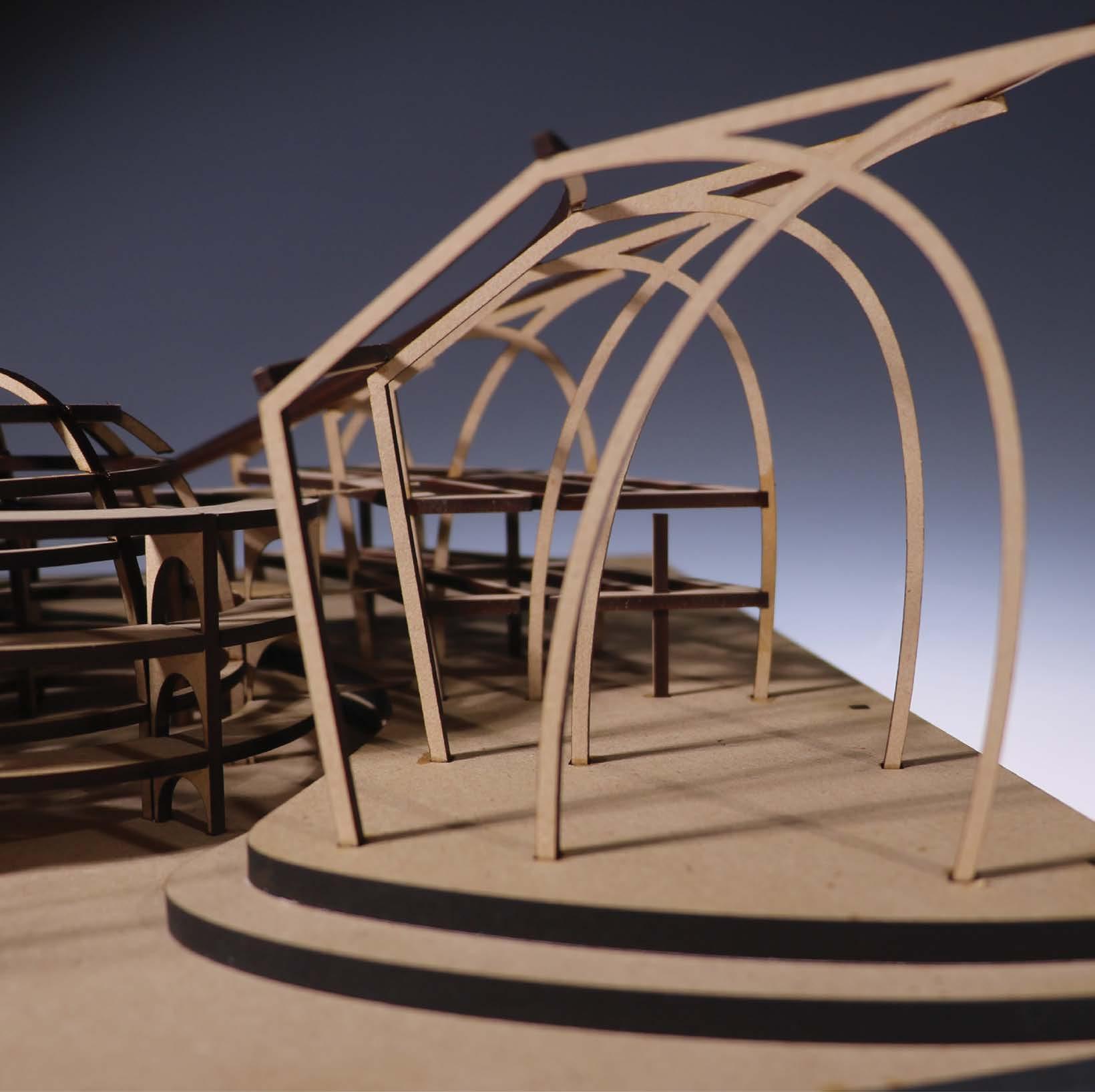

Structural Model Scale @ 1 : 50 44

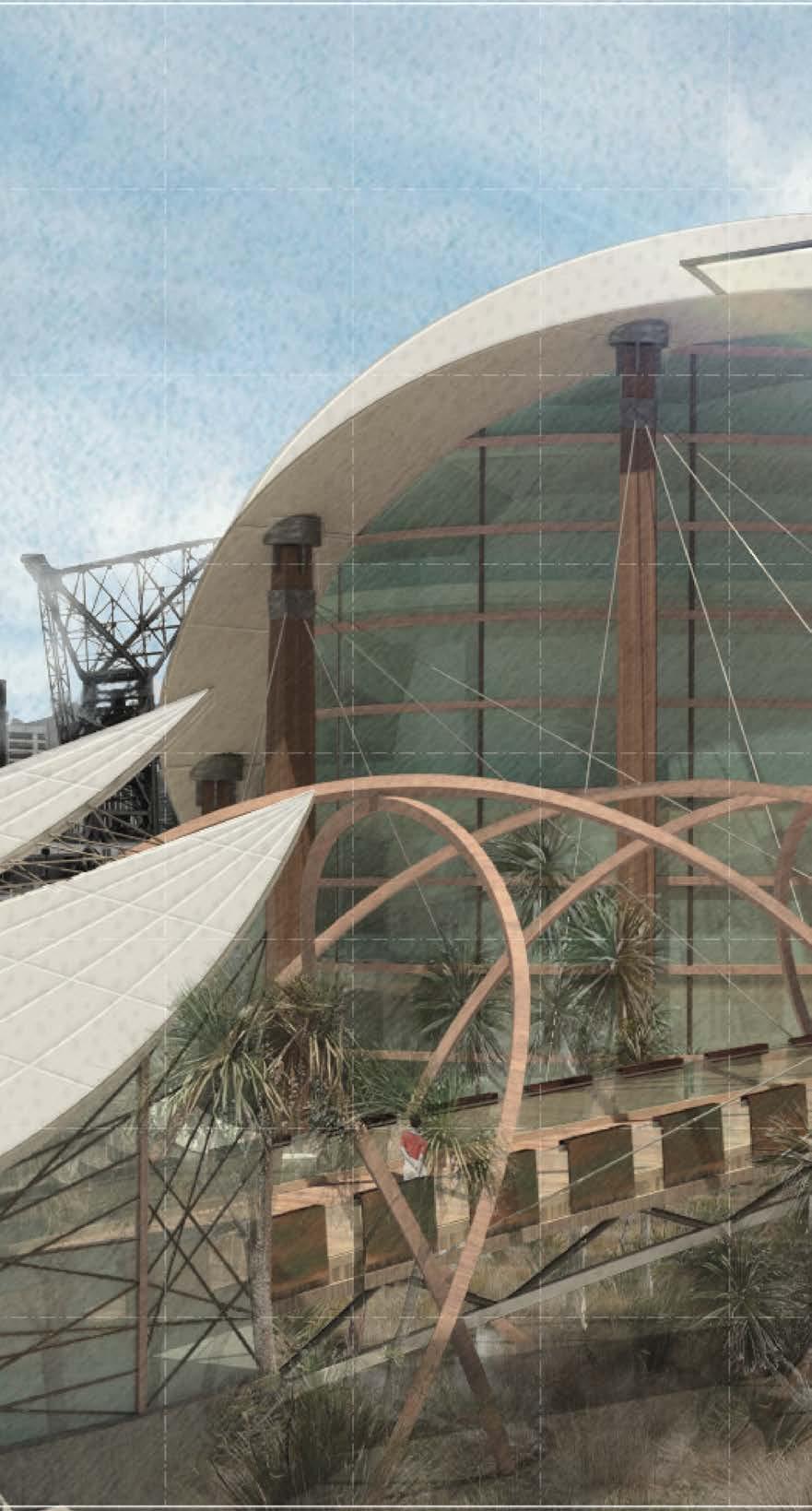

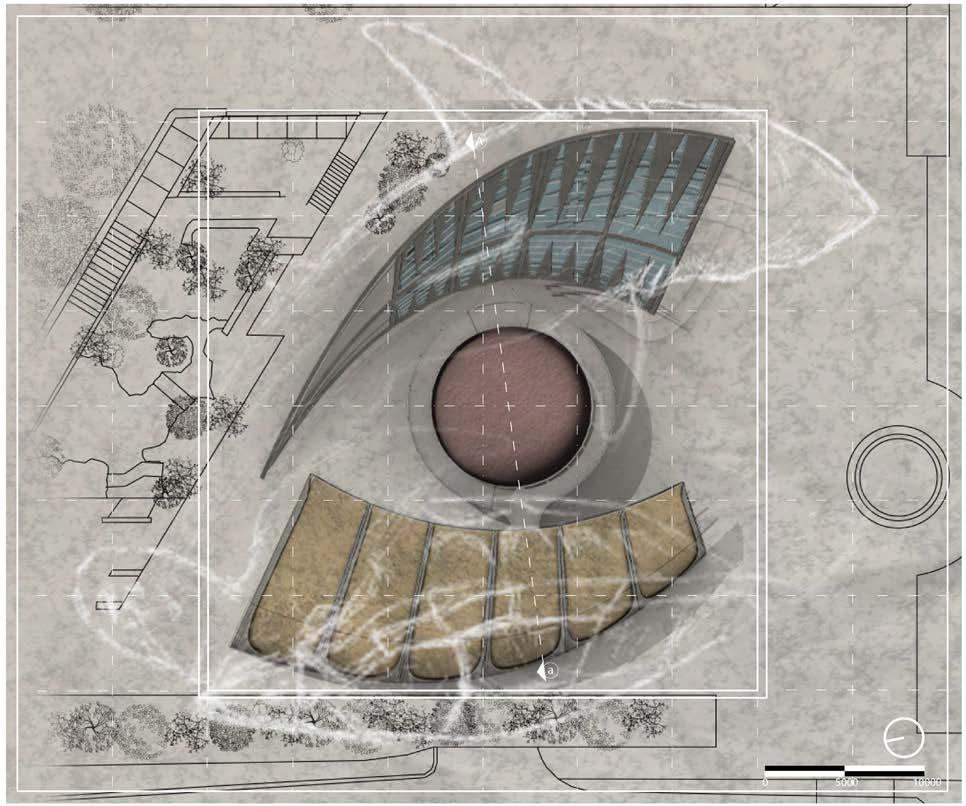

Design Narrative My design of the Fale Malae is inspired by the Samoan myth “The Turtle and the Shark.” In this myth, a blind woman and her granddaughter, facing a severe famine, decided instead of starving to death they jumped into the sea and let it decide their fate. As they swam to the surface they transformed into a turtle and a shark.They swam from village to village, seeking refuge, but were turned away until they reached Vaitogi in American Samoa.

There, Chief Letuli and his people welcomed them with kindness, offering food and clothing. Grateful, the turtle and the shark vowed to return when called upon. My design seeks to embody the warmth and hospitality of Vaitogi, bringing the Pasifika community together.

45

7

Extra Works

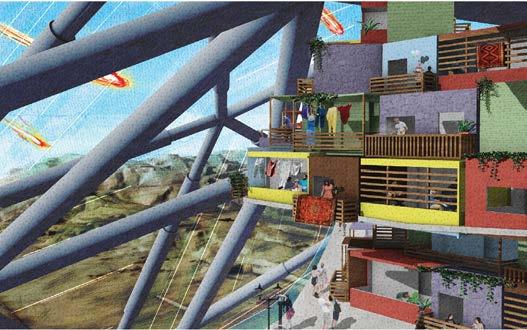

Mixed Media 2020 - 2024 Dome City 2021

More works on instagram @ archi_plebe

Activity Analysis 2022

46

Journey Collage 3 2023

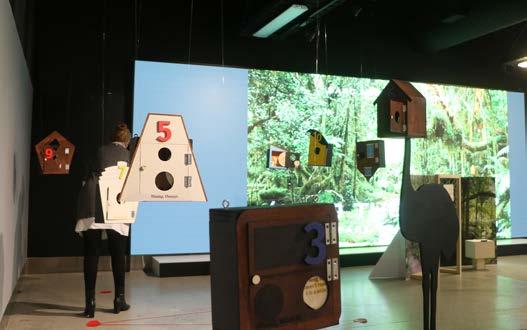

Birds of New Zealand Exihibtion 2021

Journey Collage 4 2023

Participants Journey 2023 Wellington on Film 2023

47

Wellington on Film 2023 Hostility 2021

Dome City 2021 Wellington on Film 2023

48

Birds of New Zealand Exihibtion 2021

Map of Urban Ambience 2023

Site Analysis 2021

49

Thank you for your time.

For more work please check out my Behance & Instagram
