Buildex Roofing Catalogue May 2023

it’s The SMALL things

Buildex® – Proudly manufacturing in Australia for over 100 years

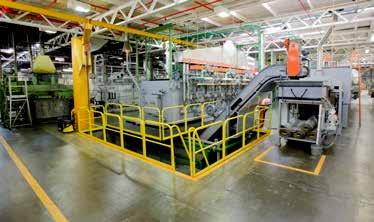

In our manufacturing plant in Melbourne, we produce over 2 million fasteners a day – including shape changing wire, heat treatment, Climaseal® finish and even painting to create market-leading fasteners – Made in Australia

The level of manufacturing control and commitment to quality has earned Buildex® fasteners the reputation of delivering the most dependable roof fasteners on the market.

MADE

MetalTEKS®

100+ years of Australian Innovation

RoofZIPS – Designed by Buildex® they revolutionised the roofing industry with one screw type covering the majority of applications with superior performance. Often copied, never surpassed. Look for the original with the red stripe for a superior seal.

MetalTEKS – Once Buildex® launched the original TEKS® and proved their superior performance to the market, this term has become synonymous with self-drilling metal screws all over the world.

Headlok – Designed for securely fastening metal roofing and cladding profiles on buildings where unauthorised entry and safeguarding of property is of paramount importance, such as warehouses, defence installations or correctional facilities. Their totally unique head design ensures they can only be undone by the matching Buildex® security socket.

ShankGuard® – Patented corrosion protection of the fastener shank by preventing scratches and scours that can happen during installation and which would otherwise result in largely undetectable fastener corrosion underneath the roof, potentially resulting in structural damage.

HiGrip – An underhead thread that creates a positive join with the roof sheeting to prevent water entry and over drilling. It also stops the roof sheet moving down the shank when the roof is walked on, ensuring a water tight seal over time.

Colormatch™ – A powder-coated paint application process unique to Buildex® which produces a superior, durable, chip resistant finish when compared to the traditional “wet” paint systems. Designed to match the Colorbond® range of colours for an appealing and perfectly finished roofing or cladding surface – time after time.

Trade Packs – Buildex® packaging format that works FOR the installer on-site. Resealable to prevent spills, tough plastic that withstands wet conditions. Sized for flexibility depending on the job size, to easily handle in the van and on the roof.

Climaseal® – A further sign of market-leading innovation; Buildex® Climaseal® anticorrosion coatings not only meet but exceed the respective class requirements by extending testing in a laboaratory to real-world conditions with exposure to salt, wind, moisture and UV which severely impact standard fastener performance over time. Don’t let the fastener be the weakest link.

Cyclonic Assemblies – The Buildex® Roof-Lok® comes with over 50 years of design, fabrication and installation experience and is designed to secure both corrugated and square profile sheets in cyclonic conditions. Proven by the James Cook University, Cyclone Structural Testing Station to perform in the most severe Category 5 Cyclone of conditions. Who else would you trust to keep a roof over your head?

COLORMATCH™

Colormatch™ is the coating on the heads of Buildex® fasteners and cyclone plates which is compatible with COLORBOND® matt finishes.

Buildex® uses a superior powder-coating process which produces a more durable, chip resistant finish when compared to a “wet” paint system. Below symbols indicate what range of colours a fastener is available in under a stock code.

Colours outside the “Core 7” range are available with a “paint to order” option (special conditions, minimum order requirements and lead times apply).

Windspray®

Also know as - Armour Grey and Moonshadow

Shale Grey™

Also know as - Gull Grey

Monument®

Also know as - Monolith, Gun Metal Grey and Coke

Surfmist®

Also know as - Off White, Coral White, Glacier White and Frost

Evening Haze®

Also know as Moss Vale Sand, Summershade

Cottage

Select fasteners are available with a “paint to order” option (special conditions, minimum order requirements and lead times apply)

For enquiries or when placing orders, please quote the two-digit Buildex® colour code.

The COLORBOND® steel colours shown here have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colours against an actual sample of the product before purchasing as varying light conditions and limitations of the printing process, screens and devices may affect colour tones. In the COLORMATCH® process, the fastener colour may vary from the COLORBOND® steel colour. COLORBOND®, BlueScope, the BlueScope brand mark and ® colour names are registered trademarks of BlueScope Steel Limited. ™ colour names are trademarks of BlueScope Steel Limited.

ABN 16 000 011 058. All rights reserved.

fixing to timber & metal

fixing to timber & metal

Buildex® RoofZIPS® are versatile solution which fastens metal roofing to light metal battens from 0.42mm ~ 1.5mm thick (14g screws up to 1.2mm thickness) and soft wood timber battens making them ideal for residential applications.

fixing to timber & metal

Outsmart the elements - Buildex® Multiseal fasteners provide unrivalled roof holding performance in high wind conditions. In cyclonic conditions, Buildex® RoofLok® fasteners crest-fix both corrugated and square rib roof profiles with the one plate design. Fixing into timber battens and metal battens up to 1.2mm thick (up to 3.0mm air gap). The double EPDM washer design adds another safety level to prevent water ingress.

fixing to timber & metal

Buildex® 14 -14 Polyzips® Polycarbonate Roofing Screws are designed for crest pierce fixing polycarbonate roof sheets to timber battens and steel up to 1.2mm thick. Typical applications are; pergolas, outdoor entertainment areas and skylights.

14-14 x 50mm Crest Fixing With 26mm EPDM Washer

COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib HiGrip ShankGuard® C3 COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib HiGrip ShankGuard® C3

14-14 x 65mm

EPDM

Washer

x 40mm

Designed for fixing thin metal roofing battens to soft wood and hardwood timber trusses (0.55mm to 1.20mm metal drill capacity). Wax finish for lower friction making it easier to drive than other roof batten fasteners on the market, resulting in reduced operator fatigue and increased cordless driver battery life. 10-16 x 25mm

Fixing / Cladding

to 3.5mm metal drill capacity

fixing to timber & metal

Designed to securely fastening metal roofing and cladding profiles on buildings where unauthorised entry and safeguarding of property is of paramount importance, such as warehouses, defence installations or correctional facilities. Their totally unique head design ensures they can only be undone by the matching Buildex® security socket.

The RippleZips® hex head blends with Mini Orb® or corrugated cladding to make a design statement, both in internal fit-outs as well as buildings, sheds and fencing.

fixing to metal

fixing to metal

MetalTEKS® for Cladding

Suitable for fixing metal cladding to steel between 0.75mm up to 5.0mm thick. Their excellent corrosion resistance and high pull-out strength offer peace of mind for years to come.

MetalTEKS® for Concealed Clip FIxing

Designed for fixing concealed fix clips to steel purlins. Also available with compact 10g head where installation space is at a premium.

12-14 x 30mm Concealed Clip Fixing 1.0 to 5.0mm metal drill capacity 6-311-0473-1CS COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib HiGrip ShankGuard® C3 6-311-0782-2CS COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib HiGrip ShankGuard® C3 COMPACT HEAD 10

fixing to metal COLORMATCH COLORMATCH COLORMATCH 7 CORE 22FULL

Designed for crest fixing corrugated and square rib roof sheets to steel purlins up to 5.0mm thick.

COATING COATING SEAL PLAIN +PTO

TRADE PACK C4 C5 +PTO

COATING COATING SEAL PLAIN +PTO

COATING COATING SEAL PLAIN +PTO

TRADE PACK C4 C5 +PTO

COLORMATCH COLORMATCH COLORMATCH 7 CORE 22FULL

COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib HiGrip ShankGuard® C3 COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib C3 AUTOTEK® 12-14 x 52mm Crest Fixing 1.0 to 5.0mm metal drill capacity 6-310-3579-4C4 COATING COATING SEAL PLAIN +PTO

TRADE PACK C4 C5 +PTO

COLORMATCH COLORMATCH COLORMATCH 7 CORE 22FULL

TRADE PACK C4 C5 +PTO

COLORMATCH COLORMATCH COLORMATCH 7 CORE 22FULL

COATING COATING SEAL PLAIN +PTO

TRADE PACK C4 C5 +PTO

COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib HiGrip ShankGuard® C3 COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib C3 AUTOTEK®

COLORMATCH COLORMATCH COLORMATCH 7 CORE 22FULL

10-16 x 22mm Concealed Clip Fixing - Wafer Head 0.75 to 3.5mm metal drill capacity 6-311-0179-9MP COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib HiGrip ShankGuard® C3 12-14 x 68mm Crest Fixing 1.0 to 5.0mm metal drill capacity 6-310-3326-6C4 COATING COATING SEAL PLAIN +PTO

TRADE PACK C4 C5 +PTO

COLORMATCH COLORMATCH COLORMATCH 7 CORE 22FULL

COATING COATING SEAL PLAIN +PTO

COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib HiGrip ShankGuard® C3 COATING EPDM WASHER MULTISEAL Roof-Lok® Hi-Rib HiGrip ShankGuard® C3

TRADE PACK C4 C5 +PTO

COLORMATCH COLORMATCH COLORMATCH 7 CORE 22FULL

TRADE PACK C4 C5 +PTO

COATING COATING SEAL PLAIN +PTO

COLORMATCH COLORMATCH COLORMATCH 7 CORE 22FULL

COLORMATCH COLORMATCH COLORMATCH 7 CORE 22FULL

TRADE PACK C4 C5 +PTO

fixing to metal

METAL TO METAL TEKS®

Ideal choice for fixing metal to metal, such as bottom plates to steel where maximum pullout strength and high strip torque are required. Due to TEKS® point no need to pre-punch pilot holes.

Emblematic of the Buildex® innovation prowess, Series 500® TEKS have become synonymous for metal to metal fixing of thick steel purlin and hot rolled steel, particularly in the HVAC, plumbing and steel fabrication industries. Drill capacity 3.0 to 12.0mm.

fixing to metal

Designed for crest fixing fibreglass roof sheets (i.e. commercial building skylights) to steel purlins between 1.2mm and 5mm thick. Wing design pre-drills an over sized expansion hole which helps eliminate sheet buckling and water entry due to expansion in high temperatures. 32mm Weatherlok Washer seals off the assembly.

14-14 x 65mm

Crest Fixing With 32mm Weatherlok Washer

6-310-0607-7CS

14-14 x 83mm Crest Fixing With 32mm Weatherlok Washer

Buildex® 14 -14 PolyTEKS® Polycarbonate Roofing Screws are designed for crest pierce fixing polycarbonate roof sheets to timber battens and steel up to 1.2mm thick. Typical applications are; pergolas, outdoor entertainment areas and skylights.

14-14 x 50mm

Crest Fixing With 26mm EPDM Washer

1-030-0350-1CSBT

14-14 x 65mm

Crest Fixing With 26mm EPDM Washer

1-310-0750-1CSBT

fixing to metal

Cyclonic MetalTEKS®

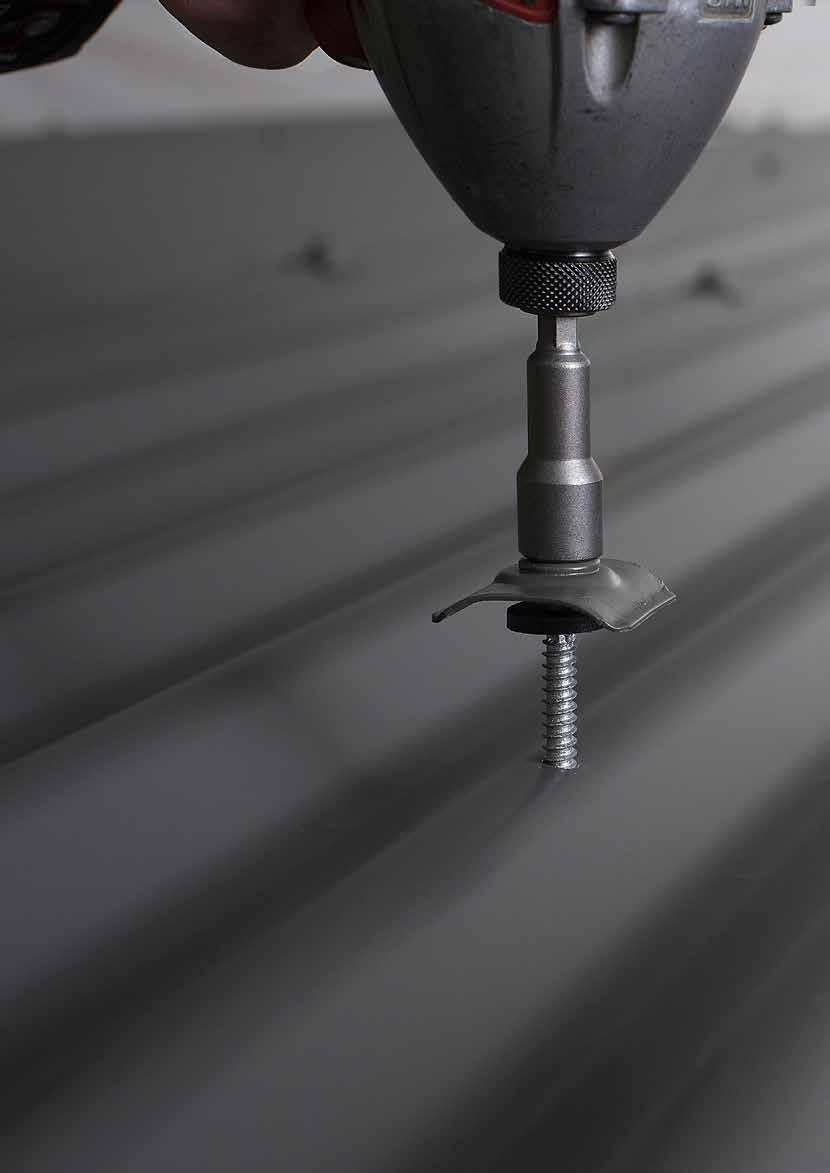

Outsmart the elements - In cyclonic conditions, Buildex® Roof-Lok® MetalTEKS® are designed to crest-fix both corrugated and square rib roof profiles into timber battens and metal battens 1.2 to 5mm thick. The double EPDM washer design adds another safety level to prevent water ingress.

Cyclonic MetalTEKS® fixing to metal

Hi-Rib Fasteners are designed for crest fixing both types of Hi-Rib profiles and fix into steel between 1.2mm & 5mm.

fixing to metal

Designed to securely fastening metal roofing and cladding profiles on buildings where unauthorised entry and safeguarding of property is of paramount importance, such as warehouses, defence installations or correctional facilities. Their totally unique head design ensures they can only be undone by the matching Buildex® security socket.

fixing to Timber

fixing to timber

Type 17

Buildex® Type 17 screws feature a self-drilling drill point for fixing into soft wood and hardwood timber as well as thin metal top hat battens with thicknesses of up to 0.6mm.

Cyclonic Type 17

In cyclonic conditions, Buildex® Roof-Lok® Type 17 are crest fixing both corrugated and square rib roof profiles into timber battens and thin metal top hat battens with thickness of up to 0.6mm. The double EPDM washer design adds another safety level to prevent water ingress.

fixing to TIMBER

Cyclonic Type 17

Multigrip RIVETS

Buildex® Multigrip rivets are designed general purpose application such as guttering, fascia, garden sheds and roller doors where superior clamping strength, high vibration resistance and a weather resistant joint are required.

As a one size to do most, they are an aluminium body, steel mandrel rivet with the grip range capacity of up to three standard open end rivets of 0.8mm to 4.8mm. Available in the full range Colormatch® colors.
