CONVERSION CHART G.E.T.
All the products of the ITR® wear line are designed and drawn in the R&D departments and in the technical offices of the group, combining technical know-how with vast experience in the field.
Quality controls carried out directly by ITR® personnel at certified manufacturing companies and at the entrance to the group’s warehouses guarantee a high-quality process and product.
The ITR® wear line includes all those components necessary for the production, reconditioning and maintenance of bulldozer blades, excavator buckets, skid loaders and loader shovels. The extremely heterogeneous mix is composed by blades, corner pieces, profiles, reinforced plates and anti-wear buttons, side cutters for buckets, bucket bottom corner guards, interdental guards, teeth, adapters and all those components necessary for excavation or levelling, such as scarifiers or blades for motor graders.
ALL TYPES OF BUCKETS
WIDE RANGE AVAILABLE FOR IMMEDIATE DELIVERY
POSSIBILITY OF CUSTOMIZATION FOR MULTIPLE BRANDS
The ITR® wear line offers compatible solutions with a wide range of models, machine types and customized applications.
USCO ITR® has finally imagined and designed the ITR® UNIK® line intended for those applications where high penetration into the ground, impact resistance and tooth durability are essential.
All items in the ITR® wear line range can be ordered online in the dedicated section of the e-commerce.
Tutti i prodotti della linea usura ITR® sono progettati e disegnati nei dipartimenti R&D e negli uffici tecnici del gruppo unendo il know-how tecnico alla vasta esperienza sul campo.
I controlli qualitativi effettuati direttamente da personale ITR® presso le aziende produttrici certificate e all’ingresso dei magazzini del gruppo sono a garanzia di un processo e di un prodotto di grande qualità.
La linea usura ITR® comprende tutti quei componenti necessari alla produzione, al ricondizionamento ed alla manutenzione delle lame per bulldozer, delle benne per escavatori, skid loader e pale caricatrici. Il mix estremamente eterogeneo è composto da lame, cantonali, profili, piastre rinforzate e bottoni antiusura, taglienti laterali per benne, protezioni angolari fondo benna, protezioni interdentali, denti, adattatori e da tutti quei componenti necessari allo scavo o al livellamento, come scarificatori o lame per motolivellatrici.
TUTTE LE TIPOLOGIE DI BENNE
AMPIA GAMMA IN PRONTA CONSEGNA
POSSIBILITÀ DI PERSONALIZZAZIONE PER MOLTEPLICI BRAND
La linea usura ITR® offre soluzioni compatibili con un’estesa gamma di modelli, tipologie di macchine e applicazioni personalizzate.
USCO ITR® ha infine concepito e progettato la linea ITR® UNIK® destinata a quelle applicazioni in cui l’elevata penetrazione nel terreno, la resistenza all’impatto e la durabilità del dente sono essenziali.
Tutti gli articoli della gamma USURA ITR® sono ordinabili online nella sezione dedicata dell’e-commerce.

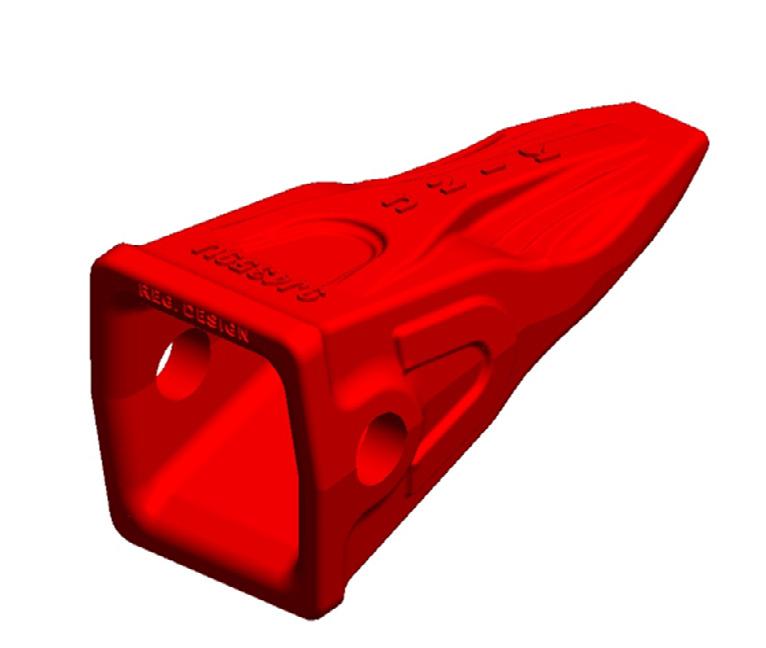

The ITR® UNIK® line has been designed for all applications where high penetration, impact resistance, and increased wear life are essential.
6 UNIQUE FEATURES:
• High productivity from an innovative self-sharpening design ensures excellent performance
• Reinforced pocket structure
• Increased side pin protection
• High impact resistance
• Select ITR® steel composition
• Extended wear life
Rigorous quality control standards are carried out at our production facility to guarantee the highest level of quality. The ITR® UNIK® LINE was developed by our engineering department to improve the product performance.
HOW
WE DESIGNED THE UNIK LINE
LATERAL LOAD
Lateral (side) load, even if it doesn’t appear to be so important, must be taken into consideration in order to have the complete 3D behavior of the TIP. It is along this direction that the TIP is weakest.
TIP LOAD
Tip load is the predominant one applied when the bucket is engaging the ground. It is very important because the load increases proportionally with the penetration force of the machine.
NORMAL LOAD
Normal load is the predominant one applied when the bucket starts excavating. It is very important because the load is proportional to the breakout force of the bucket.
To design our special tip line we conducted a strict FEM (Finite Elements Method) analysis, considering that stress can be found under three different load conditions (Tip Load, Normal Load, and Lateral Load). The purpose of our project was to reinforce the design in order to minimize the peak stress values in all conditions. In other words, that means NO BREAKAGE and BETTER DISTRIBUTION OF STEEL. ITR® UNIK® LINE DESIGN IS STUDIED FOR EVERY APPLICATION WHERE HIGH PENETRATION AND IMPACT ARE REQUESTED.
Excellent digging performance with innovative and modern self-sharpening design which improves the productivity of the machine;
HOW WE INCREASED THE WEAR LIFE
DIFFERENT STEEL
We researched different steels and selected the one for each application that guarantees the best performance in terms of wear life and mechanical specifications.
1 2 SELF SHARPENING PROFILE
We conducted several tests on ITR® UNIK® TIPS to demonstrate their superiority, in wear life and penetration, compared to ITR® Standard TIPS. Among the many tests conducted, the following tests were done on two buckets working in a SILICA QUARTZ mine, which is one of the most abrasive applications. The customer used UNIK® RCU J550 and UNIK® RCU J450. The UNIK® TIPS gave to the customer substantially increased productivity, since the TIPS remained sharp until the end of the test. For the UNIK® RCU J550, 58.7% of its total weight was used. For the UNIK® RCU J450, 42.75% of its total weight was used.
INCREASED WEIGHT
We conducted meticulous studies to add steel where needed to increase strength, avoid breakage, and again increase the wear life. 3
MATERIAL MECHANICAL PROPERTIES
BUCKET TIP PROFILES EXCAVATORS
TIGER
TWIN TIGER
PE NETRATION
LONG
HEAVY DUTY LONG
SYMMETRICAL
ROCK CHISEL
ROCK ABRASION
• Unmatched penetration in frost, rock or hardpan conditions;
• Stays sharp.
• More penetration longer than TIGER;
• Less leverage than TIGER requiring more breckout force from the Excavator.
• Good penetration Tip;
• Stays sharp throughout life;
• Average wear material;
• Good for lightly packed rock shale & clay.
• Multi purpose general duty tip;
• Good choise for most basic applications
• More wear material
• Use on larger machines in excavation work
• Longer wear life and greater strenght than long tip
• Good penetration & digging action in most medium to hard pack conditions;
• Vertical rib on both sides manteins sharp point W/ average amount of wear material.
• Best for use on rock or hard ground;
• Remains sharp throughout life;
• Good leverage takes pressure off machine & bucket improving performance & lifespan.
• Similar to ROCK CHISEL but much more wear material on underside of tip;
BUCKET TIP PROFILES LOADER
• Best for use on any high abrasion application. UNIK®
ABRASION PENETRATION
HEAVY DUTY ABRASION
LONG for LOADER
• Tip with much wear material on underside of tip;
• Best for use on any high abrasion application.
• Similar to Abrasion Penetration; tip with much wear material on underside of tip
• Best for use on any high abrasion application.
• Tip specifically designed for loader applications;
• Best for use on abrasion application.

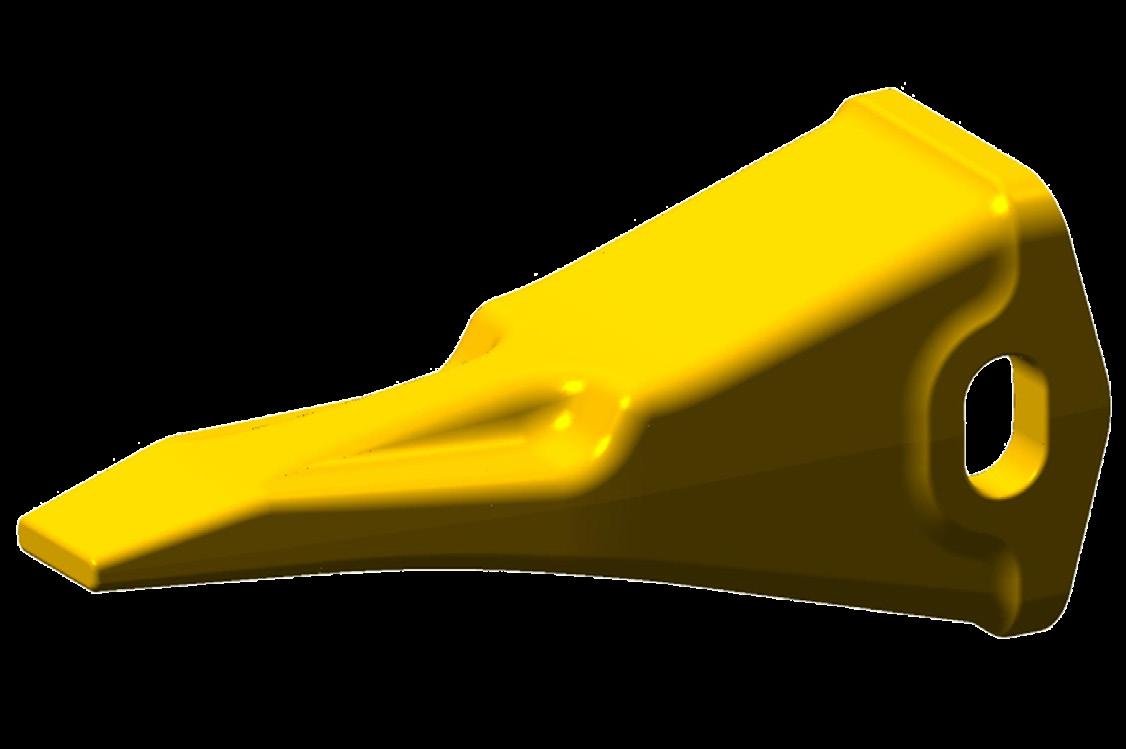

ITR® UNIK® TIPS by FAMILY
4T1204 [13~25] - 1U1254 [19~32] 1U1304 [25~38]
[32~45] 8J7525 [13~19] - 3G0169 [25~32] 9J8929 [25~32] 1U1350 (C) [32~45] 1U1351 (R) [32~45] 1U1352 (L) [32~45]
1193205 (C) [22] 1193204 (C) [27] 6Y3224 (C) [23] 6Y3224A (C) [27] 1193253 (C) [27]
8E2184 [22] 9J4207 [20] - 1U0257 [27]
9W1304 (C) [34] 8E9490 (C) [38] 3G6304 (C) [33] 3G6305 (R) [33] 3G6306 (L) [33]
3G8354 (C) [43] 3G8355 (R) [43] 3G8356 (L) [43] 6I6354 (C) [43] 6I6355 (R) [43] 6I6356 (L) [43]
1359354 (C) [43] 1359355 (R) [43] 1359356 (L) [43]
3G9307 [32] 4T4307 [33] 3G3357 [41] 1U1357 [47]
3G5307 [32] 3G1357 [34] 3G2357 [45]
1U2208 (L) [22] 1U2209 (R) [22]3G4258 (L) [27] 3G4259 (R) [27] 3G4308 (L) [33] 3G4309 (R) [33] 3G5358 (L) [43] 3G5359 (R) [43] -6I9250 (L) [27] 6I9251(R) [27]
8E5308 (L) [33] 8E5309(R) [33] 8E5358 (L) [32~38] 8E5359 (R) [32~38]
ITR® UNIK® TIPS by FAMILY

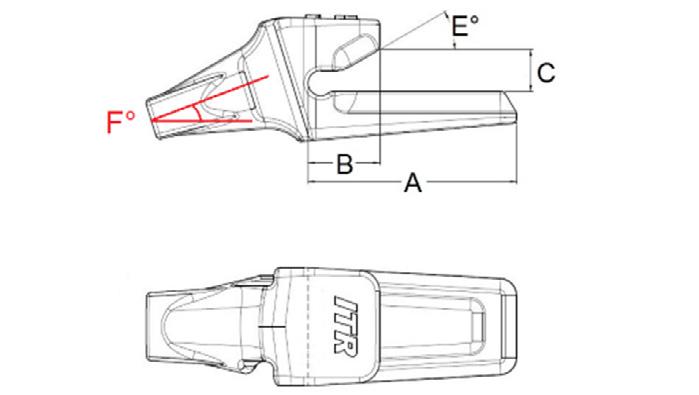

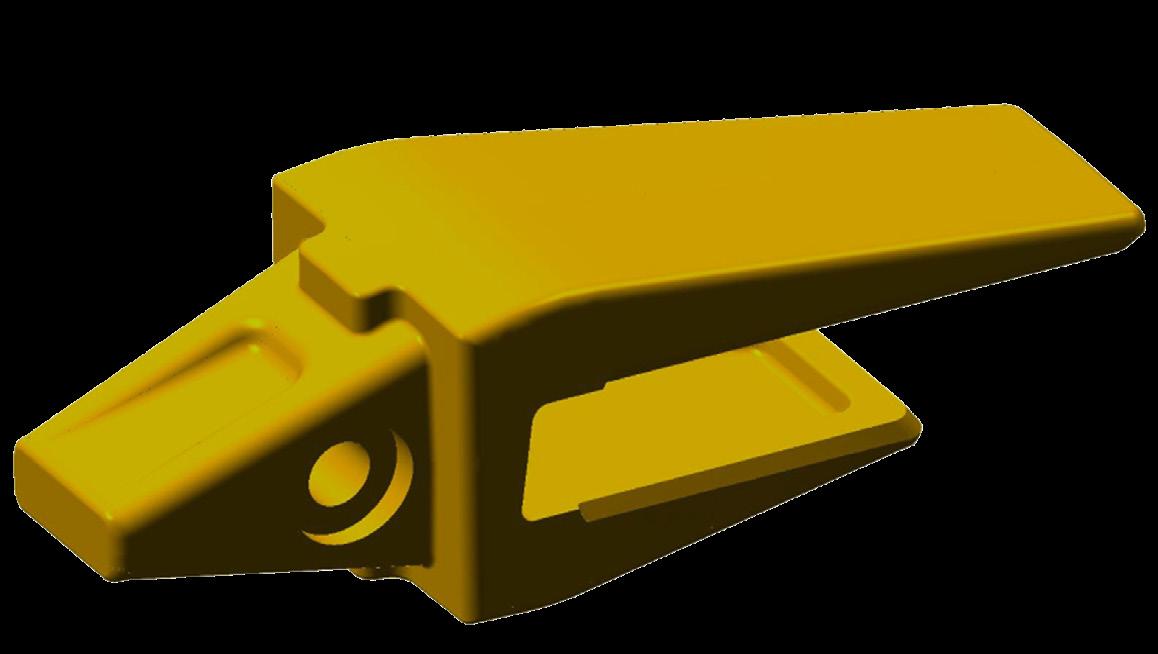

ADAPTERS
MACHINE MODELS CAT® STYLE TIPS
SIZE
MACHINE MODELS
J200 215, 219, 416, 426, 428, 436, 910, 931, 935, 307, IT12
J225 446, 307, 933, 938, 939, 914G, E70, E70B
J250 916 THRU 920, 922, 924, 926, 930, 935, 936, 939, 941, 943, 950, 951, 953, 983, 205 THRU 241, 225 229, 311, 312, 320, IT1, IT18, IT28
J300 615, J619, J621, 623, 950, 955, 960, 963, 953B THRU 966, 980, 983, 988, 992, E180, 215, 219, 235 205 THRU 214, 315, 320, 322
J350 633, 639, 960, 963, 966B, 966D, 966E, 966F, 973, 977, 980, 980B, 980C, E180, E240, 213B, 214B 215 THRU 229, 320, 245, 318, 322, 325, 330, IT1
J400
J450/J460
J550
231D, 980,980C, 980G, 322, 325, 330
966D, 973, 980, 980C, 983, 988, 988B, 988G/H, 225, E300(D/E/F), 235, 235FS, 325, 330, 345, 350
235, 245, 245FS, 350, 375, 5130, 983, 988, 988B, 990, 992, 992B, 992C, 992G
J600 990, 992, 992G, 375, 5080, 5110B
J600 990, 992, 992G, 375, 5080, 5110B
J700 990, 992, 992C, 992G, 994, 375, 5080
J800 385 (JB), 994
CAT® “J” IDENTIFICATION
SIZE
MACHINE MODELS

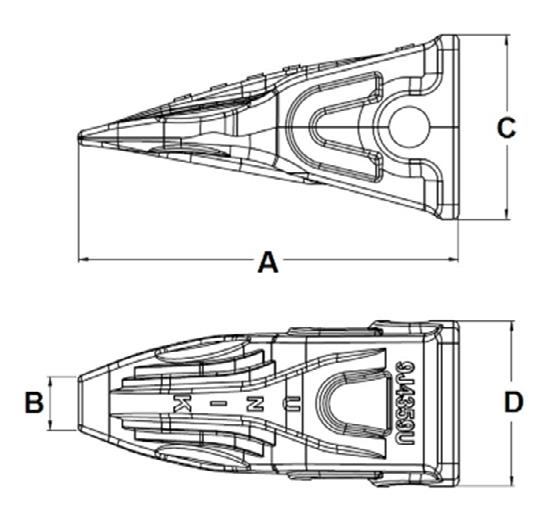

ITR® UNIK® TIPS: SUMMARIZING TABLE
ITR® UNIK® TIGER LONG TIPS
DENTI UNIK® TIGER LONG TIPO ITR® DIENTES UNIK® TIGER LONG DE TIPO ITR®
DENTS UNIK® TIGER LONG TYPE ITR® UNIK® TIGER LONG ZAHNEN TYP ITR®
ITR® UNIK® TWIN TIGER LONG TIPS
DENTI UNIK® TWIN TIGER LONG TIPO ITR® DIENTES UNIK® TWIN TIGER LONG DE TIPO ITR® DENTS UNIK® TWIN TIGER LONG TYPE ITR® UNIK® TWIN TIGER LONG ZAHNEN TYP ITR®
ITR® UNIK® PENETRATION TIPS
ITR® UNIK® LONG TIPS
DENTI UNIK® LONG TIPO ITR® DIENTES UNIK® LONG DE TIPO ITR® DENTS UNIK® LONG TYPE ITR® UNIK® LONG ZAHNEN TYP ITR®
ITR® H/D UNIK® LONG TIPS
DENTI H/D UNIK® LONG TIPO ITR®
DIENTES H/D UNIK® LONG DE TIPO ITR®
DENTS H/D UNIK® LONG TYPE ITR® H/D UNIK® LONG ZAHNEN TYP ITR®
ITR® UNIK® SYMMETRICAL TIPS
DENTI UNIK® SYMMETRICAL TIPO ITR® DIENTES UNIK® SYMMETRICAL DE TIPO ITR® DENTS UNIK® SYMMETRICAL TYPE ITR® UNIK® SYMMETRICAL ZAHNEN TYP ITR®
ITR® UNIK® ROCK CHISEL TIPS
DENTI UNIK® ROCK CHISEL TIPO ITR® DIENTES UNIK® ROCK CHISEL DE TIPO ITR®
DENTS UNIK® ROCK CHISEL TYPE ITR® UNIK® ROCK CHISEL ZAHNEN TYP ITR®
ITR® UNIK® ROCK ABRASION TIPS
DENTI UNIK® ROCK ABRASION TIPO ITR® DIENTES UNIK® ROCK ABRASION DE TIPO ITR® DENTS UNIK® ROCK ABRASION TYPE ITR® UNIK® ROCK ABRASION ZAHNEN TYP ITR®
ITR® UNIK® ABRASION PENETRATION TIPS
DENTI UNIK® ABRASION PENETRATION TIPO ITR® DIENTES UNIK® ABRASION PENETRATION DE TIPO ITR® DENTS UNIK® ABRASION PENETRATION TYPE ITR® UNIK® ABRASION PENETRATION ZAHNEN TYP ITR®
TIP UNIK® Abrasion Penetration
TIP UNIK® Heavy Duty Abrasion
ITR® UNIK® LONG FOR LOADER
DENTI UNIK® LONG for LOADER TIPO ITR® DIENTES UNIK® LONG for LOADER DE TIPO ITR® DENTS UNIK® LONG for LOADER TYPE ITR® UNIK® LONG for LOADER ZAHNEN TYP ITR®

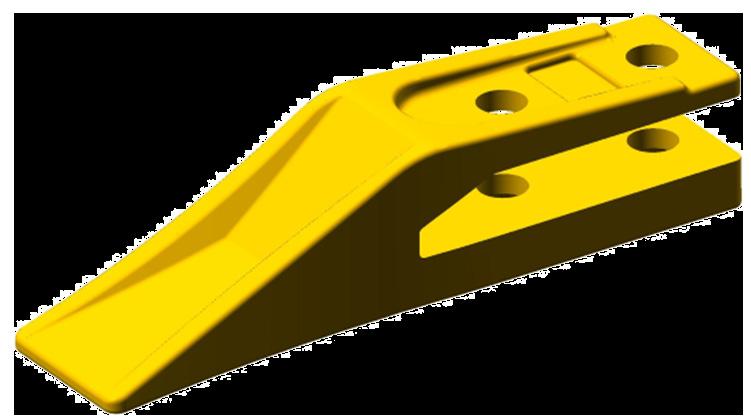

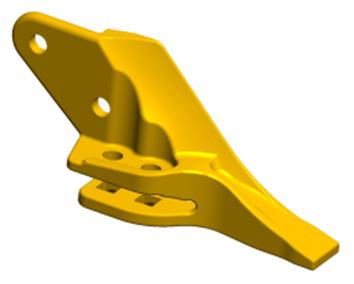

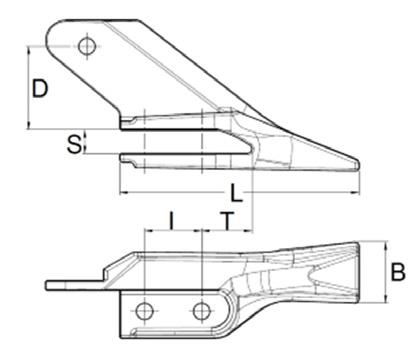

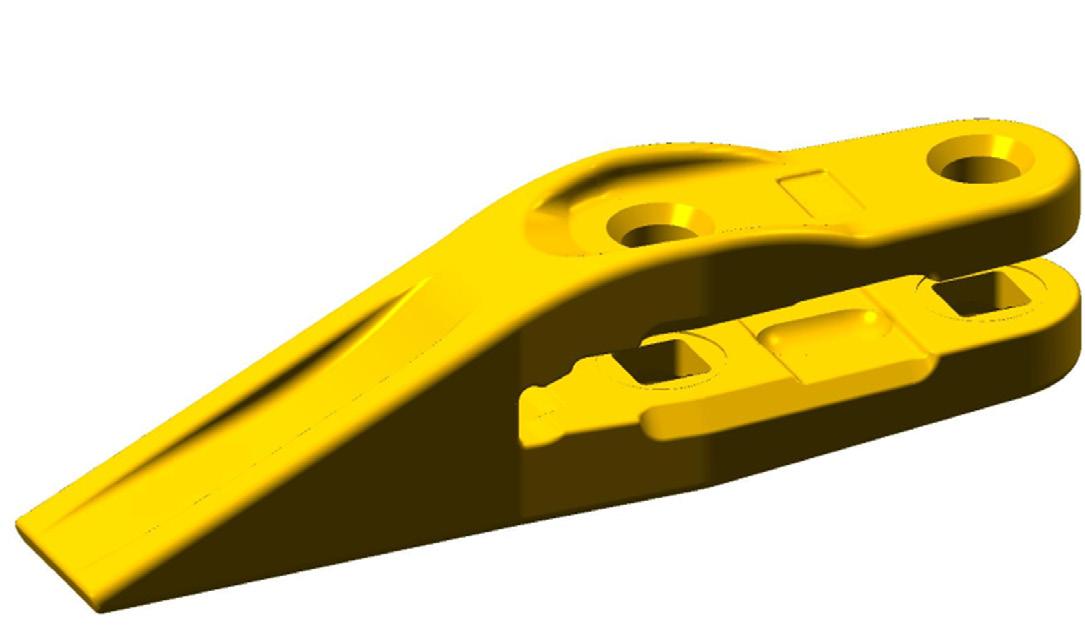

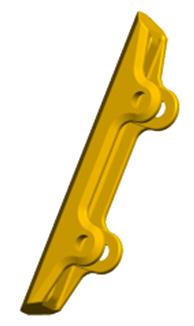

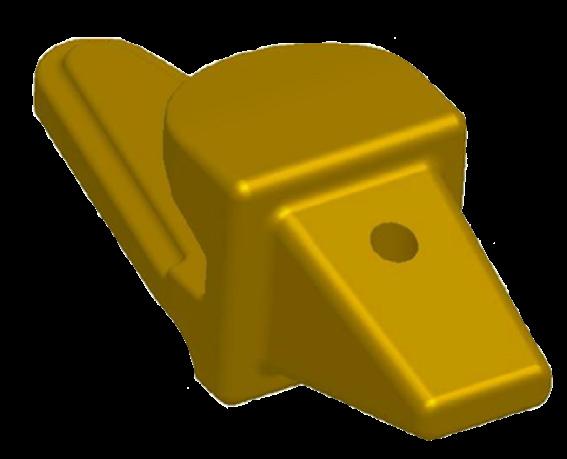

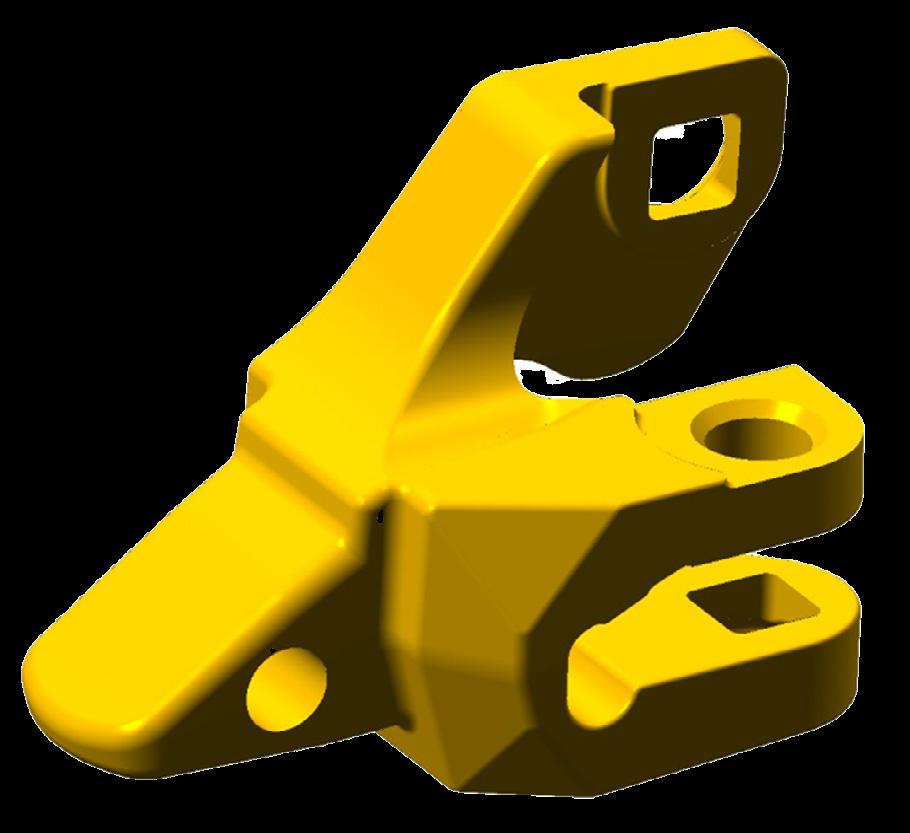

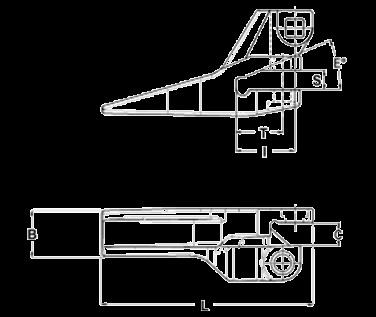

ITR® UNIK® TWO STRAP ADAPTERS
ITR® UNIK® UNI-Z® TYPE ROCK CHISEL TIPS
DENTI UNIK® UNI-Z® TIPO ROCK CHISEL
DIENTES UNIK® UNI-Z® DE TIPO ROCK CHISEL
DENTS UNIK® UNI-Z® TYPE ROCK CHISEL
UNIK® UNI-Z® ROCK CHISEL ZAHNEN
OTHER MULTIBRAND UNIK® PRODUCTS
UNIK® DAEWOO
UNIK® KOMATSU
UNIK® HYUNDAI
OTHER MULTIBRAND UNIK® PRODUCTS

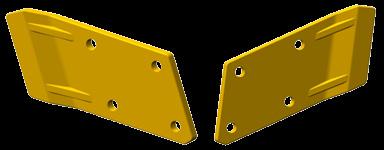

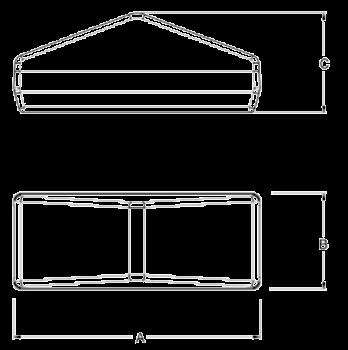

SHROUD - UNIK®
OTHER MULTIBRAND UNIK® PRODUCTS
OTHER MULTIBRAND UNIK® PRODUCTS

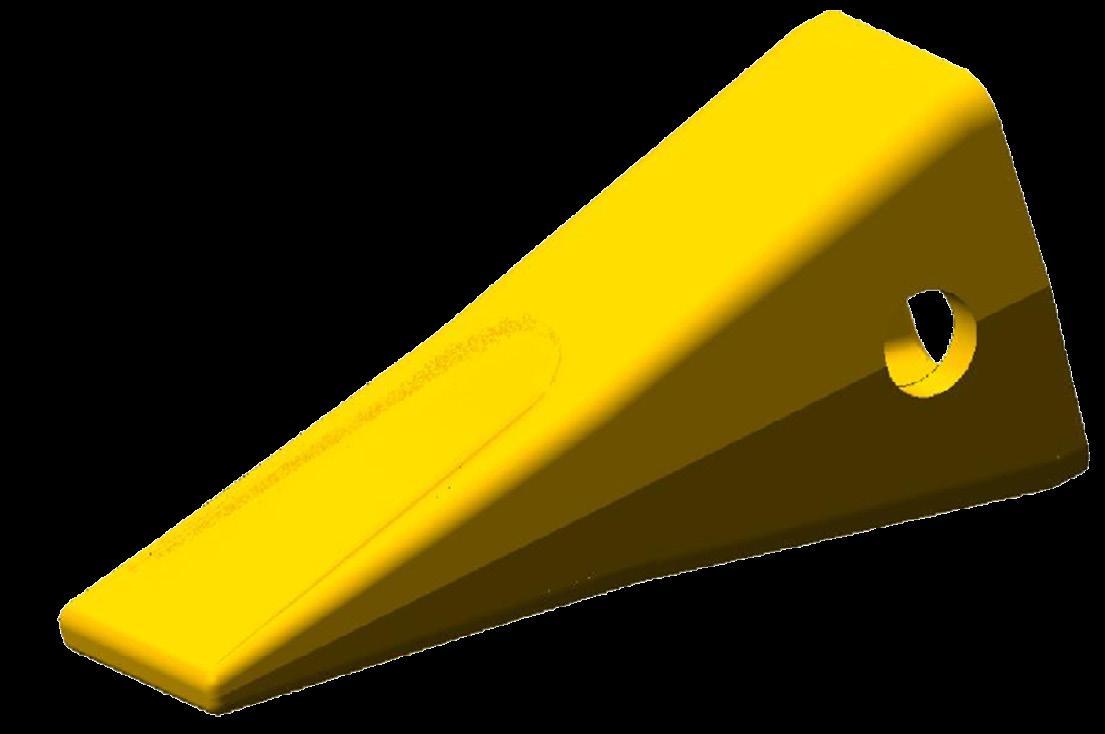

UNIVERSAL TIPS
UNIVERSAL EXCAVATOR SMALL TIPS WITH VERTICAL SPRING PIN

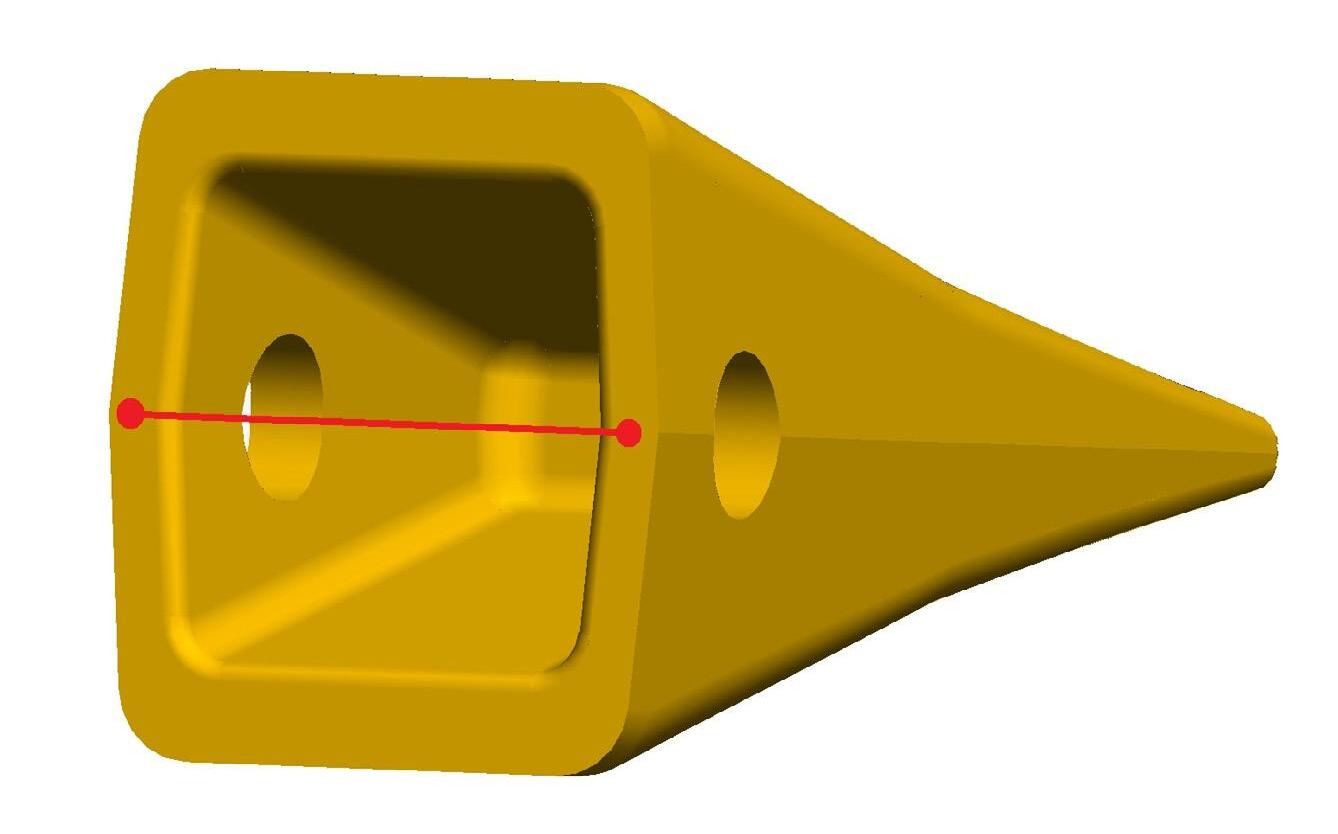

CAT “J”IDENTIFICATION

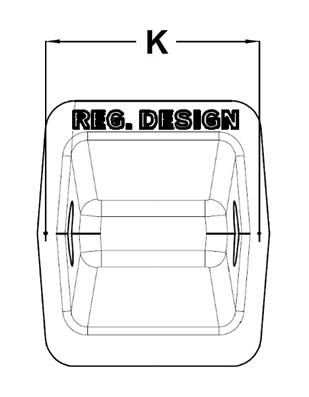

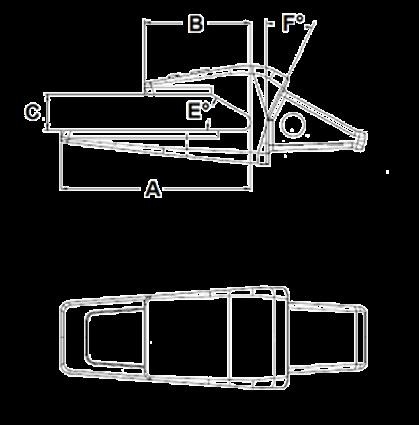

“J” IDENTIFICATION CORRESPONDING DIMENSIONS: K
CAT® J SERIES STYLE
TIPS, ADAPTERS, PINS & RETAINERS
EXCAVATOR
LOADER
J450/J460 9N4452 9W8452 9N4453 9W8452PT J550 9N4552 9W8552 6Y2553 9W8552PT
PINS & RETAINERS
J200 8E6208(ST)
J225 6Y3228(ST) 1324762(HD)
J250 9J2258(ST) 1324763(HD)
8E6209(ST)
8E6259(ST) 1495733(HD)
8E6259(ST) 1495733(HD)
J300 1073308(ST) 1324766(HD) 8E6259(ST) 1495733(HD)
J350 9W2678(ST) 1140358(HD)
J400 7T3408(ST) 1167408(HD)
J450 6Y2527(ST)
J460 8E0468(ST) 1140468(HD)
J550 6Y8558(ST) 1073378(HD)
8E6359(ST) 1140359(HD)
8E8409(ST) 1167409(HD)
8E6359(ST)
8E8469(ST) 1073469(HD)
8E5559(ST) 1078559(HD)
J600 6I6608(ST) 1139608(HD) 6I6609(ST) 1139609(HD)
J700 4T4708(ST) 1134708(HD) 4T4707(ST) 1134709(HD)
J800 1341808(HD) 1341809(HD)
CAT® TIPS and ADAPTERS by FAMILY

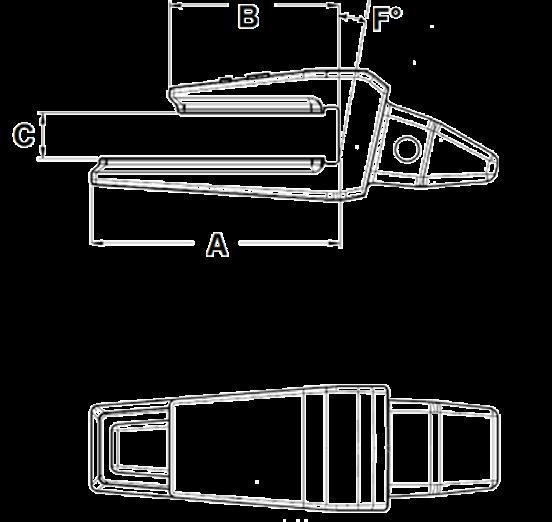

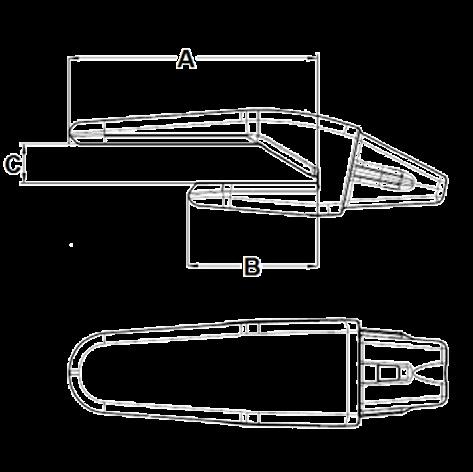

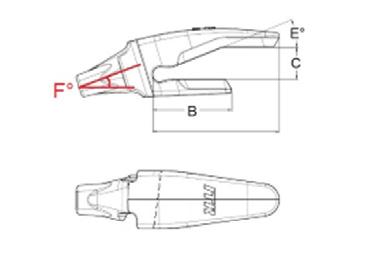

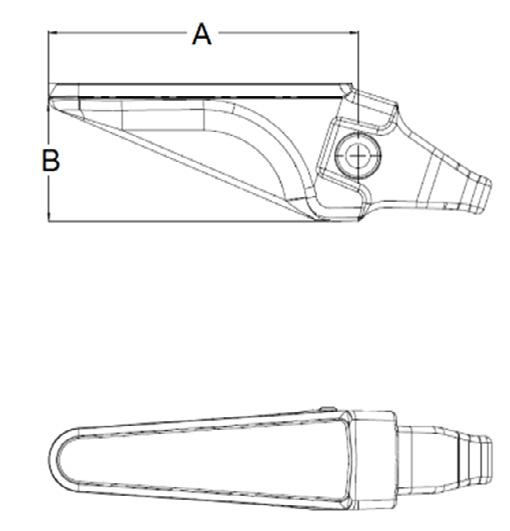

ADAPTERS
1193205 (C) [22] 1193204 (C) [27] 6Y3224 (C) [23] 6Y3224A (C) [27] 1193253 (C) [27]
8E2184 [22] 9J4207 [20] - 1U0257 [27]
9W1304 (C) [34]
8E9490 (C) [38]
3G6304 (C) [33]
3G6305 (R) [33] 3G6306 (L) [33]
1U1350 (C) [32~45] 1U1351 (R) [32~45] 1U1352 (L) [32~45] -
3G8354 (C) [43]
3G8355 (R) [43]
3G8356 (L) [43]
6I6354 (C) [43]
6I6355 (R) [43]
6I6356 (L) [43]
1359354 (C) [43] 1359355 (R) [43] 1359356 (L) [43]
3G9307 [32] 4T4307 [33] 3G3357 [41] 1U1357 [47]
6I6404 (C) [50]
6I6405 (R) [50]
6I6406 (L) [50]
1258404 (C) [48]
6I9898 [48]
3G5307 [32] 3G1357 [34] 3G2357 [45] -
1U2208 (L) [22] 1U2209 (R) [22]3G4258 (L) [27] 3G4259 (R) [27] 3G5307 [32] 3G5358 (L) [43] 3G5359 (R) [43] -
6I9250 (L) [27] 6I9251(R) [27] 3G4308 (L) [33] 3G4309 (R) [33] 8E5358 (L)[32~38] 8E5359 (R)[32~38]
6I8244 (L) [48]
6I8243 (R) [48]
CAT® TIPS and ADAPTERS by FAMILY
ADAPTERS
EXCAVATOR
LOADER
(HD ABR)
(HD ABR)
**1590464 (C) [54]
**1590465 (R) [54]
**1590466 (L) [54]
**1140464 (C) [51] **1140465 (R) [51] **1140466 (L) [51]
*6Y2527/**8E00468(STD) **1140468 (HD)
*8E6359/**8E8469 (STD) **1073469 (HD)
6I6554 (C) [63]
6I6555 (R) [63]
6I6556 (L) [63]
1073554 (C) [67] 1073555 (R) [67] 1073556 (L) [67]
(STD) 1073378 (HD)
(STD) 1078559 (HD)
6I6604 (C) [82]
6I6605 (R) [82]
6I8604 (C) [75] (1198604)
(C) [103] (E-L)
(C) [80] (E-L)
6I6606 (L) [82] 1324704 (C) [82] (E-L)
(C) [82] (E-L)
(C) [103] (E-L)
(C) [80] (E-L)
(C) [105] (E-L)
(C) [105] (E-L)
(HD)
(STD)
(HD)
(HD)
(HD)
CAT® TIPS and ADAPTERS by FAMILY
NOTES:
(C) Centre; (R) Right; (L) Left. […]: Adapter GAP [mm]
(E-L): The J700 and J800 adapters can be used either for excavator and loader. : In the related section of the catalogue there are also other products interchangeable with different dimensions.
NOTE: The *J450 and **J460 pins and retainers are not interchangeable. Each adapter must be assembled using correct pins and retainers.
(C) Centrale; (R) Destra; (L) Sinistra. […]: Spessore lama adattatore [mm]
(E-L): Gli adattatori possono essere utilizzati sia sugli escavatori che sulle pale. : Nella relativa sezione del catalogo sono presenti anche altri prodotti intercambiabili con dimensioni differenti.
NOTA: I perni e rondelle della *J450 e **J460 non sono intercambiabili. Ogni adattatore deve essere assemblato usando i corretti perni e rondelle.
(C) Central; (R) Izquierda; (L) Derecha.
[…]: Portadientes GAP (mm)
(E-L): El J700 Y J800 portadientes pueden ser utilizados sea para escavadora que cargadora. : En esta sección del catalogo hay también otros productos intercambiables con medidas diferentes.
NOTA: El *J450 y **J460 pasadores y retenedores no son intercambiables. Cada adaptador tiene que ser armado usando los correctos pasadores y retenedores.
(C) Centre; (R) Droite; (L) Gauche. […]: Ouverture du Porte-dent [mm]
(E-L): Les port-dents J700 et J800 peuvent être utilisés pour applications pelles et chargeuses. : Cherchez les produits compatibles, avec caractéristiques differentes, dans la section relative du catalogue.
NOTE: Les clavettes et les eléments de blocage du *J450 et du **J460 ne sont pas compatibles. Chaque porte-dent doit être utilisé avec ses clavettes et eléments de blocage.
(C) Zentrum; (R) Rechts; (L) Links. […]: Adapter GAP [mm]
(E-L): Die Adapter J700 und J800 können für Bagger und Lader gebraucht werden. : In dem entsprechenden Abschnitt des Katalogs gibt es auch andere Produkte, die mit diesen austauschbar sind in anderen Größen.
ACHTUNG: Die *J450 und **J460 Stifte und Klemmringe sind nicht austauschbar. Jeder Adapter muss mit dem richtigen Stift und Klemmring angebracht werden.
MACHINE MODELS
CAT® STYLE TIPS
SIZE
J200
MACHINE MODELS
215, 219, 416, 426, 428, 436, 910, 931, 935, 307, IT12
J225 446, 307, 933, 938, 939, 914G, E70, E70B
J250 916 THRU 920, 922, 924, 926, 930, 935, 936, 939, 941, 943, 950, 951, 953, 983, 205 THRU 241, 225, 229, 311, 312, 320, IT1, IT18, IT28
J300 615, J619, J621, 623, 950, 955, 960, 963, 953B THRU 966, 980, 983, 988, 992, E180, 215, 219, 235, 205 THRU 214, 315, 320, 322
J350 633, 639, 960, 963, 966B, 966D, 966E, 966F, 973, 977, 980, 980B, 980C, E180, E240, 213B, 214B, 215 THRU 229, 320, 245, 318, 322, 325, 330, IT1
J400 231D, 980,980C, 980G, 322, 325, 330
J450/J460 966D, 973, 980, 980C, 983, 988, 988B, 988G/H, 225, E300(D/E/F), 235, 235FS, 325, 330, 345, 350
J550 235, 245, 245FS, 350, 375, 5130, 983, 988, 988B, 990, 992, 992B, 992C, 992G
J600 990, 992, 992G, 375, 5080, 5110B
J600 990, 992, 992G, 375, 5080, 5110B
J700 990, 992, 992C, 992G, 994, 375, 5080
J800 385 (JB), 994
CAT® STYLE LONG TIPS
DENTI LONG TIPO CAT® DIENTES LONG DE TIPO CAT® DENTS LONG TYPE CAT® LONG ZAHNEN TYP CAT®
CAT® STYLE HEAVY DUTY LONG TIPS
DENTI HEAVY DUTY LONG TIPO CAT® DIENTES HEAVY DUTY LONG DE TIPO CAT® DENTS HEAVY DUTY LONG TYPE
HEAVY DUTY LONG ZAHNEN TYP CAT®
CAT® STYLE SHORT TIPS
DENTI
SHORT TIPO CAT® DIENTES SHORT DE TIPO CAT® DENTS SHORT TYPE CAT® SHORT ZAHNEN TYP CAT®
CAT® STYLE ROCK CHISEL TIPS
DENTI ROCK CHISEL TIPO CAT® DIENTES ROCK CHISEL DE TIPO CAT® DENTS ROCK CHISEL TYPE CAT® ROCK CHISEL ZAHNEN TYP CAT®
CAT® STYLE PENETRATION TIPS
DENTI PENETRATION TIPO CAT® DIENTES PENETRATION DE TIPO CAT® DENTS PENETRATION TYPE CAT® PENETRATION ZAHNEN TYP CAT®
CAT® STYLE SYMMETRICAL TIPS
DENTI SYMMETRICAL TIPO CAT® DIENTES SYMMETRICAL DE TIPO CAT® DENTS SYMETRIQUES TYPE CAT® SYMMETRICAL ZAHNEN TYP CAT®
CAT® STYLE SHARP TIPS
DENTI SHARP TIPO CAT® DIENTES SHARP DE TIPO CAT® DENTS SHARP TYPE CAT® SHARP ZAHNEN TYP CAT®
CAT® STYLE TIGER LONG TIPS
CAT® STYLE TWIN TIGER LONG TIPS
TIGER
DIENTES
CAT® STYLE FLARE TIPS
DENTI FLARE TIPO CAT® DIENTES FLARE DE TIPO CAT® DENTS FLARE TYPE CAT® FLARE ZAHNEN TYP CAT®
CAT® STYLE ABRASION & HEAVY DUTY ABRASION TIPS
CAT® STYLE ABRASION PENETRATION TIPS
PENETRATION DE TIPO CAT® DENTS ABRASION PENETRATION TYPE CAT® ABRASION PENETRATION ZAHNEN TYP CAT®
ITR ADAPTERS
CAT® J SERIES STYLE
BUCKET
ADAPTER
TIP
CAT® STYLE WELD ON FLUSHMOUNT ADAPTERS
CAT® STYLE BOTTOM STRAP ADAPTERS
ADATTATORI BOTTOM STRAP DA SALDARE TIPO CAT® PORTADIENTES BOTTOM STRAP SOLDABLE DE TIPO CAT® PORTE-DENTS BOTTOM STRAP À SOULDER TYPE CAT® BOTTOM STRAP ZAHNHALTER TYP CAT®
CAT® STYLE WELD ON TWO STRAP ADAPTERS
CAT® STYLE WELD ON TWO STRAP ADAPTERS
ADATTATORI TWO
PORTE-DENTS
CAT® STYLE WELD ON TWO STRAP ADAPTERS
CAT® STYLE BOLT ON 2 HOLES ADAPTERS
ADATTATORI
DA IMBULLONARE TIPO CAT® PORTADIENTES ATTORNILLABLES DE TIPO CAT® PORTE-DENTS A BOULONNER TYPE CAT® ANSCHRAUB-HALTER TYP CAT®
CAT® STYLE BOLT ON 3 HOLES ADAPTERS
ADATTATORI DA IMBULLONARE TIPO CAT® PORTADIENTES ATTORNILLABLES DE TIPO CAT® PORTE-DENTS A BOULONNER TYPE CAT® ANSCHRAUB-HALTER TYP CAT®
CAT® STYLE BOLT ON CORNER ADAPTERS
ADATTATORI LATERALE DA IMBULLONARE TIPO CAT® CANTOPORTADIENTES ATTORNILLABLES DE TIPO CAT® PORTE-DENTS
CAT® STYLE BOLT ON CORNER ADAPTERS
ITR ADAPTERS
CAT® STYLE WEAR CAP VERSION
CAT® STYLE UNITEETH (type A)
FORCELLE (modello A) TIPO CAT® UNITEETH (modelo A) DE TIPO CAT®
UNITEETH (modèle A) TYPE CAT® UNITEETH (modell A) TYP CAT®
CAT® STYLE UNITEETH (type B)
FORCELLE (modello B) TIPO CAT®
UNITEETH (modelo B) DE TIPO CAT®
UNITEETH (modèle B) TYPE CAT®
UNITEETH (modell B) TYP CAT®
CAT® UNITEETH (type C)
FORCELLE (modello C) TIPO CAT®
UNITEETH (modelo C) DE TIPO CAT®
UNITEETH (modèle C) TYPE CAT®
UNITEETH (modell C) TYP CAT®
CAT® STYLE RIPPER CENTERLINE TIPS
DENTI RIPPER CENTERLINE TIPO CAT® DIENTES RIPPER CENTERLINE DE TIPO CAT® DENTS RIPPER CENTERLINE TYPE CAT® RIPPER CENTERLINE ZAHNEN TYP CAT®
4T4501 (SHORT)
4T4502 (INTERMEDIATE)
D11N, D10/N/R
D9L/R/T, D8R/T
D9, D11N/R D10N/R/T
D9L/R/T, D8R/T
(INTERMEDIATE)
CAT® STYLE RIPPER PENETRATION TIPS
DENTI RIPPER PENETRATION TIPO CAT® DIENTES RIPPER PENETRATION DE TIPO CAT® DENTS RIPPER PENETRATION TYPE CAT® RIPPER PENETRATION ZAHNEN
ITR VERTICAL PIN TIPS
CAT® K SERIES STYLE
EXCAVATOR TIP SELECTION (TRENCHING APPLICATION)
SPIKE/DOUBLE SPIKE SPIKE/DOUBLE SPIKE PENETRATION PLUS PENETRATION PLUS
PENETRATION PENETRATION LONG LIFE EXTRA DUTY PENETRATION LONG LIFE
GENERAL DUTY EXTRA DUTY EXTRA DUTY
EXCAVATOR TIP SELECTION (LOADING APPLICATION)
PENETRATION HEAVY PENETRATION HEAVY PENETRATION
PENETRATION GENERAL DUTY EXTRA DUTY LONG LIFE EXTRA DUTY EXTRA DUTY LONG LIFE
GENERAL DUTY EXTRA DUTY HEAVY ABRASION
LOADER TIP SELECTION
PENETRATION HEAVY PENETRATION HEAVY PENETRATION
PENETRATION GENERAL DUTY
EXTRA DUTY LONG LIFE EXTRA DUTY EXTRA DUTY LONG LIFE
GENERAL DUTY EXTRA DUTY HEAVY ABRASION
CAT® “K” IDENTIFICATION
To identify tip family simply measure the distance between the “ears” of the tip in millimeters and round to the nearest 5 mm
“K” IDENTIFICATION
CAT® K SERIES STYLE
TIPS, ADAPTERS, RETAINERS
LOADER
MACHINE MODELS
CAT® STYLE TIPS
K80 315, 318, 320 950, 953, 962
K90 318, 320, 322 962, 966, 972, 973
K100 322, 325 980, 982
K110 322, 325, 330, 345 986, 988
K130 345, 365 988, 990
K150 365, 385 990, 992
K170 385 993
CAT® STYLE GENERAL DUTY TIPS
DENTI GENERAL DUTY TIPO CAT® DIENTES GENERAL DUTY DE TIPO CAT® DENTS GENERAL DUTY TYPE CAT® GENERAL DUTY ZAHNEN TYP CAT®
CAT® STYLE EXTRA DUTY TIPS
DENTI EXTRA DUTY TIPO CAT® DIENTES EXTRA DUTY DE TIPO CAT® DENTS EXTRA DUTY TYPE CAT® EXTRA DUTY ZAHNEN TYP CAT®
CAT® STYLE PENETRATION PLUS TIPS
DENTI PENETRATION PLUS TIPO CAT® DIENTES PENETRATION PLUS DE TIPO CAT® DENTS PENETRATION PLUS TYPE CAT® PENETRATION PLUS ZAHNEN TYP CAT®
CAT® STYLE PENETRATION TIPS
DENTI PENETRATION TIPO CAT® DIENTES PENETRATION DE TIPO CAT® DENTS PENETRATION TYPE CAT® PENETRATION ZAHNEN TYP CAT®
CAT® STYLE SPIKE TIPS
DENTI SPIKE TIPO CAT®
DIENTES SPIKE DE TIPO CAT®
DENTS SPIKE TYPE CAT®
SPIKE ZAHNEN TYP CAT®
CAT® STYLE DOUBLE SPIKE TIPS
DENTI DOUBLE SPIKE TIPO CAT®
DIENTES DOUBLE SPIKE DE TIPO CAT®
DENTS DOUBLE SPIKE TYPE CAT®
DOUBLE SPIKE ZAHNEN TYP CAT®
CAT® STYLE WIDE TIPS
CAT® STYLE HEAVY ABRASION TIPS
DENTI HEAVY ABRASION TIPO CAT® DIENTES HEAVY ABRASION DE TIPO CAT® DENTS HEAVY ABRASION TYPE CAT® HEAVY ABRASION ZAHNEN TYP CAT®
CAT® STYLE HEAVY PENETRATION TIPS
DENTI HEAVY PENETRATION TIPO CAT® DIENTES HEAVY PENETRATION DE TIPO CAT® DENTS HEAVY PENETRATION TYPE CAT® HEAVY PENETRATION ZAHNEN TYP CAT®
CAT® STYLE WELD ON TWO STRAP ADAPTERS
ADATTATORI TWO STRAP DA SALDARE TIPO CAT® PORTADIENTES TWO STRAP SOLDABLE DE TIPO CAT® PORTE-DENTS TWO STRAP À SOULDER TYPE CAT® TWO STRAP ZAHNHALTER TYP CAT®
CAT® STYLE BOLT ON TWO STRAP ADAPTERS
ADATTATORI DA IMBULLONARE TIPO CAT® PORTADIENTES ATTORNILLABLES DE TIPO CAT® PORTE-DENTS A BOULONNER TYPE CAT® ANSCHRAUB-HALTER TYP CAT®
CAT® STYLE VERTICAL PIN TIPS
DENTI CON PERNO VERTICALE TIPO CAT® DIENTES CON PASADOR VERTICAL DE TIPO CAT® DENTS A CLAVETTE VERTICALE TYPE CAT® ZAHNEN STIFTEN MIT VERTIKALEN TYP CAT®

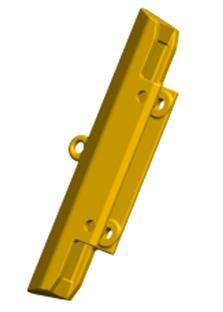

CAT® STYLE CLEANER BARS
BARRE PULITRICI TIPO CAT® BARRAS ANTIDESGASTES DE TIPO CAT® BARRES DE NETTOYAGE TYPE CAT® HALTEPLATTE TYP CAT®
CAT® STYLE COMPACTOR TIPS
DENTI COMPATTATORI TIPO CAT® DIENTES COMPACTADORES DE TIPO CAT® DENTS COMPACTEURS TYPE CAT® STAMPFFUSS TYP CAT®
KOMATSU
TIPS FOR LOADER AND EXCAVATOR
TIPS for LOADER
WA 180, WA 200, WA 250 WA 300, WA 320, WA 470, WA 480, WA 500, WA 600 WB 150, WB 180
20X-70-14160 202-70-12130 426 -847-1110
202-70-12130SYL 20X-70-14160SYL -
421-71-H2E80 - -
202-70-12130TL - -
202-70-12130WTL - -
202-70-12130RC - -
419-70-E10RP (202-70-12130RP2) 426-847-1110RP2 -
423-70-13114
419-70-13163 423-70-13144 (left)
419-70-13173 423-70-13154 (right)
FASTENERS
20X-70-00100
09244-02489
09244-02496
09244-02516
09244-03036
209-70-54240
21N-72-14330 09244-02508 195-78-71360
TIPS for EXCAVATOR
(207-70-14151RP2)
TIPS AND ADAPTERS BY SIZE
TIPS ADAPTERS LOCKS
20E-70-K2460
20X-70-14160
20X-70-14160SYL
131-78-31190
202-70-12130
419-71-H2310
202-70-12130WTL
202-70-12130RC
419-70-E10RP
202-70-12130SYL
202-70-12130TL
205-70-68260
205-70-19570
20Y-70-K4060
205-70-19570TT
205-70-19570RC
205-70-19570SYL
207-70-14280
207-70-14151
20Y-70-K4070
207-70-14151TT
421-71-H2E80
207-70-14151RC
421-71-E20RP
207-70-K2530
20X-70-14151
418-847-1160 (L)
418-847-1170 (R)
20x-70-00100
202-70-12140
09244-02489
205-939-7120
20Y-70-14520
20Y-939-1180
419-847-1111
419-847-1121 (L)
419-847-1131 (R)
205-70-68141
207-939-3120
423-847-1111
421-72-H2D50
421-72-H2D60
423-847-1121 (L)
423-847-1131 (R)
09244-02496
09244-02516
TIPS AND ADAPTERS BY SIZE
TIPS
208-70-14270
208-70-14152
208-70-K1340
208-70-14152TT
208-70-14152RC
208-70-K1420
426-847-1110RP2
ADAPTERS LOCKS
208-70-14143
208-934-7120
208-939-3120
426-847-1121
426-848-1121 (L)
426-848-1131 (R)
425-847-1191
425-847-1211
425-847-1221
21N-72-14410
21N-72-14290
21N-72-14420
21N-70-14140
KOMATSU® STYLE LONG TIPS
DENTI LONG TIPO KOMATSU ® DIENTES LONG DE TIPO KOMATSU ® DENTS LONG TYPE KOMATSU ® LONG ZAHNEN TYP KOMATSU
STRAIGHT
CURVED
69 104 99 4,3 09244-02496
(CURVED)
(CURVED)
208-70-14152 (CURVED)
115 121 151 10,3 09244-03036 208-939-3120 208-70-14143 208-934-5120 426-847-1121 426-848-1131 426-848-1121
KOMATSU® STYLE HEAVY DUTY LONG TIPS
DENTI HEAVY DUTY LONG TIPO KOMATSU ® DIENTES HEAVY DUTY LONG DE TIPO KOMATSU ® DENTS HEAVY DUTY LONG TYPE KOMATSU ® HEAVY DUTY LONG ZAHNEN TYP KOMATSU ®
KOMATSU® STYLE SYMMETRICAL TIPS
DENTI SYMMETRICAL TIPO KOMATSU ® DIENTES SYMMETRICAL DE TIPO KOMATSU ® DENTS SYMMETRICAL TYPE KOMATSU ® SYMMETRICAL ZAHNEN TYP KOMATSU ®
STRAIGHT CURVED
KOMATSU® STYLE PENETRATION TIPS
DENTI PENETRATION TIPO KOMATSU ® DIENTES PENETRATION DE TIPO KOMATSU ® DENTS PENETRATION TYPE KOMATSU ® PENETRATION ZAHNEN TYP KOMATSU ®

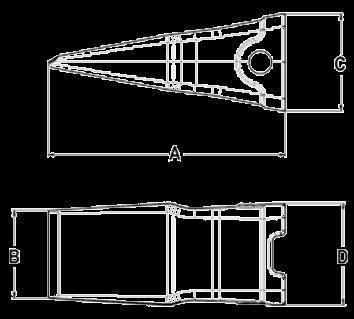

PN A B C D kg (mm)
419-71-H2310 202 76 91 76 3,6 09244-02489 202-70-12140
421-71-H2E80 254 94 116 120 7,3 09244-02516
419-71-H2290 (C) 419-71-H2280 (R) 419-71-H2300 (L) 419-71-H2920 (R) 419-71-H2910 (L) -
207-939-3120 206-939-5120 207-70-14142
419-847-1111
421-71-H2E60 (C) 421-71-H2E50 (R) 421-71-H2E70 (L) 421-72-H2D50 (R) 421-72-H2D60 (L)
423-847-1111 -
419-847-1121 (L) 419-847-1131 (R) -
419-847-1121 (L) 419-847-1131 (R) WA 470, WA 480
KOMATSU® STYLE SHARP TIPS
DENTI SHARP TIPO KOMATSU ® DIENTES SHARP DE TIPO KOMATSU ® DENTS SHARP TYPE KOMATSU ® SHARP ZAHNEN TYP KOMATSU ®
KOMATSU® STYLE ROCK CHISEL TIPS
DENTI ROCK CHISEL TIPO KOMATSU ® DIENTES ROCK CHISEL DE TIPO KOMATSU ® DENTS ROCK CHISEL TYPE KOMATSU ® ROCK CHISEL ZAHNEN TYP KOMATSU ®
KOMATSU® STYLE TWIN TIGER LONG TIPS
DENTI TWIN TIGER LONG TIPO KOMATSU ® DIENTES TWIN TIGER LONG DE TIPO KOMATSU ® DENTS TWIN TIGER LONG TYPE KOMATSU ® TWIN TIGER LONG ZAHNEN TYP KOMATSU ®
(R)
(L)
(R)
(L)
KOMATSU® STYLE ROCK PENETRATION TIPS
DENTI ROCK PENETRATION TIPO KOMATSU ® DIENTES ROCK PENETRATION DE TIPO KOMATSU ® DENTS ROCK PENETRATION TYPE KOMATSU ® ROCK PENETRATION ZAHNEN TYP KOMATSU ®
419-70-E10RP (202-70-12130RP2)
421-71-E20RP (207-70-14151RP2)
(R)
(R)
(L)
ITR ADAPTERS KOMATSU® STYLE
BUCKET
ADAPTER
TIP
KOMATSU® STYLE WELD ON FLUSHMOUNT ADAPTERS
ADATTATORI WELD ON FLUSHMOUNT TIPO KOMATSU ® PORTADIENTES WELD ON FLUSHMOUNT DE TIPO KOMATSU ® PORTE-DENTS WELD ON FLUSHMOUNT TYPE KOMATSU ® WELD ON FLUSHMOUNT ZAHNHALTER TYP KOMATSU ®
KOMATSU® STYLE WELD ON TWO STRAP ADAPTERS
ADATTATORI WELD ON TWO STRAP TIPO KOMATSU ® PORTADIENTES WELD ON TWO STRAP DE TIPO KOMATSU ® PORTE-DENTS WELD ON TWO STRAP TYPE KOMATSU ® WELD ON TWO STRAP ZAHNHALTER TYP KOMATSU ®
KOMATSU® STYLE WELD ON TWO STRAP ADAPTERS
ADATTATORI WELD ON TWO STRAP TIPO KOMATSU ® PORTADIENTES WELD ON TWO STRAP DE TIPO KOMATSU ® PORTE-DENTS WELD ON TWO STRAP TYPE KOMATSU ® WELD ON TWO STRAP ZAHNHALTER TYP KOMATSU ®
KOMATSU® STYLE BOLT ON CORNER ADAPTERS
419-847-1131
KOMATSU® STYLE BOLT ON 2 HOLES ADAPTERS
ADATTATORI DA IMBULLONARE TIPO KOMATSU ® PORTADIENTES ATTORNILLABLES DE TIPO KOMATSU ® PORTE-DENTS A BOULONNER TYPE KOMATSU ® ANSCHRAUB-HALTER
KOMATSU® STYLE BOLT ON 3 HOLES ADAPTERS
ADATTATORI DA IMBULLONARE TIPO KOMATSU ® PORTADIENTES ATTORNILLABLES DE TIPO KOMATSU ® PORTE-DENTS A BOULONNER TYPE KOMATSU ® ANSCHRAUB-HALTER

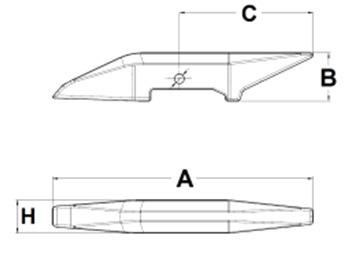

KOMATSU® STYLE RIPPER CENTERLINE TIPS
DENTI RIPPER CENTERLINE TIPO KOMATSU ® DIENTES RIPPER CENTERLINE DE TIPO KOMATSU ® DENTS RIPPER CENTERLINE TYPE KOMATSU ® RIPPER CENTERLINE ZAHNEN TYP KOMATSU ®
205-922-1120
202-922-4120 (ripper bucket) 205-950-0012
175-78-21693 (adapter nose) 154-78-15691 (adapter nose)
15A-79-11120
175-78-21615 175-79-32131 15A-78-11150
175-78-31230HD (HD)
(ripper
175-78-21693 (adapter nose) 154-78-15691 (adapter nose)
15A-79-11120 175-78-21615 175-79-32131 15A-78-11150
KOMATSU® STYLE STANDARD & LONG RIPPER TIPS
DENTI RIPPER STANDARD & LONG TIPO KOMATSU ® DIENTES RIPPER STANDARD & LONG DE TIPO KOMATSU ® DENTS RIPPER STANDARD & LONG TYPE KOMATSU ® RIPPER STANDARD & LONG ZAHNEN TYP KOMATSU ®
141-78-11253 288 101 161 125 12 09244-02508
144-78-11245 144-78-11243
131-78-31190 267 92 164 94 10 09244-02489
195-78-71140 422 89 215 128 28 09244-02508
205-951-0020 201-950-5110 - -
131-78-61180 125-78-22210
195-79-51110
195-79-51140
195-78-71380 (adapter nose)
195-78-71270 (adapter nose)
195-78-71320 416 90 217 125 24 195-7871360
195-78-71111 09244-02508 D 375
195-78-71111 09244-02508
195-78-71311 195-79-51151 - 09244-02508
195-78-71380 (adapter nose) 195-78-71111 09244-02508
198-78-21340 467 73 247 160 34 09244-03036
195-78-71380 (adapter nose) 198-78-21390 198-78-21410
195-78-71311 195-79-51151 - 09244-02508 D 375, D475
198-79-21-320 198-78-21330 198-78-21410
198-78-21430 (adapter nose) -
KOMATSU® STYLE UNITEETH
FORCELLE (modello A) TIPO KOMATSU ®
UNITEETH (modelo A) DE TIPO KOMATSU ®
UNITEETH (modèle A) TYPE KOM®
UNITEETH (modell A) TYP KOMATSU ®
KOMATSU® STYLE VERTICAL PIN TIPS
DENTI CON PERNO VERTICALE TIPO KOMATSU ® DIENTES CON PASADOR VERTICAL DE TIPO KOMATSU ® DENTS A CLAVETTE VERTICALE TYPE KOMATSU ® ZAHNEN STIFTEN MIT VERTIKALEN TYP KOMATSU ®
KOMATSU® STYLE SIDECUTTERS
TAGLIENTI LATERALI TIPO KOMATSU ® CORTADORES LATERALES TIPO KOMATSU ® BANDEAUX TYPE KOMATSU ® SEITENTEILE TYP KOMATSU ®
ITR® ESCO ® SUPERV - SYL
DENTI ESCO® SuperV - SYL TIPO ITR®
DIENTES ESCO® SuperV - SYL DE TIPO ITR®
DENTS ESCO® SuperV - SYL TYPE ITR® ESCO® SuperV - SYL ZAHNEN TYP ITR®
ITR® ESCO® SUPERV - RYL
DENTI ESCO® SuperV - RYL TIPO ITR® DIENTES ESCO® SuperV - RYL DE TIPO ITR® DENTS ESCO® SuperV - RYL TYPE ITR® ESCO® SuperV - RYL ZAHNEN TYP ITR®
* V43HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SuperV - TY, TYL, TYCE
DENTI ESCO® SuperV - TY, TYL, TYCE TIPO ITR® DIENTES ESCO® SuperV - TY, TYL, TYCE DE TIPO ITR® DENTS ESCO® SuperV - TY, TYL, TYCE TYPE ITR® ESCO® SuperV - TY, TYL, TYCE ZAHNEN TYP ITR®
ITR® ESCO ® SuperV - SDX & SD
DENTI ESCO® SuperV - SDX & SD TIPO ITR® DIENTES ESCO® SuperV - SDX & SD DE TIPO ITR® DENTS ESCO® SuperV - SDX & SD TYPE ITR® ESCO® SuperV - SDX & SD ZAHNEN TYP ITR®
* V43HPN, V51HPN e V59HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SUPERV - SHV
DENTI ESCO® SuperV - SHV TIPO ITR® DIENTES ESCO® SuperV - SHV DE TIPO ITR® DENTS ESCO® SuperV - SHV TYPE ITR® ESCO® SuperV - SHV ZAHNEN TYP ITR®
* V51HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SUPERV - VY
DENTI ESCO® SuperV - VY TIPO ITR® DIENTES ESCO® SuperV - VY DE TIPO ITR® DENTS ESCO® SuperV - VY TYPE ITR® ESCO® SuperV - VY ZAHNEN TYP ITR®
* V43HPN, V51HPN e V59HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SUPERV - VX
DENTI ESCO® SuperV - VX TIPO ITR®
DIENTES ESCO® SuperV - VX DE TIPO ITR®
DENTS ESCO® SuperV - VX TYPE ITR® ESCO® SuperV - VX ZAHNEN TYP ITR®
ITR® ESCO ® SUPERV - TVY
DENTI ESCO® SuperV - TVY TIPO ITR® DIENTES ESCO® SuperV - TVY DE TIPO ITR® DENTS ESCO® SuperV - TVY TYPE ITR® ESCO® SuperV - TVY ZAHNEN TYP ITR®
* V43HPN, V51HPN e V59HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SUPERV - FLARE
DENTI ESCO® SuperV - FLARE TIPO ITR® DIENTES ESCO® SuperV - FLARE DE TIPO ITR® DENTS ESCO® SuperV - FLARE TYPE ITR® ESCO® SuperV - FLARE ZAHNEN TYP ITR®
* V43HPN, V51HPN e V59HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SUPERV - AD
DENTI ESCO® SuperV - AD TIPO ITR® DIENTES ESCO® SuperV - AD DE TIPO ITR® DENTS ESCO® SuperV - AD TYPE ITR® ESCO® SuperV - AD
V43HPN, V51HPN e V59HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SUPERV - AG
DENTI ESCO® SuperV - AG TIPO ITR®
DIENTES ESCO® SuperV - AG DE TIPO ITR®
DENTS ESCO® SuperV - AG TYPE ITR® ESCO® SuperV - AG ZAHNEN TYP ITR®
* V43HPN, V51HPN e V59HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SuperV - AR, ARH, ARL
DENTI ESCO® SuperV - AR,ARH,ARL TIPO ITR® DIENTES ESCO® SuperV - AR,ARH,ARL DE TIPO ITR®
DENTS ESCO® SuperV - AR,ARH,ARL TYPE ITR® ESCO® SuperV - AR,ARH,ARL ZAHNEN TYP ITR®
* V43HPN, V51HPN e V59HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SuperV - ADAPTERS, 1-1/2 BOTTOM LEG
ADATTATORI
ITR® ESCO ® SuperV - ADAPTERS, 1-1/2 TOP LEG
ITR® ESCO ® SuperV - ADAPTERS, BOTTOM STRAP
ADATTATORI ESCO® SuperV Bottom Strap TIPO ITR®
PORTADIENTES ESCO® SuperV Bottom Strap DE TIPO ITR® PORTE-DENTS ESCO® SuperV Bottom Strap TYPE ITR® ESCO® SuperV Bottom Strap ZAHNHALTER TYP ITR®
ITR® ESCO ® SuperV - ADAPTERS, 1-1/2
TOP LEG
ITR® ESCO ® SUPERV - ADAPTERS, FLUSHMOUNT
DENTI ESCO® SuperV - Flushmount TIPO ITR®
DIENTES ESCO® SuperV - Flushmount DE TIPO ITR®
DENTS ESCO® SuperV - Flushmount TYPE ITR®
ESCO® SuperV - Flushmount ZAHNEN TYP ITR®
ITR® ESCO ® SUPERV - ADAPTERS, WELD ON
ADATTATORI ESCO® Weld On TIPO ITR® PORTADIENTES ESCO® Weld On DE TIPO ITR® PORTE-DENTS ESCO® Weld On TYPE ITR® ESCO® Weld On ZAHNHALTER TYP ITR®
* V59HPN Alternative Part. No. Locking pin (HPN: Hot slag, laitier chaud, Heisse schlaken, scorie calde)
ITR® ESCO ® SuperV - WELD ON NOSE
NASELLO SALDABILE ESCO® Weld On TIPO ITR®
NARIZ SOLDABLE ESCO® Weld On DE TIPO ITR®
SOUDABLE NEZ ESCO® Weld On TYPE ITR®
SCHWEISSBAR NASE ESCO® Weld On
ESCO ® STYLE CONICAL: STANDARD, SHARP, TIGER & ABRASION TIPS
DENTI CONICAL TIPO ESCO® DIENTES CONICO DE TIPO ESCO® DENTS CONIQUE TYPE ESCO® KONISCHE ZAHNEN TYP ESCO®
ESCO ® STYLE WELD ON ADAPTERS
ADATTATORI TIPO ESCO® PORTADIENTES DE TIPO ESCO® PORTE-DENTS CONIQUE TYPE ESCO® KONISCHE ZAHNALTER TYP ESCO®
ESCO ® STYLE: RIPPER TIPS
DENTI RIPPER TIPO ESCO® DIENTES RIPPER DE TIPO ESCO® DENTS RIPPER TYPE ESCO® RIPPER ZAHNEN TYP ESCO®
ESCO ® STYLE DREDGING ADAPTERS
ADATTATORI DREDGING TIPO ESCO® PORTADIENTES DREDGING DE TIPO ESCO® PORTE-DENTS DREDGING TYPE ESCO® DREDGING ZAHNALTER TYP ESCO®
DAEWOO
DAEWOO ® STYLE LONG TIPS
DENTI LONG TIPO DAEWOO ® DIENTES LONG DE TIPO DAEWOO ® DENTS LONG TYPE DAEWOO ® LONG ZAHNEN TYP DAEWOO ®
(2713-1269)
S140,S150,S155 S160,S220, S225 S230 S290, S300 DX140,DX160 DX225,DX300
S170, S175, S180 S200, S210, S220 S225, S230, S250 S255 ,S450, S470 S500 DX180,DX190,DX210 DX225, DX255,DX520
S170, S175, S180 S200, S210, S220 S225, S230, S250 S255 ,S450, S470 S500 DX180,DX190,DX210 DX225, DX255,DX520
S170, S175, S180 S200, S210, S220 S225, S230, S250 S255 ,S450, S470 S500 DX180,DX190,DX210 DX225, DX255,DX520
S280, S290, S300 S330,
S470,S500 DX300, DX520 713-00027
S280, S290, S300 S330, S450 S470,S500 DX300, DX520
DAEWOO ® STYLE VERTICAL TIPS
DENTI VERTICAL TIPO DAEWOO ® DIENTES CON PASADOR VERTICAL DE TIPO DAEWOO ® DENTS A CLAVETTE VERTICALE TYPE DAEWOO ® ZAHNEN STIFTEN MIT VERTICALEN
DAEWOO ® STYLE WELD ON TWO STRAP ADAPTERS
DAEWOO ® STYLE SIDECUTTERS
TAGLIENTI LATERALI TIPO DAEWOO ® CORTADORES LATERALES DE TIPO DAEWOO ® BANDEAUX TYPE DAEWOO ® SEITENTEILE TYP DAEWOO ®
HYUNDAI
HYUNDAI® STYLE LONG & HEAVY DUTY LONG TIPS
DENTI LONG & HD LONG TIPO HYUNDAI® DIENTES LONG & HD LONG DE TIPO HYUNDAI® DENTS LONG & HD LONG TYPE HYUNDAI® LONG & HD LONG ZAHNEN TYP HYUNDAI®
TIP LONG
TIP H/D LONG
HYUNDAI® STYLE VERTICAL TIPS
DENTI VERTICAL TIPO HYUNDAI® DIENTES VERTICAL DE TIPO HYUNDAI® DENTS VERTICAL TYPE HYUNDAI® VERTICAL ZAHNEN TYP HYUNDAI®
HYUNDAI® STYLE WELD ON TWO STRAP ADAPTERS
WELD
PORTADIENTES
PORTE-DENTS
SHAPE A
SHAPE B
KOBELCO
KOBELCO ® STYLE TIPS: LONG, TIGER LONG, ROCK CHISEL
DENTI LONG, TIGER LONG, ROCK CHISEL TIPO KOBELCO® DIENTES LONG, TIGER LONG, ROCK CHISEL DE TIPO KOBELCO® DENTS LONG, TIGER LONG, ROCK CHISEL TYPE KOBELCO® LONG, TIGER LONG, ROCK CHISEL ZAHNEN TYP KOBELCO®
TIP ROCK CHISEL
TIP TIGER LONG
TIP LONG
KOBELCO ® STYLE WELD ON ADAPTERS
ADATTATORI WELD ON TWO STRAP TIPO KOBELCO ® PORTADIENTES WELD ON TWO STRAP DE TIPO KOBELCO ® PORTE-DENTS WELD ON TWO STRAP TYPE KOBELCO ® WELD ON TWO STRAP ZAHNHALTER TYP KOBELCO ®
BOFORS
BOFORS® STYLE B-LOCK
DENTI B-LOCK PER PALA TIPO BOFORS® DIENTES B-LOCK PARA CARGADORA DE TIPO BOFORS® DENTS B-LOCK POUR PELLE-CHARGEUSE TYPE BOFORS® B-LOCK LADERZäHNE FüR LADESCHAUFEL TYP BOFORS®
BOFORS® STYLE SIDE LOCK
DENTI SIDE LOCK PER PALA TIPO BOFORS® DIENTES SIDE LOCK PARA CARGADORA DE TIPO BOFORS® DENTS SIDE LOCK POUR PELLE-CHARGEUSE TYPE BOFORS® SIDE LOCK LADERZäHNE FüR LADESCHAUFEL TYP BOFORS®
BOFORS® STYLE VERTICAL LOCK
DENTI VERTICAL LOCK PER ESCAVATORE TIPO BOFORS® DIENTES VERTICAL LOCK PARA EXCAVADORA DE TIPO BOFORS®
DENTS VERTICAL LOCK POUR PELLE TYPE BOFORS® VERTICAL LOCK LADERZäHNE FüR
BOFORS® STYLE B-LOCK
DENTI B-LOCK PER ESCAVATORE TIPO BOFORS® DIENTES B-LOCK PARA EXCAVADORA DE TIPO BOFORS®
DENTS B-LOCK POUR PELLE TYPE BOFORS® B-LOCK LADERZäHNE FüR BAGGERLöFFEL TYP BOFORS®
BOFORS® STYLE B-LOCK ADAPTERS
BOFORS® STYLE SIDE LOCK ADAPTERS
ADATTATORI SIDE LOCK TIPO BOFORS® PORTADIENTES SIDE LOCK DE TIPO BOFORS® PORTE-DENTS SIDE LOCK TYPE BOFORS® SIDE LOCK ZAHNHüLSEN TYP BOFORS®
FIAT® & FIAT-ALLIS® STYLE TIPS
DENTI TIPO FIAT® & FIAT-ALLIS® DIENTES DE TIPO FIAT® & FIAT-ALLIS®
FIAT-ALLIS® STYLE SCARIFIER & RIPPER TIPS
DENTI SCARIFIER & RIPPER TIPO FIAT-ALLIS®
DIENTES SCARIFIER & RIPPER DE TIPO FIAT-ALLIS®
DENTS SCARIFIER & RIPPER TYPE FIAT-ALLIS® SCARIFIER & RIPPER ZAHNEN TYP FIAT-ALLIS®
70062160 (Tip scarifier)
73138753 (Tip ripper)
FIAT-HITACHI® STYLE TIPS
DENTI TIPO FIAT-HITACHI® DIENTES DE TIPO FIAT-HITACHI® DENTS TYPE FIAT-HITACHI® ZAHNEN TYP FIAT-HITACHI®
FIAT® & FIAT-HITACHI® STYLE UNITEETH
DIENTE
CNH ® STYLE TIPS
CONICAL CRIMP ON LONG ST SP LONG TL
CNH ® STYLE TIPS
DENTI TIPO CNH® DIENTES DE TIPO CNH® DENTS TYPE CNH® ZAHNEN TYP CNH®
122668A1
PARABOLIC
126932A1
PARABOLIC
122673A1
CNH ® STYLE ADAPTERS
122668A1
BOTTOM STRAP
WELD ON type B
WELD ON type A
JOHN DEERE adaptable tips, adapters and
other replacements parts
JOHN DEERE® STYLE TIPS
DENTI TIPO JOHN DEERE® DIENTES DE TIPO JOHN DEERE® DENTS TYPE JOHN DEERE® ZAHNEN TYP JOHN DEERE®
JOHN DEERE® STYLE TIPS
DENTI TIPO JOHN DEERE® DIENTES DE TIPO JOHN DEERE® DENTS TYPE JOHN DEERE® ZAHNEN TYP JOHN DEERE®
JOHN DEERE® STYLE ADAPTERS
ADATTATORI TIPO JOHN DEERE® PORTADIENTES DE TIPO JOHN DEERE® PORTE-DENTS TYPE JOHN DEERE® ZAHNHALTER TYP JOHN DEERE®
T56524
UNI-Z
UNI-Z® STYLE TIPS
DENTI TIPO UNI-Z® DIENTES DE TIPO UNI-Z® DENTS TYPE UNI-Z® ZAHNEN TYP UNI-Z®
UNI-Z® STYLE ADAPTERS
ADATTATORI TIPO UNI-Z® PORTADIENTES DE TIPO UNI-Z® PORTE-DENTS TYPE UNI-Z® ZAHNHALTER TYP UNI-Z®
UNI-Z® STYLE PINS
PERNI TIPO UNI-Z® PASADORES DE TIPO UNI-Z®
CLAVETTES TYPE UNI-Z®
STIFTE TYP UNI-Z®
H&L
H&L® STYLE TIPS
DENTI TIPO H&L® DIENTES DE TIPO H&L® DENTS TYPE H&L® ZAHNEN TYP H&L®
CRIMP ON LONG TWIN TIGER
H&L® STYLE ADAPTERS
ADATTATORI TIPO H&L® PORTADIENTES DE TIPO H&L® PORTE-DENTS TYPE H&L® ZAHNHALTER TYP H&L®
HENSLEY
HENSLEY® STYLE TIPS
DENTI TIPO HENSLEY® DIENTES DE TIPO HENSLEY® DENTS TYPE HENSLEY® ZAHNEN TYP HENSLEY®
(Type 2)
X370 (Type 2)
X400 (Type 2)
HENSLEY® STYLE ADAPTERS
ADATTATORI TIPO HENSLEY® PORTADIENTES DE TIPO HENSLEY® PORTE-DENTS TYPE HENSLEY® ZAHNHALTER TYP HENSLEY®
WELD ON type A
WELD ON type B
LIEBHERR
LIEBHERR® STYLE: TIPS, ADAPTERS and FASTENERS
KINGMET
MTG ® KINGMET® STYLE UNIVERSAL TIPS
DENTI MTG® KINGMET® UNIVERSAL TIPO ITR® DIENTES MTG ® KINGMET® UNIVERSAL DE TIPO ITR® DENTS MTG ® KINGMET® UNIVERSAL TYPE ITR® MTG ® KINGMET® UNIVERSAL ZAHNEN TYP ITR®
MTG ® KINGMET® STYLE LONG TIPS
DENTI MTG ® KINGMET® LONG TIPO ITR®
DIENTES MTG ® KINGMET® LONG DE TIPO ITR®
DENTS MTG ® KINGMET® LONG TYPE ITR® MTG ® KINGMET® LONG ZAHNEN TYP ITR®
MTG ® KINGMET® STYLE TWIN TIGER TIPS
DENTI MTG ® KINGMET® TWIN TIGER TIPO ITR® DIENTES MTG ® KINGMET® TWIN TIGER DE TIPO ITR® DENTS MTG ® KINGMET® TWIN TIGER TYPE ITR® MTG ® KINGMET® TWIN TIGER ZAHNEN TYP ITR®
MTG ® KINGMET® STYLE TIGER TIPS
DENTI MTG ® KINGMET® TIGER TIPO ITR® DIENTES MTG ® KINGMET® TIGER DE TIPO ITR® DENTS MTG ® KINGMET® TIGER TYPE ITR® MTG ® KINGMET® TIGER ZAHNEN TYP ITR®
MTG ® KINGMET® STYLE EXCAVATOR TIPS
DENTI MTG ® KINGMET® EXCAVATOR TIPO ITR® DIENTES MTG ® KINGMET® EXCAVATOR DE TIPO ITR®
DENTS MTG ® KINGMET® EXCAVATOR TYPE ITR® MTG ® KINGMET® EXCAVATOR ZAHNEN TYP ITR®
MTG ® KINGMET® STYLE UNIVERSAL ADAPTER
ADATTATORI MTG ® KINGMET® UNIVERSAL TIPO ITR® PORTADIENTES MTG ® KINGMET® UNIVERSAL DE TIPO ITR® PORTE-DENTS MTG ® KINGMET® UNIVERSAL TYPE ITR
ZAHNHALTER MTG
MTG ® KINGMET® STYLE CENTRAL ADAPTER
ADATTATORI MTG ® KINGMET® CENTRAL TIPO ITR® PORTADIENTES MTG ® KINGMET® CENTRAL DE TIPO ITR® PORTE-DENTS MTG ® KINGMET® CENTRAL TYPE ITR® ZAHNHALTER MTG ® KINGMET® CENTRAL TYP ITR®
ITR® Volvo® Style
VOLVOMET TIPS & Adapters Range
GPE/GPC
General purpose TIP that gives the bottom of the bucket a smooth and clean profile. Self-sharpening.
TIP for abrasive material handling and where extra penetration is required. Undercuts slightly to give the cutting edge optimum protection. Self-sharpening.
Twin pick point TIP for work in extremely compact material. Maximum penetration capability in hard clay, frozen ground etc. Can be used in combination with PPC/PPE.
1 ½ bottom leg adapter, for welding to both sides of the cutting edge.
TIP for highly abrasive material and rock handling whith a focus on long service life. Undercuts slightly to give the cutting edge optimum protection. Self-sharpening.
Pick point TIP for work in extremely compact material. Maximum penetration capability in hard clay, frozen ground etc. Can be used in combination with TPC/TPE.
Spade nose TIP for levelling, cleaning, grading and backfilling.
One leg weld on adapter. Gives the bottom of the bucket a smooth and clean profile.
AML
TPE
BL, BLU, BLX, BLW
ARXE/AMRE
PPE
SNE
TONNAGE
14-18
TONNAGE
18-20
Buckets
TONNAGE
18-25
20-25
ITR® Volvo® Style TIPS & Adapters for Heavy Duty Excavators
25-35
TONNAGE 60-75
TONNAGE
ITR® Volvo® Style TIPS & Adapters for Compact Excavators
TONNAGE
TONNAGE
4-10
ITR® Volvo® Style TIPS & Adapters for Loaders
13806546
1-1/4"
ITR® Volvo® Style TIPS & Adapters for Loaders
TONNAGE
Style
ITR® Volvo® Style TIPS & Adapters for Skid Steer Loaders
TONNAGE
8-10
LOADER BUCKET
TONNAGE
8-10
EXCAVATOR
UNITEETH
CATERPILLAR® STYLE UNITEETH (Type A)
FORCELLE (Type A) TIPO CATERPILLAR®
UNITEETH (Type A) DE TIPO CATERPILLAR®
UNITEETH (Type A) TYPE CATERPILLAR®
(Type A) TYP CATERPILLAR®
CATERPILLAR® STYLE UNITEETH (Type B)
FORCELLE (Type B) TIPO CATERPILLAR®
UNITEETH (Type B) DE TIPO CATERPILLAR®
UNITEETH (Type B) TYPE CATERPILLAR®
UNITEETH (Type B) TYP CATERPILLAR®
CATERPILLAR® STYLE UNITEETH (Type C)
FORCELLE (Type C) TIPO CATERPILLAR®
UNITEETH (Type C) DE TIPO CATERPILLAR®
UNITEETH (Type C) TYPE CATERPILLAR®
UNITEETH (Type C) TYP CATERPILLAR®
CATERPILLAR® STYLE UNITEETH CORNER
FORCELLE LATERALE TIPO CATERPILLAR®
UNITEETH CORNER DE TIPO CATERPILLAR®
UNITEETH CORNER TYPE CATERPILLAR®
UNITEETH CORNER TYP CATERPILLAR®
Italic part numbers are under development
KOMATSU® STYLE UNITEETH
FORCELLE TIPO KOMATSU®
UNITEETH DE TIPO KOMATSU®
UNITEETH TYPE KOMATSU®
UNITEETH TYP KOMATSU®
CORNER: RIGHT CENTRE
CORNER: RIGHT A
CENTRE A
CORNER: LEFT
CORNER: LEFT A
NOTE:
JCB® STYLE UNITEETH
FORCELLE TIPO JCB®
UNITEETH DE TIPO JCB®
UNITEETH TYPE JCB®
UNITEETH TYP JCB®
531.03208
MULTIBRAND STYLE UNITEETH
FORCELLE TIPO MULTIBRAND
UNITEETH DE TIPO MULTIBRAND
UNITEETH TYPE MULTIBRAND
UNITEETH TYP MULTIBRAND
KUBOTA
ITR® STYLE UNITEETH
ITR® WEAR PROTECTIONS
SIDEBAR PROTECTORS* reduce wear on the sides of front-shovel and mass-excavation buckets in moderate to high wear-rate applications.
Weld-on HEEL SHROUDS are specifically reinforced on the inside corner to prevent interference with the bucket structure and weld joints.
WEAR BUTTONS*: round design helps cover and protect specific round profile areas.
CHOCKY BARS* provide an extra level of protection for wear and impact applications
LIP SHROUDS reduce the exposure of the blade to impacts and abrasions, increasing the useful life of the bucket
Note: Items marked with asterisks (*) can also be welded on different positions of the bucket
ITR® UNIK® LIP SHROUDS
Lip Shroud (Centre)
Lip Shroud (Left) Lip Shroud (Right)
ITR® UNIK® LIP SHROUDS
Lip Shroud (Centre) Lip Shroud (Left) Lip Shroud (Right)
ITR® UNIK® LIP SHROUDS
ITR® UNIK® LIP SHROUDS
Lip Shroud (Centre) Lip Shroud (Left) Lip Shroud (Right)
ITR® UNIVERSAL LIP SHROUDS
ITR® HEEL SHROUDS
ITR® CHOCKY BARS
ITR® WEAR BUTTONS
WHITE IRON CASTING
BRAZE JOINT
MILD STEEL
ITR® CORNER PROTECTORS CATERPILLAR® STYLE
CORNER PROTECTOR: TYPE 1
CORNER PROTECTOR: TYPE 3
CORNER PROTECTOR: TYPE 2
CORNER PROTECTOR: TYPE 2A
4V7174
4V7175
6I8310
6I8311 Corner 2 holes LH
8E5300 Corner 2 holes RH
8E5301 Corner 2 holes LH
960F, 966D, 966E, 966F, 970, 970F 973, 977
IT12, IT14, IT24, IT26 IT28, IT38, 943 951, 953, 953B, 953, 962GII, 916, 920 924F, 924G, 924GZ, 926, 928F, 928G 928GZ, 930, 930G, 936E, 936F, 938F 938G, 939, 941, 943
2 a IT62GII, IT62H, 950B, 950E, 950F 950FII, 950G, 950GII, 955, 960F, 962G 962GII, 962H, 963, 963B, 963C
8K6455 Corner no holes RH 3 920, 930, 936E, 936F, 941, 944, 950 950B, 950E, 951, 955 920, 930, 936E, 936F, 941, 944, 950 950B, 950E, 951, 955
8K6456 Corner no holes LH
ITR® CORNER PROTECTORS CATERPILLAR® STYLE
CORNER PROTECTOR: TYPE 1
5G2806
5G2807
IT12, IT14, IT24, IT26, IT28, IT38 910, 910E, 910F, 914G, 931, 933, 935 IT12, IT14, IT24, IT26, IT28, IT38 910, 910E, 910F, 914G, 931, 933, 935
5V1783
5V1784 Corner 1 hole LH
4V1544 Corner 1 hole RH
4V1545
5V2772
5V2773
4V7174
4V7175
7V4180
7V4181
950B, 950E, 950F, 950FII, 955, 960F 963, 963B, 963C 950B, 950E, 950F, 950FII, 955, 960F 963, 963B, 963C
IT12, IT14, IT24, IT26, IT28, IT38 943, 951, 953, 953B, 953C, 962GII 916, 920, 924F, 924G, 924GZ, 926 928F, 928G, 928GZ, 930, 930G, 936E IT12, IT14, IT24, IT26, IT28, IT38 943, 951, 953, 953B, 953C, 962GII 916, 920, 924F, 924G, 924GZ, 926 928F, 928G, 928GZ, 930, 930G, 936E
963B, 963C, 966C 963B, 963C, 966C
960F, 966D, 966E, 966F, 970, 970F 973, 977 960F, 966D, 966E, 966F, 970, 970F 973, 977
980B, 980C, 980F, 980G, 980H 988B, 988F 980B, 980C, 980F, 980G, 980H 988B, 988F
ITR® CORNER PROTECTORS CATERPILLAR® STYLE
8E5310
960F, 966D, 966E, 966F, 966G, 966GII 966H, 970, 970F, 972G, 972GII, 972H 973, 977
ITR® CORNER PROTECTORS CATERPILLAR® STYLE
CORNER PROTECTOR: TYPE
CORNER PROTECTOR: TYPE 8
CORNER PROTECTOR: TYPE 7
CORNER PROTECTOR: TYPE 9
ITR® WELD ON SIDE CUTTERS
ITR® UNIVERSAL WELD ON SIDE BAR PROTECTORS
ITR® SIDECUTTER PROTECTORS
TYPE 1
2014503SR (right) HITACHI® EX200, ZX180W, ZX200 ZX220, ZX225US
2014504SL (left) HITACHI®
205.70.74190 (right) KOMATSU®
205.70.74180 (left) KOMATSU®
2713.1059 (right) DAEWOO®
2713.1060 (left) DAEWOO®
DX180, DX190, DX210 DX225, DX520, S130 S170, S175, S180,S200 S210, S220
2713.6034 (right) DAEWOO® DX300, DX340, DX520 S280, S290, S300, S330 S340, S350, S470, S500
2713.6035 (left) DAEWOO®
7Y0357 (right) CATERPILLAR®
7Y0358 (left) CATERPILLAR®
8J9615 (right) CATERPILLAR®
8J9614 (left) CATERPILLAR®
964748 (right) CATERPILLAR®
964747 (left) CATERPILLAR®
E240, E300, 318, 320, 321, 322 323, 324, 325, 326, 328 329, 330, 336, 345
E300, 225, 227, 229, 231, 235 245, 320. 322, 325, 330
E140, E200, EL200B, M318, 245 315, 318, 320, 321, 322 323, 324, 325
(x
TYPE 1 TYPE 2
1358246
966, 972G, 972H, 980
330DL, 336, 345 350, 374, 375, 375L 834, 972, 973, 980, 988, 990 992, 993, 994
