LIFESPAN ARCHITECTURAL BEAMS
Lifespan architectural beams offer design versatility and increased span thanks to their specialised aluminium core that makes for easier installation at height. The outer coating of low-maintenance bamboo composite resists biodegradation, corrosion, insects, and harsh weather, and offers built-in UV protection for beautiful durability. Enjoy the look of timber beams without the upkeep.
TRI-EXTRUDED ALUMINIUM COMPOSITE
INCREASED SPAN
Aluminium core
Engineered flexible adhesive
Outer protective composite coating (Eva-tech surface technology)
Lifespan architectural beams offer the span capability of much heavier, solid beams thanks to their built-in aluminium core. This core significantly enhances the dimensional and flexural stability of the beam, while the Eva-tech composite coating provides a realistic timber aesthetic, as well as resistance to severe climatic and biodeterioration conditions.
HIGH PERFORMANCE FOR HIGH EXPECTATIONS

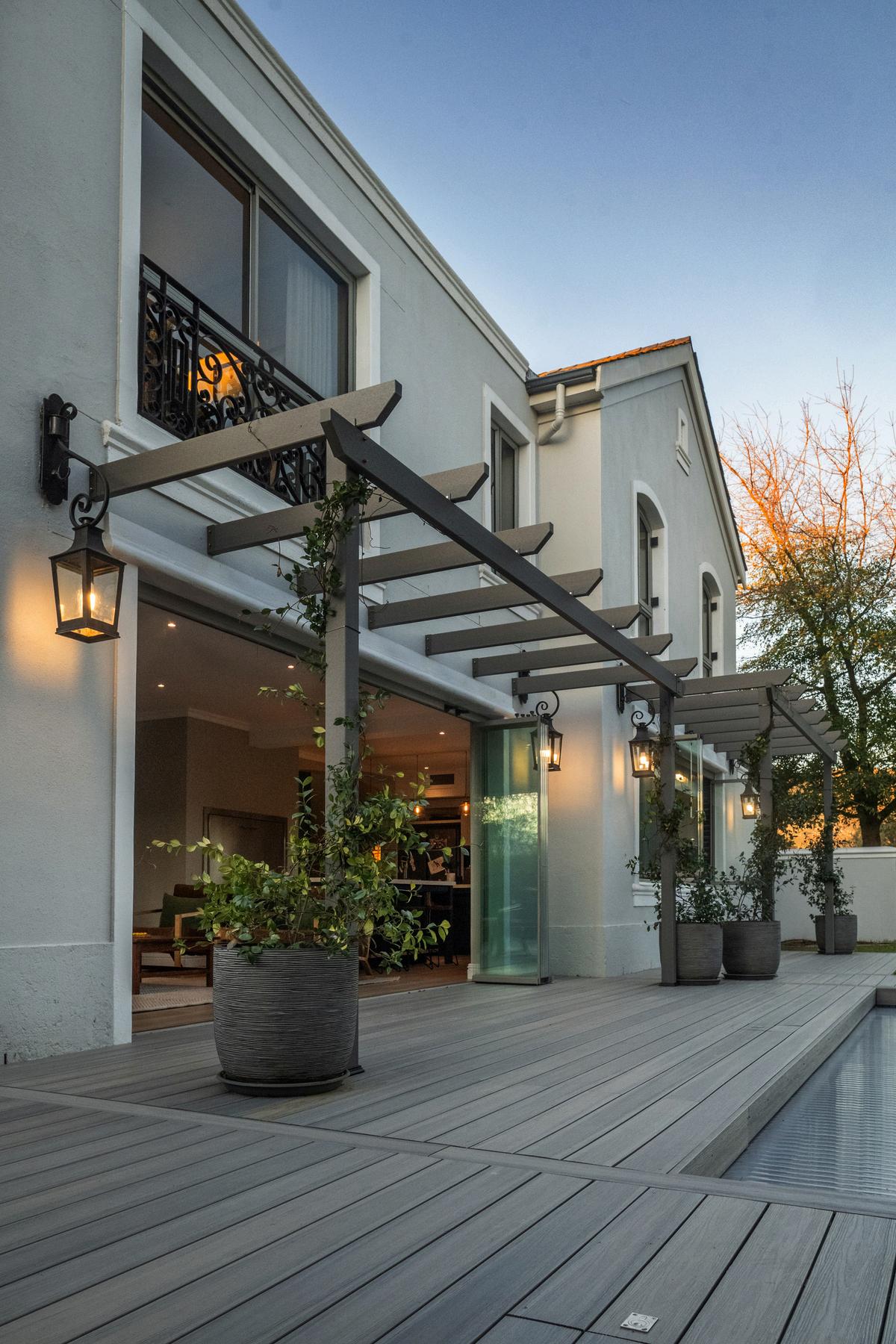

PHOTOGRAPHY CREDIT: CHRIS SCOTT | COPYRIGHT

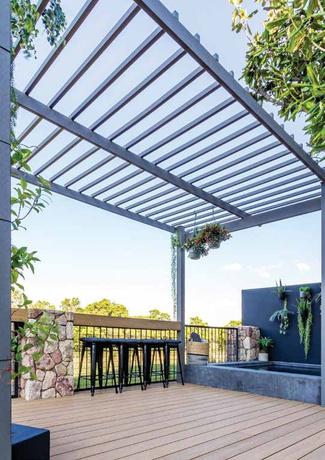

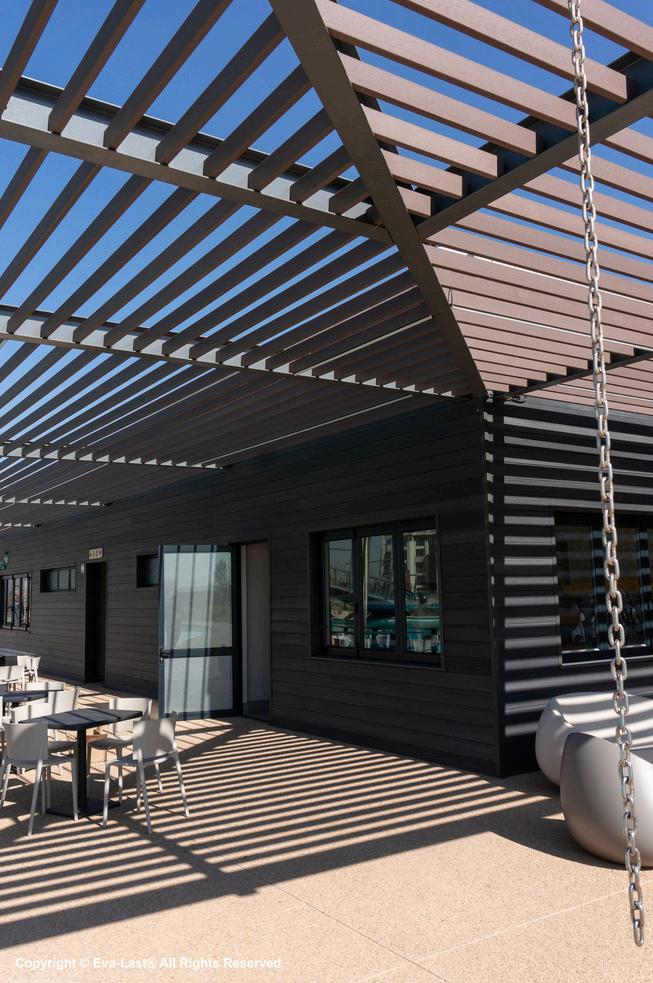

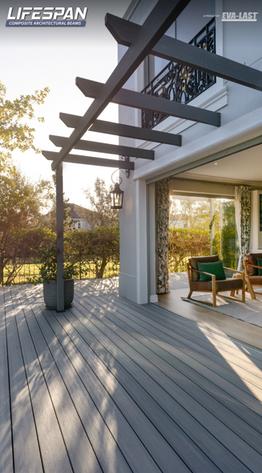

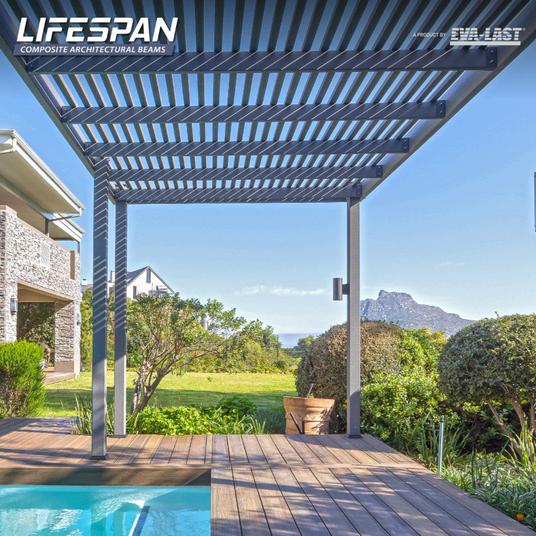

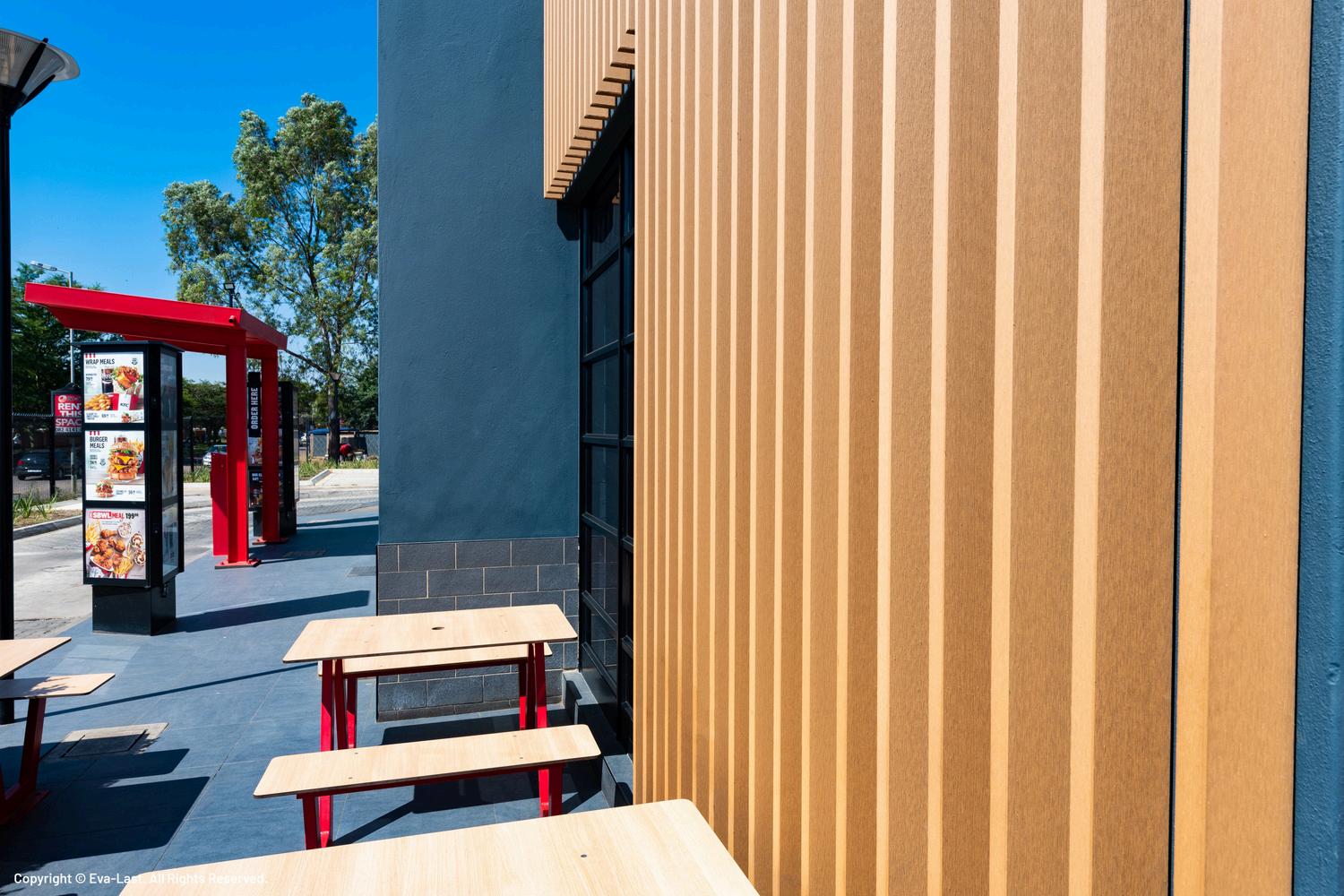

Lifespan beams add style and functionality in a diverse range of applications Enjoy the shade and privacy of a pergola or screen, or enhance the appeal of your home exterior with beams that give the look of wood without the maintenance hassles. The versatility of Lifespan decorative architectural beams is matched only by their beauty.
Roof Beams Span Tables Supporting Max roofing weight of 11.5 kg/m2
Single Span
Wind Class N2, Roof Panel Span = m (On Rake), Max Deflection Assumed
# Max Cantilever 450mm
Wind Class N2, Roof Panel Span = m (On Rake), Max Deflection Assumed lower of span /300 or 10mm
11 5kg/m2 sandwich panel load, 0 25kPa roof live load, 1 1 kN roof point load
To qualify for a continous span, adjacent span must be at least 75% of the larger span
*This span usage may be limited by the stock availability!
For N3 wind category, reduce spans by 20%, consult ITI for N4 and higher wind areas
# Max Cantilever 450mm
Pergola Beam Span Tables without Roofing
Single Span
Rafter Length
Maximum total of 1kN point live load allowed + rafters self weight
All Given spans are on rake only, user should adjust for pitch accordingly
# Max Cantilever 450mm
Continuous Span
Rafter Length
*This span usage may be limited by the stock availability!
To qualify for a continous span, adjacent span must be at least 75% of the larger span
Maximum total of 1kN point live load allowed + rafters self weight
All Given spans are on rake only, user should adjust for pitch accordingly
# Max Cantilever 450mm
